Abstract
Transcranial direct current stimulation (tDCS) is a non-invasive brain stimulation technique that allows the modulation of cortical excitability as well as neuroplastic reorganization using a weak constant current applied through the skull on the cerebral cortex. TDCS has been found to improve motor performance in general and motor learning in particular. However, these effects have been reported almost exclusively for unimanual motor tasks such as serial reaction time tasks, adaptation tasks, or visuo-motor tracking. Despite the importance of bimanual actions in most activities of daily living, only few studies have investigated the effects of tDCS on bimanual motor skills. The objectives of this review article are: (i) to provide a concise overview of the few existing studies in this area; and (ii) to discuss the effects of tDCS on bimanual motor skills in healthy volunteers and patients suffering from neurological diseases. Despite considerable variations in stimulation protocols, the bimanual tasks employed, and study designs, the data suggest that tDCS has the potential to enhance bimanual motor skills. The findings imply that the effects of tDCS vary with task demands, such as complexity and the level of expertise of the participating volunteers. Nevertheless, optimized stimulation protocols tailored to bimanual tasks and individual performance considering the underlying neural substrates of task execution are required in order to probe the effectiveness of tDCS in greater detail, thus creating an opportunity to support motor recovery in neuro-rehabilitation.
Introduction
The non-invasive brain stimulation technique of transcranial direct current stimulation (tDCS) is a suitable method for modulating cortical excitability (Bindman et al., 1964; Nitsche and Paulus, 2001) as well as neuro-plastic reorganization (Fritsch et al., 2010; Hunter et al., 2013; Karabanov et al., 2015). Previous studies suggest that tDCS can be used to facilitate motor performance such as motor learning in healthy volunteers (Reis and Fritsch, 2011; Buch et al., 2017) and in patients suffering from neurological disorders (Bastani and Jaberzadeh, 2012; Flöel, 2014). Notably, the effects of tDCS on motor performance are almost exclusively evidenced by studies employing unimanual tasks. However, it is well known that in a large variety of daily activities both hands are required to accomplish required actions. Impaired bimanual skills due to neurological disease or age-related decline (for an overview see Maes et al., 2017) present a challenge to independent living. Despite the abundance of daily activities that require bimanual skills, only few studies have thus far investigated the effects of tDCS on bimanual performance. Considering the increasing number of tDCS studies and the high relevance of bimanual motor skills the purpose of this review article is to provide a preliminary systematic characterization of tDCS effects on bimanual actions.
Review Criteria
The present review article focuses on studies addressing tDCS effects explicitly on bimanual motor performance, thus investigating bimanual motor outcome was the decisive criterion. To this end, a computer-based search of PubMed and Science Direct for articles from 2000 to 2017 was carried out in August 2017 using the following keywords: “bimanual” AND “transcranial direct current stimulation” OR “tDCS” OR “transcranial electrical stimulation” OR “non-invasive brain stimulation” OR “transcranial stimulation” and “coordination” AND “transcranial direct current stimulation” OR “tDCS” OR “transcranial electrical stimulation” OR “non-invasive brain stimulation” OR “transcranial stimulation”. A total of 18 articles matched the criteria. Five articles did not directly investigate bimanual motor skills and were therefore excluded.
Transcranial Direct Current Stimulation
TDCS allows the modulation of neural excitability (Bindman et al., 1962, 1964; Nitsche and Paulus, 2001). Using intensities of 0.5–2 milliampere (mA), a constant current is applied to the cerebral cortex via saline soaked sponges or gel-electrodes through the skull. Two electrodes with a surface area of 15–35 cm2 are used mostly, resulting in a current density of 0.014–0.133 mA/cm2 (Ho et al., 2016; Woods et al., 2016). In high-definition tDCS (HD-tDCS), smaller (1–5 cm2) and often more than two electrodes (e.g., 4 × 1 configuration) are used to increase the current density and focality of the stimulated area (Villamar et al., 2013; Alam et al., 2016). Although its exact physiological mechanisms are still under debate, evidence exists that anodal tDCS increases the neural excitability of the stimulated area, while cathodal tDCS decreases it. Anodal stimulation shifts the resting membrane potential closer to the critical depolarization threshold, resulting in a higher excitability and spiking rate, while the opposite effect of tonic hyperpolarization is associated with cathodal stimulation (Bindman et al., 1962; Nitsche and Paulus, 2000; Romero Lauro et al., 2014). These effects have mainly been derived from the stimulation of the primary motor cortex (M1), although comparable effects have also been demonstrated in visual (Antal et al., 2004; Accornero et al., 2007), somatosensory (Dieckhöfer et al., 2006), and auditory cortices (Zaehle et al., 2011). Nevertheless, anatomical differences—in particular, the spatial orientation of neurons—need to be considered in order to understand the effects of tDCS on other brain areas (Accornero et al., 2007). Moreover, the effects of tDCS depend on several factors like current intensity, duration and timing of tDCS relative to the specific task (prior to vs. during; Stagg et al., 2011; Batsikadze et al., 2013; Monte-Silva et al., 2013). The shape, size, number, and positions of the electrodes also determine the characteristics of tDCS such as distribution of the induced electrical field (Ho et al., 2016; Naros et al., 2016; Woods et al., 2016). Individual attributes of the participants (e.g., head anatomy, age) but also the excitability of the stimulated area are thought to influence the effects of tDCS yielding intra- and inter-individual variability on physiological and behavioral measures (Ridding and Ziemann, 2010; Li et al., 2015; Opitz et al., 2015). Besides local effects on the stimulated brain area, tDCS is presumed to affect the excitability of functionally connected areas as well. Such remote effects can be in the same (Antal et al., 2011) or opposite (Stagg et al., 2009) direction as the effects in the stimulated area.
Changes of M1 excitability associated with tDCS have been found to persist after cessation of stimulation (Nitsche and Paulus, 2000, 2001). Such after-effects are associated with alterations in N-methyl-d-aspartate (NMDA) receptors (Liebetanz et al., 2002)—at least within M1—yielding long-term potentiation (LTP)-like mechanisms. In motor learning, these effects seem to be strongest when tDCS is co-applied with motor training (Reis and Fritsch, 2011; Stagg et al., 2011) and applied over multiple days (Reis et al., 2009; Alonzo et al., 2012; Saucedo Marquez et al., 2013).
tDCS and Bimanual Motor Skills in Healthy Volunteers
Bimanual motor skills require a well-coordinated interplay between the upper limbs. Multiple brain areas are involved in orchestrating bimanual movements in space and time. Because the supplementary motor area (SMA) plays a pivotal role in such tasks (Swinnen, 2002; Debaere et al., 2004; Swinnen and Wenderoth, 2004; Swinnen and Gooijers, 2015), Carter et al. (2015) examined the effects of tDCS applied over the SMA on the stability, consistency, and transition of metronome-paced bimanual forearm movements from in- to anti-phase movements and vice versa. They reported improved stability and consistency as well as a delayed spontaneous transition from the anti- to the more stable in-phase pattern following anodal tDCS, while cathodal tDCS did not affect task performance (Carter et al., 2015). In line with this observation, anodal tDCS of the SMA was found to be associated with faster intentional switches from anti- to in-phase movements (Carter et al., 2017). These findings underline a central role of the SMA in the control of bimanual movements and suggest that tDCS represents a suitable method for the transient modulation of this process.
Typing a text on a keyboard requires bilateral well-coordinated, skilled finger movements, and particularly practice to achieve successful task performance. Gomes-Osman and Field-Fote (2013) investigated the effects of anodal tDCS over bilateral M1 on a bimanual typing task. Task performance was assessed immediately before and after stimulation. After five consecutive training days, participants showed a larger improvement in the number of correctly-typed bimanual sequences following anodal tDCS as compared to sham stimulation. However, this effect vanished after a 1-week retention interval. Ciechanski and Kirton (2017) examined the effects of tDCS on dexterity using the Purdue Pegboard Test (PPT; Tiffin and Asher, 1948). The PPT measures uni- and bimanual hand functions such as placing the maximum number of pegs in the pegboard within 30 s. While the bimanual task requires symmetrical movements of both hands, a second bimanual task (assembly) requires the asymmetrical (alternate) use of both hands to build a maximum number of small assemblies consisting of pins, collars and washers within 60 s (Desrosiers et al., 1995). Ciechanski and Kirton (2017) reported improved bimanual motor performance in healthy school children after training of the left hand with concurrent anodal tDCS applied to the contralateral M1 corresponding to C4. Interestingly, this effect was also present when cathodal tDCS was applied to the ipsilateral M1 (C3), but not after sham tDCS. While the symmetrical bimanual performance was facilitated, the more complex (asymmetrical) “assembly test” was not affected by either stimulation. After a retention interval of 6 weeks, improved task performance remained stable, suggesting enhanced motor consolidation associated with tDCS. Pixa et al. (2017b) also used the PPT to investigate the effect of multichannel HD-tDCS targeting bilateral M1 (see Table 1 for electrode positions). After a training period of 3 days with concurrent stimulation, larger cumulative performance gains in participants receiving anodal HD-tDCS compared to the sham-stimulated control group were found. Improved performance was indicated for the unimanual task of the dominant right hand and the bimanual PPT. Performance gains remained stable over a 1-week retention interval and further improvement was found for right-hand performance. As compared to sham tDCS, no significant differences were found for the unimanual left-hand task and—again—the more complex bimanual “assembly” task was not affected by tDCS (Pixa et al., 2017b). The same stimulation protocol was used to investigate effects of bilateral anodal HD-tDCS on the performance of a complex sequential bimanual stacking task (Pixa et al., 2017a). After 3 days of training in sport stacking (cup stacking) with concurrent anodal HD-tDCS, faster stacking performance compared to the sham group was found. This effect occurred for only one of the two required stacking formations (3-6-3), while only a statistical trend emerged for the more complex task-version (1-10-1). Re-testing after 1 week revealed sustained superior performance in the 3-6-3 stack for the anodal HD-tDCS group.

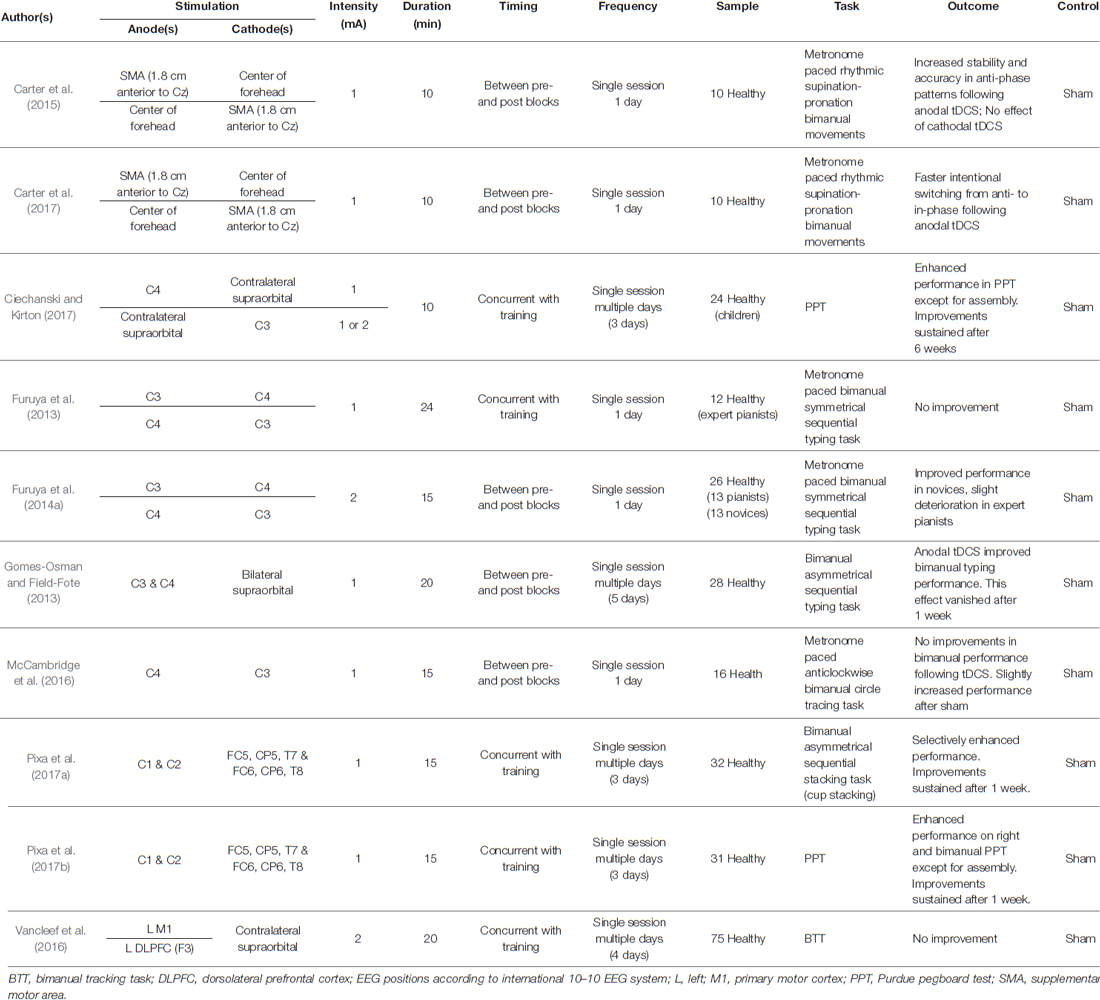

Table 1
| Author(s) | Stimulation | Intensity (mA) | Duration (min) | Timing | Frequency | Sample | Task | Outcome | Control | |
|---|---|---|---|---|---|---|---|---|---|---|
| Anode(s) | Cathode(s) | |||||||||
| Carter et al. (2015) | SMA (1.8 cm anterior to Cz) | Center of forehead | 1 | 10 | Between pre- and post blocks | Single session 1 day | 10 Healthy | Metronome paced rhythmic supination-pronation bimanual movements | Increased stability and accuracy in anti-phase patterns following anodal tDCS; No effect of cathodal tDCS | Sham |
| Center of forehead | SMA (1.8 cm anterior to Cz) | |||||||||
| Carter et al. (2017) | SMA (1.8 cm anterior to Cz) | Center of forehead | 1 | 10 | Between pre- and post blocks | Single session 1 day | 10 Healthy | Metronome paced rhythmic supination-pronation bimanual movements | Faster intentional switching from anti- to in-phase following anodal tDCS | Sham |
| Center of forehead | SMA (1.8 cm anterior to Cz) | |||||||||
| Ciechanski and Kirton (2017) | C4 | Contralateral supraorbital | 1 | 10 | Concurrent with training | Single session multiple days (3 days) | 24 Healthy (children) | PPT | Enhanced performance in PPT except for assembly. Improvements sustained after 6 weeks | Sham |
| Contralateral supraorbital | C3 | 1 or 2 | ||||||||
| Furuya et al. (2013) | C3 | C4 | 1 | 24 | Concurrent with training | Single session 1 day | 12 Healthy (expert pianists) | Metronome paced bimanual symmetrical sequential typing task | No improvement | Sham |
| C4 | C3 | |||||||||
| Furuya et al. (2014a) | C3 | C4 | 2 | 15 | Between pre- and post blocks | Single session 1 day | 26 Healthy (13 pianists) (13 novices) | Metronome paced bimanual symmetrical sequential typing task | Improved performance in novices, slight deterioration in expert pianists | Sham |
| C4 | C3 | |||||||||
| Gomes-Osman and Field-Fote (2013) | C3 & C4 | Bilateral supraorbital | 1 | 20 | Between pre- and post blocks | Single session multiple days (5 days) | 28 Healthy | Bimanual asymmetrical sequential typing task | Anodal tDCS improved bimanual typing performance. This effect vanished after 1 week | Sham |
| McCambridge et al. (2016) | C4 | C3 | 1 | 15 | Between pre- and post blocks | Single session 1 day | 16 Health | Metronome paced anticlockwise bimanual circle tracing task | No improvements in bimanual performance following tDCS. Slightly increased performance after sham | Sham |
| Pixa et al. (2017a) | C1 & C2 | FC5, CP5, T7 & FC6, CP6, T8 | 1 | 15 | Concurrent with training | Single session multiple days (3 days) | 32 Healthy | Bimanual asymmetrical sequential stacking task (cup stacking) | Selectively enhanced performance. Improvements sustained after 1 week. | Sham |
| Pixa et al. (2017b) | C1 & C2 | FC5, CP5, T7 & FC6, CP6, T8 | 1 | 15 | Concurrent with training | Single session multiple days (3 days) | 31 Healthy | PPT | Enhanced performance on right and bimanual PPT except for assembly. Improvements sustained after 1 week. | Sham |
| Vancleef et al. (2016) | L M1 | Contralateral supraorbital | 2 | 20 | Concurrent with training | Single session multiple days (4 days) | 75 Healthy | BTT | No improvement | Sham |
| L DLPFC (F3) | ||||||||||
Overview of studies investigating the effects of transcranial direct current stimulation (tDCS) on bimanual motor skills in healthy volunteers.
BTT, bimanual tracking task; DLPFC, dorsolateral prefrontal cortex; EEG positions according to international 10–10 EEG system; L, left; M1, primary motor cortex; PPT, Purdue pegboard test; SMA, supplementary motor area.
In two studies, Furuya et al. (2013, 2014a) demonstrated that the effects of tDCS on bimanual motor performance depend on the subjects’ level of expertise. While highly-trained expert pianists did not benefit from bilateral tDCS over M1 (anode right M1 and cathode left M1 and vice versa) in a bimanual finger typing task, the analysis revealed that only pianists who commenced piano training at an advanced age showed selectively improved performance following tDCS, irrespective of the stimulation protocol (Furuya et al., 2013). A second study using the same bimanual task, suggests that musically untrained volunteers (novices) significantly improved bimanual performance following tDCS, whereas expert pianists did not. Rather, the skilled finger movements of the pianists were found to be slightly deteriorated after verum stimulation compared to sham stimulation (Furuya et al., 2014a).
It should also be stressed that other studies have failed to provide evidence of significant stimulation effects on bimanual task performance. McCambridge et al. (2016) applied bilateral tDCS with the anode over the right M1 and the cathode over the left M1 and assessed the effects on left-hand and bimanual circle tracing performance. The results indicated a marginal effect on the bimanual task in low performers who received sham stimulation, while no significant effect was found in participants who received active tDCS. Vancleef et al. (2016) examined the effects on task performance of anodal tDCS applied to the left M1 or the left dorsolateral prefrontal cortex (DLPFC) during training on a complex bimanual tracking task (BTT). The BTT requires tracking of a moving dot by rotating two dials with the left (vertical direction) and right (horizontal direction) hands in different frequency-ratios. The authors reported improved motor performance for all participants, independent of tDCS.
Despite the heterogeneity in findings, the data begin to reveal that tDCS may affect relatively easy rather than complex bimanual tasks in particular and that it appears to be more effective in novice volunteers rather than in experts.
tDCS and Bimanual Motor Performance in Patients
Impairment of bimanual skills can occur due to a wide variety of neurological diseases, like stroke or Parkinson’s disease, and task performance might be influenced by altered cortical excitability, such as in focal dystonia (FD). In FD, the affected M1 shows pathologically increased activity that is associated with involuntary movements (e.g., tremor) and muscle spasms of the contralateral effector (Cohen and Hallett, 1988; Stinear and Byblow, 2004). Since tDCS likely modulates motor cortical excitability, Furuya et al. (2014b) investigated the effects of five different stimulation configurations (see Table 2 for an overview of different electrode montages) on bimanual task performance in pianists suffering from FD of the right hand and in healthy controls. The study revealed that bilateral tDCS over M1 (affected left M1; cathode over C3, anode over C4) led to increased accuracy of the dystonic hand, both during and after tDCS, while performing metronome-paced symmetrical bimanual finger movements. This effect was not found for bilateral tDCS with the anode over C3, unilateral tDCS (anode over C4), sham stimulation or—noteworthy for bilateral tDCS—with the cathode over C3 and anode over C4 without concurrent bimanual training. Interestingly, performance gains were positively correlated with FD severity.

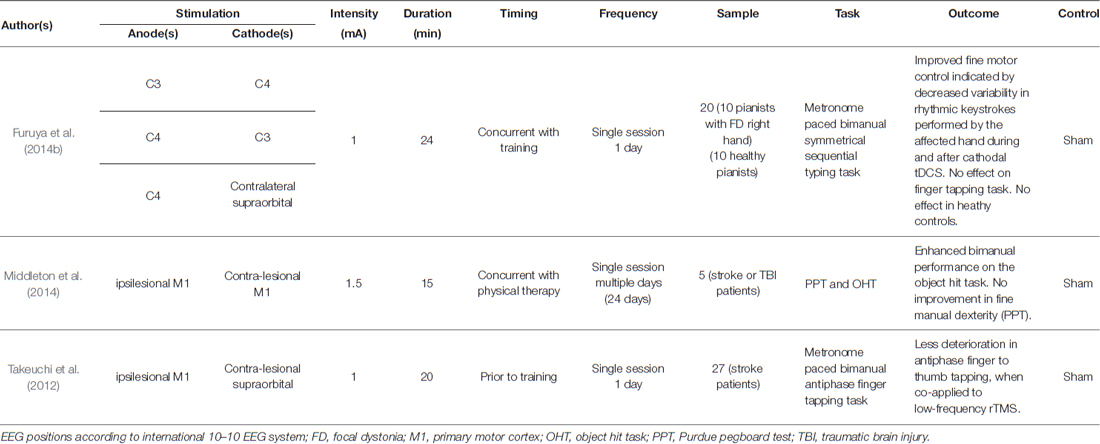

Table 2
| Author(s) | Stimulation | Intensity (mA) | Duration (min) | Timing | Frequency | Sample | Task | Outcome | Control | |
|---|---|---|---|---|---|---|---|---|---|---|
| Anode(s) | Cathode(s) | |||||||||
| Furuya et al. (2014b) | C3 | C4 | 1 | 24 | Concurrent with training | Single session 1 day | 20 (10 pianists with FD right hand) (10 healthy pianists) | Metronome paced bimanual symmetrical sequential typing task | Improved fine motor control indicated by decreased variability in rhythmic keystrokes performed by the affected hand during and after cathodal tDCS. No effect on finger tapping task. No effect in heathy controls. | Sham |
| C4 | C3 | |||||||||
| C4 | Contralateral supraorbital | |||||||||
| Middleton et al. (2014) | ipsilesional M1 | Contra-lesional M1 | 1.5 | 15 | Concurrent with physical therapy | Single session multiple days (24 days) | 5 (stroke or TBI patients) | PPT and OHT | Enhanced bimanual performance on the object hit task. No improvement in fine manual dexterity (PPT). | Sham |
| Takeuchi et al. (2012) | ipsilesional M1 | Contra-lesional supraorbital | 1 | 20 | Prior to training | Single session 1 day | 27 (stroke patients) | Metronome paced bimanual antiphase finger tapping task | Less deterioration in antiphase finger to thumb tapping, when co-applied to low-frequency rTMS. | Sham |
Overview of studies investigating the effects of tDCS on bimanual motor skills in patients.
EEG positions according to international 10–10 EEG system; FD, focal dystonia; M1, primary motor cortex; OHT, object hit task; PPT, Purdue pegboard test; TBI, traumatic brain injury.
Traumatic brain injuries (TBI) can also impair bimanual motor task performance. In a pilot study, Middleton et al. (2014) combined bihemispheric tDCS with physical therapy of the upper extremities in patients suffering from stroke and TBI. Bihemispheric tDCS was applied concurrently with physical therapy for 15 min, with the anode over the ipsilesional M1. The intervention was implemented over 24 sessions, with three sessions per week. The results revealed improved function of the upper extremities in clinical (Fugl-Meyer Assessment UE, Box and Block Test, PPT, Stroke Impact Scale) and robotic measures (Visually Guided Reaching Task, Object hit task (OHT)). Focusing on bimanual measures, performance in the OHT showed improved bimanual coordination, indicating superior gross motor function. However, bimanual fine motor control in the PPT did not benefit from stimulation. The observed gains persisted up to 6 months. In line with Middleton et al. (2014) the data support the notion that tDCS represents a feasible approach facilitating the effects of physical therapy of the upper extremities. Takeuchi et al. (2012) combined low-frequency, single-pulse, repetitive transcranial magnetic stimulation (rTMS) over the unaffected hemisphere of stroke patients with simultaneous application of anodal tDCS over the affected M1. The combination of rTMS and anodal tDCS was found to reduce motor impairment in these patients (Takeuchi et al., 2012).
Discussion
In the light of the abundance of everyday tasks requiring bimanual actions and their importance in independent living, the purpose of this review article was to summarize the few existing studies investigating the effects of tDCS on bimanual motor skills. The data suggest that—although some studies have failed to show tDCS-specific effects on bimanual tasks—tDCS has the potential to enhance bimanual motor performance in healthy volunteers as well as in patients suffering from neurological diseases. The overview reveals that—besides the well-known inter- and intra-individual variability of outcome-measures, conflicting study results may be attributed to substantial variations in stimulation protocols, bimanual tasks, and study designs (see Tables 1, 2). Nevertheless, this review article provides a starting point for a systematic evaluation of tDCS effects on bimanual task performance.
Taken together, the data indicate that M1 was the preferred brain area for tDCS application to modulate bimanual performance, in line with the majority of tDCS studies addressing unimanual tasks (for an overview see Buch et al., 2017). However, it must be stressed that the use of stimulation protocols commonly applied for unimanual tasks might represent an oversimplification of the brain processes subserving bimanual task performance since brain areas involved and—more importantly—the temporally precise functional interaction between these areas are assumed to differ between bi- and unimanual tasks (Debaere et al., 2004; Swinnen and Wenderoth, 2004; Wenderoth et al., 2005; Pollok et al., 2007). Several brain regions which are involved in bimanual motor performance are accessible by means of tDCS. The parietal cortex (PC) is suggested to play a pivotal role in bimanual performance through multisensory integration and guidance of movements (Battaglia-Mayer et al., 2006; Buneo and Andersen, 2006), and, learning of bimanual skills (Debaere et al., 2004). Additionally, the right superior temporal gyrus (STG) is proposed to be causally involved in monitoring bimanual spatio-temporal goals (Duque et al., 2010). Furthermore, until now no study had investigated effects of premotor cortex (PMC) or cerebellar tDCS on bimanual motor skills. Moreover, different task demands such as the required type of bimanual action (e.g., symmetric or asymmetric) to achieve a specific task-goal, as well as individual expertise (Furuya et al., 2014a), are likely related to distinct activation patterns within the motor network of bimanual actions (Puttemans et al., 2005; Jantzen et al., 2008; Duque et al., 2010; Whitall et al., 2011). Since complex bimanual tasks are associated with brain activation extending towards the prefrontal, parietal and temporal areas (Gross et al., 2002; Debaere et al., 2004; Hardwick et al., 2013; Swinnen and Gooijers, 2015), the stimulation of a particular brain area might not be effective in modulating complex bimanual skills. This hypothesis fits well with the observation that more complex bimanual tasks remain unaffected by tDCS (Vancleef et al., 2016; Ciechanski and Kirton, 2017; Pixa et al., 2017a,b). Since the neural mechanisms of the wide variety of bimanual actions, as well as the neurophysiological mechanisms underlying tDCS, are not completely understood, future studies need to consider neurophysiological measures using, e.g., TMS, electroencephalography (EEG), magnetoencephalography (MEG) or functional near-infrared spectroscopy (fNIRS). This is particularly important since intra- and inter-individual variability in responses to tDCS is suggested to highly influence study outcomes (Li et al., 2015).
So far, only three studies were identified that have investigated the effects of tDCS on bimanual skills in patients. Although these studies widely differ in terms of the respective stimulation protocol and—even more important—the underlying disease, the findings suggest facilitating effects of tDCS on bimanual task performance. Although sparse, the data imply that tDCS in combination with motor training represents a suitable method for neuro-rehabilitation.
Finally, besides tDCS other techniques like transcranial alternate current stimulation (tACS) or transcranial random noise stimulation (tRNS) are suitable methods for the non-invasive modulation of brain processes subserving motor learning (Prichard et al., 2014; Pollok et al., 2015). However, to the best of our knowledge, no study that had adopted one of these methods in bimanual tasks has been published until yet.
Conclusion
Up until now, knowledge about the effects of tDCS on bimanual performance has remained limited due to a relatively small number of studies with mixed results. However, despite the heterogeneity in stimulation protocols, study designs, and paradigms, the data suggest that tDCS has the potential to enhance bimanual motor performance in healthy volunteers as well as in patients suffering from a variety of neurological diseases. Noteworthy, the data do not allow the identification of specific tDCS parameters as most effective to modulate bimanual motor skills. Therefore, tailoring tDCS protocols to bimanual motor tasks will critically challenge future studies.
Statements
Author contributions
NHP contributed to the conceptualization of the review, performed the literature research, interpretation of the data, wrote the manuscript, approved the final version of the manuscript and acted as corresponding author. BP substantially contributed to the data interpretation, wrote parts of the manuscript and critically revised the manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
AccorneroN.Li VotiP.La RicciaM.GregoriB. (2007). Visual evoked potentials modulation during direct current cortical polarization. Exp. Brain Res.178, 261–266. 10.1007/s00221-006-0733-y
2
AlamM.TruongD. Q.KhadkaN.BiksonM. (2016). Spatial and polarity precision of concentric high-definition transcranial direct current stimulation (HD-tDCS). Phys. Med. Biol.61, 4506–4521. 10.1088/0031-9155/61/12/4506
3
AlonzoA.BrassilJ.TaylorJ. L.MartinD.LooC. K. (2012). Daily transcranial direct current stimulation (tDCS) leads to greater increases in cortical excitability than second daily transcranial direct current stimulation. Brain Stimul.5, 208–213. 10.1016/j.brs.2011.04.006
4
AntalA.KincsesT. Z.NitscheM. A.BartfaiO.PaulusW. (2004). Excitability changes induced in the human primary visual cortex by transcranial direct current stimulation: direct electrophysiological evidence. Invest. Ophthalmol. Vis. Sci.45, 702–707. 10.1167/iovs.03-0688
5
AntalA.PolaniaR.Schmidt-SamoaC.DechentP.PaulusW. (2011). Transcranial direct current stimulation over the primary motor cortex during fMRI. Neuroimage55, 590–596. 10.1016/j.neuroimage.2010.11.085
6
BastaniA.JaberzadehS. (2012). Does anodal transcranial direct current stimulation enhance excitability of the motor cortex and motor function in healthy individuals and subjects with stroke: a systematic review and meta-analysis. Clin. Neurophysiol.123, 644–657. 10.1016/j.clinph.2011.08.029
7
BatsikadzeG.MoliadzeV.PaulusW.KuoM.-F.NitscheM. A. (2013). Partially non-linear stimulation intensity-dependent effects of direct current stimulation on motor cortex excitability in humans. J. Physiol.591, 1987–2000. 10.1113/jphysiol.2012.249730
8
Battaglia-MayerA.ArchambaultP. S.CaminitiR. (2006). The cortical network for eye-hand coordination and its relevance to understanding motor disorders of parietal patients. Neuropsychologia44, 2607–2620. 10.1016/j.neuropsychologia.2005.11.021
9
BindmanL. J.LippoldO. C. J.RedfearnJ. W. T. (1962). Long-lasting changes in the level of the electrical activity of the cerebral cortex produced by polarizing currents. Nature196, 584–585. 10.1038/196584a0
10
BindmanL. J.LippoldO. C. J.RedfearnJ. W. T. (1964). The action of brief polarizing currents on the cerebral cortex of the rat (1) during current flow and (2) in the production of long-lasting after-effects. J. Physiol.172, 369–382. 10.1113/jphysiol.1964.sp007425
11
BuchE. R.SantarnecchiE.AntalA.BornJ.CelnikP. A.lassenJ.et al. (2017). Effects of tDCS on motor learning and memory formation: a consensus and critical position paper. Clin. Neurophysiol.128, 589–603. 10.1016/j.clinph.2017.01.004
12
BuneoC. A.AndersenR. A. (2006). The posterior parietal cortex: sensorimotor interface for the planning and online control of visually guided movements. Neuropsychologia44, 2594–2606. 10.1016/j.neuropsychologia.2005.10.011
13
CarterM. J.MaslovatD.CarlsenA. N. (2015). Anodal transcranial direct current stimulation applied over the supplementary motor area delays spontaneous antiphase-to-in-phase transitions. J. Neurophysiol.113, 780–785. 10.1152/jn.00662.2014
14
CarterM. J.MaslovatD.CarlsenA. N. (2017). Intentional switches between coordination patterns are faster following anodal-tDCS applied over the supplementary motor area. Brain Stimul.10, 162–164. 10.1016/j.brs.2016.11.002
15
CiechanskiP.KirtonA. (2017). Transcranial direct-current stimulation can enhance motor learning in children. Cereb. Cortex27, 2758–2767. 10.1093/cercor/bhw114
16
CohenL. G.HallettM. (1988). Hand cramps: clinical features and electromyographic patterns in a focal dystonia. Neurology38, 1005–1012. 10.1212/WNL.38.7.1005
17
DebaereF.WenderothN.SunaertS.van HeckeP.SwinnenS. P. (2004). Changes in brain activation during the acquisition of a new bimanual coodination task. Neuropsychologia42, 855–867. 10.1016/j.neuropsychologia.2003.12.010
18
DesrosiersJ.HébertR.BravoG.DutilE. (1995). The Purdue Pegboard Test: normative data for people aged 60 and over. Disabil. Rehabil.17, 217–224. 10.3109/09638289509166638
19
DieckhöferA.WaberskiT. D.NitscheM.PaulusW.BuchnerH.GobbeléR. (2006). Transcranial direct current stimulation applied over the somatosensory cortex—differential effect on low and high frequency SEPs. Clin. Neurophysiol.117, 2221–2227. 10.1016/j.clinph.2006.06.415
20
DuqueJ.DavareM.DelaunayL.JacobB.SaurR.HummelF.et al. (2010). Monitoring coordination during bimanual movements: where is the mastermind?J. Cogn. Neurosci.22, 526–542. 10.1162/jocn.2009.21213
21
FlöelA. (2014). tDCS-enhanced motor and cognitive function in neurological diseases. Neuroimage85, 934–947. 10.1016/j.neuroimage.2013.05.098
22
FritschB.ReisJ.MartinowichK.SchambraH. M.JiY.CohenL. G.et al. (2010). Direct current stimulation promotes BDNF-dependent synaptic plasticity: potential implications for motor learning. Neuron66, 198–204. 10.1016/j.neuron.2010.03.035
23
FuruyaS.KlausM.NitscheM. A.PaulusW.AltenmullerE. (2014a). Ceiling effects prevent further improvement of transcranial stimulation in skilled musicians. J. Neurosci.34, 13834–13839. 10.1523/JNEUROSCI.1170-14.2014
24
FuruyaS.NitscheM. A.PaulusW.AltenmüllerE. (2014b). Surmounting retraining limits in musicians’ dystonia by transcranial stimulation. Ann. Neurol.75, 700–707. 10.1002/ana.24151
25
FuruyaS.NitscheM. A.PaulusW.AltenmüllerE. (2013). Early optimization in finger dexterity of skilled pianists: implication of transcranial stimulation. BMC Neurosci.14:35. 10.1186/1471-2202-14-35
26
Gomes-OsmanJ.Field-FoteE. C. (2013). Bihemispheric anodal corticomotor stimulation using transcranial direct current stimulation improves bimanual typing task performance. J. Mot. Behav.45, 361–367. 10.1080/00222895.2013.808604
27
GrossJ.TimmermannL.KujalaJ.DirksM.SchmitzF.SalmelinR.et al. (2002). The neural basis of intermittent motor control in humans. Proc. Natl. Acad. Sci. U S A99, 2299–2302. 10.1073/pnas.032682099
28
HardwickR. M.RottschyC.MiallR. C.EickhoffS. B. (2013). A quantitative meta-analysis and review of motor learning in the human brain. Neuroimage67, 283–297. 10.1016/j.neuroimage.2012.11.020
29
HoK.-A.TaylorJ. L.ChewT.GálvezV.AlonzoA.BaiS.et al. (2016). The effect of transcranial direct current stimulation (tDCS) electrode size and current intensity on motor cortical excitability: evidence from single and repeated sessions. Brain Stimul.9, 1–7. 10.1016/j.brs.2015.08.003
30
HunterM. A.CoffmanB. A.TrumboM. C.ClarkV. P. (2013). Tracking the neuroplastic changes associated with transcranial direct current stimulation: a push for multimodal imaging. Front. Hum. Neurosci.7:495. 10.3389/fnhum.2013.00495
31
JantzenK. J.OullierO.Scott KelsoJ. A. (2008). Neuroimaging coordination dynamics in the sport sciences. Methods45, 325–335. 10.1016/j.ymeth.2008.06.001
32
KarabanovA.ZiemannU.HamadaM.GeorgeM. S.QuartaroneA.ClassenJ.et al. (2015). Consensus paper: probing homeostatic plasticity of human cortex with non-invasive transcranial brain stimulation. Brain Stimul.8, 442–454. 10.1016/j.brs.2015.01.404
33
LiL. M.UeharaK.HanakawaT. (2015). The contribution of interindividual factors to variability of response in transcranial direct current stimulation studies. Front. Cell. Neurosci.9:898. 10.3389/fncel.2015.00181
34
LiebetanzD.NitscheM. A.TergauF.PaulusW. (2002). Pharmacological approach to the mechanisms of transcranial DC-stimulation-induced after-effects of human motor cortex excitability. Brain125, 2238–2247. 10.1093/brain/awf238
35
MaesC.GooijersJ.Orban de XivryJ.-J.SwinnenS. P.BoisgontierM. P. (2017). Two hands, one brain, and aging. Neurosci. Biobehav. Rev.75, 234–256. 10.1016/j.neubiorev.2017.01.052
36
McCambridgeA. B.StinearJ. W.ByblowW. D. (2016). Neurophysiological and behavioural effects of dual-hemisphere transcranial direct current stimulation on the proximal upper limb. Exp. Brain Res.234, 1419–1428. 10.1007/s00221-015-4547-7
37
MiddletonA.FritzS. L.LiuzzoD. M.Newman-NorlundR.HerterT. M. (2014). Using clinical and robotic assessment tools to examine the feasibility of pairing tDCS with upper extremity physical therapy in patients with stroke and TBI: a consideration-of-concept pilot study. NeuroRehabilitation35, 741–754. 10.3233/NRE-141178
38
Monte-SilvaK.KuoM.-F.HessenthalerS.FresnozaS.LiebetanzD.PaulusW.et al. (2013). Induction of late LTP-like plasticity in the human motor cortex by repeated non-invasive brain stimulation. Brain Stimul.6, 424–432. 10.1016/j.brs.2012.04.011
39
NarosG.GeyerM.KochS.MayrL.EllingerT.GrimmF.et al. (2016). Enhanced motor learning with bilateral transcranial direct current stimulation: impact of polarity or current flow direction?Clin. Neurophysiol.127, 2119–2126. 10.1016/j.clinph.2015.12.020
40
NitscheM. A.PaulusW. (2000). Excitability changes induced in the human motor cortex by weak transcranial direct current stimulation. J. Physiol.527, 633–639. 10.1111/j.1469-7793.2000.t01-1-00633.x
41
NitscheM. A.PaulusW. (2001). Sustained excitability elevations induced by transcranial DC motor cortex stimulation in humans. Neurology57, 1899–1901. 10.1212/WNL.57.10.1899
42
OpitzA.PaulusW.WillS.AntunesA.ThielscherA. (2015). Determinants of the electric field during transcranial direct current stimulation. Neuroimage109, 140–150. 10.1016/j.neuroimage.2015.01.033
43
PixaN. H.SteinbergF.DoppelmayrM. (2017a). Effects of high-definition anodal transcranial direct current stimulation applied simultaneously to both primary motor cortices on bimanual sensorimotor performance. Front. Behav. Neurosci.11:4506. 10.3389/fnbeh.2017.00130
44
PixaN. H.SteinbergF.DoppelmayrM. (2017b). High-definition transcranial direct current stimulation to both primary motor cortices improves unimanual and bimanual dexterity. Neurosci. Lett.643, 84–88. 10.1016/j.neulet.2017.02.033
45
PollokB.BoysenA.-C.KrauseV. (2015). The effect of transcranial alternating current stimulation (tACS) at α and β frequency on motor learning. Behav. Brain Res.293, 234–240. 10.1016/j.bbr.2015.07.049
46
PollokB.ButzM.GrossJ.SchnitzlerA. (2007). Intercerebellar coupling contributes to bimanual coordination. J. Cogn. Neurosci.19, 704–719. 10.1162/jocn.2007.19.4.704
47
PrichardG.WeillerC.FritschB.ReisJ. (2014). Effects of different electrical brain stimulation protocols on subcomponents of motor skill learning. Brain Stimul.7, 532–540. 10.1016/j.brs.2014.04.005
48
PuttemansV.WenderothN.SwinnenS. P. (2005). Changes in brain activation during the acquisition of a multifrequency bimanual coordination task: from the cognitive stage to advanced levels of automaticity. J. Neurosci.25, 4270–4278. 10.1523/JNEUROSCI.3866-04.2005
49
ReisJ.FritschB. (2011). Modulation of motor performance and motor learning by transcranial direct current stimulation. Curr. Opin. Neurol.24, 590–596. 10.1097/WCO.0b013e32834c3db0
50
ReisJ.SchambraH. M.CohenL. G.BuchE. R.FritschB.ZarahnE.et al. (2009). Noninvasive cortical stimulation enhances motor skill acquisition over multiple days through an effect on consolidation. Proc. Natl. Acad. Sci. U S A106, 1590–1595. 10.1073/pnas.0805413106
51
RiddingM. C.ZiemannU. (2010). Determinants of the induction of cortical plasticity by non-invasive brain stimulation in healthy subjects. J. Physiol.588, 2291–2304. 10.1113/jphysiol.2010.190314
52
Romero LauroL. J.RosanovaM.MattavelliG.ConventoS.PisoniA.OpitzA.et al. (2014). TDCS increases cortical excitability: direct evidence from TMS-EEG. Cortex58, 99–111. 10.1016/j.cortex.2014.05.003
53
Saucedo MarquezC. M.ZhangX.SwinnenS. P.MeesenR.WenderothN. (2013). Task-specific effect of transcranial direct current stimulation on motor learning. Front. Hum. Neurosci.7:333. 10.3389/fnhum.2013.00333
54
StaggC. J.BestJ. G.StephensonM. C.O’SheaJ.WylezinskaM.KincsesZ. T.et al. (2009). Polarity-sensitive modulation of cortical neurotransmitters by transcranial stimulation. J. Neurosci.29, 5202–5206. 10.1523/JNEUROSCI.4432-08.2009
55
StaggC. J.JayaramG.PastorD.KincsesZ. T.MatthewsP. M.Johansen-BergH. (2011). Polarity and timing-dependent effects of transcranial direct current stimulation in explicit motor learning. Neuropsychologia49, 800–804. 10.1016/j.neuropsychologia.2011.02.009
56
StinearC. M.ByblowW. D. (2004). Impaired modulation of intracortical inhibition in focal hand dystonia. Cereb. Cortex14, 555–561. 10.1093/cercor/bhh017
57
SwinnenS. P. (2002). Intermanual coordination: from behavioural principles to neural-network interactions. Nat. Rev. Neurosci.3, 348–359. 10.1038/nrn807
58
SwinnenS. P.GooijersJ. (2015). “Bimanual coordination,” in Brain Mapping: An Encyclopedic Reference, ed. TogaA. W. (Burlington: Elsevier Science), 475–482.
59
SwinnenS. P.WenderothN. (2004). Two hands, one brain: cognitive neuroscience of bimanual skill. Trends Cogn. Sci.8, 18–25. 10.1016/j.tics.2003.10.017
60
TakeuchiN.TadaT.MatsuoY.IkomaK. (2012). Low-frequency repetitive TMS plus anodal transcranial DCS prevents transient decline in bimanual movement induced by contralesional inhibitory rTMS after stroke. Neurorehabil. Neural Repair26, 988–998. 10.1177/1545968311433295
61
TiffinJ.AsherE. J. (1948). The Purdue pegboard; norms and studies of reliability and validity. J. Appl. Psychol.32, 234–247. 10.1037/h0061266
62
VancleefK.MeesenR.SwinnenS. P.FujiyamaH. (2016). tDCS over left M1 or DLPFC does not improve learning of a bimanual coordination task. Sci. Rep.6:35739. 10.1038/srep35739
63
VillamarM. F.VolzM. S.BiksonM.DattaA.DaSilvaA. F.FregniF. (2013). Technique and considerations in the use of 4x1 ring high-definition transcranial direct current stimulation (HD-tDCS). J. Vis. Exp.77:e50309. 10.3791/50309
64
WenderothN.DebaereF.SunaertS.SwinnenS. P. (2005). Spatial interference during bimanual coordination: differential brain networks associated with control of movement amplitude and direction. Hum. Brain Mapp.26, 286–300. 10.1002/hbm.20151
65
WhitallJ.WallerS. M.SorkinJ. D.ForresterL. W.MackoR. F.HanleyD. F.et al. (2011). Bilateral and unilateral arm training improve motor function through differing neuroplastic mechanisms: a single-blinded randomized controlled trial. Neurorehabil. Neural Repair25, 118–129. 10.1177/1545968310380685
66
WoodsA. J.AntalA.BiksonM.BoggioP. S.BrunoniA. R.CelnikP.et al. (2016). A technical guide to tDCS, and related non-invasive brain stimulation tools. Clin. Neurophysiol.127, 1031–1048. 10.1016/j.clinph.2015.11.012
67
ZaehleT.BerettaM.JänckeL.HerrmannC. S.SandmannP. (2011). Excitability changes induced in the human auditory cortex by transcranial direct current stimulation: direct electrophysiological evidence. Exp. Brain Res.215, 135–140. 10.1007/s00221-011-2879-5
Summary
Keywords
non-invasive brain stimulation, transcranial direct current stimulation, bimanual movements, bimanual coordination, motor learning and performance
Citation
Pixa NH and Pollok B (2018) Effects of tDCS on Bimanual Motor Skills: A Brief Review. Front. Behav. Neurosci. 12:63. doi: 10.3389/fnbeh.2018.00063
