Abstract
Amyotrophic lateral sclerosis (ALS) encompasses a heterogeneous group of phenotypes with different progression rates, varying degree of extra-motor involvement and divergent progression patterns. The natural history of ALS is increasingly evaluated by large, multi-time point longitudinal studies, many of which now incorporate presymptomatic and post-mortem assessments. These studies not only have the potential to characterize patterns of anatomical propagation, molecular mechanisms of disease spread, but also to identify pragmatic monitoring markers. Sensitive markers of progressive neurodegenerative change are indispensable for clinical trials and individualized patient care. Biofluid markers, neuroimaging indices, electrophysiological markers, rating scales, questionnaires, and other disease-specific instruments have divergent sensitivity profiles. The discussion of candidate monitoring markers in ALS has a dual academic and clinical relevance, and is particularly timely given the increasing number of pharmacological trials. The objective of this paper is to provide a comprehensive and critical review of longitudinal studies in ALS, focusing on the sensitivity profile of established and emerging monitoring markers.
Introduction
Amyotrophic lateral sclerosis (ALS) is a clinically, genetically, and pathologically heterogeneous neurodegenerative condition (1–3). Clinical heterogeneity in ALS is multidimensional owing to variations in upper motor neuron (UMN) and lower motor neuron (LMN) involvement, extra-motor symptoms, age of onset, survival, and progression-rates. Disease heterogeneity hinders biomarker development (3, 4) which in turn impedes the reliable assessment of candidate drugs in clinical trials (1). Current clinical trials recruit relatively heterogeneous cohorts of symptomatic patients, despite the notion that considerable pathological changes can already be detected at the time of diagnosis (5, 6). The considerable variability in progression rates in ALS is another confounding factor in clinical trial designs (1, 7–10). Imaging and electrophysiological markers have been repeatedly proposed as candidate monitoring markers (11, 12), but it is increasingly clear that a panel of several “wet” and “dry” biomarkers may be required to capture subtle changes over short periods of time (13, 14). The objective of this paper is the comprehensive and critical review of longitudinal studies in ALS, focusing on study designs, statistical power, clinical correlations, the sensitivity profile of proposed monitoring markers and their applicability to clinical trials.
Methods
A formal literature search was performed on PubMed using the core search terms “amyotrophic lateral sclerosis” and “longitudinal” combined with each of the following keywords separately: “staging,” “monitoring,” “outcomes,” “clinical,” “clinical trials,” “electrophysiology,” “neurophysiology,” “electromyography,” “transcranial magnetic stimulation,” “motor unit number estimation,” “motor unit number index,” “positon emission tomography,” “single photon emission computed tomography,” “magnetic resonance imaging,” “neuroimaging,” “imaging,” “blood,” “urine,” “cerebrospinal fluid,” “saliva,” and “muscle.” A supplementary search combined the core search terms with the following keywords: “presymptomatic,” “asymptomatic,” and “post-mortem.” Inclusion criteria included longitudinal studies investigating imaging, neurophysiological, clinical, or biofluid biomarkers in ALS. Animal studies, review papers, opinion pieces, editorials, case reports, and case series were excluded. Only articles written in English and published between January 1980 and August 2018 were reviewed. Based on the above criteria a total of 118 original research papers were selected and reviewed in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) recommendations.
Results
Neuroimaging
The sample size characteristics, study design features, follow-up intervals of longitudinal neuroimaging, neurophysiology, and clinical studies are summarized in Table 1. Whilst most longitudinal imaging studies in ALS evaluate cerebral alterations (10), a number of promising spinal studies have now also been published. Spinal imaging has gradually overcome the technical challenges of physiological motion, small cross-sectional dimensions and susceptibility gradients (19, 110–118). The majority of longitudinal studies in ALS are single-center studies eliminating the need for cross-platform MR sequence harmonization and inter-rater reliability tests. Given the low incidence of certain phenotypes such as primary lateral sclerosis (PLS), progressive muscular atrophy (PMA), and spinal and bulbar muscular atrophy (SBMA) however, multisite collaboration is often necessary (119). The infrastructure, funding and governance of such multicenter collaborations are now established via international consortia like the Neuroimaging Society in Amyotrophic Lateral Sclerosis (NISALS) or the Northeast ALS Consortium (NEALS) (16, 23, 120, 121). The need to include disease-controls in addition to healthy controls to describe ALS-specific changes is increasingly recognized (30, 43, 44). With few exceptions (122–124), most ALS imaging studies use 3 Tesla platforms and 7 Tesla systems are more commonly used in post-mortem studies (125, 126). Disease progression has been detected across a range of MR imaging metrics including structural (22, 26), diffusion (16, 18), functional (28, 40), and spectroscopy (41, 42) measures. As the majority of studies have a two-timepoint design, it is often unclear if specific imaging metrics show linear or exponential changes. The few existing multi-timepoint studies suggest that pathological change is not linear (10). The revised ALS functional rating scale (ALSFRS-r) is the most commonly reported clinical measure (16, 18–20), with only few imaging studies reporting associations with staging (15) or neuropsychological performance (15, 24).

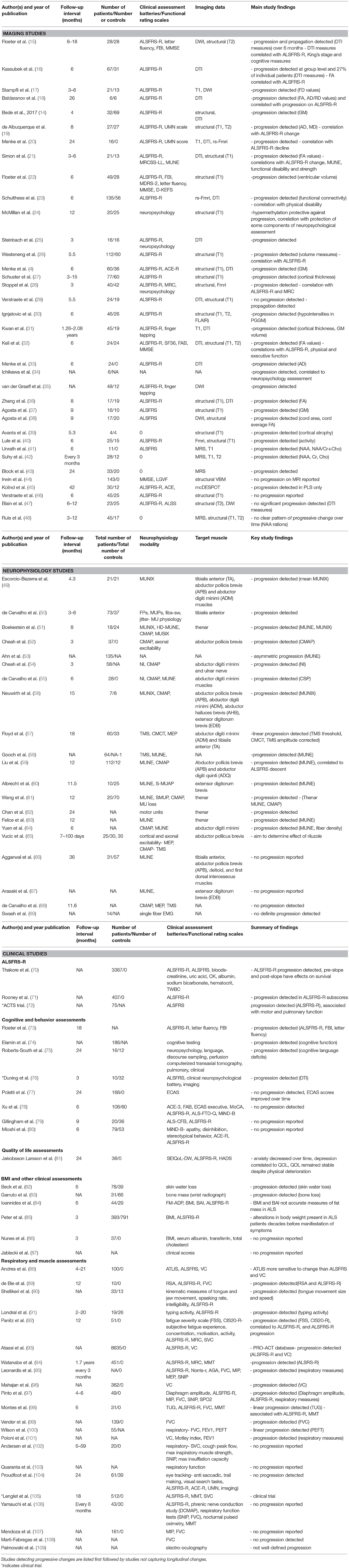

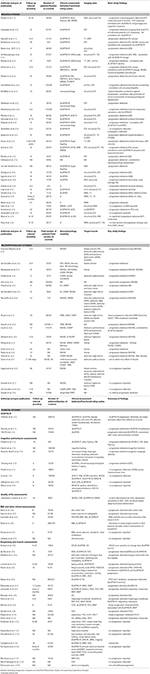

Table 1
| Author(s) and year of publication | Follow-up interval (months) | Number of patients/Number or controls | Clinical assessment batteries/Functional rating scales | Imaging data | Main study findings |
|---|---|---|---|---|---|
| IMAGING STUDIES | |||||
| Floeter et al. (15) | 6–18 | 28/28 | ALSFRS-R, letter fluency, FBI, MMSE | DWI, structural (T2) | - progression and propagation detected (DTI measures) over 6 months - DTI measures correlated with ALSFRS-R, King's stage and cognitive measures |
| Kassubek et al. (16) | 6 | 67/31 | ALSFRS-R | DTI | - progression detected at group level and 27% of individual patients (DTI measures) - FA correlated with ALSFRS-R |
| Stampfli et al. (17) | 3–6 | 21/13 | ALSFRS-R | T1, DWI | -progression detected (FD values) |
| Baldaranov et al. (18) | 26 | 6/6 | ALSFRS-R | DTI | -progression detected (FA, AD/RD values) and correlated with progression on ALSFRS-R |
| Bede et al., 2017 (14) | 4 | 32/69 | ALSFRS-R | structural,DTI | -progression detected (GM) |
| de Albuquerque et al. (19) | 8 | 27/27 | ALSFRS-R, UMN scale | structural (T1, T2) | - progression detected (AD, MD) - correlation with ALSFRS-R change |
| Menke et al. (20) | 24 | 16/0 | ALSFRS-R, UMN score | T1, DTI, rs-Fmri | - progression detected - correlation with ALSFRS-R decline |
| Simon et al. (21) | 3–6 | 21/13 | ALSFRS-R, MRCSS-LL, MUNE | DTI, structural (T1) | - progression detected (FA values) - correlations with ALSFRS-R change, MUNE, functional disability and strength |
| Floeter et al. (22) | 6 | 49/28 | ALSFRS-R, FBI, MDRS-2, letter fluency, MMSE, D-KEFS | structural (T1) | -progression detected (ventricular volume) |
| Schulthess et al. (23) | 6 | 135/56 | ALSFRS-R | rs-Fmri, DTI | - progression detected (functional connectivity) - correlation with physical disability |
| McMillan et al. (24) | 12 | 20/25 | neuropsychology | structural (T1) | -hypermethylation protective against progression, correlation with protection of some components of neuropsychological assessment |
| Steinbach et al. (25) | 3 | 16/16 | ALSFRS-R, neuropsychology | DTI | -progression detected |
| Westeneng et al. (26) | 5.5 | 112/60 | ALSFRS-R | structural (T1) | - progression detected (volume measures) - correlation with ALSFRS-R |
| Menke et al. (4) | 6 | 60/36 | ALSFRS-R, ACE-R | structural (T1), DTI | -progression detected (GM) |
| Schuster et al. (27) | 3–15 | 77/60 | ALSFRS-R | structural (T1) | -progression detected (cortical thickness) |
| Stoppel et al. (28) | 3 | 40/42 | ALSFRS-R, MRC, neuropsychology | structural, Fmri | - progression detected - correlation with ALSFRS-R and MRC |
| Verstraete et al. (29) | 5.5 | 24/19 | ALSFRS-R | DTI, structural (T1) | - no progression detected - propagation detected |
| Ignjatovic et al. (30) | 6 | 46/26 | ALSFRS-R | structural (T1, T2, FLAIR) | -progression detected (hypointensities in PGGM) |
| Kwan et al. (31) | 1.26–2.08 years | 45/19 | ALSFRS-R, finger tapping | T1, DTI | -progression detected (cortical thickness, GM volume) |
| Keil et al. (32) | 6 | 24/24 | ALSFRS-R, SF36, FAB, MMSE | DTI, structural (T1, T2) | - progression detected (FA values) - correlations with ALSFRS-R, physical and executive function |
| Menke et al. (33) | 6 | 24/0 | ALSFRS-R | DTI | -progression detected (AD) |
| Ichikawa et al. (34) | NA | 6/NA | NA | NA | -progression detected, correlated to neuropsychology assessment |
| van der Graaff et al. (35) | NA | 48/12 | ALSFRS-R, finger tapping | DWI | -progression detected |
| Zhang et al. (36) | 8 | 17/19 | ALSFRS-R | structural (T1), DTI | - progression detected (FA) |
| Agosta et al. (37) | 9 | 16/10 | ALSFRS | structural (T1) | - progression detected (GM) |
| Agosta et al. (38) | 9 | 17/20 | ALSFRS | DWI, structural | - progression detected (cord area, cord average FA) |
| Avants et al. (39) | 5.3 | 4/4 | 0 | structural (T1) | - progression detected (cortical atrophy) |
| Lule et al. (40) | 6 | 25/15 | ALSFRS-R | Fmri, structural (T1) | - progression detected (activity) |
| Unrath et al. (41) | 6 | 11/0 | ALSFRS | MRS, T1 | - progression detected (NAA, NAA/Cr+Cho) |
| Suhy et al. (42) | Every 3 months | 28/12 | 0 | MRS, T1, T2 | - progression detected (NAA, Cr, Cho) |
| Block et al. (43) | 24 | 33/20 | 0 | MRS | - progression detected |
| Irwin et al. (44) | 143/0 | MMSE, LGVF | structural VBM | - no progression on MRI reported | |
| Kolind et al. (45) | 42 | 30/12 | ALSFRS-R, ACE, | mcDESPOT | - progression detected in PLS only |
| Verstraete et al. (46) | 6 | 45/25 | ALSFRS-R | structural (T1) | - no progression reported |
| Blain et al. (47) | 6–12 | 23/25 | ALSFRS-R, ALSS | structural (T2), DWI | - no significant progression detected (DTI measures) |
| Rule et al. (48) | 3–12 | 45/17 | 0 | MRS, structural (T1, T2) | - no clear pattern of progressive change over time (NAA rations) |
| Author(s) and year of publication | Follow-up interval (months) | Total number of patients/Total number of controls | Neurophysiology modality | Target muscle | Key study findings |
| NEUROPHYSIOLOGY STUDIES | |||||
| Escorcio-Bezerra et al. (49) | 4.3 | 21/21 | MUNIX | tibialis anterior (TA), abductor pollicis brevis (APB) and abductor digiti minimi (ADM) muscles | - progression detected (mean MUNIX) |
| de Carvalho et al. (50) | 3–6 | 73/37 | FPs, MUPs, fibs-sw, jitter- MU physiology | tibialis anterior | - progression detected |
| Boekestein et al. (51) | 8 | 18/24 | MUNIX, HD-MUNE, CMAP, MUSIX | thenar | - progression detected (MUNE, MUNIX) |
| Cheah et al. (52) | 3 | 37/0 | CMAP, axonal excitability | abductor pollicis brevis | - progression detected (CMAP) |
| Ahn et al. (53) | NA | 135/NA | NA | NA | - asymmetric progression (MUNE) |
| Cheah et al. (54) | 3 | 58/NA | NI, CMAP | abductor digiti minimi and ulnar nerve | - progression detected (NI) |
| de Carvalho et al. (55) | 6 | 28/0 | NI, CMAP, MUNE | abductor digiti minimi muscles | - progression detected (CSP) |
| Neuwirth et al. (56) | 15 | 7/8 | MUNIX, CMAP, | abductor pollicis brevis (APB), abductor digiti minimi (ADM), abductor halluces brevis (AHB), extensor digitorum brevis (EDB) | - progression detected (MUNIX) |
| Floyd et al. (57) | 18 | 60/33 | TMS, CMCT, MEP | abductor digiti minimi (ADM) and tibialis anterior (TA) | -linear progression detected (TMS threshold, CMCT, TMS amplitude corrected) |
| Gooch et al. (58) | NA | 64/NA-1 | TMS, MUNE, | NA | -progression detected (MUNE) |
| Liu et al. (59) | 12 | 112/12 | MUNE, CMAP | Abductor pollicis brevis (APB) and abductor digiti quinti (ADQ) | - progression detected (MUNE), correlated to ALSFRS descent |
| Albrecht et al. (60) | 11.5 | 10/25 | MUNE, S-MUAP | extensor digitorum brevis | - progression detected (MUNE) |
| Wang et al. (61) | 12 | 20/70 | MUNE, SMUP, CMAP, MU loss | thenar | - progression detected - (Thenar MUNE, CMAP) |
| Chan et al. (62) | 24 | NA | motor units | thenar | - progression detected |
| Felice et al. (63) | 12 | NA | MUNE | thenar | - progression detected (MUNE) |
| Yuen et al. (64) | 6 | NA | CMAP, MUNE | abductor digiti minimi | - progression detected (MUNE, fiber density) |
| Vucic et al. (65) | 7–100 days | 25/30, 35 | cortical and axonal excitability- MEP, CMAP- TMS | abductor pollicus brevis | - aim to determine effect of riluzole |
| Aggarwal et al. (66) | 36 | 31/57 | MUNE | tibialis anterior, abductor pollicis brevis (APB), deltoid, and first dorsal interosseous muscles | - no progression reported |
| Arasaki et al. (67) | NA | NA | MUNE, | extensor digitorum brevis (EDB) | - no progression reported |
| de Carvalho et al. (68) | 11.6 | NA | CMAP, MEP, TMS | NA | - no progression detected |
| Swash et al. (69) | NA | 14/NA | single fiber EMG | NA | - no definite progression detected |
| Author(s) and year publication | Follow-up interval (months) | Number of patients/Number of controls | Clinical assessment batteries/Functional rating scales | Summary of findings |
| CLINICAL STUDIES | ||||
| ALSFRS-R | ||||
| Thakore et al. (70) | NA | 3367/0 | ALSFRS-R, ALSFRS, bloods- creatinine, uric acid, CK, albumin, sodium bicarbonate, hematocrit, TWBC | - ALSFRS-R progression detected, pre-slope and post-slope have effects on survival |
| Rooney et al. (71) | NA | 407/0 | ALSFRS-R | - progression detected in ALSFRS-R subscores |
| *ACTS trial. (72) | NA | 75/NA | ALSFRS | progression detected (ALSFRS-R), associated with motor and pulmonary function |
| Cognitive and behavior assessments | ||||
| Floeter et al. (73) | 18 | NA | ALSFRS-R, letter fluency, FBI | - progression detected (ALSFRS-R, FBI, letter fluency) |
| Elamin et al. (74) | NA | 186/NA | cognitive testing | - progression detected (cognitive function) |
| Roberts-South et al. (75) | 24 | 16/12 | neuropsychology, language, discourse sampling, perfusion computerized transaxial tomography, pulmonary, clinical | - progression detected (cognitive language deficits) |
| *Duning et al. (76) | 3 | 10/32 | ALSFRS, clinical neuropsychological battery, imaging | - progression detected (DTI) |
| Poletti et al. (77) | 24 | 168/0 | ECAS | - no progression detected, ECAS scores improved over time |
| Xu et al. (78) | 6 | 108/60 | ACE-3, FAB, ECAS executive, MoCA, ALSFRS-R, ALS-FTD-Q, MiND-B | - no progression detected |
| Gillingham et al. (79) | 9 | 20/36 | ALS-CFB, ALSFRS-R | - no progression reported |
| Mioshi et al. (80) | 6 | 79/53 | MiND-B- apathy, disinhibition, stereotypical behavior, ACE-R, ALSFRS-R | - no progression reported |
| Quality of life assessments | ||||
| Jakobsson Larsson et al. (81) | 24 | 36/0 | SEIQoL-DW, ALSFRS-R, HADS | - anxiety decreased over time, depression correlated to QOL, QOL remained stable despite physical deterioration |
| BMI and other clinical assessments | ||||
| Beck et al. (82) | 6 | 78/39 | skin water loss | - progression detected (skin water loss) |
| Garruto et al. (83) | NA | 31/66 | bone mass (wrist radiograph) | - progression detected (bone loss) |
| Ioannides et al. (84) | 6 | 44/29 | FM-ADP, BMI, BAI, ALSFRS-R | - BMI and BAI not accurate measures of fat mass in ALS |
| Peter et al. (85) | 3 | 393/791 | BMI, ALSFRS-R | - alterations in body weight present in ALS patients decades before manifestation of symptoms |
| Nunes et al. (86) | 3 | 37/0 | BMI, serum albumin, transferrin, total cholesterol | - no progression reported |
| Jablecki et al. (87) | NA | NA | clinical scores | - no progression reported |
| Respiratory and muscle assessments | ||||
| Andres et al. (88) | 4–21 | 100/0 | ATLIS, ALSFRS, VC | - ATLIS more sensitive to change than ALSFRS and VC |
| de Bie et al. (89) | 12 | 10/0 | RSA, ALSFRS-R, FVC | - progression detected(RSA and ALSFRS-R) |
| Shellikeri et al. (90) | NA | 33/13 | kinematic measures of tongue and jaw movement, speaking rate, intelligibility, ALSFRS-R | - progression detected (tongue movement size and speed) |
| Londral et al. (91) | 2–20 | 19/26 | typing activity, ALSFRS-R | - progression detected (typing activity) |
| Panitz et al. (92) | 12 | 51/0 | fatigue severity scale (FSS), CIS20-R- subjective fatigue experience, concentration, motivation, activity, ALSFRS-R, MRC, SVC | - progression detected (FSS, CIS20-R), correlated to ALSFRS-R, and ALSFRS-R progression |
| Atassi et al. (93) | NA | 8635/0 | ALSFRS-R, VC | - PRO-ACT database- progression detected (ALSFRS-R and VC) |
| Watanabe et al. (94) | 1.7 years | 451/0 | ALSFRS-R, MRC, MMT | -progression detected (ALSRS-R) |
| Leonardis et al. (95) | every 3 months | NA/0 | ALSFRS-R, Norris-r, AGA, FVC, MIP, MEP, SNIP | - progression detected (respiratory measures) |
| Mahajan et al. (96) | NA | 362/0 | VC | - progression detected (VC) |
| Pinto et al. (97) | 4–6 | 49/0 | Diaphragm amplitude, ALSFRS-R, MIP, FVC, SNIP, SPO2 | - progression detected (Diaphragm amplitude, ALSFRS-R, respiratory measures) |
| Montes et al. (98) | 6 | 31/0 | TUG, ALSFRS-R, FVC, MMT | - linear progression detected (TUG) - associated with ALSFRS-R, MMT |
| Vender et al. (99) | NA | 139/0 | FVC | - progression detected (FVC) |
| Wilson et al. (100) | NA | 55/NA | respiratory- FVC, FEV1, PEFT | - linear progression detected (PEFT) |
| Poloni et al. (101) | NA | NA | VC, Motley index, FEV1 | - progression detected (respiratory measures) |
| Andersen et al. (102) | 6–59 | 20/0 | respiratory- SVC, cough peak flow, max inspiratory muscle strength, SNIP, max insufflation capacity | - no progression reported |
| Quaranta et al. (103) | NA | NA | respiratory function | - no progression reported |
| Proudfoot et al. (104) | 24 | 61/39 | eye tracking- anti saccadic, trail making, visual search tasks, ALSFRS-R, ACE-R, UMN, imaging) | - no progression detected |
| *Lenglet et al. (105) | 18 | 512/0 | ALSFRS-R, MMT, SVC | - clinical trial |
| Yamauchi et al. (106) | Every 6 months | 43/30 | ALSFRS-R, phrenic nerve conduction study (DCMAP), respiratory function tests (SNIP, FVC), nocturnal pulsed oximetry, MMT | - no progression reported |
| Mendoza et al. (107) | NA | 161/0 | MIP, FVC | - no progression reported |
| Marti-Fabregas et al. (108) | NA | NA | FVC | - no progression detected |
| Palmowski et al. (109) | NA | NA | electro-oculography | - not well-defined progression |
Longitudinal “dry biomarker” studies in ALS: Neuroimaging, Neurophysiology and Clinical Studies.
Studies detecting progressive changes are listed first followed by studies not capturing longitudinal changes.
*.^indicates clinical trial.
Neurophysiology
Most longitudinal neurophysiology studies are single center studies, reducing the risk of inter-rater and inter-center variability (127). As presented in Table 1, follow-up interval ranges between 7 days (65) and 3 years (66), and up to 7 follow-up time-points have been included in some studies (57, 60). Surprisingly few studies include disease controls such as peripheral neuropathy (60) or benign fasciculation syndrome (50). Clinical assessments performed in conjunction with neurophysiology typically include ALSFRS-r (51), forced vital capacity (FVC) (55), slow vital capacity (SVC) (56), grip strength (64), pinch strength (58), and manual muscle testing (MMT) (58), however, correlations between neurophysiological measures and clinical assessments are seldom reported. The majority of longitudinal neurophysiological studies focus on upper limb muscles, e.g., abductor pollicis brevis, deltoid, first dorsal interrosseus, extensor digitorum brevis, abductor digiti minimi (51, 52, 55, 60, 61) with relatively few studies evaluating lower limb muscles such as abductor hallicus brevis and tibialis anterior (50, 56, 57, 66). The most commonly reported longitudinal neurophysiological indices include compound muscle action potential (CMAP) (51, 52), single motor unit action potential (SMUAP) (60), MUNE (55, 59), MUNIX (49, 56), neurophysiology index (NI) (54, 55), TMS measures (57, 58), and axonal excitability (52). Progressive neurophysiological changes have been detected by MUNIX (49, 51, 56), MUNE (51, 58, 60), CMAP (52, 61), NI (54), and TMS measures (57) and allowing for study-design limitations, the consensus is that degenerative changes are not linear.
Clinical Biomarkers and Instruments
Robust clinical longitudinal studies in ALS have up to 6 follow-up time points (88, 89, 91), the interval between the assessments can be as short as 3 months (95) and the sample size can be as big as several thousands (70, 93) (Table 1). Few multi-timepoint studies include disease controls such as motor neuropathies (91), alternative neuromuscular diseases (78), or neurodegenerative conditions (83). Large, multi-timepoint longitudinal studies invariably suffer from considerable attrition rates, but these are rarely explicitly reported in the manuscript abstracts (10). Detailed genotyping is only available in a minority of longitudinal studies (15, 77, 79, 94). The most widely utilized rating scale in longitudinal studies is the ALSFRS-r (70, 71, 128) which provides a composite score of bulbar, limb and respiratory dysfunction, and is invariably evaluated in clinical trials (72, 105). Quality of life (QoL) in ALS is increasingly evaluated by disease-specific instruments such as the 40-item ALS assessment questionnaire (ALSAQ-40) or the revised ALS-specific Quality of Life questionnaire (ALSSQoL-R) (129–131). A number of symptom-specific instruments are also commonly used such as the Center for Neurologic Study-Bulbar Function Scale (CNS-BFS), a 21-item self-report scale of bulbar function, and the Center for Neurologic Study-Lability Scale (CNS-LS), a 7-item self-report scale of pseudobulbar affect (PBA) (132). Tapping rates, composite reflex scores, The Penn UMN Score (133), the Modified Ashworth scale (MAS) are often used as proxies of UMN degeneration (132).
In clinical trials, muscle strength is often estimated by handheld dynamometry (HHD) (134), manual muscle testing (MMT) (105), scoring systems such as the Medical Research Council (MRC) Scale for muscle strength (135) and some studies also report limb circumference (136). Respiratory function in ALS is typically monitored by sniff nasal inspiratory pressure (SNIP), SVC, or FVC in addition to measures such as early morning arterial blood gas (ABG) and overnight pulse-oximetry (137, 138). Measures of typing ability (91), tongue movements (90), vital capacity (VC) (96), FVC (99), SNIP (97), and diaphragm amplitude (97) all show progressive longitudinal changes. Nutritional markers such as body mass index (BMI) and lipid profile are now established prognostic indicators (139, 140). Cognitive and behavioral domains are routinely assessed thanks to the availability of validated screening instruments such as the Edinburgh Cognitive and Behavioral ALS Screen (ECAS) (141), the Beaumont Behavioral Inventory (BBI) (142) and the ALS Cognitive Behavioral Screen (ALS-CBS) (143). In contrast to the relentlessly progressive motor deficits of ALS, the trajectory of cognitive and behavioral deficits is less clear due to considerable individual variations, genotype-associated profiles (144, 145), differences in assessment strategies and practice-effects (146). Several longitudinal neuropsychology studies do not detect progression (77, 147, 148), progressive behavioral impairment has been noted in the absence of cognitive change (149), and some studies report improved performance as a result of practice effects (77).
Wet Biomarkers
The findings, study design characteristics, and follow-up intervals of longitudinal biofluid studies are summarized in Table 2. Phosphorylated neurofilament heavy chain (pNFH), neurofilament light chain (NF-L), progranulin (PGRN), cytokines, TAR DNA-binding protein 43 (TDP-43), cystatin C, creatinine, micro-RNAs (miRNAs), chitotriosidase-1 (CHIT1), chitinase-3-like protein 1 (CHI3L1), chitinase-3-like protein 2 (CHI3L2) have been evaluated in both research studies (152, 153, 157, 158, 162, 164, 168, 171) and clinical trials (150, 156, 157, 160, 161). Markers of iron metabolism and ferroptosis are relatively recent domains of ALS biomarker research (172, 173). Most biofluid studies are either serum (150, 157) or CSF studies (152, 167), but urine (155) and skeletal muscle-based (153) studies have now also been published. Quantitative enzyme-linked immunosorbent assay (ELISA) is the most commonly used antibody-based technique (13, 174) which can be performed with one antibody (indirect ELISA), or with two antibodies (sandwich ELISA). Increased CSF (13) and serum (175) pNFH detected by ELISA is thought to be a sensitive marker of axonal degeneration in ALS (152, 171, 176, 177). The specificity of this marker however may be inadequate to reliably differentiate ALS from other neurodegenerative conditions (13, 176). Other antibody-based techniques such as Western blot (171) and electrochemiluminescence (ECL) (153, 168) may improve detection sensitivity and reliability (13). Panels of multiple proteins can be evaluated by multiplex immunoassays such as planar or microbead assays (13). Mass spectrometry based methods using chromatin-immunoprecipitation-based surfaces, two-dimensional gel electrophoresis or high-resolution mass spectrometry have identified cystatin-C and transthyretin as candidate biomarkers (178–180). The longest wet biomarker study followed patients for 4 years (164). The majority of studies have at least 2 follow-up timepoints (155, 162, 170) and one study included 13 follow-up timepoints (156, 159). Large multi-center trials include as much as 1,000 participants (156). One of the most striking shortcomings of existing longitudinal studies is that very few included disease controls such as Parkinson's disease cohorts, patients with multifocal motor neuropathy with conduction block, Kennedy's disease, chronic inflammatory demyelinating polyneuropathy (CIDP), cervical or lumbar radiculopathy, Charcot-Marie-Tooth disease (CMT), benign fasciculation, and cramp syndrome etc. (152, 159, 162). Another limitation of many longitudinal studies is the lack of comprehensive genotyping (12) as very few studies report comprehensive screening for ALS-associated mutations (153, 159, 169, 171). Exhaustive clinical profiling, such as medications (152, 164), neuropsychological assessments (171), quality of life indices are rarely reported in longitudinal studies. The majority of studies limit their clinical descriptions to ALSFRS-r, FVC, MRC, and Ashworth scores (153, 161, 162). Serum and plasma biomarkers such as creatinine (150, 156), pNfH (158, 159), and micro-RNAs (157), CSF biomarkers such as CHI3L1 (152), tau (160, 161), and cystatin-C (162), and urinary (155) and skeletal muscle (153) biomarkers are some of the promising tools for detecting disease progression. While no progressive changes have been detected in NFL levels, it is likely to be a useful as a diagnostic biomarker (168, 171).
Table 2
| Author(s) and year of publication | Follow-up interval (months) | Number of patients / number of controls | Candidate biomarker evaluated | Biofluid | Assessment method used | Summary of conclusion |
|---|---|---|---|---|---|---|
| *Okada et al. (150) | 12 | 57/0 | creatinine | serum | NA | -progression detected (creatinine) |
| Raheja et al. (151) | NA | NA | microRNAs | serum | NA | - progression detected (miR-136-3p, miR-30b-5p, miR-331-3p, miR-496, miR-2110) |
| Thompson et al. (152) | 30 | 49/52 | chitotriosidase (CHIT1), chitinase-3-like protein 1 (CHI3L1), and chitinase-3-like protein 2 (CHI3L2), (phosphorylated neurofilament heavy chain) Pnfh | CSF | nano ultra-high performance liquid chromatography tandem mass spectrometry (nUHPLC LC-MS/MS), ELISA | - progression detected (CHI3L1) |
| Di Pietro et al. (153) | NA | 14/24 | micro-RNAs- MIR206, MIR208B, MIR499 | skeletal muscle | quantitative real time PCR, Western blot analysis | - progression detected (MIR208B, MIR499, MIR206, HDAC4) |
| Murdock et al. (154) | Every 6–12 months | 119/35 | leukocytes | blood | flow cytometry | - progression detected (immune cells), associated with ALSFRS-R |
| Shepheard et al. (155) | NA | 54/45 | urinary p75ECD | urine | sandwich ELISA | - progression detected (urinary p75ECD), correlated with ALSFRS-R |
| van Ejik et al. (156) | NA | 1241/0 | creatinine | plasma | NA | - progression detected (plasma creatinine), correlated to ALSFRS-R, muscle strength, mortality |
| Waller et al. (157) | 3 | 22/0 | microRNAs, miR-17-5p, miR-223-3p, miR-24 | serum | Qiagen miScript-based Qpcr | - progression detected (mir-206, mir-143-3p, mir-374b-5p) |
| McCombe et al. (158) | 27 | 98/61 | pNFH | serum | NA | - progression detected (pNFH) |
| Lu et al. (159) | 36 | 136/104 | neurofilament heavy chain-phosphoform | plasma | ELISA | - progression detected (NfH) |
| *Levine et al. (160) | 6 | 28/0 | tau, pNFH | CSF | ELISA | - progression detected (tau) |
| *Levine et al. (161) | 12 | 20/0 | tau, pNFH | CSF | ELISA | - progression detected (tau) |
| Wilson et al. (162) | 24 | 44/60 | cystatin C | CSF, plasma | quantitative enzyme linked immunosorbent assay (ELISA) | - progression detected (cystatin C) |
| Gaiani et al. (163) | 36 | 94/82 | ALSFRS-R, NFL | CSF | enzyme-linked immunosorbent assay (UmanDiagnostics AB) | - NFL may have role as a biomarker |
| Lu et al. (164) | 48 | 95/88 | CK, ferritin, tumor necrosis factor (TNF)–a, and interleukin (IL)−1b, IL-2, IL-8, IL-12p70, IL-4, IL-5, IL-10, and IL-13, IL-6, IFN-Y | plasma | multiplex electrochemiluminescence immunoassay | - no defined progression |
| Steinacker et al. (165) | 24 | 125/28 | neurofilament light chain (NF-L), progranulin (PGRN), S100 | serum, CSF (baseline only) | ELISA, electrochemiluminescence (ECL) immunoassay, ECLIA Elecsys (Roche, Penzberg, Germany) | - no progression reported |
| Gibson et al. (166) | 12 | 80/0 | CK | NA | NA | - no progression detected |
| Gray et al. (167) | 24 | 41/14 | CSF- glucose, lactate, citric acid, ethanol | CSF | H-NMR | - no progression reported |
| Lu et al. (168) | 36 | 167/78 | neurofilament light chain (NFL) | serum, blood, CSF | electrochemiluminescence immunoassay | - no progression detected |
| Verstraete et al. (169) | NA | 219/100 | TDP-43 | plasma | sandwich ELISA | - no defined progression |
| Nardo et al. (170) | 6 | 94/64 | PRDX2, GSTO1, CLIC1, HSC70, CypA, PDI, ERp57, CALR, PA28a, IRAK4, FUBP1, ROA2, actinNT, TDP-43 | blood PBMC | 2D-DIGE, mass spectometry | - no progression reported |
Longitudinal “wet biomarker” studies in ALS.
indicates clinical trial.
Studies of Asymptomatic Mutation Carriers
Current clinical trials only recruit symptomatic cases despite accruing evidence that ALS has a long presymptomatic phase (5). Imaging studies of asymptomatic mutation carriers have consistently confirmed disease-specific cerebral and spinal cord changes prior to symptom onset (181–184) indicating that this disease-phase may represent a crucial window for therapeutic or neuroprotective intervention. The majority of presymptomatic studies assess a single time-point, as opposed to the longitudinal tracking of asymptomatic carriers of ALS-causing mutations (15). While the overwhelming majority of presymptomatic studies focus on C9orf72 hexanucleotide carriers (183, 185–187), no prognostic markers have been validated to predict whether single patients will develop ALS or FTD. Compared to imaging studies, strikingly few presymptomatic neurophysiology studies have been undertaken (66). Studies of asymptomatic ALS-causing mutation carriers have enormous potential for academic research and may pave the way for asymptomatic pharmaceutical trials (5, 181).
Discussion
Clinical trials currently evaluate the efficacy of candidate drugs using the revised ALS functional rating scale (ALSFRS-r), muscle strength assessment tools such as manual muscle testing (MMT), respiratory function indices such as forced vital capacity (FVC), slow vital capacity (SVC) and sniff nasal inspiratory pressure (SNIP), neurophysiological measures and survival (102, 116, 120, 188, 189). These measures however primarily reflect late-stage functional impairment and are not indicative of early stage pathology. Brain and spinal cord imaging has been evaluated as early-stage biomarkers with both diagnostic and monitoring potential (116, 120, 190). The core neuroimaging signature of ALS, irrespective of the disease-stage, includes corticospinal tract (191, 192), corpus callosum (193) and motor cortex degeneration (194). Atrophy in frontotemporal regions has been primarily associated with neuropsychological deficits (195–197) and linked to hexanucleotide repeats in C9orf72 (145, 198). Longitudinal imaging studies are superior to cross-sectional studies as they readily detect dynamic structural and functional changes and may elucidate compensatory processes (10, 14, 23, 28, 40, 120, 199). The emergence of multi-timepoint study designs (14, 20) enable the characterization of anatomical propagation patterns (200) and provide invaluable temporal insights into the disease trajectory of late-stage ALS. Inter-scan intervals as short as 3 months can detect longitudinal changes (14, 18, 120). Many longitudinal studies make use of multiple magnetic resonance (MR) metrics which is particularly useful in establishing an optimal panel of monitoring markers (120). Several longitudinal studies have indicated that white matter degeneration can be detected relatively early in the course of ALS with restricted further progression over time, whereas gray matter pathology shows relentless progression in the symptomatic phase of the disease (4, 14, 120). In addition to structural imaging studies, connectivity-based, metabolic, peripheral nerve, and, whole body muscle imaging have contributed to our understanding of longitudinal changes (20, 201–203).
Needle electromyography and nerve conduction studies play an important clinical role in ruling out alternative conditions and confirming a suspected diagnosis of ALS. Despite variations in local protocols, neurophysiological tests are recognized as objective, reliable and cost-effective tests of neuromuscular dysfunction, and have also been repeatedly proposed as longitudinal markers (55, 204). CMAP is generated by depolarization of muscle fibers through the stimulation of a single nerve, where amplitude reductions are interpreted as loss of motor axons (205, 206). While CMAP measurements capture longitudinal decline, it is confounded by variations in temperature, limb positioning and electrode placement (56, 207). CMAP-derived measures such as MUNE and MUNIX are now extensively utilized to characterize progressive changes in ALS. MUNE estimates motor neuron numbers, and may detect the rate of motor neuron loss, making it a more reliable method of appraising disease progression than CMAP (208, 209). However, its early-phase sensitivity has been questioned, as its use is limited to distal muscles, and the technique requires considerable training, especially for inter-rater and multi-site comparisons (205, 210). TMS allows the characterization of upper motor neuron dysfunction, and may be particularly useful in detecting progressive changes (57, 205).
Functional rating-scales are often the monitoring instruments of choice in clinical trials (55), as they are easy to administer, cost-effective to utilize and have acceptable inter- and intra-rater reliability profiles (7). The most widely used rating scale in clinical longitudinal studies is the ALSFRS-r. Despite its ease of administration, it has considerable limitations, as it may be disproportionately influenced by LMN dysfunction, does not account for laterality or asymmetry of symptoms, omits cognitive impairment, and may be affected by medications (14, 128, 188, 211).
Proteomics, metabolomics and lipidomics have seen significant advances in ALS research and CSF and serum markers are now used in longitudinal academic and pharmacological studies (172). Potential biomarkers for the detection of disease progression include serum and plasma biomarkers such as creatinine (150, 156), pNfH (158, 159), and micro-RNAs (157), CSF biomarkers such as CHI3L1 (152), tau (160, 161), and cystatin-C (162), and urinary (155) and skeletal muscle (153) biomarkers.
Prediction Analyses
Age at symptom onset (212), BMI (139), bulbar involvement (213), cognitive impairment (214), C9orf72 genotype status (144), respiratory insufficiency (215), “definite ALS” by the El Escorial criteria (216), and functional disability (217) are the most commonly cited determinants of poor prognosis in ALS. SNIP (218) and less commonly used measures such as twitch trans-diaphragmatic pressure (Tw Pdi) (219) and maximal static expiratory mouth pressure (MEP) were shown to be good predictors of ventilator-free survival (219). A combined panel of several clinical, wet, and dry biomarkers is likely to offer the most accurate prognostic information (115, 120, 216, 217, 220). While cerebral (217, 221, 222) and spinal (115) imaging measures have been repeatedly linked to survival outcomes, these have not been utilized in a clinical setting. Neurophysiological variables, such as phrenic nerve stimulation outcomes (223) and biofluid markers, such as pNFH and NFL (165, 168, 224–226) are also thought to be accurate predictors.
Patient Stratification
Attempts to enroll patients in the early stages of the disease are hampered by the universally long diagnostic delay in ALS (227). Patient stratification in trials is typically based on site of onset (228), instead of other variables which have an established prognostic impact (138, 229). Admixed patient cohorts within a trial may hamper the ability to detect how different phenotypes and genotypes may exhibit a different response to a candidate drug (230–232). The stratification of heterogeneous cohorts is now aided by the development of validated staging systems, such as the King's (233), Milano-Torino (MITOS) (234) or the Fine'til 9 (FT9) (235) staging systems. The King's Staging system is based on the number of body regions affected, and the presence of nutritional or respiratory failure (233). The MITOS staging system is based on the ALSFRS-r, and is particularly sensitive to changes in later stages of the disease (236, 237). However, none of these staging systems account for cognitive or behavioral changes (236). Pathological staging systems suggest a four-stage model of ALS based on anatomical patterns of pTDP-43 load (238, 239). This system has now been validated by in vivo neuroimaging studies (240) and signals that accurate pathological staging and patient stratification may be possible based on neuroimaging (199, 240).
International Consortia
Only few ALS centers maintain dedicated biobanking facilities to store and process molecular markers in human biofluid locally. Similarly, relatively few centers are in a position to generate sufficient number of MRI and neurophysiology data sets of rare phenotypes to make meaningful inferences in a single center setting. Brain and tissue banks are also challenging to establish, maintain and fund, despite their invaluable contribution to ALS research (241–243).
Biospecimen samples are also often collected during clinical trials, and discarded after negative outcomes, despite their enormous potential for biomarker discovery (172). One of the most important achievements of biomarker development efforts is the establishment of national and international research consortia such as Association pour la recherche sur la SLA (ARSLA), Neuroimaging Society in ALS (NISALS), Research Motor Neuron (RMN), Canadian ALS Neuroimaging Consortium (CALSNIC), EU Joint Programme for Neurodegenerative Disease Research (JPND), European multidisciplinary ALS network identification to cure motor neurone degeneration (EUROMOTOR) which maintain vital biobanking facilities, registries, data repositories for multicenter data interpretation (121, 244). Clinical trial networks are also increasingly recognized as valuable platforms for multisite data collection and interpretation as they operate with carefully standardized protocols. Consortia such as the European Registry of ALS (EURALS) Consortium, the Western ALS (WALS) Consortium and the Northeast ALS (NEALS) Consortium are other examples (245). NEALS is one of the largest consortia with over 100 member sites from the US, Canada, Mexico, Italy, Lebanon and Australia (246). EURALS coordinates research studies and clinical trials relying on population-based European registries and include centers from Scotland, England, Netherlands, Spain, Ireland, Serbia, Italy, France, and Germany (241, 247, 248). ALS research consortia promote patient-oriented research, maintain biofluid, imaging and DNA banks, and have the potential to translate scientific advances into pragmatic clinical interventions.
Telehealth
Novel trends in longitudinal data collection include telemedicine-based technologies, wearable sensors and mobile phone applications (230). The continuous collection of data via telephone or telemedicine applications such as the Telehealth in Motor Neuron disease (TiM) system circumvent the inconvenience of patients and caregivers traveling long distances for research appointments (249). Once local data-protection and governance guidelines are complied with, information uploaded from these systems can be made available to healthcare professionals of multidisciplinary teams in real time (249). The feasibility of telehealth for ALS patients via live video-conferencing has also been evaluated (250) and is considered a particularly promising clinical and research platform (249, 250). A number of cognitive-behavioral screening tools have also been adapted for phone administration (251) including modified versions of the ALS Cognitive Behavior Screen (ALS-CBS), the Controlled Oral Word Association Test (COWAT), the Center for Neurologic Study-Lability Scale (CNS-LS) and found to be statistically equivalent to face-to-face assessments (251). Performance on other tests however, such as the telephone versions of the ALS-Frontal Behavioral Inventory (ALS-FBI) caregiver interview and the Written Verbal Fluency Index (WVFI) was not equivalent to clinic-based assessments (251). The continued development of telephone and internet-enabled devices are likely to provide further insights to longitudinal physical, cognitive and behavioral changes (251).
Conclusions
While clinical indicators of disease progression remain indispensable, neuroimaging, neurophysiology, and biofluid measures are particularly promising, objective, quantitative biomarker candidates. The validation of combined “wet” and “dry” biomarker panels will not only enable the detection of subtle progressive changes in ALS, but allow precision stratification of heterogeneous patient cohorts in clinical trials and improve existing prediction algorithms.
Statements
Author contributions
The manuscript was drafted by RC. EF, SL, OH and PB contributed to the conceptualization, editing, and revision of this paper.
Funding
This work was supported by the Andrew Lydon Scholarship, the Health Research Board (HRB–Ireland; HRB EIA-2017-019), the Irish Institute of Clinical Neuroscience (IICN)–Novartis Ireland Research Grant, the Iris O'Brien Foundation, the Perrigo Clinician-Scientist Research Fellowship, and the Research Motor Neuron (RMN–Ireland) Foundation.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
- 2D-DIGE
two-dimensional fluorescence difference gel electrophoresis
- ABG
arterial blood gas
- ACE-3
Addenbrookes Cognitive Examination - Third Edition
- ACE-R
Addenbrooke's Cognitive Examination-revised
- AD
axial diffusivity
- ADM
abductor digiti minimi
- ADQ
abductor digiti quinti
- AGA
arterial gas analyses
- AHB
abductor halluces brevis
- ALS
amyotrophic lateral sclerosis
- ALSAQ-40
ALS assessment questionnaire
- ALS-CBS
ALS Cognitive Behavior Screen
- ALS-CFB
ALS computerized frontal battery
- ALS-FBI
ALS-Frontal Behavioral Inventory
- ALSFRS-r
revised ALS functional rating scale
- ALSS
ALS severity scale
- ALSSQoL-R
revised ALS-specific Quality of Life questionnaire
- APB
abductor pollicis brevis
- ARSLA
Association pour la recherche sur la SLA
- ATLIS
accurate test of limb isometric strength
- BAI
body adiposity index
- BMI
body mass index
- CALR
Calreticulin
- CALSNIC
Canadian ALS Neuroimaging Consortium
- CHI3L1
chitinase-3-like protein 1
- CHI3L2
chitinase-3-like protein 2
- CHIT1
chitotriosidase-1
- Cho
Choline
- CIDP
chronic inflammatory demyelinating polyneuropathy
- CIS20-R
checklist individual strength
- CK
creatinine kinase
- CLIC1
Chloride intracellular channel protein 1
- CMAP
compound muscle action potential
- CMCT
central motor conduction time
- CMT
Charcot-Marie-Tooth disease
- CNS-BFS
Center for Neurologic Study-Bulbar Function Scale
- CNS-LS
Center for Neurologic Study-Lability Scale
- COWAT
controlled oral word association test
- Cr
creatinine
- CSF
cerebrospinal fluid
- CSP
cortical silence period
- CypA
peptidyl-prolyl cis-trans isomerase A
- DCMAP
distal compound muscle action potential
- D-KEFS
Delis–Kaplan Executive Function System
- DTI
diffusion tensor imaging
- DWI
diffusion-weighted imaging
- ECAS
Edinburgh Cognitive and Behavioral ALS Screen
- ECL
electrochemiluminescence
- EDB
extensor digitorum brevis
- EMG
electromyography
- ERp57
protein disulfide-isomerase A3
- EURALS
European Registry of ALS Consortium
- EUROMOTOR
European multidisciplinary ALS network identification to cure motor neurone degeneration
- FA
fractional anisotropy
- FAB
frontal assessment battery
- FBI
frontal behavioral inventory
- FD
fiber density
- FEV1
forced expiratory volume
- fibs-sw
fibrillation/sharp-waves
- FM-ADP
fat mass air displacement plethysmography
- FPs
fasciculation potentials
- FSS
fatigue severity scale
- FUBP1
far upstream element-binding protein 1
- FVC
forced vital capacity
- GM
gray matter
- GSTO1
glutathione S-transferase omega-1
- HADS
hospital anxiety and depression scale
- HDAC4
histone deacetylase 4
- HHD
handheld dynamometry
- HSC70
heat shock cognate 71 kDa protein
- IL
interleukin
- IFN
interferon
- IRAK4
Interleukin-1 receptor-associated kinase 4
- JPND
EU Joint Programme for Neurodegenerative Disease Research
- LGVF
letter guided verbal fluency
- LMN
lower motor neuron
- MAS
modified Ashworth scale
- McDESPOT
multi-component driven equilibrium single pulse observation of T1/T2
- MDRS-2
Mattis Dementia Rating scale-Second Edition
- MEP
maximal static expiratory mouth pressure
- MiND-B
motor neuron disease behavior scale
- MIP
maximal inspiratory pressure
- MiRNAs
micro-RNAs
- MITOS
Milano-Torino staging system
- MMSE
mini mental state examination
- MMT
manual muscle testing
- MND
Motor neuron disease
- MoCA
Montreal Cognitive Assessment
- MR
magnetic resonance
- MRC
Medical Research Council Scale for muscle strength
- MRCSS-LL
Medical Research Council sum score
- MRI
magnetic resonance imaging
- MRS
magnetic resonance spectroscopy
- MS
multiple sclerosis
- MU
motor unit
- MUNE
motor unit number estimation
- MUNIX
motor unit number index
- MUPs
motor unit potentials
- MUSIX
motor unit size index
- NAA
N-acetylaspartate
- NEALS
Northeast ALS Consortium
- NF-L
neurofilament light chain
- NI
neurophysiology index
- NISALS
Neuroimaging Society in Amyotrophic Lateral Sclerosis
- NMR
nuclear magnetic resonance
- nUHPLC LC-MS
nano ultra-high performance liquid chromatography tandem mass spectrometry
- p75ECD
neurotrophin receptor p75 extracellular domain
- PA28a
proteasome activator complex subunit 1
- PBA
pseudobulbar affect
- PCR
polymerase chain reaction
- PDI
protein disulfide-isomerase
- PEFT
peak expiratory flow time
- PET
positron emission tomography
- PGGM
precentral gyruses gray matter
- PGRN
progranulin
- PLS
primary lateral sclerosis
- PMA
progressive muscular atrophy
- pNFH
Phosphorylated neurofilament heavy chain
- PRDX2
peroxiredoxin-2
- PRO-ACT
Pooled Resource Open-Access ALS Clinical Trials
- QoL
quality of life
- RD
radial diffusivity
- RMN
Research Motor Neuron
- ROA2
Heterogeneous nuclear ribonucleoproteins A2/B1
- RSA
relative surface area
- rsfMRI
resting state functional magnetic resonance imaging
- SCA
spinocerebellar ataxia
- SBMA
spinal and bulbar muscular atrophy
- SEIQOL-DW
Schedule for the Evaluation of the Individual Quality of Life-Direct Weighting
- SF-36
36-Item short form health survey
- SMA
spinal muscular atrophy
- SMUAP
single motor unit action potential
- SNIP
sniff nasal inspiratory pressure
- SOD1
superoxide dismutase 1
- SOP
Standard operating procedure
- SPECT
single photon emission computed tomography
- SPO2
peripheral capillary oxygen saturation
- SVC
slow vital capacity
- TA
tibialis anterior
- TDP-43
TAR DNA-binding protein 43
- TiM
Telehealth in Motor Neuron disease
- TMS
transcranial magnetic stimulation
- TNF
tumor necrosis factor
- TUG
timed up and go test
- Tw Pdi
twitch trans-diaphragmatic pressure
- TWBC
total white blood cell count
- UMN
upper motor neuron
- VC
vital capacity
- WALS
Western ALS Consortium
- WVFI
Written Verbal Fluency Index.
Abbreviations
References
1.
KatyalNGovindarajanR. Shortcomings in the current amyotrophic lateral sclerosis trials and potential solutions for improvement. Front Neurol. (2017) 8:521. 10.3389/fneur.2017.00521
2.
Miller. Riluzole for amyotrophic lateral sclerosis (ALS)/motor neuron disease (MND). Cochrane Database Syst Rev. (2002) 14:CD001447. 10.1002/14651858.CD001447
3.
Al-ChalabiAJonesATroakesCKingAAl-SarrajSvan den BergLH. The genetics and neuropathology of amyotrophic lateral sclerosis. Acta Neuropathol. (2012) 124:339–52. 10.1007/s00401-012-1022-4
4.
MenkeRAKornerSFilippiniNDouaudGKnightSTalbotKet al. Widespread grey matter pathology dominates the longitudinal cerebral MRI and clinical landscape of amyotrophic lateral sclerosis. Brain. (2014) 137(Pt 9):2546–55. 10.1093/brain/awu162
5.
EisenAKiernanMMitsumotoHSwashM. Amyotrophic lateral sclerosis: a long preclinical period?J Neurol Neurosurg Psychiatry. (2014) 85:1232–8. 10.1136/jnnp-2013-307135
6.
BenatarMWuuJ. Presymptomatic studies in ALS: rationale, challenges, and approach. Neurology. (2012) 79:1732–9. 10.1212/WNL.0b013e31826e9b1d
7.
MitsumotoHBrooksBRSilaniV. Clinical trials in amyotrophic lateral sclerosis: why so many negative trials and how can trials be improved?Lancet Neurol. (2014) 13:1127–38. 10.1016/S1474-4422(14)70129-2
8.
BeghiEChioACouratierPEstebanJHardimanOLogroscinoGet al. The epidemiology and treatment of ALS: focus on the heterogeneity of the disease and critical appraisal of therapeutic trials. Amyotroph Lateral Scler. (2011) 12:1–10. 10.3109/17482968.2010.502940
9.
de CarvalhoMSwashM. Can selection of rapidly progressing patients shorten clinical trials in amyotrophic lateral sclerosis?Arch Neurol. (2006) 63:557–60. 10.1001/archneur.63.4.557
10.
SchusterCElaminMHardimanOBedeP. Presymptomatic and longitudinal neuroimaging in neurodegeneration–from snapshots to motion picture: a systematic review. J Neurol Neurosurg Psychiatry. (2015) 86:1089–96. 10.1136/jnnp-2014-309888
11.
TurnerMRAgostaFBedePGovindVLuleDVerstraeteE. Neuroimaging in amyotrophic lateral sclerosis. Biomark Med. (2012) 6:319–37. 10.2217/bmm.12.26
12.
BedePHardimanO. Lessons of ALS imaging: pitfalls and future directions - a critical review. NeuroImage Clin. (2014) 4:436–43. 10.1016/j.nicl.2014.02.011
13.
BowserRTurnerMRShefnerJ. Biomarkers in amyotrophic lateral sclerosis: opportunities and limitations. Nat Rev Neurol. (2011) 7:631–8. 10.1038/nrneurol.2011.151
14.
BedePHardimanO. Longitudinal structural changes in ALS: a three time-point imaging study of white and gray matter degeneration. Amyotroph Lateral Scler Frontotemporal Degener. (2018) 19:232–41. 10.1080/21678421.2017.1407795
15.
FloeterMKDanielianLEBraunLEWuT. Longitudinal diffusion imaging across the C9orf72 clinical spectrum. J Neurol Neurosurg Psychiatry. (2018) 89:53–60. 10.1136/jnnp-2017-316799
16.
KassubekJMullerHPDel TrediciKLuleDGorgesMBraakHet al. Imaging the pathoanatomy of amyotrophic lateral sclerosis in vivo: targeting a propagation-based biological marker. J Neurol Neurosurg Psychiatry. (2018) 89:374–81. 10.1136/jnnp-2017-316365
17.
StampfliPSommerSCzellDKozerkeSNeuwirthCWeberMet al. Investigation of neurodegenerative processes in amyotrophic lateral sclerosis using white matter fiber density. Clin Neuroradiol. (2018). 10.1007/s00062-018-0670-8. [Epub ahead of print].
18.
BaldaranovDKhomenkoAKoborIBogdahnUGorgesMKassubekJet al. Longitudinal diffusion tensor imaging-based assessment of tract alterations: an application to amyotrophic lateral sclerosis. Front Hum Neurosci. (2017) 11:567. 10.3389/fnhum.2017.00567
19.
de AlbuquerqueMBrancoLMRezendeTJde AndradeHMNucciAFrancaMCJr. Longitudinal evaluation of cerebral and spinal cord damage in Amyotrophic Lateral Sclerosis. NeuroImage Clin. (2017) 14:269–76. 10.1016/j.nicl.2017.01.024
20.
MenkeRALProudfootMTalbotKTurnerMR. The two-year progression of structural and functional cerebral MRI in amyotrophic lateral sclerosis. Neuroimage Clin. (2018) 17:953–61. 10.1016/j.nicl.2017.12.025
21.
SimonNGLagopoulosJPalingSPflugerCParkSBHowellsJet al. Peripheral nerve diffusion tensor imaging as a measure of disease progression in ALS. J Neurol. (2017) 264:882–90. 10.1007/s00415-017-8443-x
22.
FloeterMKBageacDDanielianLEBraunLETraynorBJKwanJY. Longitudinal imaging in C9orf72 mutation carriers: relationship to phenotype. NeuroImage Clin. (2016) 12:1035–43. 10.1016/j.nicl.2016.10.014
23.
SchulthessIGorgesMMullerHPLuleDDel TrediciKLudolphACet al. Functional connectivity changes resemble patterns of pTDP-43 pathology in amyotrophic lateral sclerosis. Sci Rep. (2016) 6:38391. 10.1038/srep38391
24.
McMillanCTRussJWoodEMIrwinDJGrossmanMMcCluskeyLet al. C9orf72 promoter hypermethylation is neuroprotective: neuroimaging and neuropathologic evidence. Neurology. (2015) 84:1622–30. 10.1212/WNL.0000000000001495
25.
SteinbachRLoeweKKaufmannJMachtsJKolleweKPetriSet al. Structural hallmarks of amyotrophic lateral sclerosis progression revealed by probabilistic fiber tractography. J Neurol. (2015) 262:2257–70. 10.1007/s00415-015-7841-1
26.
WestenengH-JVerstraeteEWalhoutRSchmidtRHendrikseJVeldinkJHet al. Subcortical structures in amyotrophic lateral sclerosis. Neurobiol Aging. (2015) 36:1075–82. 10.1016/j.neurobiolaging.2014.09.002
27.
SchusterCKasperEMachtsJBittnerDKaufmannJBeneckeRet al. Longitudinal course of cortical thickness decline in amyotrophic lateral sclerosis. J Neurol. (2014) 261:1871–80. 10.1007/s00415-014-7426-4
28.
StoppelCMVielhaberSEckartCMachtsJKaufmannJHeinzeHJet al. Structural and functional hallmarks of amyotrophic lateral sclerosis progression in motor- and memory-related brain regions. NeuroImage Clin. (2014) 5:277–90. 10.1016/j.nicl.2014.07.007
29.
VerstraeteEVeldinkJHvan den BergLHvan den HeuvelMP. Structural brain network imaging shows expanding disconnection of the motor system in amyotrophic lateral sclerosis. Hum Brain Mapp. (2014) 35:1351–61. 10.1002/hbm.22258
30.
IgnjatovicAStevicZLavrnicSDakovicMBacicG. Brain iron MRI: a biomarker for amyotrophic lateral sclerosis. J Magn Reson Imaging. (2013) 38:1472–9. 10.1002/jmri.24121
31.
KwanJYMeodedADanielianLEWuTFloeterMK. Structural imaging differences and longitudinal changes in primary lateral sclerosis and amyotrophic lateral sclerosis. Neuroimage Clin. (2012) 2:151–60. 10.1016/j.nicl.2012.12.003
32.
KeilCPrellTPeschelTHartungVDenglerRGrosskreutzJ. Longitudinal diffusion tensor imaging in amyotrophic lateral sclerosis. BMC Neurosci. (2012) 13:141. 10.1186/1471-2202-13-141
33.
MenkeRAAbrahamIThielCSFilippiniNKnightSTalbotKet al. Fractional anisotropy in the posterior limb of the internal capsule and prognosis in amyotrophic lateral sclerosis. Arch Neurol. (2012) 69:1493–9. 10.1001/archneurol.2012.1122
34.
IchikawaHOhnoHMurakamiHOhnakaYKawamuraM. Writing error may be a predictive sign for impending brain atrophy progression in amyotrophic lateral sclerosis: a preliminary study using X-ray computed tomography. Eur Neurol. (2011) 65:346–51. 10.1159/000328216
35.
van der GraaffMMSageCACaanMWAkkermanEMLaviniCMajoieCBet al. Upper and extra-motoneuron involvement in early motoneuron disease: a diffusion tensor imaging study. Brain. (2011) 134(Pt 4):1211–28. 10.1093/brain/awr016
36.
ZhangYSchuffNWoolleySCChiangGCBoretaLLaxamanaJet al. Progression of white matter degeneration in amyotrophic lateral sclerosis: a diffusion tensor imaging study. Amyotroph Lateral Scler. (2011) 12:421–9. 10.3109/17482968.2011.593036
37.
AgostaFGorno-TempiniMLPaganiESalaSCaputoDPeriniMet al. Longitudinal assessment of grey matter contraction in amyotrophic lateral sclerosis: a tensor based morphometry study. Amyotroph Lateral Scler. (2009) 10:168–74. 10.1080/17482960802603841
38.
AgostaFRoccaMAValsasinaPSalaSCaputoDPeriniMet al. A longitudinal diffusion tensor MRI study of the cervical cord and brain in amyotrophic lateral sclerosis patients. J Neurol Neurosurg Psychiatry. (2009) 80:53–5. 10.1136/jnnp.2008.154252
39.
AvantsBKhanAMcCluskeyLElmanLGrossmanM. Longitudinal cortical atrophy in amyotrophic lateral sclerosis with frontotemporal dementia. Arch Neurol. (2009) 66:138–9. 10.1001/archneurol.2008.542
40.
LuleDDiekmannVKassubekJKurtABirbaumerNLudolphACet al. Cortical plasticity in amyotrophic lateral sclerosis: motor imagery and function. Neurorehabil Neural Repair. (2007) 21:518–26. 10.1177/1545968307300698
41.
UnrathALudolphACKassubekJ. Brain metabolites in definite amyotrophic lateral sclerosis. A longitudinal proton magnetic resonance spectroscopy study. J Neurol. (2007) 254:1099–106. 10.1007/s00415-006-0495-2
42.
SuhyJMillerRGRuleRSchuffNLichtJDronskyVet al. Early detection and longitudinal changes in amyotrophic lateral sclerosis by 1H MRSI. Neurology. (2002) 58:773–9. 10.1212/WNL.58.5.773
43.
BlockWKaritzkyJTräberFPohlCKellerEMundegarRRet al. Proton magnetic resonance spectroscopy of the primary motor cortex in patients with motor neuron disease: subgroup analysis and follow-up measurements. Arch Neurol. (1998) 55:931–6. 10.1001/archneur.55.7.931
44.
IrwinDJMcMillanCTBrettschneiderJLibonDJPowersJRascovskyKet al. Cognitive decline and reduced survival in C9orf72 expansion frontotemporal degeneration and amyotrophic lateral sclerosis. J Neurol Neurosurg Psychiatry. (2013) 84:163–9. 10.1136/jnnp-2012-303507
45.
KolindSSharmaRKnightSJohansen-BergHTalbotKTurnerMR. Myelin imaging in amyotrophic and primary lateral sclerosis. Amyotroph Lateral Scler Frontotemporal Degener. (2013) 14:562–73. 10.3109/21678421.2013.794843
46.
VerstraeteEVeldinkJHHendrikseJSchelhaasHJvan den HeuvelMPvan den BergLH. Structural MRI reveals cortical thinning in amyotrophic lateral sclerosis. J Neurol Neurosurg Psychiatry. (2012) 83:383–8. 10.1136/jnnp-2011-300909
47.
BlainCRWilliamsVCJohnstonCStantonBRGanesalingamJJaroszJMet al. A longitudinal study of diffusion tensor MRI in ALS. Amyotroph Lateral Scler. (2007) 8:348–55. 10.1080/17482960701548139
48.
RuleRRSuhyJSchuffNGelinasDFMillerRGWeinerMW. Reduced NAA in motor and non-motor brain regions in amyotrophic lateral sclerosis: a cross-sectional and longitudinal study. Amyotroph Lateral Scler Other Motor Neuron Disord. (2004) 5:141–9. 10.1080/14660820410017109
49.
Escorcio-BezerraMLAbrahaoASantos-NetoDde Oliveira BragaNIOliveiraASBManzanoGM. Why averaging multiple MUNIX measures in the longitudinal assessment of patients with ALS?Clin Neurophysiol. (2017) 128:2392–6. 10.1016/j.clinph.2017.09.104
50.
de CarvalhoMSwashM. Fasciculation potentials and earliest changes in motor unit physiology in ALS. J Neurol Neurosurg Psychiatry. (2013) 84:963–8. 10.1136/jnnp-2012-304545
51.
BoekesteinWASchelhaasHJvan PuttenMJStegemanDFZwartsMJvan DijkJP. Motor unit number index (MUNIX) versus motor unit number estimation (MUNE): a direct comparison in a longitudinal study of ALS patients. Clin Neurophysiol. (2012) 123:1644–9. 10.1016/j.clinph.2012.01.004
52.
CheahBCLinCSParkSBVucicSKrishnanAVKiernanMC. Progressive axonal dysfunction and clinical impairment in amyotrophic lateral sclerosis. Clin Neurophysiol. (2012) 123:2460–7. 10.1016/j.clinph.2012.06.020
53.
AhnS-WKimJ-ESungJ-JLeeK-WHongY-H. Asymmetry of motor unit number estimate and its rate of decline in patients with amyotrophic lateral sclerosis. J Clin Neurophysiol. (2011) 28:528–32. 10.1097/WNP.0b013e318231c9e0
54.
CheahBCVucicSKrishnanAVBolandRAKiernanMC. Neurophysiological index as a biomarker for ALS progression: validity of mixed effects models. Amyotroph Lateral Scler. (2011) 12:33–8. 10.3109/17482968.2010.531742
55.
de CarvalhoMSwashM. Sensitivity of electrophysiological tests for upper and lower motor neuron dysfunction in ALS: a six-month longitudinal study. Muscle Nerve. (2010) 41:208–11. 10.1002/mus.21495
56.
NeuwirthCNandedkarSStalbergEWeberM. Motor unit number index (MUNIX): a novel neurophysiological technique to follow disease progression in amyotrophic lateral sclerosis. Muscle Nerve. (2010) 42:379–84. 10.1002/mus.21707
57.
FloydAGYuQPPiboolnurakPTangMXFangYSmithWAet al. Transcranial magnetic stimulation in ALS: utility of central motor conduction tests. Neurology. (2009) 72:498–504. 10.1212/01.wnl.0000341933.97883.a4
58.
GoochCLPullmanSLShunguDCUlugAMChanSGordonPHet al. Motor unit number estimation (MUNE) in diseases of the motor neuron: utility and comparative analysis in a multimodal biomarker study. Suppl Clin Neurophysiol. (2009) 60:153–62. 10.1016/S1567-424X(08)00015-9
59.
LiuXXZhangJZhengJYZhangSXuYSKangDXet al. Stratifying disease stages with different progression rates determined by electrophysiological tests in patients with amyotrophic lateral sclerosis. Muscle Nerve. (2009) 39:304–9. 10.1002/mus.21144
60.
AlbrechtEKuntzerT. Number of Edb motor units estimated using an adapted multiple point stimulation method: normal values and longitudinal studies in ALS and peripheral neuropathies. Clin Neurophysiol. (2004) 115:557–63. 10.1016/j.clinph.2003.11.001
61.
WangFCBouquiauxODe PasquaVDelwaidePJ. Changes in motor unit numbers in patients with ALS: a longitudinal study using the adapted multiple point stimulation method. Amyotroph Lateral Scler Other Motor Neuron Disord. (2002) 3:31–8. 10.1080/146608202317576516
62.
ChanKMStashukDWBrownWF. A longitudinal study of the pathophysiological changes in single human thenar motor units in amyotrophic lateral sclerosis. Muscle Nerve. (1998) 21:1714–23.
63.
FeliceKJ. A longitudinal study comparing thenar motor unit number estimates to other quantitative tests in patients with amyotrophic lateral sclerosis. Muscle Nerve. (1997) 20:179–85.
64.
YuenECOlneyRK. Longitudinal study of fiber density and motor unit number estimate in patients with amyotrophic lateral sclerosis. Neurology. (1997) 49:573–8. 10.1212/WNL.49.2.573
65.
VucicSLinCSCheahBCMurrayJMenonPKrishnanAVet al. Riluzole exerts central and peripheral modulating effects in amyotrophic lateral sclerosis. Brain. (2013) 136(Pt 5):1361–70. 10.1093/brain/awt085
66.
AggarwalANicholsonG. Detection of preclinical motor neurone loss in SOD1 mutation carriers using motor unit number estimation. J Neurol Neurosurg Psychiatry. (2002) 73:199–201. 10.1136/jnnp.73.2.199
67.
ArasakiKKatoYHyodoAUshijimaRTamakiM. Longitudinal study of functional spinal alpha motor neuron loss in amyotrophic lateral sclerosis. Muscle Nerve. (2002) 25:520–6. 10.1002/mus.10067
68.
de CarvalhoMMirandaPCLuisMLDucla-SoaresE. Cortical muscle representation in amyotrophic lateral sclerosis patients: changes with disease evolution. Muscle Nerve. (1999) 22:1684–92.
69.
SwashMSchwartzMS. A longitudinal study of changes in motor units in motor neuron disease. J Neurol Sci. (1982) 56:185–97. 10.1016/0022-510X(82)90141-1
70.
ThakoreNJLapinBRPioroEP. Trajectories of impairment in amyotrophic lateral sclerosis: insights from the pooled resource open-access ALS clinical trials cohort. Muscle Nerve. (2018) 57:937–45. 10.1002/mus.26042
71.
RooneyJBurkeTVajdaAHeverinMHardimanO. What does the ALSFRS-R really measure? A longitudinal and survival analysis of functional dimension subscores in amyotrophic lateral sclerosis. J Neurol Neurosurg Psychiatry. (2016) 88:381–5. 10.1136/jnnp-2016-314661
72.
The amyotrophic lateral sclerosis functional rating scale. Assessment of activities of daily living in patients with amyotrophic lateral sclerosis. The ALS CNTF treatment study (ACTS) phase I-II Study Group. Arch Neurol. (1996) 53:141–7. 10.1001/archneur.1996.00550020045014
73.
FloeterMKTraynorBJFarrenJBraunLETierneyMWiggsEAet al. Disease progression in C9orf72 mutation carriers. Neurology. (2017) 89:234–41. 10.1212/WNL.0000000000004115
74.
ElaminMBedePByrneSJordanNGallagherLWynneBet al. Cognitive changes predict functional decline in ALS: a population-based longitudinal study. Neurology. (2013) 80:1590–7. 10.1212/WNL.0b013e31828f18ac
75.
Roberts-SouthAFindlaterKStrongMJOrangeJB. Longitudinal changes in discourse production in amyotrophic lateral sclerosis. Semin Speech Lang. (2012) 33:79–94. 10.1055/s-0031-1301165
76.
DuningTSchiffbauerHWarneckeTMohammadiSFloelAKolpatzikKet al. G-CSF prevents the progression of structural disintegration of white matter tracts in amyotrophic lateral sclerosis: a pilot trial. PLoS ONE. (2011) 6:e17770. 10.1371/journal.pone.0017770
77.
PolettiBSolcaFCarelliLFainiAMadottoFLafronzaAet al. Cognitive-behavioral longitudinal assessment in ALS: the Italian Edinburgh Cognitive and Behavioral ALS screen (ECAS). Amyotroph Lateral Scler Frontotemporal Degener. (2018) 19:387–95. 10.1080/21678421.2018.1473443
78.
XuZAlruwailiARSHendersonRDMcCombePA. Screening for cognitive and behavioural impairment in amyotrophic lateral sclerosis: frequency of abnormality and effect on survival. J Neurol Sci. (2017) 376:16–23. 10.1016/j.jns.2017.02.061
79.
GillinghamSMYunusovaYGandaARogaevaEBlackSEStussDTet al. Assessing cognitive functioning in ALS: a focus on frontal lobe processes. Amyotroph Lateral Scler Frontotemporal Degener. (2017) 18:182–92. 10.1080/21678421.2016.1248977
80.
MioshiEHsiehSCagaJRamseyEChenKLilloPet al. A novel tool to detect behavioural symptoms in ALS. Amyotroph Lateral Scler Frontotemporal Degener. (2014) 15:298–304. 10.3109/21678421.2014.896927
81.
Jakobsson LarssonBOzanneAGNordinKNygrenI. A prospective study of quality of life in amyotrophic lateral sclerosis patients. Acta Neurol Scand. (2017) 136:631–8. 10.1111/ane.12774
82.
BeckMGiessRMagnusTPulsIReinersKToykaKVet al. Progressive sudomotor dysfunction in amyotrophic lateral sclerosis. J Neurol Neurosurg Psychiatry. (2002) 73:68–70. 10.1136/jnnp.73.1.68
83.
GarrutoRMPlatoCCYanagiharaRFoxKDuttJGajdusekDCet al. Bone mass in Guamanian patients with amyotrophic lateral sclerosis and parkinsonism-dementia. Am J Phys Anthropol. (1989) 80:107–13. 10.1002/ajpa.1330800112
84.
IoannidesZASteynFJHendersonRDMcCombePANgoST. Anthropometric measures are not accurate predictors of fat mass in ALS. Amyotroph Lateral Scler Frontotemporal Degener. (2017) 18:486–91. 10.1080/21678421.2017.1317811
85.
PeterRSRosenbohmADupuisLBrehmeTKassubekJRothenbacherDet al. Life course body mass index and risk and prognosis of amyotrophic lateral sclerosis: results from the ALS registry Swabia. Eur J Epidemiol. (2017) 32:901–8. 10.1007/s10654-017-0318-z
86.
NunesGSantosCAGrunhoMFonsecaJ. Enteral feeding through endoscopic gastrostomy in amyotrophic lateral sclerosis patients. Nutr Hosp. (2016) 33:561. 10.20960/nh.561
87.
JableckiCKBerryCLeachJ. Survival prediction in amyotrophic lateral sclerosis. Muscle Nerve. (1989) 12:833–41. 10.1002/mus.880121008
88.
AndresPLAllredMPStephensHEProffitt BunnellMSienerCMacklinEAet al. Fixed dynamometry is more sensitive than vital capacity or ALS rating scale. Muscle Nerve. (2017) 56:710–5. 10.1002/mus.25586
89.
de BieEOskarssonBJoyceNCNicoriciAKurilloGHanJJ. Longitudinal evaluation of upper extremity reachable workspace in ALS by Kinect sensor. Amyotroph Lateral Scler Frontotemporal Degener. (2017) 18:17–23. 10.1080/21678421.2016.1241278
90.
ShellikeriSGreenJRKulkarniMRongPMartinoRZinmanLet al. Speech movement measures as markers of bulbar disease in amyotrophic lateral sclerosis. J Speech Lang Hear Res. (2016) 59:887–99. 10.1044/2016_JSLHR-S-15-0238
91.
LondralAPintoSde CarvalhoM. Markers for upper limb dysfunction in Amyotrophic Lateral Sclerosis using analysis of typing activity. Clin Neurophysiol. (2016) 127:925–31. 10.1016/j.clinph.2015.06.017
92.
PanitzSKornhuberMHanischF. The checklist individual strength (CIS20-R) in patients with amyotrophic lateral sclerosis - a longitudinal study. Acta Neurol Scand. (2015) 131:372–80. 10.1111/ane.12349
93.
AtassiNBerryJShuiAZachNShermanASinaniEet al. The PRO-ACT database: design, initial analyses, and predictive features. Neurology. (2014) 83:1719–25. 10.1212/WNL.0000000000000951
94.
WatanabeHAtsutaNNakamuraRHirakawaAWatanabeHItoMet al. Factors affecting longitudinal functional decline and survival in amyotrophic lateral sclerosis patients. Amyotroph Lateral Scler Frontotemporal Degener. (2015) 16:230–6. 10.3109/21678421.2014.990036
95.
LeonardisLDolenc GroseljLVidmarG. Factors related to respiration influencing survival and respiratory function in patients with amyotrophic lateral sclerosis: a retrospective study. Eur J Neurol. (2012) 19:1518–24. 10.1111/j.1468-1331.2012.03754.x
96.
MahajanKRBachJRSaporitoLPerezN. Diaphragm pacing and noninvasive respiratory management of amyotrophic lateral sclerosis/motor neuron disease. Muscle Nerve. (2012) 46:851–5. 10.1002/mus.23663
97.
PintoSGeraldesRVazNPintoAde CarvalhoM. Changes of the phrenic nerve motor response in amyotrophic lateral sclerosis: longitudinal study. Clin Neurophysiol. (2009) 120:2082–5. 10.1016/j.clinph.2009.08.025
98.
MontesJChengBDiamondBDoorishCMitsumotoHGordonPH. The Timed Up and Go test: predicting falls in ALS. Amyotroph Lateral Scler. (2007) 8:292–5. 10.1080/17482960701435931
99.
VenderRLMaugerDWalshSAlamSSimmonsZ. Respiratory systems abnormalities and clinical milestones for patients with amyotrophic lateral sclerosis with emphasis upon survival. Amyotroph Lateral Scler. (2007) 8:36–41. 10.1080/17482960600863951
100.
WilsonSRQuantzMAStrongMJAhmadD. Increasing peak expiratory flow time in amyotrophic lateral sclerosis. Chest. (2005) 127:156–60. 10.1378/chest.127.1.156
101.
PoloniMMentoSAMascherpaCCeroniM. Value of spirometric investigations in amyotrophic lateral sclerosis. Ital J Neurol Sci. (1983) 4:39–46. 10.1007/BF02043436
102.
AndersenTMSandnesAFondenesONilsenRMTysnesOBHeimdalJHet al. Laryngeal responses to mechanically assisted cough in progressing amyotrophic lateral sclerosis. Respir Care. (2018) 63:538–49. 10.4187/respcare.05924
103.
QuarantaVNCarratuPDamianiMFDragonieriSCapozzoloACassanoAet al. The prognostic role of obstructive sleep apnea at the onset of amyotrophic lateral sclerosis. Neurodegener Dis. (2017) 17:14–21. 10.1159/000447560
104.
ProudfootMMenkeRASharmaRBernaCMHicksSLKennardCet al. Eye-tracking in amyotrophic lateral sclerosis: a longitudinal study of saccadic and cognitive tasks. Amyotroph Lateral Scler Frontotemporal Degener. (2015) 17:101–11. 10.3109/21678421.2015.1054292
105.
LengletTLacomblezLAbitbolJLLudolphAMoraJSRobberechtWet al. A phase II-III trial of olesoxime in subjects with amyotrophic lateral sclerosis. Eur J Neurol. (2014) 21:529–36. 10.1111/ene.12344
106.
YamauchiRImaiTTsudaEHozukiTYamamotoDShimohamaS. Respiratory insufficiency with preserved diaphragmatic function in amyotrophic lateral sclerosis. Intern Med. (2014) 53:1325–31. 10.2169/internalmedicine.53.2326
107.
MendozaMGelinasDFMooreDHMillerRG. A comparison of maximal inspiratory pressure and forced vital capacity as potential criteria for initiating non-invasive ventilation in amyotrophic lateral sclerosis. Amyotroph Lateral Scler. (2007) 8:106–11. 10.1080/17482960601030188
108.
Marti-FabregasJDouradoMSanchisJMiraldaRPradasJIllaI. Respiratory function deterioration is not time-linked with upper-limb onset in amyotrophic lateral sclerosis. Acta Neurol Scand. (1995) 92:261–4. 10.1111/j.1600-0404.1995.tb01699.x
109.
PalmowskiAJostWHPrudloJOsterhageJKasmannBSchimrigkKet al. Eye movement in amyotrophic lateral sclerosis: a longitudinal study. Ger J Ophthalmol. (1995) 4:355–62.
110.
El MendiliMMChenRTiretBVillardNTrunetSPelegrini-IssacMet al. Fast and accurate semi-automated segmentation method of spinal cord MR images at 3T applied to the construction of a cervical spinal cord template. PLoS ONE. (2015) 10:e0122224. 10.1371/journal.pone.0122224
111.
Cohen-AdadJEl MendiliMMMorizot-KoutlidisRLehericySMeiningerVBlanchoSet al. Involvement of spinal sensory pathway in ALS and specificity of cord atrophy to lower motor neuron degeneration. Amyotroph Lateral Scler Frontotemporal Degener. (2013) 14:30–8. 10.3109/17482968.2012.701308
112.
BedePBokdeALByrneSElaminMFaganAJHardimanO. Spinal cord markers in ALS: diagnostic and biomarker considerations. Amyotroph Lateral Scler. (2012) 13:407–15. 10.3109/17482968.2011.649760
113.
El MendiliMMCohen-AdadJPelegrini-IssacMRossignolSMorizot-KoutlidisRMarchand-PauvertVet al. Multi-parametric spinal cord MRI as potential progression marker in amyotrophic lateral sclerosis. PLoS ONE. (2014) 9:e95516. 10.1371/journal.pone.0095516
114.
QuerinGEl MendiliMMBedePDelphineSLengletTMarchand-PauvertVet al. Multimodal spinal cord MRI offers accurate diagnostic classification in ALS. J Neurol Neurosurg Psychiatry. (2018) 89:1220–1. 10.1136/jnnp-2017-317214
115.
QuerinGEl MendiliMMLengletTDelphineSMarchand-PauvertVBenaliHet al. Spinal cord multi-parametric magnetic resonance imaging for survival prediction in amyotrophic lateral sclerosis. Eur J Neurol. (2017) 24:1040–6. 10.1111/ene.13329
116.
GrolezGMoreauCDanel-BrunaudVDelmaireCLopesRPradatPFet al. The value of magnetic resonance imaging as a biomarker for amyotrophic lateral sclerosis: a systematic review. BMC Neurol. (2016) 16:155. 10.1186/s12883-016-0672-6
117.
StromanPWWheeler-KingshottCBaconMSchwabJMBosmaRBrooksJet al. The current state-of-the-art of spinal cord imaging: methods. NeuroImage. (2014) 84:1070–81. 10.1016/j.neuroimage.2013.04.124
118.
VermaTCohen-AdadJ. Effect of respiration on the B0 field in the human spinal cord at 3T. Magn Reson Med. (2014) 72:1629–36. 10.1002/mrm.25075
119.
FineganEChipikaRHShingSLHHardimanOBedeP. Primary lateral sclerosis: a distinct entity or part of the ALS spectrum?Amyotroph Lateral Scler Frontotemporal Degener.2019:1–13. 10.1080/21678421.2018.1550518
120.
BedePQuerinGPradatPF. The changing landscape of motor neuron disease imaging: the transition from descriptive studies to precision clinical tools. Curr Opin Neurol. (2018) 31:431–8. 10.1097/WCO.0000000000000569
121.
MullerHPTurnerMRGrosskreutzJAbrahamsSBedePGovindVet al. A large-scale multicentre cerebral diffusion tensor imaging study in amyotrophic lateral sclerosis. J Neurol Neurosurg Psychiatry. (2016) 87:570–9. 10.1136/jnnp-2015-311952
122.
AtassiNXuMTriantafyllouCKeilBLawsonRCernasovPet al. Ultra high-field (7tesla) magnetic resonance spectroscopy in Amyotrophic Lateral Sclerosis. PLoS ONE. (2017) 12:e0177680. 10.1371/journal.pone.0177680
123.
VerstraeteEBiesselsGJvan Den HeuvelMPVisserFLuijtenPRvan Den BergLH. No evidence of microbleeds in ALS patients at 7 Tesla MRI. Amyotroph Lateral Scler. (2010) 11:555–7. 10.3109/17482968.2010.513053
124.
DimondDIshaqueAChenjiSMahDChenZSeresPet al. White matter structural network abnormalities underlie executive dysfunction in amyotrophic lateral sclerosis. Hum Brain Mapp. (2017) 38:1249–68. 10.1002/hbm.23452
125.
CardenasAMSarllsJEKwanJYBageacDGalaZSDanielianLEet al. Pathology of callosal damage in ALS: an ex-vivo, 7 T diffusion tensor MRI study. NeuroImage Clin. (2017) 15:200–8. 10.1016/j.nicl.2017.04.024
126.
De ReuckJDevosDMoreauCAugerFDurieuxNDeramecourtVet al. Topographic distribution of brain iron deposition and small cerebrovascular lesions in amyotrophic lateral sclerosis and in frontotemporal lobar degeneration: a post-mortem 7.0-tesla magnetic resonance imaging study with neuropathological correlates. Acta Neurol Belg. (2017) 117:873–8. 10.1007/s13760-017-0832-5
127.
PugdahlKFuglsang-FrederiksenAJohnsenBTankisiHde CarvalhoMFawcettPRWet al. Variation in the neurophysiological examination of amyotrophic lateral sclerosis in Europe. Amyotroph Lateral Scler. (2010) 11:443–8. 10.3109/17482960903552496
128.
CedarbaumJMStamblerNMaltaEFullerCHiltDThurmondBet al. The ALSFRS-R: a revised ALS functional rating scale that incorporates assessments of respiratory function. BDNF ALS Study Group (Phase III). J Neurol Sci. (1999) 169:13–21.
129.
PetrovDMansfieldCMoussyAHermineO. ALS clinical trials review: 20 Years of failure. Are we any closer to registering a new treatment? Front Aging Neurosci. (2017) 9:68. 10.3389/fnagi.2017.00068
130.
JenkinsonCHarrisRFitzpatrickR. The Amyotrophic Lateral Sclerosis Assessment Questionnaire (ALSAQ-40): evidence for a method of imputing missing data. Amyotroph Lateral Scler. (2007) 8:90–5. 10.1080/17482960600989343
131.
AggarwalSPZinmanLSimpsonEMcKinleyJJacksonKEPintoHet al. Safety and efficacy of lithium in combination with riluzole for treatment of amyotrophic lateral sclerosis: a randomised, double-blind, placebo-controlled trial. Lancet Neurology. (2010) 9:481–8. 10.1016/S1474-4422(10)70068-5
132.
SmithRPioroEMyersKSirdofskyMGoslinKMeekinsGet al. Enhanced bulbar function in amyotrophic lateral sclerosis: the nuedexta treatment trial. Neurotherapeutics. (2017) 14:762–72. 10.1007/s13311-016-0508-5
133.
WooJHWangSMelhemERGeeJCCucchiaraAMcCluskeyLet al. Linear associations between clinically assessed upper motor neuron disease and diffusion tensor imaging metrics in amyotrophic lateral sclerosis. PLoS ONE. (2014) 9:e105753. 10.1371/journal.pone.0105753
134.
CudkowiczMETitusSKearneyMYuHShermanASchoenfeldDet al. Efficacy and safety of ceftriaxone for amyotrophic lateral sclerosis: results of a multi-stage, randomised, double-blind, placebo-controlled, phase 3 study. Lancet Neurology. (2014) 13:1083–91. 10.1016/S1474-4422(14)70222-4
135.
BensimonGLacomblezLMeiningerV. A controlled trial of riluzole in amyotrophic lateral sclerosis. ALS/Riluzole Study Group. N Engl J Med. (1994) 330:585–91. 10.1056/NEJM199403033300901
136.
KimSKimJKSonMJKimDSongBSonIet al. Mecasin treatment in patients with amyotrophic lateral sclerosis: study protocol for a randomized controlled trial. Trials. (2018) 19:225. 10.1186/s13063-018-2557-z
137.
ShefnerJMLiuDLeitnerMLSchoenfeldDJohnsDRFergusonTet al. Quantitative strength testing in ALS clinical trials. Neurology. (2016) 87:617–24. 10.1212/WNL.0000000000002941
138.
BerryJDPaganoniSAtassiNMacklinEAGoyalNRivnerMet al. Phase IIa trial of fingolimod for amyotrophic lateral sclerosis demonstrates acceptable acute safety and tolerability. Muscle Nerve. (2017) 56:1077–84. 10.1002/mus.25733
139.
JawaidAMurthySBWilsonAMQureshiSUAmroMJWheatonMet al. A decrease in body mass index is associated with faster progression of motor symptoms and shorter survival in ALS. Amyotroph Lateral Scler. (2010) 11:542–8. 10.3109/17482968.2010.482592
140.
CalvoAMogliaCLunettaCMarinouKTicozziNFerranteGDet al. Factors predicting survival in ALS: a multicenter Italian study. J Neurol. (2017) 264:54–63. 10.1007/s00415-016-8313-y
141.
AbrahamsSNewtonJNivenEFoleyJBakTH. Screening for cognition and behaviour changes in ALS. Amyotroph Lateral Scler Frontotemporal Degener. (2014) 15:9–14. 10.3109/21678421.2013.805784
142.
ElaminMPinto-GrauMBurkeTBedePRooneyJO'SullivanMet al. Identifying behavioural changes in ALS: validation of the Beaumont Behavioural Inventory (BBI). Amyotroph Lateral Scler Frontotemporal Degener. (2016) 8:68–73. 10.1080/21678421.2016.1248976
143.
WoolleySCYorkMKMooreDHStruttAMMurphyJSchulzPEet al. Detecting frontotemporal dysfunction in ALS: utility of the ALS Cognitive Behavioral Screen (ALS-CBS). Amyotroph Lateral Scler. (2010) 11:303–11. 10.3109/17482961003727954
144.
ByrneSElaminMBedePShatunovAWalshCCorrBet al. Cognitive and clinical characteristics of patients with amyotrophic lateral sclerosis carrying a C9orf72 repeat expansion: a population-based cohort study. Lancet Neurol. (2012) 11:232–40. 10.1016/S1474-4422(12)70014-5
145.
BedePBokdeALWByrneSElaminMMcLaughlinRLKennaKet al. Multiparametric MRI study of ALS stratified for the C9orf72 genotype. Neurology. (2013) 81:361–9. 10.1212/WNL.0b013e31829c5eee
146.
ChristidiFKaravasilisERentzosMKelekisNEvdokimidisIBedeP. Clinical and radiological markers of extra-motor deficits in amyotrophic lateral sclerosis. Front Neurol. (2018) 9:1005. 10.3389/fneur.2018.01005
147.
BurkhardtCNeuwirthCWeberM. Longitudinal assessment of the Edinburgh Cognitive and Behavioural Amyotrophic Lateral Sclerosis Screen (ECAS): lack of practice effect in ALS patients?Amyotroph Lateral Scler Frontotemporal Degener. (2017) 18:202–9. 10.1080/21678421.2017.1283418
148.
KasperEZydatissKSchusterCMachtsJBittnerDKaufmannJet al. No change in executive performance in ALS patients: a longitudinal neuropsychological study. Neurodegener Dis. (2016) 16:184–91. 10.1159/000440957
149.
WoolleySGoetzRFactor-LitvakPMurphyJHupfJLomen-HoerthCet al. Longitudinal screening detects cognitive stability and behavioral deterioration in ALS patients. Behav Neurol. (2018) 2018:5969137. 10.1155/2018/5969137
150.
OkadaMYamashitaSUeyamaHIshizakiMMaedaYAndoY. Long-term effects of edaravone on survival of patients with amyotrophic lateral sclerosis. eNeurologicalSci. (2018) 11:11–4. 10.1016/j.ensci.2018.05.001
151.
RahejaRRegevKHealyBCMazzolaMABeynonVVon GlehnFet al. Correlating serum micrornas and clinical parameters in amyotrophic lateral sclerosis. Muscle Nerve. (2018) 58:261–9. 10.1002/mus.26106
152.
ThompsonAGGrayEThezenasMLCharlesPDEvettsSHuMTet al. Cerebrospinal fluid macrophage biomarkers in amyotrophic lateral sclerosis. Ann Neurol. (2018) 83:258–68. 10.1002/ana.25143
153.
Di PietroLBaranziniMBerardinelliMGLattanziWMonforteMTascaGet al. Potential therapeutic targets for ALS: MIR206, MIR208b and MIR499 are modulated during disease progression in the skeletal muscle of patients. Sci Rep. (2017) 7:9538. 10.1038/s41598-017-10161-z
154.
MurdockBJZhouTKashlanSRLittleRJGoutmanSAFeldmanEL. Correlation of peripheral immunity with rapid amyotrophic lateral sclerosis progression. JAMA Neurol. (2017) 74:1446–54. 10.1001/jamaneurol.2017.2255
155.
ShepheardSRWuuJCardosoMWiklendtLDinningPGChatawayTet al. Urinary p75(ECD): a prognostic, disease progression, and pharmacodynamic biomarker in ALS. Neurology. (2017) 88:1137–43. 10.1212/WNL.0000000000003741
156.
van EijkRPAEijkemansMJCFergusonTANikolakopoulosSVeldinkJHvan den BergLH. Monitoring disease progression with plasma creatinine in amyotrophic lateral sclerosis clinical trials. J Neurol Neurosurg Psychiatry. (2018) 89:156–61. 10.1136/jnnp-2017-317077
157.
WallerRGoodallEFMiloMCooper-KnockJDa CostaMHobsonEet al. Serum miRNAs miR-206, 143-3p and 374b-5p as potential biomarkers for amyotrophic lateral sclerosis (ALS). Neurobiol Aging. (2017) 55:123–31. 10.1016/j.neurobiolaging.2017.03.027
158.
McCombePAPflugerCSinghPLimCYAireyCHendersonRD. Serial measurements of phosphorylated neurofilament-heavy in the serum of subjects with amyotrophic lateral sclerosis. J Neurol Sci. (2015) 353:122–9. 10.1016/j.jns.2015.04.032
159.
LuCHPetzoldAToppingJAllenKMacdonald-WallisCClarkeJet al. Plasma neurofilament heavy chain levels and disease progression in amyotrophic lateral sclerosis: insights from a longitudinal study. J Neurol Neurosurg Psychiatry. (2015) 86:565–73. 10.1136/jnnp-2014-307672
160.
LevineTDBowserRHankNCGatelySStephanDSapersteinDSet al. A pilot trial of pioglitazone HCl and tretinoin in ALS: cerebrospinal fluid biomarkers to monitor drug efficacy and predict rate of disease progression. Neurol Res Int. (2012) 2012:582075. 10.1155/2012/582075
161.
LevineTDBowserRHankNSapersteinD. A pilot trial of memantine and riluzole in ALS: correlation to CSF biomarkers. Amyotroph Lateral Scler. (2010) 11:514–9. 10.3109/17482968.2010.513052
162.
WilsonMEBoumazaILacomisDBowserR. Cystatin C: a candidate biomarker for amyotrophic lateral sclerosis. PLoS ONE. (2010) 5:e15133. 10.1371/journal.pone.0015133
163.
GaianiAMartinelliIBelloLQuerinGPuthenparampilMRuggeroSet al. Diagnostic and prognostic biomarkers in amyotrophic lateral sclerosis: neurofilament light chain levels in definite subtypes of disease. JAMA Neurol. (2017) 74:525–32. 10.1001/jamaneurol.2016.5398
164.
LuCHAllenKOeiFLeoniEKuhleJTreeTet al. Systemic inflammatory response and neuromuscular involvement in amyotrophic lateral sclerosis. Neurol Neuroimmunol Neuroinflamm. (2016) 3:e244. 10.1212/NXI.0000000000000244
165.
SteinackerPFenebergEWeishauptJBrettschneiderJTumaniHAndersenPMet al. Neurofilaments in the diagnosis of motoneuron diseases: a prospective study on 455 patients. J Neurol Neurosurg Psychiatry. (2016) 87:12–20. 10.1136/jnnp-2015-311387
166.
GibsonSBKasarskisEJHuNPulstSMMendiondoMSMatthewsDEet al. Relationship of creatine kinase to body composition, disease state, and longevity in ALS. Amyotroph Lateral Scler Frontotemporal Degener. (2015) 16:473–7. 10.3109/21678421.2015.1062516
167.
GrayELarkinJRClaridgeTDTalbotKSibsonNRTurnerMR. The longitudinal cerebrospinal fluid metabolomic profile of amyotrophic lateral sclerosis. Amyotroph Lateral Scler Frontotemporal Degener. (2015) 16:456–63. 10.3109/21678421.2015.1053490
168.
LuCHMacdonald-WallisCGrayEPearceNPetzoldANorgrenNet al. Neurofilament light chain: a prognostic biomarker in amyotrophic lateral sclerosis. Neurology. (2015) 84:2247–57. 10.1212/WNL.0000000000001642
169.
VerstraeteEKuiperijHBvan BlitterswijkMMVeldinkJHSchelhaasHJvan den BergLHet al. TDP-43 plasma levels are higher in amyotrophic lateral sclerosis. Amyotroph Lateral Scler. (2012) 13:446–51. 10.3109/17482968.2012.703208
170.
NardoGPozziSPignataroMLauranzanoESpanoGGarbelliSet al. Amyotrophic lateral sclerosis multiprotein biomarkers in peripheral blood mononuclear cells. PLoS ONE. (2011) 6:e25545. 10.1371/journal.pone.0025545
171.
SteinackerPHussAMayerBGrehlTGrosskreutzJBorckGet al. Diagnostic and prognostic significance of neurofilament light chain NF-L, but not progranulin and S100B, in the course of amyotrophic lateral sclerosis: data from the German MND-net. Amyotroph Lateral Scler Frontotemporal Degener. (2017) 18:112–9. 10.1080/21678421.2016.1241279
172.
BlascoHPatinFDescatAGarconGCorciaPGelePet al. A pharmaco-metabolomics approach in a clinical trial of ALS: identification of predictive markers of progression. PLoS ONE. (2018) 13:e0198116. 10.1371/journal.pone.0198116
173.
MasaldanSBushAIDevosDRollandASMoreauC. Striking while the iron is hot: iron metabolism and ferroptosis in neurodegeneration. Free Radic Biol Med. (2018) 133:221–33. 10.1016/j.freeradbiomed.2018.09.033
174.
Van WeemenBKSchuursAH. Immunoassay using antigen-enzyme conjugates. FEBS Lett. (1971) 15:232–6. 10.1016/0014-5793(71)80319-8
175.
BoylanKYangCCrookJOverstreetKHeckmanMWangYet al. Immunoreactivity of the phosphorylated axonal neurofilament H subunit (pNF-H) in blood of ALS model rodents and ALS patients: evaluation of blood pNF-H as a potential ALS biomarker. J Neurochem. (2009) 111:1182–91. 10.1111/j.1471-4159.2009.06386.x
176.
ReijnTSAbdoWFSchelhaasHJVerbeekMM. CSF neurofilament protein analysis in the differential diagnosis of ALS. J Neurol. (2009) 256:615–9. 10.1007/s00415-009-0131-z
177.
StrongMJKesavapanySPantHC. The pathobiology of amyotrophic lateral sclerosis: a proteinopathy?J Neuropathol Exp Neurol. (2005) 64:649–64. 10.1097/01.jnen.0000173889.71434.ea
178.
RanganathanSWilliamsEGanchevPGopalakrishnanVLacomisDUrbinelliLet al. Proteomic profiling of cerebrospinal fluid identifies biomarkers for amyotrophic lateral sclerosis. J Neurochem. (2005) 95:1461–71. 10.1111/j.1471-4159.2005.03478.x
179.
RybergHAnJDarkoSLustgartenJLJaffaMGopalakrishnanVet al. Discovery and verification of amyotrophic lateral sclerosis biomarkers by proteomics. Muscle Nerve. (2010) 42:104–11. 10.1002/mus.21683
180.
PasinettiGMUngarLHLangeDJYemulSDengHYuanXet al. Identification of potential CSF biomarkers in ALS. Neurology. (2006) 66:1218. 10.1212/01.wnl.0000203129.82104.07
181.
MenkeRAProudfootMWuuJAndersenPMTalbotKBenatarMet al. Increased functional connectivity common to symptomatic amyotrophic lateral sclerosis and those at genetic risk. J Neurol Neurosurg Psychiatry. (2016) 87:580–8. 10.1136/jnnp-2015-311945
182.
CarewJDNairGAndersenPMWuuJGronkaSHuXet al. Presymptomatic spinal cord neurometabolic findings in SOD1-positive people at risk for familial ALS. Neurology. (2011) 77:1370–5. 10.1212/WNL.0b013e318231526a
183.
LeeSESiasACMandelliMLBrownJABrownABKhazenzonAMet al. Network degeneration and dysfunction in presymptomatic C9ORF72 expansion carriers. NeuroImage Clin. (2017) 14:286–97. 10.1016/j.nicl.2016.12.006
184.
NgMCHoJTHoSLLeeRLiGChengTSet al. Abnormal diffusion tensor in nonsymptomatic familial amyotrophic lateral sclerosis with a causative superoxide dismutase 1 mutation. J Magn Reson Imaging. (2008) 27:8–13. 10.1002/jmri.21217
185.
WenJZhangHAlexanderDCDurrlemanSRoutierARinaldiDet al. Neurite density is reduced in the presymptomatic phase of C9orf72 disease. J Neurol Neurosurg Psychiatry. (2018). 10.1136/jnnp-2018-318994. [Epub ahead of print].
186.
BertrandAWenJRinaldiDHouotMSayahSCamuzatAet al. Early cognitive, structural, and microstructural changes in presymptomatic C9orf72 carriers younger than 40 Years. JAMA Neurol. (2018) 75:236–45. 10.1001/jamaneurol.2017.4266
187.
PapmaJMJiskootLCPanmanJLDopperEGden HeijerTDonker KaatLet al. Cognition and gray and white matter characteristics of presymptomatic C9orf72 repeat expansion. Neurology. (2017) 89:1256–64. 10.1212/WNL.0000000000004393
188.
KolleweKMaussUKrampflKPetriSDenglerRMohammadiB. ALSFRS-R score and its ratio: a useful predictor for ALS-progression. J Neurol Sci. (2008) 275:69–73. 10.1016/j.jns.2008.07.016
189.
RudnickiSABerryJDIngersollEArchibaldDCudkowiczMEKerrDAet al. Dexpramipexole effects on functional decline and survival in subjects with amyotrophic lateral sclerosis in a Phase II study: subgroup analysis of demographic and clinical characteristics. Amyotroph Lateral Scler Frontotemporal Degener. (2013) 14:44–51. 10.3109/17482968.2012.723723
190.
BedePIyerPMFineganEOmerTHardimanO. Virtual brain biopsies in amyotrophic lateral sclerosis: diagnostic classification based on in vivo pathological patterns. NeuroImage Clin. (2017) 15:653–8. 10.1016/j.nicl.2017.06.010
191.
BedePElaminMByrneSMcLaughlinRLKennaKVajdaAet al. Patterns of cerebral and cerebellar white matter degeneration in ALS. J Neurol Neurosurg Psychiatry. (2015) 86:468–70. 10.1136/jnnp-2014-308172
192.
SchusterCElaminMHardimanOBedeP. The segmental diffusivity profile of amyotrophic lateral sclerosis associated white matter degeneration. Eur J Neurol. (2016) 23:1361–71. 10.1111/ene.13038
193.
FilippiniNDouaudGMackayCEKnightSTalbotKTurnerMR. Corpus callosum involvement is a consistent feature of amyotrophic lateral sclerosis. Neurology. (2010) 75:1645–52. 10.1212/WNL.0b013e3181fb84d1
194.
BedePBokdeAElaminMByrneSMcLaughlinRLJordanNet al. Grey matter correlates of clinical variables in amyotrophic lateral sclerosis (ALS): a neuroimaging study of ALS motor phenotype heterogeneity and cortical focality. J Neurol Neurosurg Psychiatry. (2013) 84:766–73. 10.1136/jnnp-2012-302674
195.
ChristidiFKaravasilisEZalonisIFerentinosPGiavriZWildeEAet al. Memory-related white matter tract integrity in amyotrophic lateral sclerosis: an advanced neuroimaging and neuropsychological study. Neurobiol Aging. (2017) 49:69–78. 10.1016/j.neurobiolaging.2016.09.014
196.
BedePElaminMByrneSMcLaughlinRLKennaKVajdaAet al. Basal ganglia involvement in amyotrophic lateral sclerosis. Neurology. (2013) 81:2107–15. 10.1212/01.wnl.0000437313.80913.2c
197.
BedePOmerTFineganEChipikaRHIyerPMDohertyMAet al. Connectivity-based characterisation of subcortical grey matter pathology in frontotemporal dementia and ALS: a multimodal neuroimaging study. Brain Imaging Behav. (2018) 12:1696–707. 10.1007/s11682-018-9837-9
198.
AgostaFFerraroPMRivaNSpinelliEGDomiTCarreraPet al. Structural and functional brain signatures of C9orf72 in motor neuron disease. Neurobiol Aging. (2017) 57:206–19. 10.1016/j.neurobiolaging.2017.05.024
199.
BedePIyerPMSchusterCElaminMMcLaughlinRLKennaKet al. The selective anatomical vulnerability of ALS: 'disease-defining' and 'disease-defying' brain regions. Amyotroph Lateral Scler Frontotemporal Degener. (2016) 17:561–70. 10.3109/21678421.2016.1173702
200.
RavitsJMLa SpadaAR. ALS motor phenotype heterogeneity, focality, and spread: deconstructing motor neuron degeneration. Neurology. (2009) 73:805–11. 10.1212/WNL.0b013e3181b6bbbd
201.
LoeweKMachtsJKaufmannJPetriSHeinzeHJBorgeltCet al. Widespread temporo-occipital lobe dysfunction in amyotrophic lateral sclerosis. Sci Rep. (2017) 7:40252. 10.1038/srep40252
202.
JenkinsTMAlixJJPDavidCPearsonERaoDGHoggardNet al. Imaging muscle as a potential biomarker of denervation in motor neuron disease. J Neurol Neurosurg Psychiatry. (2018) 89:248–55. 10.1136/jnnp-2017-316744
203.
JongbloedBAHaakmaWGoedeeHSBosJWBosCHendrikseJet al. Comparative study of peripheral nerve Mri and ultrasound in multifocal motor neuropathy and amyotrophic lateral sclerosis. Muscle Nerve. (2016) 54:1133–5. 10.1002/mus.25391
204.
de CarvalhoMChioADenglerRHechtMWeberMSwashM. Neurophysiological measures in amyotrophic lateral sclerosis: markers of progression in clinical trials. Amyotroph Lateral Scler. (2005) 6:17–28. 10.1080/14660820410020600
205.
RutkoveSB. Clinical measures of disease progression in amyotrophic lateral sclerosis. Neurotherapeutics. (2015) 12:384–93. 10.1007/s13311-014-0331-9
206.
KimuraJ. Electrodiagnosis in Diseases of Nerve and Muscle: Principles and Practice. Oxford: Oxford University Press (2001).
207.
LeweltAKrosschellKJScottCSakonjuAKisselJTCrawfordTOet al. Compound muscle action potential and motor function in children with spinal muscular atrophy. Muscle Nerve. (2010) 42:703–8. 10.1002/mus.21838
208.
NandedkarSDNandedkarDSBarkhausPEStalbergEV. Motor unit number index (MUNIX). IEEE Trans Biomed Eng. (2004) 51:2209–11. 10.1109/TBME.2004.834281
209.
McComasAJFawcettPRCampbellMJSicaRE. Electrophysiological estimation of the number of motor units within a human muscle. J Neurol Neurosurg Psychiatry. (1971) 34:121–31. 10.1136/jnnp.34.2.121
210.
NeuwirthCBraunNClaeysKGBucelliRFournierCBrombergMet al. Implementing Motor Unit Number Index (MUNIX) in a large clinical trial: real world experience from 27 centres. Clin Neurophysiol. (2018) 129:1756–62. 10.1016/j.clinph.2018.04.614
211.
FastenauPSDenburgNLMauerBA. Parallel short forms for the Boston Naming Test: psychometric properties and norms for older adults. J Clin Exp Neuropsychol. (1998) 20:828–34. 10.1076/jcen.20.6.828.1105
212.
ZoccolellaSBeghiEPalaganoGFraddosioAGuerraVSamarelliVet al. Analysis of survival and prognostic factors in amyotrophic lateral sclerosis: a population based study. J Neurol Neurosurg Psychiatry. (2008) 79:33–7. 10.1136/jnnp.2007.118018
213.
ChioALogroscinoGHardimanOSwinglerRMitchellDBeghiEet al. Prognostic factors in ALS: a critical review. Amyotroph Lateral Scler. (2009) 10:310–23. 10.3109/17482960802566824
214.
ElaminMPhukanJBedePJordanNByrneSPenderNet al. Executive dysfunction is a negative prognostic indicator in patients with ALS without dementia. Neurology. (2011) 76:1263–9. 10.1212/WNL.0b013e318214359f
215.
MagnusTBeckMGiessRPulsINaumannMToykaKV. Disease progression in amyotrophic lateral sclerosis: predictors of survival. Muscle Nerve. (2002) 25:709–14. 10.1002/mus.10090
216.
WestenengHJDebrayTPAVisserAEvan EijkRPARooneyJPKCalvoAet al. Prognosis for patients with amyotrophic lateral sclerosis: development and validation of a personalised prediction model. Lancet Neurol. (2018) 7:423–33. 10.1016/S1474-4422(18)30089-9
217.
SchusterCHardimanOBedeP. Survival prediction in Amyotrophic lateral sclerosis based on MRI measures and clinical characteristics. BMC Neurol. (2017) 17:73. 10.1186/s12883-017-0854-x
218.
CapozzoRQuarantaVNPellegriniFFontanaACopettiMCarratuPet al. Sniff nasal inspiratory pressure as a prognostic factor of tracheostomy or death in amyotrophic lateral sclerosis. J Neurol. (2015) 262:593–603. 10.1007/s00415-014-7613-3
219.
PolkeyMILyallRAYangKJohnsonELeighPNMoxhamJ. Respiratory muscle strength as a predictive biomarker for survival in amyotrophic lateral sclerosis. Am J Respir Crit Care Med. (2017) 195:86–95. 10.1164/rccm.201604-0848OC
220.
GordonPHSalachasFLacomblezLLe ForestierNPradatPFBruneteauGet al. Predicting survival of patients with amyotrophic lateral sclerosis at presentation: a 15-year experience. Neurodegener Dis. (2013) 12:81–90. 10.1159/000341316
221.
KalraSVitaleACashmanNRGengeAArnoldDL. Cerebral degeneration predicts survival in amyotrophic lateral sclerosis. J Neurol Neurosurg Psychiatry. (2006) 77:1253–5. 10.1136/jnnp.2006.090696
222.
AgostaFPaganiEPetroliniMSormaniMPCaputoDPeriniMet al. MRI predictors of long-term evolution in amyotrophic lateral sclerosis. Eur J Neurosci. (2010) 32:1490–6. 10.1111/j.1460-9568.2010.07445.x
223.
PintoSPintoAde CarvalhoM. Phrenic nerve studies predict survival in amyotrophic lateral sclerosis. Clin Neurophysiol. (2012) 123:2454–9. 10.1016/j.clinph.2012.05.012
224.
PijnenburgYAVerweyNAvan der FlierWMScheltensPTeunissenCE. Discriminative and prognostic potential of cerebrospinal fluid phosphoTau/tau ratio and neurofilaments for frontotemporal dementia subtypes. Alzheimers Dement. (2015) 1:505–12. 10.1016/j.dadm.2015.11.001
225.
OberstadtMClassenJArendtTHolzerM. TDP-43 and cytoskeletal proteins in ALS. Mol Neurobiol. (2018) 55:3143–51. 10.1007/s12035-017-0543-1
226.
GanesalingamJAnJShawCEShawGLacomisDBowserR. Combination of neurofilament heavy chain and complement C3 as CSF biomarkers for ALS. J Neurochem. (2011) 117:528–37. 10.1111/j.1471-4159.2011.07224.x
227.
PaganoniSMacklinEALeeAMurphyAChangJZipfAet al. Diagnostic timelines and delays in diagnosing amyotrophic lateral sclerosis (ALS). Amyotroph Lateral Scler Frontotemporal Degener. (2014) 15:453–6. 10.3109/21678421.2014.903974
228.
CudkowiczMEvan den BergLHShefnerJMMitsumotoHMoraJSLudolphAet al. Dexpramipexole versus placebo for patients with amyotrophic lateral sclerosis (EMPOWER): a randomised, double-blind, phase 3 trial. Lancet Neurology. (2013) 12:1059–67. 10.1016/S1474-4422(13)70221-7
229.
KernanWNViscoliCMMakuchRWBrassLMHorwitzRI. Stratified randomization for clinical trials. J Clin Epidemiol. (1999) 52:19–26. 10.1016/S0895-4356(98)00138-3
230.
NicholsonKACudkowiczMEBerryJD. Clinical trial designs in amyotrophic lateral sclerosis: does one design fit all?Neurotherapeutics. (2015) 12:376–83. 10.1007/s13311-015-0341-2
231.
MillerTMSmithRAKordasiewiczHKasparBK. Gene-targeted therapies for the central nervous system. Arch Neurol. (2008) 65:447–51. 10.1001/archneur.65.4.nnr70007
232.
Lagier-TourenneCBaughnMRigoFSunSLiuPLiHRet al. Targeted degradation of sense and antisense C9orf72 RNA foci as therapy for ALS and frontotemporal degeneration. Proc Natl Acad Sci USA. (2013) 110:E4530–9. 10.1073/pnas.1318835110
233.
RocheJCRojas-GarciaRScottKMScottonWEllisCEBurmanRet al. A proposed staging system for amyotrophic lateral sclerosis. Brain. (2012) 135(Pt 3):847–52. 10.1093/brain/awr351
234.
ChioAHammondERMoraGBonitoVFilippiniG. Development and evaluation of a clinical staging system for amyotrophic lateral sclerosis. J Neurol Neurosurg Psychiatry. (2015) 86:38–44. 10.1136/jnnp-2013-306589
235.
ThakoreNJLapinBRKinzyTGPioroEP. Deconstructing progression of amyotrophic lateral sclerosis in stages: a Markov modeling approach. Amyotroph Lateral Scler Frontotemporal Degener. (2018) 19:483–494. 10.1080/21678421.2018.1484925
236.
FangTAl KhleifatAStahlDRLazo La TorreCMurphyCUk-Mnd LicalSet al. Comparison of the King's and MiToS staging systems for ALS. Amyotroph Lateral Scler Frontotemporal Degener. (2017) 18:227–32. 10.1080/21678421.2016.1265565
237.
TramacereIDalla BellaEChioAMoraGFilippiniGLauriaG. The MITOS system predicts long-term survival in amyotrophic lateral sclerosis. J Neurol Neurosurg Psychiatry. (2015) 86:1180–5. 10.1136/jnnp-2014-310176
238.
BraakHBrettschneiderJLudolphACLeeVMTrojanowskiJQDel TrediciK. Amyotrophic lateral sclerosis–a model of corticofugal axonal spread. Nat Rev Neurol. (2013) 9:708–14. 10.1038/nrneurol.2013.221
239.
BrettschneiderJDel TrediciKToledoJBRobinsonJLIrwinDJGrossmanMet al. Stages of pTDP-43 pathology in amyotrophic lateral sclerosis. Ann Neurol. (2013) 74:20–38. 10.1002/ana.23937
240.
KassubekJMullerHPDel TrediciKBrettschneiderJPinkhardtEHLuleDet al. Diffusion tensor imaging analysis of sequential spreading of disease in amyotrophic lateral sclerosis confirms patterns of TDP-43 pathology. Brain. (2014) 137(Pt 6):1733–40. 10.1093/brain/awu090
241.
ShermanAVGubitzAKAl-ChalabiABedlackRBerryJConwitRet al. Infrastructure resources for clinical research in amyotrophic lateral sclerosis. Amyotroph Lateral Scler Frontotemporal Degener. (2013) 14(Suppl. 1):53–61. 10.3109/21678421.2013.779058
242.
ShermanABowserRGrassoDPowerBMilliganCJaffaMet al. Proposed BioRepository platform solution for the ALS research community. Amyotroph Lateral Scler. (2011) 12:11–6. 10.3109/17482968.2010.539233
243.
OttoMBowserRTurnerMBerryJBrettschneiderJConnorJet al. Roadmap and standard operating procedures for biobanking and discovery of neurochemical markers in ALS. Amyotroph Lateral Scler. (2012) 13:1–10. 10.3109/17482968.2011.627589
244.
TurnerMRGrosskreutzJKassubekJAbrahamsSAgostaFBenatarMet al. Towards a neuroimaging biomarker for amyotrophic lateral sclerosis. Lancet Neurol. (2011) 10:400–3. 10.1016/S1474-4422(11)70049-7
245.
JohnstonMVAdamsHPFatemiA. Neurobiology of Disease. Oxford: Oxford University Press (2016).
246.
Northeast ALS Consortium. NEALS Member Sites. Available online at: https://www.neals.org/about-us/neals-member-sites/
247.
BeghiE. 127th ENMC International Workshop: implementation of a European registry of ALS. Naarden, The Netherlands, 8-10 October 2004. Neuromuscul Disord. (2006) 16:46–53. 10.1016/j.nmd.2005.10.004
248.
BeghiELogroscinoGChioAHardimanOMitchellDSwinglerRet al. The epidemiology of ALS and the role of population-based registries. Biochim Biophys Acta. (2006) 1762:1150–7. 10.1016/j.bbadis.2006.09.008
249.
HobsonEVBairdWOPartridgeRCooperCLMawsonSQuinnAet al. The TiM system: developing a novel telehealth service to improve access to specialist care in motor neurone disease using user-centered design. Amyotroph Lateral Scler Frontotemporal Degener. (2018) 19:351–61. 10.1080/21678421.2018.1440408
250.
GeronimoAWrightCMorrisAWalshSSnyderBSimmonsZ. Incorporation of telehealth into a multidisciplinary ALS Clinic: feasibility and acceptability. Amyotroph Lateral Scler Frontotemporal Degener. (2017) 18:555–61. 10.1080/21678421.2017.1338298
251.
ChristodoulouGGenningsCHupfJFactor-LitvakPMurphyJGoetzRRet al. Telephone based cognitive-behavioral screening for frontotemporal changes in patients with amyotrophic lateral sclerosis (ALS). Amyotroph Lateral Scler Frontotemporal Degener. (2016) 17:482–8. 10.3109/21678421.2016.1173703
Summary
Keywords
motor neuron disease, amyotrophic lateral sclerosis, biomarkers, magnetic resonance imaging, neuroimaging
Citation
Chipika RH, Finegan E, Li Hi Shing S, Hardiman O and Bede P (2019) Tracking a Fast-Moving Disease: Longitudinal Markers, Monitoring, and Clinical Trial Endpoints in ALS. Front. Neurol. 10:229. doi: 10.3389/fneur.2019.00229
Received
28 October 2018
Accepted
22 February 2019
Published
19 March 2019
Volume
10 - 2019
Edited by
Francesca Trojsi, Università degli Studi della Campania Luigi Vanvitelli Caserta, Italy
Reviewed by
Judith Machts, Universitätsklinikum Magdeburg, Germany; Monica Consonni, Istituto Neurologico Carlo Besta (IRCCS), Italy
Updates
Copyright
© 2019 Chipika, Finegan, Li Hi Shing, Hardiman and Bede.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Peter Bede bedep@tcd.ie
This article was submitted to Neurodegeneration, a section of the journal Frontiers in Neurology
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
