ORIGINAL RESEARCH article

Front. Physiol., 02 May 2022

Sec. Cardiac Electrophysiology

Volume 13 - 2022 | https://doi.org/10.3389/fphys.2022.873821

Electrocardiography is Useful to Predict Postoperative Ventricular Arrhythmia in Patients Undergoing Cardiac Surgery: A Retrospective Study

  • The Sixth Affiliated Hospital of Guangzhou Medical University, Department of Anesthesiology, Qingyuan People’s Hospital, QingYuan, China

Article metrics

View details

8

Citations

1,8k

Views

896

Downloads

Abstract

Background: Preoperative detection of high-/low-risk postoperative ventricular arrhythmia (POVA) patients using a noninvasive method is an important issue in the clinical setting. This study mainly aimed to determine the usefulness of several preoperative electrocardiographic (ECG) markers in the risk assessment of POVA with cardiac surgery.

Method: We enrolled 1024 consecutive patients undergoing cardiac surgery, and a total of 823 patients were included in the study. Logistic regression analysis determined preoperative ECG markers. A new risk predicting model were developed to predict occurrence of POVA, and the receiver operating characteristic curve (ROC) was used to validate this model.

Results: Of these, 337 patients experienced POVA, and 485 patients did not experience POVA in this retrospective study. Among 15 ECG markers, a univariate analysis found a strong association between POVA and preoperative VA, the R-wave in lead aVR, the QRS wave, index of cardiac electrophysiological balance (iCEB), QT interval corrected (QTc), Tpeak–Tend interval (Tpe) in lead V2, the J wave in the inferolateral leads, pathological Q wave, and SV1+RV5>35 mm. Multivariate analysis showed that a preoperative J wave [adjusted odds ratio (AOR): 3.80; 95% CI: 1.88–7.66; p < 0.001], Tpe >112.5-ms (AOR: 2.80; 95% CI: 1.57–4.99; p < 0.001), and SV1+RV5 >35 mm (AOR: 2.92; 95% CI: 1.29–6.60; p = 0.01) were independently associated with POVA. A new risk predicting model were developed in predicting POVA.

Conclusion: The ECG biomarkers including J wave, Tpe >112.5 ms, and SV1+RV5 >35 mm were significantly predicted POVAs. A risk predicting model developed with electrocardiographic risk markers preoperatively predicted POVAs.

Introduction

Postoperative ventricular arrhythmia (POVA) is a frequent complication after surgery. Some clinical studies have suggested that POVA increases short- and long-term mortality and further deteriorates heart failure postprocedure (El-Chami et al., 2012; Valderrábano et al., 2016a). It is important to identify patients at high risk of developing POVA so that targeted prophylactic therapy or alternative strategies can be given. Many clinical markers for the development of malignant arrhythmia in ischemic heart diseases have been reported, including episodes of conduction disturbance postprocedure, T wave peak and end (Tpe) as an independent predictor of arrhythmic events (Maury et al., 2015), fragmented QRS (fQRS) (Morita et al., 2008), an early repolarization (ER) pattern (Pieroni et al., 2008), short- or long-QT intervals (Schwartz and Ackerman, 2013; Bjerregaard, 2018), the existence of late potential, and the index of cardiac electrophysiological balance (iCEB: QT/QRS) (Lu et al., 2013). In addition, the markers can also be used to stratify patients for short- and long-term outcomes and to predict sudden cardiac death due to malignant ventricular arrhythmia (SCD-VA) (Erikssen et al., 2012; Tse et al., 2018). However, the evidence on whether preoperative markers can predict an increased risk of POVA is not clear in the surgical setting. In this study, we chiefly aimed to identify preoperative risk markers for POVA by paying attention to surface electrocardiographic parameters.

Methods

Design, Setting, and Ethical Statement

Ethical approval for this retrospective cohort study (Ethical Committee approval number: IRB-202108-K4-amendment review-01) was provided by the Ethical Committee of the Sixth Affiliated Hospital of Guangzhou Medical University, QingYuan, GuangDong (Chairperson Prof JiFang Liu) on 12 November 2021. We registered the study protocol with the Chinese Clinical Trial Registration (identifier: ChiCTR2100052496).

Data Source

The current study used the data archived in the electronic medical record system of Southern Huiqiao and in the anesthesia care system database in the operating room. The exact date of death of in-hospital patients was recorded explicitly.

Study Population and Inclusion and Exclusion Criteria

In this retrospective cohort study, we screened 1024 consecutive patients undergoing open cardiac surgery from January 2013 to October 2021. Twenty-three patients were excluded due to the loss of ECG data. Only three patients who died during surgery were excluded from the analysis. Another 175 patients were excluded for age <18 years. A total of 823 patients were included in the study (Figure 1).

FIGURE 1

FIGURE 1

Flowchart of patient selection.

Postoperative Ventricular Arrhythmia

Rhythm disturbances were evaluated by continuous electrocardiographic monitoring from the time of the removal of the aortic clamp to 72 h postoperatively. POVA was defined as any premature ventricular beats, ventricular fibrillation, and bradyarrhythmias during the reperfusion period or in the postoperative period (Valderrábano et al., 2016b).

Electrocardiographic Measurements

After a quality check assessing recording speed (>25 mm/s), standard 12-lead ECGs (MedEx-ECG workstation, Madicks Co., Ltd., BeiJing, China) were recorded in the same way and were evaluated for the QRS width, QT or QTc interval, ST-segment level at the J point, Tpeak–Tend interval (Tpe), iCEB, SV1+RV5 >35 mm, QT/QTc ratio, and fQRS. The Tpeak–Tend interval (Tpe) is defined as the interval from the peak to the end of the T-wave in the V2 lead; this interval was measured in three beats and then averaged (Demidova et al., 2019). The QT interval was automatically measured in lead II and corrected for the heart rate with the Bazett method. An S-wave in lead I was defined as a depth >0.1 mV and/or a width >40 ms (Calò et al., 2016). An R-wave in lead aVR was defined as an R-wave height >0.3 mV and/or an R-wave/q-wave ratio >0.75 (BabaiBigi et al., 2007). Regarding the defined short- or long-QT intervals, the current guideline recommends an upper normal limit of a corrected QT (QTc) interval of 440 ms and a lower limit of 340 ms (Schwartz and Ackerman, 2013; Campuzano et al., 2018). The presence of fQRS was defined as abnormal fragmentation within the QRS complex as four spikes in several leads as described previously. Based on the American Heart Association’s scientific statement, the J wave or J point was defined as the amplitude of the elevation that had to be at least 1 mm above the baseline level at the ST-segment level, either as QRS slurring or notching (Patton et al., 2016). Atrial fibrillation was diagnosed as previously reviewed. The voltage sum SV1+RV5 >35 mm using the Sokolow-Lyon voltage criteria was diagnosed as left ventricular hypertrophy (LVH) (Antikainen et al., 2003). iCEB was defined as QRS/QT.

Selection of Preoperative ECG Markers

We selected 15 potential ECG markers (Figure 1) of POVA risk according to previous reviews. Four potential markers were associated with depolarization/conduction disorders, including a QRS width>120 ms, a fragmented QRS in the precordial leads (fQRS), an S wave in lead I, and an R-wave in lead aVR. Five potential markers were implicated in repolarization disorders: the J wave or J point, short- or long-QT intervals, QT/QTc, and Tpe. One potential marker was related to an imbalance between repolarization and depolarization, that is, the iCEB. The following remaining potential markers were unclassified: atrial fibrillation (AF), ST-segment change, and SV1+RV5 >35 mm representing LVH.

Statistical Analysis

Data are expressed as the mean ± SD or median (interquartile range). Student’s t test was performed to compare variables between groups, and categorical data and percentage frequencies were compared with the chi-square or Fisher exact test as appropriate. Univariate analysis was performed for associated POVA events. Multivariate analysis was used to estimate the occurrence risk for those predictors and identified independent risk factors relative to POVA. Receiver operating characteristic (ROC) curve and area under the curve (AUC) analyses were used to estimate the usefulness of preoperative Tpe for the prediction of POVA. Candidate variables were defined as a p value < 0.10 in univariate analysis and the 2-group comparison of each model. A p value <0.05 was considered statistically significant.

Results

Population Characteristics

Altogether, 823 patients from the same hospital were included in this analysis, with women accounting for 51.3% of the entire cohort and a mean age of 54.7 years. A total of 546 patients underwent isolated valve surgery (66.3%), and 186 patients underwent isolated coronary artery bypass grafting (CABG) [22.6%]. Ventricular and auricular septal defect repair was conducted in 28 and 71 patients, respectively, and 28 patients underwent cardiac myxoma removal. In total, 44 patients underwent other isolated surgeries. POVA occurred in 338 patients (41%). Table 1 shows the characteristics of patients with and without POVA. The proportions of patients with diabetes, stroke, and undergoing CABG or valve surgery were higher among patients with POVA than among patients without POVA. Patients with ventricular and auricular septal defect were, more often, POVA free. Table 2 shows preoperative electrocardiographic data in patients with POVA and POVA-free. The proportions of patients with the presence of S-wave in lead I, R-wave in lead aVR, Tpe interval >112.5-ms, ST-segment change, J wave, Preoperative AF, and SV1+RV5 > 35 mm were higher among patients with POVA than among patients without POVA. Compared with the patients with POVA-free, the duration of QRS complex, Tpe interval, and QTc duration in the patient with POVA were prolonged.

TABLE 1

POVA (n = 338), % (n)POVA-free (n = 485), % (n)p Value
Age, yrs52.2 ± 12.846.8 ± 11.60.062
Male48.7% (165)33.3% (160)<0.001
Weight, kg58.3 ± 1154.3 ± 11.20.69
NYHA class ≥ III53.8% (182)66% (320)<0.001
Medical history
 Dyslipidemia9.5% (48)5.3% Tse et al. (2021)0.545
 Hypertension20.5% (69)8.9% (43)0.91
 Diabetes5.7% Takagi et al. (2013)5.3% Tse et al. (2021)0.027
 Stroke12.8% (43)2.6% Calò et al. (2016)0.023
 COPD3.2% Valderrábano et al. (2016b)6.2% Shenasa et al. (2015)0.057
 Previous MI10.2% Valderrábano et al. (2016a)4.4% Rosenthal et al. (2015)0.28
Cardiac cardioplegia
 HTK solution64.7% (219)19.1% (93)0.038
 Cold blood cardioplegia35.2% (119)80.8% (392)0.038
Surgery variables
 GABG27.4% (93)10.7% (93)0.005
 Heart valve surgery62.1% (210)69.1% (336)<0.001
 Ventricular septal defect repair2.5% Erikssen et al. (2012)4% Takagi et al. (2013)0.005
 Auricular septal defect repair7.6% Tse et al. (2021)9.3% (45)<0.001
 Cardiac myxoma removal3.8% Calò et al. (2016)3.1% (Schwartz and Ackerman, 2013)0.18
 Others6.8% Valderrábano et al. (2016a)0.8% Erikssen et al. (2012)0.14

Baseline Characteristics in patients with POVA and POVA-free.

MI, myocardial infarction; COPD, chronic obstructive pulmonary disease; GABG, coronary artery bypass grafting.

TABLE 2

POVA (n = 338), % (n)POVA-free (n = 485), % (n)p Value
Depolarization/conduction disorders markers
 Duration of QRS complex, ms96.2 ± 17.789.3 ± 14.9<0.001
 Fragmented QRS17.9% (61)12.0% (58)0.054
 S-wave in lead I29.4% (100)26.3% (128)<0.001
 R-wave in lead aVR95.5% (323)86.6% (420)<0.001
Repolarization disorders markers
 Tpe interval in lead V2, ms115.1 ± 36.887.0 ± 24.1<0.001
 Tpe interval >112.5-ms53.8% (182)13.8% (67)<0.001
 QT duration, ms382.6 ± 61.7369.5 ± 50.10.024
 QTc duration, ms435.2 ± 50.1415.6 ± 40.8<0.001
 QT/QTc ratio0.9 ± 0.10.9 ± 0.10.486
 Long- or short- QT intervals55.7% (188)39.7% (193)0.189
 ST-segment change17.3% (58)12.0% (58)<0.001
 J wave69.2% (234)18.7% (91)<0.001
Abnormal depolarization-repolarization
 Combination of the J wave and fQRS16.6% (56)7.5% Moss et al. (2002)<0.001
Unclassified markers
 Preoperative AF19.8% (67)25.4% (123)<0.001
 Preoperative VA29.4% (100)16.5% (80)0.07
 iCEB (QRS/QT)0.3 ± 0.10.2 ± 0.10.081
 Pathological Q wave4.4% Schwartz and Ackerman, (2013)0.8% (Morita et al. (2008)0.092
 SV1+RSV5 > 35 mm16.6% (56)4.9% Panikkath et al. (2011)<0.001
 Heart rate, bpm80.8 ± 19.979.5 ± 19.30.485

Preoperative electrocardiographic data in patients with POVA and POVA-free.

AF, atrial fibrillation; VA, ventricular arrhythmia; iCEB, the index of cardiac electrophysiological balance.

Univariate Analysis in Preoperative ECG

Table 3 shows the results of the univariable analysis. In univariate analysis, heart rate, fQRS, the S wave in lead I, QT/QTc, ST-segment change, and preoperative AF did not predict POVA. Preoperative VA, the R-wave in lead aVR, QRS duration, iCEB, QT interval, QTc interval, Long- or short- QT intervals, Tpe in lead V2, inferolateral J wave, J wave + fQRS, Q wave, and SV1+RV5 > 35 mm were associated with POVA.

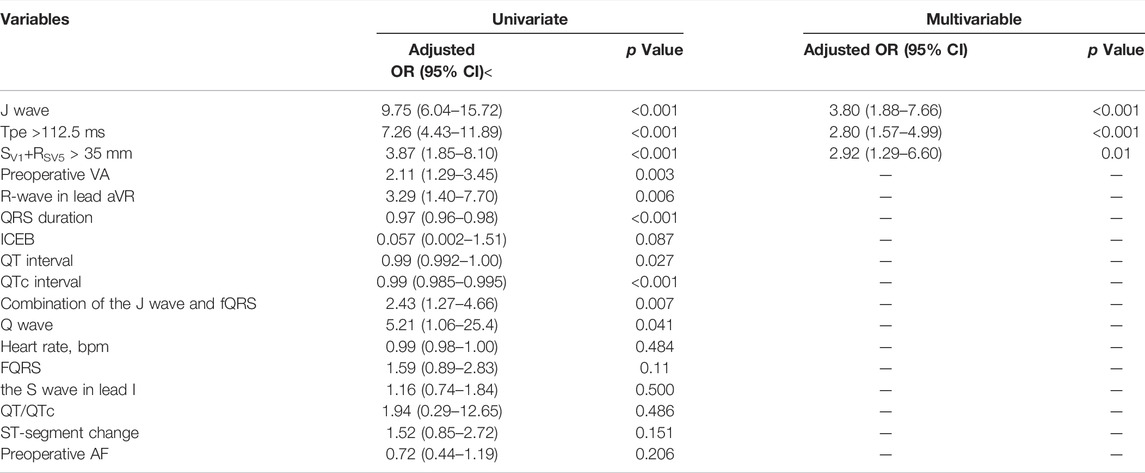

TABLE 3

VariablesUnivariateMultivariable
Adjusted OR (95% CI)<p ValueAdjusted OR (95% CI)p Value
J wave9.75 (6.04–15.72)<0.0013.80 (1.88–7.66)<0.001
Tpe >112.5 ms7.26 (4.43–11.89)<0.0012.80 (1.57–4.99)<0.001
SV1+RSV5 > 35 mm3.87 (1.85–8.10)<0.0012.92 (1.29–6.60)0.01
Preoperative VA2.11 (1.29–3.45)0.003——
R-wave in lead aVR3.29 (1.40–7.70)0.006——
QRS duration0.97 (0.96–0.98)<0.001——
ICEB0.057 (0.002–1.51)0.087——
QT interval0.99 (0.992–1.00)0.027——
QTc interval0.99 (0.985–0.995)<0.001——
Combination of the J wave and fQRS2.43 (1.27–4.66)0.007——
Q wave5.21 (1.06–25.4)0.041——
Heart rate, bpm0.99 (0.98–1.00)0.484——
FQRS1.59 (0.89–2.83)0.11——
the S wave in lead I1.16 (0.74–1.84)0.500——
QT/QTc1.94 (0.29–12.65)0.486——
ST-segment change1.52 (0.85–2.72)0.151——
Preoperative AF0.72 (0.44–1.19)0.206——

Analyses of independent electrocardiographic markers of POVA using logistic regression models.

Multivariate Analysis of Preoperative ECG Parameters and Receiver Operating Characteristic Analysis

The multivariate logistic regression analysis identified the following preoperative factors that could predict POVA: the J wave (AOR: 3.80; 95% CI: 1.88–7.66; p < 0.001), and SV1+RV5 > 35 mm (AOR: 2.92; 95% CI: 1.29–6.60; p = 0.01). Each 10-ms decrease in Tpe was associated with a 16% increase in the risk for POVA (AOR: 0.984; 95% CI: 0.97–0.99; p < 0.001). In addition, ROC curve analysis revealed the utility of Tpe for the prediction of POVA. The AUC was 0.724 (95% CI 0.67–0.77, p < 0.0001), with discrimination at 112.5-ms yielding a sensitivity of 54.5% and specificity of 87.5% (Supplementary Figure S1). Subsequently, multivariate analysis again identified that preoperative Tpe >112.5 ms was independently associated with POVA (AOR: 2.80; 95% CI: 1.57–4.99; p < 0.001).

Construction and Validation of a POVA Risk Prediction Model

Points were assigned to each risk predictor according to its number, enabling the development of a model that predicted the risk of POVA. The presence of the J wave was assigned 1 point, the presence of the SV1+RV5 > 35 mm wave was assigned 1 point, and the presence of the Tpe >112.5-ms wave was assigned one point. Thus, the POVA risk prediction model was developed with a range of 0–3 points based on this calculation. The rates of POVA and the risk scores in the cohorts are shown in Figure 2. In addition, the established ROC curve and AUC were validated in the model for the total cohort (Supplement Figure 1). The AUC for this model was 0.797 (p < 0.0001).

FIGURE 2

FIGURE 2

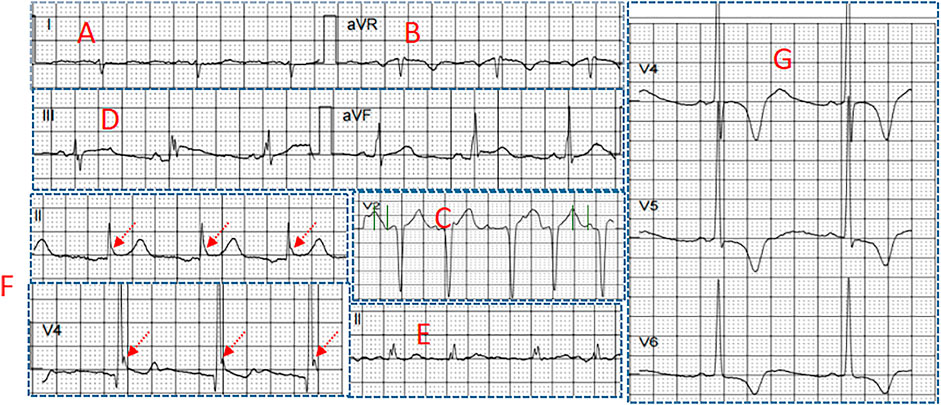

Several electrocardiographic markers for POVA (A) S-wave in lead I (B) R-wave in lead aVR (C) Tpeak-Tend interval in lead V2(D) Combination of fragmented QRS and J wave (E) fragmented QRS (F) J wave in the inferior leads, and (G) SV1+RV5 >35 mm.

Discussion

The present study showed the following findings (El-Chami et al., 2012): a preoperative J wave, SV1+RV5 >35 mm, and Tpe >112.5 ms were independently associated with POVA, and (Valderrábano et al., 2016a) the risk prediction model could preoperatively predict the risk of POVA.

Preoperative Electrocardiographic Markers of POVA.

A preoperative J wave was independently associated with POVA. There is a long-established concept that the J wave is benign. This concept has been significantly contradicted in recent years. Some studies have shown that the presence of the J wave was associated with a higher incidence of ventricular tachyarrhythmia (VT/VF) in patients with Brugada syndrome (Takagi et al., 2013), short QT syndrome, noncompaction cardiomyopathy (Caliskan et al., 2012), and ischemic heart disease (Patel et al., 2012). This evidence implies that more arrhythmogenic susceptibility appears in patients with the presence of the J wave. Under surgical conditions and global cardiac ischemic factors, there is a general risk of POVA in patients. Our finding that a preoperative J wave was more common in patients experiencing POVA is in agreement with these previous findings. The underlying mechanism may be that the disparity of outward Ito current density between segments of the ventricular epicardium has the potential to cause ventricular tachyarrhythmias.

In addition, Tpe, representing cardiac repolarization inhomogeneity, was implicated in POVA, and ROC curve and multivariate analyses considered that Tpe >112.5 ms was independently associated with POVA. Todd et al. suggested that the T-peak to T-end interval predicts ventricular tachyarrhythmia in a primary prevention population with systolic cardiomyopathy (Rosenthal et al., 2015). The T peak-Tend interval was previously associated with endothelial dysfunction, arterial stiffness and impaired coronary perfusion (Mozos, 2015). Ragesh et al. considered that a prolonged Tpeak-to-Tend interval on resting ECG was associated with increased VF for sudden cardiac death (Panikkath et al., 2011). Tpeak-Tend interval was reported to be prolonged in hypertensive, overweight and obese patients, smokers, and persons with prolonged exposure to shift work (Mozos and Filimon, 2013). Some studies suggested that repolarization variability predict ventricular arrhythmogenesis in mouse or human hearts (Castro-Torres et al., 2015; Tse et al., 2021). Our finding is in accordance with previous reviews of Tpe predicting cardiac arrhythmias. The ventricular myocardium includes three electrophysiologically distinct cell types-endocardial, epicardial, and subendocardial M cells. Tpe corresponds to the transmural dispersion of repolarization in the ventricular myocardium, a period during which the epicardium has repolarized and is fully excitable, but the M cells are still in the process of repolarization and are vulnerable to the occurrence of early afterdepolarizations. If conditions permit, these early afterdepolarizations can lead to reentry, resulting in polymorphic ventricular tachycardia or ventricular fibrillation (Antzelevitch, 2007).

SV1+RV5 >35 mm was considered a risk marker of POVA. SV1+RSV5 >35 mm represents left ventricular hypertrophy (LVH) according to the Sokolow-Lyon ECG criteria. Seth R. et al. found that ECG LVH was an independent predictor of nonoperative arrhythmic events (Bender et al., 2012). A previous review suggested that left ventricular hypertrophy (LVH) poses an independent risk of increased morbidity and mortality, including atrial arrhythmias, ventricular arrhythmias, and sudden cardiac death (Shenasa et al., 2015). The gap junction surface area is reduced, and its unusual distribution may decrease the threshold of arrhythmogenesis in patients when undergoing cardiac surgery (Wolk, 2000).

A POVA Risk Prediction Model

According to the number of risk markers, we assigned points and subsequently developed a model predicting POVA. The POVA risk prediction model was developed with a range of 0–3 points based on this calculation in Figure 3A. The rates of POVA and its risk scores in the cohorts were the highest in the two-point position and did rise by points increased in Figure 3B. Subsequently, ROC curve analysis was performed for the validation of the model. The AUC for this model was 0.797 (p < 0.0001). The model is simple, efficient and practical. Patients with ventricular and auricular septal defect were, more often, POVA free. There is rarely the relationship between some types of operation including ventricular and auricular septal defect and postoperative arrhythmia. Potential reasons probably were that the patients undergoing the mentioned types of surgery were younger.

FIGURE 3

FIGURE 3

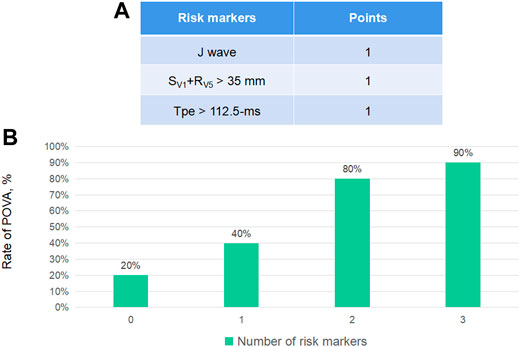

Electrocardiographic markers for POVA and the development of the POVA risk score model, According to the number of risk markers, we assigned points (A) and subsequently developed a model predicting POVA (B).

Prediction Factors and Clinic Outcomes of a POVA

An abundant study suggested that POVA is associated with increased short- and long-term mortality after cardiac surgery (CS). Previous studies have suggested that have shown that POVA predicts higher (21.7–28.9%) in-hospital mortality compared with control (1.4–1.9%) (Ascione et al., 2004; Yeung-Lai-Wah et al., 2004). Besides, Most deaths in patients with POVA occur in the hospital and within the first year after discharge (El-Chami et al., 2012). Rodrigo et al. have suggested that developing a new POVA increases the risk of in-hospital mortality independently in the medical intensive care unit (Valderrábano et al., 2016a). Older age, female sex, systemic hypertension, peripheral vascular disease (PVD), lower ejection fraction (EF), and emergent surgery are associated with a higher risk of POVA, whereas off-pump surgery seems to be protective (Yeung-Lai-Wah et al., 2004; El-Chami et al., 2012). Some studies looking at risk of POVA after CS found that patients with POVA are older than patients without POVA (Steinberg et al., 1999). Ascione et al. reported a trend toward a reduction in POVA with the use of off-pump surgery compared with on-pump. A group of patients with LV dysfunction associated with a previous MI have been reported that common POVA (Moss et al., 2002). The presence of PVD in some studies is found to be predictive of POVA and operative mortality (Loponen et al., 2002; Bonacchi et al., 2020). Our previous study has been suggested that systemic hypertension was an independent risk factor of post-operative ventricular fibrillation. The need for emergent CABG also strongly predicted POVA. Emergency CABG generally carries a higher risk of in-hospital mortality and added requirements for hemodynamic support (Yang et al., 2005).

Limitations

These electrocardiographic markers are dynamic; thus, the true prevalence of this coexistence is difficult to evaluate. Various methods to measure the Tpe interval have been used in other studies. Our results may not be reproducible with other Tpe measurement methods. In addition, limits of the Bazett formula and the heterogeneity of the studied population also were considered necessarily. This retrospective study evaluated patients from a single hospital, existing the observational bias. There is the limited clinical applicability of the findings in the absence of other clinical and biochemical markers.

Conclusion

The ECG biomarkers including J wave, Tpe >112.5 ms, and SV1+RSV5 >35 mm were significantly predicted POVAs. A risk predicting model developed with electrocardiographic risk markers preoperatively predicted POVAs.

Statements

Data availability statement

The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.

Ethics statement

The studies involving human participants were reviewed and approved by the Ethical approval for this retrospective cohort study (Ethical Committee approval number: IRB-202108-K4-amendment review-01) was provided by the Ethical Committee of the Sixth Affiliated Hospital of Guangzhou Medical University, QingYuan, GuangDong (Chairperson JiFang Liu) on 12 November 2021. We registered the study protocol with the Chinese Clinical Trial Registration (identifier: ChiCTR2100052496). The patients/participants provided their written informed consent to participate in this study.

Author contributions

Author contributions: WLi designed the research; HLconducted the review and editing; and WLiu wrote the paper.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphys.2022.873821/full#supplementary-material

References

  • 1

    AntikainenR.GrodzickiT.PalmerA. J.BeeversD. G.ColesE. C.WebsterJ.et al (2003). The Determinants of Left Ventricular Hypertrophy Defined by Sokolow-Lyon Criteria in Untreated Hypertensive Patients. J. Hum. Hypertens.17 (3), 159–164. 10.1038/sj.jhh.1001523

  • 2

    AntzelevitchC. (2007). Role of Spatial Dispersion of Repolarization in Inherited and Acquired Sudden Cardiac Death Syndromes. Am. J. Physiology-Heart Circulatory Physiol.293 (4), H2024–H2038. 10.1152/ajpheart.00355.2007

  • 3

    AscioneR.ReevesB. C.SantoK.KhanN.AngeliniG. D. (2004). Predictors of New Malignant Ventricular Arrhythmias after Coronary Surgery. J. Am. Coll. Cardiol.43 (9), 1630–1638. 10.1016/j.jacc.2003.11.056

  • 4

    Babai BigiM. A.AslaniA.ShahrzadS. (2007). aVR Sign as a Risk Factor for Life-Threatening Arrhythmic Events in Patients with Brugada Syndrome. Heart Rhythm4 (8), 1009–1012. 10.1016/j.hrthm.2007.04.017

  • 5

    BenderS. R.FriedmanD. J.MarkowitzS. M.LermanB. B.OkinP. M. (2012). Electrocardiographic Left Ventricular Hypertrophy Predicts Arrhythmia and Mortality in Patients with Ischemic Cardiomyopathy. J. Interv. Card. Electrophysiol.34 (3), 237–245. 10.1007/s10840-011-9661-2

  • 6

    BjerregaardP. (2018). Diagnosis and Management of Short QT Syndrome. Heart Rhythm15 (8), 1261–1267. 10.1016/j.hrthm.2018.02.034

  • 7

    BonacchiM.PariseO.MatteucciF.TettaC.MoulaA. I.MicaliL. R.et al (2020). Is Peripheral Artery Disease an Independent Predictor of Isolated Coronary Artery Bypass Outcome?Heart Lung Circ.29 (10), 1502–1510. 10.1016/j.hlc.2020.01.013

  • 8

    CaliskanK.UjvariB.BauernfeindT.A.M.J. TheunsD.Van DomburgR. T.AkcaF.et al (2012). The Prevalence of Early Repolarization in Patients with Noncompaction Cardiomyopathy Presenting with Malignant Ventricular Arrhythmias. J. Cardiovasc. Electrophysiol.23 (9), 938–944. 10.1111/j.1540-8167.2012.02325.x

  • 9

    CalòL.GiustettoC.MartinoA.SciarraL.CerratoN.MarzialiM.et al (2016). A New Electrocardiographic Marker of Sudden Death in Brugada Syndrome: The S-Wave in Lead I. J. Am. Coll. Cardiol.67 (12), 1427–1440. 10.1016/j.jacc.2016.01.024

  • 10

    CampuzanoO.Sarquella-BrugadaG.CesarS.ArbeloE.BrugadaJ.BrugadaR. (2018). Recent Advances in Short QT Syndrome. Front. Cardiovasc. Med.5, 149. 10.3389/fcvm.2018.00149

  • 11

    Castro-TorresY.Carmona-PuertaR.KatholiR. E. (2015). Ventricular Repolarization Markers for Predicting Malignant Arrhythmias in Clinical Practice. Wjcc3 (8), 705–720. 10.12998/wjcc.v3.i8.705

  • 12

    DemidovaM. M.CarlsonJ.ErlingeD.AzarovJ. E.PlatonovP. G. (2019). Prolonged Tpeak-Tend Interval Is Associated with Ventricular Fibrillation during Reperfusion in ST-Elevation Myocardial Infarction. Int. J. Cardiol.280, 80–83. 10.1016/j.ijcard.2019.01.008

  • 13

    El-ChamiM. F.SawayaF. J.KilgoP.SteinW.HalkosM.ThouraniV.et al (2012). Ventricular Arrhythmia after Cardiac Surgery. J. Am. Coll. Cardiol.60 (25), 2664–2671. 10.1016/j.jacc.2012.08.1011

  • 14

    ErikssenG.LiestølK.GullestadL.HaugaaK. H.BendzB.AmlieJ. P. (2012). The Terminal Part of the QT Interval (T Peak to T End): a Predictor of Mortality after Acute Myocardial Infarction. Ann. Noninvasive Electrocardiol.17 (2), 85–94. 10.1111/j.1542-474x.2012.00493.x

  • 15

    LoponenP.TaskinenP.LaakkonenE.NissinenJ.PeltolaT.WistbackaJ.-O.et al (2002). Peripheral Vascular Disease as Predictor of Outcome after Coronary Artery Bypass Grafting. Scand. J. Surg.91 (2), 160–165. 10.1177/145749690209100205

  • 16

    LuH. R.YanG.-X.GallacherD. J. (2013). A new biomarker - index of Cardiac Electrophysiological Balance (iCEB) - plays an important role in drug-induced cardiac arrhythmias: beyond QT-prolongation and Torsades de Pointes (TdPs). J. Pharmacol. Toxicol. Methods68 (2), 250–259. 10.1016/j.vascn.2013.01.003

  • 17

    MauryP.SacherF.GourraudJ.-B.PasquiéJ.-L.RaczkaF.BongardV.et al (2015). Increased Tpeak-Tend Interval Is Highly and Independently Related to Arrhythmic Events in Brugada Syndrome. Heart Rhythm12 (12), 2469–2476. 10.1016/j.hrthm.2015.07.029

  • 18

    MoritaH.KusanoK. F.MiuraD.NagaseS.NakamuraK.MoritaS. T.et al (2008). Fragmented QRS as a Marker of Conduction Abnormality and a Predictor of Prognosis of Brugada Syndrome. Circulation118 (17), 1697–1704. 10.1161/circulationaha.108.770917

  • 19

    MossA. J.ZarebaW.HallW. J.KleinH.WilberD. J.CannomD. S.et al (2002). Prophylactic Implantation of a Defibrillator in Patients with Myocardial Infarction and Reduced Ejection Fraction. N. Engl. J. Med.346 (12), 877–883. 10.1056/nejmoa013474

  • 20

    MozosI.FilimonL. (2013). QT and Tpeak-Tend Intervals in Shift Workers. J. Electrocardiol.46 (1), 60–65. 10.1016/j.jelectrocard.2012.10.014

  • 21

    MozosI. (2015). The Link between Ventricular Repolarization Variables and Arterial Function. J. Electrocardiol.48 (2), 145–149. 10.1016/j.jelectrocard.2014.11.008

  • 22

    PanikkathR.ReinierK.Uy-EvanadoA.TeodorescuC.HattenhauerJ.MarianiR.et al (2011). Prolonged Tpeak-To-Tend Interval on the Resting ECG Is Associated with Increased Risk of Sudden Cardiac Death. Circ. Arrhythm Electrophysiol.4 (4), 441–447. 10.1161/circep.110.960658

  • 23

    PatelR. B.IlkhanoffL.NgJ.ChokshiM.MouchliA.ChackoS. J.et al (2012). Clinical Characteristics and Prevalence of Early Repolarization Associated with Ventricular Arrhythmias Following Acute ST-Elevation Myocardial Infarction. Am. J. Cardiol.110 (5), 615–620. 10.1016/j.amjcard.2012.04.042

  • 24

    PattonK. K.EllinorP. T.EzekowitzM.KoweyP.LubitzS. A.PerezM.et al (2016). Electrocardiographic Early Repolarization. Circulation133 (15), 1520–1529. 10.1161/cir.0000000000000388

  • 25

    PieroniM.BellocciF.CreaF. (2008). Sudden Cardiac Arrest Associated with Early Repolarization. N. Engl. J. Med.359 (7), 761–762. 10.1056/NEJMc081272

  • 26

    RosenthalT. M.StahlsP. F.3rdAbi SamraF. M.BernardM. L.KhatibS.PolinG. M.et al (2015). T-peak to T-End Interval for Prediction of Ventricular Tachyarrhythmia and Mortality in a Primary Prevention Population with Systolic Cardiomyopathy. Heart Rhythm12 (8), 1789–1797. 10.1016/j.hrthm.2015.04.035

  • 27

    SchwartzP. J.AckermanM. J. (2013). The Long QT Syndrome: a Transatlantic Clinical Approach to Diagnosis and Therapy. Eur. Heart J.34 (40), 3109–3116. 10.1093/eurheartj/eht089

  • 28

    ShenasaM.ShenasaH.El-SherifN. (2015). Left Ventricular Hypertrophy and Arrhythmogenesis. Card. Electrophysiol. Clin.7 (2), 207–220. 10.1016/j.ccep.2015.03.017

  • 29

    SteinbergJ. S.GaurA.SciaccaR.TanE. (1999). New-onset Sustained Ventricular Tachycardia after Cardiac Surgery. Circulation99 (7), 903–908. 10.1161/01.cir.99.7.903

  • 30

    TakagiM.AonumaK.SekiguchiY.YokoyamaY.AiharaN.HiraokaM. (2013). The Prognostic Value of Early Repolarization (J Wave) and ST-Segment Morphology after J Wave in Brugada Syndrome: Multicenter Study in Japan. Heart Rhythm10 (4), 533–539. 10.1016/j.hrthm.2012.12.023

  • 31

    TseG.GongM.MengL.WongC. W.BazoukisG.ChanM. T. V.et al (2018). Predictive Value of Tpeak - Tend Indices for Adverse Outcomes in Acquired QT Prolongation: A Meta-Analysis. Front. Physiol.9, 1226. 10.3389/fphys.2018.01226

  • 32

    TseG.HaoG.LeeS.ZhouJ.ZhangQ.DuY.et al (2021). Measures of Repolarization Variability Predict Ventricular Arrhythmogenesis in Heptanol-Treated Langendorff-Perfused Mouse Hearts. Curr. Res. Physiol.4, 125–134. 10.1016/j.crphys.2021.04.001

  • 33

    ValderrábanoR. J.BlancoA.Santiago-RodriguezE. J.MirandaC.Rivera-Del Rio Del RioJ.RuizJ.et al (2016Jan 22). Risk Factors and Clinical Outcomes of Arrhythmias in the Medical Intensive Care Unit. J. Intensive Care4, 9. 10.1186/s40560-016-0131-x

  • 34

    ValderrábanoR. J.BlancoA.Santiago-RodriguezE. J. (2016). Risk Factors and Clinical Outcomes of Arrhythmias in the Medical Intensive Care Unit. J. Intensive Care4, 9.

  • 35

    WolkR. (2000). Arrhythmogenic Mechanisms in Left Ventricular Hypertrophy. Europace2 (3), 216–223. 10.1053/eupc.2000.0110

  • 36

    YangE. H.GuminaR. J.LennonR. J.HolmesD. R.RihalC. S.SinghM. (2005). Emergency Coronary Artery Bypass Surgery for Percutaneous Coronary Interventions. J. Am. Coll. Cardiol.46 (11), 2004–2009. 10.1016/j.jacc.2005.06.083

  • 37

    Yeung-Lai-WahJ. A.QiA.McNeillE.AbelJ. G.TungS.HumphriesK. H.et al (2004). New-onset Sustained Ventricular Tachycardia and Fibrillation Early after Cardiac Operations. Ann. Thorac. Surg.77 (6), 2083–2088. 10.1016/j.athoracsur.2003.12.020
