Integrated Access and Backhaul: A New Type of Wireless Backhaul in 5G
- Ericsson, Kista, Sweden
In this paper, we study the concept and the potentials of integrated access and backhaul (IAB) as one of the main innovative aspects of 5G networks. We study IAB networks from different perspectives. Particularly, we summarize the recent Rel-16 discussions on IAB, and highlight the main IAB-specific agreements on different protocol layers. Moreover, we present simulations and proof-of-concept testbed results to evaluate the performance of IAB networks in both urban and suburban areas. As show, for both suburban and urban scenarios, IAB is an attractive complement to fiber, with high flexibility and low time-to-market.
Transport networks play a vital role in RANs by connecting all pieces. The use of dark fiber for 5G transport is of growing importance (Eriksson et al., 2019), and wireless backhaul is an essential complement for sites where fiber is either not available or too costly. In fact, microwave backhaul has been the dominant global backhaul media for over two decades and will remain a highly attractive complement to fiber for 5G transport (Ericsson Microwave Outlook 2018 report).
Network densification using street-site deployments comes with new challenges, however. The allowed space and weight for equipment is limited. The installation, integration and operation must be simplified with a high degree of automation to achieve cost-efficient deployment of RAN and transport. This calls for a new type of wireless backhaul that is fully integrated with 5G New Radio (NR) access. This is where integrated access and backhaul (IAB) enters the frame.
More than 10 GHz of total bandwidth in the mmWave frequency range of 24.25–71 GHz was globally identified for 5G at the ITU World Radio Conference 2019. Already today, 5 GHz of mmWave bandwidth is available in the US. The best overall performance at the lowest total cost of ownership is achieved by using mmWave in combination with spectrum assets below 6 GHz (Eriksson et al., 2019).
These assets will be deployed on macro sites (rooftops, towers) and street sites (poles, walls, strands) in urban areas with high demands on capacity and speed, as well as in suburban areas with fiber-like fixed wireless access (FWA) services (Ericsson Mobility Report, 2018). IAB could provide fast deployment of mmWave backhaul for new multiband street sites, with an easy migration to fiber-based backhaul if, and when, needed (Madapatha et al., 2020), (Dahlman et al., 2020).
With this background, this paper introduces the concept and the potentials of IAB as one of the key enablers of network densification in 5G networks. We study the IAB networks from different points of view. First, we summarize the most recent 3GPP discussions in Rel-16, and highlight the main IAB-specific features on different protocol layers. To simplify the bridging between the academia and industry, we present the concept and the main agreements of 3GPP standardization in an easy-to-follow way, which will help the theoretical works to follow (semi)realistic system model in the evaluations. Then, discussing the deployment constraints of IAB, we introduce the concept of wide- and local-area IAB networks to be used in planned and unplanned deployments, respectively. Finally, concentrating on mmWave-based communications, we analyze the performance of IAB networks in suburban and urban areas by both simulation-based and testbed evaluations, and verify the effect of the tree foliage on the system performance. As we show, along with microwave backhauling, IAB is a cost-effective complement of fiber, with high flexibility and low time-to-mark.
II Using Radio-Access Technology to Provide Backhaul

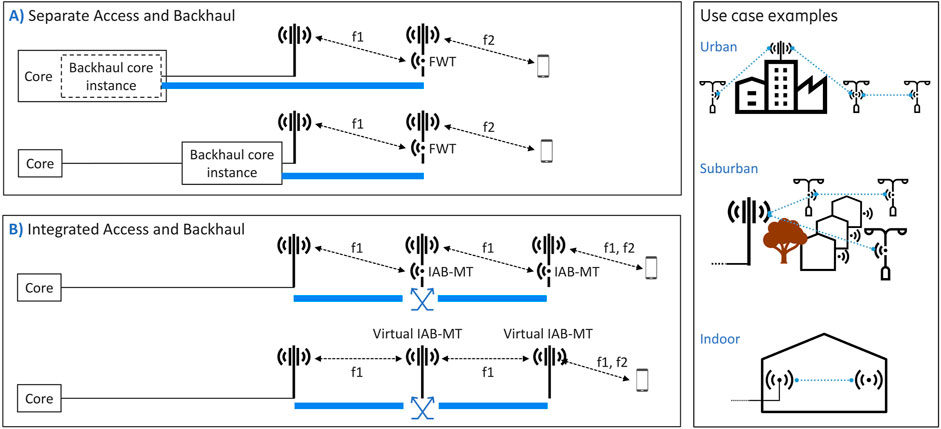

Access spectrum has historically been too valuable and limited to use for backhauling. Its rare use today is for LTE solutions that provide a single backhaul hop using a separate frequency band from access, as shown in Section A of Figure 1. This approach uses a fixed wireless terminal (FWT) to provide connectivity to a separate backhaul core instance. The instance could either be in the core for radio access or distributed closer to the radio nodes to support lower latency inter-site connectivity. It is also possible to use 5G NR to provide such separate access and backhaul solutions.
A solution more like IAB was studied for LTE in 3GPP release 10 in 2011, also known as LTE relaying (3GPP TR 36.806, 2014), but it never gained commercial interests. However, with the wide mmWave bandwidths now becoming available, there is considerable interest in an IAB solution for 5G NR.
The work on IAB has been going on in the 3GPP since 2017, and was standardized for release 16, completed mid-2020 (Teyeb et al., 2019), (Peisa et al., 2020). IAB can provide flexible and scalable multi-hop backhauling, using the same or different frequency bands for access and backhaul, as shown in section B of Figure 1.
The backhaul is efficiently forwarded across the wirelessly interconnected radio nodes, with the backhaul links terminated by an IAB mobile termination (IAB-MT) function. The IAB-MT could either use a separate antenna or share the access antenna of the base station (virtual IAB-MT), the latter providing the ultimate level of integration, as well as utilizing the high-performance base station antennas for backhaul over longer distances.
The IAB concept is defined by the 3GPP to be flexible and scalable to support other use cases beyond the initial market interest, such as low-power indoor radio nodes. There is also research on future advanced enhancement and optimizations for more visionary IAB use.
III The 3GPP Concept of Integrated Access and Backhaul
IAB is defined to reuse existing 5G NR functions and interfaces, as well as to minimize the impact on the core network. The architecture is scalable, so that the number of backhaul hops is limited only by the network performance. From a transport perspective, IAB provides generic IP connectivity to enable an easy upgrade to fiber transport when needed.
In the 5G network, the gNB base station provides NR protocol terminations to the user equipment (UE) and is connected to the 5G Core (5GC) network. As defined in 3GPP TS 38.401 (3GPP TS 38.401, 2021), the gNB is a logical node, which may be split into one central unit (CU) and one or more distributed units (DU). The CU hosts the higher layer protocols to the UE and terminates the control plane and user plane interfaces to the 5GC. The CU controls the DU nodes over the F1 interface(s), where the DU node hosts the lower layers for the NR Uu interface to the UE.

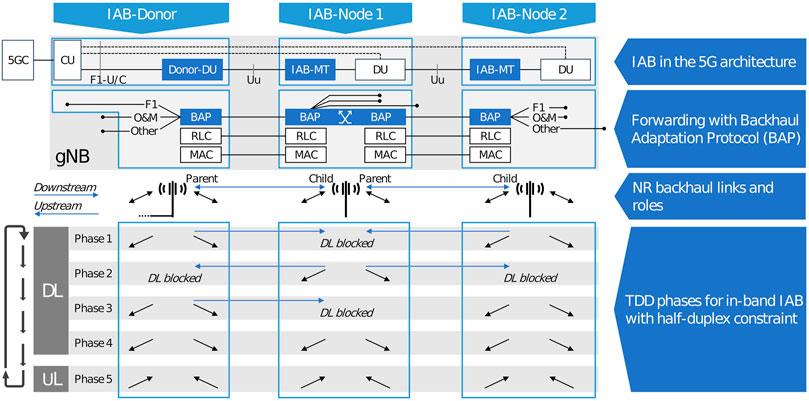

As illustrated in Figure 2, the CU/DU split architecture is used for IAB and enables efficient multi-hop support. The architecture eliminates the backhaul core instance at every IAB node shown in Figure 1A and related overhead due to tunnels inside tunnels, which would become severe for large multi-hop chains.
As the time-critical functionality is located in each DU, the F1 interface is well suited for a non-ideal backhaul such as IAB. The IAB donor is a logical node that provides the NR-based wireless backhaul and consists of a CU and wire-connected donor DU(s). The IAB nodes, which may serve multiple radio sectors, are wireless backhauled to the IAB donor and consist of a DU and an IAB-MT.
All IAB-nodes and donor DU(s) that use the same CU are part of one gNB, in accordance with the CU/DU split architecture. Hence, the wireless backhaul is isolated inside the gNB, and every internal topology, routing or backhaul changes can be made without impacting the 5GC or neighboring gNBs. A similar situation is valid for the UEs, for which the IAB node appears as a normal base station, supporting both NR standalone and non-standalone mode.
As shown in Figure 2, the NR backhaul link is between a “parent” on the network side and a “child” at the other end. The DU at the parent schedules the backhaul downstream and upstream traffic to/from the IAB-MT at the child, supporting a limited subset of the NR UE functionality. This includes lower protocol layer functionality to the parent as well as Radio Resource Control and non-access stratum functionality to the IAB donor CU and 5GC.
The backhaul adaptation protocol (BAP) (3GPP TS 38.340, 2020) enables efficient IP data forwarding across the IAB interconnected radio nodes, where the BAP data is carried by backhaul Radio Link Control (RLC) channels on each NR backhaul link. Multiple channels can be configured to enable traffic prioritization and quality-of-service (QoS) enforcement and, based on these properties, the BAP entity in each node maps protocol data units to the appropriate backhaul RLC channel.
Hop-by-hop forwarding, from the IAB donor to the destination IAB node, is based on the BAP routing identity set by the IAB donor. Every IP traffic can be forwarded over the BAP, such as F1 and operation and maintenance (OM) of the IAB nodes, as well as connectivity of every other equipment at the IAB-node site, as shown in Figure 2.
A Physical Layer Aspects
The IAB feature is intended to support out-of-band and in-band backhauling, where the latter means usage of the same carrier frequencies for both the NR backhaul links and the access links. In-band operation comes with a half-duplex constraint, implying that the IAB-MT part of an IAB node cannot receive while its collocated DU is transmitting and vice versa to avoid intra-site interference. A strict time-domain separation is therefore required between transmission and reception phases within each IAB node.
IAB is expected to be of most benefit in mmWave spectrum, where time division duplexing (TDD) (3GPP TS 38.174, 2020) is used and operators typically have large bandwidth. A TDD network is typically configured with a (often regulated) pattern for the time domain allocation of downlink (DL) and uplink (UL) resources, and an additional level of pattern must be used to support combined access and backhaul traffic. This is illustrated in the example of Figure 2, with five different repeated IAB time phases for node-local TDD states, where phases one to four are mapped to the DL and phase five to the UL.
The mix and duration of different phases can be flexible depending on the scenario, access/backhaul link performance, load and so on. Due to the half-duplex constraint, there will be time periods in which the nodes are blocked from transmission in a normal DL slot, effectively reducing the peak rate for an IAB node compared with a similar node with wired (non-limited) backhaul. This occurs whenever there is a transmission over the NR backhaul link, as the receiving end of the link will not operate according to the overall TDD pattern. In the example in Figure 2, the backhaul transmission occurs in phases 1–3, and the normal DL operation is blocked for the receiving nodes (in all sectors) during these phases.
The parent node schedules all traffic over the backhaul link (phases 1–3) in the same way as for UE scheduling, where frequency division multiplexing or space division multiplexing can be used to separate simultaneous transmissions.
IV Deployment Constraints For Integrated Access and Backhaul
From a 3GPP architecture perspective, the IAB feature is flexible, supporting multi-hop and a variety of topologies. However, there are other aspects that restrict the size of the IAB network topology, where in-band operation (sharing spectrum for both backhaul and access) is an essential reason for these limitations. Larger IAB topologies might also require complex control functions. But since IAB is a complement to fiber, the size of most IAB networks is expected to be small.
In a multi-hop network, the first backhaul hop must carry the backhaul bandwidth not only for the first IAB node, but also for all other IAB nodes further down in the hop chain. Deploying multi-hop networks will therefore eventually lead to backhaul-limited nodes due to congestion in the first hop. Increasing the number of hops will also increase the end-to-end latency and raise the complexity for scheduling and routing to satisfy QoS.
The 3GPP gNB synchronization requirements apply also for IAB nodes that may be fulfilled with a node-local synchronization solution based on the Global Navigation Satellite System. In some situations, this is neither wanted nor feasible. Over-the-air synchronization is therefore an alternative option, using periodic parent-transmitted reference symbols as the synchronization source for the receiving child node. This scheme implies that the clock accuracy at the donor DU must be better than the 3GPP requirement, as the synchronization budget is shared/aggregated for all nodes using this donor DU. There are therefore several practical reasons to limit the number of hops and not deploy oversized IAB topologies.
Regardless of topology, there are also general radio aspects to consider. The 3GPP specifies radio interface requirements for the IAB-MT (3GPP TS 38.174, 2020), with two categories to distinguish different use cases and characteristics. One category is for wide-area usage with planned site deployment, such as backhaul of street sites; the other is for local-area usage with site deployments that may not be preplanned.
The wide-area category enables an integrated solution for the access and backhaul links, where the IAB node can benefit from using the full base station capabilities, such as advanced antenna systems (AAS) (von Butovitsch et al., 2018) and high output power to provide good backhaul link performance and relatively large distance between parent and child nodes.
Wide-area and local-area IAB-MT are intended for different deployments scenarios and use differing TDD patterns. In Figure 2, all backhaul link traffic is scheduled during DL time slots but an alternative TDD scheme may be applied where the UL time slots are used for upstream backhaul. The latter scheme is restricted in terms of output power, making it more suitable for local-area deployments.
The IAB backhaul links give rise to a semi-synchronous TDD operation, for which the regulatory framework for local coordination between operators is not yet in place in all countries (ECC Report 307, 2020). As illustrated by the TDD phases in Figure 2, during certain time slots the IAB node will operate in an inverted mode with respect to the general TDD pattern. This means that a node may be in receiving mode during a DL slot for backhaul link reception and thus suffer from neighbor node interference, both within the same channel as well as between channels in the same frequency band.
Even though the backhaul link is more robust against interference due to good link budget, measures such as isolation between nodes (separation distance, for example) or coordinated TDD patterns may still be required to avoid excessive interference.
V Integrated Access and Backhaul From a Backhaul Perspective
Traditional backhaul is a service provided by the transport network domain to the radio-access nodes. For IAB, a segment of the backhaul is embedded in the RAN domain, sharing common radio resources. The backhaul transport cannot be dimensioned on an individual node basis, as the IAB donor terminates the “common backhaul” for all underlying IAB nodes extending the radio access to UEs through a network of backhaul and access links.
Instead, the backhaul dimensioning for IAB systems needs to be an integrated part of RAN dimensioning, considering the shared radio resources for backhaul and access. From a transport network perspective, the IAB nodes appear as extensions of the IAB donor. The same IP assignment methods can be used for IAB nodes as for fiber-connected radio nodes, which facilitate an easy upgrade to fiber transport when needed.
IAB can also provide IP connectivity for other equipment at the IAB node site, as shown in Figure 2. The transport performance requirements to the IAB donor are affected by the connected IAB nodes. The busy hour data traffic is funneled through the IAB donor and increases with each connected IAB node. The latency and synchronization requirements for the transport are also affected, as each IAB backhaul hop adds latency and timing error. These aspects will also limit the size of the IAB topology.
VI The Role of Integrated Access and in Network Evolution
Densification of current networks will mainly take place in urban and dense suburban environments. As one part of assessing the role of IAB, we have performed radio network simulations of such scenarios, as illustrated in Figure 3.
When providing broadband to a home, FWA is a good alternative to fiber in many cases, as it lowers the barrier to entry and supports faster deployment (Ericsson Mobility Report, 2018). In cases where the traffic demands require densification - in dense suburban areas in the US, for example - the use of wireless backhaul can further add to these advantages.

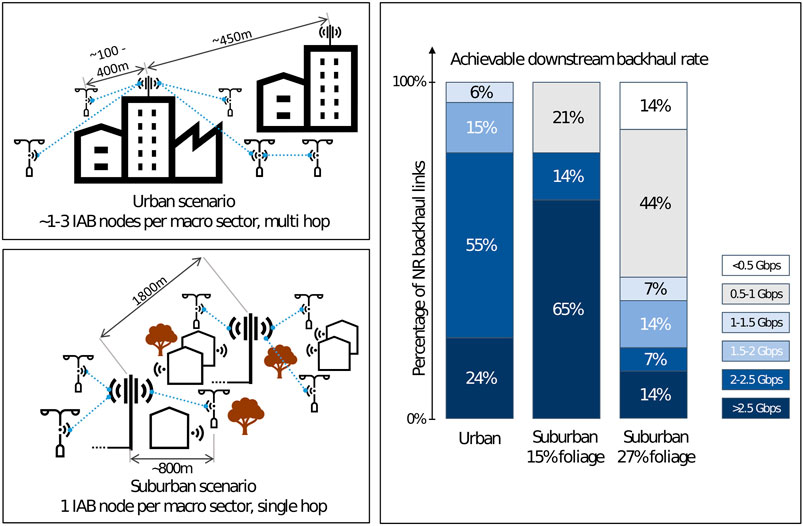

We studied FWA using IAB in simulations of two US suburban neighborhoods in the San Francisco Bay Area, with the level of foliage as the main difference: 15 and 23%, respectively. As a reference, our estimates indicate that about half of the dense suburban areas in the US have a foliage level lower than 15%.
Both areas had a macro grid, with an inter-site distance of 1,800 m and three sectors per site. The simulation tool is using state-of-the-art propagation models for signal and interference calculations. Also, bandwidth sharing between the access and backhaul links have been considered, to optimize the network performance In order to serve households with an average data consumption of 1,000 GB per month, a densification was made where each macro sector provided backhaul to a street site with a single hop of about 800 m, as shown in Figure 3.
All sites were deployed with 40 MHz on mid band for access and 800 MHz on mmWave for access and backhaul. The locations of the new street sites were chosen to secure good backhaul links from the macro sites as well as good access coverage to the homes. An ideal position can be a utility pole in line-of-sight (LOS) of the macro site with a surrounding area with few or no obstacles. Moreover, the risk of future infrastructure changes blocking the backhaul link should be considered.
In the area with less foliage, the street sites off-load the macro sites by serving around 40% of the households. About 80% of the backhaul links have a downstream rate above 2 Gbps, as shown in Figure 3. Over 200 households per square kilometer could be served without IAB causing any traffic limitation, even during peak hours.
In the area with more foliage, the propagation conditions are worse both for access and backhaul. Therefore, additional street sites may be needed to meet the required capacity, which will affect the business case. It was more challenging to find street site locations with good access as well as backhaul. Around 60 percent of the backhaul links have a downstream rate below 1 Gbps, which means the backhaul will consume a large part of the common access and backhaul radio resources. Fiber backhaul is therefore recommended for such sites. For the remaining 40% of the sites, IAB could be a viable option, despite the amount of foliage.
In a simulation of urban London, a densification with street sites is required to extend coverage and improve mobile broadband capacity both indoors and outdoors. All sites use mid band and mmWave for access, and the mmWave is also used for backhauling between street sites and macro sites. The backhaul topology was a tree structure with one to four hops, where most sites only had a single hop.
The simulations show that the need for an LOS backhaul link is less critical in urban environments than in suburban ones, thanks to strong reflections in the city environment, making it relatively easy to find locations with good signal strength. Furthermore, the backhaul links are shorter in an urban environment, and the impact of foliage is typically less significant due to fewer trees. Figure 3 shows the achievable downstream backhaul link rates for the urban case, which are all above 1 Gbps. Eighty percent are above 2 Gbps. The densified network provides excellent coverage and capacity for both outdoor and indoor users, even though IAB consumes part of the spectrum.
For both suburban and urban scenarios, these simulations show that IAB is an attractive complement to fiber, with the ability to provide backhaul for the initial years until traffic growth requires all radio resources to be used for access. Depending on the subscriber distribution, at some sites IAB may not even need to be replaced by fiber. As the backhaul link uses parts of the available spectrum resources, the typical rates for users in cells served by donors or IAB nodes will be lower than if all nodes are fiber connected. Still, with the small scale network topologies used in the simulations, we achieve peak user throughputs far above 1 Gbps.
A Proof of Concept

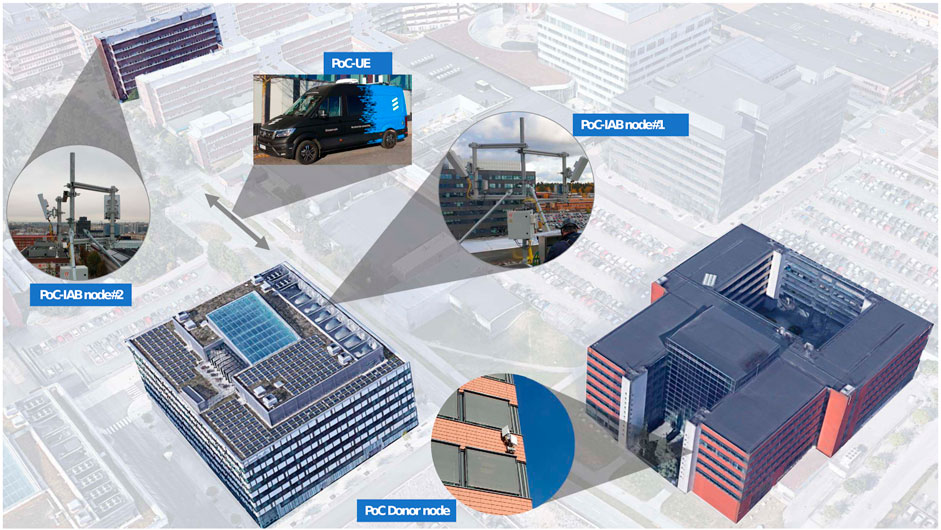

In order to properly assess IAB-specific performance aspects, Ericsson has developed an IAB proof of concept (PoC) testbed in an authentic environment. At the Ericsson site in Stockholm we have set up a two-hop IAB deployment using two-sector IAB nodes with either 28 GHz or 39 GHz AAS radios with 100 MHz bandwidth, as shown in Figure 4.
The IAB nodes are in the wide-area category with NR backhaul links using DL slots for all transmitted data. Initial test results are aligned with expectations and show backhaul bitrates near theoretical max and end-to-end peak rates independent of hop level1.
The massive amount of mmWave spectrum that is becoming available globally will spark a wide variety of innovative 5G use cases. Integrated access and backhaul (IAB) is one such innovation that could enhance 5G New Radio to support not only access but also wireless backhaul.
Our radio network simulations show that IAB could serve as a versatile backhaul option for street sites in urban and suburban areas, using small-scale star and tree backhaul topologies. It could also be useful for temporary deployments for special events or emergency situations.
Point-to-point microwave backhaul will remain an essential complement to fiber for 5G transport for traditional macro sites, while IAB is a promising advanced concept that may become as important for wireless backhaul of street sites.
Data Availability Statement
The datasets presented in this article are not readily available because the data is Ericsson internal and cannot be shared. Requests to access the datasets should be directed to firstname.lastname@example.org.
This article was produced as a joint collaboration between all four authors. All authors contributed to manuscript revision, read, and approved the submitted version.
Conflict of Interest
All authors are employed by Ericsson.
1The PoC evaluations are still ongoing and, based on the Ericsson rules, currently we can not present the details results publicly
