ORIGINAL RESEARCH article

Front. Anim. Sci., 10 June 2022

Sec. Animal Nutrition

Volume 3 - 2022 | https://doi.org/10.3389/fanim.2022.891898

Effects of Non-Protein Nitrogen Sources on In Vitro Rumen Fermentation Characteristics and Microbial Diversity

  • JZ

    Jinjia Zhu 1,2

  • AR

    Ao Ren 1,2

  • JJ

    Jinzhen Jiao 1

  • WS

    Weijun Shen 2

  • LY

    Lingyuan Yang 2

  • CZ

    Chuanshe Zhou 1,3*

  • ZT

    Zhiliang Tan 1,3

  • 1. Key Laboratory for Agro-Ecological Processes in Subtropical Region, National Engineering Laboratory for Pollution Control and Waste Utilization in Livestock and Poultry Production, Hunan Provincial Key Laboratory of Animal Nutritional Physiology and Metabolic Process, Institute of Subtropical Agriculture, Chinese Academy of Sciences, Changsha, China

  • 2. College of Animal Science and Technology, Hunan Agricultural University, Changsha, China

  • 3. College of Modern Agriculture, University of Chinese Academy of Sciences, Beijing, China

Abstract

Here, the effects of non-protein nitrogen sources on fermentation parameters and microbial diversity were explored using three fistula goats as rumen fluid donors. The experiments involved six fermenters in a replicated 3 × 3 Latin square design with three dietary non-protein sources [ammonium chloride (A), biuret (B), and glutamine (G)] as treatment factors. A dual-flow continuous culture fermentation system was used. Microbial protein content in group B was significantly lower than that in the other two groups (P < 0.05). Ammonia nitrogen concentration significantly differed among the three groups (P < 0.01), following the order of G > A > B group. The acetate-to-propionate ratio in group G was significantly lower than that in the other two groups (P < 0.01). At the phylum level, the relative abundances of Cyanobacteria, Elusimicrobia, and Armatimonadetes were the highest in group G, being significantly higher than those in group B (P < 0.05). At the genus level, the relative abundance of Ruminococcus_1 was significantly higher in group A than in group B (P < 0.05). Overall, glutamine shifted the fermentation pathway from acetate to propionate, and the lower microbial crude protein content and relative abundances of the major fiber-degrading bacteria Ruminococcus_1 and protein-degrading bacteria Prevotellaceae_UCG-001 in group B indicate that biuret is not suitable as a dietary non-protein nitrogen source.

1 Introduction

The number of ruminants has dramatically increased in recent years, resulting in evident increases in the import of high-quality forage and protein feed and, ultimately, the production costs and product prices in China. Therefore, new protein feed resources must be developed and the utilization efficiency of dietary protein must be improved in the ruminant husbandry industry. A large number of bacteria in the rumen primarily derive nutrients from nitrogen; therefore, appropriate supplementation of nitrogen, including non-protein nitrogen (NPN), is imperative for ruminants (). Despite the long history of research, NPN remains a hotspot in the field of ruminant nutrition. and demonstrated the high efficiency of ammonium succinate in promoting microbial protein synthesis. Further experiments revealed that organic ammonium salts could provide nitrogen for bacterial growth and cellulose digestion, and ammonium sulfate and acetamide could enhance microbial protein synthesis (). Rumen microorganisms produce urease for degrading NPN to NH3 and CO2 and synthesizing amino acids and then utilize the produced amino acids, peptides, and nitrogen, along with adenosine triphosphate (ATP), for growth, finally supplying microbial proteins to the host animal (). The positive effects of NPN utilization in ruminants are well-known.

In dairy buffaloes, coated urea supplementation improved milk production and fat content by augmenting rumen function through enhanced microbial protein turnover and increased fiber degradation (; ). found that polymer-coated urea could be used as a substitute to soybean meal for sheep fed high levels of maize straw. As such, sufficient energy was available in the rumen, and the slower degradation rate of polymer-coated urea was more suitable for microbial growth and could supply sufficient nitrogen for microbial protein synthesis. observed that daily body weight gain was significantly higher in lambs fed a urea-treated diet, which was attributed to the improved palatability and digestibility of nutrients and their enhanced digestion and passage rates from the rumen (; ). During grass withering, molasses–urea blocks provide NPN to rumen microorganisms, increasing microbial protein concentration and promoting microbial growth and reproduction (). showed that in Nellore steer, dietary urea or slow-release urea supplementation improved the efficiency of microbial protein synthesis, with a significantly higher efficiency observed with slow-release urea than with urea. Specifically, slow-release urea degrades slowly in the rumen, and the synchronization between fermentable energy and degradable nitrogen in the rumen maximizes microbial growth and promotes microbial protein synthesis. Dietary nitrogen sources and degradation patterns affect microbial protein synthesis and utilization by rumen microorganisms. Dietary urea and coated urea supplementation positively affects the animal body, and the superior effect of coated urea to that of urea has been demonstrated in many studies. In the rumen, the microbial growth rate is slower than the urea degradation rate, and rapid ammonia release results in inefficient utilization of nitrogen and wastage of nitrogen sources ().

To date, there has been extensive research on urea as an NPN source. Although urea positively affects rumen fermentation parameters and microbial growth in ruminants, it degrades rapidly, rendering its prompt use by microorganisms difficult and leading to the wastage of nitrogen sources. Therefore, further studies are warranted to explore more suitable nitrogen sources as substitutes for protein feed. In the present study, we used the artificial rumen method to examine the effects of different NPN sources [ammonium chloride (A), biuret (B), and glutamine (G)] on rumen fermentation characteristics and microbial diversity. Our results provide novel information for elucidating the effects of NPN sources on rumen fermentation and microbial reproduction and guiding the formulation of ruminant diets in practice.

2 Materials and Methods

2.1 Ethics

All experiments were approved by and conducted in accordance with the animal care guidelines of the Animal Care Committee of the Institute of Subtropical Agriculture, Chinese Academy of Sciences.

2.2 Substrates and In Vitro Incubation

Three types of fermentation substrates were used for in vitro incubation: (1) a basic diet containing ammonium chloride (A), (2) a basic diet containing biuret (B), and (3) a basic diet containing glutamine (G). Maize stover of “Kexiangtian 1” (locally breed) was selected as forage. The diets were dried at 65°C, ground, and stored in air-tight bags. Ammonium chloride, biuret, and glutamine were purchased from the China National Medicines Co. Ltd. (Beijing, China). The composition and nutrient levels of basic experimental diets are presented in Table 1.

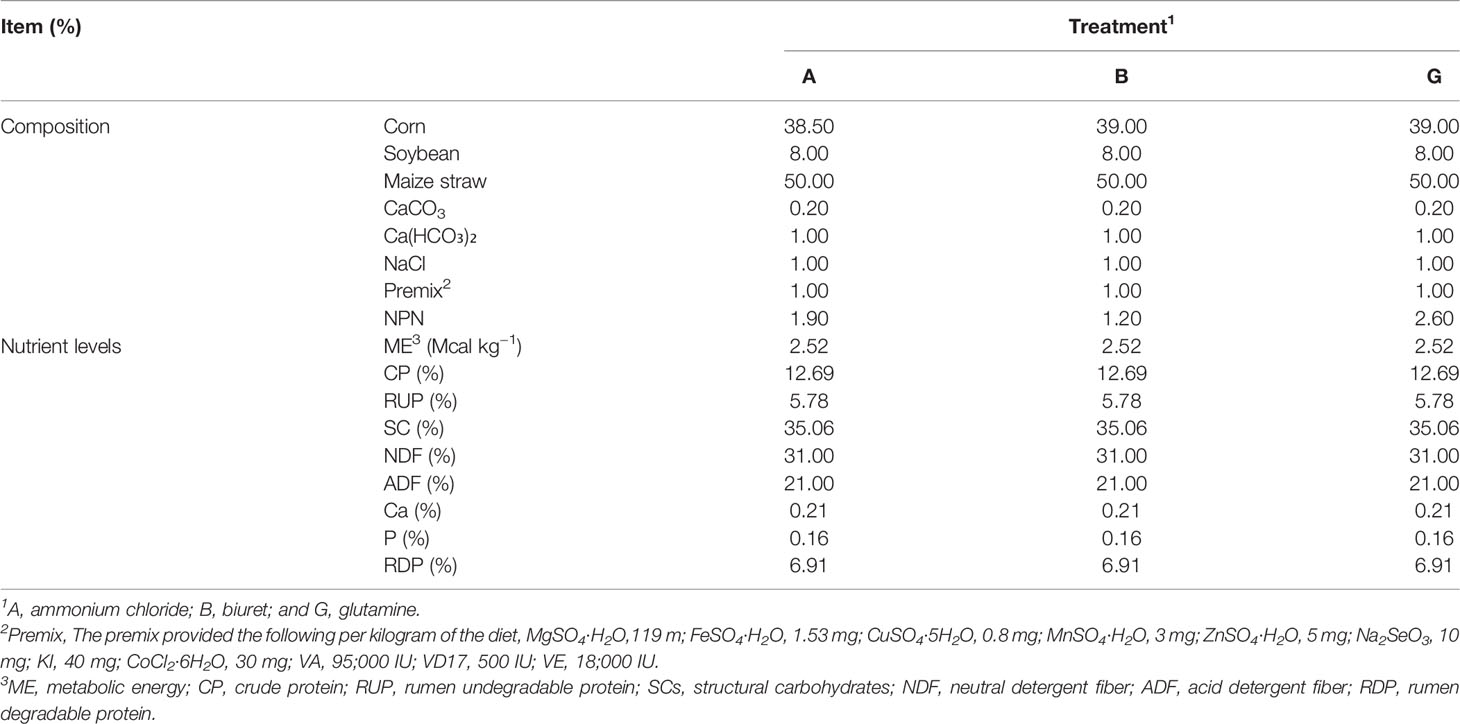

Table 1

Item (%)Treatment1
ABG
CompositionCorn38.5039.0039.00
Soybean8.008.008.00
Maize straw50.0050.0050.00
CaCO30.200.200.20
Ca(HCO₃)₂1.001.001.00
NaCl1.001.001.00
Premix21.001.001.00
NPN1.901.202.60
Nutrient levelsME3 (Mcal kg−1)2.522.522.52
CP (%)12.6912.6912.69
RUP (%)5.785.785.78
SC (%)35.0635.0635.06
NDF (%)31.0031.0031.00
ADF (%)21.0021.0021.00
Ca (%)0.210.210.21
P (%)0.160.160.16
RDP (%)6.916.916.91

Composition and nutrient levels of non-protein nitrogen (NPN) diets (on dry matter basis).

1A, ammonium chloride; B, biuret; and G, glutamine.

2Premix, The premix provided the following per kilogram of the diet, MgSO4·H2O,119 m; FeSO4·H2O, 1.53 mg; CuSO4·5H2O, 0.8 mg; MnSO4·H2O, 3 mg; ZnSO4·H2O, 5 mg; Na2SeO3, 10 mg; KI, 40 mg; CoCl2·6H2O, 30 mg; VA, 95;000 IU; VD17, 500 IU; VE, 18;000 IU.

3ME, metabolic energy; CP, crude protein; RUP, rumen undegradable protein; SCs, structural carbohydrates; NDF, neutral detergent fiber; ADF, acid detergent fiber; RDP, rumen degradable protein.

2.3 Animals and Diets

Three ruminally fistulated Xiangdong black goats (a local breed in Hunan Province, China) with an average body weight of 25.0 ± 2.5 kg (mean ± SD) were used in the experiment. The goats were fed a basic diet comprising a mixture of corn–soybean meal concentrate and maize stover (50:50). The diet was provided twice a day as two meals at 08:00 and 17:00 h, and water was provided ad libitum.

2.3.1 RUSITEC Incubation

Rumen contents of three Xiangdong black goats were collected before morning feeding, pooled, strained through four layers of cheesecloth and brought to the laboratory in a thermo-insulated container prefilled with CO2. A fermentation tank with a nominal volume of 1,400 ml was inoculated with 500 ml of McDougall’s buffer () formula configuration and 500 ml of strained rumen fluid. In addition, approximately 20 g of substrate was weighed into the tank under a stream of CO2 at 39.5 ± 0.5°C. The dual-flow continuous culture fermentation system is described in detail by Shen (). The RUSITEC system comprised six fermentation vessels allocated to three groups (two vessels per group). Each vessel within a group was assigned to one of the two rotation treatments over three periods (runs), following a balanced 3 × 3 Latin square design. Each period (run) lasted 8 days, including 5 days for acclimatization and 3 days for sample collection. Each tank was connected to a pressure sensor and a pH meter. Data were automatically recorded in real time using a computer. Artificial saliva was infused to maintain a liquid passage rate of 6%·h−1, and approximately 1,400 ml effluent flew out of the fermenters per day, leading to liquid turnover once a day. The overflow liquid and small digested feed particles from each fermentation vessel were collected in a water-cooled glass container at a constant temperature of 4°C maintained with circulating cold water. When fermentation started, 40 g of the experimental diet was added to each fermentation vessel daily in two equal portions at 08:00 and 20:00 h. Nitrogen gas supply was started before feeding and immediately stopped after feeding.

2.3.2 Sample Collection

All samples for the three phases were collected at 08:00 and 20:00 h before feeding on 3 consecutive days (days 6 to 8). Fermentation liquid (5 ml) was collected from each tank for protozoa counts. Approximately 2 ml of the liquid effluent was collected and centrifuged at 15,000 ×g for 10 min at 4°C. The supernatant was acidified using 0.15 ml of 25% (w/v) metaphosphoric acid for the analysis of volatile fatty acids (VFAs) and ammonia (NH3-N) and stored at −20°C until sample analysis. Subsequently, the sample bottles were shaken thoroughly to ensure that the representative portions of the liquid and particle fractions could be obtained. Then, 2 and 10 ml of microbial samples were collected, immediately frozen with liquid N2, and stored at −80°C for subsequent DNA extraction and microbial protein determination, respectively. Finally, the residual fermented liquid was filtered into a nylon bag; dried at 65°C for 8 h; weighed; and ground to determine the rate of disappearance of dry matter (DMD), crude protein (CPD), neutral detergent fiber (NDFD), and acid detergent fiber (ADFD) in the substrate.

2.4 Chemical Analysis

In all feed samples, DM (method 945.15), CP (method 954.01), NDF, and ADF (method 973.18) contents were analyzed following published methodologies (). The pH of the fermentation tank was automatically detected by the pH electrode installed in the tank and entered into the computer.

The individual VFA concentrations in the supernatant were measured using gas chromatography (HP5890, Agilent 5890; Agilent, Santa Clara, CA) according to the method described by . The NH3-N concentration was determined on the basis of the ultraviolet absorption value recorded at 700 nm using a spectrophotometer (UV-2300, Shimadzu, Japan), according to the method described by Wang et al. (2016). Microbial crude protein (MCP) production was estimated according to the purine method described by .

2.5 Protozoa Counts

Protozoa counts were obtained according to the method described by . Using staining microscopy, 5 ml of rumen fluid and 10 ml of methyl green formalin solution were collected, mixed well, and stained for 24 h. A disposable pipette was used to remove the stained solution. Then, the suspension was swiftly dropped onto a blood cell counting plate until it covered the entire counting chamber. The liquid-filled counting plate was gently enclosed with a glass coverslip. Finally, cell count was determined under an optical microscope.

In the selected plate count area of 1 mm2, five squares each at the four corners and in the middle, totaling 25 squares, were analyzed. The average count was calculated as follows:

where X is the total number of protozoa of five squares, D is the fold-dilution of rumen fluid, and 1,000 is the coefficient for the conversion of 1 mm3 square volume to 1 ml.

2.6 DNA Extraction and Sequencing

Microbial DNA was extracted using a bacterial DNA kit (Omega Bio-Tek Inc., Norcross, GA, USA), according to the manufacturer’s protocol. The extracted DNA samples were detected by 1% agarose gel electrophoresis and spectrophotometry (Nanodrop 2000, America) (260/280 nm density ratio) for quality check. The V3–4 hypervariable region of the bacterial 16S rRNA gene was amplified using primers 338F (ACTCCTACGGGAGGCAGCAG) and 806R (GGACTACHVGGGTWTCTAAT) (). For each sample, a 10-digit barcode sequence was added at the 5′-end of the forward and reverse primers (Allwegene Technology Inc., Beijing). Polymerase chain reaction (PCR) (LightCycler 480II, Germany) was performed on a MasterCycler Gradient (Eppendorf, Germany) using a 25-μl reaction system containing 12.5 μl of KAPA 2G Robust Hot Start Ready Mix, 1 µl of forward primer (5 µM), 1 µl of reverse primer (5 µM), 5 µl of DNA (total template quantity = 30 ng), and 5.5 µl of H2O. The reaction conditions were as follows: 95°C for 5 min, followed by 28 cycles at 95°C for 45 s, 55°C for 50 s, and 72°C for 45 s and final extension at 72°C for 10 min. The PCR products were purified using the QIAquick Gel Extraction Kit (QIAGEN, Germany), quantified using real-time PCR, and sequenced on the MiSeq platform at Allwegene Technology Inc., Beijing.

2.7 Sequence Data Analyses

Raw data were removed from consideration if they were shorter than 200 bp, had a low-quality score (≤20), contained ambiguous bases, or did not exactly match the primer sequences and barcode tags. Qualified reads were separated using sample-specific barcode sequences and trimmed using the Illumina Analysis Pipeline version 2.6. The dataset was then analyzed using QIIME. The sequences were clustered into operational taxonomic units (OTUs) at 97% similarity (). The Ribosomal Database Project (RDP) tool was used to classify all sequences into different taxonomic groups ().

The evolutionary distances between microbial communities in each sample were calculated using the TAYC coefficient and represented as an unweighted pair group method with arithmetic mean (UPGMA) clustering tree describing the dissimilarity (1 − similarity) between multiple samples ().

2.8 Statistical Analysis

The statistical model included dietary treatments (n = 3) as the fixed effects, treatment replicates (n = 6) as a repeated measure, and period (n = 3) and fermentation tank (n = 6) as the random effects. Data were subjected to single factor analysis in SPSS 19.1.0. Significance was declared at P < 0.05, and 0.05 ≤ P ≤ 0.10 indicated a significant trend.

3 Results

3.1 Nutrient Disappearance Rate

DMD, CPD, NDFD, and ADFD were not affected (P > 0.05) by NPN sources (Table 2). However, DMD and ADFD were numerically higher (P > 0.05) but CPD and NDFD were lower (P > 0.05) in group G than those in the other groups.

Table 2

Item (%)Treatment1SEM2P-value
ABG
DMD81.1881.7582.022.290.933
CPD81.3279.7779.662.540.770
NDFD65.8468.7964.114.960.641
ADFD58.8661.1161.698.400.943

Disappearance rate of nutrients affected by dietary non-protein nitrogen sources.

1A, ammonium chloride; B, biuret; and g, glutamine.

2SEM, standard error of the mean; P-value, calculated probability.

DMD, CPD, NDFD, and ADFD are the disappearance rates of dry matter, crude protein, neutral detergent fiber, and acid detergent fiber, respectively.

3.2 Rumen Fermentation Parameters

3.2.1 Protozoa Count

NPN sources (Table 3) did not affect protozoa counts (P > 0.05). However, protozoa count in group G was, respectively, 17.74% and 11.57% higher than that in groups A and B.

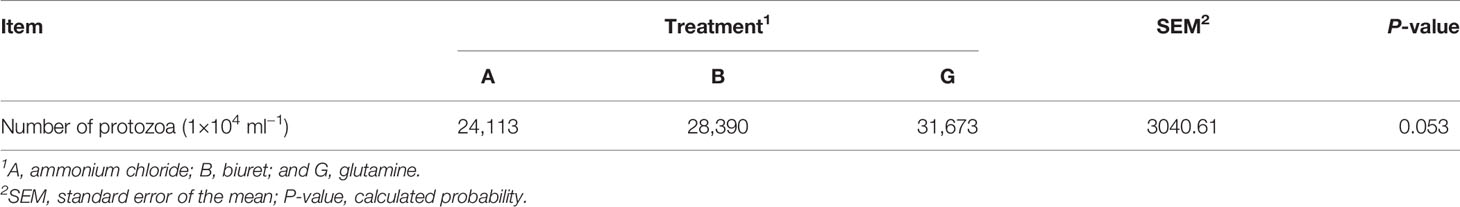

Table 3

ItemTreatment1SEM2P-value
ABG
Number of protozoa (1×104 ml−1)24,11328,39031,6733040.610.053

Protozoa counts affected by dietary non-protein nitrogen sources.

1A, ammonium chloride; B, biuret; and G, glutamine.

2SEM, standard error of the mean; P-value, calculated probability.

3.2.2 Fermentation Parameters

The results are presented in Table 4. pH in group A was significantly higher (P < 0.01) than that in the other two groups. NH3-N concentration was the highest in group G, being, respectively, 2.05 and 6.84 (P < 0.01) times higher than that in groups A and B. The total VFA content was not significantly different among the three groups (P > 0.05). Acetate proportion in group A (71.66%) was significantly higher (P < 0.05) than that in group B. Butyrate proportion in group G was (12.81%) was significantly higher (P < 0.05) than that in group A. Propionate proportion in group G was significantly higher than that in the other two groups (P < 0.01). Valerate proportion in group A was significantly higher (P < 0.05) than that in group G. Isovaleric acid proportion and acetate-to-propionate ratio in group G were significantly lower (P < 0.01) than those in the other two groups. MCP content in group G (18.57%) higher (P < 0.05) than that in group B.

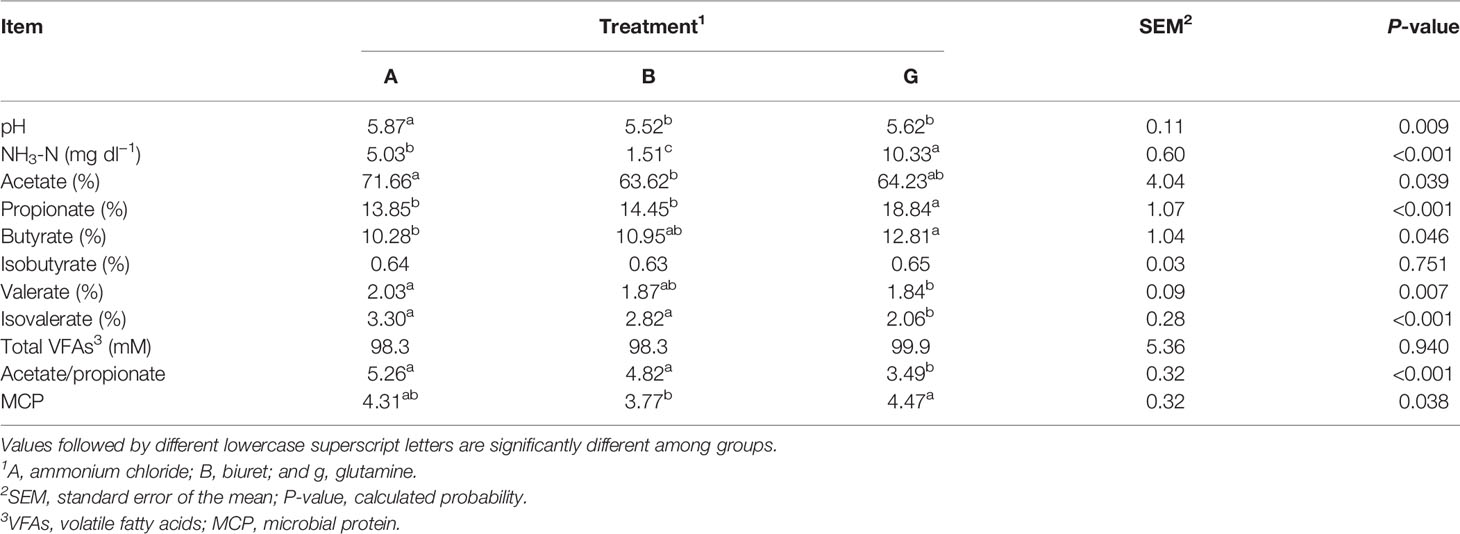

Table 4

ItemTreatment1SEM2P-value
ABG
pH5.87a5.52b5.62b0.110.009
NH3-N (mg dl−1)5.03b1.51c10.33a0.60<0.001
Acetate (%)71.66a63.62b64.23ab4.040.039
Propionate (%)13.85b14.45b18.84a1.07<0.001
Butyrate (%)10.28b10.95ab12.81a1.040.046
Isobutyrate (%)0.640.630.650.030.751
Valerate (%)2.03a1.87ab1.84b0.090.007
Isovalerate (%)3.30a2.82a2.06b0.28<0.001
Total VFAs3 (mM)98.398.399.95.360.940
Acetate/propionate5.26a4.82a3.49b0.32<0.001
MCP4.31ab3.77b4.47a0.320.038

Rumen fermentation parameters affected by dietary different non-protein nitrogen sources.

Values followed by different lowercase superscript letters are significantly different among groups.

1A, ammonium chloride; B, biuret; and g, glutamine.

2SEM, standard error of the mean; P-value, calculated probability.

3VFAs, volatile fatty acids; MCP, microbial protein.

3.3 Rumen Microbial Diversity

3.3.1 Microbial Richness and Diversity

As shown in Table 5, the alpha diversity indices were not significantly different (P > 0.05) among the three groups. OTU number and microbial richness were relatively higher but microbial community diversity was numerically lower (P > 0.05) in group B than that in the other two groups.

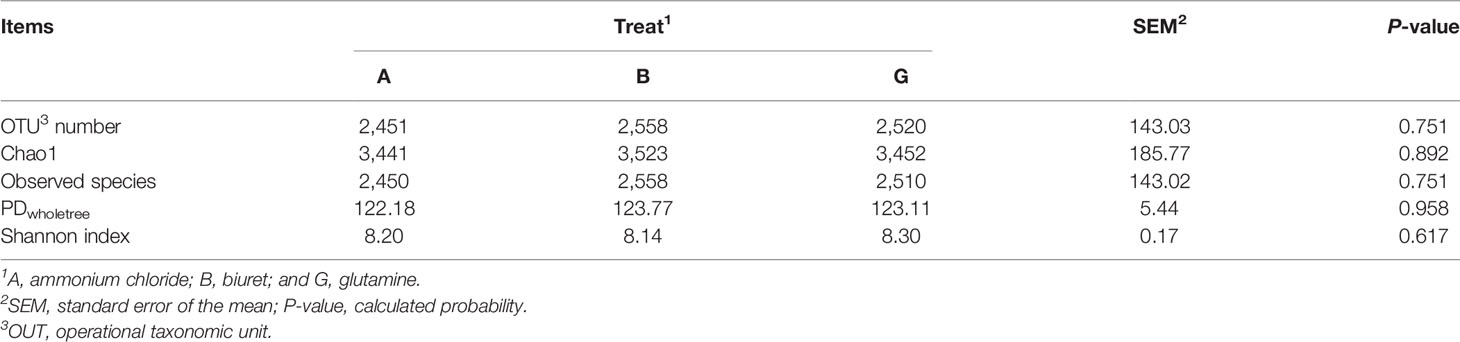

Table 5

ItemsTreat1SEM2P-value
ABG
OTU3 number2,4512,5582,520143.030.751
Chao13,4413,5233,452185.770.892
Observed species2,4502,5582,510143.020.751
PDwholetree122.18123.77123.115.440.958
Shannon index8.208.148.300.170.617

Rumen microbial richness and diversity affected by dietary non-protein nitrogen sources.

1A, ammonium chloride; B, biuret; and G, glutamine.

2SEM, standard error of the mean; P-value, calculated probability.

3OUT, operational taxonomic unit.

3.3.2 Structural Analysis of Rumen Microbial Colonies

As indicated in Table 6, at the phylum level, the relative abundances of Cyanobacteria and Elusimicrobia were the highest in group G (169% and 168%, respectively), being 41.24% and 95.37% (P = 0.002) higher than those in groups A and B, respectively. The relative abundances of Planctomycetes and Armatimonadetes in group G were, respectively, 83.38% (P = 0.018) and 247% (P = 0.039) higher than those in group B group. The relative abundance of SR1_Absconditabacteria was higher in group B than in the other two groups (P < 0.05). There were no differences in the abundances of other bacteria among the three groups (P > 0.05).

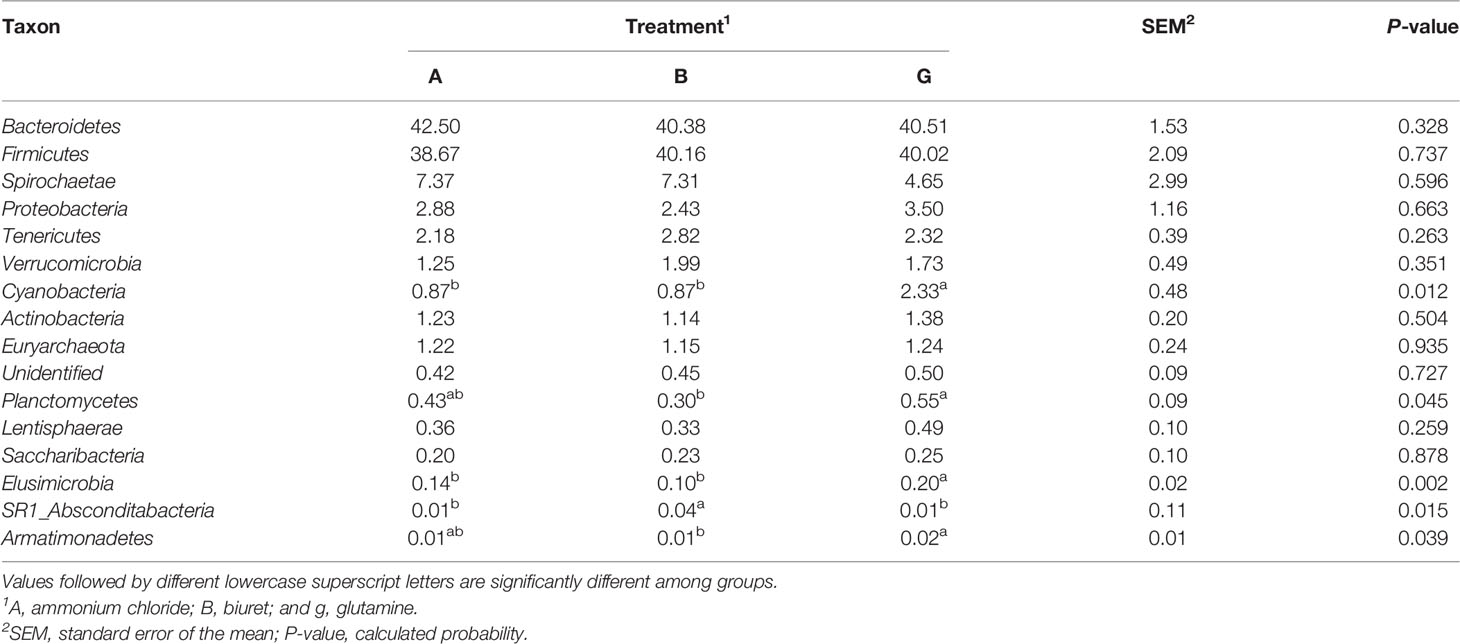

Table 6

TaxonTreatment1SEM2P-value
ABG
Bacteroidetes42.5040.3840.511.530.328
Firmicutes38.6740.1640.022.090.737
Spirochaetae7.377.314.652.990.596
Proteobacteria2.882.433.501.160.663
Tenericutes2.182.822.320.390.263
Verrucomicrobia1.251.991.730.490.351
Cyanobacteria0.87b0.87b2.33a0.480.012
Actinobacteria1.231.141.380.200.504
Euryarchaeota1.221.151.240.240.935
Unidentified0.420.450.500.090.727
Planctomycetes0.43ab0.30b0.55a0.090.045
Lentisphaerae0.360.330.490.100.259
Saccharibacteria0.200.230.250.100.878
Elusimicrobia0.14b0.10b0.20a0.020.002
SR1_Absconditabacteria0.01b0.04a0.01b0.110.015
Armatimonadetes0.01ab0.01b0.02a0.010.039

Relative abundance (%) of the 16 most abundant bacteria at the phylum level as affected by dietary non-protein nitrogen sources.

Values followed by different lowercase superscript letters are significantly different among groups.

1A, ammonium chloride; B, biuret; and g, glutamine.

2SEM, standard error of the mean; P-value, calculated probability.

Relative abundances of the top 20 bacteria at the genus level, as affected by different NPN sources, are shown in Table 7. Within Bacteroidetes, the relative abundance of Rikenellaceae_RC9_gut_group was the highest in group B (7.4727%), being significantly higher (P < 0.05) than that in group G. The relative abundances of SP3-e08 and Prevotellaceae_UCG-001 in were the highest in group A, although the values were not significantly different (P > 0.05) from those in groups B and G. Within Firmicutes, the relative abundance of Butyrivibrio_2 was higher (P < 0.05) in group B than in the other two groups, whereas the relative abundance of Ruminococcus_1 was significantly higher in group A (P < 0.05) than in group B.

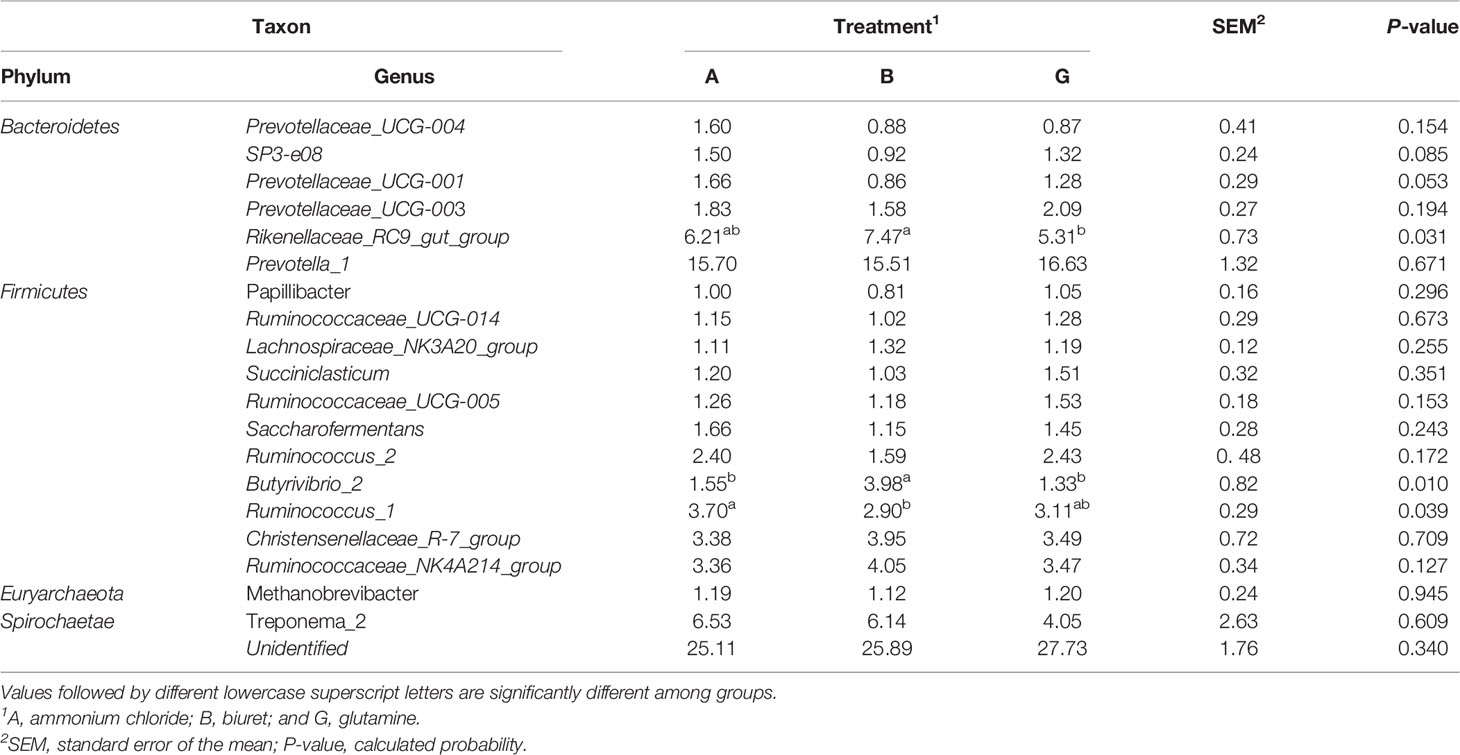

Table 7

TaxonTreatment1SEM2P-value
PhylumGenusABG
BacteroidetesPrevotellaceae_UCG-0041.600.880.870.410.154
SP3-e081.500.921.320.240.085
Prevotellaceae_UCG-0011.660.861.280.290.053
Prevotellaceae_UCG-0031.831.582.090.270.194
Rikenellaceae_RC9_gut_group6.21ab7.47a5.31b0.730.031
Prevotella_115.7015.5116.631.320.671
FirmicutesPapillibacter1.000.811.050.160.296
Ruminococcaceae_UCG-0141.151.021.280.290.673
Lachnospiraceae_NK3A20_group1.111.321.190.120.255
Succiniclasticum1.201.031.510.320.351
Ruminococcaceae_UCG-0051.261.181.530.180.153
Saccharofermentans1.661.151.450.280.243
Ruminococcus_22.401.592.430. 480.172
Butyrivibrio_21.55b3.98a1.33b0.820.010
Ruminococcus_13.70a2.90b3.11ab0.290.039
Christensenellaceae_R-7_group3.383.953.490.720.709
Ruminococcaceae_NK4A214_group3.364.053.470.340.127
EuryarchaeotaMethanobrevibacter1.191.121.200.240.945
SpirochaetaeTreponema_26.536.144.052.630.609
Unidentified25.1125.8927.731.760.340

Relative abundance (%) of the most abundant bacteria at the genus level affected by dietary non-protein nitrogen sources.

Values followed by different lowercase superscript letters are significantly different among groups.

1A, ammonium chloride; B, biuret; and G, glutamine.

2SEM, standard error of the mean; P-value, calculated probability.

4 Discussion

4.1 Effects of NPN Sources on the Disappearance Rates of Nutrients

DM and NDF are important indicators of dietary utilization during ruminal fermentation. Increasing NPN level in in vitro cultures of rumen inocula enhanced DMD (). Further, NPN source affected DMD; specifically, biuret-straw and urea-straw significantly improved DMD, because starch, as a carbohydrate, readily provides energy for rumen fermentation (). However, the present experiment showed that DMD, CPD, ADFD, and NDFD did not differ among the treatments. In supplemented diets, nitrogen and energy are available simultaneously and in proportions required by rumen microbes, thus promoting diet digestion (). Although increased dietary energy levels significantly enhance apparent digestibility, the dietary levels of the three treatments were equal in terms of nitrogen and energy supply in the present study. This may explain the lack of significant differences in apparent digestibility among the experimental groups.

4.2 Effects of NPN Sources on Rumen Fermentation Parameters

pH reflects the overall state of rumen fermentation; however, it is easily affected by various factors, and a relatively stable pH value is considered beneficial to animal health and feed utilization (). In the present experiment, the pH of approximately 5.5–6.0 maintained the normal state of the fermentation tank. In a study by , treatments including ammonium chloride in different molecular forms of nitrogen showed the highest pH values. Similarly, in the present experiment, ammonium chloride showed the highest pH value. Ammonium chloride is a highly water-soluble ionic compound. Ammonium radicals and chloride ions are ionized in water; thus, ammonia gas accumulation elevates pH. In vitro results showed that the NH3-N concentration in group G was the highest among the three treatments. Protozoa exhibit a stronger deamination activity than bacteria. Protozoa are the net ammonia-producing microorganisms but cannot use ammonia to synthesize bacterial proteins (). Therefore, in group G, which showed a higher protozoa count, NH3-N concentration in the rumen was higher than that in groups A and B. In addition, glutamine and ammonium chloride could be directly utilized by microorganisms, and ammonium ions can dissociate, increasing the NH3-N concentration (). These results are also consistent with the lowest NH3-N concentration in group B of the present experiment. Low ruminal NH3-N concentrations (<2.94 mM) can limit microbial growth and ruminal fermentation (), thereby reducing the MCP content. These results were consistent with the lowest MCP in group B. NH3-N acts as the raw material for MCP synthesis and can directly reflect the production of microbial proteins. Simultaneously, in the present experiment, SP3-e08 and Prevotellaceae_UCG-001, which degrade carbohydrates, were more abundant in group A than in group G. As the synthesis efficiency of MCP is affected by many factors, carbohydrates in the feed can be fermented by microorganisms, providing energy and affecting the efficiency of microbial protein synthesis (; ).

VFAs are the final products of rumen fermentation and provide energy to the body. In the present study, total VFAs did not differ among the treatments, due perhaps to the equal nitrogen and energy levels and similar DM degradability of the three treatments. Specifically, group G showed the highest propionate and butyrate levels, which may result from the highest NH3-N concentration in this group. As such, increased ruminal NH3-N concentrations improve energy production from straw (). Furthermore, the molar ratio of acetate to propionate is an important measure of microbial fermentation. In the present experiment, the lowest acetate-to-propionate ratio was recorded in group G, probably because the propionate content in this group was significantly higher than that in groups A and B. In a study on lactating dairy cows, a linear decrease in isobutyrate with increase ammonium chloride concentration was observed, although it did not significantly affect other VFA. However, these results are inconsistent with our findings of the highest valerate and isovalerate proportion in group A. In dairy cows that are fed a diet based on maize stover as the only source of roughage, rumen valerate and isovalerate concentrations increase significantly (). Increased pH, enhanced affinity of rumen microorganisms to fiber, and augmented ATP production affect VFA generation (). Furthermore, the type of roughage may affect valerate and isovalerate production (; ). In the present experiment, maize stover was added as roughage to the experimental diets. Nevertheless, the acetate-to-propionate ratio was the highest in group A, which tended toward acetate fermentation, changed the rumen fermentation mode, and increased the fiber content during fermentation. These results are consistent with the highest relative abundance of Ruminococcus_1, a major fiber-degrading bacteria in the rumen. Thus, greater maize stover fermentation in the rumen increased valerate and isovalerate proportion in group A compared with those in the other groups. Therefore, roughage utilization affects VFA generation, regardless of the concentrate-to-roughage ratio.

4.3 Effects of NPN Sources on Rumen Microbial Diversity

Ruminal microbiome is a complex and important natural fermentation system, which has long been a focus of ruminant research (). Rumen microorganisms are always in dynamic equilibrium. Dietary factors are the key influences, and the corresponding rumen microorganisms also affect host metabolism and nutrition (). Fibers and carbohydrates in the diet are degraded and fermented by ruminal microorganisms to synthesize MCPs and provide nutrition to the host animals. Short-chain fatty acids produced during anaerobic fermentation can meet 70% of the daily energy requirements of animals (; ). In addition, 50% of the ruminant protein demand is derived from ruminal microorganisms (). Since the structural composition of the colony could not be deduced based on alpha diversity indices, we further analyzed the differences in bacterial abundances among the three groups. characterized the core microbiome of bovine rumen and identified Bacteroidetes, Firmicutes, and Spirochaetae as the top three phyla, consistent with the findings of the present study. The dominant microflora was not affected by diet, although the addition of different nitrogen sources affected the relative abundances of some rare rumen bacteria. Specifically, the relative abundances of Cyanobacteria, Planctomycetes, Elusimicrobia, and Armatimonadetes were the highest in group G and significantly higher than those in the B group. This may be because the NH3-N concentration in group B was very low, which likely limited the growth of microorganisms and reduced their activity. Surprisingly, the abundance of SR1_Absconditabacteria was highest in group B, with the lowest microbial protein and NH3-N concentration concentrations. reported that 45% low-concentration diets increased the relative abundance of SR1_Absconditabacteria on at the phylum level compared with 55% high-concentration diets. SR1_Absconditabacteria may not rely primarily on nitrogen sources for nutrition in the rumen; therefore, its activity was not restricted even at low NH3-N and protein levels. At the genus level, the relative abundances of Rikenellaceae_RC9_gut_group and Prevotella_1 were the highest in all groups, indicating that these genera play pivotal roles in rumen NPN metabolism. Prevotellaceae_UCG-001 is one of the major protein-degrading bacteria in the rumen (). In the present study, the relative abundances of Prevotellaceae_UCG-001 and SP3-e08 were the lowest in group B, which is consistent with the lower ruminal MCP content in this group. However, the relative abundance of Rikenellaceae_RC9_gut_group was the highest in group B and the lowest in group G. Biuret is a urea derivative, and the mechanism through which rumen microorganisms convert urea to bacterial proteins differs from that through which they convert other NPN sources (). Biuret cannot be directly degraded by microorganisms, but it can be catalyzed by ureases secreted by microorganisms (). Moreover, the solubility of biuret is low, its degradation rate of is slow, and it remains in the rumen for a longer time, which may be conducive to the growth of Rikenellaceae_RC9_gut_group and alter the activity of other microorganisms (). Butyrivibrio_2 is a fiber-degrading bacterium, and its relative abundance was the highest in group B. Based on the results of apparent indicators of nutrient disappearance rates, NDFD was the highest in group B. This may explain the higher microbial activity of Butyrivibrio_2 in group B. reported that ammoniated barley straw feed is more suitable for fiber degradation by rumen microbes. Moreover, a higher relative abundance of Ruminococcus_1 was observed in group A, possibly because ammonium chloride was more easily used by these microbes, which promoted their proliferation. Finally, the relative abundance of Unidentified microbes was 25%, whose phyla and functions were unclear. Further studies on these microbes are warranted to better understand the metabolic mechanisms of NPN in the rumen.

In conclusion, the relative abundances of the major fiber-degrading bacteria Ruminococcus_1 and protein-degrading bacteria SP3-e08 and Prevotellaceae_UCG-001 were lower in group B than in the other groups. Group G showed significantly increased the concentrations of propionate, NH3-N, and microbial proteins, which decreased the acetate-to-propionate ratio and appeared to shift the fermentation pathways from acetate to propionate. Thus, glutamine is more suitable than biuret as a dietary source of non-protein nitrogen.
