SYSTEMATIC REVIEW article

Front. Bioeng. Biotechnol.

Sec. Biomechanics

Volume 13 - 2025 | doi: 10.3389/fbioe.2025.1576729

Objective measurement methods for the evaluation of socket comfort in patients with transfemoral amputation: A systematic review

Provisionally accepted
Lisa  Marie TieslerLisa Marie Tiesler1,2*Melanie  EdelMelanie Edel1,2Fangxing  WangFangxing Wang1,2Philipp  PierohPhilipp Pieroh1Welf-Guntram  DrosselWelf-Guntram Drossel3,4Alina  CarabelloAlina Carabello3,4Daniel  ZippliesDaniel Zipplies5Christoph-Eckhard  HeydeChristoph-Eckhard Heyde1Stefan  SchleifenbaumStefan Schleifenbaum1,2,3
  • 1Department of Orthopedic Surgery, Traumatology and Plastic Surgery, Leipzig University, Leipzig, Germany
  • 2ZESBO - Center for Research on Musculoskeletal Systems, Department of Orthopedic Surgery, Traumatology and Plastic Surgery, Leipzig University, Leipzig, Lower Saxony, Germany
  • 3Fraunhofer Institute for Machine Tools and Forming Technology IWU, Chemnitz, Germany
  • 4Professorship Adaptronics and Lightweight Design in Production, Chemnitz University of Technology, Chemnitz, Germany
  • 5Professorship Applied Thermodynamics, Chemnitz University of Technology, Chemnitz, Germany

The final, formatted version of the article will be published soon.

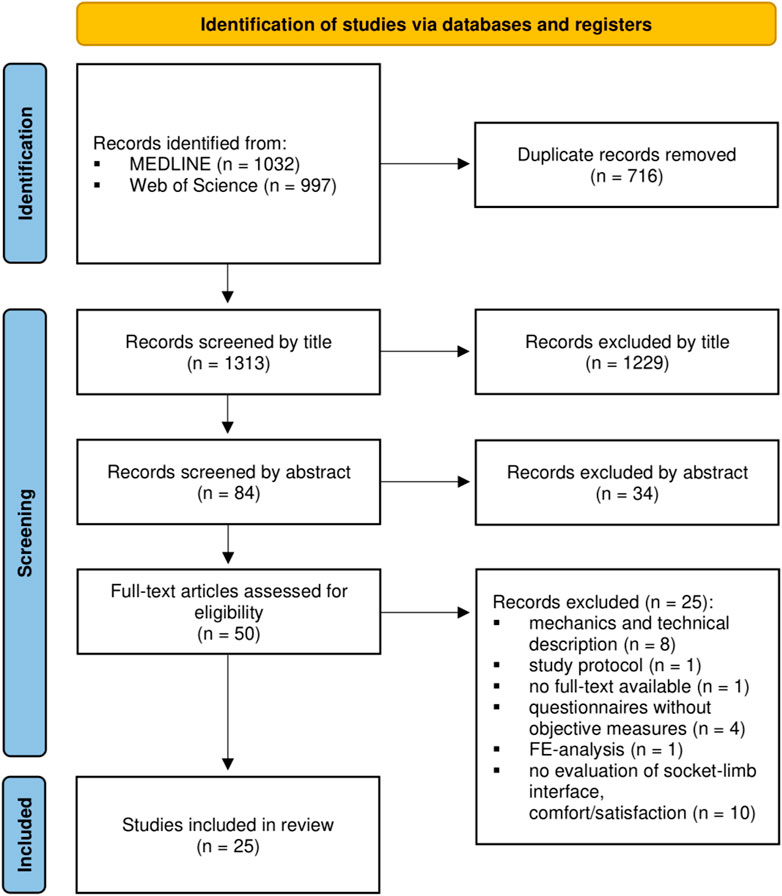

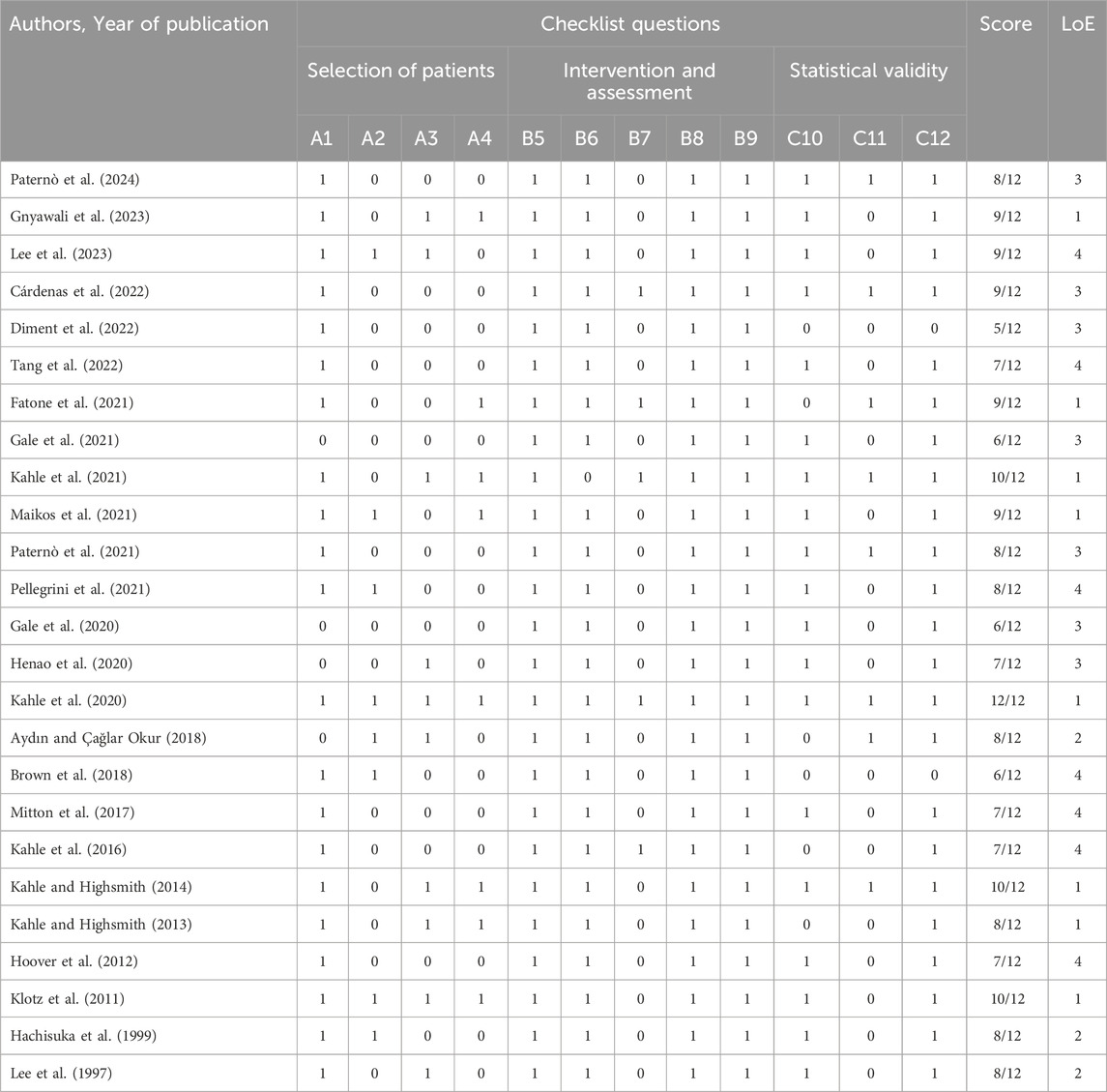

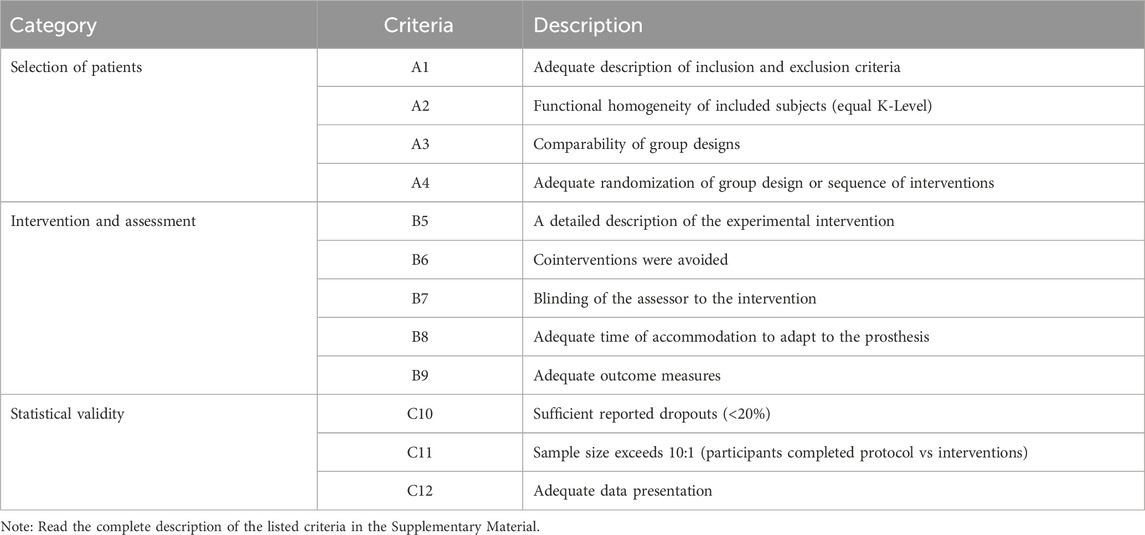

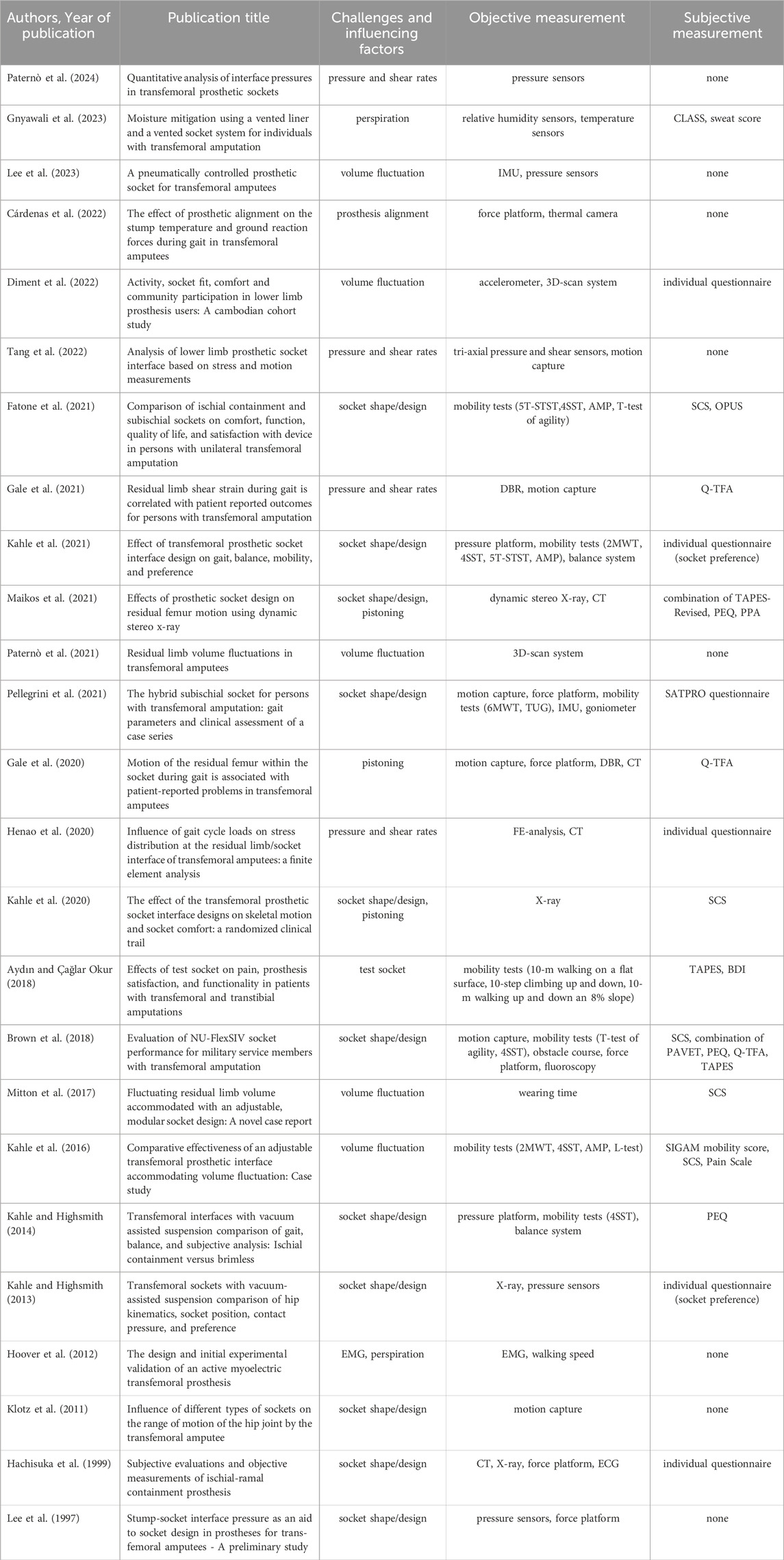

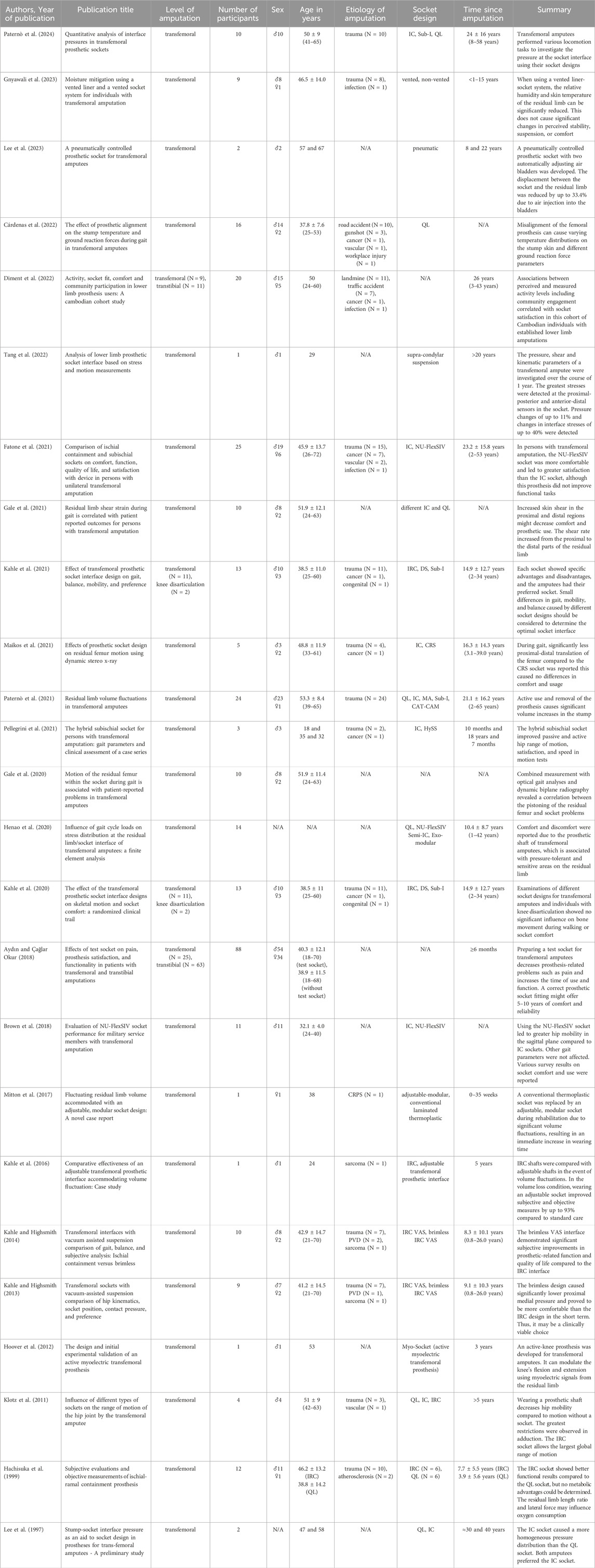

Objective: Achieving optimal fitting for the socket-limb interface in transfemoral amputees remains a significant challenge. This iterative fitting process largely relies on subjective feedback regarding the patient's comfort and the expertise of the prosthetist. Consequently, this review aims to explore methods for identifying issues at the socket-limb interface through both objective and subjective measurement approaches.Methods: All articles available in MEDLINE and Web of Science up to May 2024 were screened and evaluated, with the authors conducting a quality assessment. Results: The socket design was the most frequently studied factor influencing the socket-limb interface (11/25), with investigations addressing challenges such as volume fluctuations (5/25), pressure and shear forces (4/25), femur pistoning (3/25), perspiration and ventilation (2/25), and prosthesis alignment (1/25). Objective measurement methods included gait analysis (6/25), mobility tests (7/25), radiological techniques (8/25), pressure sensors (5/25), and thermal sensors/imaging (2/25), as well as optical and metabolic assessments (3/25). Several studies (17/25) combined objective analyses with subjective questionnaires, such as the Socket Comfort Score (SCS) and Prosthesis Evaluation Questionnaire (PEQ), to evaluate comfort, satisfaction, and prosthetic preferences across varying socket designs. Individualized questionnaires addressing socket design preferences were also employed. Furthermore, a final clustered analysis was conducted to allow comparisons of approaches and tools used for examining similar issues. Despite methodological advancements, a lack of standardization in measurement approaches was evident.Conclusion: The findings of this systematic review highlight significant gaps in current methods for evaluating the socket-limb interface in transfemoral amputees. While both subjective questionnaires, such as the SCS and PEQ, and objective tools, including pressure sensors and motion analyses, offer valuable insights, neither approach alone is sufficient to comprehensively assess prosthetic fit and comfort. Methodological inconsistencies and the absence of standardized protocols further impede advancements in this field. This review underscores the need for a validated and standardized measurement method that combines subjective and objective approaches to enhance evaluation accuracy. Addressing these challenges will enable the development of reliable tools for assessing socket-limb interface quality, especially prosthetic fit and comfort, and drive progress in improving prosthetic functionality and patient outcomes.

Keywords: transfemoral, Amputation, Residual limb, prosthesis, socket, interface, comfort, Measurement

Received: 14 Feb 2025; Accepted: 30 Apr 2025.

Copyright: © 2025 Tiesler, Edel, Wang, Pieroh, Drossel, Carabello, Zipplies, Heyde and Schleifenbaum. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

* Correspondence: Lisa Marie Tiesler, Department of Orthopedic Surgery, Traumatology and Plastic Surgery, Leipzig University, Leipzig, Germany

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
