ORIGINAL RESEARCH article

Front. Bioeng. Biotechnol.

Sec. Biomaterials

Volume 13 - 2025 | doi: 10.3389/fbioe.2025.1579630

Combining polyesters of citric and azelaic acids to obtain potential topical-application biomaterials with antimicrobial activity

Provisionally accepted
Aleksandra  BandzerewiczAleksandra BandzerewiczAnna  HermanAnna HermanEwa  DutkowskaEwa DutkowskaKlara  NiebudaKlara NiebudaPaweł  RuśkowskiPaweł RuśkowskiAgnieszka  Gadomska-GajadhurAgnieszka Gadomska-Gajadhur*
  • Warsaw University of Technology, Warsaw, Poland

The final, formatted version of the article will be published soon.

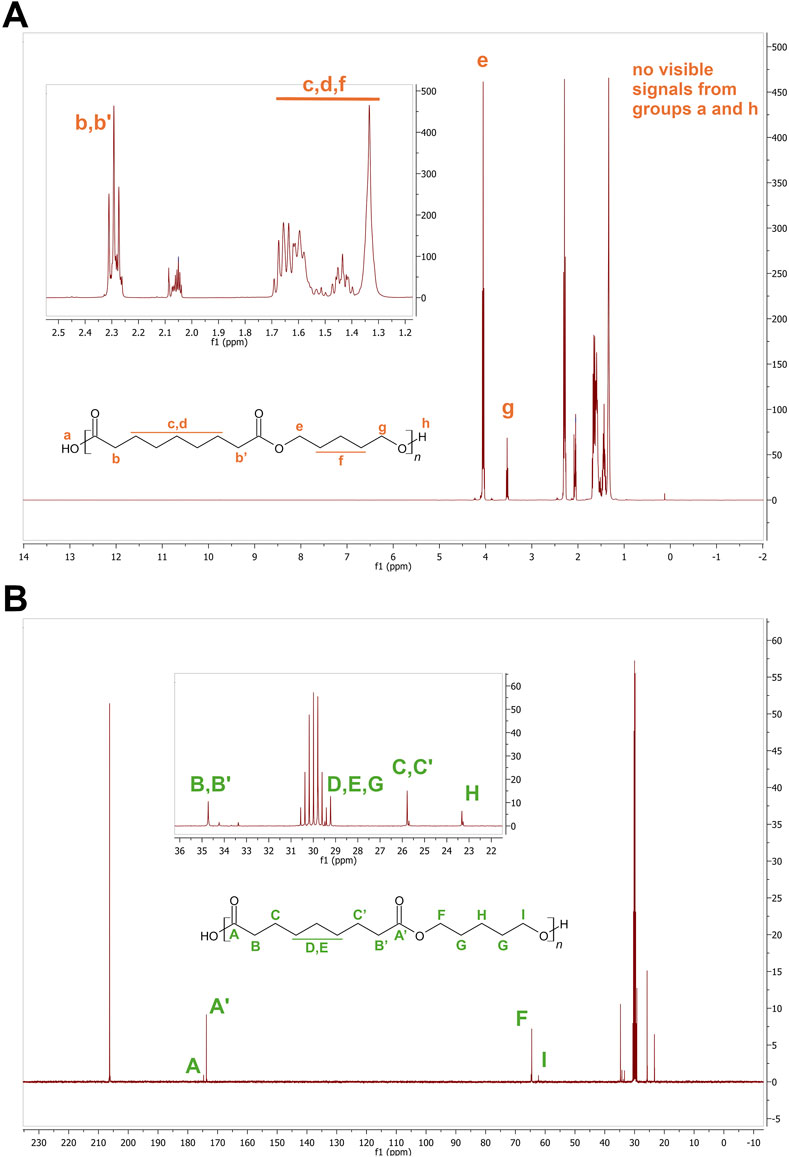

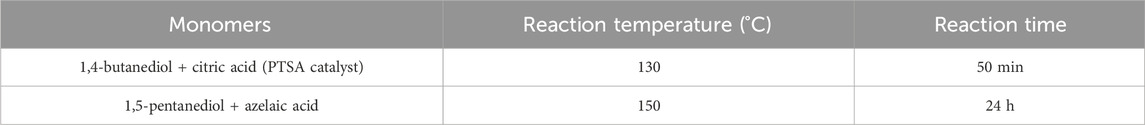

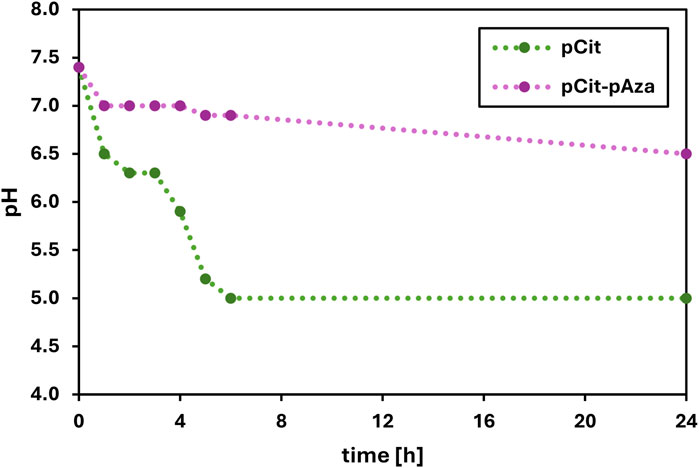

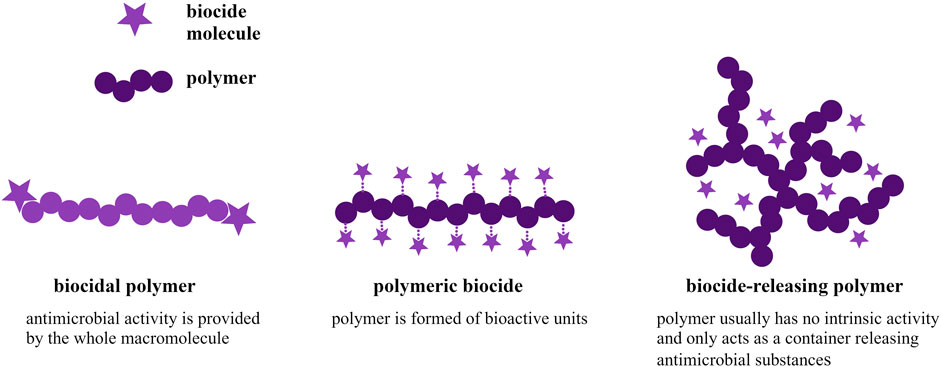

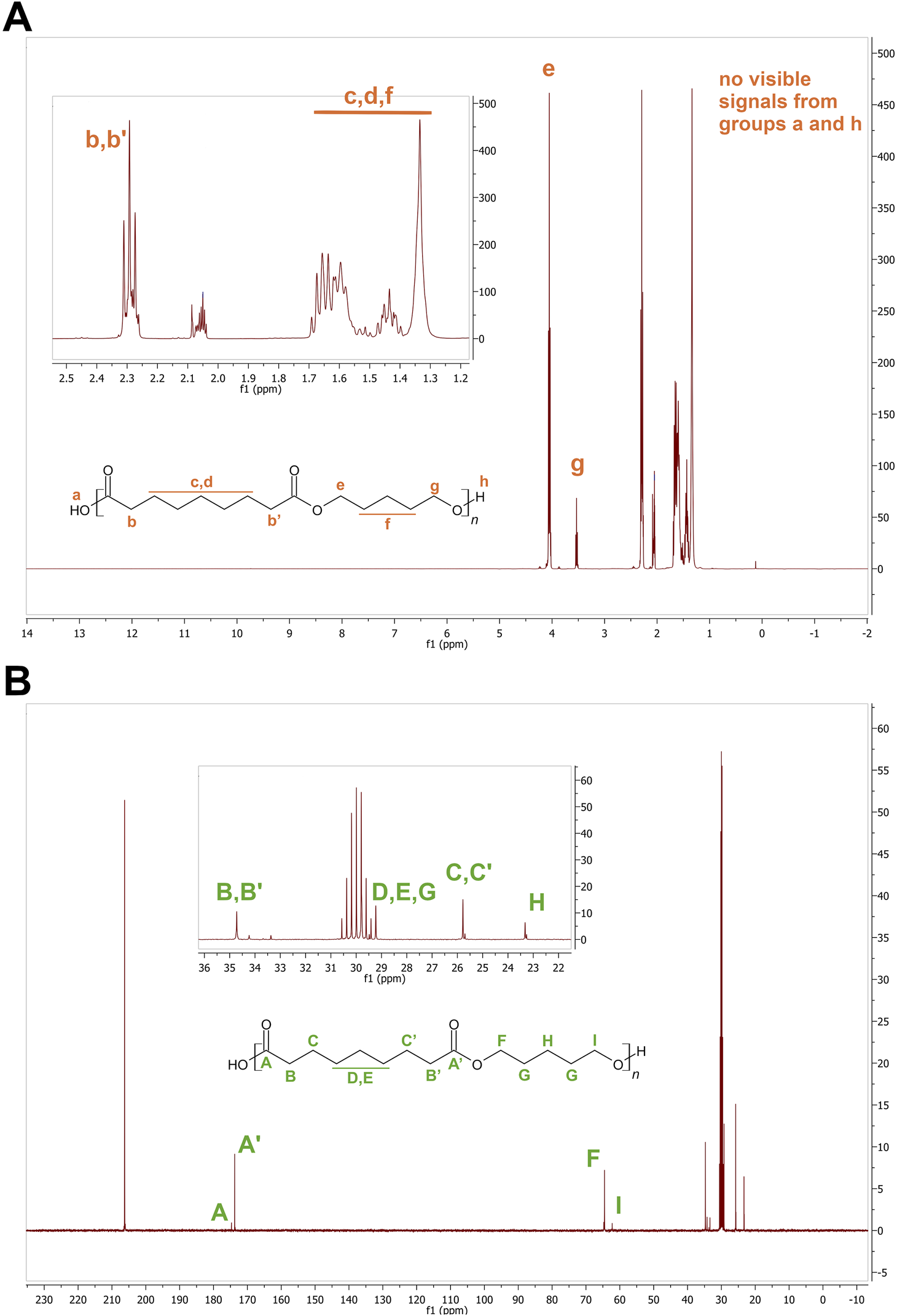

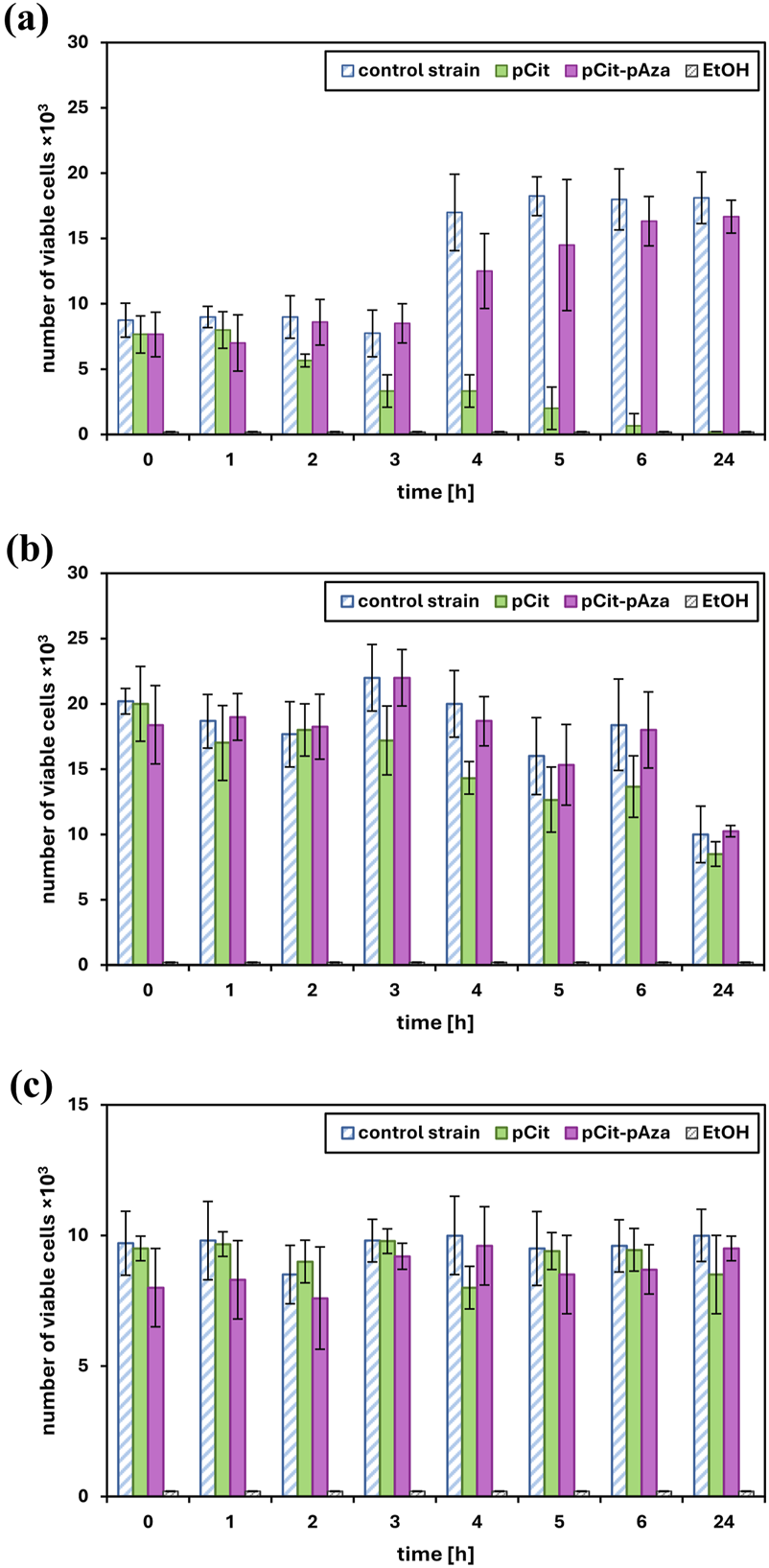

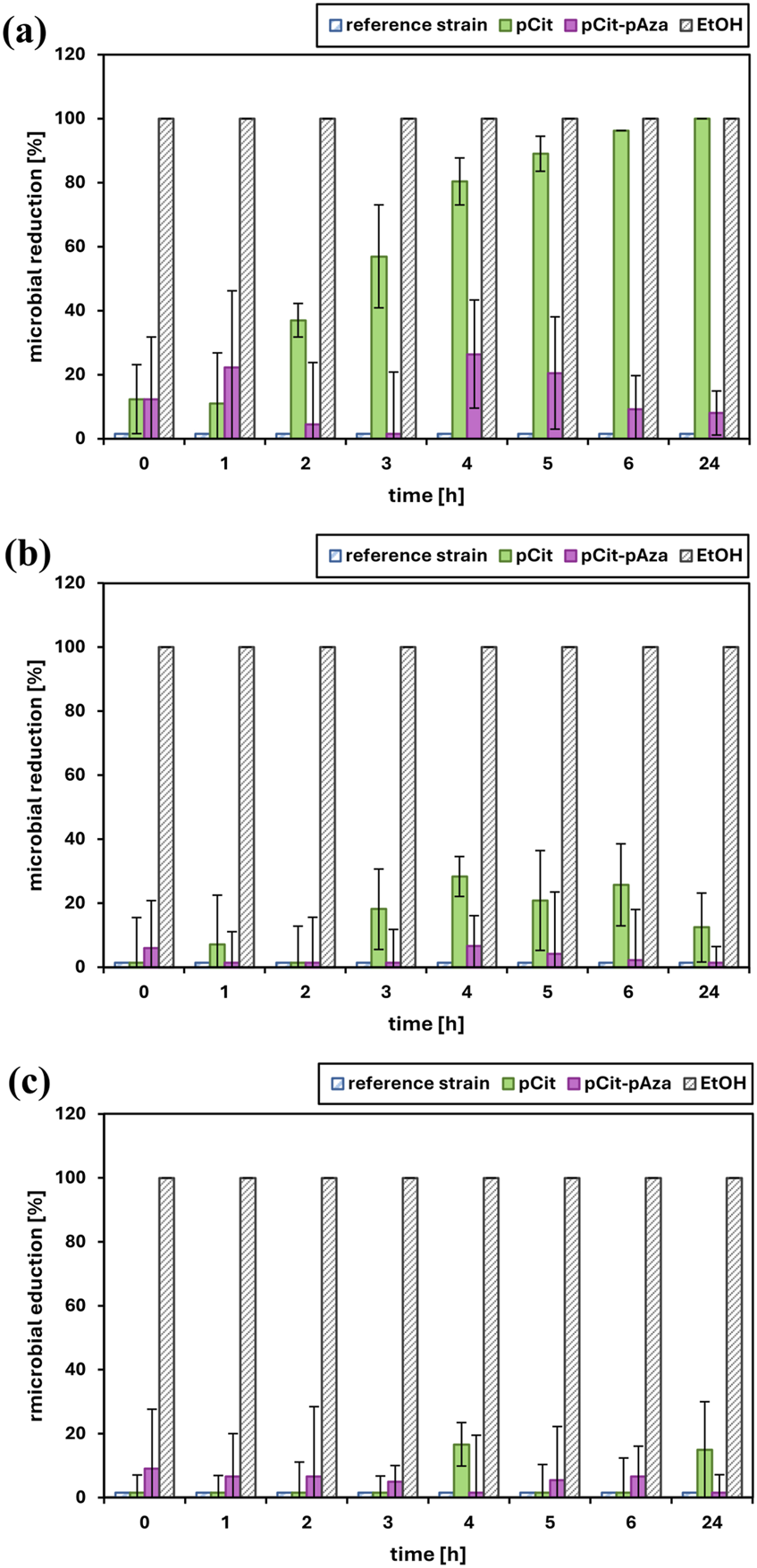

Biomaterials with antimicrobial properties are a key research area due to the increasing threat of infections and the growing resistance of microorganisms to existing antibiotics. . The aim of the study was to produce thermally cross-linked polymer films based on poly(1,5pentanediol azelate) and poly(1,4-butanediol citrate) with antimicrobial activity for medical applications.Polyesters were synthesised, mixed and cross-linked at different times and temperatures. Selected properties were investigated: gel content, surface hydrophilicity (water contact angle) and stability in aqueous environments (degradation tests). A modified time-kill procedure (ASTM E2315-23) was performed to test the antimicrobial properties of the films against Pseudomonas aeruginosa, Staphylococcus aureus and Candida albicans.Well-formed, cross-linked, flexible materials differing in appearance depending on the conditions of the cross-linking process were obtained. In general, a lower cross-linking temperature was found to promote less brittle and more flexible films with greater structure uniformity. The polymer films had hydrophilic surfaces (water contact angle 40-60°). All polymer films maintained integrity after immersion in PBS buffer. Most likely, the lower hydrophilicity of the polyazelate phase limited their degradation. A modified time-kill procedure (ASTM E2315-23) was performed to test the antimicrobial properties of the films against Pseudomonas aeruginosa, Staphylococcus aureus, and Candida albicans. The antimicrobial activity of polycitrate-based films against Pseudomonas. aeruginosa has been reported with >90% reduction of the pathogen after 6 h of contact and 100% biocidal effect after 24 h. The antimicrobial activity of the film is pH-based.The biocidal effect of polycitrate film against P. aeruginosa is the most important anda promising result for its future application, especially given the resistance of the pathogen to commonly used antibiotics. The material should be further evaluated for safety in topical applications. However, a local acidic environment could positively influence the wound-healing processPolyesters were synthesised, mixed and cross-linked at different times and temperatures. Selected properties were investigated: gel content, surface hydrophilicity (water contact angle) and stability in aqueous environments (degradation tests). A modified time-kill procedure (ASTM E2315-23) was performed to test the antimicrobial properties of the films against Pseudomonas aeruginosa, Staphylococcus aureus and Candida albicans.

Keywords: Polycitrate, polyazelate, Polymer Films, Wound dressings, Pseudomonas aeruginosa, antimicrobial

Received: 19 Feb 2025; Accepted: 03 Jun 2025.

Copyright: © 2025 Bandzerewicz, Herman, Dutkowska, Niebuda, Ruśkowski and Gadomska-Gajadhur. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

* Correspondence: Agnieszka Gadomska-Gajadhur, Warsaw University of Technology, Warsaw, Poland

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
