Functionalized metal-organic framework and MOF-derived materials for bone regeneration applications

Bone defects resulting from trauma, tumors, infections, and aging present significant clinical challenges, with conventional grafts hindered by limitations in biocompatibility, mechanical strength, and integration. Metal-organic frameworks (MOFs), as advanced nanomaterials with tunable porosity, high surface area, and stimuli-responsive properties, hold immense potential for bone regeneration. This review provides a comprehensive overview of the classification, synthesis methods, osteogenic mechanisms, and applications of functionalized MOFs and their derivatives in bone repair. MOFs are classified based on structural topology, chemical composition, and functional applications. Synthesis techniques, including solvothermal, ultrasonic, and electrochemical approaches, are evaluated for customizing physical properties such as pore architecture and stability. Osteogenic mechanisms encompass enhancing implant physical characteristics to promote cell adhesion, sustained release of metal ions to activate signaling pathways, controlled drug delivery for targeted therapy, and anti-inflammatory/antioxidant effects through reactive oxygen species scavenging. Applications address various bone pathologies, demonstrating improved angiogenesis, osteointegration, and antibacterial performance in preclinical studies. Key challenges, including cytotoxicity, long-term biosafety, and scalability, are discussed, alongside strategies like surface modification and hybrid composites to overcome these barriers. Future perspectives focus on developing smart MOF-based scaffolds for personalized regenerative medicine, underscoring their transformative potential in orthopedic therapies.

1 Introduction

The regenerative capacity of bone tissue originates from the special structure of the Haversian system. Its regeneration process involves the precise synergy between osteoblasts and osteoclasts. This dynamic remodeling mechanism is precisely the research focus of orthopedic regenerative medicine. With the increasingly evident trend of population aging, the restoration of bone damage due to factors such as trauma, tumors, and infections has become an important challenge in clinical practice (Duda et al., 2023). Globally, there are approximately 178 million new fractures each year, with around 5% of these developing fracture-related infections (FRIs), corresponding to roughly 1.8 million FRI cases annually (Wu A.-M. et al., 2021). The hospitalization costs for patients with FRIs are 4–8 times higher than those for patients without infections (Metsemakers et al., 2024). Notably, low- and middle-income countries (LMICs) and conflict regions bear a heavier economic burden associated with infections, primarily due to the higher proportion of open fractures in these areas (Tissingh et al., 2022). In modern orthopedic clinical practice, a diversified treatment strategy system has been formed for complex bone defect cases, including but not limited to treatment modalities comprising self-donated bone grafts, donor bone grafts, and bone graft replacements, and a single or combined intervention plan can be implemented according to individual pathological characteristics (Qing et al., 2020; Zhao D. et al., 2021; Liu X. et al., 2022). Although the existing clinical strategies have made phased progress, the traditional bone graft substitutes still face bottleneck problems such as biocompatibility limitations, insufficient mechanical strength, and low bone integration efficiency (Li Z. et al., 2023). These bottlenecks prompt researchers to turn their attention to the field of nanotechnology.

Currently, clinical practice employs a range of therapeutic approaches for functional restoration and bone defect healing, including metal implants, autografts, and allografts—strategies widely acknowledged as the “gold standard” in this field. Additionally, interventions such as vascularized bone grafting, autologous chondrocyte transplantation, and joint replacement are frequently utilized to address clinical needs related to bone defects. However, these conventional methods are plagued by inherent limitations. For metal implants, the necessity of surgical removal in certain cases may pose a risk of secondary trauma to patients. Autografts, while effective, are hampered by limited donor supply, complications at the donor site, and heightened risks of surgical site infections, all of which can induce significant patient discomfort. Similarly, allografts are associated with potential hazards such as disease transmission and challenges of immune rejection, which compromise their clinical utility. Consequently, there is an urgent imperative to develop reliable novel therapeutic modalities that can address the unmet medical demands in bone tissue defect repair, while alleviating the discomfort and adverse effects associated with current bone regeneration strategies (Xie et al., 2021; Maia et al., 2022; Ramanathan et al., 2024; Wang et al., 2025b).

Nanomaterials have advantages such as multi-scale structure regulation, functional synergy, and intelligent response characteristics. When combined with artificial bone scaffolds, they can make up for the current deficiencies of artificial bone scaffolds (Feng et al., 2023). Nanomaterials are systematically classified into distinct dimensional categories: 0D (molecular), 1D (chain-like), 2D (layered), and 3D (network). Materials like quantum dots and gold nanoparticles, which have dimensions between 1 and 100 nm, are known as 0D nanomaterials. 1D materials refer to those with one dimension beyond the nanoscale, such as silicon nanowires and carbon nanotubes. 2D materials refer to those with two dimensions beyond the nanoscale, such as graphene and molybdenum disulfide nanosheets. 3D materials are bulk materials composed of nanostructured units, such as metal-organic frameworks (MOFs) and nanocomposites. Nanomaterials provide significant advantages in bone tissue engineering, thanks to their extensive specific surface area, active nature, and capacity to precisely modulate their physical and chemical characteristics. In recent years, the critical research frontier has been the application of functional nanomaterials in therapies aimed at improving bone regeneration and repair (Zhu et al., 2020; Babuska et al., 2022). MOFs represent a category of nanomaterials characterized by coordination compounds that arise from the interaction between organic ligands and metal ions or clusters. While retaining the inherent advantages of nanomaterials, their porous architecture allows for the diffusion of guest molecules that respond to stimuli, giving them dynamic responsiveness to external triggers, which is highly useful for various biomedical applications (Guan et al., 2023). Due to their customizable structures and adjustable sizes, MOFs and their composite materials can achieve targeted delivery and controlled release after being designed and characterized. Compared to standalone ionic therapies, this approach enhances ion utilization efficiency while mitigating side effects caused by fluid diffusion (Yang Q. et al., 2024).

MOFs constitute an emerging class of hybrid porous materials, characterized by infinite crystalline lattices assembled via coordinate bond interactions between organic ligands—functioning as bridging linkers—and metal ions that serve as nodal centers in the structural framework (Binaeian et al., 2023; Sezgin et al., 2025). MOFs have demonstrated applicability across diverse fields, including chemical engineering, materials science, energy storage, sensing, pollution remediation, and biomedical applications (Yang and Yang, 2020; Zhou et al., 2021; Lin R. et al., 2023; Guo et al., 2024; Molavi et al., 2024). To date, a variety of MOFs have been designed based on their component units, among which the most widely used are Porous Coordination Networks (PCNs), Materials Institute Lavoisier (MIL) MOFs, Zeolitic Imidazolate Frameworks (ZIFs), Isoreticular MOFs (IRMOFs), University of Oslo (UIO) MOFs, and Porous Coordination Polymers (PCPs) (Table 1) (Yusuf et al., 2022; Zhang X. et al., 2022). PCNs are stereo-octahedron materials, consisting of multiple cuboctahedral nanocages that form a cage-pore channel architecture in three-dimensional space, making it suitable for gas storage (Hou et al., 2021). MIL MOFs were initially synthesized using organophosphates or succinic acid to link central metal ions, but modern synthesis primarily utilizes carboxylates and triply charged metal ions comprising iron(III), aluminum(III), gallium(III), indium(III), vanadium(III), and chromium(III) (Zhang H. et al., 2022). The synthesis of ZIFs involves reacting Zn²⁺ or Co²⁺ with imidazole ligands, producing porous crystalline materials that have zeolite-like tetrahedral frameworks (Liu et al., 2022c). IRMOFs are assembled from [Zn₄O]⁶+ clusters and aromatic carboxylate ligands, resulting in octahedral microporous crystals possessing three-dimensional porous frameworks that allow for functionalization with organic groups (Wu et al., 2024). UIO MOFs are three-dimensional microporous materials formed by the coordination of [Zr₆O₄(OH)₄] clusters with BDC ligands, featuring an octahedral central pore cage surrounded by eight tetrahedral corner cages (Huo et al., 2023). Porous coordination polymers (PCPs) are structured from transition metal ions, in which carboxylic acids, pyridines, and their derivatives play dual roles as both primary building units (PBUs) and secondary building units (SBUs) in the formation of their framework architecture (Tong et al., 2020). Furthermore, based on the aforementioned classification, Some MOF materials derive their names from the universities affiliated with their researchers. These materials generally possess distinct structures and properties, and have typically undergone extensive research and found widespread application, such as, Dresden University of Technology (DUT-n) (Mendt et al., 2022), Nanyang University of Technology (NTU-n) (Crespí Sánchez et al., 2021), Hong Kong University of Science and Technology (HKUST-n) (Jagódka et al., 2022), Beijing Jianzhu University (BUC-n) (Zhao et al., 2020), Pohang University of Science and Technology (POST-n) (Harambage, 2025), Christian-Albrechts-University (CAU-n) (Giri et al., 2025), Northwestern University (NU) (Abazari et al., 2024). Simultaneously, Concurrently, a novel category of metal-organic frameworks has emerged, which integrates the fundamental principles of MOFs with biological sciences, thus coining the novel designation “Bio-MOFs”. These Bio-MOFs present compelling opportunities and promising prospects across interdisciplinary research domains (McKinlay et al., 2010). Certain researchers have established specific criteria for classifying metal-organic frameworks as Bio-MOFs, with a core criterion being the incorporation of at least one biomolecular unit that functions as an organic ligand in their framework (Cai et al., 2019). The significant development has also been achieved in therapeutic agents formed by combining active ligands—such as amino acids (Lyu et al., 2022), peptides (Wang S. et al., 2022), proteins (Sontz et al., 2015), nucleobases (Chand et al., 2022), saccharides (carbohydrates) (Di Palma et al., 2022), drugs (Li W. et al., 2024), and other bioactive molecules (Chen J. et al., 2021)—with active metals. Recently, these MOF architectures have been extensively investigated as promising platforms for biomedical applications (Ma et al., 2023). Owing to their outstanding chemical and physical traits, MOFs have emerged as a focal point for extensive research with their application scope including biosensing platforms, efficient drug delivery materials (Horcajada et al., 2006), the design of quantum devices (Gimeno et al., 2025), and utilization as catalysts (Pascanu et al., 2019). Moreover, many new MOF variants currently being developed have attracted considerable interest lately, with their uses increasingly spreading across various fields (Coluccia et al., 2022; Cun et al., 2022).

Table 1

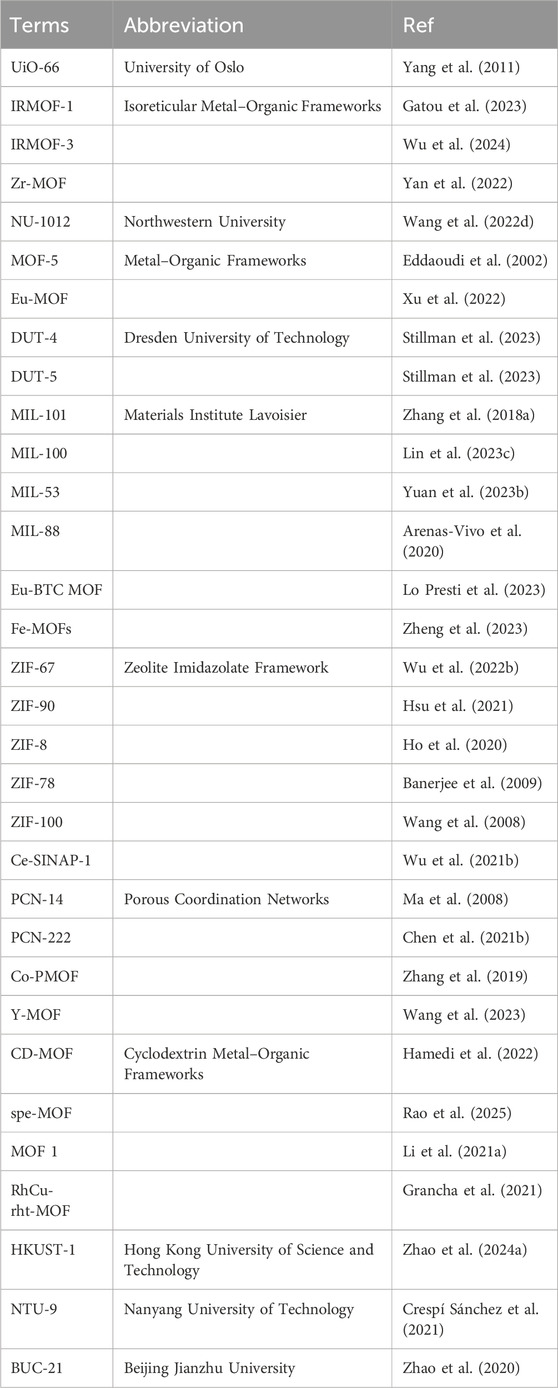

Table 1. Types of MOF terms.

MOFs have emerged as prominent materials in the biomedical sector, particularly for applications that promote bone growth (Zheng et al., 2024), due to their exceptional functionalities and customizable characteristics, such as the Precise regulation of drug loading capacity and release kinetic profiles (Zhang et al., 2024). This capability for controlled delivery facilitates sustained or stimuli-responsive release from nanoparticle-based drug formulations or functional coatings (Wang Y. et al., 2020), Meanwhile, through more efficient bone-targeting capabilities and the delivery of multiple osteogenesis-promoting pharmaceutical components (Salcedo-Abraira et al., 2025), it addresses the limitations of drug therapies for diseases such as osteoporosis and bone metastasis, which are constrained by insufficient bone tissue perfusion and inadequate drug concentration at lesion sites (Vassaki et al., 2021; Pan et al., 2022). Additionally, it mitigates the various side effects caused by increased therapeutic doses, including hypocalcemia, osteonecrosis of the jaw, bone pain, and osteomyelitis (Foessl et al., 2023), thereby significantly enhancing their therapeutic precision in bone regeneration (Figure 1). Numerous studies and reviews within this field have investigated the composition, structure, and mechanisms of bone growth associated with various MOFs, demonstrating that MOFs and their derivatives exhibit significant osteogenic activity. The successful incorporation of these materials into bone implants is critically contingent upon the optimization of dosage and structural configurations, as substantiated by empirical evidence in the literature (Zulfiqar et al., 2022; Zhang et al., 2023; Ghovvati et al., 2024). Nevertheless, the potential cytotoxicity of this compound has constrained its clinical application, posing a significant challenge in concurrently augmenting its osteogenic activity and biocompatibility. This review provides a comprehensive summary of the classification, synthesis methods, and mechanisms by which MOFs enhance bone healing. Recent advancements in MOF research have elucidated that their osteogenic mechanisms are predominantly attributed to the following factors: (1) physical interactions, such as nanotopography-guided cell adhesion; (2) the release of ionic components, specifically Ca²⁺ and Zn²⁺, which mediate signaling pathways; (3) the delivery of drug payloads, including growth factors and siRNA; and (4) their anti-inflammatory and antioxidant properties, particularly through reactive oxygen species (ROS) scavenging. This paper examines the applications of MOFs in various bone pathologies and addresses the critical challenges associated with their use, particularly focusing on long-term biosafety and degradation kinetics. We review strategies to optimize the healing performance of MOFs from biomechanical, topological, and physicochemical perspectives. This includes approaches to enhance biocompatibility, refine synthesis protocols, modulate surface roughness and pore architecture, and engineer MOF-based composites. Finally, we offer forward-looking perspectives on emerging trends, emphasizing the potential of MOF-based materials in advanced bone healing applications.

Figure 1

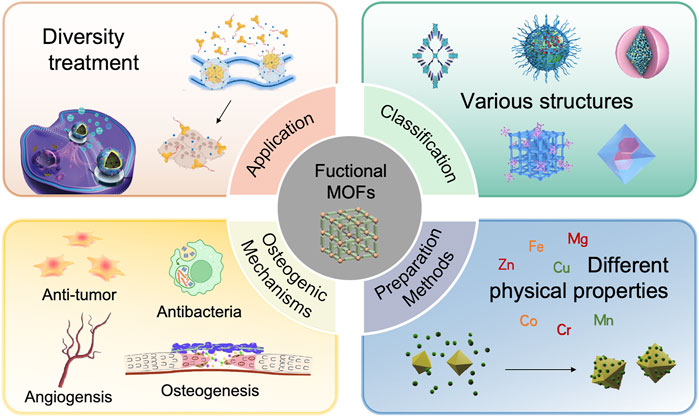

Figure 1. The schematic overview of the classification, synthesis, and applications of MOFs in the regulation of osteogenesis. The figure was created using Biorender.

2 MOFs and their classification

MOFs represent a recently developed category of crystalline substances, distinguished by their periodic networks formed by connecting organic ligands to metal-containing nodes. These frameworks can be tailored to specific structural features, chemical compositions, synthesis technology of composite materials and functional applications by designing diverse topological architectures, representing a significant outcome of extensive exploration into highly porous materials (Chen et al., 2020a). Yaghi and colleagues synthesized the initial MOF in 1995, utilizing symmetrical porous organic molecules as the fundamental building blocks, with BTC as the organic ligand and Co²⁺ as the transition metal ion (Yaghi et al., 1995). By bonding and assembly with the metal centers (metal ions or metal clusters), they form metal-organic compound layers. The metal-organic compound layers, alternating with the layers whose composition is determined by the functionalization of the starting molecules, are referred to as the two-dimensional coordination compound structures of MOFs. MOFs are advantageous as drug carriers because of their unique crystalline structures, which offer extensive specific surface areas and significant porosity (Gao et al., 2022). They achieve high drug-loading efficiency while maintaining favorable biodegradability (Wen et al., 2021). Through the thoughtful design of inorganic and organic components, MOFs with specific architectures and functionalities can be developed. Additionally, the highly structured porous framework of MOFs holds significant promise for multifunctionality, making them perfect for various uses such as reaction catalysis, cell regeneration, and cancer treatment (Li S. et al., 2022; Gao et al., 2024; Gong et al., 2024). By using rare earth elements transition metals such as Co., Mn, and Fe as nodes (Lo Presti et al., 2023), MOFs are endowed with potential applications in catalysis (Zhang et al., 2019), combination therapy (Zhu et al., 2023), and sensing (Wang et al., 2023). Following the proposal of this concept, MOFs have rapidly advanced across multiple disciplines at a remarkable pace over the subsequent three decades. Recently, the capability of MOFs to integrate diverse functional materials, such as nanoparticles (NPs) (Li et al., 2020e; Sun, 2022; Wu et al., 2023), biological entities (Velásquez-Hernández et al., 2021), and composite materials has been continuously explored (Liang et al., 2021; Di Palma et al., 2022). The ongoing synthesis of multifunctional MOF heterostructures demonstrates greater advantages over individual components, as they are endowed with enhanced functionalities and novel properties (Liu et al., 2021). These MOF composites are organized and characterized by their structural classifications, chemical compositions, and functional applications, which are crucial for managing the expanding library of synthesized MOFs. These categories aid in examining the relationships between structure and properties, correlations between materials and applications, and interdependencies between composition and function. Furthermore, they enable the exploration of innovative architectures with targeted functionalities and guide the rational design and fabrication of MOFs tailored to specific applications. A range of techniques have been established to categorize the structural characteristics of MOFs; however, no unified comprehensive classification system exists that is universally applicable across diverse application scenarios. In this section, we will discuss several common classification strategies that provide insights into the arrangement of metal nodes, organic linkers, and void spaces within MOF frameworks, as well as interpretations of their functional behaviors and material properties. These classifications can be summarized in Figure 2.

Figure 2

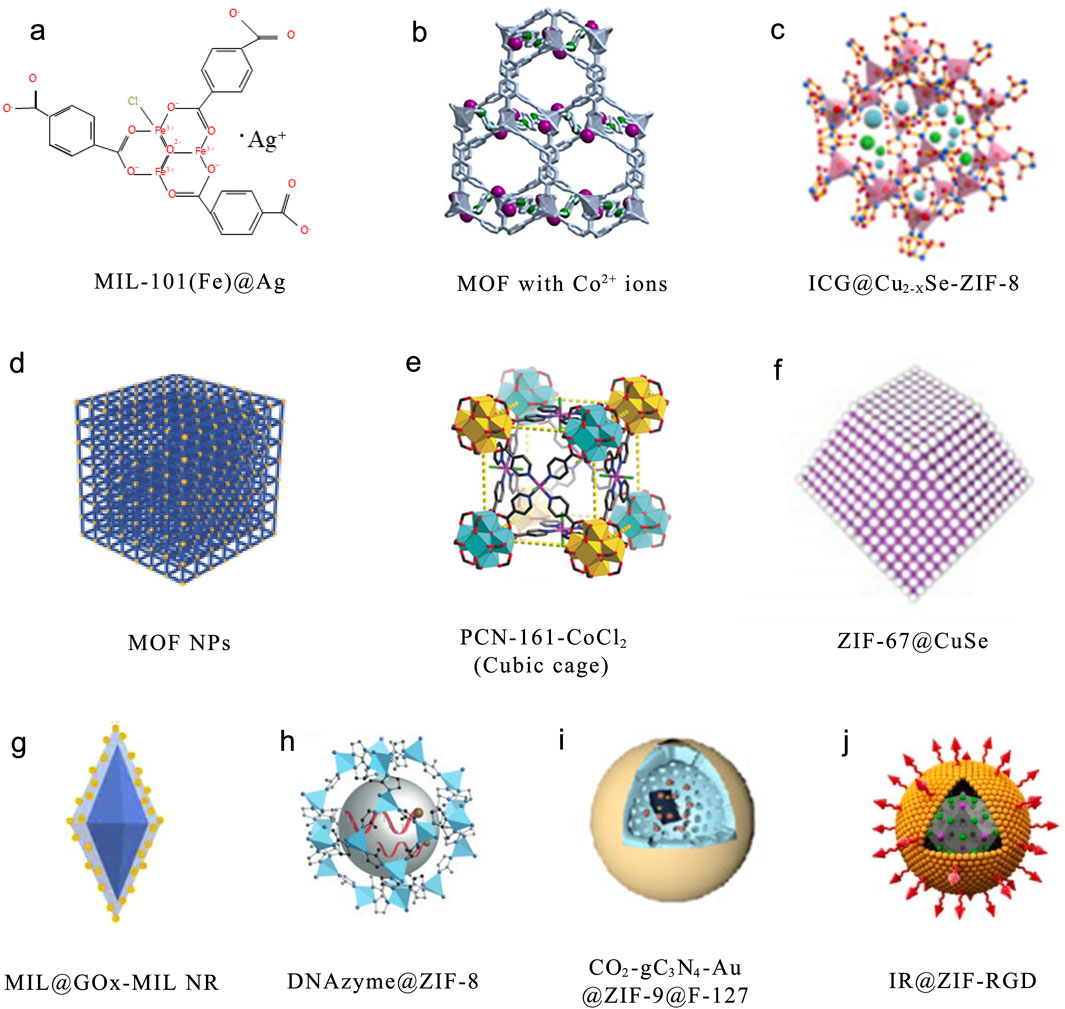

Figure 2. Some of the most commonly used MOFs. (a) Structurally modified Ag⁺-doped MOF MIL-101(Fe)@Ag derivative. Reproduced with permission (Li X. et al., 2022). Copyright 2022, the authors, distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license. (b) Post-synthetic metal exchange is used to incorporate Co²⁺ into Zn-based MOF. Reproduced with permission (Hosseini et al., 2022). Copyright 2021, Elsevier. (c) A nanoplatform composed of Cu₂-XSe and capped with zeolitic imidazolate framework-8 (ZIF-8). Reproduced with permission (Zou et al., 2022). Copyright 2022, Elsevier. (d) The modular synthesis of MOF NPs. Reproduced with permission (Wang S. et al., 2018). Copyright 2018, Wiley-VCH. (e) Zirconium(IV)-MOFs are transformed into Heterobimetallic MOFs containing Magnetic Anisotropic Cobalt(II) Centers. Reproduced with permission (Yuan et al., 2018). Copyright 2018, Wiley-VCH. (f) Synthesis of Monodisperse ZIF-67@CuSe@PVP Nanoparticles. Reproduced with permission (Wu et al., 2022b). Copyright 2021, American Chemical Society. (g) MIL@ glucose oxidase (GOx) -MIL NRs. Reproduced with permission (Li T. et al., 2020). Copyright 2020, Elsevier. (h) DNAzyme@ZIF-8 nanoplatform. Reproduced with permission (Wang et al., 2019). Copyright 2019, Wiley-VCH. (i) CO₂-g–C₃N₄–Au@ZIF-8@F127 (CCAZF). Reproduced with permission (Xiao et al., 2021). Copyright 2021, Elsevier. (j) A nanocomplex depleted of adenosine triphosphate (IR@ZIF-RGD). Reproduced with permission (Yu et al., 2022). Copyright 2022, Elsevier.

2.1 Classification by structural features

2.1.1 Topological classification

Network topology serves as a fundamental criterion for the classification of MOF structures. It delineates the arrangement and spatial configuration of metal nodes and organic linkers, thereby defining the architecture and geometry of the MOF structure. These topological characteristics are commonly depicted through graph-based representations known as networks or coordination networks. Each MOF structure is assigned a unique topological descriptor based on its underlying network, facilitating the systematic classification and comparison of diverse MOFs. MOF structures encompass MIL-101, characterized by simple cubic symmetry (Lin Z. et al., 2023), ZIF-8, which exhibits hexagonal close-packed symmetry (He et al., 2023), and more intricate configurations such as UiO-66. The latter integrates zirconium-based octahedral nodes and linear linkers (Yan et al., 2022; Iqbal et al., 2025).

2.1.2 Categorization based on cages

Certain MOFs exhibit significant void spaces or cages within their structures. The term “cage” denotes a three-dimensional structural unit characterized by specific geometry and dimensions, formed through coordination bonds that connect metal nodes with organic linkers. These cage-like architectures generally possess considerable internal diameters, facilitating the encapsulation of guest molecules and offering spatial capacity for host-guest interactions. Precise regulation of the size and geometry of the cages can be accomplished through the modification of metal node types, organic linkers, and their connectivity patterns. For example, ZIFs commonly exhibit cubic or octahedral cages (Wang Y. et al., 2024), whereas metal-organic polyhedra are typically characterized by hexagonal prismatic and concave coordination cages (Wu X. et al., 2021).

2.2 Classification by chemical composition

2.2.1 Classification by metal nodes

Within the framework of MOFs, metal nodes, which can be metal ions or clusters, bond with organic ligands through coordination to build periodic network structures. MOFs that incorporate transition metals such as Fe, Co., Ni, and Cu generally show high levels of catalytic activity and magnetic properties, which makes them suitable for applications in catalysis, magnetic materials, and sensing technologies (Zheng et al., 2023). Rare earth metal-based MOFs (e.g., La, Ce, Y) demonstrate unique optical and magnetic characteristics, making them ideal for luminescent materials and bioimaging (Xu et al., 2022). Metal nodes from the main group, such as Mg, Al, and Zn, typically exhibit excellent stability and biocompatibility, rendering them appropriate for drug delivery systems and medical applications (Stillman et al., 2023). It should be noted, however, that MOF-5 and the IRMOF family are Zn-based carboxylate materials. In early classic MOFs, the coordination interactions between metal nodes and organic ligands within their structural architectures are relatively weak (Gatou et al., 2023). They are prone to framework collapse in humid or aqueous environments, with extremely low hydrolytic stability (Yu Z. et al., 2021). This limits their applicability in scenarios requiring contact with water, such as water treatment and biomedicine, and hinders their applications in biomedicine, which is one of their core drawbacks. In addition, other well-studied biocompatible metal centers, such as Zr and Ti, Zr-based MOFs, with high stability and structural tunability as their core advantages, are suitable for thermocatalysis and applications in harsh environments; Ti-based MOFs, by virtue of their unique photochemical activity, are irreplaceable in the field of photocatalysis (Li J. et al., 2023), while also exhibiting excellent performance in biological antibacterial, bactericidal, anti-inflammatory, and osteogenic activities (Wang X. et al., 2022; Yan et al., 2022).

2.2.2 Classification of organic ligands

MOFs containing biomolecules can be classified based on the types of organic linkers and biomolecules. The introduction of these molecules endows MOFs with capabilities such as molecular recognition, biosensing, biocatalysis, and self-assembly. The organic linkers in MOFs can incorporate a variety of biomolecules, including amino acids, peptides, proteins, nucleobases, carbohydrates, drugs, and porphyrins.

Amino acids (AAs) possess distinct advantages in ligand-based applications owing to their dual functionality, characterized by the presence of both carboxyl groups (-COOH) and amino groups (-NH₂). Nevertheless, BioMOFs fabricated exclusively from amino acids remain relatively scarce; the majority are constructed by blending amino acids (or their modified derivatives) with organic ligands (Wang S. et al., 2021). The properties of peptide-based MOFs are contingent on the specific amino acid compositions utilized. Side chains not involved in metal coordination interactions can act as active sites. Peptides serve to bridge ligands, coordinate with metal ions, and form flexible porous materials endowed with the capacity for guest molecule adsorption (Cirujano et al., 2021). Proteins have complex structures and flexibility. Template-driven synthesis technology utilizes proteins as intelligent mediators to construct zeolitic MOF structures with the ability to encapsulate biomolecules, a property that underscores their prospective value in biocatalysis and biopharmaceutical applications (Wang H. et al., 2020).

Nucleobases possess a high self-assembly ability, metal-binding capacity, and numerous coordination sites (Beobide et al., 2015). By virtue of their structural rigidity, these properties result in the formation of cavities, thereby positioning them as optimal candidates for the design and fabrication of porous BioMOFs (Salama et al., 2022).

Carbohydrates have been effectively used as building blocks for self-assembled structures and act as efficient host molecules in BioMOFs. They have attracted much attention due to their biocompatibility and biodegradability. Among them, cyclodextrins, a type of naturally occurring cyclic oligosaccharides with a barrel-shaped cavity (Tian et al., 2020), have been used to prepare various types of CD-MOFs due to their characteristic of having a hydrophobic cavity and a hydrophilic surface (Li H. et al., 2020; Hu et al., 2021; Wei et al., 2021).

Drugs, as therapeutic agents, contain multiple ligand moieties within their molecular structures, thus numerous studies have reported the utilization of these molecules for constructing bio-metal-organic frameworks (Alves R. C. et al., 2021; Yang S. et al., 2022). Porphyrins consist of four pyrrole units linked by methine bridges (Ivanov and Boldyrev, 2014). This unique molecular architecture endows porphyrins with exceptional characteristics. Tetra(4-carboxyphenyl)porphyrin (H4TCPP), a commonly used porphyrin ligand, is extensively utilized in the fabrication of porphyrin-based MOFs, which in turn enables their broad application across diverse domains spanning gas storage, catalysis, and biotechnology (Jiang Q. et al., 2021; Zhao P. et al., 2021).

2.2.3 Classification of reticular chemistry

Based on reticular chemistry, the classification of metal-organic frameworks (MOFs) primarily relies on net topology, building block connectivity, and structural complexity (Jiang H. et al., 2021).

Among these, edge-transitive nets serve as the most fundamental basis for classification, which are categorized into three types based on the uniqueness of their coordination figures: Type I nets possess unique coordination figures, corresponding to only one edge-transitive net, leading to a high success rate in design. For example, the 12-c fcu net (cuboctahedral configuration) (Rao et al., 2025). Type II nets have coordination figures shared by two to three nets, requiring regulation through details such as distortion angles and torsion angles. For instance, the 6-c pcu net (regular octahedral configuration) (Li J.-M. et al., 2021). Type III nets are composed solely of square or tetrahedral building blocks, with structures that are difficult to predict and require strict control over geometric parameters. Examples include square-configured nbo and lvt nets (Wang H. et al., 2018; Zhang Y. et al., 2018).

In the classification based on building blocks, connectivity is categorized according to the coordination number (n-c) of nodes and their combination modes, specifically uninodal nets (Lv et al., 2021), binodal nets (Guillerm and Eddaoudi, 2021), and multinodal nets (Guillerm et al., 2024). In terms of types, they include single-metal-ion-based, metal-cluster-based, and supermolecular building block (SBB)-based MOFs (Grancha et al., 2021).

2.3 Classification by synthesis technology of composite materials

MOFs can be incorporated with other base materials via various technical strategies to construct composite materials, where typical technical approaches encompass surface coating, electrospinning, 3D printing, and so forth.

The preparation of MOF-integrated composites as surface coatings mainly adopts ex situ synthesis strategies such as immersion coating. Specifically, by immersing the substrate material in a MOF precursor solution, MOF materials are allowed to deposit on the surface of the substrate or host matrix, forming a uniform coating. Methyl vanillate@ZIF-8 (MV@ZIF-8) is immobilized onto titanium surfaces to form a coating, mediated by polydopamine (PDA) (Si et al., 2023). This coating can sustainably release Zn²⁺ and MV, exerting antibacterial effects by inducing oxidative damage to bacteria, while promoting the early osteogenic differentiation of human bone marrow mesenchymal stem cells (hBMSCs) (enhancing alkaline phosphatase (ALP) expression and extracellular matrix mineralization). A bone microenvironment-responsive MOF coating is constructed on titanium surfaces. By releasing Ce³⁺ and Sr²⁺, it scavenges excessive ROS associated with osteoporosis (OP), restores mesenchymal stem cell (MSC) function, promotes new bone formation, and enhances implant-mediated fracture healing efficacy (Chen M. et al., 2022). ZIF-67 nanoparticles loaded with osteogenic growth peptide (OGP) are deposited as a coating on the TiO₂ nanotube (TNT) surfaces of titanium implants (Tao et al., 2023). This coating not only possesses antibacterial properties and osseointegration capability but also effectively alleviates inflammatory responses and promotes immunomodulation by modulating macrophage polarization (reducing the secretion of pro-inflammatory cytokines).

MOFs can also form biocompatible osteoinductive materials with other materials via electrospinning. The microscale or nanofibrous networks constructed by electrospinning can closely mimic the structure of the extracellular matrix (ECM). Ghasemi et al. prepared poly-3-hydroxybutyrate-zein/UiO-66 electrospun composite scaffolds (Ghasemi et al., 2025). Cell viability, proliferation, adhesion, ALP activity, and ECM mineralization of the scaffolds were notably augmented, accompanied by significant upregulation of COLΙ, RUNX2, and OCN genes in MG-63 cells cultured on the scaffold surfaces. In addition, a β-cyclodextrin (β-CDs)/Ni-based MOF (β-CDs/Ni-based MOF) fibrous meshwork with intrinsic biocompatibility and biodegradability was produced through a highly efficient, fast, and controllable electrospinning technique, standing as a novel material option for orthopaedic uses (Lin J. et al., 2023). The β-CDs/Ni-based MOF scaffolds possess superior porosity, which can enhance proliferation as well as nutrient and oxygen transport, thereby facilitating more tissue regeneration.

With the continuous maturation of technology, 3D scaffolds with artificially controllable microstructures provide a potential strategy for bone tissue regeneration. For example, different amounts of UiO-66 nanocrystals were loaded onto alkali-heat treated 3D-printed titanium scaffolds, among which 1/2UiO-66/AHT exhibited excellent performance in osteogenesis and angiogenesis induction, and promoted intercellular communication by enhancing the paracrine effect (Liu et al., 2023). Xiao and his team prepared a novel magnetic nanocomposite, namely polycaprolactone (PCL)/Fe₃O₄@ZIF-8, via 3D printing technology (Xiao et al., 2024). This composite enhanced the proliferation and adhesion of rat bone marrow-derived mesenchymal stem cells (BMSCs); elevated the expression levels of osteogenesis-associated genes and proteins; stimulated the osteogenic differentiation of BMSCs via activation of the Wnt/β-catenin signaling pathway; alleviated infectious complications; and accelerated new bone formation in the context of infectious bone defects.

2.4 Classification by functional application

MOFs can be classified according to their functional applications, with particular emphasis on their intended uses across various domains. For instance, the presence of unsaturated metal sites within MOFs enables them to function as Lewis acid sites, thereby facilitating a range of chemical reactions (Rojas-Buzo et al., 2021). Furthermore, the porous structure and large surface area of MOFs endow them with superior performance in sensing and imaging applications. Among the MOF family, materials with structures from the MIL series are utilized. In particular, the combination of MILs with fluorescence has been employed for the detection of intracellular ATP molecules (Yao et al., 2021). Building on prior research findings, CD4⁺ and CD8⁺ helper T cells are acknowledged to participate in wound healing, hence immunosensors may serve as tools for monitoring the wound healing process (Neto et al., 2020; Solaimuthu et al., 2020).

Beyond these applications, MOFs are also used as drug carriers and vascular implants. MOF, with their high loading capacity and targeting ability, can control drug release. This is attributed to their high specific surface area, tunable structure, modifiability, and biodegradability, which make them efficient drug carriers (Hamedi et al., 2022; Aghazadeh Asl et al., 2023). Meanwhile, MOFs also show great potential in therapeutic interventions for diseases. As an illustration, the employment of copper-based MOFs in antithrombotic coatings for cardiovascular implant devices has seen growing adoption over the past few years (Sheng et al., 2024). With Cu-BTC employed as a catalyst, studies have verified that s-nitrosocysteine within blood samples undergoes transformation into cysteine and nitric oxide in vitro (Tsikas, 2021). Similarly, s-nitrosoglutathione may also undergo catalysis by more complex Cu-MOFs (Thai et al., 2022). Due to the nitric oxide-releasing properties of MOF/polymer composites, they are expected to be the preferred materials for new types of implants.

3 Preparation methods for MOFs with different physical properties

Numerous methods exist for preparing MOFs. The application performance of MOF composites is closely related to their characteristic structures, as well as the apparent morphology and architecture of the composite materials. Even MOFs of the same type or identical composition can exhibit distinct properties when synthesized via different methods. This section presents various frequently employed MOF synthesis techniques: the one-pot method (solution precipitation), hydrothermal (solvothermal) synthesis, ultrasonic method, stepwise synthesis, electrochemical synthesis, and microwave-assisted synthesis (Figure 3). We summarize their advantages and limitations to guide researchers in selecting appropriate preparation strategies based on specific requirements.

Figure 3

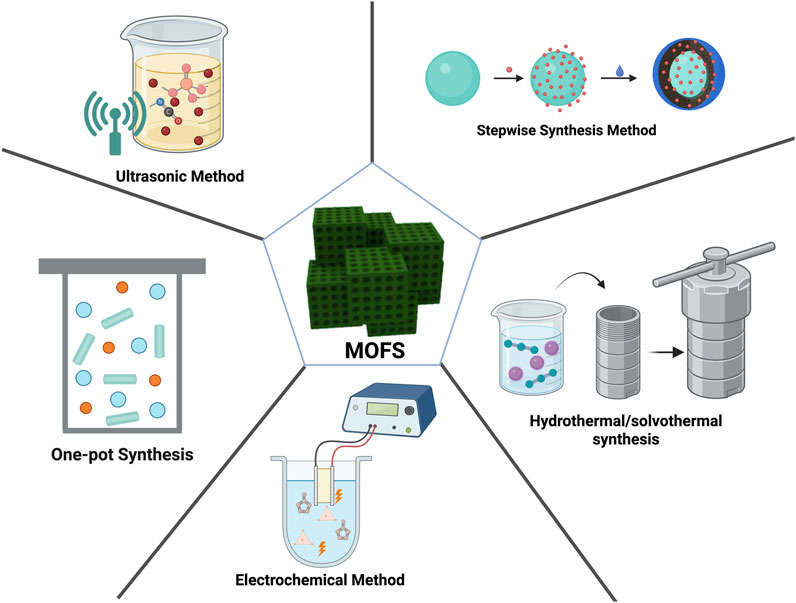

Figure 3. Schematic illustration of methods for preparing MOFs. The figure was created using Biorender.

3.1 One-pot synthesis (solution precipitation method)

The one-pot synthesis (solution precipitation) involves the co-mixing of precursors in a solvent followed by a simple precipitation reaction under stirring. ZIF-8 was synthesized by Beyer et al. through the mixing of 2-methylimidazole and a zinc salt solution at ambient temperature (Beyer et al., 2016). Huang et al. prepared Zn-based MOFs (MOCP) using Zn(NO₃)₂ and 1,4-benzenedicarboxylic acid (H₂BDC) as reactants in a DMF solution containing triethylamine (TEA) at room temperature (Huang et al., 2003). This straightforward mixing approach allows for the quick synthesis of thermally stable and highly porous MOCP nanocrystals at room temperature in large amounts. The resulting MOCP materials exhibit high purity and yields (>90%).

The advantages of this method include low cost, high yield, and easily achievable experimental conditions. ZIF-8 can be modified to have bioactivity greater than that of standalone zinc ions (Shyngys et al., 2021). During precipitation reactions, insulin or nonsteroidal anti-inflammatory drugs (NSAIDs) can be incorporated into the precursor mixture, leading to their robust immobilization and encapsulation within ZIF-8 (Ho et al., 2020; Rohra et al., 2022). Researchers can control this process effectively by adding reactants at any point during the reaction. Nevertheless, the MOFs produced through synthesis frequently have impurities, rendering this approach inappropriate for uses that demand high purity.

3.2 Hydrothermal (solvothermal) synthesis

Creating materials through hydrothermal (solvothermal) synthesis is a technique that includes integrating solutions of metal ions and organic ligands as precursors in a closed system (e.g., a miniature autoclave), followed by heating in water or organic solvents to temperatures exceeding the solvent’s boiling point under autogenous pressure to facilitate the reaction. Chui et al. synthesized [Cu₃(TMA)₂(H₂O)₃]_n (denoted as HKUST-1) via a solvothermal reaction using Cu²⁺ and benzene-1,3,5-tricarboxylic acid (TMA) under elevated temperatures (Chui et al., 1999). HKUST-1 exhibits high porosity, enabling accessibility of its copper metal centers to solutes. This property allows Cu-BTC to catalyze the transformation of blood-borne S-nitrosothiols for sustained nitric oxide (NO) release (Yang L. et al., 2024). Li et al. employed Zn(NO₃)₂ and H₂BDC as reactants in DMF to synthesize MOF-303 through solvothermal synthesis. Experimental data indicate that MOFs prepared by this method demonstrate superior stability, enhanced porosity, exceptional gas adsorption performance, and higher crystallinity compared to those synthesized via the one-pot approach (Li et al., 1999). This improvement is primarily attributed to the elevated pressure under hydrothermal conditions, which increases precursor solubility and thereby accelerates reaction kinetics and crystal growth. However, this method suffers from high costs, harsh reaction conditions, significant energy consumption, and limited controllability—reactants must be added entirely at once, and prolonged reaction times (hours to days) result in low efficiency, making it unsuitable for rapid large-scale synthesis. Extended durations may also lead to crystal overgrowth or undesired byproduct formation.

3.3 Ultrasonic method

Ultrasonic treatment utilizes the physical phenomena of cavitation effects, microjets, and localized environments with elevated temperature and pressure generated by ultrasound to enhance the mixing of dissolved reactants and crystal nucleation in solvents, thereby accelerating MOF synthesis. Yuan et al. first added specific quantities of iron (III) chloride, iron (II) chloride (at a Fe (III): Fe (II) molar ratio of 3:1), and 1 g of terephthalic acid (TPA) into a DMF solution (Yuan Z. et al., 2023). Following experimental design, cellulose fibers (CF) were incorporated at ratios of 20%, 30%, and 40% to prepare composite materials. The mixed solution was then subjected to ultrasonic treatment at 250 W power and 70 °C for 2 h. The interfacial regions between micro cavitation bubbles and the bulk solution exhibit extreme temperature/pressure changes and quick molecular dynamics (Qin et al., 2024), which facilitate the uniform growth of MIL-53(Fe) crystals on cellulose fiber surfaces and strengthen physical cross-linking and interactions involving hydrogen bonds between fibers and MOF crystals. This ultrasonic approach enables reactions that are challenging to achieve via conventional methods. For instance, reconstruction can be accomplished through mechanical disruption followed by re-ultrasonication.

Ultrasonic treatment constitutes an effective, environmentally sustainable, and streamlined methodology, particularly advantageous for laboratory-scale rapid synthesis and the fabrication of high-performance composite materials. Moreover, the acoustic cavitation effects facilitate specialized reactions that are not attainable through conventional techniques. Nevertheless, this approach encounters challenges related to equipment costs, material compatibility, process controllability, and scalability for industrial production.

3.4 Stepwise synthesis method

The stepwise synthesis method involves sequentially constructing the metal node and organic ligand networks. This approach enables precise control over MOF structure and functionality through post-synthetic ion exchange for metal doping, without compromising crystallinity (Fan et al., 2023). Cheng et al. developed CoCu-based bimetallic MOF nanoboxes (CoCu-MOF NBs) via a sequential cation and ligand exchange strategy (Cheng et al., 2021). TA-Co NBs were created by using tannic acid to etch Co-based ZIF-67. Subsequent cationic exchange in Cu²⁺ solution partially replaced Co sites with Cu atoms, forming TA-CoCu NBs. In the end, the TA ligands in TA-CoCu NBs were substituted with 2,3,6,7,10,11-hexahydroxytriphenylene (HHTP) ligands through ligand exchange, producing the final CoCu-MOF NBs.

The stepwise synthesis approach is highly effective in facilitating precise control over the composition and structure of materials, thereby substantially improving the catalytic performance of the oxygen evolution reaction. Nevertheless, the complexity of its synthetic procedures necessitates meticulous selection of ligand-metal combinations during exchange processes to avert framework collapse, consequently introducing an element of stochasticity (Fan et al., 2023). Furthermore, metal ions with diverse valences and ionic radii frequently adopt distinct coordination numbers and environments, thereby complicating the optimization of reaction conditions. Consequently, this often leads to reduced yields during the substitution of metal ions to replace the original metallic centers (Duan et al., 2020).

3.5 Electrochemical method

The electrochemical technique uses a metal electrode as the anode to emit metal ions through electrochemical oxidation or reduction occurring in a conductive medium, which subsequently interact with organic ligands in the solution to form monomers or various types of compounds and aggregates. This approach enables the construction of MOF thin films on electrode surfaces and has been widely adopted. Zhao et al. utilized a copper anode and 1,3,5-benzene tricarboxylic acid (BTC) as the ligand (Zhao T. et al., 2024). During the electrochemical reaction, the BTC ligands coordinated with copper ions to form an HKUST-1 thin film on the copper electrode. They observed that high-concentration electrolyte solutions provide abundant copper ions and BTC ligands, promoting rapid nucleation and growth of HKUST-1, resulting in large, uniformly distributed crystals. However, excessively high electrolyte concentrations may increase solution viscosity, hindering ion migration rates and compromising HKUST-1 growth quality. Similarly, high current densities accelerate electrochemical reaction rates and copper ion release, facilitating rapid nucleation and growth of HKUST-1 with uniform crystal distribution. Nevertheless, overly high current densities can elevate overpotential at the electrode surface, triggering side reactions that degrade the purity and performance of HKUST-1.

The electrochemical synthesis of MOFs offers advantages such as precise control over material composition and structure, mild reaction conditions, and enhanced electrical conductivity and electrochemical performance. Nonetheless, this technique is predominantly confined to the fabrication of thin films on conductive substrates, thereby limiting its widespread applicability.

3.6 Microwave-assisted method

The microwave-assisted method has been widely used for the rapid synthesis of MOFs under hydrothermal conditions. This approach employs microwave energy with frequencies spanning 300–300,000 MHz, offering an energy-saving and eco-friendly strategy for fabricating MOFs (Phan et al., 2023). Distinct from conventional heating techniques, microwave-assisted synthesis hinges on the interplay between mobile charges in polar solutions and microwave radiation to deliver the needed heat. It secures a consistent temperature increase throughout the reaction course and is not reliant on the demand for heat transfer within the reaction mixture, thereby accelerating crystal growth during MOF synthesis (Ren et al., 2022). The unique thermal properties of microwave-based approaches facilitate enhanced regulation of crystal size and structure, diminishing MOF particle dimensions down to the nanoscale range (Díaz de Greñu et al., 2021). This is crucial for the application of MOFs as drug delivery systems following different administration routes (Khan and Jhung, 2015). An appropriate particle size is a key factor ensuring the efficacy and safety of intravenous injection, as it is closely related to drug delivery efficiency, in vivo circulation time, organ/tissue accumulation, and targeting ability, among other aspects (Christodoulou et al., 2020; Wang A. et al., 2024). Similarly, when MOFs are administered via the pulmonary route, nanoparticles exhibit good colloidal stability, enabling localized drug delivery in the lungs without causing embolism due to excessively large particle sizes or rapid clearance due to excessively small ones (Fernández-Paz et al., 2020). However, it should be noted that MOFs require formulations with a size range of 1–5 μm. Particles within this range can penetrate deep into lung tissues through mechanisms such as sedimentation (in bronchioles) and Brownian motion (in alveoli); particles that are too large (>5 μm) tend to be retained in the trachea, while those that are too small (<1 μm) may be exhaled during respiration (Yu et al., 2025). Consequently, the microwave method has become an efficient way to synthesize MOFs.

While microwave-based approaches have established themselves as highly effective strategies for MOF synthesis, the microwave-assisted synthesis process is not devoid of constraints. The effectiveness of microwave heating is affected by the chosen materials, thereby necessitating meticulous regulation of synthesis parameters to optimize the characteristics of the end product. Moreover, microwave irradiation exhibits limitations such as challenges in reaction monitoring (Lozano Pérez et al., 2024).

4 Osteogenic mechanisms of MOFs

MOFs are engineered through the systematic coordination of metal ions with organic ligands, allowing for precise modulation of their types and combinations to create various structures (Jiang H. et al., 2021). In biomedical applications, MOFs have garnered significant attention because of their ability to enhance bone growth, their distinct physicochemical characteristics like prolonged release of metal ions or therapeutic agents, photothermal responsiveness, pro-angiogenic activity, and anti-inflammatory effects (Shyngys et al., 2021; Lao et al., 2023; Li et al., 2024a; Li S. et al., 2024; Zheng et al., 2024). This section details the osteogenic mechanisms of MOFs (Figure 4), which can be categorized into the following sub-mechanisms.

Figure 4

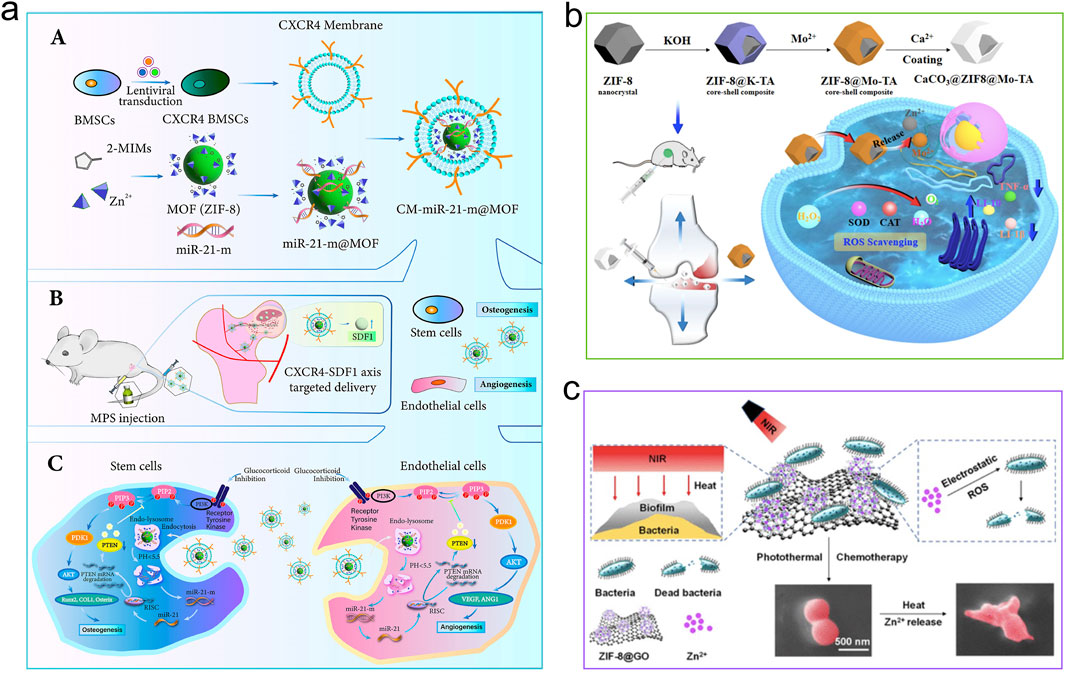

Figure 4. Mechanisms of MOFs for stimulating osteogenesis. (a) CM-miR-21-m@MOF release miR-21-m, activating the PI3K-AKT signaling pathway to regulate osteogenesis and angiogenesis. Reproduced with permission (Jiang et al., 2024). Copyright 2024, Acta Materialia Inc., published by Elsevier Ltd. (b) The compound CaCO₃@ZIF@Mo-TA controls intracellular oxidative stress, eradicates excess free radicals, and generates free calcium ions that help repair and regenerate bone tissue associated with arthritis. Reproduced under the terms of the CC-BY license (Tan et al., 2025). Copyright 2025, The Author(s), published by Springer Nature. (c) Zn ions from ZIF-8 took the opportunity to react with the bacterial membrane, leading to its inactivation for bone repair. Reproduced with permission (Yang Y. et al., 2022). Copyright 2022, American Chemical Society.

4.1 Enhancement of physical characteristics of implants

The optimization of the physical properties of implants pertains to the structural customizability of MOF materials. This customization modifies interfacial properties to enhance variations in physical characteristics, including surface mechanical stress, growth interface topology, and surface charge, all of which are critically responsive to bone tissue interactions (Bolamperti et al., 2022; Wang L. et al., 2022). In recent years, the mechanisms of load transfer and the physicochemical properties of surfaces have been recognized as pivotal factors influencing interactions with diverse biomacromolecules and cells. These factors are crucial in attracting cells involved in osteogenesis at the implant interface and significantly impact their proliferation, differentiation, and mineralization processes (Wang L. et al., 2020; Shirazi et al., 2022). MOFs can be precisely engineered to replicate bone-like structures and elastic properties through strategic compositional modifications and optimized synthesis processes. These customized MOFs facilitate a more uniform distribution of mechanical loads at fracture sites, thereby preventing metallic implant components from assuming the role of primary load-bearing elements. This mechanical adaptation reduces the risk of stress-shielding, which can lead to bone atrophy and pathological remodeling (Luo et al., 2021; Raffa et al., 2021). Initially, Wang et al. applied a coating of Mg-MOF-74, a magnesium-based biocompatible compound, onto a 3D-printed porous Ti₆Al₄V substrate, subsequently encapsulating it with silk fibroin (Wang W. et al., 2022). Mechanical assessments revealed that the application of an Mg-MOF-74 layer to the porous titanium substrate significantly alleviated the stress-shielding effect attributed to stiffness mismatch, a prevalent problem in traditional titanium implants. This modification facilitated new bone formation within the titanium matrix, thereby improving osseointegration and achieving strong fracture fixation. Zhang and colleagues employed a biomimetic strategy, inspired by the microstructure of male eastern bluebird feathers, to develop a self-assembled MOF structure (Zhang et al., 2022a). This approach emulates the organic-inorganic interfacial configurations found in natural biomaterials, such as nacre, imparting the material with a distinctive non-iridescent structural coloration mechanism. The researchers augmented a supramolecular MOF that synergistically facilitates both antibacterial and osteogenic activities. Through the formation of Lewis acid-base adducts with 6-mercaptohexanoic acid nanoclusters and phytic acid (PA)-metal complexes, a multiscale supramolecular framework was established. This structure facilitates the recruitment of pre-osteoblasts and their subsequent differentiation into osteogenic cells. Phytic acid, abundant in phosphate groups, provides multiple sites for the chelation of Ca²⁺ ions, thereby expediting the process of biomineralization. Concurrently, coordinated metal ions such as Cu²⁺ and Zn²⁺ disrupt bacterial membrane integrity through sustained release, thereby inhibiting biofilm formation effectively (Zhang et al., 2023).

4.2 Metal ion release

In physiological environments, metal ion release is the process where metal ions detach and are emitted from the crystalline frameworks of MOFs. Various metal ions, such as zinc ions (Zn²⁺), magnesium ions (Mg²⁺), strontium ions (Sr²⁺), iron ions (Fe³⁺), and titanium ions (Ti²⁺), have attracted research attention due to their demonstrated potential in promoting the osteogenic differentiation of BMSCs and regulating the expression of osteogenesis-related genes in eukaryotic cells (Chen et al., 2017; Chen J. et al., 2022; Kang et al., 2022; Li et al., 2024a; Li S. et al., 2024; Zheng et al., 2024). Researchers have synthesized numerous osteogenic MOFs by incorporating the aforementioned metal ions into their crystalline frameworks, consistently finding that the sustained release of metal ions is a critical determinant of their superior osteogenic performance (Luo et al., 2024). As an illustration, Wang et al. developed an innovative bone-targeting orthopedic implant made of a nutrient element coating and polyetheretherketone (PEEK) (Wang H. et al., 2021). Through the incorporation of ZnO and Sr(OH)₂ onto sulfonated PEEK surfaces (Zn&Sr-SPEEK), they demonstrated that the combined release of Zn²⁺ and Sr²⁺ from the coating eliminated harmful bacteria and greatly enhanced osteoblast activity in high glucose environments. Notably, the Zn&Sr-SPEEK implants demonstrated a strong capacity to restore high glucose-induced mitochondrial dyshomeostasis and dysfunction. This was accomplished by reducing the expression of the dynamin-related protein 1 gene, recovering mitochondrial membrane potential and clearing out ROS. As a result, osteoblast-mediated bone formation was significantly enhanced. Studies conducted on diabetic rat models with femoral/tibial defects at 4 and 8 weeks demonstrated that the nutrient element coating significantly enhanced bone restructuring and bone integration. In their study, Chen et al. developed zinc-based MOF films consisting of nanoscale and microscale ZIF-8 crystals on porous titanium surfaces through the application of hydrothermal and solvothermal processes (Chen et al., 2017). The ZIF-8 coatings promoted osteoblast proliferation and differentiation through sustained Zn²⁺ ion release. By upregulating the expression of osteogenesis-related genes like collagen type I (Col I), ALP, and bone morphogenetic protein (BMP), these ions facilitated the generation and calcification of the bone matrix. In a different study, Xiong and colleagues explored how low-intensity pulsed ultrasound (LIPUS) and Fe³⁺ together affect the proliferation and differentiation of osteoblasts (Xiong et al., 2024). Cell proliferation assays revealed that 400 μg/L Fe³⁺ exerted the strongest pro-osteogenic effect. ALP staining and mineralization assays demonstrated that LIPUS and Fe³⁺ synergistically enhanced osteoblast differentiation. Protein expression analyses further indicated that LIPUS and Fe³⁺ upregulated Wnt, β-catenin, and Runx2 signaling pathways, effectively promoting physiological bone regeneration and development.

Research has demonstrated that MOF can yield effective and sustained osteogenic outcomes through the continuous release of metal ions. This effect is primarily attributed to the increased ALP activity, enhanced mineralization of the extracellular matrix, and upregulation of osteogenic genes in MG63 cells. The release of metal ions serves as osteoinductive signals, while the simultaneous delivery of bisphosphonate linkers further augments bone mineralization (Li M. et al., 2022; Zhang et al., 2023). Moreover, Mg²⁺ ions generated via biodegradation have been observed to promote the osteogenic differentiation of MSCs by augmenting autophagic activity (Qi et al., 2021). Consequently, several hypotheses have been proposed concerning the mechanisms by which released metal ions facilitate osteogenesis. Some theories posit that these ions directly enhance the activity of key substances involved in osteogenic metabolism, whereas others propose that they stimulate gene expression to enhance the efficacy of bone repair.

It should also be noted that the controllable release of metal ions has been achieved through various strategies, with the core lying in leveraging the dynamic tunability and external stimulus responsiveness of MOF structures. Many MOFs undergo structural disintegration in acidic or alkaline environments, thereby releasing metal ions. Liu et al. discovered an easily designable resorbable guided bone regeneration membrane (PCL/DEX@Ca-Zol) based on drug-loaded metal-organic frameworks (Liu C. et al., 2024). Among them, the calcium ions, zoledronic acid, and dexamethasone embedded in the membrane can be specifically released in response at bone defect sites under acidic triggering, synergistically regulating the bone microenvironment (BME). Moreover, the strategy of using specific biomolecules (such as ATP) to trigger MOFs to release metal ions is also commonly employed in MOF design. Within the Mg/Zn metal-organic framework (MOF) synthesized by Yang et al., Zn²⁺ establishes a robust tetrahedral coordination complex via the nitrogen atoms in 2-methylimidazole (Xu Y. et al., 2024). Nevertheless, the adenine nitrogen moieties and phosphate groups of ATP are capable of forming chelates with zinc ions, and ATP exhibits a higher affinity for Zn²⁺ than 2-methylimidazole does. Within the periodontitis-specific inflammatory microenvironment marked by high ATP levels, this framework undergoes a response to ATP, facilitating the selective release of Mg²⁺ and Zn²⁺ at the inflammatory locus. Photoresponsive MOFs are also commonly used. For instance, RuFe-MOF undergoes structural changes under X-ray irradiation, releasing metal ions and generating ROS, which is applied in the synergistic radiotherapy and photodynamic therapy of tumors (Liu A. et al., 2025).

4.3 Drug loading

Thanks to their extensive surface area and significant porosity, MOFs are ideal for drug delivery (Figure 5). Therapeutic agents may be incorporated into MOFs via adsorption, encapsulation, non-covalent interactions, and covalent bonding. They enable effective delivery of short half-life pharmaceuticals, thereby enhancing treatment effectiveness. By customizing MOFs, they can display unique drug delivery traits like stimuli responsiveness and targeting, which allows for precise detection of pathological tissues (He et al., 2021). Osteoinductive agents encapsulated in MOFs effectively promote osteoblast differentiation and bone tissue regeneration through sustained release in physiological environments. At the same time, a strong blood supply provides nutrients and essential growth factors to osteoblasts, supporting synchronized and dynamic bone-forming activities in the bone microenvironment. In situations like inflammation, infection, or tumors, angiogenesis in specific areas is reduced, making it necessary to regulate externally by releasing pro-angiogenic agents. MOFs, with their extensive specific surface area, serve as excellent carriers for osteoinductive and angiogenic agents, where the drugs released effectively stimulate and hasten bone growth.

Figure 5

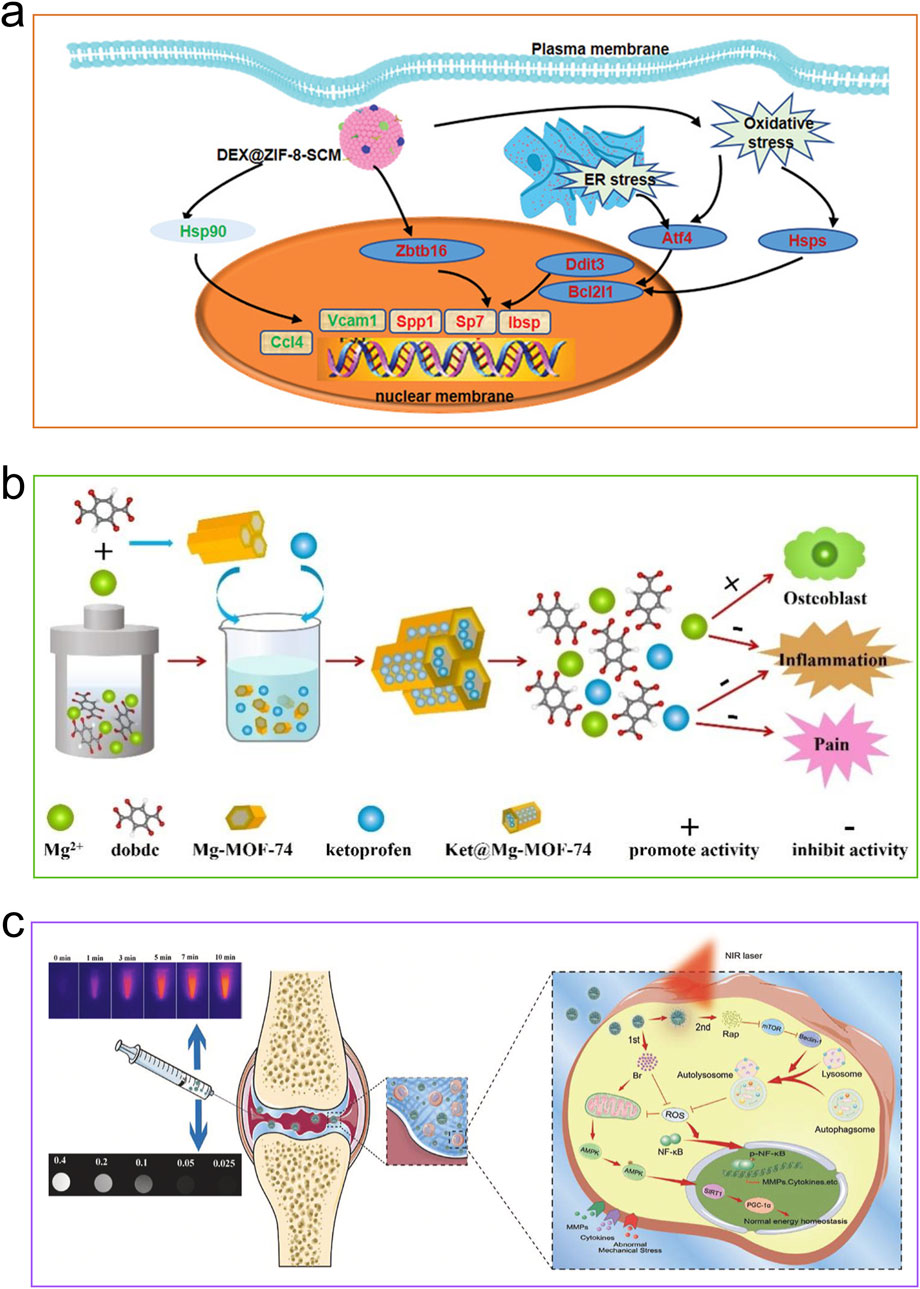

Figure 5. Applications of MOFs for delivering drugs. (a) DEX@ZIF-8-SCM nanocrystals exert a great role in promoting the osteogenesis of MSCs by the GR candidate. Reproduced with permission (Liang et al., 2022). Copyright 2022, Wiley-VCH. (b) Ketoprofen would be released from the channel of Ket@Mg-MOF-74 framework, inflammation suppressed and bone formation promoted. Reproduced with permission (Ge et al., 2021). Copyright 2021, Elsevier. (c) A system for delivering two drugs, featuring MPDA decorated with MOF. Reproduced under the terms of the CC-BY license (Xue S. et al., 2021). Copyright 2021, The Authors, published by Elsevier.

4.3.1 MOF-mediated delivery of osteogenic inducers for enhanced bone formation

Liang and colleagues recently developed a system where stem cell membranes encapsulate dexamethasone-loaded ZIF-8, combining synthetic nanomaterials with natural plasma membranes (Liang et al., 2022). The MOF particles, coated with SCM, showed decreased immunogenicity and gained the capability to target BMSCs through homotypic binding, facilitating effective DEX delivery and DEX-induced bone repair. The porous nature of ZIF-8 combined with the natural targeting ability of SCM enabled DEX@ZIF-8-SCM to attain a high capacity for loading DEX, facilitating controlled release and enhancing targeted uptake by MSCs. Internalized DEX@ZIF-8-SCM exhibited high compatibility with cells and significantly boosted the osteogenic differentiation of MSCs. The RNA sequencing data unveiled the activation of the PI3K-Akt signaling pathway, leading to increased expression of transcription factors like Osterix and Smad4, which in turn promoted osteogenic differentiation in BMSCs. DEX@ZIF-8-SCM showed excellent compatibility with biological tissues and effectively stimulated bone regeneration in a bone defect model. By harnessing the synergistic interaction between zinc-based MOFs and raloxifene (Ral), Shen et al. produced multifunctional coatings for titanium implants (Shen et al., 2022). By integrating MOFs with Ral, localized drug delivery was achieved, and Ral’s hydrophobic groups were used to improve MOF stability in aqueous conditions. Clinically approved Ral, a benzothiophene derivative acting as a selective estrogen receptor modulator, boosts osteoprotegerin (OPG) production by activating the Wnt/β-catenin pathway in osteoblasts to fight against OP (Davis et al., 2020; Udagawa et al., 2021). The zinc-based MOF provides localized delivery of Ral and utilizes their synergy to establish a bone-promoting microenvironment around titanium implants by releasing Zn²⁺ ions, while also reducing Ral-induced bone loss in osteoporotic conditions. MOFs are capable of transporting specific signaling molecules to encourage osteogenesis, beyond just delivering osteoinductive drugs. Feng et al. loaded miRNA-5106 into ZIF-8 to achieve efficient cellular uptake and payload release at intracellular target sites (Feng et al., 2022). MiR-21, which promotes angiogenesis, and miR-5106, which supports osteogenesis, were chosen as model miRNAs and integrated into miR@ZIF-8 nanocomposites using a one-pot technique. According to the results, ZIF-8 carriers not only demonstrated high loading efficiency but also promoted cellular uptake and improved endosomal escape of miRNAs. Researchers conducted a systematic investigation into the therapeutic effects of miR@ZIF-8. Standard methods of delivering miRNA encounter challenges such as instability, poor penetration of cell membranes, and being prone to degradation by lysosomes. To address this, nano-sized ZIF-8 protects miRNAs through encapsulation and promotes their efficient cellular entry via endocytosis. In human umbilical vein endothelial cells (HUVECs) transfected with miR-21@ZIF-8, RNA sequencing analysis showed an upregulation of the MAPK and PID-HIF1-TF pathways, which in turn promoted angiogenesis. The study conducted by Yu et al. also found that miRNA-5106 was crucial in improving the healing of critical-sized bone defects in vivo through the activation of the Wnt/β-catenin and TGF-β/Smad pathways (Yu and Lei, 2021). Osteoinduction and the promotion of BMSC osteogenic differentiation were significantly influenced by the delivery of miR-5106 complexes.

4.3.2 MOF-based drug delivery to promote angiogenesis

The short-lived nature of angiogenic agents when delivered externally constrains their multiple applications. By leveraging the delivery potential of MOFs, this limitation can be surpassed. Pathological conditions caused by reduced skeletal blood supply often lead to bone tissue necrosis (Zheng et al., 2022), which subsequently disrupts the osteogenic microenvironment, resulting in impaired bone formation and angiogenesis (Jiang et al., 2023). Deferoxamine (DFO) can lead to an increase in vascular endothelial growth factor (VEGF) (Zhao Y. et al., 2024). Even though DFO has a short plasma half-life, is rapidly cleared, and has poor biocompatibility, its local application continues to be a prevalent and effective method for promoting vascularization. In order to tackle these limitations, Li et al. utilized ZIF-8 as a carrier to increase the half-life of DFO (Li et al., 2023c). The promotion of vascularization by DFO@ZIF-8 nanoparticles was achieved by increasing the expression of type H vessels and vascular networks, while bone regeneration in vivo was facilitated by higher expression of osteocalcin (OCN) and BMP-2. RNA sequencing analysis indicated that DFO@ZIF-8 NPs caused an upregulation of the PI3K-Akt-MMP-2/9 and HIF-1α pathways in HUVECs, ultimately leading to neovascularization. Apart from supplying angiogenic agents, MOFs are capable of transporting specific signaling molecules to promote angiogenesis. A strategy mimicking biological processes was developed by Jiang et al. developed a strategy for the site-specific delivery of miR-21-m to necrotic femoral head lesions (Jiang et al., 2024). By coating BMSC membranes onto the surface of miR-21-m@MOF nanoparticles and further functionalizing them with membranes derived from CXCR4-overexpressing BMSCs (designated as CM-miR-21-m@MOF), these nanoparticles enhanced their targeting capacity for ischemic bony regions via the CXCR4-SDF-1 pathway (Zhang et al., 2022b). Bio-mimetic nanocomposites that mimic biological systems exhibited dual functionalities of targeting bony tissues and homing to ischemic areas concurrently. Mechanistic investigations further showed that miR-21-m delivery into target cells suppressed PTEN gene expression, thereby triggering the activation of the PI3K-Akt signaling pathway, which modulates osteogenesis and angiogenesis (Zhou et al., 2020).

Research suggests that the release of therapeutic agents can result in highly effective and durable bone repair. However, the metabolic processes of osteoinductive and angiogenic agents released from MOFs in physiological environments are not well understood, raising concerns regarding their biosafety.

However, it should be emphasized that in addition to the drug-loading approach, the ions released by the modified MOFs themselves can also stimulate angiogenesis. As a case in point, Si et al. validated via Transwell and tube formation assays using HUVECs that CuO@ZnO-coated titanium possesses superior angiogenic potential (Si et al., 2022). Released Cu²⁺ ions promoted angiogenic processes in HUVECs in vitro through the upregulation of vascular endothelial growth factor (VEGF) expression levels. Moreover, they also found that this composite material effectively promoted the adhesion and proliferation of hBMSCs, upregulated the expression of bone formation-related genes, and enhanced the mineralization ability of the extracellular matrix.

4.4 ROS scavenging

Under pathological conditions, elevated ROS levels induce substantial oxidative stress on bone tissue. This excessive ROS presence suppresses osteoblast activity while facilitating osteoclast formation, thereby disrupting the equilibrium of bone tissue. Such disruptions exacerbate local inflammation, accelerate bone resorption, and hinder bone regeneration (Tao et al., 2020; Yu et al., 2020). Consequently, the preservation of bone homeostasis is critically dependent on antioxidant activity. Strategies for scavenging exogenous ROS typically involve the neutralization of ROS through antioxidant agents, as well as their catalytic elimination via enzymatic or non-enzymatic pathways (Wang L. Y. et al., 2021; Kim and Kim, 2022).

MOFs are capable of delivering antioxidant agents and include metal atomic sites that can act catalytically. Different types of catalytic nanozymes have been designed, including those that act like catalase, superoxide dismutase, and glutathione peroxidase. Due to their adjustable active sites, structural variety, and outstanding biocompatibility, MOF-based nanozymes have wide-ranging potential applications in biomedicine and other fields (Xu Z. et al., 2024).

MOF-Fe is characterized by its unique unsaturated metal centers (UMCs). As a particle containing iron, it demonstrates properties similar to those of Fe₃O₄ and Fe₂O₃ particles. This distinctive characteristic imparts MOF-Fe with peroxidase-like activity, thereby positioning it as a potential catalyst (Cheng et al., 2023). Through the catalytic decomposition of hydrogen peroxide (H₂O₂), MOF-Fe effectively emulates the function of natural peroxidases. As a result, MOF-Fe holds significant potential for diverse applications as a peroxidase mimic (Thakur et al., 2021). In further investigations into the ROS-scavenging capacity of metal-organic framework iron (MOF-Fe), Xue et al. observed that experimental groups treated with MOF-Fe exhibited efficient scavenging of hydrogen peroxide, a component of ROS (Xue et al., 2024). The study further revealed that increasing concentrations of MOF particles were associated with a reduction in free radical levels. This conclusion was corroborated by DPPH radical scavenging assays, which demonstrated enhanced neutralization of DPPH radicals at higher concentrations of MOF particles. Notably, MOF-Fe particles were found to activate the bone morphogenetic protein (BMP) pathway by suppressing transferrin receptor 2 (TfR2), indicating significant potential for promoting bone formation.

Besides Fe-MOFs, various MOF-based nanozymes have been used for antioxidant purposes in bone tissue. Shu et al. developed Zn/Co-MOF-modified β-tricalcium phosphate (β-TCP) scaffolds to repair osteochondral defects. Shu and colleagues created β-tricalcium phosphate scaffolds modified with Zn/Co-MOF to mend osteochondral defects (Shu et al., 2023). Adjusting the concentration of the Zn/Co-MOF reactant solution allowed the MOF-TCP scaffolds to exhibit a broad spectrum of ROS scavenging properties and high biocompatibility. Remarkably, the MOF-TCP scaffolds advanced the osteogenic differentiation of BMSCs and the maturation of chondrocytes, while protecting them from oxidative stress by removing external ROS and supporting an anti-inflammatory microenvironment.

Simultaneously, Tan and colleagues engineered CaCO₃@ZIF@Mo-TA, a compound exhibiting antioxidant properties, by employing ion-exchange and self-assembly techniques to mitigate oxidative stress in compromised cartilage (Tan et al., 2025). The pH-responsive microenvironment facilitates the degradation of calcium carbonate on the ZIF@Mo-TA surface, leading to the release of calcium ions that contribute to the repair and regeneration of bone tissue associated with arthritis. Experimental data indicate that the porous internal structure of ZIF@Mo-TA, characterized by its numerous active sites, substantially reduces the expression and accumulation of intracellular ROS. Moreover, it promotes the release of anti-inflammatory agents, collaboratively modulating intracellular oxidative stress levels and establishing a supportive immune microenvironment conducive to joint healing.

In another study, Liu et al. designed two cerium-based metal-organic frameworks with monovalent properties (Ce-MOFs): Ce (III)-BTC and Ce (IV)-BTC, for scavenging superoxide radicals (O₂·^-) and protection against ionizing radiation (Liu et al., 2022d). Both Ce-MOFs selectively reduce O₂·^-, serving as excellent superoxide dismutase (SOD) mimics. Similar to natural SOD and ceria nanozymes, the SOD-like catalytic mechanism of Ce-MOFs involves the redox cycling between Ce (IV) and Ce (III). Experiments conducted both in vitro and in vivo confirmed that the Ce (IV)-BTC nanozyme is effective at removing ROS.

Under physiological conditions, the osseous microenvironment sustains moderate levels of ROS. Pathological stimuli, such as infections and toxins, can exacerbate oxidative stress within bone tissue, leading to a deleterious cycle. The effective scavenging of excessive ROS can mitigate inflammatory responses and facilitate the repair of bone tissue. However, the overall efficacy of these interventions is limited, making them predominantly applicable as preventive measures in related research studies.

4.5 Antibacterial and anti-inflammatory

The vulnerability of bone tissue to infections and inflammation can significantly impede the bone formation process. Bacterial toxins and invasive enzymes have the potential to damage host cells, thereby exacerbating local inflammatory responses and disrupting bone development (Chen Z. Y. et al., 2021). In pathological states characterized by inflammation and infection, the upregulation of matrix metalloproteinases (MMPs) facilitates the degradation of cartilage tissue, while the inhibition of local angiogenesis contributes to bone loss (Mukherjee and Das, 2024). Consequently, it is imperative to employ effective antibacterial and anti-inflammatory strategies to maintain the osteoimmune environment. The subsequent section explores exogenous strategies for addressing bacterial infections and inflammation.

4.5.1 MOFs for antibacterial applications

The enduring prevalence of bone infections, such as osteomyelitis, coupled with the limited efficacy of conventional treatments, presents formidable challenges within the field of orthopedics. The utilization of MOFs as delivery systems for antibacterial agents emerges as a straightforward and highly effective strategy for addressing bone infections (Zhang X. et al., 2022). MOFs are distinguished by their unique attributes, including adaptable pore structures, substantial specific surface area, and the capacity for surface customization. By mitigating the limitations associated with traditional antibacterial agents, MOFs exhibit significant potential for antimicrobial applications, attributed to their optimized topological configurations, exceptional durability, and superior thermal and chemical stability (Zhao et al., 2023).

Silver-based antibacterial agents exhibit high antimicrobial activity, broad-spectrum efficacy, and a low propensity to induce bacterial resistance (Calabrese et al., 2021). Silver ions (Ag⁺) possess the ability to eliminate bacteria through multiple mechanisms, including catalytic generation of ROS, prevention of biofilm formation, disruption of membrane integrity, and interference with bacterial metabolism (Huang et al., 2021). The team led by Wang designed a unique nanomaterial, small-sized Ag@MOF, which was integrated into sodium alginate (Alg) hydrogel to address periodontitis (Wang et al., 2025a). Ag@MOF managed to prevent the growth of Escherichia coli (E. coli) and Staphylococcus aureus (S. aureus) by employing different mechanisms such as interfering with bacterial metabolism, damaging membranes, and blocking biofilm formation (Bruna et al., 2021; Shinde et al., 2021; Ge et al., 2024). Once combined with Alg hydrogel, the composite enhanced endothelial cell growth and vascular formation, suppressed osteoclastogenesis, reduced inflammation in periodontitis (Zhu et al., 2024), prolonged retention time in the oral cavity, increased absorption, and d a reduction in the levels of pro-inflammatory cytokines (IL-1β, IL-6, TNF-α) (Popescu et al., 2021).

At the same time, Rauf and colleagues developed Zn-MOF nanoparticles loaded with ciprofloxacin and analyzed them using Fourier-transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), and scanning electron microscopy (SEM) (Rauf et al., 2024). Zn-MOF@drug showed strong antibacterial effects on Escherichia coli and Bacillus subtilis due to the regulated release of metal ions and the drug, along with the combined effects of ciprofloxacin and zinc ions (Aden et al., 2023).

For the effective enhancement of implants’ antibacterial characteristics, the typical approach involves loading them with antibiotics and antimicrobial peptides. The effectiveness of antimicrobial peptides in clinical settings is hindered by both bacterial resistance and their expensive nature. The antimicrobial performance of implants can be improved by incorporating the right inorganic antibacterial agents. Yan and colleagues developed a multifunctional film made of fluorine-doped zirconium-based metal-organic framework (Zr-MOF) on titanium (Yan et al., 2022). Fumaric acid, acknowledged as a widely used antioxidant, served as the ligand for the Zr-MOF, while hydrofluoric acid functioned as a regulator of Zr-MOF film formation. The constructed fluorine-doped Zr-MOF film demonstrated superior biocompatibility and osteogenic potential, alongside robust antibacterial efficacy toward both Gram-positive S. aureus and Gram-negative E. coli. Furthermore, fluorine doping displaced fumaric acid within the framework, facilitating its liberation and thereby diminishing the stability of the Zr-MOF. The Zr-MOF liberated fumaric acid, which suppressed pro-inflammatory genes (NF-κB and IL-6) and upregulated the expression of the anti-inflammatory gene IL-4 in macrophages, manifesting potent anti-inflammatory properties.

Photodynamic therapy (PDT) and other emerging antibacterial therapies have achieved significant progress in recent years (Alves S. R. et al., 2021; Zeng et al., 2022). Phototherapy using MOFs can be accomplished by adding porphyrin derivative ligands or by loading photosensitizers/photothermal agents (Chen J. et al., 2021). For instance, Yang and colleagues developed a co-dispersed nanosystem with chemo-photothermal properties by growing ZIF-8 directly on graphene oxide (GO) nanosheets (Yang Y. et al., 2022). When exposed to a near-infrared (NIR) laser, GO generated localized heat around 50 °C, increasing the permeability of bacterial biofilms. Subsequently, Zn²⁺ released from ZIF-8 interacted with and disrupted bacterial membranes, enabling efficient sterilization at low temperatures. An inhibition rate of up to 85% against E. coli and S. aureus was demonstrated by this composite scaffold. Although PDT is a highly selective treatment that generates ROS with stronger bactericidal activity than organic antimicrobial agents (Pan C. et al., 2020; Hu et al., 2022), excessive ROS production under microenvironmental stimuli or antioxidant system dysregulation may cause cellular damage and pose risks to organismal health.

The effectiveness of PDT in clinical settings is restricted by its limited ability to penetrate deep into tissues and the risk of harming healthy cells with extended light exposure. Sonodynamic therapy (SDT), in contrast, employs ultrasound to stimulate sonosensitizers for ROS generation, enabling bacterial eradication under ultrasonic conditions. During ultrasound irradiation, cavitation effects occur, where rapidly collapsing bubbles generate intense shockwaves, localized high temperatures, high pressures, and hydroxyl radicals, significantly enhancing antibacterial efficacy (Pan X. et al., 2020). Yu et al. developed an ultrasound (US)-activated single-atom catalyst composed of gold nanorod (NR)-activated porphyrinic metal-organic frameworks (HNTM-Pt@Au) and red blood cell (RBC) membranes (Yu Y. et al., 2021). This system effectively treated methicillin-resistant Staphylococcus aureus (MRSA)-infected osteomyelitis under US irradiation, achieving a 99.9% antibacterial rate against MRSA after 15 min of ultrasound exposure.

4.5.2 MOFs for anti-inflammatory applications

Delivering anti-inflammatory drugs through MOFs and releasing metal ions due to the disintegration of the framework is a direct method to alleviate inflammation in bone tissue. Considered a promising carrier, Mg-MOF-74 can deliver magnesium (Mg) and ketoprofen, the latter being a NSAID noted for its superior analgesic and anti-inflammatory qualities (Atzeni et al., 2021). The involvement of magnesium includes the adhesion, growth, and proliferation of osteoblasts, along with further mineralization of bones (Chang et al., 2020). Furthermore, it can curb inflammation by downregulating pro-inflammatory factors and promoting anti-inflammatory cytokines (Qiao et al., 2020). Ge et al. synthesized Ket@Mg-MOF-74 through post-synthetic modification, and tests demonstrated that this compound significantly reduced the expression of the cyclooxygenase-2 (COX-2), significantly upregulated the expression of osteoblast cytokines, and significantly downregulated the secretion of pro-inflammatory factors (Ge et al., 2021). According to Li et al., Mg/HCOOH−MOF was effectively synthesized from magnesium-based MOFs and was able to enhance the proliferation of MG63 cells with long-term use (Li et al., 2020d). According to qPCR results, this compound significantly modulates the expression of OCN, Axin 2, iNOS, and IL-1β, indicating its anti-inflammatory and bone-protective effects. Xue and colleagues developed a dual-drug delivery system using mesoporous polydopamine (MPDA) modified with MOFs, where rapamycin (Rap) was loaded into the mesopores and bilirubin (Br) was incorporated into the MOF shell layer (Xue S. et al., 2021). Rapamycin is recognized as one of the inhibitors of the mammalian target of rapamycin (mTOR), capable of inhibiting the proliferation of T lymphocytes (Lee et al., 2024). Br, a metabolite of bile acids, has been found to possess various biological functions, including the scavenging of ROS (Chen et al., 2020b). This dual-drug release system exhibits a good near-infrared laser-stimulated drug release effect, enabling bilirubin to scavenge cellular free radicals and rapamycin to enhance autophagic activity in cells. More importantly, the nanosystem enhances the energy metabolism of chondrocytes by engaging the AMPK-SIRT1-PGC-1α signaling pathway, which subsequently mitigates cell apoptosis in vitro.

Besides providing anti-inflammatory medications, endogenous signaling molecules are vital in triggering inflammation and the buildup of inflammatory factors. Zheng et al. developed a multifunctional nanoplatform IL-4-MOF@CaP, which significantly enhances functional bone regeneration in vivo (Zheng et al., 2020). IL-4 is the most potent activator of M2 macrophages, which reduce inflammation and aid in tissue repair by releasing anti-inflammatory cytokines like IL-10 and growth factors (Pan et al., 2025). Moreover, IL-4 binds to type I and type II IL-4 receptors, which activate the tyrosine kinases JAK1, JAK3, and TYK2, leading to the activation of STAT6. When STAT6 is activated, it triggers the expression of genes that reduce inflammation, such as M2 macrophage markers and anti-inflammatory cytokines (Allen, 2023). The platform successfully shields bioactive factors and discharges IL-4 in response to a low pH inflammatory environment, imitating the body’s natural inflammation resolution process. In addition, magnesium is provided by the platform for angiogenesis, gallic acid for ROS scavenging, and calcium and phosphate to contribute to the mineralization of the extracellular matrix in bones.

Antibiotics are effective in inhibiting bacterial colonization and proliferation. However, the widespread use of antibiotics has led to the emergence of multidrug-resistant pathogens, posing a significant threat to human health. While anti-inflammatory drugs can mitigate pain associated with pathological conditions, they do not prevent disease progression nor do they fundamentally address the underlying issue of impaired osteogenesis.

4.6 Synergistic therapy

Employing a combination of therapeutic approaches is a successful strategy to increase osteogenic efficiency. In recent years, numerous MOFs have achieved “1 + 1>2” effects by synergizing the bone-repair functions of their components. Osteoclasts play a pivotal role in bone tissue regeneration by coordinating bone resorption processes, which play a crucial role in bone remodeling and the subsequent creation of new bone tissue (Tsai et al., 2023). Researchers have created novel techniques to control osteoclast activity and enhance bone remodeling by utilizing the distinct characteristics of MOFs. Pang and colleagues enhanced the bone-targeting ability of immunostimulatory CpG-loaded MOF nanoparticles by modifying their surface with zoledronic acid (ZOL), a bisphosphonate approved by the FDA for anti-resorptive purposes (Pang et al., 2020). They observed that CpG oligonucleotides led to a partial inhibition of osteoclast formation and bone resorption, reducing them by about 50%. Significantly, the use of functionalized MOFs (immunostimulatory MOF (isMOF) and BT-isMOF) led to an over 80% reduction in osteoclast formation and entirely eliminated bone resorption activity.

An alternative strategy entails the development of MOF-integrated composite materials designed to modulate ambient pH conditions. These composites have the capability to regulate local pH levels, thereby creating an environment that mitigates excessive osteoclast activation, despite the fact that acidic conditions typically promote osteoclast activity and bone resorption (Jia et al., 2023). Additionally, by fine-tuning the mechanical properties of MOFs, it is possible to engineer a microenvironment that supports osteoclasts, thereby facilitating their physiological functions and contributing to bone remodeling (Wang L. et al., 2020). As a result, the synergistic osteogenic mechanisms demonstrate significantly enhanced bone-forming activity compared to any individual mechanistic component.

Synergistic therapy transcends a mere additive amalgamation of individual osteogenic mechanisms; it represents a complementary integration that leverages the strengths and mitigates the weaknesses of these mechanisms through mutual enhancement, thereby achieving superior osteogenic outcomes.

5 Applications of MOFs in different bone diseases

Up to now, comprehensive studies have been carried out to review the treatment applications and future possibilities of MOFs in various bone diseases. Based on the applications and corresponding therapeutic effects of MOFs in different pathologies, this section will highlight representative achievements of MOFs in orthopedic diseases, including OP, simple bone defects, bone defects with infections, bone defects related to diabetes, and tumor-associated bone defects.

5.1 Applications of MOFs in OP

OP is a common systemic metabolic disease characterized by decreased bone mineral density and bone mass, destruction of bone tissue microstructure, and increased bone fragility, resulting in an elevated risk of fractures.

However, the current conventional approach to treating OP is oral administration of anti-osteoporotic drugs, with drawbacks including first-pass metabolism and gastrointestinal side effects. Moreover, OP may result in microbial infections and necessitates the enhancement of angiogenesis to aid bone repair—such requirements are frequently unaddressed by conventional therapies. Furthermore, oral antibiotics carry the risk of inducing drug resistance during microbial infection treatment (Jiang et al., 2024).

In treating OP, possessing characteristics such as high specific surface area, high porosity, controllable degradability, and variable composition, MOFs not only serve as carriers for controlled drug release and exert multiple effects in treating OP and microbial infections through mechanisms like metal ion release—thus holding inherent advantages for the long-term treatment of OP—but also primarily function to regulate the bone microenvironment, stimulate the growth and differentiation of bone cells, and enhance bone density (Shi et al., 2025; Weng et al., 2024; Xu et al., 2025). For instance, certain MOFs are capable of being used as carriers for the regulated release of drugs (Alsaikhan et al., 2023), exert multi-functional roles in OP-related microbial infections through metal ion release (e.g., Mg²⁺) (Ge et al., 2021), and deliver bioactive factors (Li et al., 2020c).

Notably, Qin et al. developed an innovative hydrogel scaffold inspired by biological systems characterized by a soft-hard composite structure (Qin et al., 2025). This is different from MOFs that serve solely as drug delivery platforms. The structure includes a bilayer MOF, featuring ZIF-67 on the upper layer and ZIF-8 on the lower layer, produced using an in situ printing technique. This configuration enables spatiotemporal regulation of BMSC differentiation by controlling the release of Co²⁺ and Zn²⁺. The stimulation of osteogenic differentiation in BMSCs reduces OP symptoms, demonstrating their inherent benefits for treating OP (Li S. et al., 2024). In vivo experiments were conducted using New Zealand white rabbit models: Firstly, ZIFBH scaffolds (bilayer MOF hydrogels containing 15 mM ZIF-67 and 20 mM ZIF-8) and control scaffolds were subcutaneously implanted. After 2 and 4 weeks, the ZIFBH group showed less inflammatory cell infiltration, with significantly reduced inflammation at 4 weeks; no toxicity was observed in rabbit visceral organs, confirming its good biocompatibility. Secondly, different scaffolds were implanted in a 5 mm × 4 mm osteochondral defect model of rabbit knee joints. After 6 and 12 weeks, the ZIFBH group exhibited the best performance: at 12 weeks, the cartilage surface had minimal fibrosis and good integration with surrounding tissues, achieving the highest ICRS score. The subchondral bone volume fraction and bone mineral density were significantly increased. Immunohistochemistry showed high expression of cartilage-related proteins (ACAN, COL2A1) and osteogenic proteins (RUNX2), forming a complete bilayer repair structure with the highest O’Driscoll score, outperforming scaffolds with single MOF or no MOF.

5.2 MOFs utilization for basic bone defects

Bone defects caused by impairment of bone integrity can be divided into congenital deformities and acquired defects resulting from infection, trauma, or tumors. If not treated promptly, they may even lead to amputation (Wei et al., 2024). Therefore, patients bear significant physical, psychological, and economic burdens. Current bone grafting techniques are an effective clinical method for treating patients with large-area bone defects. Although this technique has saved many limbs at risk of amputation, it still has some obvious drawbacks. The main drawback is a prolonged healing period caused by poor osteogenesis and non-union at the bone junction, which may lead to many complications (Wang Q. et al., 2024). Managing these complications will further extend the duration of external fixation. It is well known that long-term wear of external fixators brings great inconvenience to patients, preventing most of them from resuming normal life within a year or even longer.

Simple bone defects have also seen extensive application of MOFs. For instance, Ahmed and colleagues developed UiO-66 nanomaterials that exhibited outstanding cytocompatibility and hemocompatibility, effectively enhancing osteoblast function in vitro (Sadek et al., 2022). Notably, UiO-66 implantation in defects not only demonstrated significant osteoid tissue formation and collagen deposition but also exhibited the potential to upregulate OCN and OPG expression in vivo. Xue et al. demonstrated that iron-based metal-organic framework (Fe-MOF) particles not only inhibit TfR2 but also act as biomimetic catalysts to scavenge hydrogen peroxide from ROS, showcasing their capability as bone regeneration agents. The functions of MOF-Fe included decreasing ROS levels and initiating the BMP signaling pathway (Xue et al., 2024). Wu et al. synthesized bio-MOF-1 coatings on alkali-heat-treated titanium at varying concentrations and systematically evaluated their cytocompatibility and bone development effectiveness in both experimental and natural conditions (Wu et al., 2022a). As a representative bio-friendly MOF with a biologically derived structure, bio-MOF-1 owes its properties to a zinc core and adenine ligands. Exhibiting remarkable thermal stability and biocompatibility, the coating also provided a prolonged release of Zn²⁺, boosting the expression of osteogenesis-associated genes and proteins. In addition, with titanium as the scaffold, the bio-MOF-1 coating on titanium implants substantially improved early osseointegration where the bone meets the implant.

It is noteworthy that in current studies on treating bone defects using MOFs, the bone regeneration efficacy of MOF-based materials has been investigated through animal bone defect models; however, these studies each have distinct focuses and certain limitations. Zhang and his team focused on L-Asp-Cu(II) bio-MOF. In a 5 mm-diameter calvarial defect model of SD rats, surgical implantation of 30 μg/mL L-Asp-Cu(II) significantly increased bone volume fraction (BV/TV) and bone mineral density (BMD) at 8 weeks, and activated the TGF-β/BMP pathway to promote vascularized bone regeneration (Zhang Y. et al., 2025). However, long-term safety and validation in large animal models remain unaddressed. Yu et al. developed a Zn-MOF composite 3D-printed scaffold. In a 3 mm × 4 mm femoral condyle defect model of rats, the PHCZ group achieved a bone volume fraction of 31.39% ± 3.04% at 12 weeks, significantly higher than the control group, and exerted anti-inflammatory-osteogenic synergistic effects by regulating macrophage polarization (Han et al., 2025). Nevertheless, the toxicity risk of long-term Zn²⁺ release and the specific mechanism of MCF require further clarification. Sun et al. targeted aged rat calvarial defects (6 mm diameter). Mg-Ce-MOF scaffolds combined with SKL2001 improved the senescent microenvironment by activating the Nrf2 pathway, with new bone area reaching 42.29% ± 1.87% at 12 weeks (Sun et al., 2025). However, the synergistic mechanism between SKL2001 and MOF, as well as the insufficient sample size of aged models, need further research. However, it is important to emphasize that the significance of their present research lies in modulating the senescent microenvironment (SME) to retard the senescence process of BMSCs, thus offering a viable strategy to facilitate the repair of age-related bone defects. This constitutes a highly intriguing strategy.

5.3 Applications of MOFs in infected bone defects

MOFs are essential in managing infected bone defects through three primary mechanisms: delivering antimicrobial drugs, leveraging their intrinsic antibacterial properties, and modulating the bone microenvironment (Figure 6). The team led by Ma engineered a sonosensitizer with a defective MOF mediated by alendronate (ALN) (Ma et al., 2024). HN25 increases the accessibility of chromatin for genes related to osteogenesis, such as FOXO1, and aids in bone repair through low levels of ROS when exposed to low-power ultrasound. Rapid clearance of methicillin-resistant MRSA, suppression of osteoclast activity, and enhancement of bone regeneration and differentiation are achieved by this system. In their study, Liu Y. et al. (2025) created a gallium-based MOF (GaMOF) coated with quaternized chitosan (QCS) that carries a positive charge, serving as a “capture agent” to ensnare MRSA by disrupting the TCA cycle (Liu Y. et al., 2025). A radially porous crystal gel embedded with Me and QCSGaMOF was additionally fabricated by them using directional solidification. The oriented porous structure enhances osteointegration by guiding osteoblast ingrowth. Tan et al. synthesized MgCu-MOF-74 nanoparticles with varying Cu content via a one-step hydrothermal method (Liu J. et al., 2022). MgCu-MOF-74 enhances the viability of human osteosarcoma cells (SaOS-2), ALP levels, collagen synthesis, and osteogenic gene expression. Additionally, Cu²⁺-doped samples exhibit heightened sensitivity to acidic microenvironments produced by bacteria, demonstrating stronger antibacterial activity compared to Mg-MOF-74.

Figure 6

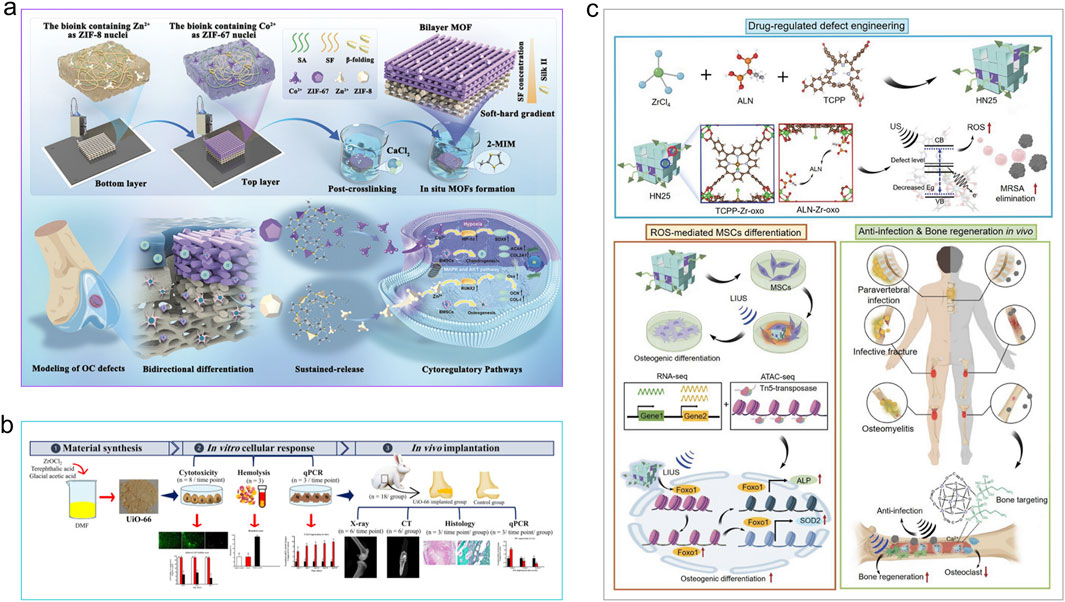

Figure 6. Applications of MOFs for Simple and Infected Bone Defects. (a) ZIF-8 releases Zn²⁺, which enhances osteoblast differentiation by RUNX2—a critical regulator of osteogenesis. Reproduced with permission (Qin et al., 2025). Copyright 2024, Wiley-VCH. (b) The use of UiO-66 nanomaterial in implants promotes the recovery of critical-sized bone defects. Reproduced under the terms of the CC-BY license (Sadek et al., 2022). Copyright 2022, The Author(s), Springer Nature. (c) ALN is employed to create a porphyrin-based MOF sonosensitizer (HN25) with enhanced antibacterial properties responsive to ultrasound. Reproduced with permission (Ma et al., 2024). Copyright 2023, Wiley-VCH.

MOF-decorated 3D-printed scaffolds have excellent therapeutic advantages for severely defective bones. They not only exert the multiple osteogenic properties of MOFs in osteogenesis but also utilize the scaffolds to avoid the issue that MOFs, being too small at the nanoscale, cannot connect the broken ends of the defect. Zhu and her team focus on Cu-MOF-74-decorated 3D-printed PCL/HAp composite scaffolds, assessing their antibacterial and osteogenic potential in bone defect repair via in vitro experiments (Zhu et al., 2025). Key findings highlight that Cu-MOF-74 concentrations of 0.05%–0.2% balance dual functionalities: the 1% concentration achieves 90.07% and 80.03% inhibition rates against Staphylococcus aureus and Escherichia coli, respectively; low concentrations (≤0.2%) promote the proliferation of rat BMSCs; the 0.05% group shows the highest calcium deposition and osteopontin (OPN) expression; and the 0.2% group exhibits optimal ALP activity. Additionally, Cu²⁺ release follows a biphasic pattern—an initial burst within the first 7 days, followed by sustained release up to 28 days.

Notably, the study has limitations: no in vivo animal experiments were performed to validate efficacy; high concentrations (≥0.5%) of Cu-MOF-74 induce cytotoxicity; and long-term properties of the scaffolds, such as in vivo degradation kinetics and mechanical stability, remain uninvestigated.

5.4 Applications of MOFs in diabetic bone defects

Hyperglycemia induces excessive production of ROS in intracellular mitochondria. These ROS directly disrupt the osteogenic microenvironment, interfere with the bone healing process, lead to poor healing of bone defects, and severely impair patients’ quality of life (Khosla et al., 2021; Li X. et al., 2021).

By modulating pathological conditions such as hyperglycemia, oxidative stress, and inflammation, MOFs play a crucial role in the repair of diabetic bone defects, thereby promoting bone regeneration and angiogenesis (Figure 7).

Figure 7

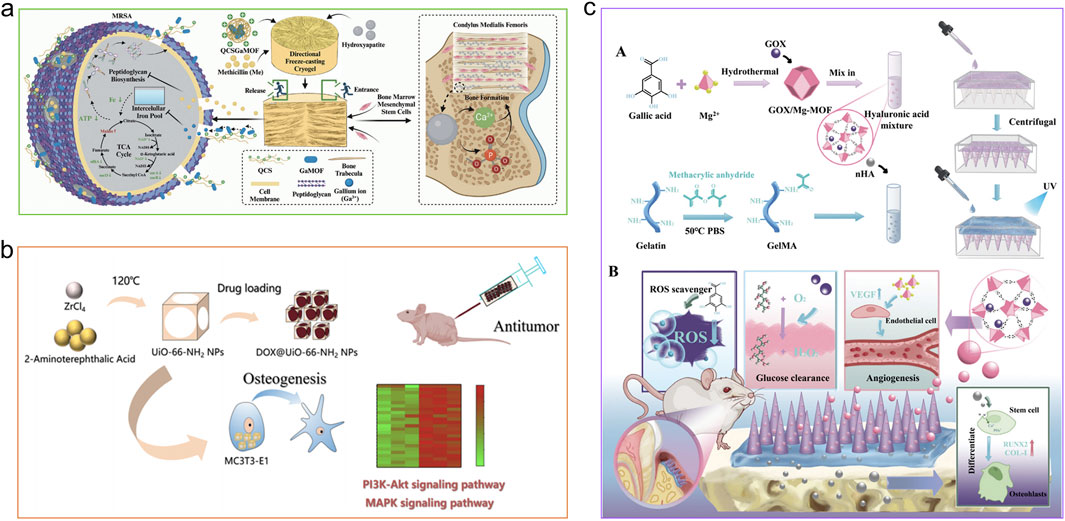

Figure 7. The application of MOFs includes antibacterial, antitumor, and diabetes treatments. (a) Me/QCSGaMOF@Cryogel reactivating methicillin effects and guided bone formation. Reproduced with permission (Liu Y. et al., 2025). Copyright 2025, Wiley-VCH. (b) UiO-66-NH₂ NPs, which are zirconium-based MOF nanoparticles with amino functionalities, are used as dual-purpose nanomaterials for bone tumor therapy and stimulating osteogenesis. Reproduced with permission (Yuan J. et al., 2023). Copyright 2023, American Chemical Society. (c) Mg-MOF released from d-MNs modulates the local microenvironment in soft tissue regions by reducing ROS, lowering blood glucose, and releasing magnesium ions to promote angiogenesis. Reproduced with permission (Qu et al., 2024). Copyright 2025, Wiley-VCH.

These studies illustrate the extensive potential of MOFs in the context of diabetic bone regeneration, providing innovative strategies for future research and clinical applications. In this regard, Liu et al. developed a Mn@Co₃O₄@Pt nanozyme, designated as MCPtA, which was synthesized from a MOF loaded with alendronate (ALN) and Mg²⁺ (Liu S. et al., 2025). The substitution of Mn atoms into the Co₃O₄ nanocrystal structure modulated the electronic configuration, resulting in a significant enhancement of SOD/CAT catalytic activity. The incorporation of Pt nanoparticles, which mimic glucose oxidase (GOx), enabled MCPtA to effectively perform multi-cascade catalysis, facilitating the clearance of glucose and ROS. This process contributed to the regulation of hyperglycemic conditions and restored the balance between osteoblasts and osteoclasts. By inhibiting inflammatory responses induced by glucose-ROS and promoting the development of bone and vascular tissues, the nanozyme composite hydrogel significantly improved bone regeneration in diabetic patients. Fan et al. introduced a multifunctional bilayer microneedle (d-MNs) system for hard tissue repair. The d-MN matrix is composed of gelatin methacryloyl (GelMA) infused with nano-hydroxyapatite (nHA), which supports osteoblast differentiation and alveolar bone regeneration (Qu et al., 2024). Soft tissue repair is facilitated by a d-MN tip constructed from hyaluronic acid (HA) integrated with a glucose oxidase (GOX)-loaded magnesium Mg-MOF, which imparts both hypoglycemic and anti-inflammatory properties. This dual-functional design ensures a comprehensive therapeutic approach, encompassing hypoglycemic effects, anti-inflammatory responses, neovascularization, and osteogenesis.

Severe tissue dysfunction in diabetic patients represents a tough clinical challenge. Both bacterial infections and chronic inflammation drive disturbances in the diabetic microenvironment and impaired tissue regeneration, thus, there is a greater need for MOFs with composite therapeutic mechanisms. Zhang et al. evaluated the in vivo efficacy of Gelma@Sr-ZIF-8 hydrogel using two diabetic rat models: In the diabetic rat skin infection model (15 mm-diameter infected wounds), local injection of 2wt% Sr-ZIF-8 (Sr/Zn molar ratio 20/100) hydrogel followed by UV curing resulted in a 97% wound healing rate at 14 days, with significantly higher bacterial clearance than the control groups, accompanied by enhanced collagen deposition and angiogenesis. In the diabetic rat femoral defect model (3 mm × 4 mm), 8 weeks after implantation of the hydrogel, the bone volume fraction (BV/TV) reached 38.6% ± 3.2%, significantly higher than the control groups, while promoting M2 macrophage polarization and high expression of osteogenic markers (Runx-2, OCN). Its core advantage lies in the synergistic effects of Zn²⁺ and Sr²⁺ in exerting antibacterial, anti-inflammatory, and bone regeneration-promoting functions with good biosafety (Zhang S. et al., 2025). However, there are limitations: it is only based on rat models without large animal validation; the potential cumulative effects of long-term ion release are unclear; and its repair effect on complex conditions such as diabetes with neuropathy has not been explored.

The studies underscore the substantial potential of MOFs in the context of diabetic bone regeneration, thereby presenting novel strategies for future research and clinical application.

5.5 Applications of MOFs in bone tumor bone defects

Currently, the primary approach to treating bone tumors is surgical excision, although it often causes local bone defects and tumor recurrence. As a result, it is important to develop biomaterials that can simultaneously address tumor treatment and bone healing after surgery. MOFs, with their unique porous structure, hold significant potential in regenerative medicine and drug delivery. Leveraging their biocompatibility and biodegradability, MOFs can act as drug carriers or sustained-release systems for bioactive factors to promote the renewal and mending of bones. The team led by Qu developed a multifunctional MOF-modified injectable calcium phosphate cement, integrating cobalt-coordinated tetrakis(4-carboxyphenyl) porphyrin (Co-TCPP) (Qu et al., 2021). The inclusion of Co-TCPP not only kept the cement’s superb injectability but also decreased the setting time, boosted compressive strength, and provided the cement with outstanding photothermal capabilities for efficient tumor therapy. This system overcomes the limitation of traditional calcium phosphate cement (CPC), which fails to eliminate residual tumor cells post-surgery, while simultaneously promoting bone and vascular regeneration in vivo, demonstrating ideal osteogenic and angiogenic capabilities. In their study on postoperative therapy, MOF composite scaffolds are also frequently used to meet the requirements of various therapeutic needs. Zeng and colleagues developed a chitosan composite scaffold (CS/DOX@Ti-MOF) aimed at treating tumors and repairing bones (Zeng et al., 2024). The amino-functionalized titanium-based metal-organic framework (NH₂-MIL-125(Ti), Ti-MOF) exhibits a high specific surface area (1,116 m²/g) and excellent biocompatibility, enabling the loading of doxorubicin (DOX), a chemotherapeutic agent while promoting osteogenic differentiation. The composite scaffold demonstrates improved physical mechanical properties and a rough surface, facilitating cell adhesion. In the tumor microenvironment, the scaffold releases DOX in a responsive manner to destroy residual tumor cells and then provides areas for cell attachment, growth, and differentiation. This dual functionality enhances bone repair and achieves adjunctive therapy for postoperative bone tumors. In their study, Yuan J. et al. (2023) focused on the interaction between DOX and MOFs for bone tumor therapy, designing amino-functionalized zirconium MOF nanoparticles containing DOX (DOX@UiO-66-NH₂ NPs). Lung injury was significantly reduced by DOX@UiO-66-NH₂ NPs in vivo compared to free DOX. Notably, internalized UiO-66-NH₂ NPs markedly activated the PI3K-Akt and MAPK signaling pathways, promoting osteogenic differentiation of pre-osteoblasts. UiO-66-NH₂ nanoparticles are positioned as a multifunctional nanomaterial for both bone tumor treatment and the enhancement of bone growth.

6 Advantages of MOFs over other types of nanoparticles used in bone regeneration

Within the domain of bone regeneration, MOFs, as an emerging class of nanocarriers, demonstrate notable superiority over other nanoparticle categories including inorganic nanoparticles (e.g., hydroxyapatite (HA), gold nanoparticles (AuNPs), iron oxide nanoparticles (IONPs), mesoporous silica nanoparticles (MSN)) and organic nanoparticles (e.g., liposomes, micelles, chitosan (CS), poly(lactic-co-glycolic acid) (PLGA)).

6.1 Higher drug loading capacity and controllable release performance

MOFs feature ultra-high specific surface areas and adjustable porous architectures (e.g., ZIF-8 with a specific surface area reaching 1700 m²/g), facilitating high-efficiency loading of diverse therapeutic agents (including antibiotics, growth factors, and metal ions). Their drug-loading capability exhibits marked superiority over that of conventional carriers such as chitosan and MSN. The pore dimensions and topological structures of MOFs are amenable to precise modulation, preventing abrupt drug release and thereby enabling sustained and controlled release profiles (Xu H. et al., 2024). For instance, ZIF-8 can undergo pH-responsive degradation (structural disintegration in acidic microenvironments) to slowly release loaded bisphosphonates or zinc ions, matching the long-term requirements of bone regeneration (Yun et al., 2025). In contrast, the release rate of polymer nanoparticles such as PLGA is difficult to precisely control, prone to early burst release or insufficient late-stage release.

6.2 Multifunctional synergistic effects

MOFs are capable of exerting diverse biological functionalities concurrently via the integration of metal ions and organic ligands, whereas most traditional nanoparticles have relatively single functions.

6.2.1 Metal ion release

Metal ions such as zinc (Zn²⁺), magnesium (Mg²⁺), and calcium (Ca²⁺) released during MOF degradation can directly promote osteogenic differentiation (e.g., Zn²⁺ upregulates the expression of osteogenic-related genes such as RUNX2 and ALP) and angiogenesis, while inhibiting excessive osteoclast activation (e.g., by regulating the RANKL/OPG ratio) (Liu et al., 2022e). For example, Zn²⁺ released from ZIF-8 has both osteogenic and antibacterial effects, whereas HA mainly focuses on osteogenesis, and silver nanoparticles (AgNPs) are only antibacterial (Eivazzadeh-Keihan et al., 2020).

6.2.2 Carrier-drug synergy

MOFs can simultaneously load antibiotics (e.g., vancomycin) and growth factors (e.g., BMP-2) to achieve “antibacterial-osteogenic” synergistic therapy (Feng et al., 2022). Although MSN can also load multiple drugs, it is inferior to MOFs in terms of loading diversity and synergistic regulation.

6.3 Excellent biocompatibility and biodegradability

MOFs can significantly reduce toxicity risks by selecting endogenous metal ions (e.g., Zn²⁺, Mg²⁺, Ca²⁺) and biodegradable organic ligands (e.g., imidazole, carboxylic acid). In addition, the degradation rate of MOFs can be adjusted by ligand stability (e.g., controlling the degradation rate by changing ligand chain length), matching the dynamic balance of “material degradation-new bone formation” during bone regeneration (Farjaminejad et al., 2024). In contrast, inorganic nanoparticles such as HA degrade slowly and tend to remain for a long time.

6.4 Easy functional modification and targeting

MOFs are rich in active functional groups (e.g., amino, carboxyl) on their surfaces, allowing convenient targeted modification (e.g., conjugation with bisphosphonates or bone-targeting peptides) to enhance specific accumulation at bone defect sites (Li et al., 2024a). For example, ZOL-modified ZIF-8 nanoparticles can achieve bone-targeted delivery through high affinity with hydroxyapatite in the bone matrix, reducing side effects on other tissues (Choi et al., 2023). In contrast, targeted modification of traditional nanoparticles (e.g., liposomes, micelles) is more complex and less stable.

6.5 Structural designability and environmental responsiveness

The structures of MOFs can be flexibly tailored by adjusting metal ion types, ligand species, and synthesis conditions, enabling intelligent response to the microenvironment (e.g., pH, temperature, enzymes) (Choi and Paul, 2025). For instance, in the acidic microenvironment of bone infection, MOFs can rapidly degrade and release antibiotics; in the neutral environment of normal bone tissue, they remain stable to reduce drug waste (Feng et al., 2024). This responsiveness is significantly superior to PLGA or CS nanoparticles, which lack environmental sensitivity.

7 Addressing challenges in MOF application and strategies to enhance osteogenic capabilities

Although MOFs have demonstrated promising osteogenic effects in experimental stages, their clinical application and development face challenges such as uncertain biocompatibility, low synthesis efficiency, inadequate osteogenic capacity to meet clinical demands, and hindered commercialization due to the complexity of the human microenvironment (Figure 8). Consequently, researchers have extensively explored strategies to enhance the osteogenic performance of MOFs in recent years. This section will discuss the measures to address these challenges in detail.

Figure 8

Figure 8. Challenges affecting the application scope of MOFs.

7.1 Strategies to address uncertain biocompatibility of MOFs

Biocompatibility is one of the most critical considerations in biomaterial design, indicating a material’s ability to carry out its function without triggering toxic or harmful reactions in biological systems while inducing an appropriate host response under specific conditions (Lu et al., 2023). Today, the concept of biocompatibility encompasses not only bio-inertness but also biofunctionality and bio-stability (Huzum et al., 2021), such as hemocompatibility, histocompatibility, and immune responses. However, a primary concern for MOF-based nanomaterials is their uncertain biocompatibility. Due to the diverse physicochemical properties of MOFs and their complex interactions with cells, efficacy does not equate to safety. Many MOFs still face biocompatibility-related challenges. For instance, the surface charge of MOF nanoparticles can attract plasma proteins, leading to unusual blood clotting and the breakdown of red blood cells (Zheng et al., 2024). Toxicity can also be caused by the excessive local release of metal ions or drugs from MOFs.

Jiang et al. synthesized micro/nano-scale bio-functional entities (m/n-bio-MOF-1) using a modified method and systematically evaluated them across multiple dimensions, covering cell multiplication, oxidative stress, apoptosis, and animal trials (Jiang et al., 2022). Reducing the concentration of n-bio-MOF-1 resulted in smaller particles, which enhanced cell adhesion, improved morphology, lowered in vitro cytotoxicity, decreased ROS induction, and increased stability. Beyond modifying the MOF framework itself, surface functionalization can also enhance biocompatibility. For instance, PEGylation (polyethylene glycol modification) of MOFs improves intracellular stability and enables delayed drug release with reduced cytotoxicity (Chen X. et al., 2021; Li et al., 2023b).

Therefore, two critical aspects warrant consideration when improving the biocompatibility of MOFs. First and foremost, it is critical to assess the metabolic profiles of MOF particles in vivo to clarify whether their metabolic byproducts pose health hazards and to guarantee their safe and efficient excretion (Singh et al., 2021). A second key consideration centers on the hemocompatibility of MOF particles, which may trigger blood coagulation, hemolysis, or abnormal platelet activation upon administration. The hemocompatibility of MOF particles is primarily shaped by parameters including surface charge, size, and morphology, which are amenable to optimization via targeted modifications.

7.2 Strategies to address low synthesis efficiency of MOFs

Apart from ensuring biocompatibility, the production of MOFs with high purity is a major challenge for their market and medical application. In biomedical applications, MOF purity is paramount. However, conventional synthesis methods often involve toxic solvents and impurities, necessitating the development of green synthesis approaches. Solvothermal methods and post-synthetic modifications frequently suffer from inconsistent reaction conditions (temperature, pressure, precursor ratios), leading to insufficient product purity. In catalytic applications, improper design of MOF pore structures—such as excessively narrow pores or uneven metal loading—can trap intermediate products, triggering side reactions and complicating the isolation of pure MOF materials. In this scenario, laser-induced synthesis has become a revolutionary technology (Guo et al., 2023). This high-efficiency pyrolysis technique enables the production of purer MOFs compared to traditional hydrothermal/solvothermal methods. Major benefits are quick processing, accuracy, minimal waste, high efficiency, selectivity, and programmability, which give MOF derivatives new functionalities. Laser-synthesized MOFs show improved crystallinity and defect management, positioning them as promising options for cutting-edge biomedical and catalytic uses.

7.3 Strategies to address inadequate osteogenic capacity of MOFs for clinical needs

The precise modulation of MOF parameters is crucial for attaining desired therapeutic outcomes in osteogenic treatments (Manzari et al., 2021). Critical factors, including MOF concentration, pore size, drug loading capacity, and active site configuration, necessitate meticulous optimization. Furthermore, improving the targeting specificity of MOFs for various osteogenic-disrupting pathologies is vital to ensure accurate recognition of diseased tissues. MOFs that incorporate multiple osteogenic mechanisms typically demonstrate enhanced laboratory performance and exhibit greater potential for clinical translation. In the following discussion, we concentrate on strategies for adjusting pore size.

Osteogenic MOFs are taken up by osteoblasts in a manner significantly influenced by the size effect. Cells tend to internalize smaller-sized nanoparticles, suggesting that rational adjustment of MOF dimensions can enhance their uptake by bone-related cells (Xue Y. et al., 2021). Additionally, miniaturization increases interactions between MOFs and cellular components, thereby boosting osteogenic capabilities (Batool et al., 2023). Ahemed et al. successfully synthesized Zn-MOF/bioactive glass (BG) nanoparticles using a rapid alkali-modified sol-gel method (Ahmed et al., 2024). In comparison to standalone BG, the BG/Zn MOF composite demonstrated superior antimicrobial activity and prolonged drug release. Nano-ZIF-8 membranes further enhanced ALP activity, extracellular matrix mineralization, and osteogenic gene expression. Compared to larger Zn-MOFs, the nano-sized Zn-MOFs exhibited higher specific surface area and improved dispersibility. Moreover, they facilitated hydroxyapatite formation, contributing to effective bone regeneration. Nonetheless, the efficient cellular absorption of nano-sized MOFs suggests they might infiltrate cell membranes and gather in healthy cells, which could be hazardous to human health.

By carefully designing the pore sizes of MOFs, their effectiveness as carriers for drug molecules, such as osteogenic inducers and antibiotics, can be improved to aid in bone regeneration. For successful drug incorporation, the pore dimensions of MOFs should match the size of drug molecules, which can differ. Deng and colleagues created an innovative multifunctional photosensitive yolk-shell nanoparticle that responds to stimuli by selectively etching a biodegradable crystalline ZIF-8 shell around a star-shaped gold nanoparticle photothermal yolk using tannic acid (Deng et al., 2019). The findings indicated that the ZIF-8 shell became significantly thinner, creating additional space between the Au nanoflowers and the MOF framework. Compared to core-shell ZIF-8@Au structures, this yolk-shell configuration exhibited substantially enhanced drug-loading capacity.

7.4 Challenges in MOF commercialization

MOFs have not yet been successfully commercialized within biomedical applications. One of the core obstacles to the commercialization of MOFs is the high production cost and significant difficulty in scaling up, which mainly stem from the cost of raw materials, synthesis efficiency, and the complexity of downstream processing (Barsoum et al., 2025). In the field of biomedicine (such as bone implantation), commercialization needs to address issues like metal ion toxicity, controllability of degradation, and immune responses (Wright et al., 2025). Moreover, it is necessary to optimize performance for specific scenarios; for example, bone implants require a balance between mechanical strength and osteoconductivity (Chen Z. et al., 2021). Finally, there exist problems in the MOF field such as a disconnect between research and industrialization, as well as insufficient interdisciplinary collaboration,all of which have impeded the widespread adoption of MOFs in the biomedical sector (Liu Y. et al., 2024). Nonetheless, with ongoing advancements in MOF research, it is anticipated that their biocompatibility will continue to improve, and biosafety will be further enhanced, thereby establishing a foundation for future biomedical applications. Although MOFs possess significant potential for medical applications, existing limitations must be addressed. Progress in research and technology is expected to help overcome these challenges, ultimately unlocking the precise therapeutic capabilities of MOFs in the field of nanomedicine. Recently, 3D printing technology has been applied to bone implantation. By constructing porous structures with a porosity of 50%–80%, it can match the mechanical properties of cancellous bone (with a compressive strength of 10–30 MPa) while promoting cell infiltration. In addition, composite biomaterials are used, which are compounded with natural polymers (such as collagen and chitosan) or degradable polymers (such as PLGA and PCL). This not only reduces immunogenicity but also matches the bone regeneration cycle (usually 8–12 weeks) (Li M. et al., 2022; Pourmadadi et al., 2023).

8 Conclusions and perspectives

Over recent years, MOFs and MOF-based composite materials have exerted notable influences within the biomedical domain. MOFs, composed of metal ions and organic ligands, are characterized by their high specific surface area, porosity, atomic utilization efficiency, drug-loading capacity, and excellent biomimetic structures and mechanical properties. Leveraging these advantages, MOFs can be employed to develop highly sensitive biosensors. Many diseases causing osteogenesis disorders are associated with changes in specific biomarkers, such as rheumatoid factor, blood glucose, ALP, and certain cytokines. Real-time monitoring of these biomarkers using biosensors could serve an important purpose in disease treatment and prognosis management (Flynn et al., 2023). In one instance, Xu and their team designed a glucose sensor that does not rely on enzymes by directly growing conductive Ni/Co-based carbon cloth [Ni/Co(HHTP) MOF/CC], achieving remarkable results in glucose detection within real serum samples (Xu et al., 2021). Additionally, Xu et al. synthesized a novel europium-centered MOF [(CH₃)₂NH₂][Eu(cdip)(H₂O)] for uric acid detection, offering substantial benefits for gout patient management (Xu et al., 2023). These advancements suggest that designing functional MOF-based biosensors for detecting OP, rheumatoid arthritis (RA), and bone infections is feasible, enabling localized monitoring of disease progression.

Excellent targeting ability and controlled release are crucial functions of MOFs as drug delivery systems, particularly in therapies aimed at promoting bone repair. Therefore, continuously enhancing the specificity of MOFs in recognizing diseased tissues can improve therapeutic efficacy while minimizing impacts on healthy tissues. The research by Deng et al. involved delivering celastrol (CEL) to arthritic joints to specifically induce apoptosis in osteoclasts and macrophages (Deng et al., 2021). They employed enzyme-responsive nanoparticles, known as PRNPs, which consist of RGD-modified nanoparticles (RNPs) covered with PEG chains that can be cleaved. CEL-PRNPs targeted both osteoclasts and inflammatory macrophages in RA patients by interacting with RGD-αvβ3 integrin following MMP-9 cleavage of PEG, resulting in increased apoptosis of these cells. Additionally, utilizing the sensitivity of MOFs to factors like pH and ROS, the system enables multi-targeted therapy for RA, resulting in improved therapeutic outcomes, inflammation alleviation, and bone erosion repair.

However, the biomedical applications of MOFs still have limitations. First, the controllability of degradation is insufficient, and long-term safety is questionable. They rely on an acidic microenvironment for degradation but degrade too slowly in a neutral physiological environment, which may lead to foreign body retention. Accumulation of MOF degradation products (such as Zn²⁺ and Co²⁺) may trigger chronic inflammation. Zirconium-based MOFs have been reported to have high cytocompatibility, but the renal excretion pathway of Zr⁴⁺ is unclear, and large-dose implantation may cause metal accumulation. The nickel ion (Ni²⁺) release threshold (e.g., > 50 μg/mL) of β-CDs/Ni-based MOF scaffolds may induce allergic reactions. Second, the long-term ion release profiles lack dynamic data in physiological environments. Although short-term release is controllable, long-term behavior remains unclear. Most studies only report release profiles over 7–28 days, while the bone regeneration cycle lasts 3–6 months. There is a lack of data from large animal models regarding whether the release attenuates or bursts over time. Furthermore, there are risks in clinical translation. The mass production technology is immature; for example, electrospinning and 3D printing rely on laboratory-scale processes, and during scale-up production, problems such as non-uniform MOF particle sizes and fluctuations in scaffold porosity arise. The solvothermal method (e.g., UiO-66 synthesis requiring DMF) has residues of toxic solvents and high energy consumption, failing to meet GMP standards. Meanwhile, there is a lack of production regulatory standards. As a new type of material, MOFs lack FDA/EMA guidelines regarding the toxicity thresholds of their degradation products (e.g., daily tolerable intake of Zr⁴⁺) and immunogenicity (e.g., whether MOF crystals trigger foreign body giant cell reactions). Gaps in preclinical research have left key mechanisms and long-term effects unclear. Existing studies focus on short-term immunomodulation, but there is a lack of data beyond 12 weeks regarding the sustained impact of MOF degradation products on macrophage phenotypes and their recruitment effects on T cells/neutrophils. The early mechanical strength of MOF composite scaffolds (with a compressive modulus of 10–50 MPa) can meet the needs of cancellous bone, but the modulus decreases by more than 50% after 6 weeks as MOFs degrade, which may lead to implant collapse. Currently, there is a lack of research on the three-way dynamic matching of “degradation-mechanics-osteogenesis.” There is no epidemiological evidence regarding whether long-term release of Ag⁺ from antibacterial MOFs (>6 months) induces drug-resistant bacteria, or whether chronic inflammation caused by zirconium-based MOFs increases the risk of osteosarcoma.

What does the future hold for MOFs, and how can we unlock the full potential and power of this emerging chemical field? Digital Reticular Chemistry: With digital computing technology continuing to progress, computational chemistry has emerged as a critical element in modern chemistry. Within the realm of reticular chemistry, the significance of computational chemistry resides in its capacity to ascertain molecular-scale structures and predict new architectures boasting improved performance across various application contexts. Incorporating artificial intelligence (AI) into computational chemistry holds the potential not only to revolutionize the domain of reticular chemistry but also to ignite a transformative wave across the broader sphere of chemical research. However, it is important to note that AI can only operate within the chemical space covered by its training data and cannot make reliable inferences about content beyond that space. Therefore, researchers still need to rely on their professional knowledge and experience to make critical decisions during the exploration process, determining when to introduce significant innovations (Gagliardi and Yaghi, 2023).

Imagine if we could leverage large language models (LLMs) such as GPT-4 to reliably mine information—for instance, compiling the reaction conditions required for the synthesis and crystallization of MOFs, or using machine learning algorithms to predict new MOFs and link their structures to specific properties and biomedical applications. This would undoubtedly open up more possibilities for future disease treatments. Thanks to these technological advancements, information can be shared, collaborations can be advanced, and knowledge can be co-created, enabling researchers to explore and analyze MOFs regardless of their geographical location.

This review provides a comprehensive summary of recent advancements in the development of MOFs for enhancing bone regeneration, emphasizing their varied applications within this domain. MOF-based nanomaterials demonstrate remarkable potential in facilitating bone healing by promoting osteogenesis, modulating inflammatory responses, exerting antioxidant effects, offering antimicrobial properties, and stimulating angiogenesis. Moreover, specific MOFs demonstrate significant therapeutic potential by synergistically incorporating multiple factors that promote osteogenesis. Researchers have engineered a variety of functionalized MOF-based nanomaterials for the treatment of bone-related diseases. Nonetheless, several challenges persist, including the necessity for process optimization, variability in biocompatibility, and the absence of standardized protocols and certifications for clinical application. Continued research and advancements in production technologies are crucial to enable the clinical utilization of MOFs in therapies designed to enhance bone regeneration.

Author contributions

YF: Conceptualization, Formal Analysis, Methodology, Writing – original draft, Writing – review and editing. CL: Conceptualization, Data curation, Methodology, Writing – original draft, Writing – review and editing. YC: Data curation, Methodology, Writing – original draft. YH: Supervision, Visualization, Writing – original draft, Writing – review and editing. LP: Funding acquisition, Supervision, Writing – original draft, Writing – review and editing.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. This research was funded by the project of the Science and Technology Bureau of Bishan District (No. BSKJ2024003).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Any alternative text (alt text) provided alongside figures in this article has been generated by Frontiers with the support of artificial intelligence and reasonable efforts have been made to ensure accuracy, including review by the authors wherever possible. If you identify any issues, please contact us.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Abazari, R., Sanati, S., Bajaber, M. A., Javed, M. S., Junk, P. C., Nanjundan, A. K., et al. (2024). Design and advanced manufacturing of NU-1000 metal–organic frameworks with future perspectives for environmental and renewable energy applications. Small 20 (15), 2306353. doi:10.1002/smll.202306353

PubMed Abstract | CrossRef Full Text | Google Scholar

Aden, S. F., Mahmoud, L. A. M., Ivanovska, E. H., Terry, L. R., Ting, V. P., Katsikogianni, M. G., et al. (2023). Controlled delivery of ciprofloxacin using zirconium-based MOFs and poly-caprolactone composites. J. Drug Deliv. Sci. Technol. 88, 104894. doi:10.1016/j.jddst.2023.104894

CrossRef Full Text | Google Scholar

Aghazadeh Asl, E., Pooresmaeil, M., and Namazi, H. (2023). Chitosan coated MOF/GO nanohybrid as a co-anticancer drug delivery vehicle: synthesis, characterization, and drug delivery application. Mater. Chem. Phys. 293, 126933. doi:10.1016/j.matchemphys.2022.126933

CrossRef Full Text | Google Scholar

Ahmed, M. M., Omar, A. E., Zayed, H. S., and Moaness, M. (2024). Bioactive glass doped with zinc-based metal–organic frameworks (Zn/MOF) nanoparticles for antibiotic delivery applications. Appl. Phys. A 130 (3), 209. doi:10.1007/s00339-024-07363-4

CrossRef Full Text | Google Scholar

Allen, J. E. (2023). IL-4 and IL-13: regulators and effectors of wound repair. Annu. Rev. Immunol. 41, 229–254. doi:10.1146/annurev-immunol-101921-041206

PubMed Abstract | CrossRef Full Text | Google Scholar

Alsaikhan, F., Mahmoud, M. Z., and Suliman, M. (2023). Synthesis and characterization of novel denosumab/magnesium-based metal organic frameworks nanocomposite prepared by ultrasonic route as drug delivery system for the treatment of osteoporosis. Front. Bioeng. Biotechnol. 11, 1153969. doi:10.3389/fbioe.2023.1153969

PubMed Abstract | CrossRef Full Text | Google Scholar

Alves, R. C., Schulte, Z. M., Luiz, M. T., Bento da Silva, P., Frem, R. C. G., Rosi, N. L., et al. (2021a). Breast cancer targeting of a drug delivery system through postsynthetic modification of curcumin@N3-bio-MOF-100 via click chemistry. Inorg. Chem. 60 (16), 11739–11744. doi:10.1021/acs.inorgchem.1c00538

PubMed Abstract | CrossRef Full Text | Google Scholar

Alves, S. R., Calori, I. R., and Tedesco, A. C. (2021b). Photosensitizer-based metal-organic frameworks for highly effective photodynamic therapy. Mater. Sci. Eng. C 131, 112514. doi:10.1016/j.msec.2021.112514

PubMed Abstract | CrossRef Full Text | Google Scholar

Arenas-Vivo, A., Avila, D., and Horcajada, P. (2020). Phase-selective microwave assisted synthesis of iron(III) aminoterephthalate MOFs. Mater. (Basel) 13 (6), 1469. doi:10.3390/ma13061469

PubMed Abstract | CrossRef Full Text | Google Scholar

Atzeni, F., Masala, I. F., Bagnasco, M., Lanata, L., Mantelli, F., and Sarzi-Puttini, P. (2021). Comparison of efficacy of ketoprofen and ibuprofen in treating pain in patients with rheumatoid arthritis: a systematic review and Meta-analysis. Pain Ther. 10 (1), 577–588. doi:10.1007/s40122-021-00250-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Babuska, V., Kasi, P. B., Chocholata, P., Wiesnerova, L., Dvorakova, J., Vrzakova, R., et al. (2022). Nanomaterials in bone regeneration. Appl. Sci. 12 (13), 6793. doi:10.3390/app12136793

CrossRef Full Text | Google Scholar

Banerjee, R., Furukawa, H., Britt, D., Knobler, C., O'Keeffe, M., and Yaghi, O. M. (2009). Control of pore size and functionality in isoreticular zeolitic imidazolate frameworks and their carbon dioxide selective capture properties. J. Am. Chem. Soc. 131 (11), 3875–3877. doi:10.1021/ja809459e

PubMed Abstract | CrossRef Full Text | Google Scholar

Barsoum, M. L., Fahy, K. M., Morris, W., Dravid, V. P., Hernandez, B., and Farha, O. K. (2025). The road ahead for metal–organic frameworks: current landscape, challenges and future prospects. ACS Nano 19 (1), 13–20. doi:10.1021/acsnano.4c14744

PubMed Abstract | CrossRef Full Text | Google Scholar

Batool, M., Tawakkul, N., Batool, S., Zafar, M. N., and Nazar, M. F. (2023). “Chapter 8 - porous metal–organic framework nanoscale carriers as a potential platform for drug delivery,” in Novel platforms for drug delivery applications. Editors S. Das, S. Thomas, and P. P. Das (Woodhead Publishing), 153–176. doi:10.1016/B978-0-323-91376-8.00015-X

CrossRef Full Text | Google Scholar

Beobide, G., Castillo, O., Luque, A., and Pérez-Yáñez, S. (2015). Porous materials based on metal–nucleobase systems sustained by coordination bonds and base pairing interactions. CrystEngComm 17 (16), 3051–3059. doi:10.1039/C5CE00005J

CrossRef Full Text | Google Scholar

Beyer, S., Prinz, C., Schürmann, R., Feldmann, I., Zimathies, A., Blocki, A. M., et al. (2016). Ultra-sonication of ZIF-67 crystals results in ZIF-67 nano-flakes. ChemistrySelect 1 (18), 5905–5908. doi:10.1002/slct.201601513

CrossRef Full Text | Google Scholar

Binaeian, E., Nabipour, H., Ahmadi, S., and Rohani, S. (2023). The green synthesis and applications of biological metal–organic frameworks for targeted drug delivery and tumor treatments. J. Mater. Chem. B 11 (48), 11426–11459. doi:10.1039/D3TB01959D

PubMed Abstract | CrossRef Full Text | Google Scholar

Bolamperti, S., Villa, I., and Rubinacci, A. (2022). Bone remodeling: an operational process ensuring survival and bone mechanical competence. Bone Res. 10 (1), 48. doi:10.1038/s41413-022-00219-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Bruna, T., Maldonado-Bravo, F., Jara, P., and Caro, N. (2021). Silver nanoparticles and their antibacterial applications. Int. J. Mol. Sci. 22 (13), 7202. doi:10.3390/ijms22137202

PubMed Abstract | CrossRef Full Text | Google Scholar

Cai, H., Huang, Y.-L., and Li, D. (2019). Biological metal–organic frameworks: structures, host–guest chemistry and bio-applications. Coord. Chem. Rev. 378, 207–221. doi:10.1016/j.ccr.2017.12.003

CrossRef Full Text | Google Scholar

Calabrese, G., Petralia, S., Franco, D., Nocito, G., Fabbi, C., Forte, L., et al. (2021). A new Ag-nanostructured hydroxyapatite porous scaffold: antibacterial effect and cytotoxicity study. Mater Sci. Eng. C Mater Biol. Appl. 118, 111394. doi:10.1016/j.msec.2020.111394

PubMed Abstract | CrossRef Full Text | Google Scholar

Chand, S., Alahmed, O., Baslyman, W. S., Dey, A., Qutub, S., Saha, R., et al. (2022). DNA-mimicking metal–organic frameworks with accessible adenine faces for complementary base pairing. JACS Au 2 (3), 623–630. doi:10.1021/jacsau.1c00516

PubMed Abstract | CrossRef Full Text | Google Scholar

Chang, J., Yu, D., Ji, J., Wang, N., Yu, S., and Yu, B. (2020). The association between the concentration of serum magnesium and postmenopausal osteoporosis. Front. Med. 7, 381. doi:10.3389/fmed.2020.00381

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, J., Zhang, X., Huang, C., Cai, H., Hu, S., Wan, Q., et al. (2017). Osteogenic activity and antibacterial effect of porous titanium modified with metal-organic framework films. J. Biomed. Mater. Res. Part A 105 (3), 834–846. doi:10.1002/jbm.a.35960

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, Z., Jiang, H., Li, M., O'Keeffe, M., and Eddaoudi, M. (2020a). Reticular chemistry 3.2: typical minimal edge-transitive derived and related nets for the design and synthesis of metal-organic frameworks. Chem. Rev. 120 (16), 8039–8065. doi:10.1021/acs.chemrev.9b00648

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, Z., Vong, C. T., Gao, C., Chen, S., Wu, X., Wang, S., et al. (2020b). Bilirubin nanomedicines for the treatment of reactive oxygen species (ROS)-Mediated diseases. Mol. Pharm. 17 (7), 2260–2274. doi:10.1021/acs.molpharmaceut.0c00337

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, J., Zhu, Y., and Kaskel, S. (2021a). Porphyrin-based metal–organic frameworks for biomedical applications. Angew. Chem. Int. Ed. 60 (10), 5010–5035. doi:10.1002/anie.201909880

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, X., Zhuang, Y., Rampal, N., Hewitt, R., Divitini, G., O'Keefe, C. A., et al. (2021b). Formulation of metal-organic framework-based drug carriers by controlled coordination of methoxy PEG phosphate: boosting colloidal stability and redispersibility. J. Am. Chem. Soc. 143 (34), 13557–13572. doi:10.1021/jacs.1c03943

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, Z., Wasson, M. C., Drout, R. J., Robison, L., Idrees, K. B., Knapp, J. G., et al. (2021c). The state of the field: from inception to commercialization of metal–organic frameworks. Faraday Discuss. 225 (0), 9–69. doi:10.1039/D0FD00103A

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, Z. Y., Gao, S., Zhang, Y. W., Zhou, R. B., and Zhou, F. (2021d). Antibacterial biomaterials in bone tissue engineering. J. Mater. Chem. B 9 (11), 2594–2612. doi:10.1039/d0tb02983a

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, J., Cheng, F., Luo, D., Huang, J., Ouyang, J., Nezamzadeh-Ejhieh, A., et al. (2022a). Recent advances in Ti-based MOFs in biomedical applications. Dalton Trans. 51 (39), 14817–14832. doi:10.1039/d2dt02470e

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, M., Wang, D., Li, M., He, Y., He, T., Chen, M., et al. (2022b). Nanocatalytic biofunctional MOF coating on titanium implants promotes osteoporotic bone regeneration through cooperative pro-osteoblastogenesis MSC reprogramming. ACS Nano 16 (9), 15397–15412. doi:10.1021/acsnano.2c07200

PubMed Abstract | CrossRef Full Text | Google Scholar

Cheng, W., Wu, Z.-P., Luan, D., Zang, S.-Q., and Lou, X. W. (2021). Synergetic cobalt-copper-based bimetal–organic framework nanoboxes toward efficient electrochemical oxygen evolution. Angew. Chem. Int. Ed. 60 (50), 26397–26402. doi:10.1002/anie.202112775

PubMed Abstract | CrossRef Full Text | Google Scholar

Cheng, X., Xie, Y., Li, G., Zheng, Z., and Kuang, Q. (2023). Tailoring metal sites of FeCo-MOF nanozymes for significantly enhanced peroxidase-like activity. Inorg. Chem. Front. 10 (8), 2335–2343. doi:10.1039/d2qi02727e

CrossRef Full Text | Google Scholar

Choi, C.-E., and Paul, A. (2025). Mineral nanoparticles and nanocomposite hydrogels with osteoinductive properties for bone regeneration. Explor. BioMat-X 2, 101332. doi:10.37349/ebmx.2025.101332

CrossRef Full Text | Google Scholar

Choi, C. E., Chakraborty, A., Adzija, H., Shamiya, Y., Hijazi, K., Coyle, A., et al. (2023). Metal organic framework-incorporated three-dimensional (3D) bio-printable hydrogels to facilitate bone repair: preparation and in vitro bioactivity analysis. Gels 9 (12), 923. doi:10.3390/gels9120923

PubMed Abstract | CrossRef Full Text | Google Scholar

Christodoulou, I., Serre, C., and Gref, R. (2020). “Chapter 21 - metal-organic frameworks for drug delivery: degradation mechanism and in vivo fate,” in Metal-organic frameworks for biomedical applications. Editor M. Mozafari (Woodhead Publishing), 467–489. doi:10.1016/B978-0-12-816984-1.00023-8

CrossRef Full Text | Google Scholar

Chui, S. S., Lo, S. M., Charmant, J. P., Orpen, A. G., and Williams, I. D. (1999). A chemically functionalizable nanoporous material [Cu ₃ (TMA) ₂ (H ₂ O) ₃ ] _n. Science 283 (5405), 1148–1150. doi:10.1126/science.283.5405.1148

PubMed Abstract | CrossRef Full Text | Google Scholar

Cirujano, F. G., Martín, N., Almora-Barrios, N., and Martí-Gastaldo, C. (2021). Catalytic activity of a CuGHK peptide-based porous material. Catal. Sci. and Technol. 11 (18), 6053–6057. doi:10.1039/D1CY00670C

CrossRef Full Text | Google Scholar

Coluccia, M., Parisse, V., Guglielmi, P., Giannini, G., and Secci, D. (2022). Metal-organic frameworks (MOFs) as biomolecules drug delivery systems for anticancer purposes. Eur. J. Med. Chem. 244, 114801. doi:10.1016/j.ejmech.2022.114801

PubMed Abstract | CrossRef Full Text | Google Scholar

Crespí Sánchez, N., Turnes Palomino, G., and Palomino Cabello, C. (2021). TiO2 derived from NTU-9 metal-organic framework as highly efficient photocatalyst. Mater. Sci. Eng. B 273, 115424. doi:10.1016/j.mseb.2021.115424

CrossRef Full Text | Google Scholar

Cun, J. E., Fan, X., Pan, Q., Gao, W., Luo, K., He, B., et al. (2022). Copper-based metal-organic frameworks for biomedical applications. Adv. Colloid Interface Sci. 305, 102686. doi:10.1016/j.cis.2022.102686

PubMed Abstract | CrossRef Full Text | Google Scholar

Davis, S., Simpson, E., Hamilton, J., James, M. M., Rawdin, A., Wong, R., et al. (2020). Denosumab, raloxifene, romosozumab and teriparatide to prevent osteoporotic fragility fractures: a systematic review and economic evaluation. Health Technol. Assess. 24 (29), 1–314. doi:10.3310/hta24290

PubMed Abstract | CrossRef Full Text | Google Scholar

Deng, X., Liang, S., Cai, X., Huang, S., Cheng, Z., Shi, Y., et al. (2019). Yolk–shell structured Au Nanostar@Metal–organic framework for synergistic chemo-photothermal therapy in the second near-infrared window. Nano Lett. 19 (10), 6772–6780. doi:10.1021/acs.nanolett.9b01716

PubMed Abstract | CrossRef Full Text | Google Scholar

Deng, C., Zhang, Q., He, P., Zhou, B., He, K., Sun, X., et al. (2021). Targeted apoptosis of macrophages and osteoclasts in arthritic joints is effective against advanced inflammatory arthritis. Nat. Commun. 12 (1), 2174. doi:10.1038/s41467-021-22454-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Di Palma, G., Geels, S., Carpenter, B. P., Talosig, R. A., Chen, C., Marangoni, F., et al. (2022). Cyclodextrin metal-organic framework-based protein biocomposites. Biomater. Sci. 10 (23), 6749–6754. doi:10.1039/d2bm01240e

PubMed Abstract | CrossRef Full Text | Google Scholar

Díaz de Greñu, B., Torres, J., García-González, J., Muñoz-Pina, S., de los Reyes, R., Costero, A. M., et al. (2021). Microwave-assisted synthesis of covalent organic frameworks: a review. ChemSusChem 14 (1), 208–233. doi:10.1002/cssc.202001865

PubMed Abstract | CrossRef Full Text | Google Scholar

Duan, M., Jiang, L., Zeng, G., Wang, D., Tang, W., Liang, J., et al. (2020). Bimetallic nanoparticles/metal-organic frameworks: synthesis, applications and challenges. Appl. Mater. Today 19, 100564. doi:10.1016/j.apmt.2020.100564

CrossRef Full Text | Google Scholar

Duda, G. N., Geissler, S., Checa, S., Tsitsilonis, S., Petersen, A., and Schmidt-Bleek, K. (2023). The decisive early phase of bone regeneration. Nat. Rev. Rheumatol. 19 (2), 78–95. doi:10.1038/s41584-022-00887-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Eddaoudi, M., Kim, J., Rosi, N., Vodak, D., Wachter, J., O'Keeffe, M., et al. (2002). Systematic design of pore size and functionality in isoreticular MOFs and their application in methane storage. Science 295 (5554), 469–472. doi:10.1126/science.1067208

PubMed Abstract | CrossRef Full Text | Google Scholar

Eivazzadeh-Keihan, R., Bahojb Noruzi, E., Khanmohammadi Chenab, K., Jafari, A., Radinekiyan, F., Hashemi, S. M., et al. (2020). Metal-based nanoparticles for bone tissue engineering. J. Tissue Eng. Regen. Med. 14 (12), 1687–1714. doi:10.1002/term.3131

PubMed Abstract | CrossRef Full Text | Google Scholar

Fan, M., Yan, J., Cui, Q., Shang, R., Zuo, Q., Gong, L., et al. (2023). Synthesis and peroxide activation mechanism of bimetallic MOF for water contaminant degradation: a review. Molecules 28 (8), 3622. doi:10.3390/molecules28083622

PubMed Abstract | CrossRef Full Text | Google Scholar

Farjaminejad, S., Farjaminejad, R., and Garcia-Godoy, F. (2024). Nanoparticles in bone regeneration: a narrative review of current advances and future directions in tissue engineering. J. Funct. Biomater. 15 (9), 241. doi:10.3390/jfb15090241

PubMed Abstract | CrossRef Full Text | Google Scholar

Feng, H., Li, Z., Xie, W., Wan, Q., Guo, Y., Chen, J., et al. (2022). Delivery of therapeutic miRNAs using nanoscale zeolitic imidazolate framework for accelerating vascularized bone regeneration. Chem. Eng. J. 430, 132867. doi:10.1016/j.cej.2021.132867

CrossRef Full Text | Google Scholar

Feng, P., Zhao, R., Tang, W., Yang, F., Tian, H., Peng, S., et al. (2023). Structural and functional adaptive artificial bone: materials, fabrications, and properties. Adv. Funct. Mater. 33 (23), 2214726. doi:10.1002/adfm.202214726

CrossRef Full Text | Google Scholar

Feng, P., He, R., Gu, Y., Yang, F., Pan, H., and Shuai, C. (2024). Construction of antibacterial bone implants and their application in bone regeneration. Mater. Horizons 11 (3), 590–625. doi:10.1039/D3MH01298K

PubMed Abstract | CrossRef Full Text | Google Scholar

Fernández-Paz, C., Rojas, S., Salcedo-Abraira, P., Simón-Yarza, T., Remuñán-López, C., and Horcajada, P. (2020). Metal–organic framework microsphere formulation for pulmonary administration. ACS Appl. Mater. and Interfaces 12 (23), 25676–25682. doi:10.1021/acsami.0c07356

PubMed Abstract | CrossRef Full Text | Google Scholar

Flynn, C. D., Chang, D., Mahmud, A., Yousefi, H., Das, J., Riordan, K. T., et al. (2023). Biomolecular sensors for advanced physiological monitoring. Nat. Rev. Bioeng. 1, 560–575. doi:10.1038/s44222-023-00067-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Foessl, I., Dimai, H. P., and Obermayer-Pietsch, B. (2023). Long-term and sequential treatment for osteoporosis. Nat. Rev. Endocrinol. 19 (9), 520–533. doi:10.1038/s41574-023-00866-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Gagliardi, L., and Yaghi, O. M. (2023). Three future directions for metal–organic frameworks. Chem. Mater. 35 (15), 5711–5712. doi:10.1021/acs.chemmater.3c01706

CrossRef Full Text | Google Scholar

Gao, M., Yang, C., Wu, C., Chen, Y., Zhuang, H., Wang, J., et al. (2022). Hydrogel-metal-organic-framework hybrids mediated efficient oral delivery of siRNA for the treatment of ulcerative colitis. J. Nanobiotechnology 20 (1), 404. doi:10.1186/s12951-022-01603-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Gao, W., Song, Y., Wu, F., Xu, S., Liu, B., Zeng, L., et al. (2024). Tumor-targeted metal-organic framework for improved photodynamic therapy and inhibited tumor metastasis in melanoma. ACS Appl. Mater Interfaces 16 (50), 69769–69788. doi:10.1021/acsami.4c18058

PubMed Abstract | CrossRef Full Text | Google Scholar

Gatou, M. A., Vagena, I. A., Lagopati, N., Pippa, N., Gazouli, M., and Pavlatou, E. A. (2023). Functional MOF-based materials for environmental and biomedical applications: a critical review. Nanomater. (Basel) 13 (15), 2224. doi:10.3390/nano13152224

PubMed Abstract | CrossRef Full Text | Google Scholar

Ge, Y., Wang, K., Li, H., Tian, Y., Wu, Y., Lin, Z., et al. (2021). An Mg-MOFs based multifunctional medicine for the treatment of osteoporotic pain. Mater. Sci. Eng. C 129, 112386. doi:10.1016/j.msec.2021.112386

PubMed Abstract | CrossRef Full Text | Google Scholar

Ge, J., Mengting, L., Jiahui, F., Christian, C., Yijun, X., Qing, C., et al. (2024). Synthesis, characterization, and antibacterial activity of chitosan-chelated silver nanoparticles. J. Biomaterials Sci. Polym. Ed. 35 (1), 45–62. doi:10.1080/09205063.2023.2265629

CrossRef Full Text | Google Scholar

Ghasemi, S., Esmaeili, M., Dinari, M., Dabiri, A., and Karbasi, S. (2025). UiO-66 metal-organic framework (MOF) as an osteogenic stimulant in the poly-3-hydroxybutyrate-zein/UiO-66 electrospun composite scaffold for bone tissue engineering applications. J. Polym. Environ. 33 (4), 2001–2028. doi:10.1007/s10924-025-03521-8

CrossRef Full Text | Google Scholar

Ghovvati, M., Bolouri, K., Kaneko, N., and Zare, E. N. (2024). “Metal-organic frameworks in bone regeneration,” in Logic for Metal−Organic framework selection: MOFs for biomedical applications (American Chemical Society), 267–286. doi:10.1021/bk-2024-1463.ch011

CrossRef Full Text | Google Scholar

Gimeno, I., Luis, F., Marcuello, C., Pallarés, M. C., Lostao, A., de Ory, M. C., et al. (2025). Localized nanoscale formation of vanadyl porphyrin 2D MOF nanosheets and their optimal coupling to lumped element superconducting resonators. J. Phys. Chem. C 129 (1), 973–982. doi:10.1021/acs.jpcc.4c07265

PubMed Abstract | CrossRef Full Text | Google Scholar

Giri, S., Roy, M., Bandyopadhyay, S., Das, S., Mangal, S., and Samanta, S. (2025). Metal–organic frameworks: classifications, synthesis, structure–property–performance relationship, and techno-economic analysis of redox flow batteries. J. Mater. Chem. A 13 (25), 19193–19235. doi:10.1039/d5ta01469g

CrossRef Full Text | Google Scholar

Gong, L., Chen, L., Lin, Q., Wang, L., Zhang, Z., Ye, Y., et al. (2024). Nanoscale metal-organic frameworks as a photoluminescent platform for bioimaging and biosensing applications. Small 20 (45), e2402641. doi:10.1002/smll.202402641

PubMed Abstract | CrossRef Full Text | Google Scholar

Grancha, T., Carné-Sánchez, A., Zarekarizi, F., Hernández-López, L., Albalad, J., Khobotov, A., et al. (2021). Synthesis of polycarboxylate rhodium(II) metal–organic polyhedra (MOPs) and their use as building blocks for highly connected metal–organic frameworks (MOFs). Angew. Chem. Int. Ed. 60 (11), 5729–5733. doi:10.1002/anie.202013839

PubMed Abstract | CrossRef Full Text | Google Scholar

Guan, Q., Fang, Y., Wu, X., Ou, R., Zhang, X., Xie, H., et al. (2023). Stimuli responsive metal organic framework materials towards advanced smart application. Mater. Today 64, 138–164. doi:10.1016/j.mattod.2023.02.013

CrossRef Full Text | Google Scholar

Guillerm, V., and Eddaoudi, M. (2021). The importance of highly connected building units in reticular chemistry: thoughtful design of metal–organic frameworks. Accounts Chem. Res. 54 (17), 3298–3312. doi:10.1021/acs.accounts.1c00214

PubMed Abstract | CrossRef Full Text | Google Scholar

Guillerm, V., Jiang, H., Alezi, D., Alsadun, N., and Eddaoudi, M. (2024). From elementary to advanced design of functional metal–organic frameworks: a user guide to deciphering the reticular chemistry toolbox. Adv. Mater., 2414153. doi:10.1002/adma.202414153

PubMed Abstract | CrossRef Full Text | Google Scholar

Guo, S., Gao, M., Zhang, W., Liu, F., Guo, X., and Zhou, K. (2023). Recent advances in laser-induced synthesis of MOF derivatives. Adv. Mater 35 (52), e2303065. doi:10.1002/adma.202303065

PubMed Abstract | CrossRef Full Text | Google Scholar

Guo, T., Mashhadimoslem, H., Choopani, L., Salehi, M. M., Maleki, A., Elkamel, A., et al. (2024). Recent progress in MOF-Aerogel fabrication and applications. Small 20 (43), e2402942. doi:10.1002/smll.202402942

PubMed Abstract | CrossRef Full Text | Google Scholar

Hamedi, A., Anceschi, A., Patrucco, A., and Hasanzadeh, M. (2022). A γ-cyclodextrin-based metal–organic framework (γ-CD-MOF): a review of recent advances for drug delivery application. J. Drug Target. 30 (4), 381–393. doi:10.1080/1061186X.2021.2012683

PubMed Abstract | CrossRef Full Text | Google Scholar

Han, Y., Jia, X., Yang, Y., Guo, P., Li, C., Zhang, Y., et al. (2025). Study of bioactive 3D-printed scaffolds incorporating zinc-based MOF for bone defect repair and anti-inflammatory applications. Mater. Today Bio 32, 101884. doi:10.1016/j.mtbio.2025.101884

PubMed Abstract | CrossRef Full Text | Google Scholar

Harambage, K. (2025). Electrically conductive metal organic polymer: synthesis and Characterization.

Google Scholar

He, S., Wu, L., Li, X., Sun, H., Xiong, T., Liu, J., et al. (2021). Metal-organic frameworks for advanced drug delivery. Acta Pharm. Sin. B 11 (8), 2362–2395. doi:10.1016/j.apsb.2021.03.019

PubMed Abstract | CrossRef Full Text | Google Scholar

He, Z., Yang, H., Gu, Y., Xie, Y., Wu, J., Wu, C., et al. (2023). Green synthesis of MOF-mediated pH-sensitive nanomaterial AgNPs@ZIF-8 and its application in improving the antibacterial performance of AgNPs. Int. J. Nanomedicine 18, 4857–4870. doi:10.2147/ijn.S418308

PubMed Abstract | CrossRef Full Text | Google Scholar

Ho, P. H., Salles, F., Di Renzo, F., and Trens, P. (2020). One-pot synthesis of 5-FU@ZIF-8 and ibuprofen@ZIF-8 nanoparticles. Inorganica Chim. Acta 500, 119229. doi:10.1016/j.ica.2019.119229

CrossRef Full Text | Google Scholar

Horcajada, P., Serre, C., Vallet-Regí, M., Sebban, M., Taulelle, F., and Férey, G. (2006). Metal-organic frameworks as efficient materials for drug delivery. Angew. Chem. Int. Ed. Engl. 45 (36), 5974–5978. doi:10.1002/anie.200601878

PubMed Abstract | CrossRef Full Text | Google Scholar

Hosseini, S. M., Dehghan, H., and Safarifard, V. (2022). Enhancement of photocatalytic aerobic oxidation of benzyl alcohol with the incorporation of cobalt in Zn-based MOF via post-synthetic metal exchange. Polyhedron 212, 115581. doi:10.1016/j.poly.2021.115581

CrossRef Full Text | Google Scholar

Hou, C. C., Wang, Y., Zou, L., Wang, M., Liu, H., Liu, Z., et al. (2021). A gas-steamed MOF route to P-doped open carbon cages with enhanced Zn-ion energy storage capability and ultrastability. Adv. Mater 33 (31), e2101698. doi:10.1002/adma.202101698

PubMed Abstract | CrossRef Full Text | Google Scholar

Hsu, P. H., Chang, C. C., Wang, T. H., Lam, P. K., Wei, M. Y., Chen, C. T., et al. (2021). Rapid fabrication of biocomposites by encapsulating enzymes into Zn-MOF-74 via a mild water-based approach. ACS Appl. Mater Interfaces 13 (44), 52014–52022. doi:10.1021/acsami.1c09052

PubMed Abstract | CrossRef Full Text | Google Scholar

Hu, Z., Li, S., Wang, S., Zhang, B., and Huang, Q. (2021). Encapsulation of menthol into cyclodextrin metal-organic frameworks: preparation, structure characterization and evaluation of complexing capacity. Food Chem. 338, 127839. doi:10.1016/j.foodchem.2020.127839

PubMed Abstract | CrossRef Full Text | Google Scholar

Hu, X., Zhang, H., Wang, Y., Shiu, B.-C., Lin, J.-H., Zhang, S., et al. (2022). Synergistic antibacterial strategy based on photodynamic therapy: progress and perspectives. Chem. Eng. J. 450, 138129. doi:10.1016/j.cej.2022.138129

CrossRef Full Text | Google Scholar

Huang, L., Wang, H., Chen, J., Wang, Z., Sun, J., Zhao, D., et al. (2003). Synthesis, morphology control, and properties of porous metal–organic coordination polymers. Microporous Mesoporous Mater. 58 (2), 105–114. doi:10.1016/S1387-1811(02)00609-1

CrossRef Full Text | Google Scholar

Huang, R., Cai, G.-Q., Li, J., Li, X.-S., Liu, H.-T., Shang, X.-L., et al. (2021). Platelet membrane-camouflaged silver metal-organic framework drug system against infections caused by methicillin-resistant Staphylococcus aureus. J. Nanobiotechnology 19 (1), 229. doi:10.1186/s12951-021-00978-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Huo, S., Xie, Q., Zhang, M., Jiang, Z., Fu, L., Li, W., et al. (2023). H(2)S-removing UiO-66 MOFs for sensitized antibacterial therapy. J. Mater Chem. B 11 (25), 5817–5829. doi:10.1039/d3tb00552f

PubMed Abstract | CrossRef Full Text | Google Scholar

Huzum, B., Puha, B., Necoara, R. M., Gheorghevici, S., Puha, G., Filip, A., et al. (2021). Biocompatibility assessment of biomaterials used in orthopedic devices: an overview (Review). Exp. Ther. Med. 22 (5), 1315. doi:10.3892/etm.2021.10750

PubMed Abstract | CrossRef Full Text | Google Scholar

Iqbal, A., Ullah, H., Iqbal, M., Khan, M. S., Ullah, R. S., Gul, Z., et al. (2025). MOF UiO-66 and its composites: design strategies and applications in drug and antibiotic removal. Environ. Sci. Pollut. Res. Int. doi:10.1007/s11356-025-35922-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Ivanov, A. S., and Boldyrev, A. I. (2014). Deciphering aromaticity in porphyrinoids via adaptive natural density partitioning. Org. and Biomol. Chem. 12 (32), 6145–6150. doi:10.1039/C4OB01018C

PubMed Abstract | CrossRef Full Text | Google Scholar

Jagódka, P., Matus, K., and Łamacz, A. (2022). On the HKUST-1/GO and HKUST-1/rGO composites: the impact of synthesis method on physicochemical properties. Molecules 27 (20), 7082. doi:10.3390/molecules27207082

PubMed Abstract | CrossRef Full Text | Google Scholar

Jia, F., Ruan, L., Du, C., Liu, Y., Cai, X., Dou, R., et al. (2023). The nanoformula of zoledronic acid and calcium carbonate targets osteoclasts and reverses osteoporosis. Biomaterials 296, 122059. doi:10.1016/j.biomaterials.2023.122059

PubMed Abstract | CrossRef Full Text | Google Scholar

Jiang, H., Alezi, D., and Eddaoudi, M. (2021a). A reticular chemistry guide for the design of periodic solids. Nat. Rev. Mater. 6 (6), 466–487. doi:10.1038/s41578-021-00287-y

CrossRef Full Text | Google Scholar

Jiang, Q., Zhang, M., Sun, Q., Yin, D., Xuan, Z., and Yang, Y. (2021b). Enhancing the antitumor effect of doxorubicin with photosensitive metal–organic framework nanoparticles against breast cancer. Mol. Pharm. 18 (8), 3026–3036. doi:10.1021/acs.molpharmaceut.1c00249

PubMed Abstract | CrossRef Full Text | Google Scholar

Jiang, S., Wang, J., Zhu, Z., Shan, S., Mao, Y., Zhang, X., et al. (2022). The synthesis of nano bio-MOF-1 with a systematic evaluation on the biosafety and biocompatibility. Microporous Mesoporous Mater. 334, 111773. doi:10.1016/j.micromeso.2022.111773

CrossRef Full Text | Google Scholar

Jiang, H., Lou, C., Jiang, L., Lin, C., Wang, W., Yan, Z., et al. (2023). Simvastatin-enhanced bioinspired exosome mimetics regulate osteogenesis and angiogenesis for the treatment of glucocorticoid-induced osteonecrosis of the femoral head. Chem. Eng. J. 472, 144729. doi:10.1016/j.cej.2023.144729

CrossRef Full Text | Google Scholar

Jiang, H., Xia, W., Xia, T., Jiang, L., Yu, J., Zhu, X., et al. (2024). Chemotactic recruitment of genetically engineered cell membrane-camouflaged metal−organic framework nanoparticles for ischemic osteonecrosis treatment. Acta Biomater. 185, 410–428. doi:10.1016/j.actbio.2024.07.024

PubMed Abstract | CrossRef Full Text | Google Scholar

Kang, Y., Xu, C., Meng, L., Dong, X., Qi, M., and Jiang, D. (2022). Exosome-functionalized magnesium-organic framework-based scaffolds with osteogenic, angiogenic and anti-inflammatory properties for accelerated bone regeneration. Bioact. Mater 18, 26–41. doi:10.1016/j.bioactmat.2022.02.012

PubMed Abstract | CrossRef Full Text | Google Scholar

Khan, N. A., and Jhung, S. H. (2015). Synthesis of metal-organic frameworks (MOFs) with microwave or ultrasound: rapid reaction, phase-selectivity, and size reduction. Coord. Chem. Rev. 285, 11–23. doi:10.1016/j.ccr.2014.10.008

CrossRef Full Text | Google Scholar

Khosla, S., Samakkarnthai, P., Monroe, D. G., and Farr, J. N. (2021). Update on the pathogenesis and treatment of skeletal fragility in type 2 diabetes mellitus. Nat. Rev. Endocrinol. 17 (11), 685–697. doi:10.1038/s41574-021-00555-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Kim, Y. E., and Kim, J. (2022). ROS-scavenging therapeutic hydrogels for modulation of the inflammatory response. ACS Appl. Mater. Interfaces 14 (20), 23002–23021. doi:10.1021/acsami.1c18261

PubMed Abstract | CrossRef Full Text | Google Scholar

Lao, A., Wu, J., Li, D., Shen, A., Li, Y., Zhuang, Y., et al. (2023). Functionalized metal-organic framework-modified hydrogel that breaks the vicious cycle of inflammation and ROS for repairing of diabetic bone defects. Small 19 (36), e2206919. doi:10.1002/smll.202206919

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, D. J. W., Hodzic Kuerec, A., and Maier, A. B. (2024). Targeting ageing with rapamycin and its derivatives in humans: a systematic review. Lancet Healthy Longev. 5 (2), e152–e162. doi:10.1016/s2666-7568(23)00258-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, H., Eddaoudi, M., O'Keeffe, M., and Yaghi, O. M. (1999). Design and synthesis of an exceptionally stable and highly porous metal-organic framework. Nature 402 (6759), 276–279. doi:10.1038/46248

CrossRef Full Text | Google Scholar

Li, H., Shi, L., Li, C., Fu, X., Huang, Q., and Zhang, B. (2020a). Metal–organic framework based on α-cyclodextrin gives high ethylene gas adsorption capacity and storage stability. ACS Appl. Mater. Interfaces 12 (30), 34095–34104. doi:10.1021/acsami.0c08594

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, T., Qiu, H., Liu, N., Li, J., Bao, Y., and Tong, W. (2020b). Construction of self-activated cascade Metal−Organic framework/enzyme hybrid nanoreactors as antibacterial agents. Colloids Surfaces B Biointerfaces 191, 111001. doi:10.1016/j.colsurfb.2020.111001

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, Z., Li, Z. J., Li, S. J., Wang, K., Ma, F. B., and Tang, B. (2020c). Potential application development of Sr/HCOOH metal organic framework in osteoarthritis. Microporous Mesoporous Mater. 294, 109835. doi:10.1016/j.micromeso.2019.109835

CrossRef Full Text | Google Scholar

Li, Z., Peng, Y., Pang, X., and Tang, B. (2020d). Potential therapeutic effects of Mg/HCOOH metal organic framework on relieving osteoarthritis. ChemMedChem 15 (1), 13–16. doi:10.1002/cmdc.201900546

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, Z., Qiao, X., He, G., Sun, X., Feng, D., Hu, L., et al. (2020e). Core-satellite metal-organic framework@ upconversion nanoparticle superstructures via electrostatic self-assembly for efficient photodynamic theranostics. Nano Res. 13, 3377–3386. doi:10.1007/s12274-020-3025-0

CrossRef Full Text | Google Scholar

Li, J.-M., Xu, T.-Y., Zhao, Y.-L., Hu, X.-L., and He, K.-H. (2021a). Two 6/10-connected Cu12S6 cluster-based organic frameworks: crystal structure and proton conduction. Dalton Trans. 50 (21), 7484–7495. doi:10.1039/D1DT00782C

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, X., Li, B., Shi, Y., Wang, C., and Ye, L. (2021b). Targeting reactive oxygen species in stem cells for bone therapy. Drug Discov. Today 26 (5), 1226–1244. doi:10.1016/j.drudis.2021.03.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, M., Yin, S., Lin, M., Chen, X., Pan, Y., Peng, Y., et al. (2022a). Current status and prospects of metal–organic frameworks for bone therapy and bone repair. J. Mater. Chem. B 10 (27), 5105–5128. doi:10.1039/d2tb00742h

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, S., Wang, T., Tang, D., Yang, Y., Tian, Y., Cui, F., et al. (2022b). Metal-organic framework integrating ionic framework and bimetallic coupling effect for highly efficient oxygen evolution reaction. Adv. Sci. (Weinh) 9 (30), e2203712. doi:10.1002/advs.202203712

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, X., Zheng, H., Chen, J., Xu, M., Bai, Y., and Liu, T. (2022c). MIL-101 (Fe) @Ag rapid synergistic antimicrobial and biosafety evaluation of nanomaterials. Molecules 27 (11), 3497. doi:10.3390/molecules27113497

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, J., Huang, J. Y., Meng, Y. X., Li, L., Zhang, L. L., and Jiang, H. L. (2023a). Zr- and Ti-based metal-organic frameworks: synthesis, structures and catalytic applications. Chem. Commun. (Camb) 59 (18), 2541–2559. doi:10.1039/d2cc06948b

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, Y., Zhao, J., Wang, Y., Zhao, T., Song, Y., and Liang, F. (2023b). PEGylated chitosan decorated UiO-66 nanoscale metal–organic frameworks as promising carriers for drug delivery. Colloid Polym. Sci. 301 (12), 1475–1486. doi:10.1007/s00396-023-05165-3

CrossRef Full Text | Google Scholar

Li, Y., Zhu, J., Zhang, X., Li, Y., Zhang, S., Yang, L., et al. (2023c). Drug-delivery nanoplatform with synergistic regulation of angiogenesis-osteogenesis coupling for promoting vascularized bone regeneration. ACS Appl. Mater Interfaces 15 (14), 17543–17561. doi:10.1021/acsami.2c23107

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, Z., He, D., Guo, B., Wang, Z., Yu, H., Wang, Y., et al. (2023d). Self-promoted electroactive biomimetic mineralized scaffolds for bacteria-infected bone regeneration. Nat. Commun. 14 (1), 6963. doi:10.1038/s41467-023-42598-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, J., Yin, S., Zhou, L., Nezamzadeh-Ejhieh, A., Pan, Y., Qiu, L., et al. (2024). Advances in the study of metal-organic frameworks and their biomolecule composites for osteoporosis therapeutic applications. Biomater. Sci. 12 (23), 5912–5932. doi:10.1039/d4bm01081g

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, S., Lin, Y., Mo, C., Bi, J., Liu, C., Lu, Y., et al. (2024b). Application of metal-organic framework materials in regenerative medicine. J. Mater Chem. B 12 (35), 8543–8576. doi:10.1039/d4tb00226a

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, W., Liu, L., Li, X., Ren, H., Zhang, L., Parvez, M. K., et al. (2024c). A Ni(II)MOF-based hypersensitive dual-function luminescent sensor towards the 3-nitrotyrosine biomarker and 6-propyl-2-thiouracil antithyroid drug in urine. J. Mater Chem. B 12 (45), 11800–11809. doi:10.1039/d4tb01618a

PubMed Abstract | CrossRef Full Text | Google Scholar

Liang, W., Wied, P., Carraro, F., Sumby, C. J., Nidetzky, B., Tsung, C. K., et al. (2021). Metal-organic framework-based enzyme biocomposites. Chem. Rev. 121 (3), 1077–1129. doi:10.1021/acs.chemrev.0c01029

PubMed Abstract | CrossRef Full Text | Google Scholar

Liang, N., Ren, N., Feng, Z., Sun, Z., Dong, M., Wang, W., et al. (2022). Biomimetic metal-organic frameworks as targeted vehicles to enhance osteogenesis. Adv. Healthc. Mater 11 (12), e2102821. doi:10.1002/adhm.202102821

PubMed Abstract | CrossRef Full Text | Google Scholar

Lin, J., Zong, C., Chen, B., Wang, T., Xu, J., Du, J., et al. (2023a). Improvement in the healing of bone fractures using a cyclodextrin/Ni-MOF nanofibers network: the development of a novel substrate to increase the surface area with desirable functional properties. RSC Adv. 13 (9), 5600–5608. doi:10.1039/D2RA05464G

PubMed Abstract | CrossRef Full Text | Google Scholar

Lin, R., Chai, M., Zhou, Y., Chen, V., Bennett, T. D., and Hou, J. (2023b). Metal-organic framework glass composites. Chem. Soc. Rev. 52 (13), 4149–4172. doi:10.1039/d2cs00315e

PubMed Abstract | CrossRef Full Text | Google Scholar

Lin, Z., Liao, D., Jiang, C., Nezamzadeh-Ejhieh, A., Zheng, M., Yuan, H., et al. (2023c). Current status and prospects of MIL-based MOF materials for biomedicine applications. RSC Med. Chem. 14 (10), 1914–1933. doi:10.1039/d3md00397c

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, J., Huang, J., Zhang, L., and Lei, J. (2021). Multifunctional metal-organic framework heterostructures for enhanced cancer therapy. Chem. Soc. Rev. 50 (2), 1188–1218. doi:10.1039/d0cs00178c

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, J., Tan, Y., Shen, E., Liu, B., Tian, Y., Liang, L., et al. (2022a). Highly water-stable bimetallic organic framework MgCu-MOF74 for inhibiting bacterial infection and promoting bone regeneration. Biomed. Mater 17 (6), 065026. doi:10.1088/1748-605X/aca24c

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, X., Miao, Y., Liang, H., Diao, J., Hao, L., Shi, Z., et al. (2022b). 3D-printed bioactive ceramic scaffolds with biomimetic micro/nano-HAp surfaces mediated cell fate and promoted bone augmentation of the bone-implant interface in vivo. Bioact. Mater 12, 120–132. doi:10.1016/j.bioactmat.2021.10.016

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., Chen, P., Wang, Y., Suo, J., Ding, J., Zhu, L., et al. (2022c). Design and synthesis of a zeolitic organic framework. Angew. Chem. Int. Ed. Engl. 61 (24), e202203584. doi:10.1002/anie.202203584

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., Li, H., Liu, W., Guo, J., Yang, H., Tang, H., et al. (2022d). Design of monovalent cerium-based metal organic frameworks as bioinspired superoxide dismutase mimics for ionizing radiation protection. ACS Appl. Mater Interfaces 14 (49), 54587–54597. doi:10.1021/acsami.2c17358

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., Xu, Z., Qiao, M., Cai, H., and Zhu, Z. (2022e). Metal-based nano-delivery platform for treating bone disease and regeneration. Front. Chem. 10, 955993. doi:10.3389/fchem.2022.955993

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, L., Wu, J., Lv, S., Xu, D., Li, S., Hou, W., et al. (2023). Synergistic effect of hierarchical topographic structure on 3D-printed Titanium scaffold for enhanced coupling of osteogenesis and angiogenesis. Mater. Today Bio 23, 100866. doi:10.1016/j.mtbio.2023.100866

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, C., Xie, Y., Zhang, Y., Sun, Y., Wang, Y., Han, B., et al. (2024a). MOF-based guided bone regeneration membrane for promoting osteogenesis by regulating bone microenvironment through cascade effects. Adv. Healthc. Mater., 2403187. doi:10.1002/adhm.202403187

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., Wang, S., Quan, C., Luan, S., Shi, H., and Wang, L. (2024b). Metal–organic framework-based platforms for implantation applications: recent advances and challenges. J. Mater. Chem. B 12 (3), 637–649. doi:10.1039/D3TB02620E

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, A., Wang, C., Deng, S., Zhang, S., Zhao, Z., Xiao, H., et al. (2025a). Application of light-responsive nanomaterials in bone tissue engineering. Pharmaceutics 17 (1), 98. doi:10.3390/pharmaceutics17010098

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, S., Lu, M., Zhang, M., Sun, X., Luo, B., and Wu, Y. (2025b). Multifaceted catalytic glucose depletion and reactive oxygen species-scavenging nanoenzyme composite hydrogel for facilitating diabetic bone regeneration. ACS Nano 19 (2), 2677–2694. doi:10.1021/acsnano.4c14596

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., Yuan, K., Lin, Y., Yang, Y., Kong, W., Shan, J., et al. (2025c). Directional freeze-casting cryogel loaded with quaternized chitosan modified gallium metal-organic frameworks to capture and eradicate the resistant bacteria for guided regeneration in infected bone defects. Adv. Mater 37, e2414437. doi:10.1002/adma.202414437

PubMed Abstract | CrossRef Full Text | Google Scholar

Lo Presti, F., Pellegrino, A. L., Consoli, N., and Malandrino, G. (2023). Green ultrasound-assisted synthesis of rare-earth-based MOFs. Molecules 28 (16), 6088. doi:10.3390/molecules28166088

PubMed Abstract | CrossRef Full Text | Google Scholar

Lozano Pérez, A. S., Lozada Castro, J. J., and Guerrero Fajardo, C. A. (2024). Application of microwave energy to biomass: a comprehensive review of microwave-assisted technologies, optimization parameters, and the strengths and weaknesses. J. Manuf. Mater. Process. 8 (3), 121. doi:10.3390/jmmp8030121

CrossRef Full Text | Google Scholar

Lu, T., Ji, S., Jin, W., Yang, Q., Luo, Q., and Ren, T.-L. (2023). Biocompatible and long-term monitoring strategies of wearable, ingestible and implantable biosensors: reform the next generation healthcare. Sensors 23 (6), 2991. doi:10.3390/s23062991

PubMed Abstract | CrossRef Full Text | Google Scholar

Luo, C., Wang, C., Wu, X., Xie, X., Wang, C., Zhao, C., et al. (2021). Influence of porous tantalum scaffold pore size on osteogenesis and osteointegration: a comprehensive study based on 3D-printing technology. Mater Sci. Eng. C Mater Biol. Appl. 129, 112382. doi:10.1016/j.msec.2021.112382

PubMed Abstract | CrossRef Full Text | Google Scholar

Luo, Z., Ma, J., Wang, Y., Du, Y., Liu, Y., Zhang, W., et al. (2024). Application of Mg-MOF-loaded gelatin microspheres with osteogenic, angiogenic, and ROS scavenging capabilities in bone defect repair. Int. J. Biol. Macromol. 280 (Pt 2), 135721. doi:10.1016/j.ijbiomac.2024.135721

PubMed Abstract | CrossRef Full Text | Google Scholar

Lv, X.-L., Feng, L., Xie, L.-H., He, T., Wu, W., Wang, K.-Y., et al. (2021). Linker desymmetrization: access to a series of rare-earth tetracarboxylate frameworks with eight-connected hexanuclear nodes. J. Am. Chem. Soc. 143 (7), 2784–2791. doi:10.1021/jacs.0c11546

PubMed Abstract | CrossRef Full Text | Google Scholar

Lyu, H., Chen, O.I.-F., Hanikel, N., Hossain, M. I., Flaig, R. W., Pei, X., et al. (2022). Carbon dioxide capture chemistry of amino acid functionalized metal–organic frameworks in humid flue gas. J. Am. Chem. Soc. 144 (5), 2387–2396. doi:10.1021/jacs.1c13368

PubMed Abstract | CrossRef Full Text | Google Scholar

Ma, S., Sun, D., Simmons, J. M., Collier, C. D., Yuan, D., and Zhou, H. C. (2008). Metal-organic framework from an anthracene derivative containing nanoscopic cages exhibiting high methane uptake. J. Am. Chem. Soc. 130 (3), 1012–1016. doi:10.1021/ja0771639

PubMed Abstract | CrossRef Full Text | Google Scholar

Ma, D., Wang, G., Lu, J., Zeng, X., Cheng, Y., Zhang, Z., et al. (2023). Multifunctional nano MOF drug delivery platform in combination therapy. Eur. J. Med. Chem. 261, 115884. doi:10.1016/j.ejmech.2023.115884

PubMed Abstract | CrossRef Full Text | Google Scholar

Ma, L., Cheng, Y., Feng, X., Zhang, X., Lei, J., Wang, H., et al. (2024). A janus-ROS healing system promoting infectious bone regeneration via sono-epigenetic modulation. Adv. Mater 36 (2), e2307846. doi:10.1002/adma.202307846

PubMed Abstract | CrossRef Full Text | Google Scholar

Maia, F. R., Bastos, A. R., Oliveira, J. M., Correlo, V. M., and Reis, R. L. (2022). Recent approaches towards bone tissue engineering. Bone 154, 116256. doi:10.1016/j.bone.2021.116256

PubMed Abstract | CrossRef Full Text | Google Scholar

Manzari, M. T., Shamay, Y., Kiguchi, H., Rosen, N., Scaltriti, M., and Heller, D. A. (2021). Targeted drug delivery strategies for precision medicines. Nat. Rev. Mater 6 (4), 351–370. doi:10.1038/s41578-020-00269-6

PubMed Abstract | CrossRef Full Text | Google Scholar

McKinlay, A. C., Morris, R. E., Horcajada, P., Férey, G., Gref, R., Couvreur, P., et al. (2010). BioMOFs: metal–organic frameworks for biological and medical applications. Angew. Chem. Int. Ed. 49 (36), 6260–6266. doi:10.1002/anie.201000048

PubMed Abstract | CrossRef Full Text | Google Scholar

Mendt, M., Maliuta, M., Ehrling, S., Schwotzer, F., Senkovska, I., Kaskel, S., et al. (2022). Mixed-metal Ni²⁺–Mn²⁺ paddle wheels in the metal–organic framework DUT-8(Ni_1–xMn_x) as electron paramagnetic resonance probes for monitoring the structural phase transition. J. Phys. Chem. C 126 (1), 625–633. doi:10.1021/acs.jpcc.1c08379

CrossRef Full Text | Google Scholar

Metsemakers, W. J., Moriarty, T. F., Morgenstern, M., Marais, L., Onsea, J., O'Toole, R. V., et al. (2024). The global burden of fracture-related infection: can we do better? Lancet Infect. Dis. 24 (6), e386–e393. doi:10.1016/s1473-3099(23)00503-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Molavi, H., Mirzaei, K., Barjasteh, M., Rahnamaee, S. Y., Saeedi, S., Hassanpouryouzband, A., et al. (2024). 3D-Printed MOF monoliths: fabrication strategies and environmental applications. Nanomicro Lett. 16 (1), 272. doi:10.1007/s40820-024-01487-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Mukherjee, A., and Das, B. (2024). The role of inflammatory mediators and matrix metalloproteinases (MMPs) in the progression of osteoarthritis. Biomaterials Biosyst. 13, 100090. doi:10.1016/j.bbiosy.2024.100090

PubMed Abstract | CrossRef Full Text | Google Scholar

Neto, N., Dmitriev, R. I., and Monaghan, M. G. (2020). “Seeing is believing: noninvasive microscopic imaging modalities for tissue engineering and regenerative medicine,” in Cell engineering and regeneration. Editors J. M. Gimble, D. Marolt Presen, R. O. C. Oreffo, S. Wolbank, and H. Redl (Cham: Springer International Publishing), 599–638.

CrossRef Full Text | Google Scholar

Pan, C., Ou, M., Cheng, Q., Zhou, Y., Yu, Y., Li, Z., et al. (2020a). Z-scheme heterojunction functionalized pyrite nanosheets for modulating tumor microenvironment and strengthening photo/chemodynamic therapeutic effects. Adv. Funct. Mater. 30 (3), 1906466. doi:10.1002/adfm.201906466

CrossRef Full Text | Google Scholar

Pan, X., Wang, W., Huang, Z., Liu, S., Guo, J., Zhang, F., et al. (2020b). MOF-derived double-layer hollow nanoparticles with oxygen generation ability for multimodal imaging-guided sonodynamic therapy. Angew. Chem. Int. Ed. 59 (32), 13557–13561. doi:10.1002/anie.202004894

PubMed Abstract | CrossRef Full Text | Google Scholar

Pan, Y., Wang, J., Jiang, Z., Guo, Q., Zhang, Z., Li, J., et al. (2022). Zoledronate combined metal-organic frameworks for bone-targeting and drugs deliveries. Sci. Rep. 12 (1), 12290. doi:10.1038/s41598-022-15941-w

PubMed Abstract | CrossRef Full Text | Google Scholar

Pan, K., Li, Q., Guo, Z., and Li, Z. (2025). Healing action of Interleukin-4 (IL-4) in acute and chronic inflammatory conditions: mechanisms and therapeutic strategies. Pharmacol. and Ther. 265, 108760. doi:10.1016/j.pharmthera.2024.108760

PubMed Abstract | CrossRef Full Text | Google Scholar

Pang, Y., Fu, Y., Li, C., Wu, Z., Cao, W., Hu, X., et al. (2020). Metal-organic framework nanoparticles for ameliorating breast cancer-associated osteolysis. Nano Lett. 20 (2), 829–840. doi:10.1021/acs.nanolett.9b02916

PubMed Abstract | CrossRef Full Text | Google Scholar

Pascanu, V., González Miera, G., Inge, A. K., and Martín-Matute, B. (2019). Metal–organic frameworks as catalysts for organic synthesis: a critical perspective. J. Am. Chem. Soc. 141 (18), 7223–7234. doi:10.1021/jacs.9b00733

PubMed Abstract | CrossRef Full Text | Google Scholar

Phan, P. T., Hong, J., Tran, N., and Le, T. H. (2023). The properties of microwave-assisted synthesis of metal-organic frameworks and their applications. Nanomater. (Basel) 13 (2), 352. doi:10.3390/nano13020352

PubMed Abstract | CrossRef Full Text | Google Scholar

Popescu, I., Turtoi, M., Suflet, D. M., Dinu, M. V., Darie-Nita, R. N., Anghelache, M., et al. (2021). Alginate/poloxamer hydrogel obtained by thiol-acrylate photopolymerization for the alleviation of the inflammatory response of human keratinocytes. Int. J. Biol. Macromol. 180, 418–431. doi:10.1016/j.ijbiomac.2021.03.082

PubMed Abstract | CrossRef Full Text | Google Scholar

Pourmadadi, M., Ostovar, S., Eshaghi, M. M., Rajabzadeh-Khosroshahi, M., Safakhah, S., Ghotekar, S., et al. (2023). Nanoscale metallic-organic frameworks as an advanced tool for medical applications: challenges and recent progress. Appl. Organomet. Chem. 37 (3), e6982. doi:10.1002/aoc.6982

CrossRef Full Text | Google Scholar

Qi, T., Weng, J., Yu, F., Zhang, W., Li, G., Qin, H., et al. (2021). Insights into the role of magnesium ions in affecting osteogenic differentiation of mesenchymal stem cells. Biol. Trace Elem. Res. 199 (2), 559–567. doi:10.1007/s12011-020-02183-y

PubMed Abstract | CrossRef Full Text | Google Scholar

Qiao, X., Yang, J., Shang, Y., Deng, S., Yao, S., Wang, Z., et al. (2020). Magnesium-doped nanostructured titanium surface modulates macrophage-mediated inflammatory response for ameliorative osseointegration. Int. J. Nanomedicine 15, 7185–7198. doi:10.2147/ijn.S239550

PubMed Abstract | CrossRef Full Text | Google Scholar

Qin, D., Lei, S., Zhang, B., Liu, Y., Tian, J., Ji, X., et al. (2024). Influence of interactions between bubbles on physico-chemical effects of acoustic cavitation. Ultrason. Sonochemistry 104, 106808. doi:10.1016/j.ultsonch.2024.106808

PubMed Abstract | CrossRef Full Text | Google Scholar

Qin, K., Huang, X., Wang, S., Liang, J., and Fan, Z. (2025). 3D-Printed in situ growth of bilayer MOF hydrogels for accelerated osteochondral defect repair. Adv. Healthc. Mater 14 (2), e2403840. doi:10.1002/adhm.202403840

PubMed Abstract | CrossRef Full Text | Google Scholar

Qing, Y., Li, R., Li, S., Li, Y., Wang, X., and Qin, Y. (2020). Advanced black phosphorus nanomaterials for bone regeneration. Int. J. Nanomedicine 15, 2045–2058. doi:10.2147/ijn.S246336

PubMed Abstract | CrossRef Full Text | Google Scholar

Qu, Y., Zhuang, H., Zhang, M., Wang, Y., Zhai, D., Ma, B., et al. (2021). Bone cements for therapy and regeneration for minimally invasive treatment of neoplastic bone defects. J. Mater Chem. B 9 (21), 4355–4364. doi:10.1039/d1tb00703c

PubMed Abstract | CrossRef Full Text | Google Scholar

Qu, Y., Zeng, H., Wang, L., Ge, Z., Liu, B., and Fan, Z. (2024). Microenvironment-regulated dual-layer microneedle patch for promoting periodontal soft and hard tissue regeneration in diabetic periodontitis. Adv. Funct. Mater. 35, 2418076. doi:10.1002/adfm.202418076

CrossRef Full Text | Google Scholar

Raffa, M. L., Nguyen, V.-H., Hernigou, P., Flouzat-Lachaniette, C.-H., and Haiat, G. (2021). Stress shielding at the bone-implant interface: influence of surface roughness and of the bone-implant contact ratio. J. Orthop. Res. 39 (6), 1174–1183. doi:10.1002/jor.24840

PubMed Abstract | CrossRef Full Text | Google Scholar

Ramanathan, S., Lin, Y. C., Thirumurugan, S., Hu, C. C., Duann, Y. F., and Chung, R. J. (2024). Poly(methyl methacrylate) in orthopedics: strategies, challenges, and prospects in bone tissue engineering. Polym. (Basel) 16 (3), 367. doi:10.3390/polym16030367

PubMed Abstract | CrossRef Full Text | Google Scholar

Rao, Y., Li, X., Xi, H., Jiang, Z., Li, W., Zhou, H., et al. (2025). A highly connected metal–organic framework with stretched inorganic units for propylene/ethylene separation. J. Mater. Chem. A 13 (16), 11382–11388. doi:10.1039/D5TA00771B

CrossRef Full Text | Google Scholar

Rauf, A., Javed, M., Jahangir, M., Hassan, M., Tariq, A., Ali, W., et al. (2024). Zinc-based metal–organic frameworks for encapsulation and sustained release of ciprofloxacin for excellent antibacterial activities. J. Chem. Technol. and Biotechnol. 99 (12), 2545–2552. doi:10.1002/jctb.7736

CrossRef Full Text | Google Scholar

Ren, S., Yu, H., Wang, L., Huang, Z., Lin, T., Huang, Y., et al. (2022). State of the art and prospects in metal-organic framework-derived microwave absorption materials. Nano-Micro Lett. 14 (1), 68. doi:10.1007/s40820-022-00808-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Rohra, N., Gaikwad, G., Dandekar, P., and Jain, R. (2022). Microfluidic synthesis of a bioactive metal–organic framework for glucose-responsive insulin delivery. ACS Appl. Mater. and Interfaces 14 (6), 8251–8265. doi:10.1021/acsami.1c22153

PubMed Abstract | CrossRef Full Text | Google Scholar

Rojas-Buzo, S., Bohigues, B., Lopes, C. W., Meira, D. M., Boronat, M., Moliner, M., et al. (2021). Tailoring Lewis/Brønsted acid properties of MOF nodes via hydrothermal and solvothermal synthesis: simple approach with exceptional catalytic implications. Chem. Sci. 12 (29), 10106–10115. doi:10.1039/D1SC02833B

PubMed Abstract | CrossRef Full Text | Google Scholar

Sadek, A. A., Abd-Elkareem, M., Abdelhamid, H. N., Moustafa, S., and Hussein, K. (2022). Enhancement of critical-sized bone defect regeneration using UiO-66 nanomaterial in rabbit femurs. BMC Vet. Res. 18 (1), 260. doi:10.1186/s12917-022-03347-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Salama, E., Hamdy, A., Hassan, H. S., Amer, W. A., Ebeid, E.-Z. M., Ossman, M., et al. (2022). Evaluation of Zn adenine-based bio-MOF for efficient remediation of different types of dyes. Adsorpt. Sci. and Technol. 2022, 6818348. doi:10.1155/2022/6818348

CrossRef Full Text | Google Scholar

Salcedo-Abraira, P., Fernández-Grajera, M., Guerrero-Román, F. A., Rodríguez-Diéguez, A., Luque-Agudo, V., González-Martín, M. L., et al. (2025). Calcium medronate-based metal–organic frameworks as multifunctional biomaterials. Cryst. Growth Des. 25 (5), 1415–1422. doi:10.1021/acs.cgd.4c01478

PubMed Abstract | CrossRef Full Text | Google Scholar

Sezgin, P., Gulcay-Ozcan, E., Vučkovski, M., Bondžić, A. M., Erucar, I., and Keskin, S. (2025). Biomedical applications of metal–organic frameworks revisited. Industrial Eng. Chem. Res. 64 (4), 1907–1932. doi:10.1021/acs.iecr.4c03698

PubMed Abstract | CrossRef Full Text | Google Scholar

Shen, X., Hii Ru Yie, K., Wu, X., Zhou, Z., Sun, A., Al-Bishari, A. M., et al. (2022). Improvement of aqueous stability and anti-osteoporosis properties of Zn-MOF coatings on titanium implants by hydrophobic raloxifene. Chem. Eng. J. 430, 133094. doi:10.1016/j.cej.2021.133094

CrossRef Full Text | Google Scholar

Sheng, K., Zheng, X., Gao, Y., Long, J., Bao, T., and Wang, S. (2024). Fabrication of metal-organic frameworks containing Cu2+ coated medical PVC catheters with durable antiplatelet and antibacterial activities. Colloids Surfaces A Physicochem. Eng. Aspects 700, 134779. doi:10.1016/j.colsurfa.2024.134779

CrossRef Full Text | Google Scholar

Shi, D., Li, Y., Tian, M., Xue, M., Wang, J., and An, H. (2025). Nanomaterials-based drug delivery systems for therapeutic applications in osteoporosis. Adv. Biol., 2400721. doi:10.1002/adbi.202400721

PubMed Abstract | CrossRef Full Text | Google Scholar

Shinde, S., Folliero, V., Chianese, A., Zannella, C., De Filippis, A., Rosati, L., et al. (2021). Synthesis of chitosan-coated silver nanoparticle bioconjugates and their antimicrobial activity against multidrug-resistant bacteria. Appl. Sci. 11 (19), 9340. doi:10.3390/app11199340

CrossRef Full Text | Google Scholar

Shirazi, S., Ravindran, S., and Cooper, L. F. (2022). Topography-mediated immunomodulation in osseointegration; ally or enemy. Biomaterials 291, 121903. doi:10.1016/j.biomaterials.2022.121903

PubMed Abstract | CrossRef Full Text | Google Scholar

Shu, C., Qin, C., Chen, L., Wang, Y., Shi, Z., Yu, J., et al. (2023). Metal-organic framework functionalized bioceramic scaffolds with antioxidative activity for enhanced osteochondral regeneration. Adv. Sci. (Weinh) 10 (13), e2206875. doi:10.1002/advs.202206875

PubMed Abstract | CrossRef Full Text | Google Scholar

Shyngys, M., Ren, J., Liang, X., Miao, J., Blocki, A., and Beyer, S. (2021). Metal-organic framework (MOF)-Based biomaterials for tissue engineering and regenerative medicine. Front. Bioeng. Biotechnol. 9, 603608. doi:10.3389/fbioe.2021.603608

PubMed Abstract | CrossRef Full Text | Google Scholar

Si, Y., Liu, H., Yu, H., Jiang, X., and Sun, D. (2022). MOF-derived CuO@ZnO modified titanium implant for synergistic antibacterial ability, osteogenesis and angiogenesis. Colloids Surfaces B Biointerfaces 219, 112840. doi:10.1016/j.colsurfb.2022.112840

PubMed Abstract | CrossRef Full Text | Google Scholar

Si, Y., Liu, H., Li, M., Jiang, X., Yu, H., and Sun, D. (2023). An efficient metal–organic framework-based drug delivery platform for synergistic antibacterial activity and osteogenesis. J. Colloid Interface Sci. 640, 521–539. doi:10.1016/j.jcis.2023.02.149

PubMed Abstract | CrossRef Full Text | Google Scholar

Singh, N., Qutub, S., and Khashab, N. M. (2021). Biocompatibility and biodegradability of metal organic frameworks for biomedical applications. J. Mater. Chem. B 9 (30), 5925–5934. doi:10.1039/d1tb01044a

PubMed Abstract | CrossRef Full Text | Google Scholar

Solaimuthu, A., Vijayan, A. N., Murali, P., and Korrapati, P. S. (2020). Nano-biosensors and their relevance in tissue engineering. Curr. Opin. Biomed. Eng. 13, 84–93. doi:10.1016/j.cobme.2019.12.005

CrossRef Full Text | Google Scholar

Sontz, P. A., Bailey, J. B., Ahn, S., and Tezcan, F. A. (2015). A metal organic framework with spherical protein nodes: rational chemical design of 3D protein crystals. J. Am. Chem. Soc. 137 (36), 11598–11601. doi:10.1021/jacs.5b07463

PubMed Abstract | CrossRef Full Text | Google Scholar

Stillman, Z. S., Decker, G. E., Dworzak, M. R., Bloch, E. D., and Fromen, C. A. (2023). Aluminum-based metal-organic framework nanoparticles as pulmonary vaccine adjuvants. J. Nanobiotechnology 21 (1), 39. doi:10.1186/s12951-023-01782-w

PubMed Abstract | CrossRef Full Text | Google Scholar

Sun, X. (2022). Glucose detection through surface-enhanced Raman spectroscopy: a review. Anal. Chim. Acta 1206, 339226. doi:10.1016/j.aca.2021.339226

PubMed Abstract | CrossRef Full Text | Google Scholar

Sun, X., Xu, X., Zhao, X., Ma, J., Wang, T., Yue, X., et al. (2025). Three-dimensional bioprinted scaffolds loaded with multifunctional magnesium-based metal–organic frameworks improve the senescence microenvironment prompting aged bone defect repair. ACS Nano 19 (24), 22141–22162. doi:10.1021/acsnano.5c03023

PubMed Abstract | CrossRef Full Text | Google Scholar

Tan, B., Zheng, Y., Hao, J., Yang, Q., Luo, X., Li, Q., et al. (2025). Intra-articular injection of MOF-based nanomaterials for the treatment of osteoarthritis by modulating the bone microenvironment. Adv. Compos. Hybrid Mater. 8 (1), 126. doi:10.1007/s42114-025-01219-y

CrossRef Full Text | Google Scholar

Tao, H., Ge, G., Liang, X., Zhang, W., Sun, H., Li, M., et al. (2020). ROS signaling cascades: dual regulations for osteoclast and osteoblast. Acta Biochimica Biophysica Sinica 52 (10), 1055–1062. doi:10.1093/abbs/gmaa098

PubMed Abstract | CrossRef Full Text | Google Scholar

Tao, B., Yi, W., Qin, X., Wu, J., Li, K., Guo, A., et al. (2023). Improvement of antibacterial, anti-inflammatory, and osteogenic properties of OGP loaded Co-MOF coating on titanium implants for advanced osseointegration. J. Mater. Sci. Technol. 146, 131–144. doi:10.1016/j.jmst.2022.11.013

CrossRef Full Text | Google Scholar

Thai, J. E., Tuttle, R. R., DeRoo, J., Cuchiaro, J., and Reynolds, M. M. (2022). Cu-based metal–organic framework nanosheets synthesized via a three-layer bottom-up method for the catalytic conversion of S-nitrosoglutathione to nitric oxide. ACS Appl. Nano Mater. 5 (1), 486–496. doi:10.1021/acsanm.1c03313

CrossRef Full Text | Google Scholar

Thakur, B., Karve, V. V., Sun, D. T., Semrau, A. L., Weiß, L. J., Grob, L., et al. (2021). An investigation into the intrinsic peroxidase-like activity of Fe-MOFs and Fe-MOFs/polymer composites. Adv. Mater. Technol. 6 (5), 2001048. doi:10.1002/admt.202001048

CrossRef Full Text | Google Scholar

Tian, B., Xiao, D., Hei, T., Ping, R., Hua, S., and Liu, J. (2020). The application and prospects of cyclodextrin inclusion complexes and polymers in the food industry: a review. Polym. Int. 69 (7), 597–603. doi:10.1002/pi.5992

CrossRef Full Text | Google Scholar

Tissingh, E. K., Marais, L., Loro, A., Bose, D., Paner, N. T., Ferguson, J., et al. (2022). Management of fracture-related infection in low resource settings: how applicable are the current consensus guidelines? EFORT Open Rev. 7 (6), 422–432. doi:10.1530/eor-22-0031

PubMed Abstract | CrossRef Full Text | Google Scholar

Tong, P., Liang, J., Jiang, X., and Li, J. (2020). Research progress on metal-organic framework composites in chemical sensors. Crit. Rev. Anal. Chem. 50 (4), 376–392. doi:10.1080/10408347.2019.1642732

PubMed Abstract | CrossRef Full Text | Google Scholar

Tsai, J., Kaneko, K., Suh, A. J., Bockman, R., and Park-Min, K.-H. (2023). Origin of osteoclasts: osteoclast precursor cells. J. Bone Metabolism 30 (2), 127–140. doi:10.11005/jbm.2023.30.2.127

PubMed Abstract | CrossRef Full Text | Google Scholar

Tsikas, D. (2021). Extra-platelet low-molecular-mass thiols mediate the inhibitory action of S-nitrosoalbumin on human platelet aggregation via S-transnitrosylation of the platelet surface. Amino Acids 53 (4), 563–573. doi:10.1007/s00726-021-02950-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Udagawa, N., Koide, M., Nakamura, M., Nakamichi, Y., Yamashita, T., Uehara, S., et al. (2021). Osteoclast differentiation by RANKL and OPG signaling pathways. J. Bone Min. Metab. 39 (1), 19–26. doi:10.1007/s00774-020-01162-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Vassaki, M., Kotoula, C., Turhanen, P., Choquesillo-Lazarte, D., and Demadis, K. D. (2021). Calcium and strontium coordination polymers as controlled delivery systems of the anti-osteoporosis drug risedronate and the augmenting effect of solubilizers. Appl. Sci. 11 (23), 11383. doi:10.3390/app112311383

CrossRef Full Text | Google Scholar

Velásquez-Hernández, M. D., Linares-Moreau, M., Astria, E., Carraro, F., Alyami, M. Z., Khashab, N. M., et al. (2021). Towards applications of bioentities@MOFs in biomedicine. Coord. Chem. Rev. 429, 213651. doi:10.1016/j.ccr.2020.213651

CrossRef Full Text | Google Scholar

Wang, B., Côté, A. P., Furukawa, H., O'Keeffe, M., and Yaghi, O. M. (2008). Colossal cages in zeolitic imidazolate frameworks as selective carbon dioxide reservoirs. Nature 453 (7192), 207–211. doi:10.1038/nature06900

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, H., Dong, X., Lin, J., Teat, S. J., Jensen, S., Cure, J., et al. (2018a). Topologically guided tuning of Zr-MOF pore structures for highly selective separation of C6 alkane isomers. Nat. Commun. 9 (1), 1745. doi:10.1038/s41467-018-04152-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, S., McGuirk, C. M., d'Aquino, A., Mason, J. A., and Mirkin, C. A. (2018b). Metal–organic framework nanoparticles. Adv. Mater. 30 (37), 1800202. doi:10.1002/adma.201800202

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, H., Chen, Y., Wang, H., Liu, X., Zhou, X., and Wang, F. (2019). DNAzyme-loaded metal–organic frameworks (MOFs) for self-sufficient gene therapy. Angew. Chem. Int. Ed. 58 (22), 7380–7384. doi:10.1002/anie.201902714

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, H., Han, L., Zheng, D., Yang, M., Andaloussi, Y. H., Cheng, P., et al. (2020a). Protein-structure-directed metal–organic zeolite-like networks as biomacromolecule carriers. Angew. Chem. Int. Ed. 59 (15), 6263–6267. doi:10.1002/anie.202000299

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, L., You, X., Lotinun, S., Zhang, L., Wu, N., and Zou, W. (2020b). Mechanical sensing protein PIEZO1 regulates bone homeostasis via osteoblast-osteoclast crosstalk. Nat. Commun. 11 (1), 282. doi:10.1038/s41467-019-14146-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Y., Yan, J., Wen, N., Xiong, H., Cai, S., He, Q., et al. (2020d). Metal-organic frameworks for stimuli-responsive drug delivery. Biomaterials 230, 119619. doi:10.1016/j.biomaterials.2019.119619

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, H., Fu, X., Shi, J., Li, L., Sun, J., Zhang, X., et al. (2021a). Nutrient element decorated polyetheretherketone implants steer mitochondrial dynamics for boosted diabetic osseointegration. Adv. Sci. 8 (20), 2101778. doi:10.1002/advs.202101778

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, L. Y., Zhu, B. H., Deng, Y. T., Li, T. T., Tian, Q. Y., Yuan, Z. G., et al. (2021b). Biocatalytic and antioxidant nanostructures for ROS scavenging and biotherapeutics. Adv. Funct. Mater. 31 (31), 2101804. doi:10.1002/adfm.202101804

CrossRef Full Text | Google Scholar

Wang, S., Luo, H., Li, X., Shi, L., Cheng, B., Zhuang, X., et al. (2021c). Amino acid-functionalized metal organic framework with excellent proton conductivity for proton exchange membranes. Int. J. Hydrogen Energy 46 (1), 1163–1173. doi:10.1016/j.ijhydene.2020.09.235

CrossRef Full Text | Google Scholar

Wang, L., You, X., Zhang, L., Zhang, C., and Zou, W. (2022a). Mechanical regulation of bone remodeling. Bone Res. 10 (1), 16. doi:10.1038/s41413-022-00190-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, S., Ly, H. G. T., Wahiduzzaman, M., Simms, C., Dovgaliuk, I., Tissot, A., et al. (2022b). A zirconium metal-organic framework with SOC topological net for catalytic peptide bond hydrolysis. Nat. Commun. 13 (1), 1284. doi:10.1038/s41467-022-28886-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, W., Xiong, Y., Zhao, R., Li, X., and Jia, W. (2022c). A novel hierarchical biofunctionalized 3D-printed porous Ti6Al4V scaffold with enhanced osteoporotic osseointegration through osteoimmunomodulation. J. Nanobiotechnology 20 (1), 68. doi:10.1186/s12951-022-01277-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, X., Ma, K., Goh, T., Mian, M. R., Xie, H., Mao, H., et al. (2022d). Photocatalytic biocidal coatings featuring Zr6Ti4-based metal–organic frameworks. J. Am. Chem. Soc. 144 (27), 12192–12201. doi:10.1021/jacs.2c03060

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, X., Clavier, G., Zhang, Y., Batra, K., Xiao, N., Maurin, G., et al. (2023). A MOF/DNA luminescent sensing platform for detection of potential COVID-19 biomarkers and drugs. Chem. Sci. 14 (20), 5386–5395. doi:10.1039/d3sc00106g

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, A., Walden, M., Ettlinger, R., Kiessling, F., Gassensmith, J. J., Lammers, T., et al. (2024a). Biomedical metal–organic framework materials: perspectives and challenges. Adv. Funct. Mater. 34 (43), 2308589. doi:10.1002/adfm.202308589

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Q., Ma, T., Li, Z., Zhang, K., and Huang, Q. (2024b). Bone transport combined with sequential nailing technique for the management of large segmental bone defects after trauma. Front. Surg. 11, 1302325. doi:10.3389/fsurg.2024.1302325

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Y., Zeng, M., Fan, T., Jia, M., Yin, R., Xue, J., et al. (2024c). Biomimetic ZIF-8 nanoparticles: a novel approach for biomimetic drug delivery systems. Int. J. Nanomedicine 19, 5523–5544. doi:10.2147/ijn.S462480

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, J., Li, K., and Yuan, H. (2025a). Preparation of Ag-Metal organic frameworks-loaded Sodium Alginate Hydrogel for the treatment of periodontitis. Sci. Rep. 15 (1), 800. doi:10.1038/s41598-025-85123-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, J., Zhao, P., Li, M., Li, J., and Lin, Y. (2025b). Remedying infectious bone defects via 3D printing technology. Chin. Chem. Lett. 36 (9), 110686. doi:10.1016/j.cclet.2024.110686

CrossRef Full Text | Google Scholar

Wei, Y., Chen, C., Zhai, S., Tan, M., Zhao, J., Zhu, X., et al. (2021). Enrofloxacin/florfenicol loaded cyclodextrin metal-organic-framework for drug delivery and controlled release. Drug Deliv. 28 (1), 372–379. doi:10.1080/10717544.2021.1879316

PubMed Abstract | CrossRef Full Text | Google Scholar

Wei, J., Chen, X., Xu, Y., Shi, L., Zhang, M., Nie, M., et al. (2024). Significance and considerations of establishing standardized critical values for critical size defects in animal models of bone tissue regeneration. Heliyon 10 (13), e33768. doi:10.1016/j.heliyon.2024.e33768

PubMed Abstract | CrossRef Full Text | Google Scholar

Wen, T., Quan, G., Niu, B., Zhou, Y., Zhao, Y., Lu, C., et al. (2021). Versatile nanoscale metal-organic frameworks (nMOFs): an emerging 3D nanoplatform for drug delivery and therapeutic applications. Small 17 (8), e2005064. doi:10.1002/smll.202005064

PubMed Abstract | CrossRef Full Text | Google Scholar

Weng, Z., Ye, J., Cai, C., Liu, Z., Liu, Y., Xu, Y., et al. (2024). Inflammatory microenvironment regulation and osteogenesis promotion by bone-targeting calcium and magnesium repletion nanoplatform for osteoporosis therapy. J. Nanobiotechnology 22 (1), 314. doi:10.1186/s12951-024-02581-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Wright, A. M., Kapelewski, M. T., Marx, S., Farha, O. K., and Morris, W. (2025). Transitioning metal–organic frameworks from the laboratory to market through applied research. Nat. Mater. 24 (2), 178–187. doi:10.1038/s41563-024-01947-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, A.-M., Bisignano, C., James, S. L., Abady, G. G., Abedi, A., Abu-Gharbieh, E., et al. (2021a). Global, regional, and national burden of bone fractures in 204 countries and territories, 1990–2019: a systematic analysis from the Global Burden of Disease Study 2019. Lancet Healthy Longev. 2 (9), e580–e592. doi:10.1016/S2666-7568(21)00172-0

CrossRef Full Text | Google Scholar

Wu, X., Li, Z. J., Zhou, H., Li, L., Qian, Z., Qian, N., et al. (2021b). A microporous Ce-based MOF with the octahedron cage for highly selective adsorption towards xenon over krypton. RSC Adv. 11 (49), 30918–30924. doi:10.1039/d1ra04824d

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, J., Jiang, S., Xie, W., Xue, Y., Qiao, M., Yang, X., et al. (2022a). Surface modification of the Ti surface with nanoscale bio-MOF-1 for improving biocompatibility and osteointegration in vitro and in vivo. J. Mater Chem. B 10 (41), 8535–8548. doi:10.1039/d2tb01311h

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, J., Zhang, Z., Qiao, C., Yi, C., Xu, Z., Chen, T., et al. (2022b). Synthesis of Monodisperse ZIF-67@CuSe@PVP nanoparticles for pH-responsive drug release and photothermal therapy. ACS Biomater. Sci. Eng. 8 (1), 284–292. doi:10.1021/acsbiomaterials.1c01124

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, P., Gong, F., Feng, X., Xia, Y., Xia, L., Kai, T., et al. (2023). Multimetallic nanoparticles decorated metal-organic framework for boosting peroxidase-like catalytic activity and its application in point-of-care testing. J. Nanobiotechnology 21 (1), 185. doi:10.1186/s12951-023-01946-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, Y., Dorresteijn, J. M., and Weckhuysen, B. M. (2024). Ethylene polymerization over metal-organic framework-supported zirconocene complexes. ACS Catal. 14 (11), 9093–9103. doi:10.1021/acscatal.4c01061

PubMed Abstract | CrossRef Full Text | Google Scholar

Xiao, X., Liang, S., Zhao, Y., Pang, M., Ma, P., Cheng, Z., et al. (2021). Multifunctional carbon monoxide nanogenerator as immunogenic cell death drugs with enhanced antitumor immunity and antimetastatic effect. Biomaterials 277, 121120. doi:10.1016/j.biomaterials.2021.121120

PubMed Abstract | CrossRef Full Text | Google Scholar

Xiao, Y., Ding, Y., Qiu, J., Zhang, X., Zheng, Y., Huang, C., et al. (2024). Treatment effects of 3D-printed PCL/Fe3O4@ ZIF-8 magnetic nanocomposite on infected bone defect. IJB 10 (4), 2271. doi:10.36922/ijb.2271

CrossRef Full Text | Google Scholar

Xie, C., Ye, J., Liang, R., Yao, X., Wu, X., Koh, Y., et al. (2021). Advanced strategies of biomimetic tissue-engineered grafts for bone regeneration. Adv. Healthc. Mater. 10 (14), 2100408. doi:10.1002/adhm.202100408

PubMed Abstract | CrossRef Full Text | Google Scholar

Xiong, H., Cao, M., Yu, Y., Duan, X., Sun, L., Tang, L., et al. (2024). Study on the effects of low-intensity pulsed ultrasound and iron ions for proliferation and differentiation of osteoblasts. Ultrasound Med. Biol. 50 (11), 1674–1683. doi:10.1016/j.ultrasmedbio.2024.07.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, Z., Wang, Q., Zhangsun, H., Zhao, S., Zhao, Y., and Wang, L. (2021). Carbon cloth-supported nanorod-like conductive Ni/Co bimetal MOF: a stable and high-performance enzyme-free electrochemical sensor for determination of glucose in serum and beverage. Food Chem. 349, 129202. doi:10.1016/j.foodchem.2021.129202

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, Y., Shi, X., Ran, F., Zhang, Z., Phipps, J., Liu, X., et al. (2022). Differential sensitization toward lanthanide metal-organic framework for detection of an anthrax biomarker. Mikrochim. Acta 190 (1), 27. doi:10.1007/s00604-022-05603-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, S., Zhang, B., Li, Y., Yang, Y., Li, J., and Pang, J. (2023). Notably stable bifunctional europium-centered metal-organic framework for instant sensing of uric acid and 1-hydroxypyrene in human urine. Inorg. Chem. 62 (28), 11168–11178. doi:10.1021/acs.inorgchem.3c01290

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, H., Cui, Y., Tian, Y., Dou, M., Sun, S., Wang, J., et al. (2024a). Nanoparticle-based drug delivery systems for enhancing bone regeneration. ACS Biomaterials Sci. Eng. 10 (3), 1302–1322. doi:10.1021/acsbiomaterials.3c01643

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, Y., He, M., and Hong, X. (2024b). Combating periodontitis with an ATP-responsive metal-organic framework through synergistic ion-interference-induced pyroptosis. Sci. China Chem. 67 (11), 3493–3494. doi:10.1007/s11426-024-2192-9

CrossRef Full Text | Google Scholar

Xu, Z., Chen, L., Luo, Y., Wei, Y. M., Wu, N. Y., Luo, L. F., et al. (2024c). Advances in metal-organic framework-based nanozymes in ROS scavenging medicine. Nanotechnology 35 (36), 362006. doi:10.1088/1361-6528/ad572a

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, C., Qiu, S., Yuan, Z., Qiu, C., Xu, W., Guo, J., et al. (2025). Biomimetic microstructured scaffold with release of Re-modified teriparatide for osteoporotic tendon-to-bone regeneration via balancing bone homeostasis. Adv. Sci. 12 (18), 2500144. doi:10.1002/advs.202500144

PubMed Abstract | CrossRef Full Text | Google Scholar

Xue, S., Zhou, X., Sang, W., Wang, C., Lu, H., Xu, Y., et al. (2021a). Cartilage-targeting peptide-modified dual-drug delivery nanoplatform with NIR laser response for osteoarthritis therapy. Bioact. Mater 6 (8), 2372–2389. doi:10.1016/j.bioactmat.2021.01.017

PubMed Abstract | CrossRef Full Text | Google Scholar

Xue, Y., Zhu, Z., Zhang, X., Chen, J., Yang, X., Gao, X., et al. (2021b). Accelerated bone regeneration by MOF modified multifunctional membranes through enhancement of osteogenic and angiogenic performance. Adv. Healthc. Mater. 10 (6), 2001369. doi:10.1002/adhm.202001369

PubMed Abstract | CrossRef Full Text | Google Scholar

Xue, Y., Xu, W., Zhao, D., Du, Z., Jiang, H., Lv, H., et al. (2024). Biomimetic peroxidase MOF-Fe promotes bone defect repair by inhibiting TfR2 and activating the BMP2 pathway. Biol. Direct 19 (1), 30. doi:10.1186/s13062-024-00473-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Yaghi, O. M., Li, G., and Li, H. (1995). Selective binding and removal of guests in a microporous metal–organic framework. Nature 378 (6558), 703–706. doi:10.1038/378703a0

CrossRef Full Text | Google Scholar

Yan, B., Tan, J., Zhang, H., Liu, L., Chen, L., Qiao, Y., et al. (2022). Constructing fluorine-doped Zr-MOF films on titanium for antibacteria, anti-inflammation, and osteogenesis. Biomater. Adv. 134, 112699. doi:10.1016/j.msec.2022.112699

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, J., and Yang, Y. W. (2020). Metal-organic frameworks for biomedical applications. Small 16 (10), e1906846. doi:10.1002/smll.201906846

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, Q., Wiersum, A. D., Llewellyn, P. L., Guillerm, V., Serre, C., and Maurin, G. (2011). Functionalizing porous zirconium terephthalate UiO-66(Zr) for natural gas upgrading: a computational exploration. Chem. Commun. (Camb) 47 (34), 9603–9605. doi:10.1039/c1cc13543k

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, S., Zhao, Z., Xie, Y., Lin, J., Zhang, B., and Fan, J. (2022a). Engineering Bio-MOF/polydopamine as a biocompatible targeted theranostic system for synergistic multi-drug chemo-photothermal therapy. Int. J. Pharm. 623, 121912. doi:10.1016/j.ijpharm.2022.121912

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, Y., Zan, J., Shuai, Y., Yang, L., Zhang, L., Zhang, H., et al. (2022b). In situ growth of a metal-organic framework on graphene oxide for the chemo-photothermal therapy of bacterial infection in bone repair. ACS Appl. Mater Interfaces 14 (19), 21996–22005. doi:10.1021/acsami.2c04841

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, L., Wang, K., Guo, L., Hu, X., and Zhou, M. (2024a). Unveiling the potential of HKUST-1: synthesis, activation, advantages and biomedical applications. J. Mater Chem. B 12 (11), 2670–2690. doi:10.1039/d3tb02929h

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, Q., Sun, X., Ding, Q., Qi, M., Liu, C., Li, T., et al. (2024b). An ATP-responsive metal-organic framework against periodontitis via synergistic ion-interference-mediated pyroptosis. Natl. Sci. Rev. 11 (8), nwae225. doi:10.1093/nsr/nwae225

PubMed Abstract | CrossRef Full Text | Google Scholar

Yao, J., Yue, T., Huang, C., and Wang, H. (2021). A magnified aptamer fluorescence sensor based on the metal organic frameworks adsorbed DNA with enzyme catalysis amplification for ultra-sensitive determination of ATP and its logic gate operation. Bioorg. Chem. 114, 105020. doi:10.1016/j.bioorg.2021.105020

PubMed Abstract | CrossRef Full Text | Google Scholar

Yu, M., and Lei, B. (2021). MicroRNA-5106-based nanodelivery to enhance osteogenic differentiation and bone regeneration of bone mesenchymal stem cells through targeting of Gsk-3α. Mater. Chem. Front. 5 (23), 8138–8150. doi:10.1039/d1qm00367d

CrossRef Full Text | Google Scholar

Yu, P., Zheng, L., Wang, P., Chai, S., Zhang, Y., Shi, T., et al. (2020). Development of a novel polysaccharide-based iron oxide nanoparticle to prevent iron accumulation-related osteoporosis by scavenging reactive oxygen species. Int. J. Biol. Macromol. 165 (Pt B), 1634–1645. doi:10.1016/j.ijbiomac.2020.10.016

PubMed Abstract | CrossRef Full Text | Google Scholar

Yu, Y., Tan, L., Li, Z., Liu, X., Zheng, Y., Feng, X., et al. (2021a). Single-atom catalysis for efficient sonodynamic therapy of methicillin-resistant Staphylococcus aureus-infected osteomyelitis. ACS Nano 15 (6), 10628–10639. doi:10.1021/acsnano.1c03424

PubMed Abstract | CrossRef Full Text | Google Scholar

Yu, Z., Cao, X., Wang, S., Cui, H., Li, C., and Zhu, G. (2021b). Research progress on the water stability of a metal-organic framework in advanced oxidation processes. Water, Air, and Soil Pollut. 232 (1), 18. doi:10.1007/s11270-020-04953-9

CrossRef Full Text | Google Scholar

Yu, M., Zeng, W., Ouyang, Y., Liang, S., Yi, Y., Hao, H., et al. (2022). ATP-exhausted nanocomplexes for intratumoral metabolic intervention and photoimmunotherapy. Biomaterials 284, 121503. doi:10.1016/j.biomaterials.2022.121503

PubMed Abstract | CrossRef Full Text | Google Scholar

Yu, Q., Zhang, Q., Wu, Z., and Yang, Y. (2025). Inhalable metal–organic frameworks: a promising delivery platform for pulmonary diseases treatment. ACS Nano 19 (3), 3037–3053. doi:10.1021/acsnano.4c16873

PubMed Abstract | CrossRef Full Text | Google Scholar

Yuan, S., Qin, J.-S., Su, J., Li, B., Li, J., Chen, W., et al. (2018). Sequential transformation of zirconium(IV)-MOFs into heterobimetallic MOFs bearing magnetic anisotropic cobalt(II) centers. Angew. Chem. Int. Ed. 57 (38), 12578–12583. doi:10.1002/anie.201808568

PubMed Abstract | CrossRef Full Text | Google Scholar

Yuan, J., Zeng, Y., Pan, Z., Feng, Z., Bao, Y., Ye, Z., et al. (2023a). Amino-functionalized zirconium-based metal-organic frameworks as bifunctional nanomaterials to treat bone tumors and promote osteogenesis. ACS Appl. Mater Interfaces 15 (46), 53217–53227. doi:10.1021/acsami.3c11787

PubMed Abstract | CrossRef Full Text | Google Scholar

Yuan, Z., Chen, Y., Qiu, C., Li, M. C., Qi, J., de Hoop, C. F., et al. (2023b). Simple ultrasonic integration of shapeable, rebuildable, and multifunctional MIL-53(Fe)@cellulose composite for remediation of aqueous contaminants. Int. J. Biol. Macromol. 249, 126118. doi:10.1016/j.ijbiomac.2023.126118

PubMed Abstract | CrossRef Full Text | Google Scholar

Yun, C., Yuan, Z., El Haddaoui-Drissi, R., Ni, R., Xiao, Y., Qi, Z., et al. (2025). Biomedical applications of functionalized composites based on metal-organic frameworks in bone diseases. Pharmaceutics 17 (6), 757. doi:10.3390/pharmaceutics17060757

PubMed Abstract | CrossRef Full Text | Google Scholar

Yusuf, V. F., Malek, N. I., and Kailasa, S. K. (2022). Review on metal-organic framework classification, synthetic approaches, and influencing factors: applications in energy, drug delivery, and wastewater treatment. ACS Omega 7 (49), 44507–44531. doi:10.1021/acsomega.2c05310

PubMed Abstract | CrossRef Full Text | Google Scholar

Zeng, L., Huang, L., and Han, G. (2022). Dye doped metal-organic frameworks for enhanced phototherapy. Adv. Drug Deliv. Rev. 189, 114479. doi:10.1016/j.addr.2022.114479

PubMed Abstract | CrossRef Full Text | Google Scholar

Zeng, Y., Yuan, J., Ran, Z., Zhan, X., Li, X., Ye, H., et al. (2024). Chitosan/NH(2)-MIL-125 (Ti) scaffold loaded with doxorubicin for postoperative bone tumor clearance and osteogenesis: an in vitro study. Int. J. Biol. Macromol. 263 (Pt 2), 130368. doi:10.1016/j.ijbiomac.2024.130368

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, L., Liu, C., Gao, Y., Li, Z., Xing, J., Ren, W., et al. (2018a). ZD2-Engineered gold Nanostar@Metal-organic framework nanoprobes for T(1) -weighted magnetic resonance imaging and photothermal therapy specifically toward triple-negative breast cancer. Adv. Healthc. Mater 7 (24), e1801144. doi:10.1002/adhm.201801144

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, Y., Zhang, X., Lyu, J., Otake, K.-I., Wang, X., Redfern, L. R., et al. (2018b). A flexible metal–organic framework with 4-connected Zr6 nodes. J. Am. Chem. Soc. 140 (36), 11179–11183. doi:10.1021/jacs.8b06789

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, W., Dynes, J. J., Hu, Y., Jiang, P., and Ma, S. (2019). Porous metal-metalloporphyrin gel as catalytic binding pocket for highly efficient synergistic catalysis. Nat. Commun. 10 (1), 1913. doi:10.1038/s41467-019-09881-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, C., Chu, G., Ruan, Z., Tang, N., Song, C., Li, Q., et al. (2022a). Biomimetic self-assembling metal–organic architectures with non-iridescent structural coloration for synergetic antibacterial and osteogenic activity of implants. ACS Nano 16 (10), 16584–16597. doi:10.1021/acsnano.2c06030

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, C., Zhang, W., Zhu, D., Li, Z., Wang, Z., Li, J., et al. (2022b). Nanoparticles functionalized with stem cell secretome and CXCR4-overexpressing endothelial membrane for targeted osteoporosis therapy. J. Nanobiotechnology 20 (1), 35. doi:10.1186/s12951-021-01231-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, H., Hu, X., Li, T., Zhang, Y., Xu, H., Sun, Y., et al. (2022c). MIL series of metal organic frameworks (MOFs) as novel adsorbents for heavy metals in water: a review. J. Hazard. Mater. 429, 128271. doi:10.1016/j.jhazmat.2022.128271

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, X., Peng, F., and Wang, D. (2022d). MOFs and MOF-derived materials for antibacterial application. J. Funct. Biomater. 13 (4), 215. doi:10.3390/jfb13040215

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, Y., Cheng, Z., Liu, Z., Shen, X., Cai, C., Li, M., et al. (2023). Functionally tailored metal-organic framework coatings for mediating Ti implant osseointegration. Adv. Sci. (Weinh) 10 (29), e2303958. doi:10.1002/advs.202303958

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, T., Lu, W., Cai, L. L., Chen, J. Y., Qiu, M. L., Chen, Z. W., et al. (2024). Transformation of metal-organic framework from kinetic to thermodynamic product for controlled delivery of vitamin C. Inorg. Chem. 63 (31), 14345–14353. doi:10.1021/acs.inorgchem.4c00700

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, S., Ge, G., Li, W., Dong, J., Hu, X., Qin, Y., et al. (2025a). Sr-MOF-based hydrogel promotes diabetic tissue regeneration through simultaneous antimicrobial and antiinflammatory properties. Mater. Today Bio 32, 101906. doi:10.1016/j.mtbio.2025.101906

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, Y., Wu, J., Zhang, B., Shi, A., Pei, X., Zhang, X., et al. (2025b). Optimized fabrication of L-Asp-Cu(II) Bio-MOF for enhanced vascularized bone regeneration. Chem. Eng. J. 505, 159617. doi:10.1016/j.cej.2025.159617

CrossRef Full Text | Google Scholar

Zhao, C., Wang, Z., Li, X., Yi, X., Chu, H., Chen, X., et al. (2020). Facile fabrication of BUC-21/Bi24O31Br10 composites for enhanced photocatalytic Cr(VI) reduction under white light. Chem. Eng. J. 389, 123431. doi:10.1016/j.cej.2019.123431

CrossRef Full Text | Google Scholar

Zhao, D., Zhu, T., Li, J., Cui, L., Zhang, Z., Zhuang, X., et al. (2021a). Poly(lactic-co-glycolic acid)-based composite bone-substitute materials. Bioact. Mater. 6 (2), 346–360. doi:10.1016/j.bioactmat.2020.08.016

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhao, P., Wang, J., Han, X., Liu, J., Zhang, Y., and Van der Bruggen, B. (2021b). Zr-porphyrin metal–organic framework-based photocatalytic self-cleaning membranes for efficient dye removal. Industrial Eng. Chem. Res. 60 (4), 1850–1858. doi:10.1021/acs.iecr.0c05583

CrossRef Full Text | Google Scholar

Zhao, J., Xu, T., Sun, J., Yuan, H., Hou, M., Li, Z., et al. (2023). Multifunctional nanozyme-reinforced copper-coordination polymer nanoparticles for drug-resistance bacteria extinction and diabetic wound healing. Biomaterials Res. 27 (1), 88. doi:10.1186/s40824-023-00429-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhao, T., Nie, S., Luo, M., Xiao, P., Zou, M., and Chen, Y. (2024a). Research progress in structural regulation and applications of HKUST-1 and HKUST-1 based materials. J. Alloys Compd. 974, 172897. doi:10.1016/j.jallcom.2023.172897

CrossRef Full Text | Google Scholar

Zhao, Y., Chen, J., Zhou, M., Zhang, G., Wu, W., Wang, Z., et al. (2024b). Desferrioxamine-laden nanofibrous scaffolds with efficient angiogenesis for accelerating diabetic wound healing. Int. J. Nanomedicine 19, 10551–10568. doi:10.2147/ijn.S477109

PubMed Abstract | CrossRef Full Text | Google Scholar

Zheng, Z., Chen, Y., Guo, B., Wang, Y., Liu, W., Sun, J., et al. (2020). Magnesium-organic framework-based stimuli-responsive systems that optimize the bone microenvironment for enhanced bone regeneration. Chem. Eng. J. 396, 125241. doi:10.1016/j.cej.2020.125241

CrossRef Full Text | Google Scholar

Zheng, G. S., Qiu, X., Wang, B. J., and Zhao, D. W. (2022). Relationship between blood flow and collapse of nontraumatic osteonecrosis of the femoral head. J. Bone Jt. Surg. Am. 104 (Suppl. 2), 13–18. doi:10.2106/jbjs.20.00490

PubMed Abstract | CrossRef Full Text | Google Scholar

Zheng, X., Li, X., Meng, S., Shi, G., Li, H., Du, H., et al. (2023). Cascade amplification of tumor chemodynamic therapy and starvation with re-educated TAMs via Fe-MOF based functional nanosystem. J. Nanobiotechnology 21 (1), 127. doi:10.1186/s12951-023-01878-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Zheng, W., Meng, Z., Zhu, Z., Wang, X., Xu, X., Zhang, Y., et al. (2024). Metal-organic framework-based nanomaterials for regulation of the osteogenic microenvironment. Small 20 (29), e2310622. doi:10.1002/smll.202310622

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhou, S., Sun, Y., Zhao, K., Gao, Y., Cui, J., Qi, L., et al. (2020). miR-21/PTEN pathway mediates the cardioprotection of geniposide against oxidized low-density lipoprotein-induced endothelial injury via suppressing oxidative stress and inflammatory response. Int. J. Mol. Med. 45 (5), 1305–1316. doi:10.3892/ijmm.2020.4520

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhou, X., Jin, H., Xia, B. Y., Davey, K., Zheng, Y., and Qiao, S. Z. (2021). Molecular cleavage of metal-organic frameworks and application to energy storage and conversion. Adv. Mater 33 (51), e2104341. doi:10.1002/adma.202104341

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, L., Luo, D., and Liu, Y. (2020). Effect of the nano/microscale structure of biomaterial scaffolds on bone regeneration. Int. J. Oral Sci. 12 (1), 6. doi:10.1038/s41368-020-0073-y

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, R., Cai, M., Fu, T., Yin, D., Peng, H., Liao, S., et al. (2023). Fe-based metal organic frameworks (Fe-MOFs) for bio-related applications. Pharmaceutics 15 (6), 1599. doi:10.3390/pharmaceutics15061599

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, Y., Liu, H., Wu, P., Chen, Y., Deng, Z., Cai, L., et al. (2024). Multifunctional injectable hydrogel system as a mild photothermal-assisted therapeutic platform for programmed regulation of inflammation and osteo-microenvironment for enhanced healing of diabetic bone defects in situ. Theranostics 14 (18), 7140–7198. doi:10.7150/thno.102779

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, T., Ni, Q., Wang, W., Guo, D., Li, Y., Chen, T., et al. (2025). Cu-MOF-Decorated 3D-printed scaffolds for infection control and bone regeneration. J. Funct. Biomater. 16 (3), 83. doi:10.3390/jfb16030083

PubMed Abstract | CrossRef Full Text | Google Scholar

Zou, B., Xiong, Z., He, L., and Chen, T. (2022). Reversing breast cancer bone metastasis by metal organic framework-capped nanotherapeutics via suppressing osteoclastogenesis. Biomaterials 285, 121549. doi:10.1016/j.biomaterials.2022.121549

PubMed Abstract | CrossRef Full Text | Google Scholar

Zulfiqar, S., Sharif, S., and Yar, M. (2022). “Metal organic frameworks for drug delivery,” in Drug delivery using nanomaterials (CRC Press), 181–208. doi:10.1201/9781003168584

CrossRef Full Text | Google Scholar
