ORIGINAL RESEARCH article
Front. Bioeng. Biotechnol.
Sec. Biomechanics
Volume 13 - 2025 | doi: 10.3389/fbioe.2025.1659029
Predicting the Effect of Individual Weight-Bearing on Tibial Load and Fracture Healing after Tibial Plateau Fractures – Introduction of a Biomechanical Simulation Model
Provisionally accepted
- 1Applied Mechanics, Saarland University, Saarbrücken, Germany
- 2University Hospital Tuebingen, Eberhard-Karls-University Tuebingen, BG Unfallklinik, Tuebingen, Germany
Select one of your emails
You have multiple emails registered with Frontiers:
Notify me on publication
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

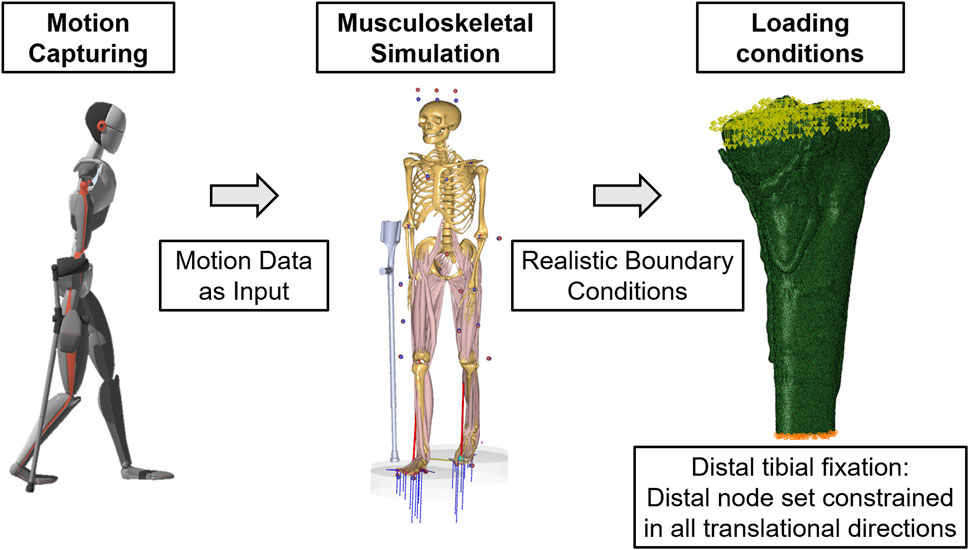

Purpose The prescribed amount of weight-bearing after tibial plateau fractures is controversial because it affects osteosynthetic construct stability and fracture healing. We aim to introduce a simulation model that adequately predicts the effects of different weight-bearing amounts on stability and healing, based on the patient's individual fracture pattern and treatment construct. Methods To safely test different amounts of weight-bearing limits, we first extracted knee joint forces for different weight-bearing limits from musculoskeletal simulation based on monitoring data of 22 uninjured participants. Correct loading was ensured with a force-measuring insole. We then tested three patients after tibial plateau fracture with their current weight-bearing level and constructed a simulation model determining implant stress, knee joint force, and fracture gap interfragmentary strain. The patient-specific weight-bearing level was then substituted for weight-normalized uninjured participant data to test different weight-bearing levels in the simulation model. Results The simulation model calculated individual construct stiffness and interfragmentary strain at different weight-bearing levels following the clinical course. When comparing the patient's individual weight-bearing input with the weight-normalized input of the uninjured participants at the same level, comparable knee joint forces were extracted, showing the feasibility of this approach. Conclusion Using an adapted reference movement database, the model allows the determination of safe weight-bearing ranges concerning construct stability and fracture healing based on individual fracture morphology and treatment without exposing patients to excessive weight-bearing. Future studies can test this approach in more extensive patient-number studies and different treatment situations.
Keywords: Partial weight bearing, Interfragmentary movement, construct stability, Musculoskeletal simulation, Proximal tibia fracture, Motion capturing
Received: 04 Jul 2025; Accepted: 03 Sep 2025.
Copyright: © 2025 Andres, Roland, Wickert, Diebels, Histing and Braun. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
* Correspondence: Annchristin Andres, Applied Mechanics, Saarland University, Saarbrücken, Germany
Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
