ORIGINAL RESEARCH article
Front. Bioeng. Biotechnol.
Sec. Biomechanics
Establishment and Validation of a Three-Dimensional Finite Element Model for Degenerative Lumbar Scoliosis
Provisionally accepted
- 1General Hospital of Ningxia Medical University, Yinchuan, China
- 2Ningxia Medical University, Yinchuan, China
Select one of your emails
You have multiple emails registered with Frontiers:
Notify me on publication
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

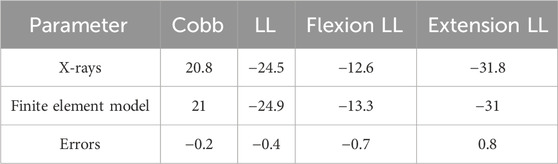

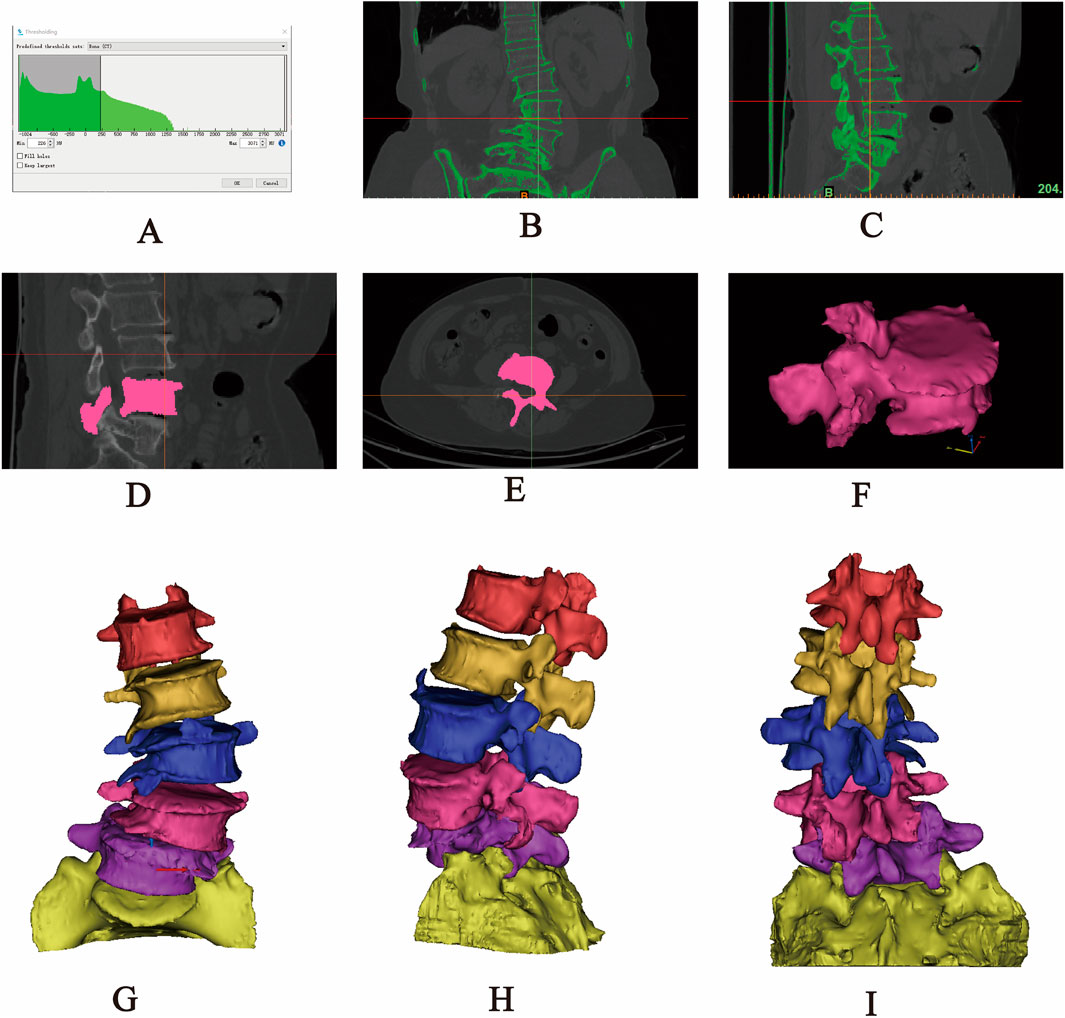

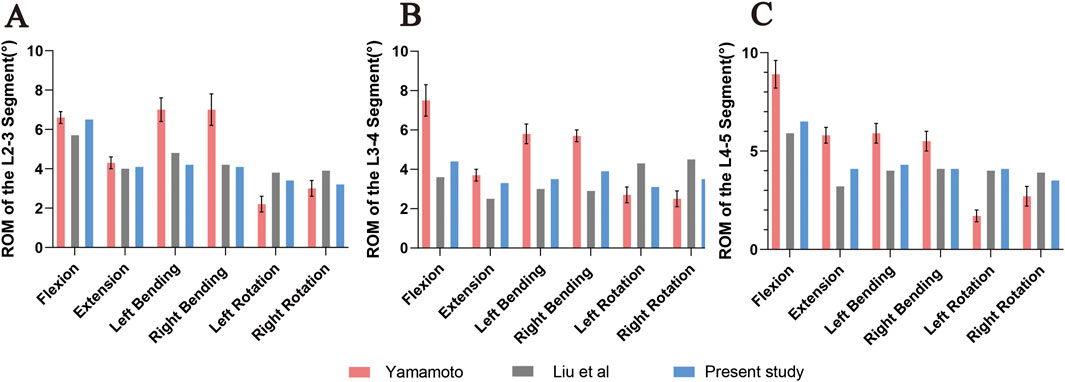

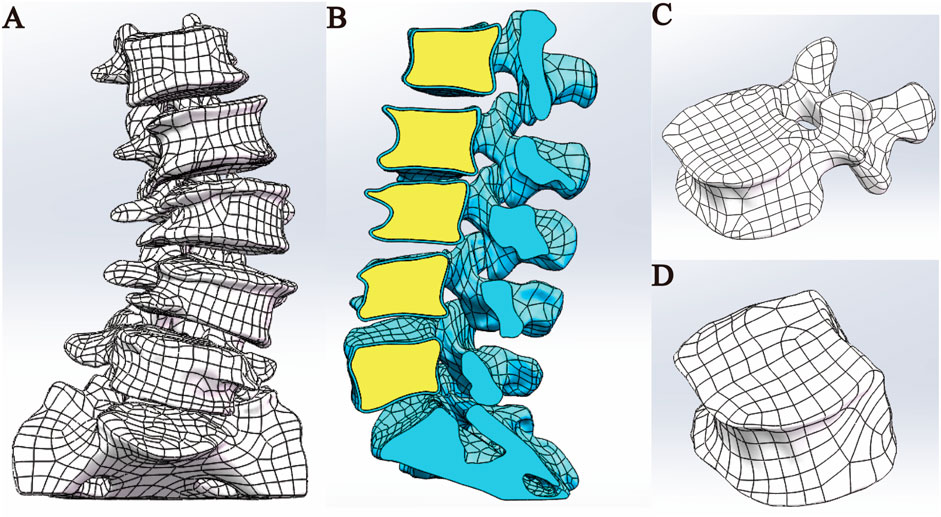

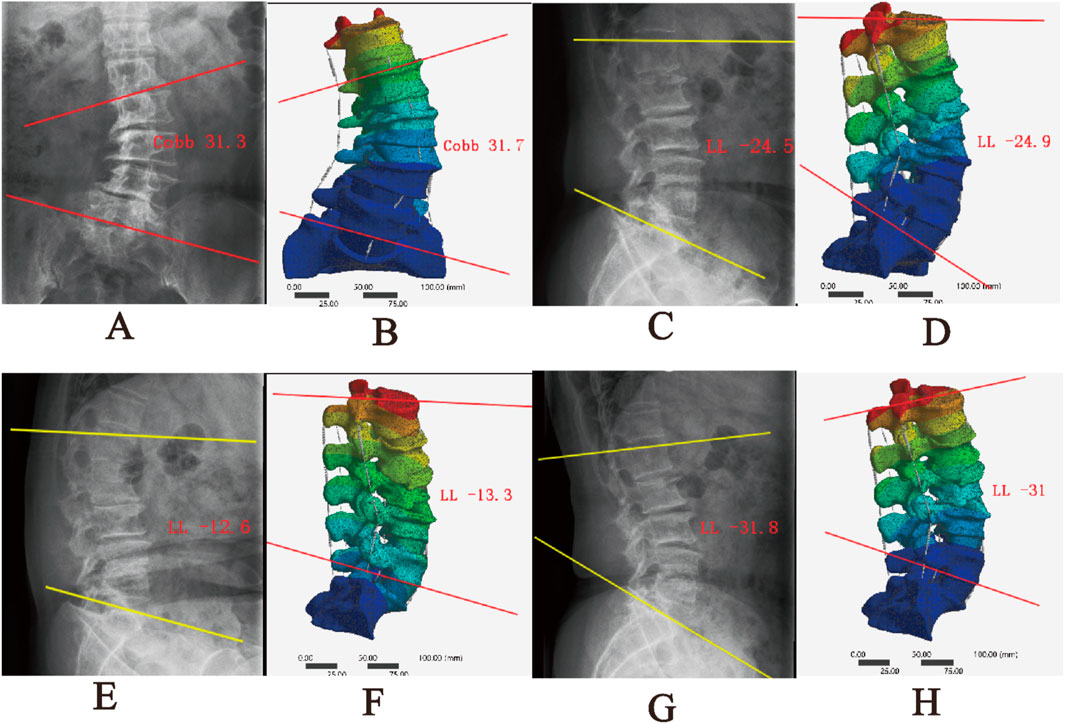

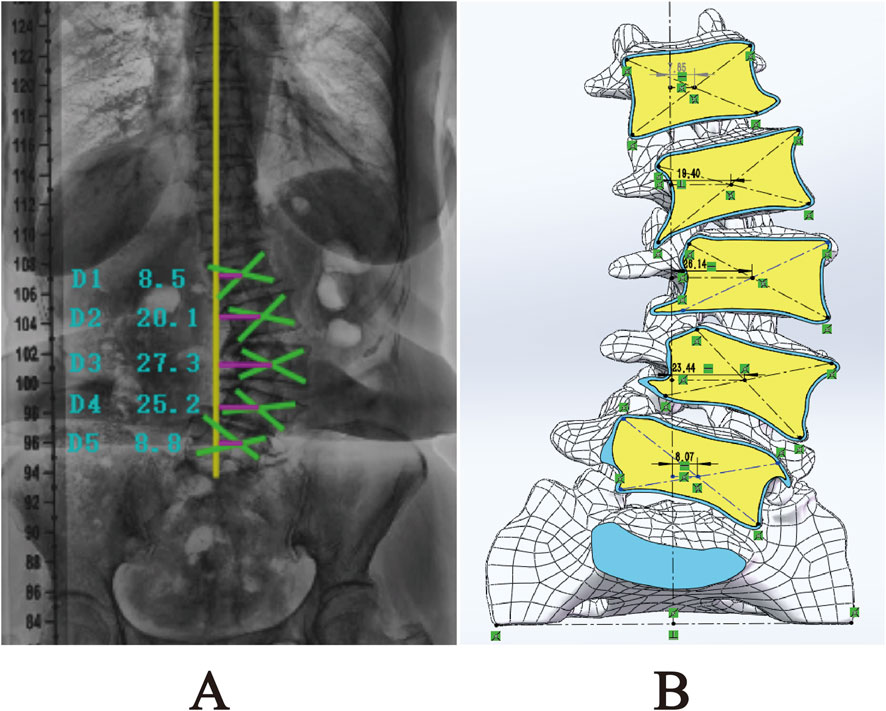

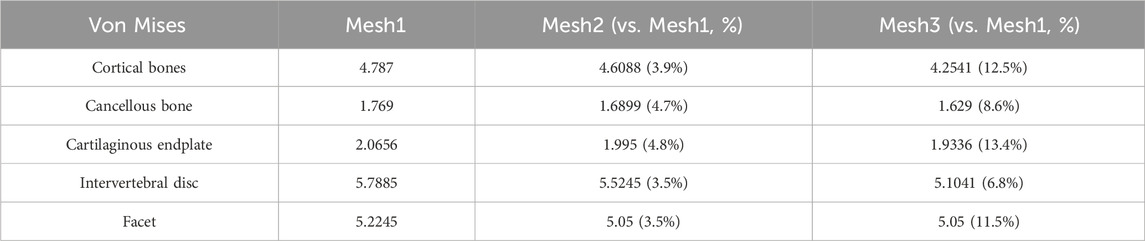

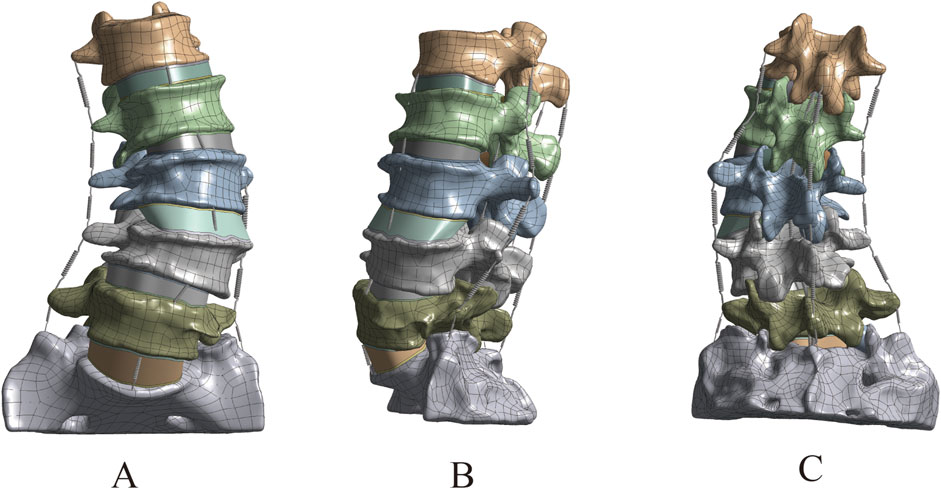

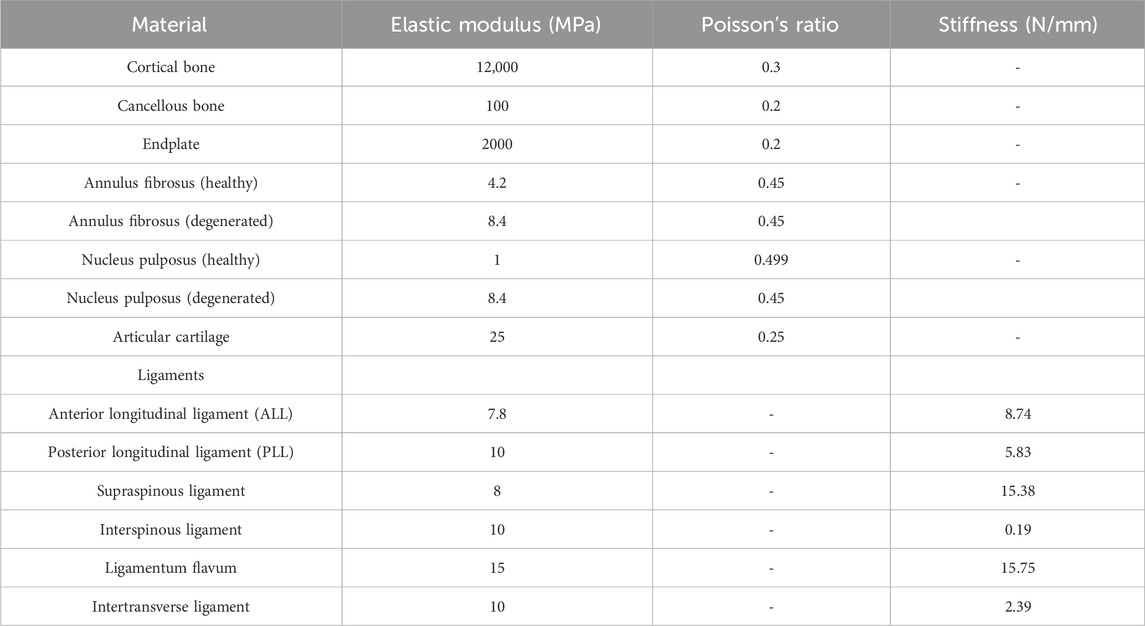

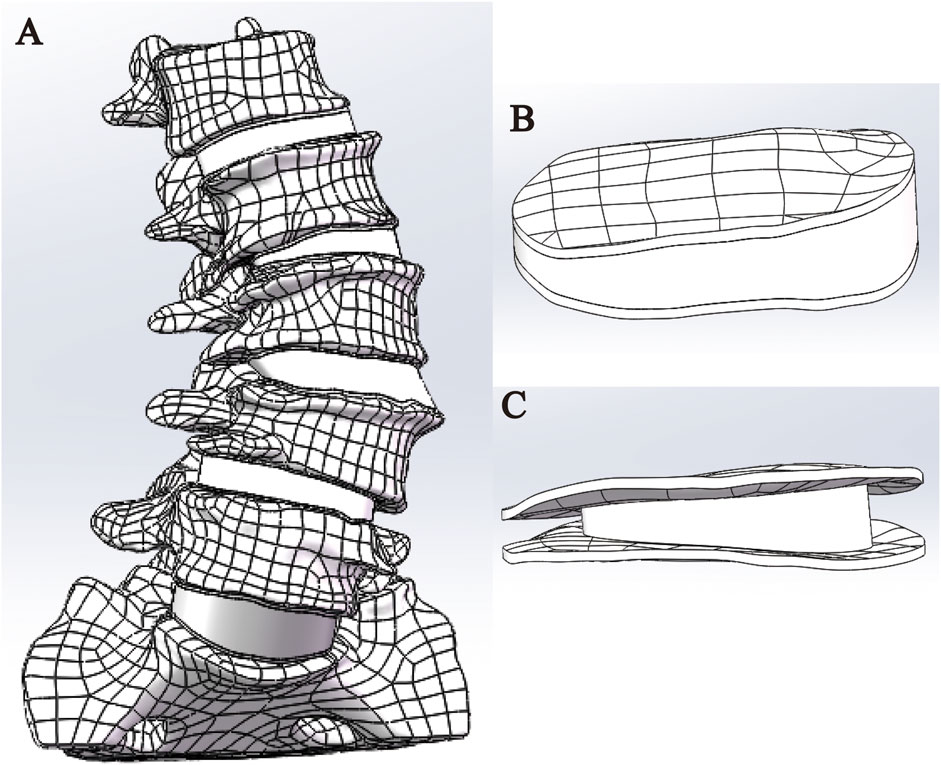

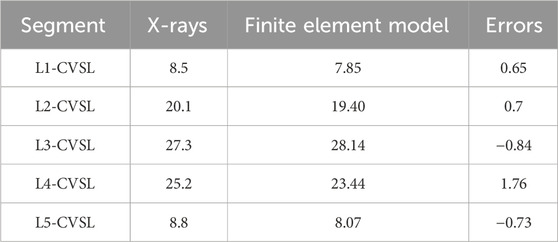

Objective: The objective of this study was to construct a three-dimensional finite element model of degenerative lumbar scoliosis (DLS) and validate its effectiveness, providing a reliable theoretical tool for optimizing surgical plans and biomechanical research. Methods: A 3D finite element model (FEM) of Lenke-Silva type IV DLS was constructed from patient CT data using Mimics, Geomagic Warp, SolidWorks, and ANSYS, incorporating cortical bone, cancellous bone, and intervertebral discs with defined material properties and contact relationships. Geometric validation was performed by comparing vertebral alignment and offset with radiographic measurements, while biomechanical validation involved applying a 400N axial load and 7.5Nm torque (flexion/extension, lateral bending, and axial rotation) to L1 and comparing the results with established literature data. Results: The successfully constructed L1-S1 DLS finite element model comprised 1,255,696 tetrahedral elements (1.5mm mesh size) and 1,919,710 nodes. Geometric validation demonstrated excellent agreement with radiographic measurements, showing <1°error in Cobb and lumbar lordosis, and <1.76mm deviation in vertebral centroid alignment. Biomechanical validation revealed that the segmental range of motion (ROM) at L2-3 through L4-5 under 7.5Nm loading conditions (flexion/extension, lateral bending, and axial rotation) matched established literature data, confirming model reliability. Conclusion: The DLS three-dimensional finite element model constructed in this study exhibits high anatomical fidelity and biomechanical reliability, enabling dynamic simulation of spinal mechanical behavior under complex loads, thereby providing an experimental foundation for surgical plan optimization and complication prediction.
Keywords: Degenerative lumbar scoliosis, finite element model, model validation, Grid Sensitivity Analysis, Biomechanical effects
Received: 22 Jul 2025; Accepted: 07 Nov 2025.
Copyright: © 2025 Guo, Yang, Yang, Zhang, Wang, Wang, Rong and Ge. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
