Abstract
Background:
Acupuncture, as a non-pharmacological alternative therapy, has been widely used in China for the clinical treatment of knee osteoarthritis (KOA). Different acupuncture methods and acupoint selections are two critical factors influencing clinical efficacy. Although multiple studies have confirmed the efficacy of acupuncture in treating KOA, its underlying physiological mechanisms remain unclear.
Objective:
This study aimed to explore hemodynamic responses in KOA patients before and after interventions with different acupuncture methods and acupoint combinations, monitoring hemodynamic changes during acupuncture using near-infrared spectroscopy (NIRS).
Methods:
A total of 24 KOA patients received needle and warm needle interventions at SP10 (xuehai) and ST34 (liangqiu). NIRS was used to monitor real-time changes in oxygenated hemoglobin (HbO2), deoxy-hemoglobin (Hb), total hemoglobin (tHb), and oxygenation during acupuncture.
Results:
Compared with needle, warm needle significantly increased HbO2 (P < 0.05) and oxygenation levels in KOA patients (P < 0.01). Both methods reduced Hb concentrations compared to baseline, with a greater decrease at ST34 than at SP10 (P < 0.05). However, during treatment, the warm needle showed an increase in the Hb concentration, especially in SP10.
Conclusion:
Our study provides the first evidence that different combinations of acupuncture methods and acupoint selections can significantly affect hemodynamic responses. Warm needle significantly improved local blood flow and oxygen delivery capacity in KOA patients, maintaining these improvements longer than needle intervention. Furthermore, warm needle at SP10 demonstrated superior efficacy in improving oxygen metabolism compared to ST34.
1 Introduction
Knee osteoarthritis (KOA) is a common chronic disease associated with knee joint degeneration that affects elderly people (). Globally, KOA is the 11th leading cause of disability, impacting approximately 3.8% of the world’s population (). The incidence of KOA has risen steadily in recent years, driven by aging populations and increasing rates of obesity (). It is a primary cause of knee dysfunction and disability in older adults, resulting in substantial economic and social burdens (; ). Current clinical guidelines recommend non-steroidal anti-inflammatory drugs (NSAIDs), glucosamine, and chondroitin sulfate as first-line pharmacological interventions for KOA management (). While these agents demonstrate analgesic efficacy, their clinical utility is constrained by dose-dependent adverse effects, including gastrointestinal toxicity and potential hepatotoxicity, with additional concerns regarding inconclusive evidence for sustained therapeutic benefits (; ). In recent years, acupuncture has gained popularity as a nonpharmacological treatment for KOA, offering benefits such as effective symptom relief, minimal side effects, and low cost ().
Numerous clinical trials and published meta-analyses have demonstrated the safety and effectiveness of acupuncture in treating KOA. Acupuncture has been shown to reduce pain symptoms and improve daily functioning in KOA patients (; ). Warm needle therapy, a variation of acupuncture, has also proven effective for KOA (; ). Studies suggest that acupuncture can provide pain relief and functional improvement lasting 3–6 months in patients with KOA (). Compared to other traditional Chinese medicine treatments, warm needle shows superior overall efficacy for KOA (). Traditional needling involves inserting thin, solid needles into specific body areas (such as acupoints), while warm needling incorporates the use of moxa poles placed on top of the needles to generate heat (). A recent network meta-analysis compared seven acupuncture treatments for KOA revealed that silver needle > floating needle > needle knife > fire needle > warm needle > conventional acupuncture > electroacupuncture, with warm needle outperforming conventional acupuncture (). Both warm needle and needle are commonly used to treat KOA; despite robust clinical evidence demonstrating the superior efficacy of warm needle therapy over needle in KOA management, the physiological mechanisms underlying its advantages, particularly its hemodynamic effects on microvascular perfusion and metabolic regulation, remain insufficiently characterized.
In addition to acupuncture methods, the precision of acupoint selection constitutes a pivotal determinant of therapeutic outcomes in KOA (; ; ). The biochemical changes in the acupoint area induced by acupuncture stimulation are also an important step in initiating the acupuncture effect. Currently, the selection of acupoints is largely based on the clinician’s experience and traditional acupuncture theories (). However, there is no universally accepted standard for acupoint selection in treating KOA. At present, it lacks a specific biological basis for different acupoint selection. Current evidence suggests that SP10 (xuehai) and ST34 (liangqiu) are commonly used acupoints for KOA treatment (; ). SP10, located along the Spleen Meridian of Foot-Taiyin, and ST34, belonging to the Stomach Meridian of Foot-Yangming, are anatomically positioned within the vastus medialis and vastus lateralis musculatures, respectively (). Some studies suggest that patients with KOA exhibit weakness in the vastus medialis and stiffness in the vastus lateralis (; ). However, the therapeutic specificity of acupoint selection remains unquantified by objective biomarkers, and no studies have systematically compared the hemodynamic responses, such as localized blood flow variations and oxygen transport-metabolism, induced by different acupoint stimulations in KOA management.
Near-infrared spectroscopy (NIRS) is a clinically valuable, portable, and noninvasive tool for monitoring hemodynamic parameters, including concentrations of oxyhemoglobin (HbO2), deoxy-hemoglobin (Hb), and total hemoglobin (tHb) (; ). Current NIRS investigations in KOA have predominantly focused on detecting cerebral hemodynamic alterations associated with pain processing, while its utilization in characterizing lower extremity musculoskeletal hemodynamics has been scarcely investigated (). demonstrated that Fu’s subcutaneous needling (FNS) intervention significantly enhanced blood flow and oxygenation in the vastus lateralis muscle of affected limbs, revealing that acupuncture-induced hemodynamic changes may play an essential role in therapeutic effects. However, no studies have systematically characterized hemodynamic variations elicited by different acupuncture methods and acupoint selections in KOA patients.
The purpose of this study was to investigate the effects of needle and warm needling on localized hemodynamic responses in KOA patients when applied to two distinct acupoints: SP10 and ST34. Specifically, the research objectives are to (1) evaluate the hemodynamic responses induced by needle versus warm needle interventions through quantitative measurements of HbO2, Hb, tHb, and oxygenation and (2) investigate the hemodynamic responses and their dynamic changes, respectively, induced by different acupuncture methods (needle and warm needle) and acupoint selections (SP10 and ST34). To our knowledge, this is the first study to comprehensively explore the combined effects of different acupuncture methods and acupoint selections on hemodynamic responses in KOA patients.
2 Materials and methods
A 2 × 2 factorial crossover trial was implemented, incorporating two acupuncture methods (needle and warm needle) and two acupoints (SP10 and ST34). The study employed four acupuncture schemes: (A) needle at SP10; (B) warm needle at SP10; (C) needle at ST34; (D) warm needle at ST34. The sample size calculation was based on a pilot study involving eight patients with KOA. All participants received four different protocols (A, B, C, and D) sequentially, with an interval of 5 to 7 days between each protocol. Since previous studies have demonstrated that acupuncture can induce significant changes in local tissue HbO2 levels (; ), HbO2 was selected as the primary outcome measure. With an effect size of 0.25, a statistical power of 0.8, an alpha level of 0.05, and accounting for four measurement time points, the required sample size was determined to be 24 using G*Power software (ANOVA, repeated measures, within–between interaction). The four distinct acupuncture protocols generated 24 unique treatment sequences via full permutation (Table 1). To control for potential order effects and ensure balance across sequences, the 24 participants were randomly assigned to the 24 sequences using a computer-generated randomization list. This ensured that each participant had an equal probability of receiving any of the possible sequences.

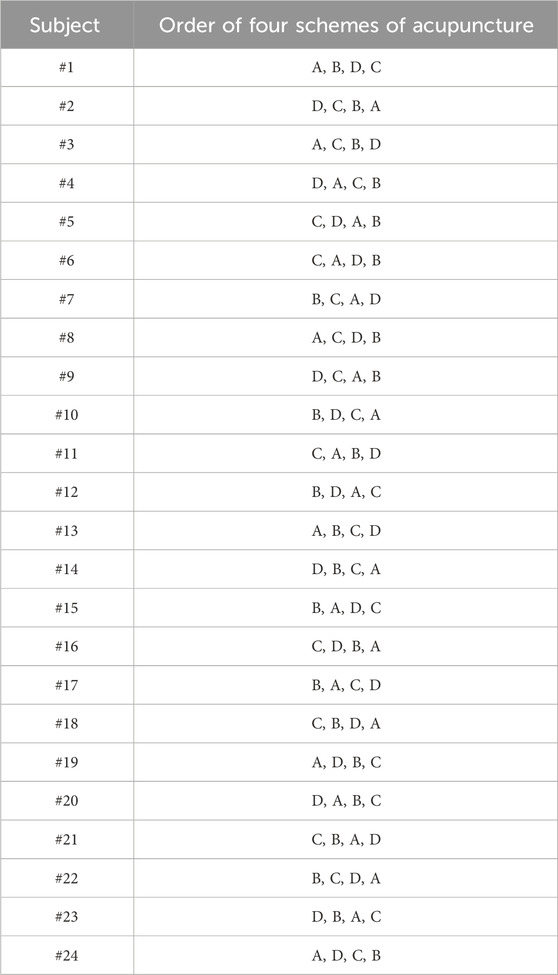

TABLE 1
| Subject | Order of four schemes of acupuncture |
|---|---|
| #1 | A, B, D, C |
| #2 | D, C, B, A |
| #3 | A, C, B, D |
| #4 | D, A, C, B |
| #5 | C, D, A, B |
| #6 | C, A, D, B |
| #7 | B, C, A, D |
| #8 | A, C, D, B |
| #9 | D, C, A, B |
| #10 | B, D, C, A |
| #11 | C, A, B, D |
| #12 | B, D, A, C |
| #13 | A, B, C, D |
| #14 | D, B, C, A |
| #15 | B, A, D, C |
| #16 | C, D, B, A |
| #17 | B, A, C, D |
| #18 | C, B, D, A |
| #19 | A, D, B, C |
| #20 | D, A, B, C |
| #21 | C, B, A, D |
| #22 | B, C, D, A |
| #23 | D, B, A, C |
| #24 | A, D, C, B |
Specific test orders of four acupuncture schemes.
The study comprised 24 patients diagnosed with KOA who met the specified inclusion criteria: (1) meeting the clinical diagnostic criteria for KOA set by the American College of Rheumatology (); (2) aged 40–75 years; (3) grade 2 or 3 KOA based on the Kellgren and Lawrence grading scale; (4) Numeric Rating Scale (NRS) score greater than 3 during daily activities; (5) absence of skin lesions at the acupuncture sites. Exclusion criteria included the following: (1) history of joint or musculoskeletal injuries in the lower limbs aside from KOA; (2) radiographic evidence of bone bridge formation or joint stiffness; (3) presence of acute inflammation or edema-associated pain; (4) previous surgery or arthroscopic interventions; (5) severe lower limb deformities; (6) interventions within 4 weeks prior to the study that might affect study outcomes, including oral or injectable NSAIDs, hormone therapy, intra-articular injections, physical therapy, or acupuncture.
2.1 Near-infrared spectroscopy
Dynamic changes in hemodynamic parameters, including HbO2, Hb, and tHb, were continuously monitored using the PortaLite™ near-infrared spectroscopy system (Artinis Medical Systems, Elst, Netherlands) (; ). The oxygenation status ([HbO2] − [Hb]) was calculated as the difference between HbO2 and Hb concentrations. We used the three probes to improve signal robustness; they examined acupoints and the tissue area around them. The system employed dual-wavelength near-infrared light (760 nm and 850 nm) with wireless Bluetooth connectivity, sampling at 10 Hz to capture real-time hemoglobin concentration fluctuations at acupoints SP10 (2 inches above the medial base of the patella) and ST34 (2 inches above the lateral base of the patella) during needle and warm needling interventions. Ambient light interference was minimized using black shielding fabric, with data acquisition and analysis performed via Oxysoft software (v3.0.52, Artinis Medical Systems).

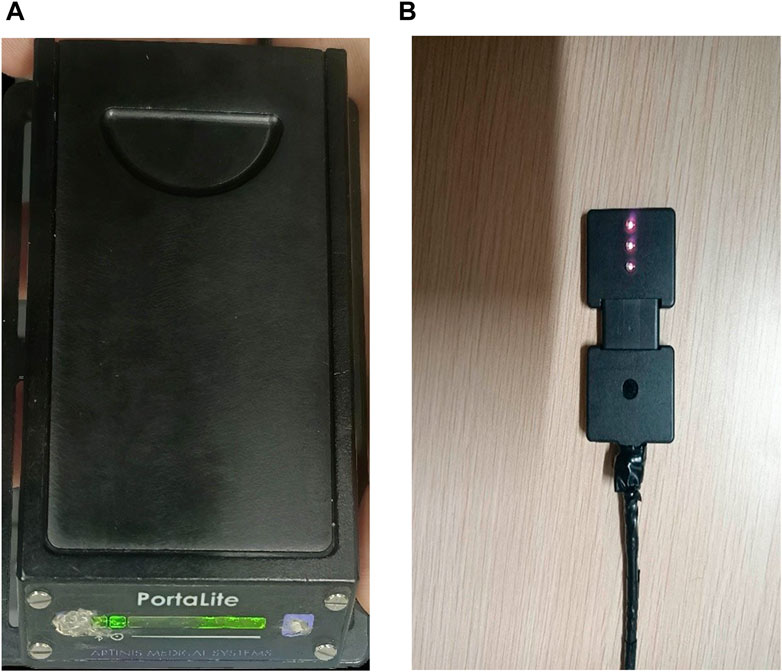

The PortaLite™ system employed in this study comprised three light-emitting diode (LED) transmitters (Tx) and a single high-sensitivity PIN diode receiver (Rx) (Figures 1A,B). The Tx–Rx distances were set at 30, 35, and 40 mm. Hemoglobin concentration underwent changes. The concentrations ([HbO2] and [Hb]) were calculated using the modified Lambert–Beer law (MBLL) equation based on wavelength-dependent absorption differences between HbO2 and Hb (). A moving Gaussian filter with 0.5-s bandwidth was applied post-acquisition to attenuate high-frequency noise and physiological artifacts. The concentration changes (post-acupuncture–pre-acupuncture around acupoints, including skin and muscle hemodynamic responses) in Δ[HbO2], Δ[Hb], Δ[tHb], and Δoxygenation (Δ [HbO2]-Δ [Hb]) were reported in this study.
FIGURE 1
2.2 Procedure
All participants provided written informed consent before the study. The experiments were conducted in a temperature-controlled environment (24–26 °C) at the Sports Rehabilitation Laboratory of Fujian University of Traditional Chinese Medicine. Patients were acclimated by lying supine for ≥ 5 min without speaking or unnecessary muscle movements. NIRS signals were collected for 26.5 min during the experiment, including baseline measurement for 3 min and acupuncture manipulations for 20 s (needle was 10 s of needle insertion and 10 s of needle twisting; warm needle was 10 s of needle insertion and 10 s of adding moxa stick), acupuncture treatment for 20 min (20 min was divided into four 5-min periods , each period of needle including 10 s of needle twisting and 4 min 50 s of rest, while the warm needle did not twist the needle and rest), followed by 10 s of needle out, and finally 3 min of rest (Figure 2). Marks of SP10 and ST34 acupoints were made 2 inches above the inner and outer ends of the patellar base. During the formal measurement, participants adopted a supine position with both knees flexed 15°–20°. A foam roller, diameter 9.6 cm and length 30 cm, was placed under the knees to relax the muscles and reduce muscle contraction.

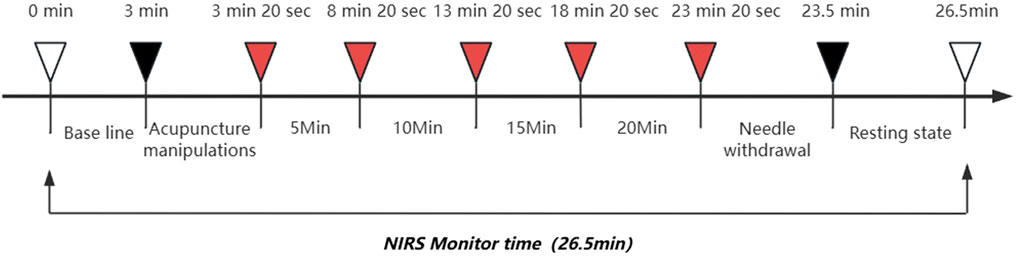

FIGURE 2
The selected acupoints were thoroughly disinfected before treatment. Sterile disposable needles (Huatuo brand, Suzhou Medical Supplies Factory Co., Ltd., GB 2024-1994) sized 0.30 × 50–60 mm were inserted to a depth of 25–30 mm at the SP10 and ST34 acupoints, following the principles of harmonized tonification and purgation. After obtaining de-qi sensation and curative effect, a 2 cm medicinal moxa stick (Nanyang Aiyang Moxa Products Co., Ltd., 3g × 54 pieces), with holes at the bottom, was lit and placed on the needle handle, maintaining a 2–3 cm distance from the skin to perform warm needling. The acupuncture was retained for 20 min. Patients should feel a comfortable warmth in the local acupoint during the treatment. If the patient experienced excessive heat, a cardboard shield was used to prevent burns. Needle operation was as above, not adding the moxa stick. Acupuncture treatment was performed for all subjects by the same licensed female acupuncturist of more than 10 years’ clinical experience. Except for acupuncture treatment, all participants did not receive any other treatment regimens. Acupuncture operators were only informed of the standardized operating procedures for each session without disclosure of specific grouping information. Assessors collected data under blind conditions, maintaining complete confidentiality of treatment assignment information throughout the entire evaluation process.
This study protocol was approved by the Medical Ethics Committee of The Third Affiliated Hospital of Fujian University of Traditional Chinese Medicine (Approval No. 2022-Kl-040). The study was conducted in strict accordance with the guidelines of the Declaration of Helsinki. The acupuncture interventions were conducted in strict compliance with the STRICTA (Standards for Reporting Interventions in Clinical Trials of Acupuncture) guidelines (). It was registered (ChiCTR2400087846, 08/05/2024) before inclusion of the first participant.
Four different acupuncture schemes were tested over 4 separate days: (A) needle at SP10; (B) warm needle at SP10; (C) needle at ST34; (D) warm needle at ST34. Each protocol was spaced 5–7 days apart to accommodate participants’ schedules and minimize the carry-over effect of acupuncture therapy.
2.3 Data analysis
Normality of data distribution was assessed using the Shapiro–Wilk test, with homogeneity of variance verified by Levene’s test. Upon confirming that the data met both normality and homoscedasticity assumptions, a two-way analysis of variance (ANOVA) with repeated measures was performed to evaluate the hemodynamic effects of the two acupuncture methods (needle and warm needle) on the two specific acupoints (SP10 and ST34), including the main effects of the acupuncture method and acupoint selection, as well as their interaction effects. The significance level was set at P < 0.05. All statistical analyses were performed using SPSS 26 (IBM Corp., Armonk, NY, USA).
3 Results
3.1 Demographic information
The patients had the following characteristics (mean ± SD): age 62.79 ± 8.61 years, height 160.46 ± 0.51 cm, weight 57.25 ± 0.61 kg, BMI 22.22 ± 0.10 kg/m2, and disease duration of 35.08 ± 3.17 months (Table 2).

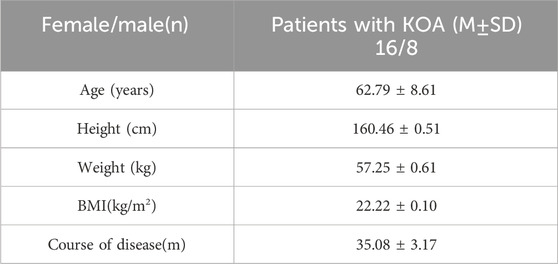

TABLE 2
| Female/male(n) | Patients with KOA (M±SD) 16/8 |
|---|---|
| Age (years) | 62.79 ± 8.61 |
| Height (cm) | 160.46 ± 0.51 |
| Weight (kg) | 57.25 ± 0.61 |
| BMI(kg/m2) | 22.22 ± 0.10 |
| Course of disease(m) | 35.08 ± 3.17 |
Baseline characteristics of participants.
3.2 Hemodynamic alterations in knee osteoarthritis patients following acupuncture therapy: pre-post intervention analysis
For HbO2, the results revealed no significant interaction between acupoints and methods (F = 0.334, p = 0.565). No main effect of acupoints was observed (F = 0.440, p = 0.509), whereas a significant main effect of methods was identified (F = 6.268, p = 0.014 and effect size = 0.064) (Table 3). For SP10, the change of oxyhemoglobin concentration in warm needle (2.87 ± 0.59 μM) was significantly higher than that in needle (1.34 ± 0.97 μM, P < 0.05). For ST34, the change in oxyhemoglobin concentration of warm needle (2.80 ± 0.82 μM) was significantly higher than that of needle (0.36 ± 0.73 μM, P < 0.05). Values are mean ± SE (Figure 3A).

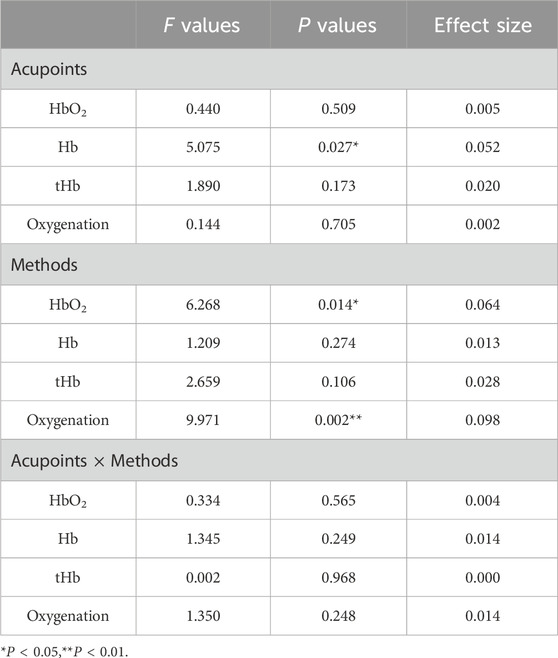

TABLE 3
| F values | P values | Effect size | |
|---|---|---|---|
| Acupoints | |||
| HbO2 | 0.440 | 0.509 | 0.005 |
| Hb | 5.075 | 0.027* | 0.052 |
| tHb | 1.890 | 0.173 | 0.020 |
| Oxygenation | 0.144 | 0.705 | 0.002 |
| Methods | |||
| HbO2 | 6.268 | 0.014* | 0.064 |
| Hb | 1.209 | 0.274 | 0.013 |
| tHb | 2.659 | 0.106 | 0.028 |
| Oxygenation | 9.971 | 0.002** | 0.098 |
| Acupoints × Methods | |||
| HbO2 | 0.334 | 0.565 | 0.004 |
| Hb | 1.345 | 0.249 | 0.014 |
| tHb | 0.002 | 0.968 | 0.000 |
| Oxygenation | 1.350 | 0.248 | 0.014 |
Statistical result of two-way ANOVA with repeated measures.
*P < 0.05,**P < 0.01.

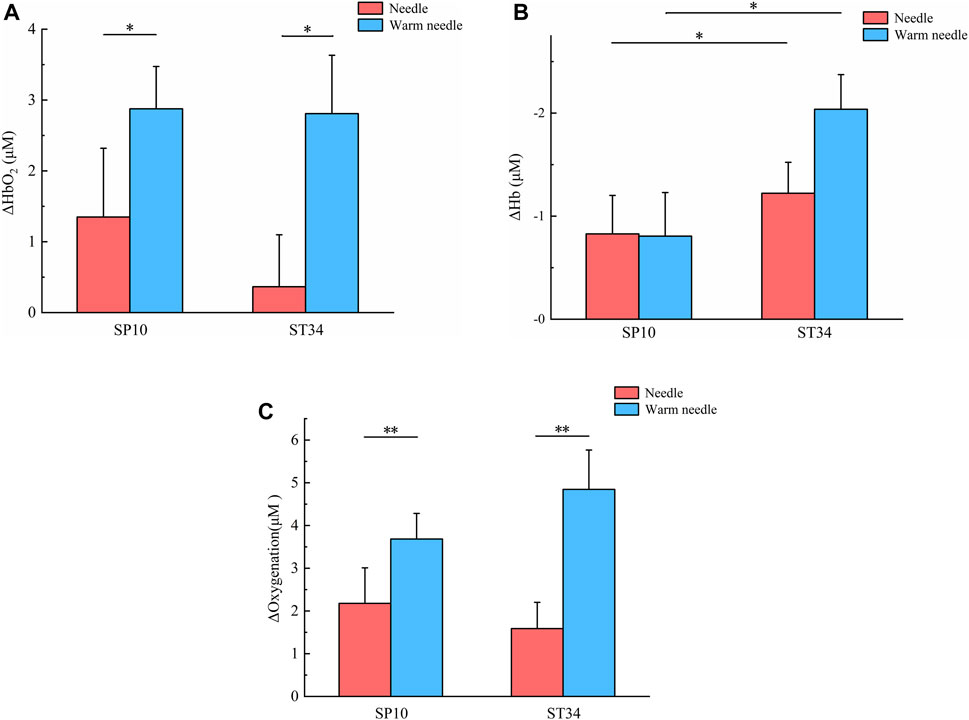

FIGURE 3
For Hb, the results revealed no significant interaction between acupoints and methods (F = 1.345, p = 0.249). No main effect of methods was observed (F = 1.209, p = 0.274), whereas a significant main effect of acupoints was identified (F = 5.075, p = 0.027 and effect size = 0.052) (Table 3). For needle, the decrease of deoxyhemoglobin concentration in ST34 (-1.22 ± 0.30 μM) was significantly greater than that in SP10 (-0.82 ± 0.37 μM, P < 0.05). Similarly, for warm needle, the decrease in the deoxyhemoglobin concentration of ST34 (-2.03 ± 0.33 μM) was significantly greater than that of SP10 (-0.80 ± 0.42 μM, P < 0.05). Values are mean ± SE (Figure 3B).
For tHb, the results indicated no significant interaction between acupoints and method factors (F = 0.002, p = 0.968) and no main effects for either acupoint or method factors (F = 1.890, P = 0.173, and F = 2.659, P = 0.106, respectively) (Table 3).
For oxygenation, the results revealed no significant interaction between acupoints and methods (F = 1.350, p = 0.248). No main effect of acupoints was observed (F = 0.144, p = 0.705), whereas a significant main effect of methods was identified (F = 9.971, p = 0.002, and effect size = 0.098) (Table 3). For SP10, the change of oxygenation concentration in warm needle (3.68 ± 0.59 μM) was significantly higher than that in needle (2.17 ± 0.83 μM, P < 0.01). Similarly, for ST34, the change in oxygenation concentration of warm needle (4.84 ± 0.92 μM) was significantly higher than for needle (1.58 ± 0.61 μM, P < 0.01). Values are mean ± SE (Figure 3C).
4 Discussion
This study provides the first evidence that the effects of different acupuncture methods and acupoint selections exert distinct hemodynamic effects on local tissues in KOA patients. Compared to needle, warm needle significantly enhanced blood flow and oxygen delivery capacity (HbO2 and oxygenation). Both needle and warm needle interventions at ST34 demonstrated poorer oxygen consumption capability than SP10. Our results further revealed that blood flow and oxygen transport peaked 10 min after the acupuncture intervention. Warm needle maintained this peak state until needle withdrawal, whereas needle showed a continuous decline. Warm needle at SP10 induced a greater amplitude and longer duration of increased local oxygen metabolism than warm needle at ST34.
Using the non-invasive, optical device NIRS, the hemodynamic response to four different schemes of acupuncture therapy was quantified in this study for the first time. Our results indicated no significant interaction effects between acupuncture methods and acupoint factors on hemodynamic responses. However, significant main effects were observed: acupuncture methods exerted significant main effects on HbO2 and oxygenation, while acupoint selection showed a significant main effect on Hb. As illustrated in Figures 3A and C, under identical acupoint conditions, warm needle induced greater increases in HbO2 and oxygenation than needle. Figures 4A and C further demonstrate that for HbO2, both needle and warm needle interventions reached peak levels at 10 min post-intervention. Warm needle sustained this peak until needle removal, whereas the needle exhibited a gradual decline after 10 min. Notably, warm needle at SP10 continued to increase HbO2 even after needle removal, surpassing ST34. For oxygenation, needle intervention induced a marked increase at 10 min, followed by a declining trend after 15 min. Compared to baseline, warm needle achieved significantly greater oxygenation elevation than needle, with sustained increases persisting post needle removal. Oxygen is primarily transported in blood via binding to hemoglobin as oxyhemoglobin (); an elevated concentration of HbO2 indicates enhanced regional blood flow and oxygen delivery capacity. Oxygenation reflects the dynamic balance between oxygen delivery and consumption and cannot distinguish between the two (). These findings corroborate prior NIRS evidence showing significantly higher local HbO2 concentrations in KOA patients after FSN therapy with no significant increase in Hb, indicating enhanced blood flow and oxygenation ().

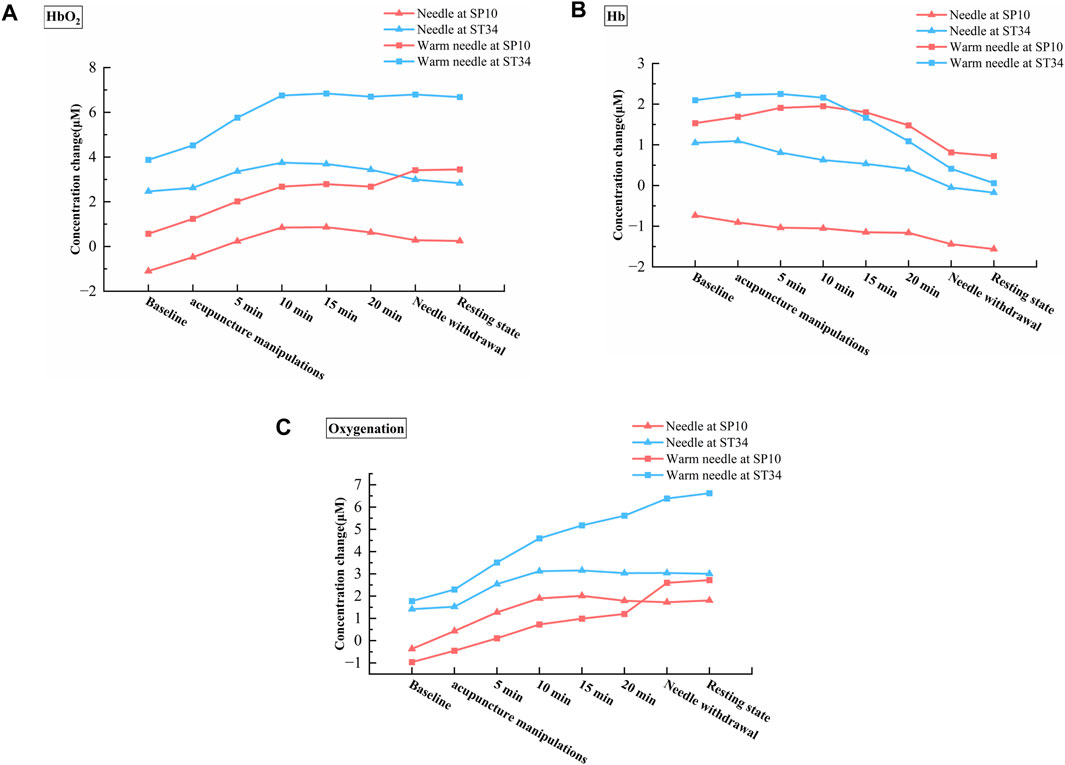

FIGURE 4
These changes may be related to the mechanisms of acupuncture; however, the physiological mechanisms underlying its effects remain incompletely understood. Previous research has demonstrated that acupuncture treatment can modulate microcirculation in KOA patients (). Alterations in local tissue microcirculation are closely associated with vasoconstriction and vasodilation (; ). The participants in this study had long-term chronic knee osteoarthritis, and the research confirmed that acupuncture exerts anti-inflammatory effects. During this anti-inflammatory process, acupuncture induces the production and release of neurotransmitters and related peptides such as nitric oxide (NO), substance P (SP), and calcitonin gene-related peptide (CGRP) (). These substances, including NO, SP, and CGRP, can directly or indirectly act on vascular smooth muscle, inducing vasodilation and consequently increasing blood flow (). Additionally, acupuncture modulates the autonomic nervous system by stimulating the vagus nerve to exert anti-inflammatory effects, reducing sympathetic nerve excitability, and promoting vasodilation (). Vasodilation enhances blood perfusion and velocity, thereby improving oxygen delivery (). Warm needle, which involves attaching a burning moxa stick to the needle handle, has been shown to significantly increase local NO levels at acupoints compared to needle due to thermal stimulation, resulting in stronger effects (). This leads to further peripheral vasodilation, increasing local blood flow and velocity. This study demonstrated that both needle and warm needle interventions induced maximal increases in local tissue blood flow and oxygen delivery 10 min after intervention. reported that 77.5% of patients experienced a 50% reduction in Visual Analog Scale (VAS) scores 10 min after acupuncture, with a 67.5% difference compared to sham acupuncture. This indicates that a 10-min acupuncture intervention significantly improves pain, consistent with our observed hemodynamic peak responses at this time point. Oxygenation levels depend on the difference between HbO2 and Hb concentrations and are positively correlated with changes in HbO2 concentration. This may explain why warm needle demonstrated higher concentrations of HbO2 and oxygenation than needle in the present study, as well as greater amplitude of concentration increases and earlier time to peak.
Our study revealed an unexpected finding: both needle and warm needle interventions significantly reduced Hb concentrations at ST34 and SP10, with a greater reduction amplitude observed at ST34 compared to SP10 (Figure 3B). Furthermore, we observed that the concentration of Hb decreased continuously after needle intervention, while it decreased only after 10 min of warm needle. Notably, warm needle at SP10 induced a greater amplitude of Hb elevation and prolonged maintenance duration relative to warm needle at ST34 (Figure 4B). Hb originates from HbO2 after tissue oxygen consumption, reflecting local tissue oxygen metabolism capacity ().
These findings may be associated with chronic inflammatory-induced soft tissue atrophy, unique hemodynamic alterations in KOA patients, and acupoint-specific properties. Studies indicate that KOA patients exhibit quadriceps muscle atrophy with reduced muscle fiber cross-sectional area (; ), leading to decreased mitochondrial density, impaired ATP synthesis efficiency, and diminished oxygen consumption (; ). Additionally, KOA-related arterial abnormalities correlate with disease progression, characterized by accelerated lower limb arterial flow velocity but reduced effective perfusion—the “high-flow, low-perfusion” phenomenon—which exacerbates muscle damage and metabolic dysfunction (; ; ). We hypothesize that while needle increases blood flow and oxygen delivery at SP10 and ST34, its capacity to enhance local tissue metabolic activity remains limited. In contrast, warm needle not only improves oxygen delivery but also transiently elevates local oxygen consumption and metabolic function, albeit with short-term sustainability. The 2021 Nobel Prize in Physiology or Medicine findings further elucidated the therapeutic mechanisms of acupuncture: needle stimulation activates mechanoreceptors, while warm needle concurrently activates both mechanoreceptors and thermoreceptors (). The biphasic trend of Hb concentrations in warm needle (peaking at 5 min post-intervention for ST34 and 10 min for SP10) may be related to temperature dynamics during warm needle. Moxa combustion elevates needle temperature up to 48 °C, with thermal stimulation exceeding 43 °C activating transient receptor potential vanilloid 1 (TRPV1) receptors (; ). TRPV1 activation triggers calcium/sodium influx, membrane depolarization, and ATP synthesis/release (). During warm needle intervention, the needle temperature initially rises continuously and gradually decreases as the moxa cone burns. This may explain why warm needle enhances local tissue oxygen consumption capacity while exhibiting a limited maintenance duration.
According to classical Chinese medicine (CM) theory, KOA falls under the category of “bi syndrome”, characterized by a deficiency-rooted excess pathogenicity and intertwined deficiency-excess patterns. Acupuncture regulates qi and blood circulation while balancing yin and yang (). Warm needle therapy integrates the mechanical stimulation of acupuncture, the thermal effects of moxibustion, and needle-mediated heat conduction. Heat stimulation likely activates thermoreceptors, thereby dispelling wind-cold pathogens and harmonizing yin–yang (), which may explain the superior hemodynamic changes in warm needle at SP10 compared to needle intervention. Additionally, KOA patients exhibit atrophy and weakness of the vastus medialis (VM) and stiffness of the vastus lateralis (VL) (; ). SP10 is located at the VM along the Spleen Meridian of Foot-Taiyin, while ST34 resides in the VL along the Stomach Meridian of Foot-Yangming (). According to CM theory, “The spleen governs the muscles and limbs”. Spleen deficiency leads to muscular atrophy and weakness. For yin meridians, warm needle enhances qi and blood replenishment due to their thermal properties. Therefore, warm needle at SP10 induces more favorable oxygen metabolism alterations than warm needle at ST34.
The application of NIRS in acupuncture for KOA has been increasingly studied; however, current research predominantly focuses on cerebral hemodynamic changes, while peripheral local tissue hemodynamics remain underexplored. As a preliminary exploratory study, this trial has several limitations. First, its design primarily investigated local tissue hemodynamic responses pre- and post-intervention across four treatment protocols and dynamic changes during acupuncture phases but failed to clarify the long-term effects of these interventions on improving local tissue hemodynamics. Subsequent studies should implement randomized controlled trials with multiple timepoint monitoring to systematically evaluate temporal efficacy profiles. Second, the gender ratio imbalance in participants leaves it unclear whether gender factors influence experimental outcomes. Future recruitment should optimize gender distribution to control sex-related confounders. Finally, potential bias arising from heterogeneity in disease severity among participants necessitates stratified subgroup analyses based on Kellgren–Lawrence grading to enhance the reliability of studies.
5 Conclusion
This study provides the first evidence showing the effect of acupuncture methods and acupoint selections of acupuncture therapy on hemodynamic responses in 24 KOA patients. The results indicate that warm needle significantly improves local blood flow and oxygen delivery capacity in KOA patients, extending the duration of improvement effects more effectively than needle intervention. Warm needle at SP10 demonstrated superior efficacy in improving oxygen metabolism relative to warm needle at ST34.
Statements
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics statement
The studies involving humans were approved by the Medical Ethics Committee of The Third Affiliated Hospital of Fujian University of Traditional Chinese Medicine (Approval No. 2022-Kl-040). The study was conducted in strict accordance with the Declaration of Helsinki. The studies were conducted in accordance with local legislation and institutional requirements. Participants provided their written informed consent to participate in this study.
Author contributions
AN: Conceptualization, Investigation, Methodology, Software, Writing – original draft. QC: Data curation, Formal Analysis, Funding acquisition, Writing – review and editing. JH: Conceptualization, Project administration, Validation, Writing – original draft. CL: Formal Analysis, Investigation, Validation, Writing – original draft. JZ: Data curation, Formal Analysis, Writing – original draft. YY: Methodology, Validation, Writing – original draft. XW: Funding acquisition, Resources, Supervision, Writing – review and editing. Y-KJ: Methodology, Supervision, Visualization, Writing – review and editing.
Funding
The author(s) declare that financial support was received for the research and/or publication of this article. This work was supported by the Fujian Provincial Natural Science Foundation (Grant Nos. 2023J01153 and 2021J01950) and the Science and Technology Development Project of the Chinese Association of Rehabilitation Medicine (Grant No. KFKT-2022-014). The funders are: XW, PhD from Beijing Sport University, whose main research focuses on the field of exercise and orthopedic rehabilitation; QC, PhD from Creighton University (USA), whose main research focuses on the field of orthopedic rehabilitation.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Any alternative text (alt text) provided alongside figures in this article has been generated by Frontiers with the support of artificial intelligence and reasonable efforts have been made to ensure accuracy, including review by the authors wherever possible. If you identify any issues, please contact us.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1
AltmanR.AschE.BlochD.BoleG.BorensteinD.BrandtK.et al (1986). Development of criteria for the classification and reporting of osteoarthritis: classification of osteoarthritis of the knee. Arthritis Rheum.29, 1039–1049. 10.1002/art.1780290816
2
Avendaño-CoyJ.Comino-SuárezN.Grande-MuñozJ.Avendaño-LópezC.Gómez-SorianoJ. (2020). Extracorporeal shockwave therapy improves pain and function in subjects with knee osteoarthritis: a systematic review and meta-analysis of randomized clinical trials. Int. J. Surg.82, 64–75. 10.1016/j.ijsu.2020.07.055
3
BagherP.SegalS. (2011). Regulation of blood flow in the microcirculation: role of conducted vasodilation. Acta Physiol. (Oxf)202, 271–284. 10.1111/j.1748-1716.2010.02244.x
4
BangS. K.ChangS.SeoS. Y.KangS.ChoS. J.ChoiK.et al (2023). Attenuation of immobilization stress-induced hypertension by temperature-controllable warm needle acupuncture in rats and the peripheral neural mechanisms. Front. Neurol.14, 1168012. 10.3389/fneur.2023.1168012
5
BoushelR.PiantadosiC. A. (2000). Near-infrared spectroscopy for monitoring muscle oxygenation. Acta Physiol. Scand.168, 615–622. 10.1046/j.1365-201x.2000.00713.x
6
CaterinaM. J.SchumacherM. A.TominagaM.RosenT. A.LevineJ. D.JuliusD. (1997). The capsaicin receptor: a heat-activated ion channel in the pain pathway. Nature389, 816–824. 10.1038/39807
7
ChangT.ZhuY.LiZ.LiF.LiY.GuoJ.et al (2021). Modulation in the stiffness of specific muscles of the quadriceps in patients with knee osteoarthritis and their relationship with functional ability. Front. Bioeng. Biotechnol.9, 781672. 10.3389/fbioe.201.781672
8
ChenH.ChenM.HsiehC.WuS.HsuH.LinY. (2018). TRPV1 is a responding channel for acupuncture manipulation in mice peripheral and central nerve system. Cell Physiol. Biochem.49, 1813–1824. 10.1159/000493627
9
ChenJ.LiuA.ZhouQ.YuW.GuoT.JiaY.et al (2021). Acupuncture for the treatment of knee osteoarthritis: an overview of systematic reviews. Int. J. Gen. Med.14, 8481–8494. 10.2147/IJGM.S342435
10
ChenH.ShiH.GaoS.FangJ.YiJ.WuW.et al (2024). Durable effects of acupuncture for knee osteoarthritis: a systematic review and meta-analysis. Curr. Pain Headache Rep.28, 709–722. 10.1007/s11916-024-01242-6
11
CiaccioC.ColettaA.ColettaM. (2021). Role of hemoglobin structural-functional relationships in oxygen transport. Mol. Asp. Med.84, 101022. 10.1016/j.mam.2021.101022
12
ConleyK. E.JubriasS. A.EsselmanP. C. (2000). Oxidative capacity and ageing in human muscle. J. Physiol.526 (Pt 1), 203–210. 10.1111/j.1469-7793.2000.t01-1-00203.x
13
Di FeliceV.ColettiD.SeelaenderM. (2022). Editorial: myokines, adipokines, cytokines in muscle pathophysiology, volume II. Front. Physiol.13, 907956. 10.3389/fphys.2022.907956
14
Fernández-MartínS.González-CantalapiedraA.MuñozF.García-GonzálezM.PermuyM.López-PeñaM. (2021). Glucosamine and chondroitin sulfate: is there any scientific evidence for their effectiveness as disease-modifying drugs in knee osteoarthritis preclinical Studies?a systematic review from 2000 to 2021. Animals An Open Access J. MDPI11, 1608. 10.3390/ani11061608
15
FinkB.EglM.SingerJ.FuerstM.BubenheimM.Neuen-JacobE. (2007). Morphologic changes in the vastus medialis muscle in patients with osteoarthritis of the knee. Arthritis Rheum.56, 3626–3633. 10.1002/art.22960
16
FukumotoY.MiyashitaT.KitanoM.OkunoY.KudoS. (2021). Characteristics of the descending genicular artery blood flow velocity in patients with knee osteoarthritis. Knee33, 143–149. 10.1016/j.knee.2021.09.009
17
GaoC.JiaL.MaM.ZhangX.LiT. (2023). Hemodynamic alterations response to chinese acupuncture therapy monitored by a custom near-infrared spectroscopy probe with an open hole. J. Biophot.16, e202300124. 10.1002/jbio.202300124
18
GelberA. C. (2015). Conventional medical therapy for osteoarthritis: current state of the evidence. Curr. Opin. Rheumatol.27, 312–317. 10.1097/BOR.0000000000000164
19
GuoY.LiY.XuT.ZhuM.XuZ.DouB.et al (2022). An inspiration to the studies on mechanisms of acupuncture and moxibustion action derived from 2021 nobel prize in physiology or medicine. Acupunct. Herb. Med.2, 1–8. 10.1097/HM9.0000000000000023
20
GuttermanD.ChabowskiD.KadlecA.DurandM.FreedJ.Ait-AissaK.et al (2016). The human microcirculation: regulation of flow and beyond. Circ. Res.118 (1), 157–172. 10.1161/CIRCRESAHA.115.305364
21
HuiB.RongP.LiL.GaoX.HeW. (2010). Effects of different acupuncture stimulations on NO content in acupoint areas. J. Tradit. Chin. Med.30, 25–29. 10.1016/s0254-6272(10)60008-8
22
HunterD. J.Bierma-ZeinstraS. (2019). Osteoarthritis. Lancet393, 1745–1759. 10.1016/S0140-6736(19)30417-9
23
HunterD. J.HarrisR. E. (2021). Acupuncture and knee osteoarthritis: does dose matter?Arthritis Rheumatol.73, 371–373. 10.1002/art.41583
24
JangS.LeeK.JuJ. H. (2021). Recent updates of diagnosis, pathophysiology, and treatment on osteoarthritis of the knee. Int. J. Mol. Sci.22, 2619. 10.3390/ijms22052619
25
JiangG.DingJ.GeC. (2022). Deep learning-based CT imaging to evaluate the therapeutic effects of acupuncture and moxibustion therapy on knee osteoarthritis. Comput. Math. Methods Med.2022, 1–9. 10.1155/2022/1135196
26
JinS.GuanX. (2022). A systematic review and meta-analysis of the comparative curative effects of warm acupuncture and other traditional chinese medicines in the treatment of knee osteoarthritis. Ann. Palliat. Med.11 (2), 708–716. 10.21037/apm-21-3972
27
JouN.MaS. (2009). Responses of nitric oxide-cGMP release in acupuncture point to electroacupuncture in human skin in vivo using dermal microdialysis. Microcirculation16, 434–443. 10.1080/10739680902915012
28
JoynerM.CaseyD. (2014). Muscle blood flow, hypoxia, and hypoperfusion. J. Appl. Physiol.116 (7), 852–857. 10.1152/japplphysiol.00620.2013
29
KlopM.de HeusR. A. A.MaierA. B.van AlphenA.Floor-WesterdijkM. J.BronkhorstM.et al (2023). Capturing postural blood pressure dynamics with near-infrared spectroscopy-measured cerebral oxygenation. Geroscience45, 2643–2657. 10.1007/s11357-023-00791-9
30
KolasinskiS. L.NeogiT.HochbergM. C.OatisC.GuyattG.BlockJ.et al (2020). 2019 american college of rheumatology/arthritis foundation guideline for the management of osteoarthritis of the hand, hip, and knee. Arthritis Care Res. Hob.72, 149–162. 10.1002/acr.24131
31
LiY.MoP.LinC.PaulyS.KundalN.HernandezM. E.et al (2023). Using near-infrared spectroscopy to investigate the effects of pressures and durations of cupping therapy on muscle blood volume and oxygenation. J. Biophot.16, e202200342. 10.1002/jbio.202200342
32
LiJ.WuZ.LuB.LiC.WangS.ZhangJ.et al (2024). The differences in parameters in ultrasound imaging and biomechanical properties of the quadriceps femoris with unilateral knee osteoarthritis in the elderly: a preliminary observational study. Clin. Interv. Aging19, 1479–1491. 10.2147/CIA.S442610
33
LimH.KimM.LeeC.NamgungU. (2016). Anti-inflammatory effects of acupuncture stimulation via the vagus nerve. PLoS One11, e0151882. 10.1371/journal.pone.0151882
34
LiuJ.LiZ. (2017). Radiologic observation of the blood supply changes around the knee with osteoarthritis. Zhongguo Gu Shang30, 701–706. 10.3969/j.issn.1003-0034.2017.08.004
35
LiuC.DuanY.ZhouH.WangY.TuJ.BaoX.et al (2024). Clinical effect and contributing factors of acupuncture for knee osteoarthritis: a systematic review and pairwise and exploratory network meta-analysis. BMJ Evid. Based Med.29, 374–384. 10.1136/bmjebm-2023-112626
36
LiuQ.WangS.LinJ.ZhangY. (2018). The burden for knee osteoarthritis among chinese elderly: estimates from a nationally representative study. Osteoarthr. Cartil.26, 1636–1642. 10.1016/j.joca.2018.07.019
37
LiuW.FanY.WuY.HouX.XueB.LiP.et al (2021). Efficacy of acupuncture-related therapy in the treatment of knee osteoarthritis: a network meta-analysis of randomized controlled trials. J. Pain Res.14, 2209–2228. 10.2147/JPR.S315956
38
LiuX.HuangZ.XiaoX.GuanL. (2024). The efficacy of acupuncture, exercise rehabilitation, and their combination in the treatment of knee osteoarthritis: a randomized controlled trial. J. Pain Res.17, 2837–2849. 10.2147/JPR.S465058
39
MaW.ZhangC. Y.HuangX.ChengW. (2023). Network meta-analysis of 7 acupuncture therapies for knee osteoarthritis. Med. Baltim.102, e35670. 10.1097/MD.0000000000035670
40
MacPhersonH.AltmanD. G.HammerschlagR.YoupingL.TaixiangW.WhiteA.et al (2010). Revised STandards for reporting interventions in clinical trials of acupuncture (STRICTA): extending the CONSORT statement. J. Evid. Based Med.3, 140–155. 10.1111/j.1756-5391.2010.01086.x
41
MagniA.AgostoniP.BonezziC.MassazzaG.MenèP.SavarinoV.et al (2021). Management of osteoarthritis: expert opinion on NSAIDs. Pain Ther.10, 783–808. 10.1007/s40122-021-00260-1
42
MaidanI.Bernad-ElazariH.GiladiN.HausdorffJ. M.MirelmanA. (2017). When is higher level cognitive control needed for locomotor tasks among patients with Parkinson'S disease?Brain Topogr.30, 531–538. 10.1007/s10548-017-0564-0
43
Mau-MoellerA.JacksteitR.JackszisM.FeldhegeF.WeippertM.MittelmeierW.et al (2017). Neuromuscular function of the quadriceps muscle during isometric maximal, submaximal and submaximal fatiguing voluntary contractions in knee osteoarthrosis patients. PLoS One12, e0176976. 10.1371/journal.pone.0176976
44
MiB.WangX.YangJ.ShiG.ZhangW.JinL.et al (2023). Thermographic evaluation of acupoints in lower limb region of individuals with osteoarthritis: a cross-sectional case-control study protocol. PLoS One18, e0284381. 10.1371/journal.pone.0284381
45
MinS.LeeH.KimS.ParkJ.ChaeY.LeeH.et al (2015). Local changes in microcirculation and the analgesic effects of acupuncture: a laser doppler perfusion imaging study. J. Altern. Complement. Med.21 (1), 46–52. 10.1089/acm.2013.0442
46
ÖztürkG. Y.YetişirA. (2023). Efficacy of extracorporeal shock wave and pulse electromagnetic field therapies in calcaneal spurs. Arch. Iran. Med.26, 642–646. 10.34172/aim.2023.94
47
ÖztürkÖ.AlgunZ. C.BombacıH.ErdoğanS. B. (2021). Changes in prefrontal cortex activation with exercise in knee osteoarthritis patients with chronic pain: an fNIRS study. J. Clin. Neurosci.90, 144–151. 10.1016/j.jocn.2021.05.055
48
ScholkmannF.KleiserS.MetzA. J.ZimmermannR.Mata PaviaJ.WolfU.et al (2014). A review on continuous wave functional near-infrared spectroscopy and imaging instrumentation and methodology. Neuroimage85 (Pt 1), 6–27. 10.1016/j.neuroimage.2013.05.004
49
ShenX.WangS.ChenJ.LiJ.LiC.XiangR.et al (2024). Inter-rater reliability and test-retest reliability of the foot posture index (FPI-6) for assessing static foot posture in elderly female patients with knee osteoarthritis and its association with quadriceps muscle tone and stiffness. Front. Bioeng. Biotechnol.12, 1385986. 10.3389/fbioe.2024.1385986
50
TuJ.CaoY.WangL.ShiG.JiaL.LiuB.et al (2022). Effect of adjunctive acupuncture on pain relief among emergency department patients with acute renal colic due to urolithiasis: a randomized clinical trial. JAMA Netw. Open5, e2225735. 10.1001/jamanetworkopen.2022.25735
51
WangR.XueP.XingH.JiaC.ShiJ. (2022). Complex network analysis on regularities of acupoint combinations and application characteristics of acupuncture and moxibustion in the treatment of knee osteoarthritis. Zhen Ci Yan Jiu47, 65–70. 10.13702/j.1000-0607.20210080
52
WenJ.ChenX.YangY.LiuJ.LiE.LiuJ.et al (2021). Acupuncture medical therapy and its underlying mechanisms: a systematic review. Am. J. Chin. Med.49, 1–23. 10.1142/S0192415X21500014
53
World Health Organization. Regional Office for the Western Pacific (2008). WHO standard acupuncture point locations in the western pacific region. WHO Regional Office for the Western Pacific. Available online at: https://iris.who.int/handle/10665/353407 (Accessed December 31, 2008)
54
WuJ.LiY.ZhangX.LiuJ.QianZ.RenP.et al (2023). Assessment of blood flow around the knee joint in patients with knee osteoarthritis by color doppler ultrasound. Eur. J. Radiol.166, 111005. 10.1016/j.ejrad.2023.111005
55
YangX.WangH.SunJ. (2024). Understanding tightened muscle in knee osteoarthritis and the impacts of fu's subcutaneous needling: a pilot trial with shear-wave elastography and near-infrared spectroscopy. Med. Baltim.103, e38274. 10.1097/MD.0000000000038274
56
YetişirA.ÖztürkG. Y. (2023). Effects of low-level laser therapy on acupuncture points on knee pain and function in knee osteoarthritis. Rev. Assoc. Med. Bras.70, e20230264. 10.1590/1806-9282.20230264
57
YuS.KeongT. (2022). “Exploring the rule of selecting acupoints for acupuncture treatment of knee osteoarthritis based on literature collection and analysis,” in Proceedings of the 1St international conference on health big data and intelligent healthcare. 10.5220/0011233600003438
58
ZhangM.GaoX. (2018). The clinical application of warm acupuncture and penetration moxibustion by professor GAO xiyan. Zhongguo Zhen Jiu = Chin. Acupunct. & Moxibustion38 (12), 1325–1328. 10.13703/j.0255-2930.2018.12.018
59
ZijlstraF.Van Den Berg-De LangeI.HuygenF.KleinJ. (2003). Anti-inflammatory actions of acupuncture. Mediat. Inflamm.12, 59–69. 10.1080/0962935031000114943
