ORIGINAL RESEARCH article
Front. Bioeng. Biotechnol.
Sec. Biomechanics
Volume 13 - 2025 | doi: 10.3389/fbioe.2025.1694935
Finite Element Analysis-Based Design and Efficacy Assessment of a Three-Dimensional Anisotropic Heel Cushioning Pad for Diabetic Foot Management
Provisionally accepted
- 1The First People’s Hospital of Yunnan Province, Kunming, China
- 2The Key Laboratory of Digital Orthopedics of Yunnan Province, Kunming, China
- 3The Affiliated Hospital of Yunnan University, Kunming, China
Select one of your emails
You have multiple emails registered with Frontiers:
Notify me on publication
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

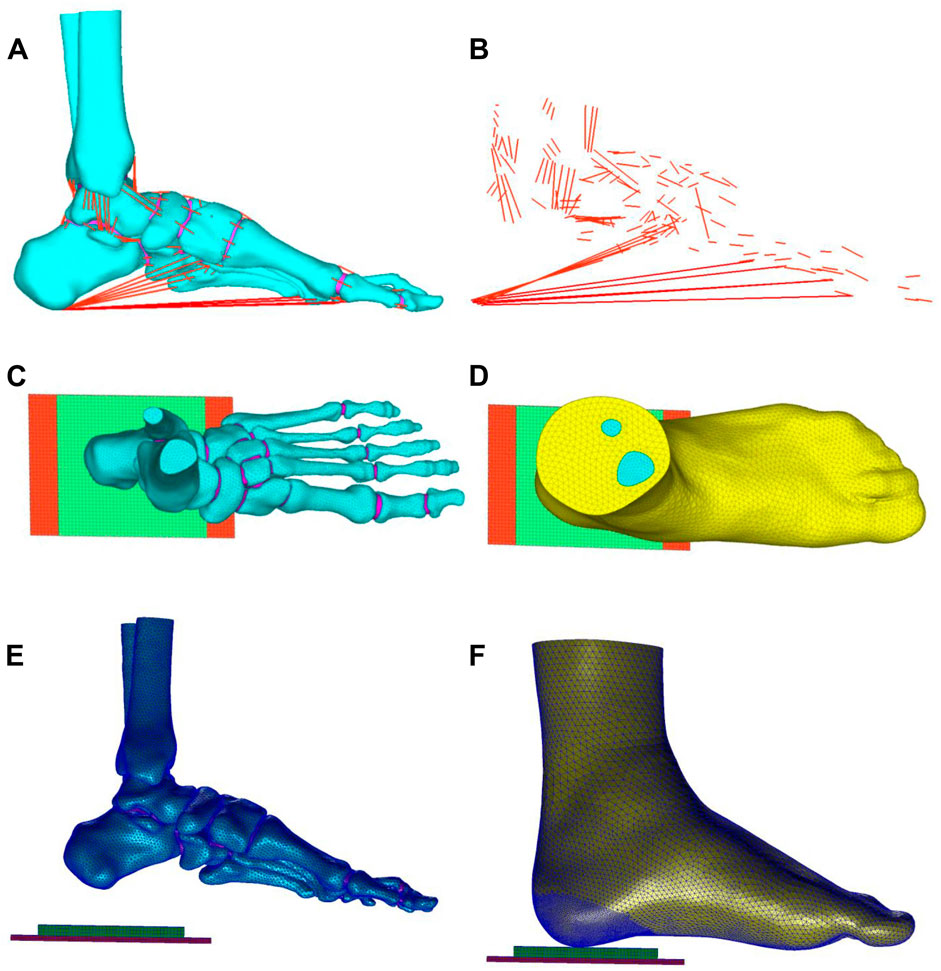

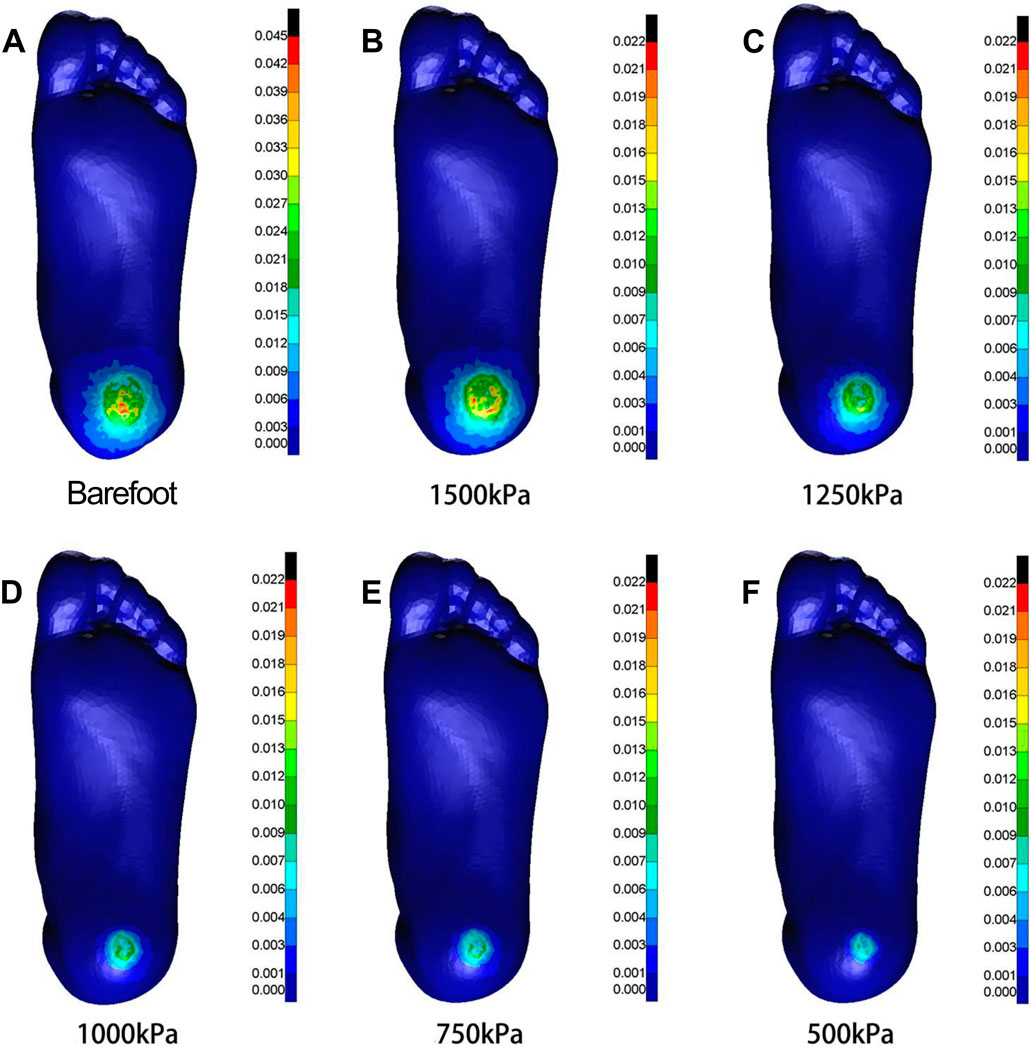

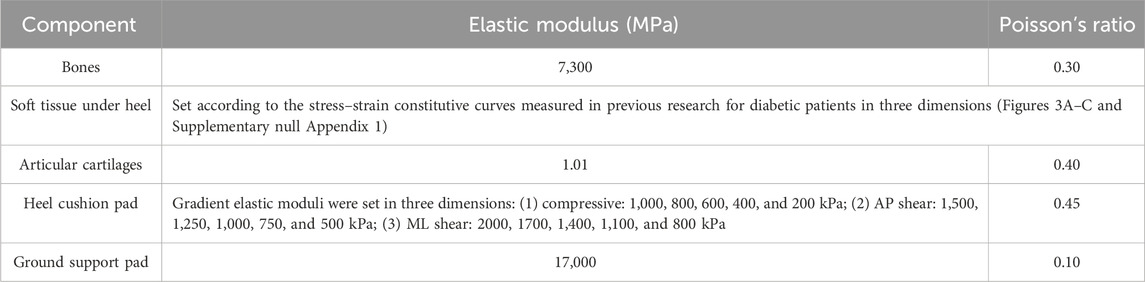

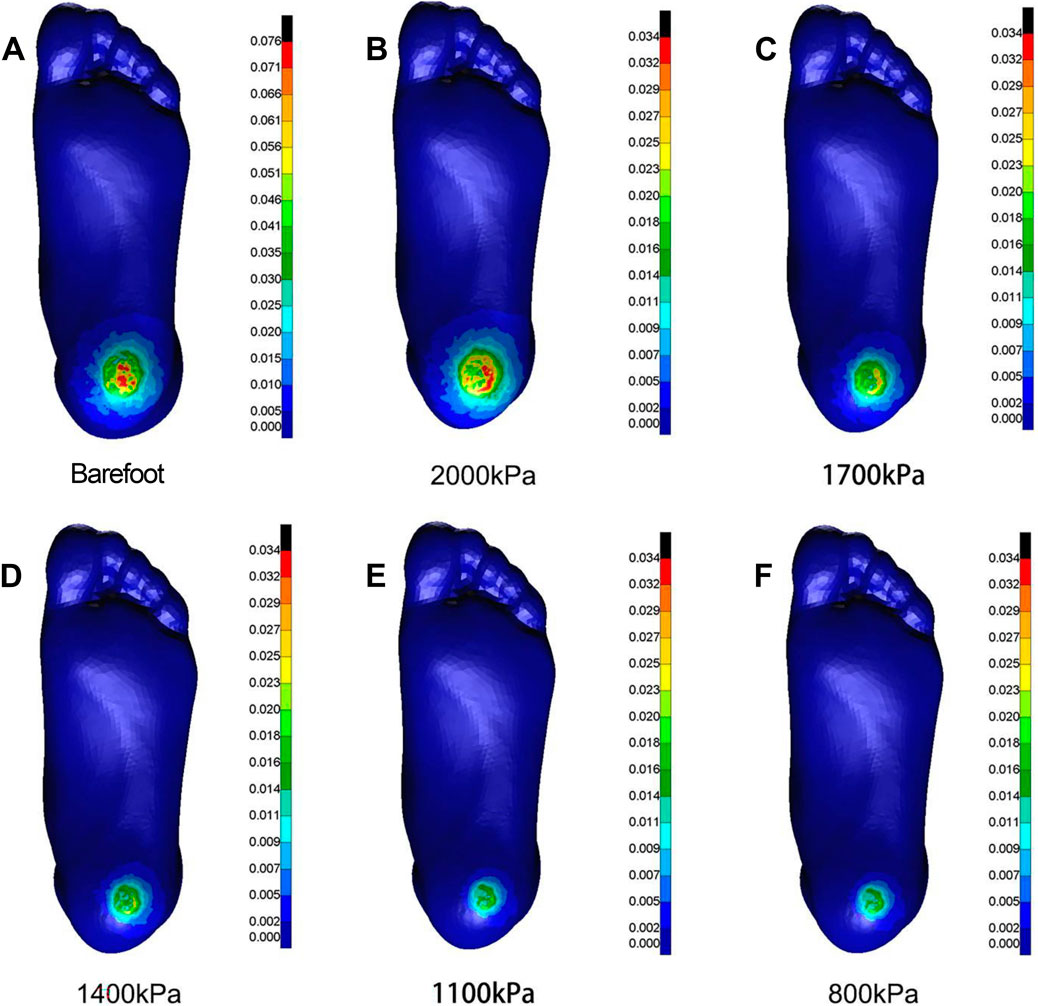

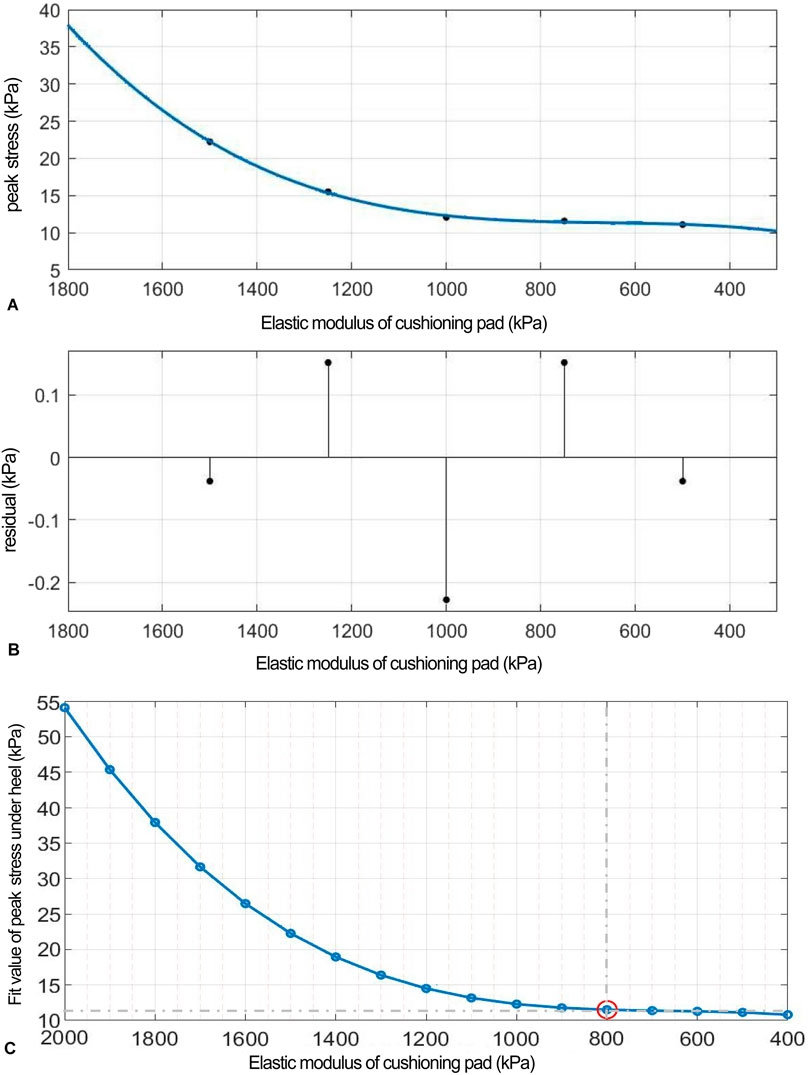

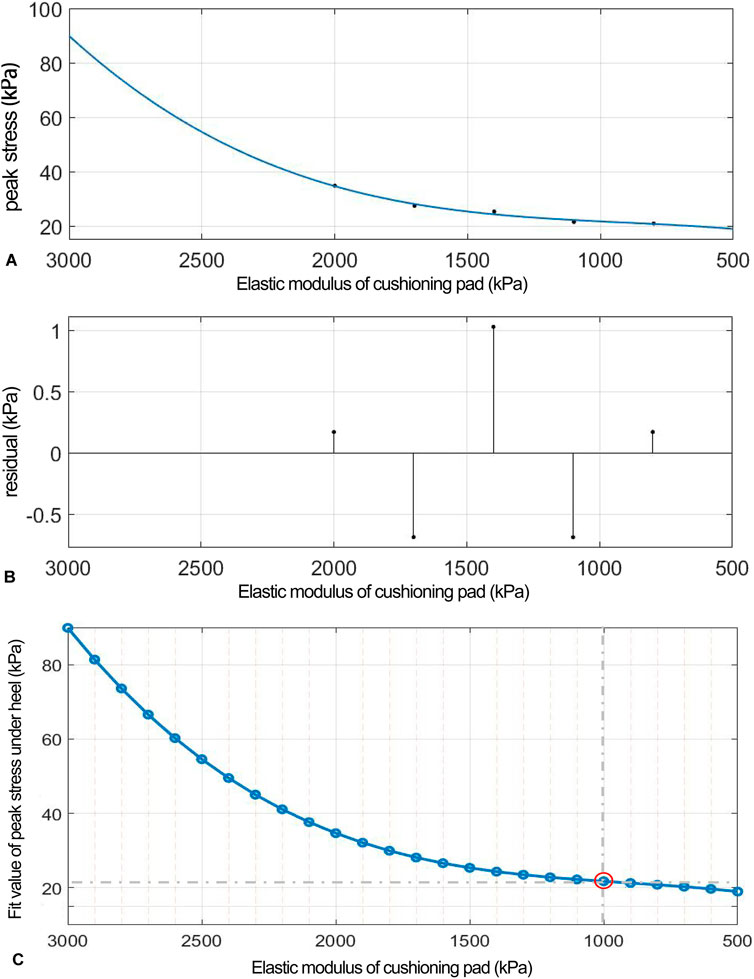

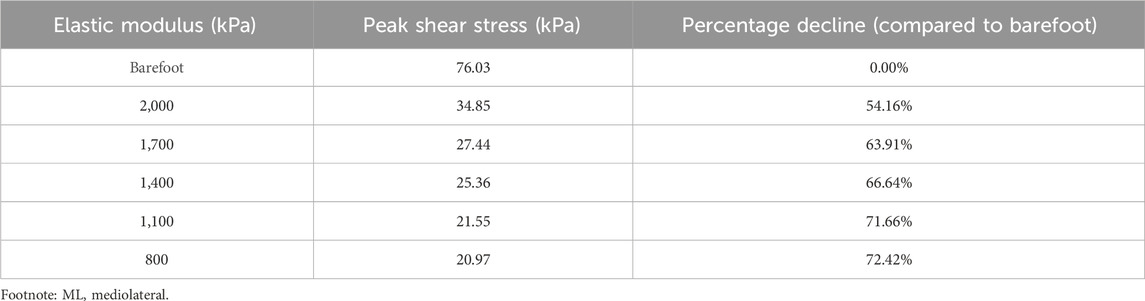

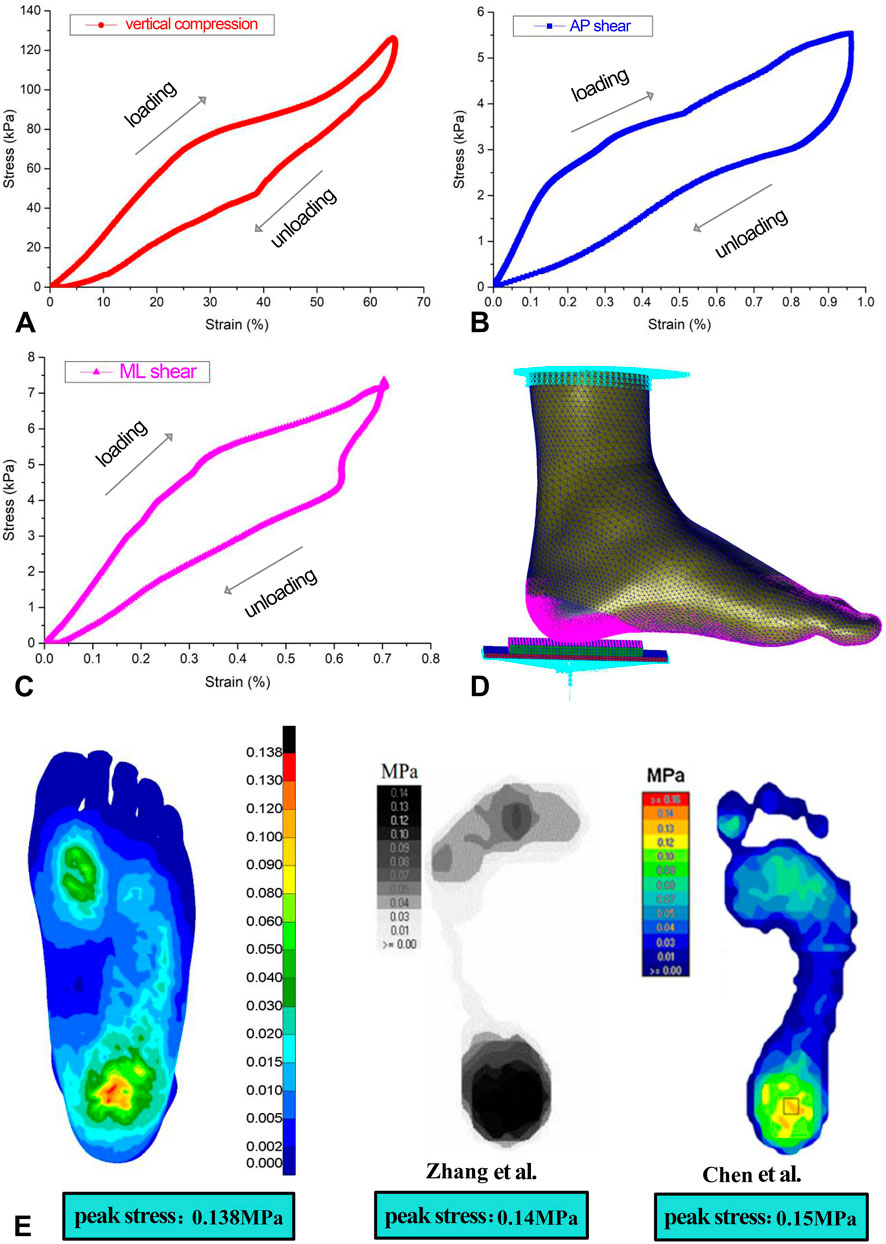

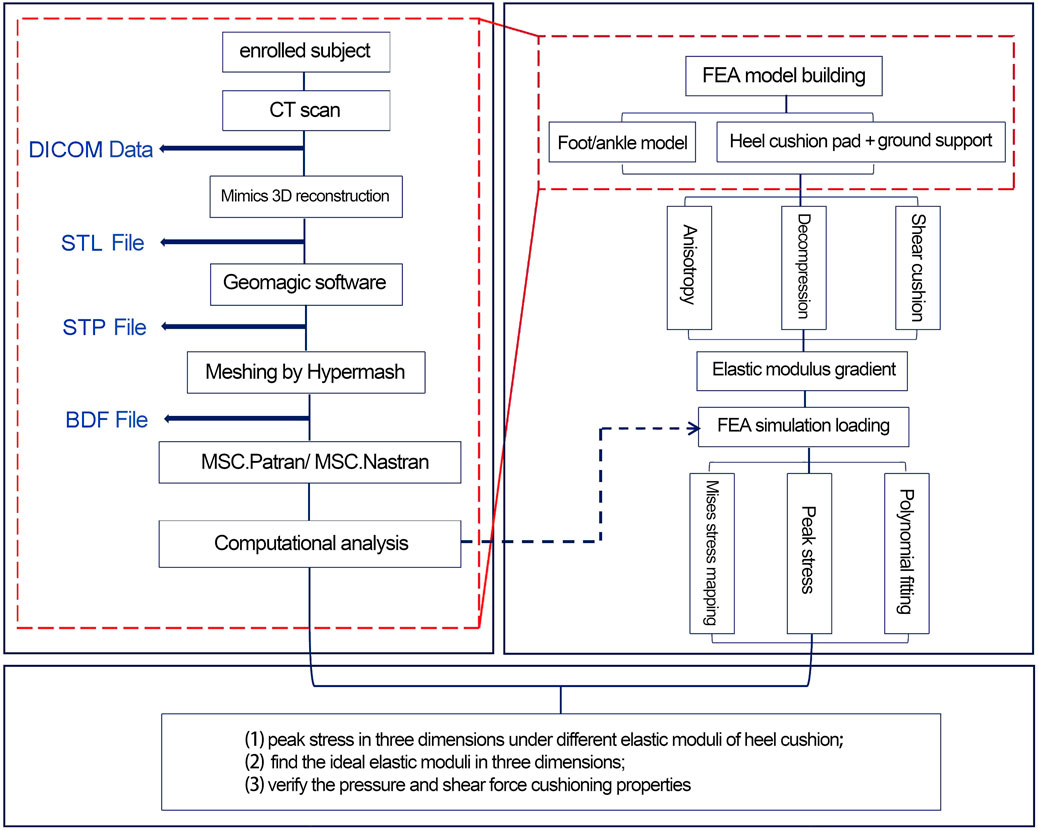

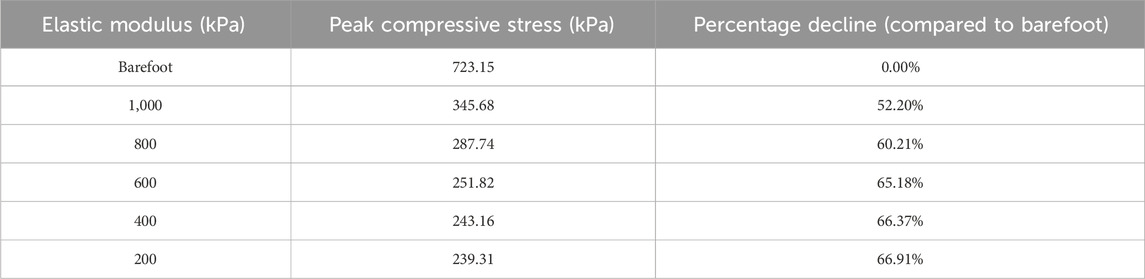

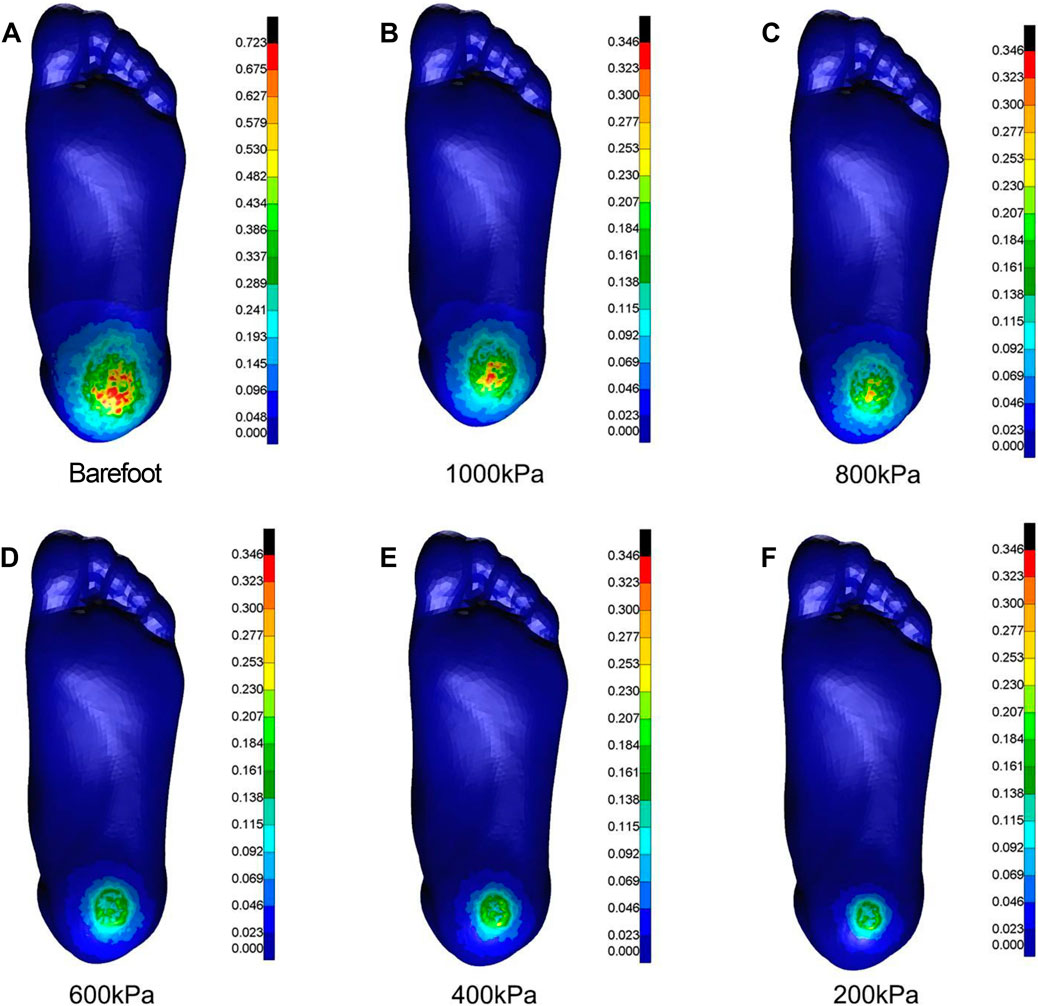

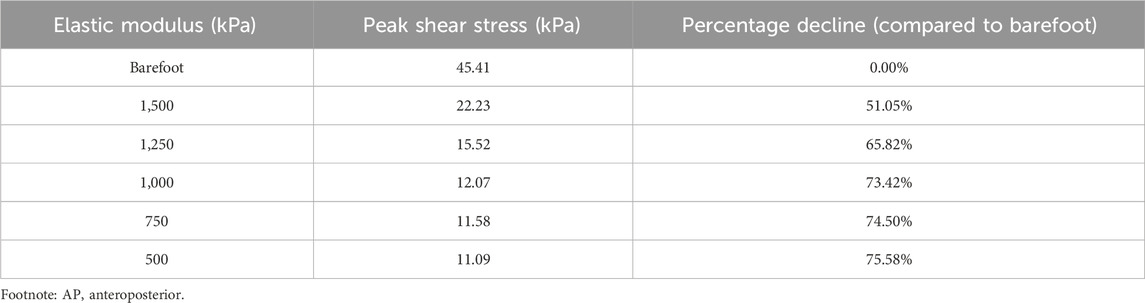

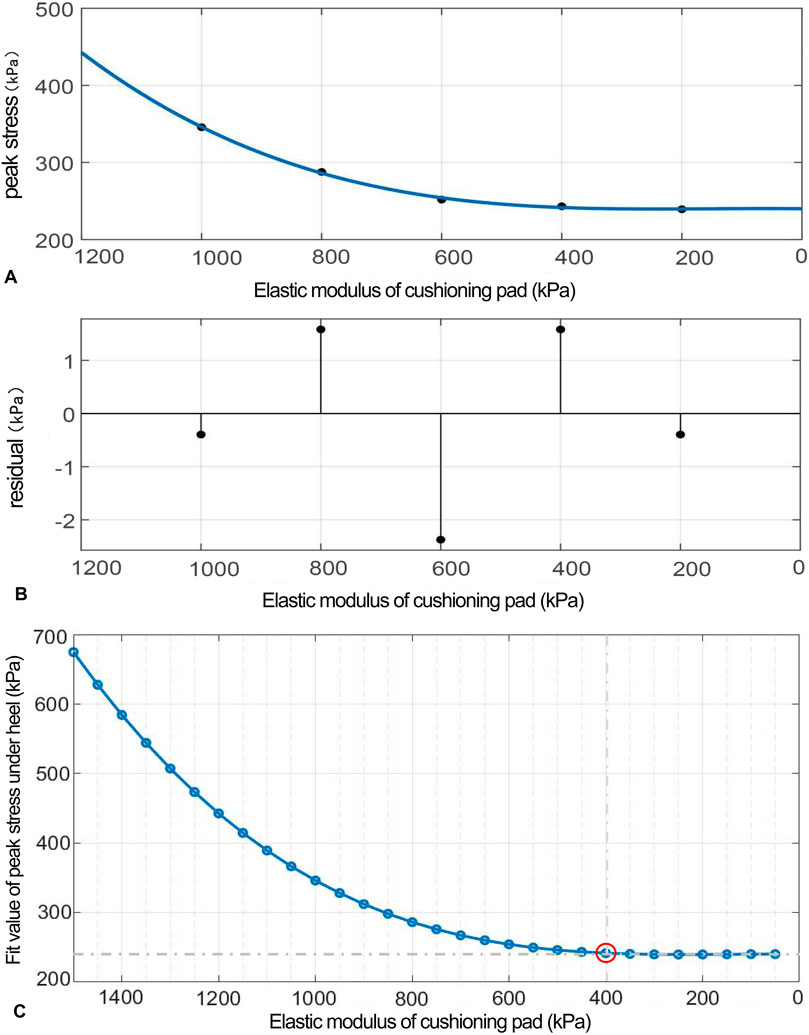

Background: Diabetic foot ulcer (DFU) is a common complication of diabetic patients, which can lead to lower limb amputation in severe cases, and seriously impair the patient's mobility and even endanger life. Plantar insoles aim to redistribute pressure, yet diabetic foot tissues exhibit altered material properties, necessitating a novel approach to address vertical pressures and shear forces. This study sought to design a three-dimensional anisotropic heel cushioning pad that mitigates both vertical pressure and anteroposterior/mediolateral (AP/ML) shear forces. Methods: CT data of the foot were collected and stored in DICOM format. We reconstructed foot model and simulated heel cushioning pad with varying elastic moduli in compressive, AP-shear and ML-shear directions. We employed finite element analysis (FEA) to assess the impact of these moduli on peak stresses under various loading conditions. The data were fitted by polynomial, and a regression equation was obtained. Results: Reducing the elastic moduli of heel cushioning pad led to decreased peak stresses across all directions. Notably, the peak compressive stress dropped by 52.20%-66.91%, while AP and ML shear stresses fell by 51.05%-75.58% and 54.16%-72.42%, respectively. Polynomial analyses revealed optimal stress reductions within specific elastic modulus ranges (400, 800, and 1000kPa in compressive,
Keywords: Diabetic Foot, Finite Element Analysis, Heel cushion pad, Anisotropy, Elasticity modulus
Received: 02 Sep 2025; Accepted: 13 Oct 2025.
