Abstract
The infiltration of pesticides into agricultural soils has emerged as a critical concern, posing substantial threats to the agriculture industry due to soil and water contamination. The detection of these contaminants is critical towards implementing effective environmental remediation strategies and achieving ecosystem sustainability. Electrochemical sensor technology has been demonstrated to be highly promising for this application. Graphene and its derivatives and composites are widely used as modifying materials in these sensors to enhance their analytical performance. This short review discusses recent progress in the application of graphene-based electrochemical sensors in three-electrode and field-effect transistor configurations for the detection of pesticides posing significant risks to the agricultural sector. It highlights the growing significance of graphene-based sensors in mitigating pesticide-related environmental challenges and underscores their role in ensuring the health and diversity of agricultural ecosystems.
1 Introduction
Ensuring safety of water and food supplies and preserving environmental integrity are at the forefront of the serious challenges faced by world today. Highly toxic pesticides that cause short- or long-term adverse impacts on human health and ecosystem are common contaminants of water sources and agricultural products. Pesticides are infamous for their resistance to natural degradation, large residence time in the environment, and potential for accumulation in the food chain. Detection and monitoring of pesticides in soil, food and ground water have become critical tasks in the fields of agriculture, food safety, and environmental protection (). Traditional analytical techniques like colorimetry, spectrometry, and optical sensing methods, while effective, suffer from drawbacks such as high costs, time-intensive procedures, and limited portability for real-time pesticide detection (; ). Additionally, regarding pesticide detection, optical and mechanical sensors demonstrate high sensitivity and selectivity, but often require complex and bulky equipment, limiting their suitability for real time on-site applications ().Chemical sensors were developed as a suitable alternative to overcome these challenges.
According to the International Union of Pure and Applied Chemistry (IUPAC), a chemical sensor is a device that transforms chemical information, into an analytically useful signal (). An electrochemical sensor belongs to this category, and it transforms the analyte-electrode electrochemical interaction into a useful signal. The electrochemical sensors are subdivided into voltametric, potentiometric, and chemically sensitized field effect transistors (FET). In chemically sensitized FETs the effect of interaction between analyte and an active coating is transformed into a change in the source-drain current. In the literature, it is common to find all types of FETs in the class of electrochemical sensors, though generally, the operating principle can differ (; ). The conventional FET sensors that operate based on variations in conductance of the channel is an example of other types of devices (). In this review, we discuss the electrochemical sensors in the three-electrode geometry and the FET devices working on electrochemical principles.
The conventional three-electrode electrochemical system comprises of a working electrode (WE), a reference electrode (RE), and a counter electrode (CE) (). The interaction of the sensor with target analyte generates an electrical signal that is a measure of the concentration of the analyte. This process entails allowing charged molecules to move through a thin electrolyte layer. This classical method offers several benefits, including high sensitivity and selectivity, linearity of response in a broad range of analyte concentrations, minimal space and power needs, onsite detection capability, and affordable instrumentation (). Nevertheless, it has its own challenges, such as reliance on an electrolyte, which introduces pH working range limitations, susceptibility to pH-related interferences that reduce stability, electrode degradation, and the need for frequent maintenance and calibration. Additionally, sensitivity can be hampered by non-specific reactions between electroactive impurities on the electrode surface and the sample ().
The FET type, on the other hand, consists of a semiconductor with a source, drain, and gate regions. In a conventional FET, the source and drain are two p-n junctions with source supplying the electrons or holes and the drain receiving them. The gate electrode is formed on a thin insulating layer applied on the semiconductor in the region between the source and the drain (). Metal oxide semiconductor field effect transistor (MOSFET) is one of the earliest designs of FETs, fabricated with an oxide, SiO2, for example, as the gate insulator. In recent years, new FET configurations have emerged. Thin film transistors (TFTs), which employ typically non-silicon semiconductors as substrates, is an example. Their configurations include top-gate TFT, electrolyte-gate FET (EG-FET), electrochemical transistor (ECT), ion-sensitive FET (ISFET), and chemically sensitive FETs (ChemFETs) (; ; ; ). Despite these advancements, the MOSFET design is still one of the most used configurations in pesticide detection.
The introduction of graphene and its derivatives has significantly advanced the application of electrochemical sensors for real-time detection and monitoring of pesticides. In the three electrode electrochemical sensors, graphene’s large surface area and exceptional electrical conductivity make it an ideal candidate for the working electrode (WE) (). Its high surface to volume ratio enhances the interaction between analytes and the electrode surface resulting into improved sensitivity and detection limits. Additionally, its excellent electron transfer properties facilitate rapid and efficient redox reactions, crucial for electrochemical sensing applications. In FET sensors, graphene serves as a key component in the channel. Its outstanding electron mobility and high carrier mobility enable precise and responsive detection of analytes. Functionalized graphene, graphene oxide (GO) and reduced graphene oxide (rGO) can also provide binding sites for biorecognition elements, enhancing selectivity (). Graphene, with its extensive delocalized π-electron system and substantial theoretical specific surface area (approximately 2,630 m2g−1), exhibits excellent adsorption capabilities for organic compounds (). Furthermore, graphene’s unique properties, combined with the ability to customize its composition and morphology, have opened new avenues for the creation of highly efficient sensing interfaces. These interfaces hold immense potential for on-site, real-time monitoring, offering not only enhanced sensing capabilities but also empowering proactive interventions to minimize risks within the agricultural sector ().
In this article, we highlight recent advancements in graphene-based three-electrode and FET electrochemical sensors and provide insights into the future of this technology. Figure 1 presents the thematic overview of our discussion. The three-electrode and FET configurations were selected for discussion due to their outstanding selectivity, sensitivity, and stability in detecting pesticides relevant to the agricultural sector ().
FIGURE 1
2 Electrochemical detection of pesticides
2.1 Three electrodes system
Pesticides are categorized into various groups depending on their structure. The nitro group containing pesticides is known as nitro pesticides. During the electrochemical reaction, the nitro groups reduce to form hydroxylamine. In organophosphate pesticides, the C=C bond structure undergoes reduction. In organochlorine pesticides, the removal of one electron from chlorine is responsible for the peak. It has also been reported that pesticides with non-aromatic rings provide a higher limit of detection in comparison with pesticides containing aromatic structures (). The electrochemical detection of pesticides highly relies on their oxidation and reduction reactions at the working electrode. Consequently, the surface of the working electrode is modified with various materials, including nanoparticles and graphene, to enhance its performance. Graphene, with its tremendous specific surface area (m2/g), surpasses metal nanoparticles in its exceptional adsorption capabilities. This property has made it a preferred and extensively researched material for the detection of various pesticides (). Figure 2 illustrates the overall electrochemical detection scheme of graphene within a three-electrode system.
FIGURE 2
Carbofuran, owing to its significant toxicity to human central nervous system, has been the subject of research for its detection in soil and water samples. For instance, Tan et al. () utilized a reduced graphene oxide-gold-molecularly imprinted polymer (methyl acrylic acid as a functional monomer) to sense carbofuran pesticide. Their findings revealed a significant reduction in the charge-transfer resistance when bare glassy carbon electrode (GCE) was replaced with nanocomposite-modified electrode. As a result, the lower detection limit and linear range of the electrode were significantly improved in comparison. However, underlying mechanisms responsible for the observed enhancements was not clear from their study.
In order to detect methyl parathion, Gong et al. () employed a gold-graphene modified electrode and applied the technique of square wave voltammetry (SWV). They reported an exceptionally low limit of detection (LOD) of 0.002 μM. The achievement of such a low LOD could be attributed to the synergistic effects of gold and graphene, which aided enhanced electron transfer and provided a favourable platform for the immobilization of nitroaromatic organophosphates. developed a graphene-molybdenum disulphide nanocomposite and employed a cyclic voltametric technique for detection. Their findings revealed a linear range of 10 nM to 1.9 mM, highlighting the sensor’s ability to quantify methyl parathion over a wide concentration range. The LOD of 0.0032 μM further highlights the high sensitivity of their sensor. focused their efforts on the detection of methyl parathion using a graphene-gadolinium Prussian blue nanocomposite. Their sensors showed a very low LOD of 1 nM and linearity of response over a wide concentration range (0.008–10 mM). The range shifted to higher concentrations compared to that reported by . The incorporation of gadolinium Prussian blue nanoparticles onto graphene surface enhanced the electrocatalytic activity, leading to improved detection capabilities. While all these devices showed promise as methyl parathion sensors, comprehensive studies to understand the selectivity and stability under long-term operation should be conducted to evaluate their practical application.
developed a nitrogen-doped graphene-gold nanocomposite for the detection of dimethoate, an organophosphate pesticide. The sensor exhibited a linear range of 1 × 10−12 to 4 × 10−8 M, indicating its potential for accurate quantification over a wide concentration range. The LOD of 8.7 × 10−13 M further highlights the potential of the devise as a dimethoate sensor. However, it was not evident if the sensor would selectively detect dimethoate in presence of other contaminants.
An rGO-gold nanocomposite-modified screen-printed electrode exhibited promising results for diuron herbicide detection (). The study employed linear sweep voltammetry (LSV) for investigations. The sensor demonstrated linear response in a broad concentration range of 0.5–30.0 μM. Additionally, the sensor showed an excellent LOD of 3.9 x 10−7 μM, highlighting its efficacy in detecting diuron herbicide. These findings suggest that the integration of rGO and gold nanocomposites can enhance the electrochemical performance of the sensor, enabling reliable and accurate detection of diuron herbicide (). presented compelling evidence showing the potential of graphene-coated electrodes in diuron detection. The investigation provided insights into the role of pristine graphene in the detection process. The results exhibited enhanced charge-transfer kinetics and higher peak currents compared to bare electrode, which improved the lower LOD. Additionally, the differential pulse voltammetry (DPV) analysis demonstrated linearity in the response over a concentration range of 20–1,000 µM and a low LOD of 5 µM. These findings underscore the suitability of graphene-based electrodes for sensitive and dependable diuron detection, eliminating the need for additional modifications.
The combination of graphene with metals such as boron and silver has shown promise in pesticide detection. Silver-graphene modified boron-doped diamond electrodes have demonstrated simultaneous detection of paraquat and carbaryl with low LODs (). utilized an rGO-Cu/CuO-Ag nanocomposite for detecting fenamiphos and carbaryl, achieving low LODs and wide linear ranges. Glyphosate, a widely used herbicide, poses significant risks to both the environment and human health. To address these concerns, numerous studies have employed graphene-based electrochemical sensors for the detection of glyphosate. introduced a composite material on screen-printed gold electrodes, providing a sensitive platform with a low detection limit of approximately 0.08 ppb for glyphosate in river water samples. presented a selective detection method using platinum-decorated laser-induced graphene (LIG) in combination with the enzyme glycine oxidase, offering a scalable and selective tool for glyphosate detection in complex matrices. In a separate study, addressed the pressing need for nanomolar-level glyphosate detection in drinking water using gold nanoelectrode arrays on graphene paper. These studies collectively emphasize the significance of developing sensitive and selective glyphosate detection methods, particularly at low concentrations, in response to the challenges posed by environmental contamination and human health risks. Table 1 compares the electrochemical performances of various graphene-based electrode.
TABLE 1
| Technique | Electrode material | Pesticide | LOD (μM) | Linear range | Ref |
|---|---|---|---|---|---|
| DPV | MIP/rGO@Au/GCE | carbofuran | 0.02 | 0.05–20 μM | |
| SWV | AuNPs-chi-GNs/GCE | methyl parathion | 0.002 | 0.001–0.1 and 0.2–1.0 μM | |
| Ampero-metry | MoS2/graphene/GCE | methyl parathion | 0.003 | 10–1.9 mM | |
| DPV | graphene-gadolinium Prussian blue/GCE | methyl parathion | 0.001 | 0.008–10 mM | |
| DPV | Nitrogen-doped graphene/AuNPs/GCE | dimethoate | 8.7 × 10−5 | 10–3–40 nM | |
| LSV | rGO-gold nanocomposite-modified screen-printed electrode | diuron | 3.9 x 10−7 | 0.5–30.0 μM | |
| DPV | graphene/GCE | diuron | 5 | 20–1,000 µM | |
| DPV | Silver-graphene/boron-doped diamond/GCE | carbaryl and paraquat | 1.14 x 10−3 and 1.15 x 10−3 | - | |
| DPV | rGO-Cu/CuO-Ag/GCE | carbaryl and fenamiphos | 0.005 and 0.003 | 0.05–20 and 0.01–30 μM | |
| Amperometry | Platinum/laser-induced graphene | Glyphosate | 3.03 | 10–260 |

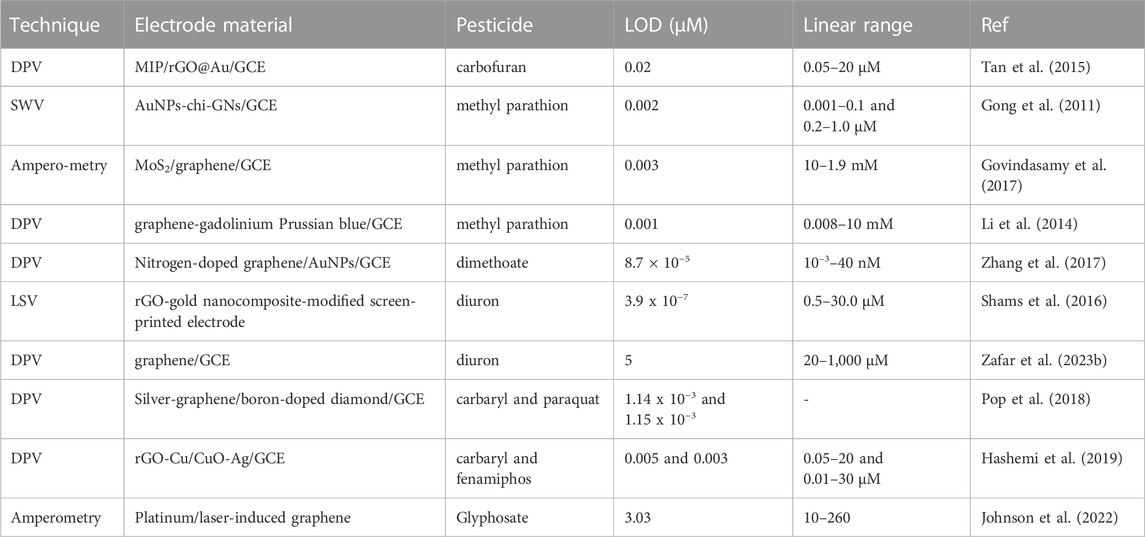

Voltametric techniques for the determination of pesticides.
2.2 Field-effect transistors
According to a report published by Vinay et al., the use of pesticides has increased in recent years, with the most used synthetic pesticides include organophosphates, organochlorine, carbamate and pyrethroids (). While different bioremediation strategies are being undertaken by many research groups, there are still grave concerns as to how efficient these solutions may be towards developing a strategy to manage pollutants in an eco-friendly manner. In the same spirit, extensive research is ongoing in the field of electrochemical sensing to supplement these bio remedies. FET biosensors involve the interaction of a biological molecule (biorecognition element) such as enzymes, antibodies, aptamers to produce a measurable signal as response to a target analyte.
FET biosensors exploit variations in the electrical properties of the channel (the active material) in presence of a target analyte (pesticide). In FET devices, the current through the channel is modulated by the local electric field, which can be altered by the physical and chemical environment. A potential difference between the drain and source controls the current between these two electrodes, while the gate voltage controls the electric field across the channel. The presence of analytes can change the electric field, hence the FET characteristics. To enhance selectivity, FET biosensors usually incorporate biorecognition elements such as enzymes, antibodies, cells, and aptamers immobilized on the sensor surface, serving as receptors for the target analyte (). Additionally, nanomaterials are integrated into FET biosensors to increase the surface area for improved analyte-sensor interaction and to enhance sensitivity through the exploitation of low material dimensions approaching the Debye length. The utilization of small bioreceptors, such as aptamers, further opens opportunities to leverage nanoscale features ().
Graphene based field effect transistors (GFETs) utilize graphene’s large surface area, to form a conducting channel, with sites offered for the analytes (pesticides) to get attached (). Graphene does not readily react or bind with most materials, hence, it must be functionalized with linkers or probes (biorecognition agents) as mentioned before. This in turn is utilized to improve the selectivity of the sensors to a given pesticide. On the other hand, graphene oxide (GO) and reduced graphene oxide (rGO) – derivatives of graphene, possess carboxyl groups that can serve as linkers for direct bonding with biorecognition elements via carbodiimide chemistry (). Figures 3A, B show respectively the sketches of a GFET with a gate electrode formed at the top of the dielectric layer and that with a gate electrode inserted in an electrolyte. The concentration of the analyte can be correlated with a shift in the charge neutrality point or the drain-source current or the transconductance as shown in Figure 4.

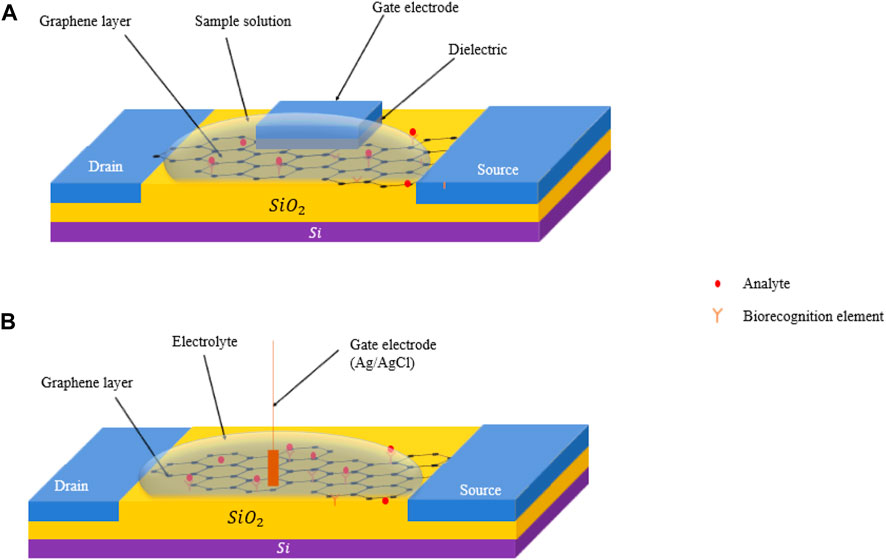

FIGURE 3
FIGURE 4
In this section, we provide an overview of the advancements in GFET biosensors designed for the detection of common pesticides. GFET biosensors have several advantages over the traditional three electrode electrochemical counterparts. The GFETs are known for their simple design, potential for high sensitivity and lower LOD (), which make them suitable for detection of pesticides in agriculture (). In addition, they can be operated as label-free biosensors, reducing the cost and risk of interference from electrochemical tags. Liquid state measurements are usually more desirable than a dry state FET based sensors (). Below, we highlight some of the relevant studies involving the use of graphene-based bio-FETs for detection of commonly used pesticides in agriculture. Table 2 shows a summary of these FET devices, and their corresponding limits of detection for common pesticides.
TABLE 2
| Method | Transducer | Target analyte | Biorecognition (receptor) | LOD | Year | Ref |
|---|---|---|---|---|---|---|
| FET | Graphene | Isocarbophos | 3-mercapto propionic acid | 2022 | ||
| FET | Graphene | Chlorpyrifos | Anti-chlorpyrifos antibodies | 2019 | ||
| IFET | Chlorpyrifos | N/A | 2023 | |||
| FET | Graphene | Paraquat | Ag nanoparticles | 2022 | ||
| FET | Graphene | Methamidophos | Acetylcholinesterase | 2019 | ||
| HT-SPME | Cu/rGO/AgNPs | Isocarbophos | 0.00451 ppm | 2023 |
Common graphene-based FET biosensors.
introduced a solution-gate GFET for the detection of isocarbophos. A common organophosphate (OP) used in insecticides to control various pests. Si/SiO2 was used a substrate with graphene as the sensing element, functionalized with an acetylcholinesterase enzymatic complex using 3-mercaptoproponoic acid (3-MPA) as a linker. Under experimental conditions of and , the drain to source current exhibited an increase following the addition of of isocarbophos. The nature of the interaction of the enzyme and analyte is inhibition, i.e., the presence of the enzyme blocks the catalytic action of the enzyme. The organic phosphorous molecules introduce a negative charge, which leads to an increase in the bias current when the target molecules get attached to the sensor. Other isocarbophos sensors that functioned based on different mechanism portrayed a higher limit of detection (; ; ).
presented a graphene-FET-based immunosensor tailored for the detection of chlorpyrifos pesticide. The graphene FET was fabricated through exfoliation technique on Si/SiO2 substrate, with Cr/Au electrodes lithographically attached to form source-drain electrodes. The Chlorpyrifos antibody (Chl-Ab) was labelled with graphene and characterized using scanning electron microscopy and atomic force microscopy. The device’s graphene channel resistance was continuously measured to monitor its response to varying concentrations of Chl antigens (Chl-Ag). This approach yielded a lower limit of detection of femto molar () compared to other similar chlorpyrifos FET devices reported. For instance, a study done by Kumar et al., using a reduced graphene oxide immobilized with acetylcholinesterase showed a LOD of to the same pesticide (). Recently, Hasnan et al., have used graphene oxide in MXene in the FET configuration; however, their p-channel ion-sensitive FET showed detection of chlorpyrifos in the micromolar range ().
Selective detection of chiral molecules using surface modified graphene-based FET was demonstrated by . In this study, they utilized acetylcholinesterase for sensor surface modification. They demonstrated sensitive discrimination between positive and negative methamidophos by analysing the resistance changes upon exposure to these molecules. With an operating voltage of 1 V, they achieved a sensitivity of 0.34 and 0.32 for positive and negative methamiphodos respectively. In this study, the inhibition effect of the enantiomers was transferred to the graphene and transformed into an electrical signal for analysis. The sensor was further integrated with smartphones for real-time detection of pesticides.
fabricated a ZrO2/rGO nanocomposite functionalized gate for electrochemical detection of the methyl parathion (MP), and obtained an LOD of , with an ultra-wide linear region (). This sensor was applied for detection of methyl parathion Chinese cabbage. In this sensor, changes in effective gate voltage when exposed to MP were utilized for sensing mechanism. The sensor demonstrated the potential of building a FET based biosensor to detect MP in real samples. The authors reported that the use of graphene in this sensor, provided a platform to enhance the device performance with extremely low LOD.
Recently, fabricated a carbaryl ion selective field effect transistor (ISFET) sensor using graphene. The graphene was first prepared on polycrystalline copper and then transferred onto the interdigitated electrodes of the sensor. The sensor utilized the inhibition enzyme urease (biorecognition element) towards carbaryl. The sensor demonstrated a LOD of , which is excellent compared to prior devices. Wang et al., unveiled the utilization of graphene electrochemical transistors (ECTs) with silver nanoparticles, exhibiting high sensitivity toward paraquat. The device incorporated a layer of silver nanoparticles modified graphene as the channel (). Employing monolayer graphene as a channel, this device displayed a LOD of 0.068 nM while retaining selectivity against common interfering herbicides.
A large proportion of FET based biosensors incorporate graphene and its derivatives. It is also worth noting that some non-graphene FET biosensors also were reported to have promisisng sensitivity and selectivity. For instance, a pH-based FET biosensor employing enzyme based biorecognition agents developed by Simonian et al., could detect organophosphate compounds up to micromolar concentrations (). Compared to these devices, the outstanding advantage of the graphene-based biosensors is the lower LOD. GFET based biosensors still have limitations that must be addressed. An example is the need for careful surface functionalization and potential for signal drift after extended periods. In conclusion, bioFETS have an enormous potential for use in pesticide detection with the use of biorecognition agents to improve selectivity and use of nanomaterials to enhance sensitivity. However, there are still challenges that must be solved for the advancement of the technology and these include use of a biorecognition agent that often causes degradation of performance in certain pH and temperatures, long fabrication time and low shelf life.
3 Conclusion and outlook
This review highlights the importance of monitoring pesticides across diverse contexts, given their adverse impacts on both human health and the environment. Conventional pesticide detection methods come with inherent drawbacks, including cost constraints and portability issues. Graphene-based electrochemical sensors, particularly those designed with three electrode and FET principles, hold great promise due to their notable advantages, including high sensitivity, selectivity, and the potential for on-site detection. Graphene’s extensive delocalized π-electron system and theoretical specific surface area make it an ideal material for adsorbing organic compounds, rendering it an exceptionally promising choice for pesticide detection. This review highlights successful pesticide detection using graphene-based sensors applied on chemicals such as carbofuran, methyl parathion, dimethoate, and diuron. These sensors have consistently demonstrated high sensitivity and wide linear detection ranges.
For advancing the sensor technology for pesticide detection, several essential measures should be taken. These include the following: i) conducting rigorous validation studies using actual samples collected from agricultural and environmental settings; ii) making comparisons with traditional analytical methods to ascertain the reliability of graphene-based sensors; iii) integrating the sensors with smartphone technology for the development of portable devices; iv) investigating the effects of defects, morphology, and nanoparticle size on sensor performance. Nevertheless, the current rapid developments in the semiconductor and graphene technologies are expected to make these targets achievable in the near future.
