ORIGINAL RESEARCH article

Front. Cardiovasc. Med., 08 September 2022
Sec. Cardiovascular Imaging
This article is part of the Research Topic Echocardiography in Cardiovascular Medicine View all 31 articles

Additive effects of type 2 diabetes and metabolic syndrome on left ventricular torsion and linear deformation abnormalities during dobutamine stress echocardiography

\r\nFalah Aboukhoudir,Falah Aboukhoudir1,2Clothilde PhilouzeClothilde Philouze1Antoine GrandperrinAntoine Grandperrin1Stphane NottinStéphane Nottin1Philippe Obert*Philippe Obert1*
  • 1UPR4278 LaPEC, Laboratory of Experimental Cardiovascular Physiology, Avignon University, Avignon, France
  • 2Cardiology Department, Duffaut Hospital Center, Avignon, France

Objective: The interplay between metabolic syndrome (MS) and type 2 diabetes (T2D) on regional myocardial mechanics and the potential additional effects of their combination remain poorly understood. In this context, we evaluated left ventricular (LV) torsion and linear deformation at rest and under dobutamine (DB) stress in patients with T2D, MS or both.

Methods: Thirty-nine T2D patients without MS (T2D), 37 MS patients free from T2D (MS), 44 patients with both T2D and MS (T2D-MS group) and 38 healthy patients (control group) were prospectively recruited. Speckle-tracking echocardiography (STE) was conducted at rest and low dose DB to evaluate LV myocardial longitudinal (LS) as well as circumferential (CS) strain and early diastolic strain rate (LSrd, CSrd) and twist-untwist mechanics.

Results: At rest, MS, T2D and controls presented with similar resting LS and LSrd while significant lower values were obtained in T2D-MS compared to controls. DB revealed reduced LS, LSrd, CS and CSrd in MS and T2D groups compared to controls. In T2-MS, the decline in LS and LSrd established at rest was exacerbated under DB. Stress echocardiography revealed also lower basal rotation and subsequently lower twist in MS and T2D patients compared to controls. T2D-MS showed major impairments of apical rotation and twist under DB stress, with values significantly lower compared to the 3 other groups. From stepwise multiple linear regression analysis, epicardial adipose tissue for Δ (rest to DB) LS, numbers of MS factors for Δ CS and Δ Twist emerged as major independent predictors.

Conclusion: These results demonstrate synergic and additive effects of T2D and MS on LV torsion and linear deformation abnormalities in asymptomatic patients with metabolic diseases. They also highlight the usefulness of speckle tracking echocardiography under DB stress in detecting multidirectional myocardial mechanics impairments that can remain barely detectable at rest, such as in isolated T2D or MS patients.

Introduction

Type 2 diabetes mellitus (T2D) is a major risk factor for cardiovascular diseases and is associated with the development of a specific cardiopathy, the diabetic cardiomyopathy (1). Diabetic cardiomyopathy is the leading cause of morbidity and mortality in T2D patients and is thought to develop rapidly after the onset of diabetes (2). Early diagnosis and cardiac follow-up of patients are therefore of paramount importance. In a previous study, we reported the usefulness of speckle-tracking echography under dobutamine (DB) stress in unmasking multidirectional early left ventricle (LV) dysfunction in asymptomatic T2D patients (3). Indeed, in this population, deformation indexes were similar to those of aged and sex-matched healthy subjects at rest. The latter finding is, however, not unanimously reported in the literature, some authors observing an altered regional myocardial function at rest (410), while others reported results consistent with ours (11, 12). Such inconsistencies may originate from variability in the clinical characteristics of the studied populations. Indeed, factors such as glycemic control or the presence of extracardiac complications and comorbidities can influence the extent of the cardiac alterations (1320). Of note, the presence of concomitant metabolic syndrome (MS) could worsen the impairment of regional myocardial function. MS is frequent in T2D patients and is a well-recognized risk factor for cardiovascular diseases and heart failure (21, 22). Previous studies from our laboratory already highlighted major impairments of longitudinal strain (LS) in asymptomatic MS patients (23, 24), a finding in line with other investigations led in similar populations (2527). Moreover, the components of MS (dyslipidemia and elevated abdominal adiposity, blood pressure and fasting glycemia) are individually associated with LV dysfunction, the cardiovascular risk increasing with each additional MS factor (23, 27). However, to our knowledge, no study has yet depicted the interplay between MS and T2D on regional myocardial function and the potential additional deleterious effect of their combination.

Most of the aforementioned studies focused on longitudinal deformations solely, while a knowledge of the multidirectional deformations is crucial for a better understanding of the extent of myocardial damages at a subclinical stage. Indeed, LS are mainly driven by the LV subendocardial layer, while the median and subepicardial layers mostly govern the circumferential strains (CS) and torsional mechanics. LS are therefore often impacted early, being sensitive to microvascular dysfunction, while CS and torsional mechanics are affected in more advanced stages (28). Yet, data regarding the multidirectional impact of MS on regional myocardial function are sparse and conflicting (23, 26, 27). Although the variability in the characteristics of the populations enrolled is likely to be a contributing factor, it must be underlined that these previous evaluations were carried out at rest. Similarly to what we previously reported in T2D patients, resting deformation imaging might not be sensitive enough to detect subtle dysfunctions, and the early alterations of myocardial regional mechanics may require the use of stress echocardiography to be unmasked (3). DB challenge could notably uncover a blunted response of myocardial torsional mechanics, the latter playing a central role in heart response to increased workload (29).

The aims of the present study were then to perform a comprehensive, multidirectional characterization of LV regional myocardial function at rest and under DB stress in asymptomatic T2D, MS and T2D-MS patients and to evaluate the potential synergic and additive effects of the MS and T2D combination compared to T2D and MS alone.

Materials and methods

Study population

According to the aims of this study, patients with T2D and/or MS (30) were prospectively recruited from our cardiology department from January 2015 to July 2020. The exclusion criteria were poor echogenicity, severe obesity, insulin therapy, LV ejection fraction < 55%, known cardiovascular diseases, and T2D-related complications, including moderate to severe autonomic neuropathy, proliferative retinopathy, and nephropathy. All the subjects were free from epicardial coronary disease, attested by negative findings on a high-dose of DB stress echocardiography (40 μg.kg–1.min–1) or coronary angiography when appropriate. Patients with hypertension but well-controlled blood pressure were included, those with superior to grade 1 hypertension were excluded. A total of 39 T2D patients without MS (T2D group), 37 MS patients free from T2D (MS group) and 44 patients with both T2D and MS (T2D-MS group) were enrolled. Thirty-eight healthy patients matched for sex, with similar age and normal echocardiographic findings, were also enrolled during routine checkups as a control group. As previously described (3), a medical survey was performed to check for exclusion/inclusion criteria and clinical data. Then, blood samples were collected in a fasting state for measurement of biological data such as glycemia, glycated hemoglobin, total cholesterol, high- and low-density lipoproteins (HDL, LDL), triglycerides, ultra-sensitive C-reactive protein or pro-brain natriuretic peptide. The study protocol was approved by the local human ethics committee (IRB-15/05.01) and all subjects provided written informed consents. The Figure 1 represents the flowchart of our study population.

FIGURE 1
www.frontiersin.org

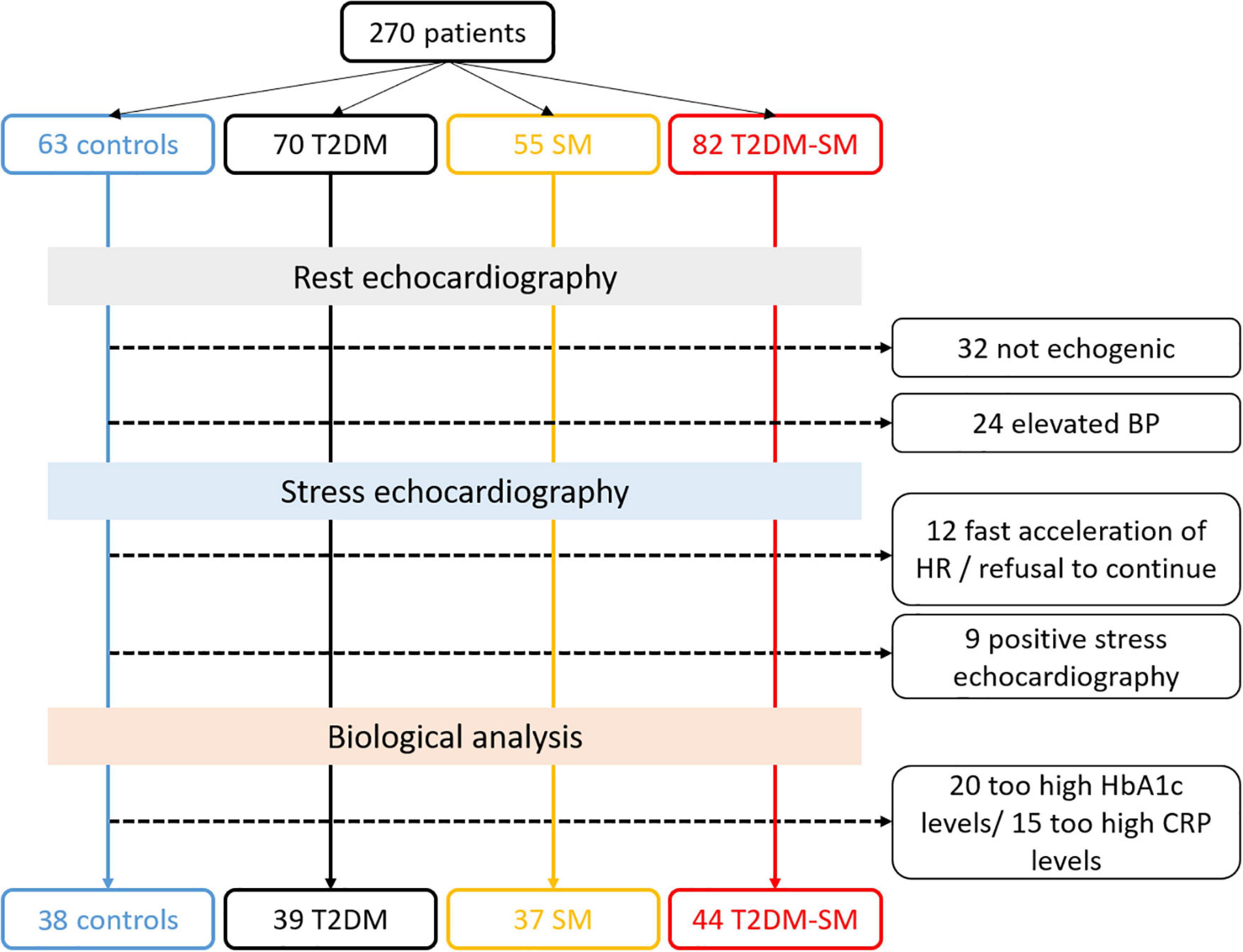

Figure 1. Flow chart of patient recruitment with exclusion criteria consideration.

Echocardiography recordings

All patients underwent both resting and stress echocardiography, with the subject in left lateral decubitus position, using commercially available ultrasound equipment (Vivid E95; GE Healthcare, Milwaukee, WI, United States). At rest and each step of stress echocardiography protocol, bidimensional cine loops of the LV were recorded in parasternal short axis (base, papillary muscles and apex), parasternal long axis and apical 4- and 2-chamber views and saved for blinded offline analysis. Grayscale images were saved at a frame rate of 80–90 fps. Stress echocardiography was performed using the same protocol that was previously described by our group (3). Briefly, DB was infused intravenously in incremental doses of 10, 20, 30 and 40 μg.kg–1.min–1 in 3-min stages. The test was stopped when age-adjusted heart rate limit was reached, when severe hypertension (systolic BP > 250 mmHg or diastolic BP > 120 mmHg) or symptomatic reduction in systolic BP > 40 mmHg from baseline developed, or when ventricular arrhythmia occurred. β-blocker intake was interrupted at least 72 h prior to DB stress echocardiography.

Echocardiography analysis

A blinded data analysis was performed post-processing by one experienced reader (EchoPAC 201; GE Healthcare) and all measurements were average from 3 cardiac cycles. Intra and inter-observer reliability at rest and during low-dose DB of deformation imaging indexes has been reported in detail elsewhere (3), with good concordance correlation coefficients (r > 0.82 in each case). All standard echocardiographic and Doppler parameters of LV systolic and diastolic function were measured according to recent guidelines (31). Speckle tracking echocardiography analysis was performed in accordance with guidelines of American Society of Echocardiography and European Association of Cardiovascular Imaging (31).

Left ventricular morphology and global function at rest

Left ventricular end-diastolic (LVEDV) and end-systolic (LVESV) volumes and ejection fraction were measured using the Simpson biplane method. LV mass was calculated using the Devereux formula and indexed to height (Cornell adjustment). LV end-diastolic volumes were used as preload index. LV diastolic function was assessed from peak early (E wave) and atrial (A wave) transmitral flow velocities. Peak e’ average from septum and lateral walls and E/e’ ratio were evaluated using Tissue Doppler and used as indices of LV relaxation and filling pressures, respectively (32). Epicardial adipose tissue was identified and measured as previously described (33). To estimate cardiac afterload, the meridional wall stress was calculated according to the formula proposed by Jamal et al. (34).

Left atrial morphology

According to current recommendations (35), left atrial volume (LAV) was calculated using the biplane method in apical 4- and 2-chamber views and indexed to body surface area.

Left ventricular strain and twist mechanics

The 2D-strain analysis was conducted at rest and at a DB stage corresponding to a target heart rate between 110 and 120 bpm, in order to ensure sufficient temporal resolution for robust speckle tracking. For each view, the 3 cardiac cycles displaying the best image quality were selected. LS and CS and their corresponding early diastolic strain rate (LSrd and CSrd, respectively) as well as twist mechanics (apical and basal rotations, twist and twisting/untwisting rates) were obtained as previously detailed by our group (36). Briefly, EchoPAC data were exported as “.txt files” in order to be processed with a specific toolbox (Scilab version 4.1; Consortium Scilab, INRIA-ENPC, Paris, France). To adjust all strain parameters for inter-subject differences in heart and frame rates, the time sequence was also normalized to the percentage of systolic duration (i.e., time was 100% at end systole). Spreadsheet calculation allowed the detection of peak LSrd and CSrd, peak of LV twist and untwist rates, and the time to these peaks. A quality control was finally performed by an experienced investigator in order to replace or delete abnormal data. For each parameter, delta values (Δ) calculated as the difference between data at low dose DB minus data at rest were obtained.

Statistical analysis

Statistical analysis was performed using IBM SPSS statistics 20.0™ software (IBM Corp., United States). Values are expressed as mean ± SD, otherwise specified. Statistical significance was defined as p value < 0.05. Normality was assessed using Shapiro–Wilk test and non-Gaussian biological variables were log-transformed. Biological, demographic variables and resting standard echocardiographic data were analyzed using a generalized linear model (GLM). Chi-square test was used for categorical data. Deformation imaging indexes were analyzed using a linear mixed-effect model with random intercept and group and conditions as well as age (when applicable, see Table 4) as fixed effects. In case of significant interaction between groups and conditions, a GLM was used for group’s comparison at rest and low-dose DB while a t-test for paired samples assessed DB response within each group. Covariates such as loading indexes, hypertension, medical treatment, inflammation, body mass index (BMI) or wait circumference were included in the different models, when appropriate. Inter-group comparison for delta (Δ) values was assessed using a GLM. Pearson correlations were used to investigate the association between LS, CS, apical rotation or Twist measured under DB stress condition as well as their Δ changes from rest to low dose DB with clinical, biological and echocardiographic parameters. A multiple stepwise linear regression analysis was used to determine the independent predictors of Δ values for each STE variable, with p < 0.15 in bivariate testing used as a requirement to enter the model.

TABLE 1
www.frontiersin.org

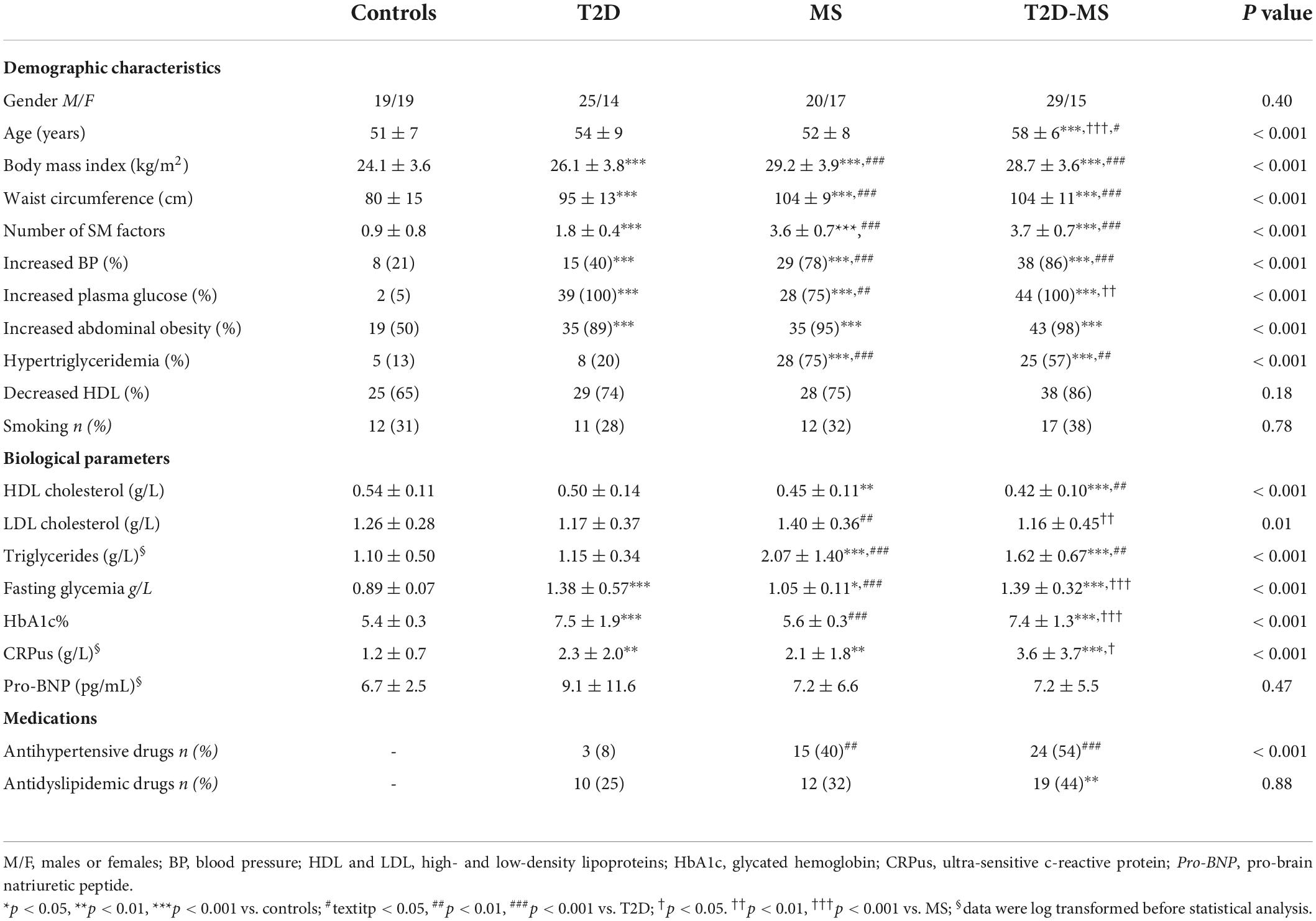

Table 1. Clinical characteristics.

TABLE 2
www.frontiersin.org

Table 2. Echocardiographic characteristics.

TABLE 3
www.frontiersin.org

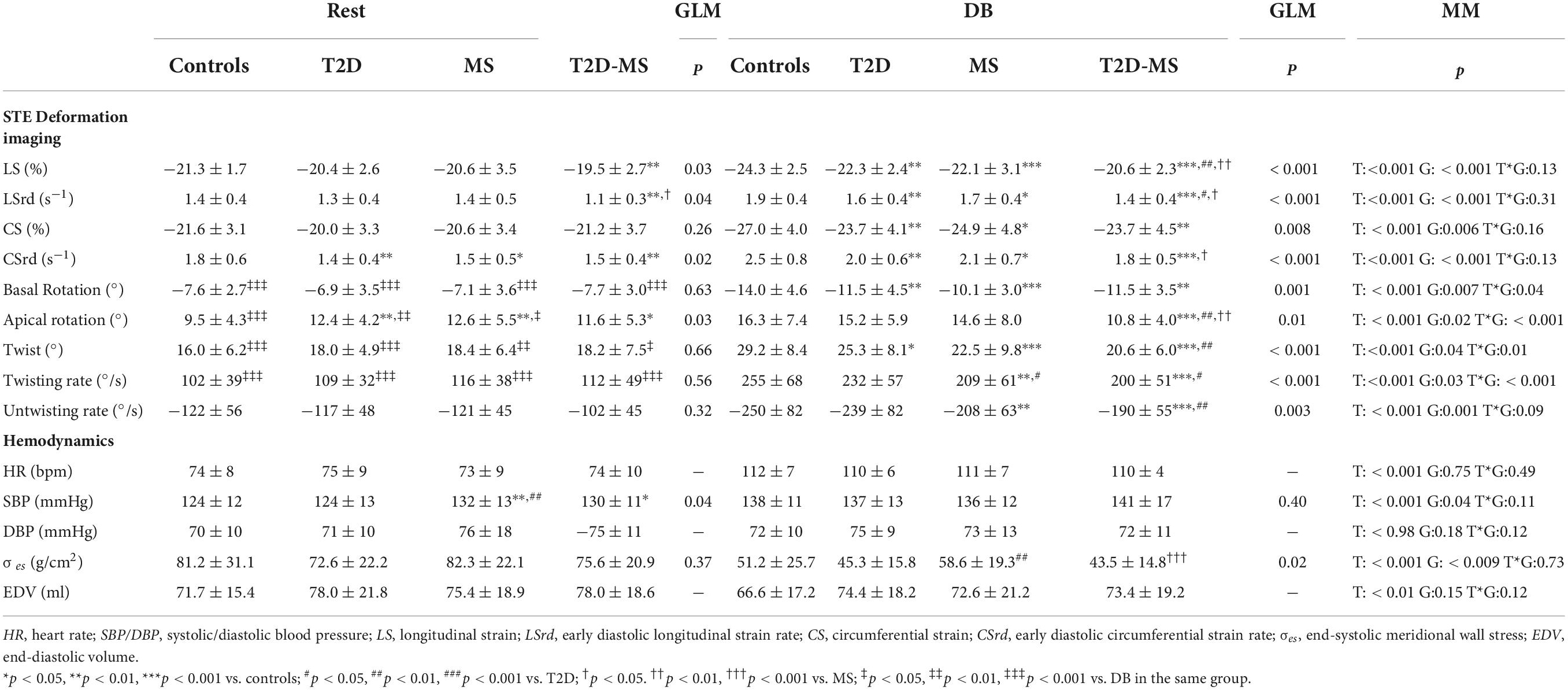

Table 3. Hemodynamic and speckle tracking echocardiography data.

TABLE 4
www.frontiersin.org

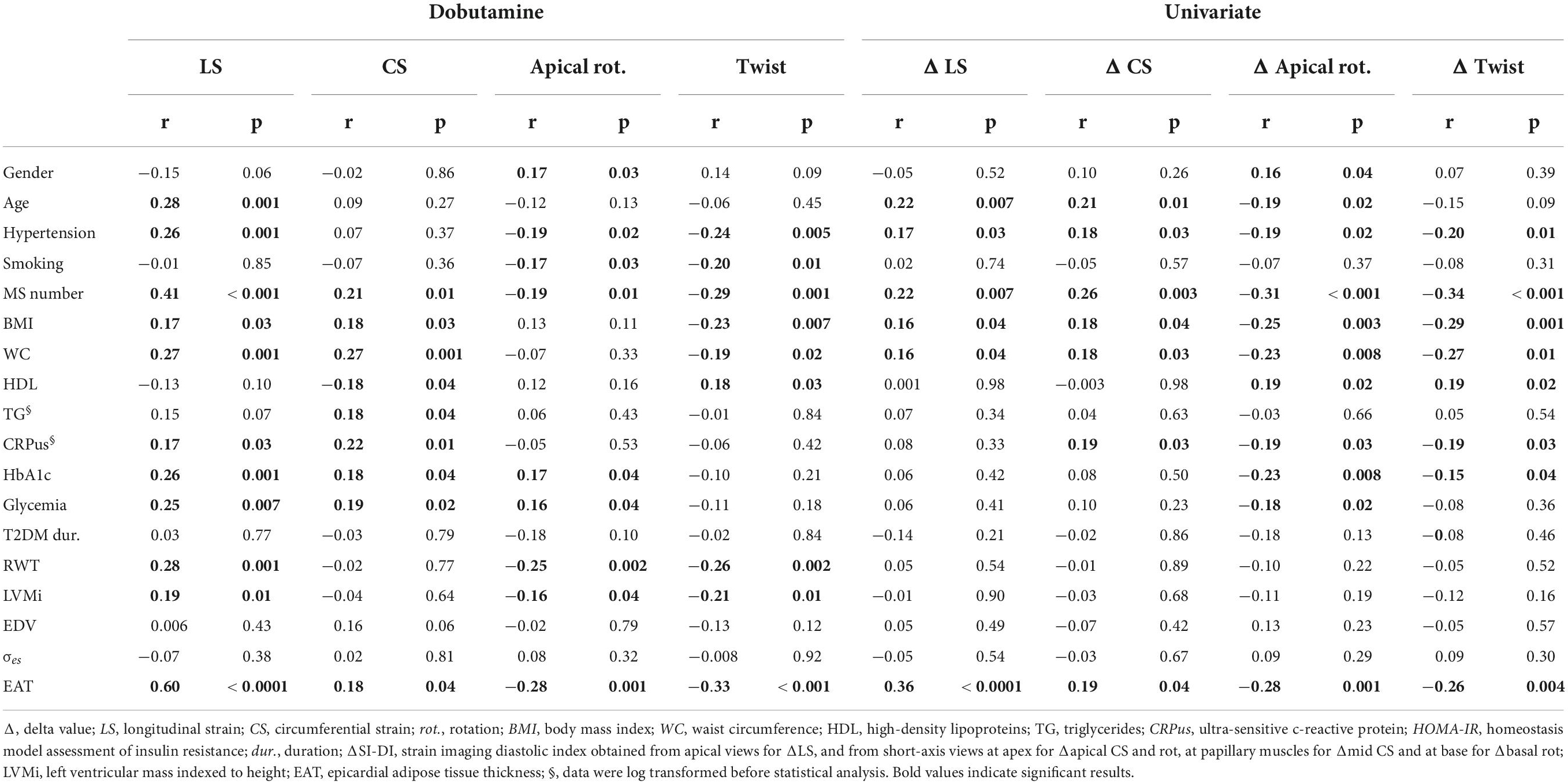

Table 4. Univariate and multivariate correlation analysis of delta changes in STE indexes with clinical, biological and echocardiographic indexes.

Results

Baseline clinical and echocardiographic characteristics

The clinical data are presented in Table 1. Populations were matched on sex, but T2D-MS were slightly older than the 3 other groups. Body mass index and waist circumference were significantly higher in the 3 groups of patients when compared to controls, with values being also significantly greater in MS and T2D-MS than T2D. Similar results were obtained regarding the number of MS factors. Additionally, among the 5 MS components, no inter-group differences were noticed for the prevalence of low HDL while significant differences were obtained in each case in the patients compared to controls for the prevalence of the 4 other variables. The 2 groups with MS presented with also a greater prevalence of increased BP and hypertriglyceridemia compared to T2D and, as expected, the 2 groups with T2D had a higher prevalence of increased plasma glucose compared to MS. Concerning the lipid profile, no differences were noticed between controls and T2D patients. The 2 groups with MS had reduced HDL and increased triglycerides compared to controls. Triglycerides were especially elevated in MS, values being also greater than in the 2 other diabetic groups. As expected, fasting glycemia and glycated hemoglobin were greater in T2D and T2D-MS than in MS and controls, while no differences were obtained between the 2 diabetic groups. Fasting glycemia was also slightly increased in MS compared to controls. Noteworthy, ultra-sensitive C-reactive protein levels were also substantially increased in the 3 groups of patients compared to controls, with values being also higher in T2D-MS compared to MS.

Results of conventional echocardiography are summarized in Table 2. LAV indexed was significantly increased in T2D-MS patients compared to MS and controls. While no inter-group differences were noticed for LVEDV and LVESV indexed, values of LV wall thicknesses as well as relative wall thickness and LV mass indexed were significantly higher in the T2D-MS patients compared to the 3 other groups. Similar values of LV ejection fraction, E and E/A ratio were noticed between the 4 groups. No inter-group differences were obtained for longitudinal systolic velocities by TDI while early diastolic velocities and E/e’ ratio were significantly decreased and increased, respectively, in the 3 groups of patients compared to controls. Of note, differences were also significant in T2D-MS compared to MS. Epicardial adipose tissue was markedly increased in T2D-MS patients compared to the 3 other groups, with values being also higher in MS and T2D patients than in controls.

Speckle-tracking echocardiography at rest and under dobutamine infusion

Speckle tracking echocardiography data are presented in Table 3 and Figure 2. At rest, no inter-group differences were noticed for twist mechanics (e.g., twist as well as twist and untwist rates), basal rotation and Cs. The 3 groups of patients presented with, however, greater apical rotations than controls. While no differences were obtained between MS, T2D and controls for LS and LSrd, values in T2D-MS patients were significantly reduced compared to controls. Low-dose DB revealed major inter-group differences for most speckle tracking echocardiography indexes. Indeed, LS, LSrd, CS and CSrd were now significantly decreased in MS and T2D compared to controls. Additionally, the reductions of LS and LSrd observed at rest in T2D-MS were further exacerbated under DB, differences being significant not only compared to controls but also to MS and T2D. As for MS and T2D, Cs and CSrd were also significantly reduced in T2D-MS compared to controls. While no differences were obtained under DB between MS, T2D and controls for apical rotation, lower basal rotation and subsequently twist were demonstrated in these 2 groups of patients compared to controls. Apical rotation and twist were, however, dramatically impaired in T2D-MS patients, with values reduced significantly compared to controls, but also to T2D and MS for apical rotation and in T2D only for twist. Overall, twist mechanics was predominantly depressed in the 2 groups presented with MS. All speckle tracking echocardiography indexes were significantly increased in the 4 groups in response to DB infusion, except for apical rotations that did not change in T2D-MS patients.

FIGURE 2
www.frontiersin.org

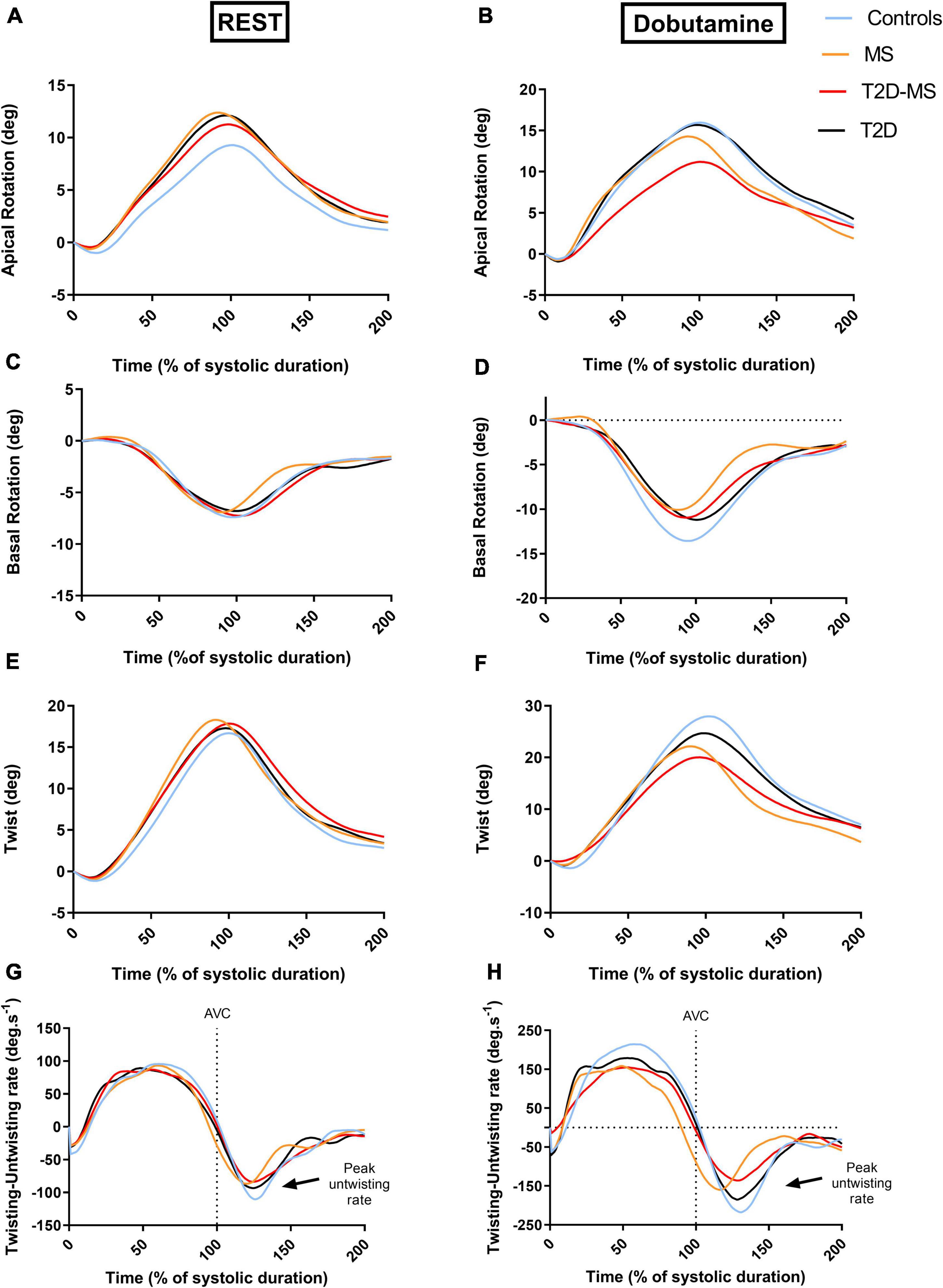

Figure 2. Patterns of apical (A,B) and basal rotations (C,D) as well as twist and twisting/untwisting rates (E,F) all over the cardiac cycle at rest (A,C,E,G) and low dose of dobutamine (B,D,F,H). The curve for each group was obtained from averaging data of all the subjects. For each group, data of the curves were averaged at every percent of systolic duration from data of all subjects.

Results of the univariate analysis of speckle tracking echocardiography indexes under low dose DB conditions as well as in response to low dose DB (e.g., Δ changes from rest to low dose DB) are depicted in Table 4. For most of the indexes, good correlations were obtained with age, number of MS factors, hypertension, metabolic markers of T2D, abdominal obesity, inflammation and epicardial adipose tissue. From stepwise multiple linear regression analyses, epicardial adipose tissue (β = 0.34, p < 0.001; r2 = 0.12, p < 0.001) for Δ SL, numbers of MS factors for Δ CS and Δ Twist (β = 0.27, p = 0.003; r2 = 0.08, p = 0.003 and β = −0.30, p < 0.001; r2 = 0.09, p < 0.001) and number of MS factors and presence of T2D (β = −0.27, 0.002; β = −0.18, 0.03, r2 = 0.13, p < 0.001) for Δ apical rotation emerged as major independent predictors. The inter-group differences under DB stress previously mentioned for LS, apical and basal rotations as well as twist were still evident after accounting for, in addition to age and sex, others potential confounding factors such as hypertension, abdominal obesity and systemic inflammation. For CS, differences between controls and the 3 other groups under DB disappeared when waist circumference and ultra-sensitive C-reactive protein were introduced as covariates. For twist, differences between patients and controls under DB were still evident when hypertension and abdominal obesity were used as covariates, but disappeared between T2D and T2D-MS. All speckle tracking echocardiography variables were, however, not influenced by medical treatments. Indexes of loading conditions did not differ between the 4 groups at rest. They were, however, significantly impacted by DB. However, no correlations were demonstrated between loading conditions and speckle tracking echocardiography indexes under stress conditions.

Discussion

To our knowledge, the present study is the first one to comprehensively assess regional myocardial mechanics under DB stress in asymptomatic T2D, MS and T2D-MS patients and to evaluate the potential synergic and additive effect of the T2D-MS combination compared to T2D and MS alone. The major findings were, firstly, that patients with combined T2D and MS exhibited globally a more important impairment of regional myocardial function compared to patients with only T2D or MS and, secondly, that only DB stress allowed unmasking alterations that were otherwise undetectable at rest in these last 2 groups of patients.

The present findings further illustrate the challenges in the characterization of cardiac impairments in patients with metabolic diseases and the pitfalls of comparing studies with different patient inclusion criteria and clinical characteristics in this area. Indeed, most studies focusing on cardiac regional function in metabolic disease did not discriminate between patients with T2D or MS only and patients with combined T2D-MS, while factors associated with T2D, such as glycemic control or MS components may influence the extent of cardiac dysfunction (13, 1820, 23, 25). As a matter of fact, in our study, only patients with combined T2D-MS exhibited at rest an altered longitudinal function, with significantly reduced LS and LSrd, while patients with isolated T2D or MS presented with a preserved longitudinal function. This observation could help explaining, at least in part, the discrepancies found in the literature regarding the presence or not of a decreased LS in patients with T2D (412).

While literature is extensive on longitudinal function in metabolic disorders, comparative data are scarcer regarding circumferential and rotational parameters, despite their key role in cardiac performance. Indeed, the LV twist motion induced by apical counterclockwise and basal clockwise rotations in systole aids ventricular ejection, while early diastolic untwist generates suction and facilitates diastolic filling (37). Systolic twist acts to limit myocardial energy expenditure by creating high intraventricular systolic pressures with minimal muscle shortening, resulting in efficient LV contraction (37). Moreover, the resultant elastic recoil of the LV has important implications for diastolic filling. In fact, the elastic recoil occurring during early diastole is thought to be a result of the vigorous contraction and compression of cardiac proteins such as titin (38). The potential energy stored in the spring like titin is unleashed during diastole, promoting myocardial relaxation and diastolic filling (38). In our study, basal rotations, twist and untwisting rate were preserved at rest, whereas apical rotations were significantly enhanced in patients (e.g., T2D, MS or both) compared to controls. These salient findings differed from those previously reported. Indeed, Tadic et al. (27) showed an increase in both twist and untwisting rate at rest in MS patients. Interestingly, in this paper, authors described a progressive increment of twist-untwist parameters with each additional MS factor (from 1 to 5). Another study reported preserved rotations and twist in patients with MS, and an increase of untwisting rate (23). Tadic et al. (8) and Crendal et al. (23) also reported an increase of twist and untwisting rate in T2D patients compared to controls. However, in these studies, the authors did not distinguish between isolated MS and T2D, which may have probably impacted their results. In our study, the increase in apical rotation probably acts as a compensatory mechanism to preserve twist, and so ejection, in patients with T2D and/or MS.

Although our results indicate an overall preservation of cardiac function in patients with isolated T2D or MS, the absence of myocardial dysfunction cannot be ascertained, as an evaluation at rest may not be sensitive enough in these populations. Indeed, as we previously demonstrated in T2D patients, an adrenergic stress may reveal functional impairments that remained otherwise subtle at rest (3). However, in this previous work, we did not discriminate between T2D and T2D-MS patients. The present results further specify the myocardial regional function impairments that DB stress echocardiography allows unmasking in these different groups of patients with metabolic diseases. To our knowledge, we are the first to carry out such an investigation. Our results revealed interesting specificities between groups. Indeed, patients with T2D showed an alteration of basal rotation and twist, while patients with MS presented an additional alteration of untwisting rate, and patients with both T2D-MS exhibited severe alterations in all these components of myocardial mechanics, with an additional drop of apical rotations. These salient findings revealed a continuum from T2D or MS alone to combination of both T2D and MS and strengthen the importance of stress echocardiography, especially in asymptomatic T2D and MS patients for whom impairments remain discreet at rest. The lack of functional reserve in rotational mechanics we unveiled in T2D-MS is of paramount importance because it plays a major role in myocardial performance under stress. Indeed, in such conditions (e.g., physical exercise or dobutamine infusion), the elevated heart rate results in reduced diastolic filling time, requiring the diastolic function to be subsequently drastically improved to attain the same end-diastolic volume in a shorter amount of time (38). In athletes, previous studies have shown the importance of untwisting rate in facilitating LV filling (29, 39, 40). These results might thus help understanding, at least in part, the development of severe exercise intolerance previously reported in diabetic populations (41, 42). Furthermore, the drop in torsional deformations may profoundly affect LV function by altering the distribution of LV wall stresses and therefore myocardial strains. Previous studies have indeed suggested that torsion may serve to equalize transmural sarcomere shortening, and so reduce transmural gradients of oxygen utilization, wall stress, and contractile work during ejection (43). A reduction in torsional deformations could thus increase the gradient of sarcomere work and oxygen utilization across the myocardium, accelerating the development of subendocardial fibrosis (44). In line with this hypothesis, Zhang et al. (45) reported an association between LV twist and myocardial fibrosis in patients with hypertrophic cardiomyopathy. These alterations could lead to a lower cardiomyocyte ability to store elastic energy and may explain, consequently, the drop of untwisting rate. Taken together, our results underline the importance of characterizing LV twist-untwist adaptations in patients with T2D, MS or both, for a better understanding of exercise intolerance mechanisms in each population and the implementation of relevant interventions.

Even if this study was not intended to investigate the mechanisms underlying cardiac function impairments in our patients, our regression analyses offered some interesting leads. As could have been expected, MS factors and T2D parameters were global contributors to the blunted response to DB stress. However, these purely metabolic variables were statistically overwhelmed by epicardial adipose tissue thickness, that showed strong correlations with all deformation indexes. In previous studies from our laboratory, we already observed close relationships between epicardial adipose tissue thickness and regional myocardial function impairments in T2D or MS populations (3, 24). This fat pad has gained growing attention over the last years as its expansion has been associated with cardiovascular damages, such as arterial stiffness and inflammation, hemodynamic impairments and myocardial injury-related biomarkers, in metabolic diseases or heart failure (4650). Indeed, while being cardioprotective in a physiological context, this adipose tissue switches to a deleterious, pro-inflammatory secretory profile in a pathological environment (51, 52). As a matter of fact, in vitro studies have reported that exposing cardiomyocytes to the epicardial adipose tissue secretome from T2D patients induces an alteration of calcium fluxes, insulin resistance and contractile dysfunction (53). Epicardial adipose tissue is thus know being recognized as a valuable target in cardiometabolic diseases (50) and our results tend to support that epicardial adipose tissue implication should be considered and investigated at the earliest stages of myocardial dysfunction.

Clinical implications

The detection of early signs of myocardial alteration is of paramount importance to improve patient care by preventing the development of irreversible damages and the progression to heart failure. The present study emphasizes that rest echocardiography is not sufficient enough to ascertain the absence of nascent cardiac dysfunction in asymptomatic patients with metabolic diseases and underlines the usefulness of performing a stress echocardiography in unmasking early myocardial function impairments, especially in case of isolated MS or TD2. Our results also emphasize that asymptomatic patients with T2D or MS only or a combination of T2D-MS do not present with the same alterations of LV myocardial mechanics.

Study limitations

The main limitation of this study is the choice to perform the analyses under low dose DB, at submaximal heart rate. This decision was taken to minimize the impact of DB on loading conditions, but also to ensure a sufficient image quality for speckle-tracking analysis (54). In future studies, it would, however, be of interest to conduct the assessments at maximal heart rate, under physiological stress conditions such as physical exercise, provided that the inherent image quality limitations can be overcome. This would have the additional advantage of allowing a better understanding of the myocardial mechanisms of exercise intolerance in these different populations.

The second limitation to this study is that echocardiographic epicardial adipose tissue thickness measurement does not take into account the 3D shape and volume of this fat pad and is therefore no gold standard for its evaluation. However, Iacobellis et al. (33) found a good correlation with MRI volume measurements, and the reproducibility of epicardial adipose tissue measurements is good in our laboratory (24).

Conclusion

Collectively, our results clearly demonstrate the usefulness of speckle tracking echocardiography under DB stress in detecting multidirectional myocardial mechanics impairments that can remain barely detectable at rest in asymptomatic patients with metabolic diseases. These results also highlight the different levels of impairment according to the patient’s clinical profile. This should be kept in mind when setting up a preventive cardiac check-up for patients with metabolic disorders.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Ethics statement

The studies involving human participants were reviewed and approved by the local human ethics committee (IRB-15/05.01). The patients/participants provided their written informed consent to participate in this study.

Author contributions

FA contributed to conception of the project, submission to the ethics committee, participants recruitment, echocardiographic recordings, writing of the manuscript, and final approval of the manuscript. PO and CP contributed to conception of the project, submission to the ethics committee, echocardiographic data analysis, statistical analysis, writing of the manuscript, and final approval of the manuscript. AG contributed to echocardiographic data analysis, statistical analysis, writing of the final manuscript, and final approval of the manuscript. SN contributed to conception of the project, echocardiographic data analysis, writing of the manuscript, and final approval of the manuscript. All authors are in agreement for the order of presentation of the authors and have read and approved the final version of the manuscript.

Funding

This study was funded by a grant from the French Society of Cardiology. It was also supported by the Avignon hospital center and by the Platform 3A, funded by the European Regional Development Fund, the French Ministry of Research, Higher Education and Innovation, the Provence-Alpes-Côte-d’Azur region, the Departmental Council of Vaucluse, and the Urban Community of Avignon.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Seferović PM, Petrie MC, Filippatos GS, Anker SD, Rosano G, Bauersachs J, et al. Type 2 diabetes mellitus and heart failure: A position statement from the Heart Failure Association of the European Society of Cardiology. Eur J Heart Fail. (2018) 20:853–72. doi: 10.1002/ejhf.1170

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Waddingham MT, Edgley AJ, Tsuchimochi H, Kelly DJ, Shirai M, Pearson JT. Contractile apparatus dysfunction early in the pathophysiology of diabetic cardiomyopathy. World J Diabetes. (2015) 6:943–60.

Google Scholar

3. Philouze C, Obert P, Nottin S, Benamor A, Barthez O, Aboukhoudir F. Dobutamine stress echocardiography unmasks early left ventricular dysfunction in asymptomatic patients with uncomplicated Type 2 diabetes: A comprehensive two-dimensional speckle-tracking imaging study. J Am Soc Echocardiogr. (2018) 31:587–97. doi: 10.1016/j.echo.2017.12.006

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Ernande L, Rietzschel ER, Bergerot C, De Buyzere ML, Schnell F, Groisne L, et al. Impaired myocardial radial function in asymptomatic patients with Type 2 diabetes mellitus: A speckle-tracking imaging study. J Am Soc Echocardiogr. (2010) 23:1266–72.

Google Scholar

5. Karagöz A, Bezgin T, Kutlutürk I, Külahçıoğlu S, Tanboğa IH, Güler A, et al. Subclinical left ventricular systolic dysfunction in diabetic patients and its association with retinopathy. Herz. (2014) 40:240–6.

Google Scholar

6. Nakai H, Takeuchi M, Nishikage T, Lang RM, Otsuji Y. Subclinical left ventricular dysfunction in asymptomatic diabetic patients assessed by two-dimensional speckle tracking echocardiography: Correlation with diabetic duration. Eur Heart J Cardiovasc Imaging. (2009) 10:926–32. doi: 10.1093/ejechocard/jep097

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Ng ACT, Delgado V, Bertini M, van der Meer RW, Rijzewijk LJ, Shanks M, et al. Findings from left ventricular strain and strain rate imaging in asymptomatic patients with Type 2 diabetes mellitus. Am J Cardiol. (2009) 104:1398–401.

Google Scholar

8. Tadic M, Ilic S, Cuspidi C, Stojcevski B, Ivanovic B, Bukarica L, et al. Left ventricular mechanics in untreated normotensive patients with Type 2 diabetes mellitus: A two- and three-dimensional speckle tracking study. Echocardiography. (2015) 32:947–55.

Google Scholar

9. Wang J, Fang F, Wai-Kwok Yip G, Sanderson JE, Lee P-W, Feng W, et al. Changes of ventricular and peripheral performance in patients with heart failure and normal ejection fraction: Insights from ergometry stress echocardiography. Eur J Heart Fail. (2014) 16:888–97. doi: 10.1002/ejhf.124

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Zoroufian A, Razmi T, Taghavi-Shavazi M, Lotfi-Tokaldany M, Jalali A. Evaluation of subclinical left ventricular dysfunction in diabetic patients: Longitudinal strain velocities and left ventricular dyssynchrony by two-dimensional speckle tracking echocardiography study. Echocardiography. (2014) 31:456–63. doi: 10.1111/echo.12389

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Cognet T, Vervueren P-L, Dercle L, Bastié D, Richaud R, Berry M, et al. New concept of myocardial longitudinal strain reserve assessed by a dipyridamole infusion using 2D-strain echocardiography: The impact of diabetes and age, and the prognostic value. Cardiovasc Diabetol. (2013) 12:84. doi: 10.1186/1475-2840-12-84

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Wierzbowska-Drabik K, Hamala P, Kasprzak JD. Delayed longitudinal myocardial function recovery after dobutamine challenge as a novel presentation of myocardial dysfunction in type 2 diabetic patients without angiographic coronary artery disease. Eur Heart J Cardiovasc Imaging. (2015) 16:676–83. doi: 10.1093/ehjci/jev004

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Chen X, Guo H, Yang Q, Fang J, Kang X. Quantitative evaluation of subclinical left ventricular dysfunction in patients with type 2 diabetes mellitus by three-dimensional echocardiography. Int J Cardiovasc Imaging. (2020) 36:1311–9.

Google Scholar

14. Enomoto M, Ishizu T, Seo Y, Kameda Y, Suzuki H, Shimano H, et al. Myocardial dysfunction identified by three-dimensional speckle tracking echocardiography in type 2 diabetes patients relates to complications of microangiopathy. J Cardiol. (2016) 68:282–7. doi: 10.1016/j.jjcc.2016.03.007

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Roy S, Kant R, Kumar B, Khapre M, Bairwa M. Systolic dysfunction in asymptomatic type 2 diabetic patients, a harbinger of microvascular complications: A cross-sectional study from North India. Diab Vasc Dis Res. (2020) 17:1479164120944134. doi: 10.1177/1479164120944134

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Zhang X, Wei X, Liang Y, Liu M, Li C, Tang H. Differential changes of left ventricular myocardial deformation in diabetic patients with controlled and uncontrolled blood glucose: A three-dimensional speckle-tracking echocardiography–based study. J Am Soc Echocardiogr. (2013) 26:499–506. doi: 10.1016/j.echo.2013.02.016

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Zhen Z, Chen Y, Shih K, Liu J-H, Yuen M, Wong DS-H, et al. Altered myocardial response in patients with diabetic retinopathy: An exercise echocardiography study. Cardiovasc Diabetol. (2015) 14:123. doi: 10.1186/s12933-015-0281-5

CrossRef Full Text | Google Scholar

18. Hatani Y, Tanaka H, Mochizuki Y, Suto M, Yokota S, Mukai J, et al. Association of body fat mass with left ventricular longitudinal myocardial systolic function in type 2 diabetes mellitus. J Cardiol. (2020) 75:189–95.

Google Scholar

19. Antakly-Hanon Y, Ben Hamou A, Garçon P, Moeuf Y, Banu I, Fumery M, et al. Asymptomatic left ventricular dysfunction in patients with type 2 diabetes free of cardiovascular disease and its relationship with clinical characteristics: The DIACAR cohort study. Diabetes Obes Metab. (2021) 23:434–43. doi: 10.1111/dom.14236

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Song X-T, Fan L, Yan Z-N, Rui Y-F. Echocardiographic evaluation of the effect of poor blood glucose control on left ventricular function and ascending aorta elasticity. J Diabetes Complications. (2021) 35:107943. doi: 10.1016/j.jdiacomp.2021.107943

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Ferreira JP, Verma S, Fitchett D, Ofstad AP, Lauer S, Zwiener I, et al. Metabolic syndrome in patients with type 2 diabetes and atherosclerotic cardiovascular disease: A post hoc analyses of the EMPA-REG OUTCOME trial. Cardiovasc Diabetol. (2020) 19:200. doi: 10.1186/s12933-020-01174-6

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Savji N, Meijers WC, Bartz TM, Bhambhani V, Cushman M, Nayor M, et al. The association of obesity and cardiometabolic traits with incident HFpEF and HFrEF. JACC Heart Fail. (2018) 6:701–9. doi: 10.1016/j.jchf.2018.05.018

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Crendal E, Walther G, Vinet A, Dutheil F, Naughton G, Lesourd B, et al. Myocardial deformation and twist mechanics in adults with metabolic syndrome: Impact of cumulative metabolic burden. Obesity. (2013) 21:E679–86. doi: 10.1002/oby.20537

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Serrano-Ferrer J, Crendal E, Walther G, Vinet A, Dutheil F, Naughton G, et al. Effects of lifestyle intervention on left ventricular regional myocardial function in metabolic syndrome patients from the RESOLVE randomized trial. Metabolism. (2016) 65:1350–60. doi: 10.1016/j.metabol.2016.05.006

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Cañon-Montañez W, Santos ABS, Nunes LA, Pires JCG, Freire CMV, Ribeiro ALP, et al. Central obesity is the key component in the association of metabolic syndrome with left ventricular global longitudinal strain impairment. Rev Esp Cardiol Engl Ed. (2018) 71:524–30. doi: 10.1016/j.rec.2017.10.008

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Samiei N, Bayat M, Firouzi A, Dehghani F, Parsaee M, Rahimi S, et al. Subclinical systolic and diastolic dysfunctions in patients with metabolic syndrome and angiographically normal coronary arteries: An echocardiographic study. J Clin Ultrasound. (2018) 46:195–201. doi: 10.1002/jcu.22568

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Tadic M, Cuspidi C, Majstorovic A, Pencic B, Backovic S, Ivanovic B, et al. Does the metabolic syndrome impact left-ventricular mechanics? A two-dimensional speckle tracking study. J Hypertens. (2014) 32:1870–8. doi: 10.1097/HJH.0000000000000257

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Mor-Avi V, Lang RM, Badano LP, Belohlavek M, Cardim NM, Derumeaux G, et al. Current and evolving echocardiographic techniques for the quantitative evaluation of cardiac mechanics: ASE/EAE consensus statement on methodology and indications endorsed by the Japanese Society of Echocardiography. J Am Soc Echocardiogr. (2011) 24:277–313.

Google Scholar

29. Doucende G, Schuster I, Rupp T, Startun A, Dauzat M, Obert P, et al. Kinetics of Left Ventricular Strains and Torsion During Incremental Exercise in Healthy Subjects: The key role of torsional mechanics for systolic-diastolic coupling. Circ Cardiovasc Imaging. (2010) 3:586–94. doi: 10.1161/CIRCIMAGING.110.943522

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Alberti KGMM, Eckel RH, Grundy SM, Zimmet PZ, Cleeman JI, Donato KA, et al. Harmonizing the metabolic syndrome: A joint Interim statement of the International Diabetes Federation Task Force on Epidemiology and Prevention; National Heart, Lung, and Blood Institute; American Heart Association; World Heart Federation; International Atherosclerosis Society; and International Association for the study of obesity. Circulation. (2009) 120:1640–5. doi: 10.1161/CIRCULATIONAHA.109.192644

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Lang RM, Badano LP, Mor-Avi V, Afilalo J, Armstrong A, Ernande L, et al. Recommendations for cardiac chamber quantification by echocardiography in adults: An update from the American Society of Echocardiography and the European Association of Cardiovascular Imaging. J Am Soc Echocardiogr. (2015) 28:1–39.e14.

Google Scholar

32. Nagueh SF, Smiseth OA, Appleton CP, Byrd BF, Dokainish H, Edvardsen T, et al. Recommendations for the evaluation of left ventricular diastolic function by echocardiography: An update from the American Society of Echocardiography and the European Association of Cardiovascular Imaging. J Am Soc Echocardiogr. (2016) 29:277–314.

Google Scholar

33. Iacobellis G, Ribaudo MC, Assael F, Vecci E, Tiberti C, Zappaterreno A, et al. Echocardiographic epicardial adipose tissue is related to anthropometric and clinical parameters of metabolic syndrome: A new indicator of cardiovascular risk. J Clin Endocrinol Metab. (2003) 88:5163–8. doi: 10.1210/jc.2003-030698

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Jamal F, Strotmann J, Weidemann F, Kukulski T, D’hooge J, Bijnens B, et al. Noninvasive quantification of the contractile reserve of stunned myocardium by ultrasonic strain rate and strain. Circulation. (2001) 104:1059–65. doi: 10.1161/hc3501.093818

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Badano LP, Kolias TJ, Muraru D, Abraham TP, Aurigemma G, Edvardsen T, et al. Standardization of left atrial, right ventricular, and right atrial deformation imaging using two-dimensional speckle tracking echocardiography: A consensus document of the EACVI/ASE/Industry Task Force to standardize deformation imaging. Eur Heart J Cardiovasc Imaging. (2018) 19:591–600. doi: 10.1093/ehjci/jey042

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Maufrais C, Schuster I, Doucende G, Vitiello D, Rupp T, Dauzat M, et al. Endurance training minimizes age-related changes of left ventricular twist-untwist mechanics. J Am Soc Echocardiogr. (2014) 27:1208–15. doi: 10.1016/j.echo.2014.07.007

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Sengupta PP, Tajik AJ, Chandrasekaran K, Khandheria BK. Twist mechanics of the left ventricle: Principles and application. JACC Cardiovasc Imaging. (2008) 1:366–76.

Google Scholar

38. Esch BT, Warburton DER. Left ventricular torsion and recoil: Implications for exercise performance and cardiovascular disease. J Appl Physiol. (2009) 106:362–9. doi: 10.1152/japplphysiol.00144.2008

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Kovács A, Apor A, Nagy A, Vágó H, Tóth A, Nagy A, et al. Left ventricular untwisting in Athlete’s heart: Key role in early diastolic filling? Int J Sports Med. (2013) 35:259–64. doi: 10.1055/s-0033-1349076

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Izem O, Mourot L, Tordi N, Grandperrin A, Obert P, Rupp T, et al. Key role of left ventricular untwisting in endurance cyclists at onset of exercise. J Appl Physiol. (2021) 131:1565–74. doi: 10.1152/japplphysiol.00907.2020

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Poitras VJ, Hudson RW, Tschakovsky ME. Exercise intolerance in Type 2 diabetes: Is there a cardiovascular contribution? J Appl Physiol. (2018) 124:1117–39. doi: 10.1152/japplphysiol.00070.2017

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Sacre JW, Jellis CL, Haluska BA, Jenkins C, Coombes JS, Marwick TH, et al. Association of exercise intolerance in Type 2 diabetes with skeletal muscle blood flow reserve. JACC Cardiovasc Imaging. (2015) 8:913–21. doi: 10.1016/j.jcmg.2014.12.033

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Ingels NB, Hansen DE, Daughters GT, Stinson EB, Alderman EL, Miller DC. Relation between longitudinal, circumferential, and oblique shortening and torsional deformation in the left ventricle of the transplanted human heart. Circ Res. (1989) 64:915–27. doi: 10.1161/01.res.64.5.915

PubMed Abstract | CrossRef Full Text | Google Scholar

44. Beyar R, Sideman S. Left ventricular mechanics related to the local distribution of oxygen demand throughout the wall. Circ Res. (1986) 58:664–77. doi: 10.1161/01.res.58.5.664

PubMed Abstract | CrossRef Full Text | Google Scholar

45. Zhang H-J, Wang H, Sun T, Lu M-J, Xu N, Wu W-C, et al. Assessment of left ventricular twist mechanics by speckle tracking echocardiography reveals association between LV twist and myocardial fibrosis in patients with hypertrophic cardiomyopathy. Int J Cardiovasc Imaging. (2014) 30:1539–48. doi: 10.1007/s10554-014-0509-6

PubMed Abstract | CrossRef Full Text | Google Scholar

46. Wang C-P, Hsu H-L, Hung W-C, Yu T-H, Chen Y-H, Chiu C-A, et al. Increased epicardial adipose tissue (EAT) volume in type 2 diabetes mellitus and association with metabolic syndrome and severity of coronary atherosclerosis. Clin Endocrinol (Oxf). (2009) 70:876–82. doi: 10.1111/j.1365-2265.2008.03411.x

PubMed Abstract | CrossRef Full Text | Google Scholar

47. Al-Talabany S, Mordi I, Graeme Houston J, Colhoun HM, Weir-McCall JR, Matthew SZ, et al. Epicardial adipose tissue is related to arterial stiffness and inflammation in patients with cardiovascular disease and type 2 diabetes. BMC Cardiovasc Disord. (2018) 18:31. doi: 10.1186/s12872-018-0770-z

CrossRef Full Text | Google Scholar

48. Koepp KE, Obokata M, Reddy YNV, Olson TP, Borlaug BA. Hemodynamic and functional impact of epicardial adipose tissue in heart failure with preserved ejection fraction. JACC Heart Fail. (2020) 8:657–66.

Google Scholar

49. van Woerden G, Gorter TM, Westenbrink BD, Willems TP, van Veldhuisen DJ, Rienstra M. Epicardial fat in heart failure patients with mid-range and preserved ejection fraction. Eur J Heart Fail. (2018) 20:1559–66. doi: 10.1002/ejhf.1283

PubMed Abstract | CrossRef Full Text | Google Scholar

50. Packer M. Epicardial adipose tissue may mediate deleterious effects of obesity and inflammation on the myocardium. J Am Coll Cardiol. (2018) 71:2360–72.

Google Scholar

51. Baker AR, Silva NF, Quinn DW, Harte AL, Pagano D, Bonser RS, et al. Human epicardial adipose tissue expresses a pathogenic profile of adipocytokines in patients with cardiovascular disease. Cardiovasc Diabetol. (2006) 5:1. doi: 10.1186/1475-2840-5-1

PubMed Abstract | CrossRef Full Text | Google Scholar

52. Camarena V, Sant D, Mohseni M, Salerno T, Zaleski ML, Wang G, et al. Novel atherogenic pathways from the differential transcriptome analysis of diabetic epicardial adipose tissue. Nutr Metab Cardiovasc Dis NMCD. (2017) 27:739–50. doi: 10.1016/j.numecd.2017.05.010

PubMed Abstract | CrossRef Full Text | Google Scholar

53. Greulich S, Maxhera B, Vandenplas G, Wiza DH, Smiris K, Mueller H, et al. Secretory products from epicardial adipose tissue of patients with Type 2 diabetes mellitus induce cardiomyocyte dysfunction. Circulation. (2012) 126:2324–34.

Google Scholar

54. Burns AT, La Gerche A, MacIsaac AI, Prior DL. Augmentation of left ventricular torsion with exercise is attenuated with age. J Am Soc Echocardiogr. (2008) 21:315–20. doi: 10.1016/j.echo.2007.08.013

PubMed Abstract | CrossRef Full Text | Google Scholar
