- 1Cardiovascular Center Oberallgaeu-Kempten, Clinic Association Allgaeu, Kempten, Germany
- 2Pentracor GmbH, Hennigsdorf, Germany
- 3Intensive Care and Cardiology, Gemeinschaftskrankenhaus Havelhöhe, Berlin, Germany
- 4Department of Apheresis, Medical Care Center Kempten-Allgäu, Kempten, Germany
- 5Gastroenterology/Infectiology/Rheumatology, Charité University Medicine Berlin, Berlin, Germany
C-reactive protein (CRP) apheresis has been introduced in ST-elevation myocardial infarction and cardiogenic shock. Here, we describe a first-in-man application in non-ST-elevation acute coronary syndrome (NSTE-ACS). Seven NSTE-ACS patients with high CRP levels (range 14.2–154 mg/L) were treated with CRP apheresis. Treatment was well-tolerated. Patients were discharged in good clinical condition.
1 Introduction
C-reactive protein (CRP) apheresis has recently been applied in ST-elevation myocardial infarction (STEMI) (1) and cardiogenic shock (CS) (2). The results of randomized controlled trials (RCTs) are eagerly awaited (3). In contrast to STEMI and CS, non-ST-elevation acute coronary syndrome (NSTE-ACS) has not yet been taken into consideration for such novel treatment. It is obvious, however, that similar results may be expected for NSTE-ACS as the underlying pathology, i.e., acute coronary stenosis/occlusion, is essentially the same (4). Thus, CRP apheresis may also preserve myocardial tissue in NSTE-ACS and may, in the long term, improve survival and quality of life.
Here, we describe seven consecutive NSTE-ACS patients treated within the C-reactive protein apheresis in Acute Myocardial Infarction Registry (CAMI-R) (https://drks.de/search/de/trial/DRKS00017481). As in CS and STEMI, CRP levels in NSTE-ACS patients rise significantly. This rise can be successfully counteracted using CRP apheresis.
2 Case description and diagnostic assessments
2.1 Study design
The CAMI-R has been extensively described elsewhere (2). Briefly, it is a prospective, multicenter, non-interventional trial (observational trial) to investigate the effect of CRP apheresis in patients with various subtypes of acute coronary syndromes and elevated CRP plasma levels (https://drks.de/search/de/trial/DRKS00017481). Thus, NSTE-ACS patients with elevated CRP plasma levels are also prospectively included. The patient's written informed consent is mandatory. Patients receive all treatment in accordance with the AHA/ESC guidelines (4). The follow-up includes medical visits at patient discharge and phone calls after 30 days and 1 year.
2.2 NSTE-ACS diagnosis
NSTE-ACS according to AHA/ESC guidelines was suspected in patients with ACS without ST elevations on ECG (4). A suspected diagnosis was confirmed using coronary angiography demonstrating coronary stenosis and impaired blood flow. Patients were treated with percutaneous coronary intervention (PCI) according to AHA/ESC guidelines (4).
2.3 C-reactive protein apheresis
CRP apheresis has been extensively described elsewhere (1–3, 5). It was performed with a selective CRP adsorber (PentraSorb® CRP; Pentracor GmbH, Hennigsdorf, Germany). Briefly, patients received two to four sessions of CRP apheresis after PCI and admission to the Chest Pain Unit (CPU). The first apheresis started 62.1 ± 35.3 h after onset of symptoms (OoS), and the second apheresis was approximately 16–20 h later. A third or fourth apheresis was performed if, in another 12 h later, the CRP plasma concentration rose to values above 30 mg/L. This protocol largely followed the CAMI-1 protocol for STEMI patients (1). Again, approximately 6,500 ml of plasma was processed in each apheresis session, preferentially in cycles of 500 ml between the regeneration of the CRP adsorber.
2.4 C-reactive protein quantification
All participating diagnostic laboratories were accredited by German/European law (1–3, 5), and CRP was quantified with standard procedures. The CRP tests remained the same throughout the study. The concentration of CRP plasma was adjusted using the hematocrit of the same blood sample.
2.5 In-hospital mortality and 30-day follow-up
In-hospital mortality was assessed by medical visit at patient discharge and the 30-day follow-up was carried out by telephone (2).
3 Results
3.1 Patients

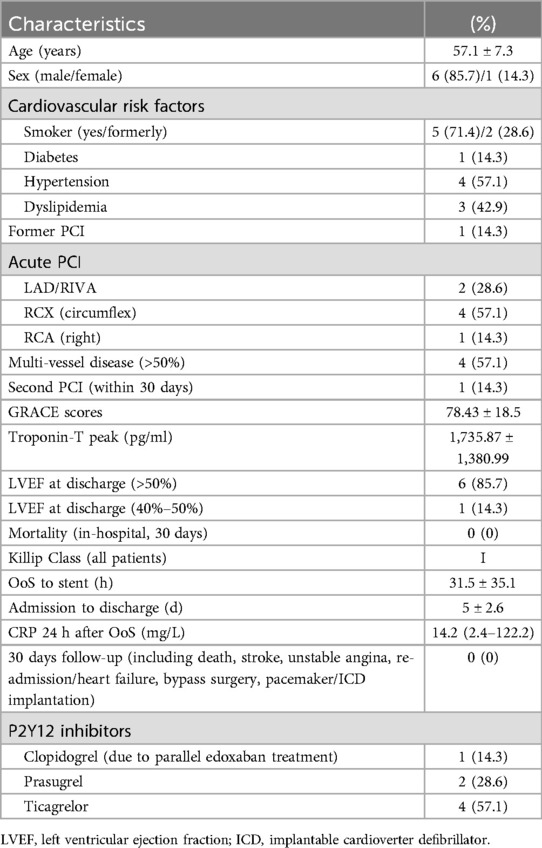

Seven patients (mean age 57.1 ± 7.3 years) with the diagnosis of NSTE-ACS and a significant rise in CRP plasma levels were included into the CAMI-R (Table 1). Previous PCI was reported in one patient. All patients were classified as Killip Class I. Out of seven patients, four received ramus circumflexus (RCX)-PCI. The time between OoS and PCI varied considerably (mean 31.5 ± 35.1 h). This is explained by the fact that RCX occlusion tends to be invisible on 12-channel ECG, and clinical presentation and cardiac enzymes only reveal the final NSTE-ACS diagnosis resulting in interventional treatment (4). Nonetheless, pathophysiology is analogous to STEMI in other regions of cardiac blood supply [ramus interventricularis anterior (RIVA)/left anterior descending artery (LAD) or right coronary artery (RCA)] (4).
3.2 C-reactive protein apheresis
C-reactive protein levels in seven consecutive NSTE-ACS patients are shown in Figure 1. If plasma levels rose above 10 mg/L, CRP apheresis and inclusion into the CAMI-R were recommended to the patient. As depicted in Figure 1, CRP plasma levels after NSTE-ACS were highly variable, in the range of 13–150 mg/L. The highest levels were observed in patients A and C. Both patients experienced RCX (circumflex) stenosis/occlusion. However, patient C had concomitant infection with severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) (6, 7). The mean CRP concentration 24 h after OoS was 42.4 ± 47.1 mg/L (Table 1). CRP apheresis was performed two to four times until the CRP levels reached a plateau and did not rise significantly again.

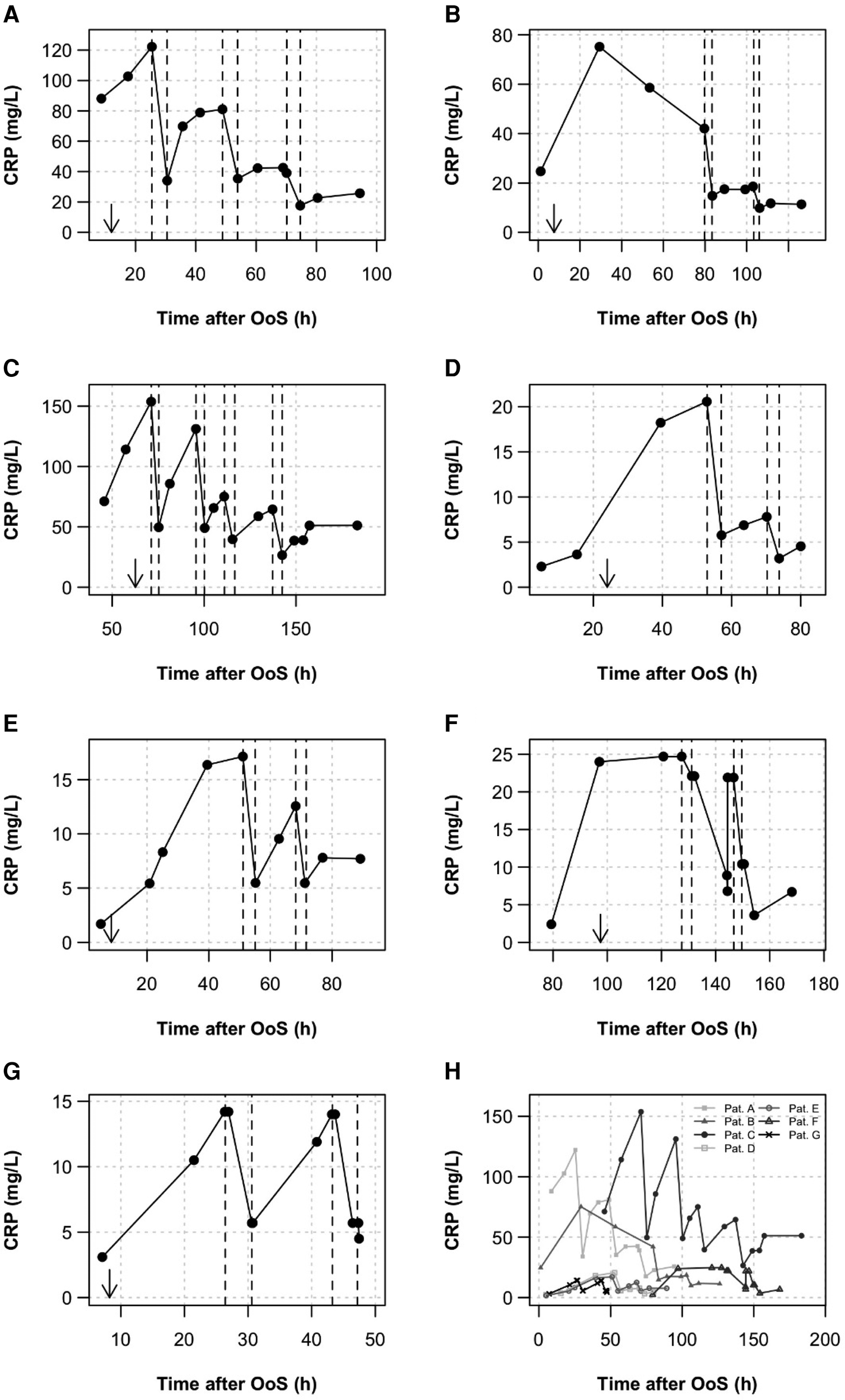

Figure 1. CRP kinetics. CRP was measured routinely during the clinical stay. (A–G) All kinetics are depicted. Apheresis treatments are shown as dashed lines. Arrows indicate the time of PCI. Patients received two to four CRP apheresis sessions after PCI and admission to the CPU. The first apheresis started at a mean of 62.1 ± 35.3 h after OoS, the second apheresis was approximately 16–20 h later. A third or fourth apheresis was performed if, another 12 h later, the CRP plasma concentration rose to values above 30 mg/L. (H) Summary diagram showing high variability of CRP levels in NSTE-ACS.

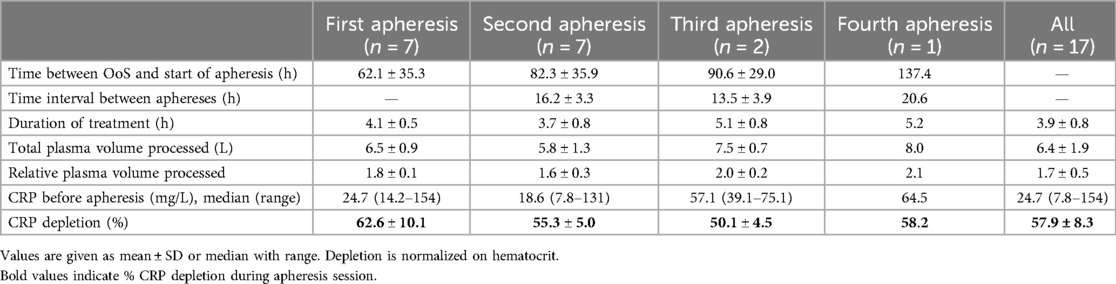

All apheresis parameters are summarized in detail in Table 2. The seven patients received a total of 17 apheresis treatments, in the range of two to four sessions per patient. Apheresis was well tolerated with no relevant side effects. The first apheresis treatment started at 62.1 ± 35.3 h after OoS. Further apheresis sessions were performed at time intervals of approximately 16–20 h. Treatments lasted 3.9 ± 0.8 h. The relative plasma volume processed was 1.7 ± 0.5 per apheresis. CRP depletion was 57.9% ± 8.3% in total. After the final session of apheresis, a CRP concentration of <20 mg/L was achieved in six patients, and in one patient treatment finalized at a CRP concentration of <27 and >20 mg/L.
3.3 Endpoints
3.3.1 In-hospital mortality
Patients were discharged within a mean of 5 ± 2.6 days. No in-hospital mortality was observed.
3.3.2 The 30-day follow-up
The telephone follow-ups revealed no 30-day mortality.
4 Discussion
CRP apheresis is now a promising novel intervention to protect hypoxic but still living, recoverable cells from CRP-triggered opsonization for Fcγ-R mediated phagocytosis by macrophages (1–3, 5–8). CRP may thus serve as a primitive antibody that binds to lysophosphatidylcholine expressed on the surface of hypoxic/apoptotic cells (3, 8). The latter pathomechanism may be relevant in various human diseases but is still best studied in STEMI and CS (1, 2). Although the pathomechanism is analogous in most cases, NSTE-ACS has not yet been considered for treatment with CRP apheresis (4).
Here, we describe a first-in-man application of CRP apheresis in NSTE-ACS within the CAMI-R. We do focus on the feasibility and safety of the treatment. Importantly, treatment success can only be proven in an RCT (1–3).
Some features in this case series are intriguing:
First, CRP apheresis in NSTE-ACS is well tolerated, and patients were discharged in good clinical condition.
Second, CRP apheresis is feasible and safe, in case of concomitant viral or bacterial infection (6, 7). In our case series, no correlation with leukocyte count was observed (please see the Supplementary Material). COVID-19 (Coronavirus 2019), diagnosed in patient C, causes a rise in CRP levels. SARS-CoV-2 with acute respiratory distress syndrome (ARDS) during the early phase of the recent pandemic caused a surprisingly high rise of CRP levels indeed (6, 7). The latter was unusual for a viral disease. Later, with virus attenuation caused by the selection of less virulent mutants, CRP levels in patients were much lower. Patient C experienced a mild SARS infection with only flu-like symptoms. Importantly, high CRP levels in the context of myocardial infarction may increase myocardial damage independent from the cause of the CRP rise. The latter should be considered in the design of future clinical trials.
Third, four out of seven patients had RCX (circumflex) stenosis/occlusion with markedly elevated CRP plasma levels. Clearly, the underlying pathology in STEMI and NSTE-ACS is often analogous, and ECG is the only formal criteria of discrimination (4). CRP levels in NSTE-ACS patients vary a lot more than CRP levels in STEMI patients. This may be due to the varying extent of myocardial damage (caused by complete or only partial coronary occlusion) and also to the varying time points of coronary intervention following AHA/ESC guidelines. As complete coronary occlusion is more common in STEMI, CRP levels after STEMI may be higher in general. The latter requires further analysis.
Alternative attempts to inhibit CRP remain difficult (9). Thus, CRP apheresis should be considered a potential adjunct to the therapeutic armamentarium of NSTE-ACS treatment in future clinical trials.
5 Patient perspectives
1. Novel aspects of inflammation/CRP in NSTE-ACS.
2. Potential therapeutic role of CRP apheresis in NSTE-ACS.
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics statement
The studies involving humans were approved by Ethical Review Committee of the Bavarian Medical Association. The studies were conducted in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.
Author contributions
JT: Conceptualization, Data curation, Formal Analysis, Investigation, Methodology, Project administration, Supervision, Validation, Writing – original draft, Writing – review & editing. SM: Data curation, Formal Analysis, Investigation, Software, Writing – original draft, Writing – review & editing. FE: Writing – review & editing. JF: Writing – review & editing. AS: Writing – original draft, Writing – review & editing.
Funding
The authors declare financial support was received for the research, authorship, and/or publication of this article.
Patient treatment and costs are covered by the German Healthcare System. Limited patient fee was provided by Pentracor GmbH for patient inclusion into the CAMI-R.
Conflict of interest
AS was founder and shareholder of Pentracor GmbH. SM was employee of Pentracor GmbH.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The authors declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.
Publisher's note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcvm.2024.1401566/full#supplementary-material
Abbreviations
CRP, C-reactive protein; STEMI, ST-elevation myocardial infarction; CS, cardiogenic shock; NSTE-ACS, non-ST-elevation acute coronary syndrome; CPU, Chest Pain Unit; RCT, randomized controlled trial; OoS, onset of symptoms.
References
1. Ries W, Torzewski J, Heigl F, Pfluecke C, Kelle S, Darius H, et al. C-reactive protein apheresis as anti-inflammatory therapy in acute myocardial infarction: results of the CAMI-1 study. Front Cardiovasc Med. (2021) 8:591714. doi: 10.3389/fcvm.2021.591714
2. Torzewski J, Mattecka S, Ries W, Garlichs CD, Heigl F, Fiedler J, et al. Case report: C-reactive protein apheresis in cardiogenic shock: case series from the C-reactive protein apheresis in acute myocardial infarction-registry. Front Drug Discov. (2023) 3:1286710. doi: 10.3389/fddsv.2023.1286710
3. Torzewski J, Brunner P, Ries W, Garlichs CD, Kayser S, Heigl F, et al. Targeting C-reactive protein by selective apheresis in humans: pros and cons. J Clin Med. (2022) 11:1771. doi: 10.3390/jcm11071771
4. Byrne RA, Rossello X, Coughlan JJ, Barbato E, Berry C, Chieffo A, et al. 2023 ESC guidelines for the management of acute coronary syndromes. Eur Heart J. (2023) 44:3720–826. doi: 10.1093/eurheartj/ehad191
5. Ries W, Sheriff A, Heigl F, Zimmermann O, Garlichs CD, Torzewski J. “First in man”: case report of selective C-reactive protein apheresis in a patient with acute ST segment elevation myocardial infarction. Case Rep Cardiol. (2018) 2018:4767105. doi: 10.1155/2018/4767105
6. Torzewski J, Heigl F, Zimmermann O, Wagner F, Schumann C, Hettich R, et al. First-in-Man: case report of selective C-reactive protein apheresis in a patient with SARS-CoV-2 infection. Am J Case Rep. (2020) 21:925020. doi: 10.12659/AJCR.925020
7. Esposito F, Matthes H, Schad F. Seven COVID-19 patients treated with C-reactive protein (CRP) apheresis. J Clin Med. (2022) 11:1956. doi: 10.3390/jcm11071956
8. Sheriff A, Kunze R, Brunner P, Vogt B. Being eaten alive: how energy-deprived cells are disposed of, mediated by C-reactive protein-including a treatment option. Biomedicines. (2023) 11:2279. doi: 10.3390/biomedicines11082279
