CT predicts Intraprocedural Hemodynamics with Computational Fluid Dynamic in TMVR ineligible patients undergoing M-TEER
Provisionally accepted
Johannes Kirchner1*
Muhammed Gerçek1
Hazem Omran1
Mohammad Kassar2
Christoph Gräni2
Fabien Praz2
Felix Rudolph1Volker Rudolph1
Tanja Katharina Rudolph1- 1Heart and Diabetes Center North Rhine-Westphalia, Bad Oeynhausen, Germany
- 2Inselspital Universitatsspital Bern Universitatsklinik fur Kardiologie, Bern, Switzerland
Select one of your emails
You have multiple emails registered with Frontiers:
Notify me on publication
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

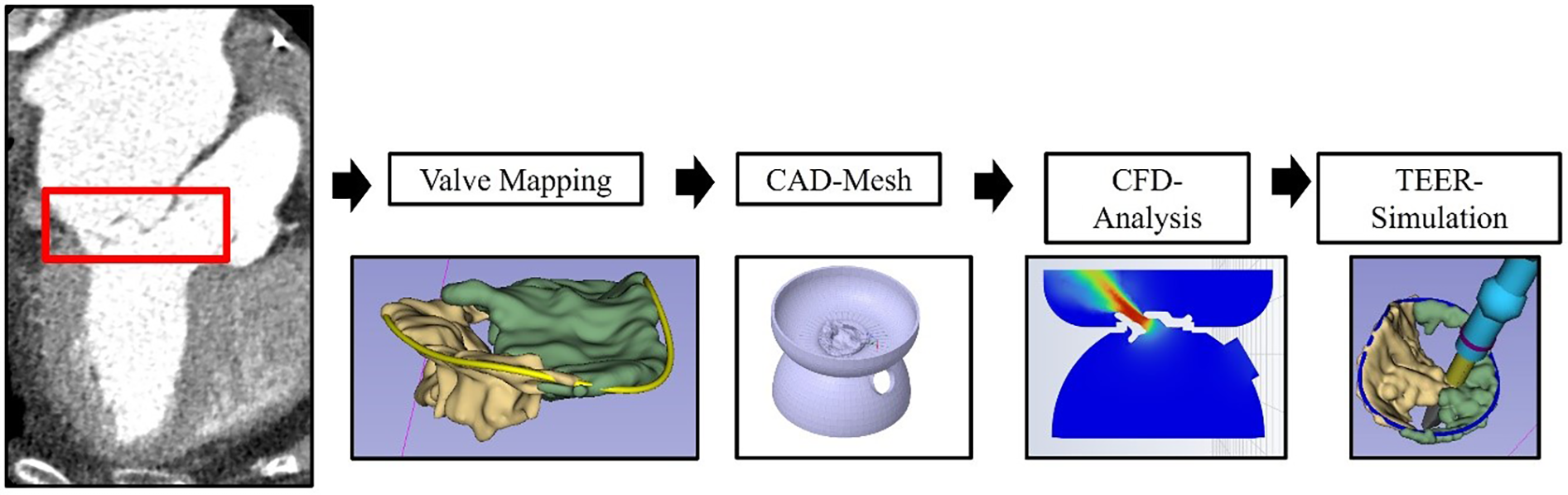

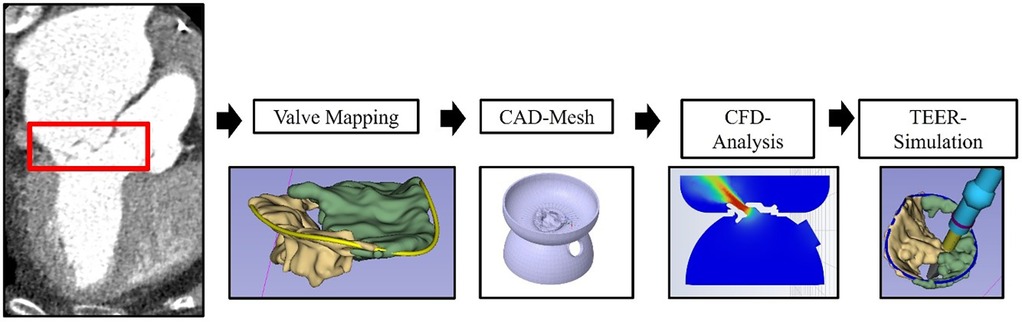

Background Hemodynamic outcomes in patients undergoing transcatheter mitral edge-to-edge-repair (M-TEER) are difficult to predict. Computational fluid dynamic (CFD) is frequently used in biomedical engineering to simulate blood flow patterns under various conditions. Objectives The authors developed a standardized workflow for individualized CFD analyses to predict postinterventional mitral valve gradients and residual regurgitation following TEER. Methods Twenty patients with severe mitral regurgitation (MR) from two high volume centers underwent full cycle cardiac computed tomography (CT) before intervention. Based on the specific valve morphology, individualized CFD-simulations were performed to calculate MR volumes prior to intervention and estimate hemodynamics after M-TEER. Results CFD-analyses (mean age 80±4 years, 55% male) showed excellent correlation between baseline PISA-based MR volumes, median 40ml (IQR 30-49ml), and CFD-based calculation, median 30ml (IQR 27-54ml; R=0.917; P<0.001), as well as between baseline effective regurgitant orifice area (EROA) assessed in transesophageal echocardiography (TEE) and CFD-measured EROA (R=0.869; P<0.001). After device implantation, correlation between intraprocedural TEE-measured and CFD-estimated residual MR (R=0.949; P<0.001) and EROA (R=0.841; P<0.001) remained robust. Median post-interventional diastolic pressure gradient (TEE) was 2.8mmHg (IQR 1.7-4.0) which was in close correlation with the CFD estimated gradient of 1.4mmHg (IQR 2.3-4.5), R=0.905; P<0.001). Conclusions This is the first study to use a CFD-standardized workflow for MR evaluation in patients undergoing TEER. In the future, CFD-based analyses might serve as a key-diagnostic tool for procedural planning of TEER.
Keywords: Mitral regurgitation, Transcatheter edge-to-edge repair, Computational fluid dynamic, hemodynamic, CT
Received: 14 Jul 2025; Accepted: 08 Sep 2025.
