Abstract
The stated aim of this perspective article is to present new developments and discuss future directions on the applications of cryopreserved organisms to marine water quality assessment. To facilitate this, the authors provide a background of essential knowledge of cryopreservation when applied to ecotoxicology, as well as, practical examples available in literature. An integrated approach with combined monitoring of chemical status plus measurements of biological effects has been recommended extensively by international institutions for the assessment of marine pollution. Among the available techniques, bioassays have been considered as sufficiently robust to be incorporated in marine pollution monitoring programs. However, the routine application of bioassays has also allowed the identification of one of the factors that limits a more extensive use of such biological methods: the availability of biological material throughout the year, regardless of natural spawning periods. A solution to this limitation is the application of cryopreservation techniques. Cryopreservation may, for instance, provide access to stable quality biological material when test species are out of the reproductive season, without the need for maintaining and conditioning organisms in the laboratory. It also guarantees access to a large variety of species that might not be available at the same time of the year and, on top of that, cryopreservation provides opportunities to laboratories that might not have the facilities to keep all these organisms in culture.
Introduction
Water quality assessment is crucial for achieving good chemical and biological status throughout coastal waters and current approaches include the monitoring of responses at different levels of biological organization to indicate effects on the ecosystem. Integrative approaches, intended for the protection of the marine environment, are based mainly on the use of biological tools at different trophic levels in combination with chemical measures, in order to establish environmental damage thresholds (). In fact, the European Union Marine Strategy Framework Directive (2008/56/EC), which has the objective of achieving and maintaining the Good Environmental Status (GES) in European seas by 2020, emphasizes the need to evaluate and keep within acceptable limits the biological effects of pollutants.
Chemical analyses can identify many contaminants present in the environment, whilst biological methods permit to obtain ecologically relevant information. Among the biological tools that have been considered sufficiently robust for marine pollution assessment, ecotoxicological bioassays present several advantages such as: the detection of new pollutants for which analytical techniques have not yet been developed, provide information about the bioavailability of the pollutants (i.e., the fraction of pollutant that can be incorporated by the organism); they allow to integrate the toxic effects of the different substances present in the environment, and present a good cost/effect ratio (e.g., ; ).
As useful as they can be, the application of biological techniques using bioassays in routine monitoring has allowed to identify one of the factors that limit a more extensive use of this tools: obtaining biological material of stable high quality throughout the year, regardless of the natural spawning periods ().
A great number of response variables can be measured at different levels of biological organization and at different trophic levels in order to determine the GES of the marine environment (e.g., ; ). A wide range of organisms have been considered for marine pollution monitoring, including microorganisms like marine bacteria (; ), microalgae (; ; ), marine invertebrates (; ; ; ; ; ) or fish (; ), in all these examples the endpoints are either hatching, growth or normal development along time.
The cryopreservation and cryobanking of test organisms to be used for marine quality assessment, could ensure the accessibility to organisms or their reproductive material all year round as an alternative to either conditioning adults or continuous culture efforts for availability of biological material, which is a very time consuming and expensive process. Biobanking these test organisms in a stable manner (below -135°C) is possible, either using liquid nitrogen or ultrafreezers. At this low temperature, no chemical reactions take place and cellular metabolism is on hold. These stored cells are stopped in time and their viability would only be affected by background radiation, which at normal level will take 2000 years to become a hazard to stored cells (). There are not many marine cells biobanks apart from culture collections (usually microalgae and/or bacteria), but this is beginning to change (mainly at local level) as cryopreservation becomes a more popular tool and many Marine Biological Research Stations acquire biobanking equipment.
The aim of this perspective paper is to present new developments and discuss future directions on the applications of cryopreserved organisms to marine water quality assessment. To facilitate this, the authors provide a background of essential knowledge of cryopreservation when applied to ecotoxicology, as well as, practical examples available in literature.
Cryopreservation and Marine Water Quality Assessment
The application of cryopreservation techniques to marine water quality assessment requires the development and standardization of specific cryopreservation protocols for different types of organisms. The main question that needed to be answered was if cryopreserved organisms would be sensitive enough to detect gradual increases of toxic compounds in the water. If so, they could be used to obtain dose-response curves. It was also necessary to compare and establish the differences, or lack thereof, in sensitivity when using fresh and cryopreserved biological material. Regarding the first point, as listed below it has been proved that cryopreserved organisms can be used to detect gradual increases in the concentrations of chemical compounds present in the water, both with single chemicals and with complex natural samples. Cryopreserved organisms can therefore be used to produce dose-response curves and to obtain the No Observed Effect Concentration (NOEC), Lowest Observed Effect Concentration (LOEC), or 10 and 50% Effective Concentrations (EC10 or EC50), as well as their fresh counterparts. In this paper we present a comprehensive list indicating examples of bioassays that specifically reported the use of cryopreserved organisms as an alternative to standard bioassays with fresh organisms (methodological information is indicated in Table 1), each case will be discussed in terms of their comparability with the standard method (toxicological information is indicated in Table 2).

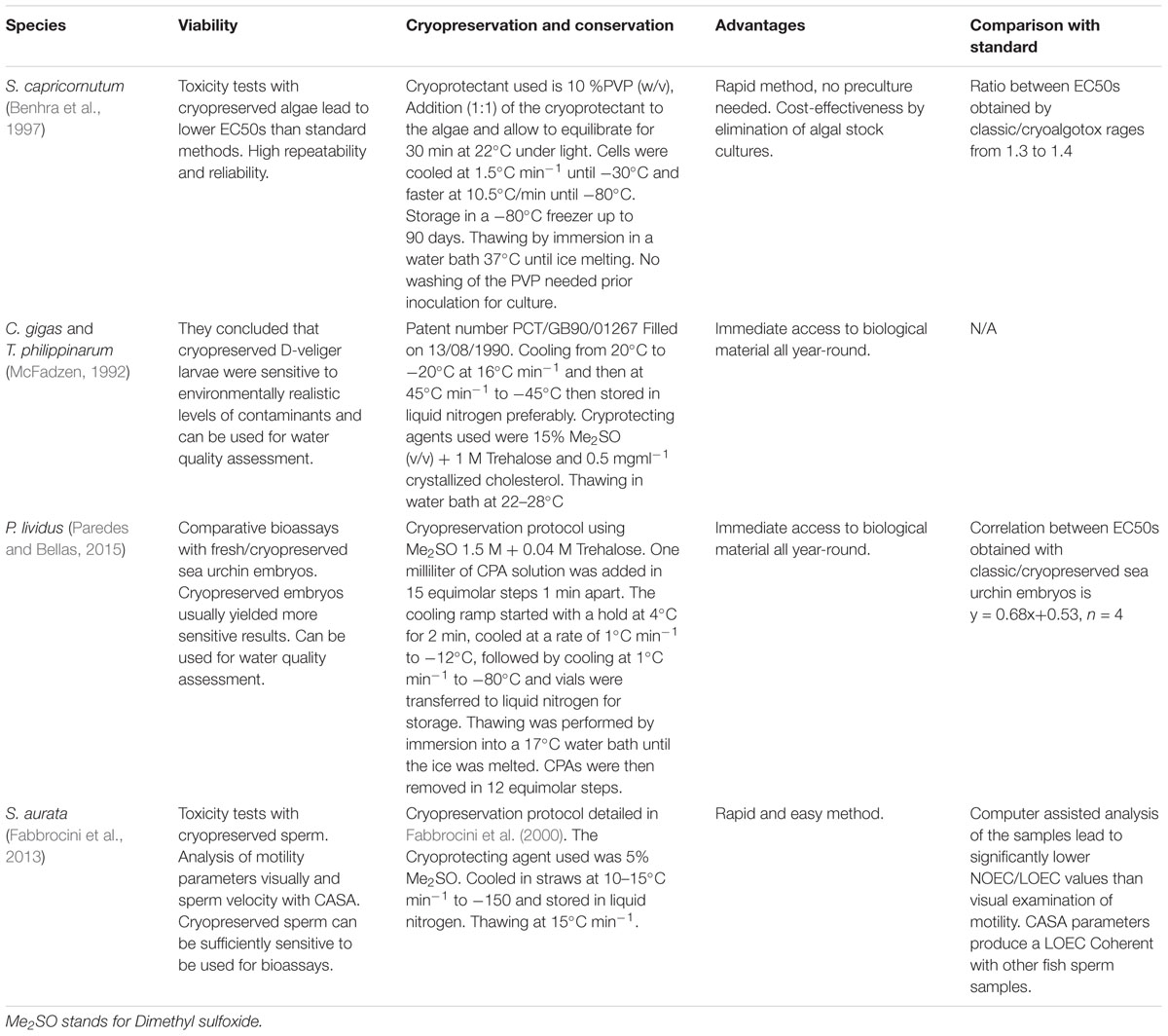

Table 1
| Species | Viability | Cryopreservation and conservation | Advantages | Comparison with standard |
|---|---|---|---|---|
| S. capricornutum () | Toxicity tests with cryopreserved algae lead to lower EC50s than standard methods. High repeatability and reliability. | Cryoprotectant used is 10 %PVP (w/v), Addition (1:1) of the cryoprotectant to the algae and allow to equilibrate for 30 min at 22°C under light. Cells were cooled at 1.5°C min-1 until -30°C and faster at 10.5°C/min until -80°C. Storage in a -80°C freezer up to 90 days. Thawing by immersion in a water bath 37°C until ice melting. No washing of the PVP needed prior inoculation for culture. | Rapid method, no preculture needed. Cost-effectiveness by elimination of algal stock cultures. | Ratio between EC50s obtained by classic/cryoalgotox rages from 1.3 to 1.4 |
| C. gigas and T. philippinarum () | They concluded that cryopreserved D-veliger larvae were sensitive to environmentally realistic levels of contaminants and can be used for water quality assessment. | Patent number PCT/GB90/01267 Filled on 13/08/1990. Cooling from 20°C to -20°C at 16°C min-1 and then at 45°C min-1 to -45°C then stored in liquid nitrogen preferably. Cryprotecting agents used were 15% Me2SO (v/v) + 1 M Trehalose and 0.5 mgml-1 crystallized cholesterol. Thawing in water bath at 22–28°C | Immediate access to biological material all year-round. | N/A |
| P. lividus () | Comparative bioassays with fresh/cryopreserved sea urchin embryos. Cryopreserved embryos usually yielded more sensitive results. Can be used for water quality assessment. | Cryopreservation protocol using Me2SO 1.5 M + 0.04 M Trehalose. One milliliter of CPA solution was added in 15 equimolar steps 1 min apart. The cooling ramp started with a hold at 4°C for 2 min, cooled at a rate of 1°C min-1 to -12°C, followed by cooling at 1°C min-1 to -80°C and vials were transferred to liquid nitrogen for storage. Thawing was performed by immersion into a 17°C water bath until the ice was melted. CPAs were then removed in 12 equimolar steps. | Immediate access to biological material all year-round. | Correlation between EC50s obtained with classic/cryopreserved sea urchin embryos is y = 0.68x+0.53, n = 4 |
| S. aurata () | Toxicity tests with cryopreserved sperm. Analysis of motility parameters visually and sperm velocity with CASA. Cryopreserved sperm can be sufficiently sensitive to be used for bioassays. | Cryopreservation protocol detailed in . The Cryoprotecting agent used was 5% Me2SO. Cooled in straws at 10–15°C min-1 to -150 and stored in liquid nitrogen. Thawing at 15°C min-1. | Rapid and easy method. | Computer assisted analysis of the samples lead to significantly lower NOEC/LOEC values than visual examination of motility. CASA parameters produce a LOEC Coherent with other fish sperm samples. |
Cryopreserved marine organisms that had been used as an alternative to fresh standard methods for evaluating marine water quality.
Me2SO stands for Dimethyl sulfoxide.

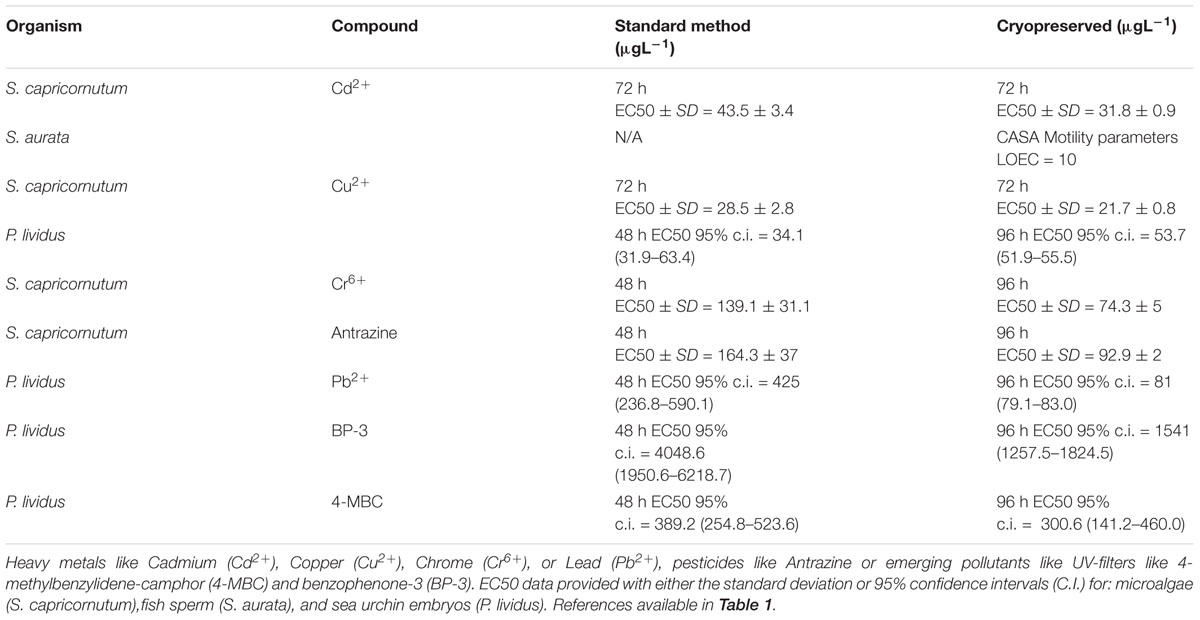

Table 2
| Organism | Compound | Standard method (μgL-1) | Cryopreserved (μgL-1) |
|---|---|---|---|
| S. capricornutum | Cd2+ | 72 h EC50 ±SD = 43.5 ± 3.4 | 72 h EC50 ±SD = 31.8 ± 0.9 |
| S. aurata | N/A | CASA Motility parameters LOEC = 10 | |
| S. capricornutum | Cu2+ | 72 h EC50 ±SD = 28.5 ± 2.8 | 72 h EC50 ±SD = 21.7 ± 0.8 |
| P. lividus | 48 h EC50 95% c.i. = 34.1 (31.9–63.4) | 96 h EC50 95% c.i. = 53.7 (51.9–55.5) | |
| S. capricornutum | Cr6+ | 48 h EC50 ±SD = 139.1 ± 31.1 | 96 h EC50 ±SD = 74.3 ± 5 |
| S. capricornutum | Antrazine | 48 h EC50 ±SD = 164.3 ± 37 | 96 h EC50 ±SD = 92.9 ± 2 |
| P. lividus | Pb2+ | 48 h EC50 95% c.i. = 425 (236.8–590.1) | 96 h EC50 95% c.i. = 81 (79.1–83.0) |
| P. lividus | BP-3 | 48 h EC50 95% c.i. = 4048.6 (1950.6–6218.7) | 96 h EC50 95% c.i. = 1541 (1257.5–1824.5) |
| P. lividus | 4-MBC | 48 h EC50 95% c.i. = 389.2 (254.8–523.6) | 96 h EC50 95% c.i. = 300.6 (141.2–460.0) |
Available toxicological information for different contaminants using cryopreserved cells.
Heavy metals like Cadmium (Cd2+), Copper (Cu2+), Chrome (Cr6+), or Lead (Pb2+), pesticides like Antrazine or emerging pollutants like UV-filters like 4-methylbenzylidene-camphor (4-MBC) and benzophenone-3 (BP-3). EC50 data provided with either the standard deviation or 95% confidence intervals (C.I.) for: microalgae (S. capricornutum), fish sperm (S. aurata), and sea urchin embryos (P. lividus). References available in Table 1.
Cryopreserved Microalgae
Microalgae are an important part of the food chain in the ocean. A disruption of the basis of the food chain would have deep long lasting effects in the ecosystems and therefore they are of high ecotoxicological relevance (; ). It has been shown that microalgae are more sensitive than other test organisms to some compounds like metals (; ; ) detergents () or herbicides ().
Use of cryopreserved freshwater algae Selenastrum capricornutum in ecotoxicity testing has been evaluated by . Experiments compared the performance of this method, named Cryoalgotox, versus the classic microplate test using fresh algae. S. capricornutum was cryopreserved by slow cooling (Table 1) using 10% (v/w) polyvinylpyrrolidone (PVP) as a cryoprotecting agent (CPA) giving comparable toxicity results. After 72 h incubation, Cryoalgotox produced lower 50% effective concentrations (EC50s) for Cd2+, Cu2+, Cr6+, and atrazine (i.e., higher sensitivity) than the classical microplate tests, which was explained by the periodic renewal of the test medium in the semistatic procedure. This test assay using cryopreserved microalgae produced highly repeatable results (low coefficients of variation).
Hundreds of cryopreservation protocols have been published for both freshwater and marine microalgae that could potentially be used to develop more bioassays with cryopreserved material. Despite most of the microalgae currently held in culture collections are kept cryopreserved and, therefore, most of the microalgae toxicity test are probably carried out with algae that had been cryopreserved at some point, there are no other published comparisons for cultured vs. cryopreserved marine microalgae as far as the authors know.
Cryopreserved Molluscs
Molluscs have been extensively used for several ecotoxicological tests, among which stands out the embryo-larval bioassay (; ). The high sensitivity of early-life stages allows the detection of low pollution levels by the identification of effects in the embryonic development (delays or morphological abnormalities) after a short period of exposure/incubation in the presence of a toxicant or a water sample of unknown quality. Oysters, such as Crassostrea gigas (; ) and mussels, such as Mytilus edulis () or Mytilus galloprovincialis (; ), are the star test species for this procedure for being well known and studies species but also for their worldwide distribution.
Cryopreserved bivalve larvae (C. gigas and Tapes philippinarum larvae) have been exposed to different water samples and shown to be sensitive to environmentally realistic levels of contaminants for field monitoring of water quality (). This was the first attempt to use cryopreserved cells of any type for ecotoxicology studies proving that those cells retain the sensitivity to chemicals and could be used for bioassays.
Larvae were cryopreserved at 24 h for C. gigas and 48 h for T. philippinarum at the late trochophore/early D-veliger stages (Table 1) and stored in liquid nitrogen at (-196°C), while using 15% dimethyl sulfoxide (v/v) with 1.0 M Trehalose and 0.5 mg/ml cholesterol as CPAs. Survival was reported as highly variable upon thawing. Despite no comparison between fresh and cryopreserved cells was carried out at the time, cryopreserved cells responded to toxicity and allowed for the calculation of toxicological parameters.
The description of cryopreservation protocols for marine invertebrates is also flourishing and protocols for molluscs like the mussels M. galloprovincialis () and Perna canaliculus () have been developed. Results with bivalves are promising, since the cryopreservation methods for these organisms have been proven to be reliable, repeatable and sensitive, being on an advanced stage of development. A way forward would be to test the comparison between the procedures with cryopreserved organisms and standard tests, which have not yet been performed.
Cryopreserved Echinoids
Sea urchins are other of the classic models (; ) for water quality testing. established for the first time a bioassay using cryopreserved sea-urchin embryos (Paracentrotus lividus) () and provided a comparison with the already standardized sea urchin embryo larval bioassay for standard chemicals like copper and lead (Figure 1).

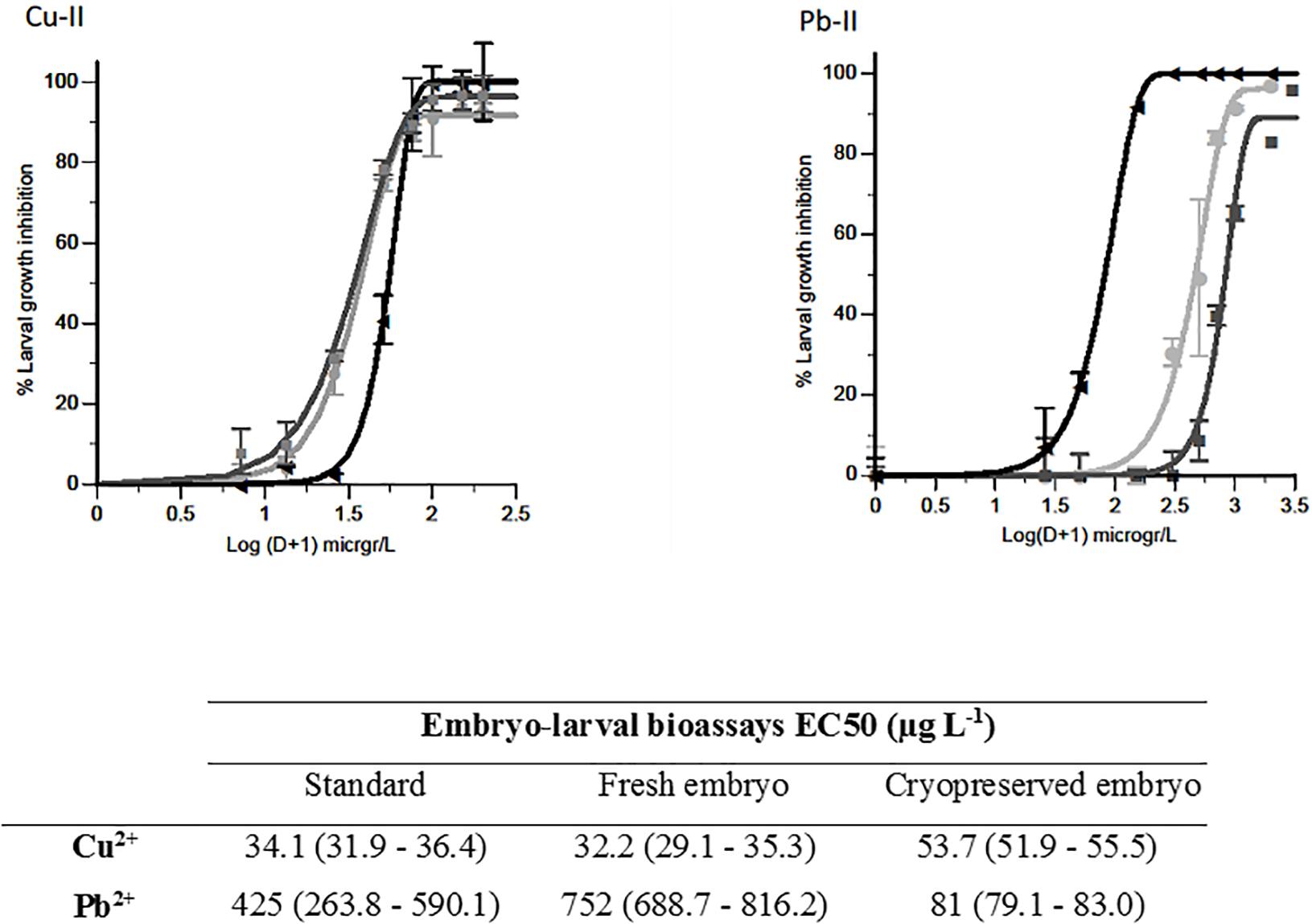

FIGURE 1
Sea urchin embryos (early blastula) were cryopreserved using 1.5 M dimethyl sulfoxide plus 0.04 M trehalose and cooled at 1°C min-1 (protocol in Table 1). Samples were then stored in liquid nitrogen. These experiments showed that there was no significant loss in sensitivity when using early blastulas instead of fresh fertilized oocytes. did find differences in sensitivity when using cryopreserved vs. fresh cells, in some cases the differences were minimal, in other cases the cryopreserved test was clearly more sensitive (Table 2). This increased sensitivity may be because cryopreserved organisms are going through a recovery process after thawing, and might be more sensitive to additional stress, such as toxicant exposure.
developed a cryopreservation protocol for Echinometra lucunter sperm and they are studying the cryopreservation of embryos for water quality assessment. There is a cryopreservation protocol described for P. lividus sperm () that yields good motility. Cryopreservation protocols already exist or are under development for different developmental stages for 10–14 different sea urchin species (embryos and sperm), and since sea urchins are a highly demanded model, more applications will probably be further developed soon using cryopreserved cells, including toxicology ().
Cryopreserved Fish Sperm
The case of fish cryopreservation (but also crustaceans) is more complicated, since these organisms are very sensitive to low temperatures and have proven exceptionally difficult to cryopreserve, being fish sperm the only exception. There has been exhaustive research on marine fish sperm cryopreservation and protocols have been described for most farmed species (Sparus aurata by , ; Dicentrarchus labrax by ; or Mugil cephalus by ), any of which could be used as a biomonitoring test organism.
The study by evaluated the feasibility of using cryopreserved S. aurata spermatozoa to be used in toxicity tests (Table 1). Sperm motility parameters were evaluated after thawing by a computer-assisted analysis. The sensitivity of the sperm (motility percentages and velocities) to a reference toxicant (cadmium) was comparable to what has been recorded for the fresh sperm of other aquatic species (Table 2). The test was found to be sensitive, rapid, easy to perform and showed good reliability.
Discussion
Bioassays have been widely reported to provide a lot of information and be very useful for water quality assessment but in many cases there is either a need for maintaining breeding animals in the lab for out of season use (if possible) or some tests have a very marked seasonality (matching the spawning season of the test species). Using cryopreserved biological material is a good option to overcome this constraint, but it is crucial to be able to compare the results of the procedure with cryopreserved material to the standard tests.
According to extrapolations from bioassays on one species to another species are not straightforward and results are only comparable in some cases. From the studies reviewed here, the same principle can be applied to the comparison between bioassays with cryopreserved cells and standard bioassays. Cryopreservation is a very useful add-on to an already developed testing methodology that could help increasing the use of bioassays. On the other hand, until an exhaustive comparison and compilation of data takes place and a robust correspondence between bioassays with cultured vs. cryopreserved organisms can be obtained with a reliable level of certainty, these results should be taken with precaution.
The advantages of using cryopreserved biological material for bioassays are many: from providing a reliable source of cells and organisms that can be stored for out of season need, to provide flexibility to the analyser. Making possible the simultaneous testing with a battery of organisms that do not reproduce at the same time of the year, without having to hold the animals in the lab for out of season production, which is costly and labor intensive. Last but not least, it also aligns with the 3R’s of animal welfare principle of reduction, by allowing the storage of unused material for other experiments therefore reducing the number of animals used per trial. As more marine organisms have been successfully cryopreserved, including different cells or development stages, there is great potential for this to continue to develop (; ).
Many of the microalgae currently held in culture collections are kept cryopreserved, there are also available protocols for different molluscs (; ) and being mussels the most widely used organism for biomonitoring, this is another potential candidate for the development of a cryopreserved toxicity test in the near future. Regarding sea urchins, right now there are cryopreservation protocols developed or under development for different cells for 10–14 different sea urchin species, and being sea urchins a highly demanded model soon more applications will be developed, including toxicology ().
Crustaceans are, as of today, not on the table as they have no reliable cryopreservation protocol. Fish are very sensitive to low temperatures and had proven exceptionally difficult to cryopreserve, being the only exception fish sperm. There has been exhaustive research on marine fish sperm cryopreservation and protocols have been described for the most farmed species (S. aurata by ; D. labrax by ; or M. cephalus by ), any of these could be used as a biomonitoring test organism and cryopreservation could enhance the possibilities of development of this test. There is potential for the further use of this biotechnology applied to marine water quality assessment.
The parameters used as endpoints in the classic bioassays were characterized by good reliability and sensitivity but, when using cryopreserved cells those parameters might need a little adjusting in order to obtain the best results, For instance, cryopreserved cells develop slower in the first hours post-thaw, therefore experimental protocols need to be adjusted in terms of exposure duration; cryopreserved microalgae can show sensitivity to high light intensities immediately post-thaw so that light intensity needs to be lowered during the first hours of exposure. Cryopreserved samples can be easily stored and transferred, making it possible to perform bioassays in different sites or at different times and can even be part of long-term monitoring programs. Finally, the application of certain bioassays with cryopreserved material in environmental monitoring and risk assessment schemes, may allow the detection of lower concentrations of toxic substances that classical bioassays, which would offer a higher level of protection to marine ecosystems.
Conclusion
This is a perspective on the state of the art and critical analysis of the application of cryopreservation as a tool to improve toxicity testing. As of today, cryopreservation holds great potential as a tool to improve toxicity testing by solving, for instance, the seasonal shortage of biological material. On the other side, there is a need for extensive comparative testing in order to select those cryopreserved cells/protocols that can be more useful, either by developing new protocols for key cell types or making sure the cryopreservation outcome of the existing protocols is specifically designed to be used in a bioassay. There is also a need to obtain good and reliable correlations between methods with both fresh and cryopreserved biological material for a wide variety of chemical compounds. An extensive battery of comparisons using both methods will establish a frame of comparison that would enable researchers to use one or the other according with their practical needs and keep increasing the historical databases. Currently, the cryopreservation of P. lividus embryos and S. aurata sperm are in an advanced stage of development and present promising perspectives for their use in water quality assessment. As cryopreservation of aquatic marine resources continues to develop, the application of those preserved cells to toxicity testing will continue to expand.
Statements
Author contributions
All authors listed have made a substantial, direct and intellectual contribution to the work, and approved it for publication.
Funding
This work was supported by the ASSEMBLE plus, grant from the European Union’s Horizon 2020 Research and Innovation Programme (No. 730984).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
AraújoC. V. M.DizF. R.LubiánL. M.BlascoJ.Moreno-GarridoI. (2010). Sensitivity of cylindrotheca closterium to copper: influence of three test endpoints and two test methods.Sci. Total Environ.4083696–3703. 10.1016/j.scitotenv.2010.05.012
2
AraujoC. V. M.Moreno-GarridoJ. (2015). Toxicity Bioassays on Benthic Diatoms.Amsterdam: Elsevier539–545.
3
ArensbergP.HemmingsenV. H.NyholmN. (1995). A miniscale algal toxicity test.Chemosphere302103–2115. 10.1016/0045-6535(95)00090-u
4
AylagasE.MenchacaI.Laza-MartínezA.SeoaneS.FrancoJ. (2014). Evaluation of marine phytoplankton toxicity by application of marine invertebrate bioassays.Sci. Mar.78173–183. 10.3989/scimar.03957.26c
5
BalamuruganR.MunuswamyN. (2017). Cryopreservation of sperm in grey mullet mugil cephalus (Linnaeus, 1758).Anim. Reprod. Sci.185205–213. 10.1016/j.anireprosci.2017.08.022
6
BeirasR.BellasJ. (2008). Inhibition of embryo development of the mytilus galloprovincialis marine mussel by organic pollutants; assessment of risk for its extensive culture in the galician rias.Aquaculture277208–212. 10.1016/j.aquaculture.2008.03.002
7
BellasJ. (2008). Prediction and assessment of mixture toxicity of compounds in antifouling paints using the sea urchin embryo-larval bioassay.Aquat. Toxicol.88309–315. 10.1016/j.aquatox.2008.05.011
8
BellasJ.BeirasR.Mariño-BalsaJ. C.FernandezN. (2005). Comparison between the Sea urchin embryogenesis bioassay and alternative test species.Ecotoxicology14337–353. 10.1007/s10646-004-6370-y
9
BenhraA.RadetskiC. M.FerardJ. F. (1997). Cryoalgotox: use of cryopreserved alga in a semistatic microplate test.Environ. Toxicol. Chem.16505–508. 10.1002/etc.5620160316
10
CairnsJ.Jr.PrattJ. R. (1989). The scientific basis of bioassays.Hydrobiologia185–20. 10.1007/bf00027769
11
CalowP. (1993). General Principles and Overview. En: Handbook of Ecotoxicology I.Hoboken, NJ: Blackwell Scientific Publications.
12
DaviesI. M.VethaakA. D. (2012). Integrated marine environmental monitoring of chemicals and their effects.ICES Cooperative Res. Rep.315:277.
13
DebeliusB.ForjaJ. M.DelVallsA.LubianL. M. (2009). Toxicity and bioaccumulation of copper and lead in five marine microalgae.Ecotoxicol. Environ. Saf.721503–1513. 10.1016/j.ecoenv.2009.04.006
14
DuránI.BeirasR. (2010). Assessment criteria for using the sea-urchin embryo test with sediment elutriates as a tool to classify the ecotoxicological status of marine water bodies.Environ. Toxicol. Chem.291192–1198. 10.1002/etc.136
15
EPA (2002). Method 1004.0. Sheepshead Minnow, Cyprinodon variegatus, Larval Survival and Growth Test; Chronic Toxicity. Excerpt from: Short-term Methods for Estimating the Chronic Toxicity of Effluents and Receiving Waters to Marine and Estuarine Organisms.Washington, DC: EPA.
16
FabbrociniA.D’AdamoR.Del PreteF.LangellottiA. L.BaroneC. M. A.RinnaF.et al (2013). Motility of cryopreserved spermatozoa for the ecotoxicological evaluation of aquatic environments. chemistry and ecology: motility of cryopreserved spermatozoa for the ecotoxicological evaluation of aquatic environments.Chem. Ecol.29660–667. 10.1080/02757540.2013.810723
17
FabbrociniA.D’AdamoR.Del PreteF.LangellottiA. L.RinnaF.SilvestriF.et al (2012). Cryopreserved semen in ecotoxicological bioassays: sensitivity and reliability of cryopreserved Sparus aurata spermatozoa.Ecotoxicol. Environ. Saf.84293–298. 10.1016/j.ecoenv.2012.07.024
18
FabbrociniA.D’AdamoR.Del PreteF.MaurizioD.SpecchiuliA.OliveiraF. L.et al (2016). The sperm motility pattern in ecotoxicological tests. The CRYO-Ecotest as a case study.Ecotoxicol. Environ. Saf.12353–59. 10.1016/j.ecoenv.2015.08.018
19
FabbrociniA.D’AdamoR.PelosiS.OliveiraL. F. J.SilvestriF.SansoneG. (2014). Gamete cryobanks for laboratory research: developing a rapid and easy to perform protocol for the cryopreservation of the sea urchin Paracentrotus lividus (Lmk, 1816) Spermatozoa.Cryobiology69149–156. 10.1016/j.cryobiol.2014.06.009
20
FabbrociniA.LavaderaS. L.RispoliS.SansoneG. (2000). Cryopreservation of Seabream (Sparus aurata) spermatozoa.Cryobiology4046–53. 10.1006/cryo.1999.2220
21
FauvelC.SuquetM.DreannoC.ZonnoV.MenuB. (1998). Cryopreservation of sea bass (Dicentrarchus labrax) spermatozoa in experimental and production simulating conditions.Aquat. Living Resour.11387–394. 10.1016/s0990-7440(99)80004-7
22
GeisS. W.FlemingK. L.KorthalsE. T.SearleG.ReynoldsL.KarnerD. A. (2000). Modifications to the algal growth inhibition test for use as a regulatory assay.Environ. Toxicol. Chem.1936–41. 10.1002/etc.5620190105
23
GellertG. (2000). Sensitivity and significance of luminescent bacteria in chronic toxicity testing based on growth and bioluminescence.Ecotoxicol. Environ. Saf.4587–91. 10.1006/eesa.1999.1849
24
GlenisterP. H.WhittinhamD. G.LyonM. F. (1984). Further studies on the effect of radiation during the storage of frozen 8-cell mouse embryos at -196°C.J. Reprod. Fert.70229–234. 10.1530/jrf.0.0700229
25
HisE.BeirasR.SeamanM. N. L. (1999a). “The assessment of marine pollution-bioassays with bivalve embryos and larvae,” inAdvances in Marine BiologyedsSouthewardA. I.TylerP. A.YoungC. M. (Cambridge, MA: Academic Press) 1–178. 10.1016/s0065-2881(08)60428-9
26
HisE.HeyvangI.GeffardO.MontaudouinX. (1999b). A comparison between oyster (Crassostrea gigas) and sea urchin (Paracentrotus lividus) larval bioassays for toxicological studies.Water Res.331706–1718. 10.1016/s0043-1354(98)00381-9
27
HisE.SeamanM. N. L.BeirasR. (1997). A simplification the bivalve embryogenesis and larval development bioassay method for water quality assessment.Water Res.31351–355. 10.1016/s0043-1354(96)00244-8
28
HutchinsonT. H.WilliamsT. D.EalesG. J. (1994). Toxicity of cadmium, hexavalent chromium and copper to marine fish larvae (Cyprinodon variegatus) and copepods (Tisbe battagliai).Mar. Environ. Res.38275–290. 10.1016/0141-1136(94)90028-0
29
International Council for the Exploration of the Sea (ICES) (1991). Techniques in Marine Environmental Sciences, No 11.
30
LaranjeiroF.PérezS.NavarroP.CarreroJ. A.BeirasR. (2015). The usefulness of a sediment bioassay with the gastropod Nassarius reticulatus in tributyltin monitoring programs.Chemosphere139550–557. 10.1016/j.chemosphere.2015.07.076
31
LeverettD.ThainJ. (2013). Oyster embryo-larval bioassay revised.Tech. Mar. Environ. Sci.54:34.
32
LewisM. A. (1990). Chronic toxicities of surfactants and detergent builders to algae: a review and risk assessment.Ecotoxicol. Environ. Saf.20123–140. 10.1016/0147-6513(90)90052-7
33
LyonsB. P.ThainJ. E.StentifordG. D.HyllandK.DaviesI. M.VethaakA. D. (2010). Using biological effects tools to define good environmental status under the european union marine strategy framework directive.Mar. Pollut. Bull.601647–1651. 10.1016/j.marpolbul.2010.06.005
34
McFadzenI. R. B. (1992). Growth and survival of cryopreserved oyster and clam larvae along a pollution gradient in the German Bight.Mar. Ecol. Prog. Ser.91215–220. 10.3354/meps091215
35
NolanC. V.DukeE. J. (1983). Cadmium accumulation and toxicity in mytilus edulis: involvement of metallothioneins and heavy-molecular weight protein.Aquat. Toxicol.4153–163. 10.1016/0166-445x(83)90052-8
36
ParedesE. (2015b). Exploring the evolution of marine invertebrate cryopreservation – landmarks, state of the art and future lines of research.Rev. Artic. Cryobiol.71198–209. 10.1016/j.cryobiol.2015.08.011
37
ParedesE. (2015a). Biobanking of a marine invertebrate model organism: the sea urchin.J. Mar. Sci. Eng.3:7. 10.3390/jmse4010007
38
ParedesE.AdamsS. L.TervitH. R.SmithJ. F.McGowanL. T.GaleS. L.et al (2011). Cryopreservation of GreenshellTM mussel (Perna canaliculus) trochophore larvae.Cryobiology65256–262. 10.1016/j.cryobiol.2012.07.078
39
ParedesE.BellasJ. (2015). The use of cryopreserved sea urchin embryos (Paracentrotus lividus) in marine quality assessment.Chemosphere128278–283. 10.1016/j.chemosphere.2015.02.007
40
ParedesE.BellasJ.AdamsS. L. (2012). Comparative cryopreservation study of trochophore larvae from two species of bivalves: pacific oyster (Crassostrea gigas) and Blue mussel (Mytilus galloprovincialis).Cryobiology67274–279. 10.1016/j.cryobiol.2013.08.007
41
ParedesE.BellasJ.AdamsS. L. (2013). Comparative cryopreservation study of trochophore larvae from two species of bivalves: pacific oyster (Crassostrea gigas) and blue mussel (Mytilus galloprovincialis).Cryobiology67274–279. 10.1016/j.cryobiol.2013.08.007
42
ParvezS.VenkataramanC.MukherjiS. (2006). A review on advantages of implementing luminescence inhibition test (Vibrio fischeri) for acute toxicity prediction of chemicals.Environ. Int.32265–268. 10.1016/j.envint.2005.08.022
43
PavlicZ.StjepanovicB.HorvaticJ.PersicV.PuntaricD.CuligJ. (2006). Comparative sensitivity of green algae to herbicides using erlenmeyer flask and microplate growth-inhibition assays.Bull. Environ. Contam. Toxicol.76883–890. 10.1007/s00128-006-1001-3
44
Perez FernándezS.RialD.BeirasR. (2015). Acute toxicity of selected organic pollutants to saltwater (mysid Siriella armata) and freshwater (cladoceran Daphnia magna) ecotoxicological models.Ecotoxicology241229–1238. 10.1007/s10646-015-1489-6
45
RibeiroR. C.Caroline da Silva VeronezA.Tristão TovarT.AdamsS. L.BartolomeuD. A.PeronicoC.et al (2018). Cryopreservation: extending the viability of biological material from sea urchin (Echinometra lucunter) in ecotoxicity tests.Cryobiology80139–143. 10.1016/j.cryobiol.2017.10.002
46
SatohA.VudikariaL. Q.KuranoN.MiyachiS. (2005). Evaluation of the sensitivity of marine microalgal strains to the heavy metals. Cu, As, Sb, Pb and Cd.Environ. Int.31713–722. 10.1016/j.envint.2005.01.001
47
SnellT. W.PersooneG. (1989). Acute toxicity bioassays using rotifers. I. A test for brackish and marine environments with Brachionus plicatiliss.Aquat. Toxicol.1465–80. 10.1016/0166-445x(89)90055-6
48
StebbingA. R. D.AkessonB.CalabreseA.GentileJ. H.JensenA.LloydR. (1980). The role of bioassays in marine pollution monitoring. bioassay panel report, rapp. P.-v. Réuni.Cons. Int. Explor. Mer.179322–332.
49
SuquetM.DreannoC.FauvelC.CossonJ.BillardR. (2000). Cryopreservation of sperm in marine fish.Aquacult. Res.31231–243. 10.1046/j.1365-2109.2000.00445.x
50
WangH.LiX.WangM.ClarkeS.GluisM.ZhangZ. (2011). Effects of larval cryopreservation on subsequent development of the blue mussels, mytilus galloprovincialis Lamarck.Aqua. Res.421816–1823. 10.1111/j.1365-2109.2010.02782.x
51
WongS. L.BeaverJ. L. (1980). Algal bioassays to determine toxicity of metal mixtures.Hydrobiologia74199–208. 10.1007/bf00008753
Summary
Keywords
cryopreservation, water quality assessment, cryobiology, bioassay, model organisms
Citation
Paredes E and Bellas J (2019) The Use of Cryopreserved Biological Material for Water Quality Assessment. Front. Mar. Sci. 6:454. doi: 10.3389/fmars.2019.00454
