Abstract
Recent discoveries of polar topological structures (e.g., skyrmions and merons) in ferroelectric/paraelectric heterostructures have opened a new field of polar topotronics. However, how complex interplay of photoexcitation, electric field and mechanical strain controls these topological structures remains elusive. To address this challenge, we have developed a computational approach at the nexus of machine learning and first-principles simulations. Our multiscale neural-network quantum molecular dynamics molecular mechanics approach achieves orders-of-magnitude faster computation, while maintaining quantum-mechanical accuracy for atoms within the region of interest. This approach has enabled us to investigate the dynamics of vortex states formed in PbTiO3 nanowires embedded in SrTiO3. We find topological switching of these vortex states to topologically trivial, uniformly polarized states using electric field and trivial domain-wall states using shear strain. These results, along with our earlier results on optical control of polar topology, suggest an exciting new avenue toward opto-electro-mechanical control of ultrafast, ultralow-power polar topotronic devices.
Introduction
Topological structures of matter such as skyrmions and merons are emergent quantized defects that carry a topological charge, which is invariant under continuous deformation or external field. Originally conceptualized in particle physics, these topological objects have since been realized as magnetic spin textures in ferromagnetic materials and have found great interest due to their potential applications in next-generation spintronic devices such as racetrack memory (). In the analogous field of ferroelectrics, there has been a growing effort to realize similar topological features in their inherent polarization fields. Recent experiments have shown success in generating skyrmion bubbles and vortex structures in SrTiO3 (STO)/PbTiO3 (PTO) based superlattices () as well as creation of meron structures in strained PTO thin films grown on SmScO3 (). These structures emerge from a subtle balance of strain and polarization energies within interfacial materials, which in turn can be controlled by external optical, electrical and mechanical forces. Such rich controllability makes these polar topological structures an ideal enabler of the next-generation polar “topotronic” devices (). Since these topological structures are protected against thermal noise, different states only need to be separated by low energy barriers, thus allowing polar topotronic devices to operate at ultralow power.
Despite the great prospect of polar topotronics, it remains an open question how these topological structures can be optically, electrically and mechanically manipulated. The primary challenge is to computationally describe their complex polarization dynamics extending many spatiotemporal scales as they emerge, while retaining quantum-mechanical accuracy. This challenge could be met by recent successes in machine learning based interatomic potentials to perform neural-network quantum molecular dynamics (NNQMD) simulations with ab initio accuracy but at a fraction of computational cost (; ). In fact, we have successfully studied optical control of polar topological structures in PTO using NNQMD simulations on massively parallel supercomputers, which were trained by excited-state quantum molecular dynamics (QMD) simulations (). However, electrical and mechanical control of topology in more realistic interfacial structures still remains a challenge. To address this challenge, we propose to combine NNQMD with a multiscale simulation approach that embeds high-accuracy but more compute-intensive simulation in coarser simulation only where high fidelity is required (; ), which was the topic of 2013 Nobel Chemistry prize (). We use the resulting multiscale NNQMD/molecular mechanics (MM) framework, or simply NN/MM method, to study electrical and mechanical manipulation of ferroelectric topological structures formed in ferroelectric/paraelectric heterostructures. Specifically, a scalable neural network is trained to accurately represent the potential energy surface of ferroelectric material, which is embedded in a classical force-field model to describe appropriate strain and dielectric boundary conditions imposed by paraelectric material.
In this paper, we present NN/MM simulations to study the dynamics of topological states in a ferroelectric PTO nanowire embedded in STO matrix. We find the formation of a vortex state in the nanowire in the ground state. To study electrical and mechanical manipulation of the vortex state, we examine two cases: 1) dynamics under an electric field in the vortex plane; and 2) dynamics under shear stress. In both cases, we find transformations from a vortex state to trivial domains with zero topological charge. These results demonstrate an exciting new framework for exploring control of ferroelectric topologies for development of next generation topotronic devices.
Materials and methods
We use a NNQMD approach to model the potential energy surface and forces within the PTO nanowire (). NNQMD employs a feed-forward neural network architecture, which consists of an input layer, multiple hidden layers, and an output layer (Figure 1). The input is a multidimensional feature vector for each atom that represents its local environment through permutationally, translationally and rotationally invariant functions within a cutoff distance. Eq 1 and 2 show the radial and angular features for the ith atom, respectively:where Rij is the interatomic distance between the atomic pair (i, j) and the cutoff function smoothly truncates and functions at the cutoff distance Rc:
FIGURE 1
We used Rc = 0.75 nm in this study. Hyperparameters , , and are determined to accurately describe the atomic local environment. For the PTO system, we found that the feature function Grad with a set of hyperparameters, and , provides sufficient accuracy and computational efficiency.
The network nodes are interconnected by adjustable weight matrices that are trained to reproduce a ground-truth QMD training dataset. We use two hidden layers and twenty nodes in each layer with modified hyperbolic tangent as the activation function. Eq. 4 shows the loss function L, i.e., the mean square error (MSE) of the system energy and the total sum of the atomic forces, to improve both the model fidelity and robustness.
The loss function compares the system energy E and the atomic forces Fi between NNQMD prediction and ground truth obtained by QMD. Here, NI is the number of frames of the training dataset, Natom is the number of atoms in each frame. The coefficients pE and pF are adjustable parameters to control the relative importance of the two terms as model training progresses. We used an equal weight for the energy and force loss functions and the L-BFGS-B scheme to minimize the loss function.
Training data was generated using density functional theory (DFT) based QMD simulations in the canonical (NVT) ensemble at temperature 300 K performed for a 4 4 4 PTO tetragonal supercell using the gamma-point for Brillouin-zone sampling. QMD simulations were performed using the QXMD software (). A plane-wave basis was used with a cutoff energy of 30 Ry (410 eV) for wave functions and 250 Ry (3,400 eV) for charge density. Vanderbilt-style ultrasoft pseudopotentials were used, and local density approximation was used for the exchange-correlation functional. The training and test root mean-square error values converged within a few meV per atom, and the NNQMD model was validated using QMD data through comparison of radial distribution functions and bond-angle distribution. Details on model generation, training and validation are provided in ().
To model the paraelectric and strain boundary conditions imposed by large STO matrix, we use a Lennard-Jones (LJ) force field, which is much less compute-intensive than the neural network inference in NNQMD:where is the interatomic distance between ith and jth atoms, is an interaction energy scale and are element-dependent length scales. We fit the adjustable parameters to reproduce the experimental lattice constants, while is taken to be on the order of STO’s melting temperature.

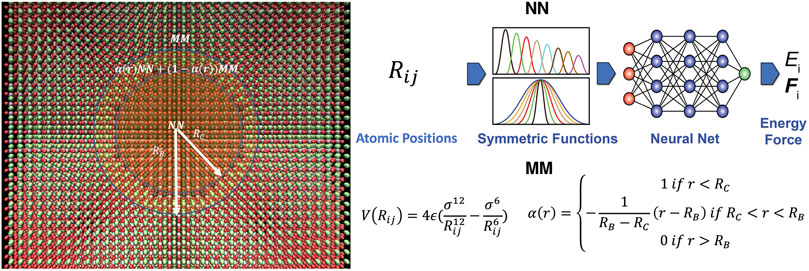

We perform multiscale NN/MM simulations in a core + buffer approach analogous to divide-and-conquer approaches commonly used in linear-scaling QMD simulations (). Here, a NNQMD region is defined with a core radius and additional buffer radius (). The forces on atoms from the NN and MM models are then determined using a linear support function to form a partition of unity over the entire simulation box:
Forces on the atoms are determined by the NNQMD model inside the core region within , linearly mixed in the buffer region () and purely MM outside. In general, The NN region and corresponding support function can be defined in 1, 2 or 3D depending on the geometry of the problem. For the case of a PTO nanowire, is confined to 2D such that is the radius of the PTO nanowire, whereas is plus the neural-network cutoff distance (Figure 1). We perform NN/MM simulations on nanowires of radius 2.7 and 5.5 nm. The 2.7 nm nanowire is embedded in a matrix of 36 36 STO unit cells in the lateral directions, while the 5.5 nm nanowire in a 72 72 unit-cell STO matrix. Both systems are 4-unit cells thick along the nanowire axis, which coincides with the PTO polarization direction. The lattice constants are made compliant to the STO matrix. To stabilize NNQMD simulations, a small LJ repulsion equal to 8% of the STO interaction is added to the NNQMD force field for PTO. Such a physically constrained network is effective in preventing atoms from getting too close in highly strained systems.
Results

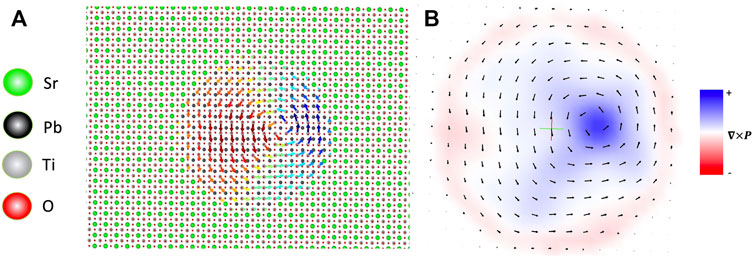

We first investigate the ground-state polarization field in the nanowire by performing molecular dynamics simulation at a low temperature of 10 K until polarization field becomes steady and only slightly oscillates due to harmonic oscillation within 4 ps. The formation of a vortex state is illustrated in Figure 2A with Sr atoms colored in green, Pb black, O red, Ti silver and the arrows representing Ti polar displacements creating the vortex state. Formation of a similar vortex state has been computationally studied in BaTiO3 embedded within a STO matrix (). The center of the vortex is found to occur in the Pb-O plane of four neighboring unit-cells with finite polarization, drawing similar resemblance to Pb-O styled domain walls (). We find the vortex core displaced from the center of the nanowire, despite the cylindrical symmetry of boundary conditions. A similar spontaneous symmetry breaking was observed experimentally and in phase-field modeling in STO/PTO heterostructures (), where off centering of vortex cores in alternating clockwise and counter-clockwise vortex pair states led to a net polarization and emergent net chirality of vortex pair states. The nanowire system possesses no preferred location to pin the emergence of the vortex core such as a domain wall or oxygen vacancy. While the radial location of the vortex core is dictated by the energetics, its angular location is stochastic, depending on the initial velocities of the simulation.
FIGURE 2
For our 2-dimensional system, the chirality of the vortex in can be determined by its circulationwhere P is the polarization. We compute the pseudovector vorticity using finite differencing of the integrand of Eq. (8) on an interpolated fine grid of the Ti polar displacements (Figure 2B). We observe a clear positive spike at the center of the vortex, corresponding to its right-hand orientation. When Eq. (8) is integrated over the surface encompassed by the radius of PTO nanowire, a finite positive circulation is found corresponding to the vortex’s chirality ().

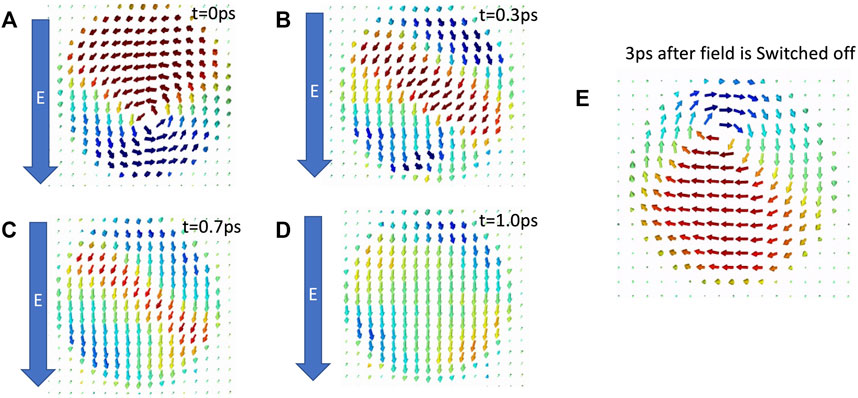

We next study the dynamics of the vortex state under electric field, to examine the possibility of electric manipulation of the vortex state. We apply an electric field of 1 V/nm parallel to the vortex plane (Figure 3A). Figures 3B–D show progression of the vortex state after turning on the field at time . Within the first 300 fs, the vortex state is quickly corrupted as the polarization begins to curl to comply with the electric field. After 700 fs, almost all signature of the vortex state has been lost with only small curl of the polarization remaining. Within 1 ps, the entire vortex state has been annihilated, forming a topologically trivial, uniformly polarized domain in the direction of the electric field. This is consistent with experimental and phase-field study of electric field annihilation of polar topological structures in STO/PTO (). Upon turning off the electric field subsequently, the vortex state is restored within 3 ps (Figure 3E), with relaxation found to be similar to that of initial creation of the vortex. The vortex core moves from its initial position before the application of the electric field. This further corroborates the stochastic nature of the vortex core position discussed before. Overall, these results demonstrate the possibility of field-induced reversible topological switching in a PE/FE nanowire.
FIGURE 3

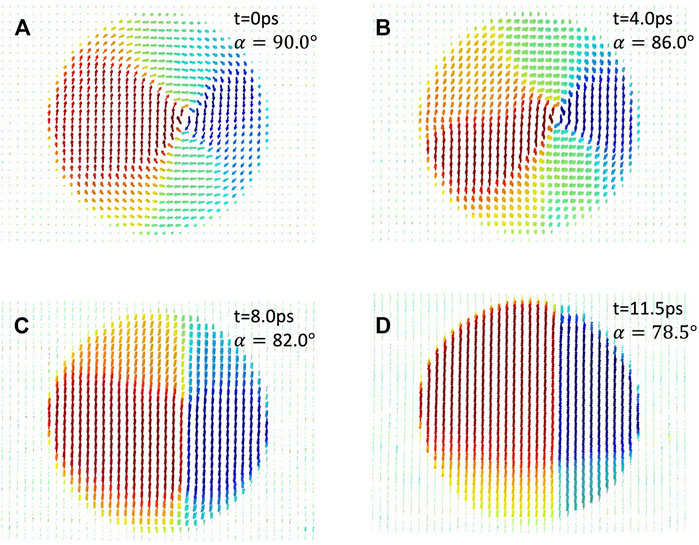

To examine the possibility of mechanical manipulation of vortex states, we next study the dynamics of the vortex state under shear strain. Figure 4A shows the initial vortex state in a 5.5 nm PTO nanowire embedded in STO matrix. We simulate shear dynamics by reducing the yz box angle at a rate of fs−1. Under 4 ps of continuous shear strain and at box angle 86, the vortex state is still intact (Figure 4B). After 8 ps of continuous shear and resulting box angle 82, the vortex state has become corrupted, resulting in a domain wall structure with a small curl in the polarization near the edge of the nanowire (Figure 4C). Upon further shearing, this small amount of curl is lost, forming a trivial domain wall state (Figure 4D), which demonstrates the ability to mechanically annihilate the vortex topology.
FIGURE 4
Discussion
Overall, our results demonstrate the controllability of topological vortex states in PTO nanowires embedded in STO through electrical and mechanical means. This work also demonstrates the ability of the new multiscale NN/MM method to model the emergence of topological vortices and their erasure under electric field and shear strain, highlighting its potential to investigate complex topological phase transitions in ferroelectric materials. Ultimately, deterministic control of polar topologies requires a precise understanding of the switching dynamics on sub nanosecond time scales (), which is currently lacking. Atomistic methods like the new NN/MM simulations performed here could help provide valuable insight in this vein. Along with a recently developed multiscale approach that combines Maxwell equations, real-time timed-dependent density functional theory, nonadiabatic and Fermi-occupation QMD, and excited state NNQMD () to study optical control of topological structures, the proposed NN/MM method will form the basis of the promising new area of “computational topotronics” to explore optical, electrical and mechanical control of topological states in next generation toptronics devices.
