- 1Department of Pediatrics, University of Florida, Gainesville, FL, USA
- 2McKnight Brain Institute, University of Florida, Gainesville, FL, USA
The term “encephalopathy of prematurity” encompasses not only the acute brain injury [such as intraventricular hemorrhage (IVH)] but also complex disturbance on the infant’s subsequent brain development. In premature infants, the most frequent recognized source of brain injury is IVH and periventricular leukomalacia (PVL). Furthermore 20–25% infants with birth weigh less than 1,500 g will have IVH and that proportion increases to 45% if the birth weight is less than 500–750 g. In addition, nearly 60% of very low birth weight newborns will have hypoxic-ischemic injury. Therefore permanent lifetime neurodevelopmental disabilities are frequent in premature infants. Innovative approach to prevent or decrease brain injury in preterm infants requires discovery of biomarkers able to discriminate infants at risk for injury, monitor the progression of the injury, and assess efficacy of neuroprotective clinical trials. In this article, we will review biomarkers studied in premature infants with IVH, Post-hemorrhagic ventricular dilation (PHVD), and PVL including: S100b, Activin A, erythropoietin, chemokine CCL 18, GFAP, and NFL will also be examined. Some of the most promising biomarkers for IVH are S100β and Activin. The concentrations of TGF-β1, MMP-9, and PAI-1 in cerebrospinal fluid could be used to discriminate patients that will require shunt after PHVD. Neonatal brain injury is frequent in premature infants admitted to the neonatal intensive care and we hope to contribute to the awareness and interest in clinical validation of established as well as novel neonatal brain injury biomarkers.
Introduction
Increasing rates of survival of extremely premature infants has produced a shift of paradigms from “survival” to “prevention of morbidity” including brain injury. The discovery and validation of neonatal biomarkers of brain injury is a key step in the evolution of neonatal neuroprotection. These markers may enable the clinicians to screen infants for brain injury, monitor the progression of disease, identify injured brain regions, and assess the efficacy of neuroprotective strategies procedures in clinical trials. Currently, clinicians do not use biomarkers to care for neonates with brain injuries. This review will examine potential biomarkers for the most common brain injuries in premature infants, such as intraventricular hemorrhage (IVH), post-hemorrhagic hydrocephalus, and periventricular leukomalacia (PVL).
Biomarkers of Intraventricular Hemorrhage
One major source of long-term neurologic deficits in premature neonates is the injury to the germinal matrix and the subventricular zone (Volpe, 2009). These injuries produce IVH. Approximately 20–25% of premature infants weighing less than 1,500 g will have an IVH (Volpe, 2008). The risk of IVH is inversely related to gestational age and birth weight. Forty-five percent of infants weighing 500–750 g develop IVH (Wilson-Costello et al., 2005). Immature blood vessels in the germinal matrix, a highly vascular region of the brain, combined with poor tissue vascular support, predispose premature infants to hemorrhage (Volpe, 2009). Clinical presentation of IVH can range from an acute newborn deterioration of the newborn (with apnea, pallor, acidosis, hypotension, bulging fontanel, seizures, and decreased muscle tone) to a “clinically silent syndrome” (no symptoms). Biomarkers that hold promise in predicting which neonates may suffer an IVH and long-term deficits will be reviewed.
The protein S100 family encompasses many calcium sensor proteins that modulate biological activity via calcium binding (Ikura, 1996). In particular, S100β (a homodimer of the subunit beta) protein is primarily synthesized in the brain by astrocytes and is quickly released from the brain into the blood when the blood-brain-barrier is disrupted (Kapural et al., 2002; Marchi et al., 2003). In the central nervous system S100β protein is predominantly concentrated in the astroglial cell population (Heizmann, 1999). However, reports of extra cranial sources of S100β, especially from adipose and muscle tissue, may confound its interpretation in the clinical setting (Otto et al., 2000; Bloomfield et al., 2007). S100β has a dual function depending on its concentrations. At nanomolar physiological concentrations, S100β is neurotrophic (Haglid et al., 1997). However, when S100β is overexpressed (in micromolar concentrations), it enhances neuroinflammation and neuronal apoptosis (Van Eldik and Wainwright, 2003). Recently an excess of S100β and amyloid precursor protein has been linked to impaired neurogenesis (due to the gliocentric shift of neural progenitor cells) in Down syndrome (Bouvier et al., 2011; Lu et al., 2011).
S100B has been well studied in the pediatric population. Immunoassay kits are commercially available and can detect S100β in many biological fluids such as urine, blood, CSF, amniotic fluid, saliva, and milk (Gazzolo and Michetti, 2010; Gazzolo et al., 2010). Furthermore, reference ranges are available for the pediatric population including preterm and term healthy newborns (Gazzolo et al., 2007; Bouvier et al., 2011). In general, healthy children have higher serum S100β concentrations than adults and the concentrations decline over time, especially during the first 6 months of life (Bouvier et al., 2011). Similarly, urinary S100β concentrations are higher in premature infants than in term newborns and steadily decrease with advancing gestational age (Gazzolo et al., 2007).
Gazzolo et al. (2006) reported that maternal blood concentrations of S100β >0.72 mcg/L were able to predict neonatal IVH with 100% sensitivity, 99% specificity, and 0.999 area under the ROC curve. However, measurements of serum S100β during pregnancy could be affected by multiple factors, such as gestational age, intrauterine growth, prenatal steroids use, twin gestation, and trisomy 21 (Gazzolo et al., 2003a,b; Sannia et al., 2010).
Premature infants with high concentrations of S100β in urine have higher mortality than matched controls for gestational age and weight with a positive predictive value of 78% and a negative predictive value of 100% (Gazzolo et al., 2005). S100β also plays a role in predicting IVH in neonates. Newborns that developed IVH have elevated S100β concentrations in blood and urine (Gazzolo et al., 1999, 2001). In addition, the urine S100β level correlates with the degree of IVH (Gazzolo et al., 2001). Taken together, these publications support the hypothesis that early brain injury may be responsible for a continuous release of S100β protein from the CNS into the systemic circulation and urine. Because IVH is more frequent in very small infants with birth weight 500–750 g, biomarkers that do not require blood samples are more clinical relevant. Therefore, one major advantage of S100β is that it can be measured in urine. In addition, there are commercially available kits to measure S100β. We believe that the next step in the validation of S100β as biomarker of IVH would be studies that incorporate its association with brain injury assessed by brain MRI and long-term functional outcomes.
Activin is another proposed biomarker for IVH. Activin, a member of the transforming growth factor-β superfamily, is a trophic factor that regulates differentiation and proliferation of neurons and a wide variety of cells (Florio et al., 2007). Activin receptors are highly expressed in neuronal cells and neuronal activity up-regulates activin mRNA expression (He et al., 2012). In animal models, Activin is neuroprotective during excitotoxic brain injury (Mukerji et al., 2007). In transgenic mice, activin regulates spine formation, behavioral activity, anxiety, adult neurogenesis, late-phase long-term potentiation, and the maintenance of long-term memory (Ageta et al., 2008; Zheng et al., 2009). Florio et al. (2006) found that premature newborns that developed IVH had high concentrations of Activin A in blood samples drawn during their first hour of life. In his cohort of 53 infants <32 weeks gestational age, 21% developed IVH detected by serial head ultrasound (HUS). Activin above 0.8 mcg/L predicted IVH with 100% sensitivity of 100%, and 93% specificity (with positive predictive value of 79%). Activin A is also increased in term newborns with moderate or severe asphyxia suggesting that activin is released after neuronal (Florio et al., 2004). Activin A should be validated in larger cohort of premature infants and correlated not only with IVH diagnosed by HUS but also with term corrected brain MRI (a more sensitive and specific brain injury detection).
Erythropoietin (EPO) is also a potential biomarker of IVH. EPO and its receptor are expressed in astrocytes, neurons, and endothelial brain cells (Marti, 2004). Bhandari published a prospective pilot cohort study of cord blood concentration of EPO in 116 infants less than 34 weeks GA (Bhandari et al., 2011). In this study, 25% infants had IVH diagnosed by serial HUS. Elevated cord blood EPO levels were predictors of IVH even after correction for gestational age. In the same cohort, inflammatory markers (such cord blood IL-6, pH, and early onset of neonatal sepsis) were not associated with IVH. These results suggest that elevated cord blood EPO may predict neonatal risk for IVH, independent of fetal inflammatory status. EPO production is increased in response to fetal hypoxia (Davis et al., 2003; Teramo and Widness, 2009). Thus, elevated EPO in cord blood may indicate fetal hypoxic conditions that lead to injury of the germinal matrix resulting in IVH. EPO is attractive as a biomarker because it can be measured at birth and the results are available the same day. Nevertheless it is important to establish if high levels Epo correlate with functional outcomes.
Chemokine ligand 18 (CCL18) belongs to the CC-chemokine family, is encoded in chromosome 17q11.2 and participates in the lymphocytes homing and the primary immune response (Zlotnik et al., 2006). As a result, inflammatory conditions may increase levels of CCL18 (Schutyser et al., 2005). Preterm infants who developed cerebral palsy have lower cord blood levels of CCL18 (Kaukola et al., 2004). Patients with traumatic brain injuries have elevated CCL18 in biopsies of brain tissue (Chang et al., 2010). In a prospective cohort study of 163 premature infants (less than 32 weeks of gestation), Kallankari et al. (2010) analyzed 107 cord blood immunoproteins, 12 cytokines from the peripheral blood, serial HUS in all newborns, and brain immunohistochemistry of chemokine receptors from the autopsies of 14 patients. Cord chemokine CCL18 robustly predicted the risk of IVH grades II-IV and was not associated with chorioamnionitis or funisitis. CCL18 receptor was detectable in the choroid plexus, periventricular capillary endothelium, ependymal cells, and the germinal matrix which may explain that high cord levels of CCL18 could be protective against IVH and brain injury by blocking the action of agonistic ligands on CCR3, thereby inhibiting leukocyte degranulation and inflammatory activation. Because CCL18 is an inflammatory mediator, it may be a very sensitive but not specific biomarker for IVH.
Uric acid (UA) is the end product of purine metabolism. Because UA has poor solubility, continuous renal excretion is necessary to avoid its toxic accumulation. High serum UA concentrations are expected when there are increase in production or decrease in its excretion. During hypoxic-ischemic events, hypoxanthine, a purine intermediate metabolite, accumulates. During the reperfusion states, hypoxanthine is then converted to UA (Perlman and Risser, 1998). Perlman and Risser (1998) reported elevated concentrations of UA (during first 24 h) in premature infants that developed IVH and PVL. In support of these findings, Aliefendioglu et al. (2006) found that high UA concentrations in CSF were associated with a higher risk of IVH. However, other study of low birth weight infants did not find association between elevated UA in serum and IVH (Sysyn and Rozycki, 2003). UA has conflicting results as brain injury biomarker.
Brain-type creatine phosphokinase (CPK-BB) is an enzyme expressed in various cell types and catalyzes the conversion of creatine to phosphocreatine (energy reservoir for cells that consume ATP rapidly). Van de Bor et al. (1988) found that higher serum CPK-BB during the first day of life was associated with IVH detected by serial HUS. Nevertheless, the small number of newborns with severe IVH limited the interpretation of the results of this pilot study. In a later study, Amato et al. (1989) found that only the CPK-BB values obtained during the first 6 h of life, but not later, were associated with IVH. This early elevations of CPK-BB concentration suggest association with prenatal events. One plausible explanation is that during hypoxic-ischemic events, brain cells deplete their ATP and increase CPK-BB concentrations to obtain more phosphocreatine (other source of cell energy). In our opinion, this biomarker shows limited predictability for brain injury because it is not specific to brain injury and is only increased for few hours.
IL-6 and C-reactive protein (CRP) are inflammatory markers, therefore non-specific markers of brain injury. Sorokin et al. followed a cohort of 475 asymptomatic pregnant women at risk for preterm birth. He found that high maternal serum concentrations of IL-6 and CRP were associated with increase risk of IVH in their premature infants even after adjusting for gestational age (Sorokin et al., 2010). Notably, 25 out of 30 neonates had grade I IVH. It is possible maternal inflammatory markers reflect the fetal environment and therefore could be associated with brain pathology but they are not specific for brain injury.
Biomarkers for Post-Hemorrhagic Ventricular Dilation
Following a large IVH, blood clots throughout the ventricular system may block the channels for the reabsorption of cerebrospinal fluid and the lateral ventricles enlarge producing Post-hemorrhagic ventricular dilation (PHVD; Whitelaw and Aquilina, 2012). Overtime, the chronic inflammation, free iron, free radicals, and the excessive intracranial pressure produce not only ventricle enlargement but also progressive periventricular white matter injury. Patients with PHVD have worse outcomes: 40% develop cerebral palsy and 25% have multiple impairments (Ventriculomegaly trial group, 1994; Kennedy et al., 2001). Patients with large amounts of blood clots in the ventricles have a higher risk for shunt placement (Whitelaw, 2001; Whitelaw and Aquilina, 2012). Deciding when to intervene in patients with PHVD could be a challenge in part due to the small size of the patient (often between 1 and 2 kg) and complications related to drains. There is no precise test that could help to determine when is the best time to place a drain (external drain or shunt) to avoid secondary periventricular brain damage (Davies et al., 2000; Whitelaw and Aquilina, 2012). The following biomarkers are associated with PHVD and need for shunt:
Transforming growth factor beta 1 (TGF-β1) is released into CSF after intraventricular bleeding and up-regulates the genes to increase production of extracellular matrix (ECM) proteins such as collagen and fibronectin (Whitelaw and Aquilina, 2012). Excessive production of ECM could lead to blockage of CSF reabsorption. Therefore, TGF β1 could serve as a biomarker of PVHD. Whitelaw et al. (1999) found higher concentrations of TGF β1 in CSF of preterm infants with PHVD than preterm controls. Among the PHVD patients, those with highest TGF β1 concentrations had higher rate of shunt placement. TGFβ1 > 6.5 ng/mL in CSF was 80% sensitive and 78% specific to discriminate which infants with PHVD would require a shunt. By contrast, Heep et al. (2004) found that increased concentrations of TGFβ-1 in CSF did not correlate with PHVD but correlated with white matter injury. Lipina et al. (2010) reported that patients with PVHD with TGF β-1 > 2,396 pg/mL had a sensitivity of 79% and specificity of 80% to predict which patients would not benefit of endoscopic third ventriculostomy (surgery that allow CSF to leave the ventricular system) and need shunt placement. Elevated TGF β-1 is associated with worse course of PHVD either because patient has higher risk of shunt placement or white matter injury. Unfortunately, this biomarker is only measured in CSF and need validation in larger studies.
Transforming growth factor beta-2 (TGF-β2) is associated with a decreased proliferation of neuronal precursors and induction of cell death of oligodendrocytes. Chow et al. (2005) found that in patients with PHVD, TGF β-2 in CSF was 20 times greater if patients required shunt and it was associated with worse neurodevelopment outcome at 15 months. It is possible that high concentrations of TGF-β2 in CSF correlate with worse prognosis due to its effects with neurons and oligodendrocytes. This potential biomarker needs validation in larger cohort of patients.
Proteins of the matrix metallo-proteinases (MMPs) family are involved in the breakdown of ECM proteins (Rosell et al., 2008). Okamoto et al. (2008) found that MMP-9 in CSF was higher in patients with PHVD than controls. Higher MMP-9 concentrations possible reflect ongoing brain tissue remodeling in patients with PHVD. Patients with PHVD that required a shunt had higher MMP-9 levels than controls but lower MMP-9 concentrations than PHVD patients without need for a shunt. A plausible explanation for this finding is that patients with lower MMP-9 concentrations could not degrade the amount of extracellular proteins produced and end with CSF outflow obstruction requiring shunt placement. Validation studies are necessary for this pilot report.
Plasminogen activator inhibitor 1 (PAI-1) is one of the main inhibitors of fibrinolysis (physiological breakdown of blood clots; Booth et al., 1988). Hansen et al. showed that CSF concentration of PAI-1 was highest in patients with PHVD compared with neonates with IVH without PHVD (Hansen et al., 1997, 2000). It is possible that neonates who develop IVH and have impaired blood breakdown due to high concentrations of PAI-1 would develop PHVD. This is promising biomarkers but needs more validation studies.
Whitelaw et al. (2001) found that median neurofilament (NFL) and glial fibrillary acidic protein (GFAP) concentrations in infants with PHVD were 20–200 times higher than controls. In the same study, patients with PHVD had four times higher S100 protein in CSF than control patients and GFAP concentrations correlated with death or disability. We think that NFL and GFAP are plausible biomarkers of PHVD but they required CSF samples. Again, this is promising pilot data but needs confirmation with large number of patients.
Biomarkers of Periventricular Leukomalacia
Periventricular leukomalacia is a cerebral white matter injury that occurs to some degree in 50% of neonates with birth weights less than 1,500 g (Volpe et al., 2011). PVL is associated with a decrease in the volume of the cortex, thalamus, and basal ganglia (Volpe et al., 2011). This injury likely account for 90% of the neurologic deficits, including cerebral palsy, cognitive, behavioral, and attention deficits, that occurs in surviving premature neonates. In addition, up to 50% of neonates with congenital heart disease requiring surgery acquire PVL (Galli et al., 2004).
Diagnosis of PVL has been limited to later stages of PVL where radiological changes are visible in ultrasound or brain MRI. There is a paucity of publications on PVL serum biomarkers. Recent research done on autopsy of premature newborns with PVL has lead to the discovery of immunomarkers of early stages of PVL and could change our understanding of its physiopathology and prevalence. Some of the new described tissue biomarkers of PVL are:
Human beta-amyloid precursor protein (β-APP) is marker of wide diffuse axonal damage for early stages of PVL (Arai et al., 1995; Hirayama et al., 2001) and Fractin that is an apoptotic marker (Haynes et al., 2008). β-APP and fractin could improve understand the pathogenesis of diffuse axonal damage in PVL, including whether or not this damage results in irreversible axonal loss and impaired neuronal function. There is a paucity of publications on biomarkers of PVL, an area on increasing interest due to its high frequency in extremely premature neonates and infants with congenital heart disease.
Summary

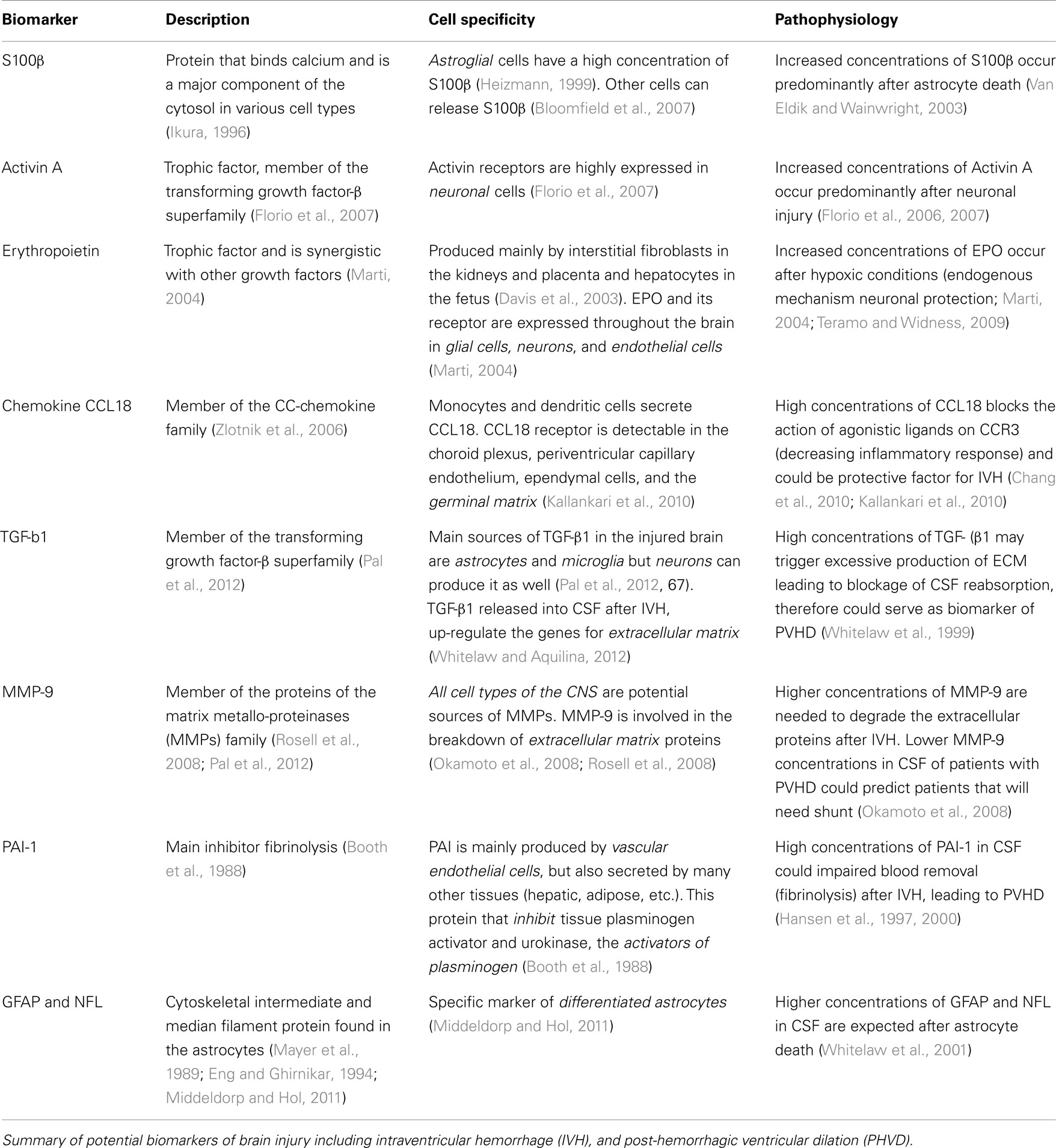

We found that some of the most promising biomarkers for IVH are S100β and Activin. PHVD biomarkers like TGF-β1, MMP-9, and PAI-1, could be used to discriminate patients that will require shunt. We summarized the characteristic of the biomarkers and its potential usefulness in Tables 1 and 2. There is a paucity of publications that validated the potential biomarkers of brain injury with more accurate brain damage assessment, such as brain MRI. In addition potential biomarkers should explore their correlation with functional brain outcomes such as amplitude integrated EEG, full EEG, functional brain MRI, and long term neurodevelopmental follow-up. The available data indicate that such studies are not only justified but also urgently needed to care for newborns, especially those with extreme prematurity.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Abbreviations
aEEG, amplitude integrated electroencephalogram; CPK-BB, arain-type creatine phosphokinase; CSF, cerebrospinal fluid; CCL18, chemokine ligand 18; CRP, C-reactive protein; EPO, erythropoietin; GA, gestational age; IVH, intraventricular hemorrhage; MMP-9, matrix metalloproteinase-9; PVL, periventricular leukomalacia; PAI-1, plasminogen activator inhibitor 1; TGF-β1, transforming growth factor beta 1; TGF-β2, transforming growth factor beta-2; UA, uric acid.
References
Ageta, H., Murayama, A., Migishima, R., Kida, S., Tsuchida, K., Yokoyama, M., et al. (2008). Activin in the brain modulates anxiety-related behavior and adult neurogenesis. PLoS ONE 3:e1869. doi:10.1371/journal.pone.0001869
Aliefendioglu, D., Gursoy, T., Hayran, K. M., and Aslan, A. T. (2006). Can cerebrospinal fluid uric acid levels differentiate intraventricular hemorrhage from traumatic tap? Biol. Neonate 90, 268–272.
Amato, M., Huppi, P., Gambon, R., and Schneider, H. (1989). Biochemical timing of peri-intraventricular hemorrhage assessed by perinatal CPK-BB isoenzyme measurements. J. Perinat. Med. 17, 447–452.
Arai, Y., Deguchi, K., Mizuguchi, M., and Takashima, S. (1995). Expression of beta-amyloid precursor protein in axons of periventricular leukomalacia brains. Pediatr. Neurol. 13, 161–163.
Bhandari, V., Buhimschi, C. S., Han, C. S., Lee, S. Y., Pettker, C. M., Campbell, K. H., et al. (2011). Cord blood erythropoietin and interleukin-6 for prediction of intraventricular hemorrhage in the preterm neonate. J. Matern. Fetal. Neonatal. Med. 24, 673–679.
Bloomfield, S. M., McKinney, J., Smith, L., and Brisman, J. (2007). Reliability of S100B in predicting severity of central nervous system injury. Neurocrit. Care 6, 121–138.
Booth, N. A., Simpson, A. J., Croll, A., Bennett, B., and MacGregor, I. R. (1988). Plasminogen activator inhibitor (PAI-1) in plasma and platelets. Br. J. Haematol. 70, 327–333.
Bouvier, D., Castellani, C., Fournier, M., Dauphin, J. B., Ughetto, S., Breton, M., et al. (2011). Reference ranges for serum S100B protein during the first three years of life. Clin. Biochem. 44, 927–929.
Chang, C. Y., Lee, Y. H., Leu, S. J., Wang, C. Y., Wei, C. P., Hung, K. S., et al. (2010). CC-chemokine ligand 18/pulmonary activation-regulated chemokine expression in the CNS with special reference to traumatic brain injuries and neoplastic disorders. Neuroscience 165, 1233–1243.
Chow, L. C., Soliman, A., Zandian, M., Danielpour, M., and Krueger, R. C. Jr. (2005). Accumulation of transforming growth factor-beta2 and nitrated chondroitin sulfate proteoglycans in cerebrospinal fluid correlates with poor neurologic outcome in preterm hydrocephalus. Biol. Neonate 88, 1–11.
Davies, M. W., Swaminathan, M., Chuang, S. L., and Betheras, F. R. (2000). Reference ranges for the linear dimensions of the intracranial ventricles in preterm neonates. Arch. Dis. Child Fetal Neonatal Ed. 82, F218–F223.
Davis, L. E., Widness, J. A., and Brace, R. A. (2003). Renal and placental secretion of erythropoietin during anemia or hypoxia in the ovine fetus. Am. J. Obstet. Gynecol. 189, 1764–1770.
Florio, P., Gazzolo, D., Luisi, S., and Petraglia, F. (2007). Activin A in brain injury. Adv. Clin. Chem. 43, 117–130.
Florio, P., Luisi, S., Bruschettini, M., Grutzfeld, D., Dobrzanska, A., Bruschettini, P., et al. (2004). Cerebrospinal fluid activin a measurement in asphyxiated full-term newborns predicts hypoxic ischemic encephalopathy. Clin. Chem. 50, 2386–2389.
Florio, P., Perrone, S., Luisi, S., Vezzosi, P., Longini, M., Marzocchi, B., et al. (2006). Increased plasma concentrations of activin a predict intraventricular hemorrhage in preterm newborns. Clin. Chem. 52, 1516–1521.
Galli, K. K., Zimmerman, R. A., Jarvik, G. P., Wernovsky, G., Kuypers, M. K., Clancy, R. R., et al. (2004). Periventricular leukomalacia is common after neonatal cardiac surgery. J. Thorac. Cardiovasc. Surg. 127, 692–704.
Gazzolo, D., Abella, R., Frigiola, A., Giamberti, A., Tina, G., Nigro, F., et al. (2010). Neuromarkers and unconventional biological fluids. J. Matern. Fetal Neonatal Med. 23(Suppl. 3), 66–69.
Gazzolo, D., Bruschettini, M., Corvino, V., Lituania, M., Sarli, R., Bruschettini, P., et al. (2003a). Amniotic fluid levels of S100B protein in normal and trisomy-21 foetuses. Clin. Chim. Acta 330, 131–133.
Gazzolo, D., Lituania, M., Bruschettini, M., Bruschettini, P., and Michetti, F. (2003b). S100B protein concentrations in amniotic fluid are higher in monoamniotic than in diamniotic twins and singleton pregnancies. Clin. Chem. 49(6 Pt 1), 997–999.
Gazzolo, D., Bruschettini, M., Lituania, M., Serra, G., Bonacci, W., and Michetti, F. (2001). Increased urinary S100B protein as an early indicator of intraventricular hemorrhage in preterm infants: correlation with the grade of hemorrhage. Clin. Chem. 47, 1836–1838.
Gazzolo, D., Florio, P., Ciotti, S., Marinoni, E., di Iorio, R., Bruschettini, M., et al. (2005). S100B protein in urine of preterm newborns with ominous outcome. Pediatr. Res. 58, 1170–1174.
Gazzolo, D., Frulio, R., Roletti, A., Bruschettini, P., Lituania, M., and Michetti, F. (2007). S100A1B and S100BB urine levels in preterm and term healthy newborns. Clin. Chim. Acta 384, 186–187.
Gazzolo, D., Marinoni, E., Di Iorio, R., Lituania, M., Marras, M., Bruschettini, M., et al. (2006). High maternal blood S100B concentrations in pregnancies complicated by intrauterine growth restriction and intraventricular hemorrhage. Clin. Chem. 52, 819–826.
Gazzolo, D., and Michetti, F. (2010). Perinatal S100B protein assessment in human unconventional biological fluids: a minireview and new perspectives. Cardiovasc. Psychiatry Neurol. 2010, 703563.
Gazzolo, D., Vinesi, P., Bartocci, M., Geloso, M. C., Bonacci, W., Serra, G., et al. (1999). Elevated S100 blood level as an early indicator of intraventricular hemorrhage in preterm infants. Correlation with cerebral Doppler velocimetry. J. Neurol. Sci. 170, 32–35.
Haglid, K. G., Yang, Q., Hamberger, A., Bergman, S., Widerberg, A., and Danielsen, N. (1997). 0beta stimulates neurite outgrowth in the rat sciatic nerve grafted with acellular muscle transplants. Brain Res. 753, 196–201.
Hansen, A., Whitelaw, A., Lapp, C., and Brugnara, C. (1997). Cerebrospinal fluid plasminogen activator inhibitor-1: a prognostic factor in posthaemorrhagic hydrocephalus. Acta Paediatr. 86, 995–998.
Hansen, A. R., Lapp, C., and Brugnara, C. (2000). Plasminogen activator inhibitor-1: defining characteristics in the cerebrospinal fluid of newborns. J. Pediatr. 137, 132–134.
Haynes, R. L., Billiards, S. S., Borenstein, N. S., Volpe, J. J., and Kinney, H. C. (2008). Diffuse axonal injury in periventricular leukomalacia as determined by apoptotic marker fractin. Pediatr. Res. 63, 656–661.
He, J. T., Mang, J., Mei, C. L., Yang, L., Wang, J. Q., Xing, Y., et al. (2012). Neuroprotective effects of exogenous activin A on oxygen-glucose deprivation in PC12 cells. Molecules 17, 315–327.
Heep, A., Stoffel-Wagner, B., Bartmann, P., Benseler, S., Schaller, C., Groneck, P., et al. (2004). Vascular endothelial growth factor and transforming growth factor-beta1 are highly expressed in the cerebrospinal fluid of premature infants with posthemorrhagic hydrocephalus. Pediatr. Res. 56, 768–774.
Heinemann, U., Kaufer, D., and Friedman, A. (2012). Blood-brain barrier dysfunction, TGFbeta signaling, and astrocyte dysfunction in epilepsy. Glia 60, 1251–1257.
Heizmann, C. W. (1999). Ca2+-binding S100 proteins in the central nervous system. Neurochem. Res. 24, 1097–1100.
Hirayama, A., Okoshi, Y., Hachiya, Y., Ozawa, Y., Ito, M., Kida, Y., et al. (2001). Early immunohistochemical detection of axonal damage and glial activation in extremely immature brains with periventricular leukomalacia. Clin. Neuropathol. 20, 87–91.
Ikura, M. (1996). Calcium binding and conformational response in EF-hand proteins. Trends Biochem. Sci. 21, 14–17.
Kallankari, H., Kaukola, T., Ojaniemi, M., Herva, R., Perhomaa, M., Vuolteenaho, R., et al. (2010). Chemokine CCL18 predicts intraventricular hemorrhage in very preterm infants. Ann. Med. 42, 416–425.
Kapural, M., Krizanac-Bengez, L., Barnett, G., Perl, J., Masaryk, T., Apollo, D., et al. (2002). Serum S-100beta as a possible marker of blood-brain barrier disruption. Brain Res. 940, 102–104.
Kaukola, T., Satyaraj, E., Patel, D. D., Tchernev, V. T., Grimwade, B. G., Kingsmore, S. F., et al. (2004). Cerebral palsy is characterized by protein mediators in cord serum. Ann. Neurol. 55, 186–194.
Kennedy, C. R., Ayers, S., Campbell, M. J., Elbourne, D., Hope, P., and Johnson, A. (2001). Randomized, controlled trial of acetazolamide and furosemide in posthemorrhagic ventricular dilation in infancy: follow-up at 1 year. Pediatrics 108, 597–607.
Lipina, R., Reguli, S., Novackova, L., Podesvova, H., and Brichtova, E. (2010). Relation between TGF-beta 1 levels in cerebrospinal fluid and ETV outcome in premature newborns with posthemorrhagic hydrocephalus. Childs Nerv. Syst. 26, 333–341.
Lu, J., Esposito, G., Scuderi, C., Steardo, L., Delli-Bovi, L. C., Hecht, J. L., et al. (2011). S100B and APP promote a gliocentric shift and impaired neurogenesis in Down syndrome neural progenitors. PLoS ONE 6:e22126. doi:10.1371/journal.pone.0022126
Marchi, N., Rasmussen, P., Kapural, M., Fazio, V., Kight, K., Mayberg, M. R., et al. (2003). Peripheral markers of brain damage and blood-brain barrier dysfunction. Restor. Neurol. Neurosci. 21, 109–121.
Mayer, R. J., Lowe, J., Lennox, G., Doherty, F., and Landon, M. (1989). Intermediate filaments and ubiquitin: a new thread in the understanding of chronic neurodegenerative diseases. Prog. Clin. Biol. Res. 317, 809–818.
Mukerji, S. S., Katsman, E. A., Wilber, C., Haner, N. A., Selman, W. R., and Hall, A. K. (2007). Activin is a neuronal survival factor that is rapidly increased after transient cerebral ischemia and hypoxia in mice. J. Cereb. Blood Flow Metab. 27, 1161–1172.
Okamoto, T., Takahashi, S., Nakamura, E., Nagaya, K., Hayashi, T., Shirai, M., et al. (2008). Matrix metalloproteinases in infants with posthemorrhagic hydrocephalus. Early Hum. Dev. 84, 137–139.
Otto, M., Holthusen, S., Bahn, E., Sohnchen, N., Wiltfang, J., Geese, R., et al. (2000). Boxing and running lead to a rise in serum levels of S-100B protein. Int. J. Sports Med. 21, 551–555.
Pal, G., Vincze, C., Renner, E., Wappler, E. A., Nagy, Z., Lovas, G., et al. (2012). Time course, distribution and cell types of induction of transforming growth factor betas following middle cerebral artery occlusion in the rat brain. PLoS ONE 7:e46731. doi:10.1371/journal.pone.0046731
Perlman, J. M., and Risser, R. (1998). Relationship of uric acid concentrations and severe intraventricular hemorrhage/leukomalacia in the premature infant. J. Pediatr. 132(Pt 1), 436–439.
Rosell, A., Cuadrado, E., Ortega-Aznar, A., Hernandez-Guillamon, M., Lo, E. H., and Montaner, J. (2008). MMP-9-positive neutrophil infiltration is associated to blood-brain barrier breakdown and basal lamina type IV collagen degradation during hemorrhagic transformation after human ischemic stroke. Stroke 39, 1121–1126.
Sannia, A., Risso, F. M., Serpero, L. D., Frulio, R., Michetti, F., Abella, R., et al. (2010). Antenatal glucocorticoid treatment affects preterm infants’ S100B urine concentration in a dose-dependent manner. Clin. Chim. Acta 411, 1539–1541.
Schutyser, E., Richmond, A., and Van Damme, J. (2005). Involvement of CC chemokine ligand 18 (CCL18) in normal and pathological processes. J. Leukoc. Biol. 78, 14–26.
Sorokin, Y., Romero, R., Mele, L., Wapner, R. J., Iams, J. D., Dudley, D. J., et al. (2010). Maternal serum interleukin-6, C-reactive protein, and matrix metalloproteinase-9 concentrations as risk factors for preterm birth 32 weeks and adverse neonatal outcomes. Am. J. Perinatol. 27, 631–640.
Sysyn, G. D., and Rozycki, H. J. (2003). Lack of prognostic significance of early elevated serum uric acid levels in low birthweight infants. Biol. Neonate 83, 253–257.
Teramo, K. A., and Widness, J. A. (2009). Increased fetal plasma and amniotic fluid erythropoietin concentrations: markers of intrauterine hypoxia. Neonatology 95, 105–116.
Van de Bor, M., Janssen, J. W., Van Bel, F., and Ruys, J. H. (1988). Serum creatine kinase BB as predictor of periventricular haemorrhage in preterm infants. Early Hum. Dev. 17, 165–174.
Van Eldik, L. J., and Wainwright, M. S. (2003). Janus face of glial-derived S100B: beneficial and detrimental functions in the brain. Restor. Neurol. Neurosci. 21, 97–108.
Ventriculomegaly trial group. (1994). Randomised trial of early tapping in neonatal posthaemorrhagic ventricular dilatation: results at 30 months. Arch. Dis. Child Fetal Neonatal Ed. 70, F129–F136.
Volpe, J. J. (2009). Brain injury in premature infants: a complex amalgam of destructive and developmental disturbances. Lancet Neurol. 8, 110–124.
Volpe, J. J., Kinney, H. C., Jensen, F. E., and Rosenberg, P. A. (2011). The developing oligodendrocyte: key cellular target in brain injury in the premature infant. Int. J. Dev. Neurosci. 29, 423–440.
Whitelaw, A. (2001). Repeated lumbar or ventricular punctures in newborns with intraventricular hemorrhage. Cochrane Database Syst. Rev. CD000216, PMID:11279684.
Whitelaw, A., and Aquilina, K. (2012). Management of posthaemorrhagic ventricular dilatation. Arch. Dis. Child Fetal Neonatal Ed. 97, F229–F223.
Whitelaw, A., Christie, S., and Pople, I. (1999). Transforming growth factor-beta1: a possible signal molecule for posthemorrhagic hydrocephalus? Pediatr. Res. 46, 576–580.
Whitelaw, A., Rosengren, L., and Blennow, M. (2001). Brain specific proteins in posthaemorrhagic ventricular dilatation. Arch. Dis. Child Fetal Neonatal Ed. 84, F90–F91.
Wilson-Costello, D., Friedman, H., Minich, N., Fanaroff, A. A., and Hack, M. (2005). Improved survival rates with increased neurodevelopmental disability for extremely low birth weight infants in the 1990s. Pediatrics 115, 997–1003.
Zheng, F., Adelsberger, H., Muller, M. R., Fritschy, J. M., Werner, S., and Alzheimer, C. (2009). Activin tunes GABAergic neurotransmission and modulates anxiety-like behavior. Mol. Psychiatry 14, 332–346.
Keywords: biomarkers, intraventricular hemorrhage, post-hemorrhagic ventricular dilation, periventricular leukomalacia, brain injury
Citation: Douglas-Escobar M and Weiss MD (2013) Biomarkers of brain injury in the premature infant. Front. Neur. 3:185. doi: 10.3389/fneur.2012.00185
Received: 28 June 2012; Accepted: 17 December 2012;
Published online: 22 January 2013.
Edited by:
Stefania Mondello, University of Florida, USAReviewed by:
Bridgette D. Semple, University of California, USAFiras H. Kobeissy, University of Florida, USA
Copyright: © 2013 Douglas-Escobar and Weiss. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in other forums, provided the original authors and source are credited and subject to any copyright notices concerning any third-party graphics etc.
*Correspondence: Martha Douglas-Escobar, Department of Pediatrics, University of Florida, Post Box 100296, Gainesville, FL 32610-0296, USA. e-mail: marthave@ufl.edu
