Front. Neurol., 05 November 2020
Sec. Multiple Sclerosis and Neuroimmunology

Prolonged Neuropsychological Deficits, Central Nervous System Involvement, and Brain Stem Affection After COVID-19—A Case Series

\nStefan Jun Groiss,
Stefan Jun Groiss1,2*Carolin Balloff,Carolin Balloff1,2Saskia Elben,Saskia Elben1,2Timo BrandenburgerTimo Brandenburger3Tomke MüttelTomke Müttel1Detlef Kindgen-MillesDetlef Kindgen-Milles3Christian VollmerChristian Vollmer3Torsten FeldtTorsten Feldt4Anselm KunsteinAnselm Kunstein4Bjrn-Erik Ole JensenBjörn-Erik Ole Jensen4Hans-Peter HartungHans-Peter Hartung1Alfons Schnitzler,Alfons Schnitzler1,2Philipp Albrecht
Philipp Albrecht1*
  • 1Department of Neurology, Medical Faculty, Heinrich-Heine University, Düsseldorf, Germany
  • 2Institute of Clinical Neuroscience and Medical Psychology, Medical Faculty, Heinrich-Heine University, Düsseldorf, Germany
  • 3Department of Anesthesiology, Medical Faculty, Heinrich-Heine University, Düsseldorf, Germany
  • 4Department of Gastroenterology, Hepatology and Infectious Diseases, Medical Faculty, Heinrich-Heine University, Düsseldorf, Germany

Objective: The affection of both the peripheral (PNS) and central nervous system (CNS) by severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) has been assumed to play a direct role in the respiratory failure of patients with Corona virus disease 2019 (COVID-19) through affection of medullary cardiorespiratory centers resulting in neurological complications and sequelae.

Methods: We used a multimodal electrophysiological approach combined with neuropsychological investigations to study functional alteration of both the PNS and CNS in four patients with severe COVID-19.

Results: We found electrophysiological evidence for affection of both the PNS and CNS, and particularly affection of brain stem function. Furthermore, our neuropsychological investigations provide evidence of marked impairment of cognition independent of delirium, and outlasting the duration of acute infection with SARS-CoV-2.

Conclusion: This case series provides first direct electrophysiological evidence for functional brain stem involvement in COVID-19 patients without evident morphological changes supporting the notion of the brain stem contributing to respiratory failure and thus promoting severe courses of the disease. Moreover, sustained neuropsychological sequelae in these patients may be of particular psychosocial and possibly also economic relevance for society.


Corona virus disease 2019 (COVID-19) is caused by severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), which mainly affects the respiratory system (1). Although the vast majority of affected individuals only show mild to moderate symptoms, severe courses requiring intensive medical care have a high risk for mortality (1, 2). Neurological complications are common with more severe infections that disproportionately affect older patients and include impaired consciousness, stroke, and acute neuropathies (35). This is likely due to direct affection of both the central (CNS) and peripheral nervous system (PNS) by SARS-CoV-2 (5, 6). It is supposed that direct neuronal infection may be caused by affection of the angiotensin-converting enzyme 2 receptor (7). Studies on SARS-CoV-1 and middle east respiratory syndrome CoV (MERS-CoV) have suggested initial affection of the PNS, mostly of the olfactory nerve, leading to trans-synaptic transfer to the brain stem and spreading into the CNS (811). Other neural routes via the vagus nerve have also been described for other neurotropic viruses like influenza A (12, 13). Therefore, the neurotropic potential of SARS-CoV-2 may also play a direct role in the respiratory failure of patients through affection of medullary cardiorespiratory centers, such as the pre-Bötzinger complex, pneumotaxic center, or central chemoreceptor area (8, 10, 14).

Here, we present a series of four severely affected COVID-19 patients with first direct electrophysiological evidence for brain stem affection and neuropsychological sequelae.



Four men with severe COVID-19 (59.5 ± 17.6 years) were investigated. The investigations were carried out in accordance with the declaration of Helsinki and all patients gave their written informed consent for publication of the pseudonymized results.

In all patients the diagnosis of COVID-19 was confirmed by positive SARS-CoV-2 PCR from nasopharyngeal swab exams. All patients were severely affected and required mechanical ventilation, one of them also requiring veno-venous extracorporeal membrane oxygenation. Basic demographic and clinical characteristics are summarized in Table 1. All patients survived the disease and have been dismissed or transferred for neurological rehabilitation.


Table 1. Basic clinical, laboratory, and neurological characteristics of all four patients.

Neurological deficits were detected after cessation of sedation required for invasive ventilation and prone positioning and the patients regaining consciousness. Subsequently, intense neurological workup was initiated including multimodal neurophysiological and neuropsychological investigations. Patient 1 additionally suffered from intestinal ischemia requiring surgery. Therefore, neurological workup was performed later after full clinical recovery from surgery. All patients underwent either cerebral computed tomography or magnetic resonance imaging. Patient 1 and 2 underwent lumbar puncture for analysis of cerebrospinal fluid (CSF) including SARS-CoV-2 PCR. Figure 1 illustrates the detailed time course and series of events of all four patients, including the duration of mechanical ventilation and time of neurological, neurophysiological, and neuropsychological investigations.

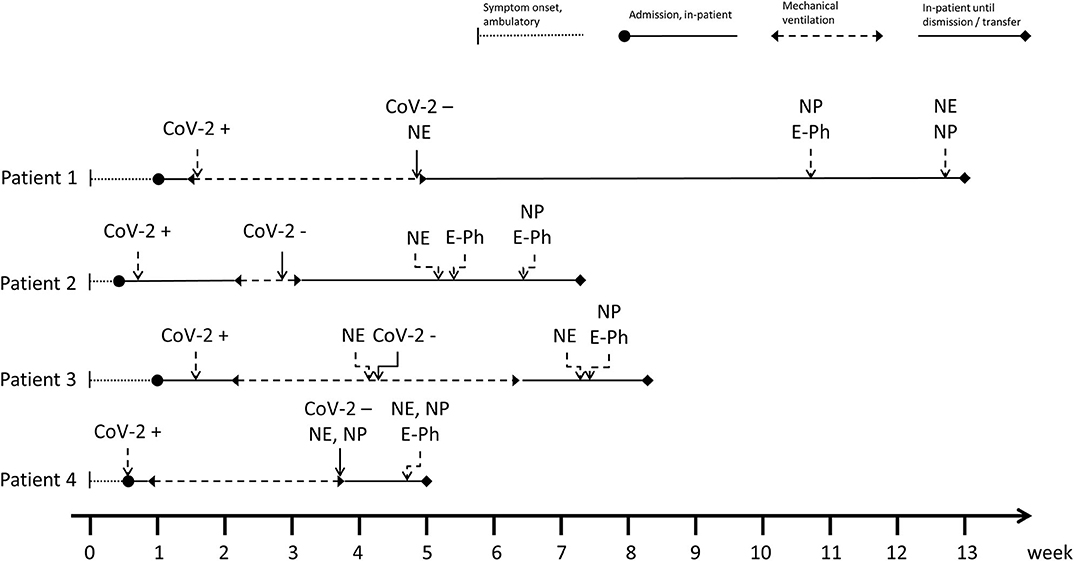

Figure 1. Detailed time course and series of events of all four patients, including the duration of mechanical ventilation, and time of neurological, neurophysiological, and neuropsychological investigations. CoV-2 +/–, CoV-2 PCR first time positive/negative; NE, neurological examination; NP, neuropsychological examination; E-Ph, electrphysiological invesitigations.

Neuropsychological Studies

Montreal Cognitive Assessment (MoCA) (15) and Symbol Digit Modality Test (SDMT) (16) were used to screen for cognitive impairment except in patient 3, who underwent Mini-Mental State Examination (MMSE) (17), since he was not able to complete the aforementioned tests due to cognitive dysfunction and severe attention deficits. In patient 1 and 4, follow up assessments were performed to evaluate the temporal dynamics. Rapid clinical test for delirium (4AT) was used to define the degree of possible acute delirium in all patients.

Electrophysiological Studies

All patients underwent multimodal clinical neurophysiological measurements consisting of electroencephalography (EEG), nerve conduction studies (NCS), blink reflex (BR), sympathetic skin responses (SSR), electromyography (EMG), motor evoked potentials (MEP), and somatosensory evoked potentials (SEP) (18). We used a standard clinical neurophysiology device (Neuropack X1, Nihon Kohden, Japan) for all measurements. EEG used standard 10–20 system of scalp electrode placement. NCS included tibial, sural, and ulnar nerves and was extended as needed. BR of the bilateral orbicularis oculi muscle as measure for brain stem function and SSR were measured. Needle EMG were recorded from the tibialis anterior (TA), rectus femoris and first dorsal interosseous (FDI) muscles. Transcranial magnetic stimulation was applied via standard circular coil (MagPro compact, MagVenture, Germany) to record motor evoked potentials (MEP) from bilateral FDI and TA. The EMG signals were amplified, band passed between 5 Hz and 5 kHz and digitized at a sampling rate of 5 kHz. Sensory evoked potentials (SEP) used supramaximal stimuli of bilateral medial and tibial nerves with at least 200 averages.



Neurological examination (Table 1) revealed both affection of CNS and PNS in patients 1, 3 and 4. While patient 1 and 3 first showed signs for CNS affection and developed signs for PNS affection later on, it was the other way around in patient 4. Patient 2 presented with pure PNS affection similar to Guillain-Barré syndrome (GBS). Basic CSF analytics including cell count and protein level were unremarkable and PCR for neurotropic virus including SARS-CoV-2 were negative in both patients 1 and 2 who underwent lumbar puncture. In patient 2, who clinically presented with a GBS-like phenotype, antineuronal antibodies, and antiganglioside antibodies were negative as well. Cerebral imaging did not reveal any acute pathologies in all patients (Table 2). None of the patients reported hyposmia or ageusia.

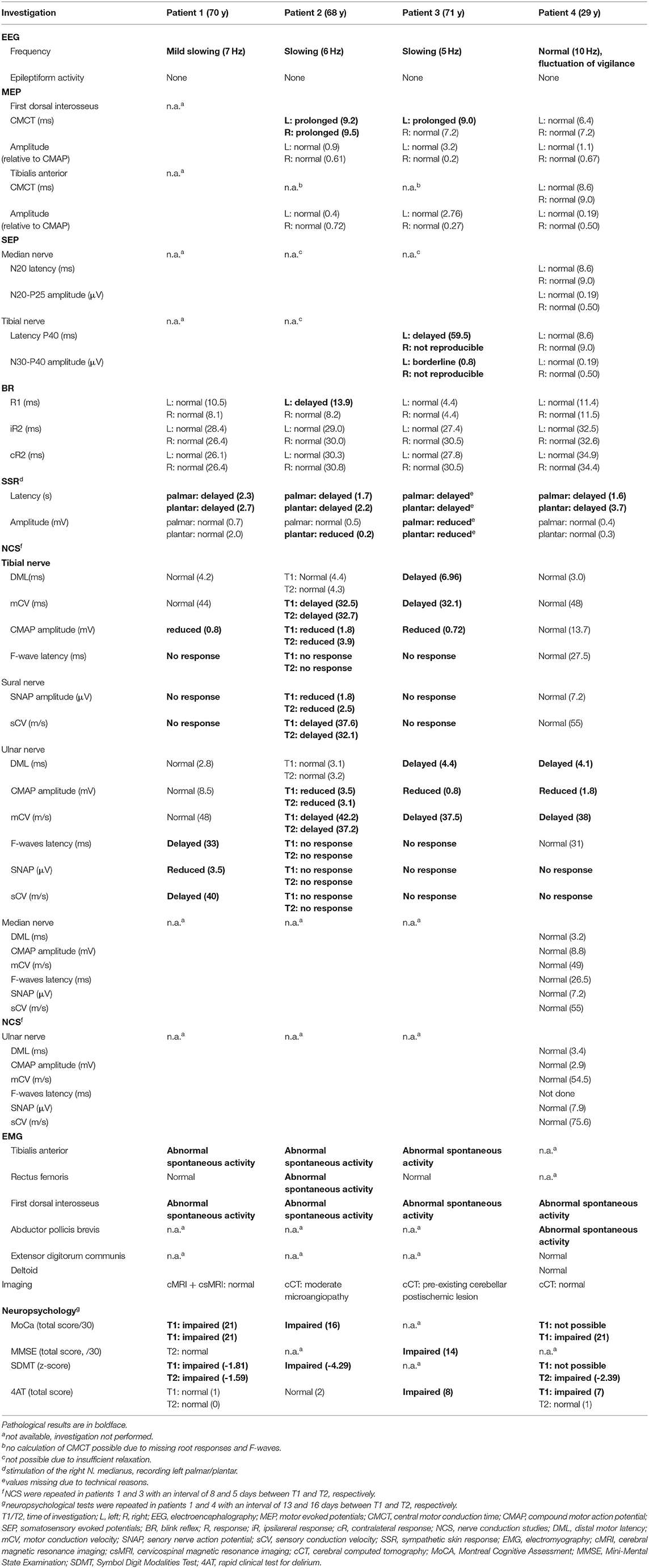

Table 2. Detailed results of neuropsychological examination and multimodal electropysiological investigations.


All patients showed clinically relevant impairment of cognition (Table 2). Patients 1 and 2 had marked impairment of MoCA and SDMT despite lack of delirium. Patients 3 and 4 had signs for possible delirium in the initial 4AT. In patient 3, formal neuropsychological follow up was not possible due to dismission. However, 3 weeks after the initial examination, his relatives reported that he did not present signs of delirium anymore but still suffered from reduced psychomotor speed and alertness. In patient 4, after normalization of the 4AT score in the follow up 2.5 weeks later, cognition was still relevantly impaired.


All patients showed signs of central nervous system affection. EEG showed diffuse slowing compatible with encephalopathy in all except for patient 4. No clear reaction to eye opening/closure or triphasic waves have been observed. Two patients had evidence of pyramidal tract affection on MEP, one of them additionally presented pontine brain stem affection evidenced by BR. In all patients, we further found affection of the peripheral nervous system measured by NCS and EMG. While three had polyneuropathy, patient 4 had signs of affection of the left brachial plexus. Moreover, all four patients had affection of the autonomic nervous system, measured by SSR. The detailed results of the multimodal neurophysiological studies are summarized in Table 2.


This case series provides direct in vivo evidence for functional brain stem involvement in COVID-19 patients. Moreover, sustained cognitive impairment may be frequent and independent of delirium in severely affected patients and requires particular attention since neuropsychological sequelae following COVID-19 could be of considerable social and socioeconomic relevance.

Experimental evidence from animal studies on SARS-CoV-1 and MERS-CoV have revealed the potential of nervous system affection by corona virus, suggesting a trans-synaptic transfer to the brain stem with consecutive spreading into the CNS (810, 13). Therefore, SARS-CoV-2 has also been suggested to be potentially neurotropic and possibly affecting the brain stem (8). It is also possible that CNS affection may be caused by a neuroimmune response triggered by the viral infection (19). Although a case with brain stem affection due to COVID-19 associated acute hemorrhagic brain stem lesion has recently been described (20), electrophysiologically proven brain stem affection without evident morphological changes has not been reported yet. To the best of our knowledge, our results include a single case report on patient 2 providing first direct electrophysiological evidence of functional brain stem involvement by BR in COVID-19. Consistently, affection of pontomedullary cardiorespiratory centers within the brain stem might promote severe course of the disease by contributing to the often clinically silent respiratory failure or weaning difficulties from invasive mechanical ventilation even after the recovery from pneumonia in COVID-19 (14). Another potentially useful method to investigate brain stem affection would be the monitoring of auditory brain stem reflexes and could be considered in future studies (13).

Another important observation is the potential of COVID-19 to result in clinically relevant and persistent cognitive impairment over weeks. We cannot rule out that initial cognitive impairment was at least partly due to delirium in these critically ill patients with a prolonged ICU stay. However, all patients had sustained cognitive impairment outlasting the acute phase of the disease for weeks when the 4AT score for delirium was unobtrusive. Further long-term follow up of cognitive function in a larger population of patients affected with COVID-19 is required, as in some patients, recovery of cognitive function may be a long lasting process. If full recovery of cognitive function should not be achieved, severe psychosocial and socioeconomic sequelae may result.

Of note, all patients studied here presented affection of the PNS as well. In all cases we found mixed axonal and demyelinating neuropathy affecting both sensory and motor nerves. Although we cannot fully exclude some degree of preexisting neuropathy, lack of neuropathy in the medical history and prominent abnormal spontaneous activity in EMG suggest an acute type of neuropathy in our case series. It has already been reported that COVID-19 may be associated with the occurrence of GBS or Miller Fischer syndrome (5, 2123). In our cases, neurological deficits were detected 4 to 5 weeks after disease onset, which may be considered rather late for GBS but more likely to result from critical illness polyneuropathy (CIP). However, since all of our patients were severely affected requiring mechanical ventilation, it was difficult to determine the exact onset of neurological symptoms as sufficient neurological examination was not possible until they regained consciousness. Interestingly, all of our patients had electrophysiologically proven affection of the autonomic nervous system evidenced by SSR, which has been supposed to be rarely impaired in CIP but is much more common in GBS (2426). Irrespective of the cause of PNS affection, autonomic dysfunction might also play a relevant role for cardiorespiratory failure in COVID-19 patients.

Finally, one of our patients presented with an additional monoparesis of his left arm, which was confirmed to be resulting from affection of the brachial plexus. Although we cannot rule out other causes like mechanical alteration during ICU stay with prone positioning, SARS-CoV-2 infection associated neuritis of the brachial plexus may also be the cause, given its neuroinvasive potential to affect the PNS.

There are some limitations which need to be taken into account. The main limitation is the small number of subjects that were investigated here. Moreover, this case series is based on analysis of data acquired during clinical patient care and is therefore without rigid study design, thus some missing values including CSF data could not be avoided. Also, a more elaborated neuropsychological testing would have been helpful. However, initial cognitive testing was performed in the ICU shortly after the end of mechanical ventilation. Therefore, a more detailed testing was difficult to perform in this setting. We also cannot completely rule out premorbid cognitive deficits since neuropsychological testing before COVID-19 have not been conducted in any of the patients. However, none of the patients had any difficulties on cognition or activities of daily living before COVID-19 supportive for premorbid cognitive decline. Moreover, two of the patients' follow up neuropsychological testing showed improvement in the course which supports the notion that the cognitive deficits were not preexisting.

Taken together, our results support the notion of SARS-CoV-2 related affection of the CNS and PNS. Neurologic impairment can be evidenced by an early and comprehensive clinical and electrophysiological workup. Early detection of neurological sequelae is important and may be of prognostic value, e.g., in the context of disabling peripheral neuropathy or affection of medullary cardiorespiratory centers possibly playing a role in the respiratory failure in patients with COVID-19. Thus, we recommend early screening for possible CNS and especially brain stem affection. As sustained cognitive impairments can occur and neuropsychological sequelae may be of particular psychosocial relevance, further long-term investigations on larger cohorts of severe cases are urgently warranted.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Ethics Statement

Ethical review and approval was not required for the study on human participants in accordance with the local legislation and institutional requirements. The patients/participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.

Author Contributions

SJG designed and conceptualized study, analyzed the data, drafted, and revised the manuscript for intellectual content. CB, SE, and TB acquired and analyzed the data and revised the manuscript for intellectual content. TM, DK-M, CV, TF, AK, B-EO, H-PH, and AS acquired data and revised the manuscript for intellectual content. PA designed and conceptualized study, analyzed the data, and revised the manuscript for intellectual content. All authors contributed to the article and approved the submitted version.


We acknowledged support by the Heinrich Heine University Duesseldorf.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
