ORIGINAL RESEARCH article
Front. Neurol.
Sec. Neuro-Oncology and Neurosurgical Oncology
Volume 16 - 2025 | doi: 10.3389/fneur.2025.1566557
This article is part of the Research TopicArtificial Intelligence in Neurosurgical Practices: Current Trends and Future OpportunitiesView all 3 articles
A novel smartphone augmented reality-based solution for small intracranial lesion localization with refined reference markers
Provisionally accepted
- 1Department of Neurosurgery, Xijing Hospital, Air Force Medical University, Xi’an, China
- 2Department of Emergency, Xijing Hospital, Air Force Medical University, Xi‘an, China
- 3Department of Neurosurgery, Western Theater General Hospital, Chengdu, Sichuan Province, China
Select one of your emails
You have multiple emails registered with Frontiers:
Notify me on publication
Please enter your email address:
If you already have an account, please login
You don't have a Frontiers account ? You can register here

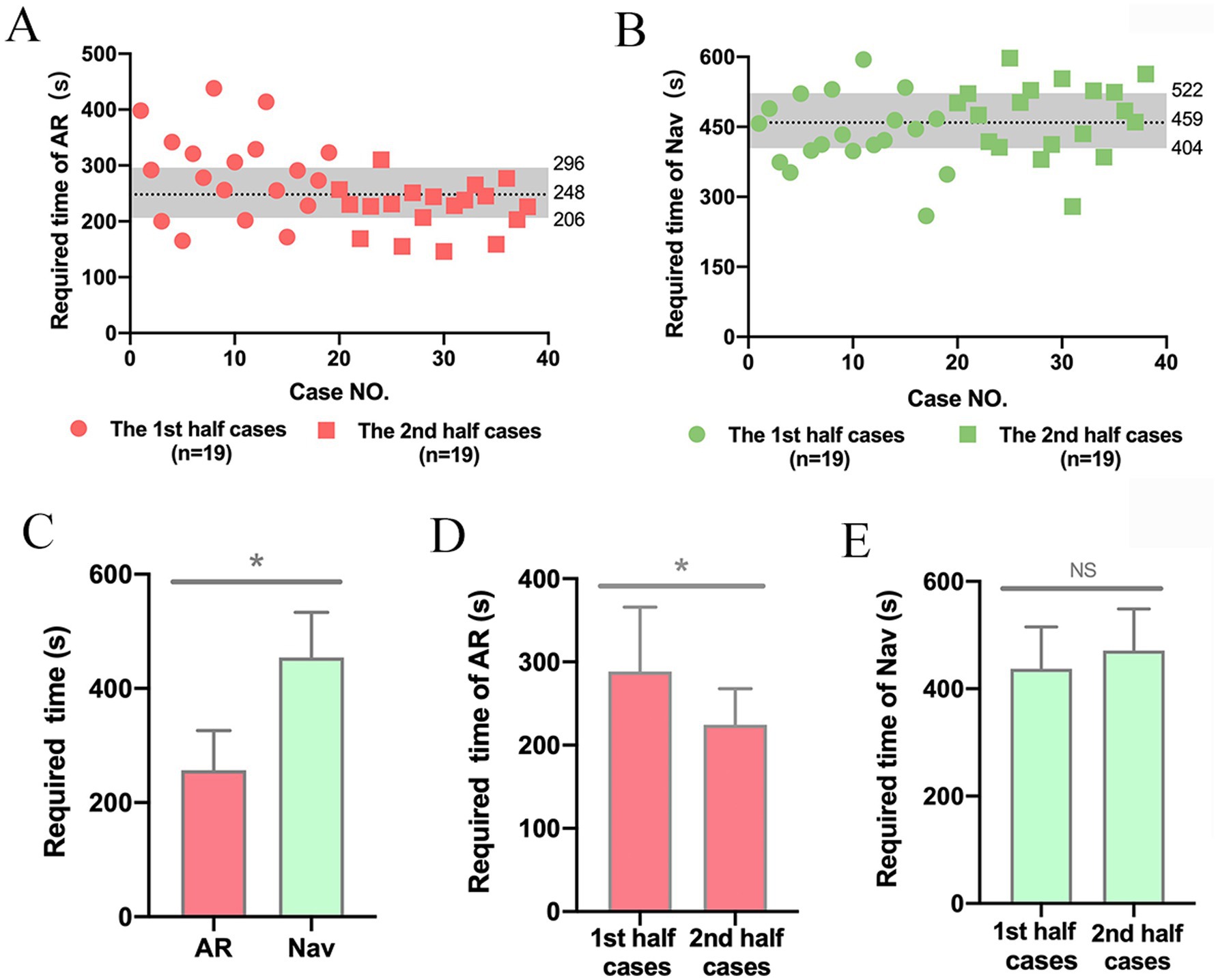

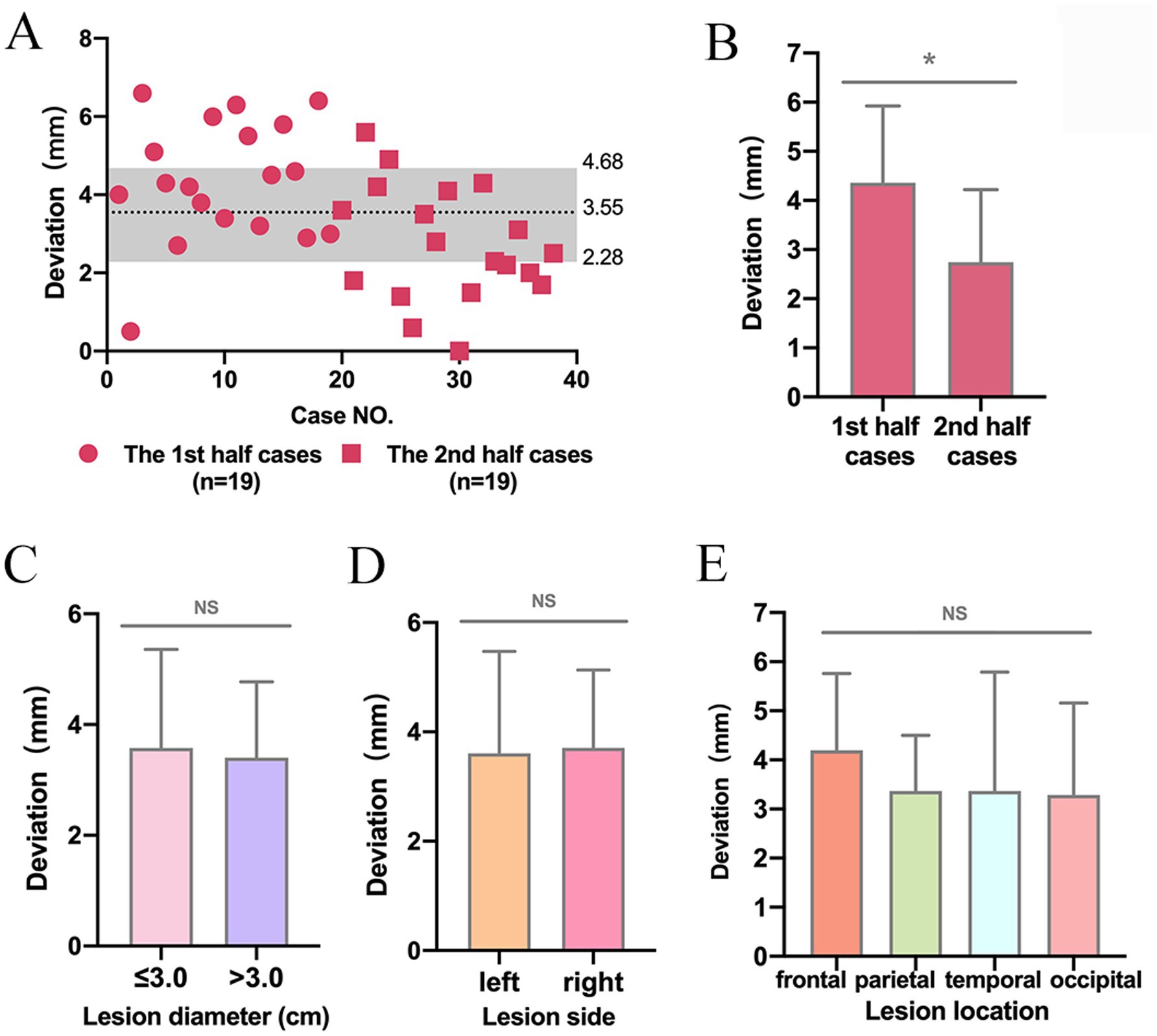

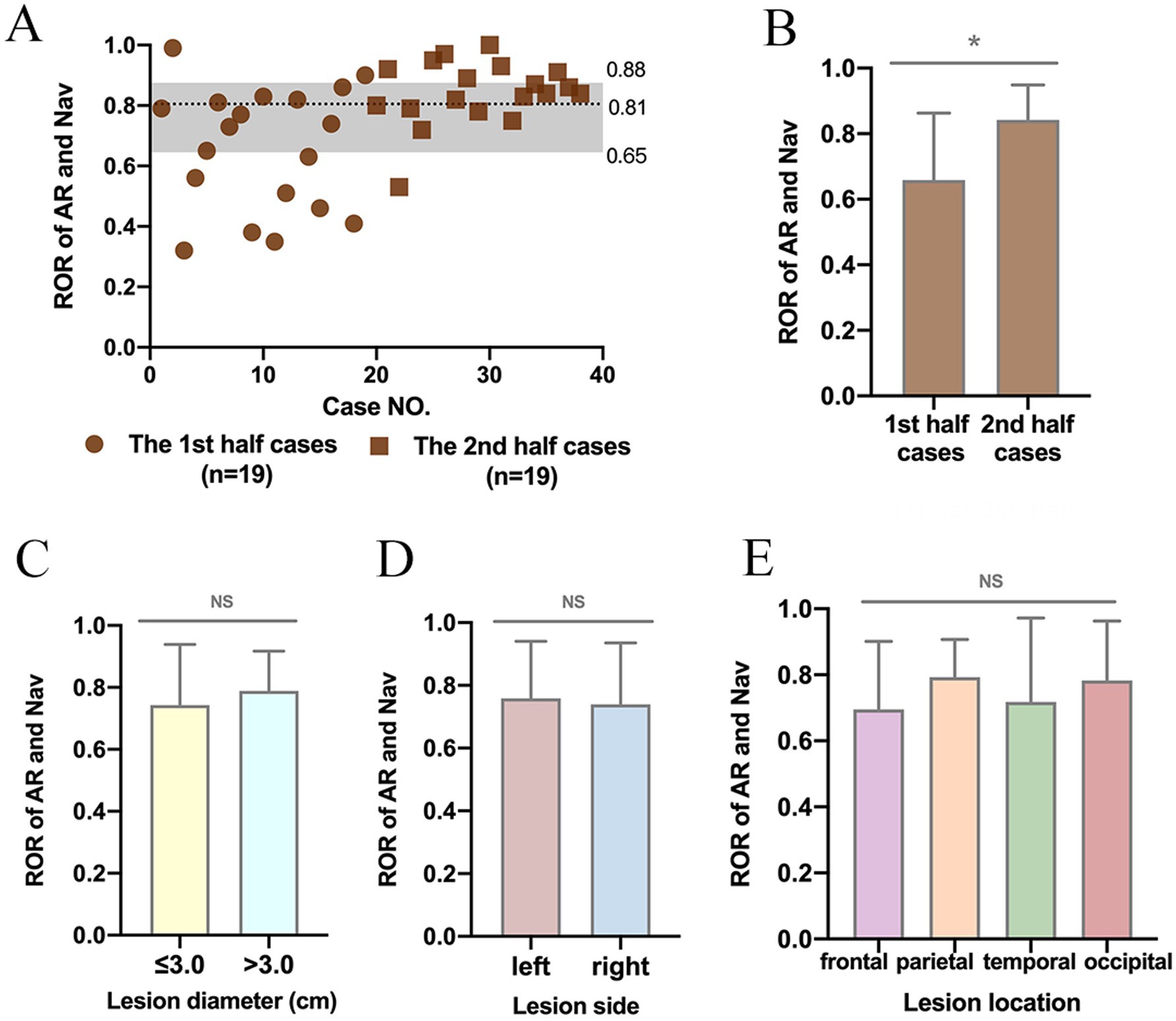

Objectives: Neuronavigation is crucial for locating intracranial lesions in neurosurgery. However, it is unaffordable in numerous resource-limited areas. The emerging mobile augmented reality (AR) provides a low-cost alternative to locate lesions, but its accuracy still require improvement before widespread use. This study aimed to explore a novel smartphone AR solution for lesion localization based on a newly developed application and refined reference markers. Methods: The smartphone AR solution and standard navigation were performed to locate intracranial lesions in thirty-eight patients. The time required for AR and navigation, the deviation between lesion center points identified by AR and navigation, and the ratio of overlap region (ROR) between the lesion locations determined by both methods, were measured respectively to evaluate the AR performance in preoperative planning.The average time required for AR was shorter than that for navigation (256.61±69.75 seconds vs. 454.16±78.85 seconds, P<0.05), indicating the favorable efficiency of AR. The average deviation and ROR were 3.55±1.71 mm and 75.03%±18.56%, which were within the acceptable range of intracranial lesion surgery. The overall accurate localization rate of AR was 81.57%. Moreover, compared to the first stage of this study, the time required for AR and deviation in the second stage were significantly reduced, and ROR was notably increased (P<0.05). It revealed that with the accumulation of experience, AR efficiency and accuracy were improved. Conclusion: The smartphone AR-based solution provides a practical and reliable alternative to locate small intracranial lesions, especially in settings where neuronavigation is unavailable.
Keywords: augmented reality, smartphone, Lesion localization, reference marker, Neurosurgery
Received: 25 Jan 2025; Accepted: 26 Jun 2025.
Copyright: © 2025 Ye, Wang, Fan, Feng, Jia, Bai, Yang and He. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
* Correspondence:
Yongxiang Yang, Department of Neurosurgery, Western Theater General Hospital, Chengdu, 610083, Sichuan Province, China
Xiaosheng He, Department of Neurosurgery, Xijing Hospital, Air Force Medical University, Xi’an, China
Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
