Abstract
In the future, human-like robots will live among people to provide company and help carrying out tasks in cooperation with humans. These interactions require that robots understand not only human actions, but also the way in which we perceive the world. Human perception heavily relies on the time dimension, especially when it comes to processing visual motion. Critically, human time perception for dynamic events is often inaccurate. Robots interacting with humans may want to see the world and tell time the way humans do: if so, they must incorporate human-like fallacy. Observers asked to judge the duration of brief scenes are prone to errors: perceived duration often does not match the physical duration of the event. Several kinds of temporal distortions have been described in the specialized literature. Here we review the topic with a special emphasis on our work dealing with time perception of animate actors versus inanimate actors. This work shows the existence of specialized time bases for different categories of targets. The time base used by the human brain to process visual motion appears to be calibrated against the specific predictions regarding the motion of human figures in case of animate motion, while it can be calibrated against the predictions of motion of passive objects in case of inanimate motion. Human perception of time appears to be strictly linked with the mechanisms used to control movements. Thus, neural time can be entrained by external cues in a similar manner for both perceptual judgments of elapsed time and in motor control tasks. One possible strategy could be to implement in humanoids a unique architecture for dealing with time, which would apply the same specialized mechanisms to both perception and action, similarly to humans. This shared implementation might render the humanoids more acceptable to humans, thus facilitating reciprocal interactions.
INTRODUCTION
Robots are potentially very useful in several tasks where human resources may be limited or need to be spared, for example the assistance of elder people, care of children, physical therapy of disabled people, search and salvage of people in unsafe environments, or general help in daily life. These and similar tasks require a robot–human interaction, the interaction being proximal when the two (or more) partners are co-located (service robots placed in the same locale as humans; ), or remote when the partners are separated spatially and/or temporally (as in tele-operation; ). In both cases, the interaction implies some sort of communication between the partners, and humanoid robots appear especially well suited to communication (e.g., ; ; ). Humanoids are autonomous robots with anthropomorphic features, capable of mimicking human-like actions, and producing human-like reasoning (; ).
Robot–human interactions present several formidable challenges, some of which are listed below. On the one hand, there is the hope that, in the future, humanoids will be as much human-like as possible, in order to be able to interact with people in the most natural manner (). For instance, it has recently been shown that the presentation of a humanoid face triggers an automatic orientation of spatial attention in humans, just as it does the presentation of a human face (). On the other hand, paradoxically, the more human-like the appearance of a robot, the greater can be the social and emotional implications of its interaction with humans, because humans must accept the robot as an animate or quasi-living creature. As first hypothesized by , the sense of familiarity and general emotional response of a person who interacts with a robot may not increase monotonically with increasing anthropomorphism of the robot. At some point, the human reaction may suddenly become very negative when the robot closely but imperfectly reproduces a human being. Mori called this effect the “uncanny valley of eeriness.” The effect has recently been quantified by applying signal detection theory to the display of different types of computer-animated figures (). By measuring the response bias of human observers toward “biological” or “artificial” categorization, it was found that the bias toward “biological” decreased with figures’ anthropomorphism, consistent with the “uncanny valley” hypothesis. Moreover, imaging the brain during the presentation of the different figures showed that the “biological” bias correlates positively with activity in regions involved in social cognitive processes such as mentalizing activity (e.g., the temporo-parietal junction; ). These findings therefore suggest that humans may not understand, feel empathy, and collaborate efficiently with humanoids which are highly anthropomorphic but are still perceived as artificial. In this respect, it may be more crucial that humanoids behave in a human-like manner, rather than they resemble humans. Thus, proposed a Turing-like test for assessing alternative styles of handshake performed by a machine. The test is administered through a telerobotic system in which an interrogator holds a robotic stylus and interacts with another party, human or artificial. The inability of a human interrogator to distinguish between the handshake performed by a person and that performed by the machine indicates that the machine behaves in a human-like manner. There also exist standardized questionnaires to measure human perception of anthropomorphism, animacy, likeability, intelligence, and safety of robots ().
Currently, much attention is being paid toward endowing robots with human-like movement features, under the premise that humans will collaborate better with robots which move like humans. Indeed, some progress is been made in implementing human-like movements in some robots (; ). Although the movements of most current robots are still a caricature of human movements attesting the difficulty of imitating us, a promising approach appears the application of the movement primitives extracted from human subjects (for instance, by means of principal component analysis) to transfer the features of human movement to a robot (; ). Even more challenging appears the task of endowing robots with the ability to understand the manner in which humans perceive the world, another critical prerequisite for cooperative interactions between robots and humans. In humans, action is strictly coupled to perception. Because of substantial sensori-motor delays, most motor responses of humans cannot be simply reactive to a given external event, but must be somehow predictive, that is, the responses must incorporate knowledge about the forthcoming evolution of the event (). In fact, it is known that perception and action share, at least in part, common representations and common knowledge (; ; ). To accomplish shared tasks, robots and humans should interact knowing what each other is doing. Of course, robots could be endowed with their own, idiosyncratic knowledge-based perceptual system, but presumably they would interact more successfully with humans if they shared with humans a similar knowledge-based perceptual system, as well as temporal cognition ().
As remarked above, neural processing of sensory information is fraught with substantial delays (considerably longer than those typically present in robots), but the brain somehow compensates for them, so that we are unaware of constantly living in the past, so to speak (). Thus, neural responses lag behind the adequate visual stimulus by 50–100 ms in several visual cortical areas, including the primary visual cortex (). The flash-lag effect is a visual illusion in which a flashed object appears to lag behind a moving object, when physically the two objects are co-localized at the instant of the flash (). One explanation of the effect is that the visual system is predictive, accounting for neural delays by extrapolating the trajectory of the moving stimulus into the future (). Alternatively, however, visual awareness might be postdictive, so that the percept attributed to the time of an event is a function of what happened during the last 80 ms after the event ().
Moreover, processing delays can differ significantly among different sensory channels: for instance, acoustic stimuli are processed much faster than visual stimuli. Nevertheless, when we see and hear someone snapping his or her fingers, we perceive the event as unitary. The sight and sound appear simultaneous, as if the brain synchronized internally the corresponding visual and auditory signals.
Human perception is a vastly complex performance, but the temporal dimension is essentially ubiquitous because perceived actions and events unfold in time. Animals, people (and less frequently, inanimate objects) are seldom static, and our sensory landscape is typically dynamic, populated by moving targets. The critical point to be considered for implementing human-like perceptual abilities in robots is that human perception of elapsed time for actions and events is two-sided, being both quite precise and quite inaccurate. In general, the precision (variable error) exhibited by humans in processing time information across an extremely large range of temporal intervals is striking. The Weber ratio is about 10% over 10 orders of magnitude of the base time interval, from the microsecond timing of sound localization to the 24-h period of events evolving with a circadian rhythm (; ). On the other hand, the accuracy (constant error) of estimates of the duration of events can be surprisingly poor, perceived duration often being very loosely related to the physical duration of the event. Subjective durations can be systematically overestimated (time dilation), or underestimated (time compression), and the performance is highly context-dependent (; ; ; ).
Here we briefly consider some examples of time distortions in human perception, and dwell more extensively on the special case of the effects of visual motion on subjective duration. Also, we will mainly discuss the perception of events unfolding over scales of tens to hundreds of milliseconds, because these time scales are common to typical motor actions. We will argue that human perception of time is strictly linked with the way humans control their own movements. Therefore, implementation of human-like perception in humanoids will also depend on the progress being made in implementing human-like motor control.
DISTORTIONS OF PERCEIVED TIME
Perceived duration is affected by several factors, as shown by the behavior in response to the presentation of simple visual stimuli. When humans are asked to judge the duration of a flash, they often make systematic errors. Thus, a simple reduction in the visibility of a flash leads to underestimating its duration (). In addition to luminance, also the numerosity and size of the stimuli affect time estimates: stimuli with larger magnitudes in these non-temporal dimensions are judged to be temporally longer ().
Also the extent to which the stimulus can be predicted affects time perception (). If a given stimulus is flashed repeatedly, the duration of the first stimulus appears longer than that of the successive stimuli (). By the same token, a stimulus which stands out as different from all the others in a series appears to last longer than the other stimuli, even though they all have the same physical duration (). Another well-known factor affecting perceived duration is represented by the amount of attention paid to the stimulus: the higher the level of attention, the longer is the perceived duration (; ).
Another kind of distortion in time perception occurs when the stimulus is presented close in time to the execution of a movement performed by the observer. For instance, a visual stimulus flashed just after an eye saccadic movement appears to last longer than normal (). On the other hand, duration judgments are compressed during eye saccades (). In the latter case, observers largely underestimate the time interval elapsed between two brief visual stimuli which are flashed near in time to a saccade. Another example of distortion is represented by the apparent compression of the time epoch which has elapsed between the execution of a simple movement (such as a button press) and a subsequent event (such as a beep or flash; ). Subjective duration of intervals filled with task-irrelevant events is longer than that of empty intervals, the increase depending on the complexity of the perceptual processing required by the event ().
In addition to those listed above, several other factors affect time perception, such as arousal and emotional levels (), stimulus complexity (; ), concurrent task complexity (), and temporal uncertainty (). Some of these distortions can be accounted for within the “counter/accumulator” model of time perception (; ; ; ; ). In the context of this conceptual model, internal pulses are generated, collected, and integrated during the presentation of a stimulus. The output of the counting process is then compared with memorized time representations to estimate the overall duration of a given time epoch. In this framework, an increment of the variable (e.g., size, luminance, novelty, or arousal) which is critical for time perception in a given task would lead to a transient increase in the rate of the internal clock. Consequently, the accumulator would sum a larger number of pulses in a given time epoch, and the stimulus duration would be judged accordingly longer.
Also other models have been proposed to account for time distortions. In one such model, subjective duration parallels the amount of neural energy (or the total amount of neural activity) used to encode a stimulus (). In higher cortical areas, neuronal firing rate tends to decrease in response to repeated presentations of the stimuli, and this may explain why subjective duration is longer for the first than the subsequent stimuli in a row. Still another model posits that timing is a distributed process, being encoded by the spatio-temporal patterns of activity in multiple neural populations (). A stimulus typically engages hundreds of excitatory and inhibitory neurons, and also triggers time-dependent processes (e.g., synaptic plasticity). As a consequence, the state of the neural network is different when another stimulus arrives slightly later. The difference in the network activity produced by the second and first stimulus may code for the time interval separating the two stimuli.
PERCEIVED DURATION OF VISUAL MOTION
Considerable progress has been made in the phenomenological knowledge in this field of research over the last few years (see ; ). Not only is visual motion common in daily life, but it is also so salient that the changes over time of the visual stimuli may index the passage of time by themselves: how much time has passed can be determined by counting these indices (). This is closely related to the “counter/accumulator” model mentioned above. As one would expect from the application of this model, visual motion is typically associated with misperceptions of elapsed time. Thus, it is known that the perceived duration of a moving stimulus is longer than that of a stationary stimulus having the same physical duration (; ; ), and the apparent duration of the moving stimulus increases with increasing speed (; ; ; ). Indeed, according to the “counter/accumulator” model, faster stimuli would generate a greater number of events, and the longer would be the corresponding estimated duration. Also the specific kinematic profile of the moving target can affect temporal judgments. For instance, a constant-speed motion seems to last longer than a decelerating motion, which in turn seems to last longer than an accelerating motion ().
The specific dynamic factor associated with visual motion which is responsible for the time distortion is still unclear. According to one hypothesis, stimulus speed would be directly involved: the apparent duration would increase proportionally with the logarithm of speed (). According to an alternative hypothesis, however, temporal frequency rather than speed would be the critical factor, as shown by the fact that time dilation can be induced simply by flickering a stimulus, with no need for motion ().
In addition to the visual effects induced in real-time by a moving stimulus, there are also after-effects. For example, the prolonged exposure to a pattern moving at constant speed affects the perceived speed of subsequent moving patterns: the perceived speed of that stimulus and all slower speeds are reduced, while the perceived speed of faster stimuli is increased (; ; ; ). These after-effects can be accounted for by current models of speed processing. Perceived speed is thought to be based on the ratio of the outputs of low-pass and band-pass temporal filters, corresponding to a low- and high-speed channel whose sensitivities decay exponentially over time (; ). Adaptation to a fast speed produces a change in filters sensitivities resulting in a drop of the ratio, and perceived speed is slower. Instead, following adaptation to a slow speed, the change in filters sensitivities results in an increase of the ratio, and perceived speed is faster. Similar mechanisms are presumably at play in time perception. Thus, the apparent duration of a dynamic stimulus is reduced in a region of visual space following motion adaptation (), and the effect of this adaptation can be spatially selective either in retinal () or external coordinates ().
PERCEPTION IS TUNED TO DOMINANT PROPERTIES OF THE ENVIRONMENT
Perceptual biases are not simply the result of idiosyncratic neural processing of sensory signals, but often reflect a priori hypothesis made by the brain about the functional significance of the signals. In particular, it is thought that, under evolutionary and developmental pressure, the brain adapts to be tuned to the statistical properties of the signals to which it is exposed most frequently (). For instance, the statistical distribution of target speeds in the natural environment is skewed toward low values. A prior preference for slow speeds can result in severe misperceptions, as when the speed of a visual target is underestimated with small target size or low contrast. These misperceptions are accounted for by the fact that the noisier the signal (as with small, low-contrast targets), the greater is the influence of the prior assumption of low speed ().
Prior hypotheses about the environment can be revealed by the presence of illusions and misperceptions under unusual conditions, but their functional utility lies in the ability to improve the performance under ecological conditions. One such prior hypothesis concerns the ubiquitous and highly predictable effects of Earth’s gravity (). Gravity plays a major role in determining the orientation of objects in the environment, and therefore the structure of our visual field. Most natural images are anisotropic, with more image structure at orientations parallel or orthogonal to the direction of gravity in a fronto-parallel plane (). These image anisotropies are often matched by corresponding anisotropies in perceptual responses, consistent with the hypothesis that the brain takes into account the statistics of the environment. The well-known “oblique effect” refers to the fact that contours are better discriminated when they are oriented vertically or horizontally (cardinal directions) than when they are oriented obliquely (). Similarly, motion direction is better discriminated along cardinal than oblique axes ().
Recently, anisotropies related to the direction of motion have been described in a task of time perception (). Observers were asked to judge the duration of motion of a target accelerating in one of four different directions, downward, upward, leftward, or rightward relative to a visual scene. Downward motion complied with the gravity constraint, whereas motion in the other directions violated this constraint. It was found that the precision of the duration estimates exhibited systematic anisotropies, the performance being significantly better for downward motion than for the other directions (Figure 1). The results demonstrated that prior knowledge about gravity force is incorporated in the neural mechanisms computing elapsed time. Similar mechanisms are at work when timing interception actions. Thus, asked participants to press a button triggering a hitter to intercept a target accelerated by a virtual gravity. A factorial design assessed the effects of scene orientation (normal or inverted) and target gravity (normal or inverted, Figure 2). It was found that interception was significantly more successful when scene direction was concordant with target gravity direction, irrespective of whether both were upright or inverted (Figure 3).

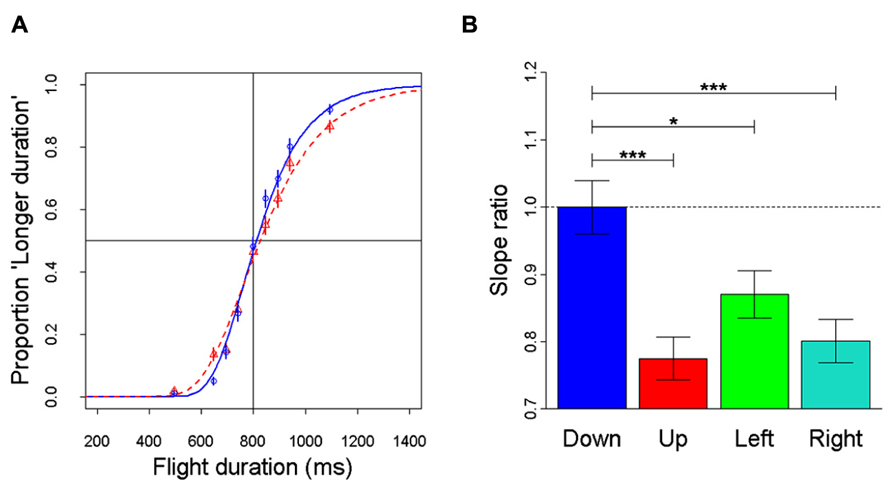

FIGURE 1

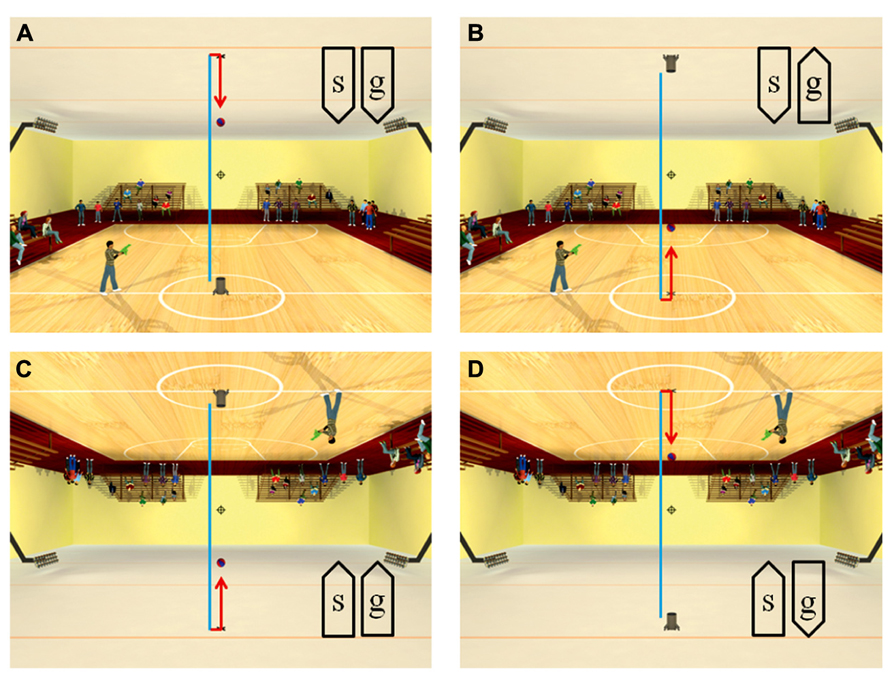

FIGURE 2

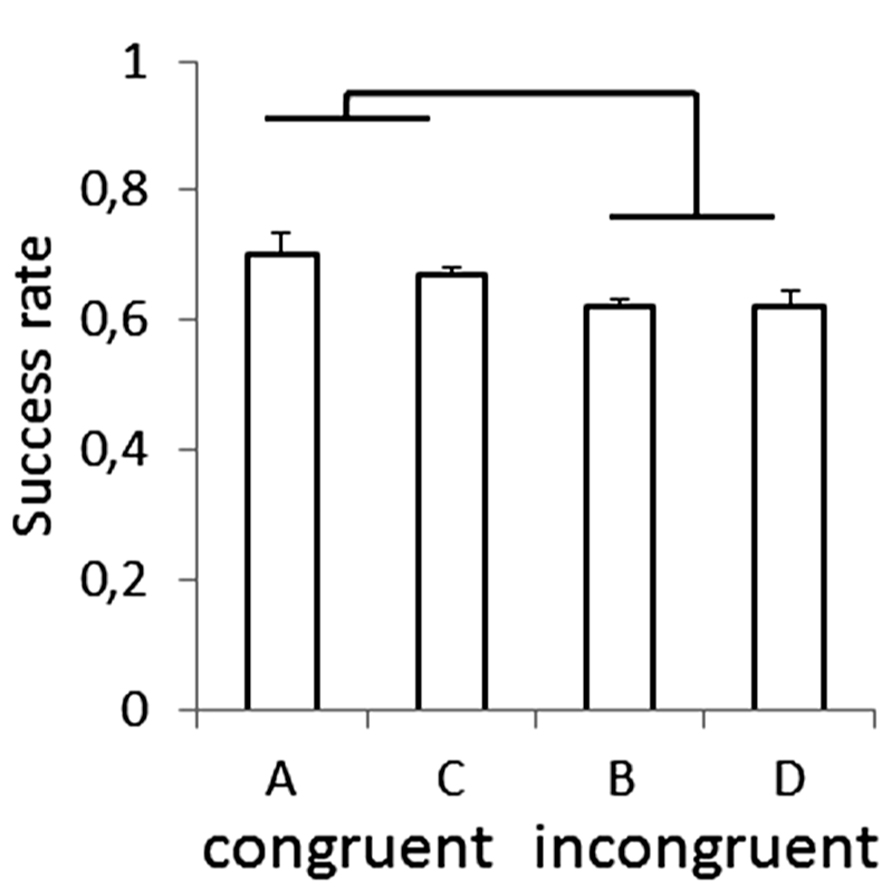

FIGURE 3
OBSERVATION OF BIOLOGICAL MOTION
Humans have evolved to recognize and interpret the behavior of other humans so as to interact with them effectively. Specialized mechanisms in the form of configural processing can help in the recognition process (). For instance, changes in animate targets are detected faster than those in inanimate targets (). Moreover, there is growing evidence that, to deal with animate motion, the brain uses mechanisms partially different from those used to deal with the motion of inanimate objects. The neural networks processing animate and inanimate targets are partially segregated in the brain (). This specialization takes advantage of the fact that the kinematics and dynamics of animals differs from those of passive objects on several counts ().
Recently, the hypothesis of specialized processing of animate and inanimate targets has been extended to encompass the temporal domain (). Namely, the hypothesis holds that there exist distinct time bases for animate and inanimate events. This specialization would enhance our ability to predict critically timed actions. When animacy is detected by a human observer, time is calibrated against the predictions regarding the motion of people and animals, allowing synchronization in inter-personal actions. When no animacy is detected, the time is calibrated against the predictions of motion of passive objects. This is consistent with the idea that time perception can be embodied, i.e., that affective and body states influence time judgments ().
Consistent with this hypothesis, there is evidence that time perception and motor timing are influenced by animacy: the observation of a biological movement performed by other people biases the timing of a motor act or the judgment of perceived duration of an event (; ; ; ; ,; ; ; ). In particular, used interference paradigms in which a timing task was run concurrently with the presentation of different figures animated with computer-graphics in the background of the scene (Figures 4A,B). In separate experiments, they used two different timing tasks: (1) button-press responses aimed at intercepting a moving ball, and (2) discrimination of the duration of a stationary flash. The timing tasks served as probes to reveal biases or distortions of time induced by the background figures. In both tasks, the observers were presented with different background scenes before and during the execution of the task. The scene displayed figures which could differ in terms of biological (human) or non-biological appearance and kinematics. In all cases, the background figures and their movements were totally unrelated to the foreground target and to the viewer’s action. found that, for both the motor interception and the time discrimination task, there was a systematic offset between the time estimates associated with biological movements and the time estimates associated with non-biological movements, consistent with the hypothesis that there exist timing mechanisms differentially tuned to these two sets of movements. In another study, the speed of the movements of the background figures was varied across sessions, so that the motion speed of all the segments of the character was scaled up or down by the same amount and to the same extent for both the biological and the non-biological figure (). The results confirmed the existence of an offset between the time estimates associated with biological movements and the time estimates associated with non-biological movements (Figure 4). Moreover, animation speed affected time estimates very differently for the two categories of movement: increasing the speed of the whirligig increased the delay of the responses considerably, whereas the effect of the dancer’s speed was weaker and in the opposite direction.

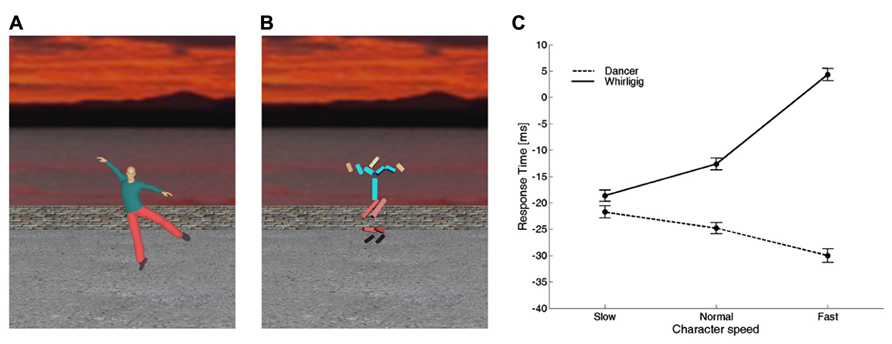

FIGURE 4
These results indicate that vision of human and inanimate motions exerts differential top-down influences on automatic processes computing time. Interference effects are observed when the background motion is unrelated to the task performed by the observer. By contrast, when the observed action is related and instrumental to the task performance, the interaction between the two (observed and performed) actions results in facilitation rather than interference (). In this vein, compared the timing of interception of a moving target when it depended on a biological motion or a non-biological motion triggered by the observer and simulated on the computer screen. They found that the timing significantly improved in the presence of biological movements under all ecological conditions of coherence between scene and target gravity directions. Also, visual discrimination of point-light motion of two interacting agents is worse when the two actions are desynchronized (). In other words, time-locking in a behaviorally meaningful way between interacting agents provides an implicit temporal cue and the additional agent can be used to predict the expected trajectory of the relevant agent with better precision.
For biological motion, the correct timing of visual images is detected more accurately when motion flows in the normal forward direction. Thus, when muted video-clips of the lower face of speaking actors are shown at a variable rate, both faster and slower than the original rate, identification of the natural rate is accurate when the movies are played forward but not when they are played backward (). Similarly, temporal reversals in dynamic displays of human locomotion are detected reliably only when they are played in the forward direction (). Also these studies point to a specific tuning of time perception to biological movements. Implicit motor competence for the observed actions are presumably instrumental for extracting subtle discriminal information from the stimuli allowing correct temporal estimates.
In addition to real motion, also apparent motion and implied motion can affect time estimates (). In particular, static images of an action convey dynamic information about previous and subsequent moments of the same action, and provide an impression of motion. Images with implied motion cause a forward displacement in spatial memory – a phenomenon known as representational momentum (). Implied motion also affects perceived time, as assessed with classical psychophysical methods. The duration of a visual stimulus conveying implied motion information is discriminated more precisely than a similar stimulus without implied motion (; ). Also, visual stimuli with implied motion produce time dilation just as real motion does (; ), although the distortion is smaller with implied motion. Indeed, when pictures depicting different sculptures of ballet dancers are shown, the duration is judged longer for the sculpture implying more movement than for the sculpture requiring less movement ().
Expertise leads to a fine tuning of timing abilities. Professional pianists asked to reproduce the duration of visual displays outperform non-pianists when observing a specific action (a piano-playing hand), but not when observing non-specific actions (finger-thumb opposition; ). This indicates that musical expertise involves a selective dynamic internal representation that allows to estimate precisely the temporal duration of observed movements related to the expert performance. Similar results have been obtained by showing ballet steps to professional dancers: dancers were significantly less variable in their time estimations as compared to non-dancers ().
MOTOR TIMING
According to one hypothesis, some of the processes involved in time perception, either a single internal clock, many specialized clocks, or a distributed network representations of time, are also used for timing motor commands (). As actions must often be coordinated with external events, it seems advantageous to use a shared representation for time perception and motor timing. Behavioral observations, such as correlations between interval discrimination thresholds and variability in the timing of repetitive tapping (; ), similar interference patterns of sequences of auditory clicks at different frequencies on interval estimation and response time (), and significant transfer of training on a perceptual timing task to a motor timing task (), support the notion of shared timing mechanisms between perception and motor control. Also the study by offers supporting evidence for shared perceptuo-motor timing. This study showed that the effects of an animate context were similar for the explicit perceptual judgment of duration and for the manual interception of a moving target, as were the effects of an inanimate context. These results suggested that, in both an automatic form of motor timing and a cognitive form of time perception, the observers became tuned to a time base intrinsically linked to a background character.
Imaging studies also suggest a shared neural substrate for perceptual and motor timing. For example, sustained perceptual analysis of auditorally and visually presented temporal patterns activates brain areas that are generally involved in motor preparation and coordination (). However, not all timing tasks share the same timing mechanisms. Thus, timing variability is not correlated between repetitive tapping and continuous periodic drawing (; ) and adaptation to visual motion may affect differently perception of interval duration and timing of anticipatory interceptive action (, but see ). Moreover, the motor system uses a state representation instead of a time representation during adaptation to mechanical perturbations to arm movements (; ).
On the timescale of a few hundreds of milliseconds, the perception of time elapsed between events may be related to movement planning and to the representation of movement duration. Simple movements of different durations often show kinematic regularities suggesting that duration is controlled adjusting a small number of parameters. For example, the spatial trajectory of point-to-point reaching movements is independent of movement duration and its tangential velocity is invariant when normalized for speed (; ). Because of the non-linearity of the musculo-skeletal system, invariant kinematic features across movements with different durations require significant variation in the muscle patterns. However, the muscle patterns underlying movement with different spatial and temporal characteristics can be generated by scaling in amplitude and time and by shifting in time a small number of time-varying muscle synergies, i.e., coordinated recruitments of group of muscles with specific activation profiles (). Invariant trajectories and speed profiles can be achieved by scaling the amplitude of time-normalized dynamic torque profiles by the square of the inverse of the movement duration (; ), and similar scaling rules have been reported for time-varying muscle synergies (). Thus, the control of movement duration may be achieved by setting the amplitude and the duration of a small number of time-varying muscle synergies (Figure 5).

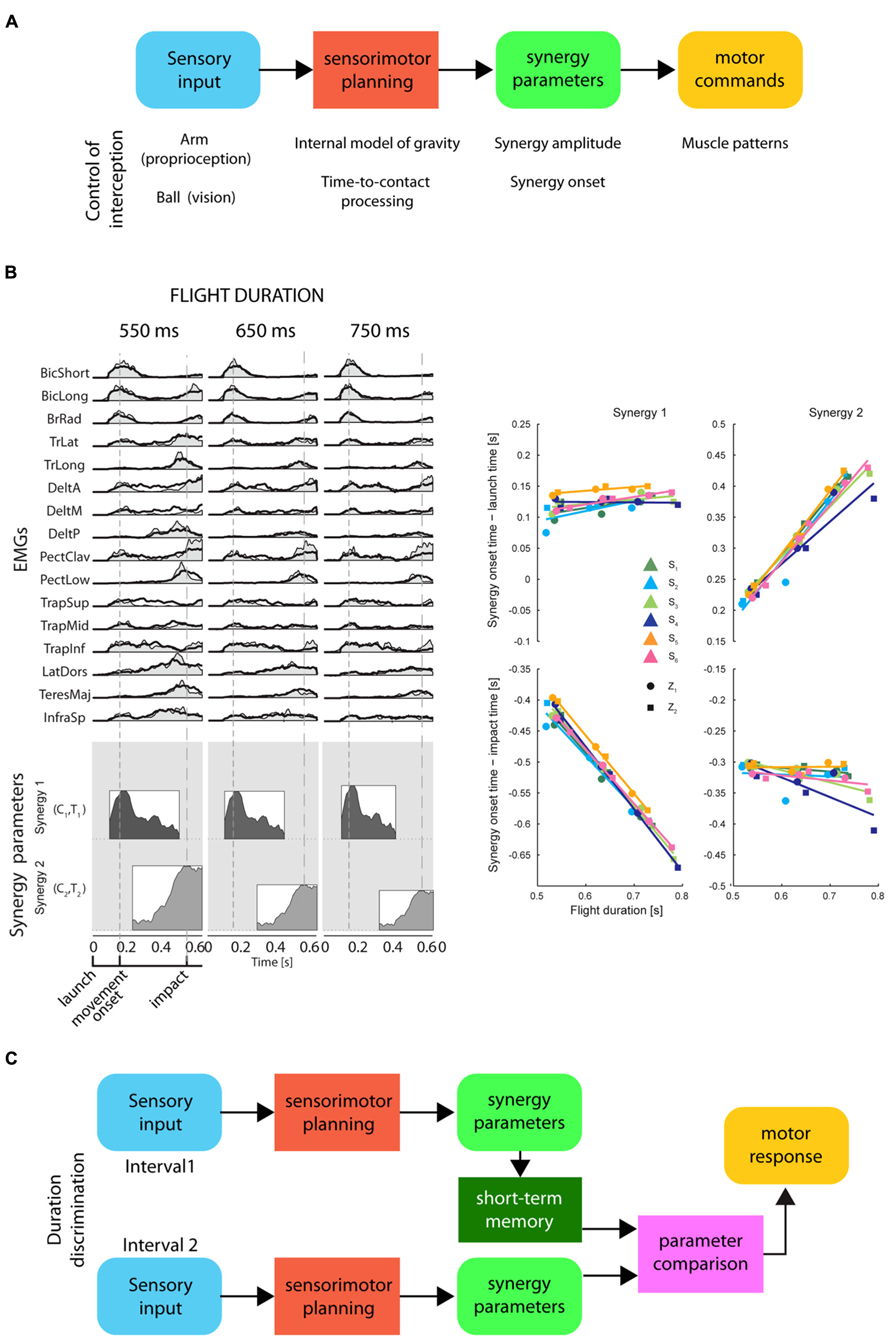

FIGURE 5
When it is necessary to synchronize a movement with an external event, its duration must be selected according to a prediction of the future time occurrence of the event. Such prediction requires an internal model of the dynamic behavior of the physical entity or animate character associated with the event. An internal model may be implemented explicitly through a representation of the relevant variables and a simulation of their time evolution or, implicitly, as a mapping between sensory inputs and motor outputs generating the movement. In the latter case, a few spatio-temporal features of the sensory input may be directly mapped onto the amplitude and timing parameters modulating the recruitment of a few muscle synergies (see Figure 5; ). This strategy reduces the storage of the information relevant for temporal estimates to a low-dimensional mapping between sensory and motor signals. Therefore, elapsed time may also be represented by the synergy recruitment parameters for a movement which is synchronized to the sensory stimuli related to an external event. To judge the duration of an interval, the CNS might prepare a motor plan triggered by the stimulus signaling the onset of the interval, and synchronized with the stimulus which indicates the end of the interval. According to this hypothesis, when a discrimination between different time intervals is required, only the few synergy recruitment parameters encoding the duration of the motor plan associated to each interval would have to be compared.
CONCLUSION AND PERSPECTIVES
The work reviewed here represents only a small fragment of a vast literature. Nevertheless, it suffices to indicate a very complex organization of both explicit time perception and implicit time estimates in humans. On the one hand, there is growing evidence for specialized mechanisms for time encoding in the sub-second range. One important specialization we considered is related to the animate–inanimate or living–non-living distinction. This distinction is a basic one, because it arises early in infancy, is cross-culturally uniform, and is critical for causal interpretations of events. Specialization of the neural time estimates presumably enhances the temporal resolution of sensory processing and the ability to estimate the duration of critical events. On the other hand, we emphasized the possibility that, although time perception is not unitary, there are some basic factors which can affect disparate time estimates in the same manner. Thus, we noticed that a neural time basis can be entrained by external cues in a similar manner for both perceptual judgments of elapsed time and in automatic motor control tasks. One possible reason underlying shared mechanisms for computing time is to be searched in the hypothesis that action observation involves an internal motor simulation of the observed movement (; ; ). A motor resonance might derive from the synchronization of neural time to a base intrinsically linked to the internal simulation of the observed action. Thus, human perception of time may be strictly linked with the mechanisms used by humans to control their movements.
What is the relevance of all this for neurorobotics? Traditionally, the design and implementation of cognitive, sensory and motor abilities in robots depend on distinct fields of expertise. However, as we remarked at several points, the temporal dimension is shared by most sensory, motor, and cognitive tasks. One parsimonious solution, therefore, could be to implement in humanoids a unique architecture for dealing with time, which would apply the same specialized mechanisms to both perception and action, similarly to humans. There is the hope that this style of implementation might render the humanoids more acceptable to humans, thus facilitating reciprocal interactions.
An interesting idea that is emerging in parallel from biology and machine intelligence is that sensorimotor behaviors can be constructed from primitives, the most basic components of behavior (; ). For instance, we noticed above that several motor behaviors of humans appear to be built starting from elementary muscle synergies (). There is also evidence that some such motor primitives are present at very early stages of human development, and they may be rooted in our evolutionary trajectory: indeed, these primitives appear to have been highly preserved and recombined during evolution (; ).
proposed that in robotics a developmental program can be based on a small number of non-ad hoc, biologically grounded principles which can spontaneously and autonomously give rise to models and goals within the artificial agent. According to this approach, the agent might develop and learn by starting to use rudimentary, initial, stereotypical motor primitives (akin to those found in human development) which would allow the agent to understand its own internal states in terms of its own actions, possibly by keeping internal state invariance (). This approach would probably ensure that the time dimension is dealt with in a similar fashion in sensory-perceptual and motor processes, the premise with which we began this article.
Statements
Acknowledgments
Our work was supported by the Italian Ministry of Health, Italian Ministry of University and Research (PRIN grant), Italian Space Agency (CRUSOE, ARIANNA, and COREA grants), and EU Seventh Framework Programme (FP7-ICT No 248311 AMARSi).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
REFERENCES
1
AppelleS. (1972). Perception and discrimination as a function of stimulus orientation: the “oblique effect” in man and animals.Psychol. Bull.78266–278. 10.1037/h0033117
2
AtkesonC. G.HollerbachJ. M. (1985). Kinematic features of unrestrained vertical arm movements.J. Neurosci.52318–2330.
3
BallK.SekulerR. (1987). Direction-specific improvement in motion discrimination.Vision Res.27953–965. 10.1016/0042-6989(87)90011-3
4
BartneckC.KuliæD.CroftE.ZoghbiS. (2009). Measurement instruments for the anthropomorphism, animacy, likeability, perceived intelligence, and perceived safety of robots.Int. J. Soc. Robot.171–81. 10.1007/s12369-008-0001-3
5
BeckmannJ. S.YoungM. E. (2009). Stimulus dynamics and temporal discrimination: implications for pacemakers.J. Exp. Psychol. Anim. Behav. Process.35525–537. 10.1037/a0015891
6
BoveM.TacchinoA.PelosinE.MoiselloC.AbbruzzeseG.GhilardiM. F. (2009). Spontaneous movement tempo is influenced by observation of rhythmical actions.Brain Res. Bull.80122–127. 10.1016/j.brainresbull.2009.04.008
7
BreazealC. (2003). Toward sociable robots.Rob. Auton. Syst.42167–175. 10.1016/S0921-8890(02)00373-1
8
BrownS. W. (1995). Time, change, and motion: the effects of stimulus movement on temporal perception.Percept. Psychophys.57105–116. 10.3758/BF03211853
9
BrunoA.AyhanI.JohnstonA. (2010). Retinotopic adaptation-based visual duration compression.J. Vis.1030 10.1167/10.10.30
10
BuhusiC. V.MeckW. H. (2005). What makes us tick? Functional and neural mechanisms of interval timing.Nat. Rev. Neurosci.6755–765. 10.1038/nrn1764
11
BuffardiL. (1971). Factors affecting the filled-duration illusion in the auditory, tactual, and visual modalities.Percept. Psychophys.10292–294. 10.3758/BF03212828
12
BurrD.CicchiniG. M.ArrighiR.MorroneM. C. (2011). Spatiotopic selectivity of adaptation-based compression of event duration.J. Vis.1121 10.1167/11.2.21
13
CalinonS.GuenterF.BillardA. (2007). On learning, representing, and generalizing a task in a humanoid robot.IEEE Trans. Syst. Man Cybern. B Cybern.37286–298. 10.1109/TSMCB.2006.886952
14
CaramazzaA.SheltonJ. R. (1998). Domain-specific knowledge systems in the brain: the animate–inanimate distinction.J. Cogn. Neurosci.101–34. 10.1162/089892998563752
15
CarrozzoM.LacquanitiF. (2013). Effects of speeding up or slowing down animate or inanimate motions on timing.Exp. Brain Res.224581–590. 10.1007/s00221-012-3338-7
16
CarrozzoM.MoscatelliA.LacquanitiF. (2010). Tempo rubato: animacy speeds up time in the brain.PLoS ONE5:e15638. 10.1371/journal.pone.0015638
17
ChaminadeT.OkkaM. M. (2013). Comparing the effect of humanoid and human face for the spatial orientation of attention.Front. Neurorobot.7:12. 10.3389/fnbot.2013.00012
18
ChaminadeT.HodginsJ.KawatoM. (2007). Anthropomorphism influences perception of computer-animated characters’ actions.Soc. Cogn. Affect. Neurosci.2206–216. 10.1093/scan/nsm017
19
ChenY. H.PizzolatoF.CesariP. (2013). Observing expertise-related actions leads to perfect time flow estimations.PLoS ONE8:e55294. 10.1371/journal.pone.0055294
20
ChoeY.YangH. FEngD. C. Y. (2007). Autonomous learning of the semantics of internal sensory states based on motor exploration.Int. J. Hum. Rob.4211–243. 10.1142/S0219843607001102
21
CondittM. A.Mussa-IvaldiF. A. (1999). Central representation of time during motor learning.Proc. Natl. Acad. Sci. U.S.A.9611625–11630. 10.1073/pnas.96.20.11625
22
CreelmanC. D. (1962). Human discrimination of auditory duration.J. Acoust. Soc. Am.34528–593. 10.1121/1.1918172
23
D’AndolaM.CesquiB.PortoneA.FernandezL.LacquanitiFD’AvellaA. (2013). Spatiotemporal characteristics of muscle patterns for ball catching.Front. Comput. Neurosci.7:107. 10.3389/fncom.2013.00107
24
d’AvellaA.FernandezL.PortoneA.LacquanitiF. (2008). Modulation of phasic and tonic muscle synergies with reaching direction and speed.J. Neurophysiol.1001433–1454. 10.1152/jn.01377.2007
25
d’AvellaA.LacquanitiF. (2013). Control of reaching movements by muscle synergy combinations.Front. Comput. Neurosci.7:42. 10.3389/fncom.2013.00042
26
DominiciN.IvanenkoY. P.CappelliniG.d’AvellaA.MondìV.CiccheseM.et al (2011). Locomotor primitives in newborn babies and their development.Science334997–999. 10.1126/science.1210617
27
EaglemanD. M. (2008). Human time perception and its illusions.Curr. Opin. Neurobiol.18131–136. 10.1016/j.conb.2008.06.002
28
EaglemanD.SejnowskiT. J. (2000). Motion integration and postdiction in visual awareness.Science2872036–2038. 10.1126/science.287.5460.2036
29
EaglemanD. M.TseP. U.BuonomanoD.JanssenP.NobreA. C.HolcombeA. O. (2005). Time and the brain: how subjective time relates to neural time.J. Neurosci.2510369–10371. 10.1523/JNEUROSCI.3487-05.2005
30
FraisseP. (1963). The Psychology of Time.New York: Harper and Row.
31
FreydJ. J. (1983). The mental representation of movement when static stimuli are viewed.Percept. Psychophys.33575–581. 10.3758/BF03202940
32
GibbonJ. (1977). Scalar expectancy theory and Weber’s law in animal timing.Psychol. Rev.84279–325. 10.1037/0033-295X.84.3.279
33
GoodrichM. A.SchultzA. C. (2007). Human–robot interaction: a survey.Found. Trends Human–Computer Interact.1203–275. 10.1561/1100000005
34
HaggardP.ClarkS.KalogerasJ. (2002). Voluntary action and conscious awareness.Nat. Neurosci.5382–385. 10.1038/nn827
35
HammettS. T.ChampionR. A.MorlandA. B.ThompsonP. G. (2005). A ratio model of perceived speed in the human visual system.Proc. Biol. Sci.2722351–2356. 10.1098/rspb.2005.3239
36
HancockP. A.WeaverJ. L. (2005). On time distortion under stress.Theor. Issues Ergon. Sci.6193–211. 10.1080/14639220512331325747
37
HansenB. C.EssockE. A. (2004). A horizontal bias in human visual processing of orientation and its correspondence to the structural components of natural scenes.J. Vis.41044–1060. 10.1167/4.12.5
38
HietanenM. A.CrowderN. A.IbbotsonM. R. (2008). Differential changes in human perception of speed due to motion adaptation.J. Vis.81–10. 10.1167/8.11.6
39
HollerbachM. J.FlashT. (1982). Dynamic interactions between limb segments during planar arm movement.Biol. Cybern.4467–77. 10.1007/BF00353957
40
IvryR. B.HazeltineR. E. (1995). Perception and production of temporal intervals across a range of durations: evidence for a common timing mechanism.J. Exp. Psychol. Hum. Percept. Perform.213–18. 10.1037/0096-1523.21.1.3
41
JarrasséN.CharalambousT.BurdetE. (2012). A framework to describe, analyze and generate interactive motor behaviors.PLoS ONE7:e49945. 10.1371/journal.pone.0049945
42
JohnstonA.ArnoldD. H.NishidaS. (2006). Spatially localized distortions of event time.Curr. Biol.16472–479. 10.1016/j.cub.2006.01.032
43
KanaiR.PaffenC. L.HogendoornH.VerstratenF. A. (2006). Time dilation in dynamic visual display.J. Vis.61421–1430. 10.1167/6.12.8
44
KanekoS.MurakamiI. (2009). Perceived duration of visual motion increases with speed.J. Vis.91–12. 10.1167/9.7.14
45
KarnielA.Mussa-IvaldiF. A. (2003). Sequence, time, or state representation: how does the motor control system adapt to variable environments?Biol. Cybern.8910–21.
46
KeeleS. W.PokornyR. A.CorcosD. M.IvryR. (1985). Do perception and motor production share common timing mechanisms: a correctional analysis.Acta Psychol. (Amst.)60173–191. 10.1016/0001-6918(85)90054-X
47
LacquanitiF.IvanenkoY. P.d’AvellaA.ZelikK. E.ZagoM. (2013). Evolutionary and developmental modules.Front. Comput. Neurosci.7:61. 10.3389/fncom.2013.00061
48
LeiserD.SternE.MeyerJ. (1991). Mean velocity and total time estimation effects of order and proportions.J. Environ. Psychol.11347–358. 10.1016/S0272-4944(05)80107-0
49
LhamonW. T.GoldstoneS. (1975). Movement and the judged duration of visual targets.Bull. Psychon. Soc.553–54. 10.3758/BF03336701
50
MacarF. (1996). Temporal judgments on intervals containing stimuli of varying quantity complexity and periodicity.Acta Psychol. (Amst.)92297–308. 10.1016/0001-6918(95)00017-8
51
ManiadakisM.TrahaniasP. (2011). Temporal cognition: a key ingredient of intelligent systems.Front. Neurorobot.5:2. 10.3389/fnbot.2011.00002
52
MarinovicW.ArnoldD. H. (2012). Separable temporal metrics for time perception and anticipatory actions.Proc. Biol. Sci.279854–859. 10.1098/rspb.2011.1598
53
MatthewsW. J. (2011). How do changes in speed affect the perception of duration?J. Exp. Psychol. Hum. Percept. Perform.371617–1627. 10.1037/a0022193
54
MaukM. D.BuonomanoD. V. (2004). The neural basis of temporal processing.Annu. Rev. Neurosci.27307–340. 10.1146/annurev.neuro.27.070203.144247
55
MeeganD. V.AslinR. N.JacobsR. A. (2000). Motor timing learned without motor training.Nat. Neurosci.3860–862. 10.1038/78757
56
MinatoT.ShimadaM.IshiguroH.ItakuraS. (2004). “Development of an android robot for studying human–robot interaction,” inInnovations in Applied Artificial IntelligenceedsOrchardR.YangC.AliM. (Berlin: Springer) 424–434.
57
MoriM. (1970). The uncanny valley (translated from Japanese by Karl F. MacDorman and Takashi Minato). Energy733–35.
58
MoroF. L.TsagarakisN. G.CaldwellD. G. (2012). On the kinematic motion primitives (kMPs): theory and application.Front. Neurorobot.6:10. 10.3389/fnbot.2012.00010
59
MorroneM. C.RossJ.BurrD. (2005). Saccadic eye movements cause compression of time as well as space.Nat. Neurosci.8950–954. 10.1038/nn1488
60
MörtlA.LawitzkyM.KucukyilmazA.SezginM.BasdoganC.HircheS. (2012). The role of roles: physical cooperation between humans and robots.Int. J. Robot. Res.311656–1674. 10.1177/0278364912455366
61
MoscatelliA.LacquanitiF. (2011). The weight of time: gravitational force enhances discrimination of visual motion duration.J. Vis.11410.1167/11.4.5
62
MoscatelliA.PolitoL.LacquanitiF. (2011). Time perception of action photographs is more precise than that of still photographs.Exp. Brain Res.21025–32. 10.1007/s00221-011-2598-y
63
MoutaS.SantosJ. A.Lopez-MolinerJ. (2012). The time to passage of biological and complex motion.J. Vis.121–14. 10.1167/12.2.21
64
NatherF. C.BuenoJ. L.BigandE.Droit-VoletS. (2011). Time changes with the embodiment of another’s body posture.PLoS ONE6:e19818. 10.1371/journal.pone.0019818
65
NeriP.LuuJ. Y.LeviD. M. (2006). Meaningful interactions can enhance visual discrimination of human agents.Nat. Neurosci.91186–1192. 10.1038/nn1759
66
NewJ. J.SchollB. J. (2009). Subjective time dilation: spatially local, object-based, or a global visual experience?J. Vis.91–11. 10.1167/9.2.4
67
NewJ.CosmidesL.ToobyJ. (2007). Category-specific attention for animals reflects ancestral priorities, not expertise.Proc. Natl. Acad. Sci. U.S.A.10416598–16603. 10.1073/pnas.0703913104
68
NijhawanR. (1994). Motion extrapolation in catching.Nature370256–257. 10.1038/370256b0
69
NijhawanR. (2008). Visual prediction: psychophysics and neurophysiology of compensation for time delays.Behav. Brain Sci.31179–198. 10.1017/S0140525X08003804
70
NiskyI.AvrahamG.KarnielA. (2012). Three alternatives to measure the human-likeness of a handshake model in a Turing-like test.Presence21156–182.
71
OrgsG.HaggardP. (2011). Temporal binding during apparent movement of the human body.Vis. Cogn.19833–845. 10.1080/13506285.2011.598481
72
PariyadathV.EaglemanD. (2007). The effect of predictability on subjective duration.PLoS ONE2:e1264. 10.1371/journal.pone.0001264
73
PoggioT.BizziE. (2004). Generalization in vision and motor control.Nature431768–774. 10.1038/nature03014
74
PrinzW. (1997). Perception and action planning.Eur. J. Cogn. Psychol.9129–154. 10.1080/713752551
75
ReedC. L.NybergA. A.GrubbJ. D. (2012). Contributions of visual and embodied expertise to body perception.Perception41436–446. 10.1068/p7029
76
RizzolattiG.CraigheroL. (2004). The mirror-neuron system.Annu. Rev. Neurosci.27169–192. 10.1146/annurev.neuro.27.070203.144230
77
RobertsonS. D.ZelaznikH. N.LanteroD. A.BojczykK. G.SpencerR. M.DoffinJ. G.et al (1999). Correlations for timing consistency among tapping and drawing tasks: evidence against a single timing process for motor control.J. Exp. Psychol. Hum. Percept. Perform.251316–1330. 10.1037/0096-1523.25.5.1316
78
RoelofsC. O. ZZeemanW. P. C. (1951). Influence of different sequences of optical stimuli on the estimation of duration of a given interval of time.Acta Psychol. (Amst.)889–128. 10.1016/0001-6918(51)90007-8
79
SchaalS. (2007). The new robotics-towards human-centered machines.HFSP J.1115–126. 10.2976/1.2748612
80
SchiffmanH. R.BobkoD. J. (1974). Effects of stimulus complexity on the perception of brief temporal intervals.J. Exp. Psychol.103156–159. 10.1037/h0036794
81
SchmoleskyM. T.WangY.HanesD. P.ThompsonK. G.LeutgebS.SchallJ. D.et al (1998). Signal timing across the macaque visual system.J. Neurophysiol.793272–3278.
82
SchubotzR. I.FriedericiA. DVon CramonD. Y. (2000). Time perception and motor timing: a common cortical and subcortical basis revealed by fMRI.Neuroimage111–12. 10.1006/nimg.1999.0514
83
SebanzN.KnoblichG. (2009). Prediction in joint action: what, when, and where.Top. Cogn. Sci.1353–367. 10.1111/j.1756-8765.2009.01024.x
84
SgouramaniH.VatakisA. (2013). “Flash” dance: how speed modulates perceived duration in dancers and non-dancers.Acta Psychol. (Amst.) 1.10.1016/j.actpsy.2013.06.009
85
SimoncelliE. P.OlshausenB. A. (2001). Natural image statistics and neural representation.Annu. Rev. Neurosci.241193–1216. 10.1146/annurev.neuro.24.1.1193
86
SmithA. T.EdgarG. K. (1994). Antagonistic comparison of temporal frequency filter outputs as a basis for speed perception.Vision Res.34253–265. 10.1016/0042-6989(94)90337-9
87
SoechtingJ. F.LacquanitiF. (1981). Invariant characteristics of a pointing movement in man.J. Neurosci.1710–720.
88
SugimotoN.MorimotoJ.HyonS. H.KawatoM. (2012). The eMOSAIC model for humanoid robot control.Neural Netw.29–308–19. 10.1016/j.neunet.2012.01.002
89
TeraoM.WatanabeJ.YagiA.NishidaS. (2008). Reduction of stimulus visibility compresses apparent time intervals.Nat. Neurosci.11541–542. 10.1038/nn.2111
90
ThompsonP. (1981). Velocity after-effects: the effects of adaptation to moving stimuli on the perception of subsequently seen moving stimuli.Vision Res.21337–345. 10.1016/0042-6989(81)90161-9
91
TreismanM. (1963). Temporal discrimination and the indifference interval: implications for a model of the ‘internal clock’.Psychol. Monogr.771–31. 10.1037/h0093864
92
TreismanM.FaulknerA.NaishP. L. (1992). On the relation between time perception and the timing of motor action: evidence for a temporal oscillator controlling the timing of movement.Q. J. Exp. Psychol. A45235–263. 10.1080/14640749208401326
93
TseP. U.IntriligatorJ.RivestJ.CavanaghP. (2004). Attention and the subjective expansion of time.Percept. Psychophys.661171–1189. 10.3758/BF03196844
94
UlrichR.NitschkeJ.RammsayerT. (2006). Perceived duration of expected and unexpected stimuli.Psychol. Res.7077–87. 10.1007/s00426-004-0195-4
95
VivianiP.FigliozziF.LacquanitiF. (2011a). The perception of visible speech: estimation of speech rate and detection of time reversals.Exp. Brain Res.215141–161. 10.1007/s00221-011-2883-9
96
VivianiP.FigliozziF.CampioneG. C.LacquanitiF. (2011b). Detecting temporal reversals in human locomotion.Exp. Brain Res.21493–103. 10.1007/s00221-011-2809-6
97
WangL.JiangY. (2012). Life motion signals lengthen perceived temporal duration.Proc. Natl. Acad. Sci. U.S.A.109673–677. 10.1073/pnas.1115515109
98
WatanabeK. (2008). Behavioral speed contagion: automatic modulation of movement timing by observation of body movements.Cognition1061514–1524. 10.1016/j.cognition.2007.06.001
99
WeissY.SimoncelliE. P.AdelsonE. H. (2002). Motion illusions as optimal percepts.Nat. Neurosci.5598–604. 10.1038/nn0602-858
100
XuanB.ZhangD.HeS.ChenX. (2007). Larger stimuli are judged to last longer.J. Vis.71–5. 10.1167/7.10.2
101
YamamotoK.MiuraK. (2012). Time dilation caused by static images with implied motion.Exp. Brain Res.223311–319. 10.1007/s00221-012-3259-5
102
YarrowK.HaggardP.HealR.BrownP.RothwellJ. C. (2001). Illusory perceptions of space and time preserve cross-saccadic perceptual continuity.Nature414302–305. 10.1038/35104551
103
ZagoM.CarrozzoM.MoscatelliA.LacquanitiF. (2011a). Time, observation, movement.Cogn. Crit.461–86.
104
ZagoM.La ScaleiaB.MillerW. L.LacquanitiF. (2011b). Coherence of structural visual cues and pictorial gravity paves the way for interceptive actions.J. Vis.1113 10.1167/11.10.13
105
ZagoM.La ScaleiaB.MillerW. L.LacquanitiF. (2011c). Observing human movements helps decoding environmental forces.Exp. Brain Res.21553–63. 10.1007/s00221-011-2871-0
106
ZagoM.McIntyreJ.SenotP.LacquanitiF. (2009). Visuo-motor coordination and internal models for object interception.Exp. Brain Res.192571–604. 10.1007/s00221-008-1691-3
107
ZakayD. (1992). “On prospective time estimation, temporal relevance, and temporal uncertainty,” inTime, action, and cognition: towards bridging the gapedsMacarF.PouthasV.FriedmanW. J. (Dordrecht: Kluwer Academic Press) 109–118.
108
ZelaznikH. N.SpencerR. M.IvryR. B. (2002). Dissociation of explicit and implicit timing in repetitive tapping and drawing movements.J. Exp. Psychol. Hum. Percept. Perform.28575–588. 10.1037/0096-1523.28.3.575
Summary
Keywords
visual motion, biological motion, animate, inanimate, time perception, humanoid
Citation
Lacquaniti F, Carrozzo M, d’Avella A, La Scaleia B, Moscatelli A and Zago M (2014) How long did it last? You would better ask a human. Front. Neurorobot. 8:2. doi: 10.3389/fnbot.2014.00002
Received
27 November 2013
Accepted
06 January 2014
Published
27 January 2014
Volume
8 - 2014
Edited by
Yoonsuck Choe, Texas A&M University, USA
Reviewed by
Amir Karniel, Ben-Gurion University, Israel; Yoonsuck Choe, Texas A&M University, USA
Copyright
© 2014 Lacquaniti, Carrozzo, d’Avella, La Scaleia, Moscatelli and Zago.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Francesco Lacquaniti, Department of Systems Medicine, University of Rome Tor Vergata and IRCCS Santa Lucia Foundation, Via Ardeatina 306, 00178 Roma, Italy e-mail: lacquaniti@med.uniroma2.it
This article was submitted to the journal Frontiers in Neurorobotics.
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
