Solid-liquid equilibria of Sorel phases and Mg (OH)₂ in the system Na-Mg-Cl-OH-H₂O. Part I: experimental determination of OH⁻ and H⁺ equilibrium concentrations and solubility constants at 25°C, 40°C, and 60°C

Abstract

Sorel phases are the binder phases of the magnesia building material (Sorel cement/concrete) and of special concern for the construction of long-term stable geotechnical barriers in repositories for radioactive waste in rock salt, as potentially occurring brines are expected to contain MgCl₂. Sorel phases, in addition to Mg(OH)₂, are equally important as pH buffers to minimize solubility and potential mobilization of radionuclides in brine systems. In order to obtain a detailed database of the relevant solid-liquid equilibria and the related pH_m values of the equilibrium solutions, extensive experimental investigations were carried out. Solid phase formation was studied by suspending MgO and Mg(OH)₂ in NaCl saturated MgCl₂-solutions at 25°C. Mg(OH)₂ and the 3-1-8 Sorel phase were identified as the stable solid phases, while the 5-1-8 Sorel phase is metastable. Equilibration at 40°C did not lead to any solid phase changes. Both OH⁻ and H⁺ equilibrium concentrations were analyzed as a function of MgCl₂ concentration at 25°C and 40°C. In addition to our already published solid-liquid equilibria for the ternary system Mg-Cl-OH-H₂O (25°C–120°C), the equilibrium H⁺ concentrations (pH_m) determined at 25°C, 40°C and 60°C are now reported. Analyzing these data together with known ion-interaction Pitzer coefficients, the solubility constants for Mg(OH)₂ and the 3-1-8 phase at these three temperatures, for the metastable 5-1-8 phase at 25°C and for the 2-1-4 phase at 60°C have been consistently calculated.

1 Introduction

Sorel phases are of particular importance for the construction of geotechnical barriers (plugs and sealing systems) in the host rock salt and the establishment of a favorable geochemical environment (i.e., by buffering of pH_m and limiting carbonate concentrations) to minimize radionuclide transport processes via potential aqueous solutions.

Sorel phases [named after Stanislas Sorel, who was the first to describe the formation of a hardening material by the reaction of caustic magnesium oxide with magnesium chloride solution (Sorel & Dumas, 1867)] are the binder phases of the magnesia building material (Sorel cement or concrete) with the general composition xMg(OH)₂∙yMgCl₂∙zH₂O (x-y-z phases). It has been empirically known for more than 100 years that Sorel cement does not corrode in salt (Unknown author, 1902). However, within the safety assessment of a repository, the long-term stability of the geotechnical barrier must be proven. This can be evidenced by analyzing the existing solubility equilibria between Sorel phases and salt solutions of the host rock. Depending on the ratio of MgO and the MgCl₂ solution (and their concentration) in the building material formulation and the developing setting temperature, the 3-1-8, 5-1-8 and/or also 9-1-4 phase may be present when the setting reaction is complete. However, sufficient solubility equilibrium data of Sorel phases in NaCl-saturated solutions are not yet available in the literature.

In addition to the binder phase function, both Sorel phases and Mg(OH)₂ can act as pH buffers of salt solutions (Bodine, 1976) as is realized in the Waste Isolation Pilot Plant (WIPP) in New Mexico with MgO as additive of backfill materials (Monastra & Grandstaff, 1999). In case of a brine access a weakly alkaline milieu is generated, providing favorable geochemical conditions for radionuclide retention. Therefore, in addition to the usual data describing solubility equilibria [Na⁺, Mg²⁺, Cl⁻, OH⁻ solution concentrations in the presence of Mg(OH)₂ and Sorel phases], the H⁺ concentrations are of particular interest.

In recent decades, the Sorel phases occurring in the basic ternary system Mg-Cl-OH-H₂O- the 3-1-8, 5-1-8, 9-1-4, 2-1-4, 2-1-2, and 3-1-0 phases - have been extensively characterized (de Wolff & Walter-Lévy, 1949; Bianco, 1951; Walter-Lévy & Bianco, 1951; de Wolff & Walter-Lévy, 1953; de Wolff & Kortlandt, 1954; Cole & Demediuk, 1955; Demediuk et al., 1955; Bianco, 1958; Sugimoto et al., 2007; Dinnebier et al., 2010; Dinnebier et al., 2012; Bette et al., 2015). Solubility data are available in terms of OH⁻ or H⁺ concentrations in MgCl₂-containing solutions (ternary system Mg-Cl-OH-H₂O) or in NaCl-MgCl₂-containing mixed solutions (system Na-Mg-Cl-OH-H₂O). For a conversion between concentration of free OH⁻ and H⁺ the ionic product of water, (Eq. 1), must be known for MgCl₂ and NaCl-MgCl₂ solutions at concentrations of interest.

In addition to the free OH⁻, which is related to H⁺ via the Kw, in basic systems other hydroxide solution species [e.g., MgOH⁺ (Palmer & Wesolowski, 1997)] exist, which yield together with the free OH⁻ the total OH⁻ concentration.

A comprehensive data set is available for the ternary system Mg-Cl-OH-H₂O from 25°C to 120°C by specifying the OH⁻ solution concentrations (Pannach et al., 2017), including the evaluation of earlier data (20°C: D’Ans & Katz, 1941, 25°C; Robinson & Waggaman, 1909, 50°C; Nakayama, 1960, 100°C; Nakayama, 1959, 120°C; Dinnebier et al., 2010). Accordingly, in addition to Mg(OH)₂, the four basic magnesium chloride hydrates (Sorel phases) 3-1-8, 9-1-4, 2-1-4, and 2-1-2 occur as thermodynamically stable solid phases depending on temperature and solution concentration (Figure 1). The 3-1-8 phase exists between 25°C and 80°C and was found to be metastable at 100°C. The 9-1-4, 2-1-4, and 2-1-2 phases occur at the higher temperatures or higher MgCl₂ concentrations. In general, the hydroxide solution concentration in the system increases with temperature. For the 5-1-8 phase, only a temporary occurrence was observed during the solubility studies. It is therefore a metastable phase of the system (Feitknecht, 1926; Feitknecht & Held, 1944; Bianco, 1951; Cole & Demediuk, 1955; Newman, 1955; Bianco, 1958; Pannach et al., 2017).

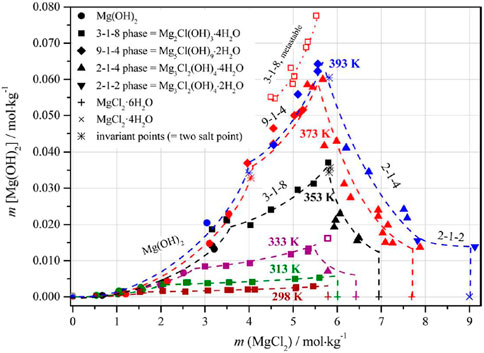

FIGURE 1

Pannach et al., 2017).

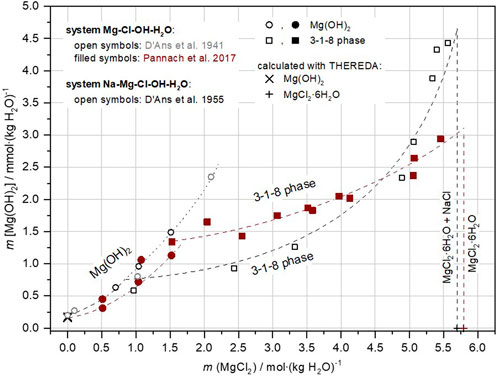

For the NaCl-containing system Na-Mg-Cl-OH-H₂O, a data set exists only for 20°C at not specified NaCl solution concentrations (D'Ans et al., 1955). Analogous to the ternary system, the stable solids are Mg(OH)₂ in solutions with low MgCl₂ concentrations, and the 3-1-8 phase at higher MgCl₂ concentrations. The invariant point Mg(OH)₂(s) + 3-1-8 phase was given by D'Ans et al., 1955 with 0.555 MgCl₂ molal and 0.53 Mg(OH)₂ mmolal. Metastable data points for Mg(OH)₂ are also given. A comparison of these 20°C data from D'Ans et al., 1955 with those of the ternary system Mg-Cl-OH-H₂O at 25°C from Pannach et al. (2017) in Figure 2 shows that in the presence of NaCl the stability range of the 3-1-8 phase extends towards lower MgCl₂ concentrations.

FIGURE 2

D'Ans et al., 1955) and the ternary system Mg-Cl-OH-H₂O at 25°C (Pannach et al., 2017).

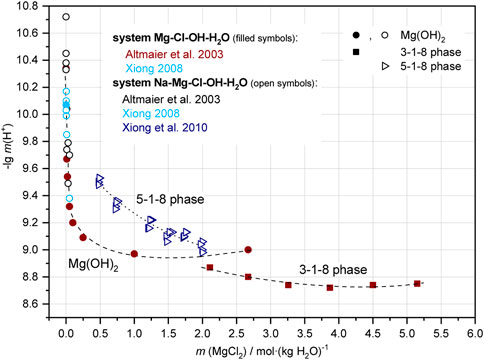

Molal H⁺ concentrations (pH_m) were determined in the ternary system at 22°C ± 2°C by Altmaier et al. (2003) in the presence of Mg(OH)₂ and the 3-1-8 phase; in the quaternary system Na-Mg-Cl-OH-H₂O for Mg(OH)₂ in solutions with very low NaCl concentration by Altmaier et al. (2003); Xiong (2008) and in almost NaCl-saturated solutions for the 5-1-8 phase (Xiong et al., 2010). Comparison of these data in Figure 3 shows that the pH_m in the presence of Mg(OH)₂ decreases more with increasing MgCl₂ concentration (from about 10.7 to 8.9) than in the region of the 3-1-8 phase (from about 8.9 to 8.7) as shown in the comprehensive data set for the ternary system Mg-Cl-OH-H₂O. In agreement with the “OH⁻ based data set” (Figures 1, 2), the invariant point of Mg(OH)₂ and the 3-1-8 phase is inferred to exist between 1.5 and 2.0 MgCl₂ molal in the ternary system. In the presence of NaCl there are no data for > 0.1 MgCl₂ molal for neither Mg(OH)₂ nor the 3-1-8 phase available. The pH_m values determined by Xiong et al. (2010) in the presence of the 5-1-8 phase in the MgCl₂ concentration range from 0.5 to 2.0 molal in nearly NaCl-saturated solutions roughly compare to the trend of the 3-1-8 phase for the ternary system, but are shifted to a higher basicity.

FIGURE 3

Altmaier et al. (2003), the NaCl concentrations vary from 0.01 to 5.0 molal. In the measurements of Xiong et al., 2010, an approximated saturation concentration of NaCl was adjusted.

With the determination of the H⁺ molalities, solubility constants were calculated by Altmaier and Xiong using an activity coefficient model for 25 °C corresponding to the reactions (2), (3) and (4) (see also chapter 3.3):lgK_{S,25°C,Mg(OH)2} = 17.16 ± 0.1 from Mg-Cl-OH-H₂O system Altmaier et al. (2003)

= 17.01 ± 0.1 from Na-Mg-Cl-OH-H₂O system Altmaier et al. (2003)

= 17.05 ± 0.2 from Na-Mg-Cl-OH-H₂O system Xiong (2008)lgK_{S,25°C,3-1-8} = 26.15 ± 0.16  from Mg-Cl-OH-H₂O system  Altmaier et al. (2003)

lgK_{S,25°C,5-1-8} = 43.21 ± 0.33  from Na-Mg-Cl-OH-H₂O system  Xiong et al. (2010)

The solubility constant determined for Mg(OH)₂ in both the Mg-Cl-OH-H₂O and Na-Mg-Cl-OH-H₂O system agree very well within the given error limits.

In this work, the studies on the solubility equilibria of the Sorel phases and Mg(OH)₂ (brucite as mineral) were extended with the determination of the OH⁻ and H⁺ solution concentrations in the system Na-Mg-Cl-OH-H₂O (NaCl-saturated) at 25°C and 40°C. In addition to the already known H⁺ equilibrium concentrations in the ternary system Mg-Cl-OH-H₂O at 25°C, measurements at 40°C and 60°C beside 25°C were presented together with the calculation of solubility constants for Mg(OH)₂ and the Sorel phases at 25°C, 40°C, and 60°C.

Part II of the paper present the geochemical model developing on the basis of the experimental data.

2 Materials and methods

2.1 Starting materials

MgCl₂·6H₂O, CAS No. 7791–18–6, (Fluka, purity > 99%, and Merck, ACS reagent, > 99%), Mg(OH)₂, CAS No. 1309–42–8 (BioUltra, > 99%, from Fluka and M725 from Magnesia, 99%), MgO, CAS No. 1309–48–4 (M2923 from Magnesia, > 97%) and NaCl, CAS No. 7647–14–5 (from Merck, ACS reagent, ≥ 99.0%) were used for the investigations. The phase purity of all substances was checked by X-ray powder diffraction.

The magnesium chloride solutions were prepared by appropriate weighing of deionized water (CO₂-free by boiling or flowing through with argon for 1 h) and MgCl₂·6H₂O. A suspension of NaCl ensured saturation in the respective MgCl₂ solutions.

All solution concentrations are given in molal (molality m) with the unit mol·(kg H₂O)⁻¹ or mmolal = mmol·(kg H₂O) ⁻¹.

2.2 Preparation of the solid-liquid mixtures for equilibrations in the quaternary system Na-Mg-Cl-OH-H₂O (NaCl-saturated) at 25°C and 40°C

For the preparation of the mixtures of solutions with solids in the quaternary system Na-Mg-Cl-OH-H₂O at 25°C (sample Series 1 of TUBAF, Table 1), 1 g MgO was weighed into 250 mL PP wide-neck bottles with 200 g NaCl-saturated, n molal in MgCl₂ each. The suspensions were annealed at 25°C ± 1°C and regularly shaken by hand every 1–3 days over a period of about 1 year.

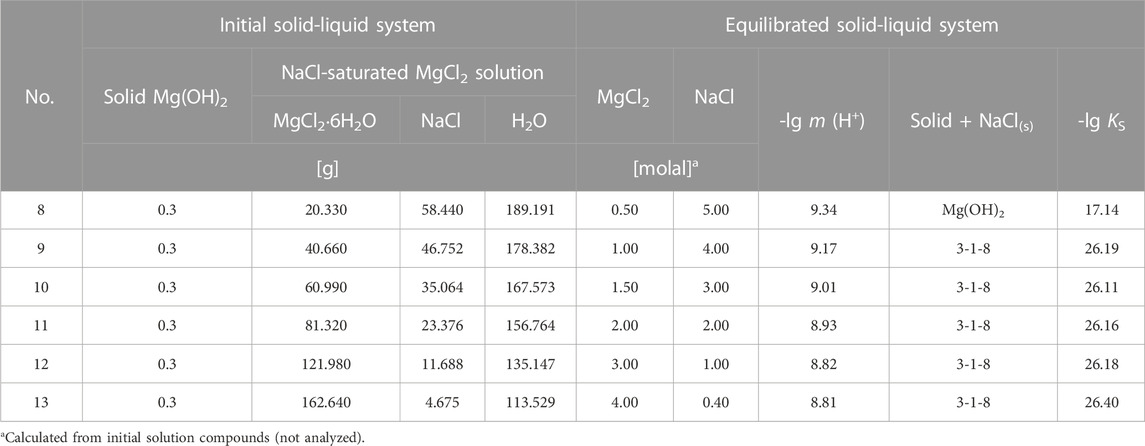

Another sample series (sample Series 2 of KIT-INE, Table 3) was prepared by weighing 300 mg of Mg(OH)₂ (Fluka, BioUltra) into approximately 200 mL (240–270 g solution) of NaCl-saturated n molal MgCl₂ solutions. The suspensions were stored in sealed vessels at 24°C ± 2°C in a glove box under argon atmosphere and also shaken regularly by hand. Over a period of 6 years, the development of the H⁺ solution concentrations were followed with a glass electrode (see chapter 2.4) and finally the solid phase was determined by X-ray.

The solids obtained after 1 year in sample series 1 [these were Mg(OH)₂ and the 3-1-8 phase] were filtered off and re-suspended in new solutions of 200 g NaCl-saturated n molal MgCl₂ solutions (partly in double approach) in 250 mL PP wide-neck bottles and equilibrated at 25°C for 131–144 days (sample Series 3a of TUBAF) and at 40°C for 32–84 days (sample Series 3b of TUBAF), see Table 4. In the case of the 40°C samples, the 2-1-4 Sorel phase (obtained in our previous studies on the ternary system Mg-Cl-OH-H₂O (Pannach et al., 2017)) was also added. The temperature of the suspensions was controlled at 25°C ± 0.2°C and at 40°C ± 0.2°C in a water bath with continuous stirring using a Teflon magnetic stirrer. Subsequently, the solution and solid phases were separated using a micro glass fibre filter (Munktell, grade MGF = 0.7 µm).

2.3 Solid-liquid mixtures in the ternary system Mg-Cl-OH-H₂O at 25°C, 40°C, and 60°C

In Pannach et al. (2017) we published our results on the determination of solubility equilibria in the ternary system Mg-Cl-OH-H₂O at 25°C–120°C. In addition to the reported OH⁻ solubility concentrations as a function of MgCl₂ concentration, we also finally measured the H⁺ concentrations in the equilibrated suspensions at 25, 40°C and 60°C. These results are presented here as sample Series 4 (a-c) of TUBAF. The weights of the initial solution and solid components are given in Table 5 together with the equilibrium data. All suspensions were tempered in sealed 250 mL wide-necked PP bottles in water baths (25°C ± 0.2°C and 40°C ± 0.2°C, thermostat type EB, Julabo Labortechnik GmbH or 60°C ± 0.2 °C shaking water bath, company GFL, model 1,083) and shaken regularly by hand (25°C, 40°C) or automatically (60°C). Further experimental details can be found in Pannach et al. (2017).

2.4 Analytics

Solutions: The Mg²⁺ concentration was analyzed by complexometric titration in NH₃/NH₄Cl buffered solutions (pH 9–10) with Erio T as indicator and 0.05 M Na-EDTA solution (Biedermann & Schwarzenbach, 1948) (relative analytical error ± 0.3%). The Cl⁻ concentration was determined according to the method of Mohr (Schulze & Simon, 2009) in a Na₂CO₃/NaHCO₃ buffered solution (pH 8–9) with K₂CrO₄ as indicator and 0.1 M AgNO₃ solution (relative analytical error ± 0.2%). The total OH⁻ concentrations were determined volumetrically by acid-base back titration (0.01 M HCl and 0.01 M NaOH solution) with potentiometric endpoint determination and a pH glass electrode (combination electrode, type ROSS, Thermo-Orion 8103BN, filling solution 3 M KCl). Reported results are the mean of double or triple titrations, where for each the sample solution of 10–20 g was directly weighed (relative analytical error ± 0.3%). The analyzed OH⁻ concentrations are given as Mg(OH)₂ concentrations in the following figures and tables. The Na⁺ concentration was determined with the flame photometer (type BWB-XP, BWB-XP Technologies) and from sample No. 26 (Table 3, sample series 3) by ion chromatography due to equipment failure of the flame photometer.

The H⁺ concentrations were determined potentiometrically according to the method of Altmaier et al. (2003) using glass electrodes calibrated to m (H⁺) at 25°C, 40°C and 60°C. At 25°C the potential measurements were carried out with a ROSS type pH glass electrode, Thermo-Orion 8103BN (combination electrode, filling solution 3 M KCl) - same for sample Series 2 (KIT-INE laboratory) and 3a and 4a (TUBAF laboratory). For the measurements at 40°C and 60°C (TUBAF sample Series 3b and 4b, 4c), a combination electrode with a temperature sensor of the type SenTix82 (company WTW, filling solution 3 M KCl solution) was used. Both pH electrodes were calibrated against standard pH buffer solutions (pH = 4–10, Riedel de Haën, Fisher Brand and Merck) at the corresponding temperatures. The pH value is defined in dilute aqueous solutions of ionic strength I < 0.1 molal by the activity of the H⁺ concentration. Measurements in aqueous solutions of higher ionic strength give to an operative pH value (pH_exp), from which the H⁺ solution concentration is calculated using an empirical correction factor A_m (Altmaier et al., 2003):

The correction factor A_m depends on the solution composition, absolute concentration and temperature. This empirical relationship between A and a n molal salt solution of I > 0.1 molal is described by the following quadratic equations (in molal concentration units m_i):

Na-Mg-Cl-OH-H₂O system:

25°C (for sample Series 2 and 3a with NaCl and MgCl₂ calibration solutions):with A_NaCl = −0.0988 + 0.1715 · m_NaCl + 0.0013 · (m_NaCl)²

40°C (for sample Series 3b with NaCl/MgCl₂ mixing solutions):

Mg-Cl-OH-H₂O system (for sample Series 4):

25°C (for Series 4a):

40°C (for Series 4b):

60°C (for Series 4c):

Using the correction factor A_m and the measured pH_exp values, the molal H⁺ concentrations of the solutions were determined with an accuracy of ± 0.05 pH units.

Solids: The solid phases (after filtration from the solution washed with cold (T < 5°C) deionized water and subsequently with cold (T < 5°C) ethanol to remove adhering wash water; finally dried at room temperature in an exsiccator) were identified by X-ray powder diffraction (Bruker D8 Discover with linear detector Vantec-1 at TUBAF or Bruker AXS D8 Advance at KIT-INE; each with Cu-Kα radiation). The samples were prepared as flat plates after grinding.

SEM images (exemplarily from the appropriately washed solids) were taken by TUBAF on gold-coated samples using a TESCAN Vega 5130 SB scanning electron microscope with a cathode voltage of 20 kV.

3 Results and discussions

3.1 Solid phase development in the quaternary system Na-Mg-Cl-OH-H₂O at 25°C

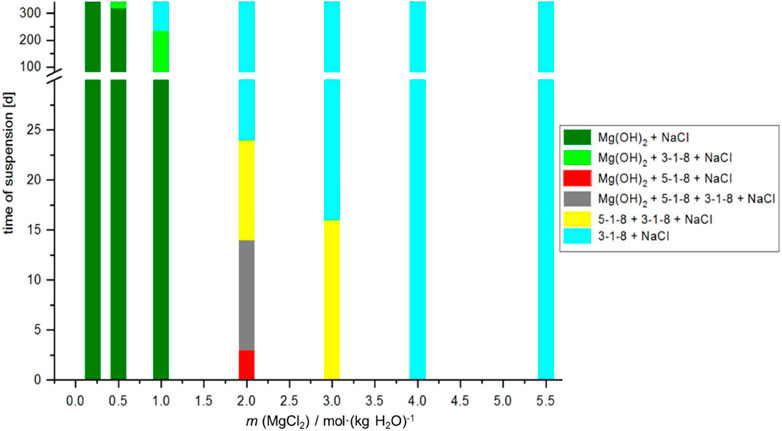

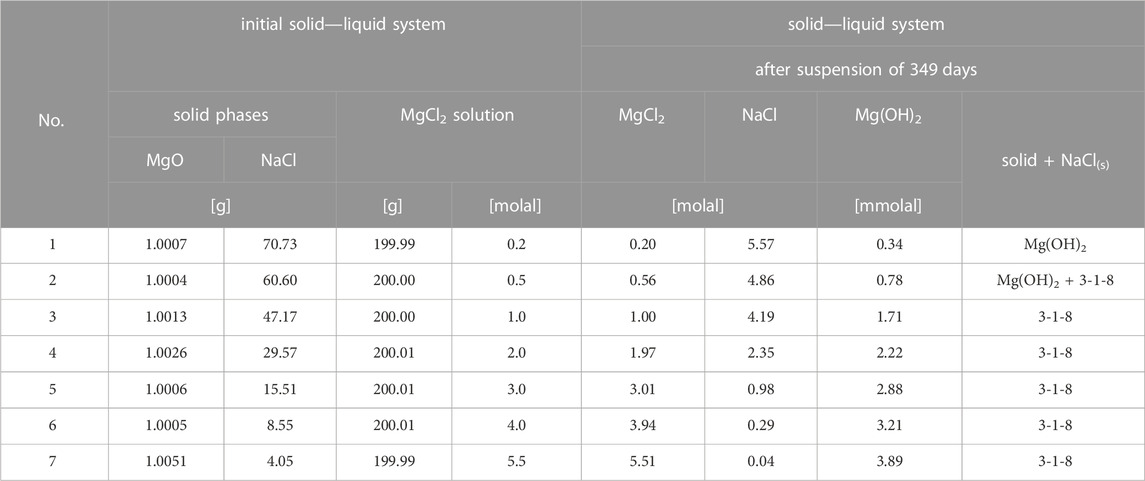

The development of the solid phase composition in the system Na-Mg-Cl-OH-H₂O was followed at 25°C in NaCl saturated n molal MgCl₂ solutions by suspending caustic MgO (sample Series 1 of TUBAF) as well as Mg(OH)₂ (sample Series 2 of KIT-INE) with ≤ 1 g solid in 200 g solution.

MgO suspension in dilute MgCl₂ solutions (0.2 molal) resulted in the formation of Mg(OH)₂(s) beside the present NaCl. Mg(OH)₂(s) was also formed in 0.5 m_MgCl2 solution. Finally, after 349 days, a mixture of Mg(OH)₂(s) and 3-1-8 phase was detected. The MgCl₂ concentration was slightly increased to 0.56 molal (Table 1). In a 1.0 m_MgCl2 solution, Mg(OH)₂(s) was also identified within the first weeks and transformed into the 3-1-8 phase over months (see powder diffractograms taken within 1 year in Figure 4A). The SEM image (Figure 4C) shows the typical long needles of the 3-1-8 phase, between which particles of Mg(OH)₂(s) are still visible in the “212-day sample” (Figure 4B).

FIGURE 4

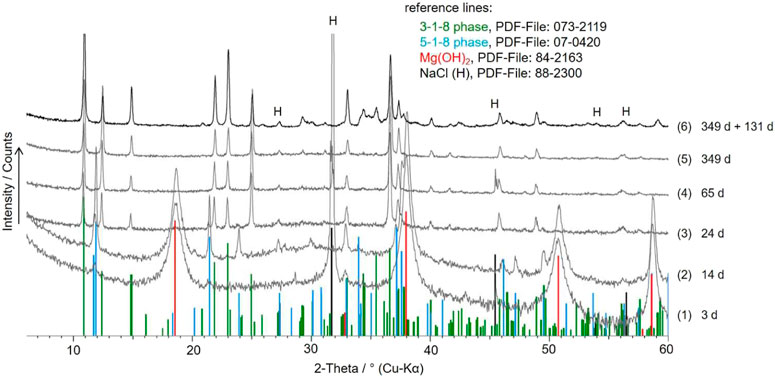

In 2 or 3 m_MgCl2 solutions, the formation of the 5-1-8 phase in addition to Mg(OH)₂ and/or the 3-1-8 phase was observed within the first few days (Figure 5). After a few weeks, only the 3-1-8 phase was present in addition to NaCl(s). In the concentrated MgCl₂ solutions (4 and 5.5 m_MgCl2, NaCl-saturated), the 3-1-8 phase could be identified as a solid phase after 3 days already. This time-dependent change of the solid phase composition in the differently concentrated MgCl₂ solutions (NaCl-saturated) at 25°C ± 1°C is schematically summarized in Figure 6. All values of the initial solid-solution samples as well as the analyzed solution are given in Table 1.

FIGURE 5

FIGURE 6

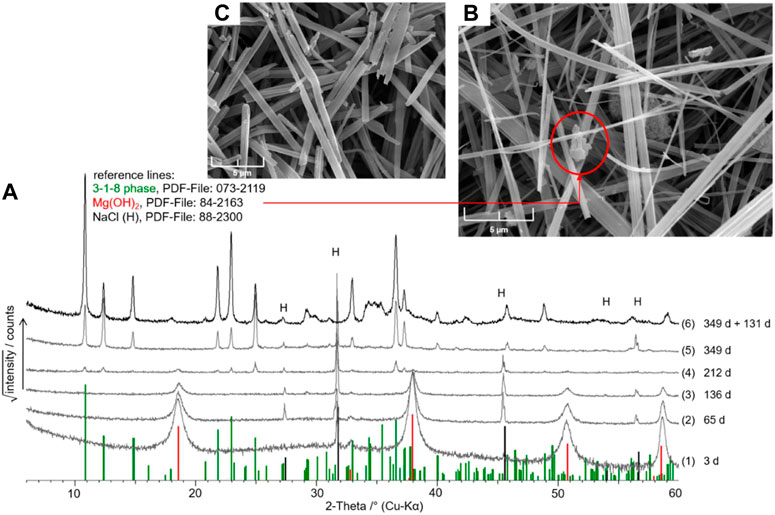

In the case of the Mg(OH)₂(s) suspension (sample Series 2), the development of the pH_m was monitored over an even longer period of 2,394 days (6.5 years) (Figure 7). At the beginning of the measurements, three samples (the 0.5, 2.0 and 4.0 m_MgCl2 suspensions, all NaCl-saturated) were selected, from which a few milligrams of solid phase were taken after 16 days to determine their composition. At this time, only the 3-1-8 phase was identified in the 4.0 m_MgCl2 solution, whereas a mixture of Mg(OH)₂(s) and 3-1-8 phase was found in the 2.0 m_MgCl2 solution. In this solution, the Mg(OH)₂(s) continued to transform into the 3-1-8 phase with time, as shown in the final diffractograms recorded after 2,394 days (6.5 years) in Figure 8. Only in the 0.5 m_MgCl2 solution Mg(OH)₂ could be detected as the remaining solid.

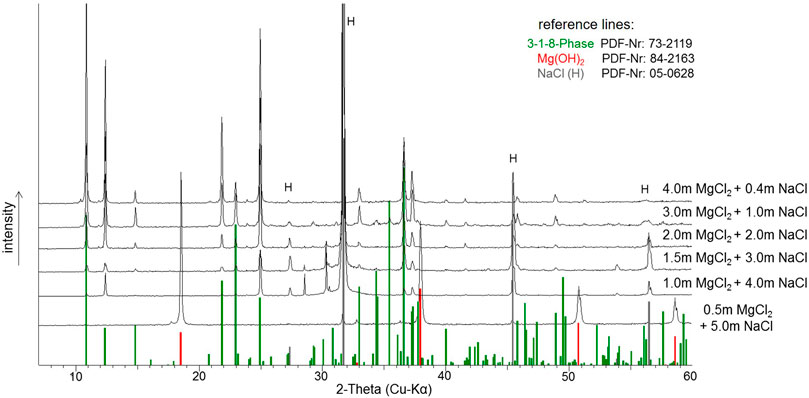

FIGURE 7

FIGURE 8

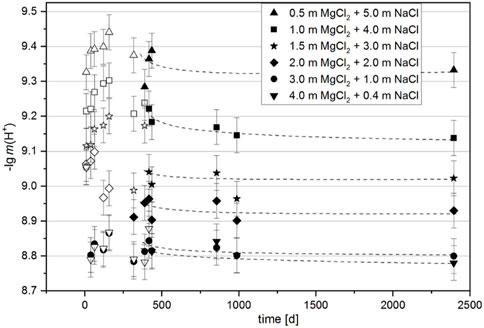

The measured pH_m show values (of the otherwise weakly acidic NaCl-MgCl₂ solutions) that are buffered in the weakly basic range within the first 400 days. After a maximum value is reached, a decrease to a constant value is observed, indicating that the equilibrium state has been established. The difference between the intermediate maximum value and the equilibrium value was up to 0.2 pH_m units in the solutions with lower MgCl₂ concentrations, in the more concentrated MgCl₂ solutions (3, 4 m_MgCl2) it was significantly smaller. Within the analytical error of ± 0.05 pH_m units, it can be assumed that equilibrium was reached in all suspensions after approximately 500 days. In general, higher pH_m values can be observed in solutions of lower MgCl₂ concentration (Figure 7). All analytical results obtained at the end of the measurements, after 2,394 days, are shown in Table 3 together with the initial data of this sample Series 2.

The results of the sample Series 1 and 2 show unanimously that, starting from MgO or Mg(OH)₂(s) in MgCl₂ solutions of medium concentration (0.5< m_MgCl2 < 4), the approach to equilibrium needs longer periods of time (months—about 1 year), but is relatively quickly (hours - days) in 4 m_MgCl2, where the equilibrium phase is 3-1-8 phase. Up to 0.5 m_MgCl2, Mg(OH)₂(s) is identified as the stable solid phase. In the case of sample Series 1, the intermediate occurrence of the 5-1-8 phase was also observed.

3.2 Solid-liquid equilibria

3.2.1 Na-Mg-Cl-OH-H₂O system: OH⁻ and H⁺ equilibrium concentrations at 25°C und 40°C

The stable solids, Mg(OH)₂(s) and 3-1-8 phase, as well as their mixture (all being obtained from sample Series 1, where respective solids were filtered off), were again suspended as a new sample Series 3a in corresponding NaCl-MgCl₂ solutions at 25°C and analyzed after 131–140 days. No further changes in the composition of the solid phases were observed. The analyzed OH⁻ solution concentrations (for Series 1 in Table 1 and Series 3 in Table 4) are shown in Figure 9 as a function of MgCl₂ concentration. The comparison in Figure 9 shows that the OH⁻ solution concentrations of sample Series 1 are significantly higher than those of sample Series 3, despite their long-term suspension of almost 1 year (349 days). We have already observed such a behavior (remaining in the OH⁻ supersaturated region) in our investigations on the solid-solution equilibria in the ternary system Mg-Cl-OH-H₂O at 25°C (not at higher temperatures), using caustic MgO as the initial phase (Pannach et al., 2017). The causes seem to be structural defects (stacking faults in the H₂O-Mg-OH polyhedral layer sequences) and amorphous fractions, especially of the 3-1-8 phase, which arise during its formation from highly OH⁻ supersaturated solutions. These stacking fault (domains) cause a higher inner energy of the 3-1-8 lattice and are the reason for the slightly higher solubility. On contact or suspension in appropriate OH⁻ free solution, they dissolve with recrystallisation (defect-free) until equilibrium is reached at low OH⁻ solution concentrations according to sample Series 3. Still further, i.e., multiple recrystallisation tests did not lead to any further lowering of the OH⁻ solution concentration. Therefore, in the following, only the OH⁻ concentrations determined by means of sample Series 3 will be considered as equilibrium concentrations. They agree well with those of D'Ans et al., 1955 at unknown NaCl concentration (open black squares in Figure 9 (cf; Figure 2) up to ≤ 5 m_MgCl2. A clear deviation to higher values can be seen in 5.0–5.5 m_MgCl2 solution, suggesting still supersaturated states. The reported invariant point between Mg(OH)₂(s) and 3-1-8 phase at a MgCl₂ concentration of 0.555 molal and 0.53 Mg(OH)₂ mmolal agrees very well with our values of 0.56 MgCl₂ molal and 0.55 ± 0.03 Mg(OH)₂ mmolal. Furthermore, D'Ans et al., 1955 still give metastable data points for Mg(OH)₂(s) at higher MgCl₂ concentrations (open circles in Figure 9).

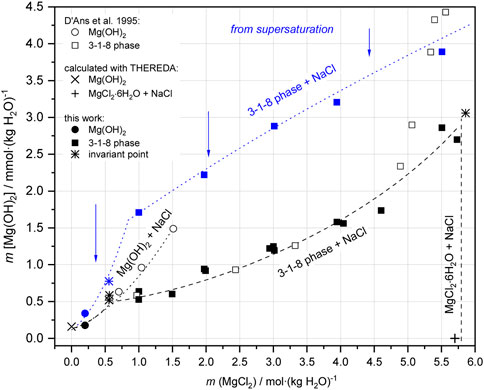

FIGURE 9

In addition to the samples equilibrated at 25°C, Mg(OH)₂(s) and the 3-1-8 phase as well as the 2-1-4 phase were also suspended at 40°C in corresponding NaCl-saturated MgCl₂ solutions for 32–84 days (sample Series 3b). Again, only Mg(OH)₂(s) and the 3-1-8 phase remained as the stable solids at this temperature, the 2-1-4 phase converted either into Mg(OH)₂(s) or the 3-1-8 phase as shown in Table 4. Compared to the 25°C data, higher OH⁻ concentrations are analyzed at 40°C with a consistent trend towards increasing OH⁻ concentrations with increasing m_MgCl2. The highest values are reached at MgCl₂ saturation. At 40°C its value is twice the one at 25°C. The invariant point between Mg(OH)₂(s) and 3-1-8 phase (+NaCl) has shifted from 0.56 m_MgCl2 at 25°C to about 1.1–1.3 m_MgCl2 at 40 °C in the NaCl-saturated solutions (Figure 10). The corresponding OH⁻ concentration has approximately tripled from about 0.0005 m Mg(OH)₂ to 0.0013–0.0015 m.

FIGURE 10

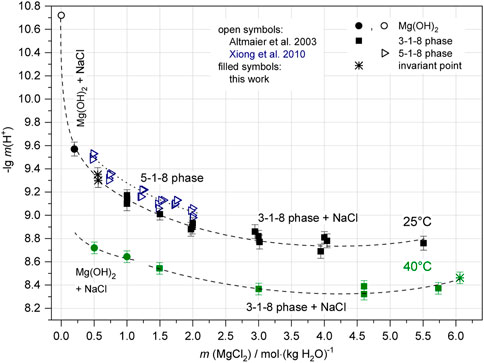

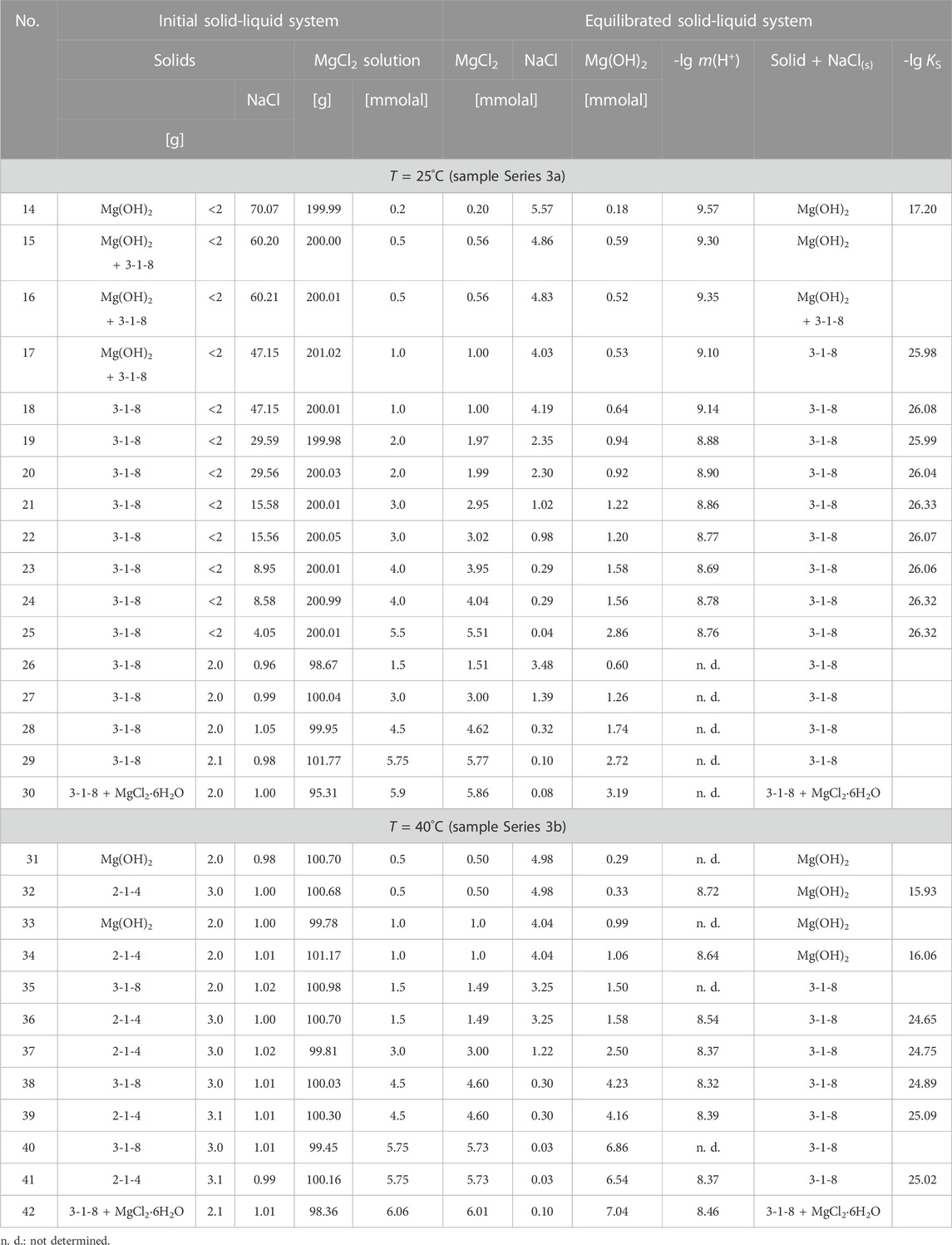

The pH_m analyzed in sample Series 2 at 25°C and sample Series 3a and 3b at 25°C and 40°C respectively (Tables 3, 4) are presented in Figure 11. The 25°C values of Series 2 form a common isotherm with those determined for Series 3a. Obviously, equilibrium with respect to H⁺ solution concentrations had been reached with both sample series in the different laboratories. As no OH⁻ concentrations were analyzed for sample Series 2 (KIT-INE), it is not possible to say whether equilibrium has also been reached for the OH⁻ solution concentration in these suspensions over the long monitoring period of 6.5 years in comparison with sample Series 3a.

FIGURE 11

Altmaier et al., 2003, blue; Xiong et al., 2010, cf; Figure 3) and 40°C (green symbols: sample Series 3b).

The pH_m measured at 25°C are highest (H⁺ concentrations lowest) in the solutions with lowest MgCl₂ concentrations in equilibrium with Mg(OH)₂(s) (pH_m = 9.57 in 0.2 m_MgCl2 NaCl saturated solution, see all values in Tables 3, 4). In MgCl₂-free NaCl-saturated solution, pH_m still increases to 10.72, as shown by the data point from Altmaier et al. (2003) in Figure 11. At the invariant point of Mg(OH)₂(s) + 3-1-8-phase + NaCl in 0.56 m_MgCl2 solution, the pH_m was determined to be 9.32. As the MgCl₂ concentration increases, the pH_m in the presence of 3-1-8 phase + NaCl(s) decreases only gradually over the wide concentration range to pH_m = 8.7 in 5.5 m_MgCl2 solution. Compared to the 25°C data of Xiong et al. (2010) for the 5-1-8 phase in the investigated range of 0.5≥ m_MgCl2 ≤ 2 (NaCl saturated), the pH_m are at higher values compared to both Mg(OH)₂(s) and the 3-1-8 phase. This indicates a metastable occurrence of the 5-1-8 phase, which is consistent with our observations of solid phase formation in the system (see Section 3.1), showing the intermediate occurrence of the 5-1-8 phase.

The data curve shown in Figure 11 for the samples at 40°C runs nearly parallel to the respective curve for 25°C, shifted to lower pH_m by about 0.6 units in the presence of Mg(OH)₂(s) and about 0.4 units in the presence of the 3-1-8 phase (see also Table 4). With Mg(OH)₂(s) as solid phase in 0.5 and 1 m_MgCl2 solution, the pH_m was measured as 8.72 and 8.64 respectively. In the presence of the 3-1-8 phase, the values again decrease only slightly with increasing m_MgCl2. Between 4 < m_MgCl2 < 5 a flat minimum occurs at pH_m ∼ 8.3. At the invariant point of 3-1-8 phase + MgCl₂·6H₂O(s) + NaCl(s) the pH_m is 8.4–8.5.

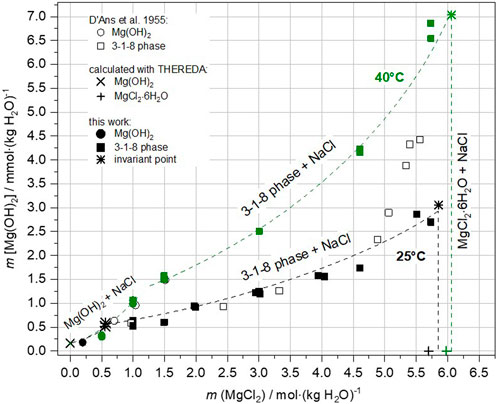

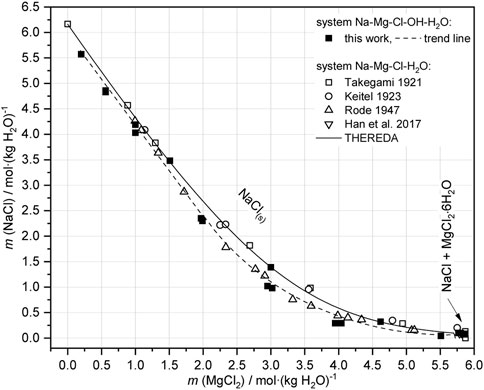

Beside the analyzed OH⁻ and H⁺ solution concentration, also the NaCl concentrations of saturation determined in sample Series 3a are plotted for 25°C in Figure 12. As the data show, at least approximate NaCl saturation is approached with the initial compositions of sample Series 2 (Table 3) after equilibration in the Na-Mg-Cl-OH-H₂O system. Compared to the OH⁻ free, ternary Na-Mg-Cl-H₂O system, the adjustment of the very low OH⁻ saturation concentration causes within the scatter of the experimental data only a very slight decrease of the NaCl saturation concentration in the Na-Mg-Cl-OH-H₂O system.

FIGURE 12

Keitel, 1923, Rode, 1947, Han et al., 2017).

3.2.2 Mg-Cl-OH-H₂O system: H⁺ equilibrium concentrations at 25°C, 40°C and 60°C

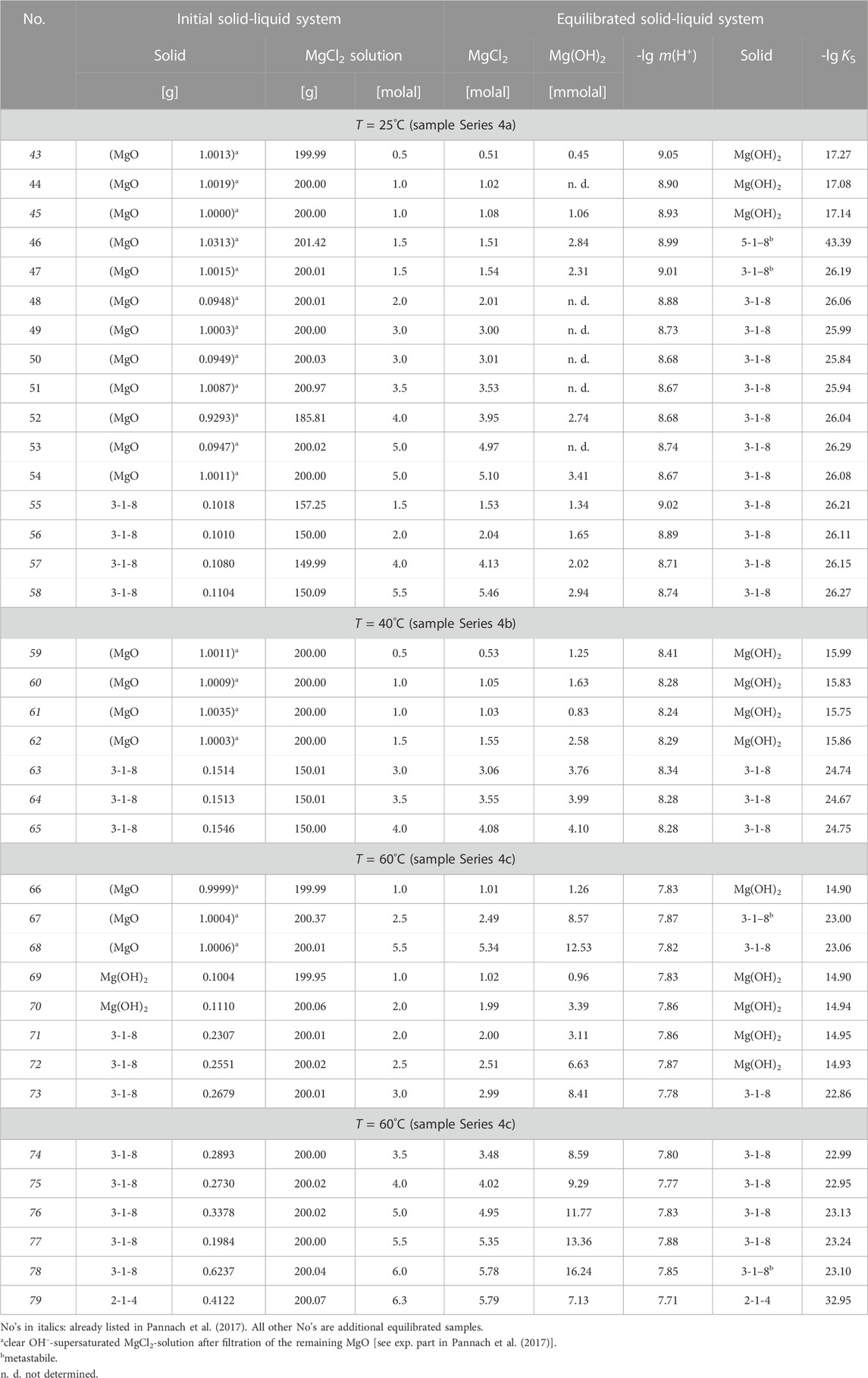

In the study on the solubility equilibria in the ternary system Mg-Cl-OH-H₂O from 25°C to 120°C (Pannach et al., 2017), the pH_m in the samples equilibrated at 25°C, 40°C and 60°C were measured but not yet published. The results are given now in Table 4 (as sample Series 4a, b and c) together with all initial components. Figure 13 shows the pH_m as a function of MgCl₂ concentration for all three temperatures. The values for 40°C and 60°C are shifted to lower pH_m by about 0.6–0.4 units. The intersection of the branches for Mg(OH)₂(s) and 3-1-8 phase data indicate the invariant points, which shift from 1.7–1.8 m_MgCl2 at 25°C to about 2 at 40°C and 2.5 at 60°C (as already observed by Pannach et al. (2017) on the basis of the “OH⁻ isotherms”). At 60°C a further Sorel phase, the 2-1-4 phase, increases relative to the 3-1-8 phase near the MgCl₂ saturation. Thus, we could measure also a pH_m value in presence of this phase in 5.8 m_MgCl2 solution.

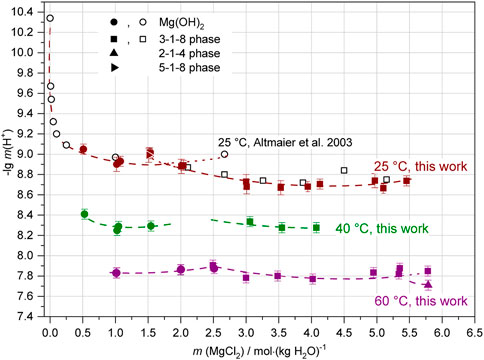

FIGURE 13

Altmaier et al., 2003).

3.2.3 Comparison of NaCl-free and NaCl saturated system at 25°C

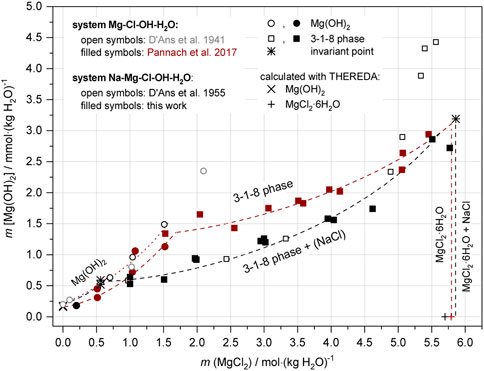

Comparing the two systems at 25°C shows that the stability field of the 3-1-8 phase in NaCl-saturated solutions expands towards lower MgCl₂ concentrations, as can be seen by the shift of the invariant point with Mg(OH)₂(s) from m_MgCl2 of 1.7–1.8 in NaCl-free to 0.56 in NaCl-saturated solution (Figures 14, 15).

FIGURE 14

Pannach et al., 2017) (brown symbols) at 25°C.

FIGURE 15

The OH⁻ concentrations and thus the solubility of the 3-1-8 phase are lower in NaCl-saturated than in NaCl-free solutions. However, the OH⁻ concentrations approach each other when reaching saturation concentration of MgCl₂ (Figure 14).

With the invariant point at 0.56 m_MgCl2, a MgO-based concrete geotechnical barrier consisting of 3-1-8 binder phase (besides inert aggregates) will be in equilibrium with NaCl-saturated solutions as soon as concentrations of MgCl₂ as low as 0.56 m_MgCl2 are present. For solutions not saturated with NaCl higher concentrations are needed to ensure stability of the binder phase against the solution. In NaCl-free solutions a minimum of 1.7–1.8 m_MgCl2 is required.

As can be seen in Figure 15, Mg(OH)₂(s) buffers a pH_m range from 9.3 to 9.6 in NaCl-saturated solutions, and if they are free of MgCl₂ up to 10.7. From 0.56 m_MgCl2, a pH_m of about 9.3 is established by the 3-1-8 phase, decreasing to pH_m = 8.7 with further increase in MgCl₂ concentration. This pH_m range also is found in NaCl-free solutions in the presence of the 3-1-8 phase. An analogous situation would be found when comparing the 40°C data of both systems, however, shifted by 0.6–0.4 units to lower pH_m values.

3.3 Solubility constants for Mg(OH)₂(s) and the Sorel phases 3-1-8, 2-1-4 and 5-1-8 at 25°C, 40°C und 60°C

The solubility constants, lg K_S, for Mg(OH)₂(s) and the Sorel phases 3-1-8 and 2-1-4 were calculated from the molal equilibrium H⁺ concentrations in the NaCl-saturated MgCl₂ solutions at 25°C and 40°C (Tables 3, 4) and in the MgCl₂ solutions free of NaCl at 25°C, 40°C and 60°C (Table 5) according to Eqs 11–18. The calculation of lg K_S was also possible for the metastable 5-1-8 phase by measuring the H⁺ concentration during its intermediate appearance in a 25 °C suspension (sample No. 46 in Table 5). The activity coefficients γ_i of Mg²⁺, H⁺ und Cl⁻ and the water activity a_W were calculated using the Pitzer data set of THEREDA for the hexary system of oceanic salts including acids and bases [THEREDA, Voigt (2020)].

Mg(OH)₂:

3-1-8 phase:

2-1-4 phase:

5-1-8 phase:

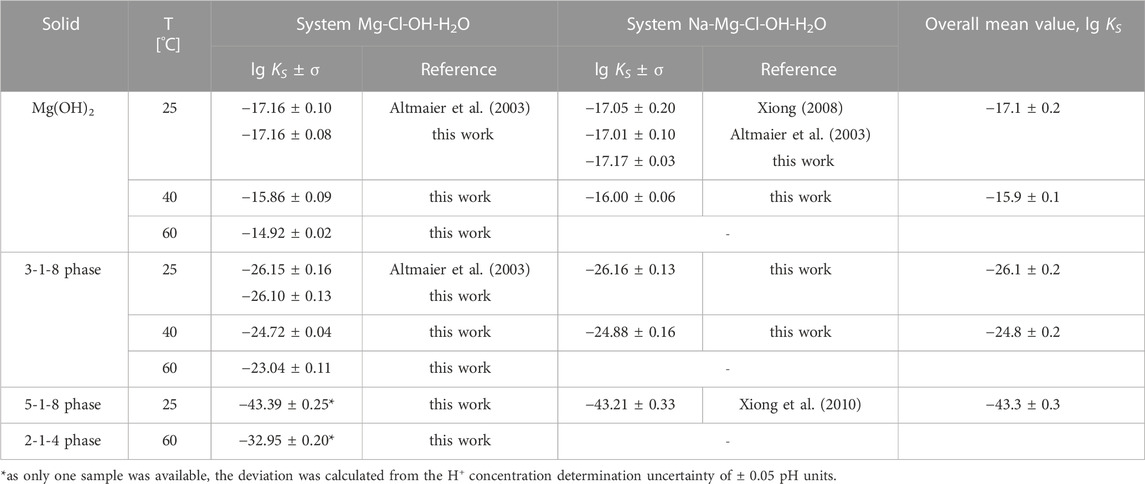

All calculated lg K_S values are given as mean values in Table 2 for each system and temperature (single values in Tables 3–5) compared with literature data where available. For Mg(OH)₂(s) a mean value at 25°C of lg K_S = −17.17 ± 0.03 is obtained for NaCl-saturated solutions (Tables 3, 4) and lg K_S = −17.16 ± 0.08 for NaCl-free solutions (Table 5). The values are in a very good agreement with those of Altmaier et al. (2003) and Xiong (2008) within the given error range as can be seen in Table 2. There are some more studies on solubility constants for Mg(OH)₂(s) discussed and evaluated by Altmaier et al. (2003), which agree within an overall mean value of lg K_{S,Mg(OH)2,25°C} = −17.1 ± 0.2. For 40°C we determined lg K_{S,Mg(OH)2,40°C} = −15.9 ± 0.2 from the two mean values, lg K_S = −16.00 ± 0.06 from NaCl-saturated solutions (Table 4) and lg K_S = −15.86 ± 0.09 from the NaCl-free solutions (Table 5). At 60°C a value of lg K_{S,Mg(OH)2,60°C} = −14.92 ± 0.02 was calculated from the NaCl-free MgCl₂ solutions (Table 5).

For the 3-1-8 phase the obtained value of lg K_{S,3-1-8,25°C} = −26.10 ± 0.13 agrees very well with Altmaier et al. (2003) (−26.15 ± 0.16) from measurements in MgCl₂ solutions at 25°C. Our measurements in NaCl-saturated MgCl₂ solutions (Tables 3, 4) yield a consistent value of lg K_{S,3-1-8,25°C} = −26.16 ± 0.13. At 40°C, equally consistent values with lg K_{S,3-1-8,40°C} = −24.88 ± 0.16 and −24.72 ± 0.04 were calculated from the NaCl-saturated (Table 4) and NaCl-free solutions (Table 5). From the measurements at 60°C in MgCl₂ solutions a lg K_{S,3-1-8,60°C} = −23.04 ± 0.11 results accordingly. For the 2-1-4 phase occurring at and above 60°C in concentrated MgCl₂ solution, the solubility constant could only be determined from one sample (in 5.79 molal MgCl₂-solution, Table 5) with lg K_{S,2-1-4,60°C} = −32.95 ± 0.2.

4 Conclusion

Sorel phases are binder phases of the magnesia building material (Sorel cement/concrete) highly suitable for construction of geotechnical barriers in rock salt formations. Compared with classical concrete, materials based on Sorel phases possess the principal property of being stable against saline MgCl₂ containing solutions. This specific feature represents a crucial prerequisite for the construction of geotechnical barriers in repositories for radioactive waste in rock salt, as potentially occurring brines are expected to contain MgCl₂. In addition, to minimize solubility and possible mobilization of actinides in brines systems, the pH should preferably be buffered in the weakly alkaline range. Detailed understanding of relevant solid-liquid equilibria and related pH_m data for the equilibrium solutions provide the scientific basis and information in the context of safety analysis.

In this work, the solid-liquid equilibria of the Sorel phases and Mg(OH)₂(s) in the system Na-Mg-Cl-OH-H₂O at saturation of NaCl were determined at 25°C and 40°C. Starting from the suspension of MgO (sample Series 1, ss 1) and Mg(OH)₂(s) (sample Series 2, ss 2), the solid phase formation was followed at 25°C over a period of one (ss 1) and 6 years, respectively, including the determination of H⁺ solution concentrations, pH_m, (ss 2) as a function of MgCl₂ molality.

Mg(OH)₂(s) and the 3-1-8 phase were identified as the stable solids in the system. Following their further equilibration at 25°C and 40°C (ss 3), the equilibrium OH⁻ and H⁺ concentrations (pH_m) were determined. Mg(OH)₂(s) is the stable phase in the presence of NaCl-saturated solutions with low MgCl₂ content (up to about 0.56 m_MgCl2) and the 3-1-8 phase in the more concentrated MgCl₂ solutions at 25°C. At 40°C, the invariant point shifts to 1–1.5 m_MgCl2. The 5-1-8 Sorel phase was found to occur only intermediately during the study period of ss1 and is therefore only a metastable phase in the solid-solution system.

In addition to the already published solid-liquid equilibria for the ternary system Mg-Cl-OH-H₂O (25°C–120°C) in Pannach et al. (2017), the pH_m determined at 25°C, 40°C and 60°C are reported here. Using these and with known ion-interaction Pitzer coefficients, the solubility constants for Mg(OH)₂(s) and the 3-1-8 phase could be calculated for 25°C, 40°C and 60°C. From the measurements in the ternary system it was also possible to calculate the solubility constant for the metastable 5-1-8 phase at 25°C and for the 2-1-4 phase at 60°C, which was found only at higher temperature in the ternary system at high MgCl₂ concentrations.

On the basis of the solid-liquid equilibria determined in this work, it is now possible to predict the long-term stability of magnesia building material in contact with solutions in a saline environment on a significantly improved scientific level and with high robustness. The pH_m values developing in equilibrium with the respective Sorel phases or Mg(OH)₂(s) are identified as a function of the solution composition for the system Na-Mg-Cl-OH-H₂O at NaCl saturation.

The data also allow an extension of the Pitzer dataset in THEREDA to calculate the solubility equilibria of Sorel phases and Mg(OH)₂(s) in complex salt solutions of the hexary system of oceanic salts, which is presented in Part II of this work.
