A Hahn-Ramsey scheme for dynamical decoupling of single solid-state qubits

  • 1. AG Nano-Optik, Institut für Physik and IRIS Adlershof, Humboldt-Universität zu Berlin, Berlin, Germany

  • 2. AG Nichtlineare Optik und Quantenelektronik, Institut für Theoretische Physik, Technische Universität Berlin, Berlin, Germany

  • 3. Fraunhofer-Institut für Angewandte Festkörperphysik, Freiburg, Germany

Abstract

Spin systems in solid state materials are promising qubit candidates for quantum information in particular as quantum memories or for quantum sensing. A major prerequisite here is the coherence of spin phase oscillations. In this work, we show a control sequence which, by applying RF pulses of variable detuning, allows to increase the visibility of spin phase oscillations. We experimentally demonstrate the scheme on single NV centers in diamond and analytically describe how the NV electron spin phase oscillations behave in the presence of classical noise models. We hereby introduce detuning as the enabling factor that modulates the filter function of the sequence, in order to achieve a visibility of the Ramsey fringes comparable to or longer than the Hahn-echo T2 time and an improved sensitivity to DC magnetic fields in various experimental settings.

1 Introduction

Solid-state qubits are of central importance within the quantum technologies due to their outstanding performance in key fields such as quantum information processing (Stajic, 2013) and quantum magnetic field sensing (Jones et al., 2009; Bal et al., 2012). Several physical systems have been exploited to experimentally realize solid-state qubits such as quantum dots (Hanson and Awschalom, 2008; Shulman et al., 2012; Veldhorst et al., 2017; Strauß et al., 2019; Carmele and Reitzenstein, 2019), superconductive qubits (Wendin, 2017; Dicarlo et al., 2009), nuclear spins in materials (Pla et al., 2013) and electronic spins in molecules or defect-centers in crystals (Smeltzer et al., 2009; Pla et al., 2012; D. et al., 2007; Schlegel et al., 2008). Among the latter, the nitrogen-vacancy (NV) color center in diamond has been extensively investigated due to its exceptional stability and properties observed even at room temperature and in ambient conditions (Kurtsiefer et al., 2000). The NV center has an electron spin triplet that can be optically initialized, readout via fluorescence intensity measurement and controlled with appropriate radiofrequency (RF) pulse trains (Jelezko and Wrachtrup et al., 2006; Kennedy et al., 2003; Ryan et al., 2010). This has allowed the demonstration of quantum information storage (Dutt et al., 2007; Maurer et al., 2012) and of magnetic field measurements with high sensitivity and spatial resolution (Degen et al., 2017; Sushkov et al., 2014; Mamin et al., 2012; Loretz et al., 2014). Furthermore, electron spin relaxometry has also been used to probe the behavior of single magnetic domain particles (Gould et al., 2014; Sadzak et al., 2018) and small ensembles of molecules (Ermakova et al., 2013) on the nanoscale. In order to perform sensing in complex physical environments, dynamical decoupling (DD) schemes have been implemented to filter-out the background magnetic noise from the specific target signals. These schemes rely on sequences of precisely timed RF pulses that act as frequency filters and bandwidth selectors. Some basic DD measurements are Ramsey (1950) and Hahn (1950) schemes, that have been followed by a manifold of other techniques often derived from the nuclear magnetic resonance (NMR) field (Degen et al., 2017), such as CPMG (Naydenov et al., 2011), XY-n (de Lange et al., 2010), UDD (Uhrig, 2007; Wang et al., 2012). Most of the currently available decoupling schemes are focused on prolonging the T2 coherence time and are primarly applied to AC magnetometry. Concerning DC magnetometry, the current approaches are based on using isotopically pure diamonds (Ishikawa et al., 2012), diamond material engineering (Barry et al., 2020) or elaborated schemes that circumvent the problem by using spin bath driving, ancillary spins or diamond mechanical rotation (Wood et al., 2018; Liu et al., 2019; Barry et al., 2020). As these solutions rely on specific experimental configurations, a robust dynamical-decoupling alternative would be particularly interesting for a manifold of applications. Motivated by recent experiments on trapped atoms (Vitanov et al., 2015), we propose here an extension of the Hahn-Ramsey dynamical decoupling scheme, where the detuning of the RF spin control pulses is used to obtain an increased visibility of the electron spin phase oscillations. We demonstrate the protocol on single NV centers in bulk diamond, and show a pronounced increase in the spin oscillations coherence time. Furthermore, we give an analytical description of the filter function and of the sequence and provide an estimation of the scheme sensitivity for DC magnetometry, thereby proving that it can be of great importance in a broad range of applications such as quantum sensing, quantum information processing (Nielsen and Chuang, 2000) and synchronization (Hodges et al., 2013).

2 Theory and methods

We make use of two experimental procedures in order to observe the Hahn-Ramsey properties and demonstrate its effects on NV centers under different conditions and parameters. In the first, we select a stable defect center with long electron spin time and apply the Ramsey and Hahn-Ramsey schemes - in a low detuning condition - in order to establish the effectiveness of the latter in extending the spin phase visibility above the Ramsey limit. In the second approach, we instead use high detuning-to-Rabi ratios to induce complex spin oscillation fringes and show the fitness of our theoretical framework in explaining the observed patterns. By successively adding a source of known artificial noise, we are able to compare the spin phase oscillation visibility and envelope changes for Ramsey and Hahn-Ramsey sequences, under a well defined noise pattern that is added to the baseline environment random fluctuations the NV center is subject to. We analyse our measurement results using the spectral decomposition approach, in order to extract information about the noise suppression effectiveness for different detunings and noise specifications, as well as to obtain a more accurate picture of the spin trajectory in noisy environments. In the following section, we lay out the framework for the experiments underlying physical phenomena, describing how a pseudo spin-1/2 system, such as the NV center’ ms = 0, − 1 states, behaves under the spin manipulation schemes we are exploring. Typically, phase oscillations of the NV electron spin are detected via Ramsey spectroscopy. In this technique, the defects electron spin is initalized in the ms = 0 state, generally via a long off-resonant laser pulse at 532 nm wavelength. This is followed by two detuned radiofrequency π/2 pulses separated by a free precession interval, where the electron spin picks up a phase proportional to the external magnetic fields oriented along the NV center quantization axis. The observed signal is represented by a measurement of the σz spin projection, that is the expectation value of the σz operator :where σz is the Pauli spin matrix, U (0, τ) is the free evolution operator, the rotation operator for an off-resonant pulse (see Supplementary Material) and θ = arctan the rotation angle (Levitt, 2000). Here is the effective precession frequency, with Δ being the detuning in the RF driving field, ω0 the resonant Rabi frequency and tp the effective pulse duration. In the case of noisy environments, a fluctuating time dependent detuning shift arises from the noise contribution to the total magnetic field acting on the NV centers spin. In this situation, the rotating-wave free evolution operator can assume different forms, with the most general one being:

Where represents the local σz field at the free precession time t and Δ is the detuning term leading to the observation of Ramsey fringes. It is the stochastic process describing the noise term that determines the shape of the signal decay. In general, few considerations can be made. If is a drift-less, zero-mean random process which occurs on much faster timescales than the free evolution time acquisition, then this will average out in the final signal. If instead changes on a time comparable or larger than each acquisition time τ, then the observed signal will show a characteristic coherence decay pattern. Nevertheless, in this case a composite pulse sequence may be used to compensate the random phase accumulated for each τ measurement. This is the principle of the Hahn-echo, where a spin transition resonant refocusing pulse, applied at the center of the free evolution period, is used to reverse the precession in the second half of the sequence, canceling the effect of static fields and low-frequency noise but removing spin phase oscillations as well. The Hahn-Ramsey scheme uses the same temporal distribution of Hahn-echo pulses, but adds a detuning pattern. Specifically, the sequence consists of an initial and final π/2 pulse having a Δ detuning, separated by a free precession time τ and a central pulse of length π having instead opposite detuning − Δ. Under this definition, the general expression of the Hahn-Ramsey signal is:

Here, the pulse length is assumed to be ideal (that is, τp is tuned so that ω1τp = π/2 or ω1τp = π). The central, inversely detuned π pulse, separates the free precession time in two parts, with the first being described by the operator UΔ(0, τ) and the second by U−Δ(τ, 2τ). Given the form of Eq. 2, this implies that the slow contribution of f(t) is canceled out, leaving nevertheless an oscillating spin phase dependent on Δ only. While quantum interactions with other single spins are typically represented via specific interaction operators, such as hyperfine interaction, spin-spin coupling and so on, bath interactions or fluctuating environment fields of classical nature are included in the term f(t) and treated as a stochastic process. For solid-state spin centers, it is appropriate to treat f(t) as a classical magnetic noise described by a compound Poisson process, where the jump times have an exponentially decaying probability density function with a correlation time of 1/λ and the jump intensities have a Gaussian distribution with zero average and Γ variance. By including this in Eq. 3, we obtain an expression that links the fringes decoherence process to detuning and Rabi frequencies, and also to the noise parameters here introduced (see Supplementary Material). After switching to the frequency domain, the expected signal can be expressed as an exponentially decaying function (Biercuk et al., 2011), where the exponential argument is the frequency convolution between the control sequence filter function and the spectral density function of the external field or noise process. It can be seen, from Eq. 3, that the opposite detuning for the refocusing pulse with respect to the π/2 pulses leads to a signal that is the sum of two detuning-induced oscillating components and one non-oscillating component, each one displaying a different decaying behavior. The overall signal can then be written as:

With a = cos(θ) and b = sin(θ). These three components are weighted in the final signal by detuning-related coefficients (see Figure 1). The term with the spin phase oscillating as is associated with a Hahn-Echo-type filter function, that means the coherence decays as in the standard Hahn-echo sequence, while the non-oscillating term shows a Ramsey-like decoherence. The term oscillating instead as has a different nature; its filter function has a similar periodicity of the Hahn-Echo but different magnitude, and gives a longer decoherence time. By choosing an opportune detuning one can select how each component is contributing to the total signal, which will then lead to different behavior but also potential application of the sequence. In the following experimental part, we will demonstrate the fitness of our theoretical approach and draw some conclusions regarding the physical dynamics and the implications for DC magnetometry.

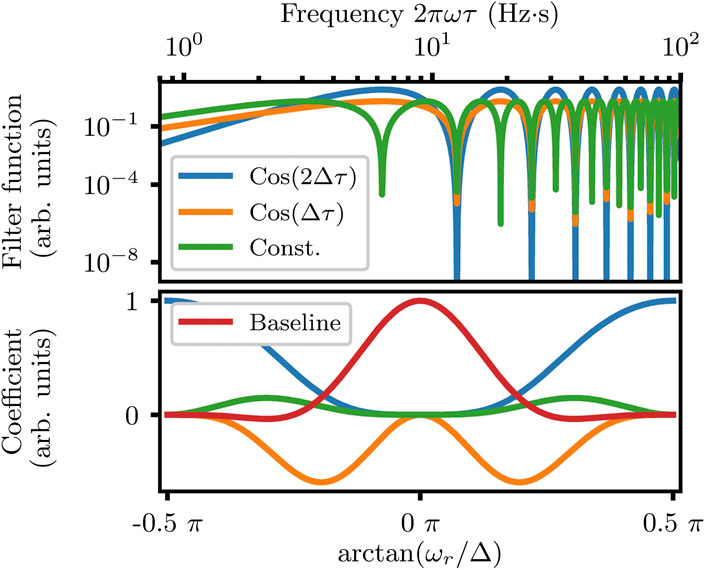

FIGURE 1

3 Experimental results

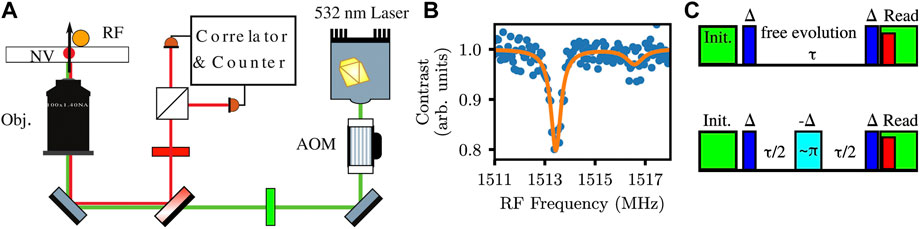

For our experiment, we use a type [111] CVD-grown delta-doped diamond plate with a 15NV center rich layer. The diamond is placed on a microwave waveguide and the RF pulses are delivered via a 50 µm thick copper wire closely located to the surface. From the bottom side, the diamond is accessible via a high numerical aperture (NA = 1.4) oil immersion objective Olympus UPLANSAPO ×60, that is used to optically initialize the nitrogen-vacancies with a 532 nm diode laser source pulsed by an acousto-optic modulator. The same objective collects the fluorescence light that is sent to a confocal setup and a beamsplitter, and finally collimated on two Perkin-Elmer single photon detectors. The experimental setup and basic ODMR measurements are shown in Figure 2. In order to perform the first demonstration, we carry out several acquisitions of Ramsey and Hahn-Ramsey signals on different NV centers in the diamond plate. After identifying a single NV center via autocorrelation measurements, we apply a ≈ 500 G static magnetic field parallel to the defects quantization axis to achieve a nuclear spin hyperpolarization (Jacques et al., 2009) of 80%–90% (see Figure 2), that allows us to work with an approximate two-level spin-1/2 system. We then proceed to record the Ramsey and Hahn-Ramsey fringes for a specific radiofrequency detuning, as shown in Figure 3. By testing the sequence directly on the NV centers in the natural diamond environment, we would expect this to be effective in prolonging spin phase fringes only if the surrounding is characterized by a non-negligible sub-MHz noise dynamics that affects the spin coherence. The measurements results confirm this picture and show that the Hahn-Ramsey is effective in increasing the visibility of electron spin phase oscillations and the T2,HR time. This is depicted in Figure 3, where an exponential fit shows a change in the oscillation decay timescale from (1.9 ± 0.1) µs to T2,HR (3.1 ± 0.1) µs. In this case, the Δ < ω1 condition leads to a trajectory on the Bloch sphere as depicted in Figure 4, where the spin rotates closely and symmetrically around the zy plane; the dominant oscillation frequency is , but a weak beating appears due to a proximal spin that induces an energy splitting of approximatively 500 kHz, as shown by low-power ODMR. We then proceed to the second experimental part, for which we select an NV center that intrinsically displays comparable and T2,HR times. For this specific center, the Ramsey decay time is measured as (1.6 ± 0.1) µs. Here we add an external source of controlled magnetic noise, created by a programmable function generator that is connected to an amplifier feeding a solenoid located around the diamond. The antenna produces a magnetic field parallel to the NV center quantization axis. After setting a 3 MHz detuning, we proceed in measuring again the Ramsey and Hahn-Ramsey signal profiles, which assume the form displayed in Figure 5. While the Ramsey signal shows a single-frequency regular pattern, the Hahn-Ramsey displays more complex features, which are nevertheless well fitted by our theoretical model. These features arise from the combination of spin phase oscillations taking place at different frequencies, and the different decay each one of these components experiences under the existing noise. Adding artificial noise reduces as expected the spin phase coherence, but in a more pronounced way for the Ramsey measurement. The Hahn-Ramsey shows longer fringes, mainly due to the stronger low frequency noise suppression for the component. Another effect that becomes more relevant when Δ/ΩRabi ≈ 1 or Δ/ΩRabi > 1 is the mixing with . This second term can provide, in certain cases, a longer spin phase coherence time than the resonant Hahn-echo (see Figure 6), due to the higher angle of precession with respect to the (xz) plane of the Bloch sphere, which in turn limits the amplitude of the acquired phase and protects the phase oscillations induced by the constant detuning (See Figure 5). Interestingly, this component is also sensitive to small DC magnetic fields that shift the detuning of the π and π/2 pulses asymmetrically. While the term cancels these shifts, the part of the signal allows them to be detected in amplitude and envelope. In this case, it is possible to derive (see Supplementary Material) that the sensitivity, maximized for θp ≈ 0.2π, is:

FIGURE 2

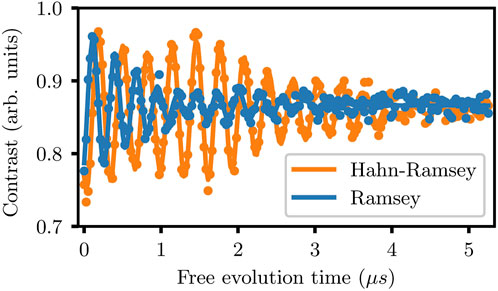

FIGURE 3

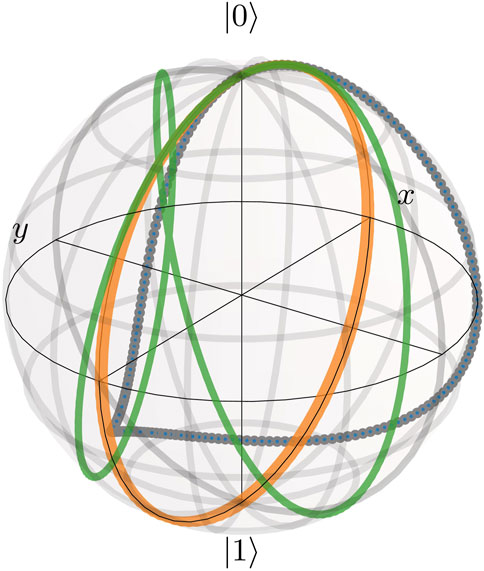

FIGURE 4

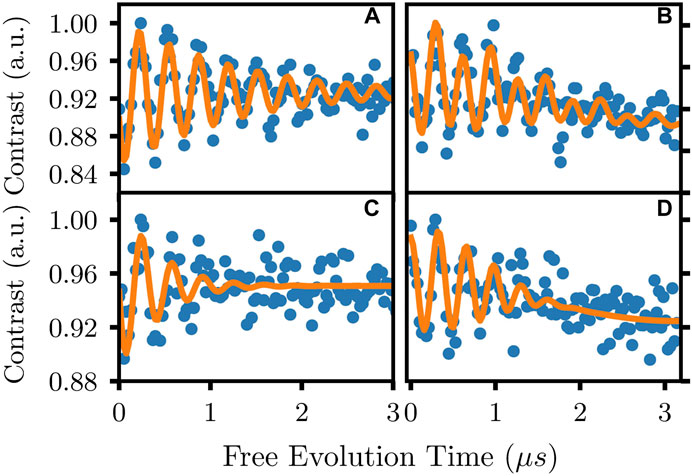

FIGURE 5

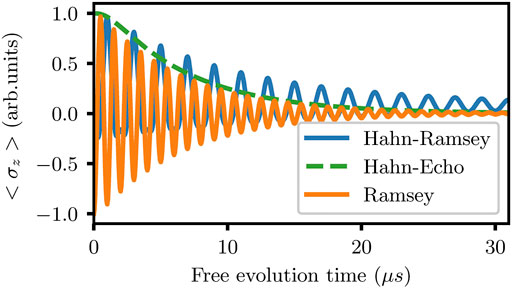

FIGURE 6

Compared to the classic Ramsey interferometry, the Hahn-Ramsey sensitivity scales with the respective T2,HR time and offers an improved performance for physical situations where low-intensity noises are an important contribution to the sensitivity deterioration, and as well in situations where low-power RF are available for the spin manipulation pulses, with improvement factors of up to for environments with comparable Poissonian noise characteristics.

4 Conclusion

We have described and experimentally demonstrated a Hahn-Ramsey type of dynamical decoupling sequence on NV centers in diamond. By opportunely inverting the detunings in the RF control sequence, we are able to show that the HR scheme is effective in providing a better suppression of low-frequency noise with respect to the Ramsey scheme, approaching the Hahn-echo limit when the detuning is smaller than the Rabi frequency. This can be exploited to effectively improve the spin phase oscillation visibility. When the detuning magnitude is instead comparable to the Rabi frequency, the Hahn-Ramsey can provide even longer Ramsey fringes decay times. This in turn may be used for DC magnetometry, providing a better sensitivity than the standard Ramsey interferometry.
