Protective Immunity in Mice Immunized With P. vivax MSP119-Based Formulations and Challenged With P. berghei Expressing PvMSP119

The lack of continuous in vitro cultures has been an obstacle delaying pre-clinical testing of Plasmodium vivax vaccine formulations based on known antigens. In this study, we generated a model to test available formulations based on the P. vivax MSP1₁₉ antigen. The Plasmodium berghei strains ANKA and NK65 were modified to express PvMSP1₁₉ instead of the endogenous PbMSP1₁₉. The hybrid parasites were used to challenge C57BL/6 or BALB/c mice immunized with PvMSP1₁₉-based vaccine formulations. The PvMSP1₁₉ was correctly expressed in the P. berghei hybrid mutant lines as confirmed by immunofluorescence using anti-PvMSP1₁₉ monoclonal antibodies and by Western blot. Replacement of the PbMSP1₁₉ by the PvMSP1₁₉ had no impact on asexual growth in vivo. High titers of specific antibodies to PvMSP1₁₉ were not sufficient to control initial parasitemia in the immunized mice, but late parasitemia control and a balanced inflammatory process protected these mice from dying, suggesting that an established immune response to PvMSP1₁₉ in this model can help immunity mounted later during infection.

Introduction

Two Plasmodium species are responsible for the majority of malaria cases in the world: P. falciparum and Plasmodium vivax. Estimates from 2017 show that there were ~219 million cases and 435,000 deaths due to malaria (1). P. falciparum causes most of the severe malaria cases, with a death toll of thousands of children under the age of 5 years, mainly in Africa. P. vivax is present mainly in Southeast Asia and in South America (1). In Brazil, P. vivax is responsible for around 85% of malaria cases, affecting the population living in the Amazonian region and causing high morbidity, with an important economic impact (2).

Historically, disease eradication or efficient control has only been achieved with the use of effective vaccines. The most advanced malaria vaccine RTS,S/AS01, against P. falciparum, completed phase III clinical trial (3) with 27–39% efficacy after a four-dose regimen in infants and children in sub-Saharan African countries. This vaccine is based on the antigen Circumsporozoite Protein (CSP), the most abundant protein on the surface of sporozoites (4), and thus targets the pre-erythrocytic stages of the parasite. Based on the phase III trial results, RTS,S/AS01 received approval to be piloted in Malawi, Kenya, and Ghana. In parallel, efforts to improve the modest efficacy of RTS,S/AS01 observed so far include the development of vaccines targeting other stages or antigens of the parasite to be combined with the RTS,S formulation (5–8).

Malaria elimination based on vaccines will require the development of a vaccine not only against P. falciparum, but also against P. vivax. Many research groups in Brazil and abroad are working on the development of a P. vivax vaccine based on the PvCSP antigen (9–11). However, it is reasonable to foresee, based on the results obtained with the clinical trials of RTS,S/AS01, that a P. vivax vaccine based only on the PvCSP may not be fully effective by itself. The development of vaccines based on P. vivax blood stage antigens is important so they can be combined with future PvCSP-based formulations. P. vivax blood stage antigens like the Duffy Binding Protein (PvDBP), Merozoite Surface Protein 1 (PvMSP1), or Apical Membrane Antigen 1 (PvAMA1) continue in the pipeline of malaria vaccine development. So far, few vaccine formulations based on P. vivax blood stage antigens have undergone clinical trials. The lack of a continuous P. vivax laboratory culture has so far thwarted efficacy tests of these available vaccine formulations in pre-clinical studies, which is an obvious obstacle to progress with these formulations to clinical tests in humans. The mouse-infecting P. berghei has been used for efficacy tests of PvCSP-based formulations (10, 11). These studies used P. berghei hybrid mutant lines expressing the PvCSP to challenge mice immunized with formulations based on the P. vivax antigen. The same strategy could accelerate the pre-clinical development of formulations based on P. vivax blood stage antigens.

The MSP1 is the most abundant protein on the merozoite surface and therefore considered of high vaccine potential. The MSP1 high-molecular-weight precursor is synthetized during schizogony and undergoes proteolytic cleavages resulting in four polypeptides complexed on the parasite surface (12). MSP1 processing post-schizogony is essential for merozoite egress from the erythrocyte host cell (13). During merozoite invasion of a new erythrocyte host, the 42-kDa C-terminal region of MSP1, named MSP1₄₂, is processed into two polypeptides, MSP1₃₃ and MSP1₁₉, and the bulk complex is shed from the surface (14). The 19-kDa C-terminal end, named MSP1₁₉, remains attached at the merozoite surface after invasion and has been used as a protective antigen in different models (15, 16).

Many vaccine formulations based on the PvMSP1₁₉ or PvMSP1₄₂ sequences have been developed and had their immunogenicity in mice, and sometimes in non-human primates, studied (17–28). In the last years, we developed recombinant proteins based on the sequence of the PvMSP1₁₉ formulated in different adjuvant systems. For instance, the HIS₆-PvMSP1₁₉ and HIS₆-PvMSP1₁₉-PADRE recombinant proteins, the latest fused to the Pan-Allelic-DR-Epitope (PADRE), expressed in bacteria and purified, were recognized by sera from P. vivax-exposed individuals and showed immunogenicity in C57BL/6 and BALB/c mice (18, 19), as well as in non-human primates (21). The TLR5 agonist flagellin of Salmonella (FliC) was later fused to these antigens and the resulting recombinant protein HIS₆-FliC-PvMSP1₁₉-PADRE was highly immunogenic in mice (24). More recently, the PvMSP1₄₂ sequence was fused to a recombinant mAb containing the heavy chain of the mouse αDEC205, resulting in a recombinant antibody, αDEC-PvMSP1₄₂, that targets the antigen directly to dendritic cells to induce high specific antibody titers (26). Although inducing strong immunological responses in different animal models, these formulations have not been tested against parasites due to the lack of P. vivax cultures.

Here we used the murine malaria model P. berghei to generate two transgenic P. berghei lines expressing the PvMSP1₁₉. These transgenic parasites were used to challenge mice immunized with vaccine formulations based on the sequences of PvMSP1₁₉ or PvMSP1₄₂.

Experimental Procedures

Mice

Four- to six-week-old female C57BL/6 and BALB/c mice were bred at the Isogenic Mouse Facility of the Parasitology Department, Institute of Biomedical Sciences, University of São Paulo, Brazil. All protocols were approved by the Institutional Animal Care and Use Committee (CEUA) of the Institute (protocol number 132/2014) and all the animals were handled according to the Brazilian College of Animal Experimentation guidelines. All experimental methods were performed in accordance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals and the Brazilian National Law (11.794/2008).

Plasmids

To generate the pPb/PvMSP1₁₉ plasmids, 1,526 bp of the sequence upstream the P. berghei ANKA MSP1₁₉ (nucleotides 3,521–5,046 of the genomic sequence of PBANKA_0831000 in PlasmoDB.org) and the first 611 bp of the msp1 3′UTR were cloned flanking the sequence of the P. vivax MSP1₁₉ (318 bp, amplified from DNA of parasites isolated from a Brazilian patient and kindly provided by Dr. Marcelo U. Ferreira) followed by the P. berghei trap 3′UTR (600 bp) and a human Dihydrofolate Reductase cassette (hDHFR) (29) using as background the pBlueScript (pBS-SK+) vector (Figure 1A and Supplementary Table 1 for primer sequences). The cloned PvMSP1₁₉ was sequenced and is identic to the sequences of P. vivax Sal-I and Belém strains (Supplementary Figure 1). For transfections of the P. berghei NK65 line, a Green Fluorescent Protein (GFP) cassette (29) was inserted between the hDHFR cassette and the msp1 3′UTR sequence in the pPb/PvMSP1₁₉ plasmid at SmaI site (Figure 1B). The final vectors contain two homologous regions to target integration by double crossover at the P. berghei MSP1 locus replacing the endogenous MSP1₁₉ by the P. vivax MSP1₁₉ sequence.

FIGURE 1

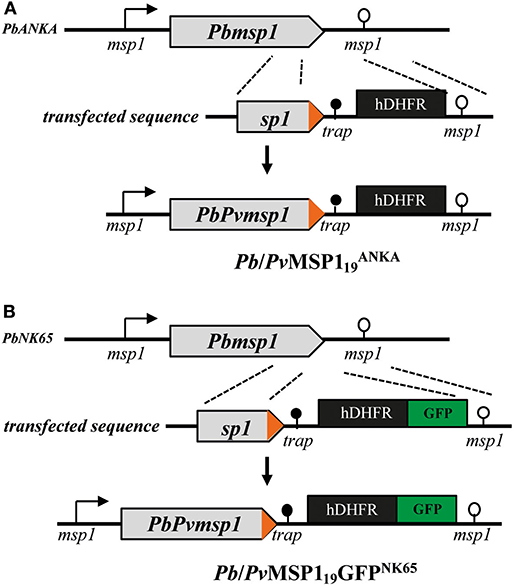

Figure 1. Strategy for generating the modified MSP1 locus. Modification of the MSP1 locus in P. berghei ANKA (PbANKA) (A) and in P. berghei NK65 (PbNK65) (B) for the generation of the Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$ and of the Pb/PvMSP1₁₉GFP^NK65 hybrid parasites, respectively. Arrow boxes, coding sequences; arrows, 5′UTR; open circle lollipop, 3′UTR of msp1; black circle lollipop, trap 3′UTR; black box, hDHFR selection marker cassette; green box, GFP cassette. P. berghei sequences are in gray and P. vivax sequences in orange.

P. berghei Transfection and Selection

The targeting sequence was removed from the plasmid with the restriction enzymes KpnI and NotI, gel purified (QIAquick Gel Extraction Kit, ref 28706, following the manufacturer's instructions), and transfected into P. berghei ANKA or NK65 lines following a detailed published protocol (30). The P. berghei ANKA and NK65 strains differ in virulence in C57BL/6 and BALB/c mice. The ANKA strain is generally more virulent and induces experimental cerebral malaria (ECM) in C57BL/6, while the NK65 is less virulent and does not induce ECM. P. berghei merozoites were electroporated with 5 μg of the targeting sequence using the “U33 program” of the Nucleofector™ 2b electroporator and injected intravenously in the caudal vein of two 4-week-old female BALB/c mice. Genetically transformed parasites were selected with 0.07 mg/ml pyrimethamine (Sigma, ref 46706) in the drinking water. Pyrimethamine-resistant parasites were cloned in mice by limiting dilution.

Genotype Analysis of Pyrimethamine-Resistant Parasites

Infected mice blood was lysed with 0.15% saponin, parasites were harvested by centrifugation for 3 min at 10,000 × g, and the pellet was washed twice with phosphate-buffered saline (PBS) and resuspended in 200 μl of PBS for gDNA purification (Qiagen “DNeasy Blood & tissue kit,” ref 69506) following the manufacturer's instructions. To confirm correct genetic modification into the target P. berghei locus, PCR was performed using specific primers for amplification of the WT or mutant loci (Supplementary Table 1 for primer sequences).

Immunofluorescence Assay

Parasite blood stages were synchronized during 16 h of incubation and separated with a Nycodenz 16.5% gradient to collect mature schizonts (30), which were fixed with 4% paraformaldehyde (PFA)−0.0075% glutaraldehyde, permeabilized with 0.1% Triton X-100, and blocked with 3% BSA. After 4°C overnight incubation with either anti-mouse PbMSP1 (MRA-667, Mus musculus, L1.6) or anti-mouse-PvMSP1₁₉ Mab K23 (24) diluted at 1/500 in PBS-3% BSA, the cells were washed and incubated for 30 min with Alexa Fluor® 488 conjugate [F(ab')2-Goat anti-Mouse IgG (H+L) Cross-Adsorbed Secondary Antibody, Life technologies, ref A11017], or Alexa Fluor® 568 [F(ab')2-Goat anti-Mouse IgG (H+L) Cross-Adsorbed Secondary Antibody, Life technologies, ref A11019]. Samples were then stained with DAPI and mounted in glass slides. Images were acquired on a fluorescence microscope (Axio Imager.M2, Zeiss) with a 100 × EC Plan-Neofluar 100x/1.30 Oil M27 objective (Zeiss) and processed using ImageJ-FiJi software (31).

Western Blotting

Pelleted mature schizonts were lysed in 0.5 ml RIPA buffer containing protease inhibitor for 10 min on ice and then centrifuged. The supernatant was loaded in an SDS-PAGE under reducing conditions for separation and transferred to a nitrocellulose membrane (Hybond, Amersham, ref 10600003), which was then blocked with TBST-milk (Tris Buffered Saline Tween 20–0.05%–milk 5%). After 4°C overnight incubation with either anti-mouse PbMSP1-Nt (MRA-667, Mus musculus, L1.6), PbMSP1-Ct (kindly provided by Dr. Robert Ménard), or anti-mouse-PvMSP1₁₉ Mab K23 (24) diluted at 1:2,000 v:v in TBST-milk, the membranes were washed and incubated for 1 h with goat anti-mouse-HRP [Goat anti-Mouse IgG (H+L) Cross-Adsorbed Secondary Antibody, HRP, ThermoFisher, ref A16072] or goat anti-rabbit-HRP [Goat anti-Rabbit IgG (H+L) Highly Cross-Adsorbed Secondary Antibody, HRP, ThermoFisher, ref A16110] as secondary antibody at room temperature. The signal was revealed with WestFemto Supersignal (Pierce, ref 34096) and images acquired using a ChemiDoc™ Imaging System (Bio-rad).

Immunization Regimen and Challenge

Different groups of female C57BL/6 or BALB/c (6 weeks old) mice were immunized three times subcutaneously with 10 μg of recombinant protein in combination with 50 μg Polyinosinic–polycytidylic acid [poly (I:C)] (Invivogen), at 3-week intervals. Antigens used were the following: HIS₆-PvMSP1₁₉: recombinant P. vivax MSP1₁₉ protein expressed in bacteria and purified by affinity followed by ion exchange chromatography (18); HIS₆-PvMSP1₁₉-PADRE: recombinant P. vivax MSP1₁₉ protein fused to the Pan-Allelic-DR-Epitope, PADRE, expressed in bacteria and purified by affinity followed by ion exchange chromatography (19); HIS₆-FliC-PvMSP1₁₉-PADRE: recombinant P. vivax MSP1₁₉ protein fused to the PADRE and the flagellin of Salmonella, expressed in bacteria and purified by affinity followed by ion exchange chromatography (24); αDEC-PvMSP1₄₂ recombinant mAb containing the heavy chain of the mouse αDEC205 fused to MSP1₄₂ of P. vivax (26). The purified recombinant proteins expressed in bacteria were subjected to endotoxin removal (Pierce, ref 88274). The amino acid sequences in the vaccine antigens compared to the MSP1₁₉ sequences of P. vivax strains and of the isolate used for the hybrid P. berghei strains are shown in Supplementary Figure 1. Control groups received only adjuvants or a saline solution. Three weeks after the last immunizing dose, groups were challenged intravenously with 5 × 10³ erythrocytes parasitized with the P. berghei Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$ or P. berghei Pb/PvMSP1₁₉GFP^NK65 mutant lines, obtained from previously infected donor mice. Parasitemia was monitored daily after challenge infection by microscopic examination of stained blood smears or by flow cytometry in the case of P. berghei Pb/PvMSP1₁₉GFP^NK65 challenge. Mice were euthanized when signs (one or more) of severe disease/illness were observed, characterized by ruffled fur, shivering, clear weight loss, irregular breathing, and difficulty to walk (32).

Serology, Mouse PvMSP₁₉ Antibodies

High-binding plates (Corning, ref 3590) were coated with 50 μl of 2 μg/ml HIS₆-PvMSP1₁₉ recombinant protein in PBS overnight at room temperature. The wells were blocked with a solution of PBS, 0.1% Tween (PBST) with 1% bovine serum albumin (BSA) and 5% low-fat milk for 1 h. Mice sera were added at serial three-fold dilutions starting at 1:200, v:v, and incubated for 2 h in PBST–BSA–low-fat milk. Anti-mouse IgG-HRP antibody (Peroxidase AffiniPure Goat Anti-Mouse IgG, Fcγ fragment specific, Jackson ImmunoResearch, ref 115-035-071) was added at 1:2,000, v:v, in PBST–BSA–low-fat milk in all wells and incubated for 2 h. Between all steps, plates are washed with PBS−0.02% Tween 20 (PBST). Finally, revelation buffer was added for 10 min, phosphate buffer (0.2 M, Na₂HPO₄), citric acid (0.2 M), pH 4.7, o-phenylenediamine dihydrochloride (OPD), and hydrogen peroxide (30% H₂O₂). Reaction was stopped with sulfuric acid (4N, H₂SO₄) and the optical density (OD) was read at 490 nm using an ELISA plate reader (BioTek, ELx800). Titers were determined as the log of the last serial dilution with OD >0.1. For the avidity assays, pooled sera were diluted to obtain an OD of ~1.0, and after the 2-h incubation, the wells were treated for 10 min with different concentrations of Urea ranging from 6 to 1 M in PBS. The plates were then washed for incubation with the secondary antibody and revelation.

Merozoite Invasion Assay

Plasmodium berghei Pb/PvMSP1₁₉-GFP^NK65 merozoites were obtained by filtering enriched cultures of schizonts, as described above for parasite preparation for transfection (30). Mature schizonts were filtered through 5-μm and then 1.2-μm filters yielding highly pure preparations of free merozoites. The merozoites were put in contact with 8 × 10⁷ mouse red blood cells in complete RPMI medium (RPMI 1640-GlutaMAX^TM; 20% FBS; 25 mM HEPES; 25 U/L Neomycin; filter 0.22 μm) in a 96-well-flat bottom plate. For the tests, the medium contained sera from immunized mice (before challenge or on day 10 after challenge) diluted at 1:1.5, v:v. Serum from a hyper-immune mouse (repeatedly infected and cured) and 10 μM cytochalasin D (33) were used as invasion blocking controls. After 4 h of culture at 37°C, 5% CO₂, 10% O₂, samples were washed twice with PBS and intracellular rings were counted in blood smears.

Cytometric Bead Array (CBA)

Groups of 4–6 weeks old female BALB/c and C57BL/6 were immunized with FliC-PvMSP1₁₉-PADRE or FliC-PvMSP1₁₉-PADRE + Poly (I:C), three times at 3-week intervals. Mice were challenged with 5 × 10³ P. berghei parasitized erythrocytes of Pb/PvMSP1₁₉-GFP^NK65. Sera were collected at D5 before challenge and at D10 post-challenge and stored at −80°C until use. Sera were analyzed using a cytometric bead array for IL-6, IL-10, MCP-1, IFN-γ, TNF-α, and IL-12p70 proteins following manufacturer's instructions (CBA mouse inflammation kit, BD 552364). Cytokine levels were measured with FACSCalibur (BD Bioscience) and data were analyzed with FCAP Array™ Software Version 3.0 (BD Bioscience).

Statistics and Analysis

One-way ANOVA followed by Tukey's honestly significantly different (HSD) test, or logrank (Mantel-Cox) test, were used to calculate statistical significance (p-values). Prism 6 software (GraphPad Software Inc., LA Jolla, CA) was used for all tests and differences were considered significant when p ≤ 0.05.

Results

Generation and Molecular Characterization of Pb/PvMSP1₁₉ Parasites

Wild-type (WT) P. berghei ANKA and P. berghei NK65 lines were transfected with sequences targeting integration in the MSP1 locus generating the Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$ and Pb/PvMSP1₁₉GFP^NK65 mutant lines (Figures 1A,B). Replacement of the P. berghei MSP1₁₉ by the P. vivax MSP1₁₉ (amino acid sequence shown in Supplementary Figure 1) occurred through double crossover homologous recombination replacing the last 330 bp of the Pbmsp1 coding sequence (PBANKA_0831000, PlasmoDB.org) by the last 318 bp of the Pvmsp1 coding sequence amplified from purified gDNA of parasites isolated from the blood of a P. vivax-positive Brazilian patient. The heterologous msp1 P. vivax sequences are followed by the 3′ UTR of P. berghei trap, an hDHFR cassette for drug selection and, in the case of the NK65 line, a GFP expression cassette (Figures 1A,B). After transfection, drug selection, and cloning, PCR analysis of gDNA from the mutant parasites confirmed specific homologous recombination (not shown).

The Pb/Pv${\text{MSP1}}_{19}^{\mathrm{\text{ANKA}}}$ and Pb/PvMSP1₁₉GFP^NK65 Lines Express the P. vivax MSP1₁₉

Correct PvMSP1₁₉ expression by the hybrid mutant clones was assessed by Western blot and immunofluorescence. Schizont extracts of P. berghei ANKA (WT), P. berghei NK65 (WT), Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$, and Pb/PvMSP1₁₉GFP^NK65 were analyzed by Western blot with monoclonal antibodies specific to the N-terminal region of PbMSP1 (αPbMSP1 Nt), the C-terminal region of PbMSP1 (αPbMSP₁₉), and αPvMSP1₁₉ (K23 mAb). The N-terminal region of PbMSP1, not modified by the recombination events, was recognized in all extracts, while the PbMSP1₁₉ was only present in the WT extracts and the PvMSP1₁₉ in the mutant lines (Figures 2A,B). In immunofluorescence assays, the N-terminal region of PbMSP1 (αPbMSP1 Nt) was stained in all parasite lines showing correct expression on the merozoite surface, while αPvMSP1₁₉ (K23 mAb) staining was only visible on the surface of the mutant lines (Figures 2C,D). GFP expression was visible in the cytoplasm of Pb/PvMSP1₁₉GFP^NK65 mutant merozoites (Figure 2D), enabling FACS analysis for assessment of parasitemia in infections with this line. These results confirm that the Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$ and Pb/PvMSP1₁₉GFP^NK65 mutant lines correctly express PvMSP1₁₉ with no longer expression of PbMSP1₁₉.

FIGURE 2

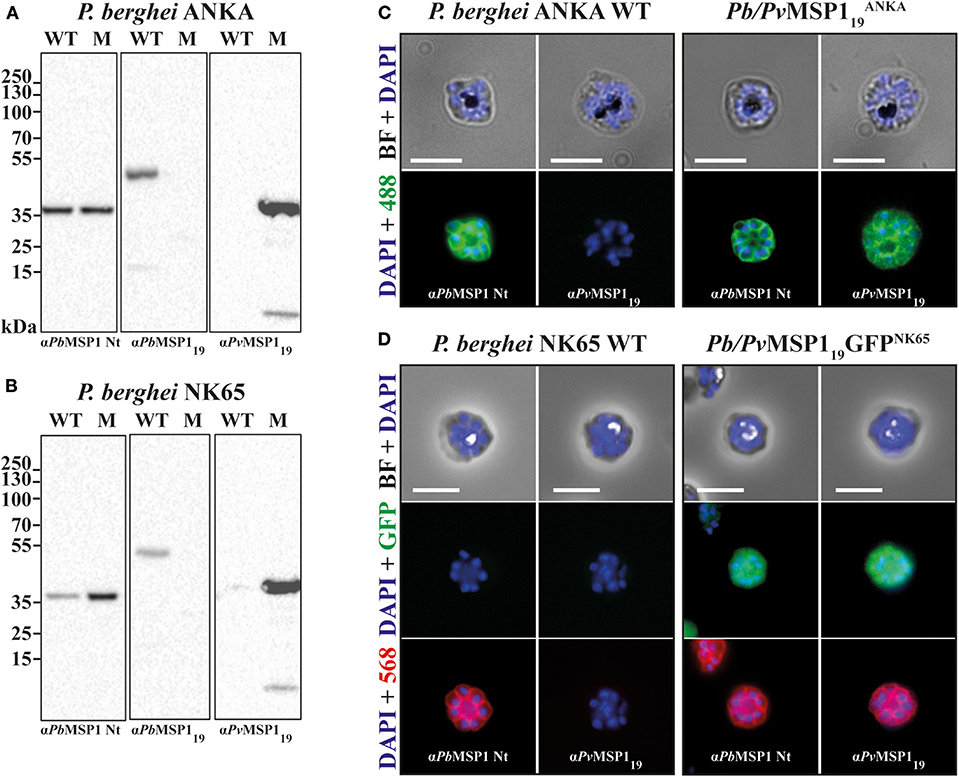

Figure 2. The P. vivax MSP1₁₉ is correctly expressed in the hybrid Pb/Pv lines. Western blot analysis on RIPA extracts of P. berghei ANKA (A) and NK65 (B) wild type (WT) and mutant (M) lines schizonts using monoclonal antibodies to the N-terminal (αPbMSP1 Nt) and C-terminal (αPbMSP1₁₉) regions of the P. berghei MSP1, and to the 19-kDa C-terminal region of P. vivax αPvMSP1₁₉. Immunofluorescence on fixed and permeabilized schizonts of P. berghei ANKA WT and Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$ (C), and of P. berghei NK65 WT and Pb/PvMSP1₁₉GFP^NK65 (D) using monoclonal antibodies to the N-terminal (αPbMSP1 Nt) regions of the P. berghei MSP1, and to the 19-kDa C-terminal region of P. vivax αPvMSP1₁₉. Secondary antibodies are Alexa Fluor-488 or−568. Cells were mounted between lamina and diluted in PBS containing DAPI. Scale bars: 5 μm.

Intraerythrocytic Multiplication

The asexual blood stage multiplication of the hybrid mutant lines Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$ and Pb/PvMSP1₁₉GFP^NK65 was assessed by following the daily parasitemia of groups of C57BL/6 (ANKA lines) or BALB/c (NK65 lines) mice infected with 5 × 10³ iRBC intravenously with either the mutant lines or their respective WT background, P. berghei ANKA or NK65. Parasitemia was monitored for 7 days (ANKA) or 11 days (NK65) by blood smears. The intraerythrocytic development of the two mutant lines Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$ (Figure 3A) and Pb/PvMSP1₁₉GFP^NK65 (Figure 3B) was similar to the WT lines. Therefore, replacement of P. berghei ANKA or NK65 MSP1₁₉ by the P. vivax MSP1₁₉ had no impact on the parasite ability to multiply in the host blood, indicating that host cell invasion, intraerythrocytic schizogony, and merozoite egress of the hybrid mutant merozoites occur normally.

FIGURE 3

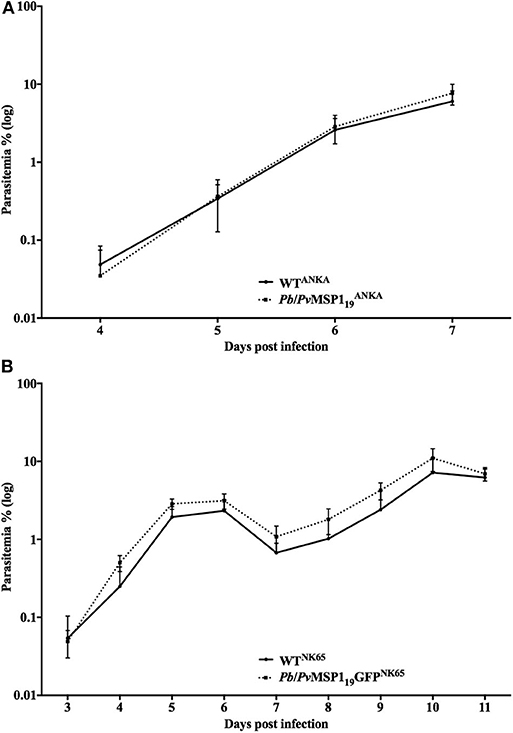

Figure 3. In vivo multiplication of the mutant Pb/PvMSP1 lines is similar to that of WT parasites. (A) C57BL/6 mice (n = 5) were infected i.v. with 10³ red blood cells infected with P. berghei ANKA WT (WT^ANKA) or with the hybrid line Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$. Parasitemia was followed daily by blood smears. (B) BALB/c mice (n = 5) were infected i.v. with 10³ red blood cells infected with P. berghei NK65 WT (WT^NK65) or with the hybrid line Pb/PvMSP1₁₉GFP^NK65. Parasitemia was followed daily by blood smears.

Pb/Pv${\text{MSP1}}_{19}^{\mathrm{\text{ANKA}}}$ Challenge

To test the ability of vaccine formulations based on the PvMSP1₁₉ to induce protective immunity in mice against the ANKA mutant line, C57BL/6 mice were immunized with HIS₆-PvMSP1₁₉ + poly (I:C), HIS₆-PvMSP1₁₉-PADRE + poly (I:C), HIS₆-FliC-PvMSP1₁₉-PADRE, or HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) (Figure 4). These antigens have been characterized in previous works, inducing strong specific cellular and humoral immune responses in mice (18, 21, 24). Control groups consisted of mice immunized with a non-related antigen (ovalbumin, OVA) or with purified flagellin from Salmonella (FliC) combined with poly (I:C). After three immunizing doses, mice that received the formulations based on the PvMSP1₁₉ sequence had high titers of specific anti-PvMSP1₁₉ in the sera compared to mice in the control groups (Figures 4A,D). Three weeks after the third immunizing dose, the groups were challenged intravenously with 5 × 10³ erythrocytes parasitized with the P. berghei Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$ line. Despite the high specific anti-PvMSP1₁₉ titers in the sera, mice immunized with PvMSP1₁₉-based formulations were not able to control parasite multiplication in the blood, as there were no differences in the time course of parasitemia in these mice compared to controls (Figures 4B,E). In all challenged mice, regardless of the immunizing group, a rapid increase of parasitemia was observed until day 6 post-challenge (Figures 4B,E) when characteristic signs of cerebral malaria, mostly ataxia and ruffled hair, started to appear. Most mice succumbed infection between days 6 and 11 post-challenge (Figures 4C,F), likely of cerebral complications. Individuals that survived after day 11 post-challenge were still not able to control parasitemia (Figures 4B,E), regardless of immunization.

FIGURE 4

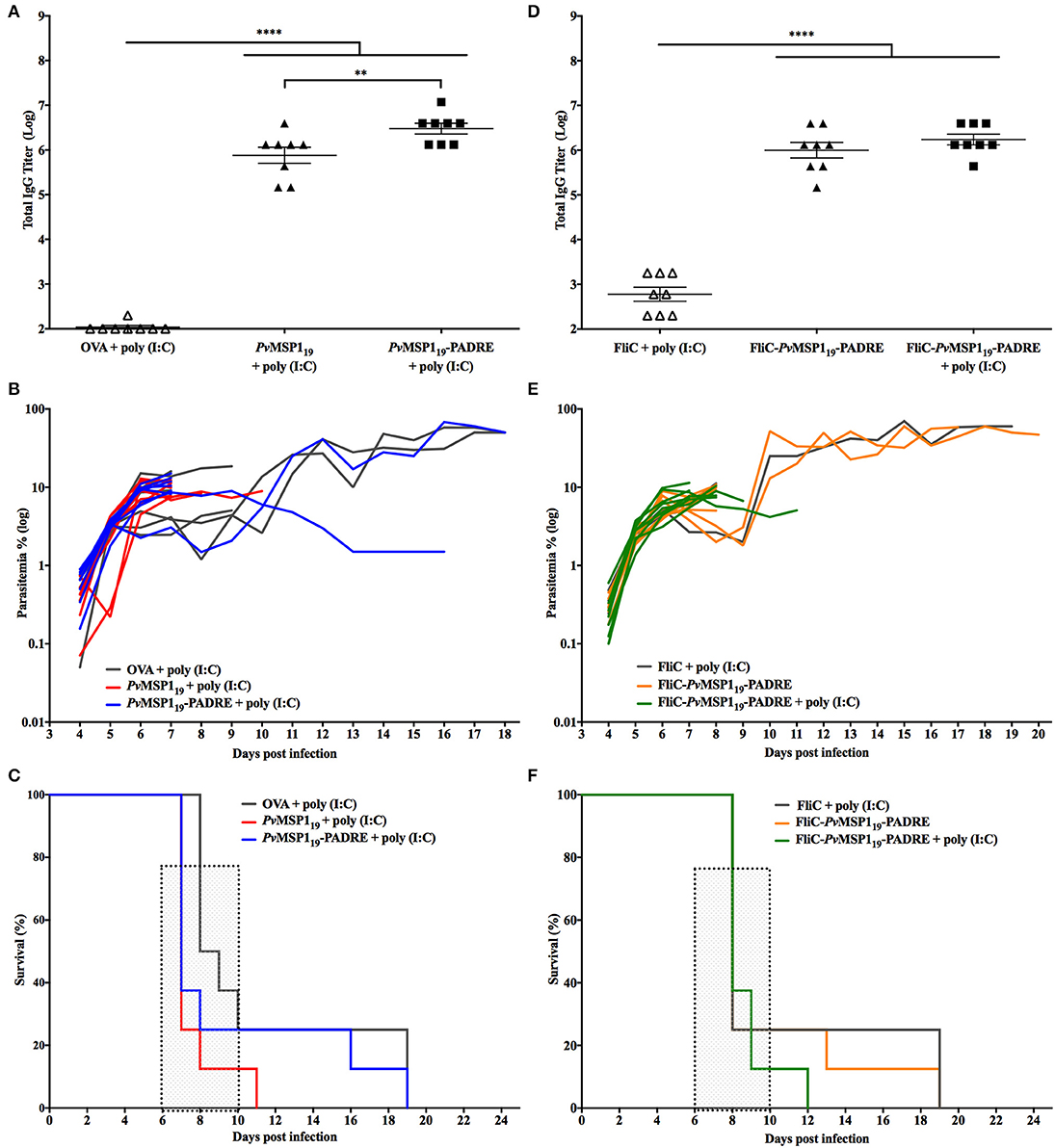

Figure 4. Immunizations with PvMSP1₁₉-based formulations do not protect C57BL/6 mice from challenge with Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$. C57BL/6 mice (n = 8) were vaccinated with three immunizing doses of HIS₆-PvMSP1₁₉ + poly (I:C), HIS₆-PvMSP1₁₉-PADRE + poly (I:C), HIS₆-FliC-PvMSP1₁₉-PADRE, HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C), or with the control formulations Ovalbumin (OVA) + poly (I:C) or Flagellin (FliC) + poly (I:C). HIS₆- is omitted from the name of the recombinant proteins in the figure. (A,D) Total IgG titers (Log) after the third immunizing dose. Each symbol represents one animal of the indicated groups. (B,E) Mice were challenged i.v. with 5 × 10³ red blood cells infected with the hybrid line Pb/Pv${\text{MSP1}}_{19}^{\text{ANKA}}$ and the parasitemia was followed daily by blood smears. Each line represents one mouse of the indicated groups. (C,F) Mortality curves of the indicated groups. Dashed boxes show the window of time when typic cerebral complications occur. One-way ANOVA followed by Tukey's HSD test: **p < 0.01 and ****p < 0.0001.

Pb/PvMSP1₁₉-GFP^NK65 Challenge

Since the P. berghei ANKA strain is known to produce very virulent infections in C57BL/6 mice, we tested the ability of vaccine formulations based on the PvMSP1₁₉ to induce protective immunity in C57BL/6 mice against the P. berghei NK65 strain, which does not induce cerebral complications. For this, C57BL/6 mice were immunized with the same formulations described in the section above and challenged 3 weeks after the third immunizing dose with 5 × 10³ erythrocytes parasitized with the P. berghei Pb/PvMSP1₁₉GFP^NK65 mutant line. Three immunizing doses with PvMSP1₁₉-based formulations induced high specific anti-PvMSP1₁₉ titers in the sera of mice when compared to mice from the control groups (Figures 5A,D). As observed with the ANKA mutant line, in all mice challenged with the NK65 mutant line, a rapid increase of parasitemia was observed until day 6 post-challenge (Figures 5B,E), indicating that the specific anti-PvMSP1₁₉ induced by vaccination are not able to control parasite multiplication. After day 6 post-challenge, almost all mice, regardless of the immunizing group, controlled the infection as observed by a drop in parasitemia, which increased again at day 8 post-challenge (Figures 5B,E), a characteristic course of parasitemia over time observed in mice infected with the P. berghei NK65 strain (Figure 3B). Mice infections with the P. berghei NK65 strains can last for more than 30 days and were thus followed for up to 52 days after challenge, with parasitemia monitored daily. The mice immunized with HIS₆-PvMSP1₁₉ + poly (I:C) (Figure 5C) or with HIS₆-FliC-PvMSP1₁₉-PADRE (Figure 5F) died between days 20 and 32 post-challenge like the mice in the control groups. In contrast, mice immunized with HIS₆-PvMSP1₁₉-PADRE + poly (I:C) (Figure 5C) or HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) (Figure 5F) survived longer after the challenge, with two mice immunized with HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) being able to control the parasitemia, one of them clearing the parasites from the blood.

FIGURE 5

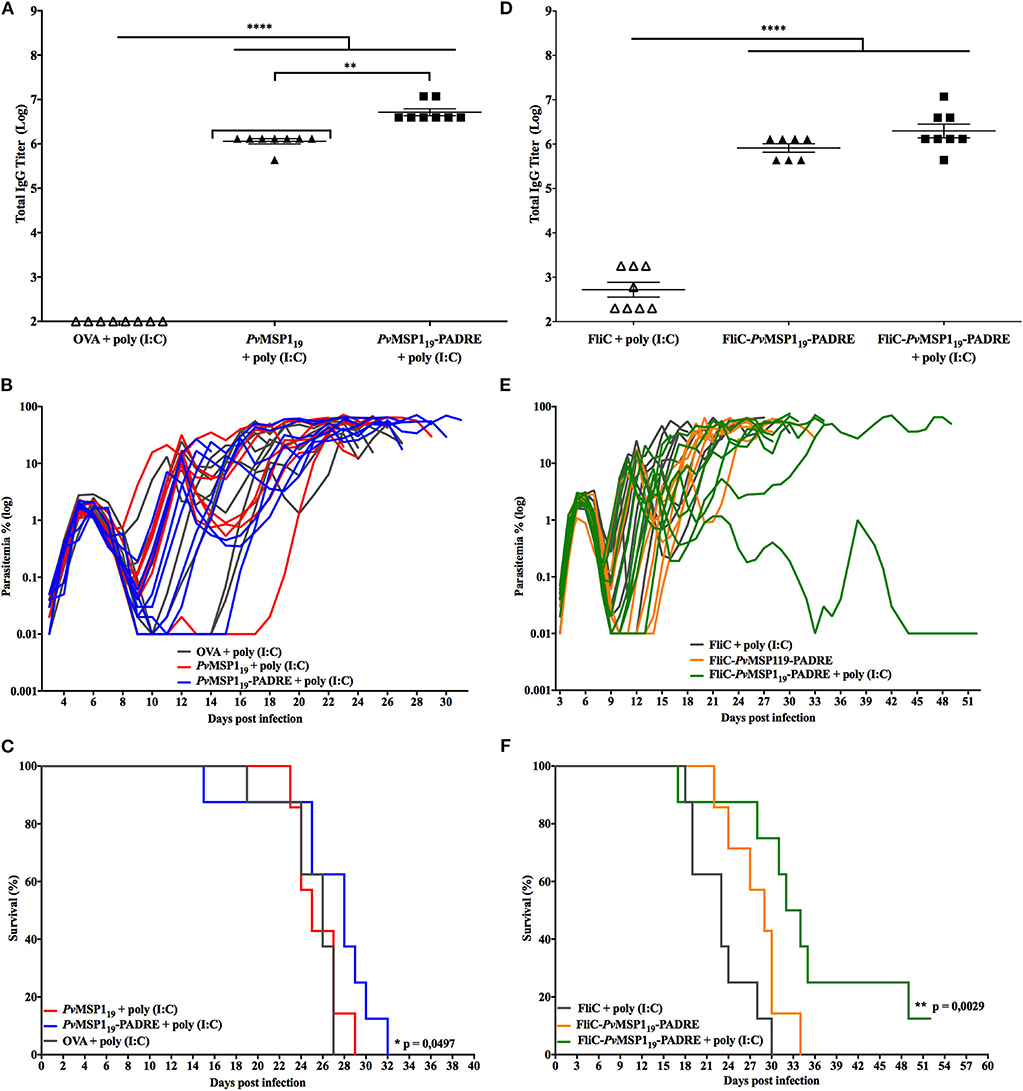

Figure 5. Immunizations with PvMSP1₁₉-based formulations partially protect C57BL/6 mice from challenge with Pb/PvMSP1₁₉GFP^NK65. C57BL/6 mice (n = 8) were vaccinated with three immunizing doses of HIS₆-PvMSP1₁₉ + poly (I:C), HIS₆-PvMSP1₁₉-PADRE + poly (I:C), HIS₆-FliC-PvMSP1₁₉-PADRE, HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C), or with the control formulations Ovalbumin (OVA) + poly (I:C) or Flagellin (FliC) + poly (I:C). HIS₆- is omitted from the name of the recombinant proteins in the figure. (A,D) Total IgG titers (Log) after the third immunizing dose. Each symbol represents one animal of the indicated groups. (B,E) Mice were challenged i.v. with 5 × 10³ red blood cells infected with the hybrid line Pb/PvMSP1₁₉GFP^NK65 and the parasitemia was followed daily by flow cytometry. Each line represents one mouse of the indicated groups. (C,F) Mortality curves of the indicated groups. One-way ANOVA followed by Tukey's HSD test: *p < 0.05; **p < 0.01; and ****p < 0.0001. For mortality curves: Mantel-Cox test.

To further investigate the ability of the PvMSP1₁₉-based formulations to induce protective immunity against P. berghei NK65 challenge, we immunized BALB/c mice, more resistant than C57BL/6 mice to P. berghei infections, with HIS₆-PvMSP1₁₉-PADRE + poly (I:C), HIS₆-FliC-PvMSP1₁₉-PADRE, HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C), or αDEC-PvMSP1₄₂ + poly (I:C), a recombinant mAb containing the heavy chain of the mouse αDEC205 fused to MSP1₄₂ of P. vivax (26). All PvMSP1-based formulations induced high specific antibody titers in BALB/c mice (Figure 6A). As observed after C57BL/6 mice challenged with the P. berghei NK65 strain (Figures 5B,E), BALB/c mice could not control initial parasitemia after challenge (Figures 6B–E). In all mice of either control or immunized groups, the parasites multiplied until day 6 post-challenge in a first wave of parasitemia, which decreased between days 6 and 9 post-challenge and came up again until day 11 in a second wave of parasitemia (Figures 6B–E). After day 11, parasitemia increased in almost all mice in the control group, which died between days 16 and 19 post-challenge (Figure 6F). On the other hand, at least half the mice immunized with PvMSP1-based formulations controlled parasitemia after day 11 (Figures 6B–E) and survived infection (Figure 6F). In the group immunized with HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C), only one mouse died from infection (Figure 6D), with this formulation being the most efficient in inducing protective immunity in BALB/c mice challenged with the P. berghei NK65 mutant strain.

FIGURE 6

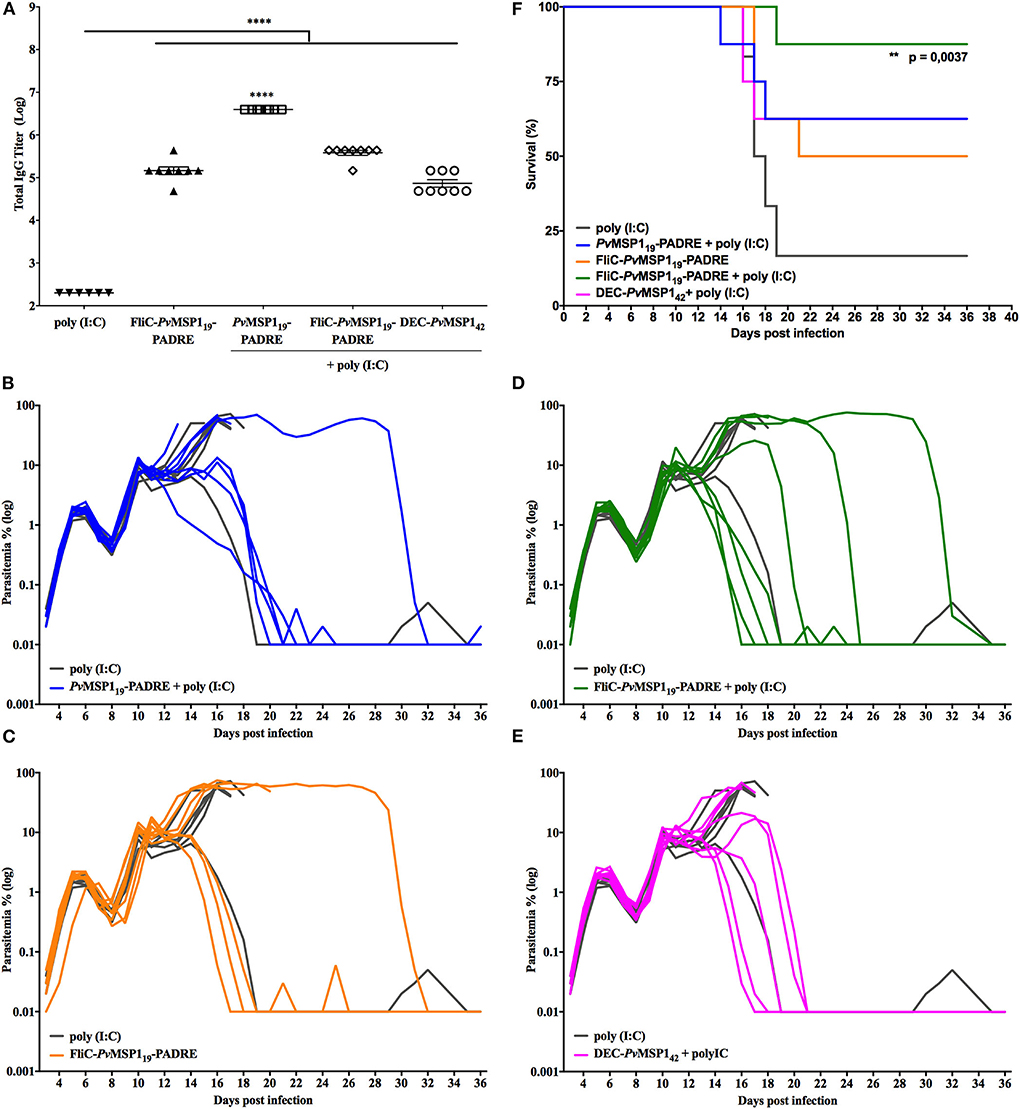

Figure 6. Immunizations with HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) protects BALB/c mice from challenge with Pb/PvMSP1₁₉GFP^NK65. BALB/c mice (n = 8) were vaccinated with three immunizing doses of HIS₆-PvMSP1₁₉-PADRE + poly (I:C), HIS₆-FliC-PvMSP1₁₉-PADRE, HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C), αDEC-PvMSP1₄₂ + poly (I:C), or poly (I:C) alone as a control (n = 6). HIS₆- is omitted from the name of the recombinant proteins in the figure. (A) Total IgG titers (Log) after the third immunizing dose. Each symbol represents one animal of the indicated groups. (B–E) Mice were challenged i.v. with 5 × 10³ red blood cells infected with the hybrid line Pb/PvMSP1₁₉GFP^NK65 and the parasitemia was followed daily by flow cytometry. Each line represents one mouse of the indicated groups. (F) Mortality curves of the indicated groups. One-way ANOVA followed by Tukey's HSD test: **p < 0.01 and ****p < 0.0001. For mortality curves: Mantel-Cox test.

Immunological Responses Induced by the Protective Immunization of BALB/c Mice

To explore which immunological mediators could be responsible for the protective immunity induced by the formulations used for vaccination of BALB/c mice, we first characterized the humoral immune response induced by vaccination immediately before challenge and on day 10 post-challenge, when parasitemia control starts in vaccinated mice. As already shown (Figure 6A), all PvMSP1-based formulations induced high titers of PvMSP1₁₉-specific total IgG, which were maintained on day 10 post-challenge (Figure 7A). At day 10 post-challenge, an anti-parasite humoral response is already present, as observed by the increase of specific antibody titers in the control mice (Figure 7A). This increasing humoral response to parasite antigens may explain the small decrease of specific anti-PvMSP1₁₉ titers in the groups immunized with HIS₆-PvMSP1₁₉-PADRE + poly (I:C) and HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) (Figure 7A), likely due to an exhaustion of the immune response. The PvMSP1₁₉-specific titers before challenge and 10 days post-challenge of the IgG subclasses IgG1 (Figure 7B), IgG2a (Figure 7C), IgG2b (Figure 7D), and IgG3 (Figure 7E) were maintained or increased in the most protected group, HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C), and in the group that received αDEC-PvMSP1₄₂ + poly (I:C), while in the group immunized with HIS₆-PvMSP1₁₉-PADRE + poly (I:C), the subclasses titers were reduced at day 10 compared to before challenge. These results indicate that there is an evident, yet expected, modulation of the humoral specific immune response to PvMSP1₁₉ in the course of infection. The relative increase in subclasses titers in the group immunized with αDEC-PvMSP1₄₂ + poly (I:C) is likely due to the lower titers in this group before challenge, while the maintenance or increase of the subclasses titers in the group immunized with HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) may be linked to the better protection observed for this group.

FIGURE 7

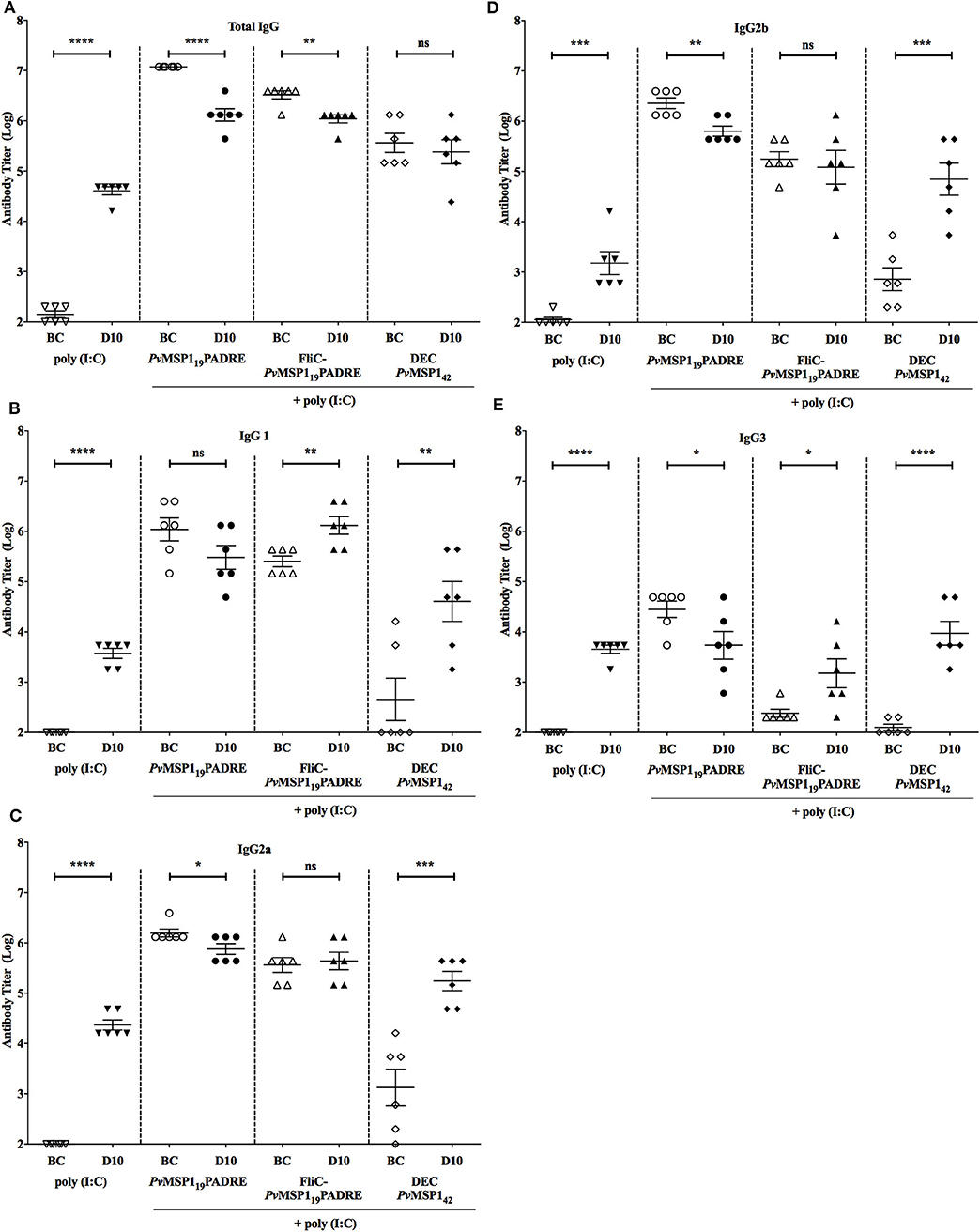

Figure 7. Antibody responses in vaccinated mice before challenge and at day 10 post-challenge. Sera titers of total IgG (A), IgG1 (B), IgG2a (C), IgG2b (D), and IgG3 (E) of BALB/c mice in each indicated group (n = 6) before challenge (BC) and at day 10 (D10) post-challenge. Unpaired t-test: ns, non-significant; *p < 0.05; **p < 0.01; ***p < 0.001; and ****p < 0.0001.

We then investigated whether the survival of the vaccinated mice without initial parasite control could be explained by a modulation of the inflammatory status during infection. For this, the levels of serum inflammatory and anti-inflammatory cytokines were measured before challenge (BC) and on day 10 post-challenge (D10) (Figure 8). An overall increase in cytokine levels due to infection was observed (BC to D10). On the other hand, there were no important differences when comparing in the same time points (BC × BC and D10 × D10 between groups) the absolute sera levels of the inflammatory cytokines interferon gamma (IFN-γ), tumor necrosis factor alpha (TNF-α), interleukin (IL) 12p70 (IL-12p70), IL-6, and monocyte chemoattractant protein 1 (MCP-1), as well as of the immunoregulatory cytokine IL-10 (Figures 8A–F). Despite no important differences in the absolute levels of the measured cytokines on D10 post-challenge, the immunized protected groups had a more balanced inflammatory systemic response as observed by the ratios IFN-γ/IL-10 (Figure 9A) and TNF-α /IL-10 (Figure 9B), also reflecting in a higher ratio IgG1/IgG2a (Figure 9C) in the most protected group immunized with HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C). These results indicate that immunization with the PvMSP1₁₉-based formulations promotes an immunological environment that controls the systemic inflammatory process induced by Plasmodium infection, which may contribute to protection by reducing tissue damage. However, a balanced inflammatory response does not explain the parasitemia control observed in the challenged protected mice after D10 post-challenge (Figures 6B–E).

FIGURE 8

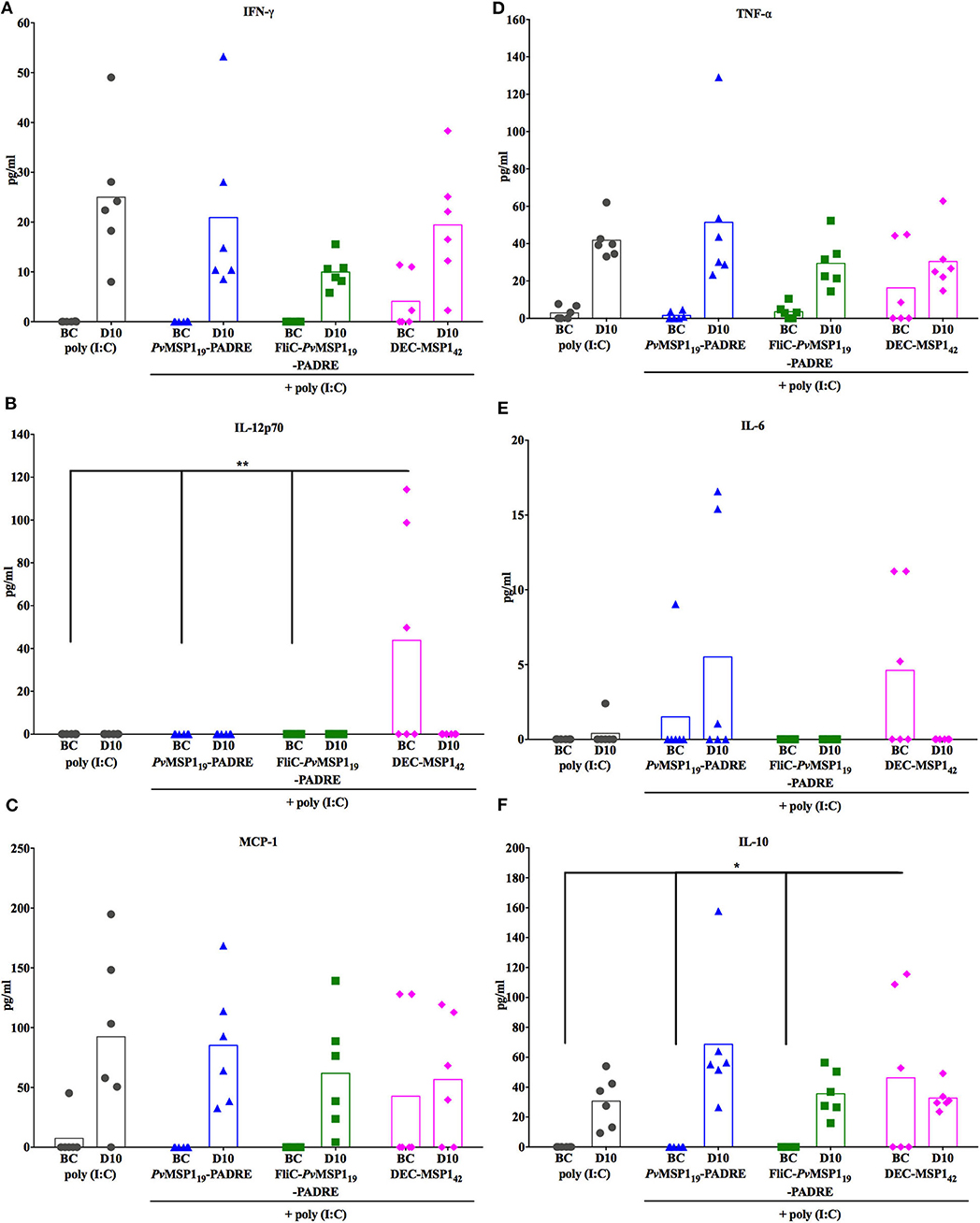

Figure 8. Cytokine responses in vaccinated mice before challenge and at day 10 post-challenge. The amounts of IFN-γ (A), IL-12p70 (B), MCP-1 (C), TNF-α (D), IL-6 (E), and IL-10 (F) were measured by CBA in the sera of mice from the indicated groups (n = 6) before challenge (BC) and at day 10 (D10) post-challenge. One-way ANOVA followed by Tukey's HSD test: ns, non-significant; *p < 0.05 and **p < 0.01.

FIGURE 9

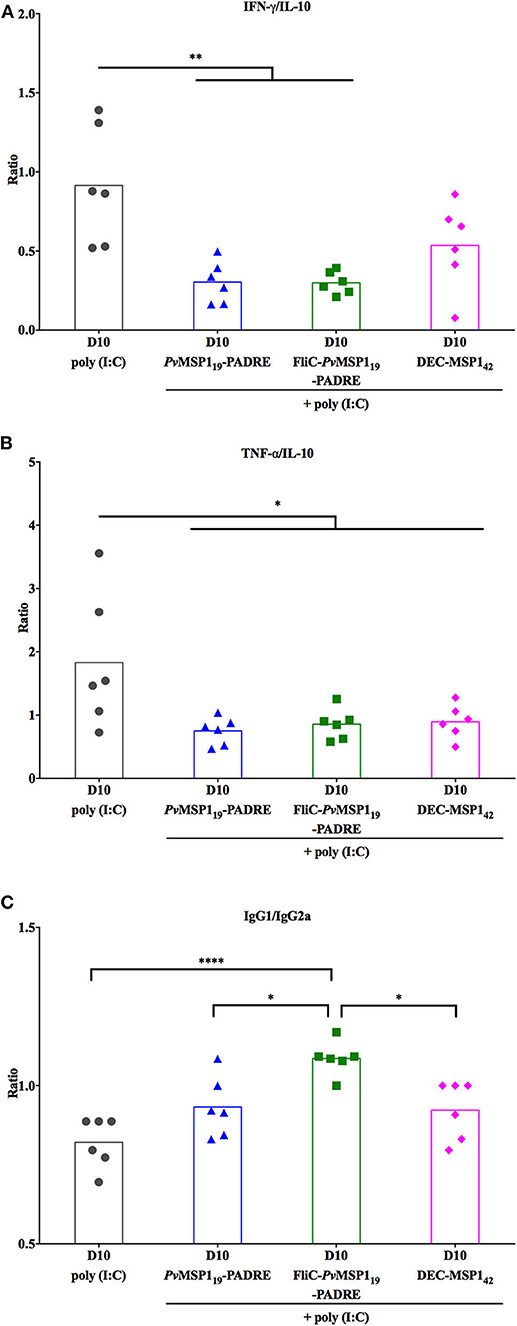

Figure 9. Cytokine and IgG subclasses ratios in vaccinated mice at day 10 post-challenge. IFN-γ/IL-10 (A), TNF-α /IL-10 (B), and IgG1/IgG2a (C). One-way ANOVA followed by Tukey's HSD test: *p < 0.05; **p < 0.01; and ****p < 0.0001.

Merozoite Invasion Inhibition by Sera From Immunized Mice

The logic of using merozoite surface antigens as vaccine targets is to induce antibodies that block merozoite invasion of host erythrocytes. Therefore, we assessed the ability of the immunized mice sera to inhibit merozoite invasion in vitro. For this, isolated P. berghei Pb/PvMSP1₁₉GFP^NK65 (Figure 10A) or WT NK65 (Figure 10B) merozoites were incubated with fresh mouse erythrocytes for 4 h and the number of infected cells (with early trophozoites—rings) was counted. As a positive control of invasion, the assay was done without added mouse serum. Negative controls of invasion were done by adding cytochalasin D (CytD) to the assay to block merozoite invasion or serum from a hyperimmune mouse (HI). Sera collected from naïve or immunized mice before challenge (BC) or on day 10 post-challenge (D10) with the Pb/PvMSP1₁₉GFP^NK65 were tested. Except for the HI serum, mice sera collected before challenge had no invasion inhibitory activity against mutant (Figure 10A) or WT (Figure 10B) merozoites regardless of immunization. This concurs with the observations that immunization of mice with the PvMSP1₁₉-based formulations did not induce an immunological response able to control initial parasitemia after infection (Figures 4–6). On the other hand, while 10 days of infection was not able to induce merozoite invasion inhibition by sera from naïve or poly (I:C) control mice (Figure 10), sera collected on day 10 post-challenge of mice immunized with HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) inhibited invasion of erythrocytes by Pb/PvMSP1₁₉GFP^NK65 merozoites (Figure 10A) and not by WT NK65 merozoites (Figure 10B). These results reveal that specific humoral responses to PvMSP1₁₉ raised by immunization may play a role in the control of parasitemia observed in vaccinated mice after day 10 post-challenge. We then tested the avidity of the specific total IgG antibodies to PvMSP1₁₉ induced by vaccination with HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) before and after challenge compared with the avidity of the antibodies induced during the course of infection in control mice. Although they were not able to mediate control of parasite growth in the first days of infection (Figure 6D), the antibodies induced by vaccination with HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) have higher avidity to PvMSP1₁₉ than the antibodies that are raised during the infection of control mice (Figure 10C). Interestingly, the avidity of the specific antibodies in vaccinated mice increases during infection, and at day 10 post-challenge, their binding to the antigen is significantly stronger than before challenge (Figure 10C). This increment in avidity to PvMSP1₁₉ may be necessary for the invasion-inhibitory activity observed at this time point and crucial for the protection of the immunized mice.

FIGURE 10

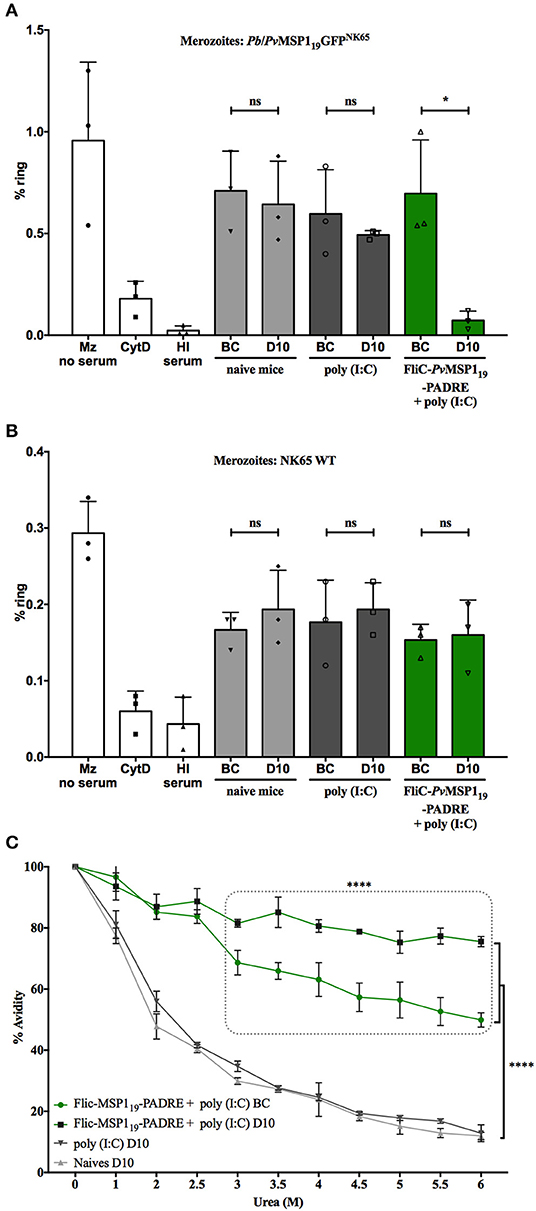

Figure 10. Sera from mice immunized with HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) and challenged inhibit merozoite invasion and has increased antibody affinity to PvMSP1₁₉. Inhibition of Pb/PvMSP1₁₉GFP^NK65 merozoites (A) or NK65 wild type (WT) merozoites (B) invasion of erythrocytes in vitro with pooled sera taken from naïve or poly (I:C) control mice, or from mice immunized with HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) before challenge (BC) and at day 10 (D10) post-challenge with Pb/PvMSP1₁₉GFP^NK65. Controls are assays with merozoites and erythrocytes with no added serum (Mz no serum), with cytochalasin D (CytD) or with added hyperimmune serum (HI serum). (C) Specific antibody affinity to PvMSP1₁₉ of pooled sera taken from mice immunized with HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) before challenge (BC) and at day 10 (D10) post-challenge with Pb/PvMSP1₁₉GFP^NK65, and of sera taken from naïve or poly (I:C) control mice at day 10 (D10) post-challenge with Pb/PvMSP1₁₉GFP^NK65. (A,B) Unpaired t-test: ns, non-significant; *p < 0.05. (C) One-way ANOVA followed by Tukey's HSD test: ****p < 0.0001.

Discussion

We have generated two new lines of P. berghei expressing the P. vivax MSP1₁₉ in place of the endogenous P. berghei MSP1₁₉. As previously observed with a P. berghei line expressing the P. falciparum MSP1₁₉ (34), the hybrid Pb/Pv lines generated here expressed the heterologous antigen correctly on the merozoite surface without impacting the parasite asexual growth. Immunizations with recombinant proteins based on the sequence of the PvMSP1₁₉ were not able to protect C57BL/6 mice from challenge with the P. berghei ANKA line expressing PvMSP1₁₉, likely due to the virulence of these infections leading to neurological complications in this mouse strain. On the other hand, PvMSP1₁₉-based vaccines protected C57BL/6 and specially BALB/c mice from challenge with the P. berghei NK65 line expressing PvMSP1₁₉. More than 50% of the vaccinated BALB/c mice survived the challenge with the NK65 line, a protection that was not mediated by initial parasite control, but by modulation of systemic inflammation and late parasite control.

The murine malaria model P. berghei has been explored for assessing the utility of P. falciparum MSP1 as a protective antigen. The levels of Pf MSP1₁₉-specific invasion inhibitory activity in vitro of sera from semi-immune BALB/c mice correlated with parasitemia control in the same mice after challenge with a P. berghei ANKA line expressing Pf MSP1₁₉ (Pb/Pf M19) (34). The Pb/Pf M19 chimeric strain was also used to challenge BALB/c mice receiving passive transfer of rabbit anti-Pf MSP1₄₂ IgG, with complete sterile protection observed (35). In two other studies, passive transfer of rabbit anti-Pf MSP1₁₉ or immunizations with formulations based on the Pf MSP1₁₉ sequence did not protect BALB/c or C57BL/6 mice from challenge with Pb/Pf M19 (36, 37). These disparities may be due to the use of different antigens and formulations for the mouse vaccinations and for raising rabbit antibodies for passive transfers, as well as for differences in mice colonies that may alter the kinetics of mouse infections with P. berghei. In our hands, no immunization with PvMSP1₁₉-based vaccines afforded initial control of parasite growth in mice challenged with the Pb/Pv chimeric lines, concurring with the absence of protection observed in these latter studies. However, we observed parasite control and protection after day 10 post-challenge of vaccinated mice, which may relate to the invasion inhibitory activity against Pb/Pf M19 of sera from semi-immune BALB/c mice previously observed (34). Interestingly, in a work using another murine malaria model of P. chabaudi infection of NMRI mice, vaccination with membranes of infected erythrocytes conferred protection against challenge without initial parasitemia control (38).

The immunological mechanisms that mediate late control of parasitemia after immunization are not fully clear. Our assays of in vitro merozoite invasion of erythrocytes showed that sera from BALB/c mice immunized with a protective formulation had no invasion inhibition activity before challenge, while almost completely inhibiting merozoite invasion when taken from the infected mice on day 10 post-challenge. This invasion inhibition was dependent on specific anti-PvMSP1₁₉, since the same sera could not inhibit P. berghei NK65 WT merozoite invasion of erythrocytes. The antibodies to PvMSP1₁₉ raised through vaccination appear to gain invasion–inhibitory activity during the course of infection. This increment in inhibitory activity is accompanied by an increase in antibody avidity to the antigen. The presence of the antigen during infection likely induces B cell affinity maturation in the germinal centers, and after 10 days of challenge, the secretion of antibodies with higher affinity starts to mediate parasite control. The gain in inhibitory activity may also be related to the recent observation that non-inhibitory monoclonal antibodies (mAbs) to the P. falciparum Reticulocyte binding protein homolog 5 (PfRh5) reduces the speed of merozoite invasion, increasing the time merozoites are target to invasion blocking antibodies and consequently increasing the invasion inhibition activity of inhibitory mAbs to PfRh5 (39). It is possible that, likewise, the presence of high titers of specific anti-PvMSP1₁₉ in vaccinated mice facilitate the invasion blocking activity of antibodies to other parasite antigens that are raised in the course of infection.

While the protective immunity induced after challenge involved the appearance of better antibodies to PvMSP1₁₉, it was only seen with the NK65 strain challenges. It has been proposed that P. berghei NK65 infections involve greater numbers of latent circulating merozoites than ANKA infections (40). The presence of more latent merozoites in NK65 infections would contribute to greater antigen exposure, increasing the effect of natural boost in infections with this strain in the vaccinated mice.

In our model, a part of the protective immunity observed after day 10 post-challenge can also be attributed to a modulation of the systemic inflammatory status of the infected mice. Mice immunized with PvMSP1₁₉-based formulations had lower IFN-γ/IL-10 and TNF-α/IL-10 ratios 10 days post-challenge, indicating a more balanced inflammatory response in these mice apparently mediated by reduced productions of IFN-γ and TNF-α rather than upregulation of IL-10. This immunomodulation may reduce immunopathology. While it is clear that proinflammatory immune responses are important to mediate parasite clearance in rodent infections and in humans (41), excessive production of inflammatory cytokines like IFN-γ and TNF-α is linked to the pathology associated with blood stage rodent infections (42). In humans, it is also clear that P. falciparum and P. vivax malaria pathology is largely mediated by proinflammatory cytokines like IFN-γ and TNF-α and higher levels of these cytokines or lower levels of IL-10 associate with severe diseases (43).

The most protective formulation tested in our work includes two adjuvants, poly (I:C) and flagellin, the latter being fused to the antigen. Formulations using only poly (I:C) as the adjuvant, in which the antigen was not fused to flagellin, conferred lower protection levels. Poly (I:C) is a TLR3 agonist (44), and flagellin is a potent adjuvant able to induce TLR5 (45) as well as NLRC4 (46) and NAIP5 (47) activation. The effects of flagellin in the cellular and humoral immune responses have been described in different models in vitro and in vivo (48, 49), inducing strong antibody responses with production of different IgG subtypes (including IgG1 and IgG2a) protective against a variety of pathogens (49). The strong immunomodulatory effects of flagellin combined with poly (I:C) may explain the protection immunity conferred by HIS₆-FliC-PvMSP1₁₉-PADRE + poly (I:C) immunizations.

Only few human trials assessing efficacy have been performed with formulations based on the sequence of the P. falciparum MSP1₄₂ (50, 51) with discouraging results. Although, in a pilot study, a delay in the time to diagnosis was observed in volunteers vaccinated with Pf MSP1₄₂ and challenged with sporozoites, this was not confirmed in an expanded trial (51). In a Phase IIb clinical trial conducted in Kenya, vaccination with Pf MSP1₄₂ did not delay the time for first malaria clinical episode in young children (50). These studies used as primary outcome time for patent parasitemia or first clinical malaria episode. Our results indicate that protective effects of MSP1₁₉- or MSP1₄₂-based vaccine formulations may be present only later in the course of infection, implying that clinical trials using these antigens would need to take the challenging and possibly unethical task of having outcomes on disease severity. P. vivax MSP1₁₉ are still in pre-clinical evaluation (52), with many formulations being developed, like the ones we used in this work. Since P. vivax infections are less severe, it may be possible for controlled trials to have later outcomes assessing vaccination effect during infection and not aiming at sterile protection (patent parasitemia). Vaccine-induced sterile immunity to Plasmodium asexual stages seems indeed an almost impossible challenge, since naturally acquired immunity is not sterile and diminishes without constant exposure to infectious bites (53), but a vaccine targeting these stages and inducing clinical immunity may greatly reduce the tolls on development in early infancy imposed by P. vivax endemicity (54).

Data Availability Statement

The datasets generated for this study are available on request to the corresponding author.

Ethics Statement

This animal study was reviewed and approved by the Committee on the Ethics of Animal Experiments of the Institute of Biomedical Sciences of University of São Paulo, Brazil (CEUA No. 132/2014).

Author Contributions

ID and DB designed the study and wrote the manuscript. ID, TC, AG, OM, and KA performed research work. ID, SB, IS, and DB analyzed the data. CM, SB, and IS contributed reagents and materials. All authors read and approved the final version of the manuscript.

Funding

ID was supported by a FAPESP fellowship (#2014/23083-1). DB was supported by Serrapilheira (Grant #G-1709-16618), FAPESP (Grant #2013/13119-6), and CNPq (Grant #405996/2016-0). IS was supported by FAPESP (Grant #2012/13032-5). TC was supported by CAPES and FAPESP fellowship (#2018/17364-9). CM was supported by FAPESP (Grant #2018/20468-0). SB was supported by FAPESP (Grant #2014/50631-0).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors would like to thank Brazilian funding agencies, Serrapilheira Institute, CNPq, CAPES, and FAPESP for financial support and fellowships.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2020.00028/full#supplementary-material
