Abstract
The pathogen transmitting Aedes albopictus mosquito is spreading rapidly in Europe, putting millions of humans and animals at risk. This species is well-established in Albania since its first detection in 1979. The sterile insect technique (SIT) is increasingly gaining momentum worldwide as a component of area-wide-integrated pest management. However, estimating how the sterile males will perform in the field and the size of target populations is crucial for better decision-making, designing and elaborating appropriate SIT pilot trials, and subsequent large-scale release strategies. A mark-release-recapture (MRR) experiment was carried out in Albania within a highly urbanized area in the city of Tirana. The radio-sterilized adults of Ae. albopictus Albania strain males were transported by plane from Centro Agricoltura Ambiente (CAA) mass-production facility (Bologna, Italy), where they were reared. In Albania, sterile males were sugar-fed, marked with fluorescent powder, and released. The aim of this study was to estimate, under field conditions, their dispersal capacity, probability of daily survival and competitiveness, and the size of the target population. In addition, two adult mosquito collection methods were also evaluated: BG-Sentinel traps baited with BG-Lure and CO2, (BGS) versus human landing catch (HLC). The overall recapture rates did not differ significantly between the two methods (2.36% and 1.57% of the total male released were recaptured respectively by BGS and HLC), suggesting a similar trapping efficiency under these conditions. Sterile males traveled a mean distance of 93.85 ± 42.58 m and dispersed up to 258 m. Moreover, they were observed living in the field up to 15 days after release with an average life expectancy of 4.26 ± 0.80 days. Whether mosquitoes were marked with green, blue, yellow, or pink, released at 3.00 p.m. or 6.00 p.m., there was no significant difference in the recapture, dispersal, and survival rates in the field. The Fried competitiveness index was estimated at 0.28. This mark-release-recapture study provided important data for better decision-making and planning before moving to pilot SIT trials in Albania. Moreover, it also showed that both BG-traps and HLC were successful in monitoring adult mosquitoes and provided similar estimations of the main entomological parameters needed.
Introduction
Mosquitoes represent a threat to both human and animal health. They are vectors of various diseases such as malaria, dengue, chikungunya, Japanese encephalitis, West Nile virus, Rift Valley fever, yellow fever, and Zika and lymphatic filariasis (Tolle, 2009; Kampen et al., 2012).
The invasive tiger mosquito Aedes (Stegomya) albopictus (Skuse, 1895), native to Southeast Asia, has colonized all continents (Benedict et al., 2007). It was introduced to Europe at the end of the 20th century (Lounibos, 2002; Scholte and Schaffner, 2007; Medlock et al., 2012), and its first occurrence was reported in Albania in 1979 (Adhami and Reiter, 1998). The species is now well-established and present even in tiny isolated villages in high-altitude (>1,200 m) environments (Tisseuil et al., 2018). Although the risk for pathogen transmission related to the autochthonous Aedes species is currently considered low, intensified vector control measures are needed to prevent disease outbreaks similar to those that occurred in various countries with unexpected local cases of chikungunya, dengue, and Zika (ECDC, 2019; Vermeulen et al., 2020). Even in the absence of disease transmission, Ae. albopictus is a significant nuisance species in urban areas (Kolimenakis et al., 2019).
Since its first report from Albania, it has been recorded in numerous European countries (Medlock et al., 2012; Medlock et al., 2015) and became well-established across Mediterranean countries, and more recently it spread northward to Germany (Becker et al., 2017), North Macedonia (Cvetkovikj et al., 2020) and Moldova (Șuleșco et al., 2021), and Austria (Schoener et al., 2019; Bakran-Lebl et al., 2021).
European health officials are concerned about the risk posed by invasive mosquito species to public health, and the World Health Organization (WHO) office for Europe is suggesting to rapidly develop the required capacities to face the problem (Bellini et al., 2020). Due to the rapid spread of resistance to commonly used insecticides (Hemingway and Ranson, 2000; Vontas et al., 2012; Grigoraki et al., 2017; Pichler et al., 2018), integrated vector management including new methods is now widely accepted, and this strategy is emphasized in the Global Vector Control Response (WHO, 2017). The sterile insect technique (SIT), an insect birth control method, has historically been used to suppress and even eradicate several agricultural and livestock/human pests (Vreysen et al., 2000; Dyck et al., 2021). In response to increasing demand for SIT application from the International Atomic Energy Agency (IAEA)/Food and Agriculture Organization of the United Nations (FAO) Member States, substantial efforts have been invested in the development of the SIT package against mosquitoes including the development of equipment and protocols for mass-rearing, sex-separation, irradiation, handling, packing, transport, release, and quality control (Balestrino et al., 2014a; Balestrino et al., 2014b; Bimbilé-Somda et al., 2019; Culbert et al., 2019, 2020; FAO/IAEA, 2020b; Maiga et al., 2016; Maïga et al., 2017; Maïga et al., 2019; Mamai et al., 2017; Mamai et al., 2019a; Mamai et al., 2019b; Yamada et al., 2019; Zheng et al., 2015). The WHO and IAEA have recently published a joint guidance framework for testing SIT as a vector control tool against Aedes-borne diseases (WHO/IAEA, 2020).
Understanding the bio-ecological features of the target population and how laboratory-produced sterile males may perform in the natural environment is crucial. Mark-release-recapture (MRR) studies are particularly useful and have been frequently applied to various insect species to study characteristics of populations related to the ecology, biology, behavior, ability to transmit pathogens, and ultimately their control (Gillies, 1961; Pollock, 1991; Hagler and Jackson, 2001; Silver, 2007; Bellini et al., 2010; Epopa et al., 2017; Benedict et al., 2018; Oliva et al., 2021). Knowledge of the characteristics of sterile males and reliable quantification of wild population density are prerequisites for planning SIT interventions (Bouyer et al., 2020b; Romeis et al., 2020; Oliva et al., 2021). The few MRR studies available for radio-sterilized Ae. albopictus males (Iyaloo et al., 2020) and non-radio-sterilized males (Le-Goff et al., 2019) mainly aimed at assessing survival, dispersal, and/or population size analysis. Only four field estimations of competitiveness are currently available (Zheng et al., 2019; Bouyer et al., 2020a; Iyaloo et al., 2020; Bellini et al., 2021). An appropriate method for population monitoring is also necessary to apply SIT. Although the BG-Sentinel trap (BGS) is considered the gold standard method for catching Aedes mosquitoes (Williams et al., 2006; Farajollahi et al., 2009; Staunton et al., 2020), some factors including shade, presence of bushes, and potential larval habitats were shown to influence its efficacy (Staunton et al., 2020).
In this study, we investigated the performance of a radio-sterilized local strain of Ae. albopictus using MRR. Specifically, parameters that were assessed included 1) recapture rate, 2) probability of daily survival, 3) dispersal capacity, 4) sterile-to-wild male ratio, 5) wild population estimation, and 6) field competitiveness. We also exploited the data to compare the efficiency of two adult mosquito trapping methods to estimate these parameters, namely, the BG-Sentinel 2™ used with BG-Lure® and CO2 and the human landing catch.
Material and Methods
Study Site

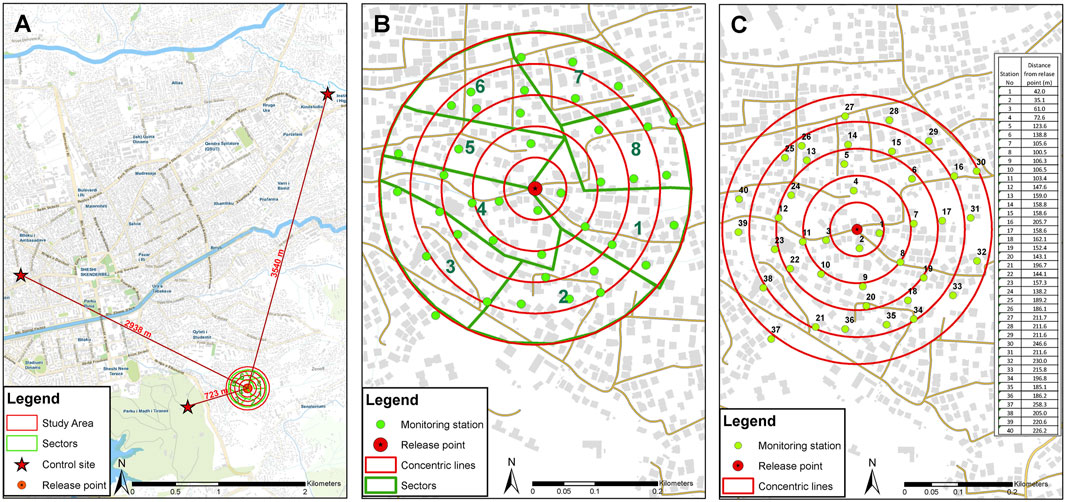

The MRR study was conducted in an urban area of Tirana (41°19′44″N, 19°49′04″E), the capital and the largest city of Albania. The presence and establishment of Ae. albopictus in the area have been proven via monitoring activities since 2010. The area is characterized by two-storied houses with many private and some public gardens (Figure 1). The field monitoring was conducted by ovitraps following the standard operating procedure by Bellini et al. (2021), with slight modifications (filter paper instead of Masonite paddle as oviposition substrate). The egg monitoring started in May 2017 (week 22) before the sterile male releases, to allow the required field data collection on population dynamics and egg fertility (unpublished data). Fertility of wild eggs was assessed by standardized hatching procedures (see Supplementary material S1) during the MRR trials on egg samples collected both in the release area and in separated control areas (700 m West-Southwest, 3040 m Northwest, and 3440 m North from the release site) with comparable land use and cover.
FIGURE1
Origin of the Mosquitoes and Rearing Procedures
Mosquitoes released in this MRR experiment were obtained from Ae. albopictus eggs collected in Albania (ALB strain) and amplified in the biosafety level 2 (BSL-2) laboratory of the Medical and Veterinary Department of the Environmental and Agriculture Centre “G. Nicoli” at CAA (Bologna, Italy). Research carried out on mosquitoes in confined laboratory conditions do not require a specific permit according to the directive 2010/63/EU of the European Parliament and of the Council on the protection of animals used for scientific purposes. Adult mosquitoes were maintained following environmental and rearing conditions described in Balestrino et al. (2014b). The second generation (F2) was sent to Albania for the MRR study.
Sexing and Transportation
Sex separation was carried out according to the standard method of sieving, at 24–30 h from the beginning of pupation (Bellini et al., 2007; Medici et al., 2011). The residual amount of females in male pupae was 1%. The pupae collected were aliquoted in batches of 2,000 pupae each and transferred into plastic containers of 500 ml capacity filled with 200 ml of water. These containers were used to transport the pupae to the Medical Physics Department of the St. Anna Hospital (Cona, Ferrara, Italy) for irradiation and brought back afterward to the laboratory for packaging and adult emergence. During transportation, the pupae were maintained in thermal insulated plastic containers with changing phase materials (PCM ice gel packs; Blu Ice, Dryce Srl, Milano, Italy) to maintain a temperature of about 15°C.
Irradiation Treatments
Irradiation treatments were performed using an IBL 437 irradiator (CIS Bio International, Bagnols-sur-Ceze, France) equipped with a 50.9 TBq Cs-137 linear source with a central dose rate of 1.8 Gy/min. At the hospital, the different batches of pupae were transferred into separated petri dishes (12 cm diameter) filled with 25–30 ml of water and piled inside a dedicated canister for irradiation (Balestrino et al., 2010). The dose of gamma rays administered to the pupae was equal to 40 Gy.
Packaging and Shipment
At the CAA laboratory, the irradiated pupae inside petri dishes with water (25–30 ml) were placed at the bottom of cardboard boxes (12cm3 × 12cm3 × 18 cm3) closed at the top with a mosquito net for emergence and transportation. Cotton pads soaked with 10% sugar solution were provided and secured at the top of each box to assure adult nourishment. Additional separator partitions were added inside each box to provide an overall vertical resting surface area of 1.04 cm2 per adult. The mosquito boxes were maintained at about 20°C for the first two days after adult emergence, and after removing water from the petri dishes, the boxes were transferred inside a larger polystyrene container with an adequate quantity of ice gel packs to maintain a temperature between 10 and 15°C during transportation to the release site. In order to maintain this temperature range over 24–48 h, we used a 70-L polystyrene container filled with 10 kg of ice gel packs conditioned at 4°C (PCM Blu Ice) and 2 kg at −20°C (PCM Green Ice, Dryce Srl, Milano, Italy). A data logger was also introduced inside each container to register the environmental conditions during transport.
Mosquito Marking Procedure
Within 3 h of reception, the males were sugar-fed and marked with fluorescent dust (RADGLO® JST, Radiant NV, Houthalen, Belgium) (FAO/IAEA, 2020a) applied using a bulb duster to create a dust storm within the transportation cardboard boxes (Supplementary material S2). A fixed dose of fluorescent powder equal to 0.6 gr (0.3 gr per 1,000 adult) was used per each cardboard box and manually insufflated to disperse the powder uniformly on mosquitoes just before the release. Culbert et al. (2020) have shown that with the current dose of the fluorescent dust used, there was no effect on the survival of Aedes mosquitoes. Fluorescent dust coverage on male body parts was evaluated on a sample of about 300 mosquitoes randomly collected from the different cardboard boxes upon each release.
Mosquito Release and Recapture
The MRR study was undertaken from 4th September to 2nd October 2017. One release of sterile marked males per week was performed using different colors on two consecutive weeks. The mosquito release point was located in the center of the 20-ha study area (Figure 1), where 40 sites were selected to sample the mosquito population homogenously (two sampling stations per hectare). The sampling sites were arranged the day before the first males’ release in five successive concentric circles placed 50 m apart starting from the central release point (Figure 1A). In each sampling station, a pair of traps were set and spaced 10–20 m apart, consisting of a BG-Sentinel 2™ (Biogents, Regensburg, Germany—BGS) baited with dry ice (1 kg/24 h) and BG-Lure™ (Biogents, Regensburg, Germany) and an ovitrap made from a 500-ml black polypropylene cup (Luwasa Interhydro AG, Allmendingen, Switzerland; 11/9 hydroculture pot; 11 cm diameter x 9 cm high) lined with heavy-weight seed germination paper (#76 seed germination paper, Extra Heavy Weight, Anchor Paper Co., St Paul, MN, United States). Ovitrap and BGS placed in the same sampling station were coded with the same station number.
Right after marking (Supplementary material S2), the mosquito males were transferred to the center of the study area for release. The dusted males were released as young adults (72–96 h-old) by placing them on the ground and opening the cardboard boxes in a shaded area. The boxes were gently shaken to induce the males to exit. The males that remained in the cage after 30 min were considered dead. The two releases of Ae. albopictus sterile males were in the amount of ca 30,000–32,000 males each. The release dates were September 6 (16,000 orange marked sterile males at 3:00 p.m. plus 16,000 green marked sterile males at 6:00 p.m.) and September 13 (16,000 yellow marked sterile males at 3:00 p.m. plus 14,000 pink marked sterile males at 6:00 p.m.). Eight teams were involved in this study. Teams included expert entomologists who decided the exact position of each trap in the field according to the available environment characteristics, prefered by Ae. albopictus. Each team was in charge to place and daily inspect four to six stations. Starting from the first trap positioning and during every visit, each team collected Ae. albopictus adult males and females flying around the team members (human landing catch, HLC) by handmade manual battery aspirators (12 V DC, 0.19 A, aspiration 2.5 m/s) (Balestrino et al., 2017) for 15 min in each sampling station. Only one operator per team performed the HLC, and the collected adults were recorded with an identification code referring to the sampling station and the collection date. The collection of samples (HLC, BGS, and ovitrap) from different sites was conducted every day from 3:00 p.m. to 6:00 p.m., except on Sunday. In case of unfavorable weather conditions (rainfalls), the HLC was not conducted. The sequence of stations was randomly rotated daily at each visit to avoid possible collection time bias. Each team was provided with an insulated thermal container to transport dry ice and store and euthanize the adult samples collected (during the daily collection). Collected adult mosquitoes were stored overnight and screened for identification of species and coloration the following day under a stereomicroscope and using a 12-V UV lamp. The use of a UV light source was to facilitate the identification of fluorescent dust on the male mosquito collected.
Egg papers collected from ovitraps were stored in plastic bags (not completely sealed) and transported at ambient temperature. The number of eggs on each paper was counted the following day, and the portion of the paper with eggs was cut out in strips, stored, maturated, and hatched at least 7 days after the collection day according to the procedures in Supplementary Material S1A. Each day after collection, the adult field data samples were analyzed, classified, and stored into a Geographical Information System platform to calculate the distances between release and each recapture site. In this trial, a dedicated WebGIS application available at https://invent.al/produkte/index.html under the MRR training link was used to georeference and manage the field data collected. BGS were stopped after two trapping sessions without any collection of marked males, and after this date, only ovitraps were monitored for 4 additional weeks. The activity continued this scheme until October 02, which was 19 days after the last release. Weather parameters were collected from a meteorological station located in the neighborhood (for rainfall and wind speed) (see Supplementary Material Figure S1; Supplementary Table S1). In parallel, in three other areas nearby, where no sterile males were released (control areas, see Figure 1A), five ovitraps were positioned in each and checked weekly to estimate the natural egg fertility and to measure possible failure to hatch caused by diapause.
Statistical Analysis
Statistical analyses were performed using R Software version 4.1.0 (R Development Core Team 2008; https://www.R-project.org/). A generalized linear model (with Poisson family distribution and log as link function) was used to check for difference in the main parameters between trapping methods, marking colors, and time of release. For the difference in the natural egg fertility between the control sites, we used a binomial generalized linear mixed model fit by maximum likelihood (Laplace Approximation) with egg hatch as the response variable and the ovitrap station as a random effect. The male dispersal has been analyzed by the mean distance traveled (MDT), the maximum distance traveled (MAX), and the flight range (FR). Dispersal distance estimation of Ae. albopictus males was facilitated by the homogeneous density of recapture stations in the study area. The FR was estimated through the linear regression of the cumulative estimated recaptures performed in each recapture stations (x-axis) on the log10 (annulus median distance). The FR50 and FR90 indicate the distance that comprehends the maximum flight distance reached by 50% and 90% of the individuals, respectively. These parameters were calculated from the equation of regression as the value of the y axis at 50% and 90% of the largest value of x, respectively. A random isotropic model in two dimensions has also been fitted to the data to calculate the diffusion coefficient.
The survival rate of sterile males was estimated by the linear corrected method (Harrington et al., 2001; Buonaccorsi et al., 2003) as follows: θ = eα/(N+ eα), S = eb/(1- θ)1/d, where a and b are the regression coefficients of the linear regression of the log-transformed captures as a function of time, N is the number of individuals released, θ is the recapture rate, d is the number of days after release, and s the survival rate. The probability of daily survival (PDS) in the field is estimated by regressing log10 (x +1) of the number of recaptures against the day of recapture where the antilog10 of the slope of the regression line is the PDS (Muir and Kay, 1998). Average life expectancy in the field (ALE) is calculated from the PDS as 1/- loge PDS.
Based on the sterile males released and recaptured, the wild male population size in the study area was estimated using the modified Lincoln index that corrects for small samples and compensates for daily survival P = [R*S (n − m + 1)]/(m + 1), where R is the number of originally marked males, S is the daily survival rate, n is the total number of recaptures of both marked and wild adult males, and m is the number of recaptured marked males. These data, together with the fertility rate of the eggs (hatched eggs and normally shaped eggs with the presence of embryo are considered fertile) collected in the release and control sites allow us to estimate the sterile male competitiveness index under field conditions using the Fried competitiveness index (Fried, 1971) as follows: F = ((Ha–Ee)/Ee)/R, where Ha = natural fertility in the control site (determined during the MRR feasibility study period) and Ee = observed fertility rate, R = ratio of sterile over wild males. Using data from BGS, a nonparametric bootstrap approach (Efron, 1979) was applied to obtain a confidence interval for the estimate of the Fried index as described in Bouyer et al. (2020a). In brief, the data on fertility and the ratio of sterile males over wild ones were resampled without replacement, and for each set of resampled data, the Fried index was computed (1,000 simulations). Assuming a symmetric distribution, the basic percentile method to get a 95% confidence interval was used.
Results
Environmental Weather Conditions in the Study Area During the Mark-Release-Recapture Experiment
The mean daily temperature in Tirana for the whole 2017 years ranged from −3.46°C to 33.51°C (mean ± se = 17.65 ± 0.40°C). The environmental weather data variation and the average of the main variables over the MRR experimental period (September 2017 and October 2017) are presented in Supplementary Material Table S1 ; Supplementary Figure S1). The mean (daily) temperature during the MRR ranged from 12.46 to 27.08 C (mean ± se = 19.60 ± 0.44°C). The mean daily relative humidity for 2017 ranged from 32.69% to 100% (mean ± se = 60.74% ± 0.66%). For September and October, the mean relative humidity ranged from 47.07% to 84.14% (mean ± se = 64.43 ± 1.03%). No rainfall was recorded during the two days before the first release. However, the day before the second release, there were strong rainfalls followed by minor rainfalls during the day of release. The daily wind speed was constant (Supplementary Table S1), ranging from 0.9 to 1.5 m/s.
Recapture of Aedes albopictus and Trap Efficiency
Out of the estimated 62,000 color-marked sterile males, a total of 48,011 flew from the release boxes and 1,887 were recaptured throughout the 3-week collection period by both methods, representing 3.93% of the total males released (Table 1). Out of these recaptured sterile males, 59.94% were obtained from BGS (2.36% of the total males released), while the remainder 40.06% (1.57% of the total males released) from HLC. Considering the entire period of collection, there were no statistical difference in the recapture rates of sterile males between the trapping methods BGS and HLC (GLM, df = 1, F = 3.53, p = 0.06) and dust marking colors (GLM, df = 3, F = 0.406, p = 0.7490). However, total captures of wild males and females were much higher with BGS than with HLC (GLM, df = 1, F = 11.23, p = 0.0008 and df = 1, F = 54.12, p = 2.13e-13 for males and females, respectively). Moreover, the time of release (3:00 p.m. or 6:00 p.m.) did not impact the recapture rate of the released sterile males (GLM, df = 1, F = 0.836, p = 0.361).
TABLE 1
| Color | Release date | Time of release | Initial males delivered and marked | Mortality before release (%) | Males that flew | Number (%) recaptured with BGS | Number (%) recaptured with HLC | Number (%) total recaptured |
|---|---|---|---|---|---|---|---|---|
| Green | 06/09/2017 | 3:00 p.m. | 16,000 | 24.04 | 12,124 | 222 (1.83) | 102 (0.84) | 324 (2.67) |
| Orange | 06/09/2017 | 6:00 p.m. | 16,000 | 27.58 | 11,558 | 288 (2.49) | 158 (1.37) | 446 (3.86) |
| Yellow | 13/09/2017 | 3:00 p.m. | 16,000 | 22.66 | 12,344 | 325 (2.63) | 269 (2.18) | 594 (4.81) |
| Pink | 13/09/2017 | 6:00 p.m. | 14,000 | 14.39 | 11,985 | 296 (2.47) | 227 (1.89) | 523 (4.36) |
| Total | 62,000 | 22.56 | 48,011 | 1,131 (2.36) | 756 (1.57) | 1887 (3.93) |
Number of released and recaptured radio-sterilized males Aedes albopictus.

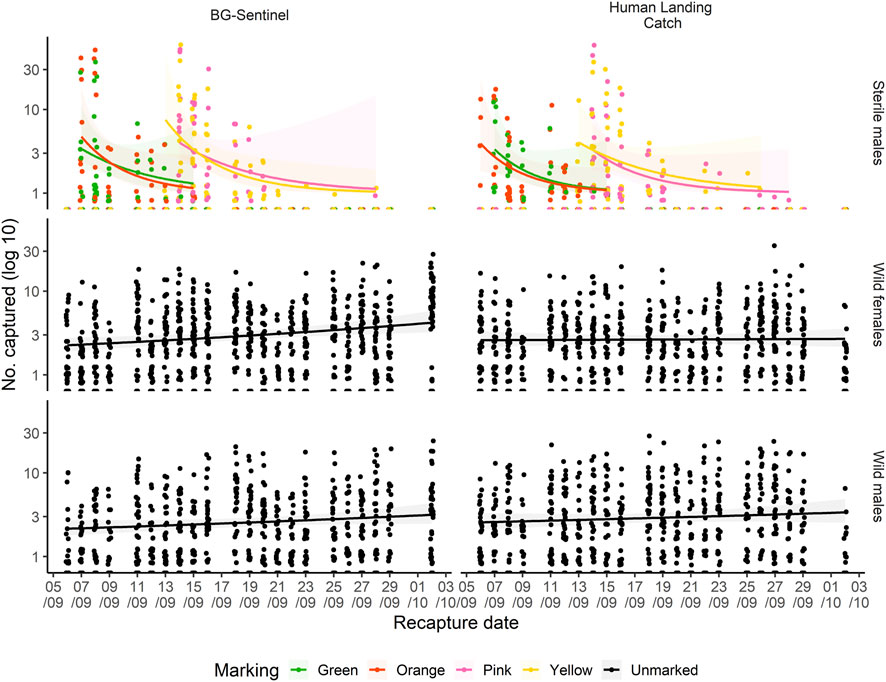

Figure 2 shows variation in the recapture of sterile males as well as of wild mosquitoes with both methods as a function of time following the releases. Overall, significant variation was observed in mosquito recaptures over days of collection and the distances from the release point. The number of recaptured mosquitoes declined over time. The majority (76.47%, n = 1,443) of the total recaptured (n = 1887) mosquitoes was collected shortly after their release (the first two days post-release), 93.64% (n = 1767) within 5 days post-release and no mosquito was recaptured beyond 15 days post-release (Figure 2).
FIGURE 2
As sex separation before release is not always 100% efficient, there was a chance that up to 1% of females could have been released with males. In this study, 11 irradiated females that were released with males were recaptured (three with HLC and eight with BGS). Among them, one female was recaptured 247 m from the release site 1 day after release and one recaptured at 212 m 7 days after release.
Dispersal and Survival

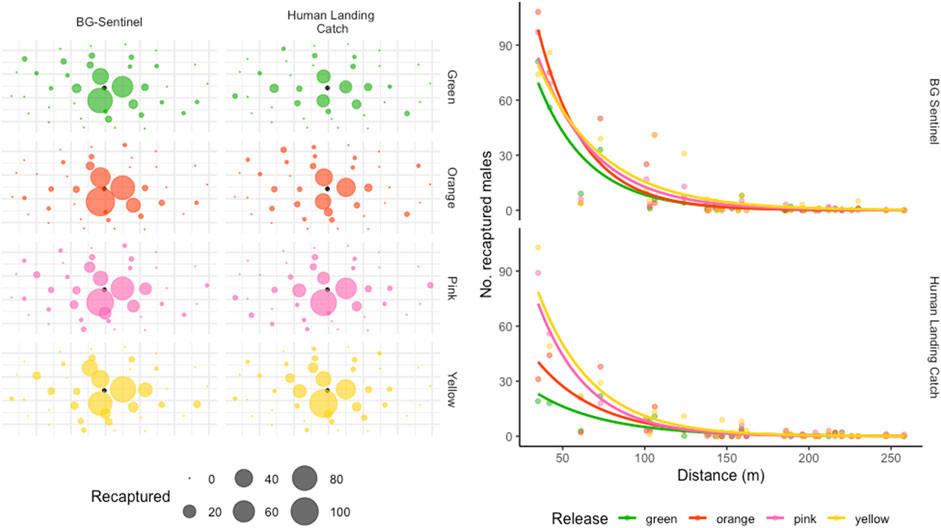

Figure 3 shows the recapture of sterile males as a function of distance from the release point. The dispersion pattern around the released point of the recaptured population remained similar between colors and trapping methods (Figure 3A). The number of recaptured marked males declined with distance from the release point (Figure 3B). About 55.93% of sterile males were caught within a 50 m radius, 73.24% within 100 m, and 90% within 125 m from the release site (Figure 1). Only 1.75% was caught between 200 and 250 m radius (there were no traps beyond the 258 m). One sterile male was captured (HLC) at 258 m from the single release point 6 days after release, and one sterile male (HLC) was recaptured the day of its release at 247 m from the release point.
FIGURE 3
The dispersal pattern, estimated by the MDT, MAX, and FR within which 50% or 90% of mosquitoes are expected to disperse (FR50 and FR90, respectively), is presented in Table 2. Overall, the released males were estimated to travel a mean ± SD of 93.85 ± 42.58 m (the estimated MDT over the entire period was 104.15 ± 41.95 m, 87.6 ± 32.6 m, 95.55 ± 55.5 m and 89.1 ± 40.4 (mean ± SD) m for green, orange, pink and yellow color marked males respectively). However, based on collections, the MDT was 91.2 ± 40.25 m and 96.8 ± 48.8 m for BGS and HLC, respectively. The maximum flight distance reached by 50% and 90% of the individuals was 33.01 m and 141.95 m, respectively.

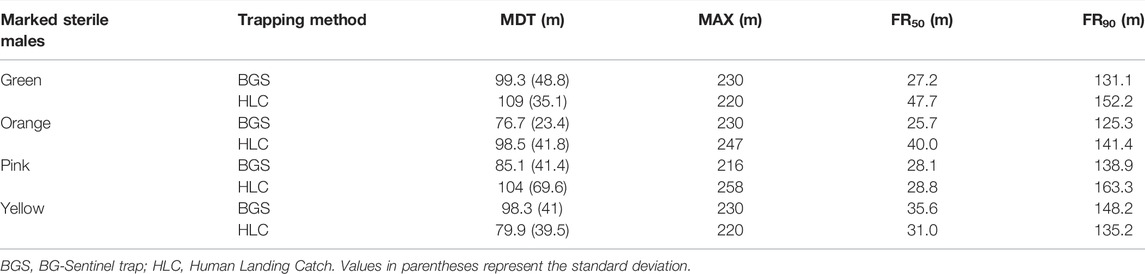

TABLE 2
| Marked sterile males | Trapping method | MDT (m) | MAX (m) | FR50 (m) | FR90 (m) |
|---|---|---|---|---|---|
| Green | BGS | 99.3 (48.8) | 230 | 27.2 | 131.1 |
| HLC | 109 (35.1) | 220 | 47.7 | 152.2 | |
| Orange | BGS | 76.7 (23.4) | 230 | 25.7 | 125.3 |
| HLC | 98.5 (41.8) | 247 | 40.0 | 141.4 | |
| Pink | BGS | 85.1 (41.4) | 216 | 28.1 | 138.9 |
| HLC | 104 (69.6) | 258 | 28.8 | 163.3 | |
| Yellow | BGS | 98.3 (41) | 230 | 35.6 | 148.2 |
| HLC | 79.9 (39.5) | 220 | 31.0 | 135.2 |
Mean distance traveled (MDT), the maximum distance traveled (MAX), and flight range of 90% (FR90) and 50% (FR50) of the radio-sterilized Aedes albopictus males in the field.
BGS, BG-Sentinel trap; HLC, Human Landing Catch. Values in parentheses represent the standard deviation.
The results of daily survival probability (PDS) and average life expectancy (ALE) of color-marked sterile males are presented in Table 3. Regardless of the color of the trapping method used, the ALE in the field varied from 3.03 to 5.76 days with average of 4.17 and 4.35 days for BGS and HLC, respectively. No statistical significance difference was found between BGS and HLC (GLM, df = 1, F = 0.213, p = 0.676). The PDS were also similar between BGS and HLC, varying from 0.72 to 0.84 with a mean of 0.79 for both methods and no statistical significance (GLM, df = 1, F = 0.02, p = 0.984). The four colors utilized showed no statistical difference both in PDS (GLM, df = 3, F = 4.437, p = 0.126) and ALE (GLM, df = 3, F = 4.215, p = 0.134).

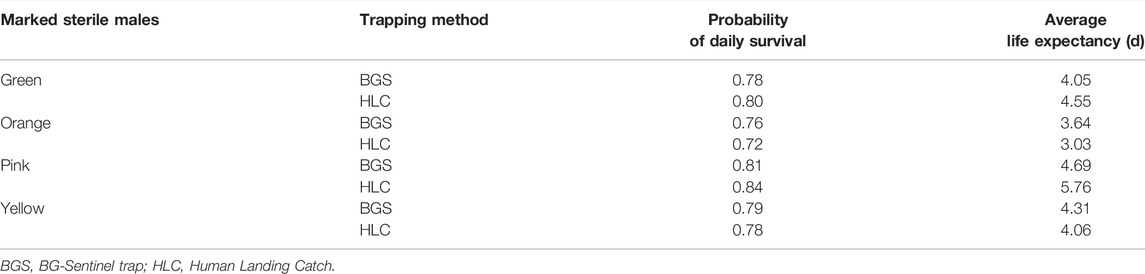

TABLE 3
| Marked sterile males | Trapping method | Probability of daily survival | Average life expectancy (d) |
|---|---|---|---|
| Green | BGS | 0.78 | 4.05 |
| HLC | 0.80 | 4.55 | |
| Orange | BGS | 0.76 | 3.64 |
| HLC | 0.72 | 3.03 | |
| Pink | BGS | 0.81 | 4.69 |
| HLC | 0.84 | 5.76 | |
| Yellow | BGS | 0.79 | 4.31 |
| HLC | 0.78 | 4.06 |
Daily survival probability and the average life expectancy of the radio-sterilized Aedes albopictus males in the field.
BGS, BG-Sentinel trap; HLC, Human Landing Catch.
Ratio of Sterile to Wild Males

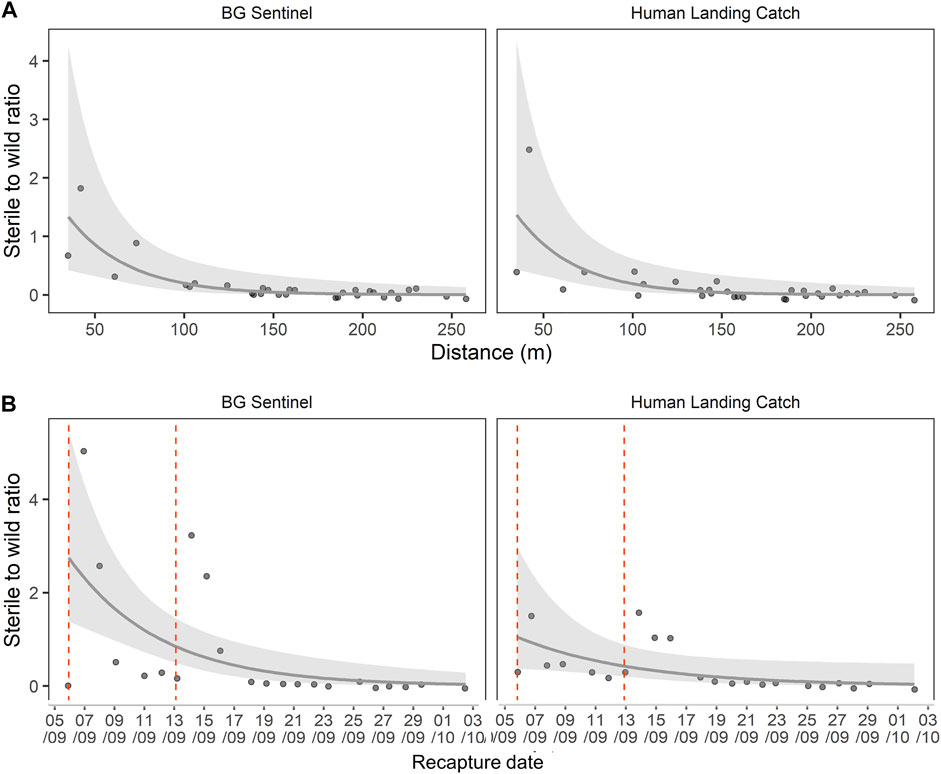

The estimation of daily sterile to wild male ratios during the MRR is shown in Figure 4. The ratio varied with distance from the release point (GLM, df = 1, F = 32.3, p < 0.05), but no difference was observed between trapping methods (BGS and HLC) (GLM, df = 1, F = 0.0, p = 0.989). The sterile-to-wild ratio varied over time (GLM, df = 1, F = 12.78, p < 0.05), while the trapping method had no impact (GLM, df = 1, F = 1.921, p = 0.173). The variation in both distance and time showed a similar trend for both BGS and HLC collection methods. The maximum sterile-to-wild male ratio obtained in the release area over time collection was 4.97 sterile for one wild male. The overall mean ratio for the entire study period was 0.45 sterile for one wild male. There was a rapid decrease in the sterile to wild male ratio (within the first week) after release and within 100 m from the release point (Figure 4).
FIGURE 4
Wild Male Population Size Estimation
The wild male population size in the area was estimated for the whole collection period using the Lincoln index modified version calculation that corrects for small samples and compensates for daily survival, and the results are presented in Supplementary Table S2. Considering only recapture data from BGS, the Lincoln index estimated the mean population size to be 72,181 males in the overall estimated area of 20 hectares equivalent to 3,609 males/ha. Meanwhile, data from HLC estimated the mean number of males to be 118,691 males (5,934 males/ha).
Field Competitiveness
In the three control sites, the natural egg fertility from June to November 2017 ranged from 90% to 100%, and no statistical difference was found among sites (p > 0.5). The overall natural fertility calculated in the untreated areas during the MRR study period was 98.24% ± 01.86% (mean ± SD), while in the release site the observed fertility was 74.10 ± 30.85% (mean ± SD). The Fried index estimated from 1,000 bootstraps is presented in Figure 5. The overall Fried Index was evaluated at 0.28% and the 95% confidence interval was [0.19–0.42].

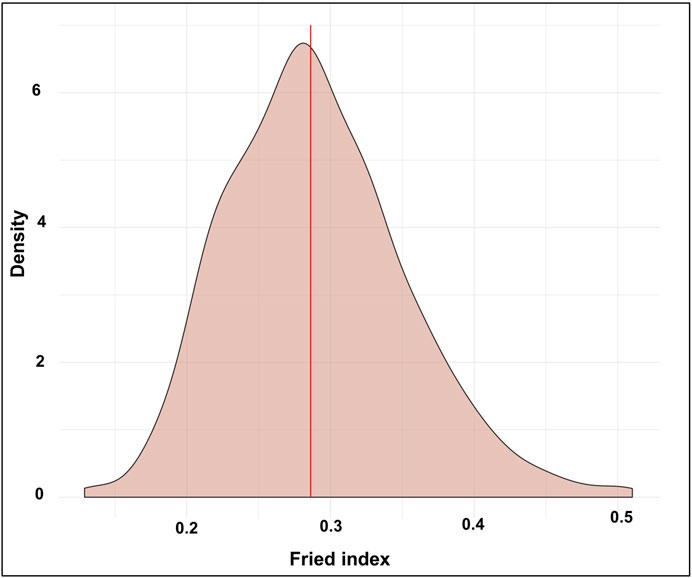

FIGURE 5
Discussion
MRR studies are commonly carried out in ecological research in a diverse range of species (McKenzie, 1974; Smith et al., 1999) to assess population size, seasonal dynamics, and dispersal (Harrington et al., 2008; Marini et al., 2010). In our study, MRR allowed us to quantify the dispersal, survival, and competitiveness of irradiated male Ae. albopictus in preparation for a field trial in Albania, as recommended for any method based on male release (Bouyer et al., 2020b). Two (series) sessions of MRR were performed with similar recapture rates for both BGS and HLC methods (3.93%) over 2 weeks in which the majority of males were caught within 5 days post-release. This result is consistent with the literature (Bellini et al., 2010) or showed higher recapture rates than in the study by Iyaloo et al. (2020) who found recapture rates in Ae. albopictus ranging from 0.8% to 1.3% over 6 days post release and the study by Caputo et al. (2021) that found a recapture rate of 1.8% in the first 6 days. Winskill et al. (2015) found a recapture rate of 0.36% for another genetic control method based on the release of insects carrying a dominant lethal gene (RIDL). Extreme meteorological conditions (temperature, relative humidity, and wind speed) can influence mosquito abundance, survival, and dispersal (Marcantonio et al., 2019). Although environmental conditions were globally suitable during this experiment, rains occurring during the second release might have caused the observed variations between the two series.
Understanding the ability of released sterile male mosquitoes to disperse in an area being targeted by a suppression strategy is crucial for predicting the required release pattern (Winskill et al., 2015). Dispersal defines the capacity of individuals to spread from a fixed or constant source (Gavriel et al., 2012). Generally, male mosquitoes may disperse to find sugar and swarms for mating. There are very few studies that examine the dispersal capacity of male mosquitoes while considering all aspects of the SIT process from production to release. Our study showed an acceptable dispersal capacity when compared to those studies (Lacroix et al., 2009; Le-Goff et al., 2019). Most of the released males were recaptured within 100 m from the release point, but the MDT was 70.78 ± 7.050 m, which is higher than the 52.8 m of RIDL male Ae. aegypti (Winskill et al., 2015) and close to the 83 m of irradiated male Ae. aegypti mosquitoes released from the ground (Bouyer et al., 2020a), both in Brazil. Aedes are typically short-dispersing species (Christophers, 1960), and Ae. albopictus males and females’ active dispersal is limited to a few hundred meters (Vavassori et al., 2019). We observed a rapid decrease in the sterile to wild male ratio within the first week after release and within 100 m from the release point, suggesting the need for releasing sterile males more than once a week at a maximum distance of 100 m between release points.
Some of the released males were able to survive up to 15 days after release with a good mean survival (PDS of 0.79 and an ALE of 4.26 days), higher than the results found by Neira et al. (2014) in Panama with non-irradiated marked male Ae. aegypti (0.65 and 2.3 days, respectively). Trewin et al. (2021) also found a lower survival for wild male Ae. aegypti marked with Rhodamine B (0.55 and 1.69 days, respectively). Their MDT was, however, 295.2 m, much higher than in our study. In Brazil, irradiated male Ae. aegypti mosquitoes released from the ground had PDS of 0.20–0.63 (Bouyer et al., 2020a), again lower than in our study.
It is important to note that the sterile males used in our trial were imported via long-distance transportation, following long-distance transportations attempts in Europe (e.g., from CAA laboratory, Bologna, Italy to Germany, Montenegro, and Greece) (Balatsos et al., 2021). Despite 20% of the mortality observed during transport, the released males showed an overall good field quality. Our results show the feasibility of regional production facilities for sterile Aedes invasive species in support of newly invaded areas, thus reducing initial risks and costs related to the establishment of mass-rearing production units.
Knowledge of the size of the wild male population of the target area is crucial in determining the dose of sterile males required to achieve the appropriate sterile-to-wild male ratio for controlling the population effectively (Proverbs et al., 1982; Rendón et al., 2004). Here, the male population was as high as 4,700 per hectare, supporting the need of preliminary reduction of the densities with complementary methods such as breeding source reduction, door-to-door (sanitary education), and insecticide-based treatments before starting the SIT component.
We found competitiveness of 0.28 in this study, which is higher than 0.13, the observed average of several pilot trials conducted in Italian urban areas (Bellini et al., 2021). In another MRR study carried out in Brazil, the competitiveness of sterile males released using a release system mounted on an unmanned aerial vehicle (drone) was very close to our results, that is, 0.26 (95% confidence interval, 0.05–0.72) (Bouyer et al., 2020a). However, a higher competitiveness index of 0.5–0.7 with irradiated triple Wolbachia-infected male Ae. albopictus was observed in China (Zheng et al., 2019). Our results suggest that the quality of the released mosquitoes was still enough to run a pilot SIT trial in Albania since a competitiveness index value of 0.2 is considered the minimum acceptable threshold (Bouyer et al., 2020a).
Irradiated males are generally considered less competitive than their wild counterparts (Rendón et al., 2004; Bakri et al., 2005; Bellini et al., 2021). An overflooding ratio of 10 is an empirical target in SIT programs (Oliva et al., 2021) but may vary between species: 7:1 for some tsetse fly species (Vreysen, 2005); 60:1 for pink bollworm, Pectinophora gossypiella (Walters et al., 1998); 40:1 for codling moth, Cydia pomonella (Proverbs et al., 1982); and 100:1 for painted apple moth, Orgyia anartoides (Wee et al., 2005; Suckling et al., 2007). Here, we observed an average ratio of 0.45 sterile for one wild male, dropping quickly after the release day. Considering our results, this would require to approximately release 700,000 sterile males weekly in our target area of 20-ha, probably in two releases of half this number and in several release points, to cause a 74% induced sterility. This underlines again the need for a preliminary reduction of the target population using conventional methods such as breeding source reduction or to start the releases at a more appropriate period of the year when the density of the wild population is lower (Douchet et al., 2021).
Our results demonstrated that BGS + CO2 and HLC allowed similar estimations of several parameters measured. They also showed comparable efficiency in terms of the number of mosquitoes captured (though during different collection times). To our experience, the variability of catches might greatly increase if trap stations are not chosen by experienced persons. One of the drawbacks of BGS is its price which makes it expensive to purchase and deploy since it is set for 24 h periods covering a full daily mosquito activity period. They also require power, which implies the use of a household electrical outlets or batteries. Their main advantage is to provide a more standardized estimation of mosquito densities. Conversely, HLC is low-cost, performed only within 15 min and if possible, at the high activity periods of Aedes, to reduce the noise for statistical analyses. However, HLC data may suffer from variability due to differences in personal attractiveness to mosquitoes as well as individual abilities to catch mosquitoes, making this method more difficult to standardize.
This MRR study was conducted in September only (the end of mosquito season), and the total trapped area was only 250 m of ray which constitutes the main limitations of the study. However, based on the cost-effectiveness of the SIT program and the available data on such MRR studies (Caputo et al., 2021; Lacroix et al., 2009; Balestrino et al., 2022), we believe that the design limit of 250 m seems reasonable to measure the main parameters needed for testing the SIT. Although it provides important insights on the overall performance of the released sterile males, their dispersal and survival in the field as well as the size of the wild population can vary over time during the mosquito season due to variation in environmental conditions. Hence, the release strategies should take into account both the quality and the size of the wild population at different time points of the mosquito season. For reliable estimation of the wild population size over time, an MRR study should be carried out at different time points of the mosquito season (e.g., the beginning, the peak, and/or end of the mosquito season). Furthermore, another limitation of such an MRR study is the lack of non-marked controls in the experimental design. Although of importance, it was, however, not feasible in the present mark-release-recapture study since only the local strain can be released in the study area and there is no biological marker to differentiate non-marked released mosquitoes from the wild ones in order to compare their dispersal and longevity. A recent study conducted in northern Italy (Balestrino et al., 2022) on Ae. albopictus under the same rearing and climate conditions but released in the summer (July–August) without long-distance transportation has shown a lower recapture rate (0.27%–1.7%) and PDS 65.4% ± 11.5% to 80.0% ± 6.4%). However, they found much better flight range (FR50 = 76.0 ± 35.7 m; FR90 = 227.0 ± 74.8 m; MAX = 249.8 ± 45.2 m) and mean distance travelled (126.4 ± 44.6 to 172.9 ± 45.8 m) in comparison to our study. This difference might be due to the transportation and also to the seasonal environmental conditions, highlighting the need to carry out MRR studies at different time points. Nonetheless, a baseline data collection required before every SIT pilot trial following the phased conditional approach, coupled with this MRR study will allow a better estimation of the population abundance and size over time in Albania.”
Conclusions
Overall, the results of this MRR study allowed us to estimate the minimum distance required between sterile male release points (100 m), as well as the necessary frequency (3–4 days) of releases to be used in future SIT trials in Albania. The release time in the day did not appear as a constraint. Irradiated males dispersed, survived long enough and competed well enough with their wild male counterparts to warrant the feasibility of the next phase, that is, a suppression trial. The main limitations of this study are that it was conducted only in September and should be repeated at the beginning of the mosquito season (April–June) and that the total trapped area was only 250 m of ray. However, our data still provide critical baseline information for better decision-making, designing and elaborating of appropriate planning of SIT pilot suppression studies in Albania and other countries in Europe with similar environmental conditions.
