Original Research ARTICLE

Front. Cell. Infect. Microbiol., 12 December 2016 |

Bacillus sp. QSI-1 Modulate Quorum Sensing Signals Reduce Aeromonas hydrophila Level and Alter Gut Microbial Community Structure in Fish

Shuxin Zhou, An Zhang, Hongping Yin and Weihua Chu*
  • Department of Pharmaceutical Microbiology, School of Life Science and Technology, China Pharmaceutical University, Nanjing, China

Quorum sensing (QS) is a cell density dependent process that enables bacteria to communicate with each other based on the production, secretion and sensing of the auto-inducer molecules and then subsequently regulate virulence associated gene expression. Interrupting quorum sensing may represent a novel alternative approach to combat bacterial pathogen. Several bacteria can produce quorum quenching (QQ) enzymes. However, the role of QQ bacteria in shaping the microbiota and the level of N-acyl-homoserine lactones (AHLs, a prevalent type of QS molecules) producing bacteria remains largely unknown. The objective of this study was to examine the presence of AHLs in the fish intestine and investigate the modulation of gut microbiota and its effect on Aeromonas hydrophila level by a QQ enzyme producing probiotic Bacillus sp. QSI-1. AHLs were found in fish gut content and were confirmed in Aeromonas species using Chromobacterium violaceum CV026 and Agrobacterium tumefaciens AT 136 (pZLR4) as reporter strains. We demonstrated that the composition of fish gut microbiota was affected by quenching bacteria QSI-1, and the percentage of A. hydrophila was decreased significantly. Taken together, these results provide valuable insights into QQ enzyme producing probiotics can modulate the microbiota structure and decrease the percentage of AHL-producing pathogenic bacteria in the gut. These data strongly suggest that QQ probiotics may serve as non-antibiotic feed additive in aquaculture to control bacterial diseases.


The fish gastrointestinal (GI) tract is a complex ecosystem that always possessing a diverse bacterial community in a balanced relationship with each other, and some of the bacteria likely provide beneficial effects to the host (Wu et al., 2012b). It is considered that the fish gut harbors about 107–108 colony-forming units (CFU) g−1 bacteria (Pérez et al., 2010). The freshwater fish intestinal microbiota tends to be dominated by members of the genera such as Aeromonas, Acinetobacter, Lactococcus, Flavobacterium and Pseudomonas, representatives of the family Enterobacteriaceae, and obligate anaerobic bacteria of the genera Clostridium, Bacteroides, and Fusobacterium. Among these bacteria, their population is influenced by the metabolites and the effectors that promote species stability, adaptation, and survival in the gut (Ye et al., 2014; Kashinskaya et al., 2015). Quorum sensing (QS) perhaps plays an important role in these processes, which provide bacteria with the ability to communicate with the same or other species and change behaviors including, but not limited to, motility, biofilm formation, virulence factors secretion and extracellular digestive enzymes production, to modulate the population growth and survival in the environments. (Bassler and Losick, 2006). QS is a mechanism of cell-to-cell signaling that involves hormone-like compounds called autoinducers that the bacteria used to sense the populations and that subsequently regulate QS controlled gene expression. Acyl-homoserine lactones (AHLs) are considered to be intraspecies signaling molecules in Gram-negative bacteria (Bandara et al., 2012), although it has been shown that between bacteria using these molecules to communicate with other species (Riedel et al., 2001; Ryan and Dow, 2008; Giaouris et al., 2015).

Quorum quenching (QQ), namely the enzymatic interruption of QS, refers to the activity of autoinducers be enzymatic degradated and thereby inhibiting the gene expression controlling bacterial behaviors. Quenching QS has been recommended as a promising non-antibiotics strategy for bacterial diseases therapy (Tang and Zhang, 2014). Most pathogenic bacteria in fish, such as Aeromonas spp. Edwardsiella tarda and Vibrio spp. are opportunistic bacterial pathogens (Austin and Austin, 2007). The overgrowth of these bacterial pathogens in the intestine may disturb the fish core microbiome and then cause diseases (Wu et al., 2012a). AHLs are the main signal molecules produced by these fish pathogens (Swift et al., 1997; Defoirdt, 2014). Thus, QQ may be important for the host to maintain balance within gut ecosystem of micro-organisms and inhibit the virulence gene expression of pathogenic bacteria in intestinal environment.

We hypothesized that cell-cell communication through AHLs might also occur between commensal members of the gut microbiota and tried to investigate whether disruption of AHLs can shape the species composition of the community. To test our hypothesis, quorum quenching enzyme producing strain Bacillus sp. QSI-1 was used to evaluate its effect on the AHLs production and microbial composition of gut environments in fish. The Bacillus sp. QSI-1 strain is a probiotic strain isolated from the gut of a healthy fish that has been reported to have the effect of protection fish from Aeromonas hydrophila infection (Chu et al., 2014). Due to the complex interactions within the gut microbial community, the effects of Bacillus sp. QSI-1 on the QS molecules production and the composition of gut microbiota are still not known. To our knowledge this is the first study to characterize the influence of QQ enzyme producing probiotics on microbial community and the relationship with fish potential pathogen within fish. We found that supplementation of the Bacillus sp. QSI-1 can altere microbial community, decrease the AHLs production and reduce the level of AHL-producing bacteria –A. hydrophila in fish gut.

Materials and Methods

Experimental Fish and Rearing

Mixed sexes healthy Goldfish (Carassius auratus), showing no clinical signs of disease and having a mean body length 10.4 ± 0.45 cm and weight 15.2 ± 0. 53 g were purchased from a local farm at Jiangsu province, China and maintained for 10 days in 60 L tanks containing aerated fresh water at a temperature of 28 ± 2.0°C, about 80% water in the aquariums was exchanged every week. The fish were fed with 3% basal diet per body weight, twice a day. This experiment was approved by the China Pharmaceutical University Animal Care and Use Committee.

Basal Diet Preparation

The basal pelleted diet comprising 25% soybean meal, 15% fish meal, 20% rice bran, 5% corn starch, 30% rapeseed oil cake, 3.5% soybean oil and 1.5% vitamin and mineral mixture was prepared. The ingredients of the basal feed were analyzed according to the AOAC (Association of Official Analytical Chemists, 1997) method which revealed 2% moisture, 29.8% crude protein, 5.29% crude fat and 13.1% ash. For the preparation the diets with Bacillus sp. QSI-1, QSI-1 were grown in nutrient broth medium with aeration in a shaking incubator at 120 rpm at 37°C. After cultured for up to 80% spore formation, the cells were harvested by centrifuged at 4000 g to obtain pellet. The bacterial pellet was mixed with basal diet @ 5 × 108 CFU/g. To achieve the well-distributed QSI-1 diet, the bacterial suspension was slowly added to feed power with gradual mixing in a laminar airflow bio-clean room. The mixed feed was oven-dried at 37°C for 3 h and stored at −20°C in sealed plastic ziploc™ bags until used. To ensure high QSI-1 level in the supplemented feed, fresh diets were prepared on weekly basis.

Experimental Design

Experimental treatments were carried out with randomly taken goldfish in six plastic aquaria (50 L capacity) at a density of 20 fish per aquarium. The experiments were run in triplicate. Fish were fed with basal diet or QSI-1 diet and equal amount were provided at 08:00 and 19:00 h for 15 days. The QSI-1 amount in the experimental feeds was adjusted approximately 4.0 × 108 cells per g fish day. Control group were fed with the dry basal pellet without QSI-1. At the same time, fish health was also recorded by visual observation of behavior.

Gut Content Sample Processing

MS-222 (tricaine methane-sulfonate, Sigma, USA) at the concentration of 100 mg L−1 was used to anesthetize the fish. After dissection, the whole intestines of each fish were removed from the body under sterile conditions. Gut content samples were collected and immediately stored at −20°C. To isolate bacterial cells, the whole intestine from the fishes in the same group were put together and cut into small pieces and homogenized in ~10-fold dilution of sterile 1 × phosphate-buffered saline solution using autoclaved homogenizer, which made it possible to isolate most of the gut wall-attached microbes (Dawood et al., 2016).

Intestinal Bacterial Counts

Fish gut content were sampled in each group after feeding for 14 d to determinate the total intestinal microbiota, Bacillus spp. lactic acid bacteria (LAB), Escherichia coli and Aeromonas spp. The fish were taken from the rearing tank onto a clean anatomical plate. The fish surface was sterilized with 70% ethanol before opening the abdominal cavity with sterile scissor. Intestinal tract was picked up, weighed and washed with PBS thoroughly three times. Samples were serially diluted with PBS and 100 μl of the different dilutions was spread onto triplicate TSA (Trypto-Soya agar) media to determine total bacterial populations. DeMan, Rogosa, and Sharpe agar media (MRS), Bacillus medium base and Eosin-Methylene blue media (EMB) to detect viable LAB species, Bacillus spp. and E. coli and Aeromonas spp. medium with ampicillin supplement (Ryan) were also used to detect Aeromonas species, all medium were purchased from Qingdao Hope Bio-Technology Co., Ltd, China. The agar plate inoculated with each dilution was incubated for 3–5 days at 28°C. Colony forming units (CFU ml−1) were determined for viable bacterial populations (Nikoskelainen et al., 2003).

Detection of AHLs in Fish Gut by Reporter Strains

The AHL reporter strains Chromobacterium violaceum CV026 and Agrobacterium tumefaciens AT 136 (pZLR4) strains were used to detect the presence of short-chain and medium- to long-chain AHLs. For AT136 bioassay, 20 μl (50 μg/ml) 5-bromo-4-chloro-3-indolyl-b-D-galactopyranoside (X-gal) were spread on the LB plate before bioassay was performed. The AHL reporter strains was streaked on the LB agar plate. Then the gut content sample was placed approximately 0.5 cm apart from the streak. The plates were incubated at 28°C for 24 h. If the bacteria in the sample can produce AHLs, the AHLs can diffuse through the agar and activate the coloration of the biosensor strains.

DNA Extraction and Pyrosequencing Analysis of Gut Microbiota Composition

The whole bacterial DNA was extracted from samples using the QIAamp DNA Stool mini kit (Qiagen, Germany) according to the manufacturer's protocol. In addition, samples were treated in FastPrep Lysing Matrix E tubes (MP Biomedicals, USA) three times for 60 s in a bead-beater (Mini-Beadbeater 8 Bio-Spec Products, USA) with one intervening minute on ice. The DNA concentration was determined by a Nano-Drop 1000 spectrophotometer (Thermo Scientific Inc., Wilmington, DE, USA). Universal primers (341F 5′-CCTAYGGGRBGCASCAG-3′ and 806R 5′-GGACTACNNGGGTATCTAAT-3′) targeting the V3-V4 region of 16S rRNA gene were chosen for the amplification of the PCR products and analyze the taxonomic composition of the bacterial community (Baker et al., 2003). The progress of the PCR amplification consisted of an initial denaturation step at 95°C for 4 min, followed by 25 cycles, where 1 cycle consisted of 94°C for 30 s (denaturation), 56°C for 30 s (annealing), 72°C for 60 s (extension), and a final extension of 72°C for 10 min. The PCR products were visualized on agarose gels (2% in TBE buffer) containing ethidium bromide. The 16S rRNA gene was analyzed to evaluate the bacterial composition by using Illumina Miseq (Majorbio Bio-Pharm Technology Co., Ltd. in Shanghai, China).

Bioinformatic Analysis of Sequencing Data

Pyrosequencing paired end reads were assigned, truncated and merged using Pandaseq software (V 2.7) to generate raw tags. High quality clean tags from the raw tags were obtained and compared with reference database to detect and remove chimeric sequences using Usearch (vsesion 7.1 to obtain effective tags. QIIME platform ( was used to analyze the effective tags, and tags with ≥ 97% similarity were assigned to the same operational taxonomic unit (OTU). The phylogenetic affiliation of each 16S rRNA gene sequence was analyzed using the RDP Classifier (version 2.2 against the Silva (SSU115) 16S rRNA database, with a confidence threshold of 70% (Amato et al., 2013). Principal component analysis (PCA) and weighted Fast UniFrac principal coordinate analysis (PCoA) based on OTUs were performed to provide an overview of gut microbial dynamics in response to with or without probiotic treatments. Analysis of Community richness (Chao1 and Ace), community diversity (Shannon, Simpson), Sequencing depth (Good's coverage) and Observed species; and beta diversity on both weighted and unweighted unifrac distance metrics of OTUs were calculated with the MOTHUR program ( (Schloss et al., 2009).

Statistical Analysis

Results were expressed as means and standard deviations. At least, three different measurements were accomplished for each mean. Statistical differences were determined using ANOVA, followed by Bonferroni's multiple comparison test. All statistical analyses were performed using Prism 6 (GraphPad Software, San Diego, CA, USA). A t-test was used to identify significant differences in relative abundance of bacterial taxa. P < 0.05 were considered significant.


Culture-Dependent Analysis of Bacterial Population in the Intestine of Goldfish

The effect of QSI-1 on the intestinal bacteria was determined using the traditional culture-based techniques. Total intestinal culturable microbiota, LAB species, Bacillus spp. E. coli and Aeromonas spp. from goldfish intestines were counted on TSA, MRS, Bacillus spp. EMB, and Aeromonas spp. selective media, respectively. Figure 1 shows the total viable cell counts, LAB, Bacillus spp., E. coli and Aeromonas spp. counts with the fish fed with or/without QSI-1 supplementations. No significant differences were observed in total bacteria levels between 0d and 14d with the levels around log 8 CFU g−1 (P > 0.05). LAB and Bacillus spp. levels were all significantly higher in the gut in the fish fed QSI-1supplemented diets (P < 0.05). But E. coli and Aeromonas spp. levels were all significantly lower in the gut after fed with QSI-1 for14 days (P < 0.05).

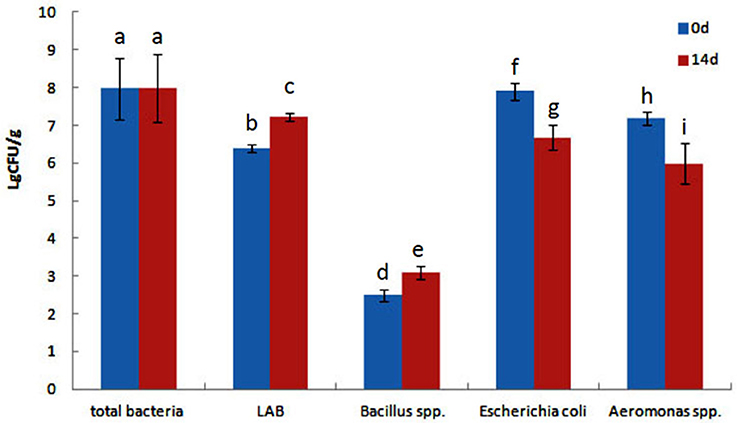

Figure 1. Total culturable bacteria and lactic acid bacteria (LAB), Bacillus spp., Escherichia coli and Aeromonas spp. levels (log CFU g−1 intestine) of goldfish fed with diets with or without QSI-1. Data represent means ± s.d. (n = 4 fish). Values with different letters are significantly different (P < 0.05). Values with the same letter are not significantly different (P > 0.05).

Fish Gut Inhabitant AHLs Producing Aeromonas spp

First, we determined whether QS signals are present in the environment of fish gut. We selected bacterial isolates from Aeromonas selective medium for its ability to produce AHLs by cross-streaking using biosensor strains. Violacein was induced in the C. violaceum CV026 AHL sensor and but did not stimulate the AHL sensor strain A. tumefaciens AT 136 (pZLR4) change to green, which responds to longer chain AHLs (Figure 2), it means the Aeromonas isolates can produce short-chain and medium AHLs but not long-chain AHLs.


Figure 2. The detection of AHLs production Aeromonas spp. isolates. Cross-streaks of test strains (vertical) against biosensor strains (horizontal), (A) C. violaceum CV026, (B) A. tumefaciens AT 136 (pZLR4).

Ethyl acetate extracts of AHLs from Aeromonas spp. isolates cultures retained the ability to induce reporter strains to produce pigment. AHLs extracts applied to TLC and visualized with the application of the C. violaceum CV026 sensor revealed the presence of two different AHLs in multiple extractions and chromatographs. On the basis of the mobility of the AHLs detected and comparison to synthetic standards, we tentatively identified these molecules as C4 HSL, and 3- C6 HSL (Figure 3).


Figure 3. Detection of AHLs by thin layer chromatography (TLC) with the C. violaceum CV026 strain used as a biosensor. Lane 1, N-butanoyl-L-homoserine lactone (C4-HSL), lane 2, N-hexanoyl-L–homoserine lactone (C6-HSL), lane 3, Aeromonas spp. isolate extract.

Bacillus sp. QSI-1 Manipulate the AHLs Levels in the Fish Gut

To determine whether QSI-1 can influence the production of AHL signal molecules in fish gut, QSI-1 was administered orally to fish for 14 days, and then the AHL signal molecules in the fish gut content were detected by reporter strains. Figure 4 showed that after 14 days orally administered of QSI-1, short-chain AHLs cannot be detected by CV026, and the medium- to long-chain AHLs were also decreased.


Figure 4. The detection of AHLs in fish gut by cross-streaks of intestinal content (circle) against biosensor, (A) C. violaceum CV026 and (B) A. tumefaciens AT 136 (pZLR4) (horizontal).

Bacillus sp. QSI-1 Alters the Intestinal Microbiota Composition and Reduce A. hydrophila Level

High-throughput sequence analysis of bacterial 16S rRNA V3-V4 region was conducted on gut content samples. After filtering the low-quality reads, trimming the longer homopolymer runs, adapters, barcodes and primers, removing all cyanobacteria/chloroplast sequences and rarefying the datasets, the analysis revealed a highly diverse microbiota with a total of 760826 sequences (with an average length of 417.66 ± 6.5 bp), representing 316 OTUs, from 1702746 raw reads. All novel sequence data was deposited at NCBI's Sequence Read Archive under accession number SRP 093472. The relationships among samples was evaluated based on differences in phylogenetic diversity. Using the weighted-UniFrac metric, principal component analysis (PCA) and principal co-ordinates analysis (PCoA) plots were calculated from weighted UniFrac distances for the evaluation of the community composition, the results demonstrates a clear separation between each groups (Figures 5A,B), and suggesting that there is clear dissimilarity between the gut microbiota fed with or without QSI-1 supplemented diet. Figure 5C is the comparative presentation of the bacterial taxonomic analysis of intestinal microbiota composition between the groups with QSI-1 for 14 days and without QSI-1. At the phylum level, the bacterial communities in all treatments were dominated by three phyla: Bacteroidetes, Proteobacteria and Fusobacteria, but the higher relative abundance of Proteobacteria was observed after QSI-1 orally administrated. As shown in Table 1, differences were found in the diversity indices (Shannon and Simpson) and richness estimators (ACE and Chao) of the intestinal microbiota between the groups with QSI-1 for 14 days and without QSI-1.

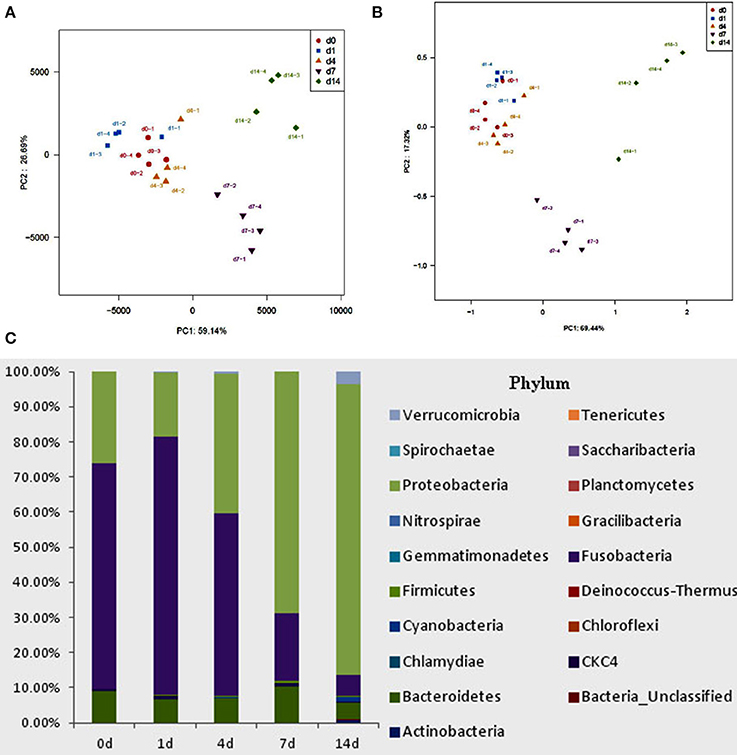

Figure 5. Bacterial community analysis of goldfish gut content fed with or without QSI-1. (A,B) principal component analysis (PCA) and principal coordinates analysis (PCoA) plots using Bray-Curtis metric and weighted Unicfrac distances, respectively. (C) Relative abundance of microbial genera (percentages) in the gut of fish fed with and without QSI-1 diets (n = 4).


Table 1. Diversity estimation of the 16S rRNA gene libraries from microbiota in fish gut fed with normal diet and QSI-1 diets (mean ± s.d., n = 4).

A. hydrophila can produce two different short-chain AHLs, one is N-butanoyl-L-homoserine lactone (C4-HSL) and the other is N-hexanoyl-L-homoserine lactone (C6-HSL), so the level of A. hydrophila in fish gut was analyzed, we found that after administrated of QSI-1, the percentage of A. hydrophila in fish gut was decreased, and changed significantly at 7 and 14 days from 0.37 to 0.08 and 0.06% (Figure 6).

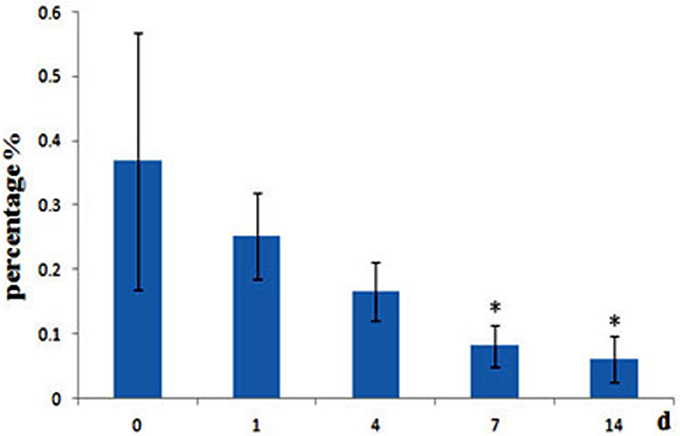

Figure 6. Relative abundance of A. hydrophila in fish gut content after fed with QSI-1. *Means significantly different (P < 0.05) from the 0 day group.


The fish intestine houses a dense and diverse microbial community, studies on fish gut microbiota have been reported by some researchers (Wu et al., 2013; Li et al., 2014; Kashinskaya et al., 2015; Gajardo et al., 2016), the gut microbiota is critical to health, and the microorganisms in the gut use chemical communication to coordinate and synchronize gene expression via the quorum-sensing regulatory pathway. Quorum sensing molecules, such as Autoinducer-2 (AI-2) and N-acyl-homoserine lactones (AHLs) are usually used by the gut microbiota (Borlee et al., 2008; Thompson et al., 2016). However, little is known about the acyl-HSLs being in the intestinal environment. In this study, using A. tumefaciens A136 and C. violaceum CV026 as report strains, we found that both short and long-chained AHLs are produced by gut microbiota in fish, and our findings also indicated that QS signals are active in the fish guts. These results are significant because AHLs are degraded by lactonolysis when the pH value above 7 and the open-ring AHLs is inactive (Yates et al., 2002; Funke et al., 2008). Borlee et al. (2008) study shown that bacteria from midgut of the cabbage white butterfly larval can produce AHLs and AHLs can be exchanged among bacteria in the alkaline environment and contribute to disease caused by P. aeruginosa PAO1. Some others also reviewed the different quorum sensing signal molecules within normal intestinal communities (Swearingen et al., 2013; Thompson et al., 2016). The pH value of gut alkaline environment is from pH 7.4 up to pH 8.2, while AHLs can still be detected. Perhaps it is due to bacteria residing in the fish gut alter the pH or by forming biofilms with other species in mixed species that reduce the pH.

The gut microbiota has been reported for other probiotics such as lactic acid bacteria, Bacillus spp. which modulate fecal microbiota (Cerezuela et al., 2013; Standen et al., 2015). Little is known about the influence of quorum quenching enzymes producing probiotics on the pathogens level and the structure of gut microbial community in fish. As far as we know, this is the first investigation to characterize the changes of gut microbiota of fish after administration of quorum quenching probiotics using classical cultural and high throughput methods. The gut microbial analysis demonstrated the dominant bacteria of Goldfish belonged to three phyla: Proteobacteria Bacteroidetes and Fusobacteria. These results are consistent with other studies on freshwater carp species, including grass carp and common carp (Cyprinus carpio) (van Kessel et al., 2011; Wu et al., 2012b; Ye et al., 2014; Li et al., 2015). Probiotics are live microorganisms which when are administered to animal confer a health benefit on the host, and usually been applied to enhance the immunity and disease resistance of fish. Probiotics can influence the composition and activity of the gut microbiota. Merrifield et al. (2010) suggested that probiotics provide several benefits to the host and modulate of the gut microbiota directly or indirectly. Standen et al. (2015) investigated the influence of a lyophilised probiotic mixture containing Bacillus subtilis, Enterococcus faecium, Lactobacillus reuteri and Pediococcus acidilactici, on the gastrointestinal microbiota of tilapia, their results shown that AquaStar® Growout can modulate both the intestinal microbiota and morphology of tilapia. Our results demonstrate that quorum quenching probiotics QSI-1 are capable of altering the gut microbiota structure and do so in specific manner by degrading AHLs. We also find that the concentration of fish pathogenic bacteria, A. hydrophila decreased. These results indicate that QSI-1 protect fish from A. hydrophila infection by quorum quenching pathway. Communication between different bacteria species can influence the interactions occurring in the environment. Thompson et al. (2015) show that the interspecies signal, autoinducer-2 (AI-2), can modulate the structure of the gut microbiota by using E. coli to manipulate AI-2 levels, and they also find that AI-2 could influence bacterial behaviors to restore the balance between the 2 major bacteria phyla, the Bacteroidetes and Firmicutes, following antibiotic treatment (Thompson et al., 2016).

In conclusion, our work indicates that oral administration of quorum quenching probiotics QSI-1 have positive effects on the gut microbiota structure and decreased A. hydrophila level by degrading AHLs. These results provide new insight into the mechanisms of probiotics, and suggest that quorum quenching probiotics can be used as an alternative strategy to combat bacterial infection in aquaculture instead of antibiotics.

Author Contributions

WC: Designed the experiments; SZ and AZ: Performed the experiments; HY: Analyzed the data; SZ and WC: Wrote the main manuscript text and AZ prepared figures. All authors reviewed the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


This study was supported by the National Natural Science Foundation of China (31672676) and the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD).


Amato, K. R., Yeoman, C. J., Kent, A., Righini, N., Carbonero, F., Estrada, A., et al. (2013). Habitat degradation impacts black howler monkey (Alouatta pigra) gastrointestinal microbiomes. ISME J. 7, 1344–1353. doi: 10.1038/ismej.2013.16

PubMed Abstract | CrossRef Full Text | Google Scholar

Association of Official Analytical Chemists (1997). AOAC Official Methods of Analyses, 16th Edn. Washington, DC: Association of Official Analytical Chemists.

Austin, B., and Austin, D. (2007). Bacterial Fish Pathogens; Diseases of Farmed and Wild Fish, 4th Edn. Chichester: Praxis Publishing.

Google Scholar

Baker, G. C., Smith, J. J., and Cowan, D. A. (2003). Review and re-analysis of domain-specific 16S primers. J. Microbiol. Methods 55, 541–555. doi: 10.1016/j.mimet.2003.08.009

PubMed Abstract | CrossRef Full Text | Google Scholar

Bandara, H. M., Lam, O. L., Jin, L. J., and Samaranayake, L. (2012). Microbial chemical signaling: a current perspective. Crit. Rev. Microbiol. 38, 217–249. doi: 10.3109/1040841X.2011.652065

PubMed Abstract | CrossRef Full Text | Google Scholar

Bassler, B. L., and Losick, R. (2006). Bacterially speaking. Cell 125, 237–246. doi: 10.1016/j.cell.2006.04.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Borlee, B. R., Geske, G. D., Robinson, C. J., Blackwell, H. E., and Handelsman, J. (2008). Quorum-sensing signals in the microbial community of the cabbage white butterfly larval midgut. ISME J. 2, 1101–1111. doi: 10.1038/ismej.2008.70

PubMed Abstract | CrossRef Full Text

Cerezuela, R., Fumanal, M., Tapia-Paniagua, S. T., Meseguer, J., Moriguer, M. Á., and Esteban, M. Á., (2013). Changes in intestinal morphology and microbiota caused by dietary administration of inulin and Bacillus subtilis in gilthead sea bream (Sparus aurata L.) specimens. Fish Shellfish Immunol. 34, 1063–1070. doi: 10.1016/j.fsi.2013.01.015

PubMed Abstract | CrossRef Full Text | Google Scholar

Chu, W. H., Zhou, S. X., Zhu, W., and Zhuang, X. Y. (2014). Quorum quenching bacteria Bacillus sp. QSI-1 protect zebrafish (Danio rerio) from Aeromonas hydrophila infection. Sci. Rep. 4:5446. doi: 10.1038/srep05446

PubMed Abstract | CrossRef Full Text | Google Scholar

Dawood, M. A., Koshio, S., Ishikawa, M., Yokoyama, S., El Basuini, M. F., Hossain, M. S., et al. (2016). Effects of dietary supplementation of Lactobacillus rhamnosus or/and Lactococcus lactis on the growth, gut microbiota and immune responses of red sea bream, Pagrus major. Fish Shellfish Immunol. 49, 275–285. doi: 10.1016/j.fsi.2015.12.047

PubMed Abstract | CrossRef Full Text | Google Scholar

Defoirdt, T. (2014). Virulence mechanisms of bacterial aquaculture pathogens and antivirulence therapy for aquaculture. Rev. Aquac. 6, 100–114. doi: 10.1111/raq.12030

CrossRef Full Text | Google Scholar

Funke, M., Büchler, R., Mahobia, V., Schneeberg, A., Ramm, M., and Boland, W. (2008). Rapid hydrolysis of quorum-sensing molecules in the gut of lepidopteran larvae. Chembiochem 9, 1953–1959. doi: 10.1002/cbic.200700781

PubMed Abstract | CrossRef Full Text | Google Scholar

Gajardo, K., Rodiles, A., Kortner, T. M., Krogdahl, Å., Bakke, A. M., Merrifield, D. L., et al. (2016). A high-resolution map of the gut microbiota in Atlantic salmon (Salmo salar): A basis for comparative gut microbial research. Sci. Rep. 6:30893. doi: 10.1038/srep30893

PubMed Abstract | CrossRef Full Text | Google Scholar

Giaouris, E., Heir, E., Desvaux, M., Hébraud, M., Møretrø, T., Langsrud, S., et al. (2015). Intra- and inter-species interactions within biofilms of important foodborne bacterial pathogens. Front. Microbiol. 6:841. doi: 10.3389/fmicb.2015.00841

PubMed Abstract | CrossRef Full Text | Google Scholar

Kashinskaya, E. N., Belkova, N. L., Izvekova, G. I., Simonov, E. P., Andree, K. B., Glupov, V. V., et al. (2015). A comparative study on microbiota from the intestine of Prussian carp (Carassius gibelio) and their aquatic environmental compartments, using different molecular methods. J. Appl. Microbiol. 119, 948–961. doi: 10.1111/jam.12904

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, J., Ni, J., Li, J., Wang, C., Li, X., Wu, S., et al. (2014). Comparative study on gastrointestinal microbiota of eight fish species with different feeding habits. J. Appl. Microbiol. 117, 1750–1760. doi: 10.1111/jam.12663

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, T., Long, M., Gatesoupe, F. J., Zhang, Q., Li, A., and Gong, X. (2015). Comparative analysis of the intestinal bacterial communities in different species of carp by pyrosequencing. Microb. Ecol. 69, 25–36. doi: 10.1007/s00248-014-0480-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Merrifield, D. L., Dimitroglou, A., Foey, A., Davies, S. J., Baker, R., Bøgwald, J., et al. (2010). The current status and future focus of probiotic and prebiotic applications for salmonids. Aquaculture 302, 1–18. doi: 10.1016/j.aquaculture.2010.02.007

CrossRef Full Text | Google Scholar

Nikoskelainen, S., Ouwehand, A. C., Bylund, G., Salminen, S., and Lilius, E. M. (2003). Immune enhancement in rainbow trout (Oncorhynchus mykiss) by potential probiotic bacteria (Lactobacillus rhamnosus). Fish shellfish Immunol. 15, 443–452. doi: 10.1016/S1050-4648(03)00023-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Pérez, T., Balcázar, J. L., Ruiz-Zarzuela, I., Halaihel, N., Vendrell, D., de Blas, I., et al. (2010). Host–microbiota interactions within the fish intestinal ecosystem. Mucosal Immunol. 3, 355–360. doi: 10.1038/mi.2010.12

PubMed Abstract | CrossRef Full Text | Google Scholar

Riedel, K., Hentzer, M., Geisenberger, O., Huber, B., Steidle, A., Wu, H., et al. (2001). N-acylhomoserine-lactone-mediated communication between Pseudomonas aeruginosa and Burkholderia cepacia in mixed biofilms. Microbiology 147, 3249–3262. doi: 10.1099/00221287-147-12-3249

PubMed Abstract | CrossRef Full Text | Google Scholar

Ryan, R. P., and Dow, J. M. (2008). Diffusible signals and interspecies communication in bacteria. Microbiology 154(Pt 7), 1845–1858. doi: 10.1099/mic.0.2008/017871-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Schloss, P. D., Westcott, S. L., Ryabin, T., Hall, J. R., Hartmann, M., Hollister, E. B., et al. (2009). Introducing mothur: open-source, platform-independent, community supported software for describing and comparing microbial communities. Appl. Environ. Microb. 75, 7537–7541. doi: 10.1128/aem.01541-09

PubMed Abstract | CrossRef Full Text | Google Scholar

Standen, B. T., Rodiles, A., Peggs, D. L., Davies, S. J., Santos, G. A., and Merrifield, D. L. (2015). Modulation of the intestinal microbiota and morphology of tilapia, Oreochromis niloticus, following the application of a multi-species probiotic. Appl. Microbiol. Biotechnol. 99, 8403–8417. doi: 10.1007/s00253-015-6702-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Swearingen, M. C., Sabag-Daigle, A., and Ahmer, B. M. (2013). Are there acyl-homoserine lactones within mammalian intestines? J. Bacteriol. 195, 173–179. doi: 10.1128/JB.01341-12

PubMed Abstract | CrossRef Full Text | Google Scholar

Swift, S., Karlyshev, A. V., Fish, L., Durant, E. L., Winson, M. K., Chhabra, S. R., et al. (1997). Quorum sensing in Aeromonas hydrophila and Aeromonas salmonicida: identification of the luxRI homologues AhyRI and AsaRI and their cognate N-acylhomoserine lactone signal molecules. J. Bacteriol. 179, 5271–5281. doi: 10.1128/jb.179.17.5271-5281.1997

PubMed Abstract | CrossRef Full Text | Google Scholar

Tang, K. H., and Zhang, X. H. (2014). Quorum quenching agents: resources for antivirulence therapy. Mar. Drugs 12, 3245–3282. doi: 10.3390/md12063245

PubMed Abstract | CrossRef Full Text | Google Scholar

Thompson, J. A., Oliveira, R. A., Djukovic, A., Ubeda, C., and Xavier, K. B. (2015). Manipulation of the quorum sensing signal ai-2 affects the antibiotic-treated gut microbiota. Cell Rep. 10, 1861–1871. doi: 10.1016/j.celrep.2015.02.049

PubMed Abstract | CrossRef Full Text | Google Scholar

Thompson, J. A., Oliveira, R. A., and Xavier, K. B. (2016). Chemical conversations in the gut microbiota. Gut Microb. 7, 163–170. doi: 10.1080/19490976.2016.1145374

PubMed Abstract | CrossRef Full Text | Google Scholar

van Kessel, M. A., Dutilh, B. E., Neveling, K., Kwint, M. P., Veltman, J. A., Flik, G., et al. (2011). Pyrosequencing of 16S rRNA gene amplicons to study the microbiota in the gastrointestinal tract of carp (Cyprinus carpio L.). AMB Exp. 1, 1–9. doi: 10.1186/2191-0855-1-41

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, S. G., Tian, J. Y., Gatesoupe, F. J., Li, W. X., Zou, H., Yang, B. J., et al. (2013). Intestinal microbiota of gibel carp (Carassius auratus gibelio) and its origin as revealed by 454 pyrosequencing. World J. Microbiol. Biotechnol. 29, 1585–1595. doi: 10.1007/s11274-013-1322-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, S., Tian, J., Wang, G., Li, W., and Zou, H. (2012a). Characterization of bacterial community in the stomach of yellow catfish (Pelteobagrus fulvidraco). World J. Microbiol. Biotechnol. 28, 2165–2174. doi: 10.1007/s11274-012-1022-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, S., Wang, G., Angert, E. R., Wang, W., Li, W., and Zou, H. (2012b). Composition, diversity, and origin of the bacterial community in grass carp intestine. PLoS ONE 7:e30440. doi: 10.1371/journal.pone.0030440

PubMed Abstract | CrossRef Full Text | Google Scholar

Yates, E. A., Philipp, B., Buckley, C., Atkinson, S., Chhabra, S. R., Sockett, R. E., et al. (2002). N-acylhomoserine lactones undergo lactonolysis in a pH-, temperature-, and acyl chain length-dependent manner during growth of Yersinia pseudotuberculosis and Pseudomonas aeruginosa. Infect. Immun. 70, 5635–5646. doi: 10.1128/IAI.70.10.5635-5646.2002

PubMed Abstract | CrossRef Full Text | Google Scholar

Ye, L., Amberg, J., Chapman, D., Gaikowski, M., and Liu, W. T. (2014). Fish gut microbiota analysis differentiates physiology and behavior of invasive Asian carp and indigenous American fish. ISME J. 8, 541–551. doi: 10.1038/ismej.2013.181

PubMed Abstract | CrossRef Full Text | Google Scholar
