Mean Scar Entropy by Late Gadolinium Enhancement Cardiac Magnetic Resonance Is Associated With Ventricular Arrhythmias Events in Hypertrophic Cardiomyopathy

Yang Ye1,2, ZhongPing Ji3, Wenli Zhou4, Cailing Pu4, Ya Li1,2, Chengqin Zhou3, Xiuhua Hu4, Chao Chen4, Yaxun Sun1,2, Qi Huang5, Wenjuan Zhang6, Yu'e Qian4, Hong Ren4, Feidan Yu4, Chenyang Jiang1,2, Yankai Mao7, Bei Wang7, João B. Augusto8,9,10, Dongwu Lai1,2*, Hongjie Hu3* and Guo-sheng Fu1,2*
  • 1Department of Cardiology, Sir Run Run Shaw Hospital, College of Medicine, Zhejiang University, Hangzhou, China
  • 2Key Laboratory of Cardiovascular Intervention and Regenerative Medicine of Zhejiang Province, Hangzhou, China
  • 3Institute of Graphics and Image, School of Computer Science and Technology, Hangzhou Dianzi University, Hangzhou, China
  • 4Department of Radiology, Sir Run Run Shaw Hospital, Zhejiang University School of Medicine, Hangzhou, China
  • 5Department of Cardiovascular, Zhejiang Integrated Traditional and Western Medicine Hospital (HangZhou Red Cross Hospital), Hangzhou, China
  • 6Department of Information Technology, Sir Run Run Shaw Hospital, Zhejiang University School of Medicine, Hangzhou, China
  • 7Department of Cardiac Echocardiology, Sir Run Run Shaw Hospital, Zhejiang University School of Medicine, Hangzhou, China
  • 8Department of Cardiology, Hospital Professor Doutor Fernando Fonseca, Lisbon, Portugal
  • 9Institute of Cardiovascular Science, University College London, London, United Kingdom
  • 10Cardiac Imaging Department, Barts Heart Centre, St Bartholomew's Hospital, London, United Kingdom

Background: Ventricular arrhythmias are associated with sudden cardiac death (SCD) in hypertrophic cardiomyopathy (HCM). Previous studies have found the late gadolinium enhancement (LGE) on cardiac magnetic resonance (CMR) was independently associated with ventricular arrhythmia (VA) in HCM. The risk stratification of VA remains complex and LGE is present in the majority of HCM patients. This study was conducted to determine whether the scar heterogeneity from LGE-derived entropy is associated with the VAs in HCM patients.

Materials and Methods: Sixty-eight HCM patients with scarring were retrospectively enrolled and divided into VA (31 patients) and non-VA (37 patients) groups. The left ventricular ejection fraction (LVEF) and percentage of the LGE (% LGE) were evaluated. The scar heterogeneity was quantified by the entropy within the scar and left ventricular (LV) myocardium.

Results: Multivariate analyses showed that a higher scar [hazard ratio (HR) 2.682; 95% CI: 1.022–7.037; p = 0.039] was independently associated with VA, after the adjustment for the LVEF, %LGE, LV maximal wall thickness (MWT), and left atrium (LA) diameter.

Conclusion: Scar entropy and %LGE are both independent risk indicators of VA. A high scar entropy may indicate an arrhythmogenic scar, an identification of which may have value for the clinical status assessment of VAs in HCM patients.

Introduction

Cardiac magnetic resonance imaging is a valuable tool for the risk stratification of sudden cardiac death (SCD) in hypertrophic cardiomyopathy (HCM). The current gold standard for the visualization of a scarred myocardium is the late gadolinium enhancement (LGE) during cardiac magnetic resonance imaging (CMR) (1) and previous studies have demonstrated an association between ventricular LGE and ventricular arrhythmias (VAs) (24). The presence and extent of left ventricular (LV) scarring may have predictive utility for VAs in HCM patients (5).

Myocardial fibrosis is a significant cause of arrhythmogenesis in HCM patients (3, 6). However, LGE can be observed in the majority of HCM patients. Electrophysiology studies have shown that HCM patients with malignant arrhythmias have increased electrical dispersion and inhomogeneity of intraventricular conduction, which may be related to myocardial fibrosis in HCM patients with malignant arrhythmias (7). The measurement of entropy is useful for the evaluation of the heterogeneity in fibrotic lesions (8). The measurements convert the uncertainty of the signal intensity (SI) into the uncertainty of the tissue composition by taking all the SI values from the LGE-CMR. Entropy is reflected in the image complexity as a set of completely white pixels that would have an entropy value of zero, but the value increases as the scarring image intensifies, enabling the evaluation of the scar complexity. Previous studies have correlated the spatial heterogeneity of fibrosis, as defined by entropy measurements, with VAs in other cardiomyopathies (9, 10). The current study aims to determine whether the quantification of (1) scar heterogeneity, quantified by the entropy within the scar, may be considered a marker for inhomogeneous scar composition and to assess any association with VAs, and (2) the entropy of the entire LV quantify inhomogeneous fibrosis and assess any association with VAs.

Materials and Methods

Study Population

Sixty-eight patients with a diagnosis of HCM (11), in whom scarring was observed by LGE-CMR at the Sir Run Run Shaw Hospital between January 2013 and January 2020 were retrospectively enrolled in the study (Figure 1). HCM was defined as having the maximal left ventricle wall thickness on CMR images ≥15 mm or as ≥13 mm, plus a documented family history of HCM according to the guidelines (11). The exclusion criteria included the following: prior septal reduction therapy; coronary artery disease; myocardial hypertrophy due to other causes (including aortic stenosis, myocardial storage diseases, hypertension); absence of a 24 h dynamic ECG (DCG) monitoring. The HCM patients without visible scarring and those for whom the LGE CMR quality was poor were also excluded. All the HCM patients had undergone clinical examination, CMR, and 24-h DCG. The participants in the study were divided into HCM with VA (31 cases) and HCM non-VA groups (37 cases). Evidence was collected from the patient medical records or via telephone. The study protocol was approved by the Sir Run Run Shaw Hospital ethics committee and complied with the Declaration of Helsinki.

FIGURE 1
www.frontiersin.org

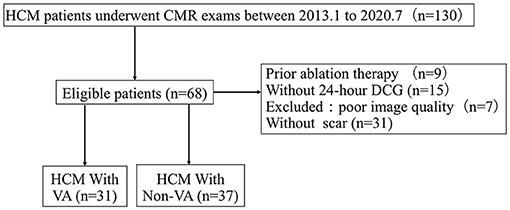

Figure 1. Flow diagram showing the selection and group of hypertrophic cardiomyopathy (HCM) with scar patients. CMR, cardiac magnetic resonance; DCG, dynamic electrocardiogram; HCM, hypertrophic cardiomyopathy; VA, ventricular arrhythmias.

Assessment of VAs and SCD Risk Estimation

Ventricular arrhythmias included previous aborted cardiac arrest, documented sustained ventricular tachycardia (VT) (12), and non-sustained VT (NS-VT). VT was defined as the sustained ventricular arrhythmia over 100 heartbeats per minute when lasting longer than 30 s or requiring earlier intervention due to hemodynamic instability. Non-sustained VT was defined as the runs of ventricular beats between ≥3 beats lasting for <30 s with a heart rate (HR) of >100 bpm (12) during DCG. The SCD risk of the HCM patients was predicted using the ESC online HCM SCD Risk stratification score calculator (13). According to this risk model, the patients with an SCD score > 6% were considered as high risk, ≥4– <6% as intermediate risk, and <4% as low risk.

Cardiac MRI Protocol and Analysis

Patients were imaged using 1.5 T CMR scanners [General Electric (GE) Healthcare, Chicago, Illinois or Magnetom Avanto Siemens, Erlangen, Germany]. All CMR images were acquired with electrocardiographic gating and breath-holding. Typical LGE CMR protocol parameters were applied: a repetition time of 4.8 ms, an echo time of 2.3 ms, and an inversion time of 200 adjusted to 300 ms. The LGE imaging was conducted 10 min after a cumulative intravenous injection of 0.2 mmol/kg of gadopentetate dimeglumine. A breath-hold segmented magnetization-prepared turbo gradient echo sequence was used with the inversion time chosen to null the normal myocardial signal. The images were visualized in 8–14 matchings short-axis (8 mm thick with 2 mm spacing) and three radial long-axis planes. The presence of LGE as a categorical value was first assessed by two radiologists who were blinded to the clinical data of the patients. The left ventricular ejection fraction (LVEF), left atrium (LA) diameter, maximal wall thickness (MWT), and %LGE were measured by standard volumetric techniques and analyzed with commercially available software (Circle Cardiovascular Imaging 42, version 5.10.1, Calgary, Canada). Late gadolinium enhancement was defined as the areas with adjusted gray-scale threshold ≥5 SD above the mean of the normal myocardium (14). The extent of the LGE (% LGE) was summarized and quantified as the percentage of the total left ventricular mass. Maximal wall thickness was defined as the greatest dimension at any site within the LV myocardium. Manual segmentation was performed by a CMR-trained cardiologist blinded to the patient identifiers and study endpoints. For inter-rater reliability, a second CMR-trained cardiologist performed a further manual segmentation, blinded to the results from the initial assessor.

The LV entropy and scar entropy were performed as previously described (9, 15) with the regions of interest drawn around all the visible LGE, carefully incorporating the scar border and excluding the surrounding myocardium. The quantification of the tissue inhomogeneity assumes that the varying SI values in LGE indicate the presence of tissues with different compositions. Tissue entropy, as an indication of inhomogeneity, was quantified for both the scar region and the entire LV myocardium. The borders of the endo-, epi-cardial, and scar regions were manually annotated. The range of the SI for each patient was normalized to a range of 0–1,024. For the LV entropy calculations, the SI values for all the pre-annotated pixels within the myocardium were used to evaluate the probability distributions for each patient. To calculate the entropy of the scar for each patient, the pixels within the pre-annotated scar areas were used to evaluate the probability distributions. Data loading and normalization were performed with PyRadiomics, and the scar-entropy and LV-entropy were calculated by Python using the following formula, derived from Shannon's formula:

H(I)=-i=1np(Ii)log2p(Ii)

where i=1n describes n SI values in the region of interest and p(Ii) is the probability of value Ii, which can be computed from the probability distribution. As the maximum intensity value was normalized to 1,024, the entropy ranges from 0 to 10, with 0 being a homogeneous distribution of a single intensity value, and 10 being a uniform distribution of varying intensity.

Statistical Analysis

The continuous variables are presented as mean ± SD, and the categorical data are summarized as frequencies and percentages. The data that did not follow a normal distribution are presented as median and quartile (interquartile range). The differences in baseline characteristics between the patients were analyzed using a Student's t-test or Fisher exact test, as appropriate. Univariable and multivariable logistic regression analyses were used to study the relationship between age, LVEF, LA diameter, %LGE, scar entropy, LV entropy, and VAs. The HR was defined after the adjustment for the pre-determined potential confounders based on clinical relevance. The HR with 95% confidence intervals (CIs) are reported. The optimal cut-off values were determined by calculating the Youden index. Kaplan-Meier curves and log-rank tests were used to explore the association of the LGE and entropy with VAs. Receiver operator characteristic (ROC) curves were created and the value closest to the upper left corner determined the optimal sensitivity and specificity to discriminate between HCM patients with VAs. The inter-and intra-observer variabilities were expressed by the intra-class correlation coefficients. The inter-observer variability for quantitative scar and left ventricular entropy was assessed in a subset of 20 randomly selected CMR studies. Two readers (WLZ and CLP) independently quantitated the LGE without prior knowledge of the clinical data and were blinded to the previous results. For the intraobserver variability, two readers (CQ Z and ZP J) independently quantitated the entropy in a subset of 20 randomly selected CMR studies. The inter-rater agreement was evaluated using a Bland-Altman plot and linear regression analysis. All tests were two-tailed and p <0.05 was considered significant.

Results

Patient Characteristics

The baseline characteristics for all patients were presented in Table 1. A total of 68 HCM patients with scarring identified by both LGE-CMR and DCG were enrolled in our study (Mean age: 68.7 ± 12.2 years; 69.1% male). Twenty-seven patients were scanned with a Siemens 1.5-T scanner (Munich, Germany) and 41 patients were scanned with a 1.5-T GE scanner (Boston, MA, United States). Of the former, 48.2% (n = 13) had HCM with VA, and of the latter, 43.9 % (p = 0.81) (n = 18). In HCM with VAs, the 5-year SCD risk score was much higher among those with VA than those without VA {[5.2 (2.69, 4.80) vs. 1.80 (2.00, 2.00)]; p <0.001; Table 1}.

TABLE 1
www.frontiersin.org

Table 1. Clinical characteristics in HCM patients with or without ventricular arrhythmias.

Assessment of Entropy by CMR

The data for the left cardiac function and myocardial entropy data are summarized in Table 2 along with the respective patient age (55.5 ± 13.5 vs. 53.8 ± 15.1 years, p = 0.63). The mean entropy within the scar was significantly higher in the VA group (6.8 ± 0.7 vs. 6.1 ± 1.2, p = 0.004). There was no significant difference in the mean LV entropy between the two groups (Table 1). All the HCM patients had LGE detectable by CMR (Table 1). There was a weak association between the presence and extent of LGE and scar entropy (r = 0.287, p = 0.018) but none between LGE and LV entropy (r = 0.106, p = 0.398).

TABLE 2
www.frontiersin.org

Table 2. Univariate and multivariate logistic regression analyses for predictors of ventricular arrhythmia in HCM patients with LGE-CMR.

Assessment of VA in HCM Patients With LGE by CMR

Ventricular arrhythmias were documented in 31 patients (45.6%). Of these, 4 patients (12.9 %) had VA with aborted cardiac arrest, 7 (22.6 %) had sustained VT, and 20 (64.5%) had NS-VT. The HCM patients with VAs had poorer LVEF (62.2 ± 15.5% vs. 71.2 ± 8.7%; p = 0.005) and thicker MWT (24.3± 5.8 vs. 22.7 ± 5.7; p = 0.030) compared with those without VA.

The univariate analysis showed that the mean entropy within the scar, %LGE, MWT, LA diameter, and LVEF were all associated with the appropriate VA (Table 2). The CMR-derived parameter, higher scar entropy, is clearly associated with VA (HR: 2.870 per unit entropy; 95% CI: 1.372–6.001; p = 0.005) (Table 2). The multivariate analysis also related scar entropy with VA (HR: 2.682 per unit entropy; 95% CI: 1.022–7.037; p = 0.039; Table 2).

There was no significant difference between %LGE and scar entropy by DeLong's test (p = 0.175). The efficiency of scar entropy in predicting the occurrence of VAs was evaluated by the ROC curve analysis (Figure 2). The green curve represents the scar entropy with a C-statistics value of 0.708 (95% CI: 0.586–0.812) and the blue curve represents the scar entropy with a C-statistics value of 0.821 (95% CI: 0.709–0.903; p = 0.175 vs. %LGE). The red curve represents the effect of adding entropy to the %LGE values and producing a better prediction of VAs in the HCM patients [area under the curve (AUC) = 0.900; 95% CI: 0.803–0.960] (p = 0.04 vs. %LGE; Figure 2). Figure 3 shows examples of the entropy model in two HCM subjects with or without VA. Patient A (orange line) had little heterogeneity of the scar tissue (in red) and this patient had a scar entropy of 6.09. Patient B (blue line) had a more dispersed distribution of SI and a scar entropy of 6.88.

FIGURE 2
www.frontiersin.org

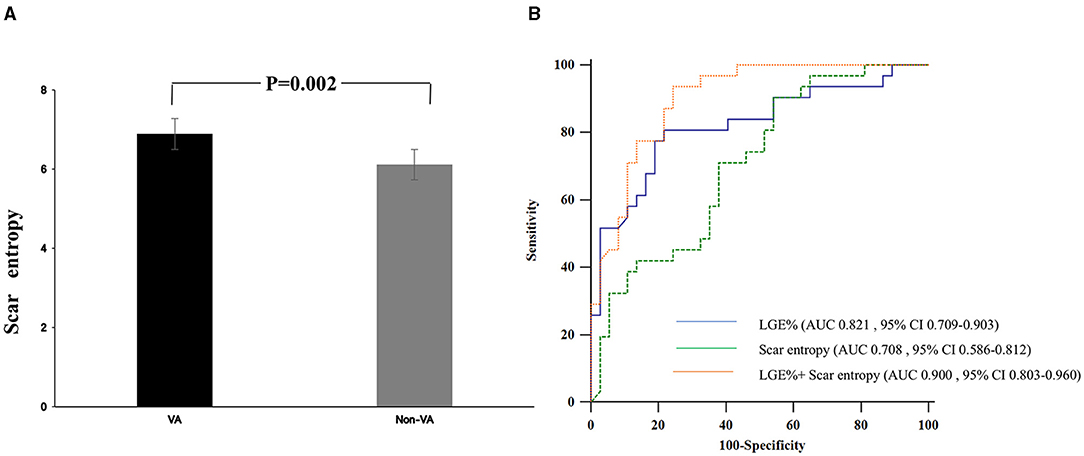

Figure 2. (A) Levels of scar entropy in HCM patients with or without ventricular arrhythmia (VA) (Groups VA and non-VA). (B) The receiver operator characteristic (ROC) curve of the scar entropy to predict the presence of VAs in the HCM cohort. AUC, area under the curve; CI, confidence interval; HCM, hypertrophic cardiomyopathy; VAs, Ventricular arrhythmias; The ROC curve of the percentage of the LGE (%LGE), scar entropy, and combined %LGE and scar entropy to predict the presence of VAs in the HCM cohort.

FIGURE 3
www.frontiersin.org

Figure 3. Scar entropy model and signal intensity (SI) histograms in two HCM subjects with or without VAs. The image demonstrates the uniformity of signal intensity in the scar, with the epicardial border in green and the endocardial border in red. The area shaded in red identifies the scar detected by the full width at the 5-SD method. (A) Image from an HCM patient who experienced VA events. (C) Image from an HCM patient who experienced non-VA events. (B) The histogram (middle) shows the probability distribution of the pixel signal intensities for both patients. Note the high frequency of pixels within a narrow range of SIs for patient B (blue line), suggesting little heterogeneity of the scar tissue and this patient had scar entropy of 6.09. Note the more dispersed distribution of SIs for patient A (orange line). The patient had scar entropy of 6.88, indicating a much more heterogeneous scar. Both patients were scanned using 1.5-T scanners.

The optimal cut-off values from the ROC analyses demonstrated that the patients with scar entropy values higher than 6.166 experienced VAs more frequently, with the sensitivity of 0.903% and the specificity of 0.459%. Similarly, the optimal cut-off values from the ROC analyses showed that the patients with %LGE higher than 6.14% had VAs more frequently. Patients with an ESC risk score higher than 4% (intermediate to high risk), combined with %LGE > 6.14% had significant risk stratification for VAs compared with those with a 5-year risk score ≥ 4% (p < 0.001; Figure 4). A scar entropy value of >6.166 further refined the % LGE-modified SCD Risk stratification score (p < 0.001 compared with the group of 5-year risk score ≥4%+%LGE > 6.14%; Figure 4).

FIGURE 4
www.frontiersin.org

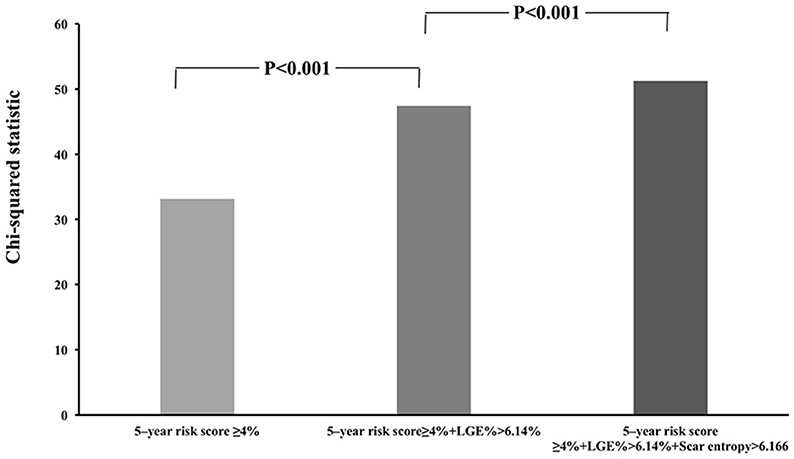

Figure 4. Incremental value of scar entropy >6.166 and LGE > 6.14% over the conventional 5-year sudden cardiac death (SCD) risk stratification score. The %LGE significantly improves the risk stratification of VAs when added to the 5-year SCD risk score ≥4% while scar entropy further significantly improved the %LGE-modified 5 year SCD risk stratification score.
