Mostafa Ali1
Mohammad Alomari
Magdy M. El-Sayed Ahmed
Pankaj Garg
Anthony N. Pham
Si M. Pham- 1Department of Cardiothoracic Surgery, Mayo Clinic, Jacksonville, FL, United States
- 2Department of Surgery, Zagazig University Faculty of Human Medicine, Zagazig, Egypt
Cardiac papillary fibroelastomas (PFEs) are the most common benign cardiac tumors and are typically solitary. PFEs affecting both sides of the heart are exceptionally rare, with only four cases reported in the literature. Herein, we report a case of a 63-year-old male presenting with signs and symptoms of embolic strokes and an embolism in the coronary arteries. An echocardiogram showed multiple masses on both the mitral and tricuspid valve leaflets. Because of the risk of embolism, he underwent successful valve-sparing surgical resection without complications. The follow-up echocardiogram at 6 months showed no recurrence and competence of both the mitral and tricuspid valves with minimal regurgitation.
Background
Primary cardiac tumors (PCTs) are rare; most of the epidemiological data on these tumors are derived from autopsy studies, which estimate an incidence of 0.002%–0.3% and a prevalence of 0.001%–0.03% (1). Most cases are secondary to metastasis, while PCTs account for less than 5%. Among PCTs, benign types are predominant. Within this category, myxomas are most commonly identified in autopsy series, whereas papillary fibroelastomas (PFEs) are more frequently reported through echocardiography and pathology (2). Although the exact prevalence of PFEs remains uncertain, recent investigations estimate it to be approximately 10%, with tricuspid PFEs accounting for 6%–15% of cases (3).
PFEs are small, benign endocardial lesions, primarily valvular, and are clinically significant due to their potential to cause embolic events (4). Cardiac PFEs are typically solitary, with multiple PFEs constituting less than 10% of cases. They usually present on the valvular endocardium of the left side of the heart (5). Multiple PFEs involving both sides of the heart are extremely rare, with only four reported cases in the literature (4, 6–8).
In this report, we present a case of multiple PFEs affecting both the mitral and tricuspid valves in a patient who presented with signs and symptoms of emboli in the coronary arteries and brain.
Case presentation
A 63-year-old male with a history of hyperlipidemia and tobacco use presented with chest pain for 3 days. The patient was afebrile, and the clinical examination was unremarkable. An electrocardiogram (EKG) revealed ST elevation in leads V3 and V5, and an echocardiogram showed a mobile mass on the posterior leaflet of the mitral valve and two mobile masses on the tricuspid valve: one on the septal leaflet and one in the anterior leaflet (Figures 1, 2). There was minimal mitral and tricuspid regurgitation. Endocarditis vegetations were suspected and intravenous cefazolin was started (2 g/8 h). Brain computed tomography (CT) was obtained as part of the endocarditis evaluation and showed a few areas of decreased attenuation within the subcortical white matter concerning for acute/subacute infarcts. The brain magnetic resonance imaging (MRI) showed multiple small brain infarcts. The patient was thought to have old embolic strokes and transient embolic thrombi.

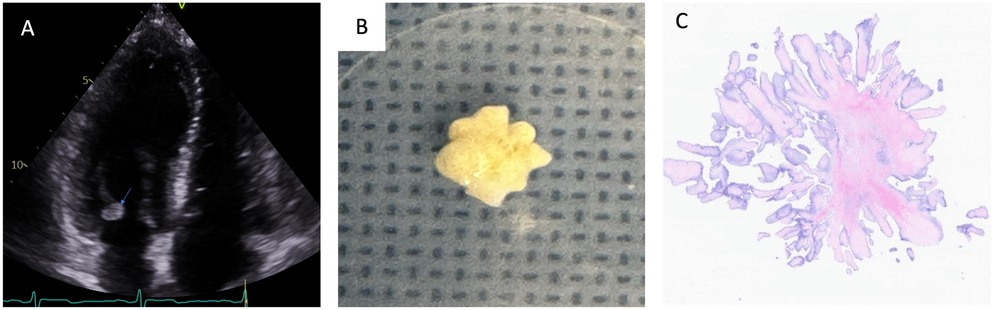

Figure 1. Fibroelastoma on the posterior leaflet of the mitral valve. Transthoracic echocardiography revealed a round, mobile mass (indicated by the arrow) adherent to the posterior leaflet of the mitral valve (A). A macroscopic image shows a gray-white lesion measuring 1 cm in its greatest dimension (B). Light microscopy (hematoxylin and eosin staining at 40× magnification) demonstrated papillary fibroelastomas with many avascular fonds lined by endothelial cells (C).

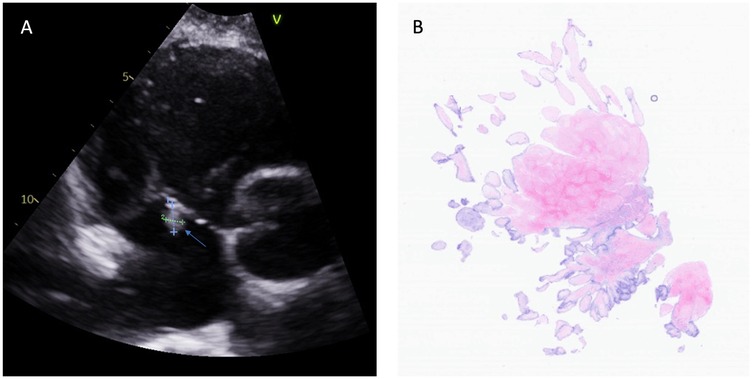

Figure 2. Fibroelastoma on the septal leaflet of the tricuspid valve. (A) Transthoracic echocardiography identified a small, mobile mass on the septal leaflet of the tricuspid valve (indicated by the arrow). (B) Light microscopy (hematoxylin and eosin staining of the mass at 40× magnification) revealed the characteristics of the papillary fibroelastomas.
Laboratory results were within normal limits: hemoglobin 14.6 g/dl, leukocytes 5.5 × 103/µl, platelets 248 × 103/µl, C-reactive protein (CRP) <3 mg/L, erythrocyte sedimentation rate (ESR) 3 mm/h, aspartate aminotransferase (AST) 26 U/L, creatinine 0.84 mg/dl, lactate 1.6 mmol/L, and troponin 8 ng/L. Blood cultures showed no growth. The coronary angiogram revealed eccentric calcified plaques in the proximal and mid segments of the left anterior descending artery (LAD), resulting in mild luminal stenosis, while the distal LAD remained patent. The left circumflex artery (LCX) exhibited calcified and mixed plaques in the proximal segment with mild stenosis. The right coronary artery (RCA) was unremarkable (Supplementary Videos S1, S2). He was placed on systemic anticoagulation—apixaban 5 mg twice a day—and was referred for surgical removal of the cardiac masses. The patient was operated on through median sternotomy on cardiopulmonary bypass. Intraoperative findings include two masses attached to the tricuspid valve: one 8 mm × 5 mm mass was attached with a stalk to the septal leaflet and a second 5 mm × 5 mm mass was attached to the posterior leaflet near the anteroposterior commissure. Both masses were excised.
In the left side of the heart, there were three discrete masses found on the mitral valve leaflets: a 10 mm × 10 mm on the posterior mitral leaflet at the P2 level, a 5 mm × 7 mm mass on the posterior mitral leaflet at the P3 level, and a third sessile mass (2 mm × 5 mm) on the anterior mitral leaflet at A2 level. In addition, there were multiple micronodules, with a sandpaper appearance on the atrial surface of the anterior leaflet of the mitral valve, covering approximately 20% surface of the anterior leaflet. Moreover, micronodules covered the tip of the medial and lateral papillary muscles. These nodules were too small to resect.
Histopathology confirmed a diagnosis of fibroelastoma (Figures 1, 2). The postoperative course was unremarkable, and the patient was discharged from the hospital on Aspirin 325 mg/day on postoperative day 4. A follow-up echocardiogram at 1 year revealed competent cardiac valves and no residual mass (Supplementary Video S3).
Discussion
Multiple PFEs involving both sides of the heart are rare; only four reported cases have been reported (Table 1). All these patients were female and were older than 40 years of age at the time of diagnosis. It has been suggested that multiple PFEs may emerge due to stimulus-driven responses to heart surgeries and abnormalities such as hypertrophic obstructive cardiomyopathy (HOCM) (8). Further, a genetic association with multiple PFEs has also been recently reported. Muyldermans et al. reported MYBPC3 gene mutation in a patient with HOCM and multiple PFEs (9).
Table 1. Characteristics of the reported cases of multiple cardiac papillary fibroelastomas.
Histopathologically, cardiac PFEs are characterized by an avascular collagenous core, which consists of proteoglycans, elastic fibers, fibroblasts, and occasionally spindle cells and calcification, enveloped by a single layer of endocardial cells. Grossly, they present as mobile papillary projections attached to a stalk (10).
They are often found incidentally through imaging, surgery, or post mortem examinations. While most cases are asymptomatic, symptomatic patients may experience embolization-related complications, with stroke being the most common presentation. In some instances, chest pain due to myocardial infarction or acute abdominal pain due to acute mesenteric ischemia may be their first presentation. Other features, including heart murmurs, dyspnea, pulmonary hypertension, and arrhythmia, were also reported (11, 12). In the four reported cases of multiple PFEs that involved both sides of the heart, one patient was asymptomatic and diagnosed incidentally during routine follow-up (6). Two patients experienced embolic events [pulmonary (8) and brain (7)], and three patients had a history of cardiac disorders, mitral prolapse (6), bradyarrhythmia (4), and Noonan syndrome with HOCM (8).
Echocardiography is highly sensitive and specific, making it the preferred diagnostic tool. PFEs appear as a small (usually not exceeding 20 mm) endocardial mass that is homogenous, well-defined, echo-dense, and mobile with uniform or irregular borders and are traditionally associated with single or multiple stalks. The small size is suggestive of a thrombus or vegetation as a differential diagnosis (5). Cardiac CT and MRI can be used as adjunctive diagnostic tests.
Four patients, including ours, exhibited two or three (6, 7) valves affected by PFEs, and the number of masses was <10 (3, 6, 7). There was no valvular involvement in one patient despite 35–40 masses in the left and right ventricles (8). Even though the aortic valve is the most common valve affected with PFEs (12), in patients with multiple bilateral cardiac PFEs, aortic valve involvement has been reported in only one case (4). In patients with numerous PFEs, significant valvular regurgitation may occur and need to be addressed during surgery. In our review, three patients had significant regurgitation in their aortic (6), mitral (6, 7), tricuspid (7, 8), and pulmonary (8) valves, and the affected valve was either repaired or replaced.
Because PFEs carry a potential risk of complications, especially embolic events, complete surgical excision of all the masses is recommended (13). However, it may not be possible to safely remove all the masses without disrupting the heart's integrity, as reported by Patel et al. (4). Furthermore, due to the lack of data, the long-term outcome is unknown. Hence, after surgery, all patients with multiple cardiac PFEs should be closely followed with serial echocardiography to detect any growth of the residual masses or recurrence. Surgical approaches depend on the site, size, number of masses, and surgeon preference. There is no consensus regarding the management of asymptomatic and small right-sided PFEs. Some have suggested regular follow-up, while others have recommended surgical excision (14, 15). For solitary or multiple PFEs involving aortic valves, a minimally invasive technique is gaining popularity; however, median sternotomy remains the preferred approach for multiple PFEs involving both sides of the heart (16). All the patients in the present review underwent surgical resection without major complications; however, follow-up data regarding recurrence were not reported for two of the patients (4, 7). In patients with contraindications to surgery, antiplatelet and/or anticoagulation therapy are recommended with no supporting data (17).
In summary, multiple PFEs that occur on both sides of the heart are rare, but systemic embolization occurs frequently, therefore, surgical removal is recommended to avoid complications. Ongoing, routine follow-up is recommended to monitor for recurrence.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Ethics statement
Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.
Author contributions
MAli: Writing – original draft, Writing – review & editing. MAlo: Writing – original draft, Writing – review & editing. ME: Writing – original draft, Writing – review & editing. PG: Writing – original draft, Writing – review & editing. AP: Writing – original draft, Writing – review & editing. SP: Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Software, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing.
Funding
The author(s) declare that no financial support was received for the research and/or publication of this article.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcvm.2025.1455947/full#supplementary-material
Supplementary Video S1 | Coronary angiogram: The Left Anterior Descending (LAD) artery exhibits eccentric calcified plaques in the proximal and mid segments, causing mild luminal stenosis, with the distal LAD remaining patent and free of stenosis. The Left Circumflex (LCX) artery demonstrates calcified and mixed plaques in the proximal segment with mild luminal stenosis.
Supplementary Video S2 | Coronary angiogram: The Right Coronary Artery (RCA) appears normal.
Supplementary Video S3 | Echocardiogram at the 1-year postoperative follow-up showed normal valvular function with no evidence of residual mass or recurrence.
References
1. Rahouma M, Arisha MJ, Elmously A, El-Sayed Ahmed MM, Spadaccio C, Mehta K, et al. Cardiac tumors prevalence and mortality: a systematic review and meta-analysis. Int J Surg. (2020) 76:178–89. doi: 10.1016/j.ijsu.2020.02.039
2. Tamin SS, Maleszewski JJ, Scott CG, Khan SK, Edwards WD, Bruce CJ, et al. Prognostic and bioepidemiologic implications of papillary fibroelastomas. J Am Coll Cardiol. (2015) 65(22):2420–9. doi: 10.1016/j.jacc.2015.03.569
3. Chen D, Ma X, He Y, Xie S, Xia J. Papillary fibroelastomas of tricuspid valve. Acta Cardiol. (2024) 12:1–2. doi: 10.1080/00015385.2024.2327139
4. Patel N, Harb S, Xu B, Soltesz E, Myles J, Faulx M. Multiple cardiac papillary fibroelastomas. CASE (Phila). (2017) 1(3):104–6. doi: 10.1016/j.case.2017.03.004
5. Sun JP, Asher CR, Yang XS, Cheng GG, Scalia GM, Massed AG, et al. Clinical and echocardiographic characteristics of papillary fibroelastomas: a retrospective and prospective study in 162 patients. Circulation. (2001) 103(22):2687–93. doi: 10.1161/01.cir.103.22.2687
6. Vittala SS, Click RL, Challa S, Najib MQ, Khandheria BK, Edwards WD, et al. Multiple papillary fibroelastomas. Circulation. (2012) 126(2):242–3. doi: 10.1161/CIRCULATIONAHA.111.049569
7. Iosifescu AG, Enache R, Văleanu L, Timisescu AT, Iliescu VA. Ten tumors in the heart: papillary fibroelastoma with triple valve involvement. Ann Thorac Surg. (2022) 114(4):e269–72. doi: 10.1016/j.athoracsur.2021.12.047
8. Kumar TKS, Kuehl K, Reyes C, Talwar S, Moulick A, Jonas RA. Multiple papillary fibroelastomas of the heart. Ann Thorac Surg. (2009) 88(6):e66–67. doi: 10.1016/j.athoracsur.2009.08.005
9. Muyldermans P, de Ceuninck M, Dujardin K. Left ventricular hypertrophy and papillary fibroelastoma in a patient with a MYBPC3 gene mutation. Acta Cardiol. (2017) 72(1):75–6. doi: 10.1080/00015385.2017.1281550
10. Kurmann R, El-Am E, Ahmad A, Abbasi MA, Mazur P, Akiki E, et al. Cardiac masses discovered by echocardiogram; what to do next? Struct Heart. (2023) 7(4):100154. doi: 10.1016/j.shj.2022.100154
11. Gowda RM, Khan IA, Nair CK, Mehta NJ, Vasavada BC, Sacchi TJ. Cardiac papillary fibroelastoma: a comprehensive analysis of 725 cases. Am Heart J. (2003) 146(3):404–10. doi: 10.1016/S0002-8703(03)00249-7
12. Tsugu T, Nagatomo Y, Endo J, Kawakami T, Murata M, Yamazaki M, et al. Multiple papillary fibroelastomas attached to left ventricular side and aortic side of the aortic valve: a report of new case and literature review. Echocardiography. (2019) 36(6):1194–9. doi: 10.1111/echo.14350
13. Devanabanda AR, Lee LS. Papillary fibroelastoma. In: StatPearls. Treasure Island (FL): StatPearls Publishing (2024). [Updated 2023 April 26].
14. Teng P, Hu P, Yuan S, Ma L. Case report: minimally invasive excision of multifocal cardiac papillary fibroelastomas involving right atrium and aortic valve. Front Cardiovasc Med. (2022) 9:908567. doi: 10.3389/fcvm.2022.908567
15. Phan TQ, Pham CTV, Bui VDA, Ho TD, Le TN, Nguyen TVT, et al. Minimally invasive resection of heart valve papillary fibroelastoma: two case reports and review of the literature. J Cardiothorac Surg. (2023) 18(1):320. doi: 10.1186/s13019-023-02392-1
16. Harling L, Athanasiou T, Ashrafian H, Kokotsakis J, Brown V, Nathan A, et al. Minimal access excision of aortic valve fibroelastoma: a case report and review of the literature. J Cardiothorac Surg. (2012) 7:80. doi: 10.1186/1749-8090-7-80
