Review ARTICLE

Front. Endocrinol., 12 June 2018 | https://doi.org/10.3389/fendo.2018.00320

Role of Fibroblast Growth Factor-23 in Innate Immune Responses

  • 1Department of Microbiology, Immunology and Biochemistry, University of Tennessee Health Science Center, Memphis, TN, United States
  • 2Department of Medicine, University of Tennessee Health Science Center, Memphis, TN, United States

Fibroblast growth factor-23 (FGF-23) is a bone-derived hormone that activates FGFR/α-Klotho binary complexes in the kidney renal tubules to regulate phosphate reabsorption and vitamin D metabolism. The objective of this review is to discuss the emerging data that show that FGF-23 has functions beyond regulation of mineral metabolism, including roles in innate immune and hemodynamic responses. Excess FGF-23 is associated with inflammation and adverse infectious outcomes, as well as increased morbidity and mortality, particularly in patients with chronic kidney disease. Enhancer elements in the FGF-23 promoter have been identified that mediate the effects of inflammatory cytokines to stimulate FGF-23 gene transcription in bone. In addition, inflammation induces ectopic expression of FGF-23 and α-Klotho in macrophages that do not normally express FGF-23 or its binary receptor complexes. These observations suggest that FGF-23 may play an important role in regulating innate immunity through multiple potential mechanisms. Circulating FGF-23 acts as a counter-regulatory hormone to suppress 1,25D production in the proximal tubule of the kidney. Since vitamin D deficiency may predispose infectious and cardiovascular diseases, FGF-23 effects on innate immune responses may be due to suppression of 1,25D production. Alternatively, systemic and locally produced FGF-23 may modulate immune functions through direct interactions with myeloid cells, including macrophages and polymorphonuclear leukocytes to impair immune cell functions. Short-acting small molecules that reversibly inhibit FGF-23 offer the potential to block pro-inflammatory and cardiotoxic effects of FGF-23 with less side effects compared with FGF-23 blocking antibodies that have the potential to cause hyperphosphatemia and soft tissue calcifications in animal models. In conclusion, there are several mechanisms by which FGF-23 impacts the innate immune system and further investigation is critical for the development of therapies to treat diseases associated with elevated FGF-23.

Fibroblast growth factor-23 (FGF-23) is a bone-derived hormone that participates in a bone–kidney endocrine network regulating mineral metabolism. FGF-23 is produced by osteoblasts and osteocytes in bone and enters the circulation to inhibit phosphate reabsorption and reduce serum 1,25D levels through the activation of canonical FGFR/α-Klotho receptor complexes in renal tubules (13). The major physiological functions of FGF-23 are to (1) coordinate bone mineralization with renal handling of phosphate (1, 4) and (2) act as a counter-regulatory hormone for 1,25D (Figure 1A). Elevated levels of FGF-23 are associated with several hereditary and acquired hypophosphatemic disorders including X-linked hypophosphatemic rickets (Hyp mice homolog)—caused by inactivating mutations of Phex (57)—autosomal recessive hypophosphatemic rickets 1—caused by inactivating mutations of Dmp1 (5, 7)—ARHR2—caused by inactivating mutations in Enpp1 (610)—and Raine syndrome—caused by inactivating mutations in FAM20C (11, 12). Increased FGF-23 is the result of either increased gene transcription or diminished cleavage of FGF-23 in these disorders.

FIGURE 1
www.frontiersin.org

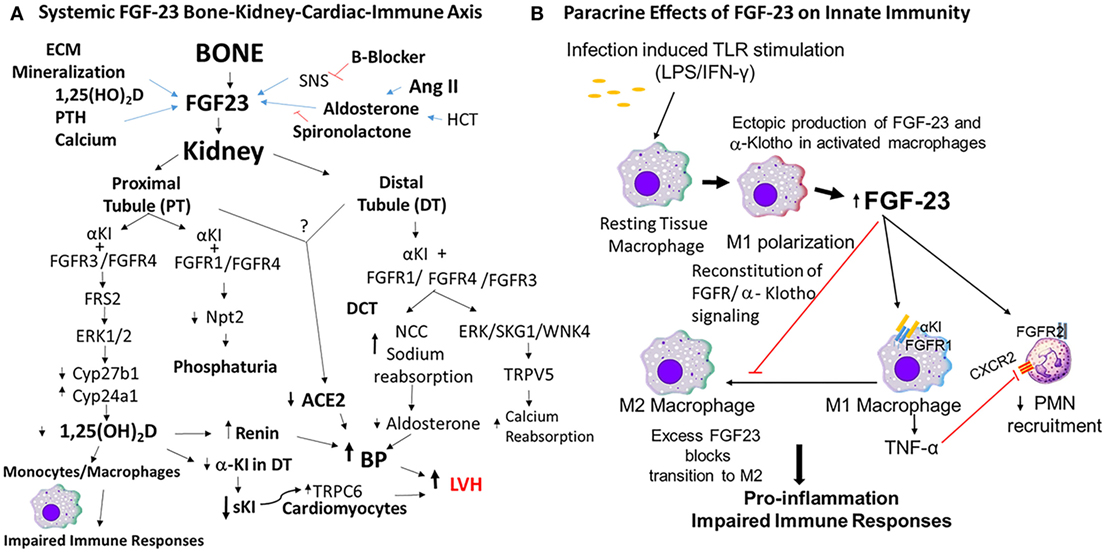

Figure 1. Mechanisms of fibroblast growth factor-23 (FGF-23) effects to impair innate immune responses. (A) FGF-23 bone–kidney–cardiac–immune axis. FGF-23 is produced by osteoblasts/osteocytes in bone in response to local and systemic factors and targets the kidney to create multiple endocrine networks (4, 13) in bone, including (1) an FGF-23 vitamin D counter-regulatory loop (4, 14); (2) a calcium-FGF-23 endocrine loop, where calcium stimulates FGF-23 in bone and FGF-23 stimulates calcium reabsorption in the DT (15, 16); (3) a bone–kidney axis, where FGF-23 is regulated by factors involved in extracellular matrix mineralization to coordinate renal phosphate handling (1). In addition, there is a bone–renal–cardiac axis that augments hemodynamic responses through a feed forward bone–cardio–renal loop, where angiotensin II (Ang II) stimulates FGF-23 production in bone (17) and FGF-23 suppresses Ace2 in the kidney (18), a volume regulatory loop where diuretics and aldosterone stimulate FGF-23 production by bone and FGF-23 targets the distal tubule to increase sodium reabsorption, and a FGF-23 soluble Klotho (sKl) regulatory axis, where FGF-23 suppresses α-Kl expression in the distal tubule leading to reduction in sKl and loss of the hormonal effects of this antiaging hormone. In this schema, FGF-23 regulates innate immune response through suppression of 1,25(OH)D2 production by the kidney. (B) Paracrine effects of FGF-23 on innate immune responses. Macrophages do not normally express FGF-23 or α-Klotho, but in the setting of infection, LPS/IFNγ induces the ectopic expression of both FGF-23 and its co-receptor α-Klotho that reconstitutes paracrine FGF-23 signaling in macrophages. FGF-23 stimulates pro-inflammatory responses in M1 macrophages and blocks the transition to M2 macrophages (3). In addition, FGF-23 is proposed to directly activate FGFR2 in PMNs to decrease recruitment (19).

Role of FGF-23 in Inflammation

There are emerging data that FGF-23 may have effects on immune responses. Vitamin D, which is regulated by FGF-23, has well-described effects on both innate and adaptive immunity (2022). Vitamin D has an overall effect to enhance innate immune responses and exert anti-inflammatory effects through local and systemic effects. Evidence that FGF-23 may have an overall impact on immunity comes from the association between elevated FGF-23 levels and inflammation. FGF-23 is increased in inflammatory bowel disease (23) and chronic kidney disease (CKD) (4). In CKD, elevated FGF-23 initially functions to maintain mineral homeostasis, but persistent elevations are maladaptive and associated with increased morbidity and mortality (2426), cardiovascular disease (2630), inflammation, and infections (31, 32). Infections, most commonly caused by infected catheters and pneumonia (33), are second to cardiovascular disease in causing death in CKD (34) and are >100-fold higher than the general population. Recent clinical association studies suggest that elevated FGF-23 contributes to an increase in susceptibility or severity of infections in CKD. Moreover, elevated FGF-23 levels correlated with increased IL-6, TNFα, CRP, fibrinogen, and severe inflammation in CKD patients (31, 35). In a CKD mouse model of bacterial pneumonia, FGF-23 administration exacerbated disease severity and its inhibition improved outcomes (19). Although these studies suggest that FGF-23 interacts with the immune system, they do not reveal whether FGF-23 directly regulates immune cell functions or indirectly affects immune responses through FGF-23 regulation of 1,25D.

Inflammatory Stimuli Induce FGF-23 Expression in Osteoblasts/Osteocytes and Immune Cells

Inflammatory stimuli upregulate FGF-23 expression in bone, where FGF-23 is usually expressed, but also in immune cells and tissues that do not normally express FGF-23. Inflammatory cytokines have been shown to induce FGF-23 expression in vivo and in vitro. Inflammation increases circulating FGF-23 levels in both animal models and humans in response to infection, inflammation, and oxidative stress (3638). For example, mouse serum FGF-23 levels are significantly increased following inoculation with Gram-negative (E. coli) or Gram-positive (S. aureus) bacteria, or LPS administration in mice (37). Numerous studies have demonstrated that FGF-23 transcription in osteoblasts/osteocytes is regulated by LPS, IL-1β, and TNFα (39). An enhancer residing in the −16 kb region of FGF-23 was identified and following deletion using CRISPR/Cas9 technology was demonstrated to be responsible for the stimulation of FGF-23 transcription by inflammatory stimuli (40). Bacterial components stimulate immune cells through toll-like receptors (TLRs) and stimulation of TLRs 2, and 4 on bone marrow-derived dendritic cells increased FGF-23 mRNA expression. TLR4 recognizes the bacterial cell wall component LPS, and TLR2 recognizes lipotechoic acids present in bacterial membranes leading to the activation of NF-κB pathway. Inhibition of NF-κB activation prevented the upregulation of FGF-23 mRNA in response to LPS stimulation. Hif1α is another transcription factor that stimulates FGF-23 in osteoblasts (41), indicating that oxidative stress/inflammation stress may induce expression of FGF-23.

Macrophages may be central to FGF-23 regulation and function. Resting RAW264.7 macrophages, which do not normally express FGF-23, when stimulated with LPS/IFN-γ to induce M1 polarization express significant increases in FGF-23. The increase is also mediated by NF-κB-dependent activation of the FGF-23 promoter (3). In addition, the M1 macrophages upregulate Klotho transcription, including the full-length α-Kl message and the alternatively spliced s-Kl message and protein levels. By contrast, IL-4 induction of M2 macrophages results in only modest increases in FGF-23 expression and no upregulation of α-Klotho transcription. Not only do macrophages make FGF-23 and respond to FGF-23 (see below), but make other cytokines, such as OSM, that induce tissue expression of FGF-23, such as in cardiomyocytes (42). In contrast to M1 macrophages, Masuda et al. (37) did not observe upregulation of FGF-23 mRNA in T cells stimulated with the polyclonal stimulators PMA and ionomycin. Lymphocytes also express TLRs 2 and 4, and it is not known whether stimulation through these receptors will upregulate FGF-23 mRNA in these cells.

These observations suggest that inflammatory mediators stimulate FGF-23 gene transcription in osteoblasts/osteocytes that normally express FGF-23 and in macrophages and tissues that do not normally express FGF-23. The resulting local and systemic production of FGF-23 may play a critical role in the ensuing immune responses through targeting FGFR/α-Klotho receptor complexes in the kidney or reconstituted receptor complexes in the local inflammatory tissue environment.

Potential Mechanisms for FGF-23 Impairment of Host Responses

Indirect Effects Mediated by FGF-23 Suppression of 1,25D

Under physiological conditions, changes in FGF-23 results in reciprocal changes in 1,25D, and vice versa. FGF-23 may affect immune responses through activation of FGFR/α-Klotho complexes in the proximal renal tubule leading to suppression of 1,25D by the kidney (3, 19, 4346). The association between low vitamin D and high FGF-23 serum levels with infectious and cardiac deaths in a large cohort of patients with end-stage renal disease (47, 48) may be due to the loss of the anti-inflammatory effects of 1,25D (49, 50). The loss of 1,25D may result in the amplification of inflammatory response and subsequently increased tissue pathology.

Direct Effects of FGF-23 on Macrophages and PMNs

Another mechanism is direct pro-inflammatory actions of FGF-23 on immune cells. There is emerging evidence that FGF-23 directly interacts with immune cells, such as PMNs and/or macrophages through binding of FGFR/α-Kl receptors (Figure 1B).

Rossaint et al. (19) used a murine model of CKD, induced by 5/6 nephrectomy, to measure the effect of excess FGF23 on E. coli pneumonia. The authors demonstrate that mice with CKD had decreased recruitment of PMNs into the lungs and increased disease severity. Neutralization of FGF23 with anti-FGF23 antibody restored PMN recruitment and the host response in these mice. The authors proposed that elevated circulating levels of FGF-23 directly activated FGFR2 in PMNs to impair the host response to infection.

Direct effects of FGF-23 on PMNs are controversial for several reasons. First, PMNs lack the obligate FGF-23 co-receptor α-Klotho. To deal with this inconsistency, this hypothesis proposes that FGF-23 targets PMNs through the non-canonical FGFR2 pathway (2). Second, FGFR2, which is the only FGFR expressed in PMNs, is not a target for FGF-23 in multiple functional studies and target engagement assays (2, 5153). Third, experimental designs in existing studies are not sufficient to establish the role of FGFR2 or PMNs in mediating FGF-23’s adverse effects on host responses. In this regard, a single intravenous injection of 200 ng of rFGF-23 to mice was the only in vivo evidence that elevated FGF-23 impairs PMN responses to sepsis. Essential studies to ablate FGFR2 in PMNs or to test the effects of chronic elevations of FGF-23 in the absence of confounding effects of CKD (19, 54) have not been performed. Finally, effects of FGF-23 inhibition to improve outcomes with a blocking antibody have not controlled for confounding effects of reciprocal increases in 1,25D production in response to FGF-23 inhibition.

There is compelling data that FGF-23 targets macrophages. Several studies have demonstrated that macrophages and DCs express FGFR1 and inflammatory stimuli upregulates α-Klotho expression in macrophages to reconstitute FGFR–α-Klotho signaling (3, 37). Stimulation of these cells with FGF-23 resulted in induction of TNF-α mRNA and protein expression in primary macrophages as well as macrophage cell lines through activation of binary FGFR/α-Klotho complexes (3, 37). In addition, the ability of FGFR inhibitors to block FGF-23 signaling in macrophages confirms that the canonical FGFR/Kl signaling pathway is active in macrophages (3).

If FGF-23 is directly affecting innate immune responses, animal models with elevated FGF-23 should exhibit abnormal host responses even in the absence of CKD. Indeed, a sterile inflammation model to induce the infiltration of peritoneal macrophages with thioglycolate shows that Hyp mice have increased FGF-23 expression in macrophages (3). Macrophages isolated from Hyp mice expressed higher levels of FGF-23 and Klotho compared with WT controls. Hyp macrophages also had increased basal ERK activation and increased TNF-α mRNA, consistent with activation of FGFR/αKl signaling. Serum levels of TNF-α were increased consistent with the pro-inflammatory phenotype [i.e., kidney inflammation (18) and cardiovascular abnormalities in Hyp mice (55)]. These data support the hypothesis that locally produced and circulating FGF-23 activate immune cells in the inflammatory milieu (3, 43), leading to adverse outcomes (56). In this scenario, infection with bacteria stimulates the production of FGF-23 locally in M1 activated macrophages which also upregulate FGFR/α-Kl complexes (3). Autocrine stimulation of the M1 cells with FGF23 amplifies TNF production and inhibits the transition to a wound healing M2 phenotype, resulting in excess tissue damage and increased morbidity and mortality (Figure 1B).

Based on these findings, a new hypothesis proposes that FGF-23 actions on innate immunity are mediated by activation of reconstituted canonical FGFR/α-Kl receptors in tissue macrophages during infections by both systemic and local production of FGF-23 (Figure 1B) (3, 19, 37, 43). Although the full effects of FGF-23 on immune cell function remain to be defined, in this schema, FGF-23 is proposed to have pro-inflammatory effects mediated by activated macrophages. Additional studies are needed to characterize the impact of FGF-23 on immune responses. In particular, experiments that conditional delete FGF-23, FGFRs, and α-Klotho in different myeloid cells are needed to define the role of FGF-23/FGFR/α-Klotho signaling in mediating immune responses.

Role of α-Klotho and Soluble Klotho (sKl) in Inflammation

α-Klotho gene has two transcripts that encode a long type I transmembrane (TM) protein containing KL1 and KL2 domains and a short secreted protein containing only a single KL domain (57). The ~130-kDa TM protein is an obligate co-receptor for binding of FGF-23 to FGFRs (2, 58). Ectodomain shedding by ADAM10 and ADAM17 generates a circulating α-Klotho isoform that lacks the TM domain (59). The short secreted ~60-kDa isoform (s-KL) is generated by the alternative spliced transcript. Similar sized as soluble KL1 and KL2 fragments are also generated by additional post-translational cleavage of the shed isoform (57, 60). The ~60-kDa s-KL gene product emerged during evolution before FGF-23 and likely has FGF-23 independent functions, including antiaging, anti-inflammatory, and anti-fibrotic effects due to actions of secreted forms of KL to inhibit Wnt, IGF-1, and TGF-β signaling (6165). Since excess FGF-23 is associated with decreased expression of α-Klotho in the kidney and circulating Kl, it is difficult to determine if the adverse effects attributed to excess FGF-23 are actually caused by Klotho deficiency. Indeed, Klotho depletion is associated with increased inflammation in multiple experimental models.

A recent study showed that renal Klotho mRNA and protein were significantly decreased leading to increased inflammation in kidney of the db/db mouse model of diabetes (66). Addition of sKl or overexpression of α-Klotho suppressed NF-κB activation and subsequent production of inflammatory cytokines in response to TNF-α stimulation in vitro. Klotho serves as an anti-inflammatory modulator, which negatively regulates the production of NF-κB-linked inflammatory proteins via a mechanism that involves phosphorylation of Ser536 in the transactivation domain of RelA (66). Thus, distinguishing between FGF-23 and α-Klotho-dependent effects are important, because Klotho administration would correct abnormalities caused by FGF-23 suppression of Klotho.

FGF-23 Regulates Hemodynamic Responses to Counter the Hypotensive Effects of Inflammation

Could FGF-23 effects regulate renal process that have cardiovascular effects, be linked to inflammatory responses (53, 67)? For example, FGF-23 upregulates NCC in the DT leading to hypertension and suppression of aldosterone levels (15, 16, 55). FGF-23 administration suppresses ACE2 and αKl expression in the kidney, which could potentially cause left ventricular hypertrophy by enhancing the response to Ang II and/or decreasing circulating sKl (68). From a teleological perspective, FGF-23 control of blood pressure may serve to attenuate the hypotensive effects of inflammation, or alternatively account for the link between inflammation and hypertension (69).

Therapeutic Potential of FGF-23 Antagonist

If elevations of FGF-23 are causally linked to adverse outcomes, as emerging data are suggesting, then efforts to inhibit the end-organ effects of excess FGF-23 may improve outcomes in clinical conditions of FGF-23 excess. Advancements in pharmacological tools to block FGF-23 have been made, including blocking antibodies, which show efficacy and safety in treating hypophosphatemic rickets in hereditary disorders of FGF-23 excess (70). Blocking antibodies, however, have a narrow safety window and long half-life (16, 70), which may limit their use in CKD. Indeed, FGF-23-blocking antibody has not been shown to safely reduce FGF-23 in CKD without worsening hyperphosphatemia. Use of an FGF-23-blocking antibody also induced aortic calcification associated with increased risk of mortality in a rodent model of CKD (16). A novel FGF-23 antagonist, Zinc13407541, has been developed, which is short-acting and effectively antagonizes FGF-23 actions in vitro and in vivo without elevating serum phosphate (71). Unlike FGF-23-blocking antibodies, this small molecule compound can specifically block FGF-23/FGFR/Klotho signaling and increase serum 1,25(OH)2D levels (71) and suppresses TNF-α expression in activated macrophages. With further lead optimization, derivatives of Zinc13407541 could potentially be a titratable pharmacological tool to block FGF-23-related mortality in CKD.

In conclusion, a new understanding of FGF-23 functions proposes functions beyond mineral metabolism that includes indirect and direct effects on components of the myeloid lineage that may account for the association between elevated FGF-23 and impaired host responses to infections. Distinguishing between the proposed mechanisms, namely, FGF-23 suppression of 1,25D, activation of FGFR2 in PMNs in the absence of α-Klotho, and FGF-23 activation of canonical FGFR/α-Kl signaling in macrophages, is important, if we are to make progress in preventing and treating complications of excess FGF-23. Additional studies are needed to determine the relative importance of FGF-23 direct effect on different components of the myeloid lineage in regulating innate immune function and the clinical significance of FGF-23 actions to counteract the systemic and local immune effects of Vitamin D. Distinguishing between these direct and indirect effects will help establish whether pharmacological inhibition of FGF-23 or administration of 1,25D or sKl can prevent the adverse outcomes associated with FGF-23 excess.

Author Contributions

XH performed the in vitro studies characterizing the ectopic expression of FGF-23 in activated macrophages. EF performed investigations evaluating impact of FGF-23 on the susceptibility to infection. ZX performed the studies characterizing regulation of FGF-23. LQ supervised all research studies related to FGF-23 effects in macrophages. All the authors contributed to the literature review and writing of this manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Funding

This work was supported by the National Institute of Arthritis and Musculoskeletal and Skin Diseases (NIAMS) of the National Institutes of Health (NIH) under award number RO1AR045955.

References

1. Quarles LD. Skeletal secretion of FGF-23 regulates phosphate and vitamin D metabolism. Nat Rev Endocrinol (2012) 8(5):276–86. doi:10.1038/nrendo.2011.218

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Urakawa I, Yamazaki Y, Shimada T, Iijima K, Hasegawa H, Okawa K, et al. Klotho converts canonical FGF receptor into a specific receptor for FGF23. Nature (2006) 444(7120):770–4. doi:10.1038/nature05315

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Han X, Li L, Yang J, King G, Xiao Z, Quarles LD. Counter-regulatory paracrine actions of FGF-23 and 1,25(OH)2 D in macrophages. FEBS Lett (2016) 590(1):53–67. doi:10.1002/1873-3468.12040

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Quarles LD. Evidence for a bone-kidney axis regulating phosphate homeostasis. J Clin Invest (2003) 112(5):642–6. doi:10.1172/JCI200319687

CrossRef Full Text | Google Scholar

5. Feng JQ, Ward LM, Liu S, Lu Y, Xie Y, Yuan B, et al. Loss of DMP1 causes rickets and osteomalacia and identifies a role for osteocytes in mineral metabolism. Nat Genet (2006) 38(11):1310–5. doi:10.1038/ng1905

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Liu S, Zhou J, Tang W, Jiang X, Rowe DW, Quarles LD. Pathogenic role of Fgf23 in Hyp mice. Am J Physiol Endocrinol Metab (2006) 291(1):E38–49. doi:10.1152/ajpendo.00008.2006

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Liu S, Zhou J, Tang W, Menard R, Feng JQ, Quarles LD. Pathogenic role of Fgf23 in Dmp1-null mice. Am J Physiol Endocrinol Metab (2008) 295(2):E254–61. doi:10.1152/ajpendo.90201.2008

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Mackenzie NC, Zhu D, Milne EM, van’t Hof R, Martin A, Darryl Quarles L, et al. Altered bone development and an increase in FGF-23 expression in Enpp1(-/-) mice. PLoS One (2012) 7(2):e32177. doi:10.1371/journal.pone.0032177

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Martin A, Liu S, David V, Li H, Karydis A, Feng JQ, et al. Bone proteins PHEX and DMP1 regulate fibroblastic growth factor Fgf23 expression in osteocytes through a common pathway involving FGF receptor (FGFR) signaling. FASEB J (2011) 25(8):2551–62. doi:10.1096/fj.10-177816

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Wang X, Wang S, Li C, Gao T, Liu Y, Rangiani A, et al. Inactivation of a novel FGF23 regulator, FAM20C, leads to hypophosphatemic rickets in mice. PLoS Genet (2012) 8(5):e1002708. doi:10.1371/journal.pgen.1002708

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Whyte MP, McAlister WH, Fallon MD, Pierpont ME, Bijanki VN, Duan S, et al. Raine syndrome (OMIM #259775), caused by FAM20C mutation, is congenital sclerosing osteomalacia with cerebral calcification (OMIM 259660). J Bone Miner Res (2017) 32(4):757–69. doi:10.1002/jbmr.3034

CrossRef Full Text | Google Scholar

12. Oya K, Ishida K, Nishida T, Sato S, Kishino M, Hirose K, et al. Immunohistochemical analysis of dentin matrix protein 1 (Dmp1) phosphorylation by Fam20C in bone: implications for the induction of biomineralization. Histochem Cell Biol (2017) 147(3):341–51. doi:10.1007/s00418-016-1490-z

CrossRef Full Text | Google Scholar

13. Liu S, Guo R, Simpson LG, Xiao ZS, Burnham CE, Quarles LD. Regulation of fibroblastic growth factor 23 expression but not degradation by PHEX. J Biol Chem (2003) 278(39):37419–26. doi:10.1074/jbc.M304544200

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Quarles LD. Endocrine functions of bone in mineral metabolism regulation. J Clin Invest (2008) 118(12):3820–8. doi:10.1172/JCI36479

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Han X, Yang J, Li L, Huang J, King G, Quarles LD. Conditional deletion of Fgfr1 in the proximal and distal tubule identifies distinct roles in phosphate and calcium transport. PLoS One (2016) 11(2):e0147845. doi:10.1371/journal.pone.0147845

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Andrukhova O, Smorodchenko A, Egerbacher M, Streicher C, Zeitz U, Goetz R, et al. FGF23 promotes renal calcium reabsorption through the TRPV5 channel. EMBO J (2014) 33(3):229–46. doi:10.1002/embj.201284188

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Fajol A, Chen H, Umbach AT, Quarles LD, Lang F, Foller M. Enhanced FGF23 production in mice expressing PI3K-insensitive GSK3 is normalized by beta-blocker treatment. FASEB J (2016) 30(2):994–1001. doi:10.1096/fj.15-279943

CrossRef Full Text | Google Scholar

18. Dai B, David V, Martin A, Huang J, Li H, Jiao Y, et al. A comparative transcriptome analysis identifying FGF23 regulated genes in the kidney of a mouse CKD model. PLoS One (2012) 7(9):e44161. doi:10.1371/journal.pone.0044161

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Rossaint J, Oehmichen J, Van Aken H, Reuter S, Pavenstadt HJ, Meersch M, et al. FGF23 signaling impairs neutrophil recruitment and host defense during CKD. J Clin Invest (2016) 126(3):962–74. doi:10.1172/JCI83470

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Penna G, Adorini L. 1 Alpha,25-dihydroxyvitamin D3 inhibits differentiation, maturation, activation, and survival of dendritic cells leading to impaired alloreactive T cell activation. J Immunol (2000) 164(5):2405–11. doi:10.4049/jimmunol.164.5.2405

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Jeffery LE, Burke F, Mura M, Zheng Y, Qureshi OS, Hewison M, et al. 1,25-Dihydroxyvitamin D3 and IL-2 combine to inhibit T cell production of inflammatory cytokines and promote development of regulatory T cells expressing CTLA-4 and FoxP3. J Immunol (2009) 183(9):5458–67. doi:10.4049/jimmunol.0803217

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Zhang Y, Leung DY, Richers BN, Liu Y, Remigio LK, Riches DW, et al. Vitamin D inhibits monocyte/macrophage proinflammatory cytokine production by targeting MAPK phosphatase-1. J Immunol (2012) 188(5):2127–35. doi:10.4049/jimmunol.1102412

PubMed Abstract | CrossRef Full Text | Google Scholar

23. El-Hodhod MA, Hamdy AM, Abbas AA, Moftah SG, Ramadan AA. Fibroblast growth factor 23 contributes to diminished bone mineral density in childhood inflammatory bowel disease. BMC Gastroenterol (2012) 12:44. doi:10.1186/1471-230X-12-44

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Brandenburg VM, Kleber ME, Vervloet MG, Tomaschitz A, Pilz S, Stojakovic T, et al. Fibroblast growth factor 23 (FGF23) and mortality: the Ludwigshafen Risk and Cardiovascular Health Study. Atherosclerosis (2014) 237(1):53–9. doi:10.1016/j.atherosclerosis.2014.08.037

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Souma N, Isakova T, Lipiszko D, Sacco RL, Elkind MS, DeRosa JT, et al. Fibroblast growth factor 23 and cause-specific mortality in the general population: the Northern Manhattan Study. J Clin Endocrinol Metab (2016) 101(10):3779–86. doi:10.1210/jc.2016-2215

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Gutierrez OM, Mannstadt M, Isakova T, Rauh-Hain JA, Tamez H, Shah A, et al. Fibroblast growth factor 23 and mortality among patients undergoing hemodialysis. N Engl J Med (2008) 359(6):584–92. doi:10.1056/NEJMoa0706130

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Gutierrez OM, Januzzi JL, Isakova T, Laliberte K, Smith K, Collerone G, et al. Fibroblast growth factor 23 and left ventricular hypertrophy in chronic kidney disease. Circulation (2009) 119(19):2545–52. doi:10.1161/CIRCULATIONAHA.108.844506

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Isakova T, Xie H, Yang W, Xie D, Anderson AH, Scialla J, et al. Fibroblast growth factor 23 and risks of mortality and end-stage renal disease in patients with chronic kidney disease. JAMA (2011) 305(23):2432–9. doi:10.1001/jama.2011.826

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Hsu HJ, Wu MS. Fibroblast growth factor 23: a possible cause of left ventricular hypertrophy in hemodialysis patients. Am J Med Sci (2009) 337(2):116–22. doi:10.1097/MAJ.0b013e3181815498

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Jean G, Bresson E, Terrat JC, Vanel T, Hurot JM, Lorriaux C, et al. Peripheral vascular calcification in long-haemodialysis patients: associated factors and survival consequences. Nephrol Dial Transplant (2009) 24(3):948–55. doi:10.1093/ndt/gfn571

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Munoz Mendoza J, Isakova T, Ricardo AC, Xie H, Navaneethan SD, Anderson AH, et al. Fibroblast growth factor 23 and inflammation in CKD. Clin J Am Soc Nephrol (2012) 7(7):1155–62. doi:10.2215/CJN.13281211

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Hanks LJ, Casazza K, Judd SE, Jenny NS, Gutierrez OM. Associations of fibroblast growth factor-23 with markers of inflammation, insulin resistance and obesity in adults. PLoS One (2015) 10(3):e0122885. doi:10.1371/journal.pone.0122885

PubMed Abstract | CrossRef Full Text | Google Scholar

33. Abou Dagher G, Harmouche E, Jabbour E, Bachir R, Zebian D, Bou Chebl R. Sepsis in hemodialysis patients. BMC Emerg Med (2015) 15:30. doi:10.1186/s12873-015-0057-y

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Sarnak MJ, Jaber BL. Mortality caused by sepsis in patients with end-stage renal disease compared with the general population. Kidney Int (2000) 58(4):1758–64. doi:10.1111/j.1523-1755.2000.00337.x

CrossRef Full Text | Google Scholar

35. Manghat P, Fraser WD, Wierzbicki AS, Fogelman I, Goldsmith DJ, Hampson G. Fibroblast growth factor-23 is associated with C-reactive protein, serum phosphate and bone mineral density in chronic kidney disease. Osteoporos Int (2010) 21(11):1853–61. doi:10.1007/s00198-009-1142-4

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Kovesdy CP, Quarles LD. FGF23 from bench to bedside. Am J Physiol Renal Physiol (2016) 310(11):F1168–74. doi:10.1152/ajprenal.00606.2015

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Masuda Y, Ohta H, Morita Y, Nakayama Y, Miyake A, Itoh N, et al. Expression of Fgf23 in activated dendritic cells and macrophages in response to immunological stimuli in mice. Biol Pharm Bull (2015) 38(5):687–93. doi:10.1248/bpb.b14-00276

PubMed Abstract | CrossRef Full Text | Google Scholar

38. Ito N, Wijenayaka AR, Prideaux M, Kogawa M, Ormsby RT, Evdokiou A, et al. Regulation of FGF23 expression in IDG-SW3 osteocytes and human bone by pro-inflammatory stimuli. Mol Cell Endocrinol (2015) 399:208–18. doi:10.1016/j.mce.2014.10.007

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Itoh N. Hormone-like (endocrine) Fgfs: their evolutionary history and roles in development, metabolism, and disease. Cell Tissue Res (2010) 342(1):1–11. doi:10.1007/s00441-010-1024-2

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Onal M, Carlson AH, Thostenson JD, Benkusky NA, Meyer MB, Lee SM, et al. A novel distal enhancer mediates inflammation-, PTH-, and early onset murine kidney disease-induced expression of the mouse Fgf23 gene. JBMR Plus (2018) 2(1):32–47. doi:10.1002/jbm4.10023

CrossRef Full Text | Google Scholar

41. Zhang Q, Doucet M, Tomlinson RE, Han X, Quarles LD, Collins MT, et al. The hypoxia-inducible factor-1alpha activates ectopic production of fibroblast growth factor 23 in tumor-induced osteomalacia. Bone Res (2016) 4:16011. doi:10.1038/boneres.2016.11

CrossRef Full Text | Google Scholar

42. Richter M, Lautze HJ, Walther T, Braun T, Kostin S, Kubin T. The failing heart is a major source of circulating FGF23 via oncostatin M receptor activation. J Heart Lung Transplant (2015) 34(9):1211–4. doi:10.1016/j.healun.2015.06.007

CrossRef Full Text | Google Scholar

43. Han X, Quarles LD. Multiple faces of fibroblast growth factor-23. Curr Opin Nephrol Hypertens (2016) 25(4):333–42. doi:10.1097/MNH.0000000000000240

PubMed Abstract | CrossRef Full Text | Google Scholar

44. Bacchetta J, Chun RF, Gales B, Zaritsky JJ, Leroy S, Wesseling-Perry K, et al. Antibacterial responses by peritoneal macrophages are enhanced following vitamin D supplementation. PLoS One (2014) 9(12):e116530. doi:10.1371/journal.pone.0116530

PubMed Abstract | CrossRef Full Text | Google Scholar

45. Bacchetta J, Salusky IB, Hewison M. Beyond mineral metabolism, is there an interplay between FGF23 and vitamin D in innate immunity? Pediatr Nephrol (2013) 28(4):577–82. doi:10.1007/s00467-012-2336-0

PubMed Abstract | CrossRef Full Text | Google Scholar

46. Bacchetta J, Sea JL, Chun RF, Lisse TS, Wesseling-Perry K, Gales B, et al. Fibroblast growth factor 23 inhibits extrarenal synthesis of 1,25-dihydroxyvitamin D in human monocytes. J Bone Miner Res (2013) 28(1):46–55. doi:10.1002/jbmr.1740

PubMed Abstract | CrossRef Full Text | Google Scholar

47. Chonchol M, Greene T, Zhang Y, Hoofnagle AN, Cheung AK. Low vitamin D and high fibroblast growth factor 23 serum levels associate with infectious and cardiac deaths in the HEMO Study. J Am Soc Nephrol (2016) 27(1):227–37. doi:10.1681/ASN.2014101009

PubMed Abstract | CrossRef Full Text | Google Scholar

48. Li C, Ding XY, Xiang DM, Xu J, Huang XL, Hou FF, et al. Enhanced M1 and impaired M2 macrophage polarization and reduced mitochondrial biogenesis via inhibition of AMP kinase in chronic kidney disease. Cell Physiol Biochem (2015) 36(1):358–72. doi:10.1159/000430106

PubMed Abstract | CrossRef Full Text | Google Scholar

49. Schleithoff SS, Zittermann A, Tenderich G, Berthold HK, Stehle P, Koerfer R. Vitamin D supplementation improves cytokine profiles in patients with congestive heart failure: a double-blind, randomized, placebo-controlled trial. Am J Clin Nutr (2006) 83(4):754–9. doi:10.1093/ajcn/83.4.754

PubMed Abstract | CrossRef Full Text | Google Scholar

50. Gomaa AM, El-Aziz EA. Vitamin D reduces high-fat diet induced weight gain and C-reactive protein, increases interleukin-10, and reduces CD86 and caspase-3. Pathophysiology (2017) 24(1):31–7. doi:10.1016/j.pathophys.2017.01.003

PubMed Abstract | CrossRef Full Text | Google Scholar

51. Nakatani T, Sarraj B, Ohnishi M, Densmore MJ, Taguchi T, Goetz R, et al. In vivo genetic evidence for klotho-dependent, fibroblast growth factor 23 (Fgf23)-mediated regulation of systemic phosphate homeostasis. FASEB J (2009) 23(2):433–41. doi:10.1096/fj.08-114397

PubMed Abstract | CrossRef Full Text | Google Scholar

52. Beenken A, Mohammadi M. The structural biology of the FGF19 subfamily. Adv Exp Med Biol (2012) 728:1–24. doi:10.1007/978-1-4614-0887-1_1

PubMed Abstract | CrossRef Full Text | Google Scholar

53. Goetz R, Nakada Y, Hu MC, Kurosu H, Wang L, Nakatani T, et al. Isolated C-terminal tail of FGF23 alleviates hypophosphatemia by inhibiting FGF23-FGFR-Klotho complex formation. Proc Natl Acad Sci U S A (2010) 107(1):407–12. doi:10.1073/pnas.0902006107

PubMed Abstract | CrossRef Full Text | Google Scholar

54. Haddad LE, Khzam LB, Hajjar F, Merhi Y, Sirois MG. Characterization of FGF receptor expression in human neutrophils and their contribution to chemotaxis. Am J Physiol Cell Physiol (2011) 301(5):C1036–45. doi:10.1152/ajpcell.00215.2011

PubMed Abstract | CrossRef Full Text | Google Scholar

55. Andrukhova O, Slavic S, Smorodchenko A, Zeitz U, Shalhoub V, Lanske B, et al. FGF23 regulates renal sodium handling and blood pressure. EMBO Mol Med (2014) 6(6):744–59. doi:10.1002/emmm.201303716

PubMed Abstract | CrossRef Full Text | Google Scholar

56. Benoit M, Desnues B, Mege JL. Macrophage polarization in bacterial infections. J Immunol (2008) 181(6):3733–9. doi:10.4049/jimmunol.181.6.3733

PubMed Abstract | CrossRef Full Text | Google Scholar

57. Chen CD, Podvin S, Gillespie E, Leeman SE, Abraham CR. Insulin stimulates the cleavage and release of the extracellular domain of Klotho by ADAM10 and ADAM17. Proc Natl Acad Sci U S A (2007) 104(50):19796–801. doi:10.1073/pnas.0709805104

PubMed Abstract | CrossRef Full Text | Google Scholar

58. Kurosu H, Ogawa Y, Miyoshi M, Yamamoto M, Nandi A, Rosenblatt KP, et al. Regulation of fibroblast growth factor-23 signaling by klotho. J Biol Chem (2006) 281(10):6120–3. doi:10.1074/jbc.C500457200

PubMed Abstract | CrossRef Full Text | Google Scholar

59. Chen CD, Tung TY, Liang J, Zeldich E, Tucker Zhou TB, Turk BE, et al. Identification of cleavage sites leading to the shed form of the anti-aging protein klotho. Biochemistry (2014) 53(34):5579–87. doi:10.1021/bi500409n

PubMed Abstract | CrossRef Full Text | Google Scholar

60. van Loon EP, Pulskens WP, van der Hagen EA, Lavrijsen M, Vervloet MG, van Goor H, et al. Shedding of klotho by ADAMs in the kidney. Am J Physiol Renal Physiol (2015) 309(4):F359–68. doi:10.1152/ajprenal.00240.2014

PubMed Abstract | CrossRef Full Text | Google Scholar

61. Chateau MT, Araiz C, Descamps S, Galas S. Klotho interferes with a novel FGF-signalling pathway and insulin/Igf-like signalling to improve longevity and stress resistance in Caenorhabditis elegans. Aging (2010) 2(9):567–81. doi:10.18632/aging.100195

PubMed Abstract | CrossRef Full Text | Google Scholar

62. Kuro-o M, Matsumura Y, Aizawa H, Kawaguchi H, Suga T, Utsugi T, et al. Mutation of the mouse klotho gene leads to a syndrome resembling ageing. Nature (1997) 390(6655):45–51. doi:10.1038/36285

PubMed Abstract | CrossRef Full Text | Google Scholar

63. Sugiura H, Yoshida T, Shiohira S, Kohei J, Mitobe M, Kurosu H, et al. Reduced Klotho expression level in kidney aggravates renal interstitial fibrosis. Am J Physiol Renal Physiol (2012) 302(10):F1252–64. doi:10.1152/ajprenal.00294.2011

PubMed Abstract | CrossRef Full Text | Google Scholar

64. Hu MC, Shi M, Cho HJ, Adams-Huet B, Paek J, Hill K, et al. Klotho and phosphate are modulators of pathologic uremic cardiac remodeling. J Am Soc Nephrol (2015) 26(6):1290–302. doi:10.1681/ASN.2014050465

PubMed Abstract | CrossRef Full Text | Google Scholar

65. Deng M, Luo Y, Li Y, Yang Q, Deng X, Wu P, et al. Klotho gene delivery ameliorates renal hypertrophy and fibrosis in streptozotocin-induced diabetic rats by suppressing the Rho-associated coiled-coil kinase signaling pathway. Mol Med Rep (2015) 12(1):45–54. doi:10.3892/mmr.2015.3367

PubMed Abstract | CrossRef Full Text | Google Scholar

66. Zhao Y, Banerjee S, Dey N, LeJeune WS, Sarkar PS, Brobey R, et al. Klotho depletion contributes to increased inflammation in kidney of the db/db mouse model of diabetes via RelA (serine)536 phosphorylation. Diabetes (2011) 60(7):1907–16. doi:10.2337/db10-1262

PubMed Abstract | CrossRef Full Text | Google Scholar

67. Burrell LM, Johnston CI, Tikellis C, Cooper ME. ACE2, a new regulator of the renin-angiotensin system. Trends Endocrinol Metab (2004) 15(4):166–9. doi:10.1016/j.tem.2004.03.001

PubMed Abstract | CrossRef Full Text | Google Scholar

68. Xie J, Cha SK, An SW, Kuro OM, Birnbaumer L, Huang CL. Cardioprotection by Klotho through downregulation of TRPC6 channels in the mouse heart. Nat Commun (2012) 3:1238. doi:10.1038/ncomms2240

PubMed Abstract | CrossRef Full Text | Google Scholar

69. De Miguel C, Rudemiller NP, Abais JM, Mattson DL. Inflammation and hypertension: new understandings and potential therapeutic targets. Curr Hypertens Rep (2015) 17(1):507. doi:10.1007/s11906-014-0507-z

PubMed Abstract | CrossRef Full Text | Google Scholar

70. Carpenter TO, Imel EA, Ruppe MD, Weber TJ, Klausner MA, Wooddell MM, et al. Randomized trial of the anti-FGF23 antibody KRN23 in X-linked hypophosphatemia. J Clin Invest (2014) 124(4):1587–97. doi:10.1172/JCI72829

PubMed Abstract | CrossRef Full Text | Google Scholar

71. Xiao Z, Riccardi D, Velazquez HA, Chin AL, Yates CR, Carrick JD, et al. A computationally identified compound antagonizes excess FGF-23 signaling in renal tubules and a mouse model of hypophosphatemia. Sci Signal (2016) 9(455):ra113. doi:10.1126/scisignal.aaf5034

CrossRef Full Text | Google Scholar

Keywords: fibroblast growth factor-23, innate immunity, klotho, macrophage activation, PMNs, LPS stimulation, infection risk

Citation: Fitzpatrick EA, Han X, Xiao Z and Quarles LD (2018) Role of Fibroblast Growth Factor-23 in Innate Immune Responses. Front. Endocrinol. 9:320. doi: 10.3389/fendo.2018.00320

Received: 08 March 2018; Accepted: 28 May 2018;
Published: 12 June 2018

Edited by:

Tarik Issad, Institut National de la Santé et de la Recherche Médicale (INSERM), France

Reviewed by:

Yan Viva Ma, Johnson & Johnson, United States
Yobana Perez-Cervera, Benito Juárez Autonomous University of Oaxaca, Mexico

Copyright: © 2018 Fitzpatrick, Han, Xiao and Quarles. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: L. Darryl Quarles, dquarles@uthsc.edu
