Update of Pheochromocytoma Syndromes: Genetics, Biochemical Evaluation, and Imaging
- 1Section on Medical Neuroendocrinology, Eunice Kennedy Shriver National Institute of Child Health and Human Development, National Institutes of Health, Bethesda, MD, United States
- 2National Institute of Diabetes and Digestive and Kidney Diseases, National Institutes of Health, Bethesda, MD, United States
- 3Cleveland Clinic, Adrenal Center, Endocrinology and Metabolism Institute, Cleveland, OH, United States
- 4Provincial Hospital, Castellon, Spain
Pheochromocytomas and paragangliomas (PCCs/PGLs) are rare commonly benign neuroendocrine tumors that share pathology features and clinical behavior in many cases. While PCCs are chromaffin-derived tumors that arise within the adrenal medulla, PGLs are neural-crest-derived tumors that originate at the extraadrenal paraganglia. Pheochromocytoma-paraganglioma (PPGL) syndromes are rapidly evolving entities in endocrinology and oncology. Discoveries over the last decade have significantly improved our understanding of the disease. These include the finding of new hereditary forms of PPGL and their associated susceptibility genes. Additionally, the availability of new functional imaging tools and advances in targeted radionuclide therapy have improved diagnostic accuracy and provided us with new therapeutic options. In this review article, we present the most recent advances in this field and provide an update of the biochemical classification that further reflects our understanding of the disease.
According to the 2017 World Health Organization (WHO) classification of endocrine tumors, pheochromocytomas (PCCs) are tumors of the chromaffin cells that arise within the adrenal medulla (1), whereas paragangliomas (PGLs) are neural crest-derived neuroendocrine tumors (NETs) that can originate at any level of extra-adrenal paraganglia (from the skull base to the pelvic floor) (2). PCCs and PGLs arising from sympathetic paraganglia are characterized by catecholamine production whereas PGLs distributed along the parasympathetic chains of the head and neck (NHPGL) tend to be silent or pseudo-silent tumors (3–5).
The field of pheochromocytoma-paraganglioma (PPGL) is rapidly evolving. Many discoveries over the last decade have significantly improved our understanding of the disease. The identification of new hereditary forms of PPGL has led to the highest rate of germline susceptibility in cancer genetics at almost 40% (6, 7). In addition, other PPGL-related genes have been discovered and there are currently over 22 susceptibility genes identified. The genotype-phenotype correlation shown in many studies often dictates the clinical presentation of syndromic forms of the disease. These include associated biochemical profile, tumor location, malignant potential, aggressive clinical behavior, and overall prognosis. Furthermore, genetic identification provides valuable information for establishing a treatment plan and procures the rational for an appropriate guidance for follow-up surveillance.
The involvement of the Krebs cycle and the respiratory chain, mainly represented by the involvement of succinate dehydrogenase (SDH) in the etiology of PPGL, is perhaps the most important discovery in this area. Mutations of genes that encode any of the subunits A, B, C, or D or the complex assembly factor 2 (AF2) account for a group of overlapping yet distinct hereditary syndromes termed SDHx. These forms are considered the most common of all hereditary PPGL syndromes accounting for ~30% of them (6, 7). Over the past 6 years, ten new genes have been discovered. These new genes include hypoxia-inducible factor 2 alpha (HIF2A)—also known as endothelial PAS domain-containing protein 1 (EPAS1) (8, 9), fumarate hydratase (FH) (10), HRAS proto-oncogene (H-RAS) (11), prolyl hydroxylase 1 (PHD1)—also known as egl nine homolog 2 (EGLN2) (12), malate dehydrogenase 2 (MDH2) (13), chromatin remodeler ATRX (ATRX) (14, 15), H3 histone family member 3A (H3F3A) (15), cold-shock domain containing E1 (CSDE1) (15), coactivator 3 mastermind-like (MAML3) fusion genes [upstream binding transcription factor, RNA polymerase I] (UBTF)–MAML3 (15), and iron regulatory protein 1 (IRP1) (16). Multiplicity regarding mosaicism underlines also in some syndromes (8, 9, 17, 18). Each of these genes mutations affects a specific metabolic pathway. As a result, The Cancer Genomic Atlas (TCGA) group proposed a comprehensive system to classify PPGL-susceptibility genes into a molecular level. Based on genomic analysis, the system divides PPGL-related genes into four major clusters: a pseudohypoxia subtype (subdivided into tricarboxylic acid (TCA) cycle-dependent and VHL/EPAS1-dependent), a kinase-signaling subtype, a Wnt signaling subtype, and a cortical admixture subtype (Figure 1). These integrative efforts show that PPGL can be driven either by germline, somatic, or fusion genes mutations in 27, 39, and 7% of the cases, respectively (15).

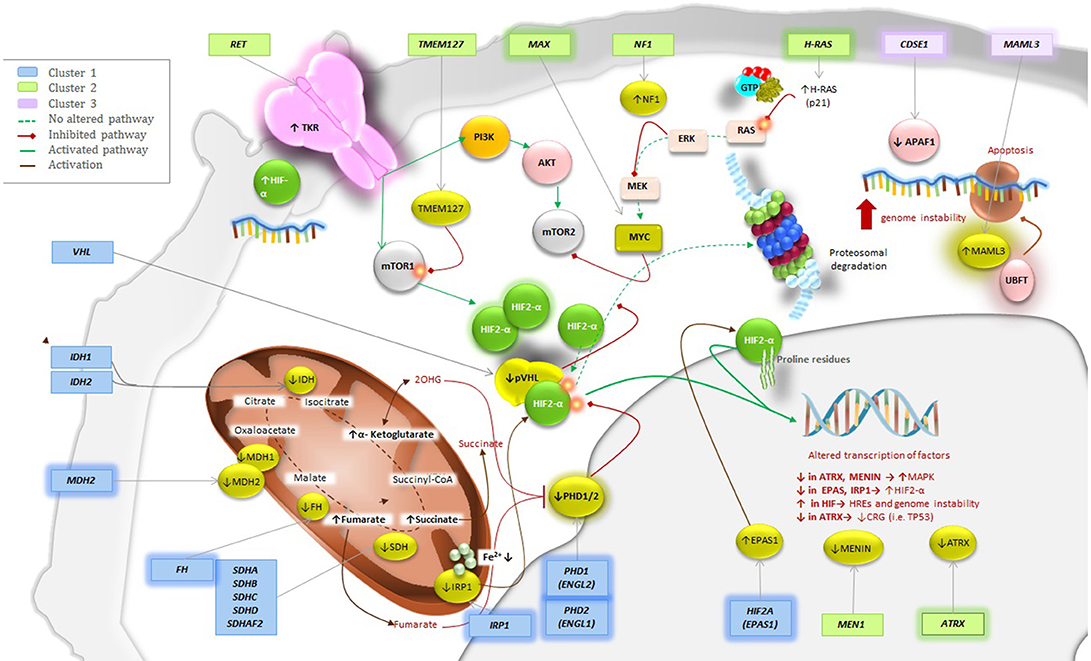

Figure 1. Genetics and molecular pathways for PPGLs Pathways for the New Genes; Placing the New into Perspective. Mutations of the highlighted genes have been discovered to play a role in the pathogenesis of PPGL. These genes can be classified in cluster 1, 2, or 3. Cluster 1 would be implemented with FH, MDH2, PHD1 (EGLN2), EPAS1/HIF2A and the most recently discovered IRP1 that controls cellular iron metabolism and negatively regulates HIF2α mRNA translation. Cluster 2 would include H-RAS and ATRX, which belongs to the SWI/SNF family of chromatin remodeling proteins, as their upregulation will activate the RAS/RAF/ERK signaling pathway resulting in tumor formation. Finally, cluster 3 would be implemented with both CSDE1 and UBFT fusion at MAML3. Alterations of any of this genes will result in increase of target genes involved in Wnt receptor and Hedgehog signaling pathways.
Advances in genetics over the last decade have allowed the implementation of whole exome sequencing (WES) in developed countries as the new standard screening tool for genetic testing in patients with a suspected hereditary form of PPGL. However, the application of this technology is limited to specialized centers in developing countries. When available, the cost of testing is often a barrier for wide implementations of WES. Immunohistochemistry (IHC) is an alternative method in these cases, given its affordability and feasibility. It is used as screening tool where negative IHC for a gene can serve as an indirect indicator of the presence of a mutation in the gene of interest. This technique is especially useful in the context of suspected SDHx mutations (19–22). False-positive or false-negative results (19–22) are not uncommon, therefore, IHC should be interpreted with caution.
Integrative patient evaluation is essential as the clinical presentation, along with radiological and biochemical profile will guide clinicians toward the correct genetic diagnosis. This holds true when WES is not readily available. In these cases screening for specific gene or gene panels for a subgroup of susceptibility genes can be an alternative option. Therefore, we emphasize the importance of phenotype profile recognition (Table 1, Figure 2).

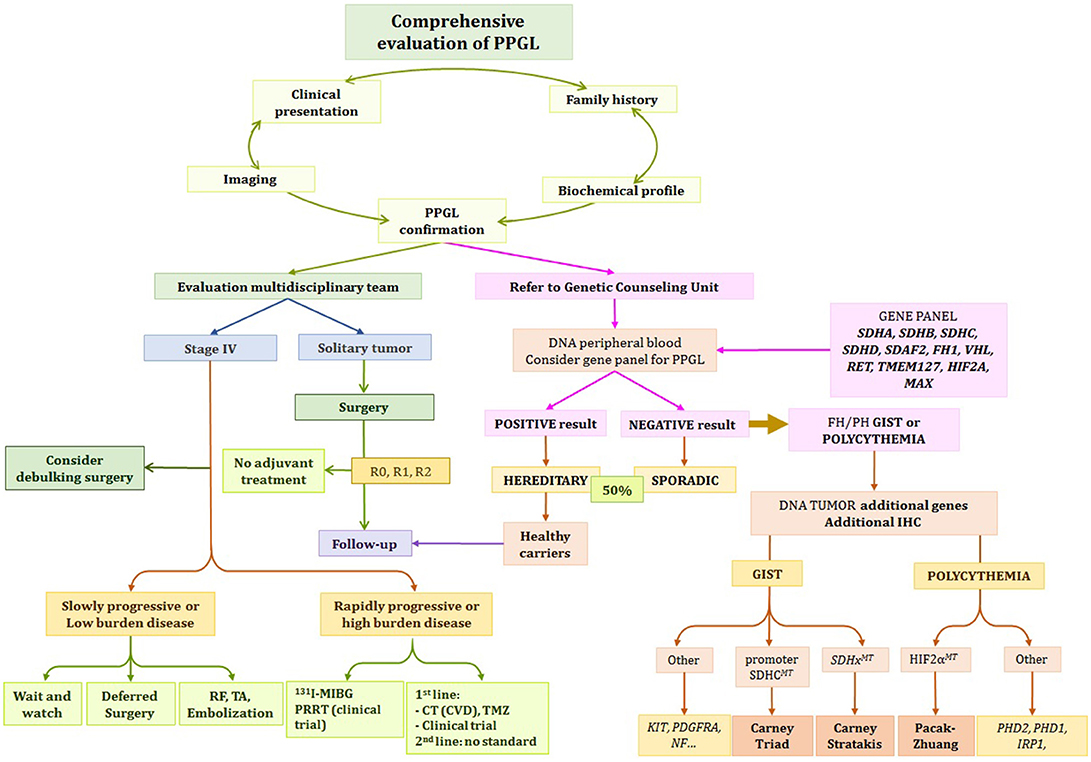

Figure 2. Proposed Algorithm for Evaluation and Management of PPGL Patient. *Depending on clinical status, growth acceleration, symptoms, and genetic status, the options include: observation, systemic therapy, chemotherapy, PRRT, 131I-MIBG, or referral to clinical trials. R0, microscopically margin-negative resection; R1, microscopically margin-positive resection; R2, macroscopically margin-positive resection; stage IV, metastatic disease (1).
Cluster 1/Pseudohypoxia Subtype
1A. TCA Cycle-Related
FH is a tumor suppressor gene in the TCA cycle that encodes FH enzyme, which converts fumarate into malate (31). Deficiency in FH results in accumulation of the precursor metabolite fumarate, which shares structural similarities with succinate, leading to prolyl-hydroxylase (PHD) inactivation and HIF stabilization (32, 33). FH has an autosomal dominant inheritance with variable expressivity. Patients typically present with multiple cutaneous leiomyomatosis (MCUL). Leiomyomas are smooth muscle tumors that arise from the skin and uterus in these patients. When associated with renal cell cancer, this syndrome is referred to as hereditary leiomyomatosis and renal cell cancer (HLRCC) also known as Reed's syndrome (23). PPGL is a rare second manifestation of the syndrome and tends to be malignant and/or multiple and present with a predominant noradrenergic profile. To date, only few cases have been reported and both pathogenic germline and somatic mutations have been described (10, 34). Age of presentation varies widely from as young as 6- to 70-years-old. More recently, a study of a cohort reported by the National Institutes of Health (NIH) revealed co-secreting dopamine (DA) tumors in some FH mutated patients (24).
EPAS1 (HIF2A) is an oncogene that encodes the EPAS1; a transcription factor related to oxygen level responses (35). In 2012, Zhuang et al. were the first to identify a gain-of-function somatic mutation in exon 12 of EPAS1 (G1588A and C1589T) in patients with PPGLs. These mutations caused defects on the proline residues at the hydroxylation site of HIF-2α leading to its reduced degradation and stabilization (8, 9). Since then, other cases of PPGL with polycythemia have been reported. Among them, somatic mutations of HIF2A at exon 12 are responsible in most cases of the disease, and only one case was caused by germline mutation of HIF2A at exon 9 (36). Furthermore, both germline mosaicism/somatic mutations have been described in additional studies (18, 36). Somatic HIF2A-related PPGL affects predominantly females and patients typically presents with PPGL, somatostatinoma and polycythemia (Pacak-Zhuang syndrome) (8). However, penetrance can vary from patient to patient and incomplete forms of the disease have been reported. In particular, the presence of somatostatinoma has not been described in males yet. PPGLs in these patients are often multiple or recurrent with elevated norepinephrine (NE), normetanephrine (NMN), DA, and erythropoietin (EPO) and once third of the patients present with metastatic disease (37). Also, ~70% of the patients have been found to have ocular abnormalities with bilateral dilated capillaries and fibrosis overlying the optic disc being the most common findings. Therefore, an early referral to an ophthalmologist acquainted with the retinal findings of this syndrome is strongly recommended (38). Surgery of the PPGL, often results in an improvement of HIF2A-induced polycythemia but treatment of the disease still requires intermittent phlebotomies, and control blood pressure to prevent complications resulting from polycythemia.
Cluster 2/Kinase Signaling Group
Located on chromosome 11p.15.5, H-RAS is a proto-oncogene that, encodes H-RAS factor (also known as transforming protein p21). H-RAS, once bound to guanosine-5'-triphosphate (GTP), activates the RAS/RAF/ERK signaling pathway that will ultimately result in cell proliferation (27). Pathogenic mutations in H-RAS were firstly identified in 2013. WES of tumor DNA in four cases with phenotype suggesting an underlying pathogenic genetic variant revealed the presence of 2 hotspot mutations in H-RAS (G13R and Q61K) in two of them. In all four samples, known susceptibility genes had been previously excluded (11). All four cases were male patients with unilateral, sporadic/benign tumors (three PCCs and one abdominal PGL), along with elevation in plasma catecholamines. Further validation in a cohort of 58 additional samples obtained showed an accumulated frequency of 6.9% (4/58) of missense somatic mutations in H-RAS: G13R (n = 1), Q61K (n = 1), and Q61R (n = 2) (11).
Cluster 3/WNT Signaling Group
Formerly known as upstream of N-ras (UNR), CSDE1 is a tumor suppressor gene located at chromosome 1p13.2 that encodes CSDE1 factor, which is mainly involved in development and has several functions including messenger RNA stability, internal initiation of translation, cell-type-specific apoptosis and neuronal differentiation (39, 40). The association of CSDE1 to PPGL was recently described by TCGA group in a cohort study of 176 PPGL patients, in which four were found to have a somatic mutation— two frameshift, and two splice-site—, in CSDE1 (15). Underexpression of CDSE1 has been reported in several tumors (41). Mutations in this gene result in downregulation of the apoptosis protease activator protein 1 (APAF1), which controls apoptosis in PCC cells under normal conditions (42, 43). Clinically, patients presented with sporadic cases, and some of them with recurrence or metastatic disease proposing a more aggressive form of PPGLs (15).
MAML3 (4q.31.1) is an oncogene that had been previously associated with other tumor types (44, 45). On the other hand, UBTF (17q21.31), encodes UBTF required for the expression of rRNA subunits (46). The association of the fusion with PPGL was identified by TCGA group in 2017 when analysis from RNA sequencing of the same cohort mentioned above revealed that ten tumors (eight primary, and two primary-metastatic) were positive for a MAML3 fusion gene. Patients presented with a unique and expansive hypomethylation profile that was correlated with mRNA overexpression of target genes involved in developmental pathways, such as Wnt receptor signaling and Hedgehog signaling, that were significantly overexpressed including miR-375, β-catenin, DVL3, and GSK3 (15). MAML3-related PPGLs had the highest Ki-67 index expression, and some patients presented with aggressive disease (15). Finding UBTF-MAML3 fusion predicts a poor prognosis, as compared with other syndromic forms of PPGL (15).
Proposed Classification for New Genes According to TCGA
Three additional genes were not included in the molecular classification done by TCGA (15). However, based on their signaling pathways, we believe that all three should be included as part of the cluster 1 or pseudohypoxia signaling group for future updates. While MDH2 is a part of the TCA cycle, both PHD1 (EGLN2) and IRP1 belong to the VHL/EPAS1-related subtype (Figure 1) and have been very recently described.
MDH2 encodes the MDH2 enzyme, which catalyzes the reversible oxidation of malate to oxaloacetate in the TCA cycle. Deficiency of MDH2 has shown to lead to the accumulation of malate, fumarate, and succinate on Drosophila models (47). Thus, MDH2 should be classified as a cluster 1-TCA cycle-related gene. In 2015, Cascon et al. were the first to report a case with a germline mutation in MDH2: a male patient diagnosed with multiple PGLs (13). Later, five asymptomatic relatives were tested, and two were found to be positive. Subsequent updates showed elevation of NE and the presence of a hypermethylator phenotype similar to SDHx-related PPGLs (48). Interestingly, no malate accumulation was found on tumor cells, but a high fumarate/succinate ratio was observed (13).
PHD1 (EGLN2) encodes PHD1 enzyme, which in normal oxygen conditions hydroxylates specific proline residues of the HIF-α subunits for their subsequent degradation by proteasome. Deficiency of this enzyme prevents degradation of HIF-α and resulting in HIF stabilization leading to a global activation of signaling pathways that lead to tumorigenesis (49). PHD1 should therefore be classified as cluster 1-VHL/EPAS1-related gene. In 2008, Ladroue et al. were the first to describe the association of mutations in PHD2 with polycythemia and PPGLs (50). Seven years later, Yang et al. reported the first mutation in PHD1 (EGLN2), found to be associated with PPGL, along with an additional case with PHD2 (EGLN1) germline mutation. These two patients presented with multiple recurrent PPGL, polycythemia with normal or mildly elevated EPO, and were negative for HIF2A mutation. Both patients presented with catecholamine related symptoms including: headaches, episodic chest pain, anxiety, and hypertension. Both cases revealed a noradrenergic profile. In the patient with the mutation in PHD1 (EGLN2), sensitivity of erythroid progenitors to EPO and erythropoietin receptor (EpoR) activity were inappropriately increased and resulted in polycythemia with no or mild increase in EPO levels with increased EpoR expression (12).
IRP1 is a tumor suppression gene that encodes IRP1, a bi-functional protein that controls cellular iron metabolism and negatively regulates HIF2α mRNA translation under iron-deficient conditions (51, 52). Thus, deficiency of IRP1 increases HIF2α by dissociating sequences of HIF2α mRNA from iron-responsive element and suppressing protein translation. Activation of HIF-2α leads to an increase of transcription of EPO and EpoR. Recently, IRP1 association with PCC was reported by Pang et al. in a patient with a medical history of polycythemia vera with a proven JAK2 mutation, hypertension, diaphoresis, and abdominal pain that led to the diagnosis of PCC years later. An investigational gene panel consisting of 54 tumor-associated genes was negative for patient's peripheral blood DNA. Subsequent tumor DNA sequencing revealed a somatic, loss of function mutation in IRP1 located on exon 3 splicing site (16).
Driver Mutation Gene With Unknown Classification
Located on chromosome 1, H3F3A encodes the histone H3.3 protein (53). Histones are responsible for nucleosome formation, and as a chromatin regulator, mutations of this gene will affect DNA methylation, chromatin remodeling, or nucleosome positioning (54). Defects in H3F3A have been linked with diffuse intrinsic pontine glioma (DIPG) (55, 56), chondroblastoma, and giant cell tumor of the bone (GCT) (57). Association with PPGL was initially reported in 2013 as a case report (58). Three years later, in 2016, Toledo et al. analyzed 43 samples of 41 patients using exome or transcriptome sequencing and detected a postzygotic H3F3A mutation in three tumors from one patient with a history of recurrent GCT. This patient presented with bilateral PCCs and developed bladder and several periaortic PGLs later. Family history of PPGL was absent. Further analysis showed that this mutation was identical to an oncogenic driver of sporadic GCT (c.103 G > T, p.G34W) (57, 58). Furthermore, additional variants in other chromatin remodeling genes (KMT2B, EZH2, SETD2, ATRX, JMJD1C, KDM2B) were reported in this study (28). Additionally, two kinase receptor-encoding genes (MERTK, MET) were found (28). Also, the investigators detected a somatic mutation in the main hotspot residue of the fibroblast growth factor receptor 1 gene (28), which is known to play a role in other cancers, such as glioblastomas (59). Further studies are needed to clarify the role of these genes in the pathogenesis of PPGL.
Disease Modifying Gene
Located on the X chromosome, ATRX encodes the transcriptional regulator ATRX, which belongs to the SWI/SNF family of chromatin remodeling proteins. ATRX plays a role in the histone deposition in telomeres, chromosome segregation in the cell cycle and transcription regulation (60, 61, 62). Germline mutations in ATRX have been reported as a cause of X-linked alpha thalassemia mental retardation syndrome (ATRX syndrome) (63). In 2015, using WES, Fishbein et al. reported somatic ATRX mutations in two SDHB-related frozen tumors. They found somatic ATRX mutations in 12.6% of the samples, along with an alternative lengthening of telomeres seen on fluorescence in situ hybridization (FISH) and presenting with more aggressive disease (29). Later, the first case of an ATRX driver mutation was reported in a patient with a metastatic composite PCC-PGL, clinically with anemia, weight loss, and hepatic metastases. WES showed a somatic loss of function on the ATRX gene, along with downregulation of genes involved in the neuronal development and homeostasis (NLGN4, CD99, and CSF2RA) and upregulation of Drosha gene related with RNA processing and alternative lengthening of telomeres (14). Somatic mutations have been reported in association with co-existing mutations in the isocitrate dehydrogenase 1 and 2 (IDH 1/2) genes in both adult and pediatric patients with astrocytic tumors (64). In addition, ATRX may play a driver mutation role for sporadic PPGL (14) and truncated ATRX could potentially play a synergistic role with SDHx in tumor initiation and might be a predisposition for a more aggressive disease (15).
Biochemical evaluation has made tremendous strides forward since the 1950's when colorimetric assays were first implemented, and later replaced with the more accurate high-performance liquid chromatography (HPLC) in the 1980s. Currently, liquid chromatography tandem-mass spectrometry (LC-MS) has become the new gold standard due to its accuracy and reproducibility. A value three times the upper range of normal is a positive result. However, some patients present with pseudo-silent PPGL and high tumor burden resulting in a late diagnosis. Therefore, any values above the normal range should be carefully considered as positive in the setting of prospective screening in hereditary forms of the disease, given early proactive surveillance has made pre-detection of tumors very possible.
Besides screening and diagnoses, biochemical phenotype of the tumor is a useful tool for PPGL syndromic assessment. PPGLs can be classified according to their biochemical profile. This classification allows the establishment of an algorithm and addresses specific causative genes. Here, we present an update of the different PPGL-related biochemical phenotypes.
A- Truly biochemically silent phenotype: Often associated with SDHx syndromes, truly silent PPGLs are mostly located in the head and neck area (HNPGL). Among HNPGL, carotid body tumors are the most frequent (65), followed by glomus vagale, jugulotympanic, and laryngeal PGLs.
B- Biochemically pseudo-silent phenotype: In this category, PPGLs present with levels of catecholamines and metanephrines that can be “normal” or “near-normal” in a misleading way. This category should be distinguished from group A since PPGLs in this category are indeed catecholamine-producing tumors. However, detection of elevated metanephrine and normetanephrine falls below the limit of detection due to either low tumor burden or catecholamine production fluctuations. This usually happen in patients with very small (less than 5–7 mm) PPGLs.
C- Noradrenergic phenotype: Characterized by increased levels of NE/NMN (66, 67), noradrenergic PPGLs are commonly located outside the adrenals (66, 67), NE acts on both α (1 and 2) and β (1, 2, and 3) adrenoreceptors with predominant effect on α. These patients present less frequently with paroxysmal symptomatology. Sustained hypertension and tachycardia are the most common symptoms. However, hypertensive crisis, myocardial infarction, lethal tachyarrhythmia, and acute intramural hemorrhage have been reported (68, 69). This phenotype is commonly seen in the cluster 1/ pseudohypoxia group (15), including both VHL and SDHx mutations (70).
D- Adrenergic phenotype: These PPGLs are characterized by either purely elevated epinephrine (E)/metanephrine (MN) (66), or in both E/MN and NE/NMN. This phenotype can be accurately identified when the plasma level of free MN is greater than 10% of the sum of NMN and MN (66). Adrenergic PPGLs are often located in the adrenal gland (67). Epinephrine represents a higher level of cellular differentiation of adrenal PPGL when compared with tumors derived from paraganglia (71, 72). Epinephrine activates α-1 and α-2 adrenoceptors with a higher affinity compared to NE (73) but also affects β-2 adrenoceptors. Paroxysmal symptomatology due to a rapid metabolism (74) has been related to the concomitant use of medications like histamine, tricyclic antidepressants (TCA), anesthetics, and tyramine-rich food (75). In many cases these patients are found to have hyperglycemia and hyperlipidemia secondary to the stimulus of lipolysis, glycogenolysis, and gluconeogenesis (68). This phenotype is commonly seen in the cluster 2/kinase signaling group (15).
E- Dopaminergic phenotype: These PPGLs are characterized by high levels of DA/3-methoxytyramine (3-MT) with normal or near-normal levels of E/MN and NE/NMN (75, 76). Tumors are commonly extra-adrenal and primarily located in the head and neck region (77, 78). Patients can be either asymptomatic or have atypical symptoms like abdominal pain, diarrhea, nausea/vomiting, hypotension, and weight loss. These symptoms are most likely related to dopamine receptor stimulation on the smooth muscle (79), gastrointestinal tract (80), and central nervous system (81). This subset of patients has been traditionally classified as biochemically “silent”. Elevated levels of DA/3MT together with NE have been reported in approximately 65% of patients with SDHx mutations, especially in SDHB (76, 82).
Experts Recommendations and Meta-Analysis
The Endocrine Society 2014 guidelines recommend initial screening with either plasma or urine fractionated MN/NMN, with the consensus that values three to four times higher than the upper reference limit are almost always diagnostic for PPGLs (83). A recent meta-analysis done by Därr et al., compared the accuracy of plasma and urine metanephrines in 1,039 patients with PPGL. The study also compared immunoassay methods—HPLC and LC-MS—and differences between supine vs. seated position during sampling. Results in terms of sensitivity/specificity/accuracy showed that supine sampling was more sensitive in tumor detection (95 vs. 89% [p < 0.02]). Furthermore, the supine position has a higher specificity than 24-h urine samples (95 vs. 90% [p < 0.03]) and the highest accuracy (95%), especially when measured with HPLC and LC-MS over immunoassay (84) as LC-MS eliminates drug interference providing more accurate results.
When evaluating pediatric patients with PPGL, considerations for age-adjusted reference values are crucial to determine the tests positivity. Higher limits for E/MN along with lower limits for NE/NMN were seen in children when compared with adults (85). Finally, we wish to note that LC-MS is not widely available in all countries. Cost of technology itself as well as a lack of trained staff stand as barriers to full implementations of LC-MS (86).
The latest Endocrine Society Guidelines (83) emphasize that consideration for any imaging modality in PPGLs requires prior positive biochemical evidence of disease except for the presence of personal or family history of HNPGL related or not to a hereditary form of the disease. For a general work-up, computed tomography (CT) is recommended as the anatomic imaging modality of choice due to its excellent spatial resolution. Magnetic resonance imaging (MRI) is recommended for children, pregnant women, or patients with HNPGL or metastatic disease. Regarding functional imaging the panel of experts suggests the use of 123I-metaiodobenzylguanidine (MIBG) scintigraphy in patients with metastatic disease when treatment with radiotherapy using 131I-MIBG is considered or when the risk of metastasis or recurrence of the disease is high based on tumor size. However, if metastatic disease is confirmed, the use of 18F-fluorodeoxyglucose (18F-FDG) positron emission tomography hybridized with CT (PET/CT) is preferred (83).
We believe PPGL is a disease “born to be filmed” as the availability of high-value modalities for imaging provides a versatile algorithm to evaluate the different scenarios of the disease: in the initial evaluation setting, in treatment planification, and for tumor response assessment. This is due to the expression of various transporters and receptors in the surface of PPGL cells. Receptors that can be exploited for imaging include the NE transporter, glucose transporter (GLUT), amino acid transporter, and somatostatin receptor (SSTR) (87, 88). Currently, there are three types of PET/CT radiopharmaceuticals that exert their actions through these receptors: 18F-FDG, 18F-fluorodopa (18F-FDOPA), and 68Galium (68Ga)- tetraazacyclododecanetetraacetic acid (DOTA) analogs (89–91). Functional imaging using PET/CT has proven to be superior to 123I-MIBG SPECT not only for the higher detection, sensitivity, localization, and resolution, but also for reducing indeterminate or equivocal findings by about 20 to 40% (92). Among these modalities, 68Ga- DOTA-Tyr3-octreotate (DOTATATE) PET/CT has emerged as the preferred modality in NETs in general. This is due to the high affinity of the radiolabeled compound for the SSTR type 2 (SSTR2) (93) that can more accurately predict a tumor response to treatment to radiolabeled somatostatin analogs in patients with avidity for the tracer. In terms of tumor detection, 68Ga-DOTATATE PET/CT has proven to be exceptional with a 98.6% overall detection rate in patients with SDHB metastatic PPGL, superior to anatomic imaging (CT/MRI), and other functional scans (18F-FDG, 18F-FDOPA, and 18F-FDA PET/CT) (94). Similar results were also observed in sporadic cases with a sensitivity of 97.6% (89, 95) and in patients with HNPGL (96). Regarding specific mutations, 68Ga-DOTATATE PET/CT resulted inferior in the evaluation of patients with polycythemia/PPGL— including both HIF2A and PHD1-related tumors—(97), FH or MAX mutations. In these patients— polycythemia associated to PPGL—, the combination of 18F-FDOPA PET/CT and 18F-FDA PET/CT resulted superior with a lesion-base detection rate of ~98%, vs. 35.3% for the 68Ga-DOTATATE PET/CT group (95% CI, 25.0–47.2%) (97). With respect to FH-related tumors, in a patient reported 68Ga-DOTATATE PET/CT showed an overall detection of 66% when compared to 18F-FDOPA PET/CT (98). In reference to MAX-related PCCs, in a recent study evaluating six patients, 68Ga-DOTATATE accuracy was lower than 18F-DOPA PET/CT (99). Based on these studies authors suggest allocating both 18F-FDOPA and 18F-FDA PET/CT in the diagnostic algorithm of polycythemia/PPGL patients and designate 18F-FDOPA PET/CT as first functional imaging modality of choice in the diagnoses and follow-up of both MAX and FH-related patients. If the availability of 18F-FDA and 18F-FDOPA PET/CT is limited, use of other imaging modalities like 123I-MIBG single-photon emission CT (SPECT) is recommended.
Regarding the pediatric population, 68Ga-DOTATATE PET/CT has shown to be superior in a cohort of nine children with SDHx-related PPGL with a detection rate of 98.4% when compared to 18F-FDG PET/CT (100). However, these results are intriguing as another study reported that the sensitivity of 68Ga-DOTATATE PET/CT is lower for abdominal lesions in children, with a detection rate of 66.7% (100, 101), warranting additional larger studies in this population. Thus, the use of more than one functional imaging modality is recommended in the pediatric group and the use of both 68Ga-DOTATATE and 18F-FDG PET/CT is highly recommended in children with small lesions, when there is a high likelihood of metastatic disease and in those patients with SDHx mutations.
The utility of functional imaging using somatostatin analogs, was recently extended and exploited to open new doors for targeted radiotherapy using the both 177Lutetium (177Lu) or 90Yttrium (90Y). The ‘so-called' peptide receptor radionuclide therapy (PRRT) has shown to a very effective therapeutic option in patients with advanced midgut NETs in a phase 3 clinical trial called NETTER-1 published in 2017 (102). As a result, 177Lu-DOTATATE (Lutathera®) has been recently approved by the food and drug administration (FDA) for the treatment of advanced midgut NETs. Applications of PRRT in PPGL have been assessed also in two small cohorts of patients with mediastinal or HNPGL (103) and with inoperable HNPGL (104), with promising outcomes in terms of tumor response and control of symptoms. A higher number of patients (N = 20) received four cycles of Lutathera® with encouraging results in terms of control of symptoms (decreased medication requirements), circulating chromogranin A, tumor response and control of disease with a median progression-free survival (PFS) of 29 months (105). When comparing PRRT with 131I-MIBG in 22 patients with metastatic/progressive PPGL, PRRT showed increased PFS and tumor response rate, as well as increased event-free and overall survival (OS) (106). An ongoing prospective clinical trial at the NIH evaluating PRRT for progressive PPGL will provide definite answers regarding the utility and safety of PRRT in PPGL (NCT03206060).
The role of SSTR antagonists appears to be promising in the field of NETs. SSTR antagonists recognie more binding sites on SSTRs allowing better tumor visualization (107). Their clinical utility in functional imaging was first demonstrated in 2011 (108). A second-generation of SSTR2 antagonists that include DOTA-JR11 showed higher tumor uptake when combined with 68Ga-DOTA (1.3 times), or 68Ga-NODAGA (1.7 times) as compared with DOTA analogs (109). In the preclinical setting, DOTA-JR11 was superior to 177Lu in H69 cell lines, and in vivo therapy experiments achieved a higher uptake, median survival rate, and a longer delay in tumor growth (110). Regarding pharmacokinetics and dosimetry, DOTA-JR11 showed very promising results when tested in human embryonic kidney cells with a higher uptake and longer tumor residence time. With an escalating dose DOTA-JR11 demonstrated an improved safety profile and the potential decrease toxicity (111). In in vitro studies including both NETs and non-NETs, DOTA-JR11 showed a higher affinity for SSTTRs when compared to the SSTR2 agonist 125I-Tyr3-octreotide in NETs (2.5 to 40 times). Interestingly, the group of other non-NETs tumors— such as breast cancer, renal cell carcinoma, medullary thyroid cancer, and non-Hodgkin lymphoma—, was also targeted with high affinity, potentially opening a new door for exploring this modality in tumors where typically SSTR have played little role, if any (112). Currently, an ongoing clinical trial for metastatic and unresectable progressive, well-differentiated carcinoid is trying to elucidate the role of SSTR antagonist DOTA-JR11 both in diagnostic and therapeutic settings (NCT02609737).
In this article, we presented some of the latest advances in the rapidly evolving field of PPGL and we focused on genetic, biochemical and imaging discoveries over the last 6 years. In addition, we proposed an updated biochemical classification and provided a novel algorithm for identifying newly diagnosed PPGL (Figure 3). Ten new susceptibility genes related to PPGL have been described in the last 10 years, including new germline as well as somatic mutations. The last can be presented as mosaicisms and result in syndromic forms of the disease. Also, functional imaging modalities continue to improve, and lesion-base detection studies are more reliable and accurate. The wide availability of 68Ga-DOTATATE PET/CT following the approval of the radiopharmaceutical compound by the FDA, is revolutionizing the way we diagnose not only PPGLs but also NETs in general. The expression of SSTR2 on PPGL cells has allowed the exploitation of this modality as a therapeutic option in these patients using Lutathera®, which was recently approved for use in midgut NETs. Current ongoing clinical trials in PPGL will determine safety, tolerability profile, and also efficacy in terms of clinical benefit and control of disease. Hopefully the availability of these diagnostic modalities will be more implemented in developing countries in the future. The expense associated with these technologies stands as a barrier; therefore, referral to centers of excellence that specialize in PPGL is warranted and highly advisable as implementation of theranostics into an algorithm is required for establishing different therapeutic options.

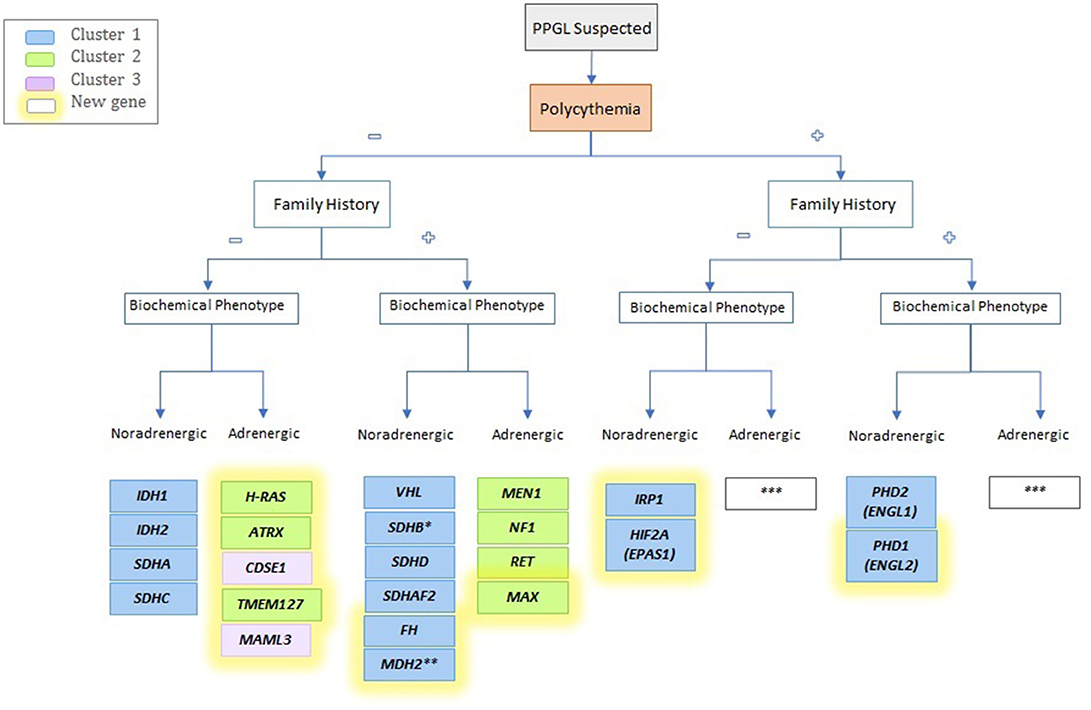

Figure 3. Schematic algorithm for identifying a possible driver mutation of the newly identified genes mutation. *Often family history is absent; **Unknown; ***Not described yet.
We are now entering a new and exciting era for PPGL that will allow us to advance one step further toward personalized medicine, making precision medicine for PPGL a step closer (Figure 2).
RA: writing and editing MS, creating Table 1 and Figure 3, proposing the idea of an update in the biochemical classification; AS: writing MS; IT: writing, editing and reviewing MS, creating Figures 1, 2; KP: creating outline and reviewing MS.
The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was funded by National Institutes of Health (grant number: Z1AHD008735), by the Spanish Society of Medical Oncology Foundation (F SEOM 2015) and the PHEiPAS patient Alliance (2016).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
This research was supported, in part, by the Intramural Research Program of the NIH, NICHD. We would like to thank the NIH for the enormous support in patient care and research of this disease Library Writing Center for manuscript editing assistance; In addition, we wish to thank Ying Pang for reviewing the IRP1 section.
3-MT, 3-methoxytyramine; 18FDA, 18F-fluorodopamine; 18F-DOPA, 18F-fluorodopa; 18F-FDG, 18F-fluorodeoxyglucose; 68Ga, 68Galium; 90Y, 90Ytrium; 131I-MIBG, 131I-MIBG, metaiodobenzylguanidine; 111In, 111Indium; 177Lu, 177Lutethium; AFAP1, apoptosis protease activator protein 1; AKT, serine/threonine kinase; ATRX, chromatin remodeler ATRX; CT, computerized tomography; CRG, growth regulatory factors; CSDE1, cold-shock domain containing E1; CVD, cyclophosphamide, vincristine and dacarbazine; DA, dopamine; DIPG, diffuse intrinsic pontine glioma; DOTA, tetraazacyclododecanetetraacetic acid; DOTATATE, DOTA-Tyr3-octreotate; DS, direct sequencing; E, epinephrine; EGLN1/2, egl nine homolog 1 and 2; EPAS1, PAS domain-containing protein 1; EPO, erythropoietin; EpoR, erythropoietin receptor; ERK, extracellular mitogen-activated protein kinase 1; FDA, food and drug administration; FH, fumarate hydratase; HNPGL, head and neck paraganglioma; GTC, giant cell tumor of the bone; GTP, guanosine-5'-triphosphate; H3F3A, H3 histone family member 3A; NHPGL, head and neck PGL; HIF2α, hypoxia-inducible factor 2 alpha; HIF2A, hypoxia-inducible factor 2 alpha; HLPC, high-performance liquid chromatography; HLRCC, leiomyomatosis and renal cell cancer; H-RAS, HRAS proto-oncogene; IDH1/2, isocitrate dehydrogenase 1 and 2; IHC, immunohistochemistry; IRP1, iron regulatory protein; MCUL, multiple cutaneous leiomyomatosis; MDH1/2, malate dehydrogenase type 1 and 2; MAML3, coactivator 3 mastermind-like; MAPK, mitogen-activated protein kinase; MAX, myc-associated factor X gene; Men1, multiple endocrine neoplasia 1; LC-MS, liquid chromatography tandem-mass spectrometry; MEK, mitogen-activated protein kinase; MLPA, multiplex ligation-dependent probe amplification; MN, metanephrine; MRI, magnetic resonance imaging; mRNA, messenger ribonucleic acid; mTOR, mammalian target of rapamycin; NE, norepinephrine (NE); NETs, neuroendocrine tumors; NF1, neurofibromin 1; NIH, National Institutes of Health; NMN, normetanephrine; NET, neuroendocrine tumor; PCC, pheochromocytoma; PET, positron emission tomography; PGLs, paraganglioma; PHD1/2, prolyl hydroxylase 1 and 2; PI3K, phosphatidyl-inositol-3-kinase; PPGL, pheochromocytoma-paraganglioma; PRRT, peptide receptor radionuclide therapy; RF, radiofrequency; SDH, succinate dehydrogenase subunits A/B/C/D; SDHAF2, succinate dehydrogenase complex assembly factor 2; SPECT, single photon emission computed tomography; SSA, somatostatin analogs; SSTR, somatostatin receptor; TCA, tricarboxylic acid, TA, thermoablation; TCGA, The Cancer Genomic Atlas, TFG, transcription factors genes; TMEM127, transmembrane protein 127; TMZ, temozolomide; TSG, tumor suppressor gene; UBTF, upstream binding transcription factor; VHL, von Hippel Lindau; WES, whole exome sequencing; WHO, World Health Organization.
