ORIGINAL RESEARCH article

Front. Endocrinol., 04 June 2019
Sec.Cellular Endocrinology
https://doi.org/10.3389/fendo.2019.00320

Hepatic DNA Damage Induced by Electronic Cigarette Exposure Is Associated With the Modulation of NAD+/PARP1/SIRT1 Axis

  • 1Division of Endocrinology, Metabolism and Molecular Medicine, Department of Internal Medicine, Charles R. Drew University of Medicine and Science, Los Angeles, CA, United States
  • 2David Geffen School of Medicine, University of California, Los Angeles, Los Angeles, CA, United States

The prevalence of electronic cigarette (e-cigarettes) use has rapidly increased worldwide. Use of tobacco products has been associated with DNA damage and metabolic syndrome. Using Apolipoprotein E knockout (ApoE−/−) mice on a western diet (WD), a mouse model of non-alcoholic fatty liver disease (NAFLD), we recently demonstrated that nicotine in e-cigarettes activates hepatocyte apoptosis, and causes hepatic steatosis. This study examines the harmful effects of e-cigarettes on the liver with a special emphasis on DNA damage and mitochondrial dysfunction. ApoE−/− mice were exposed to saline, e-cigarettes without nicotine or e-cigarettes with 2.4% nicotine for 12 weeks using our newly developed mouse e-cigarette exposure model system that delivers nicotine to mice leading to equivalent serum cotinine levels found in human cigarette users. Mice exposed to e-cigarette (2.4% nicotine) had increased apurinic/apyrimidinic (AP) sites, a manifestation of DNA damage. Additionally, e-cigarette (2.4% nicotine) produced a decrease in NAD+/NADH ratio and increased oxidative stress in hepatic cells, in comparison with saline and e-cigarette (0%). Western blot analysis showed that mice treated with e-cigarette (2.4% nicotine) had increased poly (ADP ribose) polymerase (PARP1) activity associated with reduced levels of Sirtuin 1 (SIRT1). Furthermore, mitochondrial DNA mutations and PTEN-induced kinase 1 (PINK1) were increased in mice treated with e-cigarette (2.4% nicotine). Transmission electron microscopy revealed that hepatocytes of mice treated with e-cigarette (2.4% nicotine) exhibited increased vacuolization of the mitochondria and a reduction in cellular organelles. These results demonstrate the adverse effects of e-cigarettes exposure leading to NAD+ deficiency which may suggest a mechanistic link between e-cigarette-induced hepatic DNA damage and mitochondrial dysfunction.

Introduction

In 2004, a Beijing-based company, Ruyan Group (Holdings) Ltd, China, patented and launched electronic cigarettes (e-cigarettes) also called electronic nicotine delivery systems (ENDS) (1), that delivers nicotine to users without burning tobacco (2). E-cigarettes are battery-powered devices resembling a cigarette that contains a microelectrical circuit activated by drawing on the mouthpiece (3). People report buying them to help quit smoking, to reduce cigarette consumption and costs, to relieve tobacco withdrawal symptoms due to workplace smoking restrictions, or as a replacement for cigarette smoking (4, 5).

DNA damage generated by oxidative stress has a strong mechanistic link to the pathophysiology of metabolic disease (6). Acute side-stream tobacco produces oxidative DNA damage in the liver of mice (7) and e-cigarettes have been reported to induce DNA damage in lungs, heart, and bladder of mice (8). As part of the DNA repair machinery, Poly (ADP-ribose) polymerases (PARP) family of proteins is activated by DNA damage. PARP1 account for approximately 90% of this family protein activity (9). Nicotinamide adenine dinucleotide (NAD+) is consumed by PARP1 to transfer the ADP-ribose moiety onto target proteins.

NAD+ homeostasis is regulated by nutrient-sensing signaling pathways, which play key roles in metabolism and survival. PARP1 and Sirtuin-1 (SIRT1) have a common co-factor, NAD+. Therefore, PARP1 activity can impact SIRT1 activity by reducing the NAD+ pool (6). Energy shortage increases NAD+ biosynthesis and SIRT1 activity and reduces PARP-1 activity in animals (10). Since PARP1 and SIRT1 have a role in DNA repair and metabolism, they have been proposed as a point of convergence for this process (11).

Increased reactive oxidant species (ROS) contributes to DNA damage and age-related disorders that activate PARP1 activity (12). ROS induced-DNA damage reduces NAD+ levels by increasing PARP1 activity. PARP1 activity is enhanced with aging (13) and high caloric intake (10). Additionally, PARP1 inhibition provides protection against diet-induced obesity (14). NAD+ is increased up to 2-fold in Parp1-null mouse tissues.

Mitochondria are the leading producers of ROS; and ROS can produce mitochondrial damage especially in highly susceptible DNA. Mitochondria DNA mutations and mitochondrial dysfunction have been associated with hepatic steatosis, metabolic syndrome, and obesity (15). Consistently, mouse models and humans with metabolic disease develop DNA damage in both genomic (6) and mitochondrial DNA (mtDNA) (16). PARP1 not only regulate mitochondrial activity by modulating NAD+ pools and SIRT1 activity, but also, PARylation produces depolarization of mitochondrial membrane potential (17), with a consequent PTEN-induced kinase 1 (PINK1) stabilization in damage mitochondria (18).

In previous studies, we have shown that intraperitoneal injections of nicotine when combined with a high-fat diet (HFD) triggers greater oxidative stress, activates hepatocyte apoptosis, and amplifies hepatic steatosis (19, 20). The synergistic effects of HFD and nicotine were linked with the inactivation of AMP-activated protein kinase (AMPK) and stimulation of lipogenesis through the activation of Acetyl-CoA carboxylase (19, 20).

The effects of DNA damage on metabolism is an area of intense research. Using Apolipoprotein E knockout (ApoE−/−) mice on a western diet (WD), a mouse model of non-alcoholic fatty liver disease (NAFLD), we recently demonstrated that e-cigarettes containing nicotine trigger great oxidative stress, activate hepatocyte apoptosis, and cause hepatic steatosis (21). In that study, we used our newly developed mouse e-cigarette exposure model system that delivers nicotine to mice leading to equivalent serum cotinine levels found in human cigarette users. We elected to use ApoE−/− mice, as these animals, when fed a WD with 45% fat, as opposed to a very HFD with 60% of calories derived from fat develop hepatic steatosis (22). These mice on a WD represent a novel and fast model with all characteristics feature of non-alcoholic steatohepatitis (NASH) and metabolic syndrome, including abnormal glucose tolerance, hepatomegaly, hepatic steatosis, liver fibrosis and inflammation (23). Furthermore, because NAFLD has been identified as an independent risk factor of atherosclerosis and cardiovascular disease (24, 25), an additional advantage of this model is that it is an ideal model for linking atherosclerosis and NAFLD.

This study examines the harmful effects of e-cigarettes on the liver with a special emphasis on DNA damage and mitochondrial dysfunction. Our results indicate that e-cigarette exposure produces decreased levels of hepatic NAD+ associated increased oxidative stress, PARP1 activation, and mitochondrial dysfunction and may suggest a possible link between DNA damage and metabolic disease including NAFLD induced by e-cigarettes exposure.

Methods

Animals

This study was carried out in accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institute of Health. The Institutional Animal Care and Use Committee on the Ethics of Animal Experiments of Charles R. Drew University of Medicine and Science approved the protocol. Mice were housed under controlled temperature (22°C) and photoperiod (12-h light and 12-h dark cycle). Male ApoE−/− mice (C57BL/6J background) were purchased from Jackson Laboratory (Bar Harbor, ME) and at 8 weeks of age, mice were started on a WD (D12079B; Research Diets, New Brunswick, NJ) and were exposed to e-cigarette aerosol from bluCig PLUS Classic tobacco e-cigarettes containing 2.4% nicotine (purchased on the bluCig website) for 12 weeks. For controls, mice were exposed to a bluCig PLUS e-cigarette containing Gold Leaf tobacco (0% nicotine) or saline aerosol (27) (Afasci Inc, Burlingame, CA). Classic tobacco and Gold Leaf tobacco flavors are similar except for their nicotine content.

E-Cigarettes Delivery System

We established an e-cigarette aerosol generation and rodent exposure system (patent number PCT/US17/54133). The system includes an aerosol exposure chamber that holds up to 5 free-moving mice, e-cigarette holders and the e-cigarette activation control unit. The device is connected to a pressurized air source and we adjust the air pressure that activates e-cigarettes and generates an appropriate flow of e-cigarette aerosol to the mouse exposure cage. The number of activated e-cigarettes and the air-flow rate control the e-cigarette aerosol concentration. The air pressure and flow are continuously monitored with pressure gauges and flow meters during experiments. Since e-cigarette activation is intermittent, fresh air-flow is maintained when e-cigarette aerosol flow stops that eliminates residue aerosol from the chamber and provides fresh air for the mice. Our chronic intermittent e-cigarette exposure protocol was: activation for 4 s is a puff; 8 puffs per vaping episode with an inter-puff interval of 20 s; one vaping episode every 30 min. Mice were exposed to intermittent e-cigarette aerosol for 12 h (“on”) 21:00–09:00 the next morning with a 12 h “off” period 09:00–21:00. Batteries were charged every day and were replaced every other week. During the light phase of 12 h. (09:00–21:00), mice were returned to their home cages, no aerosol was delivered and the e-cigarette chambers were cleaned. Food and water were provided ad lib during both light and dark phases.

Oxidative DNA Damage Analysis

Genomic DNA was isolated using the genomic-tip 20/G (Qiagen, #10223) and DNA Buffer Set (Qiagen, #19060). The detection of apurinic/apyrimidinic (AP) sites was performed using an aldehyde-reactive probe (ARP) kit (Kamiya Biomedical, #DN-002), according to the manufacturer's instructions. Data were expressed as the number of AP sites per 106 nucleotides, as determined using a standard provided by the manufacturer.

Western Blot Analyses

The liver tissue was homogenized using T-PER Tissue Protein buffer (Thermo Fisher, 78510), supplemented with protease inhibitors (Thermo Fisher, #87785) and proteins were separated by polyacrylamide electrophoresis and transferred onto nitrocellulose membrane as described (26). The membranes were blocked in Tris-buffered saline/0.1% Tween 20 with 5% bovine serum albumin powder for 1 h. After incubation with the primary antibody, detection was performed using secondary horseradish peroxide–coupled ECL Western Blotting Substrate (Pierce, #32106). The following antibodies were used: rabbit anti-beta actin (Abcam, #ab8227), rabbit anti–PARP-1 (Cell signaling, #9542), mouse monoclonal anti-PAR (Trevigen, #4335-MC-100), rabbit anti–SIRT1 (Abcam, #ab12193), and rabbit anti–PINK1 (Proteintech, #23274-1-AP). The quantification of the Western blots was performed with the ImageJ program (NIH, Bethesda, MD).

NAD+/NADH Ratio Determination in Hepatocytes

Assessment of NAD+ and NADH and their ratio was performed using a quantitative colorimetric assay (Bio Assay systems, #E2ND-100), according to manufacturer's instructions. The absorbance of the reaction mixture was measure at 565 nm and normalized by the total protein.

TBARS Measurement

After washed with PBS, samples were homogenized and sonicated in RIPA buffer supplemented with protease inhibitors (Roche #4693159001). TBARS were measured using a TBARS (TCA Method) Assay Kit (Cayman Chemical, #700870), following the manufacturer's protocol for fluorometric measurements.

Quantitative PCR Assay for Mitochondrial DNA Damage

The genomic DNA isolation was described above. Amplifications were standardized for mitochondrial copy number by simultaneously amplifying a short mitochondrial fragment. We used the following primers for the long mitochondrial DNA product: 5′-CCC AGC TAC TAC CAT CAT TCA AGT AG-3′ for long forward, 5′-GAG AGA TTT TAT GGG TGT AAT GCG GTG-3′ for long backward. For the short mitochondrial DNA product, we used the following primers: 5′-GCA AAT CCA TAT TCA TCC TTC TCA AC-3′ for short forward, GAG AGA TTT TAT GGG TGT AAT GCG GTG-3′ for short backward. The lesion frequency per amplicon was achieved supposing a random distribution of lesions calculated as: Lesion rate = 1–2(ΔCT Long – ΔCT short) × (1,000 bps/80 bps) (27).

Transmission Electron Microscopy (TEM)

For TEM analysis, liver tissue was removed and fixed in 2.5% glutaraldehyde in 0.05 M sodium cacodylate buffer (pH 7.4). Portions of glutaraldehyde-fixed liver were further diced into small pieces, post-fixed in 1% osmium tetroxide, and embedded in Epon 812 as described previously (19, 28). Thin sections from selected tissue blocks were cut with an LKB ultramicrotome, stained with uranyl acetate and lead citrate, and examined with a Hitachi electron microscope (Hitachi, Indianapolis, IN). Special emphasis was given to key structural changes associated mitochondrial morphology (29).

Statistical Analyses

The results were presented as means ± the standard error of the mean (SEM) of at least 5 animals per group. Differences between means of were compared by a 1-way ANOVA followed by the Newman-Keuls multiple comparison test. Differences were considered significant at P < 0.05.

Results

E-Cigarette (2.4% Nicotine) Exposure Produces DNA Damage Associated With Decreased Hepatic NAD+

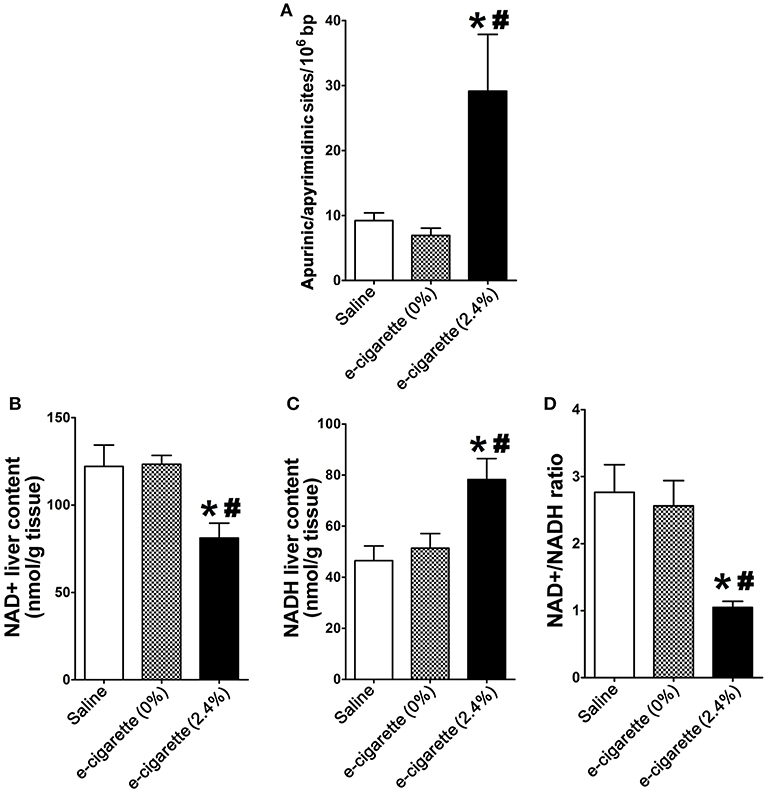

Figure 1A shows the profiles of AP site induction, respectively, in mice exposed to saline, e-cigarette (0% nicotine), and e-cigarette (2.4% nicotine) for 12 weeks. AP site lesions were increased in mice exposed to e-cigarette (2.4% nicotine). In contrast, in e-cigarette (0%)-exposed animals, the levels of AP site lesions were not significantly changed compared with saline controls. The data suggest that the effects of e-cigarettes on hepatic DNA base damage is due to the presence of nicotine.

FIGURE 1
www.frontiersin.org

Figure 1. E-cigarette-induced DNA damage is associated with decreased levels of hepatic NAD+. (A) E-cigarette (2.4% nicotine), but not E-cigarette (0%) exposure increases AP sites. (B) E-cigarette (2.4% nicotine), but not E-cigarette (0%) decreases NAD+ levels. (C) E-cigarette (2.4% nicotine), but not E-cigarette (0%) increases NADH levels. (D) E-cigarette (2.4% nicotine), but not E-cigarette (0%) decreases NAD+/NADH ratio. N = 5 per group, *P < 0.05, saline aerosol vs. e-cigarette (2.4% nicotine). #P < 0.05, E-cigarette (0%) vs. e-cigarette (2.4% nicotine).

Figure 1B shows that mice exposed to e-cigarette (2.4% nicotine) had decreased levels of NAD+ in comparison with both saline-treated (P < 0.05) and e-cigarette (0%)-treated mice (P < 0.05). NAD+ levels of mice exposed to saline and e-cigarette (0%) were similar. Figure 1C shows that mice exposed to e-cigarette (2.4% nicotine) had increased levels of NADH in comparison with both saline-treated (P < 0.05) and e-cigarette (0%)-treated mice (P < 0.05). NADH levels of mice exposed to saline and e-cigarette (0%) were similar. The NAD+/NADH ratio of the e-cigarette (2.4% nicotine)-treated ApoE−/− mice was decreased in comparison with saline (P < 0.01), without showing any significant changes between saline and e-cigarette (0%) exposed mice (Figure 1D). These results suggest that nicotine is necessary for the effects of e-cigarette (2.4% nicotine) on perturbation of NAD+/NADH ratio.

E-Cigarette (2.4% Nicotine) Increases Levels of Oxidative Stress

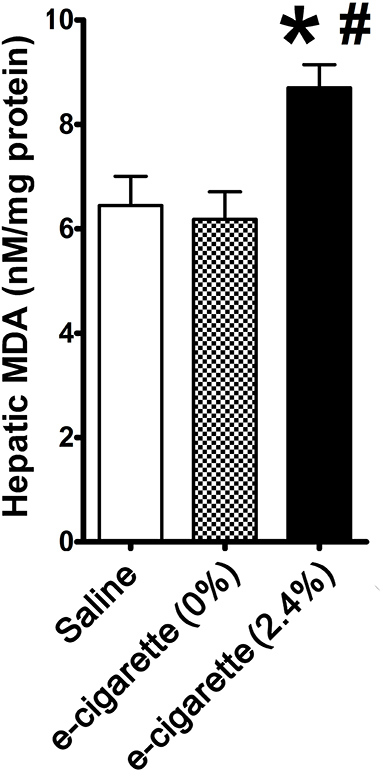

Figure 2 shows that hepatic MDA was increased by 35% in mice treated with e-cigarette (2.4% nicotine) in comparison with both saline-treated (P < 0.05) and e-cigarette (0%)-treated mice (P < 0.05). Our results show that increased levels of AP site lesions are associated with increased oxidative stress in mice treated with e-cigarette (2.4% nicotine), but not e-cigarette (0%).

FIGURE 2
www.frontiersin.org

Figure 2. Effects of e-cigarette exposure on oxidative stress in hepatic cells. E-cigarette (2.4% nicotine), but not e-cigarette (0%) increases MDA concentration. N = 5 per group, *P < 0.05, saline aerosol vs. e-cigarette (2.4% nicotine). #P < 0.05, E-cigarette (0%) vs e-cigarette (2.4% nicotine).

E-Cigarette (2.4% Nicotine) Modulates the PARP1/SIRT1 Axis

PARP-1 activation and consequent NAD+ decrease are a well-established signaling pathway that mediates hepatic cell death and metabolic changes associated with DNA damage (30). After extensive DNA damage, PARP1 has two contrasting roles: (1) PARP1 over-stimulation leads to poly(ADP-ribose) (PAR) synthesis and (2) activation of downstream caspases cause PARP-1 cleavage and inactivation (31). Based on the observations that only e-cigarette containing 2.4% nicotine treatment is associated with increased accumulation of oxidative DNA lesions and decreased hepatic NAD+/NADH, we hypothesized that DNA damage-induced cellular signaling would be increased in mice exposed to e-cigarette. Since we observed increase in AP sites and decease of NAD+/NADH ratio only in e-cigarette -treated mice in the presence, but not in the absence of nicotine, we focused our cellular signaling analysis only on saline- and e-cigarette (2.4% nicotine)-exposed groups.

In prior studies using e-cigarettes, we observed hepatic steatosis (21), increased levels of serum FFA (32), DNA damage and oxidative stress only in e-cigarette (2.4% nicotine)-treated mice but not in e-cigarette (0%)-treated mice. In Figures 1, 2, we also found that e-cigarette (0%)-treated mice were similar to saline-treated mice. Therefore, we focused our study of the PARP1/SIRT1 axis only on saline and e-cigarette (2.4% nicotine)-exposed groups. Figure 3A shows that an increase in PARP1 cleavage protein levels in e-cigarette -treated livers increase in comparison with saline-treated control. The quantification of this western blot shows an increase in 75% of the 89 kDa fragment with no and significant changes in the full-length protein, 116 kDa (Figure 3B). We also studied the PARylation levels in liver extracts from mice exposed to e-cigarette. Figure 3C shows increased levels of PARylation in proteins extracts from livers of mice exposed to e-cigarette (250–100 kDa). These results suggest that e-cigarette (2.4% nicotine)-induced DNA damage decreases NAD+ levels possibly via an activation of PARP-1.

FIGURE 3
www.frontiersin.org

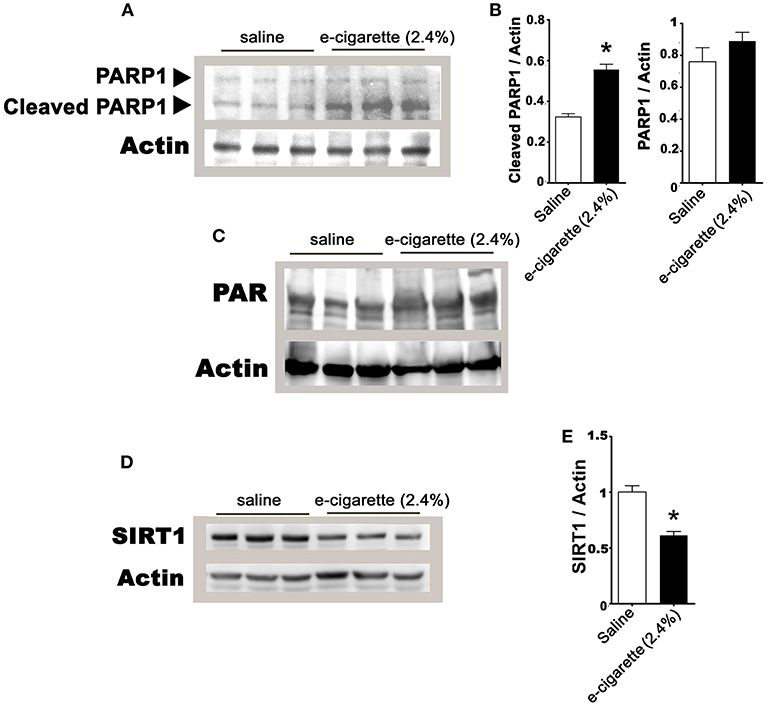

Figure 3. E-cigarette (2.4% nicotine) exposure induces PARP-1 activation. (A) Western blot analysis of PARP1. (B) Quantification of PARP-1 western blot. (C) E-cigarette (2.4% nicotine) increases PAR levels. (D) Western blot analysis of SIRT1. (E) Quantification of SIRT1 western blot. N = 5 per group, *P < 0.05, saline aerosol vs. e-cigarette (2.4% nicotine).

PARPs and SIRT1 have an intensive crosstalk not only by competition by NAD+ levels but also by cross-modification and transcriptional regulation (33).Thus, we analyzed the effects of e-cigarette (2.4% nicotine) on SIRT1 protein levels. Figure 3D shows that e-cigarette induced a 28% reduction (P < 0.05) in the SIRT1 proteins levels (Figure 3E). Our data suggest, in mice treated with e-cigarettes, the activity of SIRT1 is not only reduced by the depletion of NAD+ levels by PARP1 activity, but also by the reduction of SIRT1 protein levels.

E-Cigarette (2.4% Nicotine) Induces Hepatic Mitochondrial Dysfunction Markers

Increased levels of PARP1 activity releases poly (ADP-ribose) polymer from the nucleus to the cytosol, leading to depolarization of the mitochondrial membrane potential (34). Mitochondrial membrane depolarization produces the stabilization of PINK1. Figure 4A shows an immune blot of PINK1 of hepatic extracts from saline and e-cigarette (2.4% nicotine)-treated mice. The quantification of this western blot shows a 112% increase (P < 0.05) in PINK1 protein levels (Figure 4B). Mitochondrial DNA (mtDNA) is highly sensitive to ROS since it lacks histones and is in close vicinity with the respiratory chain machinery. Figure 4C shows an increase in 0.47 lesion/10,000 bases (P < 0.01) in mice exposed to e-cigarette (2.4% nicotine) than that of saline-exposed mice (lesions set at 0). TEM revealed increased mitochondrial vacuolization and a reduction in cellular organelles in e-cigarette (2.4% nicotine)-treated livers compared to saline-treated livers (Figure 4D).

FIGURE 4
www.frontiersin.org

Figure 4. E-cigarette (2.4% nicotine) exposure induces hepatic mitochondrial dysfunction. (A) Western blot analysis of PINK1. (B) Quantification of PINK1 western blot. (C) MtDNA lesions in hepatic cells. (D) Representative TEM images of hepatocytes from mice exposed to saline compared to e-cigarette (2.4% nicotine). Arrows indicate vacuolated mitochondria. N = 5 per group, *saline aerosol vs. e-cigarette (2.4% nicotine).

Discussion

In order to elucidate the molecular effects of e-cigarettes on the liver, our laboratory developed a mouse model that was exposed to chronic intermittent e-cigarette aerosol in a manner similar to that of human e-cigarette users. Using a mouse model of NAFLD and our newly developed mouse e-cigarette exposure model system, we demonstrated that nicotine in e-cigarettes activates hepatocyte apoptosis and causes hepatic steatosis (21) and increased levels of serum FFA (Espinoza-Derout, 2019) in comparison with the e-cigarette (0%) and saline exposure. The present work provides evidence that: (1) the presence of nicotine in e-cigarettes caused an increase in oxidative DNA damage associated with a depletion of NAD+ levels in the liver of ApoE−/− mice exposed to e-cigarettes; (2) e-cigarettes resulted in PARP1 activation and a decrease in SIRT1 protein levels; and (3) the oxidative stress induced by e-cigarettes produced increased levels of PINK1 and mtDNA mutations, associated with mitochondrial ultrastructural changes. Our model of how e-cigarettes could lead to hepatic mitochondrial dysfunction is given in Figure 5.

FIGURE 5
www.frontiersin.org

Figure 5. Model for hepatic mitochondrial dysfunction induced by e-cigarette exposure. Area in pink shows mechanisms studied in this paper. The lipolysis shown in the gray area is predicted based on prior studies on nicotine, but has not been directly studied with e-cigarettes.

PARPs activity is necessary for the ROS induced mitochondrial injury (35). Double KO mice for PARP1 and PARP2 showed mitochondrial enrichment and insulin sensitivity (36). In contrast, increased SIRT1 activity had a protective effect against insulin resistance in the liver in mice exposed to a HFD (37). The inhibition of PARP1 activity improved mitochondrial metabolism through SIRT1 activation, by increasing NAD+ availability (10). In contrast, since SIRT1 has a lower affinity and slower turnover rate for NAD+, decreased activity of SIRT1 did not modulate PARP1 activity (38). However, acetylated PARP1 is active and SIRT1 can bind directly to PARP1 and produce PARP1 inactivation by deacetylation (39). At the transcriptional level, PARP2 can repress the production of SIRT1 (40). In agreement with these concepts, we observed increased levels of oxidative stress is associated with increased PARP1 activity and decreased levels of SIRT1 protein.

The presence of PARylated proteins in liver mitochondria has been described for several groups (41, 42). PARP1 activation leads to decrease in mitochondrial potential (35) and this depolarization may lead to the stabilization of PINK1, thus facilitating its accumulation on the outer mitochondrial membrane, which contribute to the modulation of the clearance of damaged mitochondria (18). In a human hepatocyte cell line, ultrastructural mitochondrial alterations induced by oxidative stress can be ablated by PJ34, a specific inhibitor of PARP1, suggesting that the ultrastructural changes of increased vacuolization of the mitochondria observed in this work are dependent on PARP1 activity. Mitochondrial vacuolization is found following prolonged injury of the cell leading associated with lack of energy production and membrane damage (43). Since mtDNA lacks protection from histones and has closeness to the source of ROS, it is very vulnerable to the oxidative alterations in its coding region (44). Smokers show increased levels of mitochondrial DNA damage in bronchoalveolar lavage tissue (45). Also, animal models of smoking have shown mtDNA damage in the liver (46). Consistently, in mice exposed to e-cigarette (2.4% nicotine), we found increased levels of PINK1, mtDNA and vacuolization of mitochondria.

Although, e-cigarette-induced DNA damage linked to an increase of nitrosamine-associated adducts have been reported in tissues other than the liver (8), the effects of e-cigarettes on oxidative DNA damage in the liver have not been studied. FFA-induced ROS have been postulated as a major mechanism of DNA damage and mitochondrial dysfunction in the liver (4749). Nicotine induces lipolysis in adipocyte tissue by directly activating nicotinic acetylcholine receptors (50). The activation of acetylcholine receptor subunit α7 by nicotine produce the AMPK activation that leads to release of free fatty acids (FFAs) into the circulation (51). Hepatic steatosis can be produced mostly by FFA delivery from lipolysis of adipose tissue and increased de novo lipogenesis (52). We and others have shown that FFA release from adipocytes plays an important role in nicotine plus HFD-induced hepatic steatosis that can be prevented by acipimox, an inhibitor of lipolysis (19, 51, 53). These results, together with our recent findings that e-cigarettes (2.4% nicotine) caused an increase in levels of serum FFA (Espinoza-Derout et al., submitted), most likely suggest a similar mechanism may also be responsible for e-cigarette-induced liver damage. Of note, we did not observe hepatic steatosis or increased serum FFA levels in mice treated with e-cigarettes in the absence of nicotine [(21), Espinoza-Derout et al., submitted], suggesting that nicotine is necessary for e-cigarette (2.4% nicotine)-induce hepatic damage. We propose that the increased oxidative stress observed by e-cigarette (2.4% nicotine) could be due to the increased levels of serum FFA (Figure 5). However, with the data presented in this work, we cannot exclude a direct effect of nicotine or its metabolites in the liver. For instance, nicotine-derived nitrosamines may directly modulate the hepatic metabolism producing steatosis (54).

A potential limitation of our study is that we did not characterize the e-cigarettes effects on PARP2 activity. Although, PARP1 is the best characterize PARP protein and it accounts for approximately 90% of family protein activity (9), PARP2 has been proposed to be a suppressor of SIRT1 transcription by direct regulation of SIRT1 promoter (40). Therefore, a further study of hepatic PARP2 binding to SIRT1 promoter may help answer this question.

In summary, we propose that oxidative stress induced DNA damage produced by e-cigarette containing nicotine exposure is associated with the depletion of NAD+ levels, PARP1 activation, a decrease in SIRT1 activity, together with mtDNA mutations, mitochondrial vacuolization and possible mitochondrial dysfunction. Overall, these results reveal novel insights into the key signaling pathways leading to e-cigarette-induced DNA damage and mitochondrial dysfunction.

Data Availability

The raw data supporting the conclusions of this manuscript will be made available by the authors, without undue reservation, to any qualified researcher.

Ethics Statement

This study was carried out in accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institute of Health. The Institutional Animal Care and Use Committee on the Ethics of Animal Experiments of Charles R. Drew University of Medicine and Science approved the protocol.

Author Contributions

JE-D, EB, and KH performed the experiments. JE-D, TF, XS, and AS-H conceived and planned the experiments. JE-D, TF, AS-H, and XS contributed to the interpretation of the results. JE-D, TF, XS, AS-H, YL, and NM wrote the manuscript. TF obtained funding for the project and supervised the project.

Funding

This work was supported by the Diversity-Promoting Institution Drug Abuse Research Program (DIDARP) grant (R24DA017298); a pilot project grant and vouchers from the Accelerating Excellence in Translational Science (AXIS) grant (5U54MD007598) from the National Institutes of Health (NIH); and California Tobacco-Related Disease Research Program (TRDRP) Grant 251P003. YL is supported by NIH grant SC1DK104821. XS is supported by NIDA/NIH grant 1R41DA044788-01.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

1. Hon L. A Non-Smokable Electronic Spray Cigarette (CA 2518174). (Patent notice) Canadian Patent Office Record. (2005).

2. Polosa R, Caponnetto P, Morjaria JB, Papale G, Campagna D, Russo C. Effect of an electronic nicotine delivery device (e-Cigarette) on smoking reduction and cessation: a prospective 6-month pilot study. BMC Public Health. (2011) 11:786. doi: 10.1186/1471-2458-11-786

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Trtchounian A, Williams M, Talbot P. Conventional and electronic cigarettes (e-cigarettes) have different smoking characteristics. Nicotine Tob Res. (2010) 12:905–12. doi: 10.1093/ntr/ntq114

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Trtchounian A, Talbot P. Electronic nicotine delivery systems: is there a need for regulation? Tob Control. (2011) 20:47–52. doi: 10.1136/tc.2010.037259

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Zezima K. (2009, June 1). Cigarettes without smoke or regulation. New York Times. Available online at: http://www.nytimes.com/2009/06/02/us/02cigarette.html (accessed June 8, 2012).

Google Scholar

6. Shimizu I, Yoshida Y, Suda M, Minamino T. DNA damage response and metabolic disease. Cell Metab. (2014) 20:967–77. doi: 10.1016/j.cmet.2014.10.008

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Howard DJ, Briggs LA, Pritsos CA. Oxidative DNA damage in mouse heart, liver, and lung tissue due to acute side-stream tobacco smoke exposure. Arch Biochem Biophys. (1998) 352:293–7. doi: 10.1006/abbi.1998.0605

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Lee HW, Park SH, Weng MW, Wang HT, Huang WC, Lepor H, et al. E-cigarette smoke damages DNA and reduces repair activity in mouse lung, heart, and bladder as well as in human lung and bladder cells. Proc Natl Acad Sci USA. (2018) 115:E1560–E1569. doi: 10.1073/pnas.1718185115

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Horvath EM, Zsengeller ZK, Szabo C. Quantification of PARP activity in human tissues: ex vivo assays in blood cells and immunohistochemistry in human biopsies. Methods Mol Biol. (2017) 1608:19–26. doi: 10.1007/978-1-4939-6993-7_2

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Bai P, Canto C, Oudart H, Brunyanszki A, Cen Y, Thomas C, et al. PARP-1 inhibition increases mitochondrial metabolism through SIRT1 activation. Cell Metab. (2011) 13:461–8. doi: 10.1016/j.cmet.2011.03.004

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Luna A, Aladjem MI, Kohn KW. SIRT1/PARP1 crosstalk: connecting DNA damage and metabolism. Genome Integr. (2013) 4:6. doi: 10.1186/2041-9414-4-6

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Hassa PO, Hottiger MO. The diverse biological roles of mammalian PARPS, a small but powerful family of poly-ADP-ribose polymerases. Front Biosci. (2008) 13:3046–82. doi: 10.2741/2909

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Braidy N, Guillemin GJ, Mansour H, Chan-Ling T, Poljak A, Grant R. Age related changes in NAD+ metabolism oxidative stress and Sirt1 activity in wistar rats. PLoS ONE. (2011) 6:e19194. doi: 10.1371/journal.pone.0019194

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Pirinen E, Canto C, Jo YS, Morato L, Zhang H, Menzies KJ, et al. Pharmacological inhibition of poly(ADP-ribose) polymerases improves fitness and mitochondrial function in skeletal muscle. Cell Metab. (2014) 19:1034–41. doi: 10.1016/j.cmet.2014.04.002

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Jha SK, Jha NK, Kumar D, Ambasta RK, Kumar P. Linking mitochondrial dysfunction, metabolic syndrome and stress signaling in Neurodegeneration. Biochim Biophys Acta Mol Basis Dis. (2017) 1863:1132–46. doi: 10.1016/j.bbadis.2016.06.015

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Greaves LC, Turnbull DM. Mitochondrial DNA mutations and ageing. Biochim Biophys Acta. (2009) 1790:1015–20. doi: 10.1016/j.bbagen.2009.04.018

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Brookes PS, Yoon Y, Robotham JL, Anders MW, Sheu SS. Calcium, ATP, and ROS: a mitochondrial love-hate triangle. Am J Physiol Cell Physiol. (2004) 287:C817–833. doi: 10.1152/ajpcell.00139.2004

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Georgakopoulos ND, Wells G, Campanella M. The pharmacological regulation of cellular mitophagy. Nat Chem Biol. (2017) 13:136–46. doi: 10.1038/nchembio.2287

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Friedman TC, Sinha-Hikim I, Parveen M, Najjar SM, Liu Y, Mangubat M, et al. Additive effects of nicotine and high-fat diet on hepatic steatosis in male mice. Endocrinology. (2012) 153:5809–20. doi: 10.1210/en.2012-1750

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Hasan MK, Friedman TC, Sims C, Lee DL, Espinoza-Derout J, Ume A, et al. Alpha-7-nicotinic acetylcholine receptor agonist ameliorates nicotine plus high-fat diet-induced hepatic steatosis in male mice by inhibiting oxidative stress and stimulating ampk signaling. Endocrinology. (2017) 159:931–44. doi: 10.1210/en.2017-00594

CrossRef Full Text | Google Scholar

21. Hasan KM, Friedman TC, Shao X, Parveen M, Sims C, Lee DL, et al. E-cigarettes and western diet: important metabolic risk factors for hepatic diseases. Hepatology. (2019). doi: 10.1002/hep.30512. [Epub ahead of print].

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Sinha-Hikim I, Sinha-Hikim AP, Shen R, Kim HJ, French SW, Vaziri ND, et al. A novel cystine based antioxidant attenuates oxidative stress and hepatic steatosis in diet-induced obese mice. Exp Mol Pathol. (2011) 91:419–28. doi: 10.1016/j.yexmp.2011.04.009

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Schierwagen R, Maybuchen L, Zimmer S, Hittatiya K, Back C, Klein S, et al. Seven weeks of Western diet in apolipoprotein-E-deficient mice induce metabolic syndrome and non-alcoholic steatohepatitis with liver fibrosis. Sci Rep. (2015) 5:12931. doi: 10.1038/srep12931

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Hamaguchi M, Kojima T, Takeda N, Nagata C, Takeda J, Sarui H, et al. Nonalcoholic fatty liver disease is a novel predictor of cardiovascular disease. World J Gastroenterol. (2007) 13:1579–84. doi: 10.3748/wjg.v13.i10.1579

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Lee JE, Lee YJ, Chung SY, Cho HW, Park BJ, Jung DH. Severity of nonalcoholic fatty liver disease is associated with subclinical cerebro-cardiovascular atherosclerosis risk in Korean men. PLoS ONE. (2018) 13:e0193191. doi: 10.1371/journal.pone.0193191

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Espinoza-Derout J, Wagner M, Salciccioli L, Lazar JM, Bhaduri S, Mascareno E, et al. Positive transcription elongation factor b activity in compensatory myocardial hypertrophy is regulated by cardiac lineage protein-1. Circ Res. (2009) 104:1347–54. doi: 10.1161/CIRCRESAHA.108.191726

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Patenge N. Quantification of DNA damage and repair in mitochondrial, nuclear, and bacterial genomes by real-time PCR. Methods Mol Biol. (2017) 1644:159–66. doi: 10.1007/978-1-4939-7187-9_14

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Sinha-Hikim I, Friedman TC, Shin CS, Lee D, Ivey R, Sinha-Hikim AP. Nicotine in combination with a high-fat diet causes intramyocellular mitochondrial abnormalities in male mice. Endocrinology. (2014) 155:865–72. doi: 10.1210/en.2013-1795

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Rapti K, Diokmetzidou A, Kloukina I, Milner DJ, Varela A, Davos CH, et al. Opposite effects of catalase and MnSOD ectopic expression on stress induced defects and mortality in the desmin deficient cardiomyopathy model. Free Radic Biol Med. (2017) 110:206–18. doi: 10.1016/j.freeradbiomed.2017.06.010

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Altmeyer M, Hottiger MO. Poly(ADP-ribose) polymerase 1 at the crossroad of metabolic stress and inflammation in aging. Aging. (2009) 1:458–69. doi: 10.18632/aging.100052

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Soldani C, Scovassi AI. Poly(ADP-ribose) polymerase-1 cleavage during apoptosis: an update. Apoptosis. (2002) 7:321–8. doi: 10.1023/A:1016119328968

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Espinoza-Derout J, Hasan MK, Sims C, Lee DL, Mtume N, Wade K, et al. Electronic Cigarette Exposure Induces Cardiac Dysfunction in Apolipoprotein E (ApoE) Knockout Mouse Endocrine Soc. 100: SAT-026 (Abstract) (2018).

33. Chung HT, Joe Y. Antagonistic crosstalk between SIRT1, PARP-1, and−2 in the regulation of chronic inflammation associated with aging and metabolic diseases. Integr Med Res. (2014) 3:198–203. doi: 10.1016/j.imr.2014.09.005

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Henning RJ, Bourgeois M, Harbison RD. Poly(ADP-ribose) polymerase (PARP) and PARP inhibitors: mechanisms of action and role in cardiovascular disorders. Cardiovasc Toxicol. (2018) 18:493–506. doi: 10.1007/s12012-018-9462-2

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Virag L, Salzman AL, Szabo C. Poly(ADP-ribose) synthetase activation mediates mitochondrial injury during oxidant-induced cell death. J Immunol. (1998) 161:3753–9.

PubMed Abstract | Google Scholar

36. Bai P, Canto C. The role of PARP-1 and PARP-2 enzymes in metabolic regulation and disease. Cell Metab. (2012) 16:290–5. doi: 10.1016/j.cmet.2012.06.016

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Pfluger PT, Herranz D, Velasco-Miguel S, Serrano M, Tschop MH. Sirt1 protects against high-fat diet-induced metabolic damage. Proc Natl Acad Sci USA. (2008) 105:9793–8. doi: 10.1073/pnas.0802917105

PubMed Abstract | CrossRef Full Text | Google Scholar

38. Canto C, Sauve AA, Bai P. Crosstalk between poly(ADP-ribose) polymerase and sirtuin enzymes. Mol Aspects Med. (2013) 34:1168–201. doi: 10.1016/j.mam.2013.01.004

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Rajamohan SB, Pillai VB, Gupta M, Sundaresan NR, Birukov KG, Samant S, et al. SIRT1 promotes cell survival under stress by deacetylation-dependent deactivation of poly(ADP-ribose) polymerase 1. Mol Cell Biol. (2009) 29:4116–29. doi: 10.1128/MCB.00121-09

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Bai P, Canto C, Brunyanszki A, Huber A, Szanto M, Cen Y, et al. PARP-2 regulates SIRT1 expression and whole-body energy expenditure. Cell Metab. (2011) 13:450–60. doi: 10.1016/j.cmet.2011.03.013

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Druzhyna N, Smulson ME, Ledoux SP, Wilson GL. Poly(ADP-ribose) polymerase facilitates the repair of N-methylpurines in mitochondrial DNA. Diabetes. (2000) 49:1849–55. doi: 10.2337/diabetes.49.11.1849

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Pankotai E, Lacza Z, Muranyi M, Szabo C. Intra-mitochondrial poly(ADP-ribosyl)ation: potential role for alpha-ketoglutarate dehydrogenase. Mitochondrion. (2009) 9:159–64. doi: 10.1016/j.mito.2009.01.013

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Shubin AV, Demidyuk IV, Komissarov AA, Rafieva LM, Kostrov SV. Cytoplasmic vacuolization in cell death and survival. Oncotarget. (2016) 7:55863–89. doi: 10.18632/oncotarget.10150

PubMed Abstract | CrossRef Full Text | Google Scholar

44. Nita M, Grzybowski A. The role of the reactive oxygen species and oxidative stress in the pathomechanism of the age-related ocular diseases and other pathologies of the anterior and posterior eye segments in adults. Oxid Med Cell Longev. (2016) 2016:3164734. doi: 10.1155/2016/3164734

PubMed Abstract | CrossRef Full Text | Google Scholar

45. Ballinger SW, Bouder TG, Davis GS, Judice SA, Nicklas JA, Albertini RJ. Mitochondrial genome damage associated with cigarette smoking. Cancer Res. (1996) 56:5692–7.

PubMed Abstract | Google Scholar

46. Balansky R, Izzotti A, Scatolini L, D'agostini F, De Flora S. Induction by carcinogens and chemoprevention by N-acetylcysteine of adducts to mitochondrial DNA in rat organs. Cancer Res. (1996) 56:1642–7.

PubMed Abstract | Google Scholar

47. Schonfeld P, Wojtczak L. Fatty acids as modulators of the cellular production of reactive oxygen species. Free Radic Biol Med. (2008) 45:231–41. doi: 10.1016/j.freeradbiomed.2008.04.029

PubMed Abstract | CrossRef Full Text | Google Scholar

48. Brookheart RT, Michel CI, Schaffer JE. As a matter of fat. Cell Metab. (2009) 10:9–12. doi: 10.1016/j.cmet.2009.03.011

PubMed Abstract | CrossRef Full Text | Google Scholar

49. Daniele G, Eldor R, Merovci A, Clarke GD, Xiong J, Tripathy D, et al. Chronic reduction of plasma free fatty acid improves mitochondrial function and whole-body insulin sensitivity in obese and type 2 diabetic individuals. Diabetes. (2014) 63:2812–20. doi: 10.2337/db13-1130

PubMed Abstract | CrossRef Full Text | Google Scholar

50. Andersson K, Arner P. Systemic nicotine stimulates human adipose tissue lipolysis through local cholinergic and catecholaminergic receptors. Int J Obes Relat Metab Disord. (2001) 25:1225–32. doi: 10.1038/sj.ijo.0801654

PubMed Abstract | CrossRef Full Text | Google Scholar

51. Wu Y, Song P, Zhang W, Liu J, Dai X, Liu Z, et al. Activation of AMPKalpha2 in adipocytes is essential for nicotine-induced insulin resistance in vivo. Nat Med. (2015) 21:373–82. doi: 10.1038/nm.3826

PubMed Abstract | CrossRef Full Text | Google Scholar

52. Postic C, Girard J. Contribution of de novo fatty acid synthesis to hepatic steatosis and insulin resistance: lessons from genetically engineered mice. J Clin Invest. (2008) 118:829–38. doi: 10.1172/JCI34275

PubMed Abstract | CrossRef Full Text | Google Scholar

53. Sinha-Hikim AP, Sinha-Hikim I, Friedman TC. Connection of nicotine to diet-induced obesity and non-alcoholic fatty liver disease: cellular and mechanistic insights. Front Endocrinol. (2017) 8:23. doi: 10.3389/fendo.2017.00023

PubMed Abstract | CrossRef Full Text | Google Scholar

54. Yalcin E, De La Monte S. Tobacco nitrosamines as culprits in disease: mechanisms reviewed. J Physiol Biochem. (2016) 72:107–20. doi: 10.1007/s13105-016-0465-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: reactive oxygen species, DNA damage, hepatic metabolism, mitochondria, NAD+

Citation: Espinoza-Derout J, Shao XM, Bankole E, Hasan KM, Mtume N, Liu Y, Sinha-Hikim AP and Friedman TC (2019) Hepatic DNA Damage Induced by Electronic Cigarette Exposure Is Associated With the Modulation of NAD+/PARP1/SIRT1 Axis. Front. Endocrinol. 10:320. doi: 10.3389/fendo.2019.00320

Received: 27 February 2019; Accepted: 02 May 2019;
Published: 04 June 2019.

Edited by:

Yung Hou Wong, Hong Kong University of Science and Technology, Hong Kong

Reviewed by:

Sandra Helena Poliselli Farsky, University of São Paulo, Brazil
Marta Letizia Hribal, Università degli studi Magna Græcia di Catanzaro, Italy

Copyright © 2019 Espinoza-Derout, Shao, Bankole, Hasan, Mtume, Liu, Sinha-Hikim and Friedman. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Jorge Espinoza-Derout, jorgeespinozaderout@cdrewu.edu
