The Many Faces of Aire in Central Tolerance

  • Molecular Pathology, Faculty of Medicine, Institute of Biomedicine and Translational Medicine, Tartu University, Tartu, Estonia

Although the role that Autoimmune Regulator (Aire) plays in the induction of central tolerance is well known, the precise cellular and molecular mechanisms are still unclear and debated. In the prevailing view, Aire serves mainly as a direct inducer of tissue-specific antigens. However, there is a growing amount of evidence suggesting that Aire modulates the differentiation program of medullary thymic epithelial cells, which may directly contribute to the negative selection of self-reactive thymocytes. In addition, Aire has been shown to regulate the expression of many intrathymic chemokines that are required for the proper localization of thymocytes and dendritic cells, and thus are potentially important for direct and indirect self-antigen presentation in the thymic medulla. Further, recent evidence suggests that the induction of certain antigen-specific regulatory T-cells that translocate to tumors and peripheral tissues can be Aire dependent and may contribute to tissue-specific tolerance. This review summarizes the current understanding of the effects of Aire on these alternative mechanisms for the induction of Aire-induced central tolerance.

The thymus is the primary lymphoid organ involved in thymocyte development and thus plays a central role in establishing immune tolerance (1). During the course of central tolerance induction, single-positive thymocytes are guided from the thymic cortex to the medulla, tested there for reactivity to self-antigens and, if they are self-reactive, either deleted or directed to become regulatory T-cells (Tregs). Impaired clonal deletion or Treg induction can lead to a breakdown of central tolerance and the development of autoimmune diseases.

Aire Deficiency Results in Autoimmunity

An essential molecule in the induction of central tolerance is Autoimmune Regulator (Aire). The AIRE gene was identified by positional cloning of a locus linked to a rare disease, Autoimmune-Polyendocrinopathy-Candidiasis-Ectodermal Dystrophy (APECED) (2, 3). This syndrome usually starts during childhood with chronic mucocutaneous candidiasis, which may correlate with autoantibodies to interleukin (IL)-17 and IL-22 (4). The later stages of this disease are characterized by the presence of autoantibodies to multiple self-antigens and lymphocytic infiltration of various endocrine glands, which finally leads to autoimmune endocrine disorders (5, 6). Although the phenotype of Aire-deficient mice is considerably milder than in APECED and is dependent on the genetic background, it is also characterized by autoantibodies and autoimmune infiltrations, and thus resembles the pathological characteristics of APECED patients (7).

Aire Deficiency Results in Defective Negative Selection

There is strong experimental evidence that Aire deficiency directly results in the defective negative selection of thymocytes. This evidence comes from transgenic mice in which most of the T-cells express T-cell receptors (TCRs) specific for a certain neo-self-antigen, such as hen egg lysosome (HEL). When this transgenic line is crossed with another transgenic line expressing HEL under the rat insulin promoter [i.e., an RIP-HEL mouse expressing HEL in thymic medullary thymic epithelial cells (mTECs) and in the pancreas], the effectiveness of eliminating autoreactive T-cells by negative selection is strictly dependent on the presence of Aire (8). This role in regulating the thymic clonal deletion of autoreactive thymocytes has also been shown for other neo-self-antigens and for different promoters and clearly indicates a role for Aire in negative selection (9, 10).

Aire is Predominantly Expressed in MHC Class II-High, CD80-High mTECs

Several studies have expanded our knowledge of Aire and illustrate its key role in central tolerance induction. The majority of Aire signal have been shown to come from mTECs, a very specific set of cells in the thymus (11). mTECs are unique because they can express thousands of tissue-specific self-antigens that are presented to developing thymocytes and are thus associated with negative selection (12). The phenomenon, known as promiscuous gene expression, and the role that Aire plays in this process, have been covered in detail by Ucar et al. in this Research Topic of the Frontiers in Immunology. Within mTECs, Aire expression is specifically located in a subpopulation of cells characterized by the surface expression of MHC class II, and the co-stimulatory molecules CD80 and CD86 (13), indicating that, in addition to antigen cross-presentation by dendritic cells (DCs), Aire+ mTECs also have the potential for direct antigen presentation. Within these MHC class II mTECs, Aire localizes in the nuclei, forming discrete dot-like structures that resemble promyelocytic leukemia (PML) nuclear bodies (11, 14). PML bodies have been associated with several activities, including the modulation of chromatin structure, transcriptional control, DNA repair, and antiviral response (15).

In addition to mTECs, some recent studies have also identified the Aire protein in peripheral lymph nodes both in humans as well as mice (16, 17). It has been shown that the peripheral expression of Aire may contribute to the autoimmune phenotype either via its effects on T-cells as well as directly on B-cells (16, 18). Thus, in addition to its major role in the induction of central tolerance, as is covered in this review, Aire is likely to play a role in peripheral tolerance as well, as has been covered in recent reviews (19).

Thus, in summary, it is well established that (1) the insufficient expression of Aire results in autoimmunity in both humans and mice, (2) Aire is required for negative selection, and (3) the MHC class II-high, CD80-high mTEC population is the primary source of Aire. However, the precise mechanisms that link the expression of Aire in the thymus to the effective induction of tolerance, are still widely debated and are summarized in the remainder of this review (Figure 1).

FIGURE 1
www.frontiersin.org

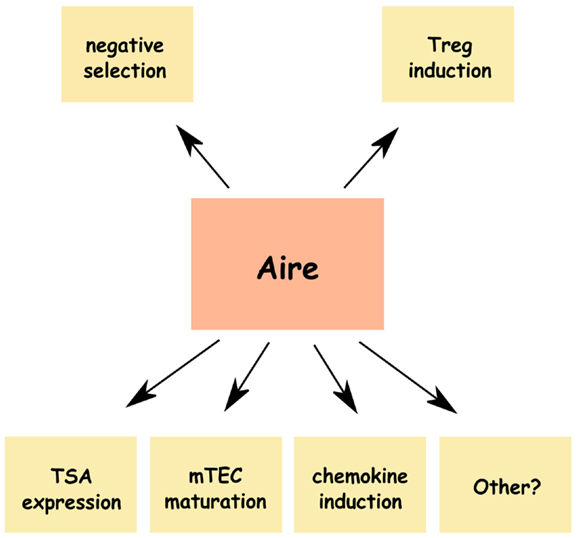

Figure 1. Alternative mechanisms of Aire-induced central tolerance. In addition to the well-described roles in tissue-specific antigen (TSA) expression and induction of negative selection Aire has been shown to affect maturation of medullary thymic epithelial cells (mTECs), expression thymic chemokines, and induction of naturally occurring Tregs, which may all contribute to the induction of central tolerance. Other possible mechanisms, such as induction of mTEC apoptosis or disturbances in thymocyte maturation have also been suggested.

Aire and TSA Expression

The role of Aire as a master regulator of tissue-specific antigens (TSA) was first proposed by Anderson et al. (20) and is by far the best studied and established mechanism behind Aire-induced negative selection. It is clear that Aire controls the expression of many TSAs in mTECs and that Aire-dependent expression of these TSAs leads to the negative selection of self-reactive thymocytes. These aspects of Aire have been covered in depth in recent reviews on Aire (21, 22), and also in a review on promiscuous expression by Ucar et al. in this Research Topic of the Frontiers in Immunology. However, there is also accumulating evidence that the impaired expression of TSAs is not the only mechanism behind Aire-induced central tolerance. For example, Aire-deficient mice develop a Sjögren’s syndrome-like autoimmune reaction to α-fodrin, which is a self-antigen not regulated by Aire (23). Similarly, Aire-deficient non-obese diabetic (NOD) mice develop autoimmune pancreatitis to isomerase A2, another Aire-independent self-Ag (24). Therefore, it is clear that Aire has an additional effect on T-cell selection independent of its effect on TSA expression. The precise mechanisms responsible for these additional effects of Aire, however, are still unclear and deserve further studies.

Aire and mTEC Maturation

During maturation, mTECs must pass through several developmental stages that are characterized by the expression of a few key proteins that are related to specific functions at that particular stage of development (Figure 2). The classical subpopulations are composed in consecutive order of the (1) MHC class II-low, CD80-low, Aire-mTECs, which are considered to be an immature, highly proliferating population, that is already committed to the mTEC lineage; (2) MHC class II-high, CD80-high, Aire-mTECs, a subpopulation that is already capable of expressing many (Aire-independent) TSAs and directly presenting them to developing thymocytes; and (3) MHC class II-high, CD80-high, Aire+ mTECs. This last cell population consists of matured, post-mitotic mTECs that express a wide variety of TSAs, including the ones under control of Aire (25, 26). Until quite recently, it was widely accepted that these post-mitotic Aire+ mTECs represented the final stage of mTEC maturation. More recent data, however, suggest that the maturation of mTECs may extend beyond the Aire+ stage, and Aire in fact may modulate several different aspects of mTEC differentiation. The first indications that Aire may alter mTEC differentiation came from studies by Gillard et al. and Dooley et al., that characterized the staining patterns of UEA1, Keratin (K)-5/K8/K14, and p63 in Aire-deficient thymi. These authors observed changed proportions of stellate versus globular mTECs and more frequent thymic cysts in Aire-deficient thymi. Although these findings were only apparent after careful analysis, and their functional significance is difficult to evaluate, they clearly suggest that the loss of Aire alters the basic parameters that determine mTEC morphology and maturation stage (27, 28). In addition, a study by Milicevic et al. looked at the ultrastructure of mTECs of Aire-deficient mice using electron-microscopy and found profound changes in all subpopulations of mTECs (29). Rather strikingly, all mTECs in Aire-deficient mice, regardless of their differentiation stage, showed profound ultrastructural changes. These changes were collectively characterized as signs of activation and increased intracellular traffic. Thus, although mTECs classified by either electron-microscopy or functional surface markers are not directly comparable, this ultrastructural study suggested that the effect of Aire on mTEC maturation is not restricted to the final (i.e., Aire+) cells, but rather covers all mTEC subpopulations.

FIGURE 2
www.frontiersin.org

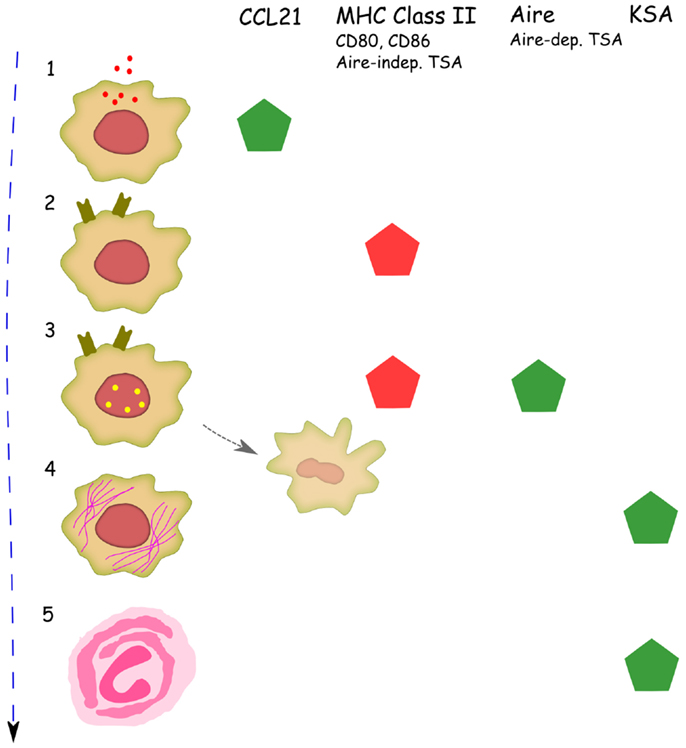

Figure 2. Proposed program of mTEC differentiation and the effect of Aire on mTEC development at different stages of differentiation. Consecutive developmental stages are indicated based on key molecules predominantly expressed at this stage: (1) MHC class II−, CCL21+*; (2) MHC class II+, Aire−; (3) MHC class II+, Aire+; (4) MHC class II-low, Aire−, keratin high; (5) Hassall’s corpuscles. Possible pathway from MHC II+, Aire+ cells to apoptosis is shown in pale. The pentagonal signs indicate presence of the specific marker at this stage of differentiation, whereas the color of a sign indicates the change of this marker in the Aire-deficient mice: green corresponds to a decrease and red to an increase in Aire KO mice. TSA stands for tissue-specific antigens and excludes keratinocyte-specific TSAs; KSA stands for keratinocyte-specific antigens. *In parallel to the developmental sequence presented here, the MHC class II−, CCL21+ mTEC stage has been suggested to follow the MHC class II+, Aire+ stage of development (50).

Direct evidence suggesting that mTECs survive and further differentiate after the Aire+ stage originated from recent studies by Yano et al., Nishikawa et al., and Wang et al., all of which used different reporter mice to follow the faith of Aire+ cells (3032). These studies demonstrated that Aire+ mTECs develop further into MHC class II-low, CD80-low, Aire-mTECs, and thus lose their unique property of direct TSA presentation in parallel with the loss of Aire (31, 32). In addition, the loss of another unique property of Aire+ cells, promiscuous TSA expression, was indicated by the down-regulation of many Aire dependent as well as Aire-independent TSAs in these post-Aire mTECs (32). Instead, post-Aire cells upregulated the expression of keratins and thus came to resemble keratinocytes, at least in terms of the gene-expression pattern (30, 32). Finally, it was shown that the post-Aire cells lose their nuclei and merge to become Hassall’s Corpuscles (HC), well known but poorly characterized concentric structures in thymic medullary areas (30, 32). Although the precise function of these structures is unknown, they may have the potential to induce Treg development through expression of TSLP (33). In addition, it has been shown that intrathymic expression of some keratinocyte-specific TSAs, including the expression of the well-known pemphigus-related autoantigens, desmoglein-1 and -3, is clearly restricted to HCs (32, 3436). Thus, it is plausible that these post-Aire structures contribute to the induction of central tolerance by negative selection of keratinocyte-reactive thymocytes as well as by induction of keratinocyte-specific Tregs.

The lack of Aire seems to block the maturation of mTECs, resulting in the accumulation of MHC class II+, CD80+, truncated Aire+ mTECs, and in a severe reduction in the expression of many keratins and the numbers of HCs (28, 31, 32) (Figure 2). The reduction in the expression of keratinocyte-specific proteins in Aire-deficient thymi involves also desmoglein-3 and results in the altered selection of desmoglein-3-specific T-cells and defective tolerance against desmoglein-3 (37). Thus, it has been formally demonstrated that through its effect on mTEC differentiation, Aire can promote tolerance at least against this specific keratinocyte-related TSA. Whether, and to what extent, the broad effect of Aire on gene expression is regulated through mTEC differentiation rather than direct transcriptional activity, remains to be determined in future studies.

Aire and Chemokine Expression

The negative selection of developing thymocytes is also dependent on coordinated migration through distinct thymic niches, that provides timely interactions with mTECs and DCs (38). Cell–cell contact with TSA-expressing mTECs requires that the positively selected thymocytes migrate from the thymic cortex to the medulla, whereas indirect TSA presentation is likely to be dependent on the physical proximity of thymocytes, mTECs and DCs (39) (Figure 3). The ligands of two chemokine receptors, CCR7 and CCR4, have been previously associated with thymocyte migration to the site of negative selection. Both receptors are predominantly expressed on double positive (DP) and single-positive (SP) CD4-thymocytes (4042), while the ligands for CCR7 and CCR4 are produced predominantly in the thymic medulla (40, 41, 4345). The importance of CCR7 ligands in thymocyte development has been further highlighted in the CCR7-deficient mouse, in which the impaired intrathymic migration of thymocytes resulted in a delay of mature T-cell emigration and a leakage of premature T-cells (45). Significantly, a lack of CCR7 caused defective induction of central tolerance and the presence of multiple autoantibodies and autoimmune infiltrations in many peripheral organs, resulting in a phenotype almost identical to that of Aire-deficient mice (46, 47). In turn, the importance of Aire in the regulation of thymic chemokine expression has been reported in many studies. First, microarray analysis of sorted mTECs has demonstrated the down-regulation of several chemokines in the Aire-deficient mouse (10). Second, the effect of Aire on CCR4 and CCR7 ligand expression has been further validated with both the up- and down-regulation of Aire (48, 49). Third, the delay of thymocyte emigration (in a manner similar to that in CCR7-deficient mice) is also present in the Aire-deficient mice (48). Notably, the highest expression of CCR7 ligands, although Aire dependent, occurs in the MHC class II-low mTECs, i.e., in a population not expressing Aire (48, 50). Further, during mouse ontogeny, CCL21+ (i.e., CCR7 ligand-producing) cells appear after the appearance of Aire+ cells (50). It has therefore been proposed that MHC class II-, CD80−, CCL21+ mTECs represent the post-Aire population (50). However, we have measured the levels of multiple chemokines directly in the post-Aire population in the Aire-reporter mouse, and found a clear down-regulation of all measured chemokines in these post-Aire cells (32). Therefore, although the precise developmental sequence is still clearly under debate, we feel that the MHC class II-, CD80− population prior to the induction of Aire is a more likely source of CCR7 ligands (Figure 2). It remains unclear, however, how the expression of Aire in one cell can influence another mTECs in a less mature stage. In addition to possible direct paracrine signaling from mTEC to mTEC, another possibility involves cross-talk between mTECs and thymocytes, which do not receive all appropriate signals from the mTECs under Aire-deficient situation, resulting in improper signaling from thymocytes back to immature mTECs. This effect of Aire on mTEC maturation and differentiation before and after Aire expression is in agreement with the ultrastructural changes observed during all stages of mTEC development that have been discussed above (29).

FIGURE 3
www.frontiersin.org

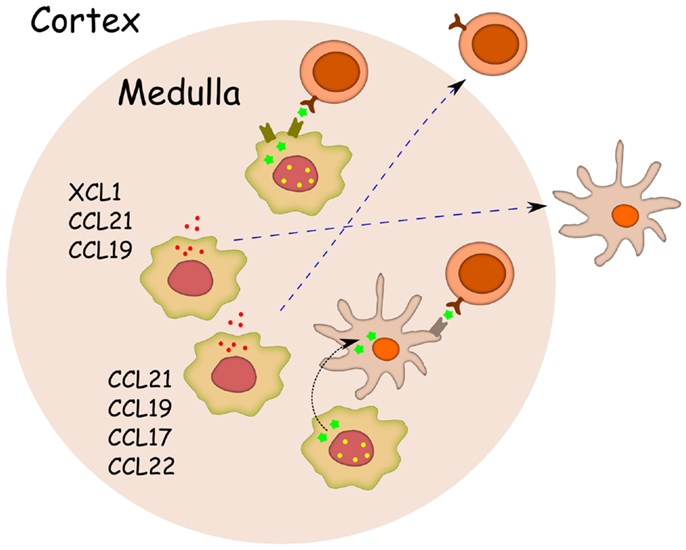

Figure 3. Aire regulates chemokines required for proper localization of thymocytes and dendritic cells. For effective direct antigen presentation (shown as green pentagons) from mTEC to thymocyte, the positively selected single-positive thymocytes need to migrate from cortex to medulla. For effective indirect antigen presentation both, the positively selected thymocytes and the DCs, need to migrate to medulla. Only the key chemokines (shown as red particles) known to mediate the migration of single-positive thymocytes or DCs, and also known to be regulated by Aire (shown as yellow dots) are listed.

In addition to its effect on thymocyte migration, Aire expression in mTECs has been shown to regulate the chemokines responsible for DC migration. Although not characterized in the thymus, peripheral DCs bear the CCR7 receptor, which is required for their proper localization within lymph nodes (51). In addition, it has been shown by Lei et al. that thymic DCs express the receptor for the chemokine XCL1, which is specifically expressed by mTECs in an Aire-dependent fashion, and is required for the proper localization of DCs to the cortico-medullary junction (49). Thus, there is evidence that Aire-dependent chemokines are required for thymocyte and DC migration to the location where antigen (cross)-presentation and negative selection are likely to occur (Figure 3). In fact, altered cross-presentation in Aire KO mice has previously been demonstrated (52), although the roles of specific chemokines in this process are still unclear.

Aire and Treg Induction

There is an increasing amount of direct evidence that, in addition to their proposed role in negative selection, mTECs contribute to central tolerance by inducing naturally occurring Tregs (53, 54). Accordingly, since the characterization of an autoimmune phenotype in Aire-deficient mice, a significant number of studies have focused on the potential role of Aire in thymic Treg induction. However, there was no major change in either Treg numbers or function in transgenic models (RIP-HEL, RIP-mOVA), in which the negative selection of neo-self-antigen-specific thymocytes was clearly Aire dependent (810). Likewise, the lack of Aire had no major effect on TCR usage by Foxp3+ Tregs, in a study where the effect of Aire on Treg TCR repertoire was assessed in a mouse model with restricted TCR repertoire (55). Thus, initial studies that looked at the total numbers and/or function of Tregs, indicated that defects in central tolerance in Aire-deficient mice are not Treg related. Nevertheless, a recent study showed that Aire expression is required for the intrathymic production of tumor-specific Tregs in a mouse model of oncogene-driven prostate cancer (56), and clearly demonstrated a role for Aire in induction of a specific population of naturally occurring Tregs. Thus, this study demonstrates directly that the key role of Aire in central tolerance is not limited to its effect on negative selection but also includes its effect on thymic Treg induction. Future studies will determine, whether this intriguing effect of Aire extends to a significant pool of TSA-specific Treg induction and, if so, what mechanisms cause this effect.

Other Plausible Mechanisms Behind Aire-Induced Central Tolerance

There are also a number of studies indicating that in addition to the mechanisms covered above, Aire may influence other basic mechanisms, directly in mTECs or indirectly in other thymic cells which, at least hypothetically, may contribute to defects in negative selection.

Thus, Aire may play a role in the induction of apoptosis, as the over-expression of Aire results in the induction of apoptosis in several in vitro cell-lines (25, 57, 58). Based on these data, it has been proposed that the absence of this effect is responsible for the increased numbers of MHC class II+ mTECs observed in Aire-deficient mice and that Aire-induced apoptosis may facilitate the cross-presentation of TSAs expressed by these apoptotic cells to the thymic DCs (25, 28). As the apoptotic processes in the thymus are very dynamic and thus difficult to monitor, this attractive hypothesis has not yet been validated in vivo. It is, however, completely plausible that, in addition to the maturation of post-Aire mTECs and HCs, a subpopulation of Aire+ mTECs are directly guided to undergo apoptosis and are then quickly removed by resident macrophages (Figure 2).

In addition, a report by Li et al. shows that the development of SP CD4-thymocytes is blocked at the transition from SP3 to SP4 in Aire-deficient mice (59). Although this may be due to imperfect cross-talk between defectively matured Aire-deficient mTECs and developing thymocytes, or to insufficient cell–cell contact as a result of reduced chemokine expression, neither of these possibilities has been formally tested. Additionally, the functional consequences of this phenomenon remain unknown.

In summary, although the effects of Aire on central tolerance are well established, the cellular and molecular mechanisms are still unclear. Along with the better-understood effects on TSA expression, Aire can also alter the differentiation program of mTECs, regulate the expression of thymic chemokines, contribute to specific Treg induction, and induce mTEC apoptosis. It remains to be determined, however, what extent these alternative mechanisms contribute to the autoimmune phenotype observed in Aire-deficient mice and APECED patients.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

1. Gallegos AM, Bevan MJ. Central tolerance: good but imperfect. Immunol Rev (2006) 209:290–6. doi:10.1111/j.0105-2896.2006.00348.x

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

2. Nagamine K, Peterson P, Scott HS, Kudoh J, Minoshima S, Heino M, et al. Positional cloning of the APECED gene. Nat Genet (1997) 17(4):393–8. doi:10.1038/ng1297-393

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

3. Consortium FG-A. An autoimmune disease, APECED, caused by mutations in a novel gene featuring two PHD-type zinc-finger domains. Nat Genet (1997) 17(4):399–403. doi:10.1038/ng1297-399

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

4. Kisand K, Bøe Wolff AS, Podkrajsek KT, Tserel L, Link M, Kisand KV, et al. Chronic mucocutaneous candidiasis in APECED or thymoma patients correlates with autoimmunity to Th17-associated cytokines. J Exp Med (2010) 207(2):299–308. doi:10.1084/jem.20091669

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

5. Perheentupa J. Autoimmune polyendocrinopathy-candidiasis-ectodermal dystrophy. J Clin Endocrinol Metab (2006) 91(8):2843–50. doi:10.1210/jc.2005-2611

CrossRef Full Text

6. Peterson P, Peltonen L. Autoimmune polyendocrinopathy syndrome type 1 (APS1) and AIRE gene: new views on molecular basis of autoimmunity. J Autoimmun (2005) 25(Suppl):49–55. doi:10.1016/j.jaut.2005.09.022

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

7. Venanzi ES, Melamed R, Mathis D, Benoist C. The variable immunological self: genetic variation and nongenetic noise in Aire-regulated transcription. Proc Natl Acad Sci U S A (2008) 105(41):15860–5. doi:10.1073/pnas.0808070105

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

8. Liston A, Lesage S, Wilson J, Peltonen L, Goodnow CC. Aire regulates negative selection of organ-specific T cells. Nat Immunol (2003) 4(4):350–4. doi:10.1038/ni906

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

9. Liston A, Gray DH, Lesage S, Fletcher AL, Wilson J, Webster KE, et al. Gene dosage – limiting role of Aire in thymic expression, clonal deletion, and organ-specific autoimmunity. J Exp Med (2004) 200(8):1015–26. doi:10.1084/jem.20040581

CrossRef Full Text

10. Anderson MS, Venanzi ES, Chen Z, Berzins SP, Benoist C, Mathis D. The cellular mechanism of Aire control of T cell tolerance. Immunity (2005) 23(2):227–39. doi:10.1016/j.immuni.2005.07.005

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

11. Heino M, Peterson P, Kudoh J, Nagamine K, Lagerstedt A, Ovod V, et al. Autoimmune regulator is expressed in the cells regulating immune tolerance in thymus medulla. Biochem Biophys Res Commun (1999) 257(3):821–5. doi:10.1006/bbrc.1999.0308

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

12. Kyewski B, Derbinski J, Gotter J, Klein L. Promiscuous gene expression and central T-cell tolerance: more than meets the eye. Trends Immunol (2002) 23(7):364–71. doi:10.1016/S1471-4906(02)02248-2

CrossRef Full Text

13. Derbinski J, Gäbler J, Brors B, Tierling S, Jonnakuty S, Hergenhahn M, et al. Promiscuous gene expression in thymic epithelial cells is regulated at multiple levels. J Exp Med (2005) 202(1):33–45. doi:10.1084/jem.20050471

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

14. Björses P, Pelto-Huikko M, Kaukonen J, Aaltonen J, Peltonen L, Ulmanen I. Localization of the APECED protein in distinct nuclear structures. Hum Mol Genet (1999) 8(2):259–66. doi:10.1093/hmg/8.2.259

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

15. Everett RD, Chelbi-Alix MK. PML and PML nuclear bodies: implications in antiviral defence. Biochimie (2007) 89(6–7):819–30. doi:10.1016/j.biochi.2007.01.004

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

16. Gardner JM, Devoss JJ, Friedman RS, Wong DJ, Tan YX, Zhou X, et al. Deletional tolerance mediated by extrathymic Aire-expressing cells. Science (2008) 321(5890):843–7. doi:10.1126/science.1159407

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

17. Poliani PL, Kisand K, Marrella V, Ravanini M, Notarangelo LD, Villa A, et al. Human peripheral lymphoid tissues contain autoimmune regulator-expressing dendritic cells. Am J Pathol (2010) 176(3):1104–12. doi:10.2353/ajpath.2010.090956

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

18. Lindh E, Lind SM, Lindmark E, Hässler S, Perheentupa J, Peltonen L, et al. AIRE regulates T-cell-independent B-cell responses through BAFF. Proc Natl Acad Sci U S A (2008) 105(47):18466–71. doi:10.1073/pnas.0808205105

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

19. Metzger TC, Anderson MS. Control of central and peripheral tolerance by Aire. Immunol Rev (2011) 241(1):89–103. doi:10.1111/j.1600-065X.2011.01008.x

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

20. Anderson MS, Venanzi ES, Klein L, Chen Z, Berzins SP, Turley SJ, et al. Projection of an immunological self shadow within the thymus by the aire protein. Science (2002) 298(5597):1395–401. doi:10.1126/science.1075958

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

21. Peterson P, Org T, Rebane A. Transcriptional regulation by AIRE: molecular mechanisms of central tolerance. Nat Rev Immunol (2008) 8(12):948–57. doi:10.1038/nri2450

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

22. Mathis D, Benoist C. Aire. Annu Rev Immunol (2009) 27:287–312. doi:10.1146/annurev.immunol.25.022106.141532

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

23. Kuroda N, Mitani T, Takeda N, Ishimaru N, Arakaki R, Hayashi Y, et al. Development of autoimmunity against transcriptionally unrepressed target antigen in the thymus of Aire-deficient mice. J Immunol (2005) 174(4):1862–70.

Pubmed Abstract | Pubmed Full Text

24. Niki S, Oshikawa K, Mouri Y, Hirota F, Matsushima A, Yano M, et al. Alteration of intra-pancreatic target-organ specificity by abrogation of Aire in NOD mice. J Clin Invest (2006) 116(5):1292–301. doi:10.1172/JCI26971

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

25. Gray D, Abramson J, Benoist C, Mathis D. Proliferative arrest and rapid turnover of thymic epithelial cells expressing Aire. J Exp Med (2007) 204(11):2521–8. doi:10.1084/jem.20070795

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

26. Rossi SW, Kim MY, Leibbrandt A, Parnell SM, Jenkinson WE, Glanville SH, et al. RANK signals from CD4(+)3(-) inducer cells regulate development of Aire-expressing epithelial cells in the thymic medulla. J Exp Med (2007) 204(6):1267–72. doi:10.1084/jem.20062497

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

27. Gillard GO, Dooley J, Erickson M, Peltonen L, Farr AG. Aire-dependent alterations in medullary thymic epithelium indicate a role for Aire in thymic epithelial differentiation. J Immunol (2007) 178(5):3007–15.

Pubmed Abstract | Pubmed Full Text

28. Dooley J, Erickson M, Farr AG. Alterations of the medullary epithelial compartment in the Aire-deficient thymus: implications for programs of thymic epithelial differentiation. J Immunol (2008) 181(8):5225–32.

Pubmed Abstract | Pubmed Full Text

29. Milicevic Z, Milicevic NM, Laan M, Peterson P, Kisand K, Scott HS, et al. Ultrastructure of medullary thymic epithelial cells of autoimmune regulator (Aire)-deficient mice. Immunol Cell Biol (2010) 88(1):50–6. doi:10.1038/icb.2009.55

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

30. Yano M, Kuroda N, Han H, Meguro-Horike M, Nishikawa Y, Kiyonari H, et al. Aire controls the differentiation program of thymic epithelial cells in the medulla for the establishment of self-tolerance. J Exp Med (2008) 205(12):2827–38. doi:10.1084/jem.20080046

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

31. Nishikawa Y, Hirota F, Yano M, Kitajima H, Miyazaki J, Kawamoto H, et al. Biphasic Aire expression in early embryos and in medullary thymic epithelial cells before end-stage terminal differentiation. J Exp Med (2010) 207(5):963–71. doi:10.1084/jem.20092144

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

32. Wang X, Laan M, Bichele R, Kisand K, Scott HS, Peterson P. Post-Aire maturation of thymic medullary epithelial cells involves selective expression of keratinocyte-specific autoantigens. Front Immunol (2012) 3:19. doi:10.3389/fimmu.2012.00019

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

33. Watanabe N, Wang YH, Lee HK, Ito T, Cao W, Liu YJ. Hassall’s corpuscles instruct dendritic cells to induce CD4+CD25+ regulatory T cells in human thymus. Nature (2005) 436(7054):1181–5. doi:10.1038/nature03886

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

34. Nuber UA, Schäfer S, Stehr S, Rackwitz HR, Franke WW. Patterns of desmocollin synthesis in human epithelia: immunolocalization of desmocollins 1 and 3 in special epithelia and in cultured cells. Eur J Cell Biol (1996) 71(1):1–13.

Pubmed Abstract | Pubmed Full Text

35. Bodey B, Siegel SE, Kaiser HE. Novel insights into the function of the thymic Hassall’s bodies. In vivo (2000) 14(3):407–18.

Pubmed Abstract | Pubmed Full Text

36. Hale LP, Markert ML. Corticosteroids regulate epithelial cell differentiation and Hassall body formation in the human thymus. J Immunol (2004) 172(1):617–24.

Pubmed Abstract | Pubmed Full Text

37. Wada N, Nishifuji K, Yamada T, Kudoh J, Shimizu N, Matsumoto M, et al. Aire-dependent thymic expression of desmoglein 3, the autoantigen in pemphigus vulgaris, and its role in T-cell tolerance. J Invest Dermatol (2011) 131(2):410–7. doi:10.1038/jid.2010.330

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

38. Takahama Y. Journey through the thymus: stromal guides for T-cell development and selection. Nat Rev Immunol (2006) 6(2):127–35. doi:10.1038/nri1781

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

39. Derbinski J, Kyewski B. How thymic antigen presenting cells sample the body’s self-antigens. Curr Opin Immunol (2010) 22(5):592–600. doi:10.1016/j.coi.2010.08.003

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

40. Chantry D, Romagnani P, Raport CJ, Wood CL, Epp A, Romagnani S, et al. Macrophage-derived chemokine is localized to thymic medullary epithelial cells and is a chemoattractant for CD3(+), CD4(+), CD8(low) thymocytes. Blood (1999) 94(6):1890–8.

Pubmed Abstract | Pubmed Full Text

41. Annunziato F, Romagnani P, Cosmi L, Beltrame C, Steiner BH, Lazzeri E, et al. Macrophage-derived chemokine and EBI1-ligand chemokine attract human thymocytes in different stage of development and are produced by distinct subsets of medullary epithelial cells: possible implications for negative selection. J Immunol (2000) 165(1):238–46.

Pubmed Abstract | Pubmed Full Text

42. Campbell JJ, Pan J, Butcher EC. Cutting edge: developmental switches in chemokine responses during T cell maturation. J Immunol (1999) 163(5):2353–7.

Pubmed Abstract | Pubmed Full Text

43. Alferink J, Lieberam I, Reindl W, Behrens A, Weiss S, Hüser N, et al. Compartmentalized production of CCL17 in vivo: strong inducibility in peripheral dendritic cells contrasts selective absence from the spleen. J Exp Med (2003) 197(5):585–99. doi:10.1084/jem.20021859

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

44. Ueno T, Hara K, Willis MS, Malin MA, Höpken UE, Gray DH, et al. Role for CCR7 ligands in the emigration of newly generated T lymphocytes from the neonatal thymus. Immunity (2002) 16(2):205–18. doi:10.1016/S1074-7613(02)00267-4

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

45. Ueno T, Saito F, Gray DH, Kuse S, Hieshima K, Nakano H, et al. CCR7 signals are essential for cortex-medulla migration of developing thymocytes. J Exp Med (2004) 200(4):493–505. doi:10.1084/jem.20040643

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

46. Kurobe H, Liu C, Ueno T, Saito F, Ohigashi I, Seach N, et al. CCR7-dependent cortex-to-medulla migration of positively selected thymocytes is essential for establishing central tolerance. Immunity (2006) 24(2):165–77. doi:10.1016/j.immuni.2005.12.011

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

47. Davalos-Misslitz AC, Rieckenberg J, Willenzon S, Worbs T, Kremmer E, Bernhardt G, et al. Generalized multi-organ autoimmunity in CCR7-deficient mice. Eur J Immunol (2007) 37(3):613–22. doi:10.1002/eji.200636656

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

48. Laan M, Kisand K, Kont V, Möll K, Tserel L, Scott HS, et al. Autoimmune regulator deficiency results in decreased expression of CCR4 and CCR7 ligands and in delayed migration of CD4+ thymocytes. J Immunol (2009) 183(12):7682–91. doi:10.4049/jimmunol.0804133

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

49. Lei Y, Ripen AM, Ishimaru N, Ohigashi I, Nagasawa T, Jeker LT, et al. Aire-dependent production of XCL1 mediates medullary accumulation of thymic dendritic cells and contributes to regulatory T cell development. J Exp Med (2011) 208(2):383–94. doi:10.1084/jem.20102327

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

50. Lkhagvasuren E, Sakata M, Ohigashi I, Takahama Y. Lymphotoxin β receptor regulates the development of CCL21-expressing subset of postnatal medullary thymic epithelial cells. J Immunol (2013) 190(10):5110–7. doi:10.4049/jimmunol.1203203

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

51. Förster R, Davalos-Misslitz AC, Rot A. CCR7 and its ligands: balancing immunity and tolerance. Nat Rev Immunol (2008) 8(5):362–71. doi:10.1038/nri2297

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

52. Hubert FX, Kinkel SA, Davey GM, Phipson B, Mueller SN, Liston A, et al. Aire regulates the transfer of antigen from mTECs to dendritic cells for induction of thymic tolerance. Blood (2011) 118(9):2462–72. doi:10.1182/blood-2010-06-286393

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

53. Aschenbrenner K, D’Cruz LM, Vollmann EH, Hinterberger M, Emmerich J, Swee LK, et al. Selection of Foxp3+ regulatory T cells specific for self antigen expressed and presented by Aire+ medullary thymic epithelial cells. Nat Immunol (2007) 8(4):351–8. doi:10.1038/ni1444

CrossRef Full Text

54. Hinterberger M, Aichinger M, Prazeres da Costa O, Voehringer D, Hoffmann R, Klein L. Autonomous role of medullary thymic epithelial cells in central CD4(+) T cell tolerance. Nat Immunol (2010) 11(6):512–9. doi:10.1038/ni.1874

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

55. Daniely D, Kern J, Cebula A, Ignatowicz L. Diversity of TCRs on natural Foxp3+ T cells in mice lacking Aire expression. J Immunol (2010) 184(12):6865–73. doi:10.4049/jimmunol.0903609

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

56. Malchow S, Leventhal DS, Nishi S, Fischer BI, Shen L, Paner GP, et al. Aire-dependent thymic development of tumor-associated regulatory T cells. Science (2013) 339(6124):1219–24. doi:10.1126/science.1233913

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

57. Colomé N, Collado J, Bech-Serra JJ, Liiv I, Antón LC, Peterson P, et al. Increased apoptosis after autoimmune regulator expression in epithelial cells revealed by a combined quantitative proteomics approach. J Proteome Res (2010) 9(5):2600–9. doi:10.1021/pr100044d

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

58. Liiv I, Haljasorg U, Kisand K, Maslovskaja J, Laan M, Peterson P. AIRE-induced apoptosis is associated with nuclear translocation of stress sensor protein GAPDH. Biochem Biophys Res Commun (2012) 423(1):32–7. doi:10.1016/j.bbrc.2012.05.057

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text

59. Li J, Li Y, Yao JY, Jin R, Zhu MZ, Qian XP, et al. Developmental pathway of CD4+CD8- medullary thymocytes during mouse ontogeny and its defect in Aire-/- mice. Proc Natl Acad Sci U S A (2007) 104(46):18175–80. doi:10.1073/pnas.0708884104

Pubmed Abstract | Pubmed Full Text | CrossRef Full Text
