Original Research ARTICLE
Black Raspberries Enhance Natural Killer Cell Infiltration into the Colon and Suppress the Progression of Colorectal Cancer
- 1Division of Hematology and Oncology, Department of Medicine, Medical College of Wisconsin, Milwaukee, WI, United States
- 2Division of Hematology, Department of Internal Medicine, College of Medicine, The Ohio State University, Columbus, OH, United States
- 3Department of Pathology, Medical College of Wisconsin, Milwaukee, WI, United States
- 4Department of Obstetrics and Gynecology, Medical College of Wisconsin, Milwaukee, WI, United States
- 5Center for Biostatistics, The Ohio State University, Columbus, OH, United States
- 6Department of Pathology, The Ohio State University, Columbus, OH, United States
- 7Comprehensive Cancer Center, The James Cancer Hospital, The Ohio State University, Columbus, OH, United States
Natural killer (NK) cells are an essential component of innate immunity against cancer development. Many studies have been conducted to evaluate immune-modulating effects using dietary compounds. Our laboratory has been investigating the chemopreventive potential of black raspberries (BRBs) and previously demonstrated their beneficial modulation of genetic and epigenetic biomarkers in patients with colorectal cancer (CRC). The current study investigated their potential on modulating NK cells. To avoid the excessive inflammation caused by the dextran sulfate sodium (DSS) treatment that leads to colitis, we treated the mice with overnight DSS so that it would slightly irritate the colon but still promote colon carcinogenesis with 100% incidence in both the ApcMin/+ mice and azoxymethane (AOM)-treated mice. A significant decrease of tissue-infiltrating NK cells along the progression of microadenoma-to-adenoma and adenoma-to-adenocarcinoma was observed in the ApcMin/+/DSS and AOM/DSS mice, respectively. Depletion of NK cells significantly promoted the development of CRC, suggesting a critical role of NK cells in combating CRC progression. BRBs significantly suppressed the CRC progression and increased the number of tissue-infiltrating NK cells in both mouse models. Moreover, we further determined BRBs’ effects on NK cells in the human biopsy specimens collected from our previously completed clinical trial, in which CRC patients consumed BRBs for an average of 4 weeks during a presurgical window. We observed an increased number and an enhanced cytotoxicity of NK cells by BRB intervention. The current study provides evidence that BRBs have the potential to enhance the tumor immunesurveillance of NK cells that can be beneficial in the setting of CRC prevention and treatment.
Colorectal cancer (CRC) is the third most common cancer in the world, with 54% of cases occurring in developed countries (1). A higher incidence of CRC is observed in Oceania and Europe whereas Africa and Asia have a lower incidence (1, 2). This higher incidence in developed countries can be, at least partially, attributable to the Western lifestyle of high intake of red meat and processed meat, which has been reported to be positively associated with a higher risk of CRC (3, 4). Therapeutic options depend on the stages when the patients are diagnosed. Patients at early stages with small tumors have a much better 5-year survival rate than the patients who are diagnosed at late stages (1). Intensive research has been conducted to search for biomarkers that could detect colonic polyps at early stages (5) that could, in turn, enhance the overall survival rate. Moreover, evidence has also emerged that CRC is largely preventable, if we eat and drink healthier, increase physical activities, and avoid obesity (6–9).
Dextran sulfate sodium (DSS) is an irritant that induces extensive colonic mucosal inflammation and it is frequently used to induce colitis. Cycles of DSS in drinking water promote colon tumors in ApcMin/+ mice, where the incidence of adenoma is 100% and that of adenocarcinoma 22–100% by 10–12 weeks of age (10, 11). A single intraperitoneal (i.p.) injection of azoxymethane (AOM) followed by 4–7 days of DSS induces adenoma in 60–80% of C57/B6 mice and adenocarcinoma in 50% of them by 23 weeks of age, providing another colitis-associated CRC model (12). However, severe inflammation in these models is irrelevant to human sporadic CRC. Therefore, to avoid the excessive inflammation caused by cycles of DSS treatment that leads to colitis, we successfully manipulated the dose and duration of DSS so that it would only slightly irritate the colon but still promote colon carcinogenesis with 100% incidence in both the ApcMin/+ mice and AOM-treated mice. These models pathologically and molecularly recapitulate human CRC that is promoted by mild inflammation, providing useful tools for studying this disease.
The host immune system plays a complex and multifaceted role in the development of CRC and patients’ responses to therapies (13). Natural killer (NK) cells are the innate arm of the immune system and are the first line of defense against cancer (14). NK cells express activating receptors, such as NK group 2 member D, DNAX accessory molecule-1, NKp46, NKp44, and NKp30, which recognize the ligands on the surface of tumor cells (15, 16). Decreased levels of the activating receptors have been observed in CRC patients (17–19). NK cells also express the activating receptor FcγRIIIa that binds to the immunoglobulin G1 to induce the antibody-dependent cellular cytotoxicity (16). NK cells also expression Fas ligand (FasL), which binds and activates death receptor Fas on tumor cells and induces apoptosis (20, 21). Furthermore, the cytokines produced by NK cells, including interferon-gamma (IFNγ) and chemokine (C–C motif) ligand 5, could have direct antitumoral effects (16, 22). Studies have reported that intra-tumoral NK cells are scarce in CRC tissues (23) and a greater infiltration of NK cells into the tumor tissues might be associated with a better prognosis (24, 25). Therefore, promoting the infiltration of NK cells and/or enhancing their cytotoxic function can be beneficial to CRC patients.
A strong link between diet and CRC has been elicited (6, 26) and many natural compounds have been identified by our laboratory and other groups as chemopreventive agents against CRC, such as black raspberries (BRBs) (27–30), resveratrol (31), and green tea extracts (32). A new field of nutritional immunology is emerging as more studies have been conducted to investigate the immune-modulating effects of natural compounds against CRC. For instance, one group treated ApcMin/+ mice with 2% DSS in drinking water for 7 days, and the resulting colitis-associated CRC was associated with increased number of CD4+ T, CD8+ T cells, B cells, NK T cells, and myeloid-derived suppressing cells (33). Treatment with resveratrol protected against colon polyp development by reversing the DSS-induced inflammation and decreasing the inflammatory immune cells (33, 34). Another study showed that phyllanthusmin C, a plant-derived diphyllin lignan glycoside, enhanced IFNγ production by human NK cells (35). These findings suggest that natural compounds might combat CRC by regulating the immune system. The current study used tissues collected from our previously completed BRB intervention trial in CRC patients (27) as well as aforementioned ApcMin/+/overnight DSS and AOM/overnight DSS mouse models. This study showed that BRBs have strong potential to enhance the tumor immunesurveillance of NK cells.
Materials and Methods
The present trial with CRC patients was approved by the Institutional Review Boards of the Ohio State University Comprehensive Cancer Center and the University of Texas, San Antonio. Inclusion criteria and exclusion criteria were described in our previous publication (27). All the patients who enrolled in this trial have provided written informed consent. Colon adenocarcinoma tissues of pre- and post-BRB intervention from nine patients who consumed BRBs for an average of 4 weeks were used in the current study.
Animal, Diets, and Reagents
All animal experiments were approved by the Medical College of Wisconsin Animal Care and Use Committee. Eight-week-old breeding pairs of wild-type (WT) and ApcMin/+ mice were purchased from the Jackson Laboratory (Bar Harbor, ME, USA).
The control diet, the American Institute of Nutrition (AIN)-76A, was purchased from Dyets Inc. (Bethlehem, PA, USA). The BRB powder was purchased from Berri Products (Corvallis, OR, USA) and stored at 4°C in vacuum-sealed plastic bags at the Medical College of Wisconsin. AOM was obtained from Sigma (St. Louis, MO, USA) and dextran sulfate sodium (DSS, 36,000–50,000 M.W.) was obtained from MP Biochemicals (Santa Ana, CA, USA).
CT26 (CRL-2638), GS-109-V-63 cells (CRL-1614), and K-562 cells (CCL-243) were purchased from the American Type Culture Collection (ATCC, Manassas, VA, USA). These cells were cultured as recommended and cryopreserved in liquid nitrogen. The cells were not re-authenticated as they were passaged for fewer than 6 months after resuscitation. VACO-235 and VACO-330 cells were kind gifts from Dr. Sanford Markowitz at the Case Western Reserve University. These cells were cultured as previously described (36, 37).
Four-to-five-week-old ApcMin/+ mice were given the AIN-76A control diet. These mice were fed with 5% DSS in their drinking water overnight (at week 1). Two weeks after the DSS treatment (at week 3), subgroups of the ApcMin/+/DSS mice were changed to the diet supplemented with 5% BRBs for 4 weeks. Six weeks after the DSS treatment (at week 7), all the ApcMin/+/DSS mice were euthanized by CO2 asphyxiation. The colonic polyp number and size were determined.
Five- to six-week-old WT mice were given the AIN-76A control diet and injected intraperitoneally with AOM (15 mg/kg body weight) (at week 1). One week after the injection, the mice were given 5% DSS in their drinking water overnight (at week 2). Two weeks after the DSS treatment (at week 4), subgroups of the AOM/DSS mice were changed to the diet supplemented with 5% BRBs for 4 weeks. Six weeks after the DSS treatment (at week 8), all the AOM/DSS mice were euthanized by CO2 asphyxiation. The colonic polyp number and size were determined.
Colons from all mice were collected, fixed in formalin, and embedded in paraffin (FFPE). Hematoxylin and eosin (H&E) staining was performed. Stained slides were photographed at 20× magnification using an Olympus microscope. The tissue sections were examined by certified pathologists. The entire colon was viewed under high power magnification (20×). The percentage of high-grade dysplasia, adenoma, or adenocarcinoma was calculated as lesion areas over total areas of the entire length of the colon.
Depletion of NK Cells
Two weeks after the DSS treatment, subgroups of the ApcMin/+/DSS mice and AOM/DSS mice were injected intraperitoneally with anti-NK1.1 antibodies (0.2 mg, Bio X Cell, West Lebanon, NH, USA) once per week for 4 weeks.
FFPE colon tissue blocks were cut into 4 µm sections and immunohistochemistry was conducted as previously described (30). A Dako Link 48 Autostainer Immunostaining System (Agilent Technologies, Santa Clara, CA, USA) was used to stain the slides with primary antibodies to CD56 (NCL-L-CD56-1B6) from Leica Biosystems (Buffalo Grove, IL, USA), and primary antibodies to NCR1 (NKp46, bs-10027R), and LAMP1 (CD107a, bs-1970R) from Bioss (Woburn, MA, USA). Human colon tissues were stained with the EnVision G2 Doublestain System (K536111-2, Agilent Technologies) using anti-CD56 antibodies linked to Vina Green Chromogen (BRR807AH, Biocare Medical, Concord, CA, USA) and anti-LAMP1 antibodies linked to Permanent Red Chromogen. The staining pattern of LAMP1 was similar to the representative images shown on the antibody company website using human small intestine (38). Stained slides were photographed at 20× magnification and only the staining in the adenoma and adenocarcinoma area was quantified as previously described (30). Specificity of each antibody had been confirmed and no positive staining was observed when using control isotype.
Colonic Lamina Propria (LP) Preparation
Colonic LP samples were prepared by a Dissociation Kit (130-097-410) from Miltenyi Biotec (San Diego, CA, USA) as previously described (39). Briefly, an independent cohort of the ApcMin/+ mice treated with overnight DSS and WT mice treated with an AOM injection as well as overnight DSS were fed either the AIN-76A control diet or the diet supplemented with the 5% BRBs 2 weeks after the DSS treatment for 4 weeks. All the mice were euthanized by CO2. Colonic specimens were collected, washed, enzymatically digested using Digestion Solution and Enzyme Mix, and further mechanically broken by gentleMACS™ Dissociator (Miltenyi Biotec). Digested tissue samples in the gentleMACS™ C tubes were centrifuged to form a cell pellet, followed by re-suspending in DMEM for flow cytometry.
Mouse colonic LP samples were prepared for staining with anti-mouse CD45, CD3, NKp46, CD107a, IFNγ, and CD178 (FasL) antibodies (BD Biosciences, Franklin Lakes, NJ, USA). Human cell lines K-562, VACO-235, and GS-109-V-63 were prepared for staining with antihuman major histocompatibility complex (MHC) class I (HLA-A, B, C) antibodies (Biolegend, San Diego, CA, USA). The samples were analyzed by a LSRII flow cytometer (BD Biosciences), and FlowJo software (Tree Star, Ashland, OR, USA) was used to analyze the data.
Standard 51Cr Release Cytotoxicity Assay
Primary human NK cells were isolated from fresh peripheral blood leukopaks (American Red Cross, Columbus, OH, USA) as described previously (40). Murine splenic NK cells were isolated from fresh mouse spleen. A standard 4-h 51Cr release assay was performed as described previously (41). Briefly, target cells were labeled with 51Cr and co-cultured with NK cells at various effector/target ratios (E/T) in the wells of 96-well V-bottom plates at 37°C for 4 h. Supernatants were harvested and transferred into scintillation vials containing a liquid scintillation cocktail (Fisher Scientific, Waltham, MA, USA), and the release of 51Cr was measured on Beckman Liquid Scintillation Counter LS-6500. Target cells incubated in complete medium or 1% SDS were used to determine spontaneous or maximal 51Cr release, respectively. Percentage of specific cell lysis was calculated using the standard formula: 100 × (cpm experimental release − cpm spontaneous release)/(cpm maximal release − cpm spontaneous release).
Using SigmaPlot (Systat Software, San Jose, CA, USA), we performed unpaired two-tailed Student’s t-tests to determine the changes at different stages (the early stage versus the late stage) and the dietary effects (the control diet versus the 5% BRB diet). A p-value less than 0.05 was considered statistically significant.
Infiltration of NK Cells Decreases from Microadenoma to Adenoma in ApcMin/+/DSS Mice, and BRBs Suppress the Progression of Colon Tumorigenesis and Enhance Tumor-Infiltrating NK Cells
To recapitulate human familial adenomatous polyposis, we treated the ApcMin/+ mice with 5% DSS in the drinking water overnight to slightly irritate the colon. The ApcMin/+/DSS mice were given the control diet and were euthanized at week 3 and week 7. Subgroups of the ApcMin/+/DSS mice were given the BRB diet from week 3 and were euthanized at week 7 (Figure 1A). The colon tissues were collected to examine the polyp number and size, as well as the histopathological diagnosis of polyp lesions. Microadenoma occurred in the colon at week 3 (Figure 1A). The incidence of colonic polyp in the control diet-treated ApcMin/+/DSS mice was 100% by week 7. The BRB-treated ApcMin/+/DSS mice developed significantly fewer and smaller colonic polyps compared to mice that were fed the control diet (Figure 1B). Also, the polyps of BRB-treated ApcMin/+/DSS mice presented a smaller proportion of high-grade dysplasia whereas those of control diet-fed ApcMin/+/DSS mice presented a higher proportion of high-grade dysplasia (Figure 1C).
Figure 1. Black raspberries (BRBs) enhance tumor-infiltrating natural killer cells and suppress the progression of microadenoma to adenoma in ApcMin/+/DSS mice. (A) ApcMin/+ mice were treated with 5% DSS in the drinking water overnight, fed the control diet, and euthanized at week 3 and week 7. Subgroups of the ApcMin/+/DSS mice were fed the 5% BRBs from week 3 and euthanized at week 7. The colon tissues were collected and H&E staining were performed. (B) The colonic polyp number and size of the ApcMin/+/DSS mice were examined. (C) Histopathologic evaluations of colon lesions. (D) The colon tissues were stained with anti-NKp46 antibodies; the staining in the adenoma areas was quantified. (E) Colonic LP samples were used to measure the percentage of CD107a+, IFNγ+, or Fas Ligand+ (FasL)+ cells by flow cytometry. HGD: high-grade dysplasia; LGD: low-grade dysplasia. *p < 0.05.
In order to determine the infiltration of NK cells into the colonic polyps, we stained the colon tissues with anti-NKp46 antibodies. We found that significantly fewer NK cells infiltrating into colon polyps at week 7 compared to week 3, and BRBs significantly increased the tissue-infiltrating NK cells at week 7 (Figure 1D). To characterize the functions of NK cells, flow cytometric analysis was taken to measure the levels of CD107a, a functional marker for NK cells’ cytotoxic activities (42), IFNγ production (16, 22), and FasL expression in NK cells of colonic LP samples. The levels of CD107a+, IFNγ+, and FasL+ cells in colonic LP were comparable between the control and BRB diet group (Figure 1E), suggesting that a higher number of the infiltrating NK cells into colon tissues contributes to the BRBs’ protective effects in ApcMin/+/DSS mice.
Infiltration of NK Cells Decreases from Adenoma to Adenocarcinoma in AOM/DSS Mice, and BRBs Suppress the Progression of Colon Tumorigenesis and Enhance Tumor-Infiltrating NK Cells
In another mouse model to recapitulate human sporadic CRC, WT mice were treated with a single dose of AOM (15 mg/kg body weight) followed by 5% DSS in the drinking water overnight. The AOM/DSS mice were given the control diet and were euthanized at weeks 4 and 8. Subgroups of the AOM/DSS mice were given the BRB diet from week 4 and were euthanized at week 8 (Figure 2A). The colon tissues were collected to examine the polyp number and size, as well as the histopathological diagnosis of polyp lesions. The AOM/DSS mice developed adenoma at week 4 (Figure 2A) and 100% of these mice developed adenocarcinoma at week 8. Consistent with the ApcMin/+/DSS mouse model, 5% BRBs significantly suppressed the colonic polyp development (Figure 2B). The polyps from the BRB-treated AOM/DSS mice showed a lower percentage of intramucosal carcinoma in comparison to the control diet-fed AOM/DSS mice (Figure 2C).
Figure 2. Black raspberries (BRBs) enhance tumor-infiltrating natural killer cells and suppress the progression of adenoma to adenocarcinoma in azoxymethane (AOM)/DSS mice. (A) WT mice were treated with one dose of AOM (15 mg/kg body weight, i.p.) followed by 5% DSS in the drinking water overnight, fed the control diet, and euthanized at week 4 and week 8. Subgroups of the AOM/DSS mice were fed the 5% BRBs from week 4 and euthanized at week 8. (B) The colonic polyp number and size of the AOM/DSS mice were examined. (C) Histopathologic evaluations of colon lesions. (D) The colon tissues were stained with anti-NKp46 antibodies; the staining in the adenoma and adenocarcinoma areas was quantified. (E) Colonic LP samples were used to measure the percentage of CD107a+, IFNγ+, or Fas Ligand+ (FasL+) cells by flow cytometry. IMC: intramucosal carcinoma; HGD: high-grade dysplasia. *p < 0.05.
Importantly, we observed a significantly decreased NK cell infiltration in the control diet-treated AOM/DSS mice at week 8 compared to those at week 4. BRBs significantly increased infiltration of NK cells into the polyps (Figure 2D). Neither CD107a nor FasL was significantly changed in colonic LP (Figure 2E). Interestingly, we observed a significantly decreased level of IFNγ after BRB treatment (Figure 2E). Collectively, our results suggest that infiltration of NK cells decreases along the progression from microadenoma to adenoma and further to adenocarcinoma, and BRBs enhance the tumor-infiltration NK cells at different stages of CRC progression.
Depletion of NK Cells Exacerbates the Progression of CRC
To further investigate the antitumorigenic role of NK cells in CRC, we depleted NK cells in both the ApcMin/+/DSS mouse model and the AOM/DSS mouse model using anti-NK1.1 antibodies (Figures 3A,C). Without the immune-surveillance of NK cells, these mice developed significantly more and larger colonic polyps (Figures 3B,D).
Figure 3. Depletion of natural killer cells exacerbates the progression of colorectal cancer. (A) The ApcMin/+ mice were treated with 5% DSS overnight. Two weeks later, these mice were given either control IgG or anti-NK1.1 antibodies for 4 weeks. These mice were euthanized at week 7. (B) The colonic polyp number and size of the ApcMin/+/DSS mice were examined. (C) WT mice were treated with a single dose of azoxymethane (AOM) followed by 5% DSS overnight. Two weeks later, these mice were given either control IgG or anti-NK1.1 antibodies for 4 weeks. These mice were euthanized at week 8. (D) The colonic polyp number and size of the AOM/DSS mice were examined. *p < 0.05.
In addition, we cocultured the primary mouse NK cells with mouse colon carcinoma cells, CT26, and showed that NK cells could lyse CT26 cells (Figure 4A). Also, we showed that the primary human NK cells could kill precancerous colon adenoma cells by using GS-109-V-63 cells, which were derived from patients with the Gardner’s syndrome, a form of familial adenomatous polyposis, and using VACO-235 and VACO-330 cells that were derived from patients diagnosed with villous and tubular adenoma in colon (36, 37) (Figure 4A). Using flow cytometry, we further determined the expression of MHC class I molecules, which serve as inhibitory ligands for NK cells, on the surface of human precancerous colon adenoma cells. We observed a substantially higher expression of MHC class I on the surface of VACO-235 (178-fold higher) and GS-109-V-63 (279-fold higher) cells compared with K-562 cells, which are sensitive to NK cells’ killing (Figure 4B). Therefore, these results suggest that NK cells are able to kill both the precancerous and cancerous cells, although the level of effector cell cytotoxicity is moderate due to high levels of the expression of MHC class I molecules in target cells.

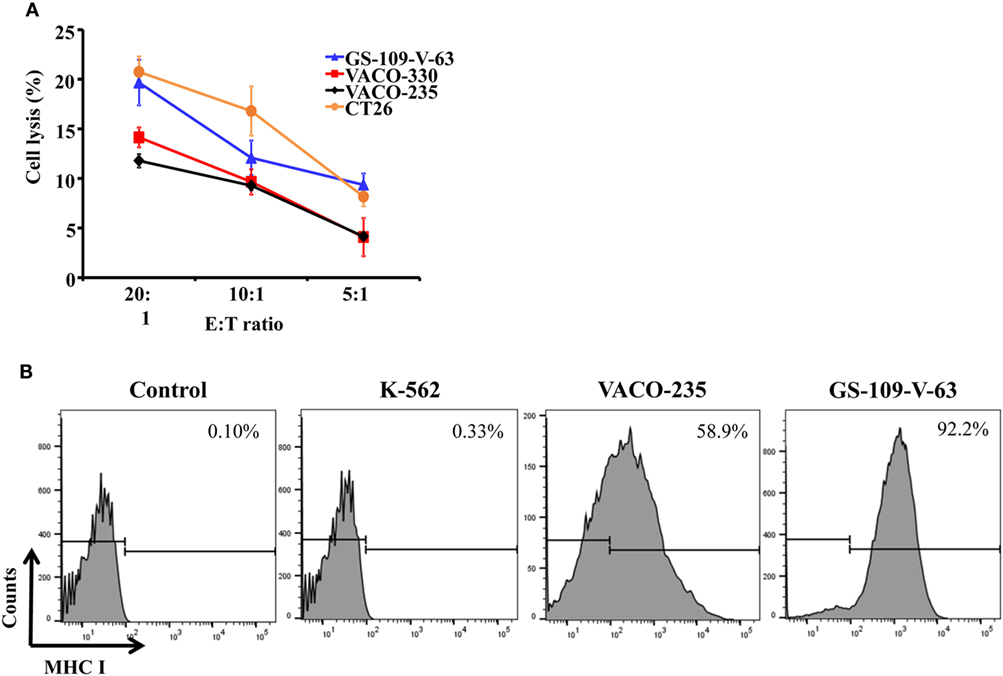

Figure 4. Primary natural killer (NK) cells have the capacity of lysing human precancerous cells and mouse carcinoma cells. (A) Human colon adenoma cells from familial adenomatous polyposis patients (GS-109-V-63), human advanced adenoma cells (VACO-235 and VACO-330), and mouse colon carcinoma cells (CT26) were used to determine the cytotoxicity of primary NK cells. (B) Human chronic myelogenous leukemia cell line (K-562), VACO-235, and GS-109-V-63 cells were used to determine the expression of major histocompatibility complex (MHC) class I molecules by flow cytometry.
BRBs Increase Tumor-Infiltrating NK Cells in Human CRC Patients
Our previously completed human clinic trial demonstrated the beneficial effects of BRBs for CRC patients (27). Double-staining was performed on the colon biopsy tissues from this trial using anti-CD56 antibodies and anti-CD107a antibodies. We observed significantly increased levels of tumor-infiltrating NK cells (CD56+) and enhanced cytotoxic activities of these NK cells (CD56+CD107a+) in the post-BRB specimens compared to the pre-BRB specimens from the CRC patients (Figure 5). These results suggest a role of tumor-infiltrating NK cells in BRB-mediated chemoprevention in human CRC.
Figure 5. Black raspberries (BRB) intervention enhances the number and function of natural killer (NK) cells in colorectal cancer (CRC) patients. The pre-BRB and post-BRB colon biopsy specimens from nine CRC patients were double-stained with anti-CD56 (green staining) and anti-CD107a (red staining) antibodies. BRBs significantly increased the tumor-infiltrating NK cells in CRC patients. *p < 0.05.
First proposed by Sporn and Newton in 1979 (43), chemoprevention is to utilize the natural, synthetic, or biologic agents that are able to delay, reverse, or inhibit tumorigenesis. Along with the advancing therapeutic strategies, cancer prevention and cancer interception can be a new promising era for cancer patients and more importantly for the patients with precancerous lesions and the population at high risk of cancer (44–47). CRC progresses in a well-defined adenoma–carcinoma sequence, which provides a good model to study chemoprevention at early stages of the disease by natural components. Our laboratories focused on CRC chemoprevention using dietary BRBs. Previously, we demonstrated that BRBs epigenetically modulated the expression of genes associated with the Wnt pathway, proliferation, and apoptosis in the human CRC patients (27) and familial adenomatous polyposis patients (28). BRBs could also modulate the biochemical metabolites that were associated with tumor proliferation and apoptosis in humans (29) and mice (30, 39, 48). Furthermore, the current study investigated their immune-modulating effects in the CRC mouse models, especially the effects on NK cells.
DSS is an irritant that induces extensive colonic mucosal inflammation. Altamemi et al. treated ApcMin/+ mice with 2% DSS for 1 week to induce colitis and enhance polyp development. They observed significantly increased levels of inflammatory CD4+ T, CD8+ T cells, B cells, NK T cells, and myeloid-derived suppressing cells in mesenteric lymph nodes of these polyp-bearing mice compared to control mice. In addition, they observed significantly increased levels of pro-inflammatory cytokines, such as interleukin-6 and tumor necrosis factor-alpha, suggesting a strong inflammatory response occurred in these ApcMin/+ mice treated with 1-week DSS. These changes were corrected by resveratrol-mediated anti-inflammatory effects (33). In addition, one group demonstrated that a population of regulatory NK T cells locally promoted intestinal polyp development by increasing regulatory T cells and suppressing the antitumor T-helper immunity in the intestinal polyps of ApcMin/+ mice (49). Another study injected C57/B6 mice with a single dose of AOM and treated the mice with three cycles of DSS. They observed significantly increased levels of granulocyte colony-stimulating factor, a pro-inflammatory cytokine, in colon organ culture supernatant. Administration of anti-granulocyte colony-stimulating factor antibodies suppressed the colon carcinogenesis and significantly increased the levels of NK cells and IFNγ-producing CD4+ and CD8+ T cells (50). Compared with other studies, our study is unique that we treated ApcMin/+ mice with 5% DSS only overnight that only caused mild inflammation in the colon. Colon tumors were presented 6 weeks later, and we observed significantly decreased NK cells in colon tumors, which were reversed by BRBs. These results suggest that colonic inflammation and altered immune cells’ tumor surveillance, as well as the dynamic interaction between these two factors, contribute to the development of CRC. The degrees of colonic inflammation and whether the studies were conducted in tumor-bearing animals lead to different immune cell profiling in different studies.
The concept of “cancer immune-editing” has been proposed to constitute in both cancer initiation and progression through immune suppression or escape (51). Tumor cells develop various mechanisms in the process of immune escape, such as downregulating the presentation of ligands recognized by NK cells or cytotoxic T cells, and/or promoting tumor-enhancing cytokines. NK cells are important components of innate defense against neoplastic cells and viruses. Altered MHC class I expression, NK activating receptors, or Fas-FasL activation could all compromise NK cells’ tumor surveillance (51, 52). Studies have investigated the clinical impact of NK cell infiltration on the prognosis of CRC (53). However, the findings were inconsistent between studies: several groups reported a favorable prognostic impact with higher NK infiltration (24, 54); while others found no effect on the clinical development of CRC (55). Nonetheless, one group suggested that the presence of both NK cells and CD8+ T cells in the tumor microenvironment of CRC may result in a favorable prognosis (25). In addition, cancer stem cells have been suggested to be the mechanism of metastasis of solid tumors (56). Although the low level of MHC class I expression on the cancer stem cells indicates a low efficiency of being targeted by CD8+ T cells, studies have demonstrated that NK cells are capable of killing cancer stem cells. For instance, one group observed a robust cytotoxic effect of NK cells against CRC-derived stem cells, compared to CRC cells (57, 58). This was associated with a higher expression of NCR ligands (NKp30 and NKp44) and a lower level of MHC class I on the surface of cancer stem cells (57). In the current study, we found a moderate cytotoxicity of NK cells against the human precancerous adenoma cells (VACO-235 and GS-109-V-63), which was likely due to the extremely high expression of MHC class I molecules on the surface of these cells.
In the current study, we showed a decrease of NK cell infiltration in the colonic polyps along the progression from microadenoma to adenoma and further to adenocarcinoma in mouse models. In addition, we depleted NK cells using anti-NK1.1 antibodies at the early stage in both mouse models and observed significantly promoted CRC progression. These results suggest that reduced NK cells may already be present at early stage of CRC, and this can be a critical window for chemopreventive agents to sustain or boost up NK cell population/function in cancer stages, as NK cells may have been altered in precancerous stages. Therefore, NK cells could play a role in the colon cancer progression.
We fed the mice with either the AIN-76A control diet or the 5% BRB diet when precancerous lesions occurred. We observed that BRB-fed mice developed smaller and fewer colon lesions with lower histopathological grades. Importantly, BRBs sustained/enhanced the number of tissue-infiltrating NK cells into the colonic polyps in both mouse models. We observed comparable expression of CD107a and FasL in NK cells of colonic LP, suggesting BRBs may not enhance the activities of NK cells in these two mouse models. Interestingly, we observed a decreased production of IFNγ using flow cytometry after BRB treatment in AOM/DSS model. Future studies would be needed to investigate if BRB-enhanced NK infiltration was a compensatory mechanism to rescue the decreased IFNγ production, in order to maintain the tumor surveillance of NK cells. Alternatively, the decreased IFNγ may lead to a low level of programmed death-ligand 1 expression on tumor cells, contributing to the reverse of the exhaustion of CD8+ T cells in the tumor microenvironment because IFNγ is a key factor that stimulates programmed death-ligand 1 expression (59).
Furthermore, in order to evaluate BRBs’ ability on modulating human NK cells, we stained the human biopsy specimens from our previously finished human clinic trial with anti-CD56 antibodies and anti-CD107a antibodies. This is the first study to measure the presence of infiltrated NK cells and their degranulation marker, CD107a, in situ in the tumor microenvironment with intervention by natural products. We observed a significant increase in the number and the CD107a expression of NK cells in CRC patients who consumed BRB diets. These results strongly suggest that BRB-mediated promotion in NK cell tumor infiltration and function can enhance tumor immune surveillance, thereby contributes to the chemopreventive effects of BRBs against CRC in humans. Future studies would be needed to investigate how BRBs promote both NK cell infiltration and function in CRC patients, while we only observed a higher NK cell infiltration, but not the function, in mice.
With the recognition of chemopreventive effects of berries, several studies have been conducted to investigate the effects of berries on NK cells. Our previous studies showed that BRBs increased the expression of interleukin-12, a cytokine that activates both cytolytic NK cells and CD8+ T cells in rodent esophageal cancer (60). In addition, one group reported that 6-week administration of blueberry power (equivalent to 250 g fresh berries) daily increased NK cell counts in the circulating blood compared to their pre-berry NK cell counts in the blood, while placebo power had no effect on the circulating NK cells (61, 62). Another group conducted a randomized, double-blind, placebo-controlled clinical trial with 60 older healthy Chinese adults and gave them 150 g Goji berries daily for 30 days. However, the number of NK cells was not significantly altered compared to placebo group in this trial (63). These results suggest that different berries may have different effects. However, these studies only investigated the effects of berries on circulating NK cell count in healthy populations. Our current study is novel, and it is the first study to indicate that BRBs have a potential to modulate NK cell infiltration and function against CRC in mice and humans.
In summary, our findings demonstrate the potential role of NK cells in the development of CRC in both mouse models and human CRC patients. BRBs have the potential to enhance tumor immune surveillance by promoting NK cell tumor infiltration and functions that can be beneficial in the setting of CRC prevention and treatment.
All protocols followed with institutional guidelines for animal care dictated by the Medical College of Wisconsin Animal Care and Use Committee.
Study design, acquisition of data, analysis, and interpretation of data: PP, SK, YW, KL, KO, Y-WH, JZ, MY, JY, and L-SW. Manuscript writing and revising: PP, L-SW, and JY. Final approval: JY and L-SW.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
This project was supported in part by a NIH grant 5 R01 CA185301 (to JY) and an American Cancer Society Research Scholar Grant RSG-14-243-01-LIB (to JY). This project was supported in part by a NIH grant 5 R01 CA148818 (to L-SW) and an American Cancer Society Research Scholar Grant RSG-13-138-01-CNE (to L-SW).
AOM, azoxymethane; AIN, American Institute of Nutrition; BRBs, black raspberries; CRC, colorectal cancer; DSS, dextran sulfate sodium; IFNγ, interferon-gamma; LP, lamina propria; NK, natural killer; WT, wild type.
2. World Cancer Research Fund International. Available from: http://www.wcrf.org/int/cancer-facts-figures/data-specific-cancers/colorectal-cancer-statistics
3. Aune D, Chan DS, Vieira AR, Navarro Rosenblatt DA, Vieira R, Greenwood DC, et al. Red and processed meat intake and risk of colorectal adenomas: a systematic review and meta-analysis of epidemiological studies. Cancer Causes Control (2013) 24(4):611–27. doi:10.1007/s10552-012-0139-z
4. Bouvard V, Loomis D, Guyton KZ, Grosse Y, Ghissassi FE, Benbrahim-Tallaa L, et al. Carcinogenicity of consumption of red and processed meat. Lancet Oncol (2015) 16(16):1599–600. doi:10.1016/S1470-2045(15)00444-1
5. Shah R, Jones E, Vidart V, Kuppen PJ, Conti JA, Francis NK. Biomarkers for early detection of colorectal cancer and polyps: systematic review. Cancer Epidemiol Biomarkers Prev (2014) 23(9):1712–28. doi:10.1158/1055-9965.EPI-14-0412
8. Harriss DJ, Atkinson G, Batterham A, George K, Cable NT, Reilly T, et al. Lifestyle factors and colorectal cancer risk (2): a systematic review and meta-analysis of associations with leisure-time physical activity. Colorectal Dis (2009) 11(7):689–701. doi:10.1111/j.1463-1318.2009.01767.x
9. Harriss DJ, Atkinson G, George K, Cable NT, Reilly T, Haboubi N, et al. Lifestyle factors and colorectal cancer risk (1): systematic review and meta-analysis of associations with body mass index. Colorectal Dis (2009) 11(6):547–63. doi:10.1111/j.1463-1318.2009.01766.x
10. Cooper HS, Everley L, Chang WC, Pfeiffer G, Lee B, Murthy S, et al. The role of mutant Apc in the development of dysplasia and cancer in the mouse model of dextran sulfate sodium-induced colitis. Gastroenterology (2001) 121(6):1407–16. doi:10.1053/gast.2001.29609
11. Tanaka T, Kohno H, Suzuki R, Hata K, Sugie S, Niho N, et al. Dextran sodium sulfate strongly promotes colorectal carcinogenesis in ApcMin/+ mice: inflammatory stimuli by dextran sodium sulfate results in development of multiple colonic neoplasms. Int J Cancer (2006) 118(1):25–34. doi:10.1002/ijc.21282
12. Suzuki R, Kohno H, Sugie S, Nakagama H, Tanaka T. Strain differences in the susceptibility to azoxymethane and dextran sodium sulfate-induced colon carcinogenesis in mice. Carcinogenesis (2006) 27(1):162–9. doi:10.1093/carcin/bgi205
17. Shen Y, Lu C, Tian W, Wang L, Cui B, Jiao Y, et al. Possible association of decreased NKG2D expression levels and suppression of the activity of natural killer cells in patients with colorectal cancer. Int J Oncol (2012) 40(4):1285–90. doi:10.3892/ijo.2011.1315
18. Zhang Z, Su T, He L, Wang H, Ji G, Liu X, et al. Identification and functional analysis of ligands for natural killer cell activating receptors in colon carcinoma. Tohoku J Exp Med (2012) 226(1):59–68. doi:10.6120/tjem.226.59
19. Peng YP, Zhu Y, Zhang JJ, Xu ZK, Qian ZY, Dai CC, et al. Comprehensive analysis of the percentage of surface receptors and cytotoxic granules positive natural killer cells in patients with pancreatic cancer, gastric cancer, and colorectal cancer. J Transl Med (2013) 11:262. doi:10.1186/1479-5876-11-262
20. Medvedev AE, Johnsen AC, Haux J, Steinkjer B, Egeberg K, Lynch DH, et al. Regulation of Fas and Fas-ligand expression in NK cells by cytokines and the involvement of Fas-ligand in NK/LAK cell-mediated cytotoxicity. Cytokine (1997) 9(6):394–404. doi:10.1006/cyto.1996.0181
23. Halama N, Braun M, Kahlert C, Spille A, Quack C, Rahbari N, et al. Natural killer cells are scarce in colorectal carcinoma tissue despite high levels of chemokines and cytokines. Clin Cancer Res (2011) 17(4):678–89. doi:10.1158/1078-0432.CCR-10-2173
24. Coca S, Perez-Piqueras J, Martinez D, Colmenarejo A, Saez MA, Vallejo C, et al. The prognostic significance of intratumoral natural killer cells in patients with colorectal carcinoma. Cancer (1997) 79(12):2320–8. doi:10.1002/(SICI)1097-0142(19970615)79:12<2320::AID-CNCR5>3.0.CO;2-P
25. Sconocchia G, Eppenberger S, Spagnoli GC, Tornillo L, Droeser R, Caratelli S, et al. NK cells and T cells cooperate during the clinical course of colorectal cancer. Oncoimmunology (2014) 3(8):e952197. doi:10.4161/21624011.2014.952197
27. Wang LS, Arnold M, Huang YW, Sardo C, Seguin C, Martin E, et al. Modulation of genetic and epigenetic biomarkers of colorectal cancer in humans by black raspberries: a phase I pilot study. Clin Cancer Res (2011) 17(3):598–610. doi:10.1158/1078-0432.CCR-10-1260
28. Wang LS, Burke CA, Hasson H, Kuo CT, Molmenti CL, Seguin C, et al. A phase Ib study of the effects of black raspberries on rectal polyps in patients with familial adenomatous polyposis. Cancer Prev Res (Phila) (2014) 7(7):666–74. doi:10.1158/1940-6207.CAPR-14-0052
29. Pan P, Skaer CW, Stirdivant SM, Young MR, Stoner GD, Lechner JF, et al. Beneficial regulation of metabolic profiles by black raspberries in human colorectal cancer patients. Cancer Prev Res (Phila) (2015) 8(8):743–50. doi:10.1158/1940-6207.CAPR-15-0065
30. Pan P, Skaer CW, Wang HT, Stirdivant SM, Young MR, Oshima K, et al. Black raspberries suppress colonic adenoma development in ApcMin/+ mice: relation to metabolite profiles. Carcinogenesis (2015) 36(10):1245–53. doi:10.1093/carcin/bgv117
31. Saud SM, Li W, Morris NL, Matter MS, Colburn NH, Kim YS, et al. Resveratrol prevents tumorigenesis in mouse model of Kras activated sporadic colorectal cancer by suppressing oncogenic Kras expression. Carcinogenesis (2014) 35(12):2778–86. doi:10.1093/carcin/bgu209
32. Nunez-Sanchez MA, Gonzalez-Sarrias A, Romo-Vaquero M, Garcia-Villalba R, Selma MV, Tomas-Barberan FA, et al. Dietary phenolics against colorectal cancer – from promising preclinical results to poor translation into clinical trials: pitfalls and future needs. Mol Nutr Food Res (2015) 59(7):1274–91. doi:10.1002/mnfr.201400866
33. Altamemi I, Murphy EA, Catroppo JF, Zumbrun EE, Zhang J, McClellan JL, et al. Role of microRNAs in resveratrol-mediated mitigation of colitis-associated tumorigenesis in Apc(Min/+) mice. J Pharmacol Exp Ther (2014) 350(1):99–109. doi:10.1124/jpet.114.213306
34. Leischner C, Burkard M, Pfeiffer MM, Lauer UM, Busch C, Venturelli S. Nutritional immunology: function of natural killer cells and their modulation by resveratrol for cancer prevention and treatment. Nutr J (2016) 15(1):47. doi:10.1186/s12937-016-0167-8
35. Deng Y, Chu J, Ren Y, Fan Z, Ji X, Mundy-Bosse B, et al. The natural product phyllanthusmin C enhances IFN-gamma production by human NK cells through upregulation of TLR-mediated NF-kappaB signaling. J Immunol (2014) 193(6):2994–3002. doi:10.4049/jimmunol.1302600
37. Markowitz SD, Myeroff L, Cooper MJ, Traicoff J, Kochera M, Lutterbaugh J, et al. A benign cultured colon adenoma bears three genetically altered colon cancer oncogenes, but progresses to tumorigenicity and transforming growth factor-beta independence without inactivating the p53 tumor suppressor gene. J Clin Invest (1994) 93(3):1005–13. doi:10.1172/JCI117048
38. LifeSpan BioSciences, Inc. Available from: https://www.lsbio.com/antibodies/anti-lamp1-antibody-cd107a-antibody-clone-6e2-ihc-icc-if-immunofluorescence-wb-western-ihc-plus-ls-b10407/295072
39. Pan P, Skaer CW, Wang HT, Oshima K, Huang YW, Yu J, et al. Loss of free fatty acid receptor 2 enhances colonic adenoma development and reduces the chemopreventive effects of black raspberries in ApcMin/+ mice. Carcinogenesis (2017) 38(1):86–93. doi:10.1093/carcin/bgw122
40. He S, Chu J, Wu LC, Mao H, Peng Y, Alvarez-Breckenridge CA, et al. MicroRNAs activate natural killer cells through toll-like receptor signaling. Blood (2013) 121(23):4663–71. doi:10.1182/blood-2012-07-441360
41. Yu J, Mao HC, Wei M, Hughes T, Zhang J, Park IK, et al. CD94 surface density identifies a functional intermediary between the CD56bright and CD56dim human NK-cell subsets. Blood (2010) 115(2):274–81. doi:10.1182/blood-2009-04-215491
48. Pan P, Skaer CW, Wang HT, Kreiser MA, Stirdivant SM, Oshima K, et al. Systemic metabolite changes in wild-type C57BL/6 mice fed black raspberries. Nutr Cancer (2017) 69(2):299–306. doi:10.1080/01635581.2017.1263748
49. Wang Y, Sedimbi S, Lofbom L, Singh AK, Porcelli SA, Cardell SL. Unique invariant natural killer T cells promote intestinal polyps by suppressing TH1 immunity and promoting regulatory T cells. Mucosal Immunol (2017). doi:10.1038/mi.2017.34
50. Morris KT, Castillo EF, Ray AL, Weston LL, Nofchissey RA, Hanson JA, et al. Anti-G-CSF treatment induces protective tumor immunity in mouse colon cancer by promoting protective NK cell, macrophage and T cell responses. Oncotarget (2015) 6(26):22338–47. doi:10.18632/oncotarget.4169
52. Santos MF, Mannam VK, Craft BS, Puneky LV, Sheehan NT, Lewis RE, et al. Comparative analysis of innate immune system function in metastatic breast, colorectal, and prostate cancer patients with circulating tumor cells. Exp Mol Pathol (2014) 96(3):367–74. doi:10.1016/j.yexmp.2014.04.001
53. Coppola A, Arriga R, Lauro D, Del Principe MI, Buccisano F, Maurillo L, et al. NK cell inflammation in the clinical outcome of colorectal carcinoma. Front Med (2015) 2:33. doi:10.3389/fmed.2015.00033
54. Menon AG, Janssen-van Rhijn CM, Morreau H, Putter H, Tollenaar RA, van de Velde CJ, et al. Immune system and prognosis in colorectal cancer: a detailed immunohistochemical analysis. Lab Invest (2004) 84(4):493–501. doi:10.1038/labinvest.3700055
55. Sandel MH, Speetjens FM, Menon AG, Albertsson PA, Basse PH, Hokland M, et al. Natural killer cells infiltrating colorectal cancer and MHC class I expression. Mol Immunol (2005) 42(4):541–6. doi:10.1016/j.molimm.2004.07.039
56. Di Tomaso T, Mazzoleni S, Wang E, Sovena G, Clavenna D, Franzin A, et al. Immunobiological characterization of cancer stem cells isolated from glioblastoma patients. Clin Cancer Res (2010) 16(3):800–13. doi:10.1158/1078-0432.CCR-09-2730
57. Tallerico R, Todaro M, Di Franco S, Maccalli C, Garofalo C, Sottile R, et al. Human NK cells selective targeting of colon cancer-initiating cells: a role for natural cytotoxicity receptors and MHC class I molecules. J Immunol (2013) 190(5):2381–90. doi:10.4049/jimmunol.1201542
58. Tallerico R, Garofalo C, Carbone E. A new biological feature of natural killer cells: the recognition of solid tumor-derived cancer stem cells. Front Immunol (2016) 7:179. doi:10.3389/fimmu.2016.00179
59. Mandai M, Hamanishi J, Abiko K, Matsumura N, Baba T, Konishi I. Dual faces of IFNgamma in cancer progression: a role of PD-L1 induction in the determination of pro- and antitumor immunity. Clin Cancer Res (2016) 22(10):2329–34. doi:10.1158/1078-0432.CCR-16-0224
60. Peiffer DS, Wang LS, Zimmerman NP, Ransom BW, Carmella SG, Kuo CT, et al. Dietary consumption of black raspberries or their anthocyanin constituents alters innate immune cell trafficking in esophageal cancer. Cancer Immunol Res (2016) 4(1):72–82. doi:10.1158/2326-6066.CIR-15-0091
61. McAnulty LS, Nieman DC, Dumke CL, Shooter LA, Henson DA, Utter AC, et al. Effect of blueberry ingestion on natural killer cell counts, oxidative stress, and inflammation prior to and after 2.5 h of running. Appl Physiol Nutr Metab (2011) 36(6):976–84. doi:10.1139/h11-120
62. McAnulty LS, Collier SR, Landram MJ, Whittaker DS, Isaacs SE, Klemka JM, et al. Six weeks daily ingestion of whole blueberry powder increases natural killer cell counts and reduces arterial stiffness in sedentary males and females. Nutr Res (2014) 34(7):577–84. doi:10.1016/j.nutres.2014.07.002
