Original Research ARTICLE

Front. Immunol., 29 May 2018 | https://doi.org/10.3389/fimmu.2018.01173

Vaccination With Recombinant Filamentous fd Phages Against Parasite Infection Requires TLR9 Expression

  • 1Instituto de Microbiologia Paulo de Góes, Universidade Federal do Rio de Janeiro, Rio de Janeiro, Brazil
  • 2Institute of Protein Biochemistry, CNR, Naples, Italy
  • 3Instituto de Biofísica Carlos Chagas Filho, Universidade Federal do Rio de Janeiro (UFRJ), Rio de Janeiro, Brazil
  • 4Instituto de Ciências Biológicas, Universidade Federal de Minas Gerais (UFMG), Belo Horizonte, Brazil
  • 5Instituto de Biofísica Carlos Chagas Filho, Polo Xerém, Universidade Federal do Rio de Janeiro (UFRJ), Rio de Janeiro, Brazil
  • 6National Institute for Vaccine Development and Technology (INCTV), CNPq-MCT, Belo Horizonte, Brazil

Recombinant filamentous fd bacteriophages (rfd) expressing antigenic peptides were shown to induce cell-mediated immune responses in the absence of added adjuvant, being a promising delivery system for vaccination. Here, we tested the capacity of rfd phages to protect against infection with the human protozoan Trypanosoma cruzi, the etiologic agent of Chagas Disease. For this, C57BL/6 (B6) and Tlr9/ mice were vaccinated with rfd phages expressing the OVA257–264 peptide or the T. cruzi-immunodominant peptides PA8 and TSKB20 and challenged with either the T. cruzi Y-OVA or Y-strain, respectively. We found that vaccination with rfd phages induces anti-PA8 and anti-TSKB20 IgG production, expansion of Ag-specific IFN-γ, TNF-α, and Granzyme B-producing CD8+ T cells, as well as in vivo Ag-specific cytotoxic responses. Moreover, the fd-TSKB20 vaccine was able to protect against mortality induced by a high-dose inoculum of the parasite. Although vaccination with rfd phages successfully reduced both parasitemia and parasite load in the myocardium of WT B6 mice, Tlr9−/− animals were not protected against infection. Thus, our data extend previous studies, demonstrating that rfd phages induce Ag-specific IgG and CD8+ T cell-mediated responses and confer protection against an important human parasite infection, through a TLR9-dependent mechanism.

Introduction

Filamentous fd bacteriophages are non-lytic viruses that infect and replicate only in host bacteria and, therefore, have been considered safe for the vertebrate host so far. Both the minor coat protein involved in host cell recognition, pIII, and the major coat protein pVIII of fd phages can be fused to antigenic peptides (1). Previous studies have shown that antigen peptides expressed on the phage capsid can be displayed through MHC class I and class II pathways on antigen-presenting cells (APCs), resulting in the capacity of inducing immune responses mediated by specific antibodies and by helper and cytotoxic T lymphocytes (2, 3). Importantly, a single-chain antibody fragment (scFv), able to target dendritic cells (DCs) through the endocytic receptor DEC-205 (also known as CD205), can be introduced at the N-terminus of the pIII protein, further improving phage-uptake by DCs and their maturation. These fdsc-αDEC particles were shown to induced a strong and sustained CD8+ T cell-mediated anti-tumor response (1). Moreover, fdsc-αDEC virions were shown to activate the TLR9 pathway, which induces the maturation of DCs (4, 5).

The intracellular protozoan Trypanosoma cruzi is the etiologic agent of Chagas’ disease (American trypanosomiasis), which is the leading cause of myocardial disease and endemic in Latin America. Eight million people are estimated to be infected worldwide, of which 300,000 in the US, where enzootic cycles of T. cruzi have been recently established (6, 7). Since no mandatory screening exists for blood and tissue donors in non-endemic countries, it is expected that an altered epidemiology of Chagas disease will evolve considerably in a near future. No human vaccine is available to date and the approved drugs, nitrofuran and nitroimidazole, have limited efficacy in the chronic stage and important adverse side effects (8). Experimental T. cruzi infection in murine models has provided the means for the identification of protective immune responses, which need to be fully elucidated in order to allow the development of appropriated and safe human vaccines [reviewed in Ref. (9)]. Eliminating the parasite at the acute phase prevents parasite survival and may avoid chronic phase immunopathology. Therefore, prophylactic vaccination, by reducing or completely eliminating the parasite burden, represents a desirable method to restrict the development of the chronic symptoms of the disease. T. cruzi antigens recognized by immune sera from infected humans or animals served as the basis for studies employing recombinant proteins. These recombinant proteins included members of the large trans-sialidase (Ts) surface protein family, which are expressed mainly in the infective trypomastigote and amastigote forms of the parasite. Proteins belonged to the family of cysteine-proteases (cruzipain) and other antigens, such as the flagellar calcium-binding protein, paraflagellar rod protein-2, LYT-1 antigen, ribosomal protein L7a-like protein, and KMP11, among others, have also been used in different formulations and delivery systems, including recombinant proteins mixed with distinct adjuvants and platforms using DNA delivery or recombinant viruses [reviewed in Ref. (10)].

Here, we investigated the capacity of recombinant filamentous fd bacteriophages (rfd) phages to act as a delivery system for vaccination against the experimental infection with T. cruzi in mice, in the absence of any added adjuvant. For this, we genetically modified fd phages, by introducing the OVA257–264 peptide or the T. cruzi immunodominant peptides TSKB20 and PA8, derived from trans-sialidase (Ts) and amastigote surface protein-2 (ASP-2), respectively (11, 12), as an N-terminal fusion with the pVIII coat protein. Our results demonstrated that vaccination with rfd phages induces specific IgG and a strong CD8+ T cell-mediated response, enhancing the percentages of Ag-specific IFN-γ and TNF-secreting CD8+ T cells in the spleen, as well as the level of specific cytotoxicity in vivo. Accordingly, vaccinated mice displayed significant lower levels of parasitemia and parasite load in the myocardium and, moreover, exhibited an increased survival rate. Furthermore, we also demonstrated here that rfd phages devoid of the scFv anti-DEC-205 on pIII also require the expression of TLR9 by the host in order to confer protection against infection. Therefore, the present work extends previous studies on the immunogenicity mechanisms mediated by fd phages, reinforcing the potential use of these particles as a valuable delivery system for immunization without the need of exogenous adjuvant administration and shows, for the first time, its promising use in vaccination against intracellular parasites.

Materials and Methods

Construction of fd-PA8 and fd-TSKB20 Filamentous Bacteriophages

Oligonucleotide sequences encoding PA8 peptide (VNHRFTLV) from ASP-2 or TSKB20 peptide (ANYKFTLV) derived from trans-sialidase, flanked by the sequences for the +2 to +3 and +4 to +10 residues of the pVIII protein and by the 5′-protruding ends of SacII-StyI restriction sites were designed and purchased from Eurofins Genomics, Germany (PA8-up: 5′-GGAGGGTgt taaccaccgtttcaccctggttGACGATCCCGC-3′; PA8-dw: 5′-CTTGG CGGGATCGTCaaccagggtgaaacggtggttaacACCCTCCGC-3′; TSKb20-up: 5′-GGAGGGTgcgaactataaattcaccctggtgGAC GATCCCGC-3′; TSKb20-dw: 5′- CTTGGCGGGATCGTCcacc agggtgaatttatagttcgcACCCTCCGC-3′). Each pair of sequence was annealed and ligated into bacteriophage fdAMPLAY388-HA DNA previously digested with SacII and StyI restriction enzymes (1). The DNA were transformed into Escherichia coli TG1 recO cells, and their identities were confirmed by DNA sequencing.

Purification of Bacteriophages Particles

Wild-type and hybrid fd-PA8, fd-TSKB20, and fd-OVA (expressing the recombinant OVA257–264-pVIII proteins) and fd-PA8αDEC (expressing also the recombinant scFv anti-DEC-205-pIII proteins) filamentous bacteriophages were purified from the supernatant of Escherichia coli TG1recO cells (1). Briefly, bacterial cells were grown in TY2X medium and the expression of the recombinant proteins was induced adding 0.1 mM isopropyl-beta–d-thiogalactopyranoside (Sigma-Aldrich) to the cultures. The bacteriophage virions were precipitated from E. coli supernatant using Polyethylene glycol 6000 (Sigma-Aldrich), purificated using cesium chloride (Sigma-Aldrich) gradient, and dialyzed against phosphate buffered saline (PBS) 1×. Elimination of LPS from phage particles was performed using Triton X-114 (Sigma-Aldrich) as previously described (13). Residual LPS contamination was assayed using the Limulus Amebocyte Lysate assay (Limulus Amebocyte Lysate QCL-1000 chromogenic modification, Lonza), according to the manufacturer’s instructions. The number of copies of pVIII displaying the exogenous peptides was estimated by N-terminal sequence analysis of the purified virions and resulted in 15–20% for fd-OVA and 40% for fd-PA8 and fd-TSKB20. The expression of the scFv anti-DEC-205 in the pIII protein of the purified virions was assessed by western blot analysis using a mouse anti-HA tag mAb (Roche-Boehringer, Basel, Switzerland).

Mice and Ethics Statement

All animal experiments were conducted in accordance with guidelines of the Animal Care and Use Committee of the Federal University of Rio de Janeiro (Comitê de Ética do Centro de Ciências da Saúde CEUA-CCS/UFRJ). Tlr9−/− mice were generated by and obtained from Dr. S. Akira (Osaka University, Japan). Procedures and animal protocols were approved by CEUA-CCS/UFRJ license no.: IMPPG022.

Parasite and Experimental Infection

Mice used for experiments were sex- and aged-matched, and housed with a 12-h light–dark cycle. Bloodstream trypomastigotes of the Y-strain of T. cruzi were obtained from Swiss mice infected 7 days earlier. The concentration of parasites was estimated and at least four mice per group were inoculated intraperitoneally (i.p.) with 2 × 103 trypomastigotes (in 0.2 ml PBS), unless otherwise stated. The Y-OVA strain was obtained as follows: the Ova gene fragment was digested using XbaI and XhoI and then inserted into the pROCK-HYGRO vector, previously digested with the same restriction enzymes, to produce pROCK-Ova (14). T. cruzi Y-strain epimastigote forms were grown in liver infusion tryptose medium (pH 7.3) supplemented with 10% fetal bovine serum, streptomycin sulfate (0.2 g/l), and penicillin (200,000 units/l) at 28°C (all from Gibco Thermo Scientific). The parasite transfection was performed using electroporation following a previously described protocol (14). The transfected parasites were cultured for 6 weeks in the presence of hygromycin (200 µg/ml) (Sigma-Aldrich) for selection of parasites containing stably incorporated pROCK-Ova. For infection with Y-OVA strain, trypomastigotes were obtained from LLC-MK2-infected cultures and 2 × 106 trypomastigotes (in 0.2 ml PBS) were injected i.p./mouse. Parasitemia was monitored by counting the number of bloodstream trypomastigotes in 5 µl of fresh blood collected from the tail vein. Mouse survival was followed daily. For tissue parasite load quantification, hearts of infected mice were excised after perfusion, minced and the cardiac tissue immediately homogenized in 1.0 ml of 4.0 M Guanidine thiocyanate (Sigma-Aldrich) containing 8.0 µl/ml of β-mercaptoethanol (Sigma-Aldrich) and processed for DNA extraction. Generation of PCR standards and detection of parasite tissue load by real-time PCR was carried out as described (15); briefly, primers amplify a repeated satellite sequence of T. cruzi DNA of 195 base-pairs: TCZ-Fwd: (5′-GCTCTTGCCCACAAGGGTGC-3′) and TCZ-Rev: (5′-CCAAGCAGCGGATAGTTCAGG-3′). Reactions with TNF-α-Fwd: (5′-CCTGGAGGAGAAGAGGAAAGAGA-3′) and TNF-α-Rev: (5′-TTGAGGACCTCTGTGTATTTGTCAA-3′) primers for Mus musculus TNF-α gene were used as loading controls. PCR amplifications were analyzed using primers in combination with SYBR Green® on a StepOne Real-Time PCR System (Applied Biosystems, Life Technologies).

Vaccination

Mice were injected i.p. with 100 µg of fd phages in 200 µl of PBS at day −17 and −7 and infected with T. cruzi at day 0, as illustrated on Figure S1A in Supplementary Material.

Intracellular Cytokine Staining

Splenocytes isolated from infected mice were cultured in the presence of PA8 (VNHRFTLV) peptide at 3.0 µM, or left unstimulated, for 10 h at 37°C in the presence of 5.0 µM monensin (Sigma-Aldrich). Cells were surface stained with anti-CD8-PerCP, CD3-FITC, and H-2Kb-PA8-biotinylated pentamers (Proimmune), followed by 20 min staining with SAv-BV605 and fixed for 10 min with a solution containing PBS, 4% paraformaldehyde at RT. Then, cells were permeabilized for 15 min with PBS, 0.1% bovine serum albumine, 0.1% saponin (Sigma-Aldrich). Intracellular cytokine staining was performed with anti-IFN-γ-PE-Cy7, anti-granzyme B (GzB)-APC, and anti-TNF-PE (all mAbs and SAv from Biolegend). At least 10,000 gated CD8+ lymphocyte events were acquired. Analytical flow cytometry was conducted with a FACSCantoII and the data were processed with FACSDiva™ software (BD Biosciences).

In Vivo Cytotoxicity Assay

For the in vivo cytotoxicity assays, splenocytes of naive B6 mice were divided into three populations, each loaded with 2.5 µM of either H-2Kb -restricted OVA257–264 (SIINFEKL), or PA8 (VNHRFTLV), or TSKB20 (ANYKFTLV) peptides, or left untreated for 40 min at 37°C. During the last 10 min of incubation, each cell population was labeled with a different concentration of the fluorogenic dye CFSE (Molecular Probes Thermo Scientific) at final concentrations of either 8.6 µM (CFSEhigh), 2.45 µM (CFSEint), or 0.7 µM (CFSElow). Subsequently, each cell population was extensively washed and mixed with equal numbers of the other two cell populations, before being injected i.v. 15–20 × 106 total cells per mouse. In each experiment, the same B6 (WT) CFSE-loaded target populations were injected in B6 and Tlr9/ mice. Recipient animals were mice that had been vaccinated and infected (or not) with T. cruzi and naive controls. Spleen cells of recipient mice were collected 20 h after transfer, fixed with 1.0% paraformaldehyde and analyzed by cytometry, using a FACSCalibur Cytometer (BD Biosciences). Cells were gated on dot plot FSC × CFSE; percentages of CFSElow, CFSEint, and CFSEhigh cells were obtained using CellQuest software (BD Biosciences). In all experiments, we refer to M1 as the control cell population without any exogenous peptide-loaded, and M2 and M3 are the cell populations loaded with different exogenous peptides. For calculating the percentage of specific lysis of each peptide-loaded population, M2 (or M3) was gated together M1, giving 100% of the events. Then, the following formula was applied: [1 − (M2peptide-loaded or M3peptide-loaded in Experimental group/M1without Ag peptide in Experimental group)/(M2peptide-loaded or M3peptide-loaded in CTR group/M1without Ag peptide in CTR group)] × 100%; Experimental group are either vaccinated mice, infected mice, or both vaccinated and infected mice; CTR group are naive mice.

Anti-Mouse IgG ELISA

Sera from naive B6 mice, fd-WT (ctr) and fd-PA8 or fd-TSKB20 vaccinated and infected mice were diluted 1:5,000 and adsorbed overnight (ON) at 4°C, on treated microplates (Corning-Costar) previously coated with fd-WT bacteriophages immobilized by polyclonal rabbit anti-fd phage IgG (Sigma-Aldrich). After absorption against fd-WT antigens, the sera were harvested and tested for reactivity against fd-WT and fd-PA8 or fd-TSKB20 antigens. Briefly, the absorbed sera were incubated at different dilutions overnight at 4°C, on microplates previously coated with fd-WT or fd-PA8 or fd-TSKB20 particles; secondary goat anti-mouse IgG antisera (1:2,500), labeled with peroxidase (HRP) (SouthernBiotech), were added for 4 h at room temperature and the reaction revealed with TMB (Thermo Scientific).

Bone Marrow-Derived Dendritic Cell (BMDC) Culture

Bone marrow-derived dendritic cells were obtained as previously described (16). Briefly, BM cells were cultured in tissue-culture-treated flasks at 1 × 106/ml in complete RPMI 1640 medium, supplemented with 10% heat-inactivated fetal calf serum (all from GIBGO, Thermo Scientific), and 20 ng/ml rmGM-CSF (R&D Systems), at 37°C, 5% CO2 humid atmosphere. On day 2 of culture, 3 ml of the medium was removed and fresh warmed medium supplemented with GM-CSF (2×, 40 ng/ml) added. At day 3, medium was entirely replaced by fresh warmed medium with GM-CSF (20 ng/ml). On day 6, loosely adherent cells were harvested by gentle washing with PBS and cultured for 20 h in 96-well microplates in the presence of the indicated reagents (LPS, CpG, and fd-WT phages at 100 ng/ml, 1.0 µg/ml, and 250 µg/ml, respectively) and subsequently stained for flow cytometry analysis. LPS (E. coli 055:B5 strain) and CpG (ODN D-SL03) were from InvivoGen (San Diego, CA, USA).

Confocal Microscopy

LLC-MK2 cells were infected with cell-culture derived Y-strain trypomastigotes at 10:1 ratio overnight at 37°C, 5% CO2. After 2 days, cells were fixed in 4% paraformaldehyde/PBS for 15 min and permeabilized with three washes with PBS-0,1% Triton X-100 (Bio-Rad). Sera of immunized and/or infected mice, as well as of naïve animals were added and incubated overnight at 4°C. After washing three times with PBS-0, 1% Triton X-100, donkey Cy3-labeled anti-mouse IgG was added for 2 h at RT. After washing, DAPI was added at 1 µg/ml at RT for 5 min. The coverslips were assembled with vectashield and fixed with enamel. Confocal microscopy was performed with a Zeiss Axio Observer.Z1 inverted microscope equipped with a CSU-X1A 5000 Yokogawa Spinning Disk confocal unit using a 100 × NA 1.4, oil-immersion plan-apochromatic objective. Images were captured with QImaging Rolera EM-C2 camera using Zen 2.3 system (Zeiss), and processed off line with Photoshop.

Database Search

The PA8 peptide (VNHRFTLV) sequence was queried at 100% coverage in the NCBI Protein Reference Sequence Database using Basic Local Alignment Search Tool (BLAST)1 in order to identify proteins expressed by T. cruzi that could contain this epitope, other than the amastigote ASP-2 protein.

Statistical Analysis

Statistical analyses were performed using GraphPad Prism version 4.00 for Windows (GraphPad Software, San Diego California USA2). Data were compared using a two-tailed Student’s t test and are expressed as mean ±SEM. Data were considered statistically significant if p values were <0.05. The Gehan–Breslow–Wilcoxon test was used to compare the mouse survival rate. The differences were considered significant when the p value was <0.05.

Results

fd-OVA257–264 Phage Protects B6 but Not Tlr9−/− Mice Against Infection With T. cruzi Y-OVA Strain

To investigate whether vaccination with phage particles would protect against infection with T. cruzi, we first immunized B6 (WT) mice with the model antigen ovalbumin (OVA257–264) SIINFEKL peptide, a known H-2Kb-restricted epitope, as an N-terminal fusion with the pVIII phage protein (fd-OVA). After vaccination, mice were infected with the T. cruzi Y-OVA transgenic strain, following the immunization and challenge scheme shown in Figure S1A in Supplementary Material; injection of fd-WT phages, which do not express any T. cruzi antigen, was employed as control treatment. As shown in Figure 1A, the level of blood parasitemia is significantly lower in B6 mice immunized with fd-OVA, when compared to B6 mice immunized with fd-WT phage. On the other hand, immunization was not able to reduce parasitemia levels in Tlr9−/− mice (Figures 1B,C). The same was true when parasite loads in the myocardium were measured at day 20 post-infection (pi) by qPCR (Figure 1D). We then investigated the levels of specific in vivo cytotoxicity against target cells loaded with the OVA257–264 SIINFEKL peptide at day 20 pi in mice vaccinated with fd-OVA or fd-WT phages. As shown in Figure 1E, while fd-OVA-vaccinated B6 (WT) mice displayed around 30% of specific lysis against SIINFEKL-loaded targets, no significant increase in Ag-specific cytotoxicity was found in immunized Tlr9−/− mice (representative dot blots are shown on Figure S1B in Supplementary Material). However, no difference in the levels of specific cytotoxicity against the endogenous immunodominant T. cruzi-derived PA8 (VNHRFTLV) peptide was observed between WT and Tlr9−/− mice, immunized with fd-OVA or not (Figure 1E), in accordance to our previous data showing that the cytotoxic response is preserved in infected Tlr9−/− mice (17). Therefore, these results demonstrate that while effective in protecting WT B6 mice, the vaccination with fd-OVA did not confer any protection to Tlr9−/− mice against infection with T. cruzi Y-OVA strain.

FIGURE 1
www.frontiersin.org

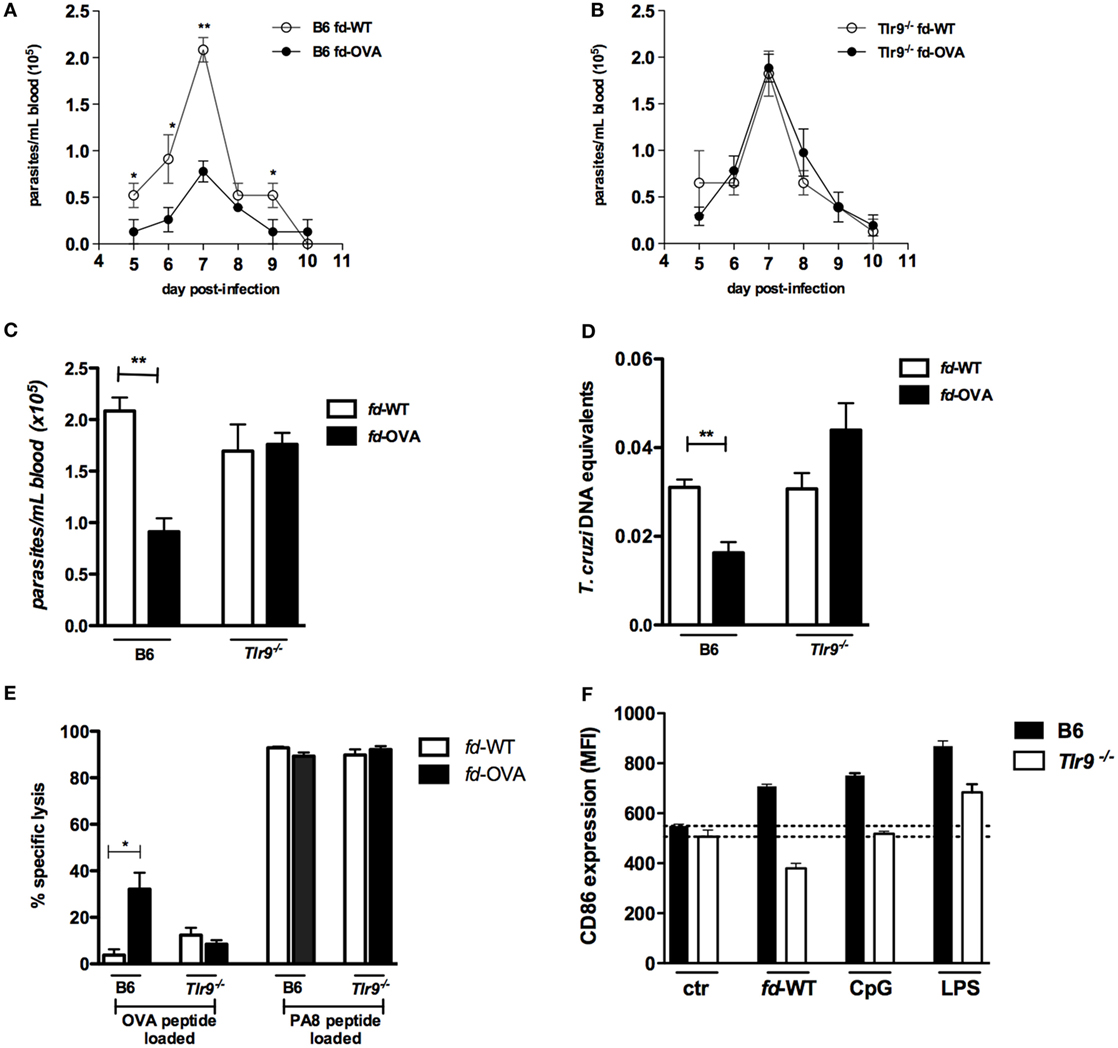

Figure 1. Immunization with fd-OVA phages protects against infection with T. cruzi Y-OVA strain in TLR9-dependent manner. Male mice were immunized (as in Figure S1 in Supplementary Material) and infected on day 0 with 2 × 106 culture trypomastigotes of Y-OVA strain. Parasitemia curves of (A) B6 mice and (B) Tlr9−/− immunized with fd-OVA (black circles), or fd-WT phages as control (empty circles). Mean parasitemia values at day 7 pi. (C). Parasite load in the myocardium at day 20 pi (D) and Ag-specific cytotoxicity in vivo against target cells loaded with OVA or ASP-2-derived (PA8) peptides, B6 and Tlr9−/− mice were immunized with fd-OVA (black bars) or fd-WT (white bars) (representative contour plots are shown in Figure S1B in Supplementary Material) (E). CD86 expression (MFI) on bone marrow-derived dendritic cell (BMDC) after 20 h treatment in vitro with fd-WT (250 µg/ml), CpG (1.0 µg/ml), LPS (100 ng/ml) or left untreated (ctr). B6 (black bars) and Tlr9−/− (white bars) BMDCs (F). Data represent mean values of individually analyzed mice (n = 5 per group) from control or immunized mice (A–E) or triplicate cultures (F). Error bars = SEM, *p ≤ 0.05; **p ≤ 0.01 (two-tailed Student’s t-test).

fd Phage Particles Induce the Maturation of DCs Through a TLR9-Dependent Pathway

We next tested the fd virion property of inducing BMDC maturation in vitro. For this, WT (B6) and Tlr9−/− BMDC were cultured for 20 h in the presence of fd-WT particles or of the TLR9 and TLR4 ligands CpG and LPS, respectively. As shown in Figure 1F, fd phages were able to induce the upregulation of the CD86 costimulatory molecule in WT, but not in Tlr9−/− BMDCs. Note that, here, a 2.5 higher dose of fd phage particles was employed compared to the dose used in a previous study (1). Together, these data demonstrated that fd-OVA phages devoid of sc-αDEC also depend on the TLR9 pathway in order to induce the maturation of DCs and, consequently, a specific cytotoxic T cell (CTL) response, as previously shown for fd-OVA-αDEC virions (4).

Vaccination With rfd Phages Displaying the T. cruzi Immunodominant PA8 Peptide Protect B6 Mice Against Infection

The T. cruzi ASP-2-derived PA8 peptide was described as an immunodominant peptide, which induces high levels of CD8+ CTLs (11). We then constructed rfd phages expressing the PA8 peptide and use it to vaccinate B6 mice, following the same previous protocol (Figure S1 in Supplementary Material). As shown in Figure 2A, the parasitemia was significantly diminished in mice previously vaccinated with fd-PA8, but not with fd-WT phages, when compared to parasitemia in non-vaccinated mice (PBS group). The in vivo cytotoxicity assay revealed an increased lysis rate against target cells loaded with the PA8 peptide in fd-PA8-vaccinated mice at day 13 pi, while no differences in the level of cytotoxicity against control (TSKB20) immunodominant peptide-loaded target cells was found between the groups (Figure 2B; Figure S2 in Supplementary Material). In accordance with the lower parasite load, the spleen of fd-PA8-vaccinated mice display lower numbers of CD8+ T cells, as well as of total splenocytes, although the percentage of total CD8+ T cells is equal in all the infected groups (Figures 2C–E). We also analyzed the expansion of PA8-specific CD8+ T cells by staining with Kb-PA8 pentamers and found that their frequency was increased by fd-PA8 vaccination (Figures 3A,E; contour plots shown in Figure S3 in Supplementary Material). Then, we investigated the induction of CTL and cytokine-secreting CD8+ T cells in the spleens of fd-PA8 or fd-WT vaccinated and infected mice, as well as in only infected (B6 infect) and non-infected (B6 ctr) mice. For this, the percentages (Figures 3B–D) and absolute numbers (Figures 3F–H) of CD8+ T cells expressing IFN-γ, TNF, or GzB were assessed by ex vivo restimulation of splenocytes with the PA8 peptide, followed by intracellular staining. As shown in Figures 3B,C, vaccination with fd-PA8 increased the percentages of cytokine-secreting CD8+ T cells, while the percentages of IFN-γ+ CD8+ and TNF+ CD8+ T cells is not different between fd-WT-treated and non-treated infected mice. On the other hand, no difference was found on the percentages of GzB+ cells between the different groups of infected mice (Figure 3D). As the absolute number of CD8+ T cells is lower in fd-PA8-vaccinated mice (Figure 2E), significant lower numbers of GzB+ CD8+ T cells are found in this group (Figure 3H).

FIGURE 2
www.frontiersin.org

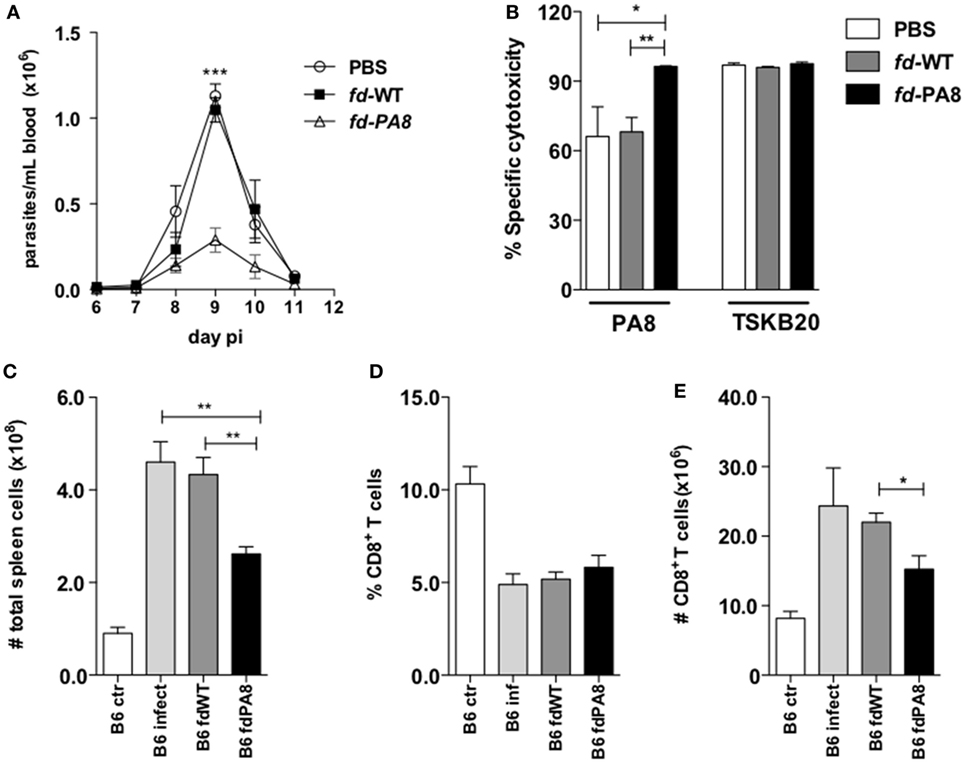

Figure 2. Immunization with fd-PA8 phages protects B6 mice against infection with T. cruzi Y-strain and increments Ag-specific cytotoxicity. Male mice were immunized (as in Figure S1 in Supplementary Material) and infected on day 0 with 2 × 103 blood trypomastigotes of Y-strain. Parasitemia curves (A) and specific cytotoxicity against target cells loaded with PA8 or TSKB20 peptides (representative contour plots are shown in Figure S2 in Supplementary Material) (B), of B6 mice immunized with fd-PA8 (triangles and black bars), or fd-WT phages (black squares and gray bars), or only infected [phosphate buffered saline (PBS)] (empty circles and white bars) as controls. Total spleen cell numbers (C), CD8+ T cell percentages (D), and absolute CD8+ T cell numbers (E). Data represent mean values of individually analyzed mice (n = 5 per group) from control naïve (white bars), infected-only mice (light gray bars), fd-WT (dark gray bars) or fd-PA8 immunized mice (black bars). Error bars = SEM, *p ≤ 0.05; **p ≤ 0.01; ***p ≤ 0.001 (two-tailed Student’s t-test).

FIGURE 3
www.frontiersin.org

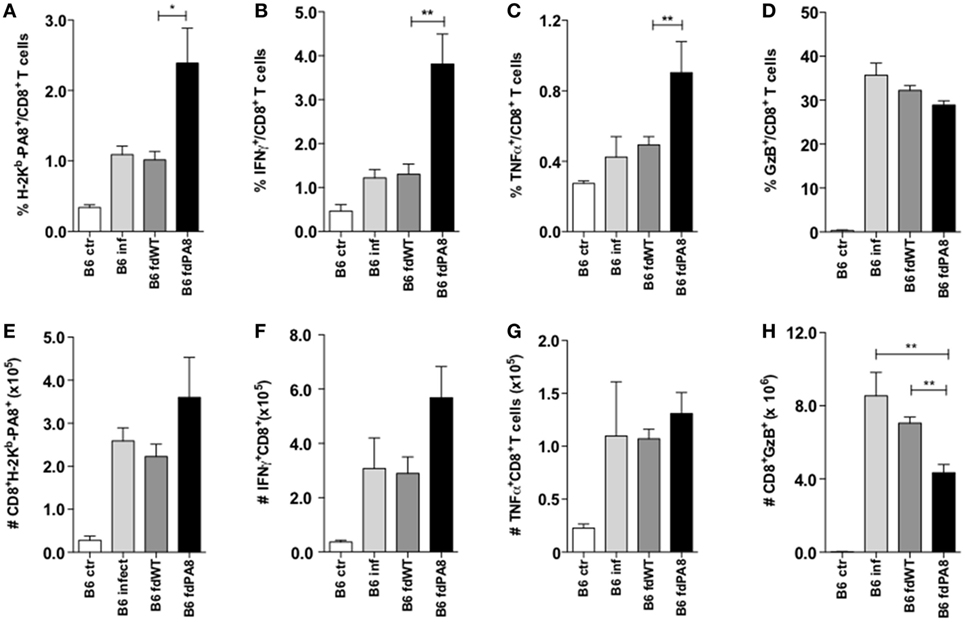

Figure 3. Immunization with fd-PA8 phages increases the levels of Ag-specific and cytokine-secreting CD8+ T cells in the spleen of B6 mice. Male mice were immunized (as in Figure S1 in Supplementary Material) and infected on day 0 with 2 × 103 blood trypomastigotes of the Y-strain. On Day 13 pi, splenocytes from control naïve (white bars), infected-only (light gray bars), fd-WT (dark gray bars), or fd-PA8 immunized mice (black bars) were stained following a 10-h in vitro incubation with PA8 peptide, as described in Section Materials and Methods. Mean percentages (A–D) and absolute numbers (E–H) of H-2Kb-PA8+ (A,E), IFN-γ+ (B,F) TNF+ (C,G), and GzB+ (D,H) CD8+ T cells of individually analyzed mice (n = 5) are shown. Error bars = SEM, *p ≤ 0.05; **p ≤ 0.01 (two-tailed Student’s t-test).

Since it has been described that infected mice previously vaccinated with a recombinant adenovirus expressing ASP-2 display higher levels of polyfunctional CD8+ T cells, compared to non-vaccinated infected mice (18), we also analyzed here the percentages and absolute numbers of CD8+ T cells producing simultaneously TNF and IFN-γ, or TNF and GzB, or GzB and IFN-γ in the four experimental groups (naïve controls, infected-only, fd-WT + infection, and fd-PA8 + infection). As shown in Figure 4, all these subsets of double-positive CD8+ T cells are increased in the spleens of infected mice previously immunized with fd-PA8 phages. Moreover, the frequency of triple positive (IFN-γ+TNF+GzB+) CD8+ T cells is also increased in the fd-PA8-vaccinated group, as shown in Figures S4A–C in Supplementary Material. Therefore, our results suggest that, contrary to what happens in non-vaccinated infected mice, vaccination with rfd phages causes the expansion of polyfunctional CD8+ T cells, which correlates to protection against infection with T. cruzi.

FIGURE 4
www.frontiersin.org

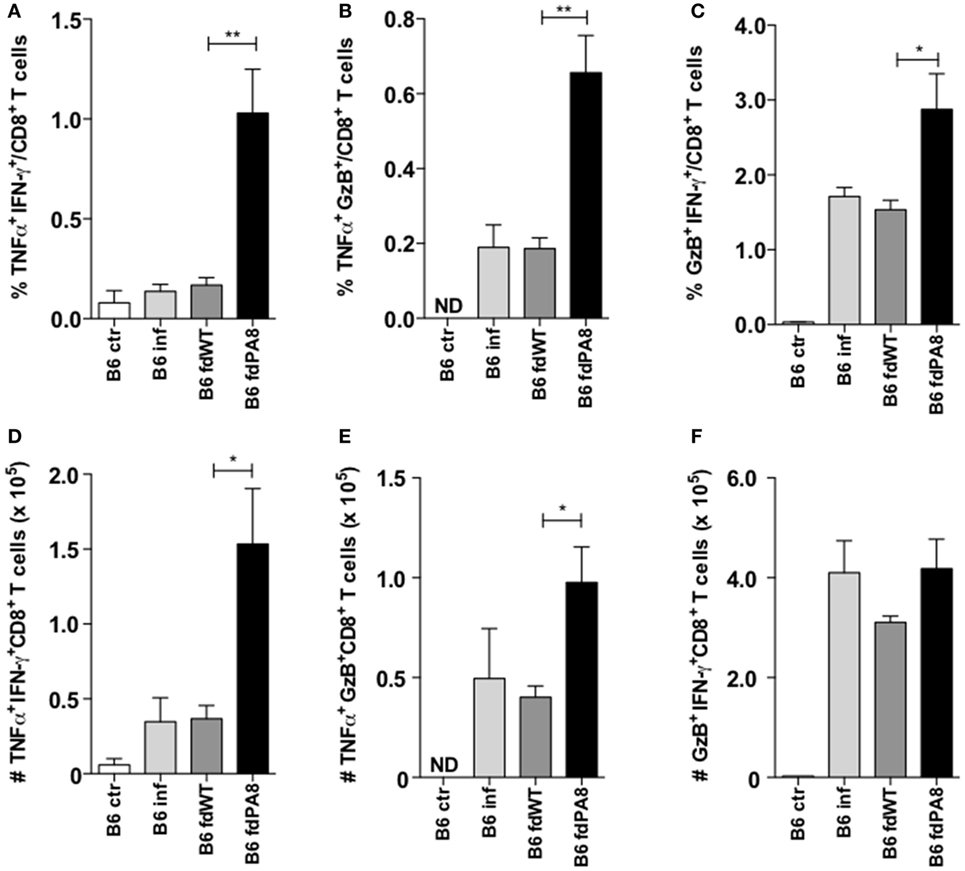

Figure 4. Immunization with fd-PA8 phages increases the levels of polyfunctional CD8+ T cells in the spleen of B6 mice. Male mice were immunized (as in Figure S1 in Supplementary Material) and infected on day 0 with 2 × 103 blood trypomastigotes of the Y-strain. On Day 13 pi, splenocytes from control naïve (white bars), infected-only (light gray bars), fd-WT (dark gray bars), or fd-PA8 immunized mice (black bars) were stained following a 10-h in vitro incubation with PA8 peptide, as described in the Section Materials and Methods. Mean percentages (A–C) and absolute numbers (D–F) of TNF+IFN-γ+ (A,D), TNF+GzB+ (B,E), and IFN-γ+GzB+ (C,F) CD8+ T cells of individually analyzed mice (n = 5) are shown. Error bars = SEM, *p ≤ 0.05; **p ≤ 0.01 (two-tailed Student’s t-test).

Previous Immunization With fd-PA8 Induces Higher Levels of Peptide-Specific IgG Antibodies in Infected Mice

Since vaccination using fd phages as delivery system can also induce the production of Ag-specific antibodies (2, 19), we also quantified here the PA8-specific IgG in the sera of vaccinated and T. cruzi-challenged B6 mice. For this, sera of naïve controls, fd-WT + infection-, and fd-PA8 + infection-groups were collected at day 13 pi and first absorbed against immobilized fd-WT phages, in order to (at least partially) deplete anti-phage Igs. Then, each fd-absorbed serum was further tested in an ELISA assay against either immobilized fd-PA8 or fd-WT particles (Figure 5A). The difference in the obtained optical densities testing absorbed fd-PA8 sera against fd-PA8- and fd-WT-coated phages represents the titer of specific anti-PA8 IgG. We found that PA8-specific IgG Abs are also present in mice immunized with fd-WT and challenged with infection, although in these mice PA8-specific IgG Abs are at significantly lower levels to the ones found in mice vaccinated with fd-PA8 and infected, as quantified by ELISA assays (Figures 5A,B). In order to confirm that PA8 peptide-specific IgG antibodies induced by vaccination with fd-PA8 phages are capable of recognizing ASP-2 protein on the amastigote forms, sera from fd-PA8αDEC immunized-only (non-infected) mice were also employed in the immunofluorescence assays against the in vitro infected LLC-MK2 cell line (Figure 5C). These data indicate that the immune sera from vaccinated mice contain peptide-specific IgG Abs able to recognize the amastigote antigen. Since the ASP-2 molecule is a member of the T. cruzi trans-sialidase (Ts) superfamily, we hypothesized that other proteins of this family could also contain the same peptide sequence. We then searched the non-redundant NCBI Protein Reference Sequence Database using BLAST. The obtained result is displayed in Table S1 in Supplementary Material: the PA8 sequence (VNHRFTLV) was found at 100% coverage and 100% identity in six different putative Ts protein sequences (20). Search of the UniProtKnowledgebase using Peptide Search,3 gave the same result (not shown). Hence, this epitope is also present in other proteins potentially expressed at the surface of trypomastigotes (the parasite infecting forms) and, as such, might be recognized by neutralizing and/or opsonizing antibodies (21, 22).

FIGURE 5
www.frontiersin.org

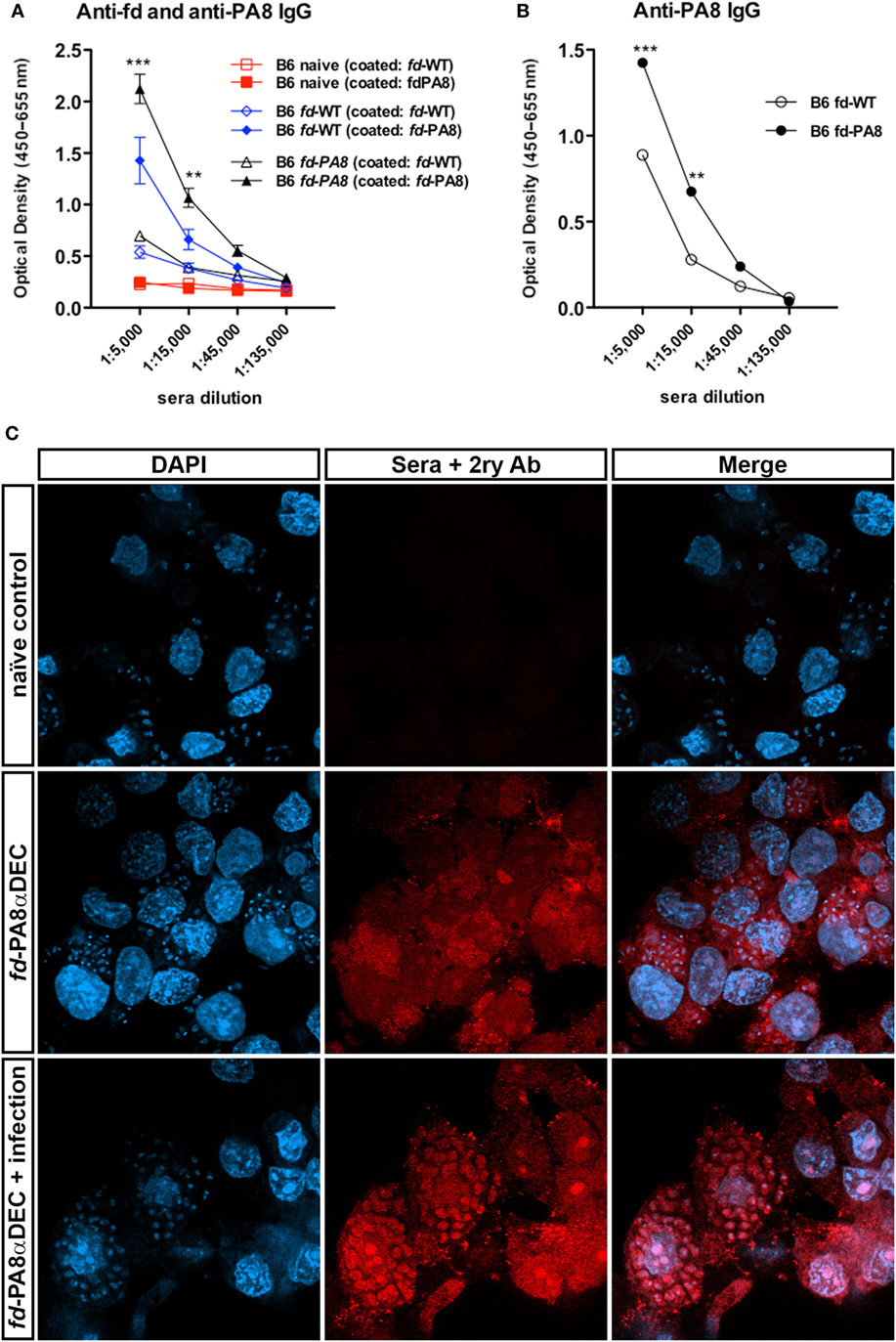

Figure 5. Immunization with fd-PA8 phages increases the levels of PA8-specific IgG in the serum B6 mice. Male mice were immunized (as in Figure S1 in Supplementary Material) and infected on day 0 with 2 × 103 blood trypomastigotes of the Y-strain. On Day 13 pi, sera were collected from control naïve (red symbols and lines), fd-WT (blue symbols and lines), and fd-PA8-immunized mice (black symbols and lines), adsorbed against immobilized fd-WT phages and then tested on an ELISA assay against fd-WT and fd-PA8 phages, as described in the Section “Material and Methods.” Mean values (n = 3), error bars = SEM (A). OD curves obtained against fd-WT phage was subtracted from OD curves obtained against fd-PA8 phages; **p ≤ 0.01; ***p ≤ 0.001 (two-tailed Student’s t-test) (B). Confocal microscopy of LLC-MK2 cells infected with Y-strain at day 2 pi (C). Cells were stained with serum from control naïve or fd-PA8αDEC-immunized-only or fd-PA8αDEC-immunized and infected mice, followed by secondary anti-mouse IgG Cy3-labeled Ab and DAPI, as detailed in the Section “Materials and Methods.”

Vaccination With rfd Phages Displaying the TSKB20 Peptide Reduces Mortality and Increases Specific Cytotoxicity Long Term After Infection

We next constructed rfd phages displaying the previously described Kb-restricted immunodominant TSKB20 peptide (ANYKFTLV) derived from the Ts of T. cruzi (12). In order to follow mortality, a higher inoculum of parasite (2 × 105 blood trypomastigotes) was employed in the experiment illustrated in Figure 6. Apart from that, mice were immunized twice with fd-TSKB20 following the same vaccination/infection scheme showed in Figure S1 in Supplementary Material. As shown in Figure 6A, vaccination with fd-TSKB20 significantly decreased parasitemia levels in B6 mice. Moreover, while only 10% of B6 mice immunized with fd-WT survived infection, around 50% of mice vaccinated with fd-TSKB20 were protected (Figure 6B). Then, we tested the in vivo cytotoxicity against TSKB20-loaded target cells both in B6 and Tlr9−/− vaccinated mice at an early time point (day 8 pi) after the challenging infection. As shown in Figure 6C, vaccination increased the specific cytotoxic response in WT, but not in Tlr9−/−-vaccinated mice. It is known that the CTL response against certain immunodominant peptides last for hundred of days in B6 mice infected with the T. cruzi Y-strain (23). Accordingly to this, we could detect in vivo Ag-specific cytotoxicity against both PA8 and TSKB20 peptides at day 106 pi (Figure 6D). However, only the CTL response against TSKB20-pulsed target cells was significantly increased in mice vaccinated with fd-TSKB20 (Figure 6D). Finally, we have also investigated the early production of anti-TSKB20 IgG in vaccinated mice, at day 8 pi. As shown in Figures 6E,F, TSKB20-specific IgG could be detected in the sera of vaccinated B6 but not Tlr9−/− mice. Therefore, together these results demonstrate that vaccination with fd-TSKB20, as well as with fd-PA8, confers protection against infection with the T. cruzi, as it diminishes parasitemia and increases survival, being able to induce a more robust long-lasting CTL response, as well as early IgG production, against specific parasite epitopes. Moreover, both effector anti-parasite mechanisms, CTL and IgG responses, induced by rfd phages, were shown to depend on the activation of the Tlr9-mediated innate pathway.

FIGURE 6
www.frontiersin.org

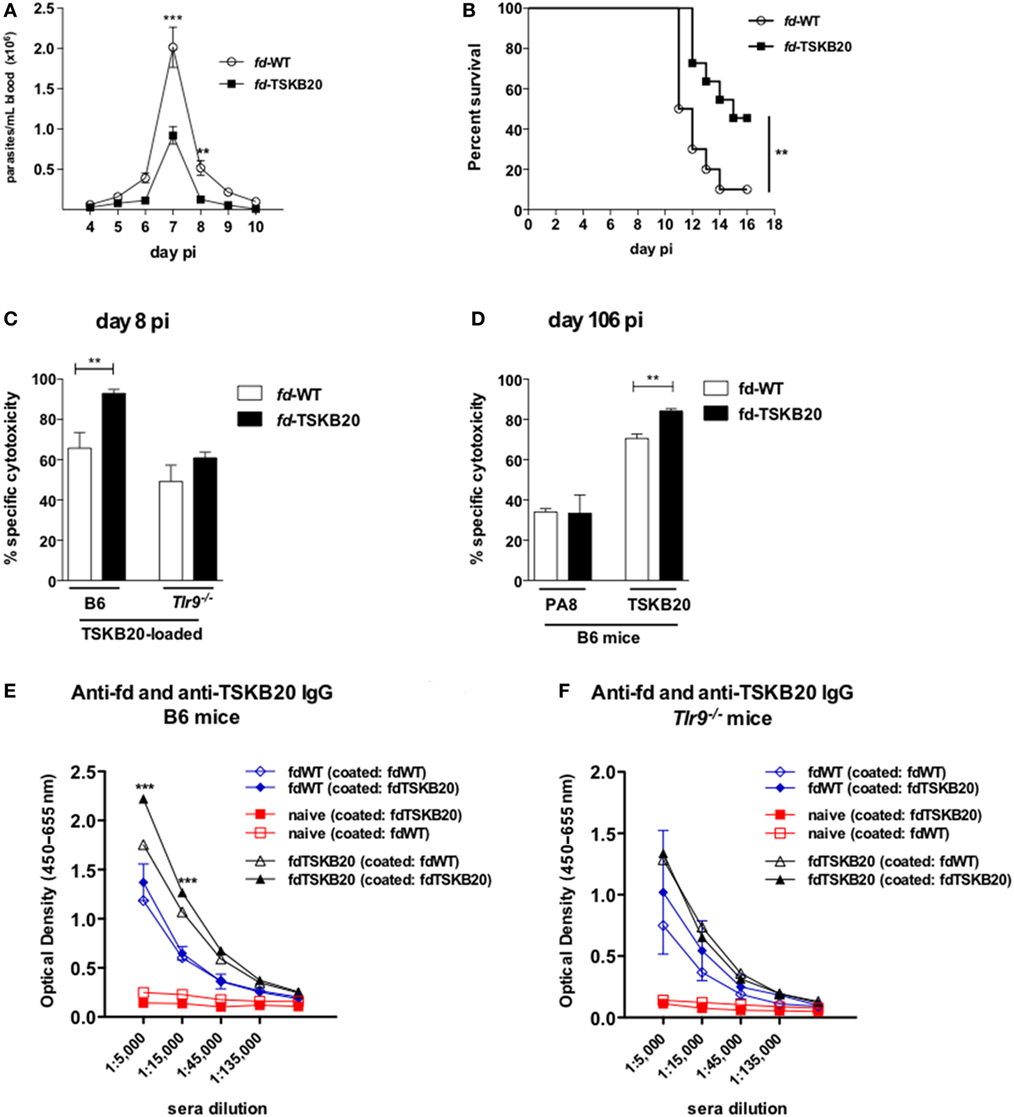

Figure 6. Immunization with fd-TSKB20 phages protects against infection with T. cruzi Y-strain and increases IgG and Ag-specific cytotoxicity in TLR9-dependent manner. Male mice were immunized (as in Figure S1 in Supplementary Material) and infected on day 0 with 2 × 105 blood trypomastigotes of Y-strain. Parasitemia curves (n = 6 in each group) (A) and survival curves (B) of B6 mice immunized with fd-TSKB20 (black squares) or fd-WT phages (empty circles), as controls (n = 10 in each group) **p ≤ 0.01 (Gehan–Breslow–Wilcoxon Test). Specific cytotoxicity in B6 and Tlr9−/− mice at day 8 pi, against target cells loaded with TSKB20 peptide (n = 4) (C). Specific cytotoxicity in B6 mice at day 106 pi against target cells loaded with PA8 or TSKB20 peptides. Bars represent mean values (n = 3) (D). (A,C,D) Error bars = SEM; **p ≤ 0.01; ***p ≤ 0.001 (two-tailed Student’s t-test). On Day 8 pi, sera were collected from control naïve (red symbols and lines), fd-WT (blue symbols and lines), and fd-TSKB20 immunized (black symbols and lines) B6 mice (E) or Tlr9−/− mice (F), adsorbed against immobilized fd-WT phages and then tested on an ELISA assay against fd-WT and fd-PA8 phages, as described in the Section “Materials and Methods.” Symbols represent mean values (n = 3), error bars = SEM; ***p ≤ 0.001 (two-tailed Student’s t-test).

Discussion

Filamentous fd phages are viruses which structure is formed by a cylindrical flexible protein scaffold, approximately 7-nm wide and 890-nm long, containing a single-strand DNA genome rich in CpG motifs (24). It has been previously shown that recombinant fd phages, expressing a CD8 epitope and directed to CD205+ DCs (fdsc-αDEC), are potent inducers of Ag-specific CTL responses and are more effective than other immunization strategies for inhibiting the growth of the B16 tumor in vivo (1), reviewed in Ref. (24). In fact, DCs show an enhanced receptor-mediated binding and internalization of phage particles expressing the anti-DEC-205 scFv, when compared to fd-WT virions, using both in vitro and in in vivo assays (1). Moreover, it has been recently demonstrated that fdsc-αDEC virions are delivered to the late endosome/lysosome compartment and induce the activation of the TLR9 pathway in DCs, which, as a consequence, secrete different pro-inflammatory cytokines, including type I IFN, leading to DCs maturation (4). Although fd phages devoid of sc-αDEC are not as efficient as fdsc-αDEC in inducing the maturation of DCs, we have shown here, by employing phage doses that are 2- to 2.5-fold higher than the previously used (1, 4), that rfd phages devoid of sc-αDEC nevertheless induce the expression of the costimulatory molecule CD86 in WT BMDCs, but not in TLR9-deficient cells. Importantly, we have also shown here that vaccination with these rfd particles is capable to induce the protection of B6 mice against infection with the intracellular T. cruzi parasite, as it reduces parasitemia, parasite load in the myocardium and mortality in WT-infected mice. However, none of these infection parameters was reduced in vaccinated Tlr9−/− mice. This was shown using either fd-OVA followed by infection with the transfected Y-OVA strain of T. cruzi, as a proof of concept, or fd phages expressing the T. cruzi trans-sialidase-derived immunodominant epitope TSKB20 followed by infection with the T. cruzi Y-strain. It is not clear, at the moment, if TLR9-signaling is required only for the induction of type I IFN and costimulatory molecules in DCs or if it also increases the efficiency of the parasite-antigen cross-presentation. This is an interesting point and deserves further work in order to be elucidated.

Regarding the effector immune mechanisms induced by vaccination with rfd phages, which would be responsible for the protection against infection with T. cruzi, we have shown here that vaccination induces higher levels of Ag-specific and cytokine-secreting CD8+ T cells, as well as higher levels of Ag-specific cytotoxicity in vivo. The CTL response, as well as the secretion of IFN-γ by CD8+ T cells, has been known to play a fundamental role on the protection against infection with T. cruzi and with other intracellular pathogens; reviewed in Ref. (10). Of note, we have found that immunization with rfd phages increases the percentages and absolute numbers of polyfunctional CD8+ T cells in the spleen of vaccinated mice. This phenomenon was previously observed in other models of experimental vaccination, such as against T. cruzi, employing adenovirus as a vaccine vector (18) and against malaria, using prime-boost immunization with modified vaccinia virus Ankara and adenoviral vectors (25). Moreover, polyfunctional human CD8+ T cells are found at higher levels in HIV nonprogressors than in progressors and the presence of these multifunctional T cells negatively correlates with viral load in the latter group (26, 27). Nevertheless, until the present date, it has not been possible to clearly attribute a role to polyfunctional T cells as markers of protective immunity in other infections (28), and therefore, more studies are necessary to clarify this point. It is known that the parasite displays escape mechanisms that retard and somehow compromises the immune response toward it, which leads to the chronification of the infection. Thus, it is possible that vaccination is beneficial not only by inducing an immune response that precedes infection but also because it allows the establishment of a robust and qualitatively superior multifunctional CD8+ T cell-mediated response, which correlates to protection in some infection models.

On the other hand, we have also found here that immunization with fd-PA8 and fd-TSKB20 phages induces increased levels of serum IgG Abs directed against these ASP-2- and trans-sialidase (Ts)-derived parasite epitopes. The capacity of rfd phages in inducing a humoral response to vaccine Ags has been previously described (2, 19). Of note, both the ASP-2 and Ts proteins belong to an extended multigene family, which members are expressed at the cell surface at different stages of the protozoan life cycle and against which Abs might cross-react. More than 1,400 copies of the Ts gene were found in the T. cruzi genome (of which almost the half are pseudogenes), encoding full length and partial non-enzymatically active Ts molecules, the exact function of which is still not clear (20). In the absence of active Ts enzymatic function, trypomastigotes invade host cells poorly and are highly sensitive to host complement-mediated lysis (29). Moreover, several studies have suggested an immunomodulatory role for proteins of the Ts family (30). Hence, it is possible that anti-PA8 IgG would also bind to other Ts protein family members expressed on the surface of the infective trypomastigote stage (as indicated by the search with PA8 peptide query against the NCBI database), and consequently, would lead to parasite opsonization and neutralization. In fact, IgG2a lytic and opsonizing Abs have been described as important effector mechanisms against infection with T. cruzi (21, 22). Most probably, both humoral and cell-mediated responses contribute to the effective protection induced by rfd vaccination. This issue is currently under investigation by our group.

Finally, it is interesting to note that the induction of not only the CD8+ T cell-mediated cytotoxicity, but also the anti-TSKB20 IgG response induced by previous vaccination with fd-TSKB20 was defective in Tlr9−/− mice. This is probably the consequence of a poor innate activation of DCs in Tlr9−/− mice, leading to a defective activation of T-follicular helper cells, which in turn are required for helping the B cell response. It is tempting to speculate that fd phages might also directly interfere with the B-cell response through the B-cell intrinsic activation of the TLR9 pathway.

In summary, the results obtained in the present work further extend previous studies, demonstrating that rfd phages can be used as potent and innovative delivery systems, conferring both humoral and cellular-mediated protection against an important human parasite infection, through a TLR9-dependent mechanism.

Ethics Statement

All animal experiments were conducted in accordance with guidelines of the Animal Care and Use Committee of the Federal University of Rio de Janeiro (Comitê de Ética do Centro de Ciências da Saúde CEUA-CCS/UFRJ). Procedures and animal protocols were approved by CEUA-CCS/UFRJ license no.: IMPPG022.

Author Contributions

JG-N, AN, PB, and MB conceived and designed the experiments. JG-N, RS, FC, C-HB, TA, AD, PA, GM, and MS performed the experiments. JG-N, FC, MS, AN, and MB analyzed the data. AO, CM, HG, MS, AN, PB, and MB contributed parasites/reagents/mice/materials/analysis tools. MB wrote the paper.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Funding

This work was supported by Fundação Carlos Chagas Filho de Amparo à Pesquisa do Estado do Rio de Janeiro (FAPERJ—E-26/110.168/2013), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq—311075/2014-2 and 401031/2015-2), and by The National Institute for Vaccine Development and Technology (INCTV-CNPq 573547/2008-4), Brazil. JG-N received Ph.D. fellowship from CAPES and C-HB from CNPq. AD and FC received post-doc fellowship from CSF Program, CNPq. TA received IC fellowship from CAPES and GM from PIBIC-CNPq. AO, AN, and MB received PQ fellowship from CNPq, and AN and MB, CNE fellowship from FAPERJ. This work was also supported by a short-term CNR (Italy) fellowship (CNR STM 2017) to MB and by a PV-CSF Program CNPq (Brazil) fellowship to PB (CNPq 402932/2012-9). The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Supplementary Material

The Supplementary Material for this article can be found online at https://www.frontiersin.org/articles/10.3389/fimmu.2018.01173/full#supplementary-material.

Footnotes

  1. ^www.ncbi.nlm.nih.gov/BLAST/ (Accessed: January 10, 2018).
  2. ^www.graphpad.com (Accessed: January 10, 2018).
  3. ^http://www.uniprot.org/peptidesearch/ (Accessed: January 10, 2018).
