Review ARTICLE

Front. Immunol., 31 May 2018 | https://doi.org/10.3389/fimmu.2018.01194

Mapping Determinants of Virus Neutralization and Viral Escape for Rational Design of a Hepatitis C Virus Vaccine

  • 1Department of Pathology, Stanford University School of Medicine, Stanford, CA, United States
  • 2INSERM U1110, Institut de Recherche sur les Maladies Virales et Hépatiques, Strasbourg, France
  • 3Université de Strasbourg, Strasbourg, France
  • 4Institute for Bioscience and Biotechnology Research, University of Maryland, Rockville, MD, United States
  • 5Department of Cell Biology and Molecular Genetics, University of Maryland, College Park, MD, United States

Hepatitis C virus (HCV) continues to spread worldwide with an annual increase of 1.75 million new infections. The number of HCV cases in the U.S. is now greater than the number of HIV cases and is increasing in young adults because of the opioid epidemic sweeping the country. HCV-related liver disease is the leading indication of liver transplantation. An effective vaccine is of paramount importance to control and prevent HCV infection. While this vaccine will need to induce both cellular and humoral immunity, this review is focused on the required antibody responses. For highly variable viruses, such as HCV, isolation and characterization of monoclonal antibodies mediating broad virus neutralization are an important guide for vaccine design. The viral envelope glycoproteins, E1 and E2, are the main targets of these antibodies. Epitopes on the E2 protein have been studied more extensively than epitopes on E1, due to higher antibody targeting that reflects these epitopes having higher degrees of immunogenicity. E2 epitopes are overall organized in discrete clusters of overlapping epitopes that ranged from high conservation to high variability. Other epitopes on E1 and E1E2 also are targets of neutralizing antibodies. Taken together, these regions are important for vaccine design. Another element in vaccine design is based on information on how the virus escapes from broadly neutralizing antibodies. Escape mutations can occur within the epitopes that are involved in antibody binding and in regions that are not involved in their epitopes, but nonetheless reduce the efficiency of neutralizing antibodies. An understanding on the specificities of a protective B cell response, the molecular locations of these epitopes on E1, E2, and E1E2, and the mechanisms, which enable the virus to negatively modulate neutralizing antibody responses to these regions will provide the necessary guidance for vaccine design.

Introduction

Estimation of worldwide prevalence of hepatitis C virus (HCV) infections ranged widely from 71 to 185 million people (1, 2) and roughly 400,000 will die annually from HCV associated liver failure and hepatocellular carcinoma (2). An estimated three million people are living with HCV infection in the United States, and there is an annual infection rate of 34,000 new infections (3). A contributing factor is the consequence of an opioid epidemic that shows no signs of slowing down and is unfortunately associated with increased injection drug use as a major mode to consume illicit opioids. When needles are shared by injection drug users, the risk of becoming infected with HCV increases. Of young adults (≤30 years) living in non-urban areas of states in the central Appalachia area infected with HCV, 73% had a history of injection drug use (4). Data from 2006 to 2012 in some states from these areas showed an astonishing 364% increase in infection amongst young adults. This was primarily in non-minority communities, with non-urban areas increasing from approximately 1.3–4.3 cases per 100,000 population while urban areas increased from 0.3 to 1.5 cases per 100,000 during this 6-year period (4). Because of this alarming rate of HCV infection and its potential lethality, the need for the development of a preventive vaccine is evident. It should be noted that effective direct acting antiviral drugs are available to treat HCV infections. However, susceptibility to reinfection after cure (5) and their prohibitive cost will limit their utility to contain this epidemic.

Vaccination is a powerful and proven method for infection prevention against many pathogens and a vaccine that is effective, accessible, and affordable is needed to control the further spread of HCV. This has been a difficult task because this virus is able to rapidly mutate and escape from protective immune responses. An understanding of what elements of a vaccine are needed and what challenges there are to guide vaccine design are discussed in this review. The focus is on the identification and functional characterization of conserved epitopes that elicit broadly neutralizing antibodies. We will review different immunogenic regions in the virus envelope E2 and in the covalently linked E1 and E2 heterodimer glycoproteins, and the challenges posed by regions of sequence diversity that contribute to viral escape from protective immunity. Collectively, the information gained will form the basis of rational structure-guided design of B cell epitopes in a reverse vaccinology approach to be included in the development of a preventative HCV vaccine (68).

Traits of an Effective HCV Vaccine

While there is some debate whether B cell versus T cell responses are necessary for an effective HCV vaccine (9), a brief review of these responses during acute infection suggests that both arms of immunity will be required. During acute HCV infection, 20% of infected individuals will clear infection spontaneously while 80% develop a chronic infection. Spontaneous viral clearance has been associated with robust CD4+ and CD8+ responses that are maintained for several years after the virus has cleared. Losing the robust CD4+ response results in disease progression, hence the importance of the T cell response (10). Neutralizing antibodies elicited during acute infection also appear to contribute to spontaneous clearance. Early and strong neutralizing antibody responses were closely associated with HCV clearance (11, 12). Once viral clearance is achieved, neutralizing antibody levels either decrease or disappear. Those with absent or low serum neutralizing antibody levels during early infection and, therefore, with a delayed neutralizing antibody response pattern tend to develop chronic infections. Knowing that strong and early cellular and humoral immune responses to acute HCV infection is critical for spontaneous clearance, the implication is that both arms of a protective immune response are required to be induced in an effective vaccine design.

Experiences obtained from HIV vaccination studies indicate that antibody-dependent cytotoxicity (ADCC) could be an important determinant of protection (13). While it has been shown that certain subsets of natural killer (NK) cells are associated with disease progression and treatment outcome in chronic HCV patients (14), very little is known about the role of these effector cells during the acute phase of HCV infection. Both, NK cells and the highly abundant Kupffer cells are able to mediate ADCC. Recent publications suggest that ADCC mediated by non-neutralizing antibodies might be impaired in chronic HCV patients potentially due to increased cleavage of CD16 by host cell proteases (15, 16). However, the role of ADCC during acute HCV is only poorly studied. It remains to be determined whether ADCC contributes to viral clearance and might serve as an important determinant for antiviral protection. A key issue is the lack of clear evidence of infected cells expressing surface HCV-encoded antigens.

Broadly Neutralizing Antibodies to HCV E2 Target Epitopes Containing Variable and Conserved Regions

Broadly neutralizing monoclonal antibodies (MAbs) are an important guide for vaccine design for HCV and other highly variable viruses. These MAbs are directed mainly at epitopes in the E2 glycoprotein (17). The majority of human MAbs (HMAbs) isolated from infected individuals are to conformational epitopes in E2 and can be grouped in distinct clusters of overlapping epitopes. Two commonly employed nomenclatures are clusters designated as antigenic domains (18) or antigenic regions (AR) (19, 20). While there is substantial overlap between these two sets of overlapping epitope clusters, there are differences. The antigenic domains, A–E (Table 1) and AR1-3 (Table 2) are restricted to epitopes on E2. Two other ARs, AR4 and AR5, are clusters of epitopes requiring key residues on both E1 and E2 (Table 2). Generally, neutralizing MAbs, both human and mouse, are to epitopes on the exposed surface of E2 (Figure 1). The neutralizing HMAbs directed at epitopes within antigenic domains B, D, and E include key residues on E2 (residues W420, Y443, and W529 in Figure 1) that are also involved in virus binding to the HCV tetraspanin co-receptor, CD81, and thus mediate virus neutralization by blocking virus interaction with this required receptor for virus entry (21, 22). These epitopes are mostly conserved, which explains the wide breadth of virus neutralization of their associated antibodies. Antigenic domain B is also highly immunogenic and antibodies to this region are commonly found in the sera of HCV-infected individuals (21). Epitopes within domains B and D do overlap with shared contact residues in the 441–443 region [but antigenic domain D epitopes do not have residues 529–535 (Table 1)] and form a supersite of conformational epitopes on the exposed surface of the E2 core structure that contributes to CD81 binding (23, 24). Residues within antigenic domain B participating in virus binding to CD81 include 529, 530 and 535 (21). For antigenic domain D epitopes, the 441–443 region is involved in CD81 interaction (25). In the AR system, both antigenic domain B and D are included in AR3 (Figure 1; Table 2). Another highly conserved region is antigenic domain E located just downstream of hypervariable region 1 (HVR1) at a E2 segment encompassing residues 412–423 that also is responsible for broadly neutralizing antibodies (Table 1) (22, 26, 27). Antibodies to domain E are directed at mainly linear epitopes that include residue 420, which has been shown to be needed in virus binding to CD81 (28). A key residue that affects a broadly neutralizing HMAb, HC33.4 to domain E, is located at 408, within HVR1 (21, 22). Taken together, the ability to elicit antigenic domain B, D, and E antibodies will be important for vaccine design as these antibodies will prevent virus entry. Non-neutralizing antibodies are to overlapping epitopes on the back layer of E2 (Figure 2) and mainly in antigenic domain A (Table 1) and AR1 (Table 2). A shared residue for all domain A epitopes is 632. Interestingly, antigenic domain C, which mediates broad neutralization, is located in part at residues 544–549 in the central beta sandwich (residues 492–566), a region that is flanked by the front and back layers of the E2 core structure. Although some antigenic domain C residues are shared with AR1, domain C epitopes are exposed on the virus surface to allow access for antibody binding that leads to virus neutralization (Tables 1 and 2; Figure 2). This is further supported by the observation of overlap between the epitopes of CBH-7, a neutralizing antibody to domain C, and AR5A, a broadly neutralizing HMAb to E1E2 (19, 20). Global E2 and E1E2 antibody epitope mapping studies from Foung and Law lab groups have been described (29, 30).

TABLE 1
www.frontiersin.org

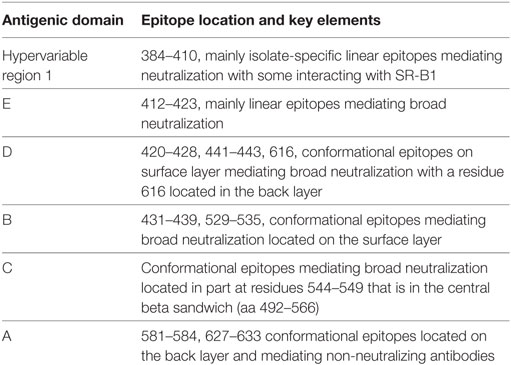

Table 1. Immunogenic clusters as defined by antigenic domains.

TABLE 2
www.frontiersin.org

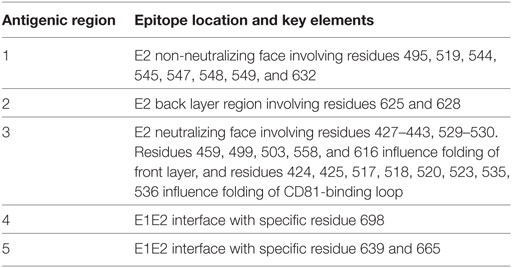

Table 2. Immunogenic clusters as defined by antigenic regions.

FIGURE 1
www.frontiersin.org

Figure 1. Structure and mapped epitope sites on the front layer, or neutralizing face, of E2. Structure shown is the E2 core crystal structure (23), with N-terminal residues corresponding to hypervariable region 1 (HVR1) and antigenic domain E (residues 384–423), which are mostly absent or unresolved from the E2 core crystal structure, modeled using the FloppyTail protocol in Rosetta (31) and shown for reference. Epitope sites are colored according to antigenic domains/regions or HVR1, with shared key epitope residues shown as spacefill and labeled. The remainder of E2 is shown as light gray. Representative monoclonal antibodies with binding residues mapped to each domain or HVR1 are also shown.

FIGURE 2
www.frontiersin.org

Figure 2. Structure and mapped epitope sites on the back layer and proximal β sandwich residues of E2. The structure corresponds to a distal face of the E2 core structure shown in Figure 1, with antigenic domains/regions labeled and representative monoclonal antibodies listed.

Hepatitis C virus has multiple variable regions in E2 that aid the virus in evading from protective immunity. They include the HVR1 located at the N-terminus encompassing residues 384–410, hypervariable region 2, residues 460–485 and the intergenotypic variable region, residues 570–580. The HVR1 downmodulates protective immunity by at least three mechanisms. Although antibodies to this region are neutralizing, rapid mutation occurs leading to escape variants without compromised viral fitness that stay one step ahead of the antibody response (32). Another mechanism is shown with infectious recombinant cell cultured virions, HCVcc, with and without HVR1. Broadly neutralizing HMAbs neutralized HCVcc without HVR1 with greater potencies than against wild-type HCVcc (33, 34). Thus, it can be argued that a HVR1-deleted vaccine antigen could help boost broadly neutralizing antibody responses. In vitro studies with infectious HCV variants also help to define the region of HVR1 that is important for virus interaction with another HCV co-receptor, scavenger receptor class B type 1, SR-B1, and the region responsible for rapidly escaping variants to neutralizing antibodies (35).

Less is known about the immunogenic regions on E1 and E1E2. While a few HMAbs to E1 have been described (36, 37), two have been shown to exhibit broad virus neutralization (36). Two regions, AR4 and AR5, require contact residues on both E1 and E2, and some of these antibodies mediate broad virus neutralization (20). HMAbs to AR4 and AR5 do not mediate neutralization by blocking virus binding to CD81 but are postulated to inhibit conformational changes to the E1E2 heterodimer during viral entry. Because E1 has a relatively high degree of conservation within different genotypes and subtypes, elicited antibodies to E1 tend to exhibit broad neutralization. For these reasons, it is probable that vaccine constructs composed of both E2 and E1 in the form of heterodimers will be superior than vaccine constructs composed of E2.

Viral Escape in the Defined Regions of the Epitope

The elusive virus is able to escape from the immune containment, in part due to its high rate of mutation and driven by presence of neutralizing antibodies. These mutations can occur either in areas directly targeted by neutralizing antibodies, or not directly targeted. CBH-2 is a neutralizing HMAb to an epitope within the antigenic domain B cluster. As discussed earlier, the epitope for CBH-2 has residues that participate in virus binding to CD81. However, there are at least two regions in E2 that are required to form the CBH-2 epitope. A conserved region located at 529–535 and a region at 425–431 with some variability. A single amino acid substitution at 431 results in viral escape from CBH-2 and a variant without compromised viral fitness (38). In contrast, another domain B antibody, HC-11 also requires these two regions to form the targeted epitope but the derivative escape variant with a mutation at 438 has reduced fitness. A third domain B HMAb, HC-1, is not associated with viral escape and its epitope has not been defined beyond the conserved region 529–535 (39).

Another region of great interest for vaccine development is the E2 segment 412–423 that is highly conserved. The importance of this region was first recognized by studies with a murine MAb, AP33 that recognizes mainly a linear epitope at 412–423 (40). However, a mutation at N417 that leads to a glycan shift to N415 will result in a robust variant able to escape neutralization by AP33 (41). A similar mechanism of escape has been documented with an HMAb designated as HCV1 (42). A different HMAb, HC33.1, to this region, interestingly, has a completely different neutralization profile. The variant with a N417 glycan shift is more sensitive to be neutralized than wild-type virus HC33.1 (41, 43). Structural studies revealed that this conserved E2 region, designated as antigenic domain E is highly flexible (43, 44). The implication for vaccine design is to stabilize domain E in a conformation that mirrors the HC33.1-bound epitope and not AP33 nor HCV1.

Viral Escape Mutations Outside of the Defined Epitopes

Mutations that occur outside of epitope and receptor binding sites can also result in structural changes that will lead to escape from broadly neutralizing antibodies (45). These mutations lead to reduced efficiency of broadly neutralizing antibodies targeting different ARs, although viral fitness and efficiency of CD81 interaction are also reduced. Another example is studies with HC33.4 and AR4A, two neutralizing HMAbs to epitopes without any overlap and with different mechanisms of virus neutralization. The key binding region of HC33.4 is to the amino terminus of E2, 412–423, while for AR4A, it is the carboxy terminus of E2 along with residues on E1 to form its epitope (20, 22). HC33.4 is able to neutralize HCV by blocking interaction with CD81 and AR4A mediates neutralization by presumably the inhibition of E1E2 conformational change associated with viral entry. Unexpectedly, both antibodies have similar neutralization profiles against a large panel of genotype 1 isolates and both antibodies poorly neutralize variants with mutations at 403, a residue not known to be involved in the non-overlapping epitopes of these two HMAbs (46). Thus, extra-epitopic mutations need to be considered as well when discussing mutations that lead to viral escape. Escape mutations are especially important for HCV infected individuals receiving a liver transplant. Once the patient receives a new liver, reinfection of the liver by HCV is common as the virus is still able to avoid the immune system. Indeed, several of the escape variants isolated from patients undergoing liver transplantation were found to be located outside the defined epitopes. Many of these variants, selected post-liver transplantation, contained mutations within the CD81 binding domains II and III (47).

Viral Escape Mutations by Altered Receptor Dependency

Accumulating evidence suggests that HCV can escape from broadly neutralizing antibodies that target envelope receptor-binding sites by altering the dependency on viral cell entry factors CD81 and SR-B1. For HCV, this has been first demonstrated for a cell culture adapted JFH1 variant that was characterized by an increased affinity for CD81: a mutation of E2 G451 to R resulted in increased E2 binding affinity to CD81 and at the same time reduced the dependency on the entry factor SR-BI. The mutant virus showed highly increased sensitivity to neutralizing anti-envelope antibodies (48). A similar effect has been observed for L403F and L438V that modulate resistance to the HMAbs HC33.4 and AR4A by altering E2 binding to SR-B1, as discussed above (46). Furthermore, engineered mutations of the E2 protein revealed nine different polymorphisms that were associated with reduced SR-B1 dependency and increased resistance against a panel of neutralizing antibodies (49). This indicates that escape via changes in SR-B1 binding efficiency is a relevant motif for HCV escape variants. A different mechanism has been observed for E2 residues 447, 458, and 478 that have been identified in clinically relevant transplant escape variants as important determinants for susceptibility to neutralizing antibodies (50). Mutations F447L, S458G, and R478C conferred resistance against conformational HMAbs CBH-2, CBH-5, CBH-23, and HC1 by altering the interaction of E2 with cell surface CD81. Furthermore, increased entry efficiency might also contribute to viral escape of these clinically relevant patient variants. Thus, changes in receptor usage by the HCV envelope protein is an important mechanism for viral escape that needs to be addressed in prospective vaccine studies or immunotherapeutic approaches using anti-E2 antibodies.

To address this challenge, antibodies targeting different HCV entry factors have been proposed for immunoprevention (5156). More specifically, antibodies targeting SR-B1, CLDN1, and CD81 have demonstrated broad antiviral effects against HCV infections and have been suggested for the prevention of liver graft infection complementary to treatment with direct-acting antivirals (57). Single treatment with antibodies or small molecule inhibitors targeting viral receptors can potentially result in escape mutations as it has been reported for the SR-BI antagonist ITX-5061 (58) or during a clinical trial of an anti-CD4 monoclonal antibody targeting HIV-1 infection (59). Due to the reduced rate of transmission and the increased barrier for escape mutations, targeting of multiple entry host factors likely prevent viral escape due to changes in receptor tropism. Interestingly, when neutralizing antibodies that inhibit virus interaction against different co-receptors are tested simultaneously (as discussed more extensively in the next section), there can be antagonism or synergy in their combined effect (60, 61). Taken together, simultaneous targeting of multiple factors can lead to synergistic inhibition of infection (62), further strengthening this approach.

Attributes of HVR1 that should be Considered in Vaccine Design

There are functions of HVR1 (aa 384–410) located at the N-terminus end of E2 that argue against and for its retention in vaccine design. It is highly immunodominant and virtually all HCV infected individuals will have serum antibodies to HVR1. The high rate of mutations in this region helps the virus escape protective antibody responses to this region by first serving as an immunological decoy (63). Second, it physically shields the more conserved antigenic domain B and D regions in E2 (33, 64). HVR1 partially blocks broadly neutralizing domain B and D antibodies from binding to their respective epitopes; removal of HVR1 leads to a defective virus that is more susceptible to these antibodies. Third, we recently proposed a new mechanism in which HVR1 adversely affect the function of broadly neutralizing antibodies (65). When some antigenic domain E HMAbs, e.g., HC33.4, were more extensively mapped, a residue located in HVR1 at 408 was found to affect HC33.4 binding to E2. This raised the possibility that when an anti-HVR1 antibody is bound to E2, it can interfere with the binding of HC33.4 and other domain E HMAbs. This was found to be the case as postulated with H77.16, a murine neutralizing MAb to HVR1 (60). Surprisingly, the binding of H77.16 also inhibited the binding and neutralization of antigenic domain B and D HMAbs. Additional studies showed that this interference is by steric hindrance and collectively supported the hypothesis that an anti-HVR1 response can interfere with more protective neutralizing antibody responses. Based on these observations, vaccine design should be based on a HVR1-deleted E1E2 immunogen to increase the production of broadly neutralizing antibody responses.

However, HVR1 also facilitates viral entry cells by interacting with SR-B1 and thus allowing attachment and eventual entry of the host cell via CD81. Although the majority of anti-HVR1 antibodies are isolate-specific, some antibodies to this region have broad neutralization profiles. J6.36, H77.39, and H77.16 are murine MAbs that target regions within HVR1 (Figure 1) (60). H77.39 inhibited binding of HCV to CD81 and SR-B1. While both J6.36 and H77.16 block E2 attachment to SR-B1, J6.26 also reduces E2 binding to CD81 (60). Binding studies revealed that H77.39 and H77.16 are reactive to all six major HCV genotypes. Therefore, antibodies to HVR1 could play a key role in vaccine design for their abilities to have a wide breadth of neutralization and for their ability to block SR-B1 attachment. This perspective has been supported by a recent study that shows a similar antibody to H77.16, HMAb HEPC98 (Figure 1), synergistically neutralize HCVcc when combined with a HMAb, HEPC74 that maps to an antigenic domain B region (61). Their observation contrasts with the observation that H77.16 when combined with other antigenic domain B or D antibodies led to antagonism (65). These contrasting results are likely the result of greater spatial separation between E2-bound HEPC98/HEPC74 relative to E2-bound H77.16/HC-11.

Conclusion

This review outlines the functional organization of antigenic domains and epitopes within each domain that are associated with escape or are more invariant and essential for viral fitness, receptor binding, and viral entry. The findings raise the possibility of antagonistic relationship between immunogenic decoys, e.g., HVR1, which elicit antibodies associated with escape and may be responsible for antibody-mediated interference in the protective antibody response. Collectively, these studies begin to create a high-resolution map of conserved neutralizing epitopes not associated with viral escape and how other antigenic domains serve as diversions of the immune response and are able to elicit antibodies that negatively modulate neutralizing antibodies. Having this information, a future direction is to employ the knowledge in vaccine design. One approach is to stabilize flexible regions on E2 known to encode broadly neutralizing epitopes to be more favorable to antibodies that are not associated with rapid escape. For example, antibodies to the E2 region comprising residues 412–423 have broad neutralizing activities. However, an adaptive mutation in this linear epitope, Asn417Ser, is associated with a glycosylation shift from Asn417 to Asn415 that enables HCV to escape neutralization by MAbs such as HCV1 and AP33. By contrast, the HMAb HC33.1 can neutralize virus bearing the Asn417Ser adaptive mutation. Structural studies showed that E2412–423 when bound by this antibody has a distinct structure than either AP33 or HCV1 (44). The results highlight the structural flexibility of the E2412–423 epitope, which may serve as an evasion mechanism to reduce antigenicity. It is probable that other E2 regions with similar structural flexibility impede the induction of neutralizing antibodies by a similar mechanism.

Author Contributions

All authors listed have made a substantial, direct, and intellectual contribution to the work and approved it for publication.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank Drs. Netanel Tzarum and Mansun Law (Scripps Research Institute) for the information in Table 2. This work was supported in part by National Institute of Allergy and Infectious Diseases/NIH grants R21-AI126582 (SF and BP), U19-AI123862 (TB and SF) and R01-AI132213 (SF and BP), startup funding from the University of Maryland to BP, by ARC, Paris and Institut Hospitalo-Universitaire, Strasbourg (TheraHCC IHUARC IHU201301187 to TB) as well as the European Union (ERC-AdG-2014-671231-HEPCIR and H2020-2015-667273-HEP-CAR to TB). This work has been published under the framework of the LABEX ANR-10-LABX-0028_HEPSYS (TB) and benefits from funding from the state managed by the French National Research Agency as part of the Investments for the Future Program.

References

1. Mohd Hanafiah K, Groeger J, Flaxman AD, Wiersma ST. Global epidemiology of hepatitis C virus infection: new estimates of age-specific antibody to HCV seroprevalence. Hepatology (2013) 57(4):1333–42. doi:10.1002/hep.26141

PubMed Abstract | CrossRef Full Text | Google Scholar

2. WHO. Global Hepatitis Report, 2017. Geneva: World Health Organization (2017). 83 p.

Google Scholar

3. Centers for Disease Control and Prevention. New Hepatitis C Infections Nearly Tripled Over Five Years. (2017).

Google Scholar

4. Zibbell JE, Asher AK, Patel RC, Kupronis B, Iqbal K, Ward JW, et al. Increases in acute hepatitis C virus infection related to a growing opioid epidemic and associated injection drug use, United States, 2004 to 2014. Am J Public Health (2018) 108:175–81. doi:10.2105/AJPH.2017.304132

CrossRef Full Text | Google Scholar

5. Midgard H, Bjoro B, Maeland A, Konopski Z, Kileng H, Damas JK, et al. Hepatitis C reinfection after sustained virological response. J Hepatol (2016) 64(5):1020–6. doi:10.1016/j.jhep.2016.01.001

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Rappuoli R. Reverse vaccinology. Curr Opin Microbiol (2000) 3(5):445–50. doi:10.1016/S1369-5274(00)00119-3

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Rueckert C, Guzman CA. Vaccines: from empirical development to rational design. PLoS Pathog (2012) 8(11):e1003001. doi:10.1371/journal.ppat.1003001

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Correia BE, Bates JT, Loomis RJ, Baneyx G, Carrico C, Jardine JG, et al. Proof of principle for epitope-focused vaccine design. Nature (2014) 507(7491):201–6. doi:10.1038/nature12966

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Walker CM, Grakoui A. Hepatitis C virus: why do we need a vaccine to prevent a curable persistent infection? Curr Opin Immunol (2015) 35:137–43. doi:10.1016/j.coi.2015.06.010

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Lavillette D, Morice Y, Germanidis G, Donot P, Soulier A, Pagkalos E, et al. Human serum facilitates hepatitis C virus infection, and neutralizing responses inversely correlate with viral replication kinetics at the acute phase of hepatitis C virus infection. J Virol (2005) 79(10):6023–34. doi:10.1128/JVI.79.10.6023-6034.2005

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Pestka JM, Zeisel MB, Blaser E, Schurmann P, Bartosch B, Cosset FL, et al. Rapid induction of virus-neutralizing antibodies and viral clearance in a single-source outbreak of hepatitis C. Proc Natl Acad Sci U S A (2007) 104(14):6025–30. doi:10.1073/pnas.0607026104

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Osburn WO, Snider AE, Wells BL, Latanich R, Bailey JR, Thomas DL, et al. Clearance of hepatitis C infection is associated with the early appearance of broad neutralizing antibody responses. Hepatology (2014) 59(6):2140–51. doi:10.1002/hep.27013

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Haynes BF, Gilbert PB, McElrath MJ, Zolla-Pazner S, Tomaras GD, Alam SM, et al. Immune-correlates analysis of an HIV-1 vaccine efficacy trial. N Engl J Med (2012) 366(14):1275–86. doi:10.1056/NEJMoa1113425

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Oliviero B, Mele D, Degasperi E, Aghemo A, Cremonesi E, Rumi MG, et al. Natural killer cell dynamic profile is associated with treatment outcome in patients with chronic HCV infection. J Hepatol (2013) 59(1):38–44. doi:10.1016/j.jhep.2013.03.003

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Oliviero B, Mantovani S, Varchetta S, Mele D, Grossi G, Ludovisi S, et al. Hepatitis C virus-induced NK cell activation causes metzincin-mediated CD16 cleavage and impaired antibody-dependent cytotoxicity. J Hepatol (2017) 66(6):1130–7. doi:10.1016/j.jhep.2017.01.032

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Long L, Jia M, Fan X, Liang H, Wang J, Zhu L, et al. Non-neutralizing epitopes induce robust hepatitis C virus (HCV)-specific antibody-dependent CD56(+) natural killer cell responses in chronic HCV-infected patients. Clin Exp Immunol (2017) 189(1):92–102. doi:10.1111/cei.12962

CrossRef Full Text | Google Scholar

17. Ball JK, Tarr AW, McKeating JA. The past, present and future of neutralizing antibodies for hepatitis C virus. Antiviral Res (2014) 105(100):100–11. doi:10.1016/j.antiviral.2014.02.013

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Fuerst TR, Pierce BG, Keck Z-Y, Foung SKH. Designing a B cell-based vaccine against a highly variable hepatitis C virus. Front Microbiol (2018) 8:2692. doi:10.3389/fmicb.2017.02692

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Law M, Maruyama T, Lewis J, Giang E, Tarr AW, Stamataki Z, et al. Broadly neutralizing antibodies protect against hepatitis C virus quasispecies challenge. Nat Med (2008) 14(1):25–7. doi:10.1038/nm1698

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Giang E, Dorner M, Prentoe JC, Dreux M, Evans MJ, Bukh J, et al. Human broadly neutralizing antibodies to the envelope glycoprotein complex of hepatitis C virus. Proc Natl Acad Sci U S A (2012) 109(16):6205–10. doi:10.1073/pnas.1114927109

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Keck ZY, Li TK, Xia J, Gal-Tanamy M, Olson O, Li SH, et al. Definition of a conserved immunodominant domain on hepatitis C virus E2 glycoprotein by neutralizing human monoclonal antibodies. J Virol (2008) 82(12):6061–6. doi:10.1128/JVI.02475-07

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Keck Z, Wang W, Wang Y, Lau P, Carlsen TH, Prentoe J, et al. Cooperativity in virus neutralization by human monoclonal antibodies to two adjacent regions located at the amino terminus of hepatitis C virus E2 glycoprotein. J Virol (2013) 87(1):37–51. doi:10.1128/JVI.01941-12

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Kong L, Giang E, Nieusma T, Kadam RU, Cogburn KE, Hua Y, et al. Hepatitis C virus E2 envelope glycoprotein core structure. Science (2013) 342(6162):1090–4. doi:10.1126/science.1243876

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Pierce BG, Keck ZY, Foung SK. Viral evasion and challenges of hepatitis C virus vaccine development. Curr Opin Virol (2016) 20:55–63. doi:10.1016/j.coviro.2016.09.004

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Keck ZY, Xia J, Wang Y, Wang W, Krey T, Prentoe J, et al. Human monoclonal antibodies to a novel cluster of conformational epitopes on HCV E2 with resistance to neutralization escape in a genotype 2a isolate. PLoS Pathog (2012) 8(4):e1002653. doi:10.1371/journal.ppat.1002653

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Owsianka A, Tarr AW, Juttla VS, Lavillette D, Bartosch B, Cosset FL, et al. Monoclonal antibody AP33 defines a broadly neutralizing epitope on the hepatitis C virus E2 envelope glycoprotein. J Virol (2005) 79(17):11095–104. doi:10.1128/JVI.79.17.11095-11104.2005

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Tarr AW, Owsianka AM, Timms JM, McClure CP, Brown RJ, Hickling TP, et al. Characterization of the hepatitis C virus E2 epitope defined by the broadly neutralizing monoclonal antibody AP33. Hepatology (2006) 43(3):592–601. doi:10.1002/hep.21088

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Owsianka AM, Timms JM, Tarr AW, Brown RJ, Hickling TP, Szwejk A, et al. Identification of conserved residues in the E2 envelope glycoprotein of the hepatitis C virus that are critical for CD81 binding. J Virol (2006) 80(17):8695–704. doi:10.1128/JVI.00271-06

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Pierce BG, Keck ZY, Lau P, Fauvelle C, Gowthaman R, Baumert TF, et al. Global mapping of antibody recognition of the hepatitis C virus E2 glycoprotein: implications for vaccine design. Proc Natl Acad Sci U S A (2016) 113:E6946–54. doi:10.1073/pnas.1614942113

CrossRef Full Text | Google Scholar

30. Gopal R, Jackson K, Tzarum N, Kong L, Ettenger A, Guest J, et al. Probing the antigenicity of hepatitis C virus envelope glycoprotein complex by high-throughput mutagenesis. PLoS Pathog (2017) 13(12):e1006735. doi:10.1371/journal.ppat.1006735

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Leaver-Fay A, Tyka M, Lewis SM, Lange OF, Thompson J, Jacak R, et al. ROSETTA3: an object-oriented software suite for the simulation and design of macromolecules. Methods Enzymol (2011) 487:545–74. doi:10.1016/B978-0-12-381270-4.00019-6

PubMed Abstract | CrossRef Full Text | Google Scholar

32. von Hahn T, Yoon JC, Alter H, Rice CM, Rehermann B, Balfe P, et al. Hepatitis C virus continuously escapes from neutralizing antibody and T-cell responses during chronic infection in vivo. Gastroenterology (2007) 132(2):667–78. doi:10.1053/j.gastro.2006.12.008

PubMed Abstract | CrossRef Full Text | Google Scholar

33. Bankwitz D, Steinmann E, Bitzegeio J, Ciesek S, Friesland M, Herrmann E, et al. Hepatitis C virus hypervariable region 1 modulates receptor interactions, conceals the CD81 binding site, and protects conserved neutralizing epitopes. J Virol (2010) 84(11):5751–63. doi:10.1128/JVI.02200-09

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Prentoe J, Verhoye L, Velazquez Moctezuma R, Buysschaert C, Farhoudi A, Wang R, et al. HVR1-mediated antibody evasion of highly infectious in vivo adapted HCV in humanised mice. Gut (2016) 65(12):1988–97. doi:10.1136/gutjnl-2015-310300

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Guan M, Wang W, Liu X, Tong Y, Liu Y, Ren H, et al. Three different functional microdomains in the hepatitis C virus hypervariable region 1 (HVR1) mediate entry and immune evasion. J Biol Chem (2012) 287(42):35631–45. doi:10.1074/jbc.M112.382341

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Meunier JC, Russell RS, Goossens V, Priem S, Walter H, Depla E, et al. Isolation and characterization of broadly neutralizing human monoclonal antibodies to the E1 glycoprotein of hepatitis C virus. J Virol (2008) 82(2):966–73. doi:10.1128/JVI.01872-07

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Keck ZY, Sung VM, Perkins S, Rowe J, Paul S, Liang TJ, et al. Human monoclonal antibody to hepatitis C virus E1 glycoprotein that blocks virus attachment and viral infectivity. J Virol (2004) 78(13):7257–63. doi:10.1128/JVI.78.13.7257-7263.2004

PubMed Abstract | CrossRef Full Text | Google Scholar

38. Keck ZY, Olson O, Gal-Tanamy M, Xia J, Patel AH, Dreux M, et al. A point mutation leading to hepatitis C virus escape from neutralization by a monoclonal antibody to a conserved conformational epitope. J Virol (2008) 82(12):6067–72. doi:10.1128/JVI.00252-08

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Keck ZY, Saha A, Xia J, Wang Y, Lau P, Krey T, et al. Mapping a region of hepatitis C virus E2 that is responsible for escape from neutralizing antibodies and a core CD81-binding region that does not tolerate neutralization escape mutations. J Virol (2011) 85(20):10451–63. doi:10.1128/JVI.05259-11

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Potter JA, Owsianka AM, Jeffery N, Matthews DJ, Keck ZY, Lau P, et al. Toward a hepatitis C virus vaccine: the structural basis of hepatitis C virus neutralization by AP33, a broadly neutralizing antibody. J Virol (2012) 86(23):12923–32. doi:10.1128/JVI.02052-12

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Keck ZY, Angus AG, Wang W, Lau P, Wang Y, Gatherer D, et al. Non-random escape pathways from a broadly neutralizing human monoclonal antibody map to a highly conserved region on the hepatitis C virus E2 glycoprotein encompassing amino acids 412-423. PLoS Pathog (2014) 10(8):e1004297. doi:10.1371/journal.ppat.1004297

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Chung RT, Gordon FD, Curry MP, Schiano TD, Emre S, Corey K, et al. Human monoclonal antibody MBL-HCV1 delays HCV viral rebound following liver transplantation: a randomized controlled study. Am J Transplant (2013) 13(4):1047–54. doi:10.1111/ajt.12083

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Pantua H, Diao J, Ultsch M, Hazen M, Mathieu M, McCutcheon K, et al. Glycan shifting on hepatitis C virus (HCV) E2 glycoprotein is a mechanism for escape from broadly neutralizing antibodies. J Mol Biol (2013) 425(11):1899–914. doi:10.1016/j.jmb.2013.02.025

PubMed Abstract | CrossRef Full Text | Google Scholar

44. Li Y, Pierce BG, Wang Q, Keck ZY, Fuerst TR, Foung SK, et al. Structural basis for penetration of the glycan shield of hepatitis C virus E2 glycoprotein by a broadly neutralizing human antibody. J Biol Chem (2015) 290(16):10117–25. doi:10.1074/jbc.M115.643528

PubMed Abstract | CrossRef Full Text | Google Scholar

45. Keck ZY, Li SH, Xia J, von Hahn T, Balfe P, McKeating JA, et al. Mutations in hepatitis C virus E2 located outside the CD81 binding sites lead to escape from broadly neutralizing antibodies but compromise virus infectivity. J Virol (2009) 83(12):6149–60. doi:10.1128/JVI.00248-09

PubMed Abstract | CrossRef Full Text | Google Scholar

46. El-Diwany R, Cohen VJ, Mankowski MC, Wasilewski LN, Brady JK, Snider AE, et al. Extra-epitopic hepatitis C virus polymorphisms confer resistance to broadly neutralizing antibodies by modulating binding to scavenger receptor B1. PLoS Pathog (2017) 13(2):e1006235. doi:10.1371/journal.ppat.1006235

PubMed Abstract | CrossRef Full Text | Google Scholar

47. Fafi-Kremer S, Fofana I, Soulier E, Carolla P, Meuleman P, Leroux-Roels G, et al. Viral entry and escape from antibody-mediated neutralization influence hepatitis C virus reinfection in liver transplantation. J Exp Med (2010) 207(9):2019–31. doi:10.1084/jem.20090766

PubMed Abstract | CrossRef Full Text | Google Scholar

48. Grove J, Nielsen S, Zhong J, Bassendine MF, Drummer HE, Balfe P, et al. Identification of a residue in hepatitis C virus E2 glycoprotein that determines scavenger receptor BI and CD81 receptor dependency and sensitivity to neutralizing antibodies. J Virol (2008) 82(24):12020–9. doi:10.1128/JVI.01569-08

PubMed Abstract | CrossRef Full Text | Google Scholar

49. Zuiani A, Chen K, Schwarz MC, White JP, Luca VC, Fremont DH, et al. A Library of infectious hepatitis C viruses with engineered mutations in the E2 gene reveals growth-adaptive mutations that modulate interactions with scavenger receptor class B type I. J Virol (2016) 90(23):10499–512. doi:10.1128/JVI.01011-16

PubMed Abstract | CrossRef Full Text | Google Scholar

50. Fofana I, Fafi-Kremer S, Carolla P, Fauvelle C, Zahid MN, Turek M, et al. Mutations that alter use of hepatitis C virus cell entry factors mediate escape from neutralizing antibodies. Gastroenterology (2012) 143(1):223–33. doi:10.1053/j.gastro.2012.04.006

CrossRef Full Text | Google Scholar

51. Mailly L, Xiao F, Lupberger J, Wilson GK, Aubert P, Duong FHT, et al. Clearance of persistent hepatitis C virus infection in humanized mice using a claudin-1-targeting monoclonal antibody. Nat Biotechnol (2015) 33(5):549–54. doi:10.1038/nbt.3179

PubMed Abstract | CrossRef Full Text | Google Scholar

52. Colpitts CC, Tawar RG, Mailly L, Thumann C, Heydmann L, Durand SC, et al. Humanisation of a claudin-1-specific monoclonal antibody for clinical prevention and cure of HCV infection without escape. Gut (2017) 67(4):736–45. doi:10.1136/gutjnl-2016-312577

CrossRef Full Text | Google Scholar

53. Meuleman P, Catanese MT, Verhoye L, Desombere I, Farhoudi A, Jones CT, et al. A human monoclonal antibody targeting scavenger receptor class B type I precludes hepatitis C virus infection and viral spread in vitro and in vivo. Hepatology (2012) 55(2):364–72. doi:10.1002/hep.24692

PubMed Abstract | CrossRef Full Text | Google Scholar

54. Ji C, Liu Y, Pamulapati C, Bohini S, Fertig G, Schraeml M, et al. Prevention of hepatitis C virus infection and spread in human liver chimeric mice by an anti-CD81 monoclonal antibody. Hepatology (2015) 61(4):1136–44. doi:10.1002/hep.27603

PubMed Abstract | CrossRef Full Text | Google Scholar

55. Meuleman P, Hesselgesser J, Paulson M, Vanwolleghem T, Desombere I, Reiser H, et al. Anti-CD81 antibodies can prevent a hepatitis C virus infection in vivo. Hepatology (2008) 48(6):1761–8. doi:10.1002/hep.22547

PubMed Abstract | CrossRef Full Text | Google Scholar

56. Vercauteren K, Van Den Eede N, Mesalam AA, Belouzard S, Catanese MT, Bankwitz D, et al. Successful anti-scavenger receptor class B type I (SR-BI) monoclonal antibody therapy in humanized mice after challenge with HCV variants with in vitro resistance to SR-BI-targeting agents. Hepatology (2014) 60(5):1508–18. doi:10.1002/hep.27196

PubMed Abstract | CrossRef Full Text | Google Scholar

57. Felmlee DJ, Coilly A, Chung RT, Samuel D, Baumert TF. New perspectives for preventing hepatitis C virus liver graft infection. Lancet Infect Dis (2016) 16(6):735–45. doi:10.1016/S1473-3099(16)00120-1

PubMed Abstract | CrossRef Full Text | Google Scholar

58. Zhu H, Wong-Staal F, Lee H, Syder A, McKelvy J, Schooley RT, et al. Evaluation of ITX 5061, a scavenger receptor B1 antagonist: resistance selection and activity in combination with other hepatitis C virus antivirals. J Infect Dis (2012) 205(4):656–62. doi:10.1093/infdis/jir802

PubMed Abstract | CrossRef Full Text | Google Scholar

59. Fessel WJ, Anderson B, Follansbee SE, Winters MA, Lewis ST, Weinheimer SP, et al. The efficacy of an anti-CD4 monoclonal antibody for HIV-1 treatment. Antiviral Res (2011) 92(3):484–7. doi:10.1016/j.antiviral.2011.09.010

PubMed Abstract | CrossRef Full Text | Google Scholar

60. Sabo MC, Luca VC, Prentoe J, Hopcraft SE, Blight KJ, Yi M, et al. Neutralizing monoclonal antibodies against hepatitis C virus E2 protein bind discontinuous epitopes and inhibit infection at a postattachment step. J Virol (2011) 85(14):7005–19. doi:10.1128/JVI.00586-11

PubMed Abstract | CrossRef Full Text | Google Scholar

61. Mankowski MC, Kinchen VJ, Wasilewski LN, Flyak AI, Ray SC, Crowe JE Jr, et al. Synergistic anti-HCV broadly neutralizing human monoclonal antibodies with independent mechanisms. Proc Natl Acad Sci U S A (2018) 115(1):E82–91. doi:10.1073/pnas.1718441115

CrossRef Full Text | Google Scholar

62. Xiao F, Fofana I, Thumann C, Mailly L, Alles R, Robinet E, et al. Synergy of entry inhibitors with direct-acting antivirals uncovers novel combinations for prevention and treatment of hepatitis C. Gut (2015) 64(3):483–94. doi:10.1136/gutjnl-2013-306155

PubMed Abstract | CrossRef Full Text | Google Scholar

63. Farci P, Shimoda A, Wong D, Cabezon T, De Gioannis D, Strazzera A, et al. Prevention of hepatitis C virus infection in chimpanzees by hyperimmune serum against the hypervariable region 1 of the envelope 2 protein. Proc Natl Acad Sci U S A (1996) 93(26):15394–9. doi:10.1073/pnas.93.26.15394

PubMed Abstract | CrossRef Full Text | Google Scholar

64. Prentoe J, Velazquez-Moctezuma R, Foung SK, Law M, Bukh J. Hypervariable region 1 shielding of hepatitis C virus is a main contributor to genotypic differences in neutralization sensitivity. Hepatology (2016) 64(6):1881–92. doi:10.1002/hep.28705

PubMed Abstract | CrossRef Full Text | Google Scholar

65. Keck ZY, Girard-Blanc C, Wang W, Lau P, Zuiani A, Rey FA, et al. Antibody response to hypervariable region 1 interferes with broadly neutralizing antibodies to hepatitis C virus. J Virol (2016) 90(6):3112–22. doi:10.1128/JVI.02458-15

PubMed Abstract | CrossRef Full Text | Google Scholar
