ORIGINAL RESEARCH article

Front. Immunol., 06 June 2018 | https://doi.org/10.3389/fimmu.2018.01257

Gestational Hypothyroxinemia Affects Its Offspring With a Reduced Suppressive Capacity Impairing the Outcome of the Experimental Autoimmune Encephalomyelitis

  • 1Departamento de Ciencias Biológicas, Facultad de Ciencias de la Vida, Universidad Andrés Bello, Santiago, Chile
  • 2Millennium Institute on Immunology and Immunotherapy, Santiago, Chile
  • 3Departamento de Genética Molecular y Microbiología, Facultad de Ciencias Biológicas, Pontificia Universidad Católica de Chile, Santiago, Chile
  • 4Medizinishen Fakultät, Eberhard Karls Universität, Tübingen, Germany
  • 5Departamento Biomédico, Facultad de Ciencias de la Salud, Universidad de Antofagasta, Antofagasta, Chile
  • 6Centro de Investigaciones Biomédicas, Facultad de Ciencias de la Vida y Facultad de Medicina, Universidad Andrés Bello, Santiago, Chile
  • 7Departamento de Endocrinología, Escuela de Medicina, Facultad de Medicina, Pontificia Universidad Católica de Chile, Santiago, Chile

Hypothyroxinemia (Hpx) is a thyroid hormone deficiency (THD) condition highly frequent during pregnancy, which although asymptomatic for the mother, it can impair the cognitive function of the offspring. Previous studies have shown that maternal hypothyroidism increases the severity of experimental autoimmune encephalomyelitis (EAE), an autoimmune disease model for multiple sclerosis (MS). Here, we analyzed the immune response after EAE induction in the adult offspring gestated in Hpx. Mice gestated in Hpx showed an early appearance of EAE symptoms and the increase of all parameters of the disease such as: the pathological score, spinal cord demyelination, and immune cell infiltration in comparison to the adult offspring gestated in euthyroidism. Isolated CD4+CD25+ T cells from spleen of the offspring gestated in Hpx that suffer EAE showed reduced capacity to suppress proliferation of effector T cells (TEff) after being stimulated with anti-CD3 and anti-CD28 antibodies. Moreover, adoptive transfer experiments of CD4+CD25+ T cells from the offspring gestated in Hpx suffering EAE to mice that were induced with EAE showed that the receptor mice suffer more intense EAE pathological score. Even though, no significant differences were detected in the frequency of Treg cells and IL-10 content in the blood, spleen, and brain between mice gestated in Hpx or euthyroidism, T cells CD4+CD25+ from spleen have reduced capacity to differentiate in vitro to Treg and to produce IL-10. Thus, our data support the notion that maternal Hpx can imprint the immune response of the offspring suffering EAE probably due to a reduced capacity to trigger suppression. Such “imprints” on the immune system could contribute to explaining as to why adult offspring gestated in Hpx suffer earlier and more intense EAE.

Introduction

Maternal thyroid hormones (THs), 3,5,3′-l-tri-iodotironine (T3), and 3,5,3′5′-l-tetraiodo-tironine (T4) are essential for the proper development of the central nervous system (CNS), the lungs, skeletal muscles, and bones (1, 2). It has been widely shown in humans and other mammals that maternal thyroid hormone deficiencies (THD), such as hypothyroidism or hypothyroxinemia (Hpx) during gestation can be hazardous for the future cognitive performance of the offspring (35). Hpx is highly frequent condition in women with a prevalence fluctuating between 1 and 2% in iodine sufficient communities (6) and considered to be 100–200 times more frequent than congenital hypothyroidism (7). Clinically, low blood levels of T4 with normal levels of T3 and thyroid stimulating hormone (TSH) are characteristic of this condition. Hpx is asymptomatic for the mother, because the levels of T3 are in the normal range and T3 is the biologically active TH responsible for most of the effects that THs have on the body. Conversely, the effects of Hpx on the offspring can be significantly detrimental (8, 9) because up to the 11th week of gestation the hypothalamus–hypophysis axis and the thyroid gland of the fetus remain immature and unable to synthesize THs (10). Maternal T4 is the only TH able to cross the placenta, then the mother provide T4 to the fetus, whose tissues catalyze the transformation into the active T3 (11). It has been strongly reported that conditions associated with low T4 like maternal hypothyroidism or maternal Hpx caused cognition impairment (7, 12). However, only a few reports have explored the effect of maternal THD during gestation on the immune system of the offspring. It has been reported that the induction of neonatal hypothyroidism in rats caused that their offspring develop reduced numbers of splenic and thymic B and T cells (13). These effects were only transient, as all values returned to normal during the adulthood (13). Also, a transient increase in the frequency of CD4+CD25+ T cells was observed in the offspring of rats gestated in hypothyroidism; however, after 3 months these values were similar to control rats (14). These facts led to think that the immune system is not altered during gestation by maternal THs. Conversely, Albornoz et al., by using an experimental animal model for multiple sclerosis (MS) named experimental autoimmune encephalomyelitis (EAE) (15), showed that female offspring gestated in hypothyroidism has higher susceptibility to develop EAE compared to the offspring gestated in euthyroidism (16). Thus, it is possible that THD during gestation could work as a risk factor for the adult offspring to suffer this inflammatory disease. To understand the consequences of gestational THD over the offspring immune system, here we have evaluated the effects of gestational Hpx over the suppressive capacity of the immune response of mice suffering EAE. Noteworthy, is to emphasize that this study focuses in the imprinting of gestational Hpx and not gestational hypothyroidism. The reason for that relies that Hpx in pregnancy is 200 times more frequent than it is hypothyroidism (17) and that this condition goes unnoticed by the patient or clinicians because it is absent of symptoms (9). The results of this work showed that the adult offspring gestated in Hpx had an earlier onset and high severity of EAE compared to the progeny gestated in euthyroidism. This observation correlated with a significant increase of spinal cord demyelination and infiltration of CD4+ and CD8+ T cells in the offspring gestated in Hpx. CD4+CD25+ T cells isolated from spleen of the offspring gestated in Hpx showed reduced suppressive capacity both in vitro and in adoptive transfer experiments to naïve recipient mice gestated in Hpx that suffers EAE. Moreover, CD4+CD25 T cells after being in vitro stimulated with anti-CD3 and anti-CD28 antibodies in an incubation medium to induce Treg have less capacity to express FOXP3 and IL-10. This study supports the notion that gestational Hpx imprints a reduced capacity in CD4+ T cells to trigger suppression in the offspring and this could increase the severity of an inflammatory disease such as EAE.

Materials and Methods

Mice

C57BL/6 mice (The Jackson Laboratory, Bar Harbor, ME, USA) were maintained in a germ-free animal facility center at the Universidad Andrés Bello. All animal work was performed according to institutional guidelines and supervised by a veterinarian.

Induction of Gestational Hpx in Mice

Six- to eight-week-old C57BL/6 mice were checked for vaginal plugs the day after mating. Mice with vaginal plugs were considered to be pregnant and that day was assigned as pregnancy day 1 (E1). From E10 to E15 mice were treated with 0.02% methimazole (MMI) (M8506, Sigma-Aldrich, USA) in the drinking water. In the control group, mice drank water without MMI during the entire pregnancy. A third experimental group consisted of pregnant mice that received MMI and T4 (2 mg/l) in the drinking water from E10 to E15. To analyze the health status of the offspring, a complete blood cells (CBC) analysis from blood samples of mice at 55 postnatal day was performed. Briefly, blood samples were obtained from the face vein of control, Hpx, and Hpx + T4 mice. Red blood cell count and white blood cell count were performed by an external veterinary laboratory (VetLab) and the obtained results were analyzed and resumed in Table S1 in Supplementary Material.

Detection of THs and TSH

Thyroid hormones of mice and their respective progeny were measured on the last day of treatment (E15) and at postnatal day 55 (P55), respectively, from blood samples (500 µl) obtained from the tail. Serum tT3 and tT4 were measured by radioimmunoassay using Coat-A-Count Siemens Healthcare Diagnostics kits (cat no. TKT41 for tT3 and TKT31 for tT4). TSH was measured using a mouse ultrasensitive TSH enzyme-linked immunosorbent assay kit from Mybiosource (cat no. MBS704901), according to the manufacturer’s instructions.

EAE Induction and Assessment

Seven-week-old female offspring gestated in Hpx, Hpx + T4, and euthyroidism (control) which weights were between 17 and 25 g were induced with a mild form of EAE. Briefly, these mice were s.c injected in the flank with 50 µg of myelin oligodendrocyte-glycoprotein-derived peptide [myelin oligodendrocyte glycoprotein (MOG)35–55, MEVGWYRSPFSRVVHLYRNGK] emulsified in complete Freund’s adjuvant supplemented with heat-inactivated Mycobacterium tuberculosis H37 RA. On this day and 48 h later, these mice also received an i.p. injection of 350 ng of Pertussis toxin. From day 1, the clinical score of all mice was derived according to standard reported score criteria (18). Mice were weighted before and each day after EAE induction. After 21 days of EAE induction mice were sacrificed for experimental analysis.

Immunofluorescence for Myelin Basic Protein (MBP) and CD4+ and CD8+

At day 21st after EAE induction spinal cords from the three experimental groups were fixed in 4% PFA and frozen in OCT with isopentane in liquid nitrogen. Twenty-micron-thick lumbar sections were obtained using a cryostat (Leyca CM152S) and the tissue sections were fixed in 4% PFA. Primary antibody used for MBP assessment was MBP (3 µg/ml, Abcam, Cambridge, MA, USA) and samples were then incubated with Alexa594 antibody (10 µg/ml, Invitrogen). For cell infiltration analysis, primary antibodies were CD4-Alexa488 (5 µg/ml, Invitrogen), CD8 (5 µg/ml, Abcam, Cambridge, MA, USA), and nucleuses were counterstained with DAPI. Alexa647 antibody (10 µg/ml Invitrogen) was used as secondary antibody. Immunofluorescence was analyzed using a Fluoview FV1000 laser scanning confocal microscope (Olympus) with 20× objective. Briefly to calculate the demyelination score, at least 6 CNS tissue sections were analyzed and demyelination was scored according to Zappia et al. (19). 1 = traces of subpial demyelination, 2 = marked subpial and perivascular demyelination, 3 = confluent perivascular or subpial demyelination, 4 = massive perivascular and subpial demyelination involving one half of the spinal cord with presence of cellular infiltrate in the CNS parenchyma, and 5 = extensive perivascular and subpial demyelination involving the whole cord section with presence of cellular infiltrate in the CNS parenchyma.

CD4 or CD8 positive T cells were quantified in a blind fashion from three independent experiments, where three different areas were chosen from three lumbar sections per mice. Positive CD4 or CD8 cells were expressed as the percentage from the total cells stained with DAPI in each section.

MOG-Specific T Cell Cytokine Release Assays

Splenocytes obtained on day 21 after EAE induction were cultured (2.0 × 105 cells/well) in RPMI 1640 medium containing 5% FBS with MOG35–55 (10 µM). Cultures were incubated in 96-well flat bottom plate for 48 h, 72 h, and 5 days at 37°C in a cell culture incubator. IL-10 release in response to MOG35–55 was determined on culture supernatants by ELISA following manufacturer’s instructions (eBioscience).

Quantification of CD4+CD25+FOXP3+ and IL-10 by Flow Cytometry

Total splenocytes were stained with anti-CD4-PE-Cy7 (clone RM4-5; Biolegend, San Diego, CA, USA), anti-CD25-PE (clone PC61.5; eBioscience Inc., San Diego, CA, USA), and fixed in 1% PFA in PBS. Then, cells were incubated with anti-Foxp3-APC (clone FJK-16s; eBioscience Inc., San Diego, CA, USA) and anti-IL-10-FITC (BD Bioscience 554466) in saponine 0.1% and BSA 3% and fixed again in PFA 1%.

Cells from the immune system were isolated from brain and spinal cord from the three experimental groups. Before the extraction of these organs, mice were intracardially perfused with PBS. Then, the meninges were discarded, and the brain and spinal cord were homogenized in a PBS-EDTA 2 mM solution by passing through a 70 μm cell strainer (Bioscience Inc., San Diego, CA, USA). The samples were centrifuged and the pellet was re-suspended in a 30% Percoll solution and loaded onto a 70% solution without mixing the phases. The samples were centrifuged again at 700 × g for 20 min at RT and the interface was recovered and centrifuged to pellet the immune cells that were re-suspended in a PBS-5% FBS solution.

Cells of the immune system were isolated from blood samples by adding ACK to each sample for 5 min at RT. The samples were centrifuged at 500 × g for 5 min and the pellet was re-suspended again in ACK for 5 min at RT. To neutralize ACK, PBS was added to the samples and they were centrifuged at 500 × g for 5 min and the pellet was re-suspended in PBS-5% FBS. Cells were acquired using a FACSCanto II (BD Bioscience) and data were analyzed using FCS Express 4 research edition software (De Novo).

Content of IL-10 in the Blood, Spleen, and CNS

The content of IL-10 was determined by ELISA in blood, spleen, and CNS. First the protein concentration was determined in blood, spleen, and CNS using the BCA method. IL-10 concentration was determinated by ELISA (IL-10 ELISA Set BD OptEIA 6154834) following the manufacturer’s instructions. 500 µg of total protein was used for IL-10 quantification. To determine the IL-10 level in the serum, blood samples were obtained from the vena cava from mice. The blood was left for 30 min at 4°C to clot and then it was centrifuge at 10,000 × g at 4°C. A 100 µl of serum were used to measure IL-10.

In Vitro Differentiation of Naïve CD4+ T Cells to CD4+CD25+FOXP3+ T Cells

To induce the differentiation of Treg cells a single-cell suspension of spleens of Hpx, Hpx + T4, and control mice was obtained using ACK. CD4+CD25 T cells were enriched using the CD4+CD25+ regulatory T cell Isolation Kit (MACS® 130-091-041) following the manufacturer’s instruction to obtain enriched CD4+CD25 T cell solution. The single-cell suspension was cultured in triplicates in induction (i) Treg medium with activation factors αCD3 and αCD28 for 5 days at 37°C and 5% CO2. To further analyze the differentiation capacity of Treg cells, CD4+CD25 T cells were also cultured in iTreg medium without activation factors and in cRPMI 1640 medium only as control conditions. Complete RPMI 1640 medium serves as basis of all media. For the iTreg medium IL-2 (20 ng/ml, BD Biosciences 550069) and mTGF-β1 (5 ng/ml) and for Treg cell activation αCD3 (2 µg/ml) and αCD28 (2 µg/ml) were added. To compare the absolute number of CD4+CD25+IL-10+FoxP3+ T cells that had differentiated in the culture, the absolute number of CD4+CD25+IL-10+FoxP3+ T cells found in the culture with cRPMI 1640 medium was subtracted from the absolute number of CD4+CD25+IL-10+FoxP3+ T cells found in the culture with the Treg induction media. The amount of IL-10 secreted in the in vitro Treg generation assay was determined by ELISA. For that 100 µl of supernatant of each sample was used in duplicate to measure IL-10 by ELISA following the manufacturer’s instructions as previously described. To compare the amount of IL-10 being produced during this in vitro Treg generation assay the amount of IL-10 found in the culture of CD4+CD25 T cells with cRPMI 1640 medium was subtracted from the amount of IL-10 detected in the culture of CD4+CD25 T cells with the Treg induction media.

Purification of CD4+CD25+ T Cells for Suppression Assays and Adoptive Transfer Experiments

CD4+CD25+ T cells were isolated from spleen as previously described (20). Briefly, CD4+ T cells were isolated by negative selection from cell suspensions of spleen by using magnetic-associated cell sorting beads (MACS, Mylteni Biotec, Germany no. catalog 130-091-041). Then, from the pool of CD4+ T cells, CD25+ T cells were purified by positive selection using magnetic associated cell sorting beads (MACS, Mylteni Biotec, Germany no. catalog 130-091-041) and separated from CD25 T cells, which correspond to T effector cells (TEff cells). The purification efficiency of CD4+CD25+ or CD4+CD25 T cells was analyzed by flow cytometry by using 0.08 µg/ml of anti-CD4+ monoclonal antibody coupled to allophycocyanin (BD Pharmamingen, no. catalog 553051) and 0.08 µg/ml anti-CD25+ monoclonal antibody coupled to phycoerythrin (eBioscience no. catalog 12-0232).

In Vitro Suppression Assays

CD4+CD25+ T cells isolated from spleen as previously described were used to measure their suppression capacity over CD4+CD25 T cells (TEff) proliferation. For suppression assays, CD4+CD25+ T cells were incubated with TEff cells previously stained with 5 µM of carboxyfluorescein diacetate succinimidyl ester (CFSE) (Molecular Probes, n° catalog C34554) per 10 min at 37°C in RPMI 1640 medium. The suppression assay was performed in a 96-well coated plate by co-culturing 50,000 TEff cells stained with CFSE with 5,000, 50,000, or 100,000 of Treg cells for 72 h at 37°C in a humidified atmosphere with 5% CO2. This co-culture was performed in the presence of RPMI 1640 medium supplemented with 5% heat-inactivated fetal bovine serum, 100 IU/mL penicillin–streptomycin, 2 mM l-glutamine, 1 mM Hepes, 1 mM sodium pyruvate, 1 mM non-essential amino acids, 55 µM 2-mercaptoethanol (all from Gibco), 0.25 µg/ml of anti-mouse CD3, and 0.25 µg/ml of anti-mouse CD28 (BD Pharmamingen catalog 553058/553295) to activate TEff cells. 50 IU of IL-2 (eBioscience, no. catalog 14-8021) was also added to the medium to keep Treg cells properly. After 72 h of incubation, the cells were centrifuged at 300 g per 5 min, then the cells were re-suspended in PBS with 5% FBS. The CFSE fluorescence intensity was analyzed in BD Canto II flow cytometer (Pontificia Universidad Católica de Chile, Departamento de Ciencias Biológicas). The data obtained were analyzed using Flowjo Software (Flowjo 7.6.1). Singlets were selected from total FSC/SSC events (10,000 events). The method of division index was used to calculate the percentage of suppression (21). Briefly, the percentage of suppression capacity is calculated as follows: from the Flowjo software values of division indices (DI) are used in the formula. DI for TEff cells in the presence of Treg cells (DI TEff in the presence of Treg) and DI for TEff cells alone (DI of TEff alone):

% Suppression=100(DITEff in the presence of TregDITEff alone)×100.

Adoptive Transfer of Treg Cells

For the adoptive transfer experiments, first EAE was induced to control and Hpx offspring as previously described. At day 21 of EAE the spleens were isolated and single-cell suspensions of splenocytes were prepared as described before. Then CD4+CD25+ T or Treg cells were isolated from mouse splenocytes with a CD4+CD25+ regulatory T cell Isolation kit (Miltenyi Biotec) as previously described. Then 6 × 105 cells per well of CD4+CD25+ T cells were stimulated by culture with 2,000 IU/ml recombinant mouse IL-2 (R&D Systems) for 7 days in 24-well plate which were pre-coated with 1 µg/ml of anti-mouse CD3 and anti-mouse CD28 Abs (BD Pharmingen). The phenotype of Treg cells was confirmed by flow cytometry using CD4+ and Foxp3 markers before adoptive transfer into mice (Figure 7A). 1 × 106 cells positive for CD4+CD25+FOXP3+ were intravenously injected to recipient mice gestated in Hpx or control. 24 h later EAE was induced in these recipient mice as previously described. Clinical scores for EAE assessment was monitored for 21 days in the recipient mice as previously described.

Statistical Analyses

Data and statistical analyses were performed using Prism 4 software (GraphPad Software, Inc.) and Statistica 6.0 software (StatSoft Inc., 2001, Tulsa, OK, USA). The results are shown as mean ± SEM. Statistical differences for THs and TSH were tested using unpaired Student’s t-test. Repeated measure ANOVA test was used to analyze the effect of gestational Hpx on EAE clinical scores. Statistical significance is indicated by *p < 0.05, **p < 0.01, and ***p < 0.001.

All data were tested for normality and homoscedasticity using Kolmogorov–Smirnov and Levene’s tests. When necessary, data were transformed to meet statistical assumptions. When differences were significant at P < 0.05 after general linear model tests, we used a posteriori Bonferroni test for multiple comparisons and Tukey’s test for balanced samples.

Results

MMI Treatment Induces Hpx in Pregnant Mice

Gestational Hpx was induced by the administration of MMI to pregnant mice (see Materials and Methods). To demonstrate that pregnant mice suffered Hpx during gestation, serum tT3, tT4 and TSH were measured as described in Section “Materials and Methods.” The mean serum levels for tT3 and TSH remained unchanged between pregnant mice treated with MMI in comparison to pregnant mice without treatment (control) or those that received MMI and T4 (Hpx + T4) (Figure 1A). On the other hand, the mean serum levels of tT4 in the pregnant mice treated with MMI were reduced compared to the mean values of Hpx + T4 and control mice (Figure 1A). These results indicate that the treatment with MMI to pregnant mice induced Hpx a condition that was reverted by the addition of T4 during the treatment with MMI. The thyroidal state was also analyzed in the offspring at adult age of P55. The serum levels of tT3, tT4, and TSH remained similar in the three offspring experimental groups (Figure 1B) indicating that the MMI treatment during gestation does not affect the thyroid function of progeny at the adulthood.

FIGURE 1
www.frontiersin.org

Figure 1. Treatment with methimazole induces hypothyroxinemia (Hpx) in pregnant mice. (A) tT4, tT3, and thyroid stimulating hormone (TSH) levels were analyzed from serum samples of pregnant mice at E15 after treatment with methimazole (MMI). The treated group with MMI was designated as Hpx. The group treated with MMI plus T4 was named Hpx + T4, and the untreated pregnant mice as control group. Control N = 4, Hpx N = 4, and Hpx + T4 N = 3. (B) tT4, tT3, and TSH levels were analyzed from serum samples of the offspring from the three experimental groups at P55: (1) gestated in Hpx; gestated in euthyroidism (control); or gestated in MMI plus T4 (Hpx + T4) conditions. Data are showed as the mean ± SEM. *p < 0.01. Control N = 3, Hpx N = 3, and Hpx + T4 N = 3.

Female Offspring Gestated in Hpx Show More Intense EAE Symptoms

Experimental autoimmune encephalomyelitis was induced in the progenies of Hpx, Hpx + T4, and control at P55 (see Materials and Methods) and the clinical score was followed for 21 days. As shown in Figure 2A, both control and Hpx + T4 groups displayed a similar pattern both for the onset and the intensity of EAE symptoms. In contrast, the Hpx group showed an earlier onset of the disease at day 8 and the clinical score was significantly higher at days 14–15 when compared to Hpx + T4 and control groups. Nevertheless, all the experimental groups reached a similar clinical score between 2.0 and 2.5 by the final days of evaluation (Figure 2A). Spinal cords from the offspring of the three experimental groups at day 21 after EAE induction were stained for MBP to evaluate demyelination (Figures 2B,C). Fluorescence quantification analyses showed that the progeny gestated in Hpx conditions has increased the mean demyelination score compared to the offspring gestated in euthyroidism or Hpx + T4 condition (Figures 2B,C). The demyelination score increased significantly in the offspring of the three experimental groups when EAE was induced (Figures 2B,C). However, the mean score for Hpx gestated mice increases to 4, while the increase observed in control and Hpx + T4 gestated mice reaches a mean score of 2, which is a statistically significant decrease (Figure 2B). Cellular infiltration in spinal cord sections were analyzed at day 21 after EAE induction by confocal microcopy for anti-CD4, anti-CD8, and anti-DAPI antibodies (Figures 2D–F). Quantification analyses showed CD4+ and CD8+ T cells only in the offspring from the three experimental groups that suffer EAE (Figures 2D–F). A significant increase in the percentage of both CD4+ and CD8+ T cells was detected at the spinal cords from the offspring gestated in Hpx that suffer EAE compared to the offspring gestated in control or Hpx + T4 that suffer EAE (Figures 2D–F). To rule out the possibility that gestational Hpx induced an impaired physical condition or unhealthy state in their offspring that could affect the outcome of EAE, the weight of all the experimental groups was registered before and through the EAE experiment and a cell blood count (CBC) test was performed at postnatal day 55. Figure S1 in Supplementary Material showed that the offspring gestated in Hpx has similar weight compared to the offspring gestated in Hpx + T4 and euthyroidism at P55. The Figure S2 in Supplementary Material showed that weight of the three experimental groups during EAE was similar. Moreover, the offspring gestated in Hpx showed similar CBC compared to the offspring gestated in Hpx + T4 and euthyroidism (See Table S1 in Supplementary Material). These results support the notion that the offspring gestated in Hpx showed a more intense EAE than the offspring gestated in euthyroidism and that it is not due to an unhealthy state.

FIGURE 2
www.frontiersin.org

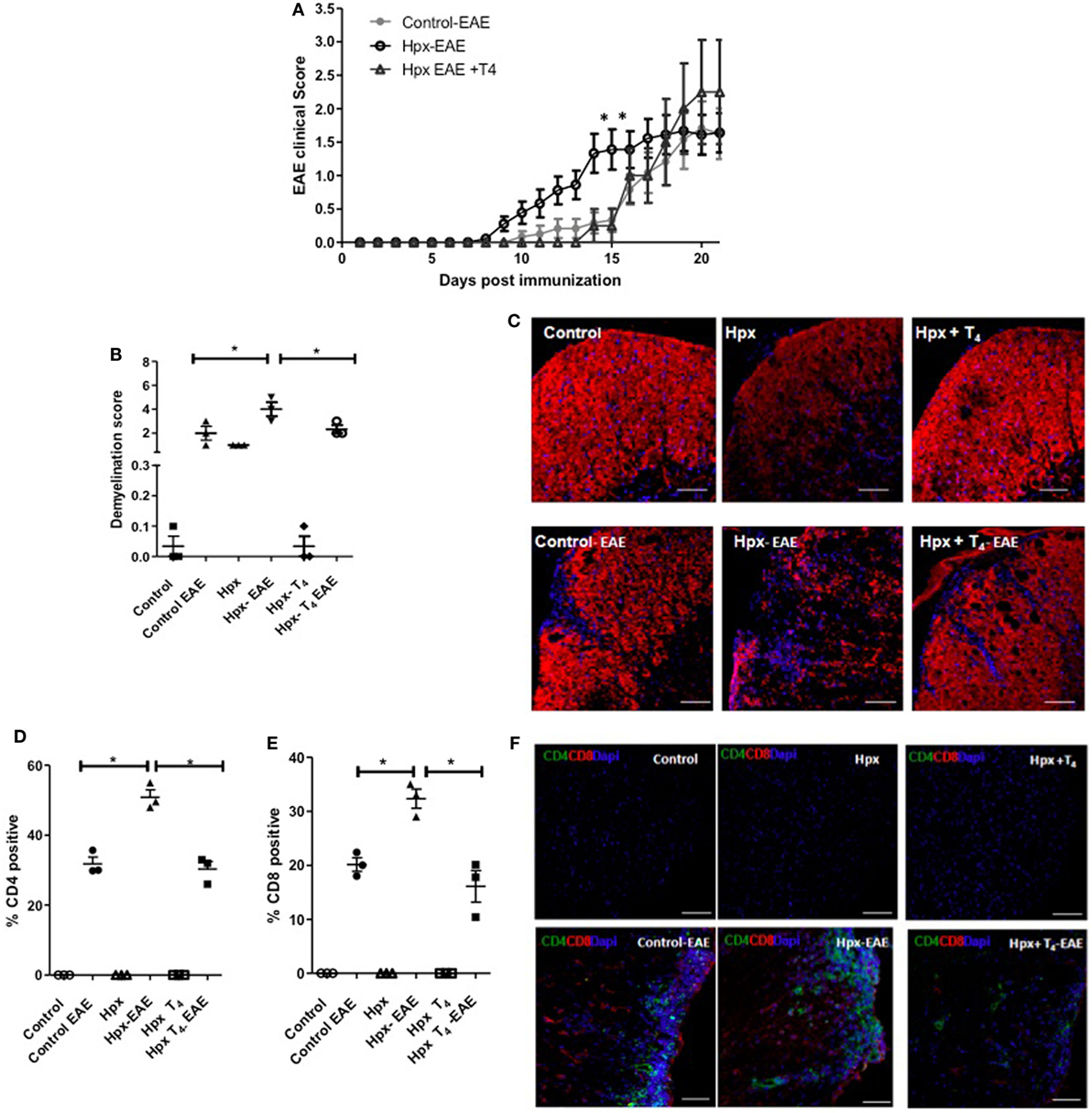

Figure 2. The offspring gestated in hypothyroxinemia (Hpx) has an intense experimental autoimmune encephalomyelitis (EAE). (A) EAE was induced in C57BL/6 female offspring that were gestated under Hpx (Hpx empty circles, N = 18), or gestated under euthyroidism (control, filled circles, N = 12), or gestated under treatment with MMI + T4 (Hpx + T4, empty triangles, N = 8). The severity of EAE was plotted base on a daily pathological score (see Materials and Methods) every day post-EAE induction. The mean of the disease scores for the female offspring and ± SD was plotted. Statistical analysis was performed by two-way ANOVA, post-test Bonferroni. *p < 0.05. (B) Demyelination score from quantitative histopathological analyses of spinal lumbar cord sections stained for myelin basic protein (MBP) from mice at 21 days after EAE induction. Values represent the mean ± SEM, N = 3, *p < 0.05. (C) Representative confocal microscopy pictures of white matter from spinal lumbar cord of control, Hpx, or Hpx + T4 offspring that suffer or not of EAE were analyzed for MBP (red). Nuclei are shown in blue (DAPI). Bar size is 100 µm. (D) Quantitative analysis of CD4+ and (E) CD8+ T cells detected by confocal immunofluorescence of spinal cord lumbar sections of control, Hpx, and Hpx + T4 offspring after 21 days of induction with EAE. Values represent the mean ± SEM. *p < 0.05 (N = 3). (F) Representative confocal microscopy images of lateral lumbar sections of the spinal cord regions immunostained with anti-CD4 (green), anti-CD8 (red), and DAPI (blue) of control, Hpx, and Hpx + T4 offspring that were induced or not with EAE. The sections were analyzed with 20× objective. Bar size is 100 µm (N = 3).

The Spleen of Offspring Gestated in Hpx Has Similar Percentage of CD4+CD25+FOXP3+ and Low Content of IL-10 After EAE Induction

Given that it has been reported that the number and function of Treg cells can affect the autoimmune response (2224), these factors were analyzed in the offspring gestated in Hpx. First, the percentage of CD4+CD25+FOXP3+IL-10+ T cells was analyzed in the blood, spleen, and CNS (Figure 3A). The offspring gestated in Hpx showed similar percentage of CD4+CD25+FOXP3+IL-10+ T cells in these three organs compared to control and Hpx + T4 (Figure 3A). The content of IL-10 analyzed in blood, spleen, and CNS of the offspring gestated in Hpx showed similar levels compared to the offspring gestated in control or Hpx + T4 (Figure 3B). To analyze whether the induction of EAE could change this T cell population, the percentage of CD4+FOXP3+ T cells and the percentage of CD25+FOXP3+ T cells in the spleen of the offspring from the three experimental groups was analyzed by flow cytometry after 21 days of EAE induction (Figures 4A,B). The percentage of CD4+Foxp3+ T cells was similar in the offspring of the three experimental groups (Figure 4C). Similarly, the percentage of CD4+Foxp3+CD25+ cells from spleens was similar for the offspring of the three experimental groups (Figure 4D). The secretion of IL-10 was analyzed from the supernatants of splenocytes primary cell culture. These splenocytes were derived from the offspring of the three experimental groups that suffered or not EAE. The culture of splenocytes was treated with MOG35–55 to induce T cell activation (25). High levels of IL-10 secretion were observed in those supernatants that the splenocytes were stimulated with MOG35–55 (Figures 4E,F). However, the splenocytes derived from the offspring gestated in Hpx that suffered EAE had significantly lower IL-10 secretion as compared to mice gestated in euthyroidism suffering EAE (Figures 4E,F). These results suggest that the percentage of Treg cells from the spleen is not altered in the offspring gestated in Hpx whether they suffer or not EAE. Moreover, the low levels of IL-10 in the spleen of offspring gestated in Hpx that suffer EAE could suggest that the suppressive capacity is impaired in these mice.

FIGURE 3
www.frontiersin.org

Figure 3. The percentage of CD4+CD25+FOXP3+IL-10+ and the content of IL-10 in the blood, spleen, and central nervous system (CNS) is similar in the offspring gestated in hypothyroxinemia (Hpx) or euthyroidism. (A) Determination of frequency of CD4+CD25+IL-10+FoxP3+cells in blood, spleen, and CNS of control, Hpx, and Hpx + T4 mice. Statistical analysis showed no significant differences in frequency of CD4+CD25+IL-10+FoxP3+cells of Hpx mice compared to control and Hpx + T4 mice. Control and Hpx n = 7, Hpx + T4 n = 3. Mean ± SEM *p < 0.05. ANOVA and Tukey’s test. (B) Determination of the content of IL-10 in the serum, spleen, and CNS of the offspring gestated in control, Hpx, and Hpx + T4. Statistical analysis showed no significant differences in the content of IL-10 of Hpx gestated in Hpx compared to control and Hpx + T4 mice. n = 3, mean ± SEM *p < 0.05, ANOVA, and Tukey’s test.

FIGURE 4
www.frontiersin.org

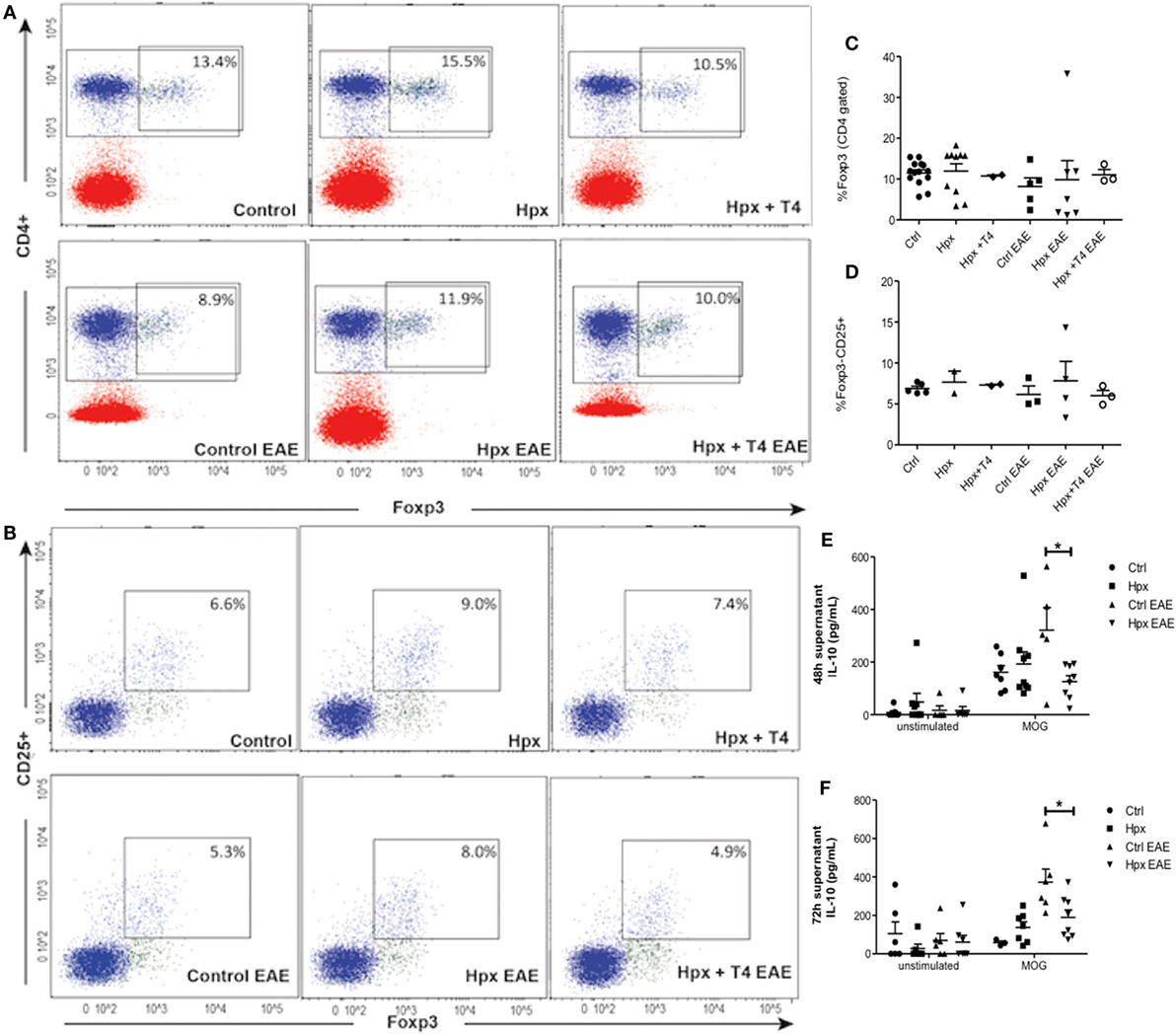

Figure 4. The spleen of the offspring gestated in hypothyroxinemia (Hpx) has similar percentage of CD4+CD25+FOXP3+ T cells in the spleen of the offspring gestated in Hpx suffering or not experimental autoimmune encephalomyelitis (EAE) and less content of IL-10 only after EAE induction. (A) Representative dot plots of CD4+Foxp3+ T cells from spleens of the three experimental groups gestated in euthyroidism (control), Hpx, and Hpx + T4 induced or not with EAE. This study was performed after 21 days of EAE induction. The upper right panel shows the percentage of CD4+Foxp3+ T cells from spleens in each experimental group. (B) Representative dot plots of CD4+CD25+Foxp3+ T cells from spleens of the three experimental groups gestated in euthyroidism (control), Hpx, and Hpx + T4 induced or not with EAE. The upper right panel of every dot-plot shows the percentage of CD4+Foxp3+CD25+ T cells. The graphs (C,D) show the analysis for the dot plots (A,B), respectively. These graphs correspond to three independent experiments that used five mice per experimental group. (E,F) IL-10 secretion measured by ELISA from the supernatants of total splenocytes after being cultured for 48 or 72 h, respectively either in the absence or presence of myelin oligodendrocyte glycoprotein. The splenocytes are derived from the three experimental groups gestated in euthyroidism (control), Hpx, or Hpx + T4 induced or not with EAE. Values represent the mean ± SEM. Statistical analysis was performed using one-way ANOVA and Tukeys post-test. Statistical significance is indicated as *p < 0.05 (n = 3).

CD4+CD25+ T Cells From the Spleen of Their Offspring Gestated in Hpx Have Reduced Capacity to Suppress Activated TEff Cells

The suppression of TEff cells proliferation was measured in the presence of CD4+CD25+ T cells derived from the spleen of mice gestated in Hpx in an in vitro assay as described in Section “Materials and Methods.” The CD4+ CD25+ T cells derived from the spleen of offspring gestated in control or Hpx were isolated and co-cultured with TEff cells from control mice. The TEff cells (CD4+ CD25 cells) were previously labeled with CFSE (see Materials and Methods) in the co-culture were activated with the presence of soluble anti-CD3 and anti-CD28 antibodies. The percentage of suppression of TEff cells proliferation in the presence of CD4+CD25+ T cells was plotted in the Figure 5A. The suppression of TEff cells proliferation was significantly reduced in the presence of CD4+CD25+ T cells derived from the offspring gestated in Hpx compared to the offspring gestated in euthyroidism (control) at different ratios (Figure 5A). Representative histograms are shown in Figure 5B. The left and right histograms represent the proliferations of TEff cells from control mice in the presence of CD4+CD25+ T cells from control or Hpx offspring, respectively (Figure 5B). The highest peaks of both figures represent the number of TEff cells that had not proliferated. The small peaks at 103 of intensity represent the TEff cells that proliferated. The TEff cells that are co-cultured with CD4+CD25+ T cells from the offspring gestated in Hpx had a high number of cells that proliferate (right histogram) in comparison to those co-cultured with CD4+CD25+ T cells from control offspring (left histogram). Aiming to elucidate the proliferation capacity of TEff cells from the offspring gestated in Hpx, TEff cells from these mice, or from the offspring gestated in control were co-cultured in the presence of CD4+CD25+ T cells from control mice (Figure 5C). The analysis of these results showed that TEff cells from the offspring gestated in Hpx have similar capacity to proliferate than TEff cells from control offspring in the presence of CD4+CD25+ T cells from control mice (Figure 5C). Thus, the analysis of these results suggests that gestation in Hpx would reduce the suppressive capacity of CD4+CD25+ T cells from its offspring. However, gestational Hpx will not alter the capacity of TEff cells of its offspring to proliferate. Figure 5D shows representative histograms for: (1) the peak of CD4+CD25+ T cells from control offspring, that corresponds to its autofluorescence (upper); (2) the proliferation of TEff cells from control mice cultured with anti-CD3 and anti-CD8 antibodies and without the presence of CD4+CD25+ T cells (left); and (3) the proliferation of TEff cells from control mice cultured without anti-CD3 and anti-CD28 antibodies and without CD4+CD25+ T cells (right).

FIGURE 5
www.frontiersin.org

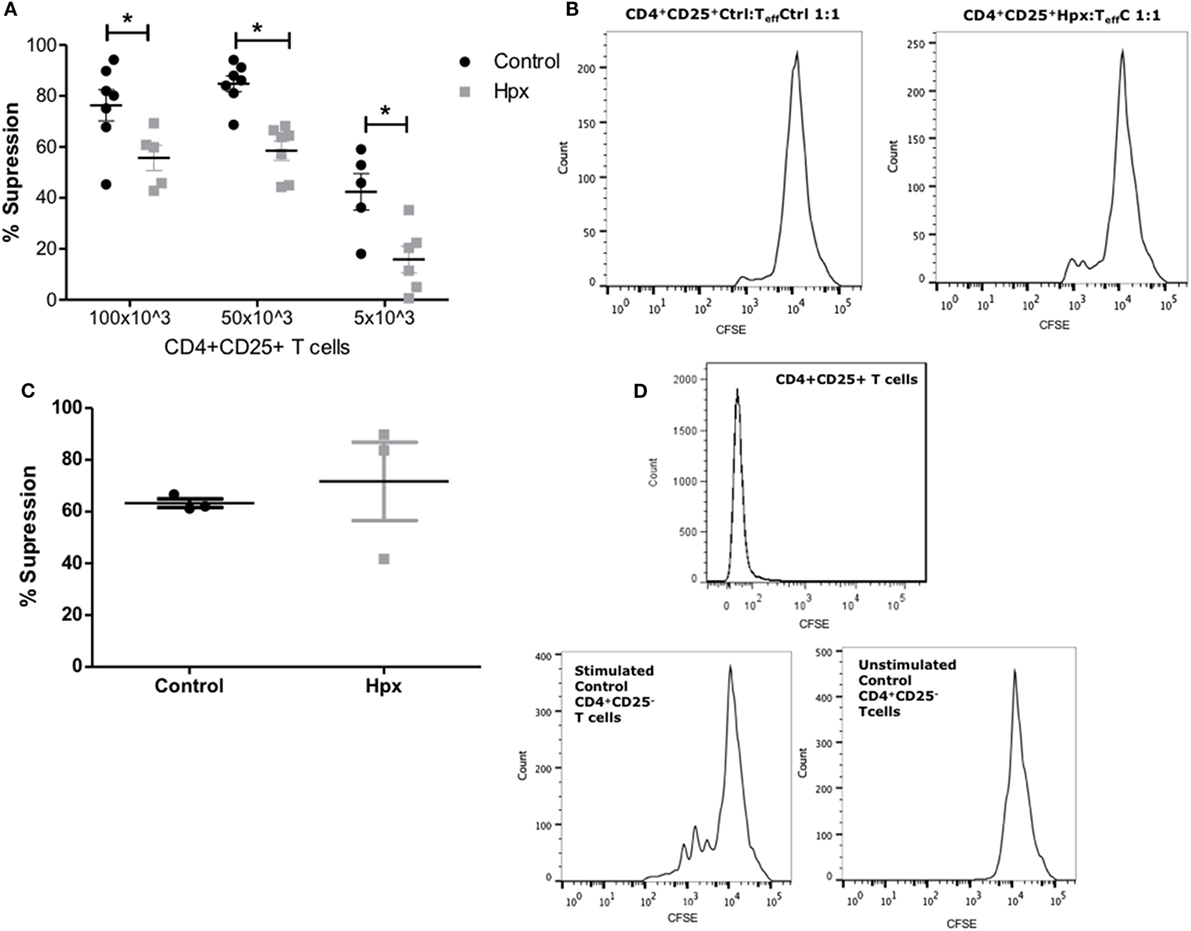

Figure 5. CD4+CD25+ T cells from the spleen of their offspring gestated in hypothyroxinemia (Hpx) have reduced capacity to suppress activated effector T cells (TEff) cells. (A) The graph shows the percentage of suppression capacity of CD4+CD25+ T cells from spleen of the offspring gestated in euthyroidism (control) or Hpx over TEff cells stained with carboxyfluorescein diacetate succinimidyl ester (CFSE) from control mice and activated with anti-CD3 and anti-CD28 monoclonal antibodies N = 6 independent cultures (see Materials and Methods). (B) The right histogram is representative of TEff cells from control mice loaded with CFSE to analyze proliferation in the presence of CD4+CD25+ T cells from control offspring (left); the right histogram is representative of TEff cells from control mice loaded with CFSE to analyze proliferation in the presence of CD4+CD25+ T cells derived from Hpx offspring. (C) The graph shows the percentage of suppression capacity of CD4+CD25+ T cells from spleen of the offspring gestated in euthyroidism (control) over CD4+CD25+ T cells stained with CFSE from control or Hpx offspring that were activated with anti-CD3 and anti-CD28 monoclonal antibodies N = 3 independent cultures (see Materials and Methods). Values represent the mean ± SEM. Statistical analysis was performed using one-way ANOVA and Tukeys post-test. Statistical significance is indicated as *p < 0.05. (D) Representative histogram of the autofluorescence for CD4+CD25+ T cells from control offspring mice (upper); representative histogram of TEff cells from control mice that were stimulated with anti-CD3 and anti-CD8 antibodies and without CD4+CD25+ T cells (middle); and representative histogram of TEff cells without stimulation with anti-CD3 and anti-CD28 antibodies and without CD4+CD25+ T cells (left).

CD4+CD25 T Cells From the Offspring Gestated in Hpx Show a Reduced Capacity to Differentiate Toward CD4+CD25+IL-10+FoxP3+ T Cells and to Secrete IL-10

To analyze the differentiation capacity of CD4+CD25 T cells toward CD4+CD25+IL-10+FoxP3+ T cells, CD4+ T cells were isolated from spleens of CTRL, Hpx, and Hpx + T4 mice. They were then cultured in medium for Treg induction with and without activation factors (anti-CD3 and anti-CD28 antibodies, see Materials and Methods). Statistical analysis showed that CD4+CD25 T cells derived from the offspring gestated in Hpx and cultured in vitro with medium for Treg induction and anti-CD3 and anti-CD28 antibodies had significantly reduced the generation of CD4+CD25+IL-10+FoxP3+ T cells (Figure 6A). There was no significant difference observed in the absolute number of CD4+CD25+IL-10+FoxP3+ T cells with medium for Treg induction without anti-CD3 and anti-CD28 antibodies in CTRL, Hpx, and Hpx + T4 mice (Figure 6A). The amount of IL-10 secreted in in vitro generation of Treg assay from CD4+CD25 T cells cultured in medium for Treg induction was measured by ELISA (Figure 6B). Statistical analysis showed a significantly reduced amount of IL-10 in the cell culture supernatant of CD4+CD25 T cells of Hpx mice cultured in iTreg with activation factors (Figure 6B). There was no significant difference observed in the amount of IL-10 found in the cell culture supernatant of CD4+CD25 T cells of CTRL, Hpx, and Hpx + T4 mice when cultured without anti-CD3 and anti-CD4 antibodies (Figure 6B). This result shows that CD4+CD25 T cells of the offspring gestated in Hpx have a decreased differentiation capacity toward CD4+CD25+IL-10+FoxP3+ T cells.

FIGURE 6
www.frontiersin.org

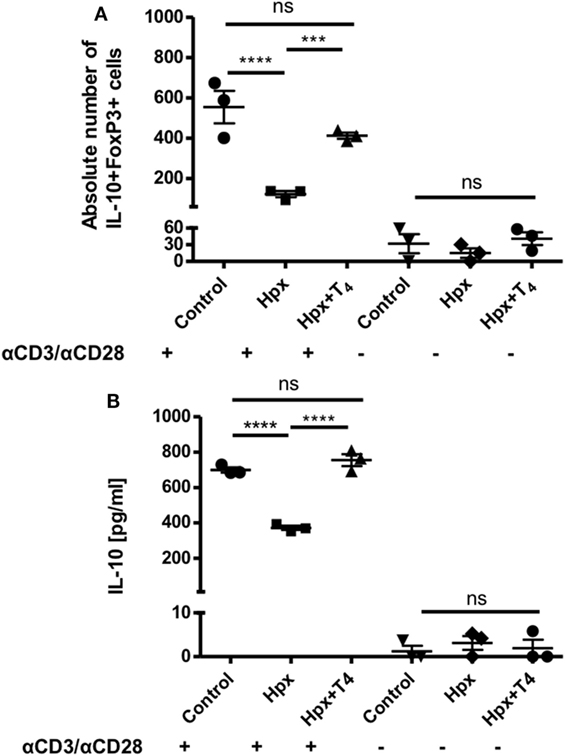

Figure 6. CD4+CD25 T cells from mice gestated in HTX show a decreased differentiation capacity toward CD4+CD25+FOXP3+IL-10+ T cells in vitro assay. (A) The graph shows the absolute number of CD4+CD25+IL-10+FoxP3+ after an in vitro cell culture assay for regulatory T cell (Treg) generation. CD4+CD25 T cells derived from the spleen of offspring gestated under control, Hpx, or Hpx + T4 were cultured in vitro for 5 days under induction media to stimulate the differentiation of Treg in the presence or in the absence of anti-CD3 and anti-CD28 antibodies. Statistical analysis shows a significantly decrease in the absolute number of CD4+CD25+IL-10+FoxP3+ in the in vitro Treg differentiation assay of CD4+CD25 T cells derived from the offspring gestated in Hpx cells. There are not significant differences observed when CD4+CD25 T cells were cultured in the induction medium for Treg but without anti-CD3 and anti-CD28 antibodies n = 3, mean ± SEM p ≤ 0.05 ANOVA and Tukey’s test. (B) The graph shows the content of IL-10 measured by ELISA in the supernatant of CD4+CD25 T cells from spleen of control, Hpx, and Hpx + T4 offspring. CD4+CD25 T cells were in vitro cell cultured for 5 days under induction medium for Treg and stimulated or not with anti-CD3 and anti-CD28 antibodies (see Materials and Methods). Statistical analysis shows a significantly reduced amount of IL-10 of cultured CD4+CD25 T cells of Hpx mice compared to control and Hpx + T4 offspring. There are no significant differences observed when CD4+CD25 T cells were cultured in the induction media for Treg without anti-CD3 and anti-CD28 monoclonal antibodies. n = 3, mean ± SEM ***p < 0.001 and ****p < 0.0001, ANOVA, and Tukey’s test.

Adoptive Transfer of T CD4+CD25+ Cells Increase the Clinical Score and Onset of EAE in Mice Gestated in Hpx

The role of suppression capacity during EAE disease was analyzed in vivo in the offspring gestated in Hpx. For that CD4+CD25+ T cells isolated from spleens of mice that suffer EAE were gestated in control or Hpx was kept in vitro for one week in the presence of IL-2 (2,000 IU/ml), anti-CD3 (1 µg/ml), and anti-CD28 (1 µg/ml). 1 × 106 cells from these cell cultures were adoptively transferred into naive recipient mice gestated in Hpx. A representative histogram is shown in Figure 7A that shows the percentage of CD4+CD25+FOXP3+ T cells that were differentiated from CD4+CD25+ T cells from spleen of control mice (Figure 7A). Then 1 day after the cells were transferred, EAE was induced in these recipient mice. The pathological score was registered from day 1 after EAE induction (Figure 7B). Interestingly, mice that received CD4+CD25+ T cells that were activated in vitro and are derived from donors that were gestated in Hpx showed significantly higher EAE pathological score compared to recipient mice that received CD4+CD25+ T cells from control donors mice (Figure 7B). Interestingly, Hpx mice that received CD4+CD25+ T cells from control mice have less pathological score than control mice that did not receive these cells, suggesting that CD4+CD25+ T cells activated in vitro from control mice have the capacity to almost revert the effect of EAE induction. At 21 days after EAE induction the population of CD4+CD25+FOXP3+IL-10+ T cells was quantitated from the spleen of naïve recipient mice that received CD4+CD25+ T cells. These CD4+CD25+ T cells derived from mice gestated in Hpx or euthyroidism. The analysis of these results showed that there is a reduction in the content of CD4+CD25+FOXP3+IL-10+ T cells in those recipient mice that received CD4+CD25+ T cells from mice gestated in Hpx compared to those that received CD4+CD25+ T cells from mice gestated in euthyroidism (Figure 7C).

FIGURE 7
www.frontiersin.org

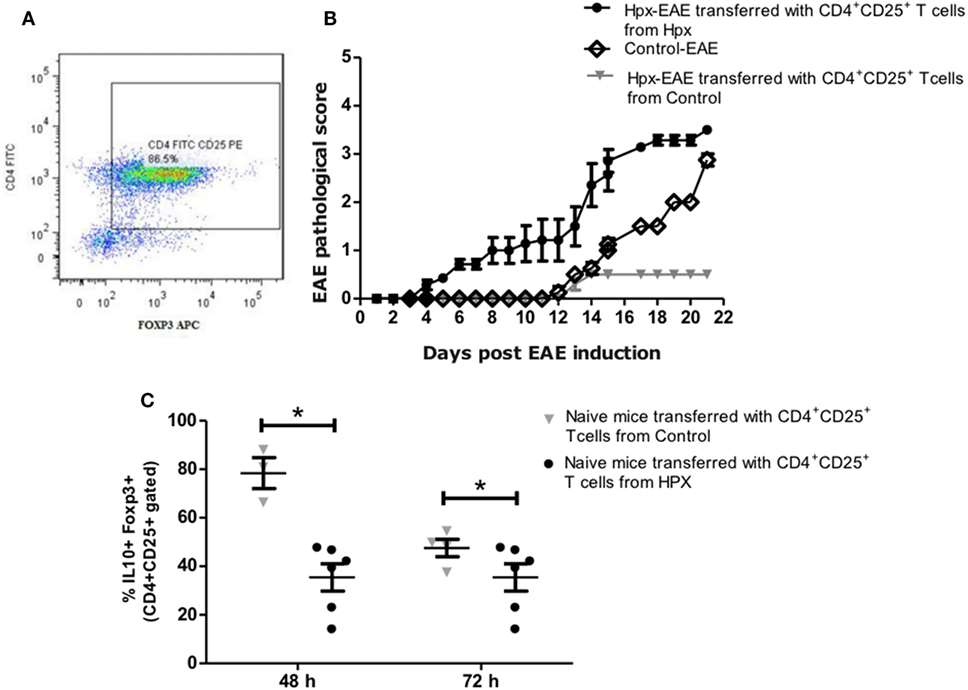

Figure 7. Adoptive transfer of CD4+CD25+ T cells derived from the offspring gestated in hypothyroxinemia (Hpx) increases the severity and onset of experimental autoimmune encephalomyelitis (EAE). (A) Representative dot-plot of the percentage of CD4+FOXP3+ T cells after CD4+CD25+ T cells were cultured in vitro for 7 days in the presence of IL-2 and anti-CD3 and anti CD8 antibodies. (B) The graph shows a pathological score of the recipient offspring gestated in Hpx after EAE induction (day 1) that received 1 × 106 CD4+CD25+ T cells from mice gestated in euthyroidism (control) (inverted gray triangle) or Hpx (closed circle) that also suffer EAE. As control it shows also the pathological score of control offspring that were induced with EAE and did not receive CD4+CD25+ T cells (open diamond). N = 3 independent experiments. (C) The graph shows the quantification by flow cytometry of CD4+CD25+IL-10+ FOXP3+ T cells from splenocytes of naïve mice that previously were cultured in vitro for 48 or 72 h. These naïve mice were adoptively transfered with 1 × 106 CD4+CD25+ T cells of the offspring gestated in Hpx (closed circles) or control (inverted gray triangles) that suffer EAE. The CD4+CD25+ T cells that were adoptively transfered are derived from spleen and were purified at day 21 of EAE induction in these mice and cultured in vitro for 7 days in the presence of IL-2 and anti-CD3 and anti-CD28 antibodies. Values represent the mean ± SEM. Statistical analysis was performed using one-way ANOVA and Tukey’s post-test. Statistical significance is indicated as *p < 0.05.

Discussion

The knowledge about the effects of gestational Hpx has been oriented toward pregnancy outcome and the newborn neurological development (26). In this context, Hpx is associated with a 2.5-fold increase in the risk of preterm birth (27), an adverse early neonatal development (9), and an impaired child development in the long term (8, 28, 29). The impact of maternal THs specifically T4 deficiency over the immune system and the susceptibility to autoimmune diseases by the progeny is only the beginning to be elucidated (16). The first study to show that gestational hypothyroidism can influence the severity of EAE in the progeny was the study of Albornoz et al. (16). Here in this study, we provide new evidences supporting the notion that gestational T4 imprints the autoimmune response of the offspring. This work contributes with possible mechanisms involving the immune system that could enhance the susceptibility of the progeny to suffer an intense EAE. We observed that the offspring gestated in Hpx showed a significant increase in the EAE score at days 14 and 15 after EAE induction (Figure 2A); the offspring has high demyelination at day 21 after EAE induction (Figures 2B,C); and high infiltration of CD4+ and CD8+ T cells (Figures 2D–F) in spinal cords of mice after 21 days of EAE induction, as compared to mice gestated in euthyroidism. These results are consistent with the effects of gestational hypothyroidism over the outcome of EAE in the offspring (16). Given that both conditions, hypothyroidism and Hpx, have in common low T4 levels and these results reinforce the importance of appropriate levels of maternal T4 during pregnancy for the proper fetus development (30, 31). These results are consistent with previous observation of significant decrease in MBP protein expression in cortical tissue in the progeny gestated in Hpx or hypothyroidism at early stages after birth (postnatal day 16) (32). Thus, the demyelination observed in the adult offspring that was gestated in Hpx (Figures 2B,C) indicates that the gestational Hpx imprints the offspring until late adulthood. These observations correlate with other studies were the expression of myelin-related proteins reduced in the hippocampus in rats gestated in Hpx (5). Thus, gestational Hpx will not reach the necessary levels of T4 for the fetus. This might explain the reduced myelin content observed in the spinal cords from healthy and EAE suffering mice (Figures 2B,C).

In this study, spinal cord sections from the offspring gestated in Hpx had higher infiltration of CD4+ and CD8+ T cells compared to control (Figures 2D–F). Two hypotheses are proposed to search which are the mechanisms that change in the offspring gestated in Hpx that makes them more prone to infiltration and inflammation: (1) An alteration in the integrity of the blood–brain barrier of the offspring gestated in Hpx that will facilitate the migration of immune cells into the CNS. (2) The immune response could be strong in the progeny gestated in Hpx, this can be possible if TEff cells are overactive or Treg cells are underactive. In this work, we focus in the population of CD4+CD25+ T cells and CD4+CD25+FOXP3+ T cells (considered to be part of Treg cells classification), given that these cells play key roles in self-tolerance and autoimmunity (33). The Treg cells play an inhibitory function over TEff cells by overcoming the activation of TEff cells in autoimmunity (24). In fact it has been shown that Tregs cells in MS patients have their regulatory function which is severely impaired (34). On the other hand, it has reported the alterations in the amount of Treg in patients with MS (35). For example, it have been shown that the amount of CD25+ Tregs in cerebrospinal fluid diminished in patients with MS, but these cells remained similar at the peripheral blood (35, 36). However, the offspring gestated in Hpx had similar percentage of CD4+CD25+FOXP3+IL-10 T cells from spleen (Figure 3A) and CD4+FOXP3+ T cells and CD25+FOXP3+ T cells (Figures 4A,C,D) from spleen compared to mice gestated in euthyroidism. Moreover, after EAE induction the offspring gestated in Hpx has also similar percentage of CD4+FOXP3+ T cells and CD25+FOXP3+ T cells compared to the offspring gestated in euthyroidism (Figures 4B–D). Noteworthy is the fact that these cells were obtained after 21 days of EAE induction. It is possible that this is a late time point to detect differences in this T cells population. Thus, we propose for future studies to analyze CD4+CD25+FOXP3+IL-10 T cells population at early time points, when symptoms of EAE begin to appear in the mice suffering EAE. For example, at day 9 after EAE induction (Figure 2A) it will be possible to detect alterations in the population of CD4+CD25+FOXP3+ T cells. Even though, the offspring gestated in Hpx had similar percentage of CD4+CD25+FOXP3+IL-10+ T cells, several findings of this work suggest that these T cells have reduced capacity to suppress TEff cells. First, it is the observation that CD4+CD25+ T cells purified from spleen of naïve mice gestated in Hpx in in vitro suppression assays showed a reduced capacity to suppress the proliferation of TEff cell compared to the offspring gestated in control (Figure 5A). Second, CD4+CD25 T cells purified from spleen of naïve mice and induced to differentiate in in vitro assays to Treg showed less number of CD4+CD25+FOXP3+IL-10+ T cells compared to the offspring gestated in euthyroidism (Figure 6A). Third, adoptive transfer experiments of purified CD4+CD25+ T cells from the spleen of mice gestated in Hpx that suffer EAE, protected less (showed high pathological score) to the offspring gestated in Hpx that suffer EAE and received CD4+CD25+ T cells from the offspring gestated in euthyroidism and suffer EAE (Figure 7B). There are other results in this work that supports that the suppressive capacity of the immune system of the offspring gestated in Hpx is reduced: (1) Low content of IL-10 in the spleen of the offspring gestated in Hpx and that suffer EAE (Figures 4E,F); (2) the reduced secretion of IL-10 by CD4+CD25 T cells exposed in vitro to a differentiation media for Treg (Figure 6B); and (3) the low percentage of CD4+CD25+FOXP3+IL-10+ T cell population in the spleen of the recipient mice that suffer EAE and received CD4+CD25+ T cells from mice gestated in Hpx (Figure 7C). Even though, these results led us to propose the possibility that the offspring gestated in Hpx have a reduced capacity to induce suppression. We are not sure yet if these cell population are in fact Treg cells given that it will be necessary to characterize other markers like CTLA-4, GITR, and CD127 (37). From this work, we could not conclude yet that the reduced capacity of CD4+CD25+ T cells from the offspring gestated in Hpx to suppress TEff cells is due to their lack of function, because we did not control if these cells could be suffering high rate of apoptosis or lack of proliferation (37). We observed, in this study, that CD4+CD25+ T cells from the spleen of the offspring gestated in Hpx have reduced capacity to differentiate in vitro to CD4+CD25+FOXP3+IL-10+ when they were stimulated with anti-CD3 and anti-CD28 antibodies (Figure 6A). If this phenotype can be extrapolated to an in vivo activation process (like in EAE) it could explain in part, why the offspring gestated in Hpx has an earlier onset and intense EAE than the offspring gestated in Hpx. In Figure 4B, we found a population of CD25 T cells positive for FOXP3+. We have not characterized yet this population, however, it has been described that in humans with autoimmune diseases appear this population (38). We think that it is possible that gestational Hpx could be affecting Treg cells function directly by diminishing its suppressive function. Among the many regulatory pathways described for Tregs the secretion of IL-10 is highlighted due to is inhibitory function in the production of cytokines, chemokines, prostaglandin E2, and antigen presentation, all involved in inflammation [reviewed by Moore et al. (39)]. The results of this work correlate with previous report about impaired secretion of IL-10 (40) and reduced suppression capacity of Treg in MS patients (41). Thus, this works support the important role of Treg in autoimmunity and this point is also observed in the experiments of Treg adoptive transfer. Treg from the offspring gestated in Hpx worsens the EAE pathological score of the recipient mice (Figure 7). However, it will be interesting to analyze the EAE phenotype and the immune response at earlier time points after EAE induction than day 21. Thus, the results from this work support that gestational Hpx diminished the capacity of the immune system of their offspring to suppress immune response. The new and old question is how THs can imprint the offspring. THs are known to act as transcription factors through their nuclear receptor (42, 43). Maternal T4 will mainly cross the placental barrier. These receptors are able to recruit cofactor complexes involved in chromatin remodeling/histone modifications in a T3 dependent manner (44). Thus, we propose that Hpx during pregnancy could cause a metabolic imprinting in the progenitors of fetus that will eventually affect their response when facing an autoimmune disease such as MS. Further experiments are required to assess how Hpx is affecting Treg cell function, overall considering the environment in which Treg cells execute their function during EAE and also their other suppressive mechanisms. The findings reported in this work support the notion that Hpx during pregnancy enhances the susceptibility of the progeny for suffering from EAE. Mice gestated in Hpx showed an early onset of the disease, increased demyelination, and impaired Treg cell response. These data underscore the potential detrimental effects of maternal Hpx during pregnancy on the CNS and immune system function of their progeny.

Ethics Statement

This study was carried out in accordance with the recommendations of CONICYT bioethical guidelines, and the Universidad Andres Bello bioethics committee. The protocol was approved by the Universidad Andres Bello bioethics committee.

Author Contributions

HH and EA are both first authors of this manuscript; they equally contributed to this work. HH, EA, MO, and EJ have written the first draft of the manuscript. CR, SB, FS, AE, CC-V, and AK revised and improved the manuscript. MO, KB, LV, RB, TR-C and EJ contributed in the experiments and figures. All authors have seen and agreed on the finally submitted version of the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Funding

HH, EA, MO, CR, EJ, TR-C, FS, AE, CC-V, SB, and AK: Millennium Institute on Immunology and Immunotherapy, MIII P09/16-F. CR: Fondecyt 1130996 and 1161525. CR, FS, CC-V, and AE: nucleus project UNAB DI-471-15/N. SB: Fondecyt 1170964. AK: Fondecyt 1150862. EJ: Postdoctoral Fondecyt project 3150559.

Supplementary Material

Complete Blood Count Analysis

Complete blood count (CBC) analysis was performed from blood samples obtained from the face vein of the offspring gestated in euthyroidism (control), Hpx or Hpx + T4 at P55 days old. The CBC analysis was performed by an external veterinary laboratory (VetLab) in Chile.

The Supplementary Material for this article can be found online at https://www.frontiersin.org/articles/10.3389/fimmu.2018.01257/full#supplementary-material.

Figure S1. The offspring gestated in hypothyroxinemia (Hpx) weight the same than the offspring gestated in euthyroidism at the age of P55. The graph shows the weight of the offspring gestated in euthyroidism (control), Hpx, or Hpx + T4 at day P55 of age. The statistical analysis showed that there is not significant difference among the weights of the offspring gestated in Hpx, control, or Hpx + T4 mice. Control N = 28, Hpx N = 27, and Hpx + T4 N = 18. Mean ± SEM p ≤ 0.05, ANOVA, and Tukey’s test.

Figure S2. The weight of the offspring gestated in hypothyroxinemia (Hpx) during experimental autoimmune encephalomyelitis (EAE) induction behaves similar to the offspring gestated in euthyroidism. The graph shows the weight of the offspring gestated in euthyroidism (control), Hpx, or Hpx + T4 during the course of EAE induction. The weights were registered from day 0 (day before to EAE induction, mice had P55 days old), day 1 (day of EAE induction), and until day 21 (post-EAE induction). The analysis showed no significant differences between Hpx mice when compared to control and Hpx + T4. Control N = 18, Hpx N = 18, and Hpx + T4 N = 18. Mean ± SEM *p < 0.05, ANOVA, and Tukey’s test.

Table S1. The offspring gestated in hypothyroxinemia (Hpx) has similar complete blood count (CBC) analysis compared to the offspring gestated in euthyroidism. A blood sample was taken at P55 days old of mice gestated in euthyroidism (control), Hpx, Hpx + T4 for CBC. The statistical analysis showed not significant differences between experimental groups. The offspring gestated in euthyroidism (control N = 5), in Hpx (N = 6), and Hpx + T4 (N = 3). Mean ± SEM *p < 0.05, ANOVA, and Tukey’s test.

Abbreviations

THs, thyroid hormones; THD, thyroid hormone deficiency; Hpx, hypothyroxinemia; EAE, experimental autoimmune encephalomyelitis; Tregs, regulatory T cells; TEff, effector T cells; MMI, methimazole; MS, multiple sclerosis; MOG, myelin oligodendrocyte glycoprotein; CNS, central nervous system; MBP, myelin basic protein.

References

1. Brent GA. Mechanisms of thyroid hormone action. J Clin Invest (2012) 122(9):3035–43. doi:10.1172/JCI60047

CrossRef Full Text | Google Scholar

2. Mondal S, Raja K, Schweizer U, Mugesh G. Chemistry and biology in the biosynthesis and action of thyroid hormones. Angew Chem Int Ed Engl (2016) 55:7606–30. doi:10.1002/anie.201601116

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Opazo MC, Gianini A, Pancetti F, Azkcona G, Alarcon L, Lizana R, et al. Maternal hypothyroxinemia impairs spatial learning and synaptic nature and function in the offspring. Endocrinology (2008) 149:5097–106. doi:10.1210/en.2008-0560

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Gyllenberg D, Sourander A, Surcel HM, Hinkka-Yli-Salomaki S, Mckeague IW, Brown AS. Hypothyroxinemia during gestation and offspring schizophrenia in a national birth cohort. Biol Psychiatry (2015) 79(12):962–70. doi:10.1016/j.biopsych.2015.06.014

CrossRef Full Text | Google Scholar

5. Wei W, Wang Y, Dong J, Wang Y, Min H, Song B, et al. Hypothyroxinemia induced by maternal mild iodine deficiency impairs hippocampal myelinated growth in lactational rats. Environ Toxicol (2015) 30:1264–74. doi:10.1002/tox.21997

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Dosiou C, Medici M. MANAGEMENT OF ENDOCRINE DISEASE: isolated maternal hypothyroxinemia during pregnancy: knowns and unknowns. Eur J Endocrinol (2016) 176(1):R21–38. doi:10.1530/EJE-16-0354

CrossRef Full Text | Google Scholar

7. Min H, Dong J, Wang Y, Wang Y, Teng W, Xi Q, et al. Maternal hypothyroxinemia-induced neurodevelopmental impairments in the progeny. Mol Neurobiol (2016) 53:1613–24. doi:10.1007/s12035-015-9101-x

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Pop VJ, Kuijpens JL, Van Baar AL, Verkerk G, Van Son MM, De Vijlder JJ, et al. Low maternal free thyroxine concentrations during early pregnancy are associated with impaired psychomotor development in infancy. Clin Endocrinol (1999) 50(2):149–55. doi:10.1046/j.1365-2265.1999.00639.x

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Kooistra L, Crawford S, Van Baar AL, Brouwers EP, Pop VJ. Neonatal effects of maternal hypothyroxinemia during early pregnancy. Pediatrics (2006) 117:161–7. doi:10.1542/peds.2005-0227

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Polak M. Human fetal thyroid function. Endocr Dev (2014) 26:17–25. doi:10.1159/000363152

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Chen CY, Chen CP, Lin KH. Biological functions of thyroid hormone in placenta. Int J Mol Sci (2015) 16:4161–79. doi:10.3390/ijms16024161

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Henrichs J, Ghassabian A, Peeters RP, Tiemeier H. Maternal hypothyroxinemia and effects on cognitive functioning in childhood: how and why? Clin Endocrinol (Oxf) (2013) 79:152–62. doi:10.1111/cen.12227

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Rooney AA, Fournier M, Bernier J, Cyr DG. Neonatal exposure to propylthiouracil induces a shift in lymphoid cell sub-populations in the developing postnatal male rat spleen and thymus. Cell Immunol (2003) 223(2):91–102. doi:10.1016/S0008-8749(03)00153-9

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Nakamura R, Teshima R, Hachisuka A, Sato Y, Takagi K, Nakamura R, et al. Effects of developmental hypothyroidism induced by maternal administration of methimazole or propylthiouracil on the immune system of rats. Int Immunopharmacol (2007) 7(13):1630–8. doi:10.1016/j.intimp.2007.08.012

CrossRef Full Text | Google Scholar

15. Lovett-Racke AE. Contribution of EAE to understanding and treating multiple sclerosis. J Neuroimmunol (2016) 304:40–2. doi:10.1016/j.jneuroim.2016.08.013

CrossRef Full Text | Google Scholar

16. Albornoz EA, Carreño LJ, Cortes CM, Gonzalez PA, Cisternas PA, Cautivo KM, et al. Gestational hypothyroidism increases the severity of experimental autoimmune encephalomyelitis in adult offspring. Thyroid (2013) 23(12):1627–37. doi:10.1089/thy.2012.0401

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Zoeller RT. Transplacental thyroxine and fetal brain development. J Clin Invest (2003) 111:954–7. doi:10.1172/JCI18236

CrossRef Full Text | Google Scholar

18. Stromnes IM, Goverman JM. Active induction of experimental allergic encephalomyelitis. Nat Protoc (2006) 1:1810–9. doi:10.1038/nprot.2006.284

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Zappia E, Casazza S, Pedemonte E, Benvenuto F, Bonanni I, Gerdoni E, et al. Mesenchymal stem cells ameliorate experimental autoimmune encephalomyelitis inducing T-cell anergy. Blood (2005) 106:1755–61. doi:10.1182/blood-2005-04-1496

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Kashiwada M, Cattoretti G, Mckeag L, Rouse T, Showalter BM, Al-Alem U, et al. Downstream of tyrosine kinases-1 and Src homology 2-containing inositol 5’-phosphatase are required for regulation of CD4+CD25+ T cell development. J Immunol (2006) 176:3958–65. doi:10.4049/jimmunol.176.7.3958

PubMed Abstract | CrossRef Full Text | Google Scholar

21. McMurchy AN, Levings MK. Suppression assays with human T regulatory cells: a technical guide. Eur J Immunol (2012) 42:27–34. doi:10.1002/eji.201141651

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Sakaguchi S, Yamaguchi T, Nomura T, Ono M. Regulatory T cells and immune tolerance. Cell (2008) 133:775–87. doi:10.1016/j.cell.2008.05.009

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Mellanby RJ, Thomas DC, Lamb J. Role of regulatory T-cells in autoimmunity. Clin Sci (Lond) (2009) 116:639–49. doi:10.1042/CS20080200

CrossRef Full Text | Google Scholar

24. Sakaguchi S, Wing K, Onishi Y, Prieto-Martin P, Yamaguchi T. Regulatory T cells: how do they suppress immune responses? Int Immunol (2009) 21:1105–11. doi:10.1093/intimm/dxp095

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Hoehlig K, Shen P, Lampropoulou V, Roch T, Malissen B, O’Connor R, et al. Activation of CD4(+) Foxp3(+) regulatory T cells proceeds normally in the absence of B cells during EAE. Eur J Immunol (2012) 42:1164–73. doi:10.1002/eji.201142242

CrossRef Full Text | Google Scholar

26. Hu X, Wang R, Shan Z, Dong Y, Zheng H, Jesse FF, et al. Perinatal iron deficiency-induced hypothyroxinemia impairs early brain development regardless of normal iron levels in the neonatal brain. Thyroid (2016) 26:891–900. doi:10.1089/thy.2015.0293

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Korevaar TI, Schalekamp-Timmermans S, De Rijke YB, Visser WE, Visser W, De Muinck Keizer-Schrama SM, et al. Hypothyroxinemia and TPO-antibody positivity are risk factors for premature delivery: the generation R study. J Clin Endocrinol Metab (2013) 98:4382–90. doi:10.1210/jc.2013-2855

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Pop VJ, Brouwers EP, Vader HL, Vulsma T, Van Baar AL, De Vijlder JJ. Maternal hypothyroxinaemia during early pregnancy and subsequent child development: a 3-year follow-up study. Clin Endocrinol (2003) 59(3):282–8. doi:10.1046/j.1365-2265.2003.01822.x

CrossRef Full Text | Google Scholar

29. Ghassabian A, El Marroun H, Peeters RP, Jaddoe VW, Hofman A, Verhulst FC, et al. Downstream effects of maternal hypothyroxinemia in early pregnancy: nonverbal IQ and brain morphology in school-age children. J Clin Endocrinol Metab (2014) 99:2383–90. doi:10.1210/jc.2013-4281

PubMed Abstract | CrossRef Full Text | Google Scholar

30. de Escobar GM, Ares S, Berbel P, Obregon MJ, Del Rey FE. The changing role of maternal thyroid hormone in fetal brain development. Semin Perinatol (2008) 32:380–6. doi:10.1053/j.semperi.2008.09.002

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Berbel P, Mestre JL, Santamaria A, Palazon I, Franco A, Graells M, et al. Delayed neurobehavioral development in children born to pregnant women with mild hypothyroxinemia during the first month of gestation: the importance of early iodine supplementation. Thyroid (2009) 19:511–9. doi:10.1089/thy.2008.0341

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Babu S, Sinha RA, Mohan V, Rao G, Pal A, Pathak A, et al. Effect of hypothyroxinemia on thyroid hormone responsiveness and action during rat postnatal neocortical development. Exp Neurol (2011) 228:91–8. doi:10.1016/j.expneurol.2010.12.012

PubMed Abstract | CrossRef Full Text | Google Scholar

33. Kleinewietfeld M, Hafler DA. Regulatory T cells in autoimmune neuroinflammation. Immunol Rev (2014) 259:231–44. doi:10.1111/imr.12169

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Viglietta V, Baecher-Allan C, Weiner HL, Hafler DA. Loss of functional suppression by CD4+CD25+ regulatory T cells in patients with multiple sclerosis. J Exp Med (2004) 199:971–9. doi:10.1084/jem.20031579

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Jones AP, Trend S, Byrne SN, Fabis-Pedrini MJ, Geldenhuys S, Nolan D, et al. Altered regulatory T-cell fractions and Helios expression in clinically isolated syndrome: clues to the development of multiple sclerosis. Clin Transl Immunology (2017) 6:e143. doi:10.1038/cti.2017.18

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Costantino CM, Baecher-Allan C, Hafler DA. Multiple sclerosis and regulatory T cells. J Clin Immunol (2008) 28:697–706. doi:10.1007/s10875-008-9236-x

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Corthay A. How do regulatory T cells work? Scand J Immunol (2009) 70:326–36. doi:10.1111/j.1365-3083.2009.02308.x

PubMed Abstract | CrossRef Full Text | Google Scholar

38. Nishioka T, Shimizu J, Iida R, Yamazaki S, Sakaguchi S. CD4+CD25+Foxp3+ T cells and CD4+CD25-Foxp3+ T cells in aged mice. J Immunol (2006) 176:6586–93. doi:10.4049/jimmunol.176.11.6586

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Moore KW, De Waal Malefyt R, Coffman RL, O’Garra A. Interleukin-10 and the interleukin-10 receptor. Annu Rev Immunol (2001) 19:683–765. doi:10.1146/annurev.immunol.19.1.683

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Kumar M, Putzki N, Limmroth V, Remus R, Lindemann M, Knop D, et al. CD4+CD25+FoxP3+ T lymphocytes fail to suppress myelin basic protein-induced proliferation in patients with multiple sclerosis. J Neuroimmunol (2006) 180:178–84. doi:10.1016/j.jneuroim.2006.08.003

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Venken K, Hellings N, Thewissen M, Somers V, Hensen K, Rummens JL, et al. Compromised CD4+ CD25(high) regulatory T-cell function in patients with relapsing-remitting multiple sclerosis is correlated with a reduced frequency of FOXP3-positive cells and reduced FOXP3 expression at the single-cell level. Immunology (2008) 123:79–89. doi:10.1111/j.1365-2567.2007.02690.x

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Evans RM. The steroid and thyroid hormone receptor superfamily. Science (1988) 240:889–95. doi:10.1126/science.3283939

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Lazar MA. Thyroid hormone receptors: multiple forms, multiple possibilities. Endocr Rev (1993) 14:184–93. doi:10.1210/edrv-14-2-184

CrossRef Full Text | Google Scholar

44. Matsuura K, Fujimoto K, Fu L, Shi YB. Liganded thyroid hormone receptor induces nucleosome removal and histone modifications to activate transcription during larval intestinal cell death and adult stem cell development. Endocrinology (2012) 153:961–72. doi:10.1210/en.2011-1736

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: hypothyroxinemia, T regulatory cells, multiple sclerosis, pregnancy, experimental autoimmune encephalomyelitis

Citation: Haensgen H, Albornoz E, Opazo MC, Bugueño K, Jara Fernández EL, Binzberger R, Rivero-Castillo T, Venegas Salas LF, Simon F, Cabello-Verrugio C, Elorza AA, Kalergis AM, Bueno SM and Riedel CA (2018) Gestational Hypothyroxinemia Affects Its Offspring With a Reduced Suppressive Capacity Impairing the Outcome of the Experimental Autoimmune Encephalomyelitis. Front. Immunol. 9:1257. doi: 10.3389/fimmu.2018.01257

Received: 31 October 2017; Accepted: 18 May 2018;
Published: 06 June 2018

Edited by:

Fabienne Brilot, University of Sydney, Australia

Reviewed by:

Anne Bruestle, Australian National University, Australia
Naoto Kawakami, Ludwig-Maximilians-Universität München, Germany

Copyright: © 2018 Haensgen, Albornoz, Opazo, Bugueño, Jara Fernández, Binzberger, Rivero-Castillo, Venegas Salas, Simon, Cabello-Verrugio, Elorza, Kalergis, Bueno and Riedel. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Claudia A. Riedel, claudia.riedel@unab.cl
