Perspective ARTICLE

Front. Immunol., 07 August 2020 | https://doi.org/10.3389/fimmu.2020.01959

Combating COVID-19: MVA Vector Vaccines Applied to the Respiratory Tract as Promising Approach Toward Protective Immunity in the Lung

  • 1Institute of Immunology, Hannover Medical School, Hanover, Germany
  • 2Cluster of Excellence RESIST (EXC 2155), Hannover Medical School, Hanover, Germany
  • 3Division of Virology, Institute for Infectious Diseases and Zoonoses, Ludwig-Maximilians-Universität München, Munich, Germany
  • 4German Center for Infection Research, Partner Site Munich, Munich, Germany

The lung is the vital target organ of coronavirus disease 2019 (COVID-19) caused by infection with severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2). In the majority of patients the most active virus replication seems to be found in the upper respiratory tract, severe cases however suffer from SARS-like disease associated with virus replication in lung tissues. Due to the current lack of suitable anti-viral drugs the induction of protective immunity such as neutralizing antibodies in the lung is the key aim of the only alternative approach—the development and application of SARS-CoV-2 vaccines. However, past experience from experimental animals, livestock, and humans showed that induction of immunity in the lung is limited following application of vaccines at peripheral sides such as skin or muscles. Based on several considerations we therefore propose here to consider the application of a Modified Vaccinia virus Ankara (MVA)-based vaccine to mucosal surfaces of the respiratory tract as a favorable approach to combat COVID-19.

Introduction

Like skin and intestinal tract the lung stays in close contact with the living environment and is therefore potentially exposed to air-borne pathogens including SARS-CoV-2. However, in contrast to skin and intestine that harbor large amounts of effector immune cells and lymphoid tissues, the non-inflamed lung is largely devoid of both components rendering this organ particularly vulnerable for airborne infections.

Several subsets of immune cells populate the skin. Antigen-presenting Langerhans cells reside in the epidermis while dendritic cells, macrophages, and various populations of T cells occupy the dermis (1). Likewise, T cells reside in the intestinal epithelial layer and the intestinal lamina propria is crowded by a plethora of immune cells including T cells, macrophages, dendritic cells, and in particular plasma cells. The latter secrete large amounts of immunoglobulins of the IgA isotype into the mucus overlaying the intestinal epithelium and into the gut lumen. Furthermore, large parts of the intestinal mucosa are decorated with secondary lymphoid organs such as Peyer's patches, cryptopatches, or isolated lymphoid follicles that all have been shown to contribute to the induction and maintenance of systemic as well as mucosal immune responses (2).

Bronchus-Associated Lymphoid Tissue—Balt

Lungs of healthy adults however are largely devoid of lymphoid structures and immune cells are sparsely found in the mucosal layers lining the trachea and the bronchial tree, in the alveolar space but not in the alveolar interstitium. Adaptive immune responses of the lung are primarily initiated and maintained in bronchial and mediastinal lymph nodes that drain the lung but usually not within the lung tissue (3). Furthermore, following application of vaccines at peripheral sides such as skin or muscles, immune protection of the lung is limited (4).

Interestingly, children and adolescents—but not healthy adults—frequently harbor tertiary lymphoid tissue structures within the lung (5). These are positioned around bronchi and next to large blood vessels and are known as bronchus-associated lymphoid tissue (BALT). BALT is part of the mucosa-associated lymphoid tissue that is composed of B cell follicles that are encircled by a para-follicular area rich of T cells and antigen-presenting cells (6). The relevance of BALT for the induction of protective immunity was first demonstrated in splenectomized lymphotoxin-alpha-deficient mice that lack all secondary lymphoid organs. Following repeated stimulation with lipopolysaccharide these mice developed BALT that allowed the induction of protective immunity following otherwise lethal challenges with influenza virus (7).

Modified Vaccinia Virus Ankara—Backbone of Successful Vector Vaccines

MVA is a highly attenuated orthopoxvirus that was growth adapted to avian cells and lost its ability to replicate in mammalian hosts. Historically, it had been safety tested in more than 100,000 persons during the smallpox eradication campaign in Germany in the 1970s. Today, MVA serves as basis for licensed vaccines against smallpox and monkeypox in Europe, Canada and the United States (European Medicines Agency, EMA/490157/2013; US Food and Drug Administration, FDA STN 125678/24.09.2019) (8). Moreover, MVA expressing recombinant antigens have been shown to be safe and immunogenic in many human subjects in various clinical studies including more than 1300 infants in Africa and immune compromised patients (911). Recent studies using a recombinant MVA expressing the spike protein of the Middle East respiratory syndrome coronavirus (MERS-CoV), a close relative to SARS-CoV-2, revealed safety and immunogenicity upon intramuscular application in a phase 1 trial (12). The same vector vaccine, when co-administered by intranasal and intramuscular inoculations, solidly protected dromedary camels against respiratory tract virus replication following challenge with MERS-CoV (13).

MVA and Balt

During the last decade we studied extensively the ability of MVA to induce BALT and subsequent immune responses in mice. The single intranasal application of MVA in mice induced long lasting formation of BALT within 6–8 days. Extensive immunological characterization, including two-photon microscopy, revealed that MVA-induced BALT acts as a general priming site for T cells against antigens that reach the lower respiratory tract. Furthermore, following intranasal but not intramuscular application, MVA led to the accumulation of activated CD8 effector T cells in the lung (6, 14). Due to lack of experimental data it is currently unknown whether other viral vectors used for vaccination also induce BALT after delivery via the respiratory route or whether even mRNA-based vaccines would have the potential to induce BALT once delivered into the lung.

Arguably, the induction of plasma cells secreting neutralizing antibodies of the IgA isotype would be most suited to prevent air-borne lung infections. We therefore studied to what degree intranasal application of MVA led to induction of IgA plasma cells in the lung. To that end mice received a single dose of MVA or were left untreated. Twelve days later lungs were analyzed by histology for the presence of BALT as well as plasma cells. While untreated mice carried on average 0.4 IgA+ plasma cells per mm2 tissue section this value increased 87-fold to 34.7 IgA+ plasma cells/mm2 in MVA-treated mice (Figure 1). Although likely, additional experiments will be required to prove that the IgA plasma cells identified actually secrete anti-MVA antibodies.

FIGURE 1
www.frontiersin.org

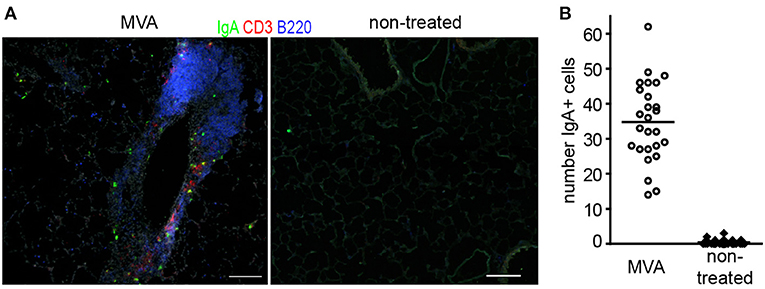

Figure 1. Representative sections (A) and quantitative analysis of IgA+ plasma cells in lung sections of mice (B) 12 day after intranasal application of 107 IU non-recombinant MVA or left untreated; Lungs were snap frozen and 8 μm thick sections were prepared. Sections were stained with the antibodies indicated. Micrographs were taken with a 10x lense and numbers of IgA+ cells were determined per micrograph; dots = micrographs analyzed; n = 3 mice per group, 6–10 micrographs per lung analyzed, bars, 100 μm.

These findings are in agreement with observations of others identifying ovalbumin-specific IgA antibodies in the bronchoalveolar lavage fluid in mice intranasally immunized with MVA expressing ovalbumin (15). Others showed in non-human primates that aerosol immunization with recombinant MVA induced specific IgA in the genital tract (16, 17) or T cells specific for the transgene in the lung (18). Furthermore, it has been shown that intranasal application of MVA expressing a secreted form of the bovine herpesvirus 1 (BoHV-1) glycoprotein D protects against BoHV-1 infection in a rabbit model (19). Application of MVA vector vaccines via the respiratory route has been shown to be safe in general (16) but respiratory adverse effects have been reported after intramuscular priming and inhalative boosting with MVA expressing the 85A antigen of Mycobacterium tuberculosis (20).

Conclusion

The profound production of lymphoid tissue that acts as a priming side for immune responses in the lung including induction of T cells as well as IgA-secreting plasma cells renders the local application of MVA encoding the SARS-CoV-2 spike protein a promising approach for preclinical and clinical studies aiming at the prevention of COVID-19.

Data Availability Statement

All datasets generated for this study are included in the article/supplementary material.

Ethics Statement

This animal study was reviewed and approved by Niedersächsisches Landesamt für Verbraucherschutz und Lebensmittelsicherheit, LAVES.

Author Contributions

HF conducted the research. RF conceived the study and analyzed the data. RF and GS wrote the manuscript. All authors contributed to the article and approved the submitted version.

Funding

This work was funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) under Germany's Excellence Strategy—EXC 2155—Projektnummer 390874280 and Projektnummer 158989968—SFB 900.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

1. Kabashima K, Honda T, Ginhoux F, Egawa G. The immunological anatomy of the skin. Nat Rev Immunol. (2019) 19:19–30. doi: 10.1038/s41577-018-0084-5

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Mowat AM, Agace WW. Regional specialization within the intestinal immune system. Nat Rev Immunol. (2014) 14:667–85. doi: 10.1038/nri3738

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Chiu C, Openshaw PJ. Antiviral B cell and T cell immunity in the lungs. Nat Immunol. (2015) 16:18–26. doi: 10.1038/ni.3056

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Tchilian E, Holzer B. Harnessing local immunity for an effective universal swine influenza vaccine. Viruses. (2017) 9:98. doi: 10.3390/v9050098

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Tschernig T, Pabst R. Bronchus-associated lymphoid tissue (BALT) is not present in the normal adult lung but in different diseases. Pathobiology. (2000) 68:1–8. doi: 10.1159/000028109

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Halle S, Dujardin HC, Bakocevic N, Fleige H, Danzer H, Willenzon S, et al. Induced bronchus-associated lymphoid tissue serves as a general priming site for T cells and is maintained by dendritic cells. J Exp Med. (2009) 206:2593–601. doi: 10.1084/jem.20091472

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Moyron-Quiroz JE, Rangel-Moreno J, Kusser K, Hartson L, Sprague F, Goodrich S, et al. Role of inducible bronchus associated lymphoid tissue (iBALT) in respiratory immunity. Nat Med. (2004) 10:927–34. doi: 10.1038/nm1091

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Pittman PR, Hahn M, Lee HS, Koca C, Samy N, Schmidt D, et al. Phase 3 efficacy trial of modified vaccinia Ankara as a vaccine against smallpox. N Engl J Med. (2019) 381:1897–908. doi: 10.1056/NEJMoa1817307

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Gilbert SC. Clinical development of modified vaccinia virus Ankara vaccines. Vaccine. (2013) 31:4241–6. doi: 10.1016/j.vaccine.2013.03.020

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Volz A, Sutter G. Modified vaccinia virus Ankara: history, value in basic research, and current perspectives for vaccine development. Adv Virus Res. (2017) 97:187–243. doi: 10.1016/bs.aivir.2016.07.001

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Satti I, Meyer J, Harris SA, Manjaly Thomas ZR, Griffiths K, Antrobus RD, et al. Safety and immunogenicity of a candidate tuberculosis vaccine MVA85A delivered by aerosol in BCG-vaccinated healthy adults: a phase 1, double-blind, randomised controlled trial. Lancet Infect Dis. (2014) 14:939–46. doi: 10.1016/S1473-3099(14)70845-X

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Koch T, Dahlke C, Fathi A, Kupke A, Krähling V, Okba NMA, et al. Safety and immunogenicity of an MVA vector vaccine candidate against the Middle East respiratory syndrome: a first-in-human trial. Lancet Infect Dis. (2020) 20:827–38. doi: 10.1016/S1473-3099(20)30248-6

CrossRef Full Text | Google Scholar

13. Haagmans BL, van den Brand JMA, Raj VS, Volz A, Wohlsein P, Smits SL, et al. An orthopoxvirus-based vaccine reduces virus excretion after MERS-CoV infection in dromedary camels. Science. (2016) 351:77–81. doi: 10.1126/science.aad1283

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Fleige H, Bosnjak B, Permanyer M, Ristenpart J, Bubke A, Willenzon S, et al. Manifold roles of CCR7 and its ligands in the induction and maintenance of bronchus-associated lymphoid tissue. Cell Rep. (2018) 23:783–95. doi: 10.1016/j.celrep.2018.03.072

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Sanos SL, Kassub R, Testori M, Geiger M, Patzold J, Giessel R, et al. NLRC4 inflammasome-driven immunogenicity of a recombinant MVA mucosal vaccine encoding flagellin. Front Immunol. (2017) 8:1988. doi: 10.3389/fimmu.2017.01988

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Corbett M, Bogers WM, Heeney JL, Gerber S, Genin C, Didierlaurent A, et al. Aerosol immunization with NYVAC and MVA vectored vaccines is safe, simple, and immunogenic. Proc Natl Acad Sci USA. (2008) 105:2046–51. doi: 10.1073/pnas.0705191105

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Marlin R, Nugeyre MT, Tchitchek N, Parenti M, Hocini H, Benjelloun F, et al. Modified vaccinia virus Ankara vector induces specific cellular and humoral responses in the female reproductive tract, the main HIV portal of entry. J Immunol. (2017) 199:1923–32. doi: 10.4049/jimmunol.1700320

PubMed Abstract | CrossRef Full Text | Google Scholar

18. White AD, Sibley L, Dennis MJ, Gooch K, Betts G, Edwards N, et al. Evaluation of the safety and immunogenicity of a candidate tuberculosis vaccine, MVA85A, delivered by aerosol to the lungs of macaques. Clin Vaccine Immunol. (2013) 20:663–72. doi: 10.1128/CVI.00690-12

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Del Medico Zajac MP, Zanetti FA, Esusy MS, Federico CR, Zabal O, Valera AR, et al. Induction of both local immune response in mice and protection in a rabbit model by intranasal immunization with modified vaccinia Ankara virus expressing a secreted form of bovine herpesvirus 1 glycoprotein D. Viral Immunol. (2017) 30:70–6. doi: 10.1089/vim.2016.0090

CrossRef Full Text | Google Scholar

20. Manjaly Thomas ZR, Satti I, Marshall JL, Harris SA, Lopez Ramon R, Hamidi A, et al. Alternate aerosol and systemic immunisation with a recombinant viral vector for tuberculosis, MVA85A: a phase I randomised controlled trial. PLoS Med. (2019) 16:e1002790. doi: 10.1371/journal.pmed.1002790

PubMed Abstract | CrossRef Full Text | Google Scholar
