ORIGINAL RESEARCH article
Sec. Marine Ecosystem Ecology
Volume 7 - 2020 | https://doi.org/10.3389/fmars.2020.00230
Underwater Visual Records of Marine Megafauna Around Offshore Anthropogenic Structures
- 1Ocean Science Consulting Ltd., Dunbar, United Kingdom
- 2Environmental Research Institute, University of the Highlands and Islands, Thurso, United Kingdom
- 3Centre for Integrative Ecology, School of Life and Environmental Sciences, Deakin University, Burwood, VIC, Australia
- 4Australian Institute of Marine Science, Indian Ocean Marine Research Centre, Crawley, WA, Australia
In oceans and seas worldwide, an increasing number of end-of-life anthropogenic offshore structures (e.g., platforms, pipelines, manifolds, windfarms, etc.) are facing full or partial removal. As part of the decommissioning process, studies on potential importance of subsea infrastructure to marine megafauna (defined as: cetaceans, pinnipeds, sirenians, large fish – such as sharks, rays, billfishes, and tuna, as well as marine reptiles, and seabirds) are lacking. Dedicated scientific Remotely Operated Vehicle (ROV) surveys around offshore installations are rare, but there is a wealth of archived industrial data and noteworthy species sightings posted publicly on various social media platforms. This study used routine, incidentally collected ROV (n = 73) and commercial diver (n = 9) video recordings spanning 1998–2019 globally. Data were gathered directly from industrial partners (n = 36) and the public domain (YouTube; n = 46) to provide an account of marine megafauna presence and potential feeding behavior in the near-visible vicinity of subsea anthropogenic structures. A total of 79 video clips and 3 still images of marine megafauna near offshore structures were examined, resulting in 67 individual sightings and 16 sub-sightings (in which an individual was recorded within the same day). At least 178 individuals were identified to a minimum of 17 species of marine megafauna, amounting to a total (combined) sighting duration of 01:09:35 (hh:mm:ss). Results demonstrated proximate presence of marine megafauna (many of which are threatened species) to anthropogenic structures, with most animals displaying foraging or interaction behaviors with the structures. Observations included the deepest (2,779 m) confirmed record of a sleeper shark (Somniosus spp.) and the first confirmed visual evidence of seals following pipelines. These ROV observations demonstrate a latent source of easily accessible information that can expand understanding of marine megafauna interactions with offshore anthropogenic infrastructure. Consequently, other workers in this field should be encouraged to re-analyze archived datasets, commence further collaborative research projects with industrial partners, and/or expand Internet search terms to additional species assemblages, in a bid to quantitatively elucidate relationships between offshore infrastructure and marine species.
Since the industrial revolution, many species have been struggling to cope with habitat modifications, climate change, and other detrimental anthropogenic pressures (e.g., Cheung et al., 2009; Dirzo et al., 2014; IPBES, 2019). Despite increasing interest in the renewables sector, enduring investment in Oil & Gas (O&G) Exploration and Production to satisfy global demand has resulted in the ongoing operation of thousands of offshore structures and the continued establishment of new infrastructure in the marine environment (e.g., Todd et al., 2019). Of these, 7,500 marine offshore O&G installations across jurisdictions of 53 countries are expected to become obsolete in the near future (Parente et al., 2006; Fowler et al., 2018). Windfarm decommissioning is also on the horizon, but as a comparably newer industry, is less impending (Topham and McMillan, 2017).
Subsea-anthropogenic infrastructure provides structurally complex hard substrata on an often otherwise featureless sedimentary seafloor (Larcom et al., 2014). These structures can accommodate diverse sessile-invertebrate communities comprising anemones, hydroids, bryozoans, sponges, mussels, barnacles, soft, and even hard corals that can attract motile invertebrates (Guerin, 2009; Langhamer and Wilhelmsson, 2009; McLean et al., 2017; Meyer et al., 2018; Todd et al., 2018, 2019). With time, subsea structures encourage benthic complexity, which supports fish populations through a strong foraging base (Cowan and Rose, 2016), increasing trophic-level ecological succession. Consequently, anthropogenic infrastructure has large-scale positive and negative social, economic, and ecological impacts. These structures sustain trophic connectivity through nutrient and resource flow, pelagic-larval dispersal, pipeline linkage, and movement of mobile predators (Macreadie et al., 2011; Henry et al., 2018; van der Molen et al., 2018).
A total of 14.7% of the North Sea has been designated as Marine Protected Areas, MPAs (OSPAR, 2017), and an additional 0.1% comprises the 500-m shipping (including fishing) exclusion zones of offshore O&G structures (UK Public General Acts, 1987; UK National Data Repository, 2019). This safety exclusion zone is reduced to 50 m around windfarm turbine bases, and only increases to 500 m around renewable construction sites (FLOWW, 2014). Some offshore installations could potentially be acting as mini MPAs, which has galvanized a number of both academic and industry scientists to jointly investigate possibility that there may be positive environmental outcomes of industrial usage of the marine environment. Consequently, this has sparked debate about whether to leave some, well-placed offshore structures, particularly O&G platforms, in situ as artificial Rigs-to-Reefs, RTR (Kaiser and Pulsipher, 2005) or remove them completely from the seabed. Removal of infrastructure at the end of its field life is legislated currently in Europe under the Oslo and Paris Convention (OSPAR) Decision 98/3, on the Disposal of Disused Offshore Installations (OSPAR, 1998).
In the North Sea, there is likely a high level of ecological interconnectedness between the network of local ecosystems comprising 1,350 offshore O&G installations, including 545 fixed steel platforms, 81 offshore windfarms with 3,589 turbines (North SEE, 2016), and a plethora of wrecks (Coolen and Jak, 2018). There is no doubt that increasing numbers of artificial structures in the marine environment – adversely termed ‘ocean sprawl’ by Bishop et al. (2017) – modifies the local marine ecosystem. In a similar vein, commercial fishing (especially dredging and trawling) has also altered large tranches of the ocean seabed beyond recognition. Re-conversion to the original ecosystem is unlikely to be achievable in the long term, as the North Sea continues to be exploited by industrial stakeholders.
The RTR concept began as early as 1975, when in the South China Sea (Malaysia) the storm-damaged Baram-8 platform was toppled to form the base of an artificial reef (Zawawi et al., 2012). Since then, RTR schemes have been legislated only in Brunei’s sector of the South China Sea (Twomey, 2012), and in the United States’ (US) Gulf of Mexico (GoM) in Louisiana and Texas, and in Pacific California (Jørgensen, 2009). Successful RTR implementation, however, has occurred only in Brunei and the GoM, despite increasing support from both academic and industry scientists, for the concept of leaving well-studied and potentially environmentally beneficial offshore structures in situ at the end of operational lifetimes (Jørgensen, 2012; Macreadie et al., 2012; McLean et al., 2017; Fowler et al., 2018; Todd et al., 2018, 2019; van Elden et al., 2019).
To determine environmental impacts of future decommissioning projects on a case-by-case basis, it is important to consider potential interactions between prey species congregating around structures with organisms at higher trophic levels. For example, because of the general tendency of any object placed in the water to attract fish and other marine life, marine megafauna, such as mammals, large fish (including sharks), reptiles and seabirds, might be attracted to these locations for temporo-spatially predictable foraging opportunities (McClellan et al., 2014; McLean et al., 2019b).
To date, only a handful of studies have been conducted on marine mammal interactions with offshore anthropogenic infrastructure, mostly in the North Sea. The first acoustic study was carried out in the German North Sea by Todd et al. (2009) using analog autonomous underwater passive cetacean echolocation-click detectors (T-PODs) deployed directly from an offshore O&G exploration jack-up drilling rig at an established production platform. Harbor porpoises (Phocoena phocoena) were detected, predominantly at night, in very close proximity (<300 m) to installations with a pronounced diel pattern (Todd et al., 2009). Another North and Irish Sea acoustic and visual study on various offshore O&G installations, reported multiple marine mammal species, including harbor porpoise, Atlantic white-sided (Lagenorhynchus acutus), white-beaked (Lagenorhynchus albirostris), and common (Delphinus delphis) dolphin, minke whale (Balaenoptera acutorostrata), and both common (Phoca vitulina) and gray (Halichoerus grypus) seal (Todd et al., 2016). Similarly, Delefosse et al. (2018) analyzed visual sightings from 25 O&G installations in the Dutch sector of the North Sea, recording 131 sightings of 288 individual marine mammals over a 3-year period. Harbor porpoise was the most commonly sighted species (41% of sightings), followed by minke whale (31%). Regarding offshore renewables, Russell et al. (2014) observed tagged common and gray seal targeting windfarm turbine piles, presumably to feed. In other oceans worldwide, a visual study in the Adriatic sea reported bottlenose dolphin (Tursiops truncatus) within 750 m of O&G platforms (Triossi et al., 2013), and in the Pacific USA, California sea lion (Zalophus californianus) were found to haul out and nurse young regularly on O&G installations (Orr et al., 2017). In Australia, Arnould et al. (2015) reported that 25% of 36 tagged Australian fur seals (Arctocephalus pusillus) exhibited foraging behavior near offshore anthropogenic structures, potentially targeting areas around O&G pipelines and cable routes.
Little information is available on associations of elasmobranchs (cartilaginous fish, such as sharks) with anthropogenic structures. In the North Sea, a basking shark has been sighted within the 500-m zone of an offshore installation (Todd et al., 2016). Whale sharks (Rhincodon typus) aggregate in high densities around offshore Arabian Gulf O&G platforms (Robinson et al., 2013). Four whale sharks were observed at a platform in Australia (McLean et al., 2019a). ROV imagery of wells in Australia has also led to observations of a gray nurse shark (Carcharias taurus), spinner shark (Carcharhinus brevipinna), ribbontail ray (Taeniura meyeni), and speckled swellsharks, Cephaloscyllium speccum (McLean et al., 2018b). Most investigations have focussed on impacts of Electro-Magnetic Fields (EMFs), since sharks can sense very weak, bioelectric fields to detect prey (Kalmijn, 1982; Walker et al., 1992; Kajiura and Holland, 2002; Kajiura, 2003), predators (Sisneros et al., 1998; Kempster et al., 2013), mates (Tricas et al., 1995; Sisneros and Tricas, 2002), and potentially navigate on large global scales (Klimley, 1993; Klimley et al., 2002; Meyer et al., 2005). Consequently, interactions with anthropogenic structures are likely commonplace, but underreported.
Studies of large bony fish species that can grow to 2 m or bigger near offshore O&G platforms are rare. Martin and Lowe (2010) reported 53 fish species near O&G platforms off coastal California, United States, including two sightings of the ocean sunfish (Mola mola), the largest bony fish in the world (Wood, 1983; Pan et al., 2016). Most studies have focused predominantly on commercially important fish observed in association with subsea infrastructure (Jørgensen et al., 2002; Løkkeborg et al., 2002; Soldal et al., 2002; Guerin, 2009; Friedlander et al., 2014; Fujii et al., 2014). Indeed, many of the fish in these studies were juveniles, preferentially selecting structurally complex habitats (Sayer et al., 2005).
Impacts of O&G operations on marine reptiles (e.g., marine turtles and sea snakes) are unknown (Maxwell et al., 2019). A review of underwater sightings in the GoM found that marine turtles were observed visiting anthropogenic structures for short periods (1–5 h), particularly at night (Rosman et al., 1987). Marine turtles have also been found to associate more frequently with smaller, unmanned platforms that are closer to shore (Lohoefener et al., 1990). A recent Australian ROV study observed a flatback turtle (Natator depressus) and an unidentified sea snake (Hydrophiidae) immediately adjacent to a pipeline (McLean et al., 2019b).
Acoustic and surface-based detections have been analyzed previously (as reviewed here); however, there are few reports of megafauna from underwater visual sources. The objective of this study was to determine feasibility of using industry-supplied or publicly sourced visual data to assess presence and behavior of marine megafauna in close vicinity to offshore anthropogenic structures. These data were collected during routine offshore O&G and renewable energy infrastructure ROV General Visual Inspection (GVI) and commercial-diver Inspection, Maintenance and Repair (IMR) surveys. These industrial data are beginning to be used more regularly for assessments of fish and benthic species (e.g., McLean et al., 2017, 2020), but use in investigations of megafauna presence is understudied.
Materials and Methods
Industrial recordings of marine megafauna sightings were sourced from routine, non-scientific inspection and maintenance operations of subsea offshore infrastructure using inspection-class ROVs and commercial diver video recording systems of unknown specifications. A mass data request email was sent to the contact email address (e.g., info@) of >50 companies in these sectors, outlining purpose of the research, a re-assurance of data confidentiality, and an invitation to submit marine megafauna imagery of interest. Marine megafauna were defined as: cetaceans, pinnipeds, sirenians, large fish (species known to exceed 2 m), such as sharks, rays, billfishes and tuna, as well as marine reptiles, such as marine turtles, sea snakes, and, seabirds (adapted from McClellan et al., 2014). Imagery was either provided anonymously by industry (e.g., ROV pilots) or obtained through dedicated Internet searches of public domain YouTube1 online archives. Use of data from Twitter and Facebook was investigated, but YouTube was found to be the richest source of data for these purposes, and was therefore the focus.
Analysis was performed between the months of February to October 2019, applying a similar methodological approach used for medical reviews (e.g., by Ache and Wallace, 2008; Duncan et al., 2013). Search strategy consisted of entering a combination of marine megafauna and anthropogenic structure search terms (Table 1), followed by either ‘ROV’ or ‘commercial diver’ into YouTube using Google Chrome (version 75.0.3770.142) or Firefox (v68.0.1). Anthropogenic terms were derived from the O&G (Schlumberger, 2019) and Wind energy glossaries (Nordman, 2010; Wind Energy Association, 2020). These term combinations were used to search iteratively, e.g., ‘Aquatic mammal blowout preventer ROV,’ followed by ‘Aquatic mammal blowout preventer commercial diver,’ then ‘big fish blowout preventer ROV,’ and so on. Since there is considerable variation across industry in use/non-use of spacing between terms (e.g., spudcan vs. spud can, windfarm vs. wind farm, etc.), both were used where applicable. Moreover, since the O&G industry (and to a lesser extent, the renewable sector) rely predominantly on acronyms, these were also applied, where appropriate. Each listed result was reviewed individually until no search terms remained in the video title. Only videos originating from an ROV camera or a commercial dive recording were considered. The online video converter ‘YouTube Converter & Downloader’ (v3.0) was used to download and convert imagery from YouTube to Moving Pictures Expert Group (MPEG) – 4 Part 14 (.mp4) format.

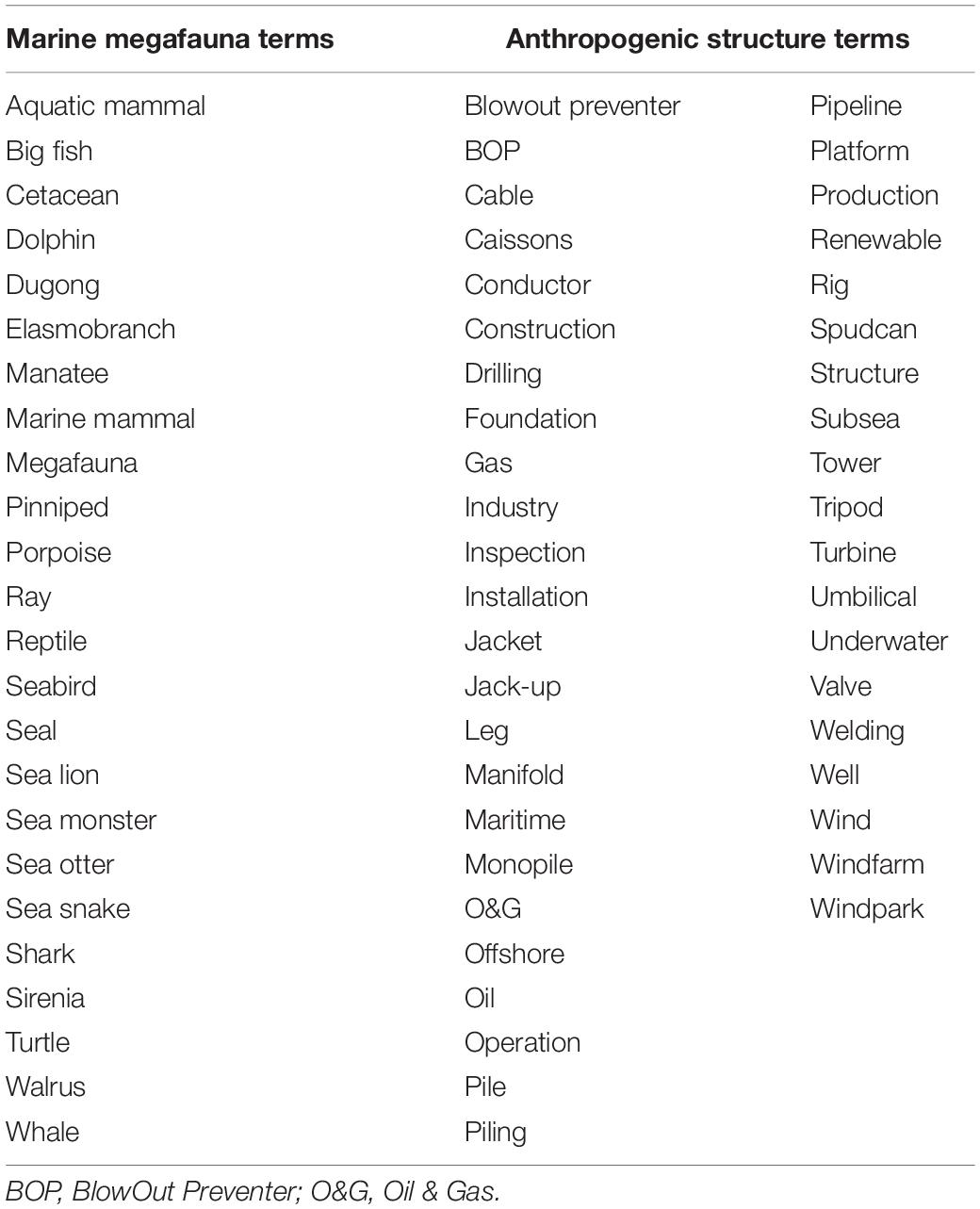

Table 1. Internet search terms used in every possible permutation, followed by either the term ‘ROV’ or ‘commercial diver’ to source video imagery related to marine megafauna sightings from the public domain (listed alphabetically).
Each video was quality assessed and analyzed using Windows Media Player 12 (Microsoft) or VLC media player (VideoLAN, v3.0.6). Imagery was first screened for visible presence of marine megafauna and a permanent anthropogenic structure. Videos lacking clear images, as a result of very low quality, or non-commercial imagery (e.g., recreational dive recordings), were excluded from further analysis. All available metadata (e.g., time, date, depth, coordinates, operation type, project, equipment, and structure type) were recorded. Stills of imagery were taken, with permission from industry providers, using the built-in VLC media player snapshot tool or Windows Snipping tool. Permission to present stills from YouTube videos was challenging; consequently, only Uniform Resource Locator (URL) hyperlinks to footage have been presented. Authors are not accountable for URL content and have endeavored to provide correct links; however, uploaded videos are occasionally removed or may be country-restrictive.
Audible ROV pilot/commercial diver commentaries, and annotations found in video descriptions (e.g., location) were recorded if they augmented video metadata. Geographic coordinates, including Universal Transverse Mercator (UTM) zone – or at least an approximate location – were applied to species identification (ID) analysis. The sighting map was created in QGIS v3.2.3 using WGS ’84. Diel variations were not accounted for, due to varying conditions (artificial lights, depth, time zone, lack of metadata). Time-stamp format (local or in Greenwich Mean Time Zone, GMT) was not available, and hence assumed to be in local time.
Several videos were available only as truncated segments of what would have clearly been a full-length sighting. Consequently, imagery that was obviously recorded on the same day of an operation that contained multiple sightings of the same individual from the same installation (i.e., re-identified due to unique recognizable markings, such as white pigmentation on a seal) were combined as ‘sub-sightings’ of the same ‘sighting.’ Video clips taken by multiple cameras on the same ROV (duplicates), but from a different angle within a 5-s period, were noted but excluded from further analysis to avoid replication. All commercially sensitive information (such as client, vessel, project, ROV operator, etc.) sourced from videos submitted by clients under Non-Disclosure Agreement (NDA) were redacted (Figure 1).

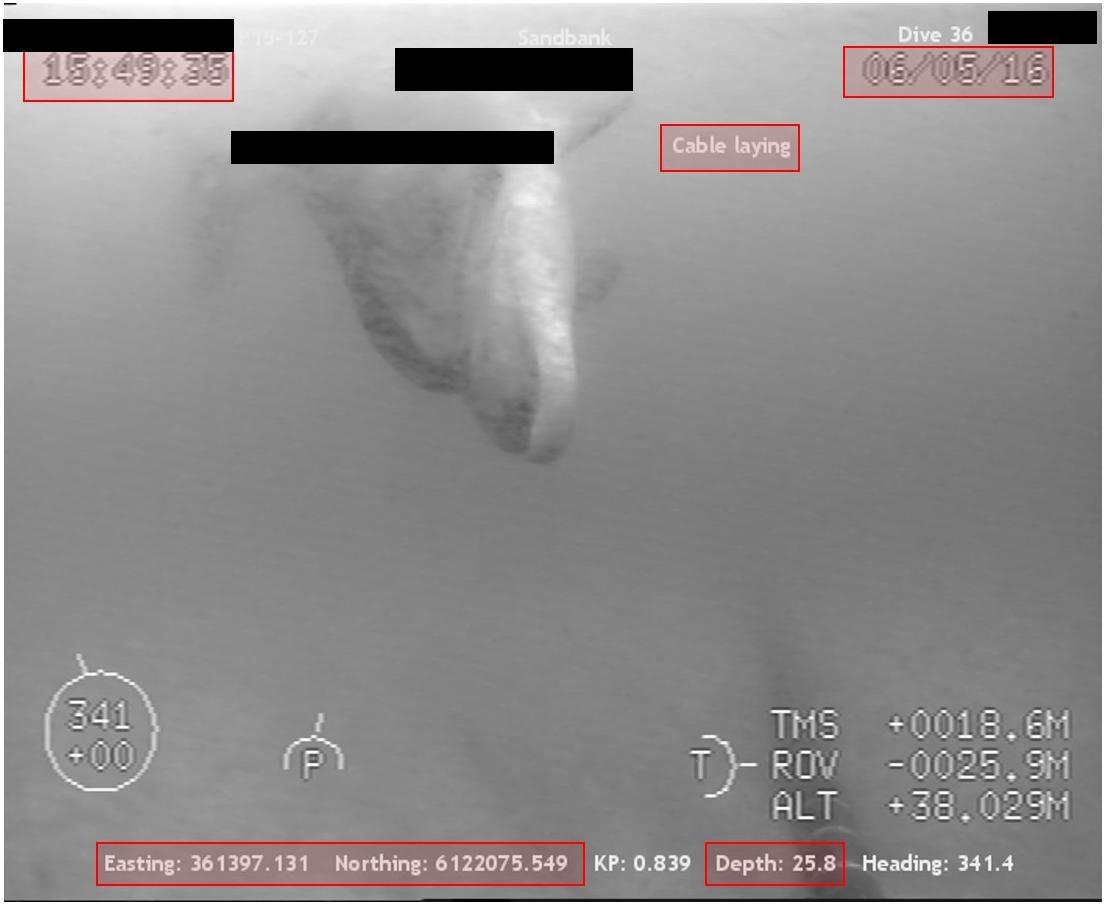

Figure 1. ROV ‘still’ image of a bottlenose dolphin approaching a cable-laying operation. Highlighted sections (red boxes) indicate additional information of interest for data analysis (e.g., time, date, type of operation, location and depth in m). Confidential client data (black boxes) were redacted for Non-Disclosure Agreement (NDA) purposes.
Megafauna were categorized into groups (e.g., whale, dolphin, seal, shark, ray, fish, turtle, bird, etc.) and identified to lowest taxonomic rank using appropriate identification guides (e.g., Hvass, 1978; Compagno et al., 2004; Shirihai and Jarrett, 2006; Jefferson et al., 2015; Nelson et al., 2016). Identifying the sex of an individual was not considered a classifiable criterion, because of a high margin of error. Threat status of all identified species was sourced from the International Union for Conservation of Nature (IUCN) Red List of Threatened Species2. Additional species considered to be interacting with megafauna (e.g., prey) were also recorded and identified, where possible, as was sighting duration (time in which individual was visible on-screen). Quantification of size of individual or distance to anthropogenic structure at closest approach was not possible and was reliant on camera Field of View (FOV). Any fish species that is known to grow to 2 m or more was included in analysis; however, only a qualitative estimation of size (big vs. small) can be made, as morphometrics/scarring/colouration and even sex of individuals, especially fish, change visibly with age. For example, most groupers (Epinephelidae) are protogynous hermaphrodites, which means that as they age, body proportions change in appearance, and notable color fading/scarring can be visible (Zhou and Gui, 2010; Chen et al., 2019).
Imagery was grouped by distance of approach between animal and structure. Categories included ‘direct’ physical contact with structure, ‘approaching’ structure to within 1–2 m (based on FOV and normal size of adult animals), and ‘no approach,’ e.g., swimming past structure in the distance. Imagery duration (effort) and sighting duration were recorded in minutes:seconds (mm:ss).

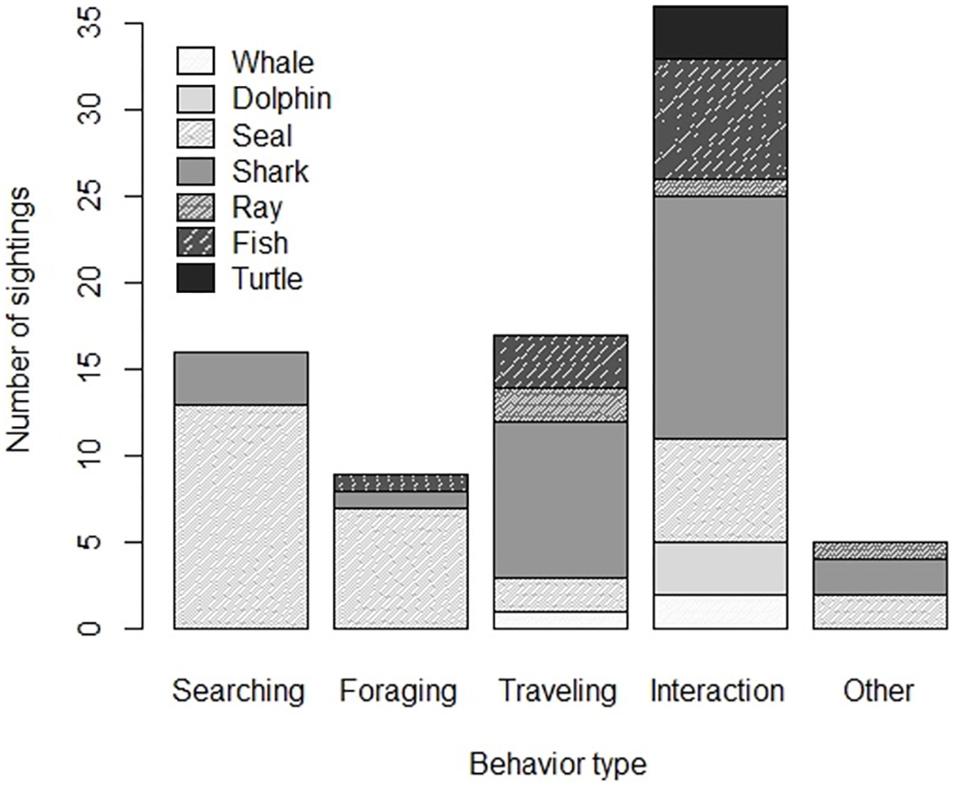

Categorization of behavioral activity was somewhat difficult to quantify for such a wide range of species; however, for certain megafauna, such as seals, and perhaps some sharks, an attempt was made to classify behavior into five categories. These were based on predominantly observed behavior, adapted from Wauters et al. (1992): searching, foraging, traveling, interaction, or other. Searching was defined as head moving up and down and/or from side to side in what was perceived as a method to identify prey. Foraging attempts were defined as individuals deviating from travel path sharply to attempt to and/or catch and feed on prey. Traveling was assigned when an individual swam in a consistent direction with no deviation associated with foraging or searching. Interaction was defined as individuals that were affected (i.e., change in behavior) through contact with anthropogenic equipment, structure, or diver. Behaviors were classified as other when they did not fall into any previous categories, e.g., no movement.
A total of n = 79 video clips and n = 3 still images were analyzed (total n = 82) with a total effort duration of 1:46:30 hh:mm:ss. The info@ call for new industrial footage elicited zero response from industry; consequently, most videos (n = 46) were sourced from the public domain (YouTube), and n = 36 were from archived or obtained directly from colleagues working in the O&G industry. Imagery was recorded mainly by ROVs of unknown specification (n = 73), and a handful (n = 9) recorded by commercial dive cameras of unknown specification. Some video clips (n = 5) were collected from more than one date (e.g., a compilation of several clips). Of videos sourced from industry, n = 8 duplicates were excluded from further analysis, resulting in a total of n = 74 useable recordings.
Data were sourced across 21 years from May 1998 to July 2019, originating from 62 separate days. Most imagery was recorded in 2018 (n = 17 recordings, all in August), followed by 2006 (n = 10), and 2009 (n = 9). Imagery was collected throughout the year, with a seasonal trend toward August (n = 23), followed by September and October (n = 5) in the northern hemisphere (n = 54). In the southern hemisphere (n = 6), more data were collected in October (n = 3). Remaining recordings without location data (n = 22) were recorded equally throughout the year.
Marine Megafauna Sightings
From the n = 74 useable recordings, n = 67 individual marine megafauna sightings were identified (Table 2 and Supplementary Table 1) totalling 01:09:35 hh:mm:ss. Each sighting ranged from 1 s to 4 min 29 s with a mean ± standard deviation (SD) of 00:50 ± 01:02. Sightings were classified in n = 7 marine megafauna groups: whale (n = 3), dolphin (n = 1), seal (n = 16), shark (n = 29), ray (n = 4), fish (n = 11), and turtle (n = 3; Table 2 and Figure 2). No birds or other marine reptiles were identified in any imagery.

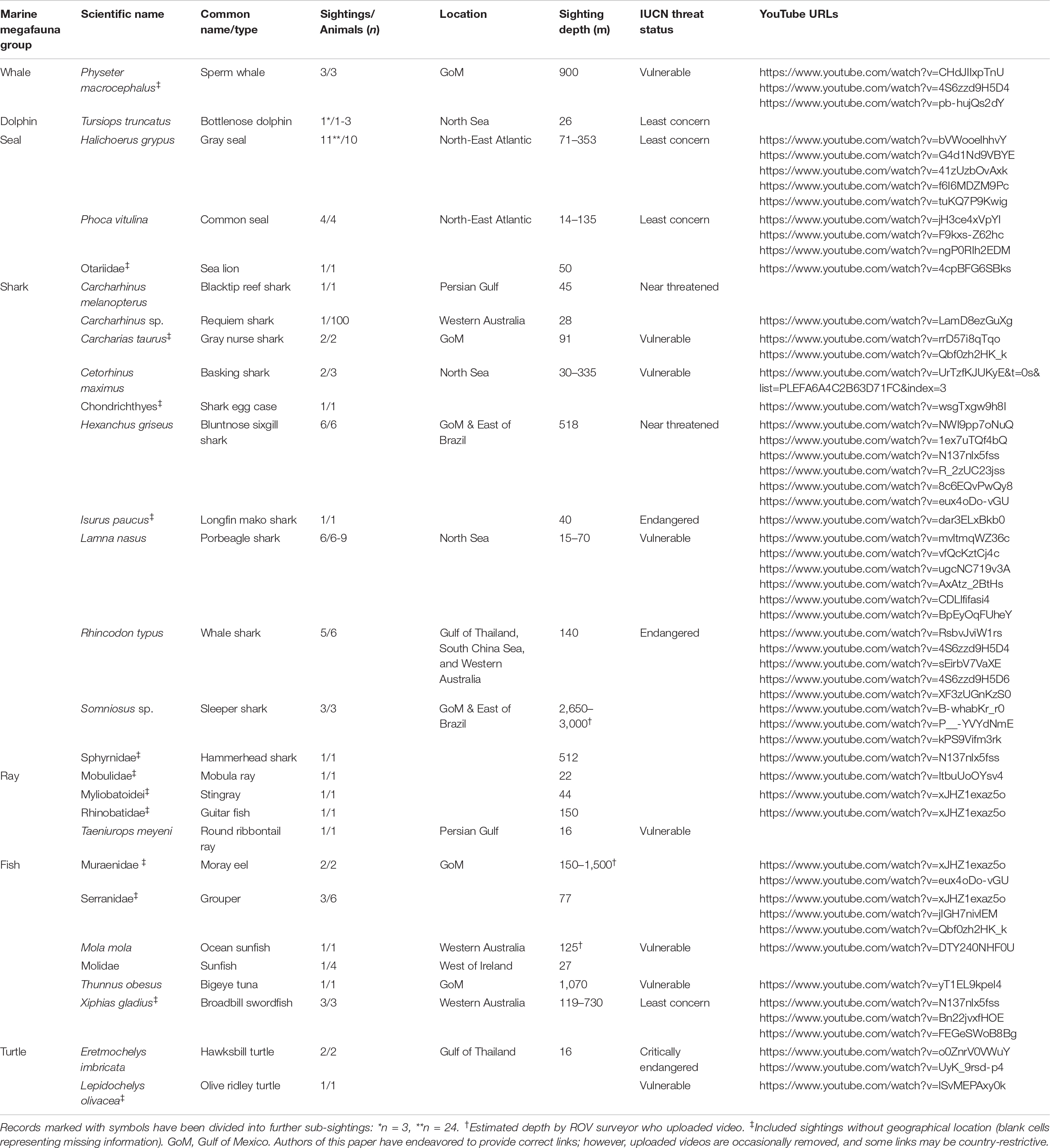

Table 2. Marine megafauna sightings (n = 67) compiled into groups, and then identified alphabetically to lowest taxonomic rank, as per Shirihai and Jarrett (2006) and Nelson et al. (2016), including number of animals, sighting duration, location, depth, IUCN Red List threat status for identified species (https://www.iucnredlist.org/), and YouTube URL hyperlinks (blank cells representing footage sourced solely through industry).
Figure 2. Examples of still images taken from video imagery sourced directly from industry partners showing marine megafauna species close to anthropogenic structures: (a) bottlenose dolphin (Tursiops truncatus), (b) gray seal (Halichoerus grypus), (c) common seal (Phoca vitulina); (d) blacktip reef shark (Carcharhinus melanopterus), (e) basking shark (Cetorhinus maximus), (f) round ribbontail ray (Taeniurops meyeni), and (g) sunfish (Molidae).
Of these n = 67 sightings, n = 178 individuals were recorded, including a school of approximately 100 requiem sharks (Carcharhinus sp.) and n = 1 unidentified shark egg case. Most taxa (n = 17) were identified to species level, while n = 3 recordings could be identified only to genus level. The remaining n = 9 individuals could be identified only to family level or above, mainly due to lack of location metadata. Sharks (n = 134), fish (n = 17), and seals (n = 16) comprised the majority of individuals. The most sighted species was gray seal (n = 11), followed by porbeagle shark (Lamna nasus, n = 10), and bluntnose sixgill shark (Hexanchus griseus, n = 6).
One gray seal, identified due to a distinct white mark on its lower back (Figure 3) was re-sighted 17 times across three days (28/08/2018, 30/08/2018, and 31/08/2018), resulting in n = 14 sub-sightings. Additionally, n = 2 still images of a bottlenose dolphin were classified as sub-sightings, since they were recorded within a 2-min period of the same operation. In total, these additional n = 16 sub-sighting data were only included in sighting duration and behavioral analysis (total n = 83).
Figure 3. Still image of gray seal (Halichoerus grypus) identified due to white mark on lower back, as a re-occurring individual in subsequent sub-sightings.
Location metadata or an approximate region were supplied for n = 44 sightings. These originated from six main geographical regions (Figure 4), the majority of which were recorded in the North-East Atlantic (n = 24). These included locations west of Ireland (n = 7), the North Sea, within maritime borders of England, Scotland, Denmark, and Norway (n = 15), and the Irish sea (n = 1, see UK inset in Figure 4). Further recordings originated from the GoM (n = 9), Australia (n = 4), south-east Asia (n = 3), Brazil (n = 2), and the Persian Gulf (n = 2).

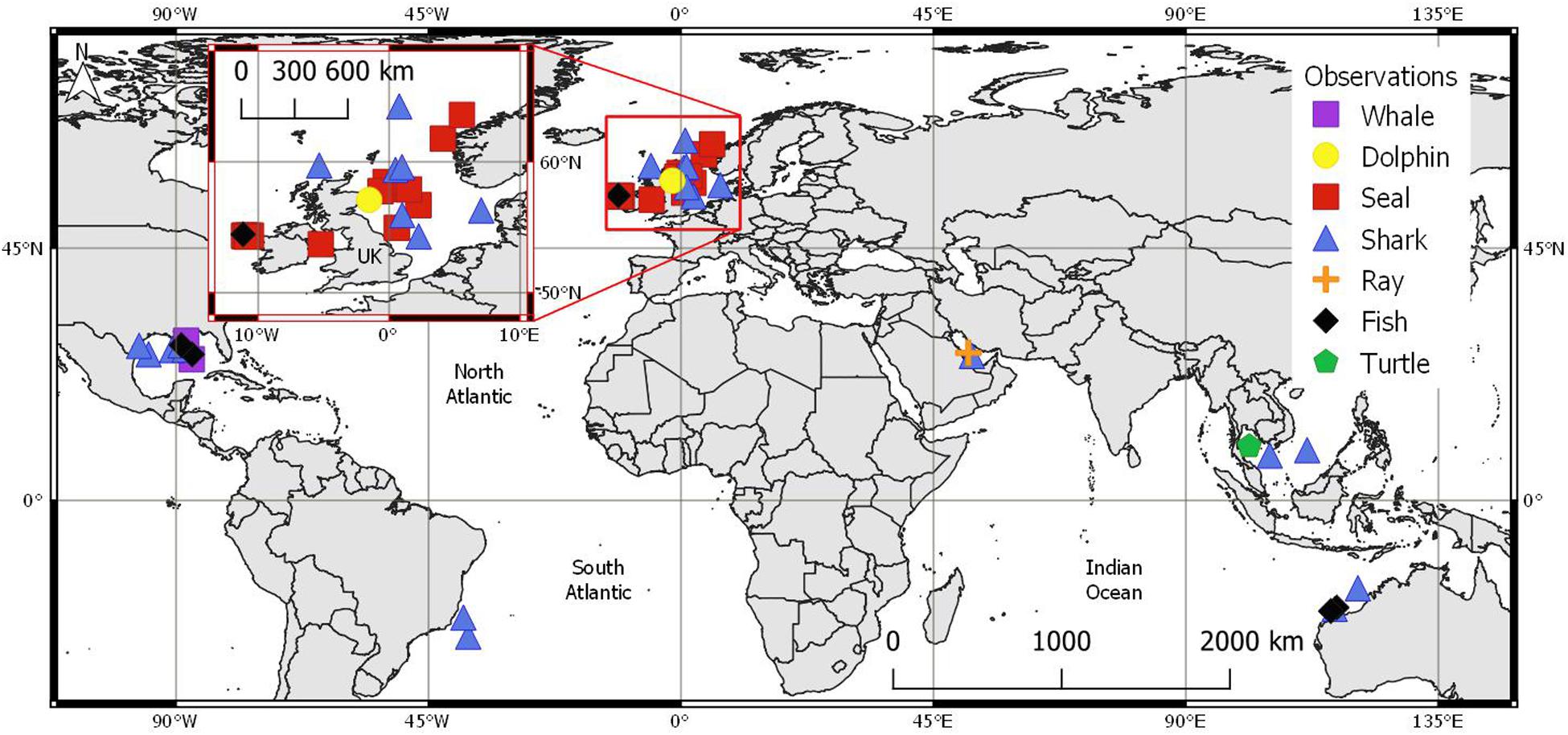

Figure 4. Approximate marine megafauna sighting locations (n = 44) per group with UK map inset: whale (n = 2), dolphin (n = 1), seal (n = 15), shark (n = 19), ray (n = 1), fish (n = 5) and, turtle ( n = 1). Coordinates in WGS ‘84.
Recording depths ranged from 13.8 to 3,000 m (Table 2). The deepest three recordings were of sleeper sharks at 2,650 m, 2,779 m and an approximate depth of 3,000 m. The shallowest recordings (13.8–16.4 m) were of common seals, a porbeagle shark, round ribbontail ray, and a hawksbill turtle. The most variable depth-range was observed for gray seals over a vertical depth of 282 m from 71 to 353 m. No depth information was available in n = 20 sightings.
Seven types of anthropogenic O&G structures were identified visibly, or through surveyor comments (Table 3). No data were available from renewable infrastructure. Most sightings were taken during installation or maintenance operations of platforms, followed by pipelines and umbilicals. Megafauna were observed mostly ‘approaching’ structure (n = 29; Figure 2), while direct physical contact was recorded on n = 20 occasions, and ‘no-contact’ was observed at n = 18 sightings. On one occasion, whilst crossing over a pipeline, a seal touched the surface, and disturbed the sediment with its flipper. Most commonly observed behavior was interaction followed by searching, and traveling, while foraging and other were observed least (Figure 5). Food-related behaviors (searching and foraging; Figure 6) were observed for seals, sharks and fish, while an interaction between organism and structure/diver was observed in all groups except ray, and traveling was recorded for whale, seal, shark, ray and fish.
Table 3. Types of anthropogenic O&G structure, including descriptions based on Schlumberger (2019), that were identified during marine megafauna encounters, followed by number of recordings (n = 67).
Figure 6. Examples of foraging attempts and successful prey capture (behavior classification 2) in the vicinity of anthropogenic O&G structures by a gray seal (Halichoerus grypus). (a) Possible foraging attempt on gadoid fish (Gadidae), highlighted by red ellipse, (b) foraging attempt on unidentified fish, highlighted by red circle, (c) possible foraging attempt on subsurface prey, and, (d) successful fish capture.
A 3-s gray seal foraging attempt was recorded near a concrete pipeline in which the seal chased an unidentified fish, which sought refuge under the pipeline (Figure 6d). Foraging success could not be determined, as camera FOV did not record the outcome. A common seal was also filmed following a pipeline during an inspection in the Irish Sea (Figure 2c). While prey were present in close proximity to both the seal and the pipeline, foraging interactions were not observed. Basking sharks were recorded swimming along a pipeline (<1 m from the structure, two clips totaling 39 s), and a turtle was recorded swimming past a diver and platform, and came into direct physical contact with both (duration 03:02).
This review evaluated presence and potential behavior of marine megafauna around offshore anthropogenic structures through video sub-surface sightings from opportunistic industry-supplied or openly-available ROV and commercial-diver data collected during GVI or IMR operations. In total, 79 video clips and three still images were collected resulting in 67 sightings of 178 individuals from at least 17 species, 3 genera, and 9 family (or taxonomically above) groups of marine megafauna. This work demonstrated occurrence and potential foraging of marine megafauna in vicinity of anthropogenic structures on a global scale, and the first confirmed visual verification of seals following pipelines. Due to the nature of opportunistically-collected data, only qualitative descriptions were possible. Statistical comparisons would have only been achievable using dedicated-survey data. While data presented here are a ‘snapshot,’ given the thousands of hours of ROV data taken each month, it is conceivable that these observations could magnify quickly into full global data sets within their own right. Consequently, we urge other workers to follow suit, in a bid to quantify the frequency and nature of these events.
Over the last 30+ years, ROVs have become a dominant tool for subsea operations in the O&G sector; however, no imagery was sourced from the renewable energy sector. This could be for a number of reasons. Firstly, the renewable industry is newer, and there has been less time for ROV data to have accumulated and reach the various social medial platforms. Secondly, ROV surveys in this sector are likely less common, potentially because renewable energy structures are located in more exacting site conditions (shallow waters, high wind/wave/swell/currents, etc.), making standardized ROV surveys unfeasible operationally.
Previous acoustic and surface-based visual studies that have detected marine mammals around O&G structures (e.g., Cremer et al., 2009; Todd et al., 2009, 2016; Thompson et al., 2010; Delefosse et al., 2018), have now been corroborated by the commercial subsea imagery in this study. Presence of other megafauna species such as sharks (Haugen and Papastamatiou, 2019), rays, and turtles (McLean et al., 2017, 2019b) confirm that marine mammals are not unique in their exploitation of resources on/around anthropogenic structures. Individuals approached structures in close proximity, occasionally resulting in direct contact, which is not a behavior associated typically with avoidance (Mackintosh, 1974). Visual evidence of foraging behavior and successful prey capture by seals, sharks and large fish in vicinity of submerged pipelines, umbilicals, and platforms support previous evidence from Russell et al. (2014); Arnould et al. (2015), and Todd et al. (2016) that marine megafauna may target anthropogenic structures as foraging locations. Some of the searching behavior observed in the imagery may well have been simple ‘curiosity.’ Arnould et al. (2015) also suggested that animals not only take advantage of the actual hard structures themselves, but also benefit potentially from their impact on the surrounding environment through induced currents and subsequent scour on microhabitat.
Diving to New Depths
To our knowledge, the YouTube imagery of the sleeper shark recorded about 400 km off the coast of Brazil at a depth of 2,779 m (Supplementary Table 1) could potentially be the deepest recording of a large sleeper shark, Somniosus spp. (ANON, 2012). While the sighting of the sleeper shark at 3,000 m could suggest an even deeper observation, estimated depth could not be confirmed, since it was only mentioned in the video title, and not on-screen, or in video commentary. Morphological similarities make it impossible to distinguish Somniosus spp., which are ‘virtually impossible to distinguish based solely on imagery’ (Gallant, 2012), and require molecular analysis (Benz et al., 2007). While smaller species of sleeper sharks (Centroscymnus spp.), including Portuguese dogfish, Centroscymnus coelolepis, are known to inhabit deeper waters up to 3,675 m (Compagno, 1984), only a handful of sightings of Somniosus spp. have been published in the western Atlantic. These included the ROV recording of the first report of a somniosid shark in the southern Colombian Caribbean (1,820 m; Acero et al., 2018) and northern GoM (1,423 m; Benfield et al., 2008). The maximum confirmed depth of a large sleeper shark (which was also the earliest sighting for this review), was recorded at 2,647 m (Benz et al., 2007). This was also the first reliable sighting of Somniosus spp. in the GoM and one of the deepest records for any shark species. These data, based purely on industrial ROV imagery demonstrates significant value of these industrial recordings.
In this study, recorded depths of one of the sperm whales (∼900 m) and gray seals (up to 353 m) were also near the limits of each species’ known capacity. Tracking studies have recorded sperm whale modal dives at around 600 m (Watwood et al., 2006), while their foraging dives have been tracked to 1,185 m and possibly 2,000 m (Watkins et al., 1993; Watwood et al., 2006; Whitehead, 2018). Gray seals have been tracked diving to at least 412 m (Beck et al., 2003). Overall, tagging data require substantial financial and logistical investment, can be invasive and deeply traumatic for captured animals (especially marine mammals, consequently altering behavior and biasing results), whereas recordings used for this review were opportunistic.
Utilization of ROV Data
Gates et al. (2017) and Macreadie et al. (2018) highlighted the value of collaboration between scientists and industry, specifically in relation to the large volume of ROV datasets that could increase scientific discovery and enhance likelihood of encountering large enigmatic marine organisms. The Scientific and Environmental ROV Partnership using Existing Industrial Technology (SERPENT) Project produced 40 peer-reviewed publications from over 120 visits to offshore infrastructure (Gates et al., 2017). These publications include deepest recorded scalloped hammerhead (Sphyrna lewini) and southern sunfish (Mola ramsayi), as well as the first in situ observation of an oarfish, Regalecus glesne Gates et al. (2017). Results such as these, and those summarized in Macreadie et al. (2018), highlight benefits of industry and scientific cooperation and collaboration.
Increased availability of industry/research collaboration consortia [e.g., Influence of man-made Structures in the Ecosystem (INSITE) in the North Sea, and National Decommissioning Research Institute (NDRI) in Australia] could potentially facilitate data sharing across institutions. In addition, commercial industrial/environmental monitoring suppliers providing protected research time to staff would allow a vast amount of research to proceed; however, the reality is that industry has its ‘preferred’ users, so access to these proprietary data is often merely knowing the ‘right’ people, being in the ‘right place at the right time’, and having the drive (and the time) to complete ‘unremunerated’ analysis of data in a bid to further the field.
ROV data come generally in two forms (1) dedicated, scientifically designed surveys, often collected by instrumentally augmented (non-standard) ROVs for research purposes (e.g., McLean et al., 2019a), and (2) non-scientific surveys, collected by standard, off-the-shelf ROVs for industry purposes, where the analyst has no control over survey design/sensor configuration, distance to objects, scale, FOV, or even knowledge on make and model of ROV (e.g., Todd et al., 2018, 2019). Consequently, analysis options for these types of data differ. Dedicated scientific surveys can make use of techniques such as machine learning (e.g., Piechaud et al., 2019), whereas applicability of these techniques to industry data are, to the best of our knowledge, untested.
Making use of ROV imagery and commercial-diver recordings, which are regularly collected en masse for the O&G industry worldwide (at the cost of billions of pounds each year) has multiple advantages. Collaborations can be formed between industry and scientists, allowing studies on habitats that are otherwise inaccessible, improving our knowledge of poorly-understood species (Gates et al., 2017; McLean et al., 2018a, 2020). Imagery collected routinely for industrial purposes can be made available to researchers for free, avoiding additional funding and effort. Industrial ROVs are often equipped with other useful sensors, such as hydrophones, Sound Navigation And Ranging (SONAR), or motion sensors (Muyzert et al., 2015; Macreadie et al., 2018), data from which can potentially be analyzed without requiring added cost or license approvals. Tapping into these surveys can reduce environmental disturbance from conducting duplicate surveys (Jones, 2009). To address major knowledge gaps and conservation challenges, it has been suggested recently to take advantage of ever-increasing supply of publicly available, open-source data on social media platforms to supplement conventional research protocols (Klemann-Junior et al., 2017; McKinley et al., 2017; Mancini et al., 2019; Pace et al., 2019; Parton et al., 2019). This has been demonstrated to be a reliable tool for obtaining cetacean-distribution data (Hann et al., 2018; Pace et al., 2019); therefore, collecting ROV data from international public-domain platforms can aid research purposes on a global scale. There are additional caveats on public data, e.g., only interesting/exciting sections are posted which makes effort impossible to determined.
Industrial ROV surveys have several disadvantages, most obvious of which is a complete lack of ecological survey design, making robust statistical analysis difficult (e.g., lack of pre-installation ‘control’ data, short temporal scale, variable seasonality, etc.). While time format for scientific data collection is standardized to GMT, time stamps on industrial imagery were supplied without format clarifications, necessitating assumption of local time stamps. Since data were also collected across different time zones, seasonality of ROV recordings was difficult to assess. While most data were collected between August and October for the northern hemisphere, a seasonal trend toward the summer period could be suggested. This could be a consequence of increase in effort and visibility during periods of clement weather, but could also suggest seasonality of megafauna presence in the vicinity of anthropogenic structures for e.g., feeding, breeding. This inference, however, remains unquantifiable from these data. While again, it would be interesting to confer this trend with the southern hemisphere, not enough data were collected there to allow for such a comparison. Additionally, presence of the ROV itself may alter behavior or presence of animals being surveyed (Hudson et al., 2005; Andaloro et al., 2013). For example, previous research has shown artificial light alters predator-prey relationships (reviewed in Longcore and Rich, 2004). This is particularly the case for seals, which have shown significantly increased feeding behavior with artificial lights (Yurk and Trites, 2000). No information was available as to presence/absence of lights on the ROV, diver, or offshore installation, meaning any inferences on periodicity were not possible.
Overall, quality of video imagery on industrial ROV surveys is often low priority, since surveys are designed mainly to use other technologies, such as pipe tracker and multibeam, lacking provision of a distance-range estimator (Macreadie et al., 2018). Additionally, several recordings were not provided with location or depth information, necessary for a reliable species identification. Improving design of ROV surveys could be achieved through collection of High Definition (HD) imagery, a laser range-distance estimator, and inclusion of necessary metadata as discussed in Todd et al. (2019) and McLean et al. (2020).
Dates of available data in this study were a consequence of various factors, as opposed to a lack of available ROV data. While the first ROVs were available commercially to the US Navy in the late 1960s (Hudson et al., 2005), the majority of imagery in this study originated post-2006. This may have been for a number of reasons. Firstly, data availability has increased with access to the Internet, accessible by the public since August 1991 and the popularity of YouTube (founded in 2005) over the last few years. Additionally, the greatest issue of industrial ROV data is the restricted access to commercially sensitive imagery, often protected by NDAs; therefore, partnerships between industry and scientists are invaluable to gain access to otherwise inaccessible data and researchers should be encouraged to consult archived data (Sward et al., 2019; Todd et al., 2019; McLean et al., 2020).
Marine Megafauna Sightings in the Face of Decommissioning
Of 17 taxa identified here to species level, 13 are listed on the IUCN Red List as threatened species, one of which, the hawksbill turtle, is critically endangered. Other taxa that could not be identified to species level include many that are listed as data deficient. Overall, presence of marine megafauna at offshore industrial sites warrants further investigation and consideration of potential interactions between megafauna and O&G installations.
Marine mammals have been detected visually and acoustically around these structures (e.g., platforms and pipelines), and it has been suggested that they target these sites for foraging (Todd et al., 2009, 2016; Russell et al., 2014; Orr et al., 2017; Delefosse et al., 2018). If echolocating cetaceans cluster regularly around installations within the 500-m exclusion zones, then it is highly likely they have been omitted unintentionally from historical visual and acoustic population surveys. This is because High-Frequency (HF) sound attenuates rapidly underwater (Urick, 1983), especially for odontocetes that emit Narrow Band HF (NBHF) echolocation clicks, such as harbor porpoises (Au, 1999; Teilmann et al., 2002; Villadsgaard et al., 2007). This limits survey detection to 250–300 m of the hydrophone (on-axis) at best, in ideal-propagation conditions (Todd et al., 2015, 2016), resulting in potentially significant underestimations of their true population status, e.g., by Small Cetacean Abundance in the North Sea or SCANS (Hammond et al., 2002, 2013, 2017). Future studies utilizing previously collected and archived data to study potential associations of marine mammals with offshore anthropogenic infrastructure, must therefore account for the fact that data likely do not include animals in close proximity (i.e., within the typical 500-m shipping exclusion zone) of offshore structures.
Fowler et al. (2014, 2018) and van Elden et al. (2019) highlighted key concerns with complete decommissioning and how it could affect marine ecosystems. The consensus was that a case-by-case approach is required, in which careful consideration of environmental impacts of removal of each installation would be required, as opposed to a blanket policy. The role these structures play for megafauna on a population level, acting as a network of protected areas with further potential to provide spatially predictable foraging locations, is still unknown. In addition, the notion that some offshore installations can act potentially as ‘ecological mortality traps’ warrants further investigation. For example, there are confirmed industry records (Victoria L. G. Todd, unpublished obs.) that whale sharks targeting offshore O&G installations suffer fatal interactions with support vessel propeller shafts, and vessel collisions. Clearly, continued research is necessary to address these major knowledge gaps.
Conclusion and Recommendations
This manuscript provides a subsea account of marine megafauna presence and initial accounts of feeding behavior in vicinity of anthropogenic structures using visual ROV and commercial-diver data collected for industrial purposes. It also highlights the deepest recording of a sleeper shark in published literature and the first confirmed visual evidence of seals following pipelines. Future research on this topic could focus on non-commercial, recreational imagery from divers around offshore installations, and include Internet searches using non-technical terms, such as ‘cool deep-sea fish gets eaten by shark near oil rig.’
In the face of imminent decommissioning, our understanding of the role these structures play in the lives of marine megafauna is incomplete, at best. Investigations into use of ROV imagery demonstrate potential for collaborations between researchers and industry, that have capacity to unlock a vast wealth of data, which can be used to make more informed decisions regarding future management of these structures.
Data Availability Statement
Ethical review and approval was not required for the animal study because observations of animals were sourced from YouTube videos. Written informed consent was not obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.
VT conceived the idea, sourced imagery, and contributed to drafting of the manuscript. LL sourced imagery and contributed to drafting of the manuscript. LW oversaw analysis and contributed to drafting of the manuscript. IP sourced imagery. AH edited a previous draft. SC administered the analysis. IT sourced imagery. PM and DM contributed to manuscript drafts.
Conflict of Interest
VT, LL, LW, IP, AH, SC, and IT were employed by Ocean Science Consulting Limited.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
We would like to thank Jane Warley née Gardiner (formerly OSC), Irene Susini (OSC), and all operators who contributed data to this project. Also, thanks are due everyone who posted ROV/diver imagery to YouTube.
