Gimme shelter: how Vibrio fischeri successfully navigates an animal’s multiple environments
- Department of Microbiology and Immunology, Loyola University Medical Center, Maywood, IL, USA
Bacteria successfully colonize distinct niches because they can sense and appropriately respond to a variety of environmental signals. Of particular interest is how a bacterium negotiates the multiple, complex environments posed during successful infection of an animal host. One tractable model system to study how a bacterium manages a host’s multiple environments is the symbiotic relationship between the marine bacterium, Vibrio fischeri, and its squid host, Euprymna scolopes. V. fischeri encounters many different host surroundings ranging from initial contact with the squid to ultimate colonization of a specialized organ known as the light organ. For example, upon recognition of the squid, V. fischeri forms a biofilm aggregate outside the light organ that is required for efficient colonization. The bacteria then disperse from this biofilm to enter the organ, where they are exposed to nitric oxide, a molecule that can act as both a signal and an antimicrobial. After successfully managing this potentially hostile environment, V. fischeri cells finally establish their niche in the deep crypts of the light organ where the bacteria bioluminesce in a pheromone-dependent fashion, a phenotype that E. scolopes utilizes for anti-predation purposes. The mechanism by which V. fischeri manages these environments to outcompete all other bacterial species for colonization of E. scolopes is an important and intriguing question that will permit valuable insights into how a bacterium successfully associates with a host. This review focuses on specific molecular pathways that allow V. fischeri to establish this exquisite bacteria–host interaction.
Bacteria are remarkably successful organisms because they can effectively sense and acclimatize to a wide variety of environments. This domain of life can flourish in habitats ranging from deep sea hydrothermal vents, to scum growing on a lakebed, and to the gastrointestinal tracts of humans (Orcutt et al., 2011; Salzman, 2011). To thrive in particular environments, bacteria use molecular signaling cascades that recognize extracellular signals and activate intracellular pathways, often leading to a change in gene expression. These changes in gene regulation allow a cell to manage the array of extracellular signals and adapt accordingly.
Of particular interest are the signaling cascades that permit a microbe to cope with the multiple environments found within a eukaryotic host. These pathways presumably sense changing environmental factors such as osmolarity, fluctuating nutrient sources, other microorganisms, antimicrobials, and components of the immune system. Furthermore, a bacterium must integrate the multiple inputs to identify which location, if any, is an appropriate niche. To ask in-depth questions about signaling pathways involved in host colonization, researchers often study “simplified” model systems, in which only one or a few bacterial species successfully infect a host (McFall-Ngai et al., 2013). One model system used for this purpose is the symbiosis between the luminescent marine bacterium, Vibrio fischeri, and its nocturnal squid host, Euprymna scolopes. In this symbiosis, V. fischeri is the only bacterium capable of colonizing a specialized symbiotic organ, the light organ. This monospecific association permits researchers to ask deeply reductionist questions about bacteria/host interactions, and has provided insights into how a single bacterial species controls its gene expression to cope with different host environments.
There are a number of experimentally tractable steps involved in colonization of E. scolopes, many of which are facilitated by known signaling pathways in V. fischeri. Newly hatched squid are aposymbiotic and must acquire V. fischeri cells from the surrounding seawater (Wei and Young, 1989). Ventilation by the squid brings seawater and any bacterial cells into the mantle cavity where the light organ is located (Figure 1). To aid in the recruitment of bacteria, the surface of the light organ has epithelial fields with cilia that circulate the seawater (McFall-Ngai and Ruby, 1991). This motion draws cells toward six pores leading into the light organ. In as little as 1 h, V. fischeri and other Gram-negative bacteria make contact with cilia and then form biofilm-like aggregates around the cilia and within mucous shed by the host in response to bacterial peptidoglycan (Nyholm et al., 2000; Altura et al., 2013). During these early processes, V. fischeri cells secrete molecules, known as microbe-associated molecular patterns (MAMPs), that induce morphological changes and alterations in gene expression in the squid, thereby resulting in a host environment actively shaped by the symbiont (for reviews, see Nyholm and McFall-Ngai, 2004; Visick and Ruby, 2006; McFall-Ngai et al., 2012) Ultimately, V. fischeri cells dominate over other bacteria within the aggregate through unknown mechanisms (Nyholm and McFall-Ngai, 2003; Altura et al., 2013). After these initial interactions, V. fischeri cells then leave the aggregate, enter into the ducts of the light organ, travel through antechambers (spaces not permissive for colonization), and arrive within the crypts, the sites of colonization. Within the location of these different host tissues, V. fischeri cells are subjected to host-derived stresses such as reactive oxygen species (ROS) and reactive nitrogen species (RNS), that they must sense and resist (Tomarev et al., 1993; Weis et al., 1996; Small and McFall-Ngai, 1999; Davidson et al., 2004). When the bacteria finally reach the crypt spaces, they grow to high cell density and begin to bioluminesce. Bioluminescence is a key component of the symbiosis: in exchange for a nutrient-rich niche, the bacteria provide light that the squid can use to avoid predation (Ruby, 1996; Jones and Nishiguchi, 2004). Every day at dawn, the squid expel ~95% of the V. fischeri cells back into the seawater environment, leaving the remaining V. fischeri cells to repopulate the light organ (Lee and Ruby, 1994). It has been suggested that this process allows the squid to prevent bacterial overgrowth, thus relieving the burden of carrying a dense growth of bacterial cells (Ruby and Asato, 1993).
FIGURE 1. Steps of E. scolopes colonization by the luminescent bacterium, V. fischeri. (A) Image of a juvenile E. scolopes. The bi-lobed light organ can be seen as a black structure in the mantle cavity. (B) Cartoon depicting one lobe of the light organ with the ink sac (gray), ciliated epithelial cells (yellow), and internal regions of the light organ (blue). Before the initial contact with V. fischeri (black ovals), E. scolopes produces the reactive nitrogen radical, nitric oxide (NO), which it subsequently down-regulates after exposure to the bacteria. Initiation of colonization requires that V. fischeri cells form a biofilm-like aggregate around the pores to the light organ. Motility is not required for biofilm formation. (C) After aggregation, V. fischeri cells utilize flagella to migrate into the pores, through the ducts and antechamber, and to establish their niche in the crypt spaces. (D) Once in the crypts, V. fischeri lose their flagella and grow to a sufficient cellular density that allows for the induction of bioluminescence genes (transparent blue oval represents luminescence). Figure modified from Nyholm and McFall-Ngai (2004).
Research in the V. fischeri/E. scolopes symbiosis field has identified a number of molecular signaling pathways that facilitate the various steps of colonization. A few of these pathways within V. fischeri include controlling biofilm formation during the aggregation step, motility and chemotaxis to propel and direct the bacteria toward the crypts, ROS and RNS management during all steps of colonization, and bioluminescence within the light organ. This review will focus on these well-known signaling cascades, although it should be noted that other important pathways exist within V. fischeri to promote the symbiosis (reviewed in Nyholm and McFall-Ngai, 2004; Visick and Ruby, 2006; Dunn, 2012; McFall-Ngai et al., 2012; Stabb and Visick, 2013).
Initiating the Symbiosis: Biofilm Formation
The first step of colonization requires that V. fischeri cells come into the vicinity of and sense the presence of the squid. This seemingly simple task, however, can be considered a limiting factor in colonization. For example, within the Hawaiian water where E. scolopes reside, V. fischeri constitute ~100 to 1500 cells per ml of seawater representing as little as 0.01% of the total bacterial population (Lee and Ruby, 1994; Nyholm and McFall-Ngai, 2004). Furthermore, the light organ is not openly exposed to the seawater; instead E. scolopes vents seawater through its mantle cavity and across the entrance to the light organ. It has been estimated that a miniscule volume of seawater (1.3 μl) and thus only a few V. fischeri cells enter the mantle during each half-second ventilation (Nyholm et al., 2000). Additionally, one V. fischeri cell constitutes only one-millionth the volume of the mantle cavity (McFall-Ngai and Montgomery, 1990; Nyholm et al., 2000). Theoretically, V. fischeri cells would have to locate all six pores in a brief amount of time before they are expelled from this cavity (Nyholm et al., 2000; Nyholm and McFall-Ngai, 2004). So how does this microbe manage the transition from seawater to squid?
V. fischeri cells do not immediately enter the light organ during ventilation; they first interact with mucous and cilia on the host’s epithelial cells, and then they begin to coalesce into a bacterial aggregate (Nyholm et al., 2000; Altura et al., 2013; Figure 1). V. fischeri strains that fail to form this aggregate or form an enhanced aggregate either fail to colonize the squid or exhibit an enhancement of colonization, respectively (Nyholm et al., 2000; Millikan and Ruby, 2002; Yip et al., 2006; Morris and Visick, 2013). Because this stage of colonization is a critical step in establishing the symbiosis, much research has focused on the mechanisms by which V. fischeri cells form these squid-specific aggregates. Of note is the discovery of the 18 gene syp (symbiosis polysaccharide) locus, which was found to be important for the formation of a biofilm, or a community of cells encased in a protective matrix often composed of polysaccharides and other macromolecules (Yip et al., 2005, 2006). The syp locus encodes proteins predicted to regulate, produce, or transport the biofilm polysaccharide, and most of the syp genes are critical for both in vitro biofilm formation colonization (Yip et al., 2005; Shibata et al., 2012). Perhaps not surprisingly, given its importance for initiating the symbiosis, there are layers of controls in place that regulate the formation of this biofilm (Yip et al., 2006; Morris and Visick, 2013).
Production of the Syp biofilm is controlled by a two-component signaling (TCS) cascade, a ubiquitous class of signaling pathways consisting of two types of proteins: a sensor kinase (SK) that receives input signals from the environment, causing it to autophosphorylate, and a response regulator (RR), a protein that receives the phosphoryl group from the SK (reviewed in Stock et al., 2000). This phospho-transfer often changes the activity of the effector domain on the RR, thus leading to a cellular response. The particular TCS pathway that controls production of the Syp biofilm is more complicated than canonical TCS cascades; it contains at least two SKs and two RRs (Figure 2; reviewed in Visick, 2009). Overexpression of the SK predicted to be at the top of the hierarchy, RscS, is sufficient to induce biofilm formation in vitro and in vivo by affecting the activity of two downstream RRs, SypG and SypE (Yip et al., 2006; Hussa et al., 2008; Morris et al., 2011). Phospho-SypG promotes transcription from the four syp promoters (Yip et al., 2005; Ray et al., 2013). Unphosphorylated SypE inhibits biofilms at a level below syp transcription; however, when SypE is phosphorylated, it functions as a positive regulator (Morris and Visick, 2013). SypE controls biofilm formation by changing the phosphorylation state of a small STAS domain protein, SypA, but the exact function of SypA is unknown (Morris and Visick, 2010, 2013). The sypA, sypE, and sypG genes are located within the syp locus whereas rscS is an orphan SK gene hypothesized to be acquired through horizontal gene transfer (Visick and Skoufos, 2001; Mandel et al., 2009). An additional putative SK gene, sypF, is located between sypE and sypG. This location suggests that SypF is yet another SK involved in regulating biofilms. In support of this, an “active” allele of sypF, sypF*, was sufficient to promote biofilms in a sypG-dependent manner (Darnell et al., 2008). Surprisingly, SypF*-induced biofilms also required vpsR, a putative RR that is predicted to be involved in cellulose biosynthesis (Darnell et al., 2008).
FIGURE 2. Regulation of biofilm formation in V. fischeri. Two-component regulators control the production of the Syp biofilm. RscS and SypF are proposed to function as sensor kinases, resulting in the phosphorylation of the two downstream response regulators, SypE and SypG. SypG functions as a transcription factor to control expression of the syp locus at its four promoters, while SypE functions downstream of syp transcription to control the phosphorylation state of the small STAS domain protein, SypA. SypF is also predicted to control the activity of a RR VpsR putatively involved in cellulose biosynthesis. Biofilms can be assessed in vitro as a wrinkled colony on an agar plate, or in vivo as a bacterial aggregate that forms on the surface of the light organ. Adapted from (Visick, 2009).
Although much is known about the Syp signaling pathway, there are still outstanding questions that have yet to be fully answered. For example, what are the signals that RscS and SypF recognize? Do these SKs function as separate inputs into downstream regulators? What, if any, is the connection between Syp biofilms and cellulose biosynthesis? Furthermore, the sole function of SypE appears to be controlling the activity of SypA (Morris and Visick, 2013), yet what does SypA do? Lastly, although the ability to form the Syp biofilm is required for aggregate formation, it is not required for outcompeting colonization-incompetent species of bacteria that can also aggregate outside the light organ (Nyholm et al., 2000; Nyholm and McFall-Ngai, 2003; Altura et al., 2013). Hence, what Syp-independent mechanisms establish early specificity in the symbiosis by promoting the dominance of V. fischeri cells within this aggregate? The answers to these questions will permit a detailed and mechanistic understanding of a critical, early stage of host colonization.
Traversing the Terrain of the Squid: Motility and Chemotaxis
Once V. fischeri cells aggregate outside the squid’s light organ, they must leave this matrix-encased biofilm, migrate through the pores against outward water currents produced by beating cilia, and traverse across the antechamber and into the crypt spaces in the organ (McFall-Ngai and Montgomery, 1990; McFall-Ngai and Ruby, 1998; Nyholm and McFall-Ngai, 2004). This migration process requires that V. fischeri cells have the capability to move through fluids or across surfaces and to direct this movement toward their final destination. For these processes to occur, V. fischeri cells utilize flagella for locomotion and chemotaxis proteins to alter the direction of movement.
Flagella are large macromolecular appendages with a membrane-embedded motor. This motor rotates the long flagellar filament using energy from ion gradients across the membrane (Berg, 2003). The number and location of the flagella (polar or peritrichous) vary among bacterial species; V. fischeri in particular has a tuft of 1–5 sheathed flagella at one pole (Ruby and Asato, 1993; McCarter, 2001). Studies have demonstrated that flagellar-dependent motility is required for early stages of host colonization; non-motile or hypermotile strains fail to efficiently colonize E. scolopes (Graf et al., 1994; Millikan and Ruby, 2002, 2004; Wolfe et al., 2004; Brennan et al., 2013b). Interestingly, although cells begin the colonization process flagellated, they lose these appendages within the light organ, suggesting that motility is not important within this environment (Ruby and Asato, 1993). Before dawn, V. fischeri begin to express flagellar genes and, once released from the light organ during venting from the squid at dawn, V. fischeri cells again have fully formed flagella (Ruby and Asato, 1993; Wier et al., 2010). These data suggest that V. fischeri cells change their flagellation status based on a particular environmental cue. In support of this idea, flagellation and thus motility of V. fischeri depends on magnesium, a divalent cation common in seawater; thus, the seawater environment might promote flagellar synthesis (O’Shea et al., 2005). The observation that V. fischeri cells are not flagellated within the light organ signifies that this region of the squid might constitute a low Mg2+ environment; however, the abundance and/or role of Mg2+ in vivo has not been assessed.
What is the mechanism by which V. fischeri cells control flagellation? In well-studied species of bacteria, such as Escherichia coli, Salmonella enterica Typhimurium and Vibrio cholerae, flagellar biosynthesis is regulated in a hierarchical, temporal fashion such that the most proximal structural proteins are expressed and assembled before the more distal ones (Chilcott and Hughes, 2000; Prouty et al., 2001). In V. cholerae, there are four classes of genes that code for either regulatory or structural proteins (Figure 3). The sole Class I gene encodes FlrA, a transcriptional activator that controls expression of Class II genes in a manner that depends upon the alternative sigma factor, σ54. Two Class II regulatory proteins, FlrC and the alternative sigma factor σ28 (FliA), control expression of Class III and Class IV genes, respectively. Classes II, III, and IV also encode different subunits of the flagellar apparatus. This temporal regulation of gene expression ensures proper, step-wise assembly of the flagellum (Figure 3).

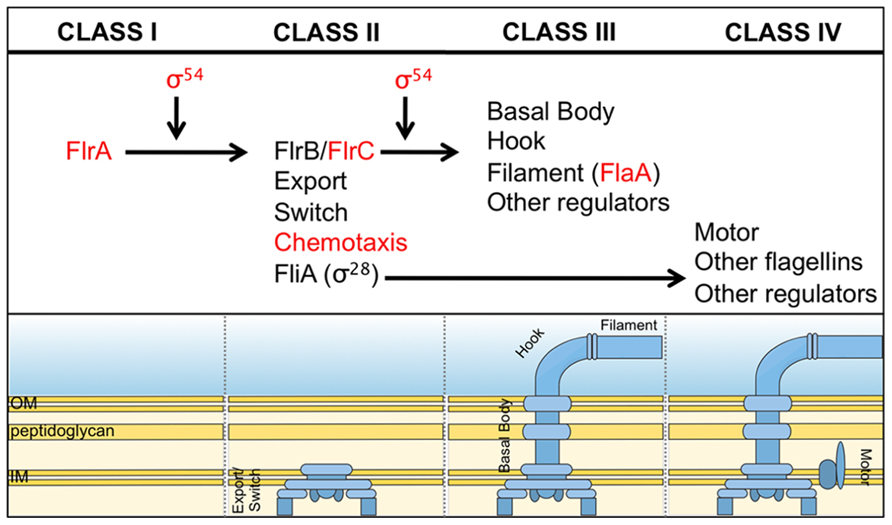

FIGURE 3. Predicted flagellar synthesis pathway in V. fischeri. The V. fischeri model of flagella gene regulation is based on the pathway elucidated in the related microbe, V. cholerae (Prouty et al., 2001). Class I consists solely of the regulator, FlrA, which, together with σ54, controls expression of Class II genes. Class II proteins include both those necessary for building the base of the flagellum and also the regulators FlrB, FlrC and σ28(FliA). FlrB and FlrC control transcription of Class III genes necessary for synthesis of the distal basal body, hook, and filament, while σ28 regulates transcription of Class IV genes involved in the production of motor proteins and other miscellaneous factors. Regulators in red indicate they are important for V. fischeri to colonize the squid (Millikan and Ruby, 2003, 2004; Hussa et al., 2007; Brennan et al., 2013b).
Bioinformatic studies suggest that V. fischeri cells use regulators similar to V. cholerae to control flagellar assembly, and mutagenesis studies thus far have supported this hypothesis (for an extensive list, see Brennan et al., 2013b). Mutations in a few of these genes also cause pleiotropic effects. For example, mutations in the motility regulators rpoN (σ54) and flrC affected bioluminescence, biofilms, and growth in various media (Millikan and Ruby, 2003; Wolfe et al., 2004; Hussa et al., 2007). Additionally, a deletion of the master regulator of flagellar synthesis, flrA, affected the expression of a number of genes and proteins unrelated to motility, including a predicted topoisomerase, an ADP-ribosyltransferase similar to the CTX toxin in V. cholerae (halovibrin A), phosphoglycerate kinase, a potassium efflux protein, and genes involved in chromosome partitioning (Millikan and Ruby, 2004; Brennan et al., 2013b). These data suggest that motility regulators in V. fischeri might be involved in flagellar-independent pathways and predict that these other pathways might also impact colonization. However, the contribution of these motility-independent pathways in host association has yet to be assessed (Millikan and Ruby, 2003; Wolfe et al., 2004; Hussa et al., 2007).
Motility in V. fischeri requires the expression of many putative flagellar structural proteins (Brennan et al., 2013b). A few of the flagellin proteins, which polymerize to form the long, external flagellar filament, have been studied in some depth (Millikan and Ruby, 2004). An insertional mutation in flaA, which encodes the major flagellin protein (FlaA), resulted in fewer flagella and caused partial defects in motility and colonization (Millikan and Ruby, 2004). The partial defects could be attributed to the presence of at least 5 other flagellin genes in the V. fischeri genome. In support of this hypothesis, an insertional mutation in another flagellin gene, flaD, also caused a motility defect; conversely, a mutation in the flaC flagellin gene had no observable effect on motility (Millikan and Ruby, 2004; Brennan et al., 2013b). To date, no other flagellin genes have been studied in detail. It is not clear whether these “alternative” flagellin proteins are (i) only minor constituents of the flagella, (ii) only utilized in a subpopulation of cells, (iii) specific for the squid association, or (iv) perform yet unknown functions.
Although V. fischeri must be motile to colonize the squid, many intriguing questions about this phenotype remain unanswered. For example, many flagellar proteins can be found within light organ exudates, but it is thought that V. fischeri is largely aflagellate in the light organ (Ruby and Asato, 1993; Schleicher and Nyholm, 2011). Thus, what is the functional significance, if any, of the presence of these proteins within the light organ? Could these proteins serve as signaling molecules to other V. fischeri cells or to the squid? Furthermore, what environmental signals control the loss and/or regeneration of flagella? What are the levels of magnesium associated with different squid tissues, and do the levels impact flagellation in symbiosis? If so, what is the mechanism? If not, are there molecules released by E. scolopes or specific environmental cues that dictate the flagellation state of V. fischeri cells? Further research into the control of flagellation should shed light on the mechanism by which this important phenotype is altered during the multiple stages of symbiosis.
To identify and reach the colonization-permissive locations within E. scolopes, V. fischeri cells appear to use chemotaxis, a mechanism bacteria utilize to sense and move toward attractants and away from repellants (reviewed in Manson et al., 1998; Wadhams and Armitage, 2004; Sourjik and Wingreen, 2012). Chemotaxis, a process well-studied in other bacteria, consists of a series of “runs” (smooth swimming) and “tumbles” (for re-orientation). These events depend upon a complex TCS pathway in which receptors, or methyl-accepting chemotaxis proteins (MCPs), are coupled to a SK, CheA, and two downstream RRs, CheY and CheB (Hess et al., 1988; Bourret and Stock, 2002; Figure 4). Phospho-CheY directly interacts with the base of the flagellar motor, causing the flagellum to switch its rotation, leading to tumbling and reorientation of the cell (Wadhams and Armitage, 2004). Binding of attractants has the effect of reducing phospho-CheY levels, thereby decreasing tumbling (and increasing smooth swimming). Similarly, deleting cheY generates a strain that cannot tumble; therefore, it exhibits a “smooth” run. For a bacterium to continually respond to signals within a chemogradient, it must desensitize and reset the chemotaxis system. To do this, bacteria often control MCP activity by methylating or demethylating specific residues, which activates or deactivates the MCP, respectively (Borkovich et al., 1992; Manson et al., 1998; Figure 4). The constitutive methyltransferase, CheR, and the inducible methylesterase, CheB, reversibly control the methylation state of MCPs (Springer and Koshland, 1977; Kehry et al., 1983). Mutation of cheR or cheB causes cells to exhibit smooth runs or to tumble, respectively, because they cannot adapt to chemogradients (Springer and Koshland, 1977; Stock and Koshland, 1978; Borkovich et al., 1992).

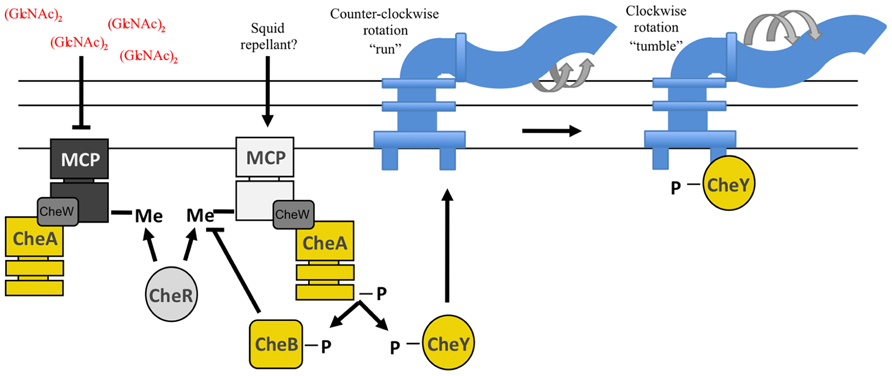

FIGURE 4. Predicted chemotaxis pathway in V. fischeri. Methyl-accepting chemotaxis proteins (MCPs) recognize specific molecules found in the environment. A MCP is often physically linked to the sensor kinase, CheA, through the CheW protein. Ligand recognition by the MCP leads to a change in the activity of CheA. Binding of an attractant, such as (GlcNAc)2, inhibits CheA kinase activity resulting in a “run.” Conversely, interaction with a repellant promotes CheA autophosphorylation wherein the phosphoryl groups are donated to both CheB and CheY. Phospho-CheY binds to the base of the flagellar motor and causes the flagellum to switch from a counter-clockwise to clockwise rotation. This causes tumbling. The methylesterase, CheB, and the methyltransferase, CheR, both control the methylation state of the MCP allowing a cell to adapt to varying concentrations of chemicals within a chemogradient. Regulators indicated in yellow have been demonstrated to be important for squid colonization (Hussa et al., 2007; Deloney-Marino and Visick, 2012; Mandel et al., 2012).
The V. fischeri genome contains many genes predicted to be involved in chemotaxis, including the RR, cheY, and the methyltransferase, cheR. Strains with mutations in cheY or cheR exhibit “smooth” swimming, similar to cheY and cheR mutants of E. coli (Hussa et al., 2007; Deloney-Marino and Visick, 2012). Importantly, cheY and cheR mutants fail to compete with wild-type cells for colonization of the squid (Hussa et al., 2007; Deloney-Marino and Visick, 2012). These results suggest that V. fischeri cells respond to chemogradients, and that this promotes efficient host colonization (Hussa et al., 2007; Deloney-Marino and Visick, 2012).
Chemotaxis studies performed with V. fischeri cells revealed that these bacteria can chemotax to serine, nucleosides, and a variety of sugars, including N-acetylneuraminic acid (NANA) and two chitin components; the monosaccharide, GlcNAc, and the disaccharide, (GlcNAc)2 (DeLoney-Marino et al., 2003; Mandel et al., 2012). Interestingly, these three sugars are associated with the squid environment; NANA is found in squid mucous, while GlcNAc and (GlcNAc)2 are found within the light organ (Nyholm et al., 2000; Heath-Heckman and McFall-Ngai, 2011). These data suggest that V. fischeri cells could use these sugar molecules to chemotax toward the mucous outside the light organ and then into the crypt spaces within the light organ (Nyholm et al., 2000; DeLoney-Marino et al., 2003; Mandel et al., 2012). In support of this, upon exposure to V. fischeri, E. scolopes expresses a chitin-degrading enzyme in and around the ducts that is predicted to establish a gradient of chitin degradation products, such as (GlcNAc)2, that the bacteria can use for chemotaxis (Kremer et al., 2013). Furthermore, prior exposure of V. fischeri to (GlcNAc)2, such as might occur during symbiotic aggregation, induced a four-fold increase in chemotaxis to this molecule (Kremer et al., 2013). Finally, and perhaps most importantly, Mandel et al. (2012) determined that disruption of the (GlcNAc)2 gradient hindered V. fischeri from colonizing due to its inability to enter the ducts; the bacteria formed aggregates around the pore, but they rarely entered the light organ.
To guide their migration through the squid, V. fischeri cells presumably use MCPs to sense attractants, such as GlcNAc2. In other organisms, the number of MCPs can range from 4 in E. coli to over 45 in V. cholerae, and it is believed that the number of MCPs reflect the complexity of environments a bacterium experiences (Boin and Hase, 2007; Lacal et al., 2010). The V. fischeri genome contains 43 putative MCPs, suggesting it has the capability to navigate toward or away from a large repertoire of attractants and repellants, respectively (Ruby et al., 2005; Mandel et al., 2012; Brennan et al., 2013a). Research into these MCPs in V. fischeri, however, has proven more difficult than anticipated. Although 19 of the putative MCP genes have been mutated, only one MCP mutant exhibited abnormal chemotaxis toward amino acids in vitro, and none exhibited a colonization defect (Mandel et al., 2012; Brennan et al., 2013a). These data suggest that some MCPs may sense the same signal, and/or perhaps MCPs important for in vitro and in vivo motility have yet to be studied. Identifying the functions of MCPs will surely provide insights into how V. fischeri cells direct their movement toward colonization-permissive sites. Furthermore, studying these MCPs may also shed light on host mechanisms and molecules used to promote colonization.
On the Defense: Combating Antimicrobials
Every environment has the potential to be hostile toward a bacterium. This is especially true when a bacterium is exposed to the animal environment, where host immune pathways are implemented to eradicate an unsolicited microbe. As a result, a bacterial symbiont must be able to effectively respond to antimicrobials to promote an interaction with its host. The symbiosis between E. scolopes and V. fischeri is proving to be a useful model for understanding how beneficial microbes manage antimicrobial challenges received from a host. From initial aggregation outside the light organ to persistent colonization within, V. fischeri cells continually interact with antimicrobials and have evolved mechanisms to manage these molecules and thus maintain specificity within the symbiosis (Ruby and McFall-Ngai, 1999; McFall-Ngai et al., 2010; Nyholm and Graf, 2012).
One host molecule experienced by V. fischeri during all steps of colonization is nitric oxide (NO), a gaseous, readily diffusible molecule with a wide range of functions (Davidson et al., 2004; Bowman et al., 2011). NO has been studied in mammals, where it controls cellular signaling and, importantly, participates in secondary reactions that produce antimicrobial RNS (Crane et al., 2010; Bowman et al., 2011; Figure 5). Presumably, all domains of life produce NO as phylogenetically-distinct organisms contain at least one gene that encodes NO synthase, or NOS (Crane et al., 2010). E. scolopes, too, produces an NOS enzyme, as NOS protein and NO molecules were detected within mucous outside the light organ, within the ciliated epithelial fields on the light organ surface, and in the ducts and antechamber of the light organ (Davidson et al., 2004). Surprisingly, after 18 h of colonization by V. fischeri, these tissues exhibited a decrease in NOS and NO levels relative to those of aposymbiotic squid (Davidson et al., 2004). This decrease was due to the symbiont’s release of two MAMPs, lipopolysaccharide (LPS) and TCT, a component of the peptidoglycan (Altura et al., 2011). Together, these data suggest that NO plays a key role in the cross-talk between E. scolopes and V. fischeri.

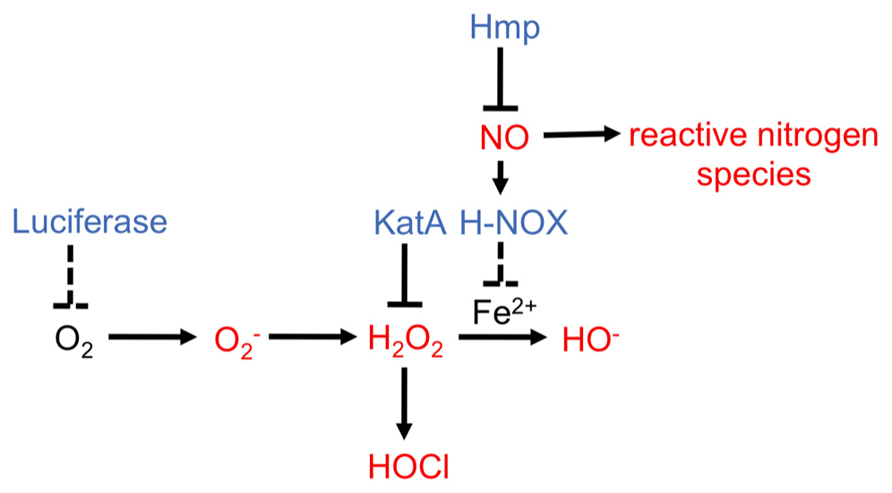

FIGURE 5. Reactive oxygen species and reactive nitrogen species pathways and V. fischeri proteins potentially involved in modulating synthesis of these antimicrobials. ROS and RNS are indicated in red (Fang, 2004; Bowman et al., 2011). V. fischeri enzymes that have been demonstrated (solid line) or predicted (dashed line) to modulate levels of potential antimicrobial molecules are indicated in blue.
What is the function of NO within this symbiosis? Within many host environments, NO can participate in reactions that generate antimicrobials; however, V. fischeri cells exposed to NO do not exhibit a growth defect, at least not when grown aerobically (Wang et al., 2010a,b). In contrast, squid treated with an NO scavenger allowed V. fischeri and even the non-symbiotic relative, Vibrio parahaemolyticus, to hyper-aggregate around the light organ (Davidson et al., 2004). Combined, these data suggest that NO might be toxic for V. fischeri under particular conditions, but this organism may have developed pathways to sense and resist free NO.
Indeed, V. fischeri encodes H-NOX, a protein that, in other bacteria, was predicted to be an NO sensing protein because it binds to NO but, until recently, had few known physiological roles (Boon and Marletta, 2005; Price et al., 2007; Carlson et al., 2010). As expected, V. fischeri’s H-NOX did bind NO (Wang et al., 2010a). The novel discovery was that an hnoX mutation disrupted V. fischeri’s normal transcriptional response to NO exposure, leading to the hypothesis that hnoX might sense NO and lead to the detoxification of this molecule during colonization (Wang et al., 2010a). This was not found to be true, as an hnoX mutant substantially outcompeted wild-type cells for initiation of colonization, although the difference was diminished after 48 h. Upon inspection of the expression differences in an hnoX mutant, it was revealed that, instead of the expected NO defense genes, a set of 10 iron acquisition genes, including hemin receptors, was up-regulated. This suggests that H-NOX usually inhibits iron uptake. In support of this idea, the hnoX mutant grew better in hemin-supplemented minimal media than wild-type cells (Wang et al., 2010a).
Why would NO sensing by HNOX lead to a downregulation in the seemingly unrelated iron uptake pathways? The answer to this question remains murky. One possibility is that a high concentration of accumulated intracellular iron in V. fischeri within the light organ may be detrimental (Halliwell and Gutteridge, 1984). In fact, it is known that an increase in iron concentrations within a bacterium can lead to the production of harmful hydroxyl radicals through the Fenton reaction, in which H2O2 is converted to ROS (Halliwell and Gutteridge, 1984; Touati, 2000; Figure 5). It was proposed that early NO sensing through H-NOX “primes” V. fischeri for the crypt environment, where survival may depend upon the ability of the bacterium to combat the formation of these hydroxyl radicals by controlling the levels of free iron (McCormick et al., 1998; Semsey et al., 2006; Wang et al., 2010a; Figure 5). In contrast to this hypothesis, haem uptake genes in V. fischeri were upregulated 28 h post inoculation and were required for persistence within the light organ (Septer et al., 2011). Furthermore, a mutation in glnD, which led to a growth defect in low iron conditions, caused a defect in squid colonization (Graf and Ruby, 2000). Clearly, iron uptake is a complex process that seems to be partly regulated by NO and H-NOX, although the exact role of these regulators in this pathway remain unclear.
H-NOX responds to NO, but it does not induce expression of enzymes that neutralize NO. How, then, do V. fischeri cells defend against antimicrobials produced from NO? The genome of V. fischeri encodes additional regulators known to affect the expression of NO detoxification pathways in other bacteria (Rodionov et al., 2005; Spiro, 2007). One of the best characterized regulators is NsrR, a transcriptional repressor that inhibits NO mediators including globins and reductases (Bowman et al., 2011). The most conserved gene within the NsrR regulon is hmp, which codes for flavohemoglobin, a NO dioxygenase that eliminates NO by converting it to nitrate (Tucker et al., 2010). Similar to other bacteria, exposure of V. fischeri to NO and/or deletion of the repressor, nsrR, promoted hmp expression (Wang et al., 2010a,b). In addition, an hmp mutant exposed to NO exhibited a growth defect and a deficiency in oxygen consumption, consistent with its putative function in NO elimination and NO functioning as an antimicrobial. Furthermore, complementation of hmp on a high copy plasmid made the cells hyper-resistant to NO (Wang et al., 2010b). NO detoxification via Hmp was also important for colonization: not only was hmp promoter activity induced in response to host-derived NO, but cells deleted for hmp exhibited a colonization defect at the aggregation stage. Additionally, treating squid with an NOS inhibitor increased the competitiveness of the hmp mutant for colonization (Wang et al., 2010b). Finally, in vitro experiments demonstrated that pre-treatment of V. fischeri cells with NO reduced the severity of the growth arrest upon a second NO challenge. This result indicates that NO exposure can prime V. fischeri for subsequent NO challenges, and suggests that perhaps NO sensed by V. fischeri cells at the beginning of colonization may serve as a signal to prepare them for subsequent exposure to NO within the light organ (Wang et al., 2010b).
Although much research has demonstrated the importance of NO in the V. fischeri/E. scolopes symbiosis, many intriguing questions remain. For example, what proteins directly sense NO and activate mediators of the NO detoxification response? Are other enzymes besides Hmp involved in detoxifying NO and are they involved in the symbiosis? What exactly is the functional link between NO sensing and iron acquisition in V. fischeri? Pursuing these questions is of interest not only to the E. scolopes/V. fischeri field, but also to the many areas of research that study how host NO production affects colonization by symbiotic and/or pathogenic bacteria (Richardson et al., 2006; Baudouin et al., 2007; Bouchard and Yamasaki, 2008).
Reactive Oxygen Species
In addition to RNS, the squid produces enzymes predicted to generate ROS (Tomarev et al., 1993; Schleicher and Nyholm, 2011). The light organ and the gills of the squid, tissues known to be exposed to bacteria, produce halide peroxidase (HPO; Tomarev et al., 1993; Weis et al., 1996; Small and McFall-Ngai, 1999; Schleicher and Nyholm, 2011). HPO converts H2O2 into HOCl, a chemical that is toxic to V fischeri and other bacteria (Figure 5). Upon colonization by V. fischeri, the levels of HPO in host tissues decrease, although the mechanisms behind this remain unknown (Small and McFall-Ngai, 1999). One potential mechanism to manage HOCl levels is through production of a catalase enzyme; this enzyme converts H2O2 to water and oxygen, thereby lowering the amount of H2O2 available for conversion to HOCl (Mishra and Imlay, 2012). In V. fischeri, mutation of the putative catalase gene, katA, caused increased sensitivity to H2O2 (Visick and Ruby, 1998). Furthermore, the addition of H2O2 to cells induced katA expression, indicating that the bacteria recognize and respond to this antimicrobial. Finally, a katA mutant exhibited a defect in competing with the wild-type for colonization, suggesting that reducing H2O2 levels and/or preventing HOCl formation is important for the symbiosis (Visick and Ruby, 1998).
E. scolopes and V. fischeri cells produce many other enzymes involved in generating or attenuating ROS, respectively; however, the signals that induce their expression, and the mechanisms by which they might function remain unknown (Stabb et al., 2001; Schleicher and Nyholm, 2011). One unusual pathway hypothesized to reduce ROS is the bioluminescence pathway, due to the requirement for O2 by the light-producing enzyme, luciferase. Thus, this pathway could lower levels of oxygen molecules and reduce the potential for their conversion into superoxide (; Ruby and McFall-Ngai, 1999; Figure 5). Whether bioluminescence, in fact, reduces the levels of ROS within the symbiosis remains to be determined.
E. scolopes expresses a variety of enzymes that are potentially antimicrobial such as Cathepsin L, chymotrypsin protease, lysozyme, and five peptidoglycan-recognition proteins (PGRPs; Wier et al., 2010; Schleicher and Nyholm, 2011; Collins et al., 2012; Kremer et al., 2013). One PGPR protein, PGPR2, can bind and degrade components of peptidoglycan; however, it seems to play a role in maintenance of the symbiosis rather than as an antimicrobial (Troll et al., 2010). Whereas normally peptidoglycan can serve as an immune stimulant for the host, the PGRP2 enzyme degraded the peptidoglycan components, thereby preventing an inflammatory response, perhaps protecting the host and/or preventing the host from clearing V. fischeri cells in the light organ. Whether PGPR2 or any other putative antimicrobial enzyme expressed by the squid is toxic toward V. fischeri or other microorganisms, or whether V. fischeri has mechanisms to combat these potential antimicrobials remains unknown.
Light in A Dark Place: Bioluminescence
Lux and Quorum Sensing
One of the first characterized and perhaps most striking phenotype exhibited by V. fischeri is its ability to bioluminesce, a phenomenon required for a productive symbiosis with the squid (Wei and Young, 1989; Visick et al., 2000). In exchange for nutrients, V. fischeri supplies light to E. scolopes so that the squid can mask its silhouette cast by moonlight (Jones and Nishiguchi, 2004). This process, known as counterillumination, is hypothesized to protect the squid from predation while it hunts for food at night (Jones and Nishiguchi, 2004). The importance of this phenotype to the symbiosis was established when it was determined that mutants unable to produce light failed to persist in symbiosis (Visick et al., 2000).
The structural proteins necessary for light generation (LuxCDABEG) are encoded by the lux operon (Gray and Greenberg, 1992; Figure 6). Numerous other proteins control light production, including the first gene in the lux operon, luxI, which encodes an autoinducer synthase, and the divergently transcribed gene, luxR, which encodes a transcription factor that regulates the lux operon. LuxI synthesizes a pheromone, 3-oxo-C6-HSL, that promotes lux transcription by binding to and activating LuxR (Figure 6; for reviews, see Stabb et al., 2008; Ng and Bassler, 2009). As a result, these regulators participate in a positive feedback loop, such that the LuxR-3-oxo-C6-HSL complex promotes synthesis not only of the Lux enzymes, but also of more 3-oxo-C6-HSL, thus amplifying light production.

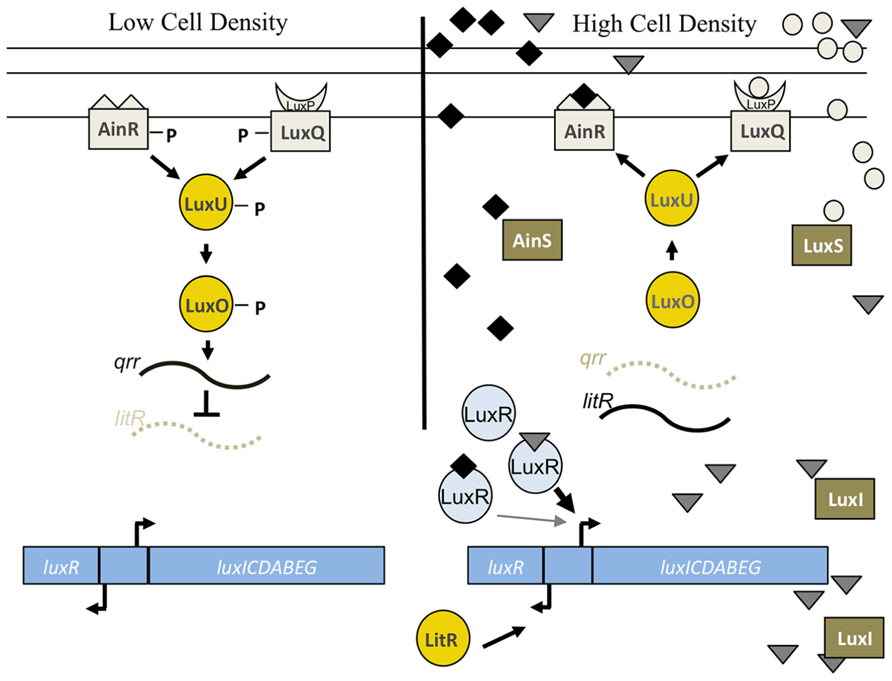

FIGURE 6. Lux pathway controlling bioluminescence in V. fischeri. At low cell density, the sensor kinases AinR and LuxP/Q are predicted to exhibit net kinase activity leading to the phosphorylation of LuxU and subsequent phosphotransfer to LuxO. Phospho-LuxO induces the expression of the inhibitory sRNA, qrr1, which leads to the degradation of litR mRNA. LitR is the transcriptional activator of luxR, which encodes a protein required for expression of the luxCDEBAG operon. Thus, at low cell density, litR translation is inhibited and the cells do not produce high levels of light. At high cell density, two distinct autoinducer molecules made by AinS (C8-HSL, diamonds) and LuxS (AI-2, circles) are predicted to be at sufficient concentrations to switch the activity of the SKs from net kinase to net phosphatase activity. This leads to dephosphorylation of the downstream regulators, litR translation, and transcription of luxR. LuxR, in conjunction with the autoinducer produced by LuxI (3-oxo-C6-HSL, triangles), leads to the transcription of the lux operon and bioluminescence (reviewed in Stabb et al., 2008). LuxR is also predicted to weakly bind to C8-HSL, which allows for the initiation of luxCDABEG expression. See text for caveats to this model.
LuxR itself is controlled at the level of transcription via input from a complex phosphorelay pathway (see reviews Stabb et al., 2008; Ng and Bassler, 2009; Figure 6). This pathway is comprised of two SKs, AinR and LuxP/Q, and additional downstream regulators, including the histidine phosphotransferase, LuxU, and the σ54-dependent RR, LuxO. At low cell density, the SKs function as kinases to autophosphorylate and serve as phosphodonors to a single phosphotransferase, LuxU, which, when phosphorylated, can donate a phosphoryl group to LuxO. At high cell density, the phospho-transfer pathway is reversed, with the SKs functioning as phosphatases to remove the phosphoryl group from LuxU (and LuxO). When LuxO is phosphorylated (at low cell density), it activates expression of the sRNA, qrr1, which inhibits the translation of the litR mRNA (Miyashiro et al., 2010). LitR is the direct transcriptional activator of luxR; thus, inhibition of litR leads to an inhibition of bioluminescence (Fidopiastis et al., 2002; Miyashiro et al., 2010). When LuxO is dephosphorylated (at high cell density), qrr1 levels decrease, LitR is translated, luxR is transcribed, and the lux operon is expressed.
The SKs in the phosphorelay, AinR and LuxPQ, are predicted to sense and respond to the presence of specific pheromones, C8-HSL and AI-2, produced by the autoinducer synthases AinS and LuxS, respectively (reviewed in Stabb et al., 2008). It is predicted that these pheromones accumulate at high cell density, causing the SKs to function as phosphatases and thus promote light production. However, the two inputs do not equally control bioluminescence. For example, an ainS mutation caused a severe bioluminescence defect both in vitro and in the squid, while a luxS mutation did not dramatically alter any bioluminescence phenotype (Lupp et al., 2003; Lupp and Ruby, 2004, 2005). Similarly, colonization experiments found that the ainS mutant exhibited defects in both initiation and persistence, while the luxS mutant did not (Lupp and Ruby, 2004, 2005). This suggests that the AinS/R branch is more important for controlling light production and colonization than the LuxS-LuxP/Q branch. One possible explanation for this differential importance is suggested by the finding that the AinS-produced C8-HSL can interact directly with LuxR, albeit at a lower affinity than occurs with 3-oxo-C6-HSL, produced by LuxI (Schaefer et al., 1996; Egland and Greenberg, 2000); thus, C8-HSL can exerts its impact both directly and indirectly to control lux expression and therefore light levels (Lupp et al., 2003). These and other data support a model in which the C8-HSL-LuxR complex initiates transcription of the lux operon, while 3-oxo-C6-HSL-LuxR ultimately takes over as the critical player that promotes positive feedback of lux transcription.
Although the above model fits with what is known about the Lux pathway in other bacteria, the roles of the upstream players in V. fischeri remain poorly understood. For example, a mutation in the C8-HSL synthase gene, ainS, severely impacted bioluminescence, yet a deletion in ainR, the SK predicted to respond to C8-HSL, appeared to exert only a minor effect on luminescence (Lupp et al., 2003; Lupp and Ruby, 2004; Ray and Visick, 2012). These results may indicate that the role of C8-HSL in activating LuxR may be more important than its role in controlling the AinR-mediated phosphorelay.
Surprisingly, the bioluminescence phenotypes of some regulators do not correlate with the predicted colonization phenotypes. For example, a litR, mutant exhibited a bioluminescence defect but was not impaired for colonization; in fact, this mutant colonized E. scolopes better than wild-type in competition experiments after 48 h (Fidopiastis et al., 2002; Miyashiro et al., 2010). However, in a different study, the same litR mutant exhibited a colonization disadvantage at an earlier, 12 h time point (Lupp and Ruby, 2005). Additionally, although mutants deleted for the negative regulators of bioluminescence, luxO or qrr1, exhibited increased bioluminescence in vitro, as expected, they exhibited a defect in colonization when competed with wild-type cells (Hussa et al., 2007; Miyashiro et al., 2010). These results suggest that bioluminescence regulators may have bioluminescence-independent functions. In support of this hypothesis, it was found that LuxO and LitR have complex regulons: LuxO controls many genes outside of the canonical Lux pathway, and LitR contributes to controlling whether the cells secrete or import acetate for metabolism, known as the acetate switch (Fidopiastis et al., 2002; Lupp and Ruby, 2005; Hussa et al., 2007; Studer et al., 2008).
Lastly, an interesting observation made about light production in V. fischeri is that most environmental strains of this bacterium are visibly bioluminescent when grown in culture, but strains isolated from E. scolopes are “dim,” meaning they are bioluminescent but do not emit visible light outside of the squid (Boettcher and Ruby, 1990; Stabb et al., 2008). Furthermore, an experimental evolution model has revealed a correlation between increased colonization and decreased light production (Schuster et al., 2010). These findings indicate that some aspect of the light organ environment enriches for dim strains of V. fischeri. Perhaps this is not surprising, as producing bioluminescence is energetically taxing (Bourgois et al., 2001). The luciferase enzyme, consisting of the LuxA and LuxB heterodimer, can constitute up to 5% of total protein in visibly luminescent cells (Hastings et al., 1965). Furthermore, under particular growth conditions, expression of the lux operon causes a growth defect (Bose et al., 2008). Therefore, light production must in some way benefit V. fischeri both inside and outside a host. Numerous possibilities have been proposed, including the removal of oxygen from the environment, which could decrease the production of ROS (e.g., see Stabb et al., 2008). Additionally, because the squid can detect the bacterial bioluminescence, it is hypothesized that the squid may play an active part in maintaining a population of V. fischeri cells with a particular bioluminescence phenotype (Tong et al., 2009; Heath-Heckman et al., 2013). However, no single explanation has yet been established for how strains with particular luminescence levels are enriched within the squid, or how brightly luminescent bacteria survive in other marine environments.
Additional Regulators of Bioluminescence
It has long been known that squid symbionts produce a level of light during symbiosis that is about ~1000X brighter than that produced in culture (Boettcher and Ruby, 1990). These data suggest that there are squid specific-signals that affect luciferase production, and that V. fischeri might sense these signals using regulators that are outside of the canonical Lux pathway. In fact, a variety of environmental conditions affect the ability of V. fischeri to produce light, all of which might have the potential to be sensed by non-Lux regulators. These putative signals that affect bioluminescence include changes in oxygen levels, osmolarity, Mg2+ levels, and iron levels (Stabb et al., 2004; Bose et al., 2007; Lyell et al., 2010; Lyell and Stabb, 2013; Septer et al., 2013).
One key non-Lux regulator is ArcA, a RR predicted to function as a transcription factor when phosphorylated by its cognate SK, ArcB (Iuchi et al., 1990; Iuchi and Lin, 1992; Georgellis et al., 1997, 2001; Pena-Sandoval et al., 2005). In V. fischeri, a deletion of arcA caused a dramatic ~500 fold increase in bioluminescence in culture, resulting in light levels that were similar to the levels found during symbiosis (Bose et al., 2007). ArcA appears to exert a direct effect on lux transcription by binding to a site upstream of the lux operon (Bose et al., 2007). These results suggest that ArcA functions as a transcriptional inhibitor of luminescence genes under culture conditions, and that this inhibition is relieved once V. fischeri is inside the light organ. The effect of the arcA mutation on bioluminescence, however, was dependent on the presence of an intact luxI gene (Septer and Stabb, 2012). This result indicates ArcA primarily functions to inhibit the positive feedback loop that relies on the LuxI-synthesized molecule, 3-oxo-C6-HSL (Septer and Stabb, 2012).
In other systems, the ArcA/B pathway is predicted to sense and respond to the redox state of the cell (reviewed in Malpica et al., 2006). In E. coli, reducing conditions sensed by ArcB lead to the phosphorylation and thus activation of ArcA, while oxidizing conditions generate unphosphorylated ArcA. Thus, it has been proposed that this two-component pathway in V. fischeri senses the oxidized state in the light organ, leading to unphosphorylated ArcA and a de-repression of bioluminescence (Bose et al., 2007); however, experimental evidence of this has yet to be found. Furthermore, although an arcA mutation amplified bioluminescence levels, ArcA might not be the only non-Lux regulator of bioluminescence. For example, a recent transposon screen identified mutations in additional genes that led to an increase in light production (Lyell et al., 2010; Lyell and Stabb, 2013). Whether these genes are directly involved in controlling light production, and/or whether they sense particular environments to regulate bioluminescence remain an active area of research.
For such a seemingly simple symbiosis, the interaction between V. fischeri and E. scolopes requires numerous, complicated regulatory pathways to promote host specificity and colonization. It should be noted that this review focuses only on regulators within V. fischeri known to be important for colonization, yet a considerable repertoire of information exists that details host specific pathways that are integral for the symbiosis to occur (see reviews Nyholm and McFall-Ngai, 2004; McFall-Ngai et al., 2012; Stabb and Visick, 2013). Although much information exists about the V. fischeri pathways described in the above sections, including biofilms, chemotaxis, responses to antimicrobials, and light production, many discoveries within these signaling cascades have uncovered yet more questions that can still be addressed. For example, what molecular pathways allow V. fischeri to outcompete other non-symbiont bacteria during aggregate formation? How is flagellation and deflagellation controlled during the various steps of colonization? What regulators sense antimicrobials and lead to their detoxification? And lastly, what environmental signal within the light organ promotes bioluminescence? All of these subjects are active areas of research, and they will surely uncover new mechanisms that will expand the knowledge of how bacteria and a host establish a life-long, beneficial relationship.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
We thank members of the lab for helpful suggestions on this manuscript. Work on the V. fischeri-E. scolopes symbiosis in the Visick lab is funded by NIH grant GM59690 awarded to Karen L. Visick.
Altura, M. A., Heath-Heckman, E. A., Gillette, A., Kremer, N., Krachler, A. M., Brennan, C., et al. (2013). The first engagement of partners in the Euprymna scolopes-Vibrio fischeri symbiosis is a two-step process initiated by a few environmental symbiont cells. Environ. Microbiol. 15, 2937–2950. doi: 10.1111/1462-2920.12179
Altura, M. A., Stabb, E., Goldman, W., Apicella, M., and Mcfall-Ngai, M. J. (2011). Attenuation of host NO production by MAMPs potentiates development of the host in the squid-vibrio symbiosis. Cell Microbiol. 13, 527–537. doi: 10.1111/j.1462-5822.2010.01552.x
Baudouin, E., Pauly, N., and Puppo, A. (2007). “Nitric oxide in nitrogen-fixing symbiosis,” in Nitric Oxide in Plant Growth, Development, and Stress Physiology, eds L. Lamattina and J. Polacco (Berlin: Springer), 173–186.
Boon, E. M., and Marletta, M. A. (2005). Ligand discrimination in soluble guanylate cyclase and the H-NOX family of heme sensor proteins. Curr. Opin. Chem. Biol. 9, 441–446. doi: 10.1016/j.cbpa.2005.08.015
Bose, J. L., Kim, U., Bartkowski, W., Gunsalus, R. P., Overley, A. M., Lyell, N. L., et al. (2007). Bioluminescence in Vibrio fischeri is controlled by the redox-responsive regulator ArcA. Mol. Microbiol. 65, 538–553. doi: 10.1111/j.1365-2958.2007.05809.x
Bose, J. L., Rosenberg, C. S., and Stabb, E. V. (2008). Effects of luxCDABEG induction in Vibrio fischeri: enhancement of symbiotic colonization and conditional attenuation of growth in culture. Arch. Microbiol. 190, 169–183. doi: 10.1007/s00203-008-0387-1
Bouchard, J. N., and Yamasaki, H. (2008). Heat stress stimulates nitric oxide production in Symbiodinium microadriaticum: a possible linkage between nitric oxide and the coral bleaching phenomenon. Plant Cell Physiol. 49, 641–652. doi: 10.1093/pcp/pcn037
Bourgois, J. J., Sluse, F. E., Baguet, F., and Mallefet, J. (2001). Kinetics of light emission and oxygen consumption by bioluminescent bacteria. J. Bioenerg. Biomembr. 33, 353–363. doi: 10.1023/A:1010615508916
Bowman, L. A., Mclean, S., Poole, R. K., and Fukuto, J. M. (2011). The diversity of microbial responses to nitric oxide and agents of nitrosative stress close cousins but not identical twins. Adv. Microb. Physiol. 59, 135–219. doi: 10.1016/B978-0-12-387661-4.00006-9
Brennan, C. A., Deloney-Marino, C. R., and Mandel, M. J. (2013a). Chemoreceptor VfcA mediates amino acid chemotaxis in Vibrio fischeri. Appl. Environ. Microbiol. 79, 1889–1896. doi: 10.1128/AEM.03794-12
Brennan, C. A., Mandel, M. J., Gyllborg, M. C., Thomasgard, K. A., and Ruby, E. G. (2013b). Genetic determinants of swimming motility in the squid light-organ symbiont Vibrio fischeri. Microbiologyopen 2, 576–594. doi: 10.1002/mbo3.96
Carlson, H. K., Vance, R. E., and Marletta, M. A. (2010). H-NOX regulation of c-di-GMP metabolism and biofilm formation in Legionella pneumophila. Mol. Microbiol. 77, 930–942. doi: 10.1111/j.1365-2958.2010.07259.x
Chilcott, G. S., and Hughes, K. T. (2000). Coupling of flagellar gene expression to flagellar assembly in Salmonella enterica serovar typhimurium and Escherichia coli. Microbiol. Mol. Biol. Rev. 64, 694–708. doi: 10.1128/MMBR.64.4.694-708.2000
Collins, A. J., Schleicher, T. R., Rader, B. A., and Nyholm, S. V. (2012). Understanding the role of host hemocytes in a squid/vibrio symbiosis using transcriptomics and proteomics. Front. Immunol. 3:91. doi: 10.3389/fimmu.2012.00091
Darnell, C. L., Hussa, E. A., and Visick, K. L. (2008). The putative hybrid sensor kinase SypF coordinates biofilm formation in Vibrio fischeri by acting upstream of two response regulators, SypG and VpsR. J. Bacteriol. 190, 4941–4950. doi: 10.1128/JB.00197-08
Davidson, S. K., Koropatnick, T. A., Kossmehl, R., Sycuro, L., and Mcfall-Ngai, M. J. (2004). NO means ‘yes’ in the squid-vibrio symbiosis: nitric oxide (NO) during the initial stages of a beneficial association. Cell. Microbiol. 6, 1139–1151. doi: 10.1111/j.1462-5822.2004.00429.x
DeLoney-Marino, C. R., Wolfe, A. J., and Visick, K. L. (2003). Chemoattraction of Vibrio fischeri to serine, nucleosides and N-acetylneuraminic acid, a component of squid light organ mucus. Appl. Environ. Microbiol. 69, 7527–7530. doi: 10.1128/AEM.69.12.7527-7530.2003
Fidopiastis, P. M., Miyamoto, C. M., Jobling, M. G., Meighen, E. A., and Ruby, E. G. (2002). LitR, a new transcriptional activator in Vibrio fischeri, regulates luminescence and symbiotic light organ colonization. Mol. Microbiol. 45, 131–143. doi: 10.1046/j.1365-2958.2002.02996.x
Graf, J., and Ruby, E. G. (2000). Novel effects of a transposon insertion in the Vibrio fischeri glnD gene: defects in iron uptake and symbiotic persistence in addition to nitrogen utilization. Mol. Microbiol. 37, 168–179. doi: 10.1046/j.1365-2958.2000.01984.x
Gray, K. M., and Greenberg, E. P. (1992). Physical and functional maps of the luminescence gene cluster in an autoinducer-deficient Vibrio fischeri strain isolated from a squid light organ. J. Bacteriol. 174, 4384–4390.
Heath-Heckman, E. A., Peyer, S. M., Whistler, C. A., Apicella, M. A., Goldman, W. E., and Mcfall-Ngai, M. J. (2013). Bacterial bioluminescence regulates expression of a host cryptochrome gene in the squid-Vibrio symbiosis. MBio 4, e00167–00113. doi: 10.1128/mBio.00167-13
Hussa, E. A., Darnell, C. L., and Visick, K. L. (2008). RscS functions upstream of SypG to control the syp locus and biofilm formation in Vibrio fischeri. J. Bacteriol. 190, 4576–4583. doi: 10.1128/JB.00130-08
Hussa, E. A., O’shea, T. M., Darnell, C. L., Ruby, E. G., and Visick, K. L. (2007). Two-component response regulators of Vibrio fischeri: identification, mutagenesis, and characterization. J. Bacteriol. 189, 5825–5838. doi: 10.1128/JB.00242-07
Iuchi, S., Matsuda, Z., Fujiwara, T., and Lin, E. C. (1990). The arcB gene of Escherichia coli encodes a sensor-regulator protein for anaerobic repression of the arc modulon. Mol. Microbiol. 4, 715–727. doi: 10.1111/j.1365-2958.1990.tb00642.x
Jones, B. W., and Nishiguchi, M. K. (2004). Counterillumination in the Hawaiian bobtail squid, Euprymna scolopes Berry (Mollusca: Cephalopoda). Mar. Biol. 144, 1151–1155. doi: 10.1007/s00227-003-1285-3
Kehry, M. R., Bond, M. W., Hunkapiller, M. W., and Dahlquist, F. W. (1983). Enzymatic deamidation of methyl-accepting chemotaxis proteins in Escherichia coli catalyzed by the cheB gene product. Proc. Natl. Acad. Sci. U.S.A. 80, 3599–3603. doi: 10.1073/pnas.80.12.3599
Kremer, N., Philipp, E. E., Carpentier, M. C., Brennan, C. A., Kraemer, L., Altura, M. A., et al. (2013). Initial symbiont contact orchestrates host-organ-wide transcriptional changes that prime tissue colonization. Cell Host Microbe 14, 183–194. doi: 10.1016/j.chom.2013.07.006
Lacal, J., Garcia-Fontana, C., Munoz-Martinez, F., Ramos, J. L., and Krell, T. (2010). Sensing of environmental signals: classification of chemoreceptors according to the size of their ligand binding regions. Environ. Microbiol. 12, 2873–2884. doi: 10.1111/j.1462-2920.2010.02325.x
Lupp, C., and Ruby, E. G. (2005). Vibrio fischeri uses two quorum-sensing systems for the regulation of early and late colonization factors. J. Bacteriol. 187, 3620–3629. doi: 10.1128/JB.187.11.3620-3629.2005
Lupp, C., Urbanowski, M., Greenberg, E. P., and Ruby, E. G. (2003). The Vibrio fischeri quorum-sensing systems ain and lux sequentially induce luminescence gene expression and are important for persistence in the squid host. Mol. Microbiol. 50, 319–331. doi: 10.1046/j.1365-2958.2003.t01-1-03585.x
Lyell, N. L., Dunn, A. K., Bose, J. L., and Stabb, E. V. (2010). Bright mutants of Vibrio fischeri ES114 reveal conditions and regulators that control bioluminescence and expression of the lux operon. J. Bacteriol. 192, 5103–5114. doi: 10.1128/JB.00524-10
Lyell, N. L., and Stabb, E. V. (2013). Symbiotic characterization of Vibrio fischeri ES114 mutants that display enhanced luminescence in culture. Appl. Environ. Microbiol. 79, 2480–2483. doi: 10.1128/AEM.03111-12
Malpica, R., Sandoval, G. R., Rodriguez, C., Franco, B., and Georgellis, D. (2006). Signaling by the Arc two-component system provides a link between the redox state of the quinone pool and gene expression. Antioxid. Redox Signal. 8, 781–795. doi: 10.1089/ars.2006.8.781
Mandel, M. J., Schaefer, A. L., Brennan, C. A., Heath-Heckman, E. A., Deloney-Marino, C. R., Mcfall-Ngai, M. J., et al. (2012). Squid-derived chitin oligosaccharides are a chemotactic signal during colonization by Vibrio fischeri. Appl. Environ. Microbiol. 78, 4620–4626. doi: 10.1128/AEM.00377-12
Mandel, M. J., Wollenberg, M. S., Stabb, E. V., Visick, K. L., and Ruby, E. G. (2009). A single regulatory gene is sufficient to alter bacterial host range. Nature 458, 215–218. doi: 10.1038/nature07660
McCormick, M. L., Buettner, G. R., and Britigan, B. E. (1998). Endogenous superoxide dismutase levels regulate iron-dependent hydroxyl radical formation in Escherichia coli exposed to hydrogen peroxide. J. Bacteriol. 180, 622–625.
McFall-Ngai, M., Hadfield, M. G., Bosch, T. C., Carey, H. V., Domazet-Loso, T., Douglas, A. E., et al. (2013). Animals in a bacterial world, a new imperative for the life sciences. Proc. Natl. Acad. Sci. U.S.A. 110, 3229–3236. doi: 10.1073/pnas.1218525110
McFall-Ngai, M., Heath-Heckman, E. A., Gillette, A. A., Peyer, S. M., and Harvie, E. A. (2012). The secret languages of coevolved symbioses: insights from the Euprymna scolopes-Vibrio fischeri symbiosis. Semin. Immunol. 24, 3–8. doi: 10.1016/j.smim.2011.11.006
McFall-Ngai, M., and Montgomery, M. K. (1990). The anatomy and morphology of the adult bacterial light organ of Euprymna scolopes Berry (Cephalopoda: Sepiolidae). Biol. Bull. 179, 332–339. doi: 10.2307/1542325
McFall-Ngai, M., Nyholm, S. V., and Castillo, M. G. (2010). The role of the immune system in the initiation and persistence of the Euprymna scolopes--Vibrio fischeri symbiosis. Semin. Immunol. 22, 48–53. doi: 10.1016/j.smim.2009.11.003
Millikan, D. S., and Ruby, E. G. (2002). Alterations in Vibrio fischeri motility correlate with a delay in symbiosis initiation and are associated with additional symbiotic colonization defects. Appl. Environ. Microbiol. 68, 2519–2528. doi: 10.1128/AEM.68.5.2519-2528.2002
Millikan, D. S., and Ruby, E. G. (2003). FlrA, a sigma54-dependent transcriptional activator in Vibrio fischeri, is required for motility and symbiotic light-organ colonization. J. Bacteriol. 185, 3547–3557. doi: 10.1128/JB.185.12.3547-3557.2003
Millikan, D. S., and Ruby, E. G. (2004). Vibrio fischeri flagellin A is essential for normal motility and for symbiotic competence during initial squid light organ colonization. J. Bacteriol. 186, 4315–4325. doi: 10.1128/JB.186.13.4315-4325.2004
Miyashiro, T., Wollenberg, M. S., Cao, X., Oehlert, D., and Ruby, E. G. (2010). A single qrr gene is necessary and sufficient for LuxO-mediated regulation in Vibrio fischeri. Mol. Microbiol. 77, 1556–1567. doi: 10.1111/j.1365-2958.2010.07309.x
Morris, A. R., Darnell, C. L., and Visick, K. L. (2011). Inactivation of a novel response regulator is necessary for biofilm formation and host colonization by Vibrio fischeri. Mol. Microbiol. 82, 114–130. doi: 10.1111/j.1365-2958.2011.07800.x
Morris, A. R., and Visick, K. L. (2010). Control of biofilm formation and colonization in Vibrio fischeri: a role for partner switching? Environ. Microbiol. 12, 2051–2059. doi: 10.1111/j.1462-2920.2010.02269.x
Morris, A. R., and Visick, K. L. (2013). The response regulator SypE controls biofilm formation and colonization through phosphorylation of the syp-encoded regulator SypA in Vibrio fischeri. Mol. Microbiol. 87, 509–525. doi: 10.1111/mmi.12109
Nyholm, S. V., and McFall-Ngai, M. J. (2003). Dominance of Vibrio fischeri in secreted mucus outside the light organ of Euprymna scolopes: the first site of symbiont specificity. Appl. Environ. Microbiol. 69, 3932–3937. doi: 10.1128/AEM.69.7.3932-3937.2003
Nyholm, S. V., Stabb, E. V., Ruby, E. G., and Mcfall-Ngai, M. J. (2000). Establishment of an animal-bacterial association: recruiting symbiotic vibrios from the environment. Proc. Natl. Acad. Sci. U.S.A. 97, 10231–10235. doi: 10.1073/pnas.97.18.10231
O’Shea, T. M., Deloney-Marino, C. R., Shibata, S., Aizawa, S., Wolfe, A. J., and Visick, K. L. (2005). Magnesium promotes flagellation of Vibrio fischeri. J. Bacteriol. 187, 2058–2065. doi: 10.1128/JB.187.6.2058-2065.2005
Orcutt, B. N., Sylvan, J. B., Knab, N. J., and Edwards, K. J. (2011). Microbial ecology of the dark ocean above, at, and below the seafloor. Microbiol. Mol. Biol. Rev. 75, 361–422. doi: 10.1128/MMBR.00039-10
Pena-Sandoval, G. R., Kwon, O., and Georgellis, D. (2005). Requirement of the receiver and phosphotransfer domains of ArcB for efficient dephosphorylation of phosphorylated ArcA in vivo. J. Bacteriol. 187, 3267–3272. doi: 10.1128/JB.187.9.3267-3272.2005
Prouty, M. G., Correa, N. E., and Klose, K. E. (2001). The novel sigma54- and sigma28-dependent flagellar gene transcription hierarchy of Vibrio cholerae. Mol. Microbiol. 39, 1595–1609. doi: 10.1046/j.1365-2958.2001.02348.x
Ray, V. A., Eddy, J. L., Hussa, E. A., Misale, M., and Visick, K. L. (2013). The syp enhancer sequence plays a key role in transcriptional activation by the σ54-dependent response regulator SypG and in biofilm formation and host colonization by Vibrio fischeri. J. Bacteriol. 195, 5402–5412. doi: 10.1128/JB.00689-13
Richardson, A. R., Dunman, P. M., and Fang, F. C. (2006). The nitrosative stress response of Staphylococcus aureus is required for resistance to innate immunity. Mol. Microbiol. 61, 927–939. doi: 10.1111/j.1365-2958.2006.05290.x
Rodionov, D. A., Dubchak, I. L., Arkin, A. P., Alm, E. J., and Gelfand, M. S. (2005). Dissimilatory metabolism of nitrogen oxides in bacteria: comparative reconstruction of transcriptional networks. PLoS Comput. Biol. 1:e55. doi: 10.1371/journal.pcbi.0010055
Ruby, E. G. (1996). Lessons from a cooperative, bacterial-animal association: the Vibrio fischeri-Euprymna scolopes light organ symbiosis. Annu. Rev. Microbiol. 50, 591–624. doi: 10.1146/annurev.micro.50.1.591
Ruby, E. G., and McFall-Ngai, M. J. (1999). Oxygen-utilizing reactions and symbiotic colonization of the squid light organ by Vibrio fischeri. Trends Microbiol. 7, 414–420. doi: 10.1016/S0966-842X(99)01588-7
Ruby, E. G., Urbanowski, M., Campbell, J., Dunn, A., Faini, M., Gunsalus, R., et al. (2005). Complete genome sequence of Vibrio fischeri: a symbiotic bacterium with pathogenic congeners. Proc. Natl. Acad. Sci. U.S.A. 102, 3004–3009. doi: 10.1073/pnas.0409900102
Schaefer, A. L., Hanzelka, B. L., Eberhard, A., and Greenberg, E. P. (1996). Quorum sensing in Vibrio fischeri: probing autoinducer–LuxR interactions with autoinducer analogs. J. Bacteriol. 178, 2897–2901.
Schleicher, T. R., and Nyholm, S. V. (2011). Characterizing the host and symbiont proteomes in the association between the Bobtail squid, Euprymna scolopes, and the bacterium, Vibrio fischeri. PLoS ONE 6:e25649. doi: 10.1371/journal.pone.0025649
Schuster, B. M., Perry, L. A., Cooper, V. S., and Whistler, C. A. (2010). Breaking the language barrier: experimental evolution of non-native Vibrio fischeri in squid tailors luminescence to the host. Symbiosis 51, 85–96. doi: 10.1007/s13199-010-0074-2
Semsey, S., Andersson, A. M., Krishna, S., Jensen, M. H., Masse, E., and Sneppen, K. (2006). Genetic regulation of fluxes: iron homeostasis of Escherichia coli. Nucleic Acids Res. 34, 4960–4967. doi: 10.1093/nar/gkl627
Septer, A. N., Lyell, N. L., and Stabb, E. V. (2013). The iron-dependent regulator Fur controls pheromone signaling systems and luminescence in the squid symbiont Vibrio fischeri ES114. Appl. Environ. Microbiol. 79, 1826–1834. doi: 10.1128/AEM.03079-12
Septer, A. N., and Stabb, E. V. (2012). Coordination of the Arc regulatory system and pheromone-mediated positive feedback in controlling the Vibrio fischeri lux operon. PLoS ONE 7:e49590. doi: 10.1371/journal.pone.0049590
Septer, A. N., Wang, Y., Ruby, E. G., Stabb, E. V., and Dunn, A. K. (2011). The haem-uptake gene cluster in Vibrio fischeri is regulated by Fur and contributes to symbiotic colonization. Environ. Microbiol. 13, 2855–2864. doi: 10.1111/j.1462-2920.2011.02558.x
Shibata, S., Yip, E. S., Quirke, K. P., Ondrey, J. M., and Visick, K. L. (2012). Roles of the structural symbiosis polysaccharide (syp) genes in host colonization, biofilm formation and polysaccharide biosynthesis in Vibrio fischeri. J. Bacteriol. 194, 6736–6747. doi: 10.1128/JB.00707-12
Small, A., and McFall-Ngai, M. (1999). Halide peroxidase in tissues that interact with bacteria in the host squid Euprymna scolopes. J. Cell. Biochem. 72, 445–457. doi: 10.1002/(SICI)1097-4644(19990315)72:4<445::AID-JCB1>3.0.CO;2-P
Springer, W. R., and Koshland, D. E. Jr. (1977). Identification of a protein methyltransferase as the cheR gene product in the bacterial sensing system. Proc. Natl. Acad. Sci. U.S.A. 74, 533–537. doi: 10.1073/pnas.74.2.533
Stabb, E. V., Butler, M. S., and Adin, D. M. (2004). Correlation between osmolarity and luminescence of symbiotic Vibrio fischeri strain ES114. J. Bacteriol. 186, 2906–2908. doi: 10.1128/JB.186.9.2906-2908.2004
Stabb, E. V., Schaefer, A., Bose, J. L., and Ruby, E. G. (2008). “Quorum signaling and symbiosis in the marine luminous bacterium Vibrio fischeri,” in Chemical Communication Among Microbes, eds S. C. Winans and B. L. Bassler (Washington, DC: ASM Press), 233–250.
Stabb, E. V., and Visick, K. L. (2013). “Vibrio fischeri: a bioluminescent light-organ symbiont of the bobtail squid Euprymna scolopes,” in The Prokaryotes, 4th Edn, eds E. Rosenberg, E. F. Delong, E. Stackebrand, S. Lory, and F. Thompson (Berlin: Springer-Verlag), 497–532.
Tomarev, S. I., Zinovieva, R. D., Weis, V. M., Chepelinsky, A. B., Piatigorsky, J., and Mcfall-Ngai, M. J. (1993). Abundant mRNAs in the squid light organ encode proteins with a high similarity to mammalian peroxidases. Gene 132, 219–226. doi: 10.1016/0378-1119(93)90199-D
Tong, D., Rozas, N. S., Oakley, T. H., Mitchell, J., Colley, N. J., and Mcfall-Ngai, M. J. (2009). Evidence for light perception in a bioluminescent organ. Proc. Natl. Acad. Sci. U.S.A. 106, 9836–9841. doi: 10.1073/pnas.0904571106
Troll, J. V., Bent, E. H., Pacquette, N., Wier, A. M., Goldman, W. E., Silverman, N., et al. (2010). Taming the symbiont for coexistence: a host PGRP neutralizes a bacterial symbiont toxin. Environ. Microbiol. 12, 2190–2203.
Tucker, N. P., Le Brun, N. E., Dixon, R., and Hutchings, M. I. (2010). There’s NO stopping NsrR, a global regulator of the bacterial NO stress response. Trends Microbiol. 18, 149–156. doi: 10.1016/j.tim.2009.12.009
Visick, K. L., Foster, J., Doino, J., Mcfall-Ngai, M., and Ruby, E. G. (2000). Vibrio fischeri lux genes play an important role in colonization and development of the host light organ. J. Bacteriol. 182, 4578–4586. doi: 10.1128/JB.182.16.4578-4586.2000
Visick, K. L., and Ruby, E. G. (1998). The periplasmic, group III catalase of Vibrio fischeri is required for normal symbiotic competence and is induced both by oxidative stress and by approach to stationary phase. J. Bacteriol. 180, 2087–2092.
Visick, K. L., and Skoufos, L. M. (2001). Two-component sensor required for normal symbiotic colonization of Euprymna scolopes by Vibrio fischeri. J. Bacteriol. 183, 835–842. doi: 10.1128/JB.183.3.835-842.2001
Wang, Y., Dufour, Y. S., Carlson, H. K., Donohue, T. J., Marletta, M. A., and Ruby, E. G. (2010a). H-NOX-mediated nitric oxide sensing modulates symbiotic colonization by Vibrio fischeri. Proc. Natl. Acad. Sci. U.S.A. 107, 8375–8380. doi: 10.1073/pnas.1003571107
Wang, Y., Dunn, A. K., Wilneff, J., Mcfall-Ngai, M. J., Spiro, S., and Ruby, E. G. (2010b). Vibrio fischeri flavohaemoglobin protects against nitric oxide during initiation of the squid-Vibrio symbiosis. Mol. Microbiol. 78, 903–915. doi: 10.1111/j.1365-2958.2010.07376.x
Weis, V. M., Small, A. L., and Mcfall-Ngai, M. J. (1996). A peroxidase related to the mammalian antimicrobial protein myeloperoxidase in the Euprymna-Vibrio mutualism. Proc. Natl. Acad. Sci. U.S.A. 93, 13683–13688. doi: 10.1073/pnas.93.24.13683
Wier, A. M., Nyholm, S. V., Mandel, M. J., Massengo-Tiasse, R. P., Schaefer, A. L., Koroleva, I., et al. (2010). Transcriptional patterns in both host and bacterium underlie a daily rhythm of anatomical and metabolic change in a beneficial symbiosis. Proc. Natl. Acad. Sci. U.S.A. 107, 2259–2264. doi: 10.1073/pnas.0909712107
Wolfe, A. J., Millikan, D. S., Campbell, J. M., and Visick, K. L. (2004). Vibrio fischeri sigma54 controls motility, biofilm formation, luminescence, and colonization. Appl. Environ. Microbiol. 70, 2520–2524. doi: 10.1128/AEM.70.4.2520-2524.2004
Yip, E. S., Geszvain, K., Deloney-Marino, C. R., and Visick, K. L. (2006). The symbiosis regulator RscS controls the syp gene locus, biofilm formation and symbiotic aggregation by Vibrio fischeri. Mol. Microbiol. 62, 1586–1600. doi: 10.1111/j.1365-2958.2006.05475.x
Yip, E. S., Grublesky, B. T., Hussa, E. A., and Visick, K. L. (2005). A novel, conserved cluster of genes promotes symbiotic colonization and sigma54-dependent biofilm formation by Vibrio fischeri. Mol. Microbiol. 57, 1485–1498. doi: 10.1111/j.1365-2958.2005.04784.x
