Original Research ARTICLE
Legacy effects of anaerobic soil disinfestation on soil bacterial community composition and production of pathogen-suppressing volatiles
- 1Department of Microbial Ecology, Netherlands Institute of Ecology, NIOO-KNAW, Wageningen, Netherlands
- 2Applied Plant Research, Flowerbulbs, Nursery Stock and Fruit, Wageningen University and Research Centre, Lisse, Netherlands
- 3Department of Terrestrial Ecology, Netherlands Institute of Ecology, NIOO-KNAW, Wageningen, Netherlands
- 4Applied Plant Research, Subdivision Arable Farming, Multifunctional Agriculture and Field Production of Vegetables, Wageningen University and Research Centre, Lelystad, Netherlands
- 5Department of Soil Quality, Wageningen University and Research Centre, Wageningen, Netherlands
There is increasing evidence that microbial volatiles (VOCs) play an important role in natural suppression of soil-borne diseases, but little is known on the factors that influence production of suppressing VOCs. In the current study we examined whether a stress-induced change in soil microbial community composition would affect the production by soils of VOCs suppressing the plant-pathogenic oomycete Pythium. Using pyrosequencing of 16S ribosomal gene fragments we compared the composition of bacterial communities in sandy soils that had been exposed to anaerobic disinfestation (AD), a treatment used to kill harmful soil organisms, with the composition in untreated soils. Three months after the AD treatment had been finished, there was still a clear legacy effect of the former anaerobic stress on bacterial community composition with a strong increase in relative abundance of the phylum Bacteroidetes and a significant decrease of the phyla Acidobacteria, Planctomycetes, Nitrospirae, Chloroflexi, and Chlorobi. This change in bacterial community composition coincided with loss of production of Pythium suppressing soil volatiles (VOCs) and of suppression of Pythium impacts on Hyacinth root development. One year later, the composition of the bacterial community in the AD soils was reflecting that of the untreated soils. In addition, both production of Pythium-suppressing VOCs and suppression of Pythium in Hyacinth bioassays had returned to the levels of the untreated soil. GC/MS analysis identified several VOCs, among which compounds known to be antifungal, that were produced in the untreated soils but not in the AD soils. These compounds were again produced 15 months after the AD treatment. Our data indicate that soils exposed to a drastic stress can temporarily lose pathogen suppressive characteristics and that both loss and return of these suppressive characteristics and that both loss and return of these suppressive characteristics coincides with shifts in the soil bacterial community composition. Our data are supporting the suggested importance of microbial VOCs in the natural buffer of soils against diseases caused by soil-borne pathogens.
In the light of sustainable agriculture and the call for reduction of pesticide use, insights in the mechanisms of natural suppression of soil-borne pathogens are essential. Therefore, understanding the interactions of plant pathogens with other members of soil microbial communities is needed to develop strategies for effective and consistent control (Chaparro et al., 2012). In general, depletion of carbon sources by indigenous microbes hampers the pre-infective growth of soil-borne pathogens resulting in lower infection rates (Hoitink and Boehm, 1999). This competition-related mechanism of pathogen control is also known as “general disease suppression” (Hoitink and Boehm, 1999). Disease suppression is closely related to soil fungistasis, the restricted ability of fungal propagules to germinate or grow in most soils (Dobbs and Hinson, 1953). As for general suppression, it has been hypothesized to be caused by microbial withdrawal of nutrients from soil or even from fungal propagules (Lockwood, 1977). However, besides substrate competition, also inhibitory compounds, released by microbes, have been indicated to contribute to fungistasis (Romine and Baker, 1972; De Boer et al., 2003). This implies that not only the carbon-withdrawing activity of the total soil microbial community is involved in fungistasis but also the secondary metabolite production of certain groups within the soil microbial community. Based on this, Garbeva et al. (2011) argued that the composition of soil microbial communities is more important in fungistasis than previously has been appreciated.
Most soil-borne pathogens are poor competitors and have limited saprotrophic capacities in their pre-infective stages. Therefore, they are sensitive to general disease suppression. Among them is the oomycete genus Pythium, which includes many plant pathogenic species (Boehm and Hoitink, 1992). They infect roots of seedlings generally resulting in damping-off and, consequently, reduced yield in a broad range of crops (Martin and Loper, 1999). In flower bulb crops, several species of Pythium cause severe root rot, leading to considerable losses in bulb yield (van Os et al., 1998). Infection can occur by zoospores and is initiated by a chemotactic response to compounds exuded by roots. Yet, Pythium is considered to be a poor competitor for these root exudates and, therefore, natural control of Pythium infection is attributed to high competitive pressure exerted by other exudate-consuming soil microbes (Chen et al., 1988; van Os and van Ginkel, 2001). Hence, the current view on the cause of natural buffering of soils against Pythium infection is mainly pointing at resource competition rather than at interference competition (involvement of inhibitory secondary metabolites).
Antimicrobial volatile organic compounds (VOCs), emitted by soil microbes, may be an important factor in causing fungistasis facilitated by their ability to diffuse through the porous soil matrix (Wheatley, 2002; Garbeva et al., 2011; Effmert et al., 2012). The potential role of VOCs in suppression of soil-borne plant pathogenic organisms was already reviewed in Stotzky et al. (1976) but regained interest recently (Garbeva et al., 2011; Effmert et al., 2012; Weisskopf, 2013). Production of antifungal volatiles has been shown for a broad range of bacterial phyla: it has been estimated that 30–60% of the soil bacterial species can produce fungistatic volatiles (Wheatley, 2002; Zou et al., 2007). Further support for the role of volatiles in fungistasis came from an extensive inventory by Chuankun et al. (2004), who observed a significant positive correlation between fungistatic activity (inhibition of spore germination) and production of VOCs by 146 soils. The inhibition of pathogen growth by bacterial VOCs has been shown in several studies (McCain, 1966; Alström, 2001; Wheatley, 2002; Kai et al., 2007, 2009; Zou et al., 2007; Effmert et al., 2012) indicating the potential of microbial volatiles in disease reduction. Inhibition of Pythium mycelial growth by bacterial volatiles has been shown, albeit under in vitro conditions and not in soils (Garbeva et al., 2014a; Hol et al., 2015). Hence, possible involvement of volatiles in natural soil suppression of Pythium is unknown.
Agricultural management practices may influence the composition of soil microbial communities and, therefore, also the production of pathogen-suppressing secondary metabolites. Different management practices are in use to reduce pathogen pressure. Anaerobic soil disinfestation (AD) uses crop residues and airtight covering of the soil with plastic foil to stimulate the development of anaerobic microbes producing toxic substances that eliminate harmful nematodes and fungi (Blok et al., 2000). Although AD is used as an environmentally-friendly alternative for chemical disinfestation it is expected to have a tremendous effect on microbial community composition and functioning as aerobic soil microbes face a period of anaerobiosis. Little is known on the possible legacy that AD may have on the composition and functioning of soil microbial communities after the treatment has been finished and cultivation of new crops is started. It has been shown that stress-induced shifts in soil microbial community composition can cause a drastic reduction of fungistasis (De Boer et al., 2003). Hence, there is a potential risk that AD and other disinfestation treatments have similar effects on the pathogen-suppressing activities of soil microbial communities. The current study was aimed to address possible legacy effects of AD of sandy bulb soils on bacterial community composition and soil suppressive characteristics, with special emphasis on the production of pathogen-suppressing volatiles. To this end measurements were done at the start of the flower bulb season (planting of bulbs in autumn) in the year that AD had been applied (3 months after AD) and 1 year later. The oomycete Pythium intermedium, a notorious pathogen of flower bulbs, was used to test soil suppressiveness as Pythium species are opportunistic pathogens that can rapidly cause problems under conditions where general suppressiveness has been reduced (Postma et al., 2000). Simultaneously the production of Pythium-suppressing volatiles by AD-treated and control soils were tested and compared with results of bioassays (root development of Hyacinth bulbs in the presence of P. intermedium) to determine the role of volatiles in natural disease suppression. Bacterial community composition was determined using 454 sequencing of 16S rDNA fragments.
The tightly linked series of analyses and experiments lend strong support to the importance of bacterial community composition and–volatile production in natural suppression.
Materials and Methods
Soil Treatments and Sampling
Experiments were performed with soil samples from the experimental fields of Applied Plant Research (Wageningen UR) in Lisse, The Netherlands (coordinates: N 52.25. 52; E 4.54. 77). At this location the alluvial sandy soil has a low organic matter content ranging between 1.0 and 1.5%, which is representative of the soil type used for cultivation of flower bulbs along the dunes of the coastal area of the North Sea. In 2010, a field trial was initiated to examine the effect of soil organic matter content and management practices on disease suppression against several soil-borne pathogens. From the current experiment, plots of four soil treatments (Table 1) with four replicates per treatment (60 m2 per replicate) were included. In May 2010, organic matter (OM) content was elevated by incorporating a mixture of peat (95%) and cattle manure (5%) (504 tons ha−1, 0–30 cm deep), resulting in an increase of the soil OM content from 1.2 to 3.0%. In August 2011, anaerobic soil disinfestation (AD) was applied to a subset of the plots according to the method of Blok et al. (2000) using “Herbie 7025” (van Overbeek et al., 2014), a defined protein-rich vegetal by-product of food processing industry (Thatchtec B.V., Wageningen, The Netherlands). Herbie was applied 24 tons ha−1, was incorporated 0–30 cm deep and anaerobic conditions were created by watering followed by airtight covering of the soil with plastic for 6 weeks. Three and fifteen months after removal of the plastic cover (November 2011 and November 2012 respectively), soil samples were taken from each field plot (22 kg per plot, randomly collected from 0 to 20 cm depth) and kept at 4°C until use. In between sampling dates, Gladiolus was cultivated on all field plots (April-November 2012).
Bioassay for Assessment of Root Rot
From each of the 16 field plots, soil samples were artificially infested with a three-week-old oatmeal culture (1% v/v) of Pythium intermedium (isolate P52, Applied Plant Research Flowerbulbs, Nursery Stock and Fruit, Lisse). Non-infested and pasteurized soils (2 h at ≥ 70°C) were used as controls. Soil moisture content was adjusted to 20% (w/w). Five bulbs from Hyacinthus orientalis cultivar “Pink Pearl” were planted in pots (3 L) and incubated during 8 weeks at 9°C in the dark in climate cells (Hyacinth bulbs are infected during the belowground root growing phase of the bulb). Pots were sealed with plastic foil to maintain soil moisture but allow oxygen diffusion. Impact of Pythium on Hyacinth root development was assessed by measuring root weight and by rating root-rot disease symptoms. At the end of the growing period, bulbs were removed from the soil and roots were washed with tap water. Root-rot ratings of infested treatments were related to the healthy root systems of non-infested control treatments. Roots were visually examined for root rot severity according to van Os et al. (1998) using an arbitrary disease index ranging from 0 to 5, where 0 = no root rot, 1 = 1–20%, 2 = 21–40%, 3 = 41–60%, 4 = 61–80%, and 5 = >80% root rot, i.e., relative loss of healthy root mass induced by infection, compared to the corresponding healthy root systems. Roots were scored for each plant individually and a mean root rot index for each pot was calculated. After the scoring of the disease index, roots were removed from the bulbs and excess water was removed by blotting the roots on filter paper and total fresh root weight per pot (5 bulbs) was determined. Means of four pots per soil treatment were used in statistical analysis. Separate bioassays were performed for both years.
In Vitro Tests for Production of Pythium-Suppressing Volatiles from Soil
An experimental set-up was designed to enable exposure of Pythium intermedium to volatiles produced by the soils, without direct contact between Pythium and soil. Soil samples equal to 20 g dry weight [20% (w/w) soil moisture content] were spread evenly on the bottom of 90 mm Petri dishes and incubated for 1 week at 10°C. A 4 mm layer of water yeast agar (WYA, 20 g agar, 1 g KH2O4, 0.1 g (NH4)2SO4, 0.1 g yeast extract (Difco) L−1 pH 6.5) was poured in lids of Petri dishes. Agar plugs of 6 mm potato dextrose agar (PDA 19,5 g L−1 (Oxoid, Basingstoke, UK) with CMN agar 7,5 g L−1 (Boom, Meppel, The Netherlands) colonized by P. intermedium (incubated 5–10 days at 20°C) were transferred to WYA plates and kept at 10°C. After 48 h, a WYA agar disk (Ø 6 mm) containing Pythium mycelium was placed in the center of the lid. The mycelium-containing lid was carefully placed on top of the bottom compartment containing soil and sealed using Parafilm (Figure S1). Plates were incubated for 10 days at 10°C. Petri dishes without soil and with gamma-radiated soil (untreated 2012) (>25 kGray, Isotron, Ede, the Netherlands) were used as controls for conditions without microbially produced volatiles. Before the start of the experiment the gamma-radiated soil was left for 4 days in a sterile flow cabinet to remove all residual volatiles. Mycelial biomass determination was done according to the method of Garbeva et al. (2014b) with some modifications. Briefly, Pythium mycelia were harvested by melting the colonized agar from the lids of the Petri-dishes in a beaker glass with water in a microwave oven (c. 100°C), followed by sieving with a tea strainer and three washing steps with water (c. 90°C) in order to remove agar residues. For measurements of dry biomass weight, mycelia were frozen at −20°C and freeze-dried during 24 h. Pictures of Pythium hyphae were taken before harvest 1 cm from the edge of the plate with a stereo microscope (Olympus, SZX12, Tokyo, Japan) connected to a AxioCam MRC5 camera (Zeiss, Jena, Germany) under a 90x magnification.
Trapping and GC/MS Analysis of Microbial Volatiles
For collection and analysis of released volatiles from soil the method of Garbeva et al. (2014b) was used with some modifications. Soil from two plots per treatment was randomly selected for GC/MS analysis. Briefly, soil samples were plated in special designed glass petri dishes, with an exit to which a steel trap could be connected with as trapping material 150 mg Tenax TA and 150 mg Carbopack B (Markes International Ltd., Llantrisant, UK) which could fix VOCs released from the soil. VOCs were collected after 168 hours of incubation at 10°C. Then, traps were removed, sealed and stored at 4°C until further analysis. Volatiles were desorbed from the traps using an automated thermodesorption unit (model Unity, Markes International Ltd., Llantrisant, UK) at 200°C for 12 min (He flow 30 ml/min). Each trap was heated for 3 min up to 270°C to introduce the volatiles into the GC/MS (model Trace, ThermoFinnigan, Austin, TX, USA). Split ratio was set to 1:4, and the used column was a 30 × 0.32 mm ID RTX-5 Silms, film thickness 0.33 μm (Restek, Bellefonte, PA, USA). The used temperature program was: from 40°C to 95°C at 3°C min−1, then to 165°C at 2°C min−1, and to 250°C at 15°C min−1. The VOCs were detected by the MS operating at 70 eV in EI mode. Mass spectra were acquired in full scan mode (33–300 AMU, 0.4 scans s−1). Compounds were identified by their mass spectra using deconvolution software (AMDIS) in combination with NIST 2008 (National Institute of Standards and Technology, USA,), Wiley 7th edition spectral libraries and by their linear retention indices (lri). The lri values were compared with those found in the NIST and the NIOO lri database. Candidate compounds possibly related to volatile inhibition of Pythium growth were identified by screening for volatiles that were absent in disinfested soils (AD and ADP) in 2011 and present 1 year later (2012) and in non-disinfested soils (U and P) 2011 and 2012.
Pyrosequencing of Soil Bacterial Communities
DNA was extracted directly after sampling from three randomly selected plots per treatment using Mobio 96 well Powersoil® extraction kit according to the manual. Amplicons for barcoded 16S pyrosequencing were generated using PCR reactions (5 min 95°C followed by 25 cycles 95°C 30 s, 53°C 60 s, 72°C 60 s + 1 s per cycle finishing with 10 min 72°C and 10°C soak) performed in triplicate for each sample using the primerset 515F (5'-GTGCCAGCMGCCGCGGTAA-3') and 806R (5'-GGACTACVSGGGTATCTAAT-3') (Caporaso et al., 2011). The 515F primer included the Roche 454-pyrosequencing adapter and a GT linker, while 806R included the Roche 454- sequencing adapter, a 12-bp barcode (unique to each sample), and a GG linker. PCR products were cleaned (Qiagen Pcr purification kit) pooled and were sequenced (Macrogen Inc. Company, South Korea) on a Roche 454 automated sequencer and GS FLX system using titanium chemistry (454 Life Sciences, Branford, CT, USA). The obtained 454 sequences were filtered and analyzed using QIIME (Caporaso et al., 2010) in the Galaxy interface. Sequences were denoised (DENOISER, Reeder and Knight, 2010) and chimeras were removed using UCHIME (Edgar et al., 2011) followed by trimming of low quality reads (<200 bp, quality score 20). The remaining high quality sequences were clustered into operational taxonomic units (OTU's) using UCLUST (Edgar, 2010) with a minimal sequence identity cut off of 97% using the most abundant unique sequence as cluster representative. Sequences were deposited in the European Nucleotide Archive under accession number PRJEB6155 (http://www.ebi.ac.uk/ena/data/view/PRJEB6155).
In the bioassay, mean disease indices per pot were converted to percentages. The assumption of normality was tested with Shapiro–Wilk statistics and Levene's test was used to confirm homogeneity of variances. An analysis of variances, a Three-Way ANOVA, was performed to test the effects of soil treatment, Pythium addition, organic matter level and their interactions on root weight or percentage root rot.
To test the effects of VOC produced in soil on Pythium biomass the average hyphal weight per Petri dish per soil treatment was determined in 2011 (n = 16) and 2012 (n = 8). Data were calculated as percentage of the growth of the control. Normality was tested with Shapiro-Wilk test and homogeneity of variances was assessed with Levene's test. A Two-Way ANOVA was performed to determine differences between soil treatments.
A Three-Way ANOVA was performed on the data from the pyrosequencing analysis in order to test the effects of peat addition, soil treatment and sampling year and their interactions on number of reads. Pyrosequencing data were rarefied to the lowest number of obtained reads, 2047 reads per sample. Per phylum all soil treatments in the two seasons were tested for a change in relative abundance, based on the number of reads per phylum. The average number of reads per phylum per soil treatment was calculated and tested with One-Way ANOVA. The average number of OTUs per treatment was used to express OTU richness. Although the OTU richness data did not meet the assumption of normality in the analysis these data were also analyzed with a One-Way ANOVA to determine differences between treatments. Statistical analyses were done in R3.0.2 and PAST (Hammer et al., 2001).
Impact of Pythium on Hyacinth Root Rot (Bioassays)
Management practices strongly affected root biomass and root rot severity. Addition of Pythium to the soils showed an overall effect of the pathogen: the root weight was significantly reduced in all soils in the consecutive years. However, the magnitude of the effect of Pythium on root biomass reduction was different depending on the management regime the soil had received (Figures 1A,B, 2C). Pythium-induced root biomass reduction was most strong in recently (2011) anaerobic disinfested (AD) soils. This was also indicated by the significant interaction between soil disinfestation and Pythium addition in 2011 (Table 2). In contrast to 2011, the effect of Pythium addition to the soil in 2012 was independent of the former AD treatment and did not show differences between the differently managed soils (Figure 1B). In all pasteurized soil samples, inoculation with Pythium resulted in a severe loss of root biomass, average root weight was reduced by >60% (Figure 1E).

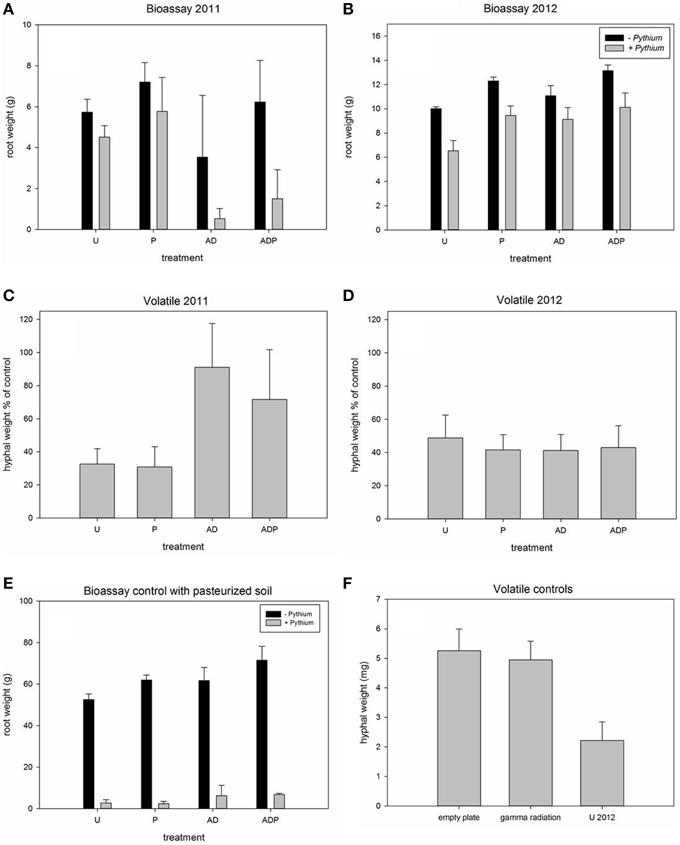

Figure 1. Root biomass of Hyacinth bulbs in soils with and without addition of Pythium intermedium and production of hyphal biomass by P. intermedium during exposure to soil volatiles. (A,B) Average weight of roots extending from Hyacinth bulbs grown in differently managed soils (U, untreated; P, peat addition; AD, anaerobic disinfestation) with and without Pythium addition. (C,D) Average hyphal weight of P. intermedium hyphae that had been exposed to volatiles produced by differently managed soils. Pythium biomass is presented as percentage of the empty plate control. (E,F), control experiments: (E), Bulb root weight in pasteurized soils with and without addition of P. intermedium; (F), Average hyphal weight of empty plates, gamma irradiated soil and the untreated soil in 2012. Significant results of main treatment effects and interactions are presented in Table 2, marked in bold. Error bars represent standard deviation.
Figure 2. Pythium volatile exposure assays and Hyacinth bioassays. (A) Differences in Pythium hyphal density upon volatile exposure sterilized soil (control) and untreated and disinfested soil in 2011. (B) Detailed pictures taken from agar plates after volatile exposure. (C) Results of Hyacinth bioassays in soil from differently managed fields without (−) and with (+) Pythium intermedium addition. U, untreated; P, peat addition; AD, anaerobic disinfestation.
Table 2. Analysis of variance for root biomass and disease indexes of hyacinth bulbs in the soil bioassays and hyphal biomass in the volatile exposure assays.
Root biomass in the bioassays was not only affected by Pythium but also by the different management practices as became apparent from the control bioassays, i.e., the pots without Pythium addition. Both peat amendment and soil disinfestation significantly affected root weight in both years of sampling (see Figures 1A,B, 2C; Table 2). Addition of organic matter significantly increased the root weight in both years; the root biomass was significantly higher in peat-amended soils (2011, 21% for P and 43% for ADP; 2012 19% for P and 16% for ADP) than in the comparable soils without peat addition. Soils that had received a recent AD treatment had a significantly reduced root weight, 39% (AD) and 14% (ADP), as compared to the untreated (U) and peat-amended soil (P) respectively. One year later this effect was reversed. In 2012, plants in formerly anaerobic disinfested soils had a higher root biomass, 10% and 7% more, compared to the non-disinfested soils with the same organic matter level. Similar to the effects of Pythium on root weight, anaerobic disinfestation enhanced the effects of Pythium on root rot symptoms in 2011 (Figure S2A; Table 2). This interaction was no longer apparent in 2012 (Figure S2B; Table 2). Even without addition of Pythium, an increase of root rot symptoms was found for recently disinfested soils (Figure S2A; Table 2). Peat addition reduced the severity of root-rot symptoms significantly (Figure S2B, Table 2). The infective ability of the applied Pythium inoculum was confirmed, as a strong increase of root rot symptoms was seen in pasteurized soil (Figure 1E).
Emission of Pythium-Inhibiting Volatiles by Soils and Soil Microbes
Exposure of Pythium to volatiles released from the soils resulted in a strong reduction of Pythium biomass production (Figures 1C,D, 2A,B). There were, however, differences between treatments and sampling years. Compared to the empty plate control, both the untreated soil and soil with peat amendment gave a 3-fold reduction in mycelial biomass in 2011 (p < 0.0001) (Figures 1C,D; Table 2). In contrast, exposure of Pythium to volatiles released from the anaerobic disinfested soils did not (AD) or only slightly (ADP) result in reduction of Pythium biomass or hyphal density (Figures 1C,D, 2A,B; Table 2). In 2012, this lack of volatile suppression in disinfested soils was no longer apparent as volatiles from all soils significantly reduced Pythium growth by at least 50% compared to soils (Figures 1D, 2A,B). The impact of soil-derived volatiles on Pythium growth was not significantly affected by peat addition. Volatile-suppression of Pythium growth was not seen when exposed to gamma-radiated soils (Figure 1F), indicating that no growth-reducing volatiles were produced in soil without microflora.
Trapping and GC/MS Analysis of Bacterial Volatiles
GC/MS analysis identified >700 different volatile compounds that were released from the soil of which 15 compounds were found to be absent in the anaerobic disinfested soil in 2011 (Table 3), mostly ketones. Some of these compounds, namely 2-octanone, 2-undecanone and 2-nonanone, are known to be inhibitors of eukaryotic pathogenic soil organisms (Table 3). Besides ketones the 15 potential suppressive compounds included glycol ethers, alkanes, a fatty acid and two yet unidentified compounds with retention indices of 1692 and 1743. One year later, the 15 volatile compounds were again released by the previously disinfested soils.
Table 3. Volatile organic compounds of which the production appeared to be negatively affected by the anaerobic disinfestation treatment in 2011.
Pyrosequencing of Soil Bacterial Communities
Four hundred fifty four Pyrosequencing identified over 3000 different OTUs from 31 bacterial and 2 archaeal phyla (Figure 3A). There was no soil treatment effect on the number of reads obtained per sample, average numbers of reads were not different between soil treatments or sampling years (Figure 3B). In 2011, anaerobic soil disinfestation had resulted in reduction of OTU richness. At higher organic matter level the reduction was significantly less (Figure 3A). In 2012 no differences in OTU richness were seen between soil treatments. Most abundant (36–63%) in all samples were OTUs assigned to Proteobacteria. Relative abundances of classes within the Proteobacteria, i.e., Alpha- Beta- Gamma- and Deltaproteobacteria, did not change significantly between different soil treatments (Figure S3). In 2011, six phyla showed significant differences between plots with and without anaerobic soil disinfestation (Figures 3C–H). At the start of the bulb planting season for spring flowering bulbs anaerobic soil disinfestation had still clear effects on the bacterial community composition. Relative abundances of OTUs assigned to Acidobacteria, Chloroflexi, Nitrospirae, Chlorobi, and Planctomycetes were significantly lower in the disinfested soils, whereas relative abundance of OTUs assigned to Bacteroidetes was higher compared to untreated soils. In 2012, 15 months after the disinfestation treatment, the relative abundance of these phyla was restored to the same levels as occurred in untreated soils for Acidobacteria, Chlorobi and Planctomycetes (p < 0.05), with the same tendency for Chloroflexi and Nitrospirae (p < 0.1) (Figure 3, Table S1).

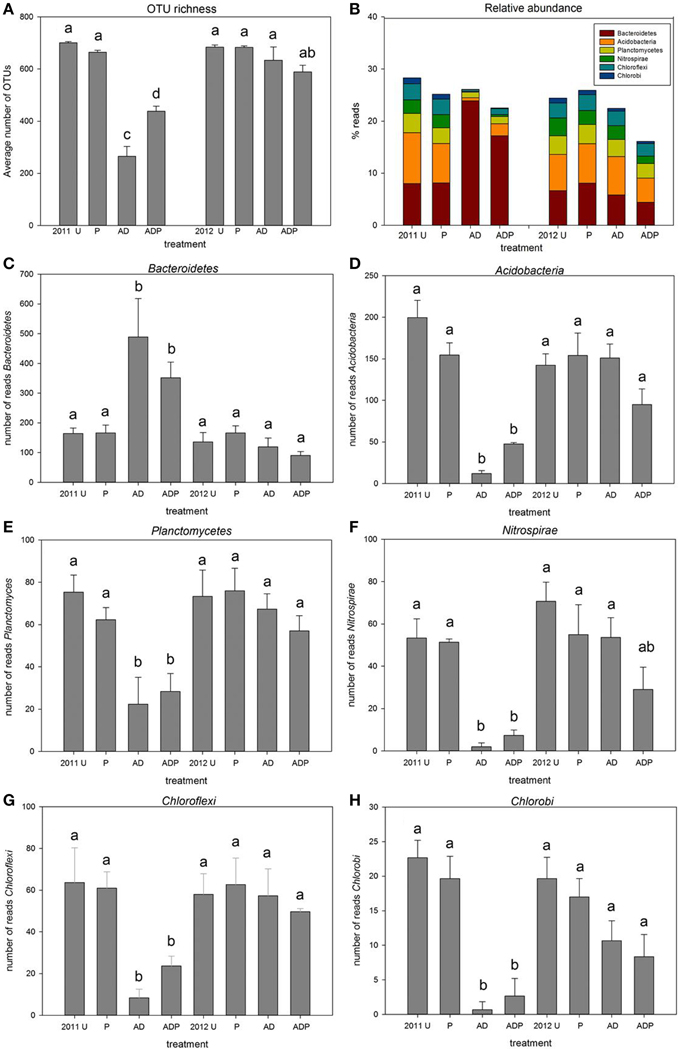

Figure 3. OTU richness and average relative abundance of selected bacterial phyla. (A) average number of OTUs in differently managed soil (n = 3, error bars represent stdev, U, untreated; P, peat addition; AD, disinfestation), (B) relative abundance (C–H), average relative abundance of phyla that differ significantly between the disinfested soils in 2011 (AD and ADP) and all other treatments in 2011 and 2012.
Volatile organic compounds form an important part of the underground chemical communication network between plants, fungi and bacteria (Ryu et al., 2003; Vespermann et al., 2007; Insam and Seewald, 2010; Effmert et al., 2012; Bitas et al., 2013; Fiers et al., 2013). They can have different roles in the soil including plant growth promotion and signaling (Vespermann et al., 2007). There are also indications that VOCs produced by soil micro-organisms can have an important contribution to the restriction of growth and germination of pathogenic fungi (fungistasis) that occurs in most soils (Garbeva et al., 2011). However, despite the ability of several soil microbial VOCs to reduce pathogenic growth; little attention has been paid to the role of these VOCs in suppression of plant diseases caused by soil-borne pathogens.
Our results provide an indication about the involvement of VOCs in natural disease suppression of a soil-borne pathogen. Our study revealed interesting co-incidences of severe Pythium-induced root weight loss, absence of production of Pythium suppressing soil volatiles and shifts in bacterial community composition shortly after an anaerobic disinfestation treatment. One year later these effects of the disinfestation treatment had largely disappeared. The coinciding dynamics of root biomass and production of suppressing volatiles suggests that microbial volatiles can have an important contribution in the natural control of Pythium intermedium. Furthermore, our results point at the importance of microbial community composition as disinfestation-induced shifts in community composition which coincided with the loss in suppressiveness by volatiles.
Induced changes in microbial community composition can yield important information on the functioning of the original soil microbial communities (Griffiths and Philippot, 2013). Management practices can alter the abundance of microbial groups that are thought to be involved in disease suppression (Garbeva et al., 2004; Mazzola, 2004; Chaparro et al., 2012; Sipilä et al., 2012). In the current investigation we observed that anaerobic soil disinfestation had a dramatic effect on soil microbial diversity and community composition. This is not surprising as the microbes in the well-drained sandy soils were confronted with a long period of oxygen-depletion resulting in a shift from aerobic metabolism to predominant anaerobic metabolism. The impact of this period of anaerobiosis was still clearly visible in the bacterial community composition at the time that flower bulbs are usually planted i.e., 3 months after the soil disinfestation treatment had been ended (removal of cover plastic). Most striking was the high abundance of Bactereroidetes, a phylum that has been shown to strongly respond to fluctuating redox conditions (DeAngelis et al., 2010).
In contrast, the phyla Acidobacteria, Planctomycetes, Nitrospirae, Chloroflexi, and Chlorobi decreased significantly after disinfestation. So far, these groups have rarely been studied in the context of disease suppression, due to limitations to obtain cultivable representatives. Strongest reduction in relative abundance of OTUs after soil disinfestation was seen for Acidobacteria. A recent study showed that Acidobacteria were one of the groups that were most sensitive to a strongly disturbing soil treatment (fumigation) (Domínguez-Mendoza et al., 2014). Earlier studies have shown that changes in land use, fertilization and management caused shifts in relative abundance of Acidobacteria and its different subgroups (Jones et al., 2009; Barnard et al., 2013; Navarrete et al., 2013). However, the impact of such shifts in abundance of Acidobacteria on disease suppressiveness has not been examined. Yet, next to our results a study by Hunter et al. (2006) provides indications for a possible role of Acidobacteria in disease suppressiveness. In that study it was observed that Acidobacteria were present in peat suppressive to P. sylvaticum whereas they were absent in peats that were conducive for P. sylvaticum damping-off. No other documentation is available on antagonistic roles of Acidobacteria, nor on production of antimicrobial VOCs. Our data suggest a potential role in the production of suppressing volatiles by Acidobacteria. However, the actual role of Acidobacteria in volatile production and disease suppression, as well as that of the other phyla that showed similar dynamics upon disinfestations remains to be established.
Remarkably, the main classes of Proteobacteria, which contain many known potential biocontrol bacteria (Weller et al., 2002; Haas and Defago, 2005) did not change significantly as a result of the disinfestation treatment (Figure S3). However, this does not necessarily imply that Proteobacteria did not contribute to Pythium disease suppression. Mendes et al. (2011) compared a soil suppressive against the plant pathogen Rhizoctonia solani with another, similar soil that was conducive for disease caused by this fungus and found similar abundances for all classes of Proteobacteria in both soils. However, at species level, e.g., within the genus Pseudomonas, differences were observed with higher abundance of antibiotic-producing species in the suppressive soil.
Comparison of the volatiles produced by differently treated soils revealed potential Pythium-inhibiting compounds, mostly methyl ketones. These VOCs were present in the untreated and peat-amended soils that exhibited a high level of natural suppression against Pythium, but absent in the recently disinfested soils that were susceptible to infection of bulbs by Pythium. Among these VOCs, there were compounds like 2-octanone, 2-nonanone and 2-undecanone that were previously found to be suppressive against soil fungi and nematodes (Chen et al., 1988; Alström, 2001; Wheatley, 2002; Gu et al., 2007; Kai et al., 2007; Effmert et al., 2012). Thus these findings support the potential suppressive role of the VOCs identified in this study. However, the antimicrobial role of the other potential suppressive compounds identified in this study remains to be assessed. Besides the compounds highlighted in this study (Table 3) it is possible as well that a mixture of different compounds (Tunc et al., 2007; Veras et al., 2012), compounds that were not detected with the chosen method and/or concentration dependent effects (Wheatley, 2002) are responsible for the suppression against Pythium. The biological and ecological relevance of concentration effects and volatile mixture compositions remains to be studied for the natural soil habitat.
Anaerobic soil disinfestation is applied to kill a broad range of pathogens (Blok et al., 2000). The demonstrated reduction of disease suppression shows that such a drastic treatment of the soil has the risk of a (partial) elimination of the natural suppressive microflora. After one growing season, 15 months after application, disease suppression against Pythium was restored to the level of the non-disinfested plots. Similar loss of suppressing activity of the indigenous microflora has been found with pathogen-eliminating measures like flooding (8 weeks) and chemical soil disinfestation with cis-dichloropropene or methylisothiocyanate (Osvan et al., 1999). Postma et al. (2000) observed enhanced Pythium outbreaks in cucumber grown on rockwool after sterilization of the rockwool and recolonisation by a microbial community which lacked the suppressive properties of the original community. Hence, (temporal) changes in the suppressive community, by reducing the competition pressure or elimination of useful microbes, can enhance disease outbreaks of opportunistic pathogens such as Pythium (van Os et al., 1999; van Os and van Ginkel, 2001). Our study included two consecutive years of bulb planting to determine the longer term effect of the management treatments on Pythium suppression. Fifteen months after the disinfestation treatment, the bacterial community composition resembled the composition of the non-disinfested soils. This is in agreement with the results of Mowlick et al. (2013) who found a restoration of the original microbial community composition in the biological disinfestation treatment after plant growth. Anaerobic disinfestation had an impact on the taxonomic composition of the soil microbial community but also on an important function, namely disease suppression. In our study, after the cultivation of the summer crop Gladiolus the suppression of Pythium in both volatile assay and bioassay also returned to the level of that in non-disinfested soils. This recovery of the natural suppression against Pythium indicates resilience of the soil to re-establish this essential ecosystem function after a strong disturbance (Griffiths and Philippot, 2013).
In the year of application (2011), the anaerobic soil disinfestation had a negative effect on Hyacinth root development even without addition of Pythium. This may be the result of phytotoxic effects of compounds that have been produced during anaerobic decomposition and were still present. It is known that decomposition of crop residues during the period of oxygen depletion can produce phytotoxic compounds (Bonanomi et al., 2007b). Since this reduced root growth was only significant in the disinfested soil without peat addition, the increased organic matter levels in peat-amended soils may have absorbed possible phytotoxic compounds.
Organic amendments do influence soil physical-chemical properties as well as soil microbial activity and composition (Hoper and Alabouvette, 1996; Bonanomi et al., 2007a, 2010). Therefore, we expected to find an effect of peat addition on volatile suppression. The addition of peat increased root weight and reduced root rot symptoms in 2012 as compared to the untreated soil. However, the volatile suppression of peat-amended soils was not different from that of the unamended soils. This is in line with the microbial community composition which was not strongly affected by peat amendment but does imply that other mechanisms of disease suppression, besides volatiles, contribute to disease suppression after peat addition. It is clear that organic amendments and disease control measures can have long-term effects on both the soil microflora and on disease suppression, although the effects of the amendments might depend on the nature and maturity of the organic additions (Hoitink and Boehm, 1999; Termorshuizen et al., 2006). In order to get more understanding of time-related changes it is necessary to monitor these soil characteristics during longer periods of time. Since flower bulb production, and more general arable agriculture, are not only seriously threatened by Pythium, but also by several other soil-borne fungi and nematodes, is would be recommendable to extend these studies to include also other pathogens like Rhizoctonia solani, Pratylenchus penetrans or Meloidogyne hapla. In conclusion, our study indicates that the production of suppressing volatiles by soil microbes may be an important factor in the natural suppression of root-infection by Pythium. More general, this indicates that microbial volatiles may be an essential part of the natural buffering of soils against soil-borne diseases, the so-called general disease suppression. This would open new perspectives and insights for the control of soil-borne pathogens. Volatile-inhibition tests as well as the presence of certain VOCs and microbial groups could be an indicator of the susceptibility of a given soil to soil-borne pathogens. Obviously, more research is needed to find support for this. In depth studies are needed to further assess the role of volatiles in disease suppression and should also consider the dynamics of production of VOCs in soils, as well as the conditions that affect the sensitivity of the pathogens to VOCs.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
We are grateful to Mattias de Hollander for assistance with the bioinformatics. Furthermore, we would like to thank Marjan de Boer for her role in setting up the field experiment the soils originated from. Thanks to Suzanne Breeuwsma and Jan van de Bent for technical assistance. Sequences were deposited in the European Nucleotide Archive under accession number PRJEB6155 (http://www.ebi.ac.uk/ena/data/view/PRJEB6155). The volatile data have been archived in the Data and Information Portal of the NIOO-KNAW http://data.nioo.knaw.nl/index.php and is available on request. This research is supported by the Dutch Technology Foundation STW (Project 10716), which is part of the Netherlands Organisation for Scientific Research (NWO), and which is partly funded by the Ministry of Economic Affairs. This is publication 5887 of the Netherlands Institute of Ecology.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fmicb.2015.00701
Alström, S. (2001). Characteristics of bacteria from oilseed rape in relation to their biocontrol activity against Verticillium dahliae. J. Phytopathol. 149, 57–64. doi: 10.1046/j.1439-0434.2001.00585.x
Bitas, V., Kim, H.-S., Bennett, J., and Kang, S. (2013). Sniffing on microbes: diverse roles of microbial volatile organic compounds in plant health. Mol. Plant Microbe Int. 26, 835–843. doi: 10.1094/MPMI-10-12-0249-CR
Blok, W. J., Lamers, J. G., Termorshuizen, A. J., and Bollen, G. J. (2000). Control of soilborne plant pathogens by incorporating fresh organic amendments followed by tarping. Phytopathology 90, 253–259. doi: 10.1094/PHYTO.2000.90.3.253
Boehm, M., and Hoitink, H. (1992). Sustenance of microbial activity in potting mixes and its impact on severity of Pythium root rot of Poinsettia. Phytopathology 82, 259–264. doi: 10.1094/Phyto-82-259
Bonanomi, G., Antignani, V., Capodilupo, M., and Scala, F. (2010). Identifying the characteristics of organic soil amendments that suppress soilborne plant diseases. Soil Biol. Biochem. 42, 136–144. doi: 10.1016/j.soilbio.2009.10.012
Caporaso, J. G., Kuczynski, J., Stombaugh, J., Bittinger, K., Bushman, F. D., Costello, E. K., et al. (2010). QIIME allows analysis of high-throughput community sequencing data. Nat. Methods 7, 335–336. doi: 10.1038/nmeth.f.303
Caporaso, J. G., Lauber, C. L., Walters, W. A., Berg-Lyons, D., Lozupone, C. A., Turnbaugh, P. J., et al. (2011). Global patterns of 16S rRNA diversity at a depth of millions of sequences per sample. Proc. Natl. Acad. Sci. U.S.A. 108, 4516–4522. doi: 10.1073/pnas.1000080107
Chaparro, J. M., Sheflin, A. M., Manter, D. K., and Vivanco, J. M. (2012). Manipulating the soil microbiome to increase soil health and plant fertility. Biol. Fertil. Soils 48, 489–499. doi: 10.1007/s00374-012-0691-4
Chen, H., Xiao, X., Wang, J., Wu, L. J., Zheng, Z. M., and Yu, Z. L. (2008). Antagonistic effects of volatiles generated by Bacillus subtilis on spore germination and hyphal growth of the plant pathogen, Botrytis cinerea. Biotechnol. Lett. 30, 919–923. doi: 10.1007/s10529-007-9626-9
Chen, W., Hoitink, H. A., Schmitthenner, A., and Tuovinen, O. H. (1988). The role of microbial activity in suppression of damping-off caused by Pythium ultimum. Phytopathology 78, 314–322. doi: 10.1094/Phyto-78-314
DeAngelis, K. M., Silver, W. L., Thompson, A. W., and Firestone, M. K. (2010). Microbial communities acclimate to recurring changes in soil redox potential status. Environ. Microbiol. 12, 3137–3149. doi: 10.1111/j.1462-2920.2010.02286.x
De Boer, W., Verheggen, P., Klein Gunnewiek, P. J. K., Kowalchuk, G. A., and van Veen, J. A. (2003). Microbial community composition affects soil fungistasis. Appl. Environ. Microbiol. 69, 835–844. doi: 10.1128/AEM.69.2.835-844.2003
Domínguez-Mendoza, C. A., Bello-López, J. M., Navarro-Noya, Y. E., de León-Lorenzana, A. S., Delgado-Balbuena, L., Gómez-Acata, S., et al. (2014). Bacterial community structure in fumigated soil. Soil Biol. Biochem. 37, 122–129 doi: 10.1016/j.soilbio.2014.02.012
Edgar, R. C., Haas, B. J., Clemente, J. C., Quince, C., and Knight, R. (2011). UCHIME improves sensitivity and speed of chimera detection. Bioinformatics 27, 2194–2200. doi: 10.1093/bioinformatics/btr381
Fernando, W. G. D., Ramarathnam, R., Krishnamoorthy, A. S., and Savchuk, S. C. (2005). Identification and use of potential bacterial organic antifungal volatiles in biocontrol. Soil Biol. Biochem. 37, 955–964. doi: 10.1016/j.soilbio.2004.10.021
Fiers, M., Lognay, G., Fauconnier, M.-L., and Jijakli, M. H. (2013). Volatile compound-mediated interactions between barley and pathogenic fungi in the soil. PLoS ONE 8:e66805. doi: 10.1371/journal.pone.0066805
Garbeva, P., Hol, W., Termorshuizen, A. J., Kowalchuk, G. A., and de Boer, W. (2011). Fungistasis and general soil biostasis–a new synthesis. Soil Biol. Biochem. 43, 469–477. doi: 10.1016/j.soilbio.2010.11.020
Garbeva, P., van Veen, J., and van Elsas, J. (2004). Microbial diversity in soil: selection of microbial populations by plant and soil type and implications for disease suppressiveness. Ann. Rev. Phytopathol. 42, 243–270. doi: 10.1146/annurev.phyto.42.012604.135455
Gu, Y.-Q., Mo, M.-H., Zhou, J.-P., Zou, C.-S., and Zhang, K.-Q. (2007). Evaluation and identification of potential organic nematicidal volatiles from soil bacteria. Soil Biol. Biochem. 39, 2567–2575. doi: 10.1016/j.soilbio.2007.05.011
Hammer, Ø., Harper, D., and Ryan, P. (2001). PAST-Palaeontological Statistics. Available online at: https://www.uv.es/pardomv/pe/2001_1/past/pastprog/past.pdf, acessado em 25(07)
Hoitink, H., and Boehm, M. (1999). Biocontrol within the context of soil microbial communities: a substrate-dependent phenomenon. Ann. Rev. Phytopathol. 37, 427–446. doi: 10.1146/annurev.phyto.37.1.427
Hol, W. H. G., Garbeva, P., Hordijk, C. A., Hundscheid, M. P. J., Klein Gunnewiek, P. J. A., van Agtmaal, M., et al. (2015). Non-random species loss in bacterial communities reduces antifungal volatile production. Ecology. doi: 10.1890/14-2359.1
Hunter, P. J., Petch, G. M., Calvo-Bado, L. A., Pettitt, T. R., Parsons, N. R., Morgan, J. A. W., et al. (2006). Differences in microbial activity and microbial populations of peat associated with suppression of damping-off disease caused by Pythium sylvaticum. Appl. Environ. Microbiol. 72, 6452–6460. doi: 10.1128/AEM.00313-06
Jones, R. T., Robeson, M. S., Lauber, C. L., Hamady, M., Knight, R., and Fierer, N. (2009). A comprehensive survey of soil acidobacterial diversity using pyrosequencing and clone library analyses. ISME J. 3, 442–453. doi: 10.1038/ismej.2008.127
Kai, M., Effmert, U., Berg, G., and Piechulla, B. (2007). Volatiles of bacterial antagonists inhibit mycelial growth of the plant pathogen Rhizoctonia solani. Arch. Microbiol. 187, 351–360. doi: 10.1007/s00203-006-0199-0
Kai, M., Haustein, M., Molina, F., Petri, A., Scholz, B., and Piechulla, B. (2009). Bacterial volatiles and their action potential. Appl. Microbiol. Biotechnol. 81, 1001–1012. doi: 10.1007/s00253-008-1760-3
Martin, F. N., and Loper, J. E. (1999). Soilborne plant diseases caused by Pythium spp.: ecology, epidemiology, and prospects for biological control. Critical Rev. Plant Sci. 18, 111–181. doi: 10.1016/S0735-2689(99)00389-5
Mendes, R., Kruijt, M., de Bruijn, I., Dekkers, E., van der Voort, M., Schneider, J. H., et al. (2011). Deciphering the rhizosphere microbiome for disease-suppressive bacteria. Science 332, 1097–1100. doi: 10.1126/science.1203980
Mowlick, S., Inoue, T., Takehara, T., Kaku, N., Ueki, K., and Ueki, A. (2013). Changes and recovery of soil bacterial communities influenced by biological soil disinfestation as compared with chloropicrin-treatment. AMB Exp. 3, 1–12. doi: 10.1186/2191-0855-3-46
Navarrete, A. A., Kuramae, E. E., de Hollander, M., Pijl, A. S., van Veen, J. A., and Tsai, S. M. (2013). Acidobacterial community responses to agricultural management of soybean in Amazon forest soils. FEMS Microbiol. Ecol. 83, 607–621. doi: 10.1111/1574-6941.12018
Postma, J., Willemsen-de Klein, M. J. E. I.M., and van Elsas, J. D. (2000). Effect of the indigenous microflora on the development of root and crown rot caused by Pythium aphanidermatum in cucumber grown on rockwool. Phytopathology 90, 125–133. doi: 10.1094/PHYTO.2000.90.2.125
Ryu, C.-M., Farag, M. A., Hu, C.-H., Reddy, M. S., Wei, H.-X., Paré, P. W., et al. (2003). Bacterial volatiles promote growth in Arabidopsis. Proc. Natl. Acad. Sci. U.S.A. 100, 4927–4932. doi: 10.1073/pnas.0730845100
Sipilä, T. P., Yrjälä, K., Alakukku, L., and Palojärvi, A. (2012). Cross-site soil microbial communities under tillage regimes: fungistasis and microbial biomarkers. Appl. Environ. Microbiol. 78, 8191–8201. doi: 10.1128/AEM.02005-12
Termorshuizen, A., van Rijn, E., van der Gaag, D., Alabouvette, C., Chen, Y., Lagerlöf, J., et al. (2006). Suppressiveness of 18 composts against 7 pathosystems: variability in pathogen response. Soil Biol. Biochem. 38, 2461–2477. doi: 10.1016/j.soilbio.2006.03.002
Tunc, S., Chollet, E., Chalier, P., Preziosi-Belloy, L., and Gontard, N. (2007). Combined effect of volatile antimicrobial agents on the growth of Penicillium notatum. Int. J. Food Microbiol. 113, 263–270. doi: 10.1016/j.ijfoodmicro.2006.07.004
van Os, G. J., van Gulik, W. J. M., and De Boer, W. J. (1998). Disease development of Pythium root rot in bulbous Iris and Crocus. Ann. Appl. Biol. 132, 227–238. doi: 10.1111/j.1744-7348.1998.tb05199.x
van Os, G., and van Ginkel, J. (2001). Suppression of Pythium root rot in bulbous Iris in relation to biomass and activity of the soil microflora. Soil Biol. Biochem. 33, 1447–1454. doi: 10.1016/S0038-0717(01)00053-0
van Os, G., Wijnker, J., and van Gulik, W. (1999). Effects of soil fumigation and flooding on suppression of Pythium root rot in ornamental bulb culture. Eur. J. Plant Pathol. 105, 791–800. doi: 10.1023/A:1008722517813
van Overbeek, L. S., Runia, W., Kastelein, P., and Molendijk, L. (2014). Anaerobic disinfestation of tare soils contaminated with Ralstonia solanacearum biovar 2 and Globodera pallida. Eur. J. Plant Pathol. 138, 323–330. doi: 10.1007/s10658-013-0331-3
Veras, H. N. H., Rodrigues, F. F. G., Colares, A. V., Menezes, I. R. A., Coutinho, H. D. M., Botelho, M. A., et al. (2012). Synergistic antibiotic activity of volatile compounds from the essential oil of Lippia sidoides and thymol. Fitoterapia 83, 508–512. doi: 10.1016/j.fitote.2011.12.024
Weisskopf, L. (2013). “The potential of bacterial volatiles in the fight against phytophathogenic fungi,” in Microbial Pathogens and Strategies for Combating them: Science, Technology and Education, ed A. Méndez-Vilas (Badajoz: Formatex Research Center: Microbiology Book Series), 978–984.
Weller, D. M., Raaijmakers, J. M., Gardener, B. B. M., and Thomashow, L. S. (2002). Microbial populations responsible for specific soil suppressiveness to plant pathogens. Ann. Rev. Phytopathol. 40, 309–348. doi: 10.1146/annurev.phyto.40.030402.110010
Keywords: volatile organic compounds (VOCs), Soil-borne plant pathogens, General disease suppression, Pythium intermedium, Fungistasis, Oomycetes
