Original Research ARTICLE

Front. Microbiol., 21 July 2015 | https://doi.org/10.3389/fmicb.2015.00724

The Campylobacter jejuni MarR-like transcriptional regulators RrpA and RrpB both influence bacterial responses to oxidative and aerobic stresses

  • Faculty of Infectious and Tropical Diseases, London School of Hygiene and Tropical Medicine, London, UK

The ability of the human intestinal pathogen Campylobacter jejuni to respond to oxidative stress is central to bacterial survival both in vivo during infection and in the environment. Re-annotation of the C. jejuni NCTC11168 genome revealed the presence of two MarR-type transcriptional regulators Cj1546 and Cj1556, originally annotated as hypothetical proteins, which we have designated RrpA and RrpB (regulator of response to peroxide) respectively. Previously we demonstrated a role for RrpB in both oxidative and aerobic (O2) stress and that RrpB was a DNA binding protein with auto-regulatory activity, typical of MarR-type transcriptional regulators. In this study, we show that RrpA is also a DNA binding protein and that a rrpA mutant in strain 11168H exhibits increased sensitivity to hydrogen peroxide oxidative stress. Mutation of either rrpA or rrpB reduces catalase (KatA) expression. However, a rrpAB double mutant exhibits higher levels of resistance to hydrogen peroxide oxidative stress, with levels of KatA expression similar to the wild-type strain. Mutation of either rrpA or rrpB also results in a reduction in the level of katA expression, but this reduction was not observed in the rrpAB double mutant. Neither the rrpA nor rrpB mutant exhibits any significant difference in sensitivity to either cumene hydroperoxide or menadione oxidative stresses, but both mutants exhibit a reduced ability to survive aerobic (O2) stress, enhanced biofilm formation and reduced virulence in the Galleria mellonella infection model. The rrpAB double mutant exhibits wild-type levels of biofilm formation and wild-type levels of virulence in the G mellonella infection model. Together these data indicate a role for both RrpA and RrpB in the C. jejuni peroxide oxidative and aerobic (O2) stress responses, enhancing bacterial survival in vivo and in the environment.

Introduction

Campylobacter infections are associated with 400 million human cases of gastroenteritis worldwide and Campylobacter jejuni is a major cause of bacterial food borne disease and a major causative agent of traveler’s diarrhea (Friedman et al., 2000; Walker, 2005). C. jejuni is microaerophilic, growing optimally in an atmosphere of around 10% CO2 and 5% O2 at a temperature between 37 and 42°C (Park, 2002; Garenaux et al., 2008). However, despite these microaerophilic growth requirements, C. jejuni can survive in the ambient environment, which may partly explain the bacteria’s success as a highly prevalent pathogen. Under these less unfavorable conditions C. jejuni must have evolved specific adaptation mechanisms (Fields and Thompson, 2008; Olson et al., 2008). C. jejuni also encounters oxidative stresses during in vivo survival (Fang, 2004; Zaki et al., 2005; Atack and Kelly, 2009; Palyada et al., 2009). Reactive oxygen species (ROS) refers to the chemical species generated upon incomplete reduction of oxygen (Imlay, 2003, 2008). ROS include hydrogen peroxide (H2O2), the hydroxyl radical (HO) and the superoxide anion (O2) (D’Autreaux and Toledano, 2007). The build-up of these toxic compounds in the bacterial cytoplasm and periplasm results in damage to nucleic acids, proteins and membranes. The microaerophilic nature of C. jejuni means the bacterium requires a small amount of free oxygen for growth and as such C. jejuni will generate ROS in the cytoplasm during metabolism (Sellars et al., 2002; Imlay, 2003). Therefore, the ability to neutralize ROS is essential for C. jejuni survival under optimal conditions, in the ambient environment and also within a host where the organism will encounter ROS produced by the host immune system (Imlay, 2008; Atack and Kelly, 2009).

Campylobacter jejuni possesses multiple defense mechanisms directly involved in the breakdown of ROS. Catalase converts H2O2 to H2O and O2 and C. jejuni contains the catalase KatA which is induced by both H2O2 and O2 (Grant and Park, 1995; Garenaux et al., 2009). The superoxide dismutase SodB converts O2 to H2O2 and O2 (Hassan, 1988). Studies have demonstrated that C. jejuni NCTC11168 expresses KatA, but not SodB, when exposed to O2 (Garenaux et al., 2009). However, a basal level of SodB expression has been shown to be important as sodB mutants are overly sensitive to oxidative stress (Pesci et al., 1994). C. jejuni contains a number of different types of peroxiredoxins, cellular antioxidant proteins which control intracellular peroxide levels (Hall et al., 2009). These non-haem proteins have been shown to confer resistance to H2O2 and organic hydroperoxides through breakdown to H2O and the corresponding alcohol (Wood et al., 2003). C. jejuni possesses the alkyl hydroperoxide reductase AhpC (Baillon et al., 1999; Poole et al., 2000), the thiol peroxidase Tpx (Atack et al., 2008) and the bacterioferritin co-migratory protein Bcp (Atack et al., 2008).

However, all C. jejuni strains lack some of the classical bacterial stress response regulatory proteins found in other enteric bacteria such as the SoxRS and OxyR regulons (Pomposiello et al., 2001; Blanchard et al., 2007; Imlay, 2008). In C. jejuni NCTC11168 the peroxide sensing regulator PerR was demonstrated to repress katA and ahpC transcription in an iron-dependent manner, indicating that PerR acts as a functional, but non-homologous substitute for OxyR (van Vliet et al., 1999). All C. jejuni strains contain the ferric uptake regulator (Fur) which is an iron-responsive regulator controlling the expression of genes encoding iron uptake systems (Stintzi et al., 2008). The control of iron metabolism and the response to oxidative stress are closely linked, as ROS are generated by the combination of iron with oxygen (van Vliet et al., 2002). Fur directly regulates expression of katA, as both fur and perR must be mutated to completely abolish iron-dependent katA expression (van Vliet et al., 1999; Palyada et al., 2009). C. jejuni also contains the Campylobacter oxidative stress regulator CosR, which was shown to be responsible for the negative regulation of the oxidative stress response proteins SodB, Dps, Rrc, and LuxS and positive regulation of AhpC and KatA (Hwang et al., 2011, 2012). C. jejuni CsrA has been identified to be a post-transcriptional regulator and a C. jejuni 81–176 csrA mutant displayed increased sensitivity to various stresses including atmospheric oxygen and H2O2 (Fields and Thompson, 2008). C. jejuni CprRS has been shown to be important for oxidative stress resistance (Svensson et al., 2009). The response regulator CprR appears to be essential as mutations in cprR were lethal, however, the sensor kinase CprS is inessential and a 81–176 cprS mutant exhibited decreased oxidative stress tolerance to t-butylhydroperoxide, paraquat and H2O2 (Svensson et al., 2009).

Cj1556 was identified as a MarR-type transcriptional regulator during the re-annotation and re-analyze of the C. jejuni NCTC11168 genome sequence and further investigation demonstrated a role for Cj1556 in the responses to both oxidative and aerobic (O2) stress (Gundogdu et al., 2007, 2011). Mutation of Cj1556 in the 11168H strain increased sensitivity to oxidative and aerobic (O2) stress. The 11168H Cj1556 mutant exhibited a decrease in virulence in the Galleria mellonella infection model and a reduced ability for intracellular survival in Caco-2 human intestinal epithelial cells and J774A.1 mouse macrophages. Negative autoregulation of Cj1556 expression was identified using microarray analysis of gene expression changes in the Cj1556 mutant and also down-regulation of both katA and perR. The binding of recombinant Cj1556 to the promoter region upstream of the Cj1556 gene was confirmed by electrophoretic mobility shift assays (EMSAs). Further analysis of the re-annotated NCTC11168 genome identified a second MarR transcriptional regulator Cj1546 located in close proximity to Cj1556 on the NCTC11168 chromosome (Gundogdu et al., 2007, 2011). In this study, we show that in the 11168H wild-type strain, Cj1546 also plays a role in regulating the C. jejuni oxidative and aerobic (O2) stress responses and specifically is involved in responding to peroxide stress. We have thus respectively designated Cj1546 and Cj1556 as RrpA and RrpB (regulator of response to peroxide).

Materials and Methods

Bacterial Strains and Growth Conditions

All C. jejuni strains used in this study are listed in Table 1. C. jejuni strains were grown in either Brucella or Mueller Hinton broth (Oxoid) with shaking at 75 rpm or on blood agar (BA) plates containing Columbia agar base (Oxoid, UK) supplemented with 7% (v/v) horse blood (TCS Microbiology, UK) and Campylobacter Selective Supplement (Oxoid). C. jejuni strains were grown at 37°C in a microaerobic chamber (Don Whitley Scientific, UK), containing 85% N2, 10% CO2, and 5% O2. C. jejuni strains were grown on BA plates for 24 h prior to use in assays and co-culture experiments. Escherichia coli XL-2 Blue MRF’ competent cells (Stratagene, UK) were used for cloning experiments and were grown at 37°C in aerobic conditions either in LB broth (Oxoid) with shaking at 200 rpm or on Luria-Bertani (LB) agar plates (Oxoid). Antibiotics were added at the following concentrations; kanamycin (50 μg/ml), ampicillin (100 μg/ml), and chloramphenicol (50 μg/ml for E. coli studies or 10 μg/ml for C. jejuni studies). All reagents were obtained from Fisher Scientific (UK) unless otherwise stated.

TABLE 1
www.frontiersin.org

Table 1. Bacterial strains used in this study.

Construction of C. jejuni Mutants and Complements

Campylobacter jejuni mutants were constructed as described previously (Gundogdu et al., 2011). Briefly, genes or gene fragments were amplified from C. jejuni genomic DNA using the appropriate gene specific primers as listed in Table 2. PCR products were ligated with pGEM-T Easy vector (Promega, UK) and then transformed into XL-2 Blue MRF’ cells. If required, inverse PCR mutagenesis (IPCRM) was performed to introduce a unique BglII site into the cloned gene. A kanamycin cassette (KanR) was then ligated into the unique BglII site within the cloned gene (Trieu-Cuot et al., 1985; van Vliet et al., 1998). These constructs were electroporated into competent C. jejuni cells and putative clones were confirmed by PCR and sequencing as described previously (Gundogdu et al., 2011). The same procedure was used for construction of double mutants, except a chloramphenicol cassette (CatR) was used to introduce the second mutation (BamHI restriction site). Complementation of mutant strains was performed as described previously (Gundogdu et al., 2011). Briefly, the complete gene sequence plus the native ribosome binding site was amplified by PCR and cloned into pRRC complementation vector (Karlyshev and Wren, 2005). The complemented mutant was constructed both with (11168H rrpA complement-HIS) and without (11168H rrpA complement) a 6 × His tag to resuscitate observed phenotypes and to ensure no additional effect was caused by the introduction of the 6 × His tag. All constructs were confirmed with PCR and sequencing. For isolation of recombinant RrpA protein, a 6 × His tag sequence was cloned into pEXT20 (Dykxhoorn et al., 1996) using primers rrpA-HIS-pEXT20-F and rrpA-HIS-pEXT20-R with the optimized RBS sequence AGGAGGTAAAACAT (XL1 pEXT20 rrpA HIS). The native host strain for complementation constructs using pRRC and pEXT20 was XL-1 Blue subcloning competent cells (Life Technologies, USA).

TABLE 2
www.frontiersin.org

Table 2. Oligonucleotide primers used in this study.

Electrophoretic Mobility Shift assays

To obtain recombinant RrpA, XL1 pEXT20 rrpA HIS was grown at 37°C for 16 h with shaking at 200 rpm, then centrifuged at 4,000 rpm at 4°C for 10 min. Bacterial pellets were resuspended in 1 ml equilibration buffer (Sigma-Aldrich, UK), sonicated with a Diagenode Bioruptor using manufacturers instructions (Diagenode, Belgium), then centrifuged for 5 min at 13,000 rpm. The supernatant was transferred into a fresh 1.5 ml tube. Lysed cells were mixed with Ni-NTA (Qiagen, Netherlands) then incubated at 4°C for 1 h on a rotator. Elution was performed using a His-Select spin column (Sigma-Aldrich) and stored under native conditions. An aliquot of the elution was separated and denatured using an equal volume of 2X Laemmli buffer (Sigma-Aldrich), followed by boiling the samples for 10 min then centrifuged at 13,000 rpm for 5 min. Denatured samples were assessed on a 12% NuPAGE® Bis-Tris (Novex) gels (Life Technologies). In addition, the original native aliquot was assessed for concentration using Pierce BCA Protein Assay Kit (Life Technologies). To demonstrate the DNA binding properties of RrpA, purified recombinant protein was hybridized to IRDye® 700 PCR amplified fragment (160 bp) located upstream of the translation initiation sites of the rrpA or katA gene (Tables 2 and 3). 2.5 μg (≈175 pmol) recombinant native protein was hybridized with 20 ng of gel purified DNA using the Odyssey® Infrared EMSA kit (LI-COR Biosciences, USA). Unlabelled rrpA/katA/flaA upstream fragments were used as controls. Samples were loaded in a pre-cast 6% Novex® DNA retardation gel (Life Technologies) and run at 4°C. Samples were analyzed on a LI-COR Odyssey® imaging scanner (LI-COR Biosciences).

TABLE 3
www.frontiersin.org

Table 3. DNA fragments used as promoter probes for electrophoretic mobility shift assays.

Oxidative Stress and Aerobic Growth Assays

Bacterial cells were harvested into 1 ml PBS and diluted to an OD600 of 1. For oxidative stress assays, bacterial cells were exposed to H2O2 at final concentrations of 25, 50, or 100 mM for 15 min, menadione at a final concentration of 100 mM for 60 min and cumene hydroperoxide at 0.05% (w/v) for 15 min, all at 37°C under microaerobic conditions. Serial dilutions were prepared and 10 μl of the 10–1 – 10–6 dilutions were spotted onto BA plates, incubated for 48 h and colonies counted. For growth curves, 10 ml Brucella broth was pre-incubated in a 30 ml flask at 37°C under microaerobic conditions for 24 h. Bacterial cells grown on BA plates for 24 h were used to inoculate pre-incubated Brucella broth at an OD600 of 0.1 and grown for up to 24 h at 37°C under microaerobic and aerobic conditions. OD600 readings were performed at selected time points. In addition bacterial colony forming units (CFUs) were assessed at time point 16 h under microaerobic and aerobic conditions.

Catalase Activity Assays

Campylobacter jejuni cells were harvested and resuspended in 1 ml PBS, sonicated three times at 60 kHz for 30 s on ice, then centrifuged at 13,000 rpm for 15 min at 4°C. Supernatants were removed and stored on ice. A BCA Protein Assay Kit (Thermo Scientific, USA) was used to quantify the protein concentration of each supernatant, which were adjusted to a final concentration of 100 μg/ml with PBS. The catalase activity of each supernatant was quantified using the Catalase Assay Kit (Sigma-Aldrich). Each catalase activity assay was performed on 1 μg total protein and the decomposition of H2O2 was measured after 1 min. A unit of catalase activity is defined as 1 μmol H2O2 decomposed per min at 25°C.

RT-PCR

Campylobacter jejuni RNA was isolated from 16 h cultures using the RNeasy Mini purification kit (Qiagen) and RNAlater RNA Stabilization Reagent (Qiagen) as described previously (Kamal et al., 2007). cDNA was synthesized by reverse transcription using SuperScript® III First-Strand Synthesis System (Invitrogen, USA). Primers katA RT-F and katA RT-R were used to amplify katA. Primers gyrA RT-F and gyrA RT-R were used to amplify the endogenous control gyrA. The PCR products were resolved by electrophoresis on a 0.7% (w/v) agarose gel and recorded by a fluorescence scanner (GeneGenius, Syngene, UK). Band volumes were quantified with ImageJ software (http://imagej.nih.gov/ij/) as described previously (Schneider et al., 2012). katA cDNA PCR product ratios were calculated and normalized to gyrA. Gene expression levels are described as relative intensity (vs. gyrA).

Biofilm Assays

Bacterial cells were harvested into Mueller Hinton broth, then inoculated to an OD600 of 0.1 into 10 ml Mueller Hinton broth pre-incubated in a 25 ml flask at 37°C under microaerobic conditions for 24 h prior to inoculation then grown for 5 h under microaerobic conditions with shaking at 75 rpm. The OD600 was readjusted to 0.1, then 1 ml of culture was added to a 24 well polystyrene plates (Corning, USA) and incubated at 37°C under either aerobic or microaerobic conditions stationary for 72 h. The wells were washed two times with PBS, dried for 20 min at 37°C followed by addition of 1% (w/v) crystal violet (Sigma-Aldrich) for 15 min. The wells were washed three times with PBS, then destained with 10% (v/v) acetic acid / 30% (v/v) methanol. Absorbance (A595) was measured using a SpectraMax M3 microplate reader (Molecular Devices, USA).

Galleria mellonella Infection Model

Galleria mellonella larvae (LiveFoods Direct, UK) were stored at 16°C on wood chips. 10 larvae for each experiment were infected with a 10 μl inoculum of a 24 h C. jejuni culture diluted to OD600 0.1 by micro-injection (Hamilton, Switzerland) in the right foremost leg, giving an infectious dose of approximately 106 CFU (Champion et al., 2010). Controls were injection with PBS and no injection. Larvae were incubated at 37°C with survival recorded at 24 h.

Statistical Analyses

The data is presented as mean + SD. All experiments were performed with at least three biological replicates, performed in triplicate in each experiment. Statistical analyses were performed using Prism software (GraphPad Software). Variables were compared using a student’s t-test.

Results

Electrophoretic Mobility Shift Assays Indicate RrpA is also a DNA Binding Protein

The re-annotation of C. jejuni NCTC11168 genome sequence (Gundogdu et al., 2007) identified two MarR–type transcriptional regulators (Cj1546 and Cj1556) based on the presence of a Pfam motif (PF01638). PF01638 is a HxlR-like helix-turn-helix motif and a member of the MarR family of transcriptional regulators that regulate virulence factor expression, bacterial responses to both antibiotics and oxidative stress, as well as catabolism of environmental aromatics compounds (Wilkinson and Grove, 2004; Wösten et al., 2008). We have designated Cj1546 as RrpA (regulator of response to peroxide) and Cj1556 as RrpB. RrpA has 43.6% identity and 58.4% similarity to RrpB.

RrpB is a DNA binding protein that binds to the promoter region of the rrpB gene resulting in negative autoregulation, a feature of the MarR family of transcriptional regulators (Gundogdu et al., 2011). EMSAs were performed to investigate whether RrpA could bind to the promoter region of the rrpA gene. The full-length RrpA protein was expressed and purified from E. coli. We do not believe the 6 × His interfered with any observed phenotypes as we have constructed the rrpA 6 × His tagged in the complementation vector pRRC as a control and obtained resuscitation of the hydrogen peroxide phenotype. This recombinant RrpA protein was observed to bind to a IRDye 700 fluorescently labeled 160 bp DNA fragment upstream of the rrpA gene (Figure 1A). Unlabelled upstream regions of rrpA and flaA were used as controls. An excess of unlabelled rrpA upstream region competed with the IRDye® 700 fluorescently labeled rrpA upstream region for the RrpA recombinant protein. However, an excess of unlabelled flaA upstream region did not compete with the RrpA recombinant protein. This data indicates that RrpA acts as a DNA binding protein. MarR family transcriptional regulators are classically negative autoregulators, so whilst RrpA and RrpB have been shown to bind upstream of rrpA and rrpB respectively, it is not possible to infer whether this is negative or positive autoregulation based on this experimental data. In addition, RrpA was shown to bind upstream of katA (Figure 1B).

FIGURE 1
www.frontiersin.org

Figure 1. Electrophoretic mobility shift assays (EMSAs) indicate that RrpA binds to a DNA promoter sequence upstream of the rrpA (A) and katA gene (B). EMSAs were performed for RrpA protein hybridized to a PCR amplified fragment upstream of rrpA or katA labeled with IRDye® 700. 2.5 μg (≈175 pmol) recombinant native protein was hybridized with 20 ng of gel purified DNA using the Odyssey® Infrared EMSA kit (LI-COR Biosciences). Unlabelled PCR amplified fragments upstream of either rrpA, katA, or flaA were included as controls. Separation was performed under non-denaturing conditions with samples loaded onto a 6% (w/v) DNA retardation gel.

11168H rrpA and rrpB Mutants Exhibit Increased Sensitivity to Hydrogen Peroxide Stress and Reduced Catalase Activity

The rrpA mutant and rrpA complement were tested for sensitivity to H2O2 (25, 50, and 100 mM). The rrpA mutant exhibited increased sensitivity to 25 mM H2O2 stress, whilst the rrpA complement exhibited survival similar to the wild-type strain (Figure 2A). As controls, H2O2 stress assays were also performed on 11168H katA and perR mutants. The perR mutant displayed a high level of resistance to H2O2 stress, in confirmation of a previous study which demonstrated that a C. jejuni NCTC11168 perR mutant constitutively expressed both katA and ahpC, resulting in enhanced resistance to peroxide stress compared to the wild-type strain (van Vliet et al., 1999). The katA mutant does not express catalase and did not survive exposure to any concentration of H2O2. Catalase activity assays were performed on bacterial whole cell lysates. Both the rrpA and rrpB mutants exhibited reduced catalase activity compared to the wild-type strain, whilst the katA mutant had no catalase activity and the perR mutant exhibited significantly increased catalase activity (Figure 2B). Catalase activity was restored to wild-type levels in both the rrpA and rrpB complements (Figure 2).

FIGURE 2
www.frontiersin.org

Figure 2. (A) Effect of oxidative stress on the survival of C. jejuni 11168H wild-type strain, rrpA, rrpA complement strain (rrpA comp), rrpB, rrpB complement strain (rrpB comp), katA and perR mutants. C. jejuni strains were incubated with 25, 50, or 100 mM H2O2 for 15 min at 37°C then bacterial survival assessed. (B) Catalase activity assays were performed on bacterial whole cell lysates from the 11168H wild-type strain, rrpA, rrpA comp, rrpB, rrpB comp, katA and perR mutants for 1 min. Asterisks denote a statistically significant difference (*p < 0.05, **p < 0.01, ***p < 0.001).

11168H rrpAB Double Mutant Exhibits Reduced Sensitivity to Hydrogen Peroxide Stress

To further study the role of both RrpA and RrpB in the C. jejuni oxidative stress response, the 11168H rrpAB mutant was tested for sensitivity to H2O2. The 11168H rrpAB mutant exhibited increased resistance to 25 mM H2O2 compared to even the wild-type strain (Figure 3A). The rrpAB mutant also survived exposure to higher concentrations of H2O2 (50 or 100 mM), but exhibited levels of catalase activity similar to the wild-type strain (Figure 3B).

FIGURE 3
www.frontiersin.org

Figure 3. (A) Effect of oxidative stress on the survival of C. jejuni 11168H wild-type strain and rrpAB, katA, and perR mutants. C. jejuni strains were incubated with 25, 50, or 100 mM H2O2 for 15 min at 37°C and bacterial survival assessed. (B) Catalase activity assays were performed on bacterial whole cell lysates from the 11168H wild-type strain and rrpAB, katA and perR mutants for 1 min. Asterisks denote a statistically significant difference (***p < 0.001).

11168H rrpA and rrpB Mutants Exhibit Reduced katA Transcription Levels

Semi-quantitative RT-PCR was performed investigating the expression levels of katA in the rrpA, rrpB, and rrpAB mutants compared to the 11168H wild-type strain (Figure 4). The amount of expression was calculated using the endogenous control gyrA and presented as relative intensity (vs. gyrA). The rrpA and rrpB mutants exhibited a significant reduction in the level of katA production when compared to the 11168H wild-type strain. In contrast, the rrpAB mutant displayed increased levels of katA expression compared to the 11168H wild-type strain, however, this increase was not significant.

FIGURE 4
www.frontiersin.org

Figure 4. RT-PCR analysis of katA transcription in C. jejuni 11168H wild-type strain and rrpA,rrpB, and rrpAB mutants. C. jejuni RNA was converted to cDNA and semi-quantitative levels of katA expression were measured as relative intensity to the internal control gyrA. Asterisks denote a statistically significant difference (*p < 0.05).

Mutation of rrpA and rrpB Does not Increase Sensitivity to Cumene Hydroperoxide or Menadione Stress

To investigate the role of RrpA and RrpB in the response to different oxidative stresses, the rrpA and rrpB mutants were also tested for sensitivity to cumene hydroperoxide (an organic hydroperoxide) and menadione (a superoxide generating agent). Neither the rrpA nor rrpB mutants exhibited any change in sensitivity to either cumene hydroperoxide (Figure 5A) or menadione (Figure 5B) stress compared to the wild-type strain. A ahpC mutant was used as a control for cumene hydroperoxide stress as AhpC is known to break down this compound (Baillon et al., 1999). A sodB mutant was used as a control for menadione stress because SodB is the main enzyme that reduces superoxides (Palyada et al., 2009). The 11168H sodB mutant was highly sensitive to menadione exposure.

FIGURE 5
www.frontiersin.org

Figure 5. Effect of (A) cumene hydroperoxide and (B) menadione on the survival of C. jejuni 11168H wild-type strain or mutants. Strains were exposed to 0.05% (w/v) cumene hydroperoxide for 15 min or 100 mM menadione for 1 h at 37°C under microaerobic conditions then bacterial survival assessed. Asterisks denote a statistically significant difference (**p < 0.01, ***p < 0.001).

Mutation of rrpA and rrpB Results in Reduced Growth Under Aerobic Stress Conditions

The rrpA mutant was grown under microaerobic and aerobic conditions and growth assessed by measuring the OD600 at different time points. No significant differences were observed in the bacterial growth profile when comparing the wild-type strain, rrpA mutant, rrpAB mutant and the rrpA comp strain under microaerobic conditions (Figure 6A). Interestingly, under aerobic conditions, the rrpA mutant displayed a reduced growth profile compared to the 11168H wild-type strain, rrpAB mutant and the rrpA comp strains (Figure 6B). In addition to OD600, the CFUs were also assessed under microaerobic and aerobic conditions for a number of strains at 16 h. No differences in growth rates compared to the wild-type strain were observed under microaerobic growth conditions (Figure 6C). However, differences were observed under aerobic growth conditions. Both the rrpA and rrpB mutants exhibited reduced CFU compared to the wild-type strain (Figure 6D). These results indicate RrpA and RrpB may also play a role in regulating the aerobic (O2) stress response in C. jejuni.

FIGURE 6
www.frontiersin.org

Figure 6. Growth curves for C. jejuni 11168H wild-type strain, rrpA mutant, rrpA complement strain (rrpA comp) and rrpAB mutant grown under either microaerobic (A) or aerobic conditions (B) at 37°C (with shaking at 75 rpm) in Brucella broth with bacterial growth assessed by recording the OD600 of the culture at different time points. Bacterial CFU were also assessed at 16 h under aerobic (C) and microaerobic (D) conditions. Asterisks denote a statistically significant difference (*p < 0.05).

11168H rrpA and rrpB Mutants Exhibit Enhanced Ability to Form Biofilms Under both Aerobic and Microaerobic Conditions

Studies have shown that C. jejuni can form biofilms (Joshua et al., 2006) and that this ability is an important factor in the ability of C. jejuni to survive in the ambient environment. It has previously been demonstrated that biofilm formation increases under aerobic stress conditions (Reuter et al., 2010). Both the 11168H rrpA and rrpB mutants exhibit an enhanced ability to form biofilms under both aerobic and microaerobic conditions after 72 h (Figure 7). However, the rrpAB mutant formed biofilms at a similar rate to the wild-type strain (Figure 7). As controls, biofilm assays were also performed on the ahpC, perR, and katA mutants, which displayed a similar high level of biofilm formation compared the wild-type strain after 72 h.

FIGURE 7
www.frontiersin.org

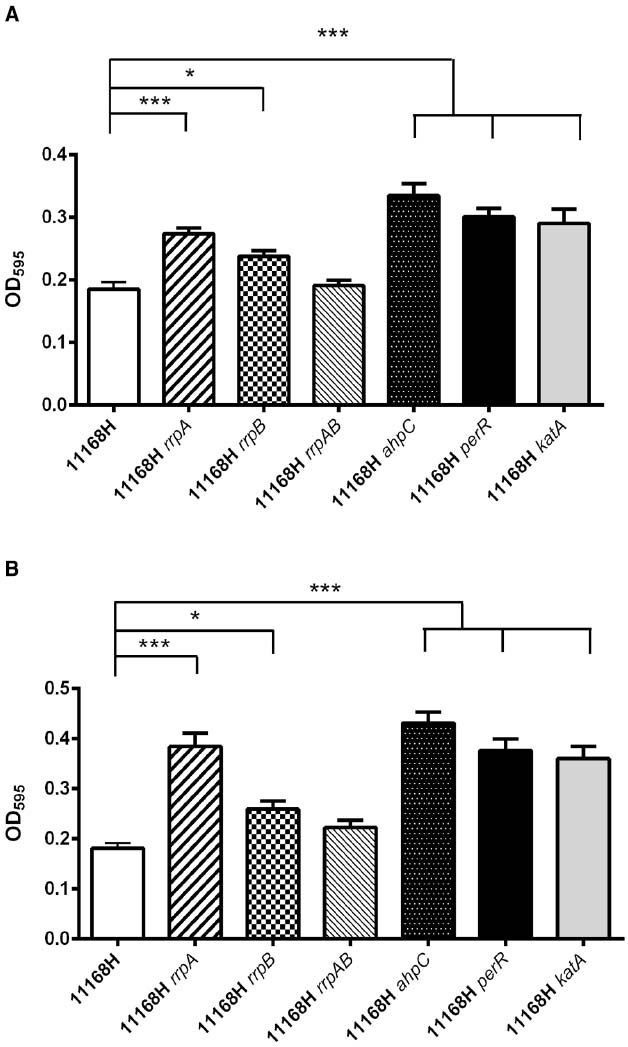

Figure 7. Biofilm assays. C. jejuni 11168H wild-type strain and mutants were grown for 72 h under aerobic (A) or microaerobic (B) growth conditions at 37°C without shaking, rinsed three times with PBS, followed by crystal violet staining. Asterisks denote a statistically significant difference (*p < 0.05; ***p < 0.001).

11168H rrpA Mutant Exhibits Reduced Cytotoxicity in the Galleria mellonella Larvae Model of Infection

Galleria mellonella larvae are a convenient model to investigate the virulence of C. jejuni (Champion et al., 2009, 2010). The 11168H rrpB mutant has previously been shown to exhibit reduced cytotoxicity to G. mellonella larvae (Gundogdu et al., 2011). The 11168H rrpA mutant also exhibited reduced cytotoxicity to G. mellonella larvae compared to the wild-type strain (Figure 8). Both the rrpAB and perR mutants exhibited wild-type levels of cytotoxicity, whilst the katA, sodB, and ahpC mutants all exhibited reduced levels of cytotoxicity compared to the wild-type strain.

FIGURE 8
www.frontiersin.org

Figure 8. Galleria mellonella infection model. G. mellonella larvae were injected with approximately 106 C. jejuni. Larvae were incubated at 37°C with survival detailed at 24 h. Brucella broth and no injection controls were used. For each experiment, 10 G. mellonella larvae were infected and experiments were repeated in triplicate. Asterisks denote a statistically significant difference (*p < 0.05).

Discussion

Campylobacter jejuni will be exposed to ROS during colonization or infection of a host, during survival in the environment and during the course of normal bacterial metabolism. An important question is how this widely dispersed and highly prevalent yet microaerophilic human pathogen is able to survive in the aerobic environment. C. jejuni has different mechanisms for opposing the effects of ROS and the control of C. jejuni oxidative stress responses is composite, involving multiple inter-linked levels of regulation (Atack and Kelly, 2009). The re-annotation of the C. jejuni NCTC11168 genome sequence (Gundogdu et al., 2007) identified both RrpA and RrpB as putative MarR-type transcriptional regulators and RrpB was previously shown to be involved in the C. jejuni oxidative and aerobic (O2) stress responses (Gundogdu et al., 2011). The data presented in this study demonstrates that RrpA as well as RrpB plays a role in the C. jejuni oxidative and aerobic (O2) stress responses, more specifically hydrogen peroxide stress response and the regulation of KatA expression.

A complex network of regulatory proteins is involved in controlling the C. jejuni oxidative stress response dependent on both the oxidant and other physiological conditions (Atack and Kelly, 2009). This control is multi-factorial with different regulatory proteins acting as repressors or activators and many regulators appearing to affect the expression of other regulatory proteins. Analysis of C. jejuni NCTC11168 gene expression changes induced following exposure to H2O2, cumene hydroperoxide or menadione identified three distinct transcriptional responses to these different oxidative stresses (Palyada et al., 2009). KatA, AhpC and SodB are particularly important in protecting C. jejuni against the oxidative damage induced by H2O2, cumene hydroperoxide and menadione respectively. Twelve genes were identified with a similar transcriptional profile to all three oxidative stresses, whilst 8, 11, and 12 genes were expressed differentially by H2O2, cumene hydroperoxide or menadione stresses respectively (Palyada et al., 2009). SodB expression was increased in response to menadione, demonstrating an important role in breaking down this compound (Palyada et al., 2009). The 12 genes associated with the response to all three oxidant stimulons are all regulated by PerR, indicating that PerR plays a role in responding to H2O2, cumene hydroperoxide and menadione induced oxidative stress (Palyada et al., 2009). A NCTC11168 perR mutant was shown to be more resistant to both H2O2 and cumene hydroperoxide oxidative stresses compared to the wild-type strain, yet was more sensitive to menadione oxidative stress (Palyada et al., 2009). PerR negatively regulates both katA and ahpC expression in an iron-dependent manner and a NCTC11168 perR mutant, that constitutively expressed both katA and ahpC, was hyper-resistant to oxidative stress (van Vliet et al., 1999). In this study, the 11168H perR mutant was shown to be resistant to exposure to both 50 and 100 mM H2O2 for 15 min, levels of oxidative stress that the wild-type strain was unable to survive. This hyper-resistance to oxidative stress of perR mutants was shown to be in part due to levels of KatA expression almost a 100-fold higher than that of the wild-type strain. The OmpR-type response regulator CosR has been shown to negatively regulate the expression of oxidative stress response proteins including SodB and to positively regulate AhpC (Hwang et al., 2011, 2012). Knockdown of CosR resulted in bacteria more resistant to oxidative stress, whilst bacteria overexpressing CosR were more sensitive to oxidative stress (Hwang et al., 2011). In addition, CosR expression was significantly reduced in the presence of paraquat (a superoxide generator), but not by H2O2 (Hwang et al., 2011). CosR also positively controls katA transcription and catalase activity by direct interactions with the katA promoter (Hwang et al., 2012).

A 11168H rrpA mutant displayed increased sensitivity to H2O2 (25 mM) compared to the wild-type strain, whilst neither the wild-type strain, rrpA nor rrpB mutants survived exposure to higher concentrations of H2O2 (50 or 100 mM) (Figure 2A). In contrast a 11168H rrpAB double mutant exhibited increased resistance to these concentrations of H2O2 (Figure 3A), as did a 11168H perR mutant, in agreement with the previous report that a NCTC11168 perR mutant was hyper-resistant to oxidative stress (van Vliet et al., 1999). The data from catalase activity assays suggests that the increased sensitivity to H2O2 of the rrpA and rrpB mutants is due to a decrease in KatA activity compared to the wild-type strain (Figure 2B), whilst the rrpAB mutant displays levels of KatA activity slightly higher (but not significantly so) than the wild-type strain (Figure 3B). Mutation of either rrpA or rrpB results in a reduction in the level of katA expression, whilst mutation of both rrpA and rrpB results in an increase in katA expression compared to the wild-type strain. However, the increase in katA expression in the rrpAB mutant was not significant, indicating the role of additional factors impacting the survival of the rrpAB mutant to H2O2. C. jejuni possesses a large repertoire of enzymes including a catalase (KatA), an alkyl hydroperoxide reductase (AhpC) and a superoxide dismutase (SodB) that allow the bacterium to tolerate and survive ROS (Atack and Kelly, 2009). KatA, AhpC, and SodB are particularly important in protecting C. jejuni against the oxidative damage induced by H2O2, cumene hydroperoxide and menadione respectively. In contrast to the results observed for H2O2 stress assays, both the rrpA and rrpB mutants displayed similar levels of sensitivity to either cumene hydroperoxide or menadione stress as the wild-type strain (Figures 5A,B). The rrpAB mutant displayed slightly increased resistance to cumene hydroperoxide and menadione stress compared to the wild-type strain (data not shown). This indicates that RrpA and RrpB are specifically involved in the hydrogen peroxide stress response and regulating expression of KatA, hence the designation of gene name based upon this distinction. This is supported by microarray data that showed that RrpB appears to positively regulate katA expression (Gundogdu et al., 2011). Additionally, in this study we have shown that RrpA binds not only upstream of itself indicating a classical MarR-type autoregulation (Figure 1A), but also binding upstream of katA and this provides evidence that RrpA directly influences the amount of catalase produced (Figure 1B). This gives a possible explanation as to why the rrpA mutant gave a reduced activity in the catalase activity assay. The binding capability of RrpA upstream of katA would suggest that RrpA is acting as an activator for katA and that mutation of rrpA reduces the amount of katA expressed and hence less catalase is produced in response to H2O2 stress.

The rrpA, rrpB, and katA mutants all exhibit reduced growth under aerobic conditions compared to the wild-type strain, suggesting that a reduction in KatA expression adversely affects the ability of C. jejuni to survive exposure to the aerobic (O2) stress under atmospheric conditions (Figures 6B,D). However, the rrpAB mutant exhibits wild-type levels of growth under aerobic conditions, in keeping with the similar levels of KatA expression. C. jejuni forms biofilms (Joshua et al., 2006; Gundogdu et al., 2011) which may be an important factor in the survival of C. jejuni in the environment. Biofilm formation has been linked to responses to both oxidative and aerobic (O2) stress and C. jejuni NCTC 11168 biofilm formation has been shown to occur more rapidly under aerobic conditions (Reuter et al., 2010). However, biofilm levels were also shown to be equivalent under aerobic or microaerobic conditions after 3 days of incubation (Reuter et al., 2010), in agreement with the data for 11168H presented here. Both the rrpA and rrpB mutants formed biofilms at a significantly higher rate compared to the wild-type strain under both aerobic and microaerobic conditions after 3 days (Figures 7A,B). The ahpC, perR, and katA mutants also formed biofilms at a significantly higher rate, whilst the rrpAB mutant formed biofilms at wild-type levels. Previously, a C. jejuni ahpC mutant was shown to increase biofilm formation, whilst a perR mutant was shown to reduce biofilm formation (Oh and Jeon, 2014). This data was obtained after 24 and 48 h in MH broth at 42°C without shaking under microaerobic conditions, whilst the data in this study was obtained after 72 h in MH broth at 37°C without shaking under both aerobic and microaerobic conditions. Such differences in the experimental conditions may account for these different observations, particularly as the levels of biofilm formation observed in this study were lower than those in the earlier study. There are considerable differences reported in the literature on the ability of C. jejuni to produce biofilms, often depending on the media used, whether shaking or stationary cultures were used, whether glass or plastic containers were used and the length of time the assays were performed for. Mutation of ahpC was associated with an increase in the accumulation of ROS within the cytoplasm (Oh and Jeon, 2014). Further studies are required to identify the type of ROS responsible for inducing C. jejuni biofilm formation and why this is increased under aerobic conditions.

Galleria mellonella larvae possess specialized phagocytic cells, termed haemocytes. Similar to mammalian phagocytic cells, haemocytes are capable of internalizing bacterial pathogens and generating bactericidal compounds (Bergin et al., 2005; Champion et al., 2009). There are many types of haemocytes identified in insects such as G. mellonella with plasmatocytes and granulocytes the most common (Boman and Hultmark, 1987). The production of ROS has been identified in haemocytes with both H2O2 and oxygen radicals identified in G. mellonella plasmatocytes (Slepneva et al., 1999). Infection of G. mellonella larvae with rrpA or rrpB mutants resulted in increased survival of larvae compared to the wild-type strain, indicating that the increased sensitivity of these mutants to H2O2 results in lower levels of bacterial survival and thus reduced cytotoxicity to the G. mellonella larvae (Figure 8). This is supported by the fact that the katA, sodB, and ahpC mutants also all exhibit reduced cytotoxicity. However, no increase in survival of G. mellonella larvae was observed after infection with either the rrpAB or perR mutants, probably as these mutants are able to survive as well as the wild-type strain within the larvae.

Mutation of perR, knockdown of CosR expression or mutation of both rrpA and rrpB all result in increased resistance of C. jejuni to oxidative stress, indicating that all four regulators act to repress KatA expression in the absence of peroxide stress (van Vliet et al., 1999; Palyada et al., 2009; Gundogdu et al., 2011; Hwang et al., 2011, 2012). However, the single mutation of either rrpA or rrpB results in a reduction in KatA activity and decreased resistance to peroxide stress, suggesting that the absence of either RrpA or RrpB negatively impacts the ability of C. jejuni to express KatA in response to peroxide stress. However, the mutation of both rrpA and rrpB results in no significant change in KatA activity but increased resistance to peroxide stress. This is the most difficult phenotype to explain, suggesting that in the absence of both RrpA and RrpB, catalase expression is not significantly affected, possibly via compensatory regulation involving PerR and CosR. The fact that the rrpAB double mutant exhibits increased resistance to both cumene hydroperoxide and menadione stress suggests a more complicated regulation of the C. jeuni oxidative stress responses. Further studies are required to understand how RrpA and RrpB regulate KatA expression and interact with PerR and CosR. The crystal structure of an E. coli MarR protein, determined at a resolution of 2.3 A, indicates that MarR forms dimers with each subunit containing a winged-helix DNA binding motif (Alekshun et al., 2001). If RrpA and RrpB form only homo-dimers, this would suggest that both dimer complexes are required for the efficient regulation of KatA expression and the absence of either dimer complex results in the reduced ability of C. jejuni to express KatA. However, in the absence of both RrpA and RrpB dimer complexes, KatA expression is not significantly affected. Further studies are required to clarify the exact roles of RrpA and RrpB in the C. jejuni responses to both oxidative and aerobic (O2) stress and how this enhances bacterial survival both in vivo and in the environment.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

Daiani T. da Silva is funded through a Doctorate Scholarship from CNPq in Brazil. We thank Sarah Leir and Naomi Henderson for technical assistance and Andrey Karlyshev for providing the C. jejuni complementation vector (pRRC).
