Original Research ARTICLE

Front. Microbiol., 26 October 2015 | https://doi.org/10.3389/fmicb.2015.01090

Genome reconstructions indicate the partitioning of ecological functions inside a phytoplankton bloom in the Amundsen Sea, Antarctica

  • 1Josephine Bay Paul Center for Comparative Molecular Biology and Evolution, Marine Biological Laboratory, Woods Hole, MA, USA
  • 2Coastal Resources Center, Graduate School of Oceanography, University of Rhode Island, Narragansett, RI, USA

Antarctica polynyas support intense phytoplankton blooms, impacting their environment by a substantial depletion of inorganic carbon and nutrients. These blooms are dominated by the colony-forming haptophyte Phaeocystis antarctica and they are accompanied by a distinct bacterial population. Yet, the ecological role these bacteria may play in P. antarctica blooms awaits elucidation of their functional gene pool and of the geochemical activities they support. Here, we report on a metagenome (~160 million reads) analysis of the microbial community associated with a P. antarctica bloom event in the Amundsen Sea polynya (West Antarctica). Genomes of the most abundant Bacteroidetes and Proteobacteria populations have been reconstructed and a network analysis indicates a strong functional partitioning of these bacterial taxa. Three of them (SAR92, and members of the Oceanospirillaceae and Cryomorphaceae) are found in close association with P. antarctica colonies. Distinct features of their carbohydrate, nitrogen, sulfur and iron metabolisms may serve to support mutualistic relationships with P. antarctica. The SAR92 genome indicates a specialization in the degradation of fatty acids and dimethylsulfoniopropionate (compounds released by P. antarctica) into dimethyl sulfide, an aerosol precursor. The Oceanospirillaceae genome carries genes that may enhance algal physiology (cobalamin synthesis). Finally, the Cryomorphaceae genome is enriched in genes that function in cell or colony invasion. A novel pico-eukaryote, Micromonas related genome (19.6 Mb, ~94% completion) was also recovered. It contains the gene for an anti-freeze protein, which is lacking in Micromonas at lower latitudes. These draft genomes are representative for abundant microbial taxa across the Southern Ocean surface.

Introduction

The Amundsen Sea polynya (ASP) covers a surface area of ~38,000 km2 during the height of austral summer and it is home to intense phytoplankton blooms. Chlorophyll a concentrations in the ASP peak in January and are 50% greater than blooms in other Antarctica polynyas (Arrigo and Van Dijken, 2003). Sediment cores demonstrated this polynya is >1000 years old (Kellogg and Kellogg, 1987; Hillenbrand et al., 2010) and its phytoplankton bloom, fueled by dissolved iron from glacier melt (Alderkamp et al., 2012), is currently dominated by large, spherically-shaped Phaeocystis antarctica colonies (Alderkamp et al., 2012; Mills et al., 2012; Kim et al., 2013; Delmont et al., 2014). Importantly, P. antarctica is capable of taking up twice as much CO2 per mole of phosphate removed than diatoms (Arrigo et al., 1999; Smith et al., 2003; Schoemann et al., 2005). It also produces copious amounts of dimethylsulfoniopropionate (DMSP) (DiTullio et al., 2000). Therefore, the substantial depletion of inorganic carbon to 100 ppm or less (Yager et al., 2012) coupled with high levels of dimethylsulfide (DMS) (Tortell et al., 2012) in the ASP illustrate the immediate effects of this phytoplankton bloom on the regional carbon, nutrient and sulfur cycles.

This intense Phaeocystis productivity generally carries on for about a 3 month period, spanning most of the austral summer (Arrigo and Van Dijken, 2003). The blooms are accompanied by a distinct (photo) heterotrophic community. This includes a small, numerically insignificant population of Archaea and a diverse bacterial community (Kim et al., 2013; Delmont et al., 2014). Yet, the ecology and functioning of the bacterial populations evolving in this system is still poorly understood. We know that bacterial evenness is stable and unusually low in the polynya surface in comparison to that in surrounding waters, with four taxa (SAR92, Oceanospirillum, Polaribacter and Pelagibacter) accounting for about 75% of the cells (Kim et al., 2013; Delmont et al., 2014; Williams et al., 2014). Sensitive partitioning of 16S rRNA sequences (oligotyping) suggests that these populations are dominated by a single genotype (Delmont et al., 2014). Some of these (SAR92, Oceanospirillum and less dominant taxa such as members of the Cryomorphaceae) are preferentially associated with Phaeocystis colonies (Delmont et al., 2014) and display higher heterotrophic activity than the free-living bacteria (Williams et al., 2014). These studies did not resolve whether bacterial populations were attached at the surface of algal colonies or resided inside colony matrix. Nonetheless, these observations support the concept of physically delineated bacterial niches and suggest functional interactions between the alga and specialized bacteria. It also suggests that physiological and ecological functions carried out by heterotrophs are not evenly distributed. E.g., the cycling of carbon and nutrients by bacteria inside a Phaeocystis colony is likely very different from those contributed by free-living bacteria.

Phaeocystis antarctica blooms in the ASP shape bacterial community structures and their genotype composition is maintained over time and space (Delmont et al., 2014). Efforts have been made to isolate and characterize keystone bacterial species in the Southern Ocean (Bowman et al., 1997). However, most bacterial taxa (including those associated with Phaeocystis species) are recalcitrant to cultivation (Janse et al., 2000), limiting our ability to study their contribution to carbon and nutrient cycles of the ASP. Metagenomic approaches have been used to determine the functional potential of bacteria in Southern Ocean habitats (Wilkins et al., 2013a,b). These approaches can link taxonomy and function through the assembly of dominant genetic structures (Tyson et al., 2004; Grzymski et al., 2012). On one side, metagenomic assemblies of complex eukaryotic genomes are challenging due to the occurrence of repeat DNA regions (Richard et al., 2008) that cannot be overcome with most sequencing technologies. This technological limitation might affect the effective assembly of P. antarctica and diatom genomes directly from bloom events. On the other hand, the presence of few, highly abundant bacterial taxa in surface waters of the ASP provides an opportunity to determine the genome content of the dominant bacterial taxa, be they free-living or associated with P. antarctica colonies.

Here, we use environmental DNA extracted from a 0.2 to 20 μm filtered plankton size fraction and deeply sequence and assemble genetic structures to determine physiological and metabolic contributions of microbial taxa of a centrally located sample of this productive bloom. This sequencing effort exceeds the combined metagenomic data previously generated for other Southern Ocean locales and resulted in the assembly of several microbial genomes. Novel draft genomes were affiliated to six heterotrophic bacterial taxa (including SAR92, Polaribacter, Oceanospirillaceae, and Cryomorphaceae) and an estimated 94% of a novel Micromonas genome (19.6 Mb recovered). For Phaeocystis (the most abundant phytoplankter) the lack of significant genome assembly warranted the use of RNA-seq derived transcriptome from a culture strain (Delmont et al., under submission) to infer its functional potential. We report here on a total of 41,805 protein coding sequences with 5278 distinct functions determined from the draft genomes. Gene functions were used to generate a network that identified coupled ecosystem functions between dominant primary producers and the bacterial community. Finally, we exploited publically available metagenomes to determine in which extent these draft genomes are representative for abundant microbial taxa across the Southern Ocean.

Results

General

Unassembled paired-end reads of the metagenome of the microbial community associated with a P. antarctica surface bloom in the central ASP were analyzed using protein and ribosomal reference databases within MG-RAST (Meyer et al., 2008). Taxonomy assignments (Figure S1) distributed the reads over members of the Eukaryota (0.27 ± 0.24 of total reads), Bacteria (0.73 ± 0.24) and Archaea (0.06 ± 0.03), with variation determined by the choice of the reference protein or ribosomal database. The eukaryotic fraction was dominated by diatoms, Chlorophytes and Haptophytes, while Bacteroidetes and Proteobacteria related organisms dominated the bacterial fraction. These findings were in close agreement with the composition of the microbial community that was independently determined (16S rRNA gene survey) for the same sample as well as for various other locations inside the P. antarctica bloom over a 3 week period (Delmont et al., 2014).

From a total of 159.3 million paired-end and mate-pair sequence reads we assembled longer genetic structures of the ASP metagenome. Approximately 30% of the reads assembled into 56,805 scaffolds >1 kb for a total of 154.8 Mb. 92% of these scaffolds were < 5 kb with some of the most abundant ones consisting of short, high repeat regions of eukaryotic genomes. On the other side of the assembly spectrum, the 1500 longest scaffolds ranged from 12 to 333 kb in length with 12-743X in coverage and GC contents that ranged from 27 to 65%.

A Pipeline for Draft Genome Assembly

A simple four-step method was designed to bin assembled metagenome fragments into draft genomes without requiring a reference database. First, we determined assembly characteristics (%GC, length, tetranucleotide frequency, coverage) for each scaffold using in-house developed scripts. In the two next steps, we inferred scaffold taxonomy using phymmBL (Brady and Salzberg, 2009) and used RAST (Aziz et al., 2008) for functional annotation. A total of 37,143 genes and 5116 functions were detected from the 1500 longest scaffolds (37 Mb of assembly). 87% of these scaffolds had blast hits with average blast e-value score of < 10−108, which permitted taxonomy inference with a reasonable degree of certainty. Finally, we generated dendrograms that cluster scaffolds based on tetranucleotide frequencies (Euclidean distances). Dendrograms were then coupled to scaffold characteristics (step 1) and nearest neighbor taxonomy (step 2) to define single taxon clusters (Figure 1). Scaffolds clustered into four major tetranucleotide frequency clusters. Those that fell into Cluster 1 (affiliated with pico-eukaryote algae, see below) were characterized by low coverage (50 ± 4X), a high %GC (59 ± 2%) and a relatively high percentage of hypothetical proteins (82 ± 10%). Scaffolds from Cluster 2 had a low %GC content and subdivided into three groups with distinctly different coverage (Figure 1), each of them with Flavobacteria taxonomy that had Polaribacter as it closest relative. This cluster also contained low %GC scaffolds of organelles, both chloroplast and mitochondria, which were analyzed separately. Cluster 3 represented three groups affiliated to Oceanospirillaceae (high coverage), SAR92 (Gammaproteobacteria) and the Rhodobacteraceae (Alphaproteobacteria), all of them with similar %GC, distinct from those in clusters 1 and 2. Cluster 4 contained scaffolds with different taxonomical affiliations, including a well assembled bacterial group that affiliated with known members of the Cryomorphaceae and Flavobacteraceae. The clusters do not only have distinct taxonomical affiliations, they also harbor taxon-specific functions: e.g., Cluster 1 was the sole cluster with genes that encode TolA related proteins typically found in eukaryotes (Levengood-Freyermuth et al., 1993). A two-component system regulator implicated in the response to environmental cues in Bacteroidetes (West and Stock, 2001) was found in Cluster 2 only. Paired functions typical of Proteobacteria (e.g., sarcosine oxidase subunits) were observed on the same scaffolds in Cluster 3. Finally, we targeted subsets of the metagenome data to perform additional assemblies and tetranucleotide frequency ordinations to yield 3553 scaffolds of >6 kb in length, contributing to the completion of the draft genomes (see Appendix and Figures S2S6).

FIGURE 1
www.frontiersin.org

Figure 1. Hierarchical clustering (Euclidean distance metric) of 1500 scaffolds (11.9–332.7 kb in length) based on their tetranucleotide frequency profiles. Seven informative layers were added below to the clustering tree. Percentage of hypothetical proteins and the occurrence of specific functions were accessed using RAST (Aziz et al., 2008). Taxonomical affiliation was inferred using phymmBL (Brady and Salzberg, 2009). The * in coverage value layer represents Phaeocystis antarctica chloroplast scaffolds.

Draft Genomes for Dominant Taxa of the P. antarctica Bloom

Phaeocystis dominated this bloom event, yet its genome was not part of the assembly clusters described above. Clearly, challenging features like the occurrence of DNA repeats and the lack of reference genome prevented a meaningful assembly and downstream analysis of an environmental P. antarctica genome. Nonetheless, we could detect Phaeocystis using alternative approaches. First, MG-RAST identified 10,680 of 127,009 rRNA reads in our data set as Phaeocystis ribosomal RNA with high confidence (average e-value of < 10−65 against M5RNA data base). Second, the P. antarctica chloroplast (107 kb in length, NCBI accession JN117275.2) was fully recovered with >700X coverage, further confirming its dominance in the ASP metagenome. Aside from short contigs of Phaeocystis (up to 70% of the metagenome), we obtained a total of 10 draft genomes for the ASP sample and summarized their general features in Table 1. We estimated their relative abundance in the targeted phytoplankton size fraction by mapping quality-filtered reads to each draft genome using a stringent mapping criterion (>97% sequence identity over the entire read length) and determined their taxonomical affiliation and gene content using RAST.

TABLE 1
www.frontiersin.org

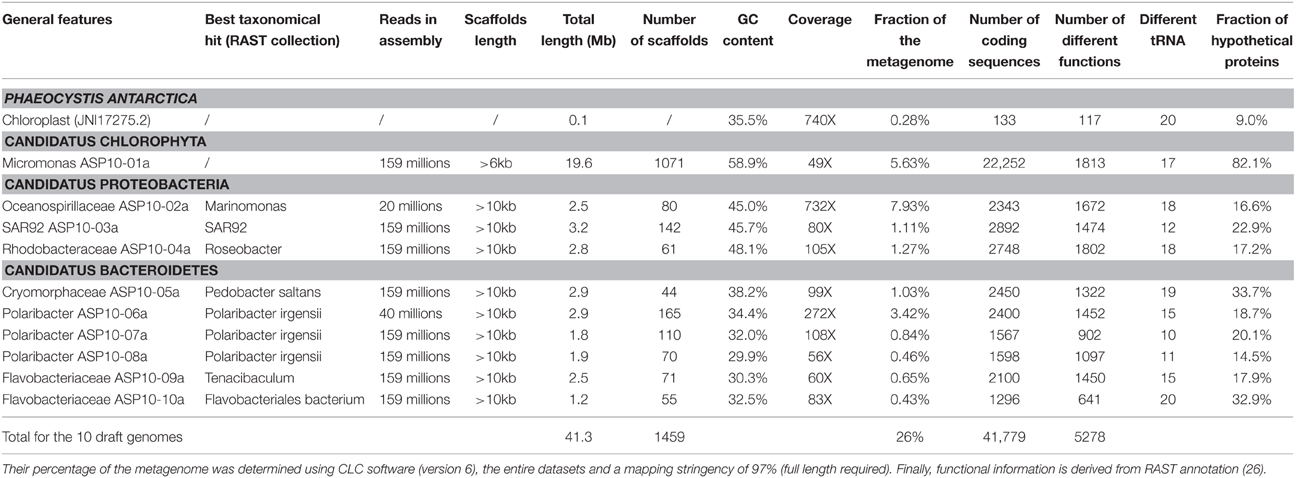

Table 1. General features related to 10 draft genomes determined from our metagenomic assembly and bioinformatics approach.

We recovered a Chlorophyte draft genome that was 19.6 Mb in length with 22,278 detected protein coding sequences (CDSs) and accounted for 5.63% of the metagenomic data. 93.8% of the total genome was recovered based on a scaffold length logarithmic regression curve estimate (R2 > 0.997, see Figure S7). Using phymmBL we identified this draft genome as belonging to a member of the Micromonas (Figure 1), a genus from the order Mamiellales, which includes picophytoplankton species. This taxonomic affiliation was further supported by MG-RAST with the identification of 2883 rRNA reads as Micromonas (average e-value of 10−61 against M5RNA database). There are four publically available Mamiellales genomes: they correspond to Micromonas strains CCMP1545 and RCC299 along with Ostreococcus tauri and O. lucimarinus, organisms isolated from marine habitats at lower latitudes (Worden et al., 2009). We compared the picoeukaryote draft genome to these genomes at the predicted protein level to better establish its taxonomic affiliation and identify unique features of its functional repertoire. Overall, the CDSs of picoeukaryote draft genome were similar in number and length to Micromonas genomes but had a GC-content that was more similar to the Ostreococcus genomes (Figure 2A). It also harbored a lower density of coding sequences and higher proportion of hypothetical genes relative to the four reference genomes, possibly due to its draft stage. Based on protein identity values, the draft genome shared more CDSs with the Micromonas genomes than with the Ostreococcus genomes (Figures 2B,C). CDSs identical in the ASP picoeukaryote draft genome and the two Micromonas genomes include core genome functions related to ferredoxin synthesis, photosystem biogenesis, haem formation, cell division and nutrient transport. Overall, CDSs were 35.6 ± 37%, 30 ± 35%, 20 ± 26%, and 19 ± 25% identical when comparing the ASP draft genome to the Micromonas CCMP1545, Micromonas RCC299, O. lucimarinus and O. tauri genomes respectively. Based on the findings above we propose that the ASP picoeukaryote draft genome belongs to a novel Antarctic Micromonas species and will refer to it as Micromonas ASP10-01a in the following paragraphs. We do note that a large fraction of CDSs (n = 9011) in the ASP Micromonas draft genome were not detected (CDS identity < 20%) in any of the available Mamiellales genomes. Of these, the vast majority (98.1%) was annotated as hypothetical proteins.

FIGURE 2
www.frontiersin.org

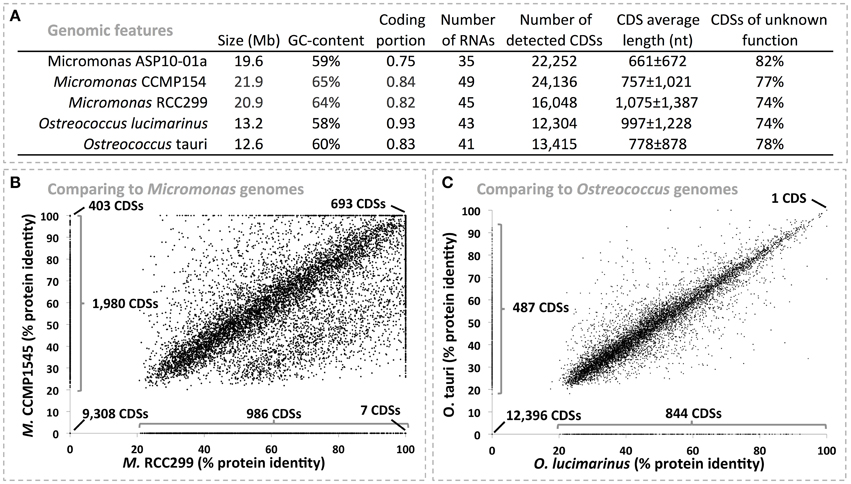

Figure 2. (A) Displays general functional features of five algal genomes based on RAST annotation. (B,C) represents protein identity scores between the 22,278 protein coding sequences (CDSs) from the Micromonas ASP10-01a draft genome recovered from the ASP and those detected in Micromonas (B) and Ostreococcus (C) available genomes. Scores were determined using the RAST genome comparison tool (Aziz et al., 2008). We performed two comparisons per panel, which provided two distinct identity scores for each of the Micromonas ASP10-01a proteins (one in each axis). Note that the score was set to 0 when a protein from Micromonas ASP10-01a had no match with proteins from the compared genome.

Annotation of putative genes in the Micromonas ASP10-01a draft genome was difficult to achieve given the current lack of knowledge on eukaryotic functionalities (Figure 1), leading to the detection of only 1535 different functions. Several functions were present in higher copy number in Micromonas ASP10-01a (compared to the reference Mamiellales genomes), including those that encode ankyrin repeat proteins (structural motifs implied in attaching membrane proteins to the cytoskeleton; n = 65). Another function present with high copy number was related to enoyl-CoA hydratase, suggesting an enhanced role for fatty acid metabolism in the Antarctic Micromonas. We also used the totality of deduced gene functions annotated across the five Mamiellales genomes (n = 3086) to create a functional network (Figure S8). Although, 945 functions were shared between the five genomes, we identified 200 functions that were unique to Micromonas ASP10-01a and included a novel anti-freeze protein. Best blastx hit against the Genbank nr database identified the anti-freeze protein of a psychrophilic fungus (Typhula ishikariensis) with a protein sequence identity of 36%.

Annotation of bacterial draft genomes was more straightforward (Table 1), yet their novelty and general lack of 16S rRNA genes prevented sensitive taxonomy assignment. Therefore, we assigned most of these draft genomes at the family level within Proteobacteria and Bacteroidetes and so ensure their correct affiliation. A draft genome for a member of the Oceanospirillaceae (Gammaproteobacteria) incorporated about 8% of the metagenomic reads in its assembly and a total of 2343 putative CDSs were identified. The most similar organism in the RAST database was Marinomonas sp. MWYL1 with a protein identity score of 35 ± 25%. A second draft genome was identified as a member of the SAR92 group as it was most closely related to the temperate SAR92 strain HTCC2207, the only isolate for which a genome sequence was determined (Stingl et al., 2007). The two genomes shared a protein identity score of 46 ± 32%, with 743 putative CDSs detected in the ASP SAR92 draft genome only. A third draft genome was derived from an alphaproteobacterium with >3000 CDSs identified and a total of 1802 annotated functions. The genome most closely related in RAST database was that of Roseobacter sp. GAI101 (protein identity of 45 ± 29%), a member of the Rhodobacteraceae.

The Cryomorphaceae draft genome had no close relative in the RAST database. The closest organism to this genome was Pedobacter saltans 12145 (protein identity score of 26 ± 24%). We also searched the 812 bases 16S rRNA gene fragment we found in this draft genome against NCBI's nr database and further confirmed its affiliation to the Flavobacteria class. The closest entry in NCBI's refseq genomic database was Fluviicola taffensis (query cover of 99% and identity of 87%), suggesting the presence of a new type of organism within the Cryomorphaceae family. After including the Fluviicola taffensis genome into RAST, we determined that the two organisms possess a protein identity score of 32 ± 24% only. Finally, the Flavobacteriaceae cluster provided 5 distinct groups (Figure S2) affiliated with Polaribacter irgensii 23-P (3 draft genomes with protein sequence identity of 69 ± 36%, 61 ± 34%, and 59 ± 27%), Tenacibaculum sp. MED152 (protein identity of 63 ± 29.7%) and Flavobacteriales bacterium HTCC2170 (protein identity of 30 ± 31%). However, three of these draft genomes were likely incomplete with an overall length ranging from 1.2 to 1.9 Mb. Therefore, only draft genomes related to Tenacibaculum (2.5 Mb) and one of the Polaribacter (2.9 Mb) were part of further analyses described in the following sections. Note that Tenacibaculum was not detected in our high throughput 16S-V6 rRNA screening of the same bloom event but it is phylogenetically closely related to Polaribacter (Yoon et al., 2006). Polaribacter was identified as an abundant taxon in the ASP microbial community (Delmont et al., 2014). Because of this uncertainty, we conservatively assigned the genome as Flavobacteriaceae ASP10-09a.

Functional Diversity Indicates a Distinct Role of Each Dominant Bacterial Population

We effectively reconstructed 7 draft genomes (three Proteobacteria, three Bacteroidetes, and one pico-eukaryote) from combined mate-pair and paired-end reads of the ASP metagenome. We acknowledge that genomes are likely incomplete (tRNAs suggest completions of 50–100%) but their length (2.5–3.2 Mbp) and number of detected genes (2100–2892) indicates high recovery rates. This enabled us to interrogate aspects of physiological functions and life styles that underpin their ecological roles within the ASP microbial community. The draft aspect of these genomes prevented conclusions regarding intact metabolic pathways as not always were all genes identified. Nonetheless, we observed clear differences: genes encoding the Entner-Doudoroff pathway were detected in the Proteobacteria genomes only whereas genes encoding the pentose phosphate pathway were specific to the Rhodobacteraceae ASP10-04a genome. Following sections describe more specific differences at the subcategory and functional level.

As a first approach we performed a principal component analysis based on the relative distribution of 105 subcategories defined by the SEED annotation on RAST (Figure 3). Draft genomes clustered according to their taxonomic affiliation, emphasizing a strong link between function and taxonomy. Subcategories for protein metabolism (protein folding, biosynthesis and degradation), inorganic sulfur assimilation and ammonia assimilation (e.g., multiple ammonium transporters), membrane transport, and polysaccharides distinguished the draft genome of Micromonas from bacterial genomes. The abundance of genes related to periplasmic stress responses, invasion and intracellular resistance, DNA recombination, and ATP synthase were distinguishing features of the Bacteroidetes genomes. Interestingly, they also contained multiple genes implied in thermal shock responses (e.g., cold shock protein CspA). Finally, Proteobacteria genomes showed a prevalence of genes involved in environmental stress response and detoxification, denitrification, sulfur, and phosphorus metabolism, organic sulfur assimilation, TRAP, and ABC transporters, carbohydrate and electron accepting reactions.

FIGURE 3
www.frontiersin.org

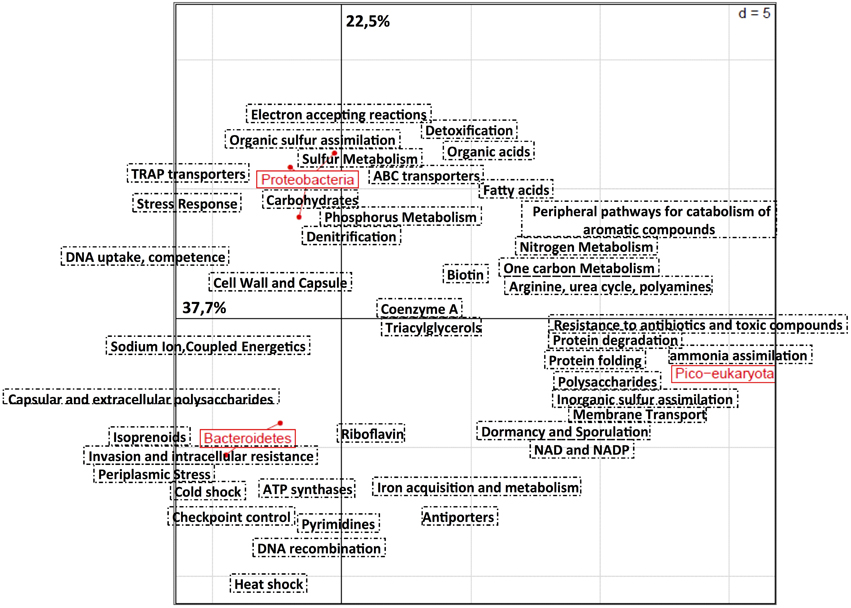

Figure 3. Principal component analysis based on the relative distribution of 105 functional subsystems in seven draft genomes recovered from the ASP. Annotation was done using RAST (Aziz et al., 2008). The analysis was performed using R software and the Ade4TkGUI package (Thioulouse et al., 1997). Proteobacteria includes Oceanospirillaceae ASP10-02a, SAR92 ASP10-03a, and Rhodobacteraceae ASP10-04a. Bacteroidetes includes Cryomorphaceae ASP10-05a, Polaribacter ASP10-06a, and Flavobacteriaceae ASP10-09a. Finally, Micromonas ASP10-1a is the only pico-eukaryota representative.

In addition, we attempted to identify statistical difference between functions of the bacterial genomes (n = 4253). Using STAMP (Parks and Beiko, 2010) we applied a t-test (equal variance) in order to discriminate functions differentially present between taxa (Bacteroidetes vs. Proteobacteria). We determined that a total of 354 functions distinguished between these taxa (p < 0.05, Dataset S1). We also compared differences in gene functions between free-living taxa (Rhodobacteraceae; Polaribacter; Flavobacteriaceae) and particle associated taxa (Oceanospirillaceae; SAR92; Cryomorphaceae) as determined from a 16S rRNA gene survey (Delmont et al., 2014). In this comparison a total of 24 functions were differentiated between the two lifestyles (p < 0.05, Dataset S1). Interestingly, a multimodular transpeptidase-transglycosylase (also named penicillin-binding protein) was only detected in genomes of particle-associated bacteria. This protein is involved in peptidoglycan synthesis, protein-protein attachment and antibiotic resistance (Goffin and Ghuysen, 1998). Other functions characteristic to genomes of particle-associated bacteria include an aquaporin Z (involved in osmoregulation), a protein motif for binding to peptidoglycans and the universal stress protein UspA. However, their possible roles in offsetting antimicrobial activity of Phaeocystis, in attachment to its surface or in living inside colonies await targeted experiments.

In a more global analysis, we also investigated differences between the dominant photosynthetic (Phaeocystis, Micromonas) and heterotrophic (Proteobacteria, Bacteroidetes) components of the ASP bloom. Since metagenome assembly of Phaeocystis reads did not yield scaffolds long enough to be informative here, we included a RAST annotated transcriptome of the P. antarctica strain CCMP 1374 (Delmont et al., under submission) in this analysis. The 5590 different functions detected in the bacterial and Micromonas draft genomes and the P. antarctica transcriptome were used to generate a functional network that identified both shared and unique (and possibly complementary) functions in the plankton community of the ASP (Figure 4). Only 92 functions were shared among all the organisms. This low number reflects the draft stage of recovered genomes, their distant taxonomical affiliation and annotation limitations. Some functions were shared among the members of a taxonomic group: e.g., functions found only in the three Bacteroidetes (n = 158) or in the three Proteobacteria (n = 119). In addition, the genomes of these organisms encompass a total of 2723 unique functions. In the following sections we describe the occurrence of functions related to the cycles of nitrogen, sulfur, carbon, and iron, as well as various other genes related to outer membrane proteins, vitamin synthesis and light harvesting (Table 2). Note that we confirmed the functional inference of genes described below using blastx against the nr database in NCBI (see Appendix and Dataset S2).

FIGURE 4
www.frontiersin.org

Figure 4. Network connecting seven draft genomes recovered from the ASP plus the transcriptome of Phaeocystis antarctica strain CCMP 1374 (*based on 33,153 contigs screened from the assembly of 99,805,691 HiSeq and 2,492,614 pyrosequencing RNA-seq reads) and their annotated functions from RAST (Aziz et al., 2008) (a total of 5590 functions). The network was performed using Gephi (Bastian et al., 2009) and Force Atlas 2.

TABLE 2
www.frontiersin.org

Table 2. Compilation of functional features detected in one or more of the seven draft genomes recovered from the Amundsen polynya with a length >2.5 Mb (Oceanospirillaceae ASP10-02a; SAR92 ASP10-03a; Rhodobacteraceae ASP10-04a; Cryomorphaceae ASP10-05a; Polaribacter ASP10-06a; Flavobacteriaceae ASP10-09a and Micromonas ASP10-01a).

The capability to assimilate ammonia and glutamate to form glutamine was detected in all the genomes. On the other hand, the anaerobic conversion of nitrate/nitrite to ammonia (denitrification, nitrate respiration) was restricted to the Bacteroidetes, while the Proteobacteria genomes carried genes that encode high affinity transporters for ammonium assimilation. Nitrite/nitrate transporters were detected neither in the Rhodobacteraceae nor in the Bacteroidetes genomes while allantoin utilization related genes where detected only in the Rhodobacteraceae genome.

The Rhodobacteraceae draft genome contained 14 genes related to sulfur oxidation including soxABRXYZ, none of which were detected in other draft genomes. This genome (along with that of the putative Oceanospirillaceae member) also carried genes required for the conversion of dimethylsulfoniopropionate (DMSP) via DMSP demethylase (DmdA). We also detected two copies of the dddD gene (DMSP acyl-CoA transferase) in the SAR92 genome. This gene encodes the conversion to dimethylsulfide (DMS) from DMSP suggesting that in the ASP SAR92 degrades DMSP via a pathway that differs from that present in Oceanospirillaceae and Rhodobacteraceae related taxa.

Several functions related to carbohydrate metabolism were detected only in the Proteobacteria draft genomes (Table 2). Genes related to carbon monoxide dehydrogenase were detected in the Rhodobacteraceae and SAR92 related genomes. Genes related to the pathway of NAD-dependent formate dehydrogenase and pectin degradation were found in the SAR92 genome only. In addition, the SAR92 draft genome harbored several high copy number genes encoding functions related to fatty acid degradation: long-chain-fatty-acid-CoA ligase (n = 24), 3-oxoacyl reductase (n = 22), enoyl-CoA hydratase (n = 14), butyryl-CoA dehydrogenase (n = 11) and 3d-ketoacyl-CoA thiolase (n = 8). These genes were either not detected or relatively less abundant in other ASP draft genomes. Moreover, these genes were also 2–3 times more abundant when compared to the SAR92 HTCC2207 genome. Genes that encode for glycolate oxidation (especially GlcD) and taurine transport were detected in the Rhodobacteraceae and Oceanospirillaceae draft genomes.

Genes related to iron scavenging provide information regarding the acquisition strategies for iron among the different microbial taxa. While most draft genomes carried genes for common iron containing molecules like heme, ferredoxin and other Fe-S containing compounds along with those for e.g., ferrochelatase, we found that genes related to siderophore biosynthesis were only present in the Bacteroidetes. Moreover, Fe3+ ABC transporter and outer membrane hemin receptors were characteristic to two out of three genomes of free-living Bacteroidetes (Polaribacter and Flavobacteraceae). In addition, we did not detect TonB dependent receptors used to acquire iron in two Proteobacteria, contrasting with the four other bacterial draft genomes that carry 11–31 of these genes. Finally, the bacterial draft genomes contained different gene complements for Fe uptake: ferric siderophore transport in SAR92, ferric iron ABC transport in the Oceanospirillaceae, Rhodobacteraceae and Cryomorphaceae and ferrous iron transport protein B in Polaribacter and Flavobacteraceae.

In addition, these genomes display different genes for mobility (flagella encoding genes in two Proteobacteria vs. genes encoding gliding motility in the three Bacteroidetes) and for outer membrane proteins. In particular, the Cryomorphaceae draft genome contained several genes with functions specifically related to outer membranes and lipids. They include cell-to-cell interactions (OmpA, Movva et al., 1980), surface adhesion (von Willebrand factor binding proteins, Hartleib et al., 2000; Cabanes et al., 2002) and internalin surface proteins used as cell wall surface anchors or to invade mammalian cells (Dramsi et al., 1995). They also include Los core oligosaccharides that possess antigenic properties and can act as a barrier to protect bacteria from host-derived antimicrobial compounds (Silipo and Molinaro, 2010). A potential for photoheterotrophy was identified as we detected genes involved in proteorhodopsin (retinal-binding rhodopsin proteins, Béjà et al., 2000) in all draft genomes with exception of that of SAR92. Proteorhodopsins are thought to offer a range of physiological functions to heterotrophic bacteria (Fuhrman et al., 2008), including energy generation from light, suggesting bacteria might harvest a non-negligible fraction of light entering the euphotic zone of Antarctic polynyas. Genes for carotenoid biosynthesis, another photoactive protein involved in protection against oxidative damage, was detected in draft genomes of the three Bacteroidetes and Micromonas. Finally, while in some of our draft genomes we detected genes to produce vitamins (B12 biosynthesis genes in the Rhodobacteraceae and Oceanopirillaceae related taxa), in others we found genes to acquire these molecules (vitamin B12 ABC transporter detected in the three Bacteroidetes and P. antarctica).

Draft Genomes are Representative for Abundant Microbial Taxa Across the Southern Ocean

In order to evaluate their ocean basin-wide distribution we mapped metagenome reads of the Global Ocean Survey from multiple locales within and outside the Southern Ocean (Yau et al., 2013; Wilkins et al., 2013a) to the ASP draft genomes. Note that these metagenomes were not used in the assembly and therefore did not contribute to the recovery of the ASP draft genomes. We further mapped these reads to the genome of Candidatus Pelagibacter ubique HTCC1062 (a dominant component of the SAR11 population in cold waters, Brown et al., 2012) but did not yield significant assembly in the ASP metagenome analysis. Note that Global Ocean Survey samples were sequenced using pyrosequencing on three size fractions (0.1–0.8 μm, 0.8–3 μm, and >3 μm) and that we used a relatively stringent mapping criterion (>95% sequence identity over the entire read length). The ASP draft genomes were lowly detected north of the polar front and in an Antarctica saline organic lake but they were abundantly present in all Southern Ocean surface stations (with the exception of Cryomorphaceae ASP10-5a), indicating a strong latitudinal partitioning (Figure 5A). Thus, we identified the surface waters of the Southern Ocean as the habitat of these taxa. Figure 5B displays the relative contribution of draft genomes across the two smallest size fractions for Southern Ocean surface waters (i.e., stations north of the polar front and of the ice lake were omitted). Five genomes showed significant differences between size fractions. Oceanospirillaceae ASP10-02a was the most represented genome (up to 11% of metagenomic reads, consistent with the ASP) and was significantly enriched in the 0.8–3 μm size fraction as compared to the 0.1–0.8 μm size fraction. This genome was also highly detected in a metatranscriptomic dataset generated from the Ross Sea polynya (Bertrand et al., 2015). In contrast Pelagibacter reads dominated the 0.1–0.8 μm size fraction. Micromonas ASP10-1a, although less abundant, was characteristic for the size fractions >0.8 μm.

FIGURE 5
www.frontiersin.org

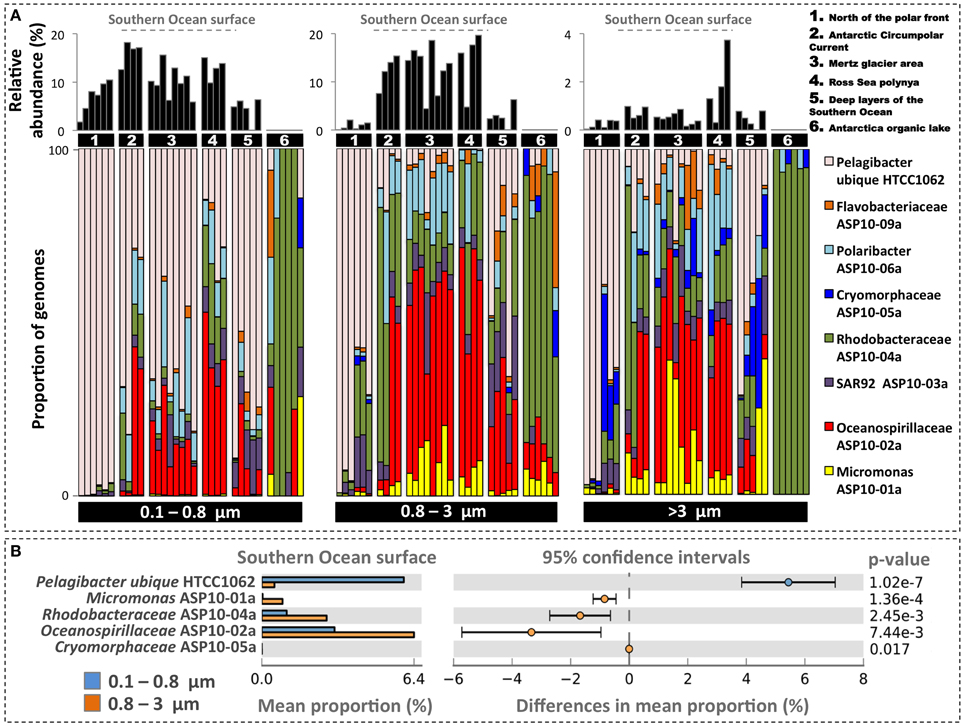

Figure 5. (A) Displays the relative abundance for seven draft genomes recovered from the ASP along with the genome of Pelagibacter ubique HTCC1062 after mapping to Global Ocean Survey metagenomes. These metagenomes were generated from different locations in the Southern Ocean along with stations north of the polar front (Wilkins et al., 2013a) and in Organic lake, Antarctica (Yau et al., 2013). Colored bars represent the relative proportion (in percentage) of each genome while the black bars represent their relative abundance in the metagenomes. Samples are segregated by size fraction. Samples contained in group 5 were collected at depths below 300 meters. Sample metadata are summarized in Appendix and Dataset S3. (B) Displays the mean proportion and distribution of genomes differentially detected between the 0.1–0.8 and the 0.8–3 μm size fractions in Southern Ocean surface samples. Analysis was performed using the t-test algorithm contained in STAMP (Parks and Beiko, 2010).

Discussion

Satellite imaging revealed that the bulk of the primary productivity in the Southern Ocean is confined to a few dozen Antarctica polynyas along the continent's coastline (Arrigo and Van Dijken, 2003). Of these the Amundsen Sea Polynya (ASP, West Antarctica) is the most productive per unit of surface (Chlorophyll a concentrations peak at ~7 mg/m−3, Arrigo and Van Dijken, 2003). Previous studies indicate that the colony-forming haptophyte alga P. antarctica is the dominant phytoplankter in the ASP (Alderkamp et al., 2012; Mills et al., 2012; Yager et al., 2012; Kim et al., 2013). ASP microbial communities are enriched with a few specialized bacterial taxa that preferentially associate with P. antarctica colonies (Delmont et al., 2014). However, the lack of reference genomes has constrained our ability to analyze functional interactions between bacteria and P. antarctica and discern possible roles for heterotrophs in phytoplankton bloom ecology. We determined the metagenome of the ASP phytoplankton-microbial community in the center of the 2010–2011 bloom patch (Yager et al., 2012; Delmont et al., 2014). An abundance of singleton sequences and small contigs (70% of total reads) indicated that genetic structures of P. antarctica and diatoms did not assemble efficiently, possibly due to high frequency DNA repeats that are known to dominate large eukaryotic genomes (Richard et al., 2008). The remaining 30% assembled into relatively long genetic structures (scaffolds up to 333 kb). After tetranucleotide frequency clustering, the metagenome assembly efficiently segregated into one eukaryotic (Micromonas) and six bacterial (Proteobacteria and Bacteroidetes) draft genomes in which we identified ~42,000 protein coding sequences and more than 5000 different functions. This is the first metagenome report on genome assembly for abundant algal and bacterial taxa in the Southern Ocean. Previous metagenome studies reported on the enrichment of particular bacterial taxa (e.g., Bacteroidetes, Verrucomicrobia, Rhodobacterales) south of the polar front (Wilkins et al., 2013a) and emphasized the capability of Flavobacteria in degrading alga-derived organic compounds (Williams et al., 2012; Wilkins et al., 2013b) without attempting de novo genome assemblies. Below we discuss a few highlights of the physiological traits and possible ecological functions in the ASP revealed by the draft genomes. Furthermore, the fact that most of these genomes are abundantly present with nucleotide identity of >95% in distant locations (Figure 5) suggests that the functional and ecological traits we describe here for the ASP are representative for the Southern Ocean as a whole.

High Latitude Micromonas Genome Displays Features of Iron and Cold Adaptation

The discovery of a pico-eukaryotic Micromonas (Chlorophyta) genome constitutes an important step toward the analysis of eukaryotic natural populations in situ. This draft genome resulted from a highly uniform scaffold cluster (n = 1071) with respect to best blast hit taxonomy, %GC and coverage. This draft genome has a size of 19.6 Mb with 22,228 coding sequences which we estimate accounts for roughly 94% of the genomic content of the local Micromonas population. Micromonas forms only a small but significant fraction of the Phaeocystis dominated ASP phytoplankton community and they are even less abundant in offshore samples (Wolf et al., 2013). Members of the Micromonas genus occur in a wide range of ecosystems, from the tropics to polar regions (Lovejoy et al., 2007; Foulon et al., 2008). Given the high latitude of the ASP, the new Micromonas genome provides an opportunity for study of genome adaptions to extreme environments. It revealed >9000 unique protein coding DNA sequences (CDS identity < 20%) when compared with the genomes of other Micromonas and the related Ostreococcus (Worden et al., 2009) with an enrichment of genes implicated in fatty acid metabolism. This genome was most similar to that of Micromonas strain CCMP1545, but several unique functions indicated cellular adaptation to life at high latitude, including a gene encoding for an anti-freeze protein with no close algal relatives in the NCBI databases. Since only 18% of CDSs were annotated, these trends await further confirmation. Nevertheless, genome adaptation features so far support an earlier hypothesis of a long term glacial refuge for green algae in the Antarctic region (De Wever et al., 2009).

Bacterial Draft Genomes Represent a Significant Fraction of the ASP Microbial Community

Along with the Micromonas genome, we recovered nine draft genomes of the dominant bacterial taxa occurring in the bloom (Table 1). The genomes effectively assembled to length of >2.5 Mb are derived from members of the Proteobacteria (SAR92, Oceanospirillaceae and Rhodobacteraceae) and Bacteroidetes (Cryomorphaceae, Polaribacter, and Flavobacteraceae). These taxa were identified in various studies as dominant members of the ASP microbial community (Kim et al., 2013; Delmont et al., 2014; Williams et al., 2014). Based on 16S-V6 analyses, these genomes represent about 50% of the bacterial community and >90% of the bacteria associated with P. antarctica cells and colonies (Delmont et al., 2014). From a genomic perspective, they comprised 15% of the ASP metagenome with a total of 14,933 protein coding sequences. The protein identity scores of these draft genomes to their nearest relative in the RAST database ranged from 32% (Cryomorphaceae) to 69% (Polaribacter), emphasizing the valuable addition they make to available genomes as well as highlighting the current lack of reference genomes for the Southern Ocean. From a functional perspective, the draft genomes clustered according to their taxonomy (Proteobacteria vs. Bacteroidetes) rather than their physical association with Phaeocystis (free-living vs. particle associated) (Figures 34), emphasizing a taxonomy-driven functional compartmentalization. These trends helped us to understand how these microorganisms interact with their environment. For example, the pico-eukaryote genome is enriched in genes related to inorganic sulfur assimilation while the Proteobacteria genomes carry more genes that facilitate the organic assimilation of this element. Below we discuss physiological and potential ecological roles encoded by these draft genomes, with a particular focus on three bacterial groups that were identified as living in close association with Phaeocystis colonies in the same bloom (Delmont et al., 2014).

Antarctic Oceanospirillaceae and Rhodobacteraceae as Sources of Cobalamin

B12 is produced by Bacteria and Archaea and stimulates algal growth in many aquatic systems (Croft et al., 2005). It also impacts the production of DMSP in the Southern Ocean (Bertrand and Allen, 2012). B12 has been implied as a limiting factor for phytoplankton growth in Antarctica polynyas (Bertrand et al., 2007). The occurrence of a dominant, but not yet identified group of B12 producing bacteria highlights the knowledge gap in polar systems (Bertrand et al., 2011). Oceanospirillaceae related populations are largely underexplored in the Southern Ocean and their link to B12 vitamin (and potentially DMSP) production has not been determined prior to this study. The Oceanospirillaceae draft genome contains a complete B12 vitamin synthesis pathway. Given their dominance in the APS polynya (Kim et al., 2013; Delmont et al., 2014; Williams et al., 2014) and preferential association with Phaeocystis colonies, Oceanospirillaceae may play an essential role in supporting primary productivity in the Southern Ocean throughout the austral summer. A total of 14 B12 vitamin synthesis genes were also found in the Rhodobacteraceae draft genome. Several members of this taxon were shown to be B12 vitamin producers when associated with phytoplankton at lower latitudes (Wagner-Döbler et al., 2009). Despite their lower abundance and their free-living nature in the ASP (refs), Rhodobacteraceae may also play a role in fueling primary production with cobalamin. The remaining bacterial draft genomes had no genes related to this biosynthesis, highlighting the ecological importance of two of the three Proteobacteria taxa that dominate bacterial communities in the ASP. Moreover, the porin TonB is required for cobalamin uptake (Shultis et al., 2006) and its gene was found in all draft genomes but the B12 producing Oceanospirillaceae and Rhodobacteraceae. In a previous publication we highlighted the significance of a near 1:1 cell ratio of SAR92 and algal cells inside Phaeocystis colonies (Delmont et al., 2014). The results presented here indicate that Phaeocystis does not derive B12 from SAR92 and thus this compound does not play a role in in their interactions.

Proteobacteria Related Populations Can Impact Sulfur Cycle Thought DMSP Catabolism

A distinct difference between the ASP Proteobacteria and Bacteroidetes is the presence of the gene complement that encodes catabolism of DMSP in the former group. Phaeocystis blooms are known to produce copious amounts of DMSP (Gibson et al., 1990; Kirst et al., 1991; DiTullio et al., 2000), and they have a substantial impact on the cycling of sulfur in these systems. DMSP catabolism occurs via two pathways which have different ecological consequences (Kiene et al., 2000; Todd et al., 2007). Here, we determined that abundant members of the Oceanospirillaceae and Rhodobacteraceae can demethylate DMSP and use this compound as a source of carbon and sulfur. They also possess genes related to glycolate oxidation and taurine transport. Glycolate and taurine are compounds produced by phytoplankton and utilized by specialized heterotrophic bacteria in marine systems (Lau et al., 2007; Amin et al., 2015). The taxonomical link between DMSP/glycolate/taurine catabolism and B12 vitamin production suggests a cross-domain functional interaction to enhance the bloom efficiency. Moreover, the ASP SAR92 genome carries two copies of the dddD gene that confers the ability to produce the volatile DMS from the cleavage of DMSP. This pathway is of particular interest as DMS has been implicated in cloud formation, and thus constitutes an important climate feedback mechanism (Charlson et al., 1987; Ayers and Gillett, 2000). The contribution of SAR92 to the high DMS concentrations detected in the ASP (Tortell et al., 2012) and other Antarctica polynyas has yet to be determined. However, the tight association of SAR92 with P. antarctica colonies during blooms, coupled with the SAR92 capacity to produce DMS, suggests an important role for SAR92 in the Southern Ocean sulfur cycle and an impact on regional climate.

In addition, SAR92 has an extended pool of genes that encode fatty acid catabolism via the beta-oxidation pathway. Phaeocystis blooms at other locations were shown to produce large amounts of polyunsaturated fatty acids (Hamm and Rousseau, 2003). In high concentrations fatty acids are toxic to many algae and thus accumulation of fatty acids inside colonies may be problematic for the health of Phaeocystis cells. It would therefore be beneficial to the alga if associated bacteria were capable of removing fatty acids. SAR92 has the metabolic machinery to do just that provided that they can take up fatty acids. Although, the ASP SAR92 draft genome lacks the FadL/FadR based fatty acid transport systems, it is highly enriched in TonB dependent transport systems (n = 25), which are needed for uptake of—among other substrates—fatty acid linked siderophores. Interestingly, SAR92 was also found in association with phytoplankton blooms elsewhere in the Southern Ocean (West et al., 2008) as well as in the North Sea (Teeling et al., 2012), suggesting an essential role for this organism in bloom ecology.

Cryomorphaceae Related Population has a Unique Set of Host Invasion Functions

The Cryomorphaceae draft genome was characteristic to the size fraction >3 μm in Southern Ocean stations of the Global Ocean Survey (Figure 5), contrasting with the other bacterial genomes mostly detected in smaller size fractions. In the ASP, Cryomorphaceae was the only taxon found in association with Phaeocystis colonies both in the photic and aphotic layers of the ASP (Delmont et al., 2014). Members of this family were also found in association with decaying phytoplankton blooms in temperate waters (Pinhassi et al., 2004) and a culture isolate was directly obtained from P. globosa colonies (Zhou et al., 2013). The Cyromorphaceae draft genome (along with the two other Bacteroidetes-related organisms) carries genes that encode Fe-scavenging siderophores (Soria-Dengg et al., 2001) beneficial for phytoplankton productivity in the Fe-limited ASP (Martin and Fitzwater, 1988; Martin et al., 1994; Boyd et al., 2007). Increased iron availability inside P. antarctica colonies would give Phaeocystis a significant advantage over diatoms and other algae. This bacterial association might go a long way in providing an explanation as to why diatoms are more iron limited than P. antarctica in an Antarctica polynya (Rose et al., 2009) and so contribute to the success of P. antarctica in these systems. In addition, this Cryomorphaceae draft genome contains five genes related to cytochrome c551 peroxidase, an enzyme that catalyzes the conversion of hydrogen peroxide to water (Atack and Kelly, 2006). This function was not detected in other genomes (with the exception of one gene in the SAR92 draft genome) and may protect Phaeocystis from oxidative stress in an environment with up to 400% oversaturation in oxygen (Yager et al., 2012). On the other hand, across the draft genome collection there were several genes that target cell envelope structures that were only detected in this taxon. Several of these functions are related to virulence and host invasion as observed in pathogenic bacteria like Listeria, Legionella, and Staphylococcus. This particular functional pool detected only in Cryomorphaceae, coupled with its preferential association with Phaeocystis, suggests a selective integration inside the colonies and a possible role in Phaeocystis decomposition and bloom demise. Future studies should employ spectral imaging (Valm et al., 2011) and controlled in vitro experiments to visualize the Cryomorphaceae-alga physical interactions and determine the ecological nature and functional consequences of their close association.

Free-living Bacterial Populations can also Impact the ASP Bloom

Essential ecosystem functions were not confined to Phaeocystis associated bacterial taxa. Dominant free-living bacterial populations in the polynya can also play a role in the Phaeocystis bloom ecology. Rhodobacteraceae populations have the capability of oxidizing reduced sulfur compounds to sulfate (sox) and so make a crucial contribution to the pelagic sulfur cycle. The sox pathway was not detected in any of the other bacterial draft genomes. Free-living Flavobacteriaceae have several genes for iron acquisition that were not found in other taxa. They are also known to degrade high molecular weight, dissolved organic matter produced by algae (Williams et al., 2012; Wilkins et al., 2013b). Lastly, the lack of genome assemblies for the free-living Pelagibacter, an abundant member of the ASP bacterial community, suggests that this taxon harbors a high degree of diversity and possibly low synteny among its members and it thus warrants a targeted genome study.

Materials and Methods

Sampling

Water samples were taken with a CTD Rosette equipped during a phytoplankton bloom event in the ASP in 2010–2011. Geochemical characteristics, Phaeocystis physiology, heterotrophic activity and bacterial community structures of these samples have been reported previously (Yager et al., 2012; Delmont et al., 2014; Williams et al., 2014). For our metagenomic investigation we selected DNA from a surface layer sample that was collected in the center of the bloom (073° 34′243S 112° 40′080W, chlorophyll a > 17 μg/L, temperature of −1.2°C, phosphate: 1.31 μM, nitrite: 0.02 μM, ammonium: 0.05 μM, silicate: 77.8 μM) on 19 December 2010. This sample (6 l, 10 m depth) was passed over a 20 μm mesh, collected onto a 0.2 μm Sterivex membrane filter cartridge by pressure filtration, quickly frozen in the headspace of a LN2 dewar and stored at −80°C. DNA extraction was performed using the Puregene kit (Gentra) after disruption of the cells with lytic enzyme coupled to proteinase K (Sinigalliano et al., 2007). DNA was quantified using a Nanodrop 2000 instrument (Thermo Fisher Scientific, Wilmington, DE).

DNA Sequencing

We subsequently generated metagenomic libraries with the OVATION ultralow kit (NuGen) using 100 ng of DNA and 8 amplification cycles. We constructed overlapping (2X100 nt with ~40 nt of overlap) and gapped (2X108 nt with an insert size of ~600 nt) metagenomic DNA libraries using a Pippin prep electrophoresis platform to precisely select the desired length for DNA fragments to be used for sequencing on a Hiseq platform (Illumina). For our gapped reads we used “analyze-illumina-quality-minoche” script that implements the quality filtering approach (Minoche et al., 2011). For our overlapping reads we used “merge-illumina-pairs script” script with default parameters (0 mismatches allowed), which relies on the overlapping region for quality filtering while merging paired-end reads (Eren et al., 2013). Web address http://github.com/meren/illumina-utils gives access to both scripts. The total size of our final quality-filtered dataset was 23 Gb with 159,277,396 sequences. Gapped metagenomic library consisted 88.14% of our final reads. Quality controlled overlapping reads are publically available on MG-RAST (http://metagenomics.anl.gov/) under project ASPIRE and accession number 4520502.3.

Metagenome Assembly and Analysis

First, we annotated our overlapping reads (~160 nt) using MG-RAST (Meyer et al., 2008) to evaluate the overall diversity and functionality of the polynya surface using various reference databases. Then, we used CLC (version 6) to assemble our short reads into larger scaffolds and for mapping. We required a minimum of 97% sequence identity over the full-length of short reads for both the assembly and coverage estimation steps. We analyzed the tetranucleotide frequencies of our scaffolds using an in-house script written in R (Ihaka and Gentleman, 1996). We then used hierarchical clustering (hclust function in stats package for R with Euclidean distance as distance metric) to order our scaffolds based on their tetranucleotide frequency profiles. We generated our draft genomes by binning scaffolds clustered together in well-supported clades represented in the resulting tree. To reduce heterogeneity in our genome bins we also used coverage, GC-content and taxonomy (phymmBL, Brady and Salzberg, 2009 with an e-value cut-off of 10−5) to define our contig clusters. For better taxonomic classification, we increased the resolution of phymmBL by adding the genomes of Pelagibacter ubique (HTCC1062), Marinomonas (MED121), Micromonas pussila (CCMP1545), Phaeodactylum tricornutum (CCAP10551), Polaribacter franzmannii (ATCC700399), Polaribacter irgensii (23-P), SAR92 (HTCC2207), and Thalassiosira pseudonana (CCMP1335). Finally, we removed eukaryotic chloroplast and mitochondria genetic fragments for downstream bacterial genome analyses (these scaffolds were clustered with the bacterial scaffolds due to a more similar evolutionary origin, Douglas, 1998). Note that our metagenomic assembly visualization and binning approaches can be performed using the anvi'o platform (Eren et al., 2015).

Genome Analysis

We used RAST (Aziz et al., 2008) and FIGfam (Meyer et al., 2009) version 64 to annotate our scaffolds. We then compared our draft genomes to available genomes at the protein level in RAST. When performing these comparisons, protein identity scores ranged from 100% when identical to 0% when detected only in our draft genomes. Principal component analyses were performed to compare the functional potential of these draft genomes using R software and the Ade4TkGUI package (Thioulouse et al., 1997). For statistics underpinnings we applied t-test, embedded within STAMP (Parks and Beiko, 2010) to ascertain significance to distribution of functions across genome clusters as well as on relative genome abundances in different metagenome size fractions. Finally, we used Gephi v0.8.2 (Bastian et al., 2009) to generate functional networks (Force Atlas 2) connecting different collections of genomes. Draft genomes (and the proteins they encode for) have been deposited in http://dx.doi.org/10.6084/m9.figshare.1320614 and as NCBI project PRJNA276743 (http://www.ncbi.nlm.nih.gov/bioproject/PRJNA276743). PRJNA276743 also provides proteins and their functions as inferred by NCBI.

Statement of Significance

Massive phytoplankton blooms in climate-sensitive Antarctic polynyas are an ecologically important phenomenon but the functional underpinnings of their intensity and persistence are not entirely understood. Phaeocystis antarctica blooms sustain a distinct bacterial community that was hypothesized to play a role in bloom duration and intensity. The metagenome of a P. antarctica bloom in the Amundsen Sea polynya yielded draft genomes of multiple bacterial taxa, some of which are known to associate with Phaeocystis colonies. The analysis of functional complementarity between P. antarctica and these bacterial taxa revealed essential roles for these taxa in Fe scavenging, vitamin B12 production, fatty acid consumption and sulfur metabolism and contribute significantly to our understanding of phytoplankton bloom ecology in the Southern Ocean.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This work was performed with financial support from NSF Antarctic Sciences awards ANT-1142095 to AP. We are indebted to the crew of the R/V Nathaniel B Palmer, the Raytheon science crew and the ASPIRE team for their assistance with data collection and CTD-Rosette sampling across the Amundsen Sea Polynya. We also want to acknowledge Sherry Simmons for her help in the phymmBL annotation of scaffolds and Emanuel Prestat for providing a script generating tetranucleotide frequencies from scaffolds. Lastly, we are grateful to two anonymous reviewers whose remarks made a great contribution to the presentation and interpretation of the findings presented in this manuscript.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fmicb.2015.01090

Figure S1. Relative abundance of domains of life (A) and most abundant phyla (B) detected in our overlapping metagenomic data depending on the reference database used (using proteins vs. rRNA genes) in MG-RAST (Meyer et al., 2008). Note that the underrepresentation of Eukaryota when using protein databases is probably due to the current lack of eukaryotic genomes available.

Figure S2. Hierarchical clustering (Euclidean distance metric) based on tetranucleotide frequency profiles of the 371 scaffolds representing the cluster 2 of Figure 1. Informative layers were added below to the clustering tree. Taxonomical affiliation was inferred using phymmBL (Brady and Salzberg, 2009).

Figure S3. Hierarchical clustering (Euclidean distance metric) of 848 scaffolds (>5 kb in length) based on their tetranucleotide frequency profiles. Scaffolds were assembled using 10 million gapped reads to optimize the recovery of the most dominant genetic structures. Four informative layers were added below to the clustering tree. Taxonomical affiliation was inferred using phymmBL (Brady and Salzberg, 2009).

Figure S4. Hierarchical clustering (Euclidean distance metric) of 1000 scaffolds (>6.7 kb in length) based on their tetranucleotide frequency profiles. Scaffolds were assembled using 20 million gapped reads to optimize the recovery of the dominant and sub-dominant genetic structures. Four informative layers were added below to the clustering tree. Taxonomical affiliation was inferred using phymmBL (Brady and Salzberg, 2009).

Figure S5. Hierarchical clustering (Euclidean distance metric) of 1000 scaffolds (>10.1 kb in length) based on their tetranucleotide frequency profiles. Scaffolds were assembled using 40 million gapped reads to optimize the recovery of the dominant and sub-dominant genetic structures. Four informative layers were added below to the clustering tree. Taxonomical affiliation was inferred using phymmBL (Brady and Salzberg, 2009).

Figure S6. Hierarchical clustering (Euclidean distance metric) of 3553 scaffolds (>6 kb in length) based on their tetranucleotide frequency profiles. Scaffolds were assembled using the entire metagenomic dataset to optimize the recovery of the less abundant genetic structures. Five informative layers were added below to the clustering tree. Taxonomical affiliation was inferred using phymmBL (Brady and Salzberg, 2009). A cluster of 1071 scaffolds affiliated to Micromonas and representing a total of 19.6 Mb was recovered from this analysis.

Figure S7. Length of scaffolds associated to the Micromonas ASP10-1a draft genome. A scaffold length logarithmic regression curve was performed (R2 > 0.997). A total of 437 scaffolds smaller than 6 kb (representing 1.3 Mb) are estimated to be missing from the draft genome. Note that the completion score of 93.8% is only based on this scaffolds length regression curve.

Figure S8. Network connecting the Micromonas ASP10-1a draft genomes recovered from the Amundsen polynya plus four Chlorophyta genomes and their annotated functions from RAST (Aziz et al., 2008) (a total of 3.086 functions). The network was performed using Gephi (Bastian et al., 2009) and Force Atlas 2.

Dataset S1. Statistical analyses (t-test and equal variance, p-value cut-off of 0.05) of functions detected in the six bacterial draft genomes (n = 4253) in order to discriminate functions differentially present between (I) taxa (Bacteroidetes vs. Proteobacteria) and (II) life styles [free-living taxa (Rhodobacteraceae; Polaribacter; Flavobacteriaceae) and particle-associated taxa (Oceanospirillaceae; SAR92; Cryomorphaceae)].

Dataset S2. Summary of online blastx against nr (NCBI database) for 86 genes of particular interest in the study. RAST ORFs can be found in the Genbank files. Note that only the first best hit matching the RAST functional annotation is summarized. All e-values were below e-10.

Dataset S3. Metadata summary for the Global Ocean Survey stations utilized in Figure 5.
