Bacterial Colonies in Solid Media and Foods: A Review on Their Growth and Interactions with the Micro-Environment
- 1INRA, UMR1253, Science and Technology of Milk and Eggs, Rennes, France
- 2AGROCAMPUS OUEST, UMR1253, Science and Technology of Milk and Eggs, Rennes, France
Bacteria, either indigenous or added, are immobilized in solid foods where they grow as colonies. Since the 80's, relatively few research groups have explored the implications of bacteria growing as colonies and mostly focused on pathogens in large colonies on agar/gelatine media. It is only recently that high resolution imaging techniques and biophysical characterization techniques increased the understanding of the growth of bacterial colonies, for different sizes of colonies, at the microscopic level and even down to the molecular level. This review covers the studies on bacterial colony growth in agar or gelatine media mimicking the food environment and in model cheese. The following conclusions have been brought to light. Firstly, under unfavorable conditions, mimicking food conditions, the immobilization of bacteria always constrains their growth in comparison with planktonic growth and increases the sensibility of bacteria to environmental stresses. Secondly, the spatial distribution describes both the distance between colonies and the size of the colonies as a function of the initial level of population. By studying the literature, we concluded that there systematically exists a threshold that distinguishes micro-colonies (radius < 100–200 μm) from macro-colonies (radius >200 μm). Micro-colonies growth resembles planktonic growth and no pH microgradients could be observed. Macro-colonies growth is slower than planktonic growth and pH microgradients could be observed in and around them due to diffusion limitations which occur around, but also inside the macro-colonies. Diffusion limitations of milk proteins have been demonstrated in a model cheese around and in the bacterial colonies. In conclusion, the impact of immobilization is predominant for macro-colonies in comparison with micro-colonies. However, the interaction between the colonies and the food matrix itself remains to be further investigated at the microscopic scale.
Bacteria in food products, whether those added as inocula or those naturally present, are always immobilized. They develop as colonies, either on the surface of or embedded within the food matrices and interact with their micro-environment (Hickey et al., 2015). As previously stated (Hills, 2001), the bacterial cells of the colony “consume the nutrients from the surrounding (food) matrix and in return, liberates end-products into the surrounding matrix modifying its micro-environment.”
Bacterial colonies and biofilms are both formed by clusters of bacteria. Whilst published research focusing on biofilms is abundant (Flemming and Wingender, 2010), that based on the bacterial colony is relatively scarce, especially with respect to food. The question remains unanswered whether there are different phenotypes of bacteria making up biofilms and colonies (and especially surface colonies). A biofilm is well-defined as: “a microbiologically derived sessile community characterized by cells that are irreversibly attached to a substratum or interface or to each other, are embedded in a matrix of extracellular polymeric substances that they have produced, and exhibit an altered phenotype with respect to growth rate and gene expression” (Donlan and Costerton, 2002). On the other hand, bacterial colonies are not so well-defined. In this review, a bacterial colony is taken as a clonal group of cells developed either on the surface of or embedded within a gel-type solid (culture medium or food) from which it takes its growth substrates. Unlike biofilms, a colony is limited by size displaying a definite maximum radius ranging between a few μm to a few mm. As the production of extracellular polymeric substances has never been investigated in colonies, we considered not to be a mandatory property. This review will focus only on bacterial colonies and exclude biofilms.
The literature on growth and metabolism of bacteria growing in colonies is scarce. Usually, growth and metabolism of food bacteria (whether desirable or undesirable) are studied in broth media, i.e., in planktonic cultures. However, in order to predict the growth of bacteria in food, it is preferable to perform the study in conditions that closely reflect the natural condition, i.e., in solid model foods. Furthermore, it has been shown that the predictive models of growth built from data taken from liquid cultures are not accurate in describing immobilized growth, especially under stressful conditions that exist in a food medium (Pipe and Grimson, 2008; Skandamis and Jeanson, 2015). Although, the context of most studies cited in this review relates to food, all of them were performed using laboratory media, such as agar or gelatine media, mimicking the growth parameters of food (aw, pH, NaCl concentration, etc.). It is only very recently that model foods, such as a model cheese, have been used to study the growth of bacterial colonies in situ. Both agar/gelatine and foods are matrices in which bacterial colonies can be embedded (submerged colonies), or on which bacterial colonies can attach (surface colonies). However, there is a major difference between agar/gelatine based media and food matrices. Agar/gelatine media are “neutral” matrices because agar and gelatine are not themselves modified by bacteria, whilst food matrices constitute both a structure and a bound substrate for the bacteria. For example, caseins in cheese are a gel-type structure and also provide nitrogen sources to bacteria. This means that food matrices may change by the bacterial activity.
The aim of this review is to describe the growth of colonies by pointing out when and how it differs from the planktonic growth. We particularly discuss the occurrence of variability at the microscopic scale of the physiological states inside the colony, of pH inside and around colonies and of oxygen around the colonies. The diffusion of substrates within the matrix and the access of bacteria to the substrates is also a major concern for the bacterial activity. The second objective is to build concepts on the different situations when growth of bacteria is impacted by the growth in colonies or not, depending on the initial level of population and two other concepts on the different ways of interacting with a food matrix, i.e., “bubble” or “sponge” concepts. Finally, experimental exploration of these two concepts will be examined in model cheese. Furthermore, a large table assembles the main parameters of growth and size of colonies for different experimental culture conditions studied with several bacterial species (Table 1).

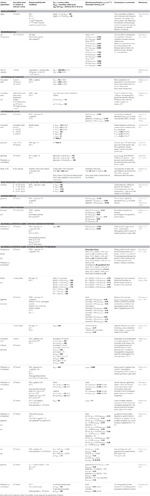

Table 1. Summary of the main studies about growth kinetics and distribution (size and neighboring distances) of bacterial colonies, with details of experimental conditions, and main conclusions.
Historical Perspective of the Scientific Community Working on Bacterial Colonies
As early as the 60's, Pirt, of the University of London, had started to take into account the immobilization of bacteria in the predictive growth models (Pirt, 1967). More recently the 90's, Wimpenny, from the University of Wales, started to study the consequences for bacteria by growing as colonies. Wimpenny et al. (1995), Thomas and Wimpenny (1996b), and McKay et al. (1997) performed studies on pathogenic bacteria, mostly as large colonies (>500 μm), either surface or submerged, on an agar medium. They determined several characteristics of the behavior in colonies comparing with planktonic growth, such as growth rates under different conditions, and pH gradients within and around colonies of different sizes. Before the research on this topic stopped at the University of Wales, Wimpenny collaborated with Brocklehurst (Walker et al., 1997; Wilson et al., 2002) of the Institute of Food Research (Norwich, UK) who was also working on the immobilized growth of pathogenic bacteria. Brocklehurst and his group (Parker et al., 1998; Wright et al., 2000; Meldrum et al., 2003) developed and patented the Gel Cassette System (Brocklehurst et al., 1995). This system has become the ideal tool to study submerged colonies in gelatine and agar media, which was associated with a non-destructive and in situ microscopic examination. It comprises a 2 mm thick frame in a PVC sleeve shown to be permeable to gas. The inoculated medium solidifies inside the frame and the immobilized cells develop as colonies within the formed solid gel. Subsequently, Brocklehurst collaborated with Malakar (Wageningen University, Netherlands) who worked on pH microgradients, introducing imaging techniques (Malakar et al., 2000), and on interactions between colonies of lactic acid bacteria (Malakar et al., 2003) and at a later date with Van Impe (Leuven University, Belgium) whose group still works at improving predictive growth models for immobilized pathogenic bacteria in gelatine media (Antwi et al., 2007; Mertens et al., 2012; Boons et al., 2013). Van Impe studied mostly large pathogen bacterial colonies grown in agar or gelatine media and used micro-electrodes to measure pH. More recently, high resolution imaging techniques have allowed the (i) exploration of small colonies (< 100 μm), (ii) measurement of pH down to a resolution of a few μm, and (iii) increasing numbers of monitored parameters like variability of shape, of growth in which single-cell variability, and of metabolism (Bae et al., 2011a; Gonzalez et al., 2012; Knudsen et al., 2012; Koutsoumanis and Lianou, 2013; Ryssel et al., 2013; Vilain et al., 2014). Other research groups have recently compared planktonic and immobilized bacterial growth using molecular techniques to study the difference of gene expression (Knudsen et al., 2012) and protein expression (Knudsen et al., 2012; Vilain et al., 2014). Microcalorimetry has been recently used to study the carbon metabolism at different inoculation levels (Kabanova et al., 2012). The techniques used to study the immobilized bacterial colonies are described in a recent review (Lobete et al., 2015). Imaging fluorescent techniques have allowed the observation of colonies within an opaque matrix such as model cheese. Our group, at the French National Institute for Agricultural Research (INRA, Rennes, France), explores small colonies of lactic acid bacteria (LAB) and their dynamic micro-environment in a model cheese (pH, diffusion of substrates in and around colonies, etc.) in order to better understand the role of LAB during cheesemaking and ripening at the microscopic scale (Jeanson et al., 2011, 2013; Floury et al., 2013, 2015). We also investigated the role of the size of colonies during ripening by combining omics techniques (Le Boucher et al., 2013, 2015a).
What does Immobilization Imply for the Growth of Bacteria?
The growth of colonies has been studied using a qualitative approach and several publications have described how a bacterial colony grew on and within a solid matrix, how they were distributed depending on the inoculation level, and how neighboring colonies interacted with each other either from the same or different species.
Growth of Immobilized Colonies
Since the first studies, it has been demonstrated that the growth of bacterial colonies on the surface is a concentric pattern (Wimpenny, 1992). Cell division starts from the initial immobilized cell, with the colony expanding progressively at the periphery thus following a concentric pattern (Wimpenny, 1992; Pipe and Grimson, 2008). In the exponential growth phase, the number of cultivable cells is linearly correlated to the Log(colony volume) (Wright et al., 2000; Theys et al., 2009b) for submerged colonies or to the Log(colony area) (Guillier et al., 2006; Skandamis et al., 2007; Mertens et al., 2012) for surface colonies. Image analysis techniques have thus been proposed to replace the time-consuming plating techniques. The height of a bacterial colony growing on a surface of a medium was modeled as a function of the glucose concentration of the medium. Indeed, the glucose concentration is low on the top of the colony. It has been suggested that the growth of bacteria and the development of pH profiles in and around the colony were determined by the local presence, and diffusion of glucose, in the medium beneath the colony (Wimpenny, 1992). This was the main reason offered to explain why the growth of immobilized cells may be different from that of planktonic cells. It has been demonstrated that most of the mathematical models based on a laboratory broth overestimate the bacterial growth in milk, and even more so its growth in cheese-like media (Theys et al., 2009a).
In conclusion, all the studies on bacterial colony growth have suggested that the growth of colonies (growth rate, final size, and shape) was determined by local concentration of substrates and thus by possible limitations of the diffusion of substrates or end-products in solids (McKay et al., 1997; Walker et al., 1997; Malakar et al., 2002b; Pipe and Grimson, 2008).
Distribution of Colonies: Size of Colonies and Distances between Colonies
When considering the dimensions of a colony, there are two radii of particular importance: the colony radius from the center of the colony to its periphery (Rcol), and the boundary radius from the center of the colony to the limit of its influence on the medium (Rbnd) (Malakar et al., 2002a). Figure 1 illustrates these two radii: the colony itself is defined by the radius (Rcol) and its “living space” is defined as the region around the colony (Rbnd) within which the activity of the bacterial cells is measurable (dashed line), for example by the consumption of substrates and/or production of end-products. The larger the colony (large Rcol), the higher the activity of the colony, the greater the “living spaces” (large Rbnd). Furthermore, the larger the radius Rbnd, the greater the distance for the substrate to diffuse to reach the colony. The value of Rbnd at the moment of an inoculation of 1 cfu/ml was estimated to be five times longer that for an inoculation of 100 cfu/ml (Malakar et al., 2002a).
Figure 1. Representation of the colony and its surrounding “living space” (the area within which the colony is active) with the two respective radii Rcol and Rbnd; d is the distance between two neighboring colonies. Adapted from Malakar et al. (2002a) and Wimpenny (1992).
The spatial distribution of bacterial colonies is defined by the size of colony and the distances between neighboring colonies. It was measured for the first time in a model cheese, varying with the inoculation levels of a prt− strain of Lactococcus lactis ranging from 105 to 107 cfu/ml, i.e., within the range used in cheese manufacture (Jeanson et al., 2011). The theoretical distances between colonies were first estimated assuming that (i) all the cells in the inoculum gave rise to a colony and (ii) that they were randomly distributed (Poisson l aw). These two assumptions were confirmed from experimental data obtained by confocal image analysis. It was also demonstrated that the final population was always the same regardless of the inoculation level (Jeanson et al., 2011). As a consequence, the size of colonies was negatively correlated to the level of inoculation, that is, the lower was the inoculation level, the larger the colonies. The distances between neighboring colonies were 123 and 34 μm for inoculation levels of 2 × 105 and 9.6 × 106 cfu/ml, respectively (Table 1). A separate study (Kabanova et al., 2012), carried out using agar, gave the spatial distribution parameters from experimental data of a larger scale of inoculation levels of a strain of L. lactis (from 100 to 106 cfu/ml). The values of distances and radii measured were slightly smaller than those reported by Jeanson et al. (2011) (Table 2). However, the latter used isothermal microcalorimetry which is based on dynamic measurements of heat flow rate. Measurements and calculations of colony radii are mostly in agreement for the strains of the two species (Lactococcus lactis and Streptococcus thermophilus) reaching final populations over 109 cfu/ml whether they were grown in agar medium or in milk gel/model cheese (Table 2). In the agar medium, the shape of colonies was lenticular; this may explain the difference between the measured and the calculated values. Moreover, the L. lactis strain (lac−/prt−) producing Green Fluorescent Protein (GFP) used by Jeanson et al. (2011) produced smaller colonies in the model cheese because it reached a lower final population (5 × 108 cfu/ml).
Table 2. Size of colonies (calculated by microcalorimetric method or measured from micrographs) as a function of different inoculation levels of two different species of lactic acid bacteria grown in agar, milk gels, or in model cheese.
For a given inoculation level, the variation of the radii of bacterial colonies followed a Normal distribution centered on the mean radius. Indeed, considering that a colony arises from a single cell, the asynchrony of division of any bacterial culture (Kreft et al., 1998) may explain the variability of the colony radii. Some immobilized cells start their division later than others but all cells stopped to grow at the same time. As a result, different numbers of divisions may occur in neighboring colonies (Koutsoumanis and Lianou, 2013).
Distances between Colonies and Interactions between Different Bacterial Species
If the distance between two neighboring colonies (denoted as d) is greater than Rbnd, one can consider that there is no interaction between the colonies, but if it is closer one can consider that some level of interaction exists (Figure 2 and Table 1). This applies whether the neighboring colonies comprise the same strain or are formed from different strains or species. Interactions between different species may be in the form of competition for the same substrate (Thomas and Wimpenny, 1996b) or of inhibition because of production of metabolites such as a bacteriocin like nisin (Thomas and Wimpenny, 1996a) or lactic acid (Antwi et al., 2007). This review focuses on the few studies on colonies taking into account the distances between the inhibiting and the affected colonies. Wimpenny et al. (1995) introduced the concept of “propinquity” defined as the maximum distance between neighboring colonies at which there is still interaction.
Figure 2. Representation of two situations of neighboring colonies. (A) When the production of lactic acid of one colony does not impact on its neighbors and (B) when the production of lactic acid of one colony does impact on its neighbors. Adapted from Malakar et al. (2002a) and Wimpenny (1992).
A strain of Salmonella enterica subsp. enterica serotype Enteritidis (named S. Enteritidis thereafter) inhibited a strain of Pseudomonas fluorescens, while a strain L. lactis subsp. lactis inhibited a strain of Listeria monocytogenes on agar media (Wimpenny et al., 1995). The results showed that the inhibition only occurred if the inoculation level of the inhibiting strain was above 30–100 cfu/ml which corresponded to an average distance between the colonies of 1.4–2.2 mm. These results were then confirmed in another study (Thomas et al., 1997) with strains of L. monocytogenes and L. lactis. The Listeria strain was inhibited either by nisin from a nisin-producer Lactococcus strain or, to a lesser extent, by lactic acid production from a non nisin-producer strain. In both cases, the inhibition increased when the distance between colonies of the two species fell from 11 mm to 100 μm. A maximum inhibition distance of 5000 μm was determined, for the inoculation levels of 12 and 4 cells/ml for L. lactis and L. monocytogenes, respectively, beyond which there was no further inhibition (Thomas et al., 1997).
In conclusion, as low inoculation levels correspond to the formation of colonies far apart (d > 1.5–5 mm), it has been suggested that for inoculation levels of 100 cfu/ml and below, no interactions between colonies will occur (Malakar et al., 2000). On the other hand, for an inoculation level greater than 100 cfu/ml, interactions between colonies can be expected (Figure 2).
Growth in Colonies: When and How It Differs From Planktonic Growth
The growth of bacteria as colonies is subjected to several constraints that are absent in planktonic cultures, such as a necessary diffusion of substrates through the solid matrix, with potentially limited access to the substrates. Predictive growth models for bacteria have mainly been based around parameters taken from planktonic cultures and led to the observation that they were not applicable for modeling immobilized growth (Pipe and Grimson, 2008; Skandamis and Jeanson, 2015). Attention was thus given to understand when and how immobilized growth differed from planktonic growth, especially under the stressful conditions of the food environment. In this section, two aspects of the consequences of immobilization of bacteria are presented: (i) their responses to conditions of stress and (ii) on the micro-heterogeneity of the micro-environment inside and around the colonies.
Narrower Boundaries of Growth/No Growth Regions under Stressful Conditions
The environment existing in food products rarely provides optimal conditions for the growth of microorganisms. The main factors affecting the bacterial growth in food are temperature, pH, NaCl concentration, water activity (aw) and substrate concentration. Increasing the NaCl or sucrose concentrations also decreases the aw and increases the osmotic pressure, with combined negative effects. Several studies have modified these parameters to determine the conditions leading to growth and no growth conditions comparing planktonic and immobilized bacterial growth. Most of these studies have focused on pathogenic species, aiming at predicting or preventing their growth in food. The experimental details and results from the most cited studies in the literature are listed in Table 1.
The growth of a strain of Salmonella enterica subsp. enterica serotype Typhimurium (named S. Typhimurium thereafter) in gelatine medium was compared to its growth in broth, at different conditions of pH and NaCl (Brocklehurst et al., 1995). The results show that S. Typhimurium behaves the same when growing in colonies and in a planktonic culture when under optimal conditions (pH = 7 and NaCl concentration of 0.5%). However, the generation time t (t = log2/μ where μ is the growth rate) was increased by a factor between 1.3 and 2 in the more stressful conditions (pH = 5 and NaCl concentration of 3.5%). The growth rates of this bacterial strain were thus ordered as follow: μplanktonic > μsubmerged > μsurface regardless of the aw when the NaCl concentration was 0.5%, and regardless of the NaCl concentration for maximum aw (Brocklehurst et al., 1997). The maximum viable cell counts were less affected by a low value of aw reduced by high sucrose and NaCl concentrations if the colony was submerged rather than on the surface. An explanation could be that the substrates are only accessible through the small area of the underside of surface colonies, whilst it is accessible all around the colony on a bigger area when submerged. By comparing a strain of S. Typhimurium growing as submerged colonies or in planktonic culture, it was shown that the aw was the most influential parameter on the growth rates (Theys et al., 2008). However, decreasing aw by increasing NaCl concentration was relatively more harmful to the growth of colonies, because of the combined effect on osmotic pressure, than by increasing gelatine concentrations of the media (Theys et al., 2010). In agreement with the latter, a lower growth rate of growth was observed in planktonic cultures than in submerged colonies of a strain of S. Typhimurium and the growth in colonies increased its sensitivity to the inhibition exerted by oregano oil (Skandamis et al., 2000). Surprisingly, the growth rate of submerged colonies of S. Typhimurium was found lower in broth than in agar medium, but lower in gelatine medium than in broth (Walker et al., 1998). Furthermore, when the growth rate was not affected by the immobilization of bacteria, the lag phase was increased in comparison to planktonic growth (Knudsen et al., 2012; Nielsen et al., 2013). Figure 3 is an example of the detrimental effect of immobilization of bacteria on their growth when under severe conditions such as low pH and high concentration of NaCl.
Figure 3. Growth/no growth regions of Salmonella Typhimurium in TSB (tryptic soy broth) at 20°C as a function of pH and NaCl concentrations, with gelatine concentrations of 0 and 50 g/l. Adapted from Theys et al. (2010).
Similarly, a strain of L. monocytogenes always displayed a lower growth rate when in submerged colonies than in the planktonic form regardless of the sucrose concentration (ranging from 0 to 60%) and the initial pH of the medium. Furthermore, the minimal pH for enabling growth was higher (pH = 5) in colonies than in a planktonic culture (Meldrum et al., 2003). L. monocytogenes growth was also shown to be affected by immobilization at low pH and low aw (Koutsoumanis et al., 2004) as shown on Figure 4. However, in this study, aw had been decreased by increasing the NaCl concentration, the harmful effects of both the NaCl and a low aw were thus combined.
Figure 4. Growth/No growth regions of Listeria monocytogenes in broth (solid line) and in agar (dotted line) medium at 25°C as a function of pH and aw, (modified by increasing the NaCl concentration). Adapted from Koutsoumanis et al. (2004).
The growth of a strain of Listeria innocua inoculated at 103 cfu/ml in milk and in gelatinized milk was compared. The growth rates substantially decreased when the concentration of gelatine in the medium was raised from 0 to 50% (Theys et al., 2009a). Under the same conditions, a strain of L. lactis was even more detrimentally affected by the increase in gelatine in pasteurized milk (Antwi et al., 2007). The same conclusions were drawn for two LAB strains: the growth rate as colonies was lower than in a broth but only when the inoculation level was lower than 103 cfu/ml for L. lactis (Kabanova et al., 2012) or lower than 100 cfu/ml for Lactobacillus curvatus (Malakar et al., 2002a). Two studies, using the same Lactococcus strain grown in M17 media, showed that, for inoculation levels above 102 or 104 cfu/ml (Kabanova et al., 2012, 2013): (i) there was no glucose diffusion limitation in agar at 1%, (ii) the value of μmax in agar was similar to that in broth during the exponential growth phase, (iii) the LAB strain switched to a heterofermentative metabolism in agar, thus producing less lactic acid with the same amount of glucose, and stopping growth at a higher pH in agar (Kabanova et al., 2013).
The conclusion from all these results is that the growth of bacteria in colonies differs from the planktonic growth, (i) below a specific inoculation level (depending on the species or the strain of bacteria) and (ii) especially in stressful conditions because of narrower boundaries of conditions conducive to growth.
Heterogeneity in and Around Colonies (Growth, pH, Oxygen)
The heterogeneity in and around the colonies results from different aspects of the bacterial activity: growth rates (or lysis), substrate consumption and metabolic activity. The potential existence of microgradients within and around the colony would suggest that the environmental conditions (pH, oxygen, redox potential, etc.) experienced by the cells of the colony are not those of the mean values for the medium (Hills, 2001). The metabolic action, either with respect to the consumption of substrates or the production of end-products, is likely to create microgradients of concentration that cause the heterogeneity of bacterial activity inside the colony. Firstly, the studies about the heterogeneity of growth and metabolic activity inside colonies are discussed. Then, with the technical evolution from micro-electrodes to the recent imaging techniques, the possible existence of microgradients in the environmental parameters inside and around the colony is discussed. These parameters include the pH, resulting from production of lactic acid, and oxygen concentration, resulting from its consumption by bacteria. In order to measure the different types of spatial heterogeneity, all studies were performed on large colonies, mostly on the surface of agar/gelatine media (see Table 1 for details).
Heterogeneity of Growth Rate and Metabolic Activity between Cells of the Colony
Two types of heterogeneity within the colony have been shown: (i) a gradient of growth rates or metabolite production from the center to the periphery of the colony arising because of the concentrical growth pattern (Wimpenny, 1992), and (ii) a random heterogeneity due to random differences of division or gene expression between cells (Mikkelsen et al., 2007) which has been observed even in small colonies. Different aspects of the heterogeneity can be observed: morphology, growth rates, or metabolic activity (metabolite pattern).
For large colonies, rings exhibiting different morphologies were described (Rcol = 750 μm) for Escherichia coli with cells modifying their morphology when aging (Shapiro, 1987), as well as rings with different cell densities for colonies (Rcol = 250–450 μm) of different species of Bacillus (Kim et al., 2014). The spatial heterogeneity of colony growth, between active growth for the periphery cells and maintenance activity for the central cells where glucose was scarce, was modeled for Bacillus (Kreft et al., 1998). Growth rates were measured in the center and at the periphery of a large (Rcol > 200 μm) colony of S. Typhimurium (McKay et al., 1997). Soon after the formation of the colony (13 h), the growth rate at its periphery was twice that of the center, demonstrating that the periphery of a large colony was the region of maximum metabolic activity (Figure 5 and Table 1). The growth slowed down in the center of the colony due to the accumulation of lactic acid possibly combined with the depletion of glucose or carbon sources.
Figure 5. Simplified model illustrating the spatial variations in the specific growth rate (μ) within a growing bacterial colony of a facultative anaerobe, such as Salmonella Typhimurium. Adapted from McKay et al. (1997).
Metabolic heterogeneity has been described by the observation of gradients in lysis activity, as well as gradients of metabolite production or enzyme activity within the colony. An intense lysis of cells was observed in the center of colonies of Vibrio cholerae by using a vital stain of the cells (Wimpenny, 1992). Large surface colonies (Rcol ≈ 350 μm) of Enterobacter cloacae were sliced (10 μm) from top to bottom, to measure the NADH oxidase activity (Wimpenny, 1992). As oxygen is more available at the surface of the colony, higher activities were found in the upper 100 μm layer. The same conclusion was drawn from using Fourier transform infrared (FT-IR) microspectroscopic mapping of large colonies of Bacillus megaterium (obligate aerobes) and Legionella bozemanii (microaerophiles). The cells at the top and in the center bottom layers (the “oldest” cells) got the maximum concentrations of capsule components for B. megaterium and of poly-β-hydroxybutyric acid, a storage material present in intracellular granules, for L. bozemanii (Ngo Thi and Naumann, 2007). In E. coli colonies (Rcol = 1 mm), vibrational spectroscopy spectra also showed that for the oldest cells in the surface layers, the RNA level was lower than that in younger cells in the deeper layers (Choo-Smith et al., 2001).
For smaller colonies, results are less clear. For example, the adenylate pool which includes ATP has been shown to be affected by the growth in submerged colonies of S. Typhimurium (Walker et al., 1998). The authors suggested that the variation of adenylate production through incubation time, in comparison with broth culture, could be due to an heterogeneity within colonies but this heterogeneity has never been proved. In small colonies (Rcol = 40–60 μm) of E. coli, three distinct zones could be observed (center, intermediate and edge) using FT-IR spectra (Ngo-Thi et al., 2003). On the other hand, elastic-scattering patterns of small colonies (Rcol = 50–100 μm) of L. monocytogenes, E. coli, and Salmonella Montevideo, showed no microgradients of metabolite concentration (Ngo-Thi et al., 2003; Bae et al., 2011a), indicating that their mean profile was representative of the whole colony. Small colonies (Rcol = 25 μm) of E. coli have also been shown to be quite homogeneous using vibrational spectroscopy and it was even suggested that 6 h colonies were the most suitable for building an identification data base (Choo-Smith et al., 2001). Identification at early stage of growth of bacterial colonies was possible using a new highly sensitive and non-destructive technique, chromatic confocal microscopy (Drazek et al., 2015).
Finally, the variability of phenotype randomly occurs when a sub-population develops under stressful conditions, either in colonies or in planktonic cultures. This phenomenon was observed under acid stress conditions for small colonies of L. plantarum (Ingham et al., 2008) and for B. cereus under severe salt stress (den Besten et al., 2007). Heterogeneity of division and shape was observed in small colonies of L. brevis (from an initial cluster of a few cells through to several generations) after exposure to an oxidizing disinfectant (Zhao et al., 2014). In small colonies of six different strains of L. lactis, the area of dead cells, measured using propidium iodide in microscopy, correlated with growth rates. The dead cells were randomly distributed until 38 h, and were then concentrated in the center of the colony at 134 h (Ryssel et al., 2013).
In conclusion, putting aside the natural random variability of phenotype, these results show, by mapping the growth and the metabolites of large colonies (Rcol > 250 μm), that cells differentiate during the stage of growth within the colony. For this reason, small colonies are homogeneous because all cells exhibit the same growth state.
Gradients of pH in and Around Colonies
The production of lactic acid from bacteria has often been suggested to be the reason why growth stops, due to the accumulation of lactic acid in and around colonies. Using micro-electrodes and then pH-sensitive fluorophores, pH microgradients were recorded only in the case of large colonies, in and around colonies grown on agar/gelatine. However, the question remained if there were also pH microgradients around small colonies or in food such as cheese.
Using micro-electrodes, the first pH profiles were performed only on large colonies because of the poor resolution of the technique. Microgradients of pH were observed in and around large colonies (Rcol ≈ 10 mm) of Bacillus cereus (Wimpenny, 1992) and large surface colonies (Rcol = 800 μm) of S. Typhimurium (Walker et al., 1997). Inoculated at 1 cfu/ml with supplementation of glucose at 1%, a difference of 2 pH units was generated between the center of the colony and the edge of the gel (a distance of 1.2 mm); this difference was only 0.5 pH units in a medium supplemented with glucose at 0.1% (Figure 6 and Table 1). For submerged colonies (Rcol = 200 μm) of S. Typhimurium in agar gels, Wimpenny et al. (1995) observed a span of pH of 0.8 pH units from the periphery of the colony to the surface of the agar gel (a distance of 3 mm). In contrast, colonies of S. Typhimurium inoculated at 103 cfu/ml (Rcol = 200 μm) did not generate measurable pH gradients but modified the pH in the whole bulk medium (Walker et al., 1997). Using ratio-imaging fluorescence, pH microgradients were observed in and around submerged colonies of L. curvatus when inoculated at between 5 and 100 cfu/ml (leading to colonies of Rcol = 215 and 190 μm, respectively) but no pH variation was observed when inoculated at 1000 cfu/ml (Rcol = 75 μm) (Malakar et al., 2000).
Figure 6. pH profile through a 2-day old colony of Salmonella Typhimurium, inoculum density 1 cell/ml, initial pH 7.0, glucose at 1% (w/v). Solid squares indicate points where actual measurements were taken. Solid lines indicate pH isopleths which represent an approximation of where the pH gradients may lie. The green area shows colony location. Adapted from Walker et al. (1997).
In order to confront the observations in agar and gelatine to a real food medium, pH was measured at the microscopic level in a model cheese and in real commercial cheeses. Using ratio-imaging fluorescence, local pH was measured during the acidification of colonies of L. lactis whose radii ranged from 17.5 to 55.5 μm, corresponding to the lowest inoculation levels possible in cheesemaking, ranging from 1.3 × 103 to 1.6 × 105 cfu/ml, respectively (Jeanson et al., 2013). Regardless of the observed colony size, no pH microgradients could be observed around colonies (Figure 7). Furthermore, in the same model cheese, the same strain of L. lactis displayed no evidence of acid stress at the gene expression level (Cretenet et al., 2011). These results are in agreement with those described above and observed in a gelatine medium for colonies of L. curvatus up to 150 μm (Malakar et al., 2000). These consistent results demonstrate that the diffusion of lactic acid was not the limiting factor for growth neither in gelatine nor in a model cheese containing colonies which radius was smaller than 150 μm. Furthermore, in ripened commercial Cheddar cheeses, pH microgradients have been observed at the microscopic scale of a few μm using the fluorescence life-time (FLIM), but not especially around colonies (Burdikova et al., 2015). The accumulation of lactic acid around the colonies has been suggested as the main explanation for the lower growth rate in renneted milk gels when compared with that in liquid milk (Stulova et al., 2015). The simplified composition (no fat, no NaCl) and the homogeneous structure of the model cheese (Jeanson et al., 2013) may explain the non-accumulation of lactic acid around small colonies whilst in commercially available cheeses (Burdikova et al., 2015), lactic acid concentration may vary at the microscopic scale because of a more heterogeneous microstructure.
Figure 7. pH profiles measured using a pH-sensitive fluorophore (C-Snarf-4) and confocal microscopy for a colony (radius = 65 μm) growing in a model cheese throughout acidification: 19 h (), 24 h (), 26 h (), and all measurements from 42 to 72 h (red bold line, ). Adapted from Jeanson et al. (2013).
Gradients of Oxygen Concentration around Colonies
Oxygen (O2) is one of the most important parameters for determining the behavior of bacterial growth. Depending on the species, O2 can be favorable to growth (aerobes) or inhibiting (anaerobes), or even “neutral” (microaerophilic). For example, for facultative anaerobes such as S. aureus or E. coli, the cell division has been shown to be more intense on the bottom layer of the colony where O2 is scarce and substrates are abundant (Reyrolle and Letellier, 1979). On the other hand, for aerobes such as Pseudomonas putida, the top layer of the colony was the zone of the most intense cell division (Reyrolle and Letellier, 1979). Oxygen gradients were first measured inside a colony of B. cereus in 1983 using micro-electrodes (Pipe and Grimson, 2008). It has been measured mainly on large surface colonies because O2 is present over the whole surface of the colony. The O2 concentration decreases with depth moving within the colony and also in depth through the medium below and around the colony in all directions (Wimpenny, 1992). The aerobic zone is considered to exist through 30–40 μm depth in a gelatine medium (Walker et al., 1997). However, Tammam et al. (2001), questions the use of micro-electrodes because they can give non-reproducible results due to the poisoning of the platinum electrodes by other ions. Instead, these authors developed in situ mass spectroscopy measurements to investigate the concentrations of O2 and CO2 concentrations in MRS agar inoculated with a strain of L. paracasei (Tammam et al., 2001). Their results show that O2 was rapidly consumed by LAB metabolism, while CO2 was produced as expected. They showed that in the aerobic zone, there was a gradient of O2 concentration through a 5 mm depth in agar after 24 h of inoculation whilst gradients of CO2 concentration occurred in the same zone but through a 20 mm depth (Figure 8).
Figure 8. CO2 and O2 concentration profiles with depth at 24 h (♦) and 48 h (■) after inoculation with Lactobacillus paracasei CI3 in MRS 0.1% agar. A MIMS (membrane inlet mass spectrometric) probe was inserted through column of growth. Adapted from Tammam et al. (2001).
For the first time in Cheddar cheeses, these authors also investigated the evolution of the concentrations of O2 and CO2 at depth just below the rind (Tammam et al., 2001). These innovative results concluded that the O2 concentration ranged between 350 and 0 μM between the surface of the cheese and 16 mm depth, respectively, after 2 days of ripening. After 15 days, no O2 could be measured at a depth of 4 mm (Figure 9). The small colonies of lactococci, observed within the curd by confocal microscopy, were suggested as responsible for the consumption of O2 leading to the decrease of the redox potential known in Cheddar cheese manufacture, for example (Caldeo and McSweeney, 2012). The CO2 concentration was also directly linked to the heterofermentation of lactococci colonies, which produced up to 16 mM of CO2 after 200 days of ripening at a depth of 15 mm. A chemically reducing environment, (i.e., low redox potential), in cheese has been suggested to be essential in the development of flavor and stability (Kristoffersen, 1985). However, in contrast to pH, local variation of the redox potential around colonies has never been investigated at the microscopic scale.
Figure 9. O2 concentration profiles under the rind of Cheddar cheese at 2 days (♦), 9 days (■), and 15 days (▴) of maturation. Adapted from Tammam et al. (2001).
In conclusion, it seems clear that heterogeneity can occur within and around the colonies of bacteria with respect to several parameters directly linked to the bacterial metabolic activity. However, the size of the colonies, and thus the inoculation level, is a major factor determining heterogeneity and the existence of such microgradients.
Diffusion Limitations within the Solid Matrices
To sustain the growth of bacteria in colonies, substrates have to diffuse from the solid (food) matrix to the colony. At the same time, end-products have to diffuse away from the colony to the matrix, especially if they inhibit bacterial growth such as lactic acid.
The existence of diffusion limitations is the first hypothesis put forth to explain slower growth of the cells in the center of the colony and the microgradients arising in and around the colony. This paradigm has been widely used by different groups to explain their results (Brocklehurst et al., 1997; McKay et al., 1997; Walker et al., 1997; Stecchini et al., 1998; Malakar et al., 2000; Pipe and Grimson, 2008; Kabanova et al., 2012). Even if microgradients of pH and O2 have been measured, to our knowledge, microgradients of redox potential, inhibitors, or substrates have not, and their existence is still to be shown. Furthermore, some of these studies initially suggested diffusion limitations of the substrates, but then concluded, in the case of numerous and small colonies in favorable growth conditions, that there were no mass transfer limitations of substrates and lactic acid (Stecchini et al., 1998; Malakar et al., 2002b; Kabanova et al., 2012, 2013). For instance, Malakar et al. (2002b) concluded after they measured the effective diffusion coefficient of lactic acid in gelatine medium that the diffusion of lactic acid was not limiting for growth, and that the growth rate was determined only by the generation time of L. curvatus, a LAB strain. They obtained a mean diffusion coefficient of 2.81 × 10−10 m2/s in MRS with 10% gelatine at 20°C, which they compared with a diffusion coefficient of 1.74 × 10−10 m2/s in water at 25°C previously measured by Cussler (1997). Therefore, Malakar et al. (2002b) concluded that because both values were of the same order of magnitude in the gel and in the aqueous solution, lactic acid produced by bacteria can easily diffuse through gels. This conclusion is questionable though, because others studies such as those conducted by Ribeiro et al. (2005) and Øyaas et al. (1995) reported values of diffusion coefficient of lactic acid in water much higher than that of Cussler (1997) of between 7 × 10−10 and 10 × 10−10 m2/s at 25°C, meaning that diffusion of lactic acid in the gel media was around 4–6 times lower than in the aqueous solution. It may only be for large colonies (more than 105 cells/colony or 100 cfu/ml), producing a large amount of lactic acid, that mass transfer limitations can be significant (Malakar et al., 2002a). Furthermore, the diffusion coefficient of glucose at 5°C in a 0.8% agar medium was 3.27 × 10−10 m2/s and was found to decrease linearly with an increase of the agar concentration (Mignot and Junter, 1990). These results demonstrated that the diffusion coefficient of glucose was dependent on the gel microstructure because it decreased with the pore size of the gel network. On the other hand, the diffusion rate of glucose and a small protein (insulin-like growth factor) was shown to be independent of the pore size of the gel with an increased concentration of agar (Stecchini et al., 1998). Finally, the little number of studies on diffusion in gels does not allow clear conclusions on the limiting effect of diffusion of substrates or inhibitors.
In cheese, diffusion of small molecules (water, NaCl, lactose) has been studied while knowledge on diffusion of macro-molecules lacks of data (Floury et al., 2010). Recently, Fluorescence Recovery After Photobleaching was adapted to a model cheese (Floury et al., 2012) in order to measure the diffusion coefficients of fluorescent dextrans of different molecular sizes as well as a range of milk proteins. The major conclusion was that the dextrans (which are flexible and charge-neutral molecules) as large as 2000 kDa were able to diffuse through the model cheese as well as the milk proteins (which are rigid and charged molecules). However, the milk proteins were more hindered in the cheese protein network than dextran molecules of similar hydrodynamic radii (Silva et al., 2013). From these studies, it remains very difficult to draw specific conclusions about the potential effects of diffusion limitations of substrates or end-products on bacterial growth and metabolic activity. Indeed, these diffusion rates have now to be compared to enzymatic reaction rates in immobilized conditions, which are, to our knowledge, still unknown and difficult to determine experimentally. We can only suggest that diffusion within the model cheese matrix is probably not the most limiting factor for the growth of cells at the periphery of colonies where the concentration of the substrates is very high. However, one can wonder what happens to the molecules, especially large molecules, upon reaching the center of the colony. In other words, is the colony porous enough to large molecules, either to penetrate the colony or to be expelled from the colony when released after bacterial lysis?
Integrated Analysis and New Concepts of the Behavior of Bacterial Colonies
This section outlines the consequences of the immobilization of bacteria in colonies on their growth and metabolic activity in order to identify general principles and theoretical concepts of importance for fermented food products.
How the Spatial Distribution of Colonies Has a Crucial Impact on Growth
When immobilized as colonies in a solid matrix, bacteria experience multiple constraints on their growth pattern: they develop as colonies and diffusion limitations may limit their access to the substrates. Micro-colonies have previously been defined as colonies displaying a radius Rcol as small as 1.5 μm up to 100 μm (Choo-Smith et al., 2001; Bae et al., 2011b; Zhao et al., 2014) and macro-colonies as those with a radius as large as 2.5 mm (Ngo Thi and Naumann, 2007). However, all these studies were either focused on micro- or on macro-colonies but never integrated data on both. The present overview of literature led to the conclusion that micro- and macro-colonies were two different conditions of growth depending on a threshold of size, determined by the initial level of population. Figure 10 illustrated the two conditions of colonies along with the planktonic form of culture for comparison, defined as follows:
• Large colonies or macro-colonies => colony radii that are generally above a threshold of 100–200 μm (Rcol > 100–200 μm), or typically more than 105 cells per colony, usually generated by inoculation levels or initial populations below 102–103 cfu/ml;
• Small colonies or micro-colonies => colony radii that are generally below 100–200 μm (Rcol < 100–200 μm), or typically less than 104 cells per colony, usually generated by inoculation levels or initial populations above 103–104 cfu/ml.
Figure 10. Schematic diagram of the three culture conditions for bacterial cells and their main characteristics; planktonic culture conditions are the most studied.
The threshold between micro-colonies and macro-colonies is determined by the inoculation level above which growth in optimal conditions resembles to planktonic growth. The precise threshold depends on the bacterial species, but implies an inoculation level of between 102 and 104 cfu/ml.
The hypothesis of diffusion limitations around colonies seems relevant for macro-colonies but not for micro-colonies as the growth rate of bacteria is then comparable to that in the exponential phase of planktonic growth (McKay and Peters, 1995; Malakar et al., 2002a; Kabanova et al., 2012, 2013). On the one hand, if micro-colonies on agar/gelatine media display the same growth rate as that for planktonic growth, the most likely hypothesis is that the substrates can penetrate inside micro-colonies so that all the cells have access to the substrates. On the other hand, if there is heterogeneity of growth rates inside the macro-colonies, the hypothesis is that some of the substrates, most likely the larger molecules, do not reach the center of the colony so that those cells cannot access such substrates. These hypotheses lead to the question: are colonies porous to large molecules?
Two Possible Concepts for the Interactions between a Colony and the Surrounding Matrix: “Bubble” or “Sponge”
We imagined two extreme concepts of the colony (Figure 11): (i) the colony acts as a “bubble” impermeable to molecules and only the periphery cells are in contact with all of the substrates available from the matrix, (ii) or the colony acts as a “sponge” permeable to all the molecules, representing both substrates and end-products which migrate freely through the colony.
Figure 11. Schematic representations of the two concepts of interactions between the colony and the matrix; arrows show the diffusing molecules.
If we consider first the “sponge” scenario, the colony is then a group of individual cells all in contact with its micro-environment. The exchange between the micro-environment and the colony is thus that of each of the cells and depends neither on the size of the colony, nor on their number. This concept is close to the planktonic condition in term of interaction of bacteria with the medium. On the contrary, in the “bubble” scenario, the colony can be considered as a tight cluster of cells and only those at the periphery of the colony are in contact with the micro-environment. Thus, for a given number of bacteria, the total exchange area is then determined by the size and the number of colonies, and is of major importance in governing the activity of the colonies within the matrix. The exchange surface (overall exchange surface per unit of medium volume) increases with the number of colonies as their size decreases (Jeanson et al., 2011). The activity of the colonies within the matrix will thus be increased by an increasing exchange surface if the colonies behave as in the “bubble” scenario whereas there will be no effect if colonies behave as in the “sponge” one. As a consequence, in the “bubble” concept, two different inoculation levels will result in two different values for the exchange surface, and thus two different activities for colonies of different sizes containing the same total number of cells. In the case of two different spatial distributions, labeled 1 and 2, the terms S1 and S2 represent two different exchange surfaces resulting from the two different inoculation levels I1 and I2. We assume that (i) the packing density of cells and the volume of individual cells inside the colonies are equal for both spatial distributions; (ii) the inoculation level is equal to the number of colonies (one cell gives one colony). Theoretically, for the same final populations, the ratio S1/S2 follows the following equation:
However, as seen on Figure 12, the experimental data tend to overestimate the ratio of exchange surfaces (S1/S2) for a given ratio of inoculation levels (I1/I2) when compared to the theoretical model. The low precision of the experimental measurements may explain this difference. These concepts are theoretical but may be of great value in food processing. It is thus very important to experimentally explore the question: is the colony functioning as a “bubble” or a “sponge”?
Figure 12. Theoretical relation (black line) for two different spatial distributions, 1 and 2, between the ratio of the exchange surfaces (S1/S2) and the ratio of inoculation levels (I1/I2); (Δ) experimental data either manually measured or obtained from image analysis of confocal microscopy images from Jeanson et al. (2011) and from Le Boucher et al. (2013).
Experimental Exploration of the Two Concepts “Bubble” and “Sponge”
The Porosity of Colonies with Respect to Different Types of Molecules
As described above, milk proteins and dextrans molecules up to 2000 kDa can diffuse within in a model cheese, but are these large molecules able to also diffuse in to the colony?
A first study explored the resistance to diffusion exerted by cells of E. coli and Rhodospirillum rubrum homogeneously immobilized in agar through which solutions of glucose and L-malic acid could diffuse (Mignot and Junter, 1990). The results showed that the diffusion of glucose and L-malic acid was negatively and linearly correlated with the increase in cell density in the agar, with an increasing resistance to diffusion over the range from 104 to 108 cells/ml, probably due to the increased tortuosity imposed by the higher density of cells. Considering the packing density of cells in a colony of about 1011 cells/ml (Malakar et al., 2002a), the resistance to diffusion of molecules within the colony might be expected to be even higher than for a cell density of 108 cells/ml. We thus investigated the porosity of a bacterial colony to molecules of different sizes (Floury et al., 2013). The results showed that dextran molecules from 4 to 155 kDa could penetrate through lactococcal colonies (Rcol = 15−55 μm) immobilized in an agar gel and in a model cheese. Indeed, dextran molecules as big as 155 kDa (larger than milk proteins) can diffuse through a bacterial colony but their diffusion coefficient could be limited by their size. On the other hand, milk proteins such as bovine serum albumin, lactoferrin and αs1-casein did not penetrate inside the lactococcal colonies in a model cheese (Floury et al., 2015). We observed the same results with strains of Lactobacillus rhamnosus and L. plantarum (Jeanson, personal communication).
In conclusion, it was clearly demonstrated that the diffusion behavior of macromolecules through bacterial colonies immobilized in a model cheese did not depend so much on the size of the diffusing solute molecules, but mainly on their physicochemical properties (Floury et al., 2015). The colony acts like a “sponge” for the neutral and flexible dextran molecules whilst the colony acts like a “bubble” for all the tested proteins.
Consequences of the Porosity of Bacterial Colonies in Food Fermentation: Example of Cheese
In cheese, carbon sources such as lactose are soluble and can diffuse freely as in agar or gelatine medium. On the contrary, nitrogen-based substrates are mostly caseins which are bound up in the network and cannot diffuse, except for a minor proportion of free caseins. Assimilable nitrogen substrates are peptides produced from the activity of bacterial cell-wall proteases. In the case of colonies embedded within cheese, only the cells on the periphery can theoretically access the caseins in the network. Taking cheese as an example, this raises the questions: (i) how does the spatial distribution of colonies influence the bacterial metabolism and (ii) how do the cells at the center of the colony access the nitrogen substrates, i.e., the caseins and the casein-derived peptides. If caseins are bound up, one might expect the “bubble” scenario but could the colony act as a “sponge” with respect to the peptides? In order to explore this hypothesis, we measured the influence of two different spatial distributions of micro-colonies of L. lactis on the cheese metabolomes during ripening. The inoculations levels, respectively, 1.6 × 105 and 3.1 × 107 cfu/ml thus I1/I2= 191, generated two sets of model cheeses called small colonies cheeses with Rcol = 3.9 ± 0.2 μm and big colonies cheeses with Rcol = 26.8 ± 0.2 μm (Le Boucher et al., 2015a). For exactly the same lactococci viable population in the two sets of cheeses, the results showed that lactococci distributed as “small” colonies tended to accelerate proteolysis during ripening in comparison with “big” colonies. As a consequence, small colonies cheeses contained higher amounts of amino acids and some of the peptides than big colonies cheeses. Nevertheless, the increase in concentration of metabolites between small and big colonies cheeses ranged from 1.2 to 2.0 for a ratio of S1/S2 equal to 5 (Le Boucher et al., 2015b). Under the hypothesis of a “bubble” scenario, there should have been an increase in the metabolite concentration close to the ratio S1/S2, i.e., 5. Under the hypothesis of a “sponge” scenario, there should not have been observed any changes between the proteolysis of the two different spatial distributions. The results obtained with the small and big colony cheeses are in agreement with the observations on the porosity of colonies. They suggest that the colony acts either as a “sponge” or a “bubble” according to the diffusing molecules, and that some molecules such as peptides may diffuse inside the colony reaching the cells located in the center of the colony. The relatively small proportion of cells in the periphery could produce enough peptides for the cells of the whole colony. It has been previously demonstrated for milk that 10% of a prt+ strain of L. lactis could sustain the growth of 90% of the isogenic prt− strain (Juillard and Richard, 1994). Another study performed in a renneted milk gel showed that the overall concentration of total free amino acids was 1.15 times higher than in liquid milk, both being inoculated with a strain of Streptococcus thermophilus at 105 cfu/ml (Stulova et al., 2015). Even if rennet increased the hydrolysis of caseins into peptides, this result supports the idea that peptides diffuse inside the colony where they are further degraded into amino acids by intracellular aminopeptidases. Furthermore, for inoculation levels from 102 to 106 cfu/ml, the growth rates were similar in renneted milk gel and liquid milk during the first exponential phase when the bacteria use the non-protein nitrogen sources initially present in the milk. However, the growth rates were subsequently lower in the milk gels than in milk during the second exponential phase when the bacterial strain had to synthesize its own cell-wall protease to sustain growth (Stulova et al., 2015). The hypothesis given by the authors was that there was an accumulation of lactic acid around colonies. However, the fact that the total number of bacteria was 13% higher in the milk gels than in milk at the end of the exponential growth phase, demonstrates that the growth rate was slower but growth lasted longer (Stulova et al., 2015). This result also supports the argument of a limited access to caseins, (leading to the slower growth rate), but to a free access to the peptides.
In conclusion, the interaction of the colony with its surrounding matrix is extremely complex and there are no simple mechanisms that describe how and when the “sponge” and “bubble” conceptions apply. Most likely, the colony acts as a selective filter depending on the properties of the diffusing molecules with a greater preference for flexible and neutral molecules regardless of their size.
The objective of this review was a comprehensive understanding based on published literature of the impact of bacterial growth as colonies in a food context. Overall, the term “bacterial colonies” embrace different situations depending on the spatial distribution of colonies (size and number of colonies) in the matrix. Finally, the spatial distribution emerges as the most crucial parameter in determining whether the immobilization of bacteria has an impact or not. The conclusions differ widely: (i) if colonies are small and numerous (micro-colonies), the implications of growing in colonies rather than as free planktonic growth are minor; (ii) whereas if colonies are large and relatively few in number (macro-colonies), the implications of such immobilization become significant, mostly in terms of a relatively lower growth rates and their lower resistance when under conditions of stress. In the case of bacterial contamination or indigenous microflora, the initial population is low and colonies thus develop as macro-colonies. It is thus important to increase the understanding on the behavior of pathogenic bacteria in solid matrices in order to improve the predictive growth models in solid foods. In the case of LAB in fermented foods, the inoculation levels are high and one can wonder if the growth in micro-colonies really impacts on the growth and the metabolic activity of bacteria in foods by comparison with that as planktonic growth. However, in fermented foods, the interactions between bacterial colonies and the food matrix itself remain unexplained and inadequately studied using agar/gelatine media. Moreover, interactions and even communication between colonies, like quorum sensing, is still unexplored in solid food media (Skandamis and Nychas, 2012). The newly available imaging techniques may open a great field of research in this respect.
SJ: design and wrote the review manuscript. JF: expert in the diffusion of molecules in cheese and porosity of colonies; improved the review manuscript. VG: expert in proteolysis by bacteria; improved the review manuscript. SL: initiated the topic in the lab; improved the review manuscript. AT: head of the research group; design and extensively improved the review manuscript.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Antwi, M., Bernaerts, K., Van Impe, J. F., and Geeraerd, A. H. (2007). Modelling the combined effects of structured food model system and lactic acid on Listeria innocua and Lactococcus lactis growth in mono- and coculture. Int. J. Food Microbiol. 120, 71–84. doi: 10.1016/j.ijfoodmicro.2007.04.015
Bae, E., Aroonnual, A., Bhunia, A. K., and Hirleman, E. D. (2011a). On the sensitivity of forward scattering patterns from bacterial colonies to media composition. J. Biophotonics 4, 236–243. doi: 10.1002/jbio.201000051
Bae, E., Bai, N., Aroonnual, A., Bhunia, A. K., and Hirleman, E. D. (2011b). Label-free identification of bacterial microcolonies via elastic scattering. Biotechnol. Bioeng. 108, 637–644. doi: 10.1002/bit.22980
Boons, K., Mertens, L., Van Derlinden, E., David, C. C., Hofkens, J., and Van Impe, J. F. (2013). Behavior of Escherichia coli in a heterogeneous gelatin-dextran mixture. Appl. Environ. Microbiol. 79, 3126–3128. doi: 10.1128/AEM.03782-12
Brocklehurst, T. F., Mitchell, G. A., Ridge, Y. P., Seale, R., and Smith, A. C. (1995). The effect of transient temperatures on the growth of Salmonella typhimurium LT2 in gelatin gel. Int. J. Food Microbiol. 27, 45–60. doi: 10.1016/0168-1605(94)00152-V
Burdikova, Z., Svindrych, Z., Pala, J., Hickey, C. D., Wilkinson, M. G., Panek, J., et al. (2015). Measurement of pH micro-heterogeneity in natural cheese matrices by fluorescence lifetime imaging. Front. Microbiol. 6:183. doi: 10.3389/fmicb.2015.00183
Caldeo, V., and McSweeney, P. L. H. (2012). Changes in oxidation-reduction potential during the simulated manufacture of different cheese varieties. Int. Dairy J. 25, 16–20. doi: 10.1016/j.idairyj.2012.02.002
Choo-Smith, L. P., Maquelin, K., van Vreeswijk, T., Bruining, H. A., Puppels, G. J., Ngo Thi, N. A., et al. (2001). Investigating microbial (micro)colony heterogeneity by vibrational spectroscopy. Appl. Environ. Microbiol. 67, 1461–1469. doi: 10.1128/AEM.67.4.1461-1469.2001
Cretenet, M., Laroute, V., Ulvé, V., Jeanson, S., Nouaille, S., Even, S., et al. (2011). Dynamic analysis of the Lactococcus lactis transcriptome in cheeses made from milk concentrated by ultrafiltration reveals multiple strategies of adaptation to stresses. Appl. Environ. Microbiol. 77, 247–257. doi: 10.1128/AEM.01174-10
den Besten, H. M. W., Ingham, C. J., van Hylckama Vlieg, J. E. T., Beerthuyzen, M. M., Zwietering, M. H., and Abee, T. (2007). Quantitative analysis of population heterogeneity of the adaptive salt stress response and growth capacity of Bacillus cereus ATCC 14579. Appl. Environ. Microbiol. 73, 4797–4804. doi: 10.1128/AEM.00404-07
Drazek, L., Tournoud, M., Derepas, F., Guicherd, M., Mahé, P., Pinston, F., et al. (2015). Three-dimensional characterization of bacterial microcolonies on solid agar-based culture media. J. Microbiol. Meth. 109, 149–156. doi: 10.1016/j.mimet.2014.12.011
Floury, J., El Mourdi, I., Silva, J. V. C., Lortal, S., Thierry, A., and Jeanson, S. (2015). Diffusion of solutes inside bacterial colonies immobilized in model cheese depends on their physicochemical properties: a time-lapse microscopy study. Front. Microbiol. 6:366. doi: 10.3389/fmicb.2015.00366
Floury, J., Jeanson, S., Madec, M. N., and Lortal, S. (2013). Porosity of Lactococcus lactis subsp. lactis LD61 colonies immobilised in model cheese. Int. J. Food Microbiol. 163, 64–70. doi: 10.1016/j.ijfoodmicro.2013.02.014
Floury, J., Madec, M. N., Waharte, F., Jeanson, S., and Lortal, S. (2012). First assessment of diffusion coefficients in model cheese by fluorescence recovery after photobleaching (FRAP). Food Chem. 133, 551–556. doi: 10.1016/j.foodchem.2012.01.030
Gonzalez, D. J., Xu, Y., Yang, Y. L., Esquenazi, E., Liu, W. T., Edlund, A., et al. (2012). Observing the invisible through imaging mass spectrometry, a window into the metabolic exchange patterns of microbes. J. Proteomics 75, 5069–5076. doi: 10.1016/j.jprot.2012.05.036
Guillier, L., Pardon, P., and Augustin, J. C. (2006). Automated image analysis of bacterial colony growth as a tool to study individual lag time distributions of immobilized cells. J. Microbiol. Meth. 65, 324–334. doi: 10.1016/j.mimet.2005.08.007
Hickey, C. D., Sheehan, J. J., Wilkinson, M. G., and Auty, M. A. E. (2015). Growth and location of bacterial colonies within dairy foods using microscopy techniques: a review. Front. Microbiol. 6:99. doi: 10.3389/fmicb.2015.00099
Hills, B. P. (2001). “The power and pitfalls of deductive modelling,” in Food Process Modelling, eds L. M. M. Tijskens, M. L. A. T. M. Hertog, and B. M.Nicolaï (Cambridge: Woodhead Publishing Limited), 3–17.
Ingham, C. J., Beerthuyzen, M., and van Hylckama Vlieg, J. (2008). Population heterogeneity of Lactobacillus plantarum WCFS1 microcolonies in response to and recovery from acid stress. Appl. Environ. Microbiol. 74, 7750–7758. doi: 10.1128/AEM.00982-08
Jeanson, S., Chadoeuf, J., Madec, M.-N., Aly, S., Floury, J., Brocklehurst, T. F., et al. (2011). Spatial distribution of bacterial colonies in a model cheese. Appl. Environ. Microbiol. 77, 1493–1500. doi: 10.1128/AEM.02233-10
Jeanson, S., Floury, J., Issulahi, A. A., Madec, M. N., Thierry, A., and Lortal, S. (2013). Microgradients of pH do not occur around Lactococcus colonies in a model cheese. Appl. Environ. Microbiol. 79, 6516–6518. doi: 10.1128/AEM.01678-13
Juillard, V., and Richard, J. (1994). Mixed cultures in milk of a proteinase-positive and a proteinase-negative variant of Lactococcus lactis subsp lactis: influence of initial percentage of proteinase-positive cells on the growth parameters of each strain and on the rate of acidification. Lait 74, 3–12. doi: 10.1051/lait:199411
Kabanova, N., Stulova, I., and Vilu, R. (2012). Microcalorimetric study of the growth of bacterial colonies of Lactococcus lactis IL1403 in agar gels. Food Microbiol. 29, 67–79. doi: 10.1016/j.fm.2011.08.018
Kabanova, N., Stulova, I., and Vilu, R. (2013). Microcalorimetric study of growth of Lactococcus lactis IL1403 at low glucose concentration in liquids and solid agar gels. Thermochim. Acta 559, 69–75. doi: 10.1016/j.tca.2013.02.013
Knudsen, G. M., Nielsen, M. B., Grassby, T., Danino-Appleton, V., Thomsen, L. E., Colquhoun, I. J., et al. (2012). A third mode of surface-associated growth: immobilization of Salmonella enterica serovar Typhimurium modulates the RpoS-directed transcriptional programme. Environ. Microbiol. 14, 1855–1875. doi: 10.1111/j.1462-2920.2012.02703.x
Koutsoumanis, K. P., Kendall, P. A., and Sofos, J. N. (2004). A comparative study on growth limits of Listeria monocytogenes as affected by temperature, pH and aw when grown in suspension or on a solid surface. Food Microbiol. 21, 415–422. doi: 10.1016/j.fm.2003.11.003
Le Boucher, C., Courant, F., Jeanson, S., Chereau, S., Maillard, M. B., Royer, A. L., et al. (2013). First mass spectrometry metabolic fingerprinting of bacterial metabolism in a model cheese. Food Chem. 141, 1032–1040. doi: 10.1016/j.foodchem.2013.03.094
Le Boucher, C., Courant, F., Royer, A.-L., Jeanson, S., Lortal, S., Dervilly-Pinel, G., et al. (2015a). LC-HRMS fingerprinting as an efficient approach to highlight fine differences in cheese metabolome during ripening. Metabolomics 11, 1117–1130. doi: 10.1007/s11306-014-0769-0
Le Boucher, C., Gagnaire, V., Briard-Bion, V., Jardin, J., Maillard, M.-B., Dervilly-Pinel, G., et al. (2015b). The spatial distribution of Lactococcus lactis colonies modulates the production of major metabolites during the ripening of a model cheese. Appl. Environ. Microbiol. doi: 10.1128/AEM.02621-15. [Epub ahead of print].
Lobete, M. M., Fernandez, E. N., and Van Impe, J. F. M. (2015). Recent trends in non-invasive in situ techniques to monitor bacterial colonies in solid (model) food. Front. Microbiol. 6:148. doi: 10.3389/fmicb.2015.00148
Malakar, P. K., Barker, G. C., Zwietering, M. H., and van't Riet, K. (2003). Relevance of microbial interactions to predictive microbiology. Int. J. Food Microbiol. 84, 263–272. doi: 10.1016/S0168-1605(02)00424-5
Malakar, P. K., Brocklehurst, T. F., MacKie, A. R., Wilson, P. D. G., Zwietering, M. H., and van't Riet, K. (2000). Microgradients in bacterial colonies: use of fluorescence ratio imaging, a non-invasive technique. Int. J. Food Microbiol. 56, 71–80. doi: 10.1016/S0168-1605(00)00222-1
Malakar, P. K., Martens, D. E., van Breukelen, W., Boom, R. M., Zwietering, M. H., and van 't Riet, K. (2002a). Modeling the interactions of Lactobacillus curvatus colonies in solid medium: consequences for Food Quality and Safety. Appl. Environ. Microbiol. 68, 3432–3441. doi: 10.1128/AEM.68.7.3432-3441.2002
Malakar, P. K., Zwietering, M. H., Boom, R. M., Brocklehurst, T. F., Wilson, P. D., MacKie, A. R., et al. (2002b). Diffusion of lactic acid in a buffered gel system supporting growth of Lactobacillus curvatus. J. Sci. Food Agric. 82, 1729–1734. doi: 10.1002/jsfa.1256
McKay, A. L., and Peters, A. C. (1995). The effect of sodium chloride concentration and pH on the growth of Salmonella typhimurium colonies on solid medium. J. Appl. Bacteriol. 79, 353–359. doi: 10.1111/j.1365-2672.1995.tb03148.x
McKay, A. L., Peters, A. C., and Wimpenny, J. W. T. (1997). Determining specific growth rates in different regions of Salmonella typhimurium colonies. Lett. Appl. Microbiol. 24, 74–76. doi: 10.1046/j.1472-765X.1997.00354.x
Meldrum, R. J., Brocklehurst, T. F., Wilson, D. R., and Wilson, P. D. G. (2003). The effects of cell immobilization, pH and sucrose on the growth of Listeria monocytogenes Scott A at 10°C. Food Microbiol. 20, 97–103. doi: 10.1016/S0740-0020(02)00083-7
Mertens, L., Van Derlinden, E., and Van Impe, J. F. (2012). A novel method for high-throughput data collection in predictive microbiology: optical density monitoring of colony growth as a function of time. Food Microbiol. 32, 196–201. doi: 10.1016/j.fm.2012.04.001
Mignot, L., and Junter, G. A. (1990). Diffusion in immobilized-cell agar layers: influence of microbial burden and cell morphology on the diffusion coefficients of L-malic acid and glucose. Appl. Microbiol. Biotechnol. 32, 418–423. doi: 10.1007/BF00903776
Mikkelsen, H., Duck, Z., Lilley, K. S., and Welch, M. (2007). Interrelationships between colonies, biofilms, and planktonic cells of Pseudomonas aeruginosa. J. Appl. Bacteriol. 189, 2411–2416. doi: 10.1128/JB.01687-06
Ngo Thi, N. A., and Naumann, D. (2007). Investigating the heterogeneity of cell growth in microbial colonies by FTIR microspectroscopy. Anal. Bioanal. Chem. 387, 1769–1777. doi: 10.1007/s00216-006-0829-z
Ngo-Thi, N., Kirschner, C., and Naumann, D. (2003). Characterization and identification of microorganisms by FT-IR microspectrometry. J. Mol. Struct. 661–662, 371–380. doi: 10.1016/j.molstruc.2003.08.012
Nielsen, M. B., Knudsen, G. M., Danino-Appleton, V., Olsen, J. E., and Thomsen, L. E. (2013). Comparison of heat stress responses of immobilized and planktonic Salmonella enterica serovar Typhimurium. Food Microbiol. 33, 221–227. doi: 10.1016/j.fm.2012.09.020
Øyaas, J., Storrø, I., Svendsen, H., and Levine, D. W. (1995). The effective diffusion coefficient and the distribution constant for small molecules in calcium-alginate gel beads. Biotechnol. Bioeng. 47, 492–500. doi: 10.1002/bit.260470411
Parker, M. L., Gunning, P. A., Macedo, A. C., Malcata, F. X., and Brocklehurst, T. F. (1998). The microstructure and distribution of micro-organisms within mature Serra cheese. J. Appl. Microbiol. 84, 523–530. doi: 10.1046/j.1365-2672.1998.00375.x
Reyrolle, J., and Letellier, F. (1979). Autoradiographic study of the localization and evolution of growth zones in bacterial colonies. J. Gen. Microbiol. 111, 399–406. doi: 10.1099/00221287-111-2-399
Ribeiro, A. C. F., Lobo, V. M. M., Leaist, D. G., Natividade, J. J. S., Veríssimo, L. P., Barros, M. C. F., et al. (2005). Binary diffusion coefficients for aqueous solutions of lactic acid. J. Solution Chem. 34, 1009–1016. doi: 10.1007/s10953-005-6987-3
Silva, J. V. C., Peixoto, P., Lortal, S., and Floury, J. (2013). Transport phenomena in a model cheese: the influence of the charge and the shape of solutes on diffusion. J. Dairy Sci. 96, 6186–6198. doi: 10.3168/jds.2013-6552
Skandamis, P. N., Brocklehurst, T. F., Panagou, E. Z., and Nychas, G. -J. E. (2007). Image analysis as a mean to model growth of Escherichia coli O157:H7 in gel cassettes. J. Appl. Microbiol. 103, 937–947. doi: 10.1111/j.1365-2672.2007.03358.x
Skandamis, P. N., and Jeanson, S. (2015). Colonial vs planktonic type of growth: mathematical modeling of microbial dynamics on surfaces and in liquid, semi-liquid and solid foods. Front. Microbiol. 6:1178. doi: 10.3389/fmicb.2015.01178
Skandamis, P., Tsigarida, E., and Nychas, G. (2000). Ecophysiological attributes of Salmonella typhimurium in liquid culture and within a gelatin gel with or without the addition of oregano essential oil. World J. Microbiol. Biotechnol. 16, 31–35. doi: 10.1023/A:1008934020409
Stecchini, M. L., Del Torre, M., Sarais, I., Saro, O., Messina, M., and Maltini, E. (1998). Influence of structural properties and kinetic constraints on Bacillus cereus growth. Appl. Environ. Microbiol. 64, 1075–1078.
Stulova, I., Kabanova, N., Krišciunaite, T., Adamberg, K., Laht, T. M., and Vilu, R. (2015). Microcalorimetric study of the growth of Streptococcus thermophilus in renneted milk. Front. Microbiol. 6:79. doi: 10.3389/fmicb.2015.00079
Tammam, J. D., Williams, A. G., Banks, J., Cowie, G., and Lloyd, D. (2001). Membrane inlet mass spectrometric measurement of O2 and CO2 gradients in cultures of Lactobacillus paracasei and a developing Cheddar cheese ecosystem. Int. J. Food Microbiol. 65, 11–22. doi: 10.1016/S0168-1605(00)00438-4
Theys, T. E., Geeraerd, A. H., Devlieghere, F., and Van Impe, J. F. (2009b). Extracting information on the evolution of living- and dead-cell fractions of Salmonella Typhimurium colonies in gelatin gels based on microscopic images and plate-count data. Lett. Appl. Microbiol. 49, 39–45. doi: 10.1111/j.1472-765X.2009.02623.x
Theys, T. E., Geeraerd, A. H., Devlieghere, F., and Van Impe, J. F. (2010). On the selection of relevant environmental factors to predict microbial dynamics in solidified media. Food Microbiol. 27, 220–228. doi: 10.1016/j.fm.2009.10.005
Theys, T. E., Geeraerd, A. H., and Van Impe, J. F. (2009a). Evaluation of a mathematical model structure describing the effect of (gel) structure on the growth of Listeria innocua, Lactococcus lactis and Salmonella Typhimurium. J. Appl. Microbiol. 107, 775–784. doi: 10.1111/j.1365-2672.2009.04256.x
Theys, T. E., Geeraerd, A. H., Verhulst, A., Poot, K., van Bree, I., Devlieghere, F., et al. (2008). Effect of pH, water activity and gel micro-structure, including oxygen profiles and rheological characterization, on the growth kinetics of Salmonella Typhimurium. Int. J. Food Microbiol. 128, 67–77. doi: 10.1016/j.ijfoodmicro.2008.06.031
Thomas, L. V., and Wimpenny, J. W. (1996a). Investigation of the effect of combined variations in temperature, pH, and NaCl concentration on nisin inhibition of Listeria monocytogenes and Staphylococcus aureus. Appl. Environ. Microbiol. 62, 2006–2012.
Thomas, L. V., and Wimpenny, J. W. T. (1996b). Competition between Salmonella and Pseudomonas species growing in and on agar, as affected by pH, sodium chloride concentration and temperature. Int. J. Food Microbiol. 29, 361–370. doi: 10.1016/0168-1605(95)00077-1
Thomas, L. V., Wimpenny, J. W. T., and Barker, G. C. (1997). Spatial interactions between subsurface bacterial colonies in a model system: a territory model describing the inhibition of Listeria monocytogenes by a nisin-producing lactic acid bacterium. Microbiology 143, 2575–2582. doi: 10.1099/00221287-143-8-2575
Vilain, S., Cosette, P., Hubert, M., Lange, C., Junter, G. A., and Jouenne, T. (2014). Comparative proteomic analysis of planktonic and immobilized Pseudomonas aeruginosa cells: a multivariate statistical approach. Anal. Biochem. 329, 120–130. doi: 10.1016/j.ab.2004.02.014
Walker, S. L., Brocklehurst, T. F., and Wimpenny, J. W. T. (1998). Adenylates and adenylate-energy charge in submerged and planktonic cultures of Salmonella enteritidis and Salmonella typhimurium. Int. J. Food Microbiol. 44, 107–113. doi: 10.1016/S0168-1605(98)00126-3
Walker, S. L., Brocklehurst, T. F., and Wimpenny, J. W. T. (1997). The effects of growth dynamics upon pH gradient formation within and around subsurface colonies of Salmonella typhimurium. J. Appl. Microbiol. 82, 610–614. doi: 10.1111/j.1365-2672.1997.tb02869.x
Wilson, P. D. G., Brocklehurst, T. F., Arino, S., Thuault, D., Jakobsen, M., Lange, M., et al. (2002). Modelling microbial growth in structured foods: towards a unified approach. Int. J. Food Microbiol. 73, 275–289. doi: 10.1016/S0168-1605(01)00660-2
Wimpenny, J. W. T., Leistner, L., Thomas, L. V., Mitchell, A. J., Katsaras, K., and Peetz, P. (1995). Submerged bacterial colonies within food and model systems: their growth, distribution and interactions. Int. J. Food Microbiol. 28, 299–315. doi: 10.1016/0168-1605(95)00065-8
Wright, K. M., Coleman, H. P., MacKie, A. R., Parker, M. L., Brocklehurst, T. F., Wilson, D. R., et al. (2000). Determination of mean growth parameters of bacterial colonies immobilized in gelatin gel using a laser gel-cassette scanner. Int. J. Food Microbiol. 57, 75–89. doi: 10.1016/S0168-1605(00)00229-4
Keywords: bacterial colony, spatial distribution, diffusion limitation, porosity, cheese, Growth
Citation: Jeanson S, Floury J, Gagnaire V, Lortal S and Thierry A (2015) Bacterial Colonies in Solid Media and Foods: A Review on Their Growth and Interactions with the Micro-Environment. Front. Microbiol. 6:1284. doi: 10.3389/fmicb.2015.01284
Received: 03 September 2015; Accepted: 31 October 2015;
Published: 01 December 2015.
Edited by:Jean-Christophe Augustin, Ecole Nationale Vétérinaire d'Alfort, France
Reviewed by:Ilkin Yucel Sengun, Ege University, Turkey
Kostas Koutsoumanis, Aristotle University of Thessaloniki, Greece
Copyright © 2015 Jeanson, Floury, Gagnaire, Lortal and Thierry. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Sophie Jeanson, firstname.lastname@example.org
