Impact Factor 4.019

The world's most-cited Microbiology journal

Original Research ARTICLE

Front. Microbiol., 28 June 2016 |

Dissemination of Novel Antimicrobial Resistance Mechanisms through the Insertion Sequence Mediated Spread of Metabolic Genes

  • 1Department of Genetics, University of Leicester, Leicester, UK
  • 2Dipartimento di Biotecnologie Mediche, Universita di Siena, Siena, Italy
  • 3IHMA Europe Sàrl, Epalinges, Switzerland
  • 4State Key Laboratory for Microbial Metabolism and School of Life Sciences and Biotechnology, Shanghai Jiaotong University, Shanghai, China
  • 5Departamento de Microbiología, Instituto Ramón y Cajal de Investigación Sanitaria, Hospital Universitario Ramón y Cajal, Madrid, Spain
  • 6Centro de Investigación Biomédica en Red de Epidemiología y Salud Pública (CIBERESP), Spain
  • 7Departamento de Biotecnología Microbiana, Centro Nacional de Biotecnología, Consejo Superior de Investigaciones Científicas, Madrid, Spain
  • 8Unidad de Resistencia a Antibióticos y Virulencia Bacteriana (RYC-Consejo Superior de Investigaciones Científicas), Madrid, Spain

The widely used biocide triclosan selectively targets FabI, the NADH-dependent trans-2-enoyl-acyl carrier protein (ACP) reductase, which is also an important target for the development of narrow spectrum antibiotics. The analysis of triclosan resistant Staphylococcus aureus isolates had previously shown that in about half of the strains, the mechanism of triclosan resistance consists on the heterologous duplication of the triclosan target gene due to the acquisition of an additional fabI allele derived from Staphylococcus haemolyticus (sh-fabI). In the current work, the genomic sequencing of 10 of these strains allowed the characterization of two novel composite transposons TnSha1 and TnSha2 involved in the spread of sh-fabI. TnSha1 harbors one copy of IS1272, whereas TnSha2 is a 11.7 kb plasmid carrying TnSha1 present either as plasmid or in an integrated form generally flanked by two IS1272 elements. The target and mechanism of integration for IS1272 and TnSha1 are novel and include targeting of DNA secondary structures, generation of blunt-end deletions of the stem-loop and absence of target duplication. Database analyses showed widespread occurrence of these two elements in chromosomes and plasmids, with TnSha1 mainly in S. aureus and with TnSha2 mainly in S. haemolyticus and S. epidermidis. The acquisition of resistance by means of an insertion sequence-based mobilization and consequent duplication of drug-target metabolic genes, as observed here for sh-fabI, is highly reminiscent of the situation with the ileS2 gene conferring mupirocin resistance, and the dfrA and dfrG genes conferring trimethoprim resistance both of which are mobilized by IS257. These three examples, which show similar mechanisms and levels of spread of metabolic genes linked to IS elements, highlight the importance of this genetic strategy for recruitment and rapid distribution of novel resistance mechanisms in staphylococci.


The NADH-dependent trans-2-enoyl-acyl carrier protein (ACP) reductase FabI is one of the highly conserved enzymes of the bacterial fatty-acids biosynthesis. The FabI enzyme has been recognized as a novel and promising candidate drug target (Payne et al., 2001; Lu and Tonge, 2008) given the absence of a eukaryotic orthologue and its essential role in the growth of bacterial cells (Heath et al., 2001; Ji et al., 2004); a concept recently challenged by the observation that some bacteria do not require biosynthesis of fatty acids during infection of the host (Brinster et al., 2009). Due to the interest in using FabI as a drug target concerns have been raised about the large scale use of the biocide triclosan which targets the active site of FabI (Schweizer, 2001; Hijazi et al., 2016); these concerns also encompass the wider risk that biocide use per se may have on antimicrobial drug resistance (Oggioni et al., 2012, 2013, 2015; Coelho et al., 2013; Maillard et al., 2013; Morrissey et al., 2014). In the specific case considered here the concern is due to the fact that resistance to triclosan is in most bacterial species mediated by mutation of the promoter region or coding sequence of fabI (Heath et al., 1999; Slater-Radosti et al., 2001; Ciusa et al., 2012; Oggioni et al., 2012; Grandgirard et al., 2015). In Staphylococcus aureus about half of resistant isolates have a novel type of triclosan resistance mechanism which is based on the presence of an alternative copy of fabI derived from Staphylococcus haemolyticus (sh-fabI) (Ciusa et al., 2012). In previous work, we reported that the sh-fabI gene appears to be part of a 3022 bp transposable element most probably mobilized by a single copy of the insertion sequence (IS) 1272 (Ciusa et al., 2012). IS1272 was originally identified in S. haemolyticus during investigation of homology matches to a truncated IS which is part of the mec cassette (Archer et al., 1994, 1996; Tonouchi et al., 1994). IS1272 is part of the IS1182 family of insertion sequences (Siguier et al., 2015) and apart from that truncated version found in the mec element is absent from S. aureus.

It has long been known that IS elements are able to transpose and/or change the expression of nearby or neighboring genes, that they are significantly involved in plasmid and chromosomal recombination, and that they provide the basic structure of many transposons and mobile resistance elements (Siguier et al., 2014, 2015). Soon after the discovery of ISs, it was observed that IS elements were able to transpose resistance genes between replicons (Hedges and Jacob, 1974; Barth et al., 1976). Most of the attention in the more recent sequence based work on antimicrobial resistance has still focussed on acquired “resistance”-genes which confer resistance either by target modification, inactivation of the antimicrobial compound or efflux; this is in part due to the difficulty of defining housekeeping genes identified in high throughput or metagenomic datasets as true “resistance” genes (Martinez et al., 2015). All of this “resistance”-gene oriented work has therefore overshadowed other mechanisms of resistance including those based on heterodiploidy for a metabolic gene (either resistant or susceptible alleles) which, especially in staphylococci, appears to be a mechanism with low fitness cost (Andersson, 2006; Oggioni et al., 2012). The classic example of such heterodiploidy is the presence of an additional copy of a dihydrofolate reductase (dhfA) gene on conjugative elements, which thereby confers resistance to trimethoprim; these include the plasmid located dhfA gene which is transposed in E. coli by Tn7 (Barth et al., 1976), the Tn4003 transposon of S. aureus where the dfrA gene is mobilized by IS257 (Needham et al., 1995), and the more recently discovered transposable unit that comprises dfrG and IS256 which is located on the Tn5801 of different species (León-Sampedro et al., 2016). A more recent example in S. aureus involves resistance to mupirocin (pseudomonic acid), a potent inhibitor of the isoleucyl tRNA synthetase; this is conferred by an additional plasmid-encoded mupA/ileS2 gene, which is again mobilized by IS257 (Gilbart et al., 1993; Woodford et al., 1998). With mupirocin, a disinfectant utilized for skin decontamination of MRSA staphylococci, this increased occurrence of mupA/ileS genes in clinical settings where mupirocin was used for decolonization has led to changes in disinfection policies (Hetem and Bonten, 2013). Even if the presence of additional mupA/ileS genes were found to confer a fitness defect to S. aureus, recent modeling experiments have predicted long-term increases in the prevalence of mupirocin-resistant phenotypes (MupR) given the “universal” use of mupirocin (Deeny et al., 2015).

In order to investigate the nature, sequence conservation, epidemiological distribution, and target site specificity of the 3022 bp transposable element carrying the sh-fabI gene we have sequenced the genomes of a series of triclosan resistant S. aureus isolates (Ciusa et al., 2012) and compared these data to the vast database of published genomes. The aims of this study were to conduct an in depth characterization of the sh-fabI carrying element, and to put this work into context with the other resistance mechanisms in S. aureus also based on IS mobilization of metabolic genes, which, in this species, appears to be a highly flexible means for the recruitment and rapid spread of novel resistance traits.

Materials and Methods

Bacterial Strains

Sixty-five S. aureus strains with reduced susceptibility to triclosan were previously identified by performing standard MIC and MBC assays upon a collection of 1602 clinical isolates (Ciusa et al., 2012; Furi et al., 2013; Grandgirard et al., 2015; Oggioni et al., 2015). Ten out of the 28 isolates carrying the sh-fabI gene were selected from this collection for this work (Table 1; Ciusa et al., 2012).

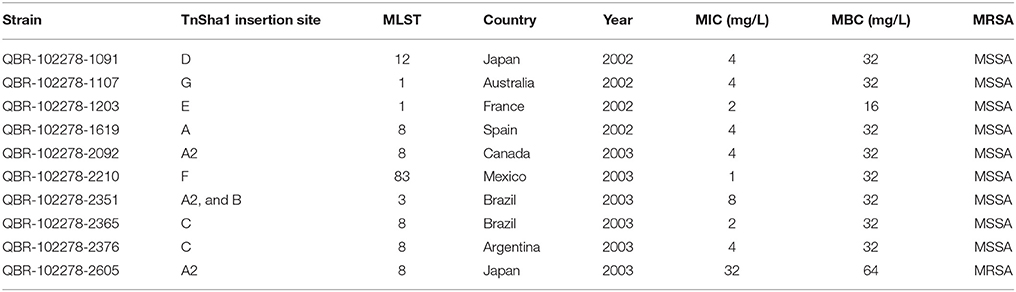

Table 1. Relevant information of the ten sequenced S. aureus isolates (Ciusa et al., 2012).

Whole Genome Sequencing and Bioinformatic Analysis

The entire genome of 10 S. aureus clinical isolates (Table 1) with reduced susceptibility to triclosan and positive for sh-fabI detection by PCR were sequenced as previously described (Ciusa et al., 2012; Table 1). Short reads were assembled using ABySS (British Columbia Cancer Agency, Vancouver, Canada; ver. 1.3.5), improved using the multi-reference based scaffolder MeDuSa (Bosi et al., 2015) and subsequent TnSha1 sequence identification was performed using NCBI's BLAST. 2.3.0+ (Altschul et al., 1997). The sequence of the prototype TnSha1 element corresponds to position 3908 to 887 of GenBank accession JQ712986 relative to S. aureus strain QBR-102278-1619. No complete sequence of TnSha2 is present in existing complete genomes in GenBank. One of the plasmid versions of TnSha2, which shows a contig break within fabI, corresponds to GenBank accession JCAZ01000023 of S. aureus strain M0227 (adzpz-supercont1.20.C23). Genbank BLAST searches for TnSha1 and TnSha2 elements were last accessed in December 2015. DNA secondary structures have been predicted by means of the RNAstructure Web Server (Reuter and Mathews, 2010). TnSha1 targets A through G have been confirmed as gene terminator loops by direct visualization of RNA-seq alignment data retrieved from the NCBI Sequence Read Archive (SRA; More precisely Illumina HiSeq data which were previously generated by sequencing of whole RNA (rRNA depleted) extracted from S. aureus ATCC51811 (SRA Experiment ID: ERP005246; SRA Sample ID: ERS421566) (Fagerlund et al., 2014) were aligned to genomes of S. aureus COL, GenBank accession no. CP000046, and S. aureus MW2, GenBank accession no. BA000033, using BWA-MEM (Li, 2014). The bootstrap maximum likelihood tree was obtained using MEGA6 with default parameters. Sequence Types (ST) were defined using the Multilocus Sequence Typing (MLST) web-based service of the Center for Genomic Epidemiology (Lyngby, Denmark; MLST allele sequence and profile data were obtained from:; Larsen et al., 2012). Contigs containing the TnSha2 element were screened to identify plasmid sequences by means of the PlasmidFinder web-based service of the Center for Genomic Epidemiology (Ver. 1.3; Lyngby, Denmark).

Molecular Analysis of Potential Transfer Intermediates

Genomic DNA was extracted from S. aureus strains in the exponential phase of growth using the High Pure PCR template preparation kit (Roche Diagnostics, Germany). Prior to DNA purification the bacterial strains were grown in MHB (Muller Hinton Broth; Beckton Dickinson) in the presence of sub-MIC concentrations of triclosan (2 mg/L for strain QBR-102278-1619 and 4 mg/L for QBR-102278-2351) or following Mitomycin C induction (1 μg/L) (triclosan PHR1338; Sigma-Aldrich) (Ciusa et al., 2012; Oggioni et al., 2012). Negative controls grown in MHB medium only were also used. A FAM labeled TaqMan probe was designed to detect the circular form of the IS1272 and the composite transposon TnSha1 when both were excised from the chromosome (Table 2). Detection of strains carrying TnSha1 in either the A or B integration sites via real-time PCR amplification was performed in a LightCycler 480 system (Roche Diagnostics, Germany) using primers annealing between the integration site and the transposon (Table 2; Oggioni et al., 2002; Isola et al., 2005; Yesilkaya et al., 2006). Primers LF_30 and LF_31 were used to detect the presence of bacteria with a transposon free integration site A (Table 2).


Table 2. List of primers.


We have recently reported that a 3022 bp chromosomal element composed of the insertion sequence IS1272 and a fabI gene of S. haemolyticus (sh-fabI) confers resistance to triclosan in S. aureus (Figure 1A; GenBank accession no. JQ712986) (Ciusa et al., 2012). The potential for transposition of this unit is conferred by the presence of an alternative inverted repeat (IRL') in the S. haemolyticus chromosome upstream of sh-fabI with a high degree of similarity to the inverted repeats of IS1272 (Figure 1B). This functional unit, which is composed of the insertion sequence IS1272 and the sh-fabI gene, has now being renamed TnSha1 (Figure 1A). It should be noted that none of our genomes, nor any deposited sequence, match the originally deposited sequence of IS1272 (Genbank accession U35635), instead all of the hundreds of IS1272 copies show at least six SNPs (four of which are indels) with respect to U35635 (Archer et al., 1996). These differences mean that the updated IS1272 element encodes for a single transposase gene without a stop codon (Figure 1A).

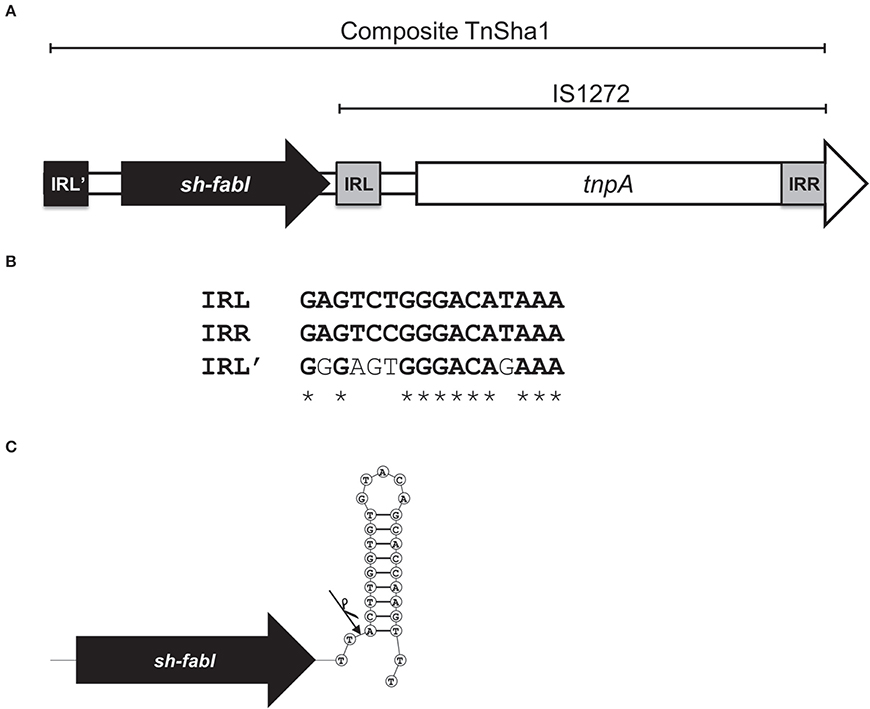

Figure 1. Structure of the TnSha1 transposon. The schematic map of the composite transposon TnSha1 in which the sh-fabI gene (black) precedes the IS1272 element is shown in panel (A). The updated IS1272 sequences contains six SNPs (four of which indels) with respect to U35635 and encodes for a single transposase gene without a stop codon within the IS element. The sequence of the prototype TnSha1 element corresponds to position 3908 to 887 of Genbank accession JQ712986 relative to strain QBR-102278-1619. Panel (B) shows the inverted repeat sequences of IS1272 (named IRL and IRR) aligned to the IRL' upstream of sh-fabI which shows 69% identity. Panel (C) indicates the hypothesized integration event of IS1272 downstream of sh-fabI to generate the prototype TnSha1 element in S. haemolyticus. The arrow indicates the insertion point at the base of the sh-fabI terminator hairpin.

In this work the sequence conservation, epidemiological distribution, and target site specificity of TnSha1 were analyzed across a panel of ten sequenced S. aureus strains previously reported to carry the sh-fabI gene (Ciusa et al., 2012). Sequencing has identified seven different integration sites within the S. aureus genomes which have been named A through G (Figure 2, Table 1). The discovery of seven different TnSha1 integration sites in just 10 strains suggests that there is little or no insertion site preference. Analysis of the intact target sites in the reference strains COL or MW2 showed that TnSha1 integration always occurs into hairpin structures and, importantly, that the mode of insertion of TnSha1 always produces a partial deletion of the target sequence (Figure 2B). This mode of integration into the stem of secondary structures is novel to IS elements (Siguier et al., 2015). For one of the targets sequenced in this work there were two different transposition events which could be detected; these lead to deletions of different sizes in the same target site (A and A2; Figure 2B). All seven of the target sites identified by sequencing of our clinical isolates, in addition to other sites subsequently identified in published sequences, were composed of inverted repeat sequences and thus have the potential to form secondary structures with the repeats representing the stems of hairpins (Figure 2A). In each case insertion of TnSha1 produced a partial deletion of the hairpin. This type of cleavage of a secondary structure forming sequences appears to indicate that TnSha1 makes blunt and not staggered cuts, which would have resulted in target duplications. Hairpins A through E have been confirmed as transcriptional terminators by mapping of RNAseq data (Fagerlund et al., 2014; Figure 3). When analysing the target sites of a further 63 complete TnSha1 elements from published S. aureus genomes, we identified an additional 12 target sites confirming a lack of any primary sequence specificity within the target. All of the aforementioned features of TnSha1 are consistent with the known behavior of the IS1272 element alone (Archer et al., 1996); i.e., such as the insertion of IS1272 which occurred into the terminator of sh-fabI to generate the prototype TnSha1 (Figure 1C), or as in the case of two target sites selected from IS1272 insertions in the genomes of S. haemolyticus or S. warneri (Figure 4). While most sequenced strains contained just a single copy of TnSha1 in the chromosome, strain QBR-102278-2351 was an exception and carried two TnSha1 elements each in two distinct integration sites (Figure 2, Table 1).


Figure 2. Insertion sites of TnSha1 in bacterial chromosomes and plasmids. The seven target sites found in the 10 S. aureus strains sequenced in this work have been named from A to G. Staphylococcal plasmid insertion sites are named P to Z. Panel (A) shows the hairpin structures formed by the transposon target sites and the scissors indicate the position of sequence breaks generated upon TnSha1 insertion. Secondary structure predictions were made using RNAstructure web-based software (Reuter and Mathews, 2010). Two independent insertions into target (A) have been identified and both cleavage sites are shown which in each case generate blunt-end structures in the stem of the hairpin. The sequences in both panels (A,B) refer to TnSha1-free target sites in the chromosomes (COL GenBank accession CP000046 and MW2 GenBank accession BA000033) and plasmids. The target sequences in panel (B) report in lower case the sequence deleted upon insertion and the inverted repeats underlined. Panel (C) shows evidence for multiple insertions of TnSha1 in target Z in the repA terminator of plasmids. The aligned sequences show at least four independent insertions in two opposite orientations of TnSha1 into the repA terminator in plasmid pUSA03 (target Z). In this panel TnSha1 sequences are shown in bold italics upper case, the deleted part of the target sequence in lower case, and the repA terminator hairpin underlined. Note that in panel (C) the upper four TnSha1 sequences are in one orientation while the lower three in the opposite orientation. Note that in panel (C) the upper four TnSha1 sequences are in one orientation while the lower three in the opposite orientation. The S. aureus strain names are given on the right.

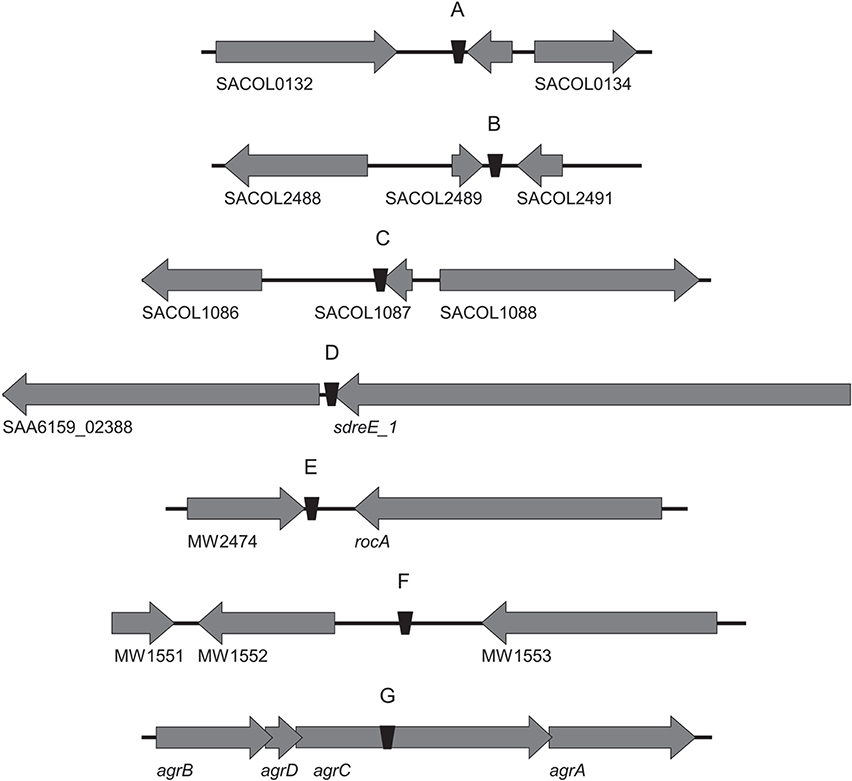

Figure 3. The seven TnSha1 integration sites found in the sequenced S. aureus clinical isolates mapped onto annotated genomes. The S. aureus reference genomes included COL (GenBank accession no. CP000046; A–C insertion sites), JKD6159 (GenBank accession no. CP002114; D insertion site), and MW2 (GenBank accession no. BA000033; E,F insertion sites). 3/7 TnSha1 elements target predicted terminator hairpin structures (C–E), 1/7 targets the agrC coding region (G), and 3/7 target intergenic regions (A,B,F). Hairpins (A) through (E) have been confirmed as transcriptional terminators by mapping RNAseq data.


Figure 4. Analysis of target sites of IS1272 in S. warneri and S. haemolyticus. Secondary structure predictions of the IS1272 targets in the S. warneri strain SG1 (GenBank accession CP003668) are shown in the IS free reference strain VCU121 (GenBank accession NZ_AFEC01000030) (A left); and in the S. haemolyticus strain Sh29/312/L2 (GenBank accession CP011116) are shown in the IS free reference strain R1P1 (GenBank accession NZ_AJVA00000000) (A right). The exact blunt target cleavage sites are indicated by scissors. Panel (B) indicates the target sequences showing the inverted repeats (underlined) and deletions (lower case).

The dynamics and epidemiology of transposition between strains was addressed by searching for other TnSha1 elements present in Genbank. Database searches identified 133 complete or partial TnSha1 elements in the genomes of the species S. aureus, S. argenteus, S. haemolyticus, S. epidermidis, S. saprophyticus, and S. warneri, and in a series of staphylococcal plasmids (Tables 35). Of this latter group the integration between repA and IS257 in pUSA03 (target Z in Table 4) where TnSha1 was inserted in two different orientations warrants particular attention (Figure 2C). Multi locus sequence typing (MLST) of the strains showed that TnSha1 was present in S. aureus in sequence type 8 (n = 23), ST5 (n = 18), ST239 (n = 6), and ST290 (n = 6) strains and in S. epidermidis in ST59 (n = 10) and ST2 (n = 6) strains (Table 4, Figure 5). Upon determination of the targets of these newly identified TnSha1 elements it was found that only seven out of the 66 complete TnSha1 elements were integrated into the same seven target sites, A to G, that we had previously identified (Figure 2, Tables 1, 4). Alignment of our previous 10 TnSha1 elements with the seven new TnSha1 elements that were integrated at the same target sites showed clustering of the TnSha1-SNPs (some elements differed by up to 11 SNPs from the consensus) together with their target sites (Figure 6). This pattern is consistent with the insertion of the element into a particular target followed by clonal spread. This scenario appears to be the rule in most cases except for target A2 and Z where the identical TnSha1 element is present in the same target but in strains of different ST (Table 4, Figure 5). To test for TnSha1 mobilization we used PCR with a set of divergent primers on TnSha1, another set on IS1272, and a third set of primers targeting the “A” insertion site. Unfortunately, no excision events producing a circular intermediate could be observed when two S. aureus strains were tested with or without the presence of triclosan in the culture medium, and after induction with mitomycin C.


Table 3. BLAST search of staphylococcal genomes for TnSha1 and TnSha2.


Table 4. List of strains carrying the TnSha1 element on the chromosome.


Table 5. List of strains carrying the TnSha1 element on a plasmid.

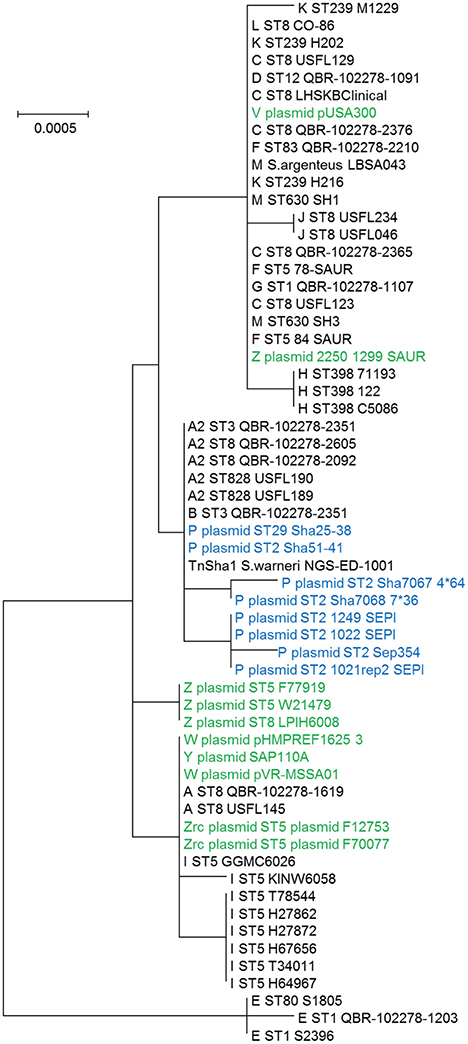

Figure 5. Phylogram of the TnSha1 and TnSha2 elements. The tree contains 57 TnSha1 sequences, 10 of which sequenced in this work (QBR-102278 sequences) and a subset of eight TnSha2 sequences (only the homologous part was used for tree building purposes). Each TnSha1 element is identified by its target (A–Z), followed by the sequence type (ST), and the strain name. TnSha1 elements on S. aureus plasmids are colored in green while TnSha2 elements are in blue. For GenBank accession numbers please see Tables 1, 4. The bootstrap maximum likelihood tree was obtained using MEGA6 with default parameters. The scale bar is shown in the upper left part. It should be noted that the tree is built based on only few SNPs, which distinguish the different elements.

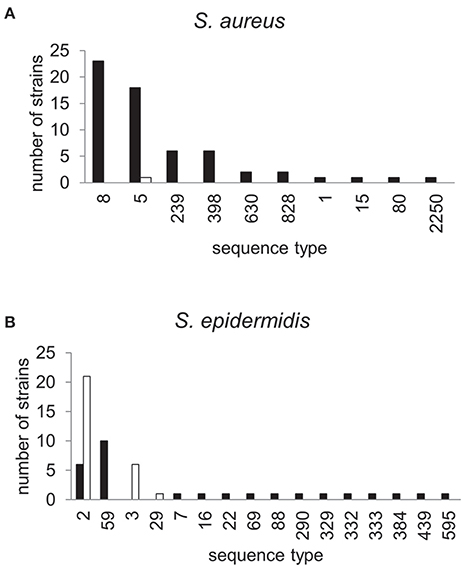

Figure 6. MLST profiles of staphylococcal strains carrying TnSha1 and TnSha2. The sequence type (ST) of 62 S. aureus (A) and 47 S. epidermidis strains (B) which carry the sh-fabI elements TnSha1 (filled bars) and TnSha2 (open bars) are shown. Data are from staphylococcal genomes accessed in GenBank in December 2015 and sequence types were defined using the MLST web-service of the Center for Genomic Epidemiology (Larsen et al., 2012).

Within the multiple entries retrieved from Genbank a subgroup showed identical sequences upstream of TnSha1. Investigation of this genomic region showed that in 30 of the strains the TnSha1 element forms part of a larger element (named TnSha2), which in almost all cases is a plasmid, but which can also be found integrated into the genome where it is generally flanked by a second copy of IS1272 (Tables 4, 5). The prototype sequence of TnSha2 (S. aureus JCAZ01000023) is an 11.7 kb plasmid in which TnSha1 is inserted into the terminator of traQ gene of an 8.7 kb replicon (without fabI and IS1272) present in S. haemolyticus (CUCL01000044), but also in S. aureus (JJAQ010000025; Figure 7). The rep of the plasmid belongs to the Rep_2 family and the DNA polymerase, recombinase and mobilization protein show high sequence identity to those of plasmid p-12228-03 of the S. epidermidis reference strain ATCC 12228 (Figure 7; Zhang et al., 2003; Lanza et al., 2015). ThSha2 was detected in the genomes of clonally diverse S. haemolyticus, and S. epidermidis (ST3 n = 6, and ST2 n = 21, respectively), but only in a single S. aureus (ST5) genome, thereby reflecting different dissemination routes for different species (Table 5). Upon investigating the origin of deposited genome-strains it was observed that the S. epidermidis ST2 strains are of hospital origin (Schoenfelder et al., 2010; Roach et al., 2015) and that all of the S. haemolyticus strains with TnSha2 and ST3 that we found in this study are clinical isolates (Table 5). Interestingly the database search for IS1272 alone detected no intact elements in S. aureus, but did show that about 1/10 of S. epidermidis isolates and the majority of S. haemolyticus isolates carried IS1272 thereby ensuring that the contigs with the 11.7 kb plasmid in these species are always interrupted in the IS element.

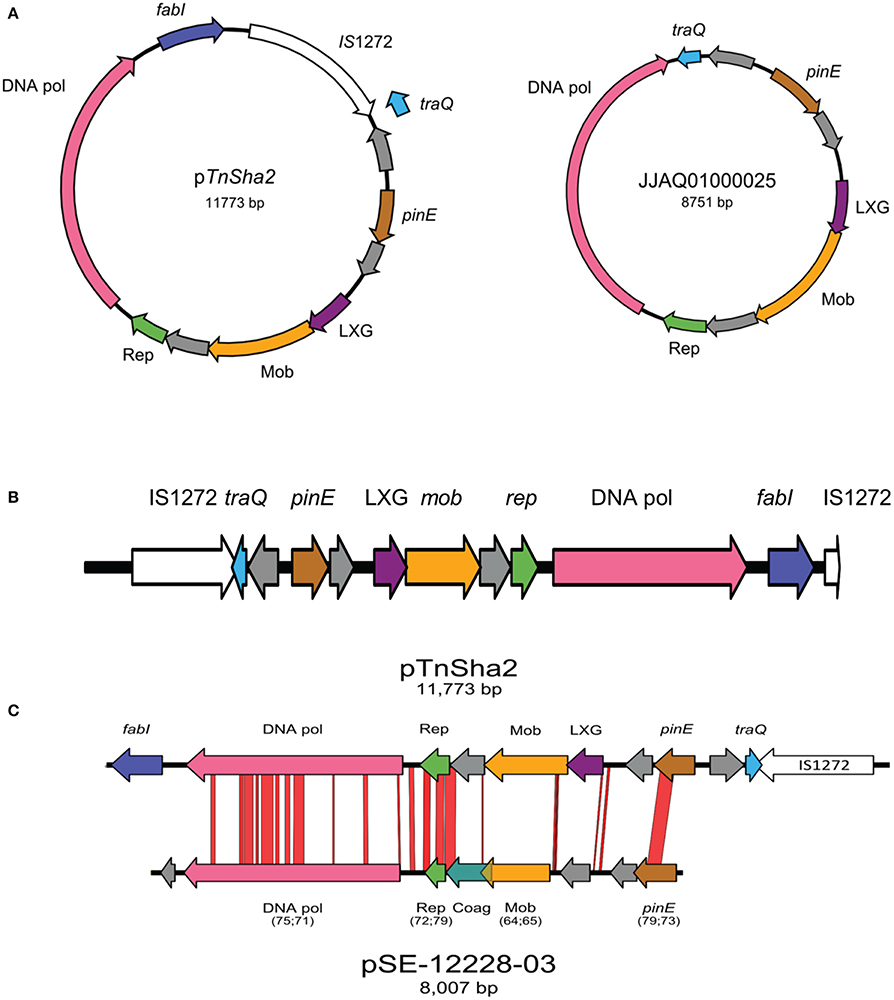

Figure 7. Schematic map of TnSha2 elements. The circular maps of the prototype 11.7 kb plasmid sequence of TnSha2 (S. aureus strain M0227, GenBank accession JCAZ01000023) and the target 8.7 kb TnSha1-free plasmid (S. haemolyticus CUCL01000044 or S. aureus JJAQ010000025) are shown in panel (A). The map of TnSha2 integrated into the S. haemolyticus chromosome at a position occupied by a single IS1272 in the reference strain is shown in panel (B). In three occasions the resulting chromosomal island is bordered by two IS1272 elements (CUCK01000025 at position 590129 of strain JCSC1435, CUDY01000029 at 1828271, and CUGD01000039 at 2443315) wile in one case only by the “left” IS1272 element (CUDB01000007 at 1322312). Comparison between pTnSha2 element (S. aureus JCAZ01000023) and pSE-12228-03 (S. epidermidis NC_005006) is shown in panel (C). Numbers between brackets indicate coverage percentage and identity percentage respectively. The genes encode for: a putative DNA-directed DNA polymerase (DNA pol), a replication protein involved in a theta-type replication mechanism (Rep), a putative mobilization protein (Mob), a domain of a group of polymorphic toxin proteins (LXG), a Site-specific DNA recombinase related to the DNA invertase Pin (PinE), and a conjugal transfer pilin chaperone (TraQ).

In a phylogenetic tree based on the TnSha1-part of TnSha2, the two elements group into separate branches due to a series of SNPs both in fabI and the IS1272 element (Figure 5). In four cases the whole 11.7 kb TnSha2 plasmid appears to be integrated into the chromosome of S. haemolyticus in the same position that IS1272 elements are found in reference strain JCSC1435 resulting in a chromosomal island flanked in three cases by two IS1272 copies (CUCK01000025 at position 590.150 of JCSC1435, CUDB01000007 at 1.322.311, CUDY01000029 at 1.828.279, and CUGD01000039 at 2.443.339; Figure 7; Cavanagh et al., 2014).

In the original publication, which described sh-fabI in S. aureus QBR-102278-1619 (Ciusa et al., 2012), the TnSha1 element was reported to carry a sh-fabI gene with an A577T SNP with respect to the sequence of the core genome fabI of S. haemolyticus (Table 6). Since, this SNP had not previously been associated with triclosan resistance of sa-fabI in S. aureus the gene was reported to represent a susceptible allele (Ciusa et al., 2012). Whilst analysing the panel of sh-fabI genes carried by TnSha1 these were all found to show at least one SNP compared to the core-genome triclosan-susceptible sh-fabI of S. haemolyticus (Table 6). All of these SNPs, except A577T and T578A (see above), have previously been associated with triclosan resistance in the S. aureus sa-fabI (Table 6; Ciusa et al., 2012; Grandgirard et al., 2015). The only exception is S. aureus strain T22051 which carried a wild type sh-fabI gene in TnSha1 thus indicating that the second (or third) IS-element mobilized genomic fabI copy generally appears to be a resistant allele.


Table 6. Sh-fabI nucleotide sequence of 89 TnSha1 and TnSha2 elements.


A novel mobile chromosomal element based upon IS1272 and containing the sh-fabI gene of S. haemolyticus has been identified in a large-scale screen for biocide resistance across more than 1600 S. aureus isolates (Ciusa et al., 2012). This element, now named TnSha1, had been found to be present in one third of triclosan resistant strains of S. aureus while the other triclosan resistant strains of that study had mutations either within or upstream of the enoyl-acyl carrier protein reductase fabI gene of the core genome (Ciusa et al., 2012; Grandgirard et al., 2015). A more detailed analysis of these S. aureus strains, and of other available staphylococcal genomes, has shown that the situation is actually more complex. The main finding of this was that sh-fabI appears to be transferred by two types of elements; TnSha1, which has a single IS1272 element, and the composite TnSha1-carrying plasmid TnSha2 which can also integrate into chromosomal IS1272 copies generating in most cases an IS1272 bordered island (Figures 1, 7). Similar congruent formations where reported for other similar elements as for example IS257 mobilizing the trimethoprim resistance determinant dfrA (Leelaporn et al., 1996). As the two elements do not show any obvious species specific characteristics it was somewhat unexpected to observe such a strong divergence in distribution for these elements, with S. aureus almost exclusively harboring TnSha1, S. haemolyticus prevalently harboring TnSha2, and only S. epidermidis which was found to commonly carry both elements. Neither the GC content (TnSha1 is 31.4%, TnSha2 is 31.8%, S. aureus, S. haemolyticus 33%, and S. epidermidis 32%), nor the presence of restriction modification systems nor the origin of the isolates can explain this observation; however we admit that this is as yet based on 4127 S. aureus genomes, but upon just 286 S. epidermidis and 141 S. haemolyticus genomes. Similar dynamics are seen with trimethoprim resistance were the housekeeping dfrA gene was acquired from other species and successfully transferred by IS257 across different staphylococcal species (Dale et al., 1995; Leelaporn et al., 1996). Whilst not explaining this difference as such, the observation that the intact IS1272 elements are present in most S. haemolyticus isolates, only in a few S. epidermidis strains and not at all in S. aureus already indicates a species specific “behavior” of the IS element. Future experiments on the transposition of the elements in the three species, will hopefully be more successful than the attempted detection of circular intermediates in S. aureus and therefore shed light on the observed differences in the epidemiology of the elements.

The mechanism of TnSha1 and IS1272 target recognition and integration appears to be novel. Both TnSha1 and IS1272 are seen to target hairpin secondary structures with little primary sequence conservation. In addition this insertion into the target appears to produce a blunt-end cut leading to insertion of the element and deletion of part of the target (Figures 14). This is in line with the original description of IS1272 which reported that the IS did not produce target duplications (Archer et al., 1996). Interestingly the recent review on IS elements by Siguier and colleagues reports that some members of the IS1182 family, of which IS1272 is part, also target palindromic sequences (Siguier et al., 2015).

Albeit that no primary sequence consensus was detected, the hairpin structures targeted by TnSha1 must have some important features in common as we found three targets with evidence for multiple independent insertions i.e., the targets “A” and “X” or the target “Z” where we also observed multiple insertions in both orientations (Figure 2C). The absence of insertion into rolling circle replicating plasmids, coupled to the observation of insertions in opposite directions appear to indicate the absence of an orientation bias observed for IS elements inserting into the replication fork (Siguier et al., 2014). In the case of TnSha2 the situation appears to be more varied. The few available data show that TnSha2 can integrate like IS1272. In addition the few and incomplete genomic data we have could indicate that TnSha2 could be mobilized by the hypothetical ORFs present leading to duplications and co-integrate formation (Needham et al., 1995). The capacity to utilize different integration mechanisms has been described also for other transposons like Tn7 (Siguier et al., 2014).

The large number of both TnSha1 and TnSha2 element sequences available in the database has allowed us to investigate the genesis of this recently generated and spreading element. This was hampered in part by the fact that both elements included IS1272 and that these ISs, like most other repeat sequences, tend to generate contig breaks during the assembly of bacterial genomes. Given the absolute conservation of the position of IS1272 in all of the TnSha1 and TnSha2 elements, we favor the hypothesis that the initial steps leading to the formation of these mobile elements were very few or possibly even only a single event. The initial events in the assembly of the element must presumably have happened in S. haemolyticus since the sh-fabI derives from the core genome of this species and both elements are also present in this species. It is again not easy to hypothesize any rationale for the almost exclusive presence of TnSha1 in S. aureus, nor for the preferential presence of TnSha2 in S. haemolyticus. The lack of primary target sequence specificity and the peculiarity of targeting hairpin secondary structures make the elements very versatile and would allow for transposition to many locations within the chromosome and on plasmids. While intact IS1272 itself is not present in S. aureus the apparent selection for TnSha1 has very efficiently allowed spread of the element in this species. In the case of TnSha2 the presence of mobilization genes could indicate that this plasmid may be horizontally transferable. Unfortunately, as in the case of the dfr genes (Dale et al., 1995; Leelaporn et al., 1996), none of these data provide a solid molecular basis to explain the difference in distribution of the two elements among staphylococcal species. The explanation may however come from a closer look at the structure of the elements themselves. Indeed the very limited range of the diversity in the elements, and the SNPs present in them, indicates they have a recent origin. Another important aspect of the dynamics of spread of this element is related to the different triclosan-resistance conferring SNPs which have accumulated in sh-fabI. The presence of triclosan susceptible and resistant alleles in the studied population suggests the first event was acquisition of a susceptible sh-fabI allele followed by the selection of resistant alleles after the transfer event by a fabI targeting agent, most probably triclosan (Ciusa et al., 2012; Oggioni et al., 2012, 2013; Morrissey et al., 2014; Grandgirard et al., 2015). This sequence of events in which the acquisition of a resistance element is followed by the selection of more efficient alleles is also the basis of the diversification of other resistance elements as plasmids-encoded beta-lactamases (Bush, 2013).

Type II fatty acid metabolism, and in particular FabI, are among the most highly investigated targets for development of antimicrobial compounds (Banerjee et al., 1994; Park et al., 2007; Escaich et al., 2011; Kaplan et al., 2012). This remains true even though there is now debate on the essentiality of bacterial fatty metabolism during invasive infection because, at least for group B streptococci, it has been reported that it is possible to forage host derived fatty acids (Brinster et al., 2009; Balemans et al., 2010). In this respect it is therefore of great interest to monitor the spread of genetic elements which could produce reduced susceptibility to new antibiotics whose action is based on targeting and inhibition of FabI. In this regard it is worth noting that our experimental screening of a collection of 1602 world-wide clinical S. aureus isolates detected sh-fabI in 24/1602 of strains (1.5%; Ciusa et al., 2012), which matched perfectly with the in silico screen of a database of microbial genomes that detected sh-fabI carrying elements in 65/4127 S. aureus strains (1.57%). This exact overlap in prevalence indicates that genome databases of such size can now serve as suitable datasets for epidemiological investigation, even though databases generally lack detailed background information on strains. While 1.5% may not appear to be a high background resistance level in a population, it could still be a worrying presence when introducing a new FabI-targeting agent. Even worse is the detection of sh-fabI elements in 14% of S. epidermidis isolates; this appears to reach levels at which clinical use, including the use of triclosan as disinfectant for decontamination, could be jeopardized. It remains possible however that the lower sample size, of <300 genomes screened, and the absence of clinical information on these strains may limit the relevance of this observation.

In order to correlate our data with two well-known examples of IS-mobilizable metabolic genes, we have checked the relative occurrence of the dfrA-thyE genes (Rouch et al., 1989), conferring trimethoprim resistance, and ileS2 genes (Needham et al., 1994), conferring mupirocin resistance, in the same 4800 staphylococcal genomes. BLAST searches for dfrA-thyE yielded 279 hits in S. aureus and 134 in S. epidermidis, while ileS2 yielded 207 hits in S. aureus and 18 in S. epidermidis. This compares well with the detection rate in our work of 65 TnSha1/2 elements in S. aureus and 50 in S. epidermidis. These numbers indicate that IS mediated transfer of metabolic resistance genes, in our case sh-fabI genes and triclosan resistance, is a highly relevant mechanism for the acquisition and spread of antibiotic resistance. These data show that it is not only plasmids which serve as vectors of IS mediated resistance gene transfers, but that the spread of composite transposons can also be a highly efficient mechanism for such a goal. A similar well-described mechanisms also exist in staphylococci for the antibiotic resistance genes for example in Tn4001, Tn4002, and Tn4003, (Lanza et al., 2015).

In conclusion our data show that IS mediated transposition of metabolic genes represents a vast and growing antimicrobial resistance phenomenon. In addition to the well-described Tn4003 element, which mobilizes dfrA by way of three IS257 thereby conferring trimethoprim resistance (Rouch et al., 1989), or the IS257 mediated mobilization of ileS2 conferring mupirocin resistance (Needham et al., 1995), this arsenal now includes TnSha1 and TnSha2; these elements utilize IS transposition, IS-targeted integration and plasmid mobilization to allow transfer of the fabI gene of S. haemolyticus to different staphylococci and thereby contribute to triclosan resistance and, potentially, to resistance for other FabI-targeting drugs. These data show that IS mobilization of metabolic genes is a powerful and highly flexible mechanism that can very rapidly provide resistance phenotypes to vast numbers of strains and species. In this era where thousands of genomes are readily available in public databases the analysis of such IS mediated mobilization of core genome metabolic genes may warrant a more detailed and larger scale investigation.

Author Contributions

LF performed the genome sequencing and bioinformatic analysis, wrote the manuscript, and approved the final version. RH participated in bioinformatic analysis, wrote the manuscript, and approved the final version. ZA performed wet lab experiments, participated in bioinformatic analysis, participated in the revision of the manuscript, and approved the final version. HO preformed bioinformatic analysis, discussed results and implication and helped in revision of the manuscript and approved the final version. IM had input in the initial study design, participated in the generation and analysis of data, the revision of the manuscript, and approved the final version. RL preformed bioinformatic analysis, discussed results and implication and helped in revision of the manuscript and approved the final version. JM had input in the initial study design, participated in the analysis of data, participated in the revision of the manuscript, and approved the final version. TC had input in the initial study design, participated in the analysis of data, participated in the revision of the manuscript, and approved the final version. MO designed the study, participated in bioinformatic analysis, wrote the manuscript, and is accountable for all aspects of the work.


The work was in part supported by EC project KBBE-227258 (BIOHYPO). ZA is funded by a fellowship of the Sultan Qaboos University, Oman.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


We thank Mike Chandler for helpful discussion. In addition to the authors, Graziella Orefici, Carlo Viti, Ulku Yetis, Hans Joachim Roedger, Ayse Kalkancy, Pilar Visa, Marina Elli, Stephen Leib, Daniel Knight and Diego Mora, participated to the BIOHYPO research project.


Altschul, S. F., Madden, T. L., Schaffer, A. A., Zhang, J., Zhang, Z., Miller, W., et al. (1997). Gapped BLAST and PSI-BLAST: a new generation of protein database search programs. Nucleic Acids Res. 25, 3389–3402. doi: 10.1093/nar/25.17.3389

PubMed Abstract | CrossRef Full Text | Google Scholar

Andersson, D. I. (2006). The biological cost of mutational antibiotic resistance: any practical conclusions? Curr. Opin. Microbiol. 9, 461–465. doi: 10.1016/j.mib.2006.07.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Archer, G. L., Niemeyer, D. M., Thanassi, J. A., and Pucci, M. J. (1994). Dissemination among staphylococci of DNA sequences associated with methicillin resistance. Antimicrob. Agents Chemother. 38, 447–454. doi: 10.1128/AAC.38.3.447

PubMed Abstract | CrossRef Full Text | Google Scholar

Archer, G. L., Thanassi, J. A., Niemeyer, D. M., and Pucci, M. J. (1996). Characterization of IS1272, an insertion sequence-like element from Staphylococcus haemolyticus. Antimicrob. Agents Chemother. 40, 924–929.

PubMed Abstract | Google Scholar

Balemans, W., Lounis, N., Gilissen, R., Guillemont, J., Simmen, K., Andries, K., et al. (2010). Essentiality of FASII pathway for Staphylococcus aureus. Nature 463, E3. discussion: E4. doi: 10.1038/nature08667

PubMed Abstract | CrossRef Full Text | Google Scholar

Banerjee, A., Dubnau, E., Quemard, A., Balasubramanian, V., Um, K. S., Wilson, T., et al. (1994). inhA, a gene encoding a target for isoniazid and ethionamide in Mycobacterium tuberculosis. Science 263, 227–230.

PubMed Abstract | Google Scholar

Barth, P. T., Datta, N., Hedges, R. W., and Grinter, N. J. (1976). Transposition of a deoxyribonucleic acid sequence encoding trimethoprim and streptomycin resistances from R483 to other replicons. J. Bacteriol. 125, 800–810.

PubMed Abstract | Google Scholar

Bosi, E., Donati, B., Galardini, M., Brunetti, S., Sagot, M. F., Lio, P., et al. (2015). MeDuSa: a multi-draft based scaffolder. Bioinformatics 31, 2443–2451. doi: 10.1093/bioinformatics/btv171

PubMed Abstract | CrossRef Full Text | Google Scholar

Brinster, S., Lamberet, G., Staels, B., Trieu-Cuot, P., Gruss, A., and Poyart, C. (2009). Type II fatty acid synthesis is not a suitable antibiotic target for Gram-positive pathogens. Nature 458, 83–86. doi: 10.1038/nature07772

CrossRef Full Text | Google Scholar

Bush, K. (2013). Proliferation and significance of clinically relevant beta-lactamases. Ann. N.Y. Acad. Sci. 1277, 84–90. doi: 10.1111/nyas.12023

PubMed Abstract | CrossRef Full Text | Google Scholar

Cavanagh, J. P., Hjerde, E., Holden, M. T., Kahlke, T., Klingenberg, C., Flaegstad, T., et al. (2014). Whole-genome sequencing reveals clonal expansion of multiresistant Staphylococcus haemolyticus in European hospitals. J. Antimicrob. Chemother. 69, 2920–2927. doi: 10.1093/jac/dku271

PubMed Abstract | CrossRef Full Text | Google Scholar

Ciusa, M. L., Furi, L., Knight, D., Decorosi, F., Fondi, M., Raggi, C., et al. (2012). A novel resistance mechanism to triclosan that suggests horizontal gene transfer and demonstrates a potential selective pressure for reduced biocide susceptibility in clinical strains of Staphylococcus aureus. Int. J. Antimicrob. Agents 40, 210–220. doi: 10.1016/j.ijantimicag.2012.04.021

PubMed Abstract | CrossRef Full Text | Google Scholar

Coelho, J. R., Carrico, J. A., Knight, D., Martinez, J. L., Morrissey, I., Oggioni, M. R., et al. (2013). The use of machine learning methodologies to analyse antibiotic and biocide susceptibility in Staphylococcus aureus. PLoS ONE 8:e55582. doi: 10.1371/journal.pone.0055582

PubMed Abstract | CrossRef Full Text | Google Scholar

Dale, G. E., Broger, C., Hartman, P. G., Langen, H., Page, M. G., Then, R. L., et al. (1995). Characterization of the gene for the chromosomal dihydrofolate reductase (DHFR) of Staphylococcus epidermidis ATCC 14990: the origin of the trimethoprim-resistant S1 DHFR from Staphylococcus aureus? J. Bacteriol. 177, 2965–2970.

PubMed Abstract | Google Scholar

Deeny, S. R., Worby, C. J., Tosas Auguet, O., Cooper, B. S., Edgeworth, J., Cookson, B., et al. (2015). Impact of mupirocin resistance on the transmission and control of healthcare-associated MRSA. J. Antimicrob. Chemother. 70, 3366–3378. doi: 10.1093/jac/dkv249

PubMed Abstract | CrossRef Full Text | Google Scholar

Escaich, S., Prouvensier, L., Saccomani, M., Durant, L., Oxoby, M., Gerusz, V., et al. (2011). The MUT056399 inhibitor of FabI is a new antistaphylococcal compound. Antimicrob. Agents Chemother. 55, 4692–4697. doi: 10.1128/AAC.01248-10

PubMed Abstract | CrossRef Full Text | Google Scholar

Fagerlund, A., Granum, P. E., and Havarstein, L. S. (2014). Staphylococcus aureus competence genes: mapping of the SigH, ComK1 and ComK2 regulons by transcriptome sequencing. Mol. Microbiol. 94, 557–579. doi: 10.1111/mmi.12767

PubMed Abstract | CrossRef Full Text | Google Scholar

Furi, L., Ciusa, M. L., Knight, D., Di Lorenzo, V., Tocci, N., Cirasola, D., et al. (2013). Evaluation of reduced susceptibility to quaternary ammonium compounds and bisbiguanides in clinical isolates and laboratory-generated mutants of Staphylococcus aureus. Antimicrob. Agents Chemother. 57, 3488–3497. doi: 10.1128/AAC.00498-13

PubMed Abstract | CrossRef Full Text | Google Scholar

Gilbart, J., Perry, C. R., and Slocombe, B. (1993). High-level mupirocin resistance in Staphylococcus aureus: evidence for two distinct isoleucyl-tRNA synthetases. Antimicrob. Agents Chemother. 37, 32–38. doi: 10.1128/AAC.37.1.32

PubMed Abstract | CrossRef Full Text | Google Scholar

Grandgirard, D., Furi, L., Ciusa, M. L., Baldassarri, L., Knight, D. R., Morrissey, I., et al. (2015). Mutations upstream of fabI in triclosan resistant Staphylococcus aureus strains are associated with elevated fabI gene expression. BMC Genomics 16:345 doi: 10.1186/s12864-015-1544-y

PubMed Abstract | CrossRef Full Text | Google Scholar

Heath, R. J., Rubin, J. R., Holland, D. R., Zhang, E., Snow, M. E., and Rock, C. O. (1999). Mechanism of triclosan inhibition of bacterial fatty acid synthesis. J. Biol. Chem. 274, 11110–11114. doi: 10.1074/jbc.274.16.11110

PubMed Abstract | CrossRef Full Text | Google Scholar

Heath, R. J., White, S. W., and Rock, C. O. (2001). Lipid biosynthesis as a target for antibacterial agents. Prog. Lipid Res. 40, 467–497. doi: 10.1016/S0163-7827(01)00012-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Hedges, R. W., and Jacob, A. E. (1974). Transposition of ampicillin resistance from RP4 to other replicons. Mol. Gen. Genet. 132, 31–40. doi: 10.1007/BF00268228

PubMed Abstract | CrossRef Full Text | Google Scholar

Hetem, D. J., and Bonten, M. J. (2013). Clinical relevance of mupirocin resistance in Staphylococcus aureus. J. Hosp. Infect. 85, 249–256. doi: 10.1016/j.jhin.2013.09.006

PubMed Abstract | CrossRef Full Text | Google Scholar

Hijazi, K., Mukhopadhya, I., Abbott, F., Milne, K., Al-Jabri, Z. J., Oggioni, M. R., et al. (2016). Susceptibility to chlorhexidine amongst multidrug-resistant clinical isolates of Staphylococcus Epidermidis from bloodstream infections. Int. J. Antimicrob. Agents. doi: 10.1016/j.ijantimicag.2016.04.015. [Epub ahead of print].

PubMed Abstract | CrossRef Full Text | Google Scholar

Isola, D., Pardini, M., Varaine, F., Niemann, S., Rusch-Gerdes, S., Fattorini, L., et al. (2005). A pyrosequencing assay for rapid recognition of SNPs in Mycobacterium tuberculosis embB306 region. J. Microbiol. Methods 62, 113–120. doi: 10.1016/j.mimet.2005.02.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Ji, Y., Yin, D., Fox, B., Holmes, D. J., Payne, D., and Rosenberg, M. (2004). Validation of antibacterial mechanism of action using regulated antisense RNA expression in Staphylococcus aureus. FEMS Microbiol. Lett. 231, 177–184. doi: 10.1016/S0378-1097(03)00931-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Kaplan, N., Albert, M., Awrey, D., Bardouniotis, E., Berman, J., Clarke, T., et al. (2012). Mode of action, in vitro activity, and in vivo efficacy of AFN-1252, a selective antistaphylococcal FabI inhibitor. Antimicrob. Agents Chemother. 56, 5865–5874. doi: 10.1128/AAC.01411-12

PubMed Abstract | CrossRef Full Text | Google Scholar

Lanza, V. F., Tedim, A. P., Martinez, J. L., Baquero, F., and Coque, T. M. (2015). The plasmidome of firmicutes: impact on the emergence and the spread of resistance to antimicrobials. Microbiol. Spectr. 3:PLAS-0039-2014. doi: 10.1128/microbiolspec.plas-0039-2014

PubMed Abstract | CrossRef Full Text | Google Scholar

Larsen, M. V., Cosentino, S., Rasmussen, S., Friis, C., Hasman, H., Marvig, R. L., et al. (2012). Multilocus sequence typing of total-genome-sequenced bacteria. J. Clin. Microbiol. 50, 1355–1361. doi: 10.1128/JCM.06094-11

PubMed Abstract | CrossRef Full Text

Leelaporn, A., Firth, N., Paulsen, I. T., and Skurray, R. A. (1996). IS257-mediated cointegration in the evolution of a family of staphylococcal trimethoprim resistance plasmids. J. Bacteriol. 178, 6070–6073.

PubMed Abstract | Google Scholar

León-Sampedro, R., Novais, C., Peixe, L., Baquero, F., and Coque, T. M. (2016). Diversity and evolution of the Tn5801-tet(M)-like integrative and conjugative elements among Enterococcus, Streptococcus, and Staphylococcus. Antimicrob. Agents Chemother. 60, 1736–1746. doi: 10.1128/AAC.01864-15

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, H. (2014). Toward better understanding of artifacts in variant calling from high-coverage samples. Bioinformatics 30, 2843–2851. doi: 10.1093/bioinformatics/btu356

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, H., and Tonge, P. J. (2008). Inhibitors of FabI, an enzyme drug target in the bacterial fatty acid biosynthesis pathway. Acc. Chem. Res. 41, 11–20. doi: 10.1021/ar700156e

PubMed Abstract | CrossRef Full Text | Google Scholar

Maillard, J. Y., Bloomfield, S., Coelho, J. R., Collier, P., Cookson, B., Fanning, S., et al. (2013). Does microbicide use in consumer products promote antimicrobial resistance? a critical review and recommendations for a cohesive approach to risk assessment. Microb. Drug Resist. 19, 344–354. doi: 10.1089/mdr.2013.0039

PubMed Abstract | CrossRef Full Text | Google Scholar

Martinez, J. L., Coque, T. M., and Baquero, F. (2015). What is a resistance gene? Ranking risk in resistomes. Nat. Rev. Microbiol. 13, 116–123. doi: 10.1038/nrmicro3399

PubMed Abstract | CrossRef Full Text | Google Scholar

Morrissey, I., Oggioni, M. R., Knight, D., Curiao, T., Coque, T., Kalkanci, A., et al. (2014). Evaluation of epidemiological cut-off values indicates that biocide resistant subpopulations are uncommon in natural isolates of clinically-relevant microorganisms. PLoS ONE 9:e86669. doi: 10.1371/journal.pone.0086669

PubMed Abstract | CrossRef Full Text | Google Scholar

Needham, C., Noble, W. C., and Dyke, K. G. (1995). The staphylococcal insertion sequence IS257 is active. Plasmid 34, 198–205. doi: 10.1006/plas.1995.0005

PubMed Abstract | CrossRef Full Text | Google Scholar

Needham, C., Rahman, M., Dyke, K. G., and Noble, W. C. (1994). An investigation of plasmids from Staphylococcus aureus that mediate resistance to mupirocin and tetracycline. Microbiology 140 (Pt 10), 2577–2583. doi: 10.1099/00221287-140-10-2577

PubMed Abstract | CrossRef Full Text | Google Scholar

Oggioni, M. R., Ciusa, M. L., Furi, L., Baldassarri, L., Orefici, G., Cirasola, D., et al. (2012). Lack of evidence for reduced fitness of clinical Staphylococcus aureus isolates with reduced susceptibility to triclosan. Antimicrob. Agents Chemother. 56, 6068–6069. doi: 10.1128/AAC.01055-12

PubMed Abstract | CrossRef Full Text | Google Scholar

Oggioni, M. R., Coelho, J. R., Furi, L., Knight, D. R., Viti, C., Orefici, G., et al. (2015). Significant differences characterise the correlation coefficients between biocide and antibiotic susceptibility profiles in Staphylococcus aureus. Curr. Pharm. Des. 21, 2054–2057. doi: 10.2174/1381612821666150310103238

PubMed Abstract | CrossRef Full Text | Google Scholar

Oggioni, M. R., Furi, L., Coelho, J. R., Maillard, J. Y., and Martinez, J. L. (2013). Recent advances in the potential interconnection between antimicrobial resistance to biocides and antibiotics. Expert Rev. Anti Infect. Ther. 11, 363–366. doi: 10.1586/eri.13.16

PubMed Abstract | CrossRef Full Text | Google Scholar

Oggioni, M. R., Meacci, F., Carattoli, A., Ciervo, A., Orru, G., Cassone, A., et al. (2002). Protocol for real-time PCR identification of anthrax spores from nasal swabs after broth enrichment. J. Clin. Microbiol. 40, 3956–3963. doi: 10.1128/JCM.40.11.3956-3963.2002

PubMed Abstract | CrossRef Full Text | Google Scholar

Park, H. S., Yoon, Y. M., Jung, S. J., Kim, C. M., Kim, J. M., and Kwak, J. H. (2007). Antistaphylococcal activities of CG400549, a new bacterial enoyl-acyl carrier protein reductase (FabI) inhibitor. J. Antimicrob. Chemother. 60, 568–574. doi: 10.1093/jac/dkm236

PubMed Abstract | CrossRef Full Text | Google Scholar

Payne, D. J., Warren, P. V., Holmes, D. J., Ji, Y., and Lonsdale, J. T. (2001). Bacterial fatty-acid biosynthesis: a genomics-driven target for antibacterial drug discovery. Drug Discov. Today 6, 537–544. doi: 10.1016/S1359-6446(01)01774-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Reuter, J. S., and Mathews, D. H. (2010). RNAstructure: software for RNA secondary structure prediction and analysis. BMC Bioinformatics 11:129. doi: 10.1186/1471-2105-11-129

PubMed Abstract | CrossRef Full Text | Google Scholar

Roach, D. J., Burton, J. N., Lee, C., Stackhouse, B., Butler-Wu, S. M., Cookson, B. T., et al. (2015). A year of infection in the intensive care unit: prospective whole genome sequencing of bacterial clinical isolates reveals cryptic transmissions and novel microbiota. PLoS Genet. 11:e1005413. doi: 10.1371/journal.pgen.1005413

PubMed Abstract | CrossRef Full Text | Google Scholar

Rouch, D. A., Messerotti, L. J., Loo, L. S., Jackson, C. A., and Skurray, R. A. (1989). Trimethoprim resistance transposon Tn4003 from Staphylococcus aureus encodes genes for a dihydrofolate reductase and thymidylate synthetase flanked by three copies of IS257. Mol. Microbiol. 3, 161–175. doi: 10.1111/j.1365-2958.1989.tb01805.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Schoenfelder, S. M., Lange, C., Eckart, M., Hennig, S., Kozytska, S., and Ziebuhr, W. (2010). Success through diversity - how Staphylococcus epidermidis establishes as a nosocomial pathogen. Int. J. Med. Microbiol. 300, 380–386. doi: 10.1016/j.ijmm.2010.04.011

PubMed Abstract | CrossRef Full Text | Google Scholar

Schweizer, H. P. (2001). Triclosan: a widely used biocide and its link to antibiotics. FEMS Microbiol. Lett. 202, 1–7. doi: 10.1111/j.1574-6968.2001.tb10772.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Siguier, P., Gourbeyre, E., and Chandler, M. (2014). Bacterial insertion sequences: their genomic impact and diversity. FEMS Microbiol. Rev. 38, 865–891. doi: 10.1111/1574-6976.12067

PubMed Abstract | CrossRef Full Text | Google Scholar

Siguier, P., Gourbeyre, E., Varani, A., Ton-Hoang, B., and Chandler, M. (2015). Everyman's guide to bacterial insertion sequences. Microbiol. Spectr. 3:MDNA3–0030-2014 doi: 10.1128/microbiolspec.mdna3-0030-2014

PubMed Abstract | CrossRef Full Text | Google Scholar

Slater-Radosti, C., Van Aller, G., Greenwood, R., Nicholas, R., Keller, P. M., DeWolf, W. E. Jr., et al. (2001). Biochemical and genetic characterization of the action of triclosan on Staphylococcus aureus. J. Antimicrob. Chemother. 48, 1–6. doi: 10.1093/jac/48.1.1

PubMed Abstract | CrossRef Full Text | Google Scholar

Tonouchi, N., Tsuchida, T., Yoshinaga, F., Horinouchi, S., and Beppu, T. (1994). A host-vector system for a cellulose-producing Acetobacter strain. Biosci. Biotechnol. Biochem. 58, 1899–1901. doi: 10.1271/bbb.58.1899

PubMed Abstract | CrossRef Full Text | Google Scholar

Woodford, N., Watson, A. P., Patel, S., Jevon, M., Waghorn, D. J., and Cookson, B. D. (1998). Heterogeneous location of the mupA high-level mupirocin resistance gene in Staphylococcus aureus. J. Med. Microbiol. 47, 829–835. doi: 10.1099/00222615-47-9-829

PubMed Abstract | CrossRef Full Text | Google Scholar

Yesilkaya, H., Meacci, F., Niemann, S., Hillemann, D., Rusch-Gerdes, S., Group, L. D. S., et al. (2006). Evaluation of molecular-Beacon, TaqMan, and fluorescence resonance energy transfer probes for detection of antibiotic resistance-conferring single nucleotide polymorphisms in mixed Mycobacterium tuberculosis DNA extracts. J. Clin. Microbiol. 44, 3826–3829. doi: 10.1128/JCM.00225-06

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, Y. Q., Ren, S. X., Li, H. L., Wang, Y. X., Fu, G., Yang, J., et al. (2003). Genome-based analysis of virulence genes in a non-biofilm-forming Staphylococcus epidermidis strain (ATCC 12228). Mol. Microbiol. 49, 1577–1593. doi: 10.1046/j.1365-2958.2003.03671.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: insertion sequence, transposon, antimicrobial drug resistance, metabolism, resistance risk, fabI, IS5 family, IS1182 family

Citation: Furi L, Haigh R, Al Jabri ZJH, Morrissey I, Ou H-Y, León-Sampedro R, Martinez JL, Coque TM and Oggioni MR (2016) Dissemination of Novel Antimicrobial Resistance Mechanisms through the Insertion Sequence Mediated Spread of Metabolic Genes. Front. Microbiol. 7:1008. doi: 10.3389/fmicb.2016.01008

Received: 27 February 2016; Accepted: 13 June 2016;
Published: 28 June 2016.

Edited by:

David W. Graham, Newcastle University, UK

Reviewed by:

Claudio Palmieri, Marche Polytechnic University, Italy
Marco Fondi, University of Florence, Italy

Copyright © 2016 Furi, Haigh, Al Jabri, Morrissey, Ou, León-Sampedro, Martinez, Coque and Oggioni. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Marco R. Oggioni,
