Isotopic Analysis of Sporocarp Protein and Structural Material Improves Resolution of Fungal Carbon Sources

  • 1Earth, Oceans and Space, Earth Systems Research Center, University of New Hampshire, Durham, NH, USA
  • 2Soil and Water Management and Crop Nutrition Laboratory, FAO/IAEA Agriculture and Biotechnology Laboratories, Seibersdorf, Austria
  • 3Department of Ecology, Evolution and Organismal Biology, Iowa State University, Ames, IA, USA
  • 4Environmental Molecular Sciences Laboratory and Biological Sciences Division, Pacific Northwest National Laboratory, Richland, WA, USA

Fungal acquisition of resources is difficult to assess in the field. To determine whether fungi received carbon from recent plant photosynthate, litter or soil-derived organic (C:N bonded) nitrogen, we examined differences in δ13C among bulk tissue, structural carbon, and protein extracts of sporocarps of three fungal types: saprotrophic fungi, fungi with hydrophobic ectomycorrhizae, or fungi with hydrophilic ectomycorrhizae. Sporocarps were collected from experimental plots of the Duke Free-air CO2 enrichment experiment during and after CO2 enrichment. The differential 13C labeling of ecosystem pools in CO2 enrichment experiments was tracked into fungi and provided novel insights into organic nitrogen use. Specifically, sporocarp δ13C as well as δ15N of protein and structural material indicated that fungi with hydrophobic ectomycorrhizae used soil-derived organic nitrogen sources for protein carbon, fungi with hydrophilic ectomycorrhizae used recent plant photosynthates for protein carbon and both fungal groups used photosynthates for structural carbon. Saprotrophic fungi depended on litter produced during fumigation for both protein and structural material.

Introduction

Despite the diverse roles that fungi play in carbon cycling in forest ecosystems, little is known about how different fungi partition carbon resources internally. Instead, fungi in forest ecosystems are commonly classified by the substrates they use. Saprotrophic fungi dominate the litter layer (Oi horizon) and decaying material such as litter, cones and wood (Rayner and Boddy, 1988). Ectomycorrhizal fungi are primarily active in the organic horizons below the litter layer, decompose relatively older organic matter for resources, and can transfer acquired nutrients to plants in exchange for plant photoassimilates (Smith and Read, 1997; Lindahl et al., 2007). Ectomycorrhizal fungi can be classified into those with hydrophobic ectomycorrhizae or hydrophilic ectomycorrhizae (Unestam and Sun, 1995; Agerer, 2006) that purportedly can use insoluble or soluble substrates, respectively (Lilleskov et al., 2011; Hobbie et al., 2013b). Specifically, fungi with hydrophobic ectomycorrhizae consist of hyphae with medium to long distance exploration types that can use insoluble as well as soluble substrates and fungi with hydrophilic ectomycorrhizae consist of hyphae with contact and shorter distance exploration types that rely on soluble substrates. While these generalized classifications are helpful, quantifying which carbon sources are accessed by specific taxa requires new approaches.

In laboratory studies, fungi can be supplied with specific carbon substrates to determine which ones are preferentially consumed (Tinker et al., 1990; Colpaert et al., 1996; Hobbie et al., 2004). These studies provide insight into fungal uptake capabilities, but they may not represent fungal resource acquisition strategies in the field. In the field, labeling with isotope tracers can track fungal sources of carbon (Ho and Trappe, 1973; Högberg et al., 2010; Hobbie et al., 2014). Such labeling has included elevated atmospheric CO2 experiments, in which 13C-depleted CO2 is added to raise CO2 concentrations in free air CO2 enrichment (FACE) studies. Carbon isotope signatures in bulk sporocarp material of ectomycorrhizal and saprotrophic fungi confirmed that both types of fungi rely on carbon recently assimilated by plants and suggested that some ectomycorrhizal fungi also incorporated carbon from soil-derived organic nitrogen sources that predated the 13C labeling (Hobbie et al., 2014). Additional studies have measured isotopic composition of sporocarps at natural abundance levels to determine fungal sources of carbon, with the 13C:12C ratio (δ13C) generally lower for ectomycorrhizal fungi than for saprotrophic fungi (Högberg et al., 1999; Kohzu et al., 1999; Hobbie et al., 2001). The 15N:14N ratio (δ15N) of fungi has also been used to determine fungal sources of organic (carbon-bonded) nitrogen, since deeper and older forms of organic nitrogen are 15N-enriched relative to shallower and younger organic nitrogen (Billings and Richter, 2006; Hobbie and Ouimette, 2009). This difference in δ15N across soil profiles is largely due to inputs of low δ15N litter higher in the soil profile and decomposition that increases δ15N values deeper down in the soil profile (Nadelhoffer and Fry, 1988), as well as due to fractionation of N during ecotmycorrhizal transfer of N to plants (Hobbie and Colpaert, 2003). Studies to date have focused on bulk sporocarps and have given significant but limited insight into fungal sources of carbon.

Isotope analysis of different fungal compounds (e.g., protein, chitin, and lipids) can provide new information about how carbon is allocated, but this has only begun to be studied. Hobbie et al. (2012) suggested that fungal protein was enriched in 13C and 15N relative to fungal carbohydrates, chitin, and lipids based on bulk isotopic patterns in protein-rich caps relative to protein-poor stipes of sporocarps. Radiocarbon 14C studies on protein and structural material of fungi with hydrophobic and hydrophilic ectomycorrhizae indicate that structural carbon is derived from recent carbon sources, such as photosynthate, while protein carbon can be derived from new photosynthate and from either recent organic nitrogen in the younger Oi horizon or from older organic nitrogen sources in the Oea horizon, depending on the fungal functional group (Hobbie et al., 2013a). Glycoproteins and polysaccharides are the major structural compounds in fungal cell walls that facilitate formation and structure of fungi (Bowman and Free, 2006). Chitin is also an integral component of the fungal cell wall (Bago et al., 1996; Bowman and Free, 2006). Additional proteins are involved in metabolism, protection, growth and maintenance (Persson et al., 1991; Niessing, 2000; Saier, 2000; González-Chávez et al., 2004; Seidl, 2008). Because most carbon is allocated to structural and protein material in fungi (Kalač, 2009), and because of the foundation of these previous studies, structural and protein extracts of sporocarps are good candidates for characterizing carbon acquisition and allocation.

Here we determined sources of ectomycorrhizal and saprotrophic carbon using sporocarps and soil collected from the Duke FACE experiment. CO2-fumigated plots in a Pinus taeda plantation were fumigated with 13C-depleted CO2 from 1997 to 2010 (Hendrey et al., 1999). Differences in δ13C of bulk tissue, structural carbon, and protein extracts from ambient and FACE treatment plots during and after CO2 enrichment were used to determine whether fungi obtained carbon from recent plant photosynthate, plant litter, or soil-derived organic nitrogen sources. To further clarify whether carbon from soil organic matter was acquired from the younger or older organic soil horizons, patterns of soil and fungal δ15N were also investigated. We predicted that bulk saprotrophic sporocarps collected post-CO2 fumigation from wood decay and litter decay groups would be lower in δ13C than ectomycorrhizal fungi due to the acquisition of litter-derived carbon produced during CO2 fumigation. Furthermore, δ13C and δ15N patterns in protein and structural carbon of sporocarps tested whether fungi with hydrophobic ectomycorrhizae use soil-derived organic nitrogen sources for protein carbon, fungi with hydrophilic ectomycorrhizae use recent plant photosynthates for protein carbon, and whether both fungal groups depend on plant photosynthates for structural carbon as opposed to saprotrophic fungi relying on recent litter and wood (Figure 1). Specifically, we predicted that protein of fungi with hydrophobic ectomycorrhizae would be lower in δ13C than structural material after CO2 fumigation shutoff, reflecting older, deeper organic N sources, while protein and structural material of fungi with hydrophilic ectomycorrhizae and saprotrophic fungi would be similar, reflecting recent assimilates and surficial litter created before CO2 shutoff. We also predicted that the δ15N of fungi with hydrophobic ectomycorrhizae would be higher than fungi with hydrophilic ectomycorrhizae and saprotrophic fungi, reflecting the differing sources of organic N in the soil profile.

FIGURE 1
www.frontiersin.org

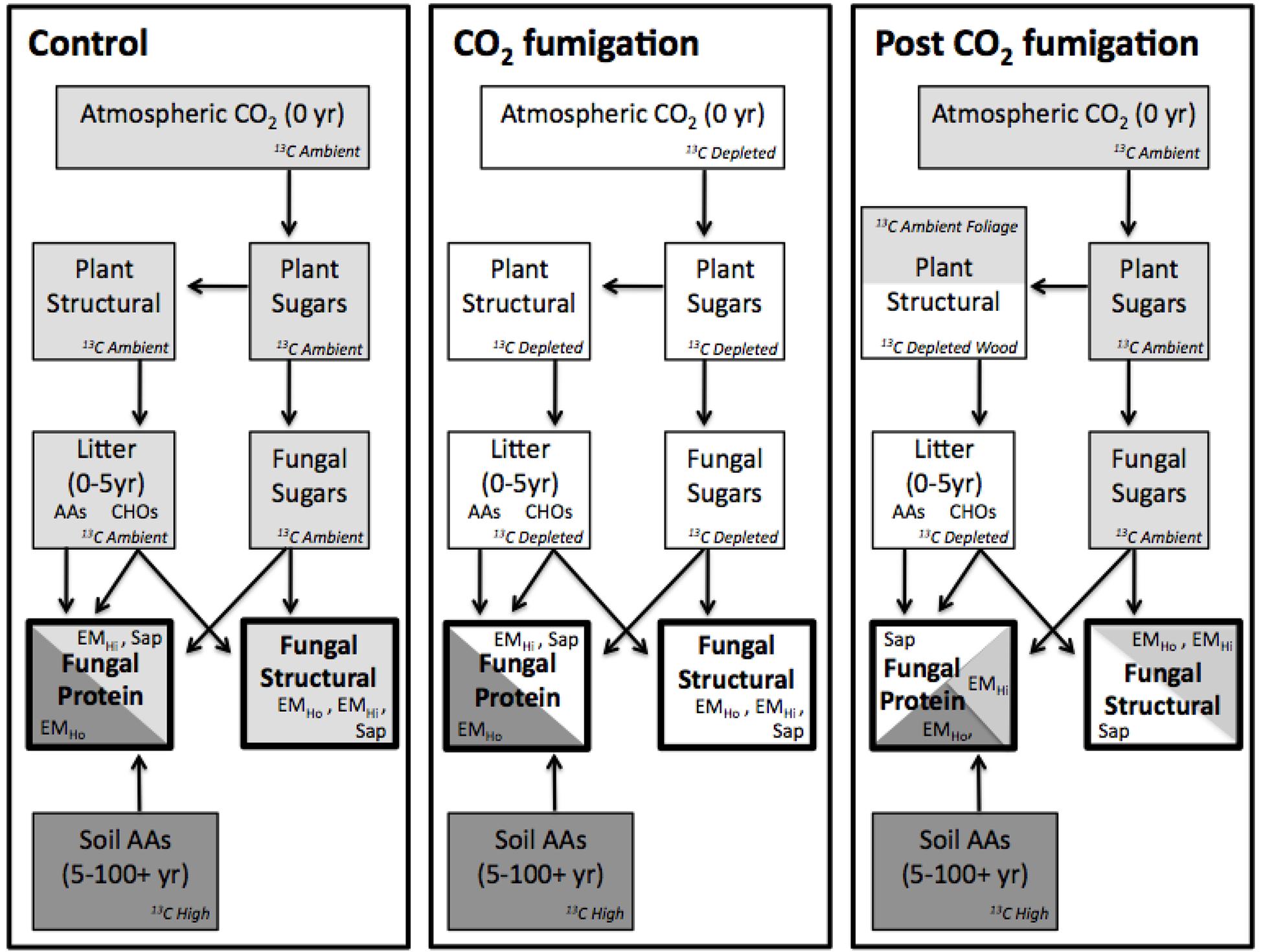

FIGURE 1. Schematic of carbon fluxes in the plant-fungal-soil system, showing how uptake of recently assimilated carbon and old soil organic nitrogen can influence the δ13C of saprotrophic (Sap) fungi of fungi with hydrophilic ectomycorrhizae (EMHi) and hydrophobic (EMHo) ectomycorrhizae fungi when carbon sources differ in δ13C. Scenarios are represented for ambient, CO2-fumigated and previously CO2-fumigated FACE plots. AAs = amino acids. 13C high to low from dark gray > light gray > white.

Materials and Methods

Field Site

Our work was conducted within the Duke Forest FACE experiment in North Carolina, USA (35°58′41″N, 79°05′39″ W, 163 m elevation). The forest is dominated by loblolly pine (Pinus taeda) that were planted in 1983 as 3-year-old seedlings with 2.4 m2 spacing. Deciduous tree species including Liquidambar styraciflua, Acer rubrum, Cercis Canadensis, and Cornus florida dominate the understory. Three control and three CO2-fumigated plots, 30 m in diameter, were fumigated with ambient air or CO2 (to 200 ppm above ambient levels), respectively. The CO2 used for fumigation was strongly depleted in 13C relative to atmospheric CO2, with a δ13C of -43.0 ± 0.6‰, thus lowering the δ13C of CO2 within the ring by 12‰, to -20‰. Fumigation began August 27, 1996 and was continuous until fumigation shutoff on November 1, 2010. A 98 atom% 15N tracer (75% as NH4Cl and 25% as KNO3 at a rate of 15 mg 15N m-2 in 0.25 l H2O) was applied by backpack sprayers to all of each plot in May 2003. This represented 3% of the inorganic N pool from 0 to 15 cm depth. Additionally, in 2005 each FACE plot was divided in half with a plastic sheet to a 70 cm depth. Half of the plot was fertilized with 56 kg ha-1 unlabeled NH4NO3 twice, in March and April 2005, and then in one annual application in March until CO2 fumigation shutoff in 2010. Although the added 15N label in our plots raised 15N levels in our sporocarps compared to other studies without a tracer addition and raised δ15N of the Oea soil horizon relative to mineral soils, we were still able to compare δ15N values between fungal types, CO2 treatments and protein and structural material extracts within our study. Additionally, fertilization did not significantly affect soil or fungal δ15N values. The soil is a fine sandy loam classified as being from the Enon Series (fine, mixed, active, thermic Ultic Hapludalfs). The pH is 5.75 and derived from mafic bedrock. There are well-developed soil horizons with mixed clay mineralogy.

Soil and Sporocarp Sampling

Soils were collected in November 2010 and April 2013 using methods described in Hofmockel et al. (2011). Soils were separated by depth into organic Oi, Oea horizons, and mineral 0-15 cm and 15-30 cm horizons and then sieved to 2 mm, dried and homogenized. Sporocarps were collected in October 2000, August and December of 2001, January, February, September, and November of 2002, October 2004, October 2010 and September and October of 2012. On each sampling day, each ring was surveyed and all sporocarps were collected. Whole sporocarps were dried, identified, and then homogenized to a fine powder and stored at room temperature until further analysis. Among the fungal groups, fungi with hydrophilic ectomycorrhizae (as noted in previous fungal literature) consisted of sporocarps from the genera Amanita, Chroogomphus, Hygrophorus, Inocybe, Laccaria, Lactarius, and Russula. Fungi with hydrophobic ectomycorrhizae (also as noted in fungal literature) consisted of sporocarps from the genera Cortinarius, Hydnellum, Sistotrema, Suillus, Tricholoma, and Tylopilus. Saprotrophic wood decay fungi consisted of the genera Gymnopilus, Gymnopus, Hypholoma, and Pluteus. Saprotrophic litter decay fungi consisted of the genera Agaricus, Clitocybe, Hygrocybe, Mycena, Ramariopsis, and Rhodocollybia (see Supplementary Material for species information). Due to low collection numbers in 2012, data from fertilized and unfertilized plots were included in our analysis of the effects of elevated CO2, and fertilization and the interactive effect of CO2 and fertilization were investigated as well. Samples collected from years before CO2 fumigation shutoff were also pooled due to low collection numbers in 2000, 2001, 2002, and 2010.

Sporocarp Compound Extractions

Chemical extractions were done for a subset of the sporocarps and focused on genera collected in 2012 that were most abundant, and for which we had multiple replicates per genus, specifically Amanita, Chroogomphus, Lactarius, Russula, Cortinarius, Hydnellum, Suillus, Tylopilus, Gymnopus, Ramariopsis, and Rhodocollybia. Approximately 200 mg of sporocarp material was used to extract protein and structural material using a revised extraction method (Hobbie et al., 2013a). Ground sample was placed in borosilicate culture tubes with 3 mL of n-hexanes, capped and mixed. Tubes were incubated at 80°C for 30 min and then centrifuged at 2000 rpm for 5 min. Supernatant was discarded and the wash was repeated two or more times with n-hexanes. When the n-hexanes solvent was clear after mixing with the sample, final n-hexanes were discarded to remove all non-polar compounds and samples were dried down in a Genevac EZ-2.2 Series vacuum evaporator (Genevac Inc., New York, USA) at 45°C. Subsequently, soluble polar compounds were removed by washing samples three or more times with 3 mL of 80% ethanol, using the same method as n-hexanes, until the solvent was clear when mixed with samples. After samples were dried down, proteins were hydrolyzed by adding 2 mL of 6 M HCl to the n-hexane-washed and ethanol-washed samples, agitated until mixed and incubated at 110°C for 24 h. After hydrolysis, samples were dried down in the vacuum evaporator. Dried samples were then resuspended in 2 mL of 0.01 M HCl and sonicated for 30 min. Tubes were then centrifuged at 2000 rpm for 5 min.

To separate protein and structural compounds the above extracts were washed through cation-exchange columns. Columns were first prepared by washing Dowex 50 WX8 200-400cl-mesh ion exchange resin with 80% ethanol, followed by 6 M HCl and then water until pH was restored to 6. Washed ion exchange resin was placed into sterile 5 mL glass volumetric pipettes to the 4 mL line of the pipette. Columns were rinsed again two times with water, followed by the addition of the supernatant of the resuspended sample extract (0.01 M HCl) to the top of the column. Samples were first eluted with 24 mL of water to remove negatively charged and uncharged molecules. Hydrolyzed proteins were then eluted with 24 mL of 6 M HCl, collected and dried down in the vacuum evaporator. The remaining structural material pellet in the original sample tube was incubated with 2 mL of 2 M NaOH at 110°C for 2 h. The tube was then centrifuged and the supernatant was discarded. The structural material was washed with water several times to remove NaOH and then dried in the vacuum evaporator.

Isotope Analysis

Ground soil, sporocarps, protein, and structural extracts were analyzed for %C, %N, δ13C, and δ15N using a Costech 4010 Elemental Analyzer coupled to a Thermo Delta Plus XP IRMS at the University of New Hampshire. Standard deviations of laboratory standards (tuna, Underhill Oa, Underhill Bs, NIST 1515 apple leaves, and NIST 1575a pine needles) for δ15N and δ13C averaged less than 0.2‰.

Statistical Analysis

Data were analyzed using JMP Pro 11 software (SAS, Cary, NC, USA). Fungal samples were treated as individual samples, without averaging by ring. Effects of CO2 treatment on δ15N and δ13C of soils and fungi as well as differences between fungal types were explored using linear regression models. Factors of interest included CO2 fumigation, fertilization, and an interaction of the two factors as well as functional types for fungal data. Fertilization was also included to test whether samples from fertilized and unfertilized plots should be pooled. Experimental ring was included as a random effect. To identify factors that controlled differences in δ13C between protein and structural material, we used a stepwise linear regression model including CO2 fumigation, fertilization, bulk fungal δ15N and δ13C and difference in protein and structural material δ15N, %N, and %C.

Results

Soil δ13C and δ15N Analysis

Soils among all collected horizons were lower in δ13C in CO2-fumigated plots than in ambient plots both in 2010 during CO2 fumigation by a mean of 6.7‰ and in 2013 by 5.2‰. CO2 fumigation significantly lowered soil δ13C (p < 0.0001, n = 84) while fertilization and the interaction between fumigation and fertilization did not significantly affect soil δ13C values. Depth also affected soil δ13C (p < 0.0001, n = 84) and response to CO2 fumigation, with δ13C of the Oi horizon in CO2-fumigated plots 5.5‰ lower in 2010 than in 2013 (p = 0.0150, n = 10) (Figure 2). In the Oea horizon, δ13C of soils in CO2-fumigated plots was 1.6‰ lower in 2010 than in 2013 (p = 0.0213, n = 10). In contrast, the δ13C of both mineral soil horizons (0-15 cm and 15-30 cm) did not change between 2010 and 2013. Fertilization and the interaction of fertilization with fumigation were not significant factors (p = 0.9232 and 0.8109, respectively). In 2010, the Oi horizon was the most 13C-depleted horizon in CO2-fumigated plots, while in 2013 the Oea horizon was the most 13C-depleted horizon.

FIGURE 2
www.frontiersin.org

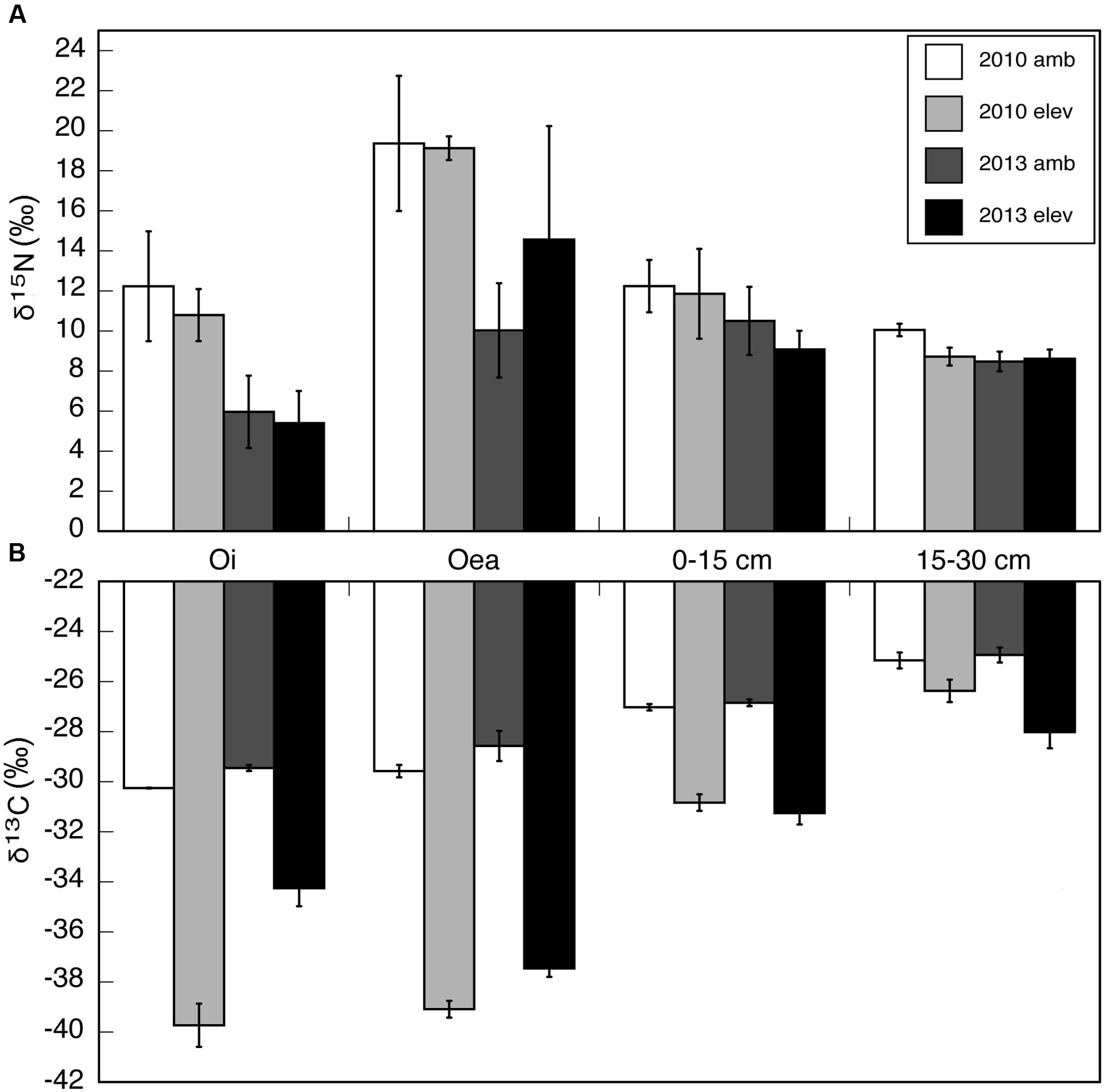

FIGURE 2. (A) δ15N and (B) δ13C of soils collected in 2010 during CO2 fumigation and in 2013 three years after CO2 fumigation shutoff in both ambient and CO2-fumigated plots. Soils were separated at the Oi and Oea organic horizons and at 0–15 and 15–30 cm depths. Each bar represents an average of four replicates in 2010 and three replicates in 2013. Error bars indicate SE.

To clarify sources of fungal carbon and determine whether carbon from soil organic (C:N bonded) matter was acquired from the younger Oi or older Oea horizons, soil δ15N was also investigated. CO2 treatment and fertilization did not significantly affect soil δ15N, but depth of soil was a significant factor (0.0058, n = 84). The Oea horizon was enriched in 15N relative to the Oi horizon by 6.4‰ in 2010 and by 5.3‰ in 2013 (Figure 2).

Bulk δ13C Analysis

During CO2 fumigation in 2010, fungal functional type and fumigation significantly affected bulk δ13C (p < 0.0001 for both, n = 245). All fungal types had lower δ13C in CO2-fumigated plots than in ambient plots, with the largest difference in sporocarps of fungi with hydrophilic ectomycorrhizae (-11.4‰), followed by hydrophobic ectomyorrhizae (-10.6‰), saprotrophic litter decay fungi (-9.0‰) and wood decay (-4.1‰) fungi (Table 1). In CO2-fumigated plots, δ13C was 3.1 to 8.1‰ higher for fungi with hydrophobic ectomycorrhizae and 4.5 to 9.5‰ higher for fungi with hydrophilic ectomycorrhizae than for litter decay fungi and wood decay fungi. In 2012, 2 years after CO2 fumigation shutoff, fungal type and fumigation continued to significantly affect bulk δ13C (p = 0.0004 and <0.0001 respectively, n = 86). Litter decay and wood decay fungi from CO2-fumigated plots reflected 13C patterns in the Oi and Oea soil horizons and were still 5.8 and 8.6‰ lower in δ13C than sporocarps from ambient plots, respectively (Table 1). Two years after CO2 fumigation shutoff, ectomycorrhizal sporocarps had increased by 10 to 11‰ in 13C in formerly CO2-fumigated plots. Fertilization and the interaction with fumigation did not significantly affect bulk δ13C before or after CO2 fumigation shutoff.

TABLE 1
www.frontiersin.org

TABLE 1. δ13C for bulk sporocarps of fungi with hydrophilic ectomycorrhizae (Hi), hydrophobic ectomycorrhizae (Ho), saprotrophic litter decay (ld), and wood decay (wd) collected in ambient and CO2-fumigated plots at the Duke Forest FACE site during CO2 fumigation in 2010 and 2 years after CO2 fumigation shutoff.

Protein and Structural Sporocarp δ13C Analysis

We analyzed protein and structural material of sporocarps collected 2 years after CO2 shutoff. CO2 fumigation and fungal functional type significantly affected protein δ13C (p = 0.0253 and 0.0153 respectively, n = 37), while fertilization and the interaction of CO2 fumigation with fertilization were not significant factors. Protein δ13C of sporocarps with hydrophobic ectomycorrhizae was 2.1‰ lower in CO2-fumigated plots than in ambient plots (Table 2; Figure 3). Protein of litter fungi was also lower in δ13C in CO2-fumigated plots by 6.1‰. Resolution of protein and structural material from wood decay fungi was poor and standard error was high due to a low number of samples (n = 3). Only fungal functional type significantly affected δ13C of structural material and structural material only differed in δ13C between ambient and CO2-fumigated plots for litter decay fungi (Table 2; Figure 3). In addition, in ambient plots, protein of fungi with hydrophilic ectomycorrhizae was lower in δ13C than protein of fungi with hydrophobic ectomycorrhizae, litter fungi, and wood decay fungi by 2.4, 1.5, and 1.9‰, respectively.

TABLE 2
www.frontiersin.org

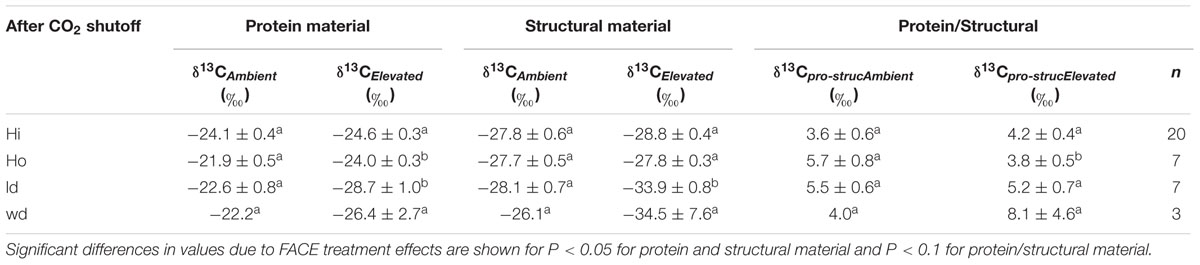

TABLE 2. δ13C for protein and structural material of sporocarps and the δ13C difference between the two (δ13Cpro-struc) for fungi with hydrophilic ectomycorrhizae (Hi), hydrophobic ectomycorrhizae (Ho), and saprotrophic sporocarps, specifically litter decay (ld) and wood decay (wd) fungi, collected in ambient and CO2-fumigated plots at the Duke Forest FACE site 2 years after CO2 fumigation shutoff.

FIGURE 3
www.frontiersin.org

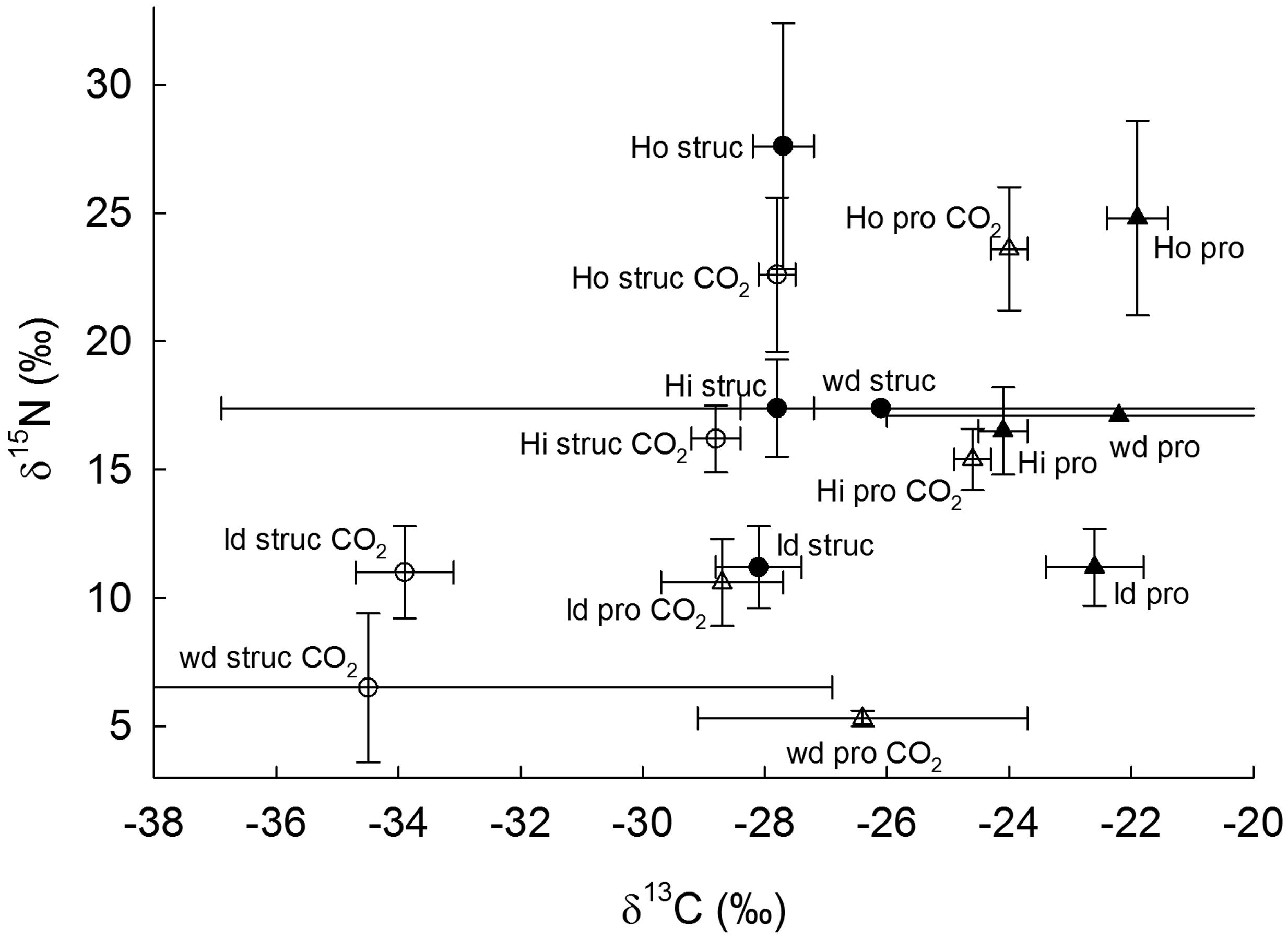

FIGURE 3. δ13C and δ15N of sporocarps of fungi with hydrophobic ectomycorrhizae (Ho) and hydrophilic ectomycorrhizae (Hi) as well as saprotrophic wood decay (wd) and litter decay (ld) fungi collected in ambient (filled symbols) and CO2-fumigated plots (CO2, open symbols) at the Duke Forest FACE site 2 years after CO2 fumigation shutoff. Error bars indicate SE.

The 13C enrichment of protein relative to structural material (δ13Cpro-struc) of fungi with hydrophobic ectomycorrhizae was 3.8‰ in CO2-fumigated plots and 5.7‰ in ambient plots (Table 2). Controls over δ13Cpro-struc across treatment and fungal type were investigated using stepwise multiple regressions (Table 3). Bulk sporocarp δ13 and δ15N and %Npro-struc were significant factors that accounted for 29.56, 28.30, and 18.39% of the variance, respectively. The adjusted r2 versus the independent variables was 0.547 for δ13Cpro-struc (overall p = 0.0002).

TABLE 3
www.frontiersin.org

TABLE 3. Controls over δ13Cpro-struc (n = 27) were investigated using stepwise multiple regressions.

Discussion

Identifying sources of carbon is important for distinguishing different functional types of fungi. Stable isotope analysis of bulk fungal tissue has been used to determine that ectomycorrhizal and saprotrophic fungi rely primarily on litter and photosynthates as carbon sources (Hobbie et al., 2001, 2014; Mayor et al., 2009). Isotopic relationships between bulk sporocarps collected in ambient and CO2-fumigated plots in a previous Duke FACE collection also suggested that ectomycorrhizal fungi derived carbon from soil and litter (Hobbie et al., 2014). Here, we clarified fungal sources of carbon that are difficult to detect in bulk tissue isotope analysis by combining information from bulk tissue, protein and structural extracts of sporocarps from the Duke FACE experiment.

As predicted, bulk sporocarps from all four functional classes collected during 13C-depleted CO2 fumigation were low in δ13C relative to ambient samples, while only saprotrophic fungi maintained low δ13C signatures after CO2 shutoff. The persistently low bulk δ13C of wood decay fungi and litter decay fungi from CO2-fumigated plots 2 years after fumigation shutoff indicated that these fungi relied on surficial litter and wood produced during CO2 fumigation. The smaller difference in δ13C between pre-fumigation and post-fumigation samples of wood decay fungi than of litter decay fungi also suggested that wood decay fungi may use carbon that was produced before CO2 fumigation was initiated, as wood C sources can be relatively old. The increased δ13C of fungi with hydrophobic and hydrophilic ectomycorrhizae in CO2-fumigated plots 2 years after fumigation shutoff and similar values to fungi in ambient plots indicate that these functional groups relied on recent plant photosynthate that was produced after fumigation as a carbon source. However, these bulk tissue results lack sufficient sensitivity to assess our hypothesis that ectomycorrhizal fungi access carbon in soil-derived organic nitrogen pools, which are present in deeper soil horizons and 13C-enriched relative to other carbon pools.

In contrast to bulk analyses, combined carbon and nitrogen isotopic analysis of fungal protein of sporocarps collected 2 years after CO2 fumigation shutoff supported our hypothesis that fungi with hydrophobic ectomycorrhizae use soil-derived organic nitrogen sources, such as humic substances, proteinaceous materials, amino sugars and heterocyclic nitrogen compounds, for protein carbon. In ambient plots, protein from both litter decay fungi and fungi with hydrophobic ectomycorrhizae were enriched in 13C relative to protein from wood decay fungi and fungi with hydrophilic ectomycorrhizae, suggesting that the former fungi used carbon from relatively older and deeper 13C-enriched organic soil pools. The 13C-depleted values of protein from fungi with hydrophilic ectomycorrhizae relative to fungi with hydrophobic ectomycorrhizae in ambient plots suggest that carbon from recent plant photosynthate was incorporated into protein of fungi with hydrophilic ectomycorrhizae. Furthermore, in plots previously exposed to elevated CO2, protein of litter decay fungi and fungi with hydrophobic ectomycorrhizae was depleted in 13C relative to ambient plots, also suggesting that these fungal groups assimilate older organic nitrogen that was synthesized during CO2 fumigation years. However, δ15N patterns in protein revealed that fungi with hydrophobic ectomycorrhizae use older organic nitrogen than litter decay fungi, since protein of ectomycorrhizal fungi was 15N-enriched relative to saprotrophic fungi, resembling the 15N-enriched organic nitrogen in the older Oea soil horizon more than the Oi soil horizon. Although ectomycorrhizal fungi are higher in δ15N than saprotrophic fungi due to 15N enrichment during transfer of 15N-depleted nitrogen to plants (Hobbie and Colpaert, 2003), the 5‰ higher δ15N of protein of fungi with hydrophobic ectomycorrhizae compared to fungi with hydrophilic ectomycorrhizae also supports our hypothesis that fungi with hydrophobic ectomycorrhizae use older 15N -enriched pools of organic nitrogen.

Although exploration of the effect of genus in addition to functional type on fungal isotopic response to CO2 fumigation would have provided additional information on the role of different fungi in carbon cycling, this was beyond the scope of our study due to the limited number and variety of sporocarps that generated within experimental plots. Regardless, our results support prior results on radiocarbon of protein of ectomycorrhizal fungal protein indicating that fungi with hydrophobic ectomycorrhizae use older organic nitrogen sources than fungi with hydrophilic ectomycorrhizae (Hobbie et al., 2013a). These isotopic carbon patterns likely arise from differences in enzymatic capacity and preference for insoluble or soluble substrates between hydrophobic and hydrophilic ectomycorrhizae (Lilleskov et al., 2011; Hobbie et al., 2013b). Although the 13C enrichment of saprotrophic wood and litter decay protein relative to hydrophilic protein in ambient plots suggests use of organic nitrogen by saprotrophic fungi, these patterns could also be derived from litter or wood cellulose and de novo synthesis of fungal amino acids. Therefore, further investigation is needed of carbon sources for protein and structural material of saprotrophic fungi, such as with separate 13C labeling of plant cellulose and organic nitrogen, in order to determine the effect of fungal preference for different carbon substrates as well as age of carbon substrates on fungal isotopic patterns.

The δ13C of structural material of fungi with hydrophobic and hydrophilic ectomycorrhizae suggests that ectomycorrhizal fungi rely solely on recent plant photosynthates for structural carbon, since the low δ13C from CO2 fumigation did not persist 2 years after CO2 shutoff. Additionally, the δ13C of structural material of saprotrophic fungi was 5‰ lower than ectomycorrhizal fungi, since litter decay fungi rely heavily on surficial litter that persisted after CO2 shutoff as a carbon source.

The δ13Cpro-struc ranged from 3.6 to 5.7‰, overlapping the estimated range of 13C enrichment between protein and structural carbohydrates of 4.2 ± 0.5‰ in Hobbie et al. (2012). Similar to this previous study on protein and carbohydrate content in caps and stipes of sporocarps, nitrogen content and δ15N between protein and structural material correlated with δ13Cpro-struc in the current study. We previously hypothesized that 13C differences between fungal protein and carbohydrates could primarily be due to differences in carbon metabolism (Hobbie et al., 2012). Specifically, 13C fractionation and loss of 13C-depleted CO2 was hypothesized during production of carbon skeletons from the tricarboxylic acid cycle for protein synthesis (O’Leary and Yapp, 1978; Grissom and Cleland, 1988; Tcherkez et al., 2003). However, correlation of nitrogen content and δ15N with δ13C of protein and structural material in our data suggests that nitrogen source is also an important factor. Differences in δ13Cpro-struc between ambient and previously CO2-fumigated plots for fungi with hydrophobic ectomycorrhizae also suggest that these materials have different carbon sources. If 13C enrichment of protein were due to internal fractionation rather than differences in C source, δ13Cpro-struc should be the same for ambient and CO2-fumigated plots. Although δ13Cpro-struc was similar for ambient and CO2-fumigated plots in saprotrophic fungi and fungi with hydrophilic ectomycorrhizae, likely due to the use of more recently produced carbon sources, δ13Cpro-struc of fungi with hydrophobic ectomycorrhizae was lower by 1.9‰ in plots that were previously fumigated with elevated CO2. This difference between protein and structural material of hydrophobic ectomycorrhizal fungi in ambient and CO2 fumigation treatments indicates that, in CO2-fumigated plots, the 13C-depleted carbon in protein was derived from soil organic nitrogen that was synthesized during CO2 fumigation. Our results therefore indicate that fungi with hydrophobic ectomycorrhizae use both organic nitrogen and recent photosynthate as a carbon source. However, this should be investigated further with more fungi with hydrophobic and hydrophilic ectomycorrhizae.

Movement of recently fixed carbon is rapid through plants and the sporocarp δ13C of ectomycorrhizal fungi returned to natural levels as quickly as 2-3 months after pulse 13C labeling of host plants (Högberg et al., 2010). Isotopic differences in CO2-fumigated plots between ectomycorrhizal and saprotrophic fungi during and after fumigation therefore probably appeared shortly after fumigation shutoff. This difference could be used to identify compounds derived from recent photosynthate. However, the 2-year period after CO2 fumigation shutoff in this study also allowed us to identify which functional groups were assimilating newly produced photosynthate, young organic nitrogen in surficial litter or old organic nitrogen sources in deeper soils. Future studies in global change experiments of δ13C values of bulk tissue, protein and structural material before CO2 fumigation, shortly after fumigation shutoff and a few years after fumigation shutoff can accordingly further help to clarify fungal sources of carbon.

Conclusion

Our data demonstrate that protein and structural material can use different carbon pools and that patterns of carbon use differ among fungi with hydrophilic ectomycorrhizae, fungi with hydrophobic ectomycorrhizae, and saprotrophic fungi. Specifically, fungi with hydrophilic ectomycorrhizae used recent plant photosynthate and young organic matter for carbon while fungi with hydrophobic ectomycorrhizae mined old organic material for protein carbon and converted recent plant photosynthate into structural material. These results demonstrate that prior inferences about differences in organic nitrogen partitioning of fungi with hydrophobic and hydrophilic ectomycorrhizae reported from boreal forests (Hobbie et al., 2013a) apply to a much warmer temperate forest ecosystem as well. Our data also demonstrate for the first time that litter decay fungi used young organic matter carbon for both protein and structural material.

Author Contributions

JC is the primary author and conducted the laboratory and data analysis of this study. KH provided samples and the experimental site. EH provided samples and the initial concept for this study. All authors contributed to the composition of this manuscript.

Funding

This work was supported by grant DEB-1146328 from the US National Science Foundation (NSF) and grant ER65430 from the US Department of Energy. Core funding for the Duke FACE site was provided by the Office of Science (BER), US Department of Energy, grant no. DE-FG02-95ER62083.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgment

We thank Linda van Diepen and Erik Lilleskov for providing 2010 sporocarp samples and thank Linda for internal manuscript peer review.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fmicb.2016.01994/full#supplementary-material

References

Agerer, R. (2006). Fungal relationships and structural identity of their ectomycorrhizae. Mycol. Progress 5, 67–107. doi: 10.1007/s11557-006-0505-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Bago, B., Chamberland, H., Goulet, A., Vierheilig, H., Lafontaine, J. G., and Piche, E. (1996). Effect of nikkomycin Z, a chitin synthase inhibitor, on hyphal growth and cell wall structure of two arbuscular-mycorrhizal fungi. Protoplasma 1992, 80–92. doi: 10.1007/BF01273247

CrossRef Full Text | Google Scholar

Billings, S. A., and Richter, D. D. (2006). Changes in stable isotopic signatures of soil nitrogen and carbon during 40 years of forest development. Oecologia 148, 325–333. doi: 10.1007/s00442-006-0366-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Bowman, S. M., and Free, S. J. (2006). The structure and synthesis of the fungal cell wall. Bioessays 28, 799–808. doi: 10.1002/bies.20441

PubMed Abstract | CrossRef Full Text | Google Scholar

Colpaert, J., van Laere, A., and van Assche, J. A. (1996). Carbon and nitrogen allocation in ectomycorrhizal and non-mycorrhizal Pinus sylvestris L. seedlings. Tree Physiol. 16, 787–793. doi: 10.1093/treephys/16.9.787

PubMed Abstract | CrossRef Full Text | Google Scholar

González-Chávez, M. C., Carrillo-González, R., Wright, S. F., and Nichols, K. A. (2004). The role of glomalin, a protein produced by arbuscular mycorrhizal fungi in sequestering potentially toxic elements. Environ. Pollut. 130, 317–323. doi: 10.1016/j.envpol.2004.01.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Grissom, C. B., and Cleland, W. W. (1988). Isotope effect studies of the chemical mechanism of pig-heart NADP isocitrate dehydrogenase. Biochemistry 27, 2934–2943. doi: 10.1021/bi00408a040

PubMed Abstract | CrossRef Full Text | Google Scholar

Hendrey, G. R., Ellsworth, D. S., Lewin, K. F., and Nagy, J. (1999). A free-air enrichment system for exposing tall forest vegetation to elevated atmospheric CO2. Glob. Change Biol. 5, 293–309. doi: 10.1046/j.1365-2486.1999.00228.x

CrossRef Full Text | Google Scholar

Ho, I., and Trappe, J. M. (1973). Translocation of 14C from Festuca plants to their endomycorrhizal fungi. Nat. New Biol. 244, 30–31. doi: 10.1038/newbio244030a0

PubMed Abstract | CrossRef Full Text | Google Scholar

Hobbie, E. A., and Colpaert, J. V. (2003). Nitrogen availability and colonization by mycorrhizal fungi correlate with nitrogen isotope patterns in plants. New Phytol. 157, 115–126. doi: 10.1046/j.1469-8137.2003.00657.x

CrossRef Full Text | Google Scholar

Hobbie, E. A., Hofmockel, K. S., Van Diepen, L. T. A., Lilleskov, E. A., Ouimette, A. P., and Finzi, A. C. (2014). Fungal carbon sources in a pine forest: evidence from a 13C-labeled global change experiment. Fungal Ecol. 10, 91–100. doi: 10.1111/nph.12578

PubMed Abstract | CrossRef Full Text | Google Scholar

Hobbie, E. A., and Ouimette, A. P. (2009). Controls of nitrogen isotope patterns in soil profiles. Biogeochemistry 95, 355–371. doi: 10.1111/j.1469-8137.2012.04300.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Hobbie, E. A., Ouimette, A. P., Schuur, E. A. G., Kierstead, D., Trappe, J. M., Bendiksen, K., et al. (2013a). Radiocarbon evidence for the mining of organic nitrogen from soil by mycorrhizal fungi. Biogeochemistry 114, 381–389.

Google Scholar

Hobbie, E. A., Sanchez, F. S., and Rygiewicz, P. T. (2004). Carbon use, nitrogen use, and isotopic fractionation of ectomycorrhizal and saprotrophic fungi in natural abundance and 13C –labelled cultures. Mycol. Res. 108, 725–736. doi: 10.1017/S0953756204000590

PubMed Abstract | CrossRef Full Text | Google Scholar

Hobbie, E. A., Sánchez, F. S., and Rygiewicz, P. T. (2012). Controls of isotopic patterns in saprotrophic and ectomycorrrhizal fungi. Soil Biol. Biochem. 48, 60–68. doi: 10.1016/j.soilbio.2012.01.014

CrossRef Full Text | Google Scholar

Hobbie, E. A., van Diepen, L. T. A., Lilleskov, E. A., Ouimette, A. P., Finzi, A. C., and Hofmockel, K. S. (2013b). Fungal functioning in a pine forest: evidence from a 15N-labeled global change experiment. New Phytol. 201, 1431–1439. doi: 10.1111/nph.12578

PubMed Abstract | CrossRef Full Text | Google Scholar

Hobbie, E. A., Weber, N. S., and Trappe, J. M. (2001). Mycorrhizal vs saprotrophic status of fungi: the isotopic evidence. New Phytol. 150, 601–610. doi: 10.1007/s00572-010-0355-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Hofmockel, K. S., Gallet-Budynek, A., McCarthy, H. R., Currie, W. S., Jackson, R. B., and Finzi, A. (2011). Sources of increased N uptake in forest trees growing under elevated CO2: results of a large-sale 15N study. Glob. Change Biol. 17, 3338–3350. doi: 10.1111/j.1365-2486.2011.02465.x

CrossRef Full Text | Google Scholar

Högberg, M. N., Briones, M. J. I., Keel, S. G., Metcalfe, D. B., Campbell, C., Midwood, A. J., et al. (2010). Quantification of effects of season and nitrogen supply on tree below-ground carbon transfer to ectomycorrhizal fungi and other soil organisms in a boreal pine forest. New Phytol. 187, 485–493. doi: 10.1111/j.1469-8137.2010.03274.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Högberg, P., Plamboeck, A. H., Taylor, A. F. S., and Fransson, P. M. A. (1999). Natural 13C abundance reveals trophic status of fungi and host-origin of carbon in mycorrhizal fungi in mixed forests. Proc. Natl. Acad. Sci. U.S.A. 96, 8534–8539. doi: 10.1073/pnas.96.15.8534

CrossRef Full Text | Google Scholar

Kalač, P. (2009). Chemical composition and nutritional value of European species of wild growing mushrooms: a review. Food Chem. 113, 9–16. doi: 10.1080/10590500802350086

PubMed Abstract | CrossRef Full Text | Google Scholar

Kohzu, A., Yoshioka, T., Ando, T., Takahashi, M., Koba, K., and Wada, E. (1999). Natural 13C and 15N abundance of field-collected fungi and their ecological implications. New Phytol. 144, 323–330. doi: 10.1046/j.1469-8137.1999.00508.x

CrossRef Full Text | Google Scholar

Lilleskov, E. A., Hobbie, E. A., and Horton, T. R. (2011). Conservation of ectomycorrhizal fungi: exploring the linkages between functional and taxonomic responses to anthropogenic N deposition. Fungal Ecol. 4, 174–183. doi: 10.1016/j.funeco.2010.09.008

CrossRef Full Text | Google Scholar

Lindahl, B. D., Ihrmark, K., Boberg, J., Trumbore, S. E., Högberg, P., Stenlid, J., et al. (2007). Spatial separation of litter decomposition and mycorrhizal nitrogen uptake in a boreal forest. New Phytol. 173, 611–620. doi: 10.1111/j.1469-8137.2006.01936.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Mayor, J. R., Schuur, E. A. G., and Henkel, T. W. (2009). Elucidating the nutritional dynamics of fungi using stable isotopes. Ecol. Lett. 12, 171–183. doi: 10.1111/j.1461-0248.2008.01265.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Nadelhoffer, K. J., and Fry, B. (1988). Controls on natural N-15 and C-13 abundances in forest soil organic-matter. Soil Sci. Soc. Am. J. 52, 1633–1640. doi: 10.2136/sssaj1988.03615995005200060024x

CrossRef Full Text | Google Scholar

Niessing, D. (2000). RNA-Binding Proteins in Fungi and Their Role in MRNA Localization. Austin, TX: Landes Bioscience.

Google Scholar

O’Leary, M. H., and Yapp, C. J. (1978). Equilibrium carbon isotope effect on a decarboxylation reaction. Biochem. Biophys. Res. Commun. 80, 155–160. doi: 10.1016/0006-291X(78)91117-8

CrossRef Full Text | Google Scholar

Persson, I., Tjerneld, F., and Hahn-Hägerdal, B. (1991). Fungal celllulolytic enzyme production: a review. Process Biochem. 26, 65–74. doi: 10.1016/0032-9592(91)80019-L

CrossRef Full Text | Google Scholar

Rayner, A. D. M., and Boddy, L. (1988). Fungal Decomposition of Wood, its Biology and Ecology. Chichester: John Wiley and Sons Ltd.

Google Scholar

Saier, M. H. Jr. (2000). Families of transmembrane transporters selective for amino acids and their derivatives. Microbiology 146, 1775–1795. doi: 10.1099/00221287-146-8-1775

PubMed Abstract | CrossRef Full Text | Google Scholar

Seidl, V. (2008). Chitinases of filamentous fungi: a large group of diverse proteins with multiple phydiological functions. Fungal Biol. Rev. 22, 36–42. doi: 10.1016/j.fbr.2008.03.002

CrossRef Full Text | Google Scholar

Smith, S. E., and Read, J. G. (1997). Mycorrhizal Symbiosis. San Diego CA: Academic Press Inc.

Google Scholar

Tcherkez, G., Nogués, S., Bleton, J., Cornic, G., Badeck, F., and Ghashghaie, J. (2003). Metabolic origin of carbon isotope composition of leaf dark-respired CO2 in French bean. Plant Physiol. 164, 317–335.

PubMed Abstract | Google Scholar

Tinker, P. B., Jones, M. D., and Durall, D. M. (1990). Phosphorus and carbon relationships in willow ectomycorrhizae. Symbiosis 9, 43–49.

Google Scholar

Unestam, T., and Sun, Y. P. (1995). Extramatrical structures of hydrophobic and hydrophilic ectomycorrhizal fungi. Mycorrhiza 5, 301–311. doi: 10.1007/BF00207402

CrossRef Full Text | Google Scholar
