Original Research ARTICLE

Front. Microbiol., 09 May 2017 | https://doi.org/10.3389/fmicb.2017.00794

New Functions and Subcellular Localization Patterns of c-di-GMP Components (GGDEF Domain Proteins) in B. subtilis

  • LOEWE SYNMIKRO, LOEWE Center for Synthetic Microbiology and Department of Chemistry, Philipps University Marburg, Hans-Meerwein Strasse, Marburg, Germany

The universal and pleiotropic cyclic dinucleotide second messenger c-di-GMP is most prominently known to inversely regulate planktonic and sessile lifestyles of Gram-negative species. In the Gram-positive model organism Bacillus subtilis, intracellular c-di-GMP levels are modulated by a concise set of three diguanylate cylases (DgcK, DgcP, DgcW) and one phosphodiesterase (PdeH). Two recent studies have reported the negative influence of the c-di-GMP receptor DgrA (PilZ domain protein) on swarming motility indicating a conserved role of this second messenger across the bacterial domain. However, it has been suggested that the degenerated GGDEF protein YdaK and the inactive EAL domain protein YkuI may also function as c-di-GMP receptors regulating potentially other processes than motility. Here we describe a novel c-di-GMP dependent signaling network in B. subtilis regulating the production of an unknown exopolysaccharide (EPS) that leads to strongly altered colony morphologies upon overproduction. The network consists of the c-di-GMP receptor YdaK and the c-di-GMP synthetase DgcK. Both proteins establish a spatially close signal-effector cluster at the membrane. The cytoplasmic DgcP synthetase can complement for DgcK only upon overproduction, while the third c-di-GMP synthetase, DgcW, of B. subtilis is not part of the signaling pathway. Removal of the regulatory EAL domain from DgcW reveals a distinct function in biofilm formation. Therefore, our study is compatible with the “local pool signaling” hypothesis, but shows that in case of the yda operon, this can easily be overcome by overproduction of non-cognate DGCs, indicating that global pools can also confer signals to regulatory circuits in a Gram-positive bacterium.

Introduction

Bacteria utilize a multitude of regulatory processes to ensure the adaptation to environmental changes for the sake of growth- and survival optimization. Upon detection of diverse primary signals, transduction of these external stimuli into a cellular response can be ubiquitously realized by the production of purine nucleotide derivatives (Gomelsky, 2011; Hengge et al., 2016). The dynamic synthesis- and degradation mechanisms of these so called second messengers have an enormous impact on corresponding cellular downstream effects as they determine and modulate the cellular levels and therefore, also (at least to some extent) the probability of interaction between second messengers and their specific effector molecules (effector proteins and/or riboswitches, reviewed in Ryan et al., 2012).

Bis-(3′–5′)-cyclic dimeric guanosine monophosphate (c-di-GMP) is a well-established purine second messenger regulating most notably bacterial lifestyle orchestration. The consensus of numerous studies implies that an increase in c-di-GMP production correlates with a sessile lifestyle [biofilm (BF) formation], whereas low c-di-GMP levels favor planktonic cell behavior. Specific diguanylate cyclases (DGCs) harbor conserved GGDEF domains and synthesize c-di-GMP from two molecules of guanosine-5′-triphosphate (GTP), whereas specific phosphodiesterases (PDEs, containing either EAL or HD-GYP domains) mediate its degradation into the linear dinucleotide 5′-phosphoguanylyl-(3′,5′)-guanosine (pGpG) and/or GMP (Romling et al., 2013; Jenal et al., 2017). Interestingly, these characteristic domains are frequently combined with diverse N-terminal soluble and/or membrane-integrated domains which are primarily utilized for sensory purposes in order to modulate DGC and PDE activities respectively (Plate and Marletta, 2012; Zahringer et al., 2013).

Another fundamental regulatory process of intracellular c-di-GMP homeostasis is the allosteric product inhibition of DGC activity (Christen et al., 2006; De et al., 2008; Schirmer and Jenal, 2009). This is achieved by the interaction of c-di-GMP with conserved auto-inhibitory I-site motifs (primary and secondary) in order to prevent over-consumption and excessive production of the substrate and the product respectively. Very recently, it was demonstrated that I-sites do not only contribute to the maintenance of c-di-GMP homeostasis as negative regulatory elements, but can also positively regulate the physical interaction of an active DGC with its specific c-di-GMP receptor (Dahlstrom et al., 2016). I-site motifs can furthermore function as c-di-GMP “receptor sites” (activation motifs) of enzymatically inactive (degenerated) GGDEF domains to drive exopolysaccharide (EPS) synthesis for example (Chen et al., 2014). By limiting the total amount of c-di-GMP available and additionally providing an interaction platform for corresponding effector molecules and interaction partners respectively, I-site motifs of active and inactive GGDEF domains are thus able to modulate diverse levels of signal specificity.

Recently, we have proven the requirement of the potential c-di-GMP effector protein YdaK, a degenerated GGDEF-TM protein, for the synthesis of an extracellular matrix component generated by the products of the yda(J)KLMN (ydaJ-N) operon in Bacillus subtilis (Nicolas et al., 2012; Bedrunka and Graumann, 2017). The unknown EPS strongly affects Congo Red (CR) binding and the characteristic morphology of B. subtilis macro colonies grown on BF-promoting medium, for example. Enhanced CR-binding can be likewise visualized in the absence of epsH belonging to the epsA-O cluster, which implies the production of an alternative EPS in case of ydaJ-N overexpression. Whether ydaJ-N overexpression has an effect on the expression of other matrix gene operons such as epsA-O and tapA-sipW-tasA remains to be clarified. In contrast to the epsA-O operon, which is essential for development of complex colony and pellicle BFs (Kearns et al., 2005), deletions targeting the ydaJ-N operon have no influence on the establishment of such BFs (Gao et al., 2013; Bedrunka and Graumann, 2017). Importantly, the influence of ydaJ-N on colony BF architecture can be recognized only upon overexpression (Figure S1). Its potential significance on BF formation therefore requires further investigations using different experimental systems and conditions.

However, our previous findings provide a new tool to study the effect of c-di-GMP in B. subtilis with respect to EPS production via YdaK. For a while now, degenerated GGDEF domains have been known to function as positive regulators of EPS production most likely via their conserved I-site motifs (Liang, 2015), a mechanism that has been also proposed for YdaK. The TM-protein is not able to synthesize c-di-GMP, still it can bind the second messenger in vitro via its soluble degenerated GGDEF domain (Gao et al., 2013).

In this study, we wanted to further investigate the potential c-di-GMP/I-site dependent activation of EPS synthesis in B. subtilis and were especially interested whether a physiological relation between YdaK and B. subtilis DGCs does exist and whether this EPS promoting putative c-di-GMP effector can be genetically linked to the activity of one specific DGC.

Three different enzymes are capable of c-di-GMP synthesis in B. subtilis: the two GGDEF domain proteins DgcK and DgcP (formerly YhcK and YtrP) and the GGDEF-EAL domain protein DgcW (YkoW). The current knowledge on the cellular roles of c-di-GMP synthesizing enzymes in B. subtilis is limited to motility control, mediated by the interaction between DgrA (formerly YpfA, PilZ- domain protein) and the flagellar component MotA upon elevated intracellular c-di-GMP levels. However, the regulatory modes and physiological functions of these three DGCs with respect to EPS production/ BF formation and motility inhibition respectively remained unknown (Chen et al., 2012; Gao et al., 2013). Inactivation of dgc genes (dgcK, dgcP, dgcW) in undomesticated B. subtilis strains, individually or in combination, results in no detectable phenotypes with respect to BF formation and motility (Figures 1A,B; Chen et al., 2012; Gao et al., 2013). However, overproduction of the GGDEF domain proteins DgcK and DgcP, as well as an overproduction of a DgcW variant lacking the adjacent EAL domain, respectively, causes a transient inhibition of swarming motility (Gao et al., 2013). Under these circumstances, or upon deletion of the sole PDE gene pdeH (formerly yuxH), elevated intracellular c-di-GMP concentrations could be detected resulting in premature motility cessation via the “high affinity” c-di-GMP receptor DgrA [dissociation constant (KD) 11 nM] but notably, in no observable alterations concerning BF formation (Gao et al., 2013).

FIGURE 1
www.frontiersin.org

Figure 1. Combinatorial deletions of dgc genes and particularly inactivation of dgcK and disruption of the putative YdaK I-site motif RxxD lead to an inhibition of Yda(J)KLMN-mediated EPS production in B. subtilis. (A) Top view of B. subtilis macro colony morphology and expansion on biofilm promoting medium (MSgg, Branda et al., 2001) supplemented with 0.1% (v/v) xylose, 40 μg/ml Congo Red (CR) and 20 μg/ml Coomassie Brilliant Blue (CB) at different timepoints for WT NCIB3610 (PsigB-ydaJ-N), NCIB3610-PB53 (Pxyl-ydaJ-N), NCIB3610-PB55 (Pxyl-ydaK-N), DS1809 (ΔdgcK, -P, -W), DS1809-PB53 (ΔdgcK, -P, -W, Pxyl-ydaJ-N), and DS1809-PB55 (ΔdgcK, -P, -W, Pxyl-ydaK-N) at 25°C. Reduced colony expansion and altered wrinkle patterns (hyper-wrinkles) indicate EPS production by the products of the yda operon. (B) B. subtilis biofilm morphology on MSgg (+ CR, CB) solid medium 72 h post-inoculation in the absence and presence of 0.1% (v/v) xylose for wild type strain NCIB3610 (PsigB-ydaJ-N), the overexpression strain NCIB3610-PB55 (Pxyl-ydaK-N) and combined overexpression and deletion mutants: DS9305-PB55 (ΔdgcK; Pxyl-ydaK-N), DS9537-PB55 (ΔdgcP; Pxyl-ydaK-N), and DS9883-PB55 (ΔdgcW; Pxyl-ydaK-N). (C) Colony morphology of the overproduction mutant strains NCIB3610-PB55 (Pxyl-ydaK-N) and NCIB3610-PB56 (Pxyl-ydaL-N) and the complementation strains NCIB3610-PB56-XG003 (Pxyl-ydaL-N; amyE::PIPTG-ydaK), NCIB3610-PB56-PB80 (Pxyl-ydaL-N, amyE::PIPTG-ydaKR202A), NCIB3610-PB56-PB81 (Pxyl-ydaL-N, amyE::PIPTG-ydaKD205A) grown at 25°C on MSgg (+CR, CB) solid medium with 0.1% (v/v) xylose and 1 mM IPTG after 72 h. Bars correspond to 5 mm.

To approach the cellular functions of DGCs in B. subtilis with respect to EPS production/colony BF formation, we generated diverse combinations of overexpression and deletion mutants. By examining their behavior toward BF formation, we are able to provide genetic and cell biological evidence for the existence of novel and distinct functions for DgcK, DgcP, and DgcW. In order to extend our understanding of c-di-GMP signaling components in B. subtilis, a comparative fluorescence microscopy analysis of YdaK and its putative c-di-GMP delivering synthetases was carried out. Importantly, we show that both YdaK and DgcK fluorescent fusions form subcellular clusters and co-localize to the same cellular positions. Additionally, they exhibit similar dynamic behavior suggesting a physiological connection between YdaK and DgcK, as already implicated by our phenotypical analysis.

Results

Cell Biological Evidence for an Implication of c-di-GMP in BF Formation in B. subtilis

The “low affinity” c-di-GMP receptor YdaK (KD 1 μM) does not serve as an effector protein to modulate swarming motility directly (Gao et al., 2013), but instead affects BF formation by positively regulating the production of an unknown EPS synthesized by the products of the ydaJ-N operon (Bedrunka and Graumann, 2017).

We wanted to investigate the potential involvement of DGCs and thus c-di-GMP in EPS production via induction of YdaK. Deletion and overexpression of ydaK alone have not revealed any phenotypic effects so far. Therefore, we initially introduced two expression constructs pSG1164-PB53 (Pxyl-ydaJ-N) and pSG1164-PB55 (Pxyl-ydaK-N), steering the expression of the transcriptional units ydaJ-N and ydaK-N respectively, into the genome of wild type B. subtilis NCIB3610, and into that of a dgc triple mutant strain lacking the native c-di-GMP-synthesizing components (strain DS1809, ΔdgcK ΔdgcW dgcP::tet, Figure 1A).

As shown in an earlier study (Bedrunka and Graumann, 2017), induction of ydaJ-N (strain NCIB3610-PB53, Pxyl-ydaJ-N) and overexpression of ydaK-N (strain NCIB3610-PB55, Pxyl-ydaK-N) respectively, lead to strongly altered and wrinkled colony morphologies and inhibited surface spreading behavior (Figure S1 and Figure 1A, second and third row, respectively) of B. subtilis on solid BF medium (Branda et al., 2001). These changes are indicative of EPS production as demonstrated for different bacterial species (Serra et al., 2013).

Essentially, inactivation of all three dgc genes prevents the synthesis of this unknown EPS in both induction strains (Figure 1A, fifth row: strain DS1809-PB53, ΔdgcK, -P, -W, Pxyl-ydaJ-N; sixth row: strain DS1809-PB55, ΔdgcK, -P, -W, Pxyl-ydaK-N). The morphology of these resembled that of the wild type supporting the c-di-GMP dependence of the ydaJ-N related EPS machinery (Figure 1A, first row).

We proceeded to test the effect of ydaK-N induction (construct pSG1164-PB55, Pxyl-ydaK-N) on BF-promoting medium in single dgc gene mutant backgrounds (Figure 1B). Importantly, in strains in which the endogenous locus dgcK was deleted (strain DS9305-PB55, ΔdgcK, Pxyl-ydaK-N, Figure 1B, third row) production of EPS by YdaK-N was completely abolished despite the presence of xylose, as respective colony architectures resembled wild type appearance (NCIB3610, PsigB-ydaJ-N, Figure 1B, first row). In contrast, disruption of dgcP did not impair EPS production via YdaK-N, reflected by the altered colony morphology in the case ydaK-N induction (strain DS9537-PB55, ΔdgcP, Pxyl-ydaK-N, Figure 1B, right column, forth row), compared to the dgcK background deletion strain (Figure 1B, right column, third row). Similarly, deletion of dgcW also resulted in altered BF formation upon induction of ydaK-N (strain DS9883-PB55, ΔdgcW, Pxyl-ydaK-N, Figure 1B right column, fifth row) implying that EPS production via YdaK-N is independent of DgcP and DgcW under our experimental conditions, but dependent of DgcK.

Thus, our experiments demonstrate that activation of EPS production via the degenerated GGDEF domain protein YdaK relies on the integrity of dgc genes and furthermore indicate that YdaK is activated via DgcK under BF-promoting conditions, which results in activation of EPS production in a c-di-GMP dependent manner. In order to further support the hypothesis of YdaK activation via c-di-GMP, we performed site directed replacement mutagenesis of conserved I-site (inhibitory site) residues in YdaK proposed to be involved in c-di-GMP binding (Gao et al., 2013, Figure 1C). Based on sequence analysis, YdaK likely has a primary and secondary inhibitory site (Gao et al., 2013). The putative secondary I-site motif RxxR is found at residues R157 to R160, whereas the putative primary I-site motif RxxD (R202 to D205) locates five residues upstream of the degenerated active site motif SDERI (conserved motif GGDEF). To test the activity of the primary I-site variants, YdaKR202A and YdaKD205A (pXG003-PB80 & pXG003-PB81, respectively) were introduced at the ectopic amyE locus of strains that harbored a xylose-dependent promoter driving ydaLMN expression (pSG1164-PB56; Figure 1C). Induction of ydaLMN alone (strain NCIB3610-PB56, Pxyl-ydaL-N, Figure 1C, second row) did not result in EPS production as reflected by unaltered colony morphology of the correponding strain compared to ydaK-N overexpression (strain NCIB3610-PB55, Pxyl-ydaK-N; Figure 1C, first row) in agreement with a previous study (Bedrunka and Graumann, 2017). Complementation with a wild type copy of ydaK in trans restored EPS production upon xylose and IPTG addition (strain NCIB3610-PB56-XG003, Pxyl-ydaLMN, amyE::PIPTG-ydaK, Figure 1C, third row). However, when strain NCIB3610-PB56 (Pxyl-ydaL-N) was complemented with ydaK alleles encoding the R202A (NCIB3610-PB56-PB80, Pxyl-ydaLMN, amyE::PIPTG-ydaKR202A, Figure 1C, forth row) or D205A point mutants (NCIB3610-PB56-PB81, Pxyl-ydaLMN, amyE::PIPTG-ydaKD205A, Figure 1C, fifth row) respectively, EPS production was abolished. These observations suggest that an intact primary I-site motif of YdaK is required for c-di-GMP binding and thus YdaK activity.

DgcK, DgcP, and Truncated DgcW (“ΔEAL”) Can Activate EPS Production in B. subtilis via Overproduced YdaK

Given that EPS production mediated by YdaK-N is suppressed in the absence of all three dgc genes and specifically upon disruption of dgcK (Figures 1A,B), we were interested whether the loss of the ydaK-N expression phenotype in a dgc triple mutant can be complemented only with dgcK or whether additional dgc genes (dgcP, dgcW) can positively influence the production of the unknown EPS, e.g., when they are overexpressed. Therefore, we introduced each dgc gene individually at the ectopic amyE locus under the control of an IPTG-inducible promoter, into the genome of the dgc triple mutant, which induces ydaK-N upon xylose addition, and tested BF formation in the presence or absence of xylose and IPTG, respectively (Figure 2A). As expected, the overexpression of dgcK restored modified BF formation upon addition of xylose and IPTG (Figure 2A, first column, first row, strain: DS1809-PB55-XG004, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::PIPTG-dgcK) as observed in wild type backgrounds (Figure 1B, second column, second row, strain NCIB3610-PB55, Pxyl-ydaK-N). Interestingly, also an overexpression of dgcP restored hyper-wrinkle formation (Figure 2A, second column, first row, strain: DS1809-PB55-XG002, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::PIPTG-dgcP).

FIGURE 2
www.frontiersin.org

Figure 2. Altered biofilm formation due to ydaK-N overexpression can be restored in a dgc triple mutant by providing dgcK, dgcP, and dgcWΔeal in trans. (A) Colony development on MSgg medium supplemented with CR 40 μg/ml, CB 20 μg/ml in the presence or absence of 0.1% (v/v) xylose and/ or 1 mM IPTG, respectively, 72 h after incubation at 25°C by strains: DS1809-PB55-XG004 (ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::PIPTG-dgcK), DS1809-PB55-XG002 (ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::PIPTG-dgcP), DS1809-PB55-XG001 (ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::PIPTG-dgcW), DS1809-PB55-XG086 (ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::PIPTG- dgcWΔeal). Scale bar: 5 mm. (B) Biofilm colony morphology of B. subtilis NCIB3610 strains individually overexpressing dgcK (strain NCIB3610-XG004, amyE::PIPTG-dgcK), dgcP (NCIB3610-XG002, amyE::PIPTG-dgcP), dgcW (NCIB3610-XG001, amyE::PIPTG-dgcW), and dgcWΔeal (NCIB3610-XG086, amyE::PIPTG-dgcWΔeal) from the ectopic amylase locus. Scale bars: 5 mm.

In contrast to dgcK and dgcP (encoding GGDEF domain proteins), reintroduction of full length dgcW (coding for a GGDEF-EAL domain tandem protein) at the amyE site (Figure 2A, third column, first row, strain: DS1809-PB55-XG001, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::PIPTG-dgcW) did not restore altered biofilm morphology of strain NCIB3610-PB55 (Pxyl-ydaK-N). However, colonies grown in the presence of IPTG/xylose (Figure 2A, third column, first row) and IPTG (Figure 2A, third column, third row) respectively, exhibited a distinct phenotype compared to the wild type (Figure 1A, first column, first row). Overexpression of dgcW resulted in a visible reduction of thick wrinkle structures and in a loss of the associated central ring that usually marks the initial inoculation area, in a dgc triple mutant overexpressing ydaK-N (Figure 2A, third column, first row) and also in wild type background (Figure 2B, third column, first row).

This rather modest but reproducible BF-inhibiting phenotype became more severe when a DgcW variant was overproduced lacking the C-terminal EAL domain (Figure 2A, forth column, third row; Figure 2B, forth column, first row). Overexpression of dgcWeal caused an entire loss of wrinkle formation in the center of the macro-colony in both genomic backgrounds, in DS1809-PB55 (Figure 2A, forth column, third row, strain DS1809-PB55-XG086, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::PIPTG-dgcWΔeal) and in NCIB3610 (Figure 2B, forth column, first row, strain NCIB3610-XG086, amyE::PIPTG-dgcWΔeal). Furthermore, we found that induction of ydaK-N accompanied by an overexpression of dgcWeal lead to enhanced wrinkle formation and altered BF formation (Figure 2A, forth column, first row, strain DS1809-PB55-XG086, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::PIPTG-dgcWΔeal). This suggests that a truncated version of DgcW is able to provide c-di-GMP to activate EPS production via YdaK.

In summary, our complementation analysis reveals that both DgcK and DgcP support EPS production when being overproduced, whereas DgcW is only able to do so upon deletion of the GGDEF-adjacent EAL domain. Therefore, we suggest that the activity of the EAL domain (potentially c-di-GMP hydrolysis) of DgcW masks the enzymatic activity of its neighboring (upstream) GGDEF domain (c-di-GMP synthesis). Because the overproduction of DgcW-ΔEAL by itself had a strong effect on BF morphology, our findings suggest that DgcW affects a pathway different from that of the yda operon, and that therefore, at least two independent c-di-GMP processes occur during BF formation in case of ydaK-N and dgcWΔeal overexpression.

Subcellular Localization and Dynamics of the c-di-GMP Receptor YdaK and the DGCs DgcK, and DgcP in B. subtilis

Several DGCs in different bacterial species have been reported to occur in complex with their effector proteins/targets in order to maintain signal specificity within certain signaling cascades (Lindenberg et al., 2013; Dahlstrom et al., 2015). Additionally, it has been suggested that differential subcellular localization patterns of DGCs may affect their function and thus the interplay with its corresponding effectors (Merritt et al., 2010; Zhu et al., 2016). This prompted us to perform comparative localization studies of the c-di-GMP receptor YdaK and of the corresponding DGCs (DgcK and DgcP) that were able to restore EPS production mediated by YdaK-N in a dgc triple mutant (Figure 2A).

In a recent study, we investigated the subcellular localization of YdaK and of its potential downstream targets, the putative glycosyltransferases YdaM and YdaN, by fluorescence microscopy (Bedrunka and Graumann, 2017). YdaK-, YdaM-, and YdaN-mV-YFP fusions (mV: monomeric Venus) expressed from their original promoter and at their native site on the chromosome, formed static subcellular clusters (usually one or two single foci per cell) at the membrane, predominantly at the septa and/or at cell poles in exponentially growing B. subtilis cells. YdaM/YdaK and YdaM/YdaN fluorescent fusions co-localized to the same cellular positions supporting the idea that specific protein localization at the cell membrane might be necessary to facilitate protein-protein interactions and EPS production.

Functional C-terminal mV-YFP fusions of full-length YdaK induced from the ectopic amyE site were able to support EPS activation in a mutant of undomesticated B. subtilis that induced ydaL-N upon xylose addition (strain NCIB3610-PB56-PB57, Pxyl-ydaL-N, amyE::Pxyl-ydaK-mV-yfp, Figure S2) as depicted in Figure 3Aii. Ectopically induced YdaK-mV-YFP fusions primarily localized at the peripheries of cells as double foci at mid cell and/ or at the cell poles revealing high signal intensities but also as lateral patches with rather low signal intensities (Figure 3Aiii). As an additional control, we included a C-terminal fluorescent fusion of YdaK lacking its 4 predicted TMHs (transmembrane helices, Figure 3Bi) in this study.

FIGURE 3
www.frontiersin.org

Figure 3. Functional translational mV-YFP-fusions of the c-di-GMP receptor YdaK and of the synthase DgcK form subcellular assemblies at the cell poles and septa of exponentially growing B. subtilis NCIB3610 (i) Schematic representation of (A) YdaK-mV-YFP-, (B) YdaKΔ4TMH-mV-YFP- and of (C) DgcK-mV-YFP- domain organization and topology (predicted by SMART). Gray, TM helices; light gray, predicted TM-receptor domain 5TMR–LYT; purple, GGDEF domain; light purple, GGDEF domain harboring the degenerated active site motif SDERI; yellow, C-terminal mV-YFP. (ii) Verification of functionality of (A) YdaK-mV-YFP (strain: NCIB3610-PB56-PB57; Pxyl-ydaL-N, amyE::Pxyl-ydaK-mV-yfp) and of (C) DgcK-mV-YFP (strain: DS1809-PB55-PB90; ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::Pxyl-dgcK-mV-yfp). (B) Colony morphology of strain NCIB3610-PB56-PB100 (upper panel, Pxyl-ydaL-N, amyE::Pxyl-ydaKΔ4tmh-mV-yfp) and NCIB3610-PB56-PB16 (lower panel, Pxyl-ydaL-N, amyE::Pxyl-ydaK) in the presence of 0.1% (v/v) xylose. Altered colony morphology in the presence of xylose reflects EPS production by the products of the yda operon and functionality of the corresponding fusion proteins. Unaltered colony morphology of strain NCIB3610-PB56-PB100 in contrast to strain NCIB3610-PB56-PB16 (lower panel, Pxyl-ydaL-N, amyE::Pxyl-ydaK) reflects inability of YdaKΔ4TMH-mV-YFP to stimulate EPS production. Scale bars: 5 mm. (iii) Mid-exponential-phase B. subtilis NCIB3610 cells expressing (A) ydaK-mV-yfp (strain: NCIB3610-PB56-PB57; Pxyl-ydaL-N, amyE::Pxyl-ydaK-mV-yfp), (B) ydaKΔ4tmh-mV-yfp (strain NCIB3610-PB56-PB100; Pxyl-ydaL-N, amyE::Pxyl-ydaKΔ4tmh-mV-yfp) and (C) dgcK-mV-yfp (strain NCIB3610-PB90, amyE::Pxyl-dgcK-mV-yfp) from the amylase locus, 45 min after induction with 0.1% xylose. Bars: 2 μm. White triangles indicate subcellular clustering of YdaK-mV-YFP and DgcK-mV-YFP respectively.

The corresponding construct was introduced into the genome of NCIB3610-PB56 (resulting strain: NCIB3610-PB56-PB100, Pxyl-ydaL-N, amyE::Pxyl-ydaKΔ4tmh-mV-yfp; upper panel in Figure 3Bii, Figure S2). In contrast to YdaK-mV-YFP full length fusions (Figure 3A) and wild type YdaK (strain NCIB3610-PB55-PB16, Pxyl-ydaL-N, amyE::Pxyl-ydaK; lower panel in Figure 3Bii), the truncated variants YdaKΔ4TMH-mV-YFP failed to restore altered BF formation upon overproduction resulting in unaffected colony morphologies. This is most likely due to the fact that removal of TMHs results in a cytoplasmic distribution of these fusion proteins (Figure 3Biii), which is not due to degradation of the fusions as verified by Western blots of cell extracts using an antibody against GFP (Figure S2). Thus, YdaK must localize in a complex with its downstream effector proteins YdaLMN at its native membrane position in order to activate EPS production at specific sites of the bacterial cell membrane, which we have already hypothesized earlier.

In view of these finding, we wondered whether DgcK, the specific c-di-GMP delivering DGC for YdaK (Figure 1B), would resemble YdaK localization (Figure 3C). Initially, we have examined the subcellular localization of C-terminal DgcK-mV-YFP produced from the original locus in B. subtilis NCIB3610 cells (strain NCIB3610-PB01, PdgcK-dgcK-mV-yfp). Fusion proteins were hardly detectable suggesting low expression levels of dgcK-mV-yfp under our experimental conditions. Therefore, we visualized the subcellular localization of N- and C-terminal mV-YFP fusions of DgcK originated from the ectopic amyE locus upon xylose addition (strain NCIB3610-PB90, amyE::Pxyl-dgcK-mV-yfp). Only the translational C-terminal DgcK-mV-YFP proved to be functional (Figure 3Cii, Figure S3). The phenotypes of the dgc triple mutant strains, inducing ydaK-N from the original locus and dgcK-mV-yfp from the amyE locus (DS1809-PB55-PB90, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::Pxyl-dgcK-mV-yfp), were similar to those of the ΔdgcK, -P, -W strains carrying the Pxyl-ydaK-N construct and the wild-type dgcK allele (DS1809-PB55-PB90, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::PIPTG-dgcK) in that both strains had altered BF morphologies and were comprised in colony spreading behavior (compare Figure 2A, first column and Figure 3Cii, first row). In contrast to this, overproduction of the fluorescent protein mV-YFP alone from the endogenous locus and induction of ydaK-N in a triple DGC mutant did not result in EPS production (DS1809-PB55-1193NLMV, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::Pxyl-mV-yfp).

Similarly to our observation of YdaK-mV-YFP clustering (Figure 3Aiii), DgcK-mV-YFP fusion proteins also formed assemblies that retained a preference of localization to the cell poles and septa in NCIB3610 (Figure 3Ciii). This observation implies that DgcK and YdaK might be in spatial proximity at these cellular positions and might establish a spatially linked signal-effector cluster at the membrane. In addition to the comparable localization patterns of YdaK-mV-YFP and DgcK-mV-YFP (Figure 3), both fusion proteins exhibited a similar movement behavior when overproduced. We performed time-lapse experiments with both fusion proteins produced from the amyE locus upon xylose addition in exponentially growing B. subtilis NCIB3610 wild type cells. Upon continuous illumination (515 nm) with 100 ms intervals, foci detected at the septa were predominantly static, displaying negligible movement within a time span of several 100 ms (Figure 4A).

FIGURE 4
www.frontiersin.org

Figure 4. Dynamics and simultaneous localization of YdaK and DgcK in B. subtilis NCIB3610. (A) Representative time-lapse kymographs of YdaK-mV-YFP (left panel, strain NCIB3610-PB57; amyE::Pxyl-ydaK-mV-yfp) and DgcK-mV-YFP (right panel, strain NCIB3610-PB90; amyE::Pxyl-dgcK-mV-yfp) 45 min after induction with 0.1% xylose (v/v). BF: bright field (first row); snapshots (second row) and maximum intensity projection (MIP, third row) from time-lapse microscopy; fourth row: kymographs of fluorescence intensities along the rectangular selection depicted in the third row. Images were taken every 0.1 s upon continous illumination with 515 nm. (B) Co-localization of DgcK-CFP (445 nm, false colored red) originated from the ectopic amyE locus and YdaK-mV-YFP (515 nm, false-colored green) produced from the original locus, triangles indicate co-localization events (strain NCIB3610-PB37-PB10; amyE::Pxyl-dgcK-cfp, PydaK-ydaK-mV-yfp). Scale bars: 2 μm.

Polar foci were especially observed in case of YdaK-mV-YFP fusions and dynamic movement of both protein foci with lower “resting times” at the lateral cell periphery (Movies S1, S2). Although we observed events of co-localization in only 30% of total signals counted between DgcK-CFP (amyE locus) and YdaK-m-YFP (Figure 4B, strain NCIB3610-PB37-PB10, amyE::Pxyl-dgcK-cfp, PydaK-ydaK-mV-yfp), our data strongly suggest that c-di-GMP signaling and YdaK activation by DgcK occurs at the cell membrane and employs close spatial proximity of the players involved.

In addition to the localization of YdaK and DgcK, we also monitored mV-YFP labeled DgcP fusions in B. subtilis NCIB3610 (Figure 5, Figure S4). DgcP is a c-di-GMP synthesizing protein containing N-terminal GAF domains (putative sensor domain) and a C-terminal GGDEF domain, hinting that it is most likely a soluble protein in contrast to YdaK, DgcK, and DgcW. To test for the functionality of N- and C-terminal fusions, we applied the same complementation assay as described for DgcK (compare to Figure 3). Overexpression of mV-yfp-dgcP and of dgcP-mV-yfp respectively, in a DGC triple mutant inducing YdaK-N (strains: DS1809-PB55-PB85, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::Pxyl-mV-yfp-dgcP; DS1809-PB55-PB86, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::Pxyl-dgcP-mV-yfp) caused altered BF colony morphologies (Figures 5A,B, “MSgg panel”) in the same manner as seen for overexpression of dgcK-mV-yfp (Figure 3Bii).

FIGURE 5
www.frontiersin.org

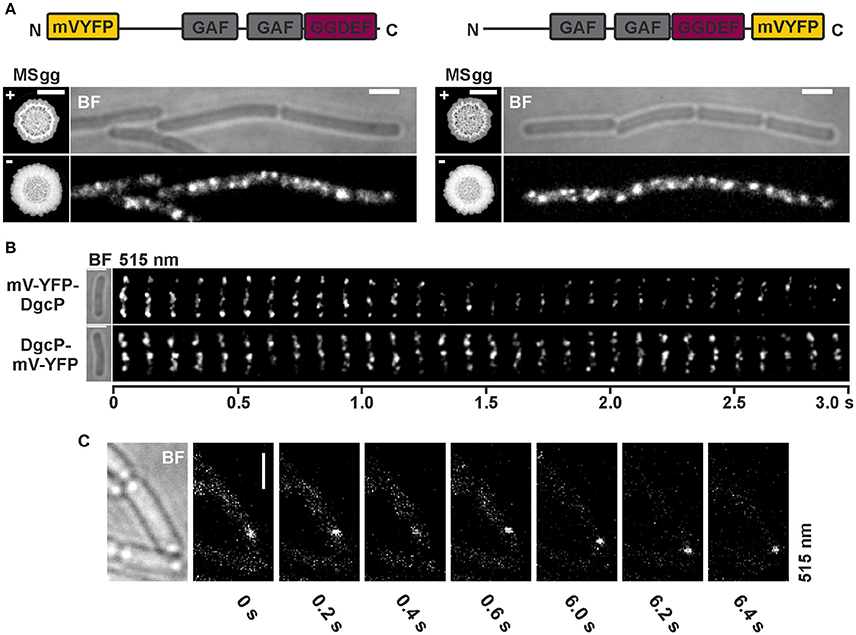

Figure 5. Subcellular localization and dynamics of DgcP in B. subtilis NCIB3610. (A) Epifluorescence of cells overexpressing mV-yfp-dgcP (left panel, strain NCIB3610-PB85; amyE::Pxyl-mV-yfp-dgcP) and dgcP-mV-yfp (right panel, strain NCIB3610-PB86; amyE::Pxyl-dgcP-mV-yfp) 45 min after induction with 0.1% (v/v) xylose (Scale bars: 2 μm). The “MSgg panel” depicts the functionality assay for the corresponding fusion protein/strain in the presence and absence of 0.1% (v/v) xylose (left: DS1809-PB55-PB85, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::Pxyl-mV-yfp-dgcP; right: DS1809-PB55-PB86, ΔdgcK, -P, -W, Pxyl-ydaK-N, amyE::Pxyl-dgcP-mV-yfp). Scale bar: 5 mm. Color code for schematic representation of corresponding fusion protein (domain organization predicted by SMART): gray: GAF (domain found in cGMP-specific phosphodiesterases, adenylyl and guanylyl cyclases and phytochromes which often serves as a cyclic nucleotide binding domain), purple: GGDEF domain (active site motif GGEEL), yellow: N- and C-terminal mV-YFP respectively. (B) Time-lapse fluorescence microscopy of DgcP fusions produced. Images were captured every 100 ms under continious illumination (515 nm). Bars: 2 μm. (C) Time-lapse microscopy of DgcP-mV-YFP produced from the original locus (strain NCIB3610-PB08). Images were captured at the time points (seconds) indicated next to the panels at time intervals of 200 ms. Bars: 2 μm.

Interestingly, stable mV-YFP-DgcP (Figure 5A, left panel, Figure S4) and DgcP-mV-YFP (Figure 5A, right panel, Figure S4) both assembled to subcellular clusters at the periphery of exponentially growing cells (produced from the ectopic amyE locus, strains NCIB3610-PB85, amyE::Pxyl-mV-yfp-dgcP; NCIB3610-PB86, amyE::Pxyl-dgcP-mV-yfp). Furthermore, both fusion proteins moved dynamically through the cell, but frequently arrested at the cell membrane for several 100 ms intervals (Figure 5B, Movie S3, Movie S4). A similar behavior was observed for DgcP-mV-YFP whose synthesis was initiated by its native promoter at its original locus resulting in low amounts of fusion proteins (Figure 5C, Figure S4). Thus, we conclude that DgcP would be able to deliver c-di-GMP to YdaK potentially through spatial proximity at the cell membrane. However, it is equally possible that YdaK is activated simply by elevated cytosolic c-di-GMP levels following the overproduction of DgcP (see deltaEAL-DgcW).

Discussion

For Gram-positive bacteria, where the physiological role of c-di-GMP is not as well-characterized as in Gram-negative bacteria, c-di-GMP was demonstrated to influence, for example, swarming motility in the model organism B. subtilis, while it was not reported to have an effect on BF formation in this organism (Gao et al., 2013). Our study reveals that EPS production and therefore also potentially BF formation, are regulated by c-di-GMP, most likely post-translationally, via the effector protein YdaK (degenerated GGDEF domain protein), encoded within the putative EPS-synthesis operon ydaJ-N (Nicolas et al., 2012; Bedrunka and Graumann, 2017). The function of the unknown EPS in terms of BF formation, however, requires further examinations. Under our experimental conditions, YdaK is directed in its activity via DGC DgcK. We found that the presence of dgc genes and particularly the presence of dgcK and furthermore an intact conserved I-site motif (RxxD) of YdaK are indispensable for the production of an unknown EPS synthesized by YdaK-N on BF promoting medium, thereby revealing a new function for one of the three known DGC enzymes in Bacillus subtilis.

DgcK was first mentioned in the course of comparative genomic analysis revealing novel families of putative membrane-associated receptors (Anantharaman and Aravind, 2003). In this context, DgcK (formerly YhcK) and LytS from B. subtilis were selected to be the eponyms for the 5TMR –LYT family (for 5 transmembrane receptors of the LytS-YhcK type, PF07694) sharing a conserved membrane- spanning domain encompassing 5 TM helices harboring distinctive sequence features (ligand binding). Its mode of activation remains to be clarified. Interestingly, orthologs of DgcK [DgcA (Lmo1911) and DgcB (Lmo1912)] have been demonstrated to control ManNAc-Gal EPS synthesis (a β-1,4-linked N-acetylmannosamine chain decorated with α-1,6-linked galactose) via a degenerated GGDEF domain protein (PssE, encoded in the pssABCDE operon) in Listeria monocytogenes suggesting that this signaling cascade might be conserved in Gram-positive species (Chen et al., 2014; Koseoglu et al., 2015). However, members of the B. cereus group contain the ortholog gene cdgA (Fagerlund et al., 2016) but no operon similar to ydaJ-M of B. subtilis. Considering this, our study cannot exclude the possibility that DgcK affects other c-di-GMP signaling pathways even in B. subtilis via different effector proteins. The c-di-GMP receptor DgrA (PilZ domain protein) negatively influences swarming motility upon elevated intracellular c-di-GMP levels (Chen et al., 2012; Gao et al., 2013). However, the source of c-di-GMP “feeding” this receptor still needs to be elucidated. One could speculate that upon detection of an unknown signal (activation via 5TMR-LYT) DgcK activates both, DgrA and YdaK and thus swarming motility and EPS production respectively can be inversely regulated in order to mediate motile-to-sessile transition, the initial step of BF formation (Belas, 2014).

The direct regulation via DgcK notwithstanding, the activation of B. subtilis YdaK can also be accomplished by an overproduction of DgcP, which suggests that either DgcP has the potential to weakly activate the putative EPS machinery under normal conditions, or that globally elevated c-di-GMP concentrations due to the overproduction of the corresponding DGC are responsible for the activation of the machinery, i.e., that c-di-GMP signaling can be overcome by enhanced levels of a non-cognate DGC.

Moreover, overproduction of a truncated version of the third DGC, DgcW (a TM GGDEF-EAL tandem protein), lacking its C-terminal EAL domain also leads to an activation of YdaK. The construct mediated a transient cessation of swarming motility, when overexpressed in a GGDEF quadruple mutant, whereas overproduction of full length DgcW did not alter motility behavior via the PilZ domain protein DgrA (Gao et al., 2013). Thus, we suggest that an elimination of the EAL domain leads to elevated c-di-GMP concentrations in comparison to the WT protein and consequently activation of the yda operon can occur. On the other hand, we can exclude that DgcW influences the putative EPS machinery under physiological conditions because an overexpression of full length DgcW could not restore EPS production. Intriguingly, we found a new c-di-GMP-associated phenotype concerning biofilm formation during overexpression of truncated DgcW, in that we observed a profound effect on BF formation, suggesting that unbalanced production of c-di-GMP through DgcW interferes with biofilm maturation. The GGDEF domain of DgcW harbors a degenerated I-site motif (instead of RxxD, PxxG). Therefore, we hypothesize that the BF defect is a result of elevated c-di-GMP concentrations and thus a secondary effect, as DgcW-ΔEAL may not be subjected allosteric product inhibition in contrast to DgcK/P, or an elimination of the EAL domain results in an “exposure” of interaction sides for potential interaction partners/receptors of the GGDEF domain, thereby providing sufficient c-di-GMP concentrations that are limited in the WT protein by the adjacent EAL domain. It will be interesting to examine the potential involvement of the three proposed c-di-GMP receptors (DgrA, YdaK, YkuI) in the process of BF inhibition upon overproduction of DgcW-ΔEAL. Noteworthy, dgcW is assigned to the SigD regulon and co-expressed with various chemotaxis proteins (Nicolas et al., 2012; SubtiWiki) suggesting that DgcW might be linked to chemotaxis regulation potentially even through the activity of a yet unidentified c-di-GMP receptor in B. subtilis.

Besides the investigation of functions of DGCs in B. subtilis, we wanted to expand our knowledge on the dynamic behavior of GGDEF proteins in living cells. The presence of numerous DGC, PDE, and c-di-GMP receptor-encoding genes in various bacterial genomes raises questions regarding the mechanisms that establish specificity within these apparent diverse regulatory circuits (Hengge, 2009). One hypothesis proposes spatial proximity of c-di-GMP metabolizing proteins, effectors and targets, producing small localized specific concentrations as suggested in several studies (Merritt et al., 2010; Dahlstrom et al., 2015). We provide evidence that in B. subtilis, such a module shows subcellular clustering within the cell membrane. YdaK and DgcK co-localized to the same subcellular positions in the cell membrane establishing a potential c-di-GMP source-target network, which possibly ensures discrete c-di-GMP pools that are not utilized by other working modules, as already suggested for different other bacterial organisms (Guvener and Harwood, 2007; Ryan et al., 2010; Tan et al., 2014). Furthermore, both fusion proteins localized preferentially to the septa of exponentially growing cells where they exhibited high fluorescence intensities, indicating that both fusion might form higher oligomeric structures.

However, activation of EPS production can be also accomplished by potential non-cognate DGCs. Thus, it remains unclear whether c-di-GMP routes in B. subtilis do depend on central c-di-GMP hubs or whether they can be locally administrated (Valentini et al., 2016). For DgcP, we found diffusive movement within the cytosol, which contrasts the membrane-integral localization of DgcK, but interestingly, DgcP also arrested at many sites along the cell membrane, indicating that it may interact with a membrane-bound receptor. Enhanced levels of DgcP may thereby provide c-di-GMP directly to YdaK, but it is also possible that elevated cellular c-di-GMP levels activate YdaK in a non-specific manner. This idea is supported by the finding that overproduced DgcW lacking the EAL domain can also lead to an activation of the yda operon. Therefore, both local and global c-di-GMP pools appear to play important roles in signaling pathways in B. subtilis.

It will be interesting to further investigate in vivo dynamics of DGCs, or their receptors and of their regulated proteins, in order to obtain a more detailed view of the molecular mechanism operating based on local and/ or global c-di-GMP signaling.

Materials and Methods

General Methods and Bacterial Growth Conditions

DNA manipulation and Escherichia coli DH5α transformations were carried out using standard techniques (Mamiatis et al., 1985; Gibson et al., 2009). E. coli strains were routinely cultivated at 37°C in Lysogeny Broth (LB) medium supplemented with 100 μg ml−1 ampicillin. Lists of utilized plasmids and oligonucleotides are provided in Tables S2, S3 respectively. All constructs were verified by DNA sequencing.

Bacillus subtilis strains used in this study derived from the non-domesticated strain NCIB3610 (BGSC) or its transformable derivative DK1042 (Gift from D. Kearns). For transformation of both classes of derivatives, B. subtilis overnight cultures were grown in liquid LB at 30°C and were diluted to OD600 0.08 in 10 ml of a modified competence medium (Zafra et al., 2012). Inoculated cells were further incubated at 37°C and 200 rpm. Upon entry into stationary phase (OD600 1.4–1.6), 300–500 ng of purified genomic DNA were added to 1 ml culture of NCIB3610 derivatives and 0.5-1 μg of plasmid DNA to 1 ml culture of DK1042 derivatives respectively. Cells were further incubated at 37°C and 200 rpm for 2 h followed by selection on solid medium with the appropriate antibiotic. Final antibiotic concentrations were: 5 μg ml−1 chloramphenicol, 50–100 μg ml−1 spectinomycin and 10 μg ml−1 tetracycline. Table S1 provides a detailed description of strains and whether they were generated by plasmid- or by chromosomal DNA-transformation.

For routine growth, B. subtilis cells were streaked from frozen stocks onto LB agar plates and incubated overnight at 37°C. Overnight cultures were grown at 30°C and 200 rpm in LB under antibiotic selective pressure and at 37°C previous to phenotypical tests and fluorescence microscopy. Prior to microscopy cells were washed twice in S750 minimal medium containing 1.0% (v/v) fructose, 0.1% (v/v) glutamate, 0.004% (v/v) casamino acids (Jaacks et al., 1989). For induction of the xylose promoter, xylose was added up to 0.1% (v/v). For induction of the hyperspank promoter, the culture medium was supplemented with 1 mM isopropyl-β-D-thiogalactopyranoside (IPTG).

Strain Construction

yda Expression Constructs

To generate strains overexpressing the transcriptional unit ydaJ-N or truncated variants of it (ydaK-N, ydaL-N), we used three overexpression constructs: pSG1164-PB53, -PB55, -PB56 (Bedrunka and Graumann, 2017). Recombinant plasmids were introduced into B. subtilis NCIB3610 (DK1042) by genetic transformation (Zafra et al., 2012). Correct single-crossover plasmid integration into the host genome was verified by PCR using a specific xylose promoter binding primer (PG5050f) and a primer complementary to the distal end of the operon (PB19r) as already described in Bedrunka and Graumann (2017). For integration of the corresponding constructs into the genomes of NCIB3610 derived dgc mutants, which were kindly provided by Charles Dann III and Daniel Kearns (Indiana), first chromosomal DNA from the corresponding DK1042 strains was isolated and subsequently 300–500 ng of purified DNA was transformed into the corresponding dgc mutant backgrounds. The maintenance of gene deletions was verified via PCR using the oligonucleotides (2928–3040) listed in Table S3.

Complementation Strains

Overexpression constructs of ydaK, dgcK, dgcP, dgcW and of dgcWΔeal under the control of a hyperspank promotor at the amyE site respectively (pXG003, pXG004, pXG002, pXG001, and pXG086) were kindly provided by the Labs of Charles Dann III and Daniel Kearns (Indiana). The corresponding constructs were integrated first into the genomes of B. subtilis NCIB3610 (DK1042) by plasmid transformation. A double-crossover recombination of the DNA sequences at the amyE locus on the chromosomes was confirmed by screening loss of starch degradation. To overexpress the corresponding genes in the NCIB3610 derived dgc mutant strains which also overexpress the ydaK-N operon (strain DS1809-PB55), chromosomal DNA was isolated from DK1042 derivatives and further transformed into the corresponding mutant strains (300–500 ng). Mutations R202A and D204A in YdaK were created using a PCR-based site-directed mutagenesis kit (Q5 Site-Directed Mutagenesis Kit, NEB). Mutagenesis was performed on plasmid pXG003 carrying the ydaK gene using primer pairs PB80f/PB80r for R202A and PB81f/PB81r for D204A, respectively. Mutant alleles were fully sequenced to verify mutations.

Xylose-Inducible Translational Fluorescent Fusions (at amyE)

To generate inducible translational C-terminal fusions of YdaK, YdaKΔ4TMH, DgcK, DgcP and DgcW to mVenus-YFP (Venus YFP with monomerizing A206K mutation) or CFP, the corresponding coding sequences missing the stop codon, were amplified by PCR using NCIB3610 chromosomal DNA as a template and primer pairs PB57f/PB57r for ydaK-mV-yfp, PB100f/PB57r for ydaKΔ4tmh-mV-yfp, PB90f/PB90r for dgcK-mV-yfp and PB21f/PB37r dgcK-cfp, PB86f/PB86r for dgcP-mV-yfp and PB88f/PB88r for dgcW-mV-yfp, respectively (Table S3). The resulting fragments were digested and ligated into the corresponding sites of pSG1193-NLMV containing a spectinomycin resistance cassette, a polylinker downstream of the xylose promoter, and the gene encoding mV-YFP between the two arms of the amyE gene. For C-terminal CFP fusions, dgcK was cloned into pSG1192 (Lewis and Marston, 1999). The resulting recombinant plasmids are listed in Table S2. Constructs for N-terminal YFP fusions of DgcK, DgcP, and DgcW were generated in a similar manner using oligonucleotides PB21f/PB79r for dgcK, PB20f/PB85r for dgcP and PB87f/PB87r for dgcW and plasmid pSG1729-MVYFP. Recombinant plasmids were introduced into the B. subtilis strain DK1042 by genetic transformation. A double-crossover recombination of the DNA sequences at the amyE locus on the chromosomes was confirmed by screening loss of starch degradation and stability of fusion proteins was verified by immune-detection using anti-GFP serum (see below). To overexpress fusion genes in NCIB3610 derived dgc mutant strains which also overexpress the truncated ydaKLMN operon (strain DS1809-PB55) and to test for their functionality, chromosomal DNA was isolated from DK1042 derivatives and further transformed into the corresponding mutants (300–500 ng).

Fusion Proteins Encoded at the Original Locus

To obtain mV-yfp gene fusions of dgcK, ydaK, and dgcP, which are encoded at the endogenous locus and expression is driven by the respective original promotor, a minimum of 500 bp of the 3′ region of the genes was amplified first by PCR using the oligonucleotides, PB01/f/PB01r, PB10f/PB10r, and PB08f/PB08r respectively. The resulting fragments were cloned into plasmid pSG1164-NLMV using overlapping sequences [isothermal “Gibson” assembly (ITA), Gibson et al., 2009]. Competent cells of DK1042 were transformed with the plasmids pSG1164-NLMV-PB01, pSG1164-NLMV-PB10, and pSG1164-NLMV-PB08 generating the strains listed in Table S1. For Co-localization studies of YdaK-mV-YFP and DgcK-CFP, plasmid pSG1164-NLMV-PB10 was transformed into NCIB3610-PB37 (amyE::Pxyl-dgcK-cfp) resulting in strain NCIB3610-PB37-PB10.

Biofilm Formation Assay

Undomesticated B. subtilis NCIB3610 strains were cultured in LB containing appropriate antibiotics at 30°C for 14 h. Daily cultures were grown in LB at 37°C to an OD600 of 1.0 without antibiotics. For biofilm growth, bacteria from a liquid LB culture were collected and transferred to liquid MSgg medium [5 mM potassium phosphate (pH 7.0), 100 mM 3-(N-morpholino) propane-sulfonic acid (pH 7.0), 2 mM MgCl2, 700 μM CaCl2, 50 μM MnCl2, 100 μM FeCl3, 1 μM ZnCl2, 2 μM thiamine, 0.5% glycerol, 0.5% glutamate]. Cells were incubated for additional 30 min at 37°C and 200 rpm before inoculation (2 μl) on MSgg plates (MSgg medium fortified with 1.5% Bacto agar, 6- well plates, dried overnight) supplemented with Congo Red (40 μg ml−1) and Coomassie Brilliant Blue (20 μg ml−1) and with or without 0.1% (v/v) xylose and or 1 mM IPTG (Branda et al., 2001; Asally et al., 2012). Plates were sealed and incubated up to 72 h at 25°C. Colony morphology was documented over time using the ChemiDocTM MP System (BIO-RAD). For each strain, we analyzed 3 biological replicates in at least two independent experiments.

Fluorescence Microscopy

Cells were grown in LB rich medium under selective pressure to the exponential growth phase at 37°C. D-xylose was added in different concentrations [0.001, 0.01, and 0.1% (v/v)] to the growth media to induce expression of genes downstream of the encoded fusion protein at original locus or the encoded fusion protein itself at the amyE locus for 45 min at 37°C. For microscopy, 2 μl of washed cells were spotted on a coverslip and immobilized by a thin agarose pad [1% (w/v) agarose in S750 minimal medium]. Fluorescence microscopy was performed using a Zeiss Axio Observer A1 equipped with a 100 × TIRF objective (numerical aperture NA of 1.45) using the setup from Visitron Systems (Munich, Germany). YFP fluorophores were excited by exposure to a 515 nm laser beam and CFP fluorophores to 445 nm. Images were acquired with an Evolve EM-CCD camera (Photometrix) and were processed with ImageJ (National Institutes of Health, Bethesda, MD).

Immunoblotting

To validate expression levels of fusion genes and stability of fusion proteins respectively, cells were grown in LB medium at 37°C until exponential phase and gene expression was artificially induced with different xylose concentrations in case of amyE encoded gene fusions. 45 min after induction and incubation at 37°C and 200 rpm, equal amounts of cells were resuspended in lysis buffer (50 mM EDTA, 100 mM NaCl, 2.5 mg ml−1 lysozyme, 0.1 mg ml−1 RNase, 0.01 mg ml−1 DNase, pH 7.5) and incubated for 20 min at 37°C. SDS sample buffer (final concentration, 1 X) was added to the cell lysate and boiled at 95°C for 10 min, except for lysates which derived from strain NCIB3610-PB90 (amyE::Pxyl-dgcK-mV-yfp). These samples were incubated at RT for 1 h prior to SDS-PAGE on 4–20% Tris/ Glycin gradient gels which have been also used for separation of YdaK fusion proteins. DgcP fusion proteins were separated via SDS-PAGE on 12% gels. The proteins were transferred to a nitrocellulose membrane, applying the semidry Western blotting method for 1 h and 45 mA and YFP-fused proteins were visualized by a primary polyclonal α-GFP antiserum (dilution, 1:500) and a secondary goat α-rabbit antiserum coupled to a horseradish peroxidase.

Author Contributions

PB has performed and analyzed all experiments, has conceived of the experiments and has written the manuscript. PG has conceived of the experiments, and has written the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We would like to thank Daniel Kearns and Charles Dann III (University of Indiana, USA) for kindly providing us with strains and plasmids, and Nina El Najjar, Thomas Rösch, and Gert Bange (SYNMIKRO, Marburg) for helpful comments on the manuscript. This work was supported through funding from the LOEWE program of the state of Hessen for the Centre of Synthetic Microbiology (SYNMIKRO) and by the University of Marburg.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fmicb.2017.00794/full#supplementary-material
