Impact Factor 4.076

The 3rd most cited journal in Microbiology

Original Research ARTICLE

Front. Microbiol., 29 August 2017 | https://doi.org/10.3389/fmicb.2017.01611

LMOf2365_0442 Encoding for a Fructose Specific PTS Permease IIA May Be Required for Virulence in L. monocytogenes Strain F2365

Yanhong Liu1*, Brian B. Yoo2, Cheng-An Hwang3, Yujuan Suo4, Shiowshuh Sheen5, Parvaneh Khosravi5 and Lihan Huang3
  • 1Molecular Characterization of Foodborne Pathogens Research Unit, Eastern Regional Research Center, Agricultural Research Service, United States Department of Agriculture, Wyndmoor, PA, United States
  • 2Clinical and Environmental Microbiology Branch, Division of Healthcare Quality and Promotion, National Center for Emerging and Zoonotic Infectious Diseases, Centers for Disease Control and Prevention, Atlanta, GA, United States
  • 3Residue Chemistry and Predictive Microbiology Research Unit, Eastern Regional Research Center, Agricultural Research Service, United States Department of Agriculture, Wyndmoor, PA, United States
  • 4Institute for Agri-Food Standards and Testing Technology, Shanghai Academy of Agricultural Sciences, Shanghai, China
  • 5Food Safety Intervention Technologies Research Unit, Eastern Regional Research Center, Agricultural Research Service, United States Department of Agriculture, Wyndmoor, PA, United States

Listeria monocytogenes is a foodborne pathogen that causes listeriosis, which is a major public health concern due to the high fatality rate. LMOf2365_0442, 0443, and 0444 encode for fructose-specific EIIABC components of phosphotransferase transport system (PTS) permease that is responsible for sugar transport. In previous studies, in-frame deletion mutants of a putative fructose-specific PTS permease (LMOf2365_0442, 0443, and 0444) were constructed and analyzed. However, the virulence potential of these deletion mutants has not been studied. In this study, two in vitro methods were used to analyze the virulence potential of these L. monocytogenes deletion mutants. First, invasion assays were used to measure the invasion efficiencies to host cells using the human HT-29 cell line. Second, plaque forming assays were used to measure cell-to-cell spread in host cells. Our results showed that the deletion mutant ΔLMOf2365_0442 had reduced invasion and cell-to-cell spread efficiencies in human cell line compared to the parental strain LMOf2365, indicating that LMOf2365_0442 encoding for a fructose specific PTS permease IIA may be required for virulence in L. monocytogenes strain F2365. In addition, the gene expression levels of 15 virulence and stress-related genes were analyzed in the stationary phase cells of the deletion mutants using RT-PCR assays. Virulence-related gene expression levels were elevated in the deletion mutants ΔLMOf2365_0442-0444 compared to the wild type parental strain LMOf2365, indicating the down-regulation of virulence genes by this PTS permease in L. monocytogenes. Finally, stress-related gene clpC expression levels were also increased in all of the deletion mutants, suggesting the involvement of this PTS permease in stress response. Furthermore, these deletion mutants displayed the same pressure tolerance and the same capacity for biofilm formation compared to the wild-type parental strain LMOf2365. In summary, our findings suggest that the LMOf2365_0442 gene can be used as a potential target to develop inhibitors for new therapeutic and pathogen control strategies for public health.

Introduction

Listeria monocytogenes is a Gram-positive intracellular human pathogen that can cause listeriosis with a high mortality rate (20–30% in immuno-compromised groups). It is widely distributed in soil and food environments. L. monocytogenes is also a foodborne pathogen that is often associated with a variety of raw and processed food products, including milk, meat, and vegetables. It can persist in food processing environments for years since it can form biofilms and survive under harsh conditions such as low pH and low temperature (Farber and Peterkin, 1991).

The virulence of L. monocytogenes involves host cell adhesion and invasion, escape from vacuoles, intracellular multiplication, and cell-to-cell spreading (Camejo et al., 2011). A number of genes associated with virulence have been identified in L. monocytogenes. For example, prfA encodes a transcriptional regulator that activates the transcription of a number of virulence genes such as hly, plcA, plcB, and inlA in L. monocytogenes. SigB also encodes a transcriptional regulator that positively regulates the transcription of stress-related genes such as clpC and clpE (Hu et al., 2007). A number of genes involved in adhesion include actA, ami, fbpA, and flaA (Dons et al., 2004; Camejo et al., 2011). Internalin A and B (inlA and inlB) mediate invasion into mammalian cells (Carvalho et al., 2014). hly encodes for listeriolysin O, which is responsible for the escape of L. monocytogenes from vacuoles. plcA and plcB are also involved in escape from vacuoles. The actA and iap genes are involved in intracellular motility and cell-to-cell spread (Camejo et al., 2011).

The phosphotransferase transport system (PTS) serves as a sugar transport system in bacteria. There are approximately 30 copies of different PTS systems present in the genome of L. monocytogenes (Stoll and Goebel, 2010). A typical PTS contains enzyme I (EI), II (EII), and a heat-stable protein (HPr). EI and HPr are common, whereas EII is sugar-specific and is usually comprised of three domains (IIA, IIB, and IIC). EIIA and EIIB proteins are soluble and hydrophilic whereas EIIC is hydrophobic membrane protein. EIIA interacts with EIIB and EIIB interacts with EIIC (Deutscher et al., 2006). PTSs not only function as carbohydrate transporters, but also regulate numerous cellular processes, including carbon catabolite repression (CCR) (Deutscher et al., 2006). Some PTSs have been associated with stress response and biofilm formation (Wu et al., 2012). LMOf2365_0442 (encoding for the PTS system, fructose-specific, IIA component), LMOf2365_0443 (encoding for the PTS system, fructose-specific, IIB component), and LMOf2365_0444 (encoding for the PTS system, fructose-specific, IIC component) were highly induced under high hydrostatic pressure treatment (Liu et al., 2011) and inhibited under salt stress (Bae et al., 2012) as tested by microarray and real-time PCR assays. In our previous study, mutants with in-frame deletions of these genes had different growth patterns under multiple stress conditions, including acid and salt stresses, indicating that these genes may contribute to the general stress response (Liu et al., 2013). Since a mannose PTS permease has been shown to be related to virulence gene expression in L. monocytogenes (Vu-Khac and Miller, 2009), we hypothesized that the LMOf2365_0442, 0443, and 0444 encoding for PTS permease might also be involved in virulence in L. monocytogenes.

In this study, the three in-frame L. monocytogenes deletion mutants (ΔLMOf2365_0442-0444) were tested for their virulence potential using invasion and plaque forming assays. The virulence and stress-related gene expression levels of deletion mutants were also examined in stationary-phased cells using RT-PCR assays. Finally, the pressure tolerance and the biofilm formation ability of these deletion mutants were also determined.

Materials and Methods

Bacterial Strains and Human Cell Line (HT-29) Culture Conditions

Listeria monocytogenes strain F2365 (LMOf2365) isolated from Mexican-style soft cheese was implicated in an outbreak of listeriosis in California in 1985 (Linnan et al., 1988). It was used in this study since its genome is fully sequenced and annotated (Nelson et al., 2004). Glycerol stock cultures of L. monocytogenes F2365 (serotype 4b), L. innocua (ATCC® 51742TM), and three isogenic deletion mutants ΔLMOf2365_0442-0444 of the parent strain L. monocytogenes F2365 (Liu et al., 2013) stored at -80°C were streaked onto Brain Heart Infusion (BHI) (Sigma–Aldrich St. Louis, MO, United States) agar plates. Single colonies picked from agar plates were grown to logarithmic or stationary phases prior to each experiment.

The human adenocarcinoma cell line HT-29 purchased from ATCC (Manassas, VA, United States) was grown in 75-cm2 plastic tissue culture flasks (Falcon, Durham, NC, United States) in Dulbecco’s Modified Eagle’s Medium (DMEM) with glucose (4.5 g/L) (Invitrogen, Carlsbad, CA, United States) supplemented with 10% (v/v) fetal bovine serum (Invitrogen) and 1 mM sodium pyruvate (Invitrogen). Antibiotics (100 IU/ml penicillin and 100 μg/ml streptomycin) were routinely added to the culture medium except for the medium used 24 h prior to the invasion and plaque forming assays. Cells were maintained in a humidified incubator at 37°C under 5% (v/v) CO2.

Invasion Assays

Invasion assays were performed to assess the virulence of Listeria strains according to Roche et al. (2005) with the following modifications. HT-29 human cells (ATCC HTB-38) were grown on 24-well tissue culture plates for 5 days to obtain almost confluent monolayers. Strains of L. monocytogenes (isogenic deletion mutants ΔLMOf2365_0442LMOf2365_0443, ΔLMOf2365_0444 and the parental LMOf2365) and L. innocua grown to log-phase at 37°C were used for invasion assays. HT-29 cell monolayers incubated in DMEM medium without antibiotics for 24 h were infected for 1 h at 37°C with 107 bacterial cells in 300 μl BHI liquid medium [Multiplicity of Infection (MOI) = 60]. The cell monolayers were washed with DMEM and incubated in DMEM containing gentamicin (100 μg/ml) for 1.5 h at 37°C. The cell monolayers were gently washed three times with phosphate buffered saline (pH 7.4) and then disrupted with 1 ml cold sterile water (4°C). Viable intracellular bacteria were counted after plating serial dilutions on BHI agar plates. The results were expressed as log numbers of CFU recovered relative to the number of bacteria (107) deposited per well. Each experiment was conducted in duplicate and repeated three times for each strain.

Plaque-Forming Assays

Plaque forming assays were performed using HT-29 cells according to Roche et al. (2001). Briefly, HT-29 cells were grown on 24-well tissue culture plates for 5 days to obtain almost confluent monolayers. HT-29 cell monolayers were incubated in medium without antibiotics for 24 h. Strains of L. monocytogenes (isogenic deletion mutants ΔLMOf2365_0442LMOf2365_0443LMOf2365_0444 and parental LMOf2365) grown to log-phase at 37°C were used to infect HT-29 cell monolayers with a dilution series of 102 to 107 cells per well, and they were incubated for 2 h at 37°C. L. innocua was used as a negative control. After removal of the bacterial suspensions, cell monolayers were washed with DMEM and incubated in DMEM containing 100 μg/ml of gentamicin for 1.5 h. Each well was covered with 400 μl DMEM with 10 μg/ml gentamicin containing 0.5% agarose. After solidification, the same liquid medium (400 μl) was added to the top of the agar to prevent starvation. Tissue culture plates were incubated overnight at 37°C under 5% (v/v) CO2. The cells were stained with 0.01% neutral red solution in DMEM medium with 0.5% agarose and were incubated at 37°C for overnight. Enumeration of formed plaques was performed using an inverted microscope. The results were expressed as log numbers of plaques per 107 bacteria deposited per well. Experiments were carried out in duplicate and repeated three times for each strain.

RT-PCR Analysis of Virulence and Stress-Related Genes

The deletion mutant (ΔLMOf2365_0442LMOf2365_0443, ΔLMOf2365_0444) strains together with parental strain LMOf2365 were grown to stationary phase at 37°C. Total RNA was isolated from stationary phase (normal growth conditions) for bacterial cells of the deletion mutant strains, as well as the wild-type L. monocytogenes F2365 parent strain (Table 1) as previously described (Liu and Ream, 2008). Primers targeting the genes related to virulence and stress response (Table 1) were designed using Primer3 (v.0.4.0) software1 based on the gene sequences of L. monocytogenes strain F2365 (GenBank accession#AE017262). The specificity of the primer sequences was further determined using the NCBI BLASTN program against the non-redundant (nr) database, and analyses revealed that the primer sequences showed 100% homology only to L. monocytogenes strain F2365 (GenBank accession#AE017262). Primers were also designed to the spoG housekeeping gene used as an internal control (Table 1). cDNA synthesis and real-time PCR analysis were performed as described previously (Liu and Ream, 2008). Reactions without reverse transcriptase were used as negative controls.

TABLE 1
www.frontiersin.org

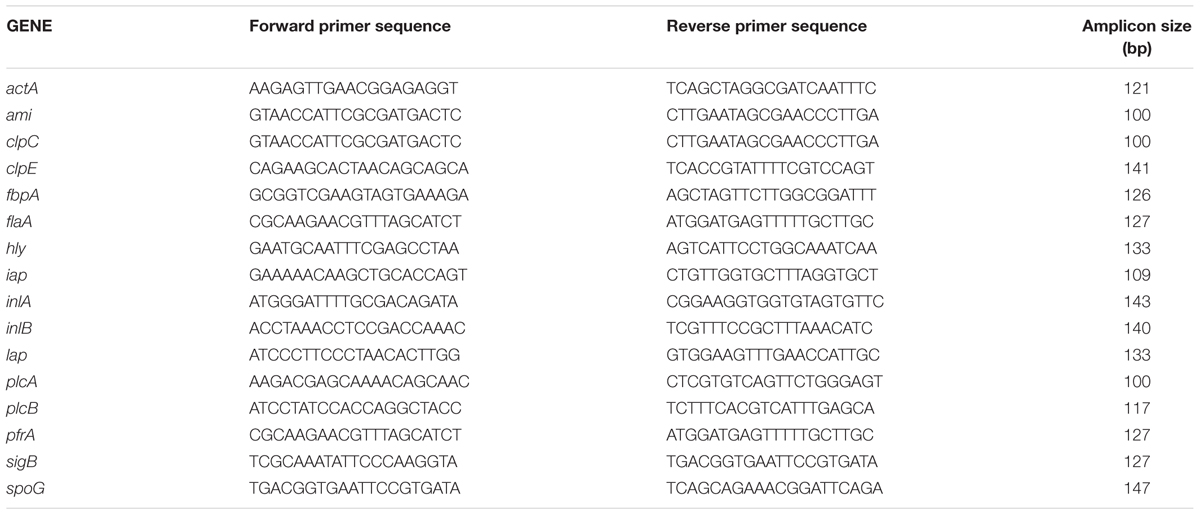

TABLE 1. Oligonucleotides used for real-time PCR to evaluate the virulence and stress-related genes in Listeria monocytogenes.

High Pressure Processing (HPP) Treatments

The deletion mutant ΔLMOf2365_0442, 0443, 0444 strains, together with wild-type L. monocytogenes F2365 parent strain were grown to log phase (with optimal densities of OD600 nm between 0.3 and 0.5) at 30°C. Prior to the high pressure treatments, 2 ml of bacterial cultures were taken for plate counts. Twenty milliliters of bacterial cultures were vacuum-sealed in two plastic bags and subject to high pressure treatments (400 and 450 MPa, respectively) at 4°C for 3 min. HPP was performed in a laboratory scale pressure unit (Mini Food lab FPG5620, Stansted Fluid Power Ltd., Essex, United Kingdom), comprised of a double-jacketed thick-wall stainless steel cylinder (approximate volume of 0.3 L) having an internal stainless steel sample holder of 25.4 mm × 254 mm (diameter × length). The thick-wall cylinder was maintained at a set-point temperature in which heat transfer fluid continuously circulated from a refrigerated liquid chiller (Proline RP 855, Lauda, Germany). The refrigerated chiller was set at 4°C, which indirectly cooled the pressure transmitting medium (a mixture of ethanol and castor oil, 80%/20% weight basis). The pressure come-up rate was 100 MPa per 15 s (or 6.67 MPa/s), and the release rate was 100 MPa per 9 s (or 11.11 MPa/s) (Hsu et al., 2015). This temperature set-up ensured that foods in the pressure chamber were maintained at <40°C during the HPP treatments and eliminated the potential for thermal lethality. After pressure treatments, 2 ml of the suspension was used for plate counting.

Biofilm Formation Assays

Biofilm assays were performed as described (Liu et al., 2017) with the following modifications. Single colonies of L. monocytogenes F2365, ΔLMOf2365_0442-0444, and L. innocua were inoculated into 5 ml of BHI broth and incubated at 37°C overnight with agitation at 200 rpm. The bacterial overnight cultures were diluted 100-fold in Modified Welshimer’s Broth (MWB) (HiMedia Laboratories, Mumbai, India) with glucose as the sole carbon source. Two hundred microliters of diluted bacterial cultures were added to a 96-well PVC microtiter plate previously rinsed with 70% ethanol. For each strain, 200 μL of the freshly diluted culture were placed in eight different wells. Two hundred microliters of MWB (eight wells) was used as a negative control. The 96-well PVC microtiter plate was incubated at 30°C in a humidified container for 48 h. After removal of the medium, the plate was washed five times with distilled water and air dried for 45 min. The plate was stained with 200 μL of 0.1% crystal violet for 45 min and washed five times with distilled water. After 30 min of destaining with 200 μL of 95% ethanol for 30 min, the absorbance at OD595 nm was measured using a Tecan Safire 2 microplate reader (Tecan Group Ltd., Switzerland). The absorbance readings at OD595 nm were normalized by subtracting the medium only OD595 nm numbers. Any absorbance at OD595 nm above 0 indicated some biofilm formation. Three independent experiments were performed.

Statistical Analysis

Data collected from the study were analyzed using the Student’s t-test of the Statistical Analysis Software (SAS Institute Inc., Cary, NC, United States) for paired comparison with P < 0.05 considered significant.

Results

Deletion Mutant ΔLMOf2365_0442 Displayed Reduced Invasion and Plaque Forming Efficiencies in HT-29 Cell Line

To understand if the PTS EII complex LMOf2365_0442-0444 was involved in host infection, two in vitro assays (cell invasion and plaque forming assays) using HT-29 cell monolayers were used to test the virulence potential for each deletion mutant. As shown in Figure 1, L. monocytogenes F2365 (LMOf2365), which was used as a positive control, had high invasion efficiency (0.36 log10 cfu/well). The deletion mutant strain ΔLMOf2365_0442 showed deficiency in invasion (14%) whereas ΔLMOf2365_0443 andΔLMOf2365_0444 had higher invasion efficiencies (203 and 117%, respectively) compared to the wild-type strain LMOf2365 (100%). Non-pathogenic strain L. innocua that served as a negative control had no invasion. The second in vitro assay for virulence was based on the ability of Listeria strains to form plaques on HT-29 cell monolayers. As shown in Figure 2, L. monocytogenes F2365 formed a higher number of plaques (approximately 3.9 log10 pfu/well) compared to non-pathogenic strain L. innocua, which did not form any plaques. ΔLMOf2365_0442 formed a lower number of plaques (2.8 log10 pfu/well) whereas ΔLMOf2365_0443 and ΔLMOf2365_0444 had similar plaque forming abilities (3.6 and 3.8 log10 pfu/well, respectively) as the wild type LMOf2365 (3.9 log10 pfu/well). Taken together, results from invasion and plaque forming assays demonstrated that deletion mutant ΔLMOf2365_0442 showed a deficiency in both invasion and intracellular cell-to-cell spread in HT-29 cell monolayers, suggesting that LMOf2365_0442 is required for virulence in L. monocytogenes.

FIGURE 1
www.frontiersin.org

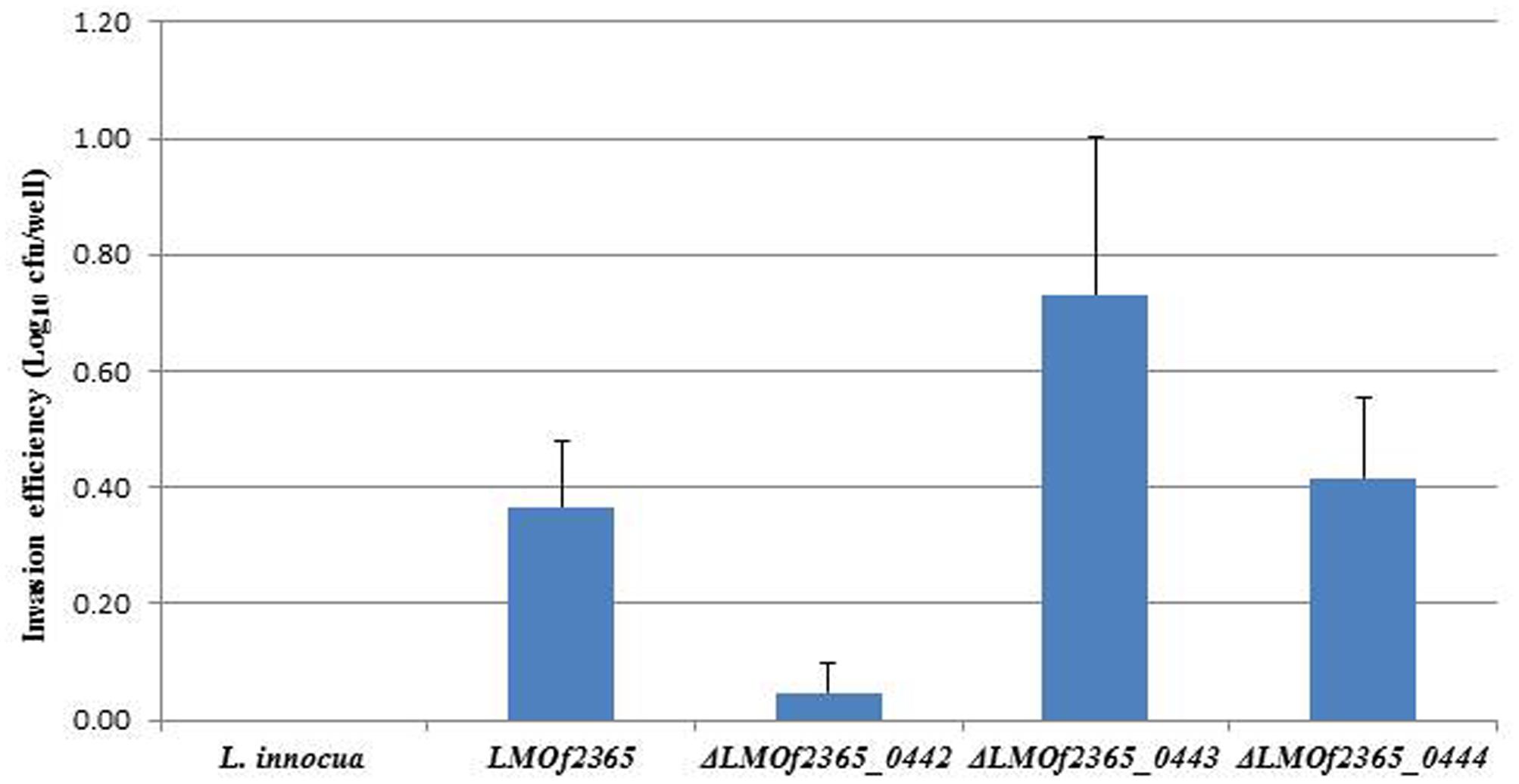

FIGURE 1. Invasion of Listeria monocytogenes and L. innocua strains in HT-29 cells. HT-29 cell monolayers were incubated with Listeria strains grown to log-phase for invasion assays. Viable intracellular bacteria were counted after plating serial dilutions on BHI agar plates. The results were expressed as log numbers of CFU recovered relative to the number of bacteria (107) deposited per well. Mean values and standard deviations were calculated from three independent experiments.

FIGURE 2
www.frontiersin.org

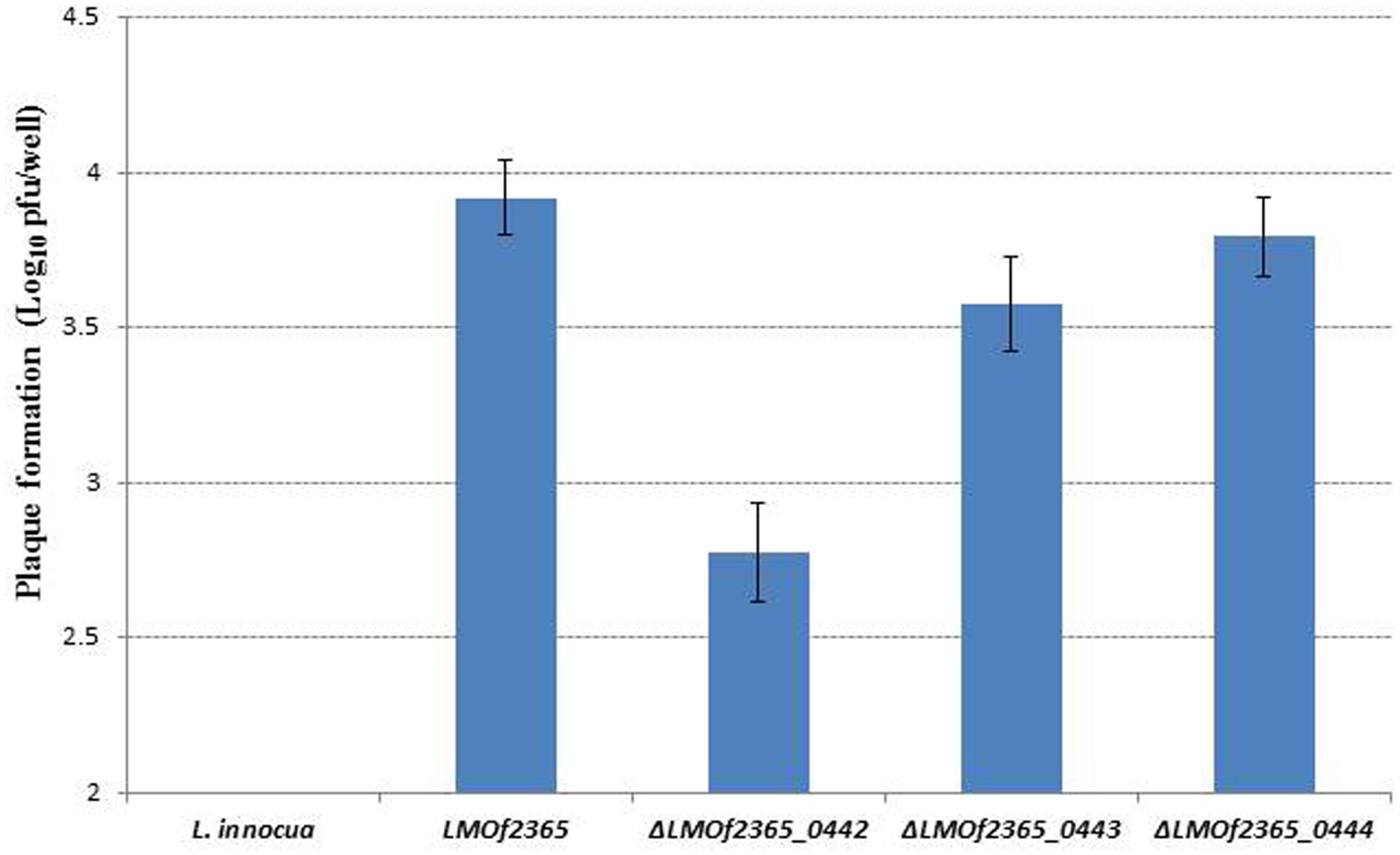

FIGURE 2. Plaque formation of Listeria strains in HT-29 monolayers. Results are presented as the log10 numbers of plaque-forming units (pfu) per well ± standard deviation of triplicate.

Virulence and Stress-Related Gene Expression Levels Were Elevated in the Deletion Mutants

Fifteen genes related to virulence and stress response (Olesen et al., 2009) were chosen for real-time PCR assays to determine the gene expression levels in deletion mutants under stationary-phase conditions. Compared to the wild-type parental LMOf2365 strain, the majority of the virulence genes were up-regulated in the deletion mutants (Table 2), indicating that the PTS permease (LMOf2365_0442-0444) negatively regulated virulence gene expression. Of the virulence genes, the expression level of pfrA, the major virulence regulator in L. monocytogenes, was moderately high (3.4 to 4.6-folds) compared to the wild-type parental strain LMOf2365. Genes (actA, plcA, plcB, and hly) regulated by pfrA were also elevated in ΔLMOf2365_0442 and ΔLMOf2365_0444. Interestingly, the gene expression levels of hly, lap, actA, and plcB had little change in ΔLMOf2365_0443. Our previous studies indicated that the deletion mutants were more resistant to multiple stress conditions (Liu et al., 2013), indicating that they may contribute to a general stress response. RT-PCR assays were used to determine the gene expression levels of three stress-related genes (sigB, clpC, and clpE). As shown in Table 2, the expression levels of clpC were elevated in all of the three deletion mutants. The expression levels of clpE and sigB were moderately elevated (3.5- and 4.8-folds) in ΔLMOf2365_0444 andΔLMOf2365_0442, respectively. The increased levels of stress-related gene expression confirmed our previous observation that these deletion mutants may contribute to general stress response (Liu et al., 2013).

TABLE 2
www.frontiersin.org

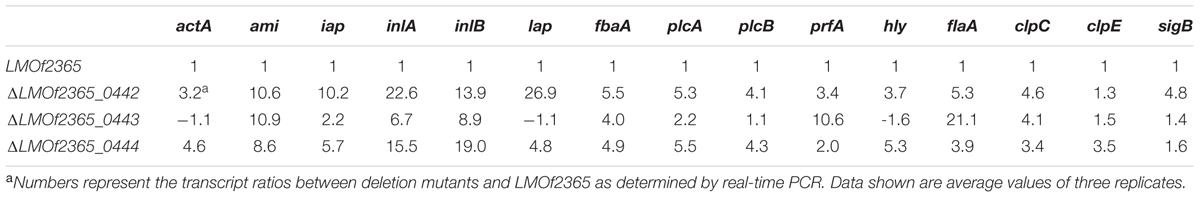

TABLE 2. Relative changes in expression levels for virulence and stress–related genes in L. monocytogenes deletion mutants.

Deletion Mutant ΔLMOf2365_0442-0444 Strains Displayed the Same Tolerance to High Pressure Compared to the Parental LMOf2365 Strain

Since LMOf2365_0442-0444 were highly induced under high pressure (Liu et al., 2011), we would like to know whether deletion of these genes will change their pressure tolerance. To test whether the PTS operon had an effect on high pressure tolerance, the deletion mutants, together with parental LMOf2365 strains, were subject to high pressure treatments (450 and 400 MPa for 3 min). As shown in Figure 3, the wild-type L. monocytogenes F2365 showed ∼3 and 4 log reduction under 400 and 450 MPa, respectively. The deletion mutants showed similar log reductions compared to the wild-type strain.

FIGURE 3
www.frontiersin.org

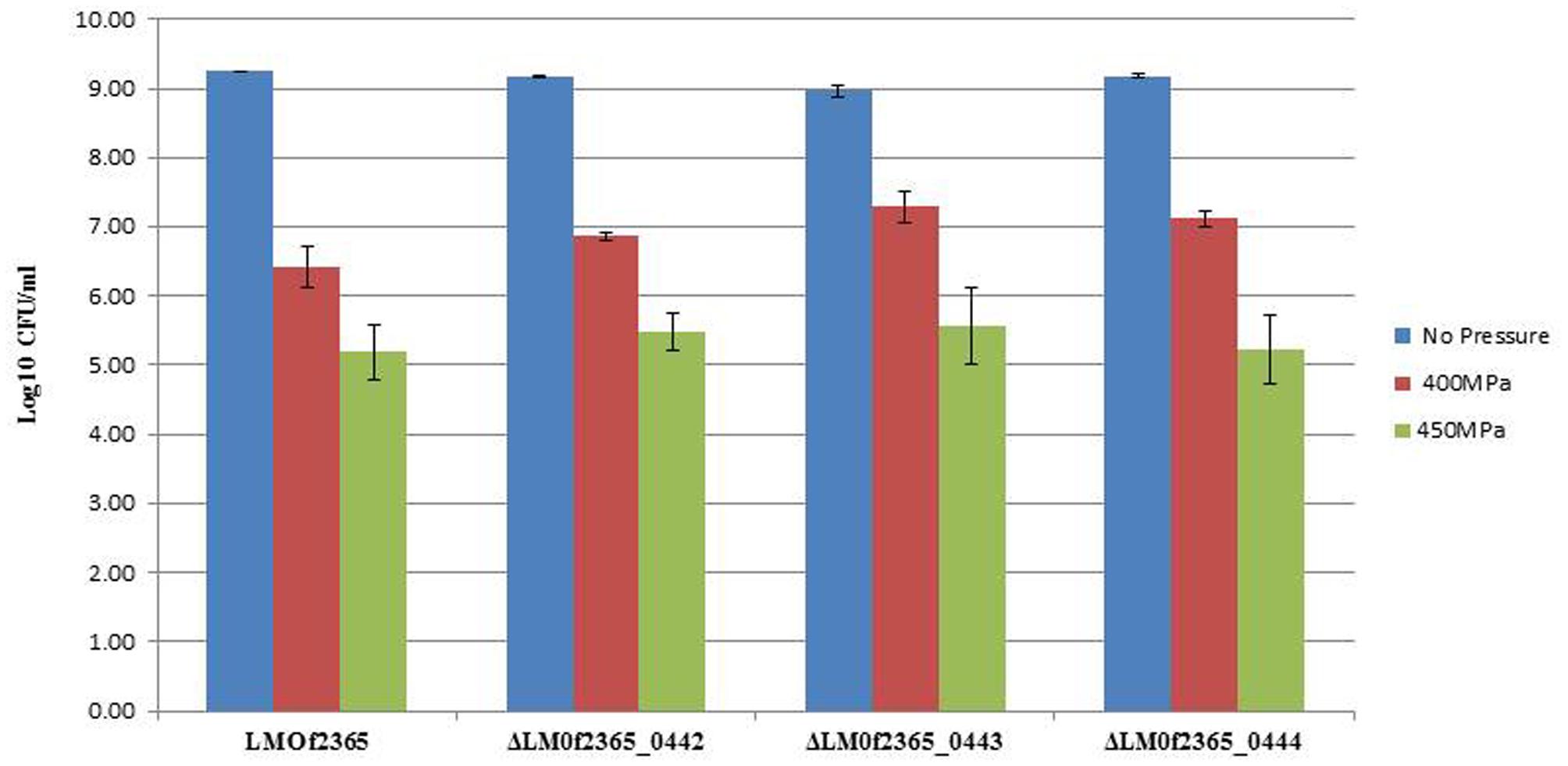

FIGURE 3. Growth of L. monocytogenes strains before and after high pressure treatments. The log phased bacterial cells were subjected to high pressure treatments (400 and 450 MPa, respectively) at 4°C for 3 min. The results were expressed as log numbers of cfu/ml ± standard deviations of three independent experiments.

Depletion of PTS Permease Had No Effect on Biofilm Formation

A fructose PTS required for virulence in Streptococcus gordonii was involved in biofilm formation (Loo et al., 2003). To determine whether the PTS permease (LMOf2365_0442-0444) is involved in biofilm formation, the deletion mutants (ΔLMOf2365_0442-0444) were subject to a biofilm assay. As shown in Figure 4, the wild-type parental LMOf2365 strain formed biofilm (OD595 nm ∼0.4) under experimental condition, whereas L. innocua used as a negative control hardly formed any biofilm (OD595 nm < 0.1). The deletion mutant ΔLMOf2365_0443 had a similar ability for biofilm formation compared to the wild-type LMOf2365 strain. Although ΔLMOf2365_0442 andΔLMOf2365_0444 had a slightly increased ability for biofilm formation, the differences were not statistically significant.

FIGURE 4
www.frontiersin.org

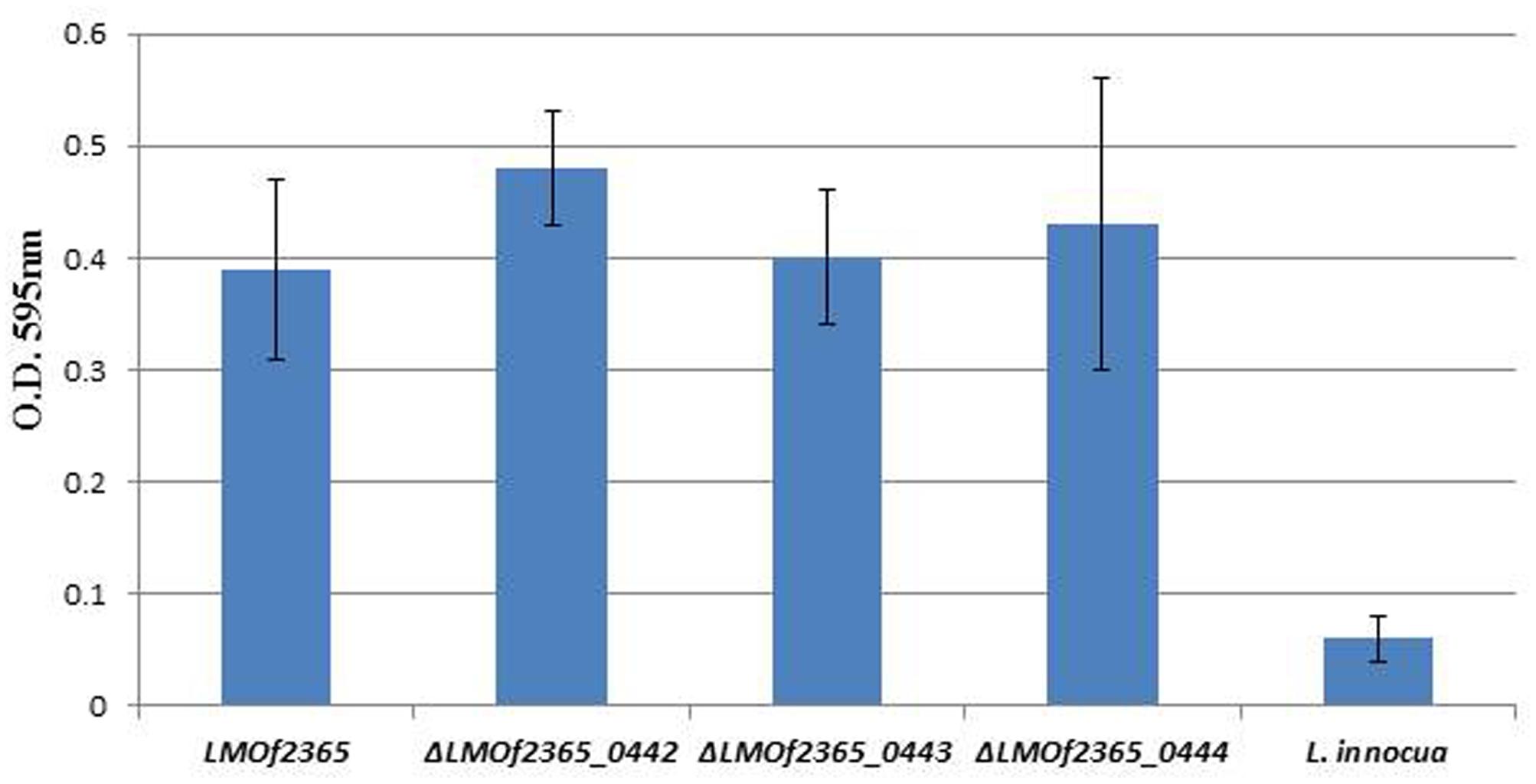

FIGURE 4. Biofilm formation in Listeria strains. Listeria strains were tested for biofilm formation in Modified Welshimer’s Broth (MWB). The biofilm was assessed by crystal violet staining and quantified at OD595 nm using a spectrophotometer. The results were expressed as the mean absorbance at OD595 nm ± standard deviations of eight replicates.

Discussion

In the current study, two in vitro assays were used to test the virulence of L. monocytogenes deletion mutants. ΔLMOf2365-0442 was defective in both assays, indicating that this gene is required for virulence. Although we did not test the virulence using the in vivo mouse model, previous studies showed that the results from plaque forming and invasion assays in L. monocytogenes correlated well with bacterial virulence in vivo (Van Langendonck et al., 1998; Roche et al., 2001). Some PTSs have been shown to be involved in virulence in L. monocytogenes. For example, a PTS mutant with a deficiency in infection was identified in L. monocytogenes through transposon-tagged mutagenesis (Cummins et al., 2013). Using microarrays, a transcriptional profiling of L. monocytogenes following epithelial cell infection identified several up-regulated PTS genes (Joseph et al., 2006). We showed for the first time that LMOf2365_0442 encoding a fructose-specific, permease EIIA component of the PTS is required for virulence in L. monocytogenes. Since fructose has been linked to virulence in Spiroplasma citri (Gaurivaud et al., 2000), we speculated that LMOf2365_0442 regulates virulence probably through limiting the fructose intake. Further experiments are needed to test this hypothesis.

In our study, fifteen genes related to virulence and stress previously used to study acid and salt stress (Olesen et al., 2009) were chosen to determine the gene expression levels in deletion mutants. The deletion mutants showed high levels of virulence genes expression compared to the wild type. Our results are consistent with previous study in which it was found that the mRNA levels of prfA gene clusters were elevated in a PTS deletion mutant (Aké et al., 2011). Since glucose represents the only carbon source in BHI growth medium, the utilization of glucose is favored through the inhibition of the synthesis of the enzymes involved in the catabolism of other carbon sources. This phenomenon is called CCR (Deutscher, 2008; Görke and Stülke, 2008). Glucose represses virulence gene expression in L. monocytogenes (Milenbachs et al., 1997). A mannose-specific PTS that down-regulated prfA gene expression was also involved in CCR (Vu-Khac and Miller, 2009). The activity of PrfA seems to be controlled by the phosphorylation state of PTS components (Herro et al., 2005; Poncet et al., 2009). Fructose also repressed virulence genes such as hly and plcA (Deutscher et al., 2006). It is likely that under normal conditions, the virulence gene expression levels are repressed due to CCR. We propose that the fructose-specific PTS permease (LMOf2365_0442-0444) might be used to repress virulence gene expression in L. monocytogenes, and deletion of PTS could cause inefficient fructose intake, therefore, deactivating CCR. As a result of CCR deactivation, the virulence gene expression is de-repressed.

In this study, the log-phased bacterial cells were chosen to perform invasion and plaque forming assays since they represented the most virulent stage in L. monocytogenes (Dramsi et al., 1993). The deletion mutants showed reduced virulence in terms of invasion and cell-to-cell spreading ability in human cell line HT-29; however, a number of virulence genes showed increase expression under normal growth conditions. This seems contradicting, but the gene expression experiments were performed under normal growth condition, not under infection conditions. It is likely that the virulence gene expression levels were repressed due to catabolite repression under normal growth conditions, however, these genes were de-repressed in ΔLMOf2365_0442-0444.

L. monocytogenes is a major concern in the food industry. This foodborne pathogen is widely distributed in food products and food processing facilities. In addition, it also forms biofilms in food processing environments, increasing the probability of food contamination and making it even more difficult to eliminate in food. HPP has been utilized in the food industry to control L. monocytogenes and extend product shelf life (Gálvez et al., 2007). In our previous study, microarray technology was used to monitor the gene expression profiles of a pressure tolerant mutant under HPP. The gene expression levels of LMOf2365_0442, 0443, and 0444 were elevated under high pressure treatment (Liu et al., 2011). Despite the high induction levels of LMOf2365_0442, 0443, and 0444 under HPP, the deletion mutants of ΔLMOf2365_0442, 0443, and 0444 displayed the same pressure tolerance compared to the parental wild-type LMOf2365 strain (Figure 3). The biofilm forming abilities of these deletion mutants were also tested, our results showed that deletion of LMOf2365_0442, 0443, and 0444 genes did not alter biofilm formation in L. monocytogenes (Figure 4). Although our data suggest that LMOf2365_0442, 0443 encoding for the EIIABC components of PTS are not involved in biofilm formation in L. monocytogenes, the EIIAGlc component of PTS has been shown to play a role in biofilm formation in Vibrio cholera (Pickering et al., 2014).

The fact that PTSs are uniquely present only in prokaryotic bacteria but not in eukaryotes may allow PTSs to be a useful drug target. Targeting bacterial virulence is an alternative approach to kill pathogens in the host. We have shown that deletion mutant of LMOf2365_0442 (encoding for the PTS system, fructose-specific, IIA component) had reduced virulence, inhibitors to the PTS system, fructose-specific, IIA component would attenuate the virulence in L. monocytogenes. In addition, PTSs are highly conserved among the prokaryotic bacteria; therefore it is easier to develop inhibitors for PTSs. In fact, inhibitors were developed through in silico and library screening approaches (Stephenson and Hoch, 2002).

Author Contributions

YL designed the experiments and wrote the manuscript. BY, C-AH, YS, SS, PK, and LH did the experiments. All of the authors have made a substantial, direct, and intellectual contribution to the work and approved it for publication.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We would like to thank Amy Ream for RT-PCR analysis and Drs. Pina Fratamico and James Smith for critical reading of the manuscript.

Footnotes

  1. ^ http://frodo.wi.mit.edu/

References

Aké, F. M., Joyet, P., Deutscher, J., and Milohanic, E. (2011). Mutational analysis of glucose transport regulation and glucose-mediated virulence gene repression in Listeria monocytogenes. Mol. Microbiol. 81, 274–293. doi: 10.1111/j.1365-2958.2011.07692.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Bae, D., Liu, C., Zhang, T., Jones, M., Peterson, S. N., and Wang, C. (2012). Global gene expression of Listeria monocytogenes to salt stress. J. Food Prot. 75, 906–912. doi: 10.4315/0362-028X

PubMed Abstract | CrossRef Full Text | Google Scholar

Camejo, A., Carvalho, F., Reis, O., Leitão, E., Sousa, S., and Cabanes, D. (2011). The arsenal of virulence factors deployed by Listeria monocytogenes to promote its cell infection cycle. Virulence 2, 379–394. doi: 10.4161/viru.2.5.17703

PubMed Abstract | CrossRef Full Text | Google Scholar

Carvalho, F., Sousa, S., and Cabanes, D. (2014). How Listeria monocytogenes organizes its surface for virulence. Front. Cell. Infect. Microbiol. 4:48. doi: 10.3389/fcimb.2014.00048

PubMed Abstract | CrossRef Full Text | Google Scholar

Cummins, J., Casey, P. G., Joyce, S. A., and Gahan, C. G. (2013). A mariner transposon-based signature-tagged mutagenesis system for the analysis of oral infection by Listeria monocytogenes. PLoS ONE 8:e75437. doi: 10.1371/journal.pone.0075437

PubMed Abstract | CrossRef Full Text | Google Scholar

Deutscher, J. (2008). The mechanisms of carbon catabolite repression in bacteria. Curr. Opin. Microbiol. 11, 87–93. doi: 10.1016/j.mib.2008.02.007

PubMed Abstract | CrossRef Full Text | Google Scholar

Deutscher, J., Francke, C., and Postma, P. W. (2006). How phosphotransferase system-related protein phosphorylation regulates carbohydrate metabolism in bacteria. Microbiol. Mol. Biol. Rev. 70, 939–1031. doi: 10.1128/MMBR.00024-06

PubMed Abstract | CrossRef Full Text | Google Scholar

Dons, L., Eriksson, E., Jin, Y., Rottenberg, M. E., Kristensson, K., Larsen, C. N., et al. (2004). Role of flagellin and the two-component CheA=CheY system of Listeria monocytogenes in host cell invasion and virulence. Infect. Immun. 72, 3237–3244. doi: 10.1128/IAI.72.6.3237-3244.2004

PubMed Abstract | CrossRef Full Text | Google Scholar

Dramsi, S., Kocks, C., Forestier, C., and Cossart, P. (1993). Internalin-mediated invasion of epithelial cells by Listeria monocytogenes is regulated by the bacterial growth state, temperature and the pleiotropic activator prfA. Mol. Microbiol. 9, 931–941. doi: 10.1111/j.1365-2958.1993.tb01223.x

CrossRef Full Text | Google Scholar

Farber, J. M., and Peterkin, P. I. (1991). Listeria monocytogenes, a food-borne pathogen. Microbiol. Rev. 55, 476–511.

Google Scholar

Gálvez, A., Abriouel, H., López, R. L., and Ben Omar, N. (2007). Bacteriocin-based strategies for food biopreservation. Int. J. Food Microbiol. 120, 51–70. doi: 10.1016/j.ijfoodmicro.2007.06.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Gaurivaud, P., Danet, J. L., Laigret, F., Garnier, M., and Bové, J. M. (2000). Fructose utilization and phytopathogenicity of Spiroplasma citri. Mol. Plant. Microbe. Interact. 13, 1145–1155. doi: 10.1094/MPMI.2000.13.10.1145

PubMed Abstract | CrossRef Full Text | Google Scholar

Görke, B., and Stülke, J. (2008). Carbon catabolite repression in bacteria: many ways to make the most out of nutrients. Nat. Rev. Microbiol. 6, 613–624. doi: 10.1038/nrmicro1932

PubMed Abstract | CrossRef Full Text | Google Scholar

Herro, R., Poncet, S., Cossart, P., Buchrieser, C., Gouin, E., Glaser, P., et al. (2005). How seryl-phosphorylated HPr inhibits PrfA, a transcription activator of Listeria monocytogenes virulence genes. J. Mol. Microbiol. Biotechnol. 9, 224–234. doi: 10.1159/000089650

PubMed Abstract | CrossRef Full Text | Google Scholar

Hsu, H., Sheen, S., Sites, J., Cassidy, J., Scullen, B., and Sommers, C. (2015). Effect of high pressure processing on the survival of shiga toxin-producing Escherichia coli (Big Six vs. O157:H7) in ground beef. Food Microbiol. 48, 1–7. doi: 10.1016/j.fm.2014.12.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Hu, Y., Oliver, H. F., Raengpradub, S., Palmer, M. E., Orsi, R. H., Wiedmann, M., et al. (2007). Transcriptomic and phenotypic analyses suggest a network between the transcriptional regulators HrcA and sigmaB in L. monocytogenes. Appl. Environ. Microbiol. 73, 7981–7991. doi: 10.1128/AEM.01281-07

PubMed Abstract | CrossRef Full Text | Google Scholar

Joseph, B., Przybilla, K., Stühler, C., Schauer, K., Slaghuis, J., Fuchs, T. M., et al. (2006). Identification of Listeria monocytogenes genes contributing to intracellular replication by expression profiling and mutant screening. J. Bacteriol. 188, 556–568. doi: 10.1128/JB.188.2.556-568.2006

PubMed Abstract | CrossRef Full Text | Google Scholar

Linnan, M. J., Mascola, L., Lou, X. D., Goulet, V., May, S., Salminen, C., et al. (1988). Epidemic listeriosis associated with Mexican-style cheese. N. Engl. J. Med. 319, 823–828. doi: 10.1056/NEJM198809293191303

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., Ceruso, M., Jiang, Y., Datta, A. R., Carter, L., Strain, E., et al. (2013). Construction of Listeria monocytogenes mutants with in-frame deletions in the phosphotransferase transport system (PTS) and analysis of their growth under stress conditions. J. Food Sci. 78, M1392–M1398. doi: 10.1111/1750-3841.12181

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., McKeever, L. C., and Malik, N. S. (2017). Assessment of the antimicrobial activity of olive leaf extract against foodborne bacterial pathogens. Front. Microbiol. 8:113. doi: 10.3389/fmicb.2017.00113

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., and Ream, A. (2008). Gene expression profiling of Listeria monocytogenes strain F2365 during growth in ultrahigh-temperature-processed skim milk. Appl. Environ. Microbiol. 74, 6859–6866. doi: 10.1128/AEM.00356-08

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., Ream, A., Joerger, R. D., Liu, J., and Wang, Y. (2011). Gene expression profiling of a pressure tolerant Listeria monocytogenes Scott A ctsR deletion mutant. J. Ind. Microbiol. 38, 1523–1533. doi: 10.1007/s10295-011-0940-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Loo, C. Y., Mitrakul, K., Voss, I. B., Hughes, C. V., and Ganeshkumar, N. (2003). Involvement of an inducible fructose phosphotransferase operon in Streptococcus gordonii biofilm formation. J. Bacteriol. 185, 6241–6254. doi: 10.1128/JB.185.21.6241-6254.2003

PubMed Abstract | CrossRef Full Text | Google Scholar

Milenbachs, A. A., Brown, D. P., Moors, M., and Youngman, P. (1997). Carbon-source regulation of virulence gene expression in Listeria monocytogenes. Mol. Microbiol. 23, 1075–1085. doi: 10.1046/j.1365-2958.1997.2711634.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Nelson, K. E., Fouts, D. E., Mongodin, E. F., Ravel, J., DeBoy, R. T., Kolonay, J. F., et al. (2004). Whole genome comparisons of serotype 4b and 1/2a strains of the food-borne pathogen Listeria monocytogenes reveal new insights into the core genome components of this species. Nucleic Acids Res. 32, 2386–2395. doi: 10.1093/nar/gkh562

PubMed Abstract | CrossRef Full Text | Google Scholar

Olesen, I., Vogensen, F. K., and Jespersen, L. (2009). Gene transcription and virulence potential of Listeria monocytogenes strains after exposure to acidic and NaCl stress. Foodborne Pathog. Dis. 6, 669–680. doi: 10.1089/fpd.2008.0243

PubMed Abstract | CrossRef Full Text | Google Scholar

Pickering, B. S., Lopilato, J. E., Smith, D. R., and Watnick, P. I. (2014). The transcription factor Mlc promotes Vibrio cholera biofilm formation through repression of phosphotransferase system components. J. Bacteriol. 196, 2423–2430. doi: 10.1128/JB.01639-14

PubMed Abstract | CrossRef Full Text | Google Scholar

Poncet, S., Milohanic, E., Mazé, A., Nait Abdallah, J., Aké, F., Larribe, M., et al. (2009). Correlations between carbon metabolism and virulence in bacteria. Contrib. Microbiol. 16, 88–102. doi: 10.1159/000219374

PubMed Abstract | CrossRef Full Text | Google Scholar

Roche, S. M., Gracieux, P., Milohanic, E., Albert, I., Virlogeux-Payant, I., Témoin, S., et al. (2005). Investigation of specific substitutions in virulence genes characterizing phenotypic groups of low-virulence field strains of Listeria monocytogenes. Appl. Environ. Microbiol. 71, 6039–6048. doi: 10.1128/AEM.71.10.6039-6048.2005

PubMed Abstract | CrossRef Full Text | Google Scholar

Roche, S. M., Velge, P., Bottreau, E., Durier, C., Marquet-van der Mee, N., and Pardon, P. (2001). Assessment of the virulence of Listeria monocytogenes: agreement between a plaque-forming assay with HT-29 cells and infection of immunocompetent mice. Int. J. Food Microbiol. 68, 33–44. doi: 10.1016/S0168-1605(01)00460-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Stephenson, K., and Hoch, J. A. (2002). Two-component and phosphorelay signal-transduction systems as therapeutic targets. Curr. Opin. Pharmacol. 2, 507–512. doi: 10.1016/S1471-4892(02)00194-7

CrossRef Full Text | Google Scholar

Stoll, R., and Goebel, W. (2010). The major PEP-phosphotransferase systems (PTSs) for glucose, mannose and cellobiose of Listeria monocytogenes, and their significance for extra- and intracellular growth. Microbiology 156(Pt 4), 1069–1083. doi: 10.1099/mic.0.034934-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Van Langendonck, N., Bottreau, E., Bailly, S., Tabouret, M., Marly, J., Pardon, P., et al. (1998). Tissue culture assays using Caco-2 cell line differentiate virulent from non-virulent Listeria monocytogenes strains. J. Appl. Microbiol. 85, 337–346. doi: 10.1046/j.1365-2672.1998.00515.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Vu-Khac, H., and Miller, K. W. (2009). Regulation of mannose phosphotransferase system permease and virulence gene expression in Listeria monocytogenes by the EII(t)Man transporter. Appl. Environ. Microbiol. 75, 6671–6678. doi: 10.1128/AEM.01104-09

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, M. C., Chen, Y. C., Lin, T. L., Hsieh, P. F., and Wang, J. T. (2012). Cellobiose-specific phosphotransferase system of Klebsiella pneumoniae and its importance in biofilm formation and virulence. Infect. Immun. 80, 2464–2472. doi: 10.1128/IAI.06247-11

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: L. monocytogenes invasion assays, plaque forming assays, phosphotransferase transport system (PTS), virulence gene expression, RT-PCR
