Original Research ARTICLE
High-Temperature Induced Changes of Extracellular Metabolites in Pleurotus ostreatus and Their Positive Effects on the Growth of Trichoderma asperellum
- 1Institute of Agricultural Resources and Regional Planning, Chinese Academy of Agricultural Sciences, Beijing, China
- 2Key Laboratory of Microbial Resources, Ministry of Agriculture, Beijing, China
Pleurotus ostreatus is a widely cultivated edible fungus in China. Green mold disease of P. ostreatus which can seriously affect yield is a common disease during cultivation. It occurs mostly after P. ostreatus mycelia have been subjected to high temperatures. However, little information is available on the relationship between high temperature and green mold disease. The aim of this study is to prove that extracellular metabolites of P. ostreatus affected by high temperature can promote the growth of Trichoderma asperellum. After P. ostreatus mycelia was subjected to high temperature, the extracellular fluid of P. ostreatus showed a higher promoting effect on mycelial growth and conidial germination of T. asperellum. The thiobarbituric acid reactive substance (TBARS) content reached the maximum after 48 h at 36°C. A comprehensive metabolite profiling strategy involving gas chromatography-mass spectrometry (GC/MS) combined with liquid chromatography-mass spectrometry (LC/MS) was used to analyze the changes of extracellular metabolites in response to high temperature. A total of 141 differential metabolites were identified, including 84.4% up-regulated and 15.6% down-regulated. Exogenous metabolites whose concentrations were increased after high temperature were randomly selected, and nearly all of them were able to promote the mycelial growth and conidial germination of T. asperellum. The combination of all selected exogenous metabolites also has the promotion effects on the mycelial growth and conidial germination of T. asperellum in a given concentration range in vitro. Overall, these results provide a first view that high temperature affects the extracellular metabolites of P. ostreatus, and the extensive change in metabolites promotes T. asperellum growth.
Pleurotus ostreatus known as the oyster mushroom is an important commercial mushroom which is widely cultivated all year round in China. Green mold disease is a common disease of P. ostreatus. Several cases of green mold disease have been found during the cultivation of P. ostreatus in many countries (Komon-Zelazowska et al., 2007; Blaszczyk et al., 2013). The disease can seriously reduce the growth and yield of oyster mushroom and lead to huge economic losses (Kredics et al., 2009). In past years, most reports have mainly focused on the infection mechanism of Trichoderma and the inhibition effect of Trichoderma spp. on the mycelial growth of other fungi (Amin et al., 2010; Eslaminejad Parizi et al., 2012; Shamoli et al., 2013). Our previous study has found that high temperature plays an important role in the cause of green mold disease (Qiu et al., 2017). However, extracellular metabolites of P. ostreatus especially after heat stress and their effects on the growth of Trichoderma have not been reported yet.
Green mold disease occurs in the cultivation of many kinds of mushrooms, and many studies have identified Trichoderma spp. associated with this disease (Park et al., 2006; Hatvani et al., 2007). In a biological control study, root exudates provided nutrients for the growth of Trichoderma spp. and facilitated its colonization at the roots (Vargas et al., 2009). In the process of Trichoderma colonization, Trichoderma conidia can quickly germinate into mycelium by using the nutrients in substrates. Due to the rapid growth rate, Trichoderma mycelium can also quickly occupy nutrient sites and space, utilize nutrients, and then degrade other fungal mycelia (Benítez et al., 2004). High temperature is a type of abiotic stress, which can activate multiple metabolic pathways in cells and affect mycelial growth and fruiting body differentiation during mushroom cultivation (Chang and Miles, 2004). Heat stress can cause an increase in intracellular production of reactive oxygen species (ROS) and lead to metabolic disorders (Mittler, 2002). In addition, high temperature can also cause membrane lipid peroxidation and increase the fluidity and permeability of the cell membrane (Apel and Hirt, 2004). As a result, more intracellular metabolites are able to leak from cells. Therefore, it is of positive significance to investigate the relationship between extracellular metabolites of P. ostreatus affected by high temperature and the outbreak of green mold disease.
Metabolomics is an ideal tool to analyze metabolite changes in response to environmental changes (Link et al., 2015). An effective method for extracting metabolites is a prerequisite for assessing the metabolite changes which is conductive to study the changes in intracellular metabolic pathways (Doerfler et al., 2013). Previously, some extraction methods have been employed for metabolites extraction, such as hot water, boiling ethanol, freezing-thawing in methanol, chloroform-methanol, etc. (de Koning and van Dam, 1992; Hajjaj et al., 1998; Maharjan and Ferenci, 2003; Bogialli et al., 2005). Currently, the chloroform-methanol (CM) method is a more acceptable method for metabolite extraction (Canelas et al., 2009).
Gas chromatography-mass spectrometry (GC/MS) is a highly efficient technology for identifying and profiling primary metabolites, such as organic acids, amino acids, sugars and some nonpolar compounds (Fiehn, 2008). However, it is difficult to detect nonvolatile, non-derivatized metabolites and some other molecules with this method. Liquid chromatography-mass spectrometry (LC/MS) can be used for determination of volatile compounds, polar compounds, thermally unstable compounds and high molecular weight compounds (Zhang et al., 2014; Xu et al., 2015). GC/MS and LC/MS complement each other, and a combination of these methods allows more comprehensive analysis of different compounds (Lee et al., 2013; Yao et al., 2013). The combination of the two methods have also been widely used to detect metabolites in mushrooms, such as P. ostreatus (Zhang et al., 2008), Agaricus bisporus (O'Gorman et al., 2011), and Lentinula edodes (Mata et al., 2014).
In order to fully understand the changes of the metabolites in the extracellular fluid of P. ostreatus before and after high temperature, a metabolomic approach was applied (i.e., GC/MS and LC/MS). In addition, the effects of exogenous metabolites of P. ostreatus on T. asperellum mycelial growth and conidial germination were investigated. The objective of this study was to analyze the effect of high temperature on extracellular metabolites production of P. ostreatus and test the effect of these metabolites on T. asperellum mycelial growth and conidial germination. Finding the cause of the outbreak of green mold disease will help us find a way to control it in future.
Materials and Methods
Fungal Strains, Growth Conditions, and Collection of the Samples
Pleurotus ostreatus P89 (CCMSSC 00389) was obtained from the China Center for Mushroom Spawn Standards and Control. T. asperellum T11 (ACCC 32725) was provided by Agricultural Culture Collection of China. For pure culture of P. ostreatus, samples of mycelial discs (5 mm) were cultured on potato dextrose agar at 28°C (PDA; Difco-Becton Dickinson, Sparks, MD). For collection of extracellular fluid of P. ostreatus mycelia, 10 pieces of P. ostreatus mycelial discs (5 mm) were inoculated into 250 mL Erlenmeyer flasks containing 100 mL of liquid minimal synthetic medium(MSM). One liter of MSM contained: 5 g glucose, 0.2 g MgSO4•7H2O, 0.9 g K2HPO4, 0.2 g KCl, 1.0 g NH4NO3, 0.002 g FeSO4•7H2O, 0.002 g MnSO4, 0.002 g ZnSO4 and distilled water. The flasks were incubated in rotary shaker (ZQLY-180F, Shanghai Zhichu Instrument Company Limited, Shanghai, China) at 150 rpm and 28°C for 10 days, and then transferred into incubators with different temperatures (28°, 32°, 36°, and 40°C) for 2 days. The extracellular liquid medium was collected by centrifuging (Sigma 3K30, Osterode, German), and the supernatant was filtered (Millex-GP, 0.22 μm, Merck Millipore Ltd).
Effects of Extracellular Culture Fluid of P. ostreatus on Mycelial Growth and Conidial Germination of T. asperellum
To detect the effects of extracellular fluid of P. ostreatus on mycelial growth and conidial germination of T. asperellum, 100 mL of extracellular fluid of P. ostreatus which had been treated with different temperatures (28°, 32°, 36°, and 40°C) for 2 days were mixed with 100 mL of 4% water agar. Then, T11 mycelial discs were placed in the center of the plates and incubated at 28°C for 3 days. Finally, the colony diameters were recorded. At the same time, T11 conidia were collected and diluted to the appropriate concentration (1.9 × 103 CFU/mL). Then, 100 μL of conidial suspension were spread onto 2% water agar petri dishes containing different extracellular fluid, and then incubated at 28°C. The number of germinated conidia was recorded after 2 days of incubation. Every treatment group consisted of three replicates.
Determination of TBARS Content in P. ostreatus Mycelia after High Temperature Treatment
The TBARS content is a reflection of oxidative damage to cell membrane lipid (Kong W. et al., 2012). To investigate the effect of high temperature on membrane lipid peroxidation, P. ostreatus P89 mycelial discs were placed in the center of sterile cellophane laying on PDA plates and incubated at 28°C for 5 days. Then, the plates were respectively placed at 28° and 36°C for various times (6, 12, 24, and 48 h). P89 mycelia were collected and stored at −80°C until analysis. TBARS was detected as described before with some modifications (Kong W. W. et al., 2012). Firstly, 0.2 g of P89 mycelia were ground into powder with liquid nitrogen, and then transferred into a 1.5 mL Eppendorf tube. Briefly, 0.5 mL of 5 % TCA was added. Then the mixture was extracted for 10 min in ice water bath. The supernatants were collected by centrifuging at 10,000 × g for 10 min and mixed with 0.5 mL of 0.67% TBA in a new Eppendorf tube. The mixture was subsequently incubated at 95°C for 30 min, then centrifuged at 10,000 × g for 10 min. The absorbance of the supernatant was measured at 532 nm and 600 nm wavelength using a UV-spectrophotometer (TU-1810, PERSEE, Beijing, China). All tests were performed in triplicate.
All chemicals and solvents were of analytical or HPLC grade. Water, methanol (HPLC grade), acetonitrile (UHPLC grade), pyridine, n-hexane, methoxylamine hydrochloride (97%), N-methyl-N-trimethylsilyltrifluoroacetamid (MSTFA) with 1% trimethylchlorosilane (TMCS) were purchased from CNW Technologies GmbH (Düsseldorf, Germany). Trichloromethane was from Shanghai Chemical Reagent Co., Ltd. (Shanghai, China). 2-chloro-l-phenylalanine was purchased from Shanghai Hengchuang Bio-technology Co., Ltd. (Shanghai, China).
Sample Collection and Preparation for Metabolites Measurements
Ten pieces of P89 mycelial discs (5 mm) were inoculated into 250 mL Erlenmeyer flasks containing 100 mL of MSM and incubated in rotary shaker at 150 rpm and 28°C for 10 days. Subsequently, flasks were transferred into rotary shaker with different temperatures (28° and 36°C) for 2 days. The extracellular fluid was collected by centrifugation and the supernatant was filtered with sterile syringe filters (0.22 μm). Finally, the culture filtrate was freeze-dried, and then ground into fine powder. Each set contains eight parallel samples.
For GC/MS analysis, to accurately determine extracellular metabolites levels of P. ostreatus, a chloroform-methanol (CM) method was used for metabolites extraction with some modification (Canelas et al., 2009). Firstly, 60 mg of sample was added into 4 mL glass vial and mixed with 20 μL of 2-chloro-l-phenylalanine (0.3 mg/mL) which was dissolved in methanol as the internal standard. Then, 2 mL of methanol: water (4:1, volume ratio) were added to every glass vial. An aliquot of 400 μL of chloroform was added to the samples, and samples were dispersed with pipette. Then, the sample was broken up by ultrasonic homogenizer (Fisher Scientific™ Model 120 Sonic Dismembrator, Ottawa, Canada) at 500 w for 6 min. Then, 800 μL of each sample was subsequently transferred into a new 1.5 mL Eppendorf tubes. After treating with ultrasonication for 20 min in ice water bath, the supernatant (500 μL) was collected by centrifugation (12,000 rpm, 4°C for 10 min), and then transferred into a glass vial and dried in a vacuum freeze dryer (Christ ALPHA 1-2 LD plus, Osterode, Germany). The sample was homogenized with 80 μL of methoxyamine hydrochloride (15 mg/mL in pyridine) using a vortex mixer. Subsequently, 80 μL of MSTFA with 1% TMCS were mixed the mixture after it was incubated at 37°C for 90 min. Briefly, 20 μL of n-hexane was added, and the solution was derivatized at 70°C for 60 min. Finally, the solution was placed at room temperature for 30 min before GC/MS analysis.
For LC/MS analysis, 60 mg sample was added to a glass vial and mixed with 4 mL of ice-cold 80 % (v/v) methanol and water (4:1, volume ratio). Subsequently, 400 μL of trichloromethane were added with 20 μL of internal standard (0.3 mg 2-chloro-l-phenylalanine/mL methanol). Then, the mixtures were homogenized using a vortex for 1 min and broken up by ultrasonic homogenizer for 6 min at 500 w in ice water bath. Then, 800 μL of homogenate were transferred into a 1.5 mL Eppendorf tube, and further ultrasonicated at room temperature for 20 min, and centrifuged at 15,000 rpm, 4°C for 10 min. Finally, 500 μL of supernatant was filtered (Millex-GP, 0.22 μm, Merck Millipore Ltd) before LC/MS analysis.
The derivatized samples were analyzed using an Agilent 7890B gas chromatography system coupled to an Agilent 5977A MSD system (Agilent, CA). The column was a DB-5MS fused-silica capillary (30 m × 0.25 mm × 0.25 μm, Agilent J & W Scientific, Folsom, CA, USA). Ultra- pure helium was used as the carrier gas at a flow of 1 mL/min. The inlet temperature was kept at 260°C. Injection volume was 1 μL with a 30:1 split ratio. The initial oven temperature was 90°C, then ramped to 180°C at a rate of 10°C/min, then to 240°C at 5°C/min, to 290°C at 25°C/min, and finally held at 290°C for 11 min. MS was used in electron impact mode (70 eV) and MS quadrupole was set to 150°C. Full-scan mode (m/z 50–450) was used to acquire MS data, and the solvent delay time was set to 5 min.
An aliquot of 500 μL sample was analyzed using an Agilent 1290 Infinity UHPLC coupled to an Agilent 6538 UHD and Accurate-Mass Q-TOF/MS system. Chromatographic separation was performed with an ACQUITY UPLC@HSS T3 chromatographic column (2.1 μm, 100 × 2.1 mm). The mobile phase included A (0.1% formic acid) and B [acetonitrile (containing 0.1% formic acid)]. The flow rate was 0.4 mL/min. The column was maintained at 45°C and separation was achieved using the following gradient: 5–80% B over 0–10 min, 80–100% B over 10–12.5 min, 100–5% B over 12.5–12.6 min, and 12.6–14 min holding at 5% B. Injection volume was 3 μL.
The acquired MS data from GC/MS were analyzed by ChromaTOF software (v 4.34, LECO, St Joseph, MI). Metabolites were identified by the Fiehn database, which was linked to the ChromaTOF software. Briefly, statistic compare component was used to process the raw data. Sample information, peaks' name, mass/retention time and peak intensities were exported as the CSV file for multivariate statistical analysis. The internal standard was used for data quality control (reproducibility).
The raw data from LC/MS were converted into common format by Agilent MassHunter Qualitative software. Briefly, after alignment with Statistic Compare component by XCMS (https://xcmsonline.scripps.edu/). Three-dimension (3 D) data sets including sample name, mass/retention time and peak intensities were also applied. The internal standard was used for data quality control (reproducibility).
Principal component analysis (PCA) and orthogonal partial least-squares discriminant analysis (OPLS-DA) were performed to analyze the resulting data of GC/MS and LC/MS which were imported into a SIMCA (version 14.0, Umetrics, Umeå, Sweden), (Worley and Powers, 2016). The ellipse in score plots of the models which means the 95% confidence interval of the modeled variation is the Hotelling's T2 region. The R2X or R2Y and Q2 values are performed to evaluate the quality of the models. R2X or R2Y which indicates goodness of fit is the proportion of variance in the data explained by the models. Q2 which indicates predictability is the proportion of variance in the data predicted by the model, calculated by a cross-validation procedure. In order to determine the optimal number of principal components and avoid model over fitting, a default seven-round cross-validation in SIMCA was applied. Moreover, a permutation analysis (200 times) was also performed to validate the OPLS-DA models.
Mycelial Growth and Conidial Germination of T. asperellum under Exogenous Metabolites Treatments
According to the GC/MS and LC/MS differential metabolites data, 3 metabolites were randomly selected from each category of metabolites whose content was increased after 36°C to analyze their effects on the growth and conidial germination of T. asperellum. Different concentration (0, 50, 100, and 250 μM) of exogenous metabolites (purchased from Sigma) were applied. T11 mycelial discs (5 mm) were inoculated in the center of 2% agar petri dishes containing different concentration of exogenous metabolites. Then, T. asperellum mycelial growth rate was calculated according to the colony diameters after incubation at 28°C. One hundred microliter of T. asperellum conidial suspension (1.23 × 103 CFU/mL) were spread onto 2% water agar petri dishes containing different concentrations of exogenous metabolites. The number of germinated conidia was recorded 2 days after incubation at 28°C. Every treatment group was performed in triplicate. In addition, the combination of all selected metabolites at various concentrations (0, 50, 100, and 250 μM) were mixed with 4% water agar to detect their effects on mycelial growth, and were also mixed with 4% water agar to detect their effects on conidial germination of T11.
Statistical Data Analysis
The differential metabolites for GC/MS and LC/MS were selected according to the combination of variable important in the projection (VIP) values threshold and p-values which derived from the OPLS-DA model and two-tailed Student's t-test on the normalized peak areas, respectively. Other data are presented as the mean standard deviation (SD). Analysis of variance (ANOVA) and Duncan's multiple range tests (p ≤ 0.05) were used to determine the significance. Error bars represent the standard deviation of three replicates.
Extracellular Fluid of P. ostreatus Promoted Mycelial Growth and Conidial Germination of T. asperellum
Trichoderma asperellum T11 mycelial growth and conidial germination were significantly more stimulated by extracellular fluid of P. ostreatus P89 (Figures 1A,B). T11 mycelia had a significantly (p ≤ 0.05) faster growth rate on plates mixed with extracellular fluid which had been treated with higher temperature (Figure 1A). The promoting effects of extracellular fluid obtained at 36° and 40°C were the highest, and T11 mycelial growth rates (1.82 and 1.85 cm/d, respectively) were significantly higher than those at 28° or 32°C. The extracellular fluid obtained at high temperatures also had promotional effect on the conidial germination (Figure 1B). The conidia had significantly (p ≤ 0.05) higher germination rate on plates with extracellular fluid collected from high temperature treated medium. The conidial germination rate was the lowest on plate with extracellular fluid collected from 28°C. In comparison with that collected from 28°C, conidial germination rate on plates with extracellular fluid collected from the treatment of 36° and 40°C were 32.4 and 59.2% higher, respectively. The extracellular fluid treated with high temperature exhibited similar stimulation effects on the mycelial growth and conidial germination.
Figure 1. Mycelial growth and conidial germination of T. asperellum. (A) Mycelial growth on plates with extracellular fluid collected from different temperature treatment on. (B) Number of germinated conidia on plates with extracellular fluid which was treated with different temperature. CK was that 100 mL 4% water agar mixed with 100 mL sterile water. Data were analyzed by Duncan's ANOVA test. Error bars represent the standard deviation of three replicates. Different letters indicate significant differences between the columns (P ≤ 0.05 according to Duncan's multiple range test).
Effect of High Temperature on Membrane Lipid Peroxidation of P. ostreatus Mycelia
TBARS content of P. ostreatus mycelia was measured to detect the oxidative damage of cell membranes caused by high temperature. TBARS content increased significantly after P. ostreatus mycelia were incubated at 36°C for 6–72 h, and was significantly (p ≤ 0.05) higher than that incubated at 28°C (53.14 μmolg−1DW) (Figure 2). P. ostreatus cultured at 36°C for 48 h had the greatest oxidative damage to cell membranes, and TBARS content was as high as 164.69 μmolg−1DW, 142.3% higher than that incubated at 28°C for 48 h.

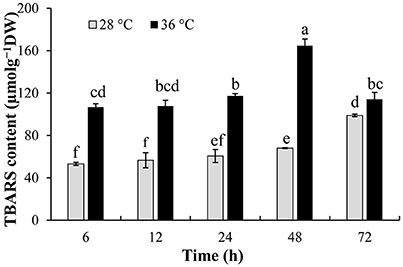

Figure 2. Effect of high temperature on TBARS content. P. ostreatus mycelia were first incubated at 28°C, then mycelia were treated with 28 and 36°C for 2 days, respectively. Data were analyzed by Duncan's ANOVA test. Error bars represent the standard deviation of three replicates. Different letters indicate significant differences between the columns (P ≤ 0.05 according to Duncan's multiple range test).
Multivariate Analysis of GC/MS Data
There were 143 metabolites from 28° and 36°C samples putatively identified by GC/MS with good reproducibility. To analyze the metabolite profiles, an unsupervised PCA was first applied to the dataset (Figure 3A). The unsupervised PCA model with three components was constructed according to the parameters in Table 1. PCA showed an obvious and regular variation of different samples which were treated with different temperatures. This plot suggested that high temperature could significantly change the concentration of extracellular metabolites. To further confirm the overall differences of metabolic profile associated with high temperature, a supervised OPLS-DA model was constructed with the parameters in Table 1. The plot scores showed a clearer separation, with metabolites collected from 28°C fully in the left half and those treated with 36°C fully in the right half (Figure 3B). A 200-time permutation test showed the OPLS-DA model was not over fitting (Figure 3C). The Y-axis intercepts were: R2 (0.0, 0.847), Q2 (0.0, −0.365).

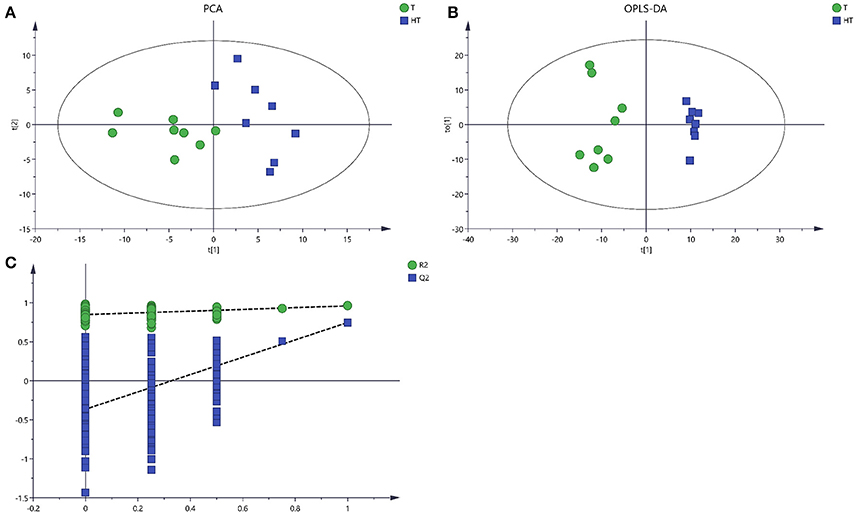

Figure 3. Score plots for extracellular metabolites of GC/MS data. (A) The score plots of PCA for metabolites profiles. (B) OPLS-DA score plots from metabolites profiles. (C) A 200 times permutation test of OPLS-DA models. Green sample T was collected from 28°C. Blue sample HT was collected from which was treated with 36°C.
Identification of Differential Metabolites from GC/MS Data
High temperature can cause changes in metabolic pathways of multiple metabolites, thereby changing the extracellular metabolite content and concentration. The differential metabolites were selected based on the VIP values larger than 1.0 (VIP > 1) and p values less than 0.05 (p < 0.05). Based on these criteria, a total of 36 differential metabolites were selected from the extracellular fluid after high temperature, including 10 organic acids, 5 amines, 3 saccharides, 4 amino acids, 3 alcohols, 3 esters and 8 other metabolites (Table 2). The results for each metabolite indicating increase or decrease in comparison of 36° vs. 28°C is shown in Table 2. Among the 36 metabolites, most show an increase (I) in concentration, and only 9 showed decreases (D). This indicated that high temperature can inhibit the synthesis of some metabolites. In addition, some metabolites were detected only in the extracellular fluid after high temperature stress, including tartaric acid, itaconic acid, 2-amino-3-(4-hydroxyphenyl) propanoic acid, 6-hydroxy caproic acid and 9-phenanthrol.
Multivariate Analysis of LC/MS Data
After processing with database, there were 1449 metabolites from 28° and 36°C samples putatively identified by LC/MS. The unsupervised PCA and the supervised OPLS-DA were applied to analysis the total variation and distinguish the overall differences of the metabolic profile. PCA and OPLS-DA provided clear variation of metabolites, and there was significant separation from samples treated with 28° and 36°C (Figures 4A,B). The PCA model and OPLSA-DA model were constructed according to the parameters in Table 3.

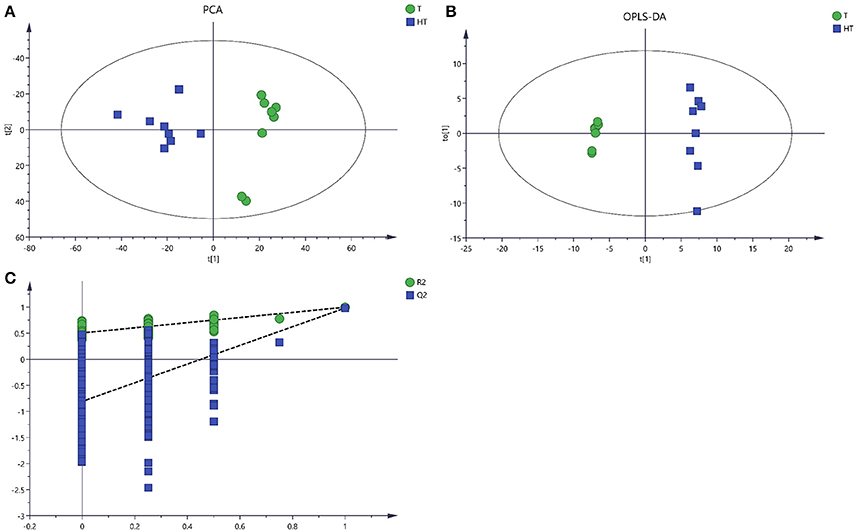

Figure 4. Score plots for extracellular metabolites of LC/MS data. (A) The score plots of PCA for metabolites profiles. (B) OPLS-DA score plots from metabolites profiles. (C) A 200 times permutation analysis were used to validated OPLS-DA models. Green sample T was collected from 28°C. Blue sample HT was collected from which was treated with 36°C.
Identification of Differential Metabolites from LC/MS Data
Based on the VIP values larger than 1.0 (VIP > 1) and p values less than 0.05 (p < 0.05), 105 differential metabolites in response to high temperature were selected using LC/MS, including 35 organic acids, 7 amines, 9 glycosides, 4 esters, 4 saccharides, 5 alkalis, 11 amino acids and 30 other metabolites (Table 4). Among them, 88.57% show an increase (I) in concentration, and only 11.43% showed decreases (D). Some were at low levels in the extracellular fluid collected from 28°C, whereas their content was greater after 36°C incubation, including 11E,13-tetradecadienal, 2-amino-2-norbornanecarboxylic acid, feruloylputrescine, beta-kamlolenic acid, diphenylpyraline and 4-oxoproline.
Effect of Some Exogenous Metabolites on Mycelial Growth and Conidial Germination of T. asperellum in Vitro
Some exogenous metabolites which the content increased after 36°C for 2 days were used to determine the effects on T. asperellum mycelial growth. Different concentration of exogenous metabolites exhibited different effects on the mycelial growth of T. asperellum. Except kifunensine, all applied exogenous metabolites promoted the mycelial growth at any given concentration (50–250 μM) (Table 5). Kifunensine had an inhibition effect on mycelial growth at a concentration of 250 μM. With the increase of concentration, almost all metabolites showed the promotion tendency and significant stimulation effects on mycelial growth. The colony diameter of T11 reached its highest at the concentration of 250 μM, and the promotion effects under 250 μM were significantly (p ≤ 0.05) higher than those at other concentrations (50–100 μM). On the whole, these exogenous metabolites had stimulation effects on mycelial growth.
Similarly, these metabolites were also used to determine the effects on T11 conidial germination. Compared with their effects on mycelial growth, these exogenous metabolites had similar promotion effects on conidial germination (Table 6). Kifunensine was also unsuitable for conidial germination either in the given concentration, and high concentration (250 μM) of kifunensine could significantly (p ≤ 0.05) inhibited the conidial germination. Moreover, there were no significant promotion effects on conidial germination at any given concentration of diphenylpyraline. For other metabolites, there was a stimulation tendency on conidial germination accompanied by an increase in the concentration of exogenous metabolites and significant (p ≤ 0.05) promotion effects were found at concentrations of 100 and 250 μM.
The medium which contained all these metabolites at concentrations ranging from 50 to 250 μM exhibited significant (p ≤ 0.05) stimulating effects on mycelial growth and conidial germination. The T11 colony diameter was highest (7.93 cm) at 100 μM and the promotion effects under 100 and 250 μM were significantly (p ≤ 0.05) higher than other concentrations (0, 50 μM) (Figure 5A). Moreover, there was a tendency of an increase in conidial germination with the increasing of metabolites concentrations (50–250 μM) and conidial germination rate in the presence of metabolites was significantly (p ≤ 0.05) higher than that on water agar petri dishes (Figure 5B). The maximum conidial germination rate was 76.33% on the plates with metabolites at 250 μM.

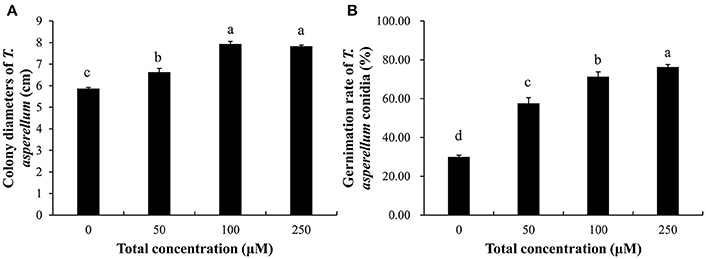

Figure 5. Effect of combination of exogenous metabolites on the growth of T. asperellum. (A) Promoting effect on mycelial growth. (B) Promoting effect on conidial germination. Data were analyzed by Duncan's ANOVA test. Error bars represent the standard deviation of three replicates. Different letters indicate significant differences between the columns (P ≤ 0.05 according to Duncan's multiple range test).
In China, P. ostreatus is mainly cultivated in a traditional way in vinyl houses. This can cause it to be easily affected by the external environmental temperature during spawn running period. The mycelial growth rate and the high yield of fruiting bodies are closely related to the appropriate temperature conditions (Zervakis et al., 2001). For the Chinese traditional agricultural cultivation way, high temperature is one of the common abiotic stresses. If the cultivation houses are not ventilated in time, the internal temperature of cultivation bags will rise, resulting in the occurrence of spawn-burning and often the green mold disease (Zhang et al., 2016).
Temperature is an important abiotic factor that affects intracellular metabolism and modulates fungal growth (Medina et al., 2015). In this study, we collected extracellular cultures of P. ostreatus at different temperatures and compared their effects on the growth speed and conidia germination rate of T. asperellum. The results showed that extracellular fluid collected from which subjected to high temperature stresses for 2 days (32°, 36°, and 40°C) exhibited similar promoting effects on T11 mycelial growth and conidial germination (Figure 1). It indicated that high temperature changed the extracellular metabolites of P. ostreatus, which provided a good basis for mycelial growth and conidial germination of T. asperellum. Cell membrane has an important physiological function, which makes cells maintain stable intracellular environment and can adjust or select substances into and out of cells (Sant et al., 2016). With the increase of temperature, the levels of membrane lipid peroxidation will be increased (Kong W. W. et al., 2012). For P. ostreatus cultivation, 36°C is a common high temperature in the summer of China and it can significantly inhibit the mycelial growth (Oei, 1991). Pleurotus ostreatus mycelia subjected to high temperature (36°C) produced higher TBARS content than that cultured at 28°C, and the TBARS content reached the maximum at 36°C for 48 h (Figure 2). The increase of TBARS content will lead to enhanced membrane permeability and exosmosis of electrolytes (Zhu et al., 2009; Guyot et al., 2015). These results indicated that P. ostreatus mycelia suffered greater damage on membrane lipid after high temperature (36°C) and P. ostreatus mycelia treated with 36°C for 48 h was a suitable treatment for studying changes in extracellular metabolites.
Enhanced temperature will accelerate the accumulation of ROS which is an important signal, and can activate multiple metabolic pathways in the cell to alleviate the damage to cells caused by environmental temperature (Kumar et al., 2011). With the increase of cell membrane permeability, more intracellular metabolites permeated into the extracellular region. Metabolomics provides an accurate approach to study the response of these metabolites to living conditions and environmental factors (Zhang et al., 2010). The PCA, an unsupervised method could clearly confirm the intrinsic variation of metabolites and the stability of the whole analysis process (Brusco, 2014). To more precisely analyze the overall differences in metabolic profiles between groups, a supervised method (OPLS-DA) was practical (Song et al., 2013). In this study, application of multivariate PCA and OPLS-DA on the quantified metabolites revealed clear separation and clustering in metabolites of sample T and HT (Figures 3, 4). These results indicated that there is changes in composition and concentration of extracellular metabolites of P. ostreatus caused by high temperature.
GC/MS and LC/MS are methods to detect molecules with different chemical characteristics (Doerfler et al., 2013). In this study, a total of 36 different metabolites were identified by GC/MS which mainly included seven kinds of metabolites, such as, organic acids, amines, carbohydrates, amino acids, alcohols, esters and some other metabolites (Table 2). In contrast with GC/MS, there were more metabolites identified by LC/MS. A total of 105 differential metabolites were identified by LC/MS (Table 4). There were also six compounds detected simultaneously by GC/MS and LC/MS, and the changing tendency of the concentration was consistent. These six compounds were valine, tyrosine, gluconic acid, trehalose, spermidine, and 6-hydroxynicotinic acid. It indicated that GC/MS and LC/MS can detect the change of metabolite accurately, and integrated GC/MS and LC/MS was helpful to comprehensively understand the changes of metabolites (Lozano et al., 2012).
A total of 141 differential metabolites were detected by using these two methods simultaneously. After high temperature treatment, 84.4% of extracellular metabolites increased in the content while 15.6% of them decreased. Several amino acids increased after high temperature, including L-valine, L-tyrosine, L-leucine, L-phenylalanine, 4-oxoproline, etc. Elevated valine, phenylalanine and tyrosine levels help maintain cell wall stability at high temperature and enhance stress tolerance (Cassab, 1998; Suguiyama et al., 2014). High temperature results in an increase in intracellular trehalose to alleviate oxidative damage, and thereby increasing resistance to heat stress (Trevisol et al., 2011). However, some nucleoside analogs which rarely permeate outside the cell were also detected by LC/MS. For example, uridine and guanosine which belong to growth factor are the standard nucleosides which make up nucleic acids. These results might indicate that high temperature increases the permeability of the cell membrane or damages the cell membrane, causing leakage of intracellular nutrients and substances which can provide nourishment for the colonization of Trichoderma spp.
In the process of Trichoderma infecting other fungi, competition for nutrients is a common mechanism for Trichoderma to inhibit the growth of other fungi. Trichoderma would grow rapidly by using exogenous nutrients to occupy the niche (Benítez et al., 2004; Segarra et al., 2010). In this study, some randomly selected exogenous metabolites whose content increased after high temperature showed similar stimulatory effects on T. asperellum mycelial growth and conidial germination (Tables 5, 6). There are many primary metabolites which are essential for life activities, such as organic acids, amino acids, esters and carbohydrates. Except kifunensine, almost all of the metabolites we selected had higher promotion effects with increasing concentrations (50–250 μM). Kifunensine which originally isolated from Kitasatosporia kifunense is a potent inhibitor of mannosidase I enzyme (Males et al., 2017). Kifunensine may serve as a new substance for the control of Trichoderma. Previous studies had also found that some substances could inhibit Trichoderma (Lee et al., 2017; Mwangi et al., 2017). These results may shed light on control of green mold disease. Under the treatment of the combination of all these selected metabolites in the given concentrations (50–250 μM), T. asperellum was found to have a significantly faster growth speed and higher conidial germination (Figure 5). High temperature increased the content of these extracellular metabolites, thus further provided a good condition for the growth of T. asperellum. These results indicated that more abundant extracellular nutrients of P. ostreatus after high temperature treatment provided a good basis for the large-scale growth of T. asperellum.
This is the first study of stimulatory effects of extracellular metabolites of P. ostreatus collected from high temperature treatments on T. asperellum mycelial growth and conidial germination. GC/MS in combination with LC/MS profiled more comprehensive extracellular different metabolites of P. ostreatus in response to high temperature. These extracellular metabolites continuously promoted the mycelial growth and conidial germination of T. asperellum as these metabolites increased in concentrations. Taken together, extracellular metabolites of P. ostreatus after high temperature treatment are beneficial to the growth of T. asperellum, which may provide a new viewpoint for the outbreak of green mold disease during the cultivation of P. ostreatus.
ZQ: conceived, designed and performed the experiments, analyzed the data, wrote and revised the manuscript; JZ and CH: conceived and designed the experiments; XW and CH: revised the manuscript.
This work was supported by the National Basic Research Program of China (2014CB138303), Beijing Municipal Science and Technology Project (D151100004315003) and China Agricultural Research System (CARS20).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
We sincerely thank Dr. Mingwen Zhao (Nanjing Agricultural University) for critical comments on this manuscript.
Błaszczyk, L., Siwulski, M., Sobieralski, K., and Fruzynska-Józwiak, D. (2013). Diversity of Trichoderma spp. causing Pleurotus green mould diseases in central Europe. Folia Microbiol. 58, 325–333. doi: 10.1007/s12223-012-0214-6
Bogialli, S., Bruno, M., Curini, R., Di Corcia, A., Laganá, A., and Mari, B. (2005). Simple assay for analyzing five microcystins and nodularin in fish muscle tissue: hot water extraction followed by liquid chromatography-tandem mass spectrometry. J. Agric. Food Chem. 53, 6586–6592. doi: 10.1021/jf050257m
Brusco, M. J. (2014). A comparison of simulated annealing algorithms for variable selection in principal component analysis and discriminant analysis. Comput. Stat. Data Anal. 77, 38–53. doi: 10.1016/j.csda.2014.03.001
Canelas, A. B., ten Pierick, A., Ras, C., Seifar, R. M., van Dam, J. C., van Gulik, W. M., et al. (2009). Quantitative evaluation of intracellular metabolite extraction techniques for yeast metabolomics. Anal. Chem. 81, 7379–7389. doi: 10.1021/ac900999t
de Koning, W., and van Dam, K. (1992). A method for the determination of changes of glycolytic metabolites in yeast on a subsecond time scale using extraction at neutral pH. Anal. Biochem. 204, 118–123. doi: 10.1016/0003-2697(92)90149-2
Doerfler, H., Lyon, D., Nägele, T., Sun, X., Fragner, L., Hadacek, F., et al. (2013). Granger causality in integrated GC-MS and LC-MS metabolomics data reveals the interface of primary and secondary metabolism. Metabolomics 9, 564–574. doi: 10.1007/s11306-012-0470-0
Eslaminejad Parizi, T., Ansaria, M., and Elaminejad, T. (2012). Evaluation of the potential of Trichoderma viride in the control of fungal pathogens of roselle (Hibiscus sabdariffa L.) in vitro. Microb. Pathog. 52, 201–205. doi: 10.1016/j.micpath.2012.01.001
Guyot, S., Gervais, P., Young, M., Winckler, P., Dumont, J., and Davey, H. M. (2015). Surviving the heat: heterogeneity of response in Saccharomyces cerevisiae provides insight into thermal damage to the membrane. Environ. Microbiol. 17, 2982–2992. doi: 10.1111/1462-2920.12866
Hajjaj, H., Blanc, P. J., Goma, G., and François, J. (1998). Sampling techniques and comparative extraction procedures for quantitative determination of intra- and extracellular metabolites in filamentous fungi. FEMS Microbiol. Lett. 164, 195–200. doi: 10.1111/j.1574-6968.1998.tb13085.x
Hatvani, L., Antal, Z., Manczinger, L., Szekeres, A., Druzhinina, I. S., Kubicek, C. P., et al. (2007). Green mold diseases of Agaricus and Pleurotus spp. are caused by related but phylogenetically different Trichoderma species. Phytopathology 97, 532–537. doi: 10.1094/PHYTO-97-4-0532
Komon-Zelazowska, M., Bissett, J., Zafari, D., Hatvani, L., Manczinger, L., Woo, S., et al. (2007). Genetically closely related but phenotypically divergent Trichoderma species cause green mold disease in oyster mushroom farms worldwide. Appl. Environ. Microbiol. 73, 7415–7426. doi: 10.1128/AEM.01059-07
Kong, W., Huang, C., Chen, Q., Zou, Y., and Zhang, J. (2012). Nitric oxide alleviates heat stress-induced oxidative damage in Pleurotus eryngii var. tuoliensis. Fungal Genet. Biol. 49, 15–20. doi: 10.1016/j.fgb.2011.12.003
Kong, W.-W., Huang, C.-Y., Chen, Q., Zou, Y.-J., Zhao, M.-R., and Zhang, J.-X. (2012). Nitric oxide is involved in the regulation of trehalose accumulation under heat stress in Pleurotus eryngii var. tuoliensis. Biotech. Lett. 34, 1915–1919. doi: 10.1007/s10529-012-0988-2
Kredics, L., Kocsubé, S., Nagy, L., Komon-Zelazowska, M., Manczinger, L., Sajben, E., et al. (2009). Molecular identification of Trichoderma species associated with Pleurotus ostreatus and natural substrates of the oyster mushroom. FEMS Microbiol. Lett. 300, 58–67. doi: 10.1111/j.1574-6968.2009.01765.x
Kumar, S., Kalyanasundaram, G. T., and Gummadi, S. N. (2011). Differential response of the catalase, superoxide dismutase and glycerol-3-phosphate dehydrogenase to different environmental stresses in Debaryomyces nepalensis NCYC 3413. Curr. Microbiol. 62, 382–387. doi: 10.1007/s00284-010-9717-z
Lee, D. K., Yoon, M. H., Kang, Y. P., Yu, J., Park, J. H., Lee, J., et al. (2013). Comparison of primary and secondary metabolites for suitability to discriminate the origins of Schisandra chinensis by GC/MS and LC/MS. Food Chem. 141, 3931–3937. doi: 10.1016/j.foodchem.2013.06.064
Link, H., Fuhrer, T., Gerosa, L., Zamboni, N., and Sauer, U. (2015). Real-time metabolome profiling of the metabolic switch between starvation and growth. Nat. Methods 12, 1091–1097. doi: 10.1038/nmeth.3584
Lozano, A., Martínez-Uroz, M. A., Gómez-Ramos, M. J., Gómez-Ramos, M. M., Mezcua, M., and Fernández-Alba, A. R. (2012). Determination of nicotine in mushrooms by various GC/MS- and LC/MS-based methods. Anal. Bioanal. Chem. 402, 935–943. doi: 10.1007/s00216-011-5490-5
Maharjan, R. P., and Ferenci, T. (2003). Global metabolite analysis: the influence of extraction methodology on metabolome profiles of Escherichia coli. Anal. Biochem. 313, 145–154. doi: 10.1016/S0003-2697(02)00536-5
Males, A., Raich, L., William, S. J., Rovira, C., and Davies, G. J. (2017). Conformational analysis of the mannosidase inhibitor kifunensine: a quantum mechanical and structural approach. Chembiochem 18, 1496–1501. doi: 10.1002/cbic.201700166
Mata, G., Valdez, K., Mendoza, R., and Trigos, Á. (2014). HS/GC-MS analyzed chemical composition of the aroma of fruiting bodies of two species of genus Lentinus (Higher Basidiomycetes). Int. J. Med. Mushrooms 16, 477–484. doi: 10.1615/IntJMedMushrooms.v16.i5.60
Medina, A., Schmidt-Heydt, M., Rodríguez, A., Parra, R., Geisen, R., and Magan, N. (2015). Impacts of environmental stress on growth, secondary metabolite biosynthetic gene clusters and metabolite production of xerotolerant/xerophilic fungi. Curr. Genet. 61, 325–334. doi: 10.1007/s00294-014-0455-9
Mwangi, R. W., Kariuki, S. T., and Wagara, I. N. (2017). Biocontrol of green mould disease of oyster mushroom (Pleurotus ostreatus) using Bacillus amyloliquefaciens. J. Biol. Agric. Healthc. 10, 2225–2230.
O'Gorman, A., Barry-Ryan, C., and Frias, J. M. (2011). Evaluation and identification of markers of damage in mushrooms (Agaricus bisporus) postharvest using a GC/MS metabolic profiling approach. Metabolomics 8, 120–132. doi: 10.1007/s11306-011-0294-3
Park, M. S., Bae, K. S., and Yu, S. H. (2006). Two new species of Trichoderma associated with green mold of oyster mushroom cultivation in Korea. Mycobiology 34, 111–113. doi: 10.4489/MYCO.2006.34.3.111
Qiu, Z. H., Wu, X. L., Zhang, J. X., and Huang, C. Y. (2017). High temperature enhances the ability of Trichoderma asperellum to infect Pleurotus ostreatus mycelia. PLoS ONE 12:e0187055. doi: 10.1371/journal.pone.0187055
Segarra, G., Casanova, E., Avilés, M., and Trillas, I. (2010). Trichoderma asperellum strain T34 controls Fusarium wilt disease in tomato plants in soilless culture through competition for iron. Microb. Ecol. 59, 141–149. doi: 10.1007/s00248-009-9545-5
Shamoli, F. A., Khair, A., Hossain, M. A., and Sikder, M. M. (2013). Effect of the temperature, growth supplements and volatile metabolites of fungal competitors on oyster mushroom. Jahangirnagar University J. Biol. Sci. 2, 1–8.
Song, H. H., Kim, D. Y., Woo, S., Lee, H. K., and Oh, S. R. (2013). An approach for simultaneous determination for geographical origins of Korean Panax ginseng by UPLC-QTOF/MS coupled with OPLS-DA models. J. Ginseng Res. 37, 341–348. doi: 10.5142/jgr.2013.37.341
Suguiyama, V. F., Silva, E. A., Meirelles, S. T., Centeno, D. C., and Braga, M. R. (2014). Leaf metabolite profile of the Brazilian resurrection plant Barbacenia purpurea Hook. (Velloziaceae) shows two time-dependent responses during desiccation and recovering. Front. Plant Sci. 14:96. doi: 10.3389/fpls.2014.00096
Trevisol, E. T. V., Panek, A. D., Mannarino, S. C., and Eleutherio, E. C. A. (2011). The effect of trehalose on the fermentation performance of aged cells of Saccharomyces cerevisiae. Appl. Microbiol. Biotech. 90, 697–704. doi: 10.1007/s00253-010-3053-x
Vargas, W. A., Mandawe, J. C., and Kenerley, C. M. (2009). Plant-derived sucrose is a key element in the symbiotic association between Trichoderma virens and maize plants. Plant Physiol. 151, 792–808. doi: 10.1104/pp.109.141291
Xu, J., Hu, F.-L., Wang, W., Wan, X.-C., and Bao, G.-H. (2015). Investigation on biochemical compositional changes during the microbial fermentation process of Fu brick tea by LC–MS based metabolomics. Food Chem. 186, 176–184. doi: 10.1016/j.foodchem.2014.12.045
Yao, W., He, M., Jiang, Y., Zhang, L., Ding, A., and Hu, Y. (2013). Integrated LC/MS and GC/MS metabolomics data for the evaluation of protection function of Fructus Ligustri Lucidi on mouse liver. Chromatographia 76, 1171–1179. doi: 10.1007/s10337-013-2519-2
Zervakis, G., Philippoussis, A., Ioannidou, S., and Diamantopoulou, P. (2001). Mycelium growth kinetics and optimal temperature conditions for the cultivation of edible mushroom species on lignocellulosic substrates. Folia Microbiol. 46, 231–234. doi: 10.1007/BF02818539
Zhang, R. Y., Hu, D. D., Zhang, Y. Y., Goodwin, P. H., Huang, C. Y., Chen, Q., et al. (2016). Anoxia and anaerobic respiration are involved in “spawn-burning” syndrome for edible mushroom Pleurotus eryngii grown at high temperatures. Sci. Hortic. 199, 75–80. doi: 10.1016/j.scienta.2015.12.035
Zhang, Y., Li, F., Huang, F., Xie, G., Wei, R., Chen, T., et al. (2014). Metabolomics analysis reveals variation in Schisandra chinensis cetabolites from different origins. J. Sep. Sci. 37, 731–737. doi: 10.1002/jssc.201301242
Zhang, Z.-M., Wu, W.-W., and Li, G.-K. (2008). A GC-MS study of the volatile organic composition of straw and oyster mushrooms during maturity and its relation to antioxidant activity. J. Chromatogr. Sci. 46, 690–696. doi: 10.1093/chromsci/46.8.690
