Optimizing Performance and Satisfaction in Matching and Movement Tasks in Virtual Reality with Interventions Using the Data Visualization Literacy Framework

  • 1Department of Intelligent Systems Engineering, Luddy School of Informatics, Computing, and Engineering, Indiana University, Bloomington, IN, United States
  • 2Research Group Knowledge and Technology Transfer, Fakultät Wirtschaftswissenschaften, Technische Universität, Dresden, Germany
  • 3Department of Informatics, Luddy School of Informatics, Computing, and Engineering, Indiana University, Bloomington, IN, United States

Virtual reality (VR) has seen increased use for training and instruction. Designers can enable VR users to gain insights into their own performance by visualizing telemetry data from their actions in VR. Our ability to detect patterns and trends visually suggests the use of data visualization as a tool for users to identify strategies for improved performance. Typical tasks in VR training scenarios are manipulation of 3D objects (e.g., for learning how to maintain a jet engine) and navigation (e.g., to learn the geography of a building or landscape before traveling on-site). In this paper, we present the results of the RUI VR (84 subjects) and Luddy VR studies (68 subjects), where participants were divided into experiment and control cohorts. All subjects performed a series of tasks: 44 cube-matching tasks in RUI VR, and 48 navigation tasks through a virtual building in Luddy VR (all divided into two sets). All Luddy VR subjects used VR gear. RUI VR subjects were divided across three setups: 2D Desktop (with laptop and mouse), VR Tabletop (in VR, sitting at a table), and VR Standup (in VR, standing). In an intervention called “Reflective phase,” the experiment cohorts were presented with data visualizations, designed with the Data Visualization Literacy Framework (DVL-FW), of the data they generated during the first set of tasks before continuing to the second part of the study. For Luddy VR, we found that experiment users had significantly faster completion times in their second trial (p = 0.014) while scoring higher in a mid-questionnaire about the virtual building (p = 0.009). For RUI VR, we found no significant differences for completion time and accuracy between the two cohorts in the VR setups. however, 2D Desktop subjects in the experiment cohort had significantly higher rotation accuracy as well as satisfaction (protation = 0.031, psatisfaction = 0.040). We conclude with suggestions for adjustments to the Reflective phase to boost user performance before generalizing our findings to performance improvement in VR with data visualizations.


Due to decreasing cost and an increasing amount of hardware choice, VR has become a popular entertainment tool. Recent devices such as the Oculus Quest 2 offer VR at low prices and without the need for a strong PC or laptop. Further, there is an increasing market for coaching and training employees for retail, maintenance, and administrative jobs. As upskilling the workforce becomes an ever-larger challenge nationally and internationally, immersive tools have become a viable option for teaching employees in many industries to assemble jet engines, manufacture specialized automobile parts, assemble electrical circuits, and learn the layout of a building to give physical tours or otherwise facilitate events via VR training applications. Given that VR applications are data-rich, information visualization becomes a viable tool to allow trainees to reflect upon and improve their own performance.

Depending on the hardware and the needs of the application, users of VR equipment generate position and rotation data at a rate of up to 120 Hz, and every button press can be logged and associated with a time stamp via telemetry. In addition to these physical variables, additional data can be derived via computation at runtime or in later analysis, allowing designers and researchers to measure a user’s performance and behavior when completing tasks such as arranging objects or navigating spaces. The novelty of VR, while demonstrably exciting and invoking a feeling of presence (Batch et al., 2019), brings with it challenges due to its unfamiliarity to many users. With the basis of training being repetition and improvement over time, methods to assess and improve one’s performance are necessary. The visual primacy of VR, along with the availability of user data, suggests that data visualization is a good tool to allow users to gain insights into their own performance.


In this paper, we describe two user studies where we developed interventions to improve VR performance for manipulation (“RUI VR”) and navigation tasks (“Luddy VR”). These VR visualizations were developed using the Data Visualization Literacy Framework, or DVL-FW (Börner and Polley, 2014; Börner, 2015; Börner et al., 2019), a theoretical toolset to interpret, construct, and teach data visualizations. The DVLFW comes with a series of seven typologies to categorize visualization types (such as graphs and maps), visual encodings via graphic symbols (such as points, lines, volumes) and graphic variables (such as color hue and size), and interactions with data (such as filter as well as link and brush), among others. We use the DVL-FW to describe the data visualization interventions with an abstracted terminology that expresses both traditional, 2D data visualizations (like bar graphs and line graphs) and advanced VR visualizations. Of special interest is the implementation of four interaction types (filter, navigate, animate/replay, link and brush): We enabled the subjects to filter their data by time stamp or graphic symbol (RUI VR) and task number (both studies); users could navigate freely around their data, which was displayed in its original spatial context on a 1:1 scale (RUI VR) and minimized (Luddy VR); it was possible to play back the data by time stamp in different speeds via a time slider (RUI VR); and subjects could select bars in a bar graph and then apply filters correspondingly to view only specific tasks based on their completion time. The goal of these studies was to test whether significant differences in performance and satisfaction were measurable between the control and experiment cohorts and to determine the effects between behavior in the intervention and performance in the subsequent set of tasks.

For the RUI VR study, we found no significant differences between the two VR cohorts for mean position accuracy, rotation accuracy, and completion time. However, we found that the experiment cohort for the 2D Desktop setup achieved higher rotation accuracy and satisfaction (Mann-Whitney-U-Test (Mann and Whitney, 1947), protation = 0.031, psatisfaction = 0.04). Likewise, the experiment cohort for VR Standup reported significantly higher satisfaction scores (Mann-Whitney-U-Test, p = 0.016).

In Luddy VR, on the other hand, subjects in the experiment cohort achieved significantly faster completion times in their second trial (Welch’s t-test, p = 0.014) while also scoring higher in a mid-questionnaire about the topology of the virtual building that they navigated through than their control cohort counterparts (Welch’s t-test, p = 0.008734). This prompting us to conclude that the Reflective phase allowed our users to derive better strategies for completing their navigation tasks.

Related Work

There is extensive prior work on the use of VR and other immersive technologies along the reality-virtuality continuum (Milgram and Kishino, 1994; Skarbez et al., 2021) for visualizing scientific data. Examples include assessing risk in mining with seismic data (Kaiser et al., 2005), protein-docking (Anderson and Weng, 1999), astronomy (Djorgovski et al., 2013; Donalek et al., 2014), computer-aided design (Smets et al., 1993), geographical information science (Huang et al., 2001), and health care (Ibrahim and Money, 2019). Bryson (1996) pointed at the affordances that VR offers for interaction with complex phenomena and their representations in data: “We want to create the effect of interacting with things, not with pictures of things” (p. 63).

Immersive Analytics

More recently, the emerging field of Immersive Analytics (Chandler et al., 2015; Bach et al., 2016; Simpson et al., 2016; Dwyer et al., 2018; Marriott et al., 2018) has put a focus on information visualization of abstract datasets, such as network connectivity (Cordeil et al., 2017b) and economic data (Batch et al., 2019). Software development kits such as IATK (Cordeil et al., 2019) and ImAxes (Cordeil et al., 2017a) enable researchers and designers to craft visualizations of economic, health, and other non-spatial data. These allow for the creation of what Bowman et al. (2003) called “information-rich environments,” where the virtual objects are representations of non-physical entities.

Although VR lends itself to visualizing both spatially explicit and abstract data, to the best of our knowledge, the use of data visualization to empower users to optimize performance in VR has not been studied to the same degree. For example, while there is prior work investigating qualitative user feedback on the feeling of presence for types of navigation in VR (Slater et al., 1995a), on testing efficiency vs. presence (Slater et al., 1995b), or a combination of human factors (Usoh et al., 1999), none of these studies tested user improvement after investigating their own data. Likewise, VR studies involving cube-matching tasks have focused on testing interaction paradigms without giving users the ability to gain insight into their own performance (Mendes et al., 2017).

Data Visualization Literacy

Given the increasing use of VR for workplace training, there is a growing need to enable users to optimize their performance. A viable tool to achieve this goal is data visualization, owing to our ability to detect visual patterns and trends. Many attempts have been made to formalize how to construct, interpret, and teach the growing “visualization zoo” (Heer et al., 2010), with a focus on tasks (Amar and Stasko, 2004; Brehmer and Munzner, 2013), interactions (Yi et al., 2007; Roth, 2013), and graphic symbols and variables (Cleveland and McGill, 1984; Heer and Bostock, 2010). The Data Visualization Literacy Framework or DVL-FW (Börner and Polley, 2014; Börner, 2015; Börner et al., 2019) builds on the foundation established by many of the aforementioned works to “define, teach, and assess [data visualization literacy]”. As data becomes increasingly prevalent in our everyday lives, skills relating to the understanding of trends, patterns, and structures of temporal, geospatial, topical, and network data are increasingly important for professional and personal decision-making. Unlike other literacy types such as numeracy (Reyna et al., 2009; OECD, 2013a), textual literacy (OECD, 2013b), or visual literacy (Fransecky and Debes, 1972; Ausburn and Ausburn, 1978; Avgerinou, 2007; Hattwig et al., 2013), data visualization literacy has seen formal assessment attempts only very recently. Boy et al. (2014) propose two tests for visualization literacy with line graphs using item response theory, successfully validating their model with a user study involving 40 subjects on Amazon Mechanical Turk (MTurk, With similar methodological goals, Lee et al. (2017) employ test development in psychology and education to develop the Visual Literacy Assessment Test (VLAT), designed to measure how non-expert users interpret data visualizations. They validate their test, consisting of 12 data visualizations, 53 multiple-choice items, and eight visualization tasks, using input from five domain experts in data visualization and a user study with 191 MTurk subjects to show a high reliability. Making sense of unfamiliar visualizations continues to pose a challenge, especially for novices (Borner et al., 2016; Lee et al., 2016). It is to be expected that issues related to sense-making would translate into the realm of VR.

Data Visualization in VR

While data visualizations in 2D space have been extensively studied (and effectively are the standard), data visualizations in 3D (and, by extension, VR) have been met with caution in the literature, with authors warning of “unjustified 3D” (Munzner, 2014) and calling to “[a]void 3-D displays of quantitative data” (Few, 2012). At the same time, there is a growing body of literature arguing for the benefits of 3D or VR for data visualization (as opposed to the aforementioned visualization of scientific data), focused on properties such as presence (Batch et al., 2019), embodiment (Jacob et al., 2008), and involvement (Rosenbaum et al., 2011), as well as specific domains—e.g., aerospace engineering (García-Hernandez et al., 2016). Several studies have also been conducted to compare 2D and VR implementations for visualizations. Raja et al. (2004) performed a pilot study with four conditions and four subjects using the CAVE (Cruz-Neira et al., 1993), and found that the most immersive one (content on all four walls, with head-tracking) yielded the best results in terms of the user’s ability to view datasets and complete tasks. Millais et al. (2018) presented a 3D scatter graph and a 3D parallel coordinate plot to 16 subjects, half of them using a 2D screen, half using VR gear, in a think-aloud session. They found no significant difference in workload between the 2D and VR data exploration but determined that data exploration felt more successful and satisfying for VR users. Similarly, these users also reported that the physical demand was higher.

Materials and Methods

Both the studies presented here followed the same general study design (see Figure 1).

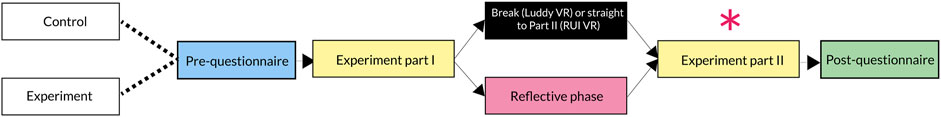

FIGURE 1. General design of our studies with two cohorts. The purple asterisk marks the part of the experiment where we determined differences in post-treatment performance between the two cohorts.

The studies featured two cohorts (control and experiment), both of which completed a pre-questionnaire about demographics and prior experience with VR and 3D, followed by a first set of tasks. The control group then either took a break (Luddy VR) or continued on to the next set of tasks. The experiment cohort, meanwhile, inspected their own data in a Reflective phase via a data visualization. Both groups then continued on to the second set of tasks and finally completed a post-questionnaire about their satisfaction and general impression of the application presented to them.

Table 1 compares the studies in this paper with regards to key design features. Both studies featured two cohorts (control and experiment). Likewise, both studies featured similar visualization types (map and line graph for RUI VR, map and bar graph for Luddy VR), similar graphic symbols (3D volume, line, and text), graphic variables (position, color hue, color saturation), and interaction techniques (filter, navigate). While we conducted both studies to provide data on the effectiveness of data visualizations for improving user performance in VR environments, there are differences in their design. The RUI VR study utilizes three setups (as it doubled as a comparison study between these three setups) while the Luddy VR study uses one. Similarly, the graphic variable of size was used for Luddy VR only, and the animate/replay and link and brush interaction types were applied only in RUI VR and Luddy VR, respectively. Finally, the scale of the reference system for Reflective phase visualization of each study was different (1:1 for RUI VR, 1:30 for Luddy VR).


TABLE 1. Side-by-side comparison of RUI and Luddy VR user studies.

Extensive documentation in the form of videos, images, and code can be found in the Supplementary Information and on GitHub ( Since both studies involved benign behavioral interventions not posing greater than minimal risk, written consent by the participants was not required. The Institutional Review Board (IRB) of Indiana University approved our studies in an expedited review process. Participants provided their consent by agreeing to continue their participation after reading the study information sheet (SIS) at the beginning of the experiment. Additionally, we shared the SIS during the solicitation process via email, social media, and on monitors across the building of our school.

RUI VR Study

We designed this experiment as a follow-up study to Bueckle et al. (2021a), where 42 subjects across three setups (2D Desktop, VR Tabletop, and VR Standup), performed 14 increasingly difficult and then 30 identical cube-matching tasks either using a VR head-mounted device (HMD) while standing or sitting, or with a traditional 2D screen on a laptop. While the goal of that study was to compare accuracy, completion time, and satisfaction for these implementations, the goal of the study in this paper was to test whether data visualizations can be used to improve time, accuracy, and satisfaction in these VR vs. 2D Desktop implementations of the Registration User Interface (RUI). The RUI was developed to allow stakeholders in the Human Biomolecular Atlas Program or HuBMAP (Snyder et al., 2019) to register tissue blocks—i.e., to record the size, position, and orientation of human tissue into reference organs. Tissue mapping centers across the HuBMAP consortium have employed the RUI to register a total of 197 kidney, spleen, colon, lymph node, heart, lung, and thymus tissue blocks as of November 11, 2021 (Cyberinfrastructure for Network Science Center, 2021), with planned support for ca. 50 organs in the near future with the goal of constructing a Common Coordinate Framework (CCF) and a Human Reference Atlas for the human body at single-cell resolution. The basis of this study was formed by 44 cube-matching tasks, where users had to match the position and rotation of a white cube (tissue block) with a purple cube (target block) inside a 3D model of a human kidney. Study and task design are explained in detail in Supplementary Material, Supplementary Section 2 (Supplementary Text for RUI VR) as well as the narrated videos in the Supporting Information of a related publication (Bueckle et al., 2021) at

Study Design

The 84 participants in three cohorts were further divided into a control and an experiment cohort as shown in Figure 1.

After filling out a pre-questionnaire about demographics and prior exposure to VR and 3D applications, subjects were assigned to one out of two cohorts (control, experiment) and one out of three setups. 2D Desktop users completed their cube-matching tasks on a laptop with a 2D interface; VR Tabletop users used a VR HMD while seated at a desk (in physical and virtual space), and VR Standup users performed all tasks while standing in an area of ca. 3 × 3 meters (9 × 9 feet). After a brief tutorial, each user performed 14 increasingly difficult tasks (Ramp-Up phase) where the cubes became increasingly smaller, started farther apart, and with a greater angular difference. After this, subjects in the experiment cohort went through the Reflective phase (see below). Afterwards, each user completed a series of 30 identical tasks in the Plateau phase before finishing with a post-questionnaire.

In order to allow the users in the experiment cohort to inspect their own data from the Ramp-Up phase, we created a separate Unity application with the same base map (i.e., kidney and buzzer), as the Ramp-Up phase (for users in the VR Tabletop and VR Standup setups). 2D Desktop users were presented with a line graph visualization of the distance and angular difference between the tissue and target blocks. In this section, we outline what implementations of the Reflective phase looked like for each setup, the visual encoding, the interactivity, and the mid-questionnaire that concluded the Reflective phase before subjects continued with the Plateau phase. The Reflective phase consisted of two parts: an intro and a main part. In the intro, the user was shown a visualization of the best-performing subject in the control cohort of their setup in terms of completion times, position, and rotation accuracy. A ∼6 min tutorial (∼3 min for 2D Desktop) introduced the goal of the Reflective phase, the visual encoding, the interactivity (for VR subjects), and prompted the user to derive strategies for faster and more accurate placement going forward. Subsequently, the user was shown their own data in the main part of the Reflective phase. While we measured the time spent in the Reflective phase by the user, we did not impose a minimum or maximum time limit on the user.

Research Questions and Hypotheses

RQ1a: Do users in the experiment cohort have a better performance in the Plateau phase, measured in accuracy and completion time, compared to the control cohort?

RQ1b: Do users in the experiment cohort have a higher satisfaction in the Plateau phase, measured in accuracy and completion time, compared to the control cohort?

H1: There will be a significant difference in completion time, accuracy, and satisfaction for Ramp-up and Plateau phases between control (without Reflective phase) and experiment group (with Reflective phase). However, this will only occur for the VR Standup and VR Tabletop setups, not the 2D Desktop users.

RQ2: In the Reflective phase, are metrics on user actions and interactive tool usage, measured through telemetry, correlated with higher performance in the Plateau phase?

H2a: More head rotations have a negative effect on completion times in the Plateau phase.

H2b: More head rotations have a negative effect on distance (higher position accuracy) in the Plateau phase. This may be due to high-performing users feeling more comfortable in 3D environments in general, and VR specifically, enabling them to move around their own data more fluently in the first place.

Reflective Phase

In this section, we outline the Reflective phase implementation for all three setups.

2D Desktop

2D Desktop users were shown a line graph (see Supplementary Figure 6). On the x-axis, we plotted the elapsed time in seconds as well as task numbers. on the y-axis, we added two scales: distance between the two blocks (left side, measured in Unity scene units) and the angular difference (right side). Additionally, we inserted vertical dot-dash lines to indicate the end of one task and the beginning of the next one. This static visualization was created using R and Shiny after loading a CSV file with data from the subject’s Ramp-Up phase, created in Unity previously at runtime.

VR Tabletop

In the VR setups, we used the inherently spatial reference system of the virtual environment to produce 3D dot density maps, encoding the HMD, hand, and tissue block positions over time. Figure 2 shows the Reflective phase setup for a user in the VR Tabletop setup. They were seated at the same virtual and physical tables as they were during the Ramp-Up phase, ensuring a 1:1 mapping. They were allowed to move around during the Reflective phase and inspect their data from multiple angles.


FIGURE 2. Reflective phase setup for VR Tabletop and VR Standup. (A) Side view (VR Tabletop). (B) Top view (VR Tabletop). (C) Side view (VR Standup). (D) Top view (VR Standup). (E) Back view (VR Standup). (F) Close view of tissue block positions over time near the target block with all data visible. (G) Same view without kidney and data for right hand.

VR Standup

Similar to subjects in the VR Tabletop setup, VR Standup users explored first the data of the best-performing users from the control cohort and then their own. Figure 2 contains side (C), top (D), and back view (E). Just like in VR Tabletop, users in VR Standup were allowed to explore the 3D dot density map freely by walking around the space while using the kidney and buzzer as a base map.

Visual Encoding

Like the Reflective phase implementations for the three setups, the visual encodings applied to each setup differed as well. In this section, we describe the graphic symbol and graphic variable pairings (Börner, 2015) used to encode the telemetry and task performance data from the Ramp-Up phase.

2D Desktop

In the 2D Desktop setup, the graphic symbol line encoded two data records: position accuracy, expressed as the distance between the tissue block and the target block over time, and the angular difference—i.e., the difference in rotation between the two blocks, expressed as a single value from 0 (same rotation) to 180 (diametrically opposed rotation). The graphic variables x-y position and color hue encode position and rotation accuracy, respectively. Additionally, various linguistic and pictorial symbols provide additional information to the user: axes are properly labeled; a note at the bottom of the graph indicates the height of the kidney so that reading the position accuracy values becomes easier; vertical dot-dash lines mark the beginning of a task and the start of the next; white gridlines help with reading values off the y-axes. As a temporal visualization, the x-axis contains the elapsed time in minutes and seconds (since the end of the tutorial task).

VR Tabletop and VR Standup

For the two VR setups, we used a straightforward visual encoding scheme for the user’s HMD and controllers: blue for the HMD, pink for the right controller, yellow for the left controller, and white to orange for the tissue block over time. The graphic symbol volume, together with the graphic variable color saturation, encodes the angular difference between the tissue block and the target block and was indicated to the user in a legend (see Figure 2G). For all graphic symbols, the graphic variable x, y, z-position encoded the x, y, z-position if the corresponding device (HMD, controllers) or virtual object at a given moment in time. The resulting visual encoding allowed users to quickly identify areas of concentrated activity. Frequently visited areas of space were thus indicated by a higher density of dots (like the area around the target block, see Figure 2F).


The aforementioned areas of concentrated activity were visualized in an aggregate view that the user encountered when they first entered the stage. By default, all data was shown; as a consequence, patterns in the movements were easier to spot, but the large number of dots generated by the user over the course of the Ramp-Up phase also led to visual clutter (see Figure 2F). To allow the user to remove various layers of data through filtering of their choice, we implemented two interactions: filter and animate.

The area around the target block position shown in Figures 2F,G tended to amass a large amount of data records due to frequent user activity when fine tissue block placement was performed. A mix of pink dots and white-orange cubes visualized the user’s right hand placing the tissue block while minimizing the angular difference. By using their controller, the user could remove parts of the base map (the kidney) as well as parts of the data overlay by a series of features: graphic symbol type, time stamp, and task number. In Figure 2G, for instance, the user has removed the graphic symbol for the right hand (pink dots) as well as the kidney to declutter the display around the target.

Figure 3B shows a screenshot of the interactive legend presented to the user on top of their right controller. It consisted of three sections: graphic symbols, tasks, and a static legend for the angular difference. The graphic symbols section allowed the user to turn parts of the data overlay on and off by entire types of data records encoded by these symbols. Checkboxes enabled the user to filter by graphic symbol type and task number. Lastly, we allowed the user to show and hide data records by time stamp. Specifically, we implemented a time slider on top of the user’s left controller (see Figure 3A). The time slider consisted of a slider area with a play head, similar to what one would find in a video editing program. The user could move the play head along the slider by putting their thumb onto the trackpad on the left controller.

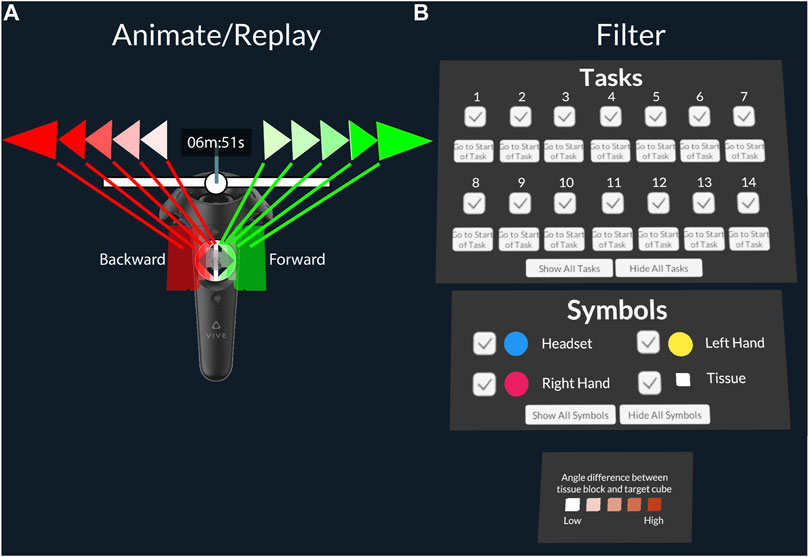

FIGURE 3. (A): Close-up of the left controller with play head speed zones. (B): Filter menu to turn parts of the data overlay on and off by task number or graphic symbol type.

Placing the thumb onto the right and left half of the trackpad let the user skip forward and backwards through the dataset by time stamp. This allowed the user to replay the dataset at various speeds depending on their horizontal distance from the center of the touchpad. Additionally, they could activate a fast-forward and fast-backward mode when additionally pressing the trigger button on the back of the controller. To indicate to the user the current speed at which they were skipping through the dataset, green or red arrows were displayed next to the current time stamp (in minutes and seconds since the beginning of task 1). In parallel, 3D green and red blocks were displayed over the touchpad in the user’s virtual view.

The combination of task, graphic symbol, and time stamp filter formed an interactive system that let the user quickly isolate individual tasks, replay tasks, and isolate specific elements of the scene (such as the tissue block). It also enabled them to switch between aggregate and focused views in a way that felt natural and immersive. When implementing this interactive system, we used the native C# event system to broadcast any changes to the UI elements to the graphic symbols in the scene. The graphic symbols had behaviors attached to them that then evaluated whether all conditions were met for them to be shown or hidden.


To measure user performance, we defined three metrics: completion time, position accuracy, and rotation accuracy. Users could finish tasks by pressing a 2D button (2D Desktop) and by hitting a virtual, red buzzer button (VR Tabletop, VR Standup). Completion time was captured in seconds per task, captured from the frame during which the button was pressed to the next time it was pressed. We defined position accuracy as the distance between the two cubes (centroid distance), and rotation accuracy as the angular difference in degrees, both assessed at the time of task submission. We captured satisfaction in the post-questionnaire via a 5-point Likert scale, ranging from −2 (not at all satisfied) to 0 (neutral) to +2 (very much satisfied). A detailed overview of how we assessed and compared position accuracy and rotation accuracy between the three setups can be found in a related publication (Bueckle et al., 2021) as well as the Supplementary Material, Supplementary Section 2.4 (Metrics).

Luddy VR Study

Following the RUI VR study, we designed a second experiment, involving the navigation of virtual buildings. Our goal was to test whether the completion time for traversing virtual buildings can be improved using data visualizations in VR. To conduct the study, we used a 3D model of Luddy Hall, the home of the School of Informatics, Computing, and Engineering at Indiana University in Bloomington, IN, United States. The model was designed by Philip Beesley Architect Inc. ( Since this model was built as a scaffold for a public art piece to be installed by the architect’s studio (, it came in two parts: a simpler version of the entire building where most structures were just hinted at, without any materials; and a more detailed version of just the atrium of Luddy Hall. For the entire experiment, the user spent time only in the atrium of Luddy Hall. Detailed screenshots are shown in Figure 4.

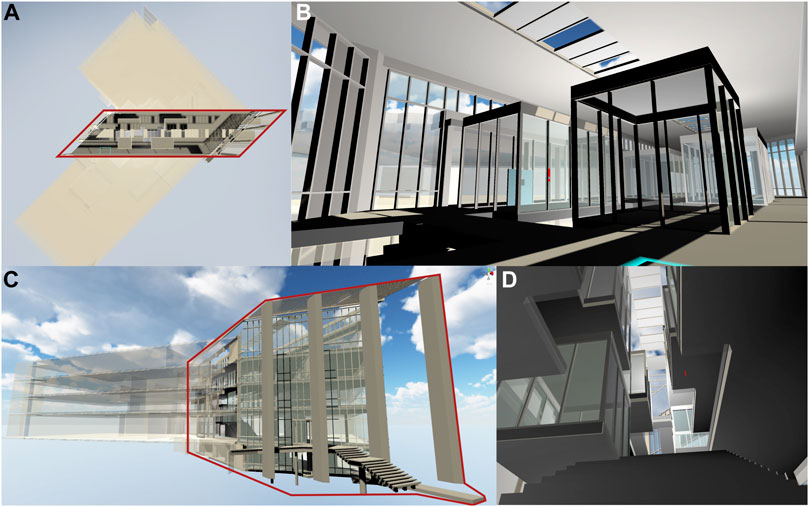

FIGURE 4. Exterior and interior shots of the Luddy Hall model. (A): Top view with atrium highlighted purple. (B): 4th floor near star case, start point for all navigation tasks. (C): Side view, atrium highlighted. (D): View from first floor up the central staircase.

As with RUI VR (see RUI VR Study), the goal of this study was to identify whether we could observe performance improvements between a control and experiment cohort. Both cohorts performed a series of navigation tasks using a VR HMD and controllers for two sets of 24 tasks (including tutorials) with the option of three different navigation methods, with a break in-between (control) and a Reflective phase to inspect their performance from the first trial in order to formulate strategies for improvement in trial 2. We implemented three common navigation choices in VR (walking, teleporting, free-flying), which we explain in more detail in Navigation Methods.

Study Design

When arriving at the research site in Luddy Hall, the subject was asked to sit down at a table with a laptop running a survey. The survey began with a study information sheet before presenting a pre-questionnaire to obtain information about the subject’s demographic background as well as prior experience with VR, video games, 3D applications in general, data visualizations, and their familiarity with Luddy Hall. Following that, each subject put on the VR gear. During the following VR Trial 1, they performed a total of 24 tasks in four rounds.

Following that, the control group took a break from the study. The research facilitator encouraged them to stand up and walk around the research area. The experiment group, on the other hand, stayed in VR and was presented with a Reflective phase, where they saw their own data visualized as 3D trajectories across a miniature version of the building. We describe this in more detail in Reflective Phase.

After the break (control) or the Reflective phase (experiment), subjects from both cohorts sat down at the laptop to fill out a mid-questionnaire, where we asked them how many tasks they had completed in total, how many floors the building had, and more questions. The mid-questionnaire is discussed in Mid-Questionnaire. Then, all subjects donned the VR gear again for VR Trial 2, where they repeated the same 24 tasks from VR Trial 1, but without any audio tutorials. We excluded the tutorial tasks from the data analysis.

Finally, all subjects completed a post-questionnaire, where we asked them to rate their own performance, state their preference for the navigation tasks, and indicate their satisfaction with their performance. After successful completion of all parts of the study, each subject was remunerated with a $20 gift card.

Research Questions and Hypotheses

For our study, we aimed to answer the following research questions and provided the following hypotheses.

RQ1: Is there a difference in completion time between the control and experiment cohorts during trial 2?

H1: The experiment cohort achieves significantly lower completion times than the control cohort during VR Trial 2.

RQ2: Is there a difference in the rate of change in completion time from trial 1 to trial 2 between the two cohorts? That is, when computing the differences in completion time per trial and per subject, and then comparing these values between the cohorts, is there a significant difference?

H2: The experiment cohort achieves significantly larger changes in completion times between trial 1 and trial 2.

RQ3: When asked questions about the tasks and the virtual building after taking a break (control) and completing their Reflective phase (experiment), is there a difference in score between the two cohorts?

H3: The experiment cohort achieves higher scores in the mid-questionnaire than the control cohort.

RQ4: What are the preferred choices of navigation methods during the last round of tasks?

H4a: Subjects prefer teleporting when finalizing a task within sight of the start position.

H4b: Subjects prefer free-flying when finalizing a task out of sight of the start position.

H4c: Subjects prefer walking just as they finalize a task.

RQ5: Is there a difference in self-reported satisfaction between the two cohorts at the end of the experiment?

H5: There will be no significant difference in satisfaction between the cohorts.

Task Difficulty

At the core of this study were two sets of 24 navigation tasks in VR (see Figure 5B). During each of the first three rounds, only one navigation method was possible, starting with walking, then going to teleporting, and ending with free-flying. In the fourth round, the subject could choose which navigation method they wanted to use, and they could change it at any time. The first task in every round served as a mini-tutorial where a pre-recorded voice explained the scope and goal of the experiment as well as the controls of the currently active navigation method to them.

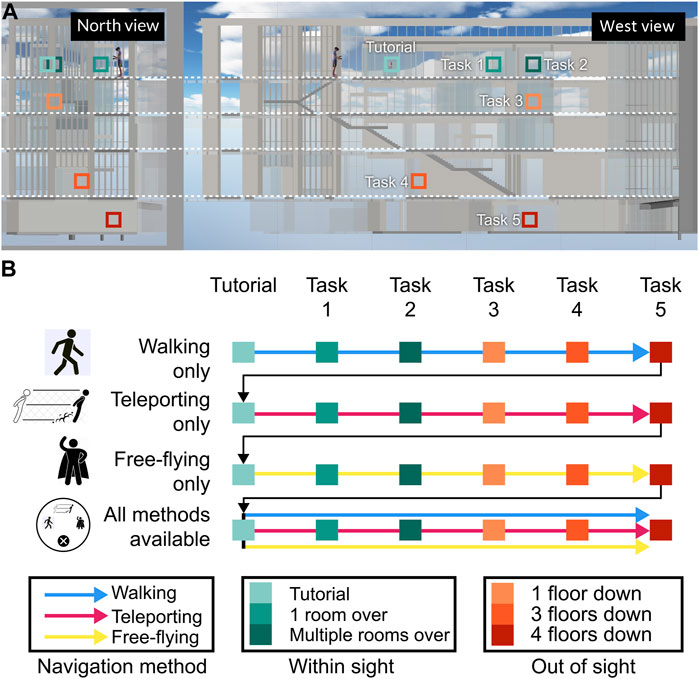

FIGURE 5. This distribution of tasks across Luddy Hall and task sequence. (A): The five navigation tasks (plus tutorial) at their locations in two aligned cross-section views of the building. (B): All 24 tasks in sequence with color-coded difficulty level and possible navigation methods.

All 24 tasks entailed navigating from a fixed start position at the top of the fourth floor (see the human figure in Figure 5A). The target positions for tasks 1 and 2 were on the same floor and within sight, in two study rooms. Tasks 3–5 were on increasingly lower levels, with task 3 being inside another study room, task 4 being in a small office space under the staircase on the ground floor, and task 5 being in a classroom in the lower levels of the building. We used the increasing distance between the start position and a task target position as well as whether a target was within sight or out of sight to increase the difficulty over time. The distances between the start position and tasks 1–5 were approx. 11.6, 17.4, 24.3, 18.7, and 27.1 m in a straight line, with distances increasing consistently between tasks. Task 4 was an exception (with 18.7 m), but it was four floors down (on the ground floor) and out of sight of the start position, making up for the slightly smaller distance than the preceding tasks 3.

Inside each task room, there was a flat, blue panel with a white sphere inside it, with a diameter of about 10 cm (see Supplementary Figures S16C, D). The center of the sphere was about 120 cm above the floor. Below the sphere, a text panel instructed the user to finish the task by holding their controller against the sphere for one second. When the user arrived at a task, they had to locate the panel, approach it, interact with the sphere; subsequently, they were transported back to the start position.

To indicate to the user where to navigate next, a red exclamation mark was placed as a waypoint inside each task room. We used a custom shader to ensure that the waypoint was rendered on top of any other surfaces in the scene (see Supplementary Figure S16B). To help the user locate the task room once in sight, we added a flurry of around 4000 purple, twinkling particles to each room.

Navigation Methods

We present the calculations for speed and direction for each navigation method in detail in Figure 6.

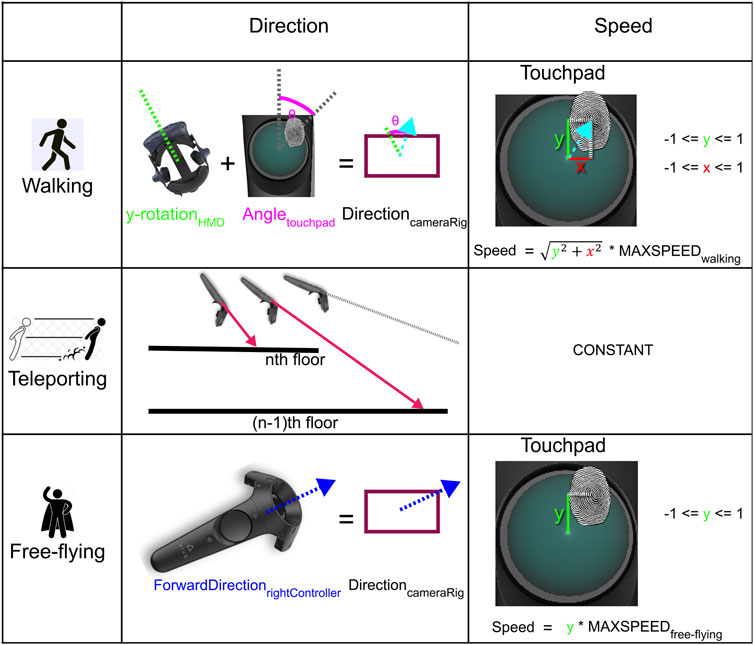

FIGURE 6. Advanced illustration of how direction and speed are calculated from user input, for each navigation method.

Walking was the navigation method most closely imitating real-world locomotion on foot. The user was bound by gravity; when leaping over an edge, they could fall until they hit a surface with a collider. It was possible to walk up and down the stairs traversing the center of the atrium. We added invisible walls to the outside of the atrium to prevent users from falling to infinity. These walls were only active during sections when the only possible navigation method was walking.

The user controlled the speed and direction of their walking with their right controller and their HMD. The thumbpad on the controller is represented as a unit circle in the SteamVR SDK, and touchpad positions are given as (x, y) positions (where −1≤x ≤ 1 and −1≤y ≤ 1). The walking speed was then determined by the product of the distance of the touch position from the center of the touchpad and the maximum speed possible in the walking mode (2.5 m per second). The walking direction, on the other hand, was determined by two angles: the y-rotation value of the HMD and the angular distance between the position of the user’s thumb and the y-axis on the touchpad (see Figure 6). This setup allowed the user to walk independently of the direction of their gaze if needed by simple use of their thumb. Modulating the speed with the thumb ensured that faster and slower velocities were possible, and by moving their thumb into the lower quadrants of the thumbpad, the user could also walk backwards if needed.

Teleporting allowed the user to traverse distances within sight with a click of the touchpad on their right controller. In order to teleport, the user had to point their controller towards a suitable surface, and a purple ray would then indicate their target position were they to execute the teleport.

To facilitate teleporting, we embedded a ray caster alongside the z-axis (forward vector) of the 3D representation of the controller, which persistently sent rays into the scene. When arriving at a teleport destination, the user’s virtual camera rig was automatically adjusted such that the bottom plane of the user’s camera rig was on the ground. The ray always returned a hit location on the first suitable surface it encountered; teleporting thus only allowed the user to navigate within sight.

Finally, free-flying allowed the user to travel through space with increased freedom. Neither gravity nor physical barriers were in their way. Using their right controller, the user could manipulate speed and direction. Speed was defined as the product of the y-value of the user’s touch position on the thumbpad (−1≤y ≤ 1) and the maximum speed for free-flying, which was set to 3 m per second. The flying direction corresponded to the forward vector of the right controller (i.e., wherever the user pointed their right hand). Flying backwards was also possible.

When all navigation methods first became available, the navigation method active previously was deactivated, and we did not give the user a standard method to prevent any biases towards a specific navigation method. The user could switch between all three at any point through putting a radial menu over their left controller, triggered by touch. The currently active navigation method was displayed as text on a small panel over the left controller.

Reflective Phase

Users in the experiment cohort got to inspect their own data in a mix of 3D and 2D data visualization inside VR (see Figure 7). To that end, we created a 3D trajectory visualization, consisting of a dot density map of user positions over time, and a bar graph on a 2D panel over the user’s left controller. This panel also contained a set of checkboxes to turn the data for individual tasks on and off. This setup presents a mix of spatial and abstract data visualization in one comprehensive VR interface for testing if users can utilize these types of data visualizations to improve their performance in VR Trial 2.

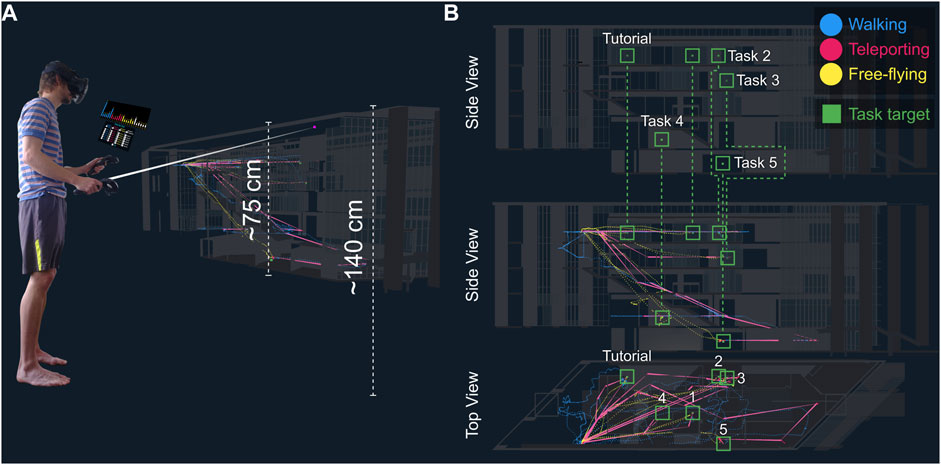

FIGURE 7. (A): A user with model and data visualization during Reflective phase. (B): Three views of a user’s data in the Reflective phase. Green cubes in the visualization show the destination for each task. Blue, pink, and yellow visualize walking, teleporting, and free-flying, respectively.

The visualization was created at runtime using a custom C# script, reading in data from a CSV file generated while the user completed VR Trial 1. The script iterated through every row in the dataset, instantiated the appropriate graphic symbol depending on the navigation method chosen, and added a data component for each graphic symbol that could later be used for the interactive legend to turn parts of the data overlay on and off depending on user input.

To familiarize themselves with the visualization and the controls, we presented the Reflective phase to the user in two parts: First, we showed them data from a high-performing user in the control cohort. Simultaneously, they were listening to a 4-min audio tutorial introducing them to the base map, the data overlay, and the controls while outlining the goal of the Reflective phase: to identify strategies in their data to improve their own performance. Then, after the tutorial was done and the user decided they had had enough practice, we loaded their own data in the visualization.

Base Map and Data Overlay

The miniature model of Luddy Hall was around 75 cm tall, floating in front of the user such that the roof of the building was around 140 cm above the floor. The user could free-fly around the model so that they could inspect the model from all angles, independently of their physical height and range of motion. The entire visualization was resized at a scale of 1:30.

Visual Encoding

We chose color hue to represent navigation method, and x, y, z-position of the dot to encode the user’s position. For teleporting, we encoded each teleport as a pink line, starting with the same width as the dot, and then thinning out evenly towards the teleport target.

Bar Graph for Completion Times

In order to give the user quick insights into their performance, we displayed a 2D bar graph on top of their left controller with completion times for all 24 tasks (see Figure 8). On the y-axis, we showed the completion time in seconds; the color of the bar encoded the navigation method possible during the task; and the x-axis contained the task number. On top of each bar, the completion time in seconds (rounded to one decimal) was displayed.

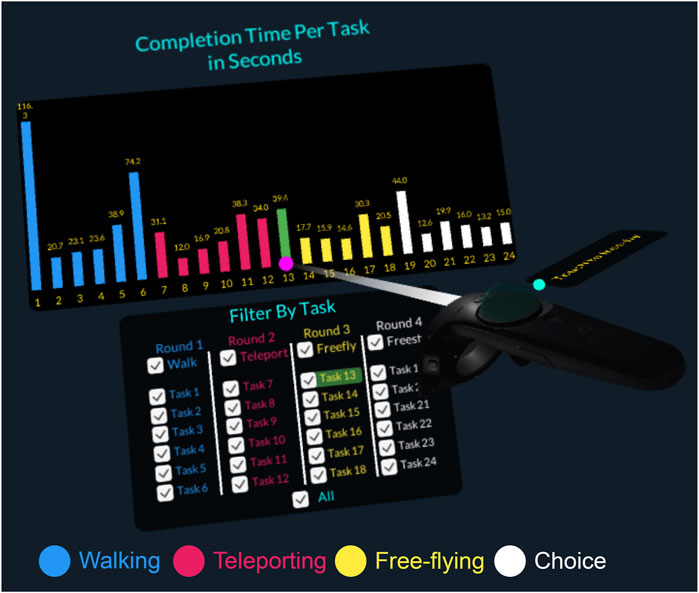

FIGURE 8. The interactive legend and bar graph visualization for the completion times of all 24 tasks in VR Trial 1. Note the link and brush functionality as the user is hovering over the bar for task #13.

Interactive Legend

The bar graph functioned as part of an interactive legend that helped the user turn parts of the data overlay on and off. To allow the user to focus on the tasks they wanted to explore, we implemented a link and brush functionality. The subject could use their right controller as a pointer (see Figure 8). When hovering over a bar, both the bar and the corresponding checkbox to turn the corresponding graphic symbols were highlighted green. The user could then identify particularly long or short completion times and then inspect the corresponding trajectories in the Luddy Hall model. A checkbox to show or hide all data was located at the bottom of the interactive legend.


Before trial 2, all subjects answered 10 questions about the features of the building (e.g., number of floors) and the tasks they performed (e.g., how many tasks total). The goal of the mid-questionnaire was to test whether there was a difference in spatial memory and understanding between the two cohorts.


The metric to assess performance was task completion time in seconds, measured from the frame when the user gained control of their movement to the frame when they had touched the virtual submit button for one second (see Supplementary Figure S16D), at which point the timer was reset. Another metric for our data analysis was the user’s mid-questionnaire score. Finally, we included a self-reported satisfaction score at the end of the post-questionnaire, where the user had to indicate whether they felt satisfied after the experiment, using a 5-point Likert scale, ranging from −2 (not at all satisfied) to 0 (neutral) to +2 (very much satisfied).


We ran both experiments on an Alienware 17 R4 with a 17.3 display, running Windows 10 with an Nvidia GTX 1070 and 16 GB RAM. We used an HTC Vive VR HMD with controllers on SteamVR (Valve Corporation, 2021) in a play area of around 9 × 9 feet (3 × 3 meters). We used the Camtasia (TechSmith, 2020) screen-recording software as well as a Logitech C930e webcam to capture the user’s action with audio and video, both in VR and the physical world.

Statistical Approach

In this section, we describe the data analysis for our two studies.


First, we describe how we analyzed the influence of tool usage during the Reflective phase on performance in Plateau phase tasks and satisfaction. As dependent variable, we chose the difference (improvement) between mean performance variables in the 14 increasingly complex Ramp-Up phase tasks and the Plateau phase tasks such that


The mean performance variables for the Ramp-Up tasks for each subject i have a significant Pearson correlation with their Δ counterparts—for completion time and angular difference (rotation accuracy) only, not for centroid distance (position accuracy), see Table 2 below.


TABLE 2. Pearson correlations between variables in RUI VR.

Because there are only 28 observations (14 for VR Tabletop, 14 for VR Standup), it is not possible to test the effect of all Reflective phase variables on the delta-performance measures at once. Therefore, for each performance measure, a model is estimated:

Δperformance =+β1reflective_variable+β2ramp_up_performance+ε

This way, we can control for Ramp-Up performance while estimating the effect of changes in the single reflective phase variables. Ordinary Least Squares (OLS) estimation was used with clustered standard errors on the level of experiment conditions. Estimations with the dependent variable of self-reported satisfaction were estimated without control variable. The regression model was estimated using the “lm” (DataCamp, 2021b) command from the R “stats” package (R Core Team, 2021), which fits a model using OLS. The clustered standard errors are computed with the “coeftest” command (DataCamp, 2021a) from the R package “lmtest” (Hothorn et al., 2021). We used an OLS estimation with clustered standard errors on the level of the VR condition because we cannot assume that the error terms of our estimations are uncorrelated to the subjects’ conditions. We report our results in RUI VR Study.

For Luddy VR

For the Luddy VR study, we conducted a series of Welch’s Two-Sample t-tests between the control and experiment cohorts to compare completion times for VR Trial 1 and 2, satisfaction, motion sickness, and mid-questionnaire score. Additionally, we computed Pearson’s product-moment correlations for motion sickness with mid-questionnaire score and satisfaction. We report these results in Luddy VR Study.


This section contains the results of our user studies. We evaluate whether there was a measurable difference between the control and experiment cohorts before discussing potential reasons for our findings.

RUI VR Study

Supplementary Figure S23 shows the demographic make-up of the participants in a series of stacked bar graphs. Notably, out of 84 subjects, there were 45 subjects who identified as male, 38 as female, and one subject who preferred not to answer. In terms of age, 52 participants were between 21 and 30 years old. 81 subjects were right-handed, 3 were left-handed. No subjects experienced color blindness. 44 subjects had prior experience in 3D modeling, with no differences between the cohorts. The majority of subjects (50) had not played first-person shooters in the past 12 months.

We performed a Kruskal-Wallis-Test (McKight and Najab, 2010) for distribution of gender and task completion time, position accuracy, rotation accuracy, and satisfaction, and found no significant differences. Likewise, we conducted a Mann-Whitney-U-Test for distribution of handedness (left vs. right) task completion time, position accuracy, rotation accuracy, and satisfaction without detecting significant differences, either (see Supplementary Table S3).

Influence of Reflective Phase on Performance and Satisfaction

Figure 9 shows a series of boxplots for position accuracy, rotation accuracy, completion time, and satisfaction across both cohorts in all three setups.


FIGURE 9. Mean completion time (A), position accuracy (B), and rotation accuracy (C) for Plateau tasks as well as satisfaction (D) in all setups for both cohorts.

We found no difference between the cohorts for completion time, position, and rotation accuracy for the two VR setups. However, in the experiment group of the 2D Desktop setup, we found a significantly higher rotation accuracy (median experiment group: 5.806°, IQR: [2.216–9.949], median control group: 34.98°, IQR: [12.109–88.457], Mann-Whitney-U-Test, p = 0.031) as well as a not significant difference in position accuracy (median experiment group: 0.01, IQR: [0.006–0.012], median control group: 0.013, IQR: [0.01–0.016], Mann-Whitney-U-Test, p = 0.085). This means that the Reflective phase (line graph) for the 2D Desktop users did indeed help users outperform the Desktop users in the control cohort. However, we found no difference in terms of completion time for 2D Desktop. Based on these findings, we have to reject H1.

Surprised by these findings, we performed further analyses for the users’ self-reported satisfaction, and found a significantly higher feeling of satisfaction in the experiment group of the 2D Desktop setup (median experiment group: 4, IQR: [4–5], median control group: 3, IQR: [2–4], Mann-Whitney-U-Test, p = 0.004) and in VR Standup (median experiment group: 5, IQR: [4–5], median control group: 4, IQR: [4–4], Mann-Whitney-U-Test, p = 0.006). In the next section, we examine the user behavior in the Reflective phase of the VR Standup setup to determine what factors may have contributed to this higher level of satisfaction with one’s performance.

Metrics During Reflective Phase and Influence on Performance in Plateau Phase

We further wanted to understand the relationship between metrics for user behavior as well as interactive tool usage and performance in the Plateau phase and self-reported satisfaction. In this section, we focus on whether there are VR behavior traits in the Reflective phase that have an effect on the performance in the Plateau phase (for VR users only). This could help us pinpoint what specific elements of the Reflective phase could be adjusted to improve user performance in real-world VR training. We thus discuss effects between metrics during the Reflective and Plateau phases for the experiment cohort to understand how behavior in the Reflective phase influences performance in the Plateau phase in order to answer RQ2 (see Table 3). An explanation of our data analysis using Ordinary Least Squares (OLS) can be found in For RUI VR.

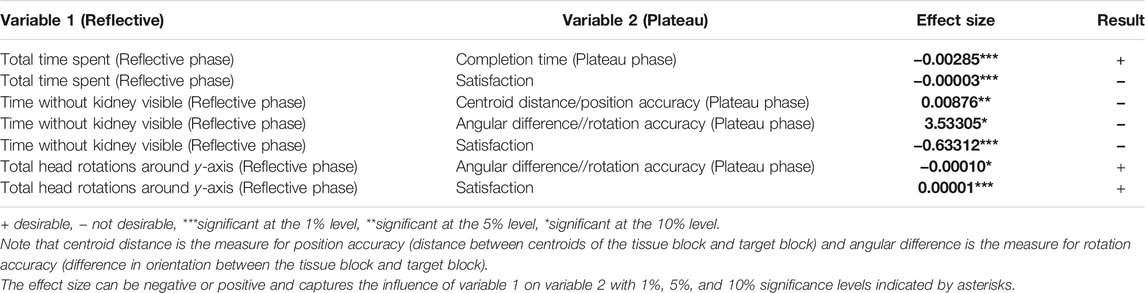

TABLE 3. Regression table for effects of tool usage and behavior in Reflective phase on performance in Plateau phase.

First, we find that spending more time in the Reflective phase has a significant negative effect on task completion time in the Plateau phase, without jeopardizing position or rotation accuracy. However, it has a negative effect on the satisfaction. This might be because the Reflective phase presents an analytical mode as opposed to the almost playful rest of the experiment where users actually get to interact with virtual objects. Additionally, many users, when confronted with their own data for an extended period of time, may have discovered their performance in the Ramp-Up phase to be lacking.

Second, not seeing the base map (i.e., the kidney) for extended periods of time in the Reflective phase has a significant negative effect on satisfaction and a positive effect on both centroid distance and angular difference in the Plateau phase, resulting in lower position and rotation accuracy. This is wholly undesirable. Seeing one’s data without the proper context seems to be a major issue not only for performance but also enjoyment of the entire VR experience. The integrity of the base map or reference system thus seems conducive to accuracy and user satisfaction.

Third, we identified metrics that enhanced both accuracy and satisfaction metrics. The total number of degrees of head rotation around the y-axis had a negative effect on angular difference (rotation accuracy) and a positive one on satisfaction, without jeopardizing completion time and centroid distance (position accuracy), prompting us to reject both H2a and H2b. We thus conclude that encouraging users to look around in their environment is conducive to gaining visual insights.

Luddy VR Study

For the Luddy VR study, we recruited 71 subjects via email lists, social media, and word-of-mouth. While running the experiment, two subjects had to abort their participation during VR Trial 1 due to motion sickness. One more subject had to stop during VR Trial 2 for the same reason. This left us with a total of 68 subjects for data analysis (34 per cohort). Subjects spent an average of 43.5 (control, SE = 1.24) and 60.4 min (experiment, SE = 2.08) in the study from entering the research area to leaving it. For all analyses, we omitted the tutorial task—i.e., the first task in every round where users were introduced to the navigation method for that round in the first trial and the corresponding tasks in the second trial.


30 of our subjects identified as female and 38 as male. The majority of subjects (40) were between 21 and 30 years old; further, 20 were between 18 and 20, six were between 31 and 40, and two were between 51 and 60 years old. The overwhelming majority were native English speakers (54). 65 subjects were right-handed; three were left-handed. Around half of the subjects (32) stated that they had no vision impairments; 26 were near-sighted. Participants were allowed to wear glasses under the HMD or contact lenses as needed. 67 subjects indicated that they were not color-blind; one subject preferred not to answer that question.

In terms of prior experience with VR, video games, and 3D applications in general, the overwhelming majority of subjects had used VR before (51); out of these, 37 had used it rarely, nine occasionally, and five often. The HTC Vive, Vive Pro, or Cosmos was the most used VR system, indicated by 21 subjects. Over two thirds of subjects (43) said that they played video games in the past 12 months, mostly on smartphones or other handheld devices (27). Also, 27 subjects had played first-person shooters. Further, 36 subjects had used 3D software before, such as Rhino (6), AutoCAD (5), and Unity (5). When asked whether they would say that they were familiar with Luddy Hall, 10 subjects strongly agreed, 22 somewhat agreed, 10 neither agreed nor disagreed, nine somewhat agreed, and 17 strongly disagreed. We also asked our subjects to state their familiarity with six basic visualization types (tables, charts, graphs, maps, trees, and networks) and did not find any correlation between the self-reported familiarity scores with six visualization types and the correct answers in the mid-questionnaire.

Performance Improvement

To answer RQ1 (whether there was a difference between the control and experiment cohorts for completion times in VR Trial 2), we isolated each subject’s task completion times (minus the four tutorial tasks), leaving us with 20 observations by subject (680 by cohort). To ensure that observations where users needed excessive amounts of time did not obstruct the validity of our analysis, we removed 39 observations from the control cohort (m = 50.7 s, SE = 1.95 s) and 38 observations from the experiment cohort (m = 47.13 s, SE = 1.59 s). We then performed a Welch’s Two-Sample t-test with the remaining observations. This showed that there was a significant difference in task completion times between the two cohorts during VR Trial 2 (mcontrol= 16.44 s, SEcontrol = 0.30, mexperiment = 15.44 s, SEexperiment = 0.27, t = 2.465, p = 0.014). We were then interested in determining whether this difference was caused by the Reflective phase or whether subjects in the experiment cohort were naturally more able in VR. We thus compared the completion times for VR Trial 1 after removing 42 and 40 observations from the control and experiment cohorts, respectively. A Welch’s Two-Sample t-test then showed no significant difference between the two cohorts for completion times in VR Trial 1 (mcontrol = 20.75 s, SEcontrol = 0.41, mexperiment = 21.26 s, SEexperiment = 0.45, t = −0.843, p = 0.399). We thus reject the null hypothesis for H1 (the experiment cohort achieves significantly lower completion times than the control cohort during VR Trial 2). Figure 10 contains a collection of boxplots for the completion times per task and navigation method, separated by cohort.


FIGURE 10. Faceted boxplots of completion times by task number (horizontal) per round (vertical).

Further, while it was to be expected that both cohorts would improve their times during VR Trial 2 to some degree (due to the learning effect), we wanted to identify the difference in the rate of change for completion times. We found a significant difference between the two cohorts (mcontrol= −5.38 s, SEcontrol = 0.446, mexperiment = −7.48 s, SEexperiment = 0.498, t = 3.146, p = 0.002). This means that users in the experiment cohort improved by more than 2 s compared to users in the control cohort (on average). We thus reject the null hypothesis for H2.

Mid-Questionnaire Score

In addition to checking whether our intervention helped the experiment cohort achieve lower completion times than the control cohort in VR Trial 2, we compared the scores from the mid-questionnaire, where we asked our users to answer questions about the navigation tasks they performed with regards to the spatial layout of Luddy Hall. In a t-test (t = −2.703, p = 0.009), we found that experiment users (m = 5.71, SE = 0.371) performed significantly better than control users (m = 4.29, SE = 0.367). We thus reject the null hypothesis for H3. Figure 11 shows violin plots for the total task scores for both cohorts along with jittered points for all 68 scores (and both medians).


FIGURE 11. These violin plots show a significant difference in the mid-questionnaire score between the two cohorts.

Choice of Navigation Methods

During the last round of tasks in VR Trials 1 and 2, the subjects could switch between navigation methods at will. In RQ4, we wanted to check what navigation methods subjects would employ when completing these tasks. We had hypothesized that subjects would use teleport to reach targets within sight of the start position (H4a), free-fly for targets out of sight of the start position (H4b), and walking at the very end as a means to get to floor level (H4c).

Figure 12 shows a bar graph of the last logged navigation method for the 5 tasks in the last round of VR Trial 2 for all 68 subjects (minus three outliers in the control cohort), yielding 337 observations. The tendency for all subjects to end tasks 1 and 2 with teleporting (both are on the same floor as the start position) becomes apparent; for tasks 3 through 5, users preferred free-flying as a way to traverse larger distances quicker (and go through walls thanks to the lifted physical restrictions when using free-flying). This “winning strategy” is more pronounced within the experiment cohort than the control cohort. While we can reject the null hypothesis for H4a (teleporting for targets within sight) and H4b (free-flying for targets out of sight), only a minority of users ended tasks by walking, prompting us to reject H4c (walking is preferred for ending tasks quickly).


FIGURE 12. Navigation methods selected by subjects at task submission during VR Trial 2. Three outliers for the control cohort were removed for Task 5.


In terms of satisfaction, we found no significant difference between the cohorts, and thus reject the null hypothesis for H5. Both had a high mean satisfaction on a 5-point Likert scale (mboth = 4.29, SEcontrol = 0.107, SEexperiment = 0.143, t = 0, p = 1). Additionally, we found no significant Pearson’s product-moment correlation between a user’s score in the mid-questionnaire and their reported satisfaction (r = 0.217, p = 0.08). 40 subjects reported at least a little motion sickness (m = 1.63, SE = 0.069) on a scale from 1 (no motion sickness) to 3 (very much motion-sick). However, it appeared to have no significant correlation with the total score (Pearson’s product-moment correlation, r = 0.081, p = 0.51). Similarly, we found no significant difference in motion sickness between the two cohorts (mcontrol = 1.59, SEcontrol = 0.086, mexperiment = 1.67 SEexperiment = 0.109, t = −0.635, p = 0.528).

Post-Questionnaire Results

In our post-questionnaire, we aimed to identify which navigation method was the most popular. To that end, we asked subjects to rank all three navigation methods from most to least favorite. The absolute majority of subjects (n = 35) preferred free-fly to teleport and walk; just over a quarter (n = 19) favored teleport over free-fly and walk, and only a minority of subjects liked walk the most (n = 5). Note that no single subject preferred walk over free-fly and teleport (in that order). Further, we found that all users, regardless of cohort, liked the VR experience as indicated by high means on a 5-point Likert scale for different aspects: overall (m = 4.57, SE = 0.07), hardware (m = 4.49, SE = 0.09), and instructions (m = 4.59, SE = 0.07).

Reflective Phase Feedback

Similarly, we aimed to measure how subjects in the experiment cohort perceived the interactive tools at their disposal during the Reflective phase using a 5-point Likert scale, and found that subjects overwhelmingly found them useful: filters and checkboxes (m = 4.32, SE = 0.14), color coding (m = 4.68, SE = 0.13), the bar graph of completion times (m = 4.29, SE = 0.17), and the ability to fly around the miniature base map of Luddy Hall (m = 4.26, SE = 0.16).

The subjects then indicated how efficiently they thought they had navigated the 3D space while only one navigation method was possible (again using a 5-point Likert scale). These numbers reflect the rankings of the navigation methods discussed earlier: Users overall found that they did not perform efficiently with regards to walking (m = 2.29, SE = 0.18) while teleporting (m = 3.74, SE = 0.18) and free-fly (m = 4.12, SE = 0.20) were ranked higher.


In this paper, we presented two user studies with Reflective phases involving different interactions and base maps. We designed the Reflective phases in our studies by consulting the DVL-FW (Borner et al., 2019), specifically its typologies for interactions, graphic symbols, and graphic variables. Notably, for the Luddy VR study, users that experienced the Reflective phase had significantly better performance in terms of task completion time and better scores in the mid-questionnaire. We saw no such improvement for users in the VR setups of the RUI VR study, only for the 2D Desktop users who were presented with line graphs. In this section, we examine the differences between the Reflective phases in these two studies as far as the DVL-FW typology is concerned.

Comparison of Reflective Phase Implementations

The key differences between the Reflective phases are listed in Table 1 in Materials and Methods. Based on these, we conclude that a variety of factors accounted for our results.

Visualization Type and Scale of Reference System

First, the visualization in the RUI VR Reflective phase presented the user’s data on a 1:1 scale. The building in the Luddy VR study, however, with its geospatial layout, waypoints, stairs, rooms, and floors, was at a scale of 1:30. We conclude that this difference between the two reference systems provided more value to the Luddy VR users for devising strategies to improve their performance. There is currently no scale typology in the DVL-FW that could capture this difference in a meaningful way.

Second, Luddy VR users were given an additional visualization type in the form of a (bar) graph with their completion times per task, allowing them to quickly identify patterns, trends, and local maxima and minima in their performance via a more abstract data visualization. In RUI VR, on the other hand, the completion time was not explicitly shown, and could only be inferred from the time stamp on the time slider (for VR users). This level of abstraction for visually non-explicit information probably yielded a disadvantage.

Graphic Symbols and Graphic Variables

Both Reflective phase implementations had a set of graphic symbols and graphic variables in common. Mainly, both used volumes (spheres, cubes) to encode the user’s position (and the position of their hands) as well as the location of the tissue block over time (RUI VR) and the task destinations (Luddy VR). For the implementation of the more traditional 2D visualizations (line graph and bar graph), lines were used in both studies (though just for 2D Desktop in the RUI VR experiment). Both implementations also make use of linguistic symbols, specifically text, to denote task numbers (both), completion times (2D Desktop in RUI VR, all of Luddy VR), and parts of the interactive legends. In terms of graphic variables, there were differences. Both Reflective phases used position (3D for VR visualizations and 2D for line graph and bar graph) and color hue to encode the input device visualized (RUI VR) or the navigation method chosen (Luddy VR). In RUI VR, however, we also used color saturation to indicate the angular difference between the tissue and target blocks (and thus the rotation accuracy), while in Luddy VR, we used the graphic variable of size to encode the user’s performance metric (completion time) in the bar graph. Finally, in Luddy VR, we employed velocity in two ways: when visualizing the vector between a user’s teleporting start and end point, and to show head and hand movement direction when replaying a dataset in RUI VR. All graphic symbol and graphic variable encodings were received and understood well based on mid- and post-questionnaire data. Generally, we conclude that the 3D trajectories that made up the Reflective phase visualizations illustrated the performance for virtual navigation tasks better, because trajectories through virtual environments are a type of data overlay familiar to most people through navigation systems in cars, on phones, and in video games. The head and hand movements in the RUI VR study may have been too abstract for users to derive viable strategies.


Over the two studies, we implemented four interaction types: filter, navigate, animate, and link and brush. Filter was implemented in both studies: The user could turn parts of the data overlay on and off via checkboxes in the interactive legend, using a 3D pointer. Likewise, users could navigate across the visualization by virtue of wearing VR equipment, allowing them to see the data from different angles. Link and brush and animate/replay were unique to Luddy VR and RUI VR, respectively. Luddy VR users could brush over a bar in their graph of completion times and then saw the corresponding menu entry highlighted that let them turn on and off the underlying data for that task. RUI VR users could play back their own data at different speeds by using the time slider, thus creating an animation of their own movement and tissue block manipulation over time. However, it appears that this interaction type was less useful than expected.

It may have been hard for users to identify and select a playback speed that yielded insights about their completion times to them, and offering predetermined playback speeds may have been a better design choice. Additionally, playback for a task worked better when other data was turned off, thus avoiding clutter, and the steps needed to hide all data, jump to the time stamp of a task, and then playing it back at an insightful speed, required a series of actions on the user’s part that may have been challenging for many users. Also, we assume that the animate/replay interactivity did not help users identify completion times and potential optimizations properly, because completion time had to be derived from looking at time stamps, not directly via an auxiliary visualization like in Luddy VR. Link and brush for Luddy VR users, on the other hand, created a visual connection between the bar graph and the dot density map of their trajectories, thus allowing the user to evaluate their performance with this additional derived data rather than having to infer their performance.

Design Implications

The filter, link and brush, and navigate interactions proved to be valuable for Luddy VR users, who were able to achieve faster completion times than their counterparts in the control cohort. While we did not find that the Reflective phase helped RUI VR experiment users (in the VR setups) perform better than control users in the Plateau phase, we did find significant effects by metrics in the Reflective phase on performance in the Plateau phase and satisfaction. These effects could help identify ways to nudge users to a better performance by tweaking parts of the Reflective phase. Subsequently, we describe which of these insights are actionable for the future design of interventions using the DVL-FW.

We identified one metric that had both a favorable effect on rotation accuracy and satisfaction: head rotation around the y-axis. Similarly, we found that many variables that describe the Reflective phase experience made the entire VR experiment less satisfying for subjects, among them total time spent, time slider usage, and time without the base map, which also had a detrimental effect on position and rotation accuracy (see Table 3). It thus appears that a beneficial improvement would be to bring the data to the user (e.g., by scaling down the reference system of the visualization [like for Luddy VR]), thus minimizing the need for covering a wide area with their entire body. A more refined Reflective phase would thus encourage the user to make use of their head as a “camera” to inspect the data from different angles in a 3D perspective while not moving their entire body around. At the same time, this could also shorten the time spent in this analytical mode.

Additionally, we determined that less aggregation leads to happier users. This means that another good tweak would be to avoid aggregated data views where possible, especially at the start of the Reflective phase where all the data was turned on by default. Of course, it is also possible that the visualization type, together with the aggregated data view, was the confusing and less satisfying element for many RUI VR users. If they had been presented with a 2D dot density map instead of the 3D + VR version of our experiment, an aggregated view could have revealed more patterns (like the 2D dot density maps in Supplementary Figure S13).

It would also be possible to design a Reflective phase for RUI VR as a mix of VR visualizations and traditional 2D visualizations like in Luddy VR. The 3D dot density map is an advanced visualization type, and even if users extracted insights from their own data, it may not have empowered them to act on those insights. This would also relieve the user from the need to derive performance variables such as the completion time while trying to memorize more successful strategies.

Yet another, more far-reaching change would be to more closely entangle any reflection about one’s own data with the actual task at hand rather than outsourcing it to a separate Reflective phase application. Immediate visual feedback could be given when the cube-matching task is done to encode accuracy, possible following some of the design goals of fluid interaction, such as “provide immediate visual feedback on interaction” (Elmqvist et al., 2011). Additionally, because the tasks were performed in VR, haptic feedback via the VR controllers could be used to indicate position and rotation accuracy during the tasks, shortening the user’s time in the Reflective phase.


We acknowledge several limitations to these studies. First, while both RUI VR and Luddy VR contained a Reflective phase, the overall study design was slightly different. In Luddy VR, both cohorts completed the same set of tasks twice, with the intervention in between. In RUI VR, the Ramp-Up phase contained a different set of tasks than the Plateau phase, so it was not possible to compute within-subject improvements for these users.

Second, the types of task between the two studies were different (cube-matching vs. movement), which influenced what information users needed to retrieve from the Reflective phase. For example, RUI VR users had to identify ways to balance their efforts between position accuracy (with a focus on arm movements) and rotation accuracy (with a focus on hand movements), all without neglecting completion time. Luddy VR users, on the other hand, experienced a more mediated interaction in that they could move their entire body through the virtual space via simple button clicks and touches. As a result, the navigation methods demanded less physical movement and input. Likewise, data from the RUI VR cube-matching tasks was richer as users did not only have to take position into account when determining new strategies but also rotation of the tissue block. As a result, improving performance for RUI VR users was more challenging. This would have been difficult for any user, regardless of expertise with visualizations and VR, be it due to lack of expertise, spatial ability, confidence in virtual environments, or Data Visualization Literacy. This is highlighted by the fact that users in the Desktop setup (with the simple static line graph) were able to significantly improve their position and rotation accuracy while feeling more satisfied using a rather simple visualization.

Third, for the experiment cohort in the RUI VR study, participation in this study was a lot more time-consuming than for the control cohort, potentially yielding a benefit to the latter. From reading the study information sheet at the beginning of the pre-questionnaire to answering the final question of the post-questionnaire, RUI VR subjects spent an average of 3627.21 s (SD = 789.38 s) or ∼60.45 min on the entire experience versus an average of 1811.67 s (SD = 840.1 s) or ∼30.19 min for control subjects. This resulted in an average difference of slightly over half an hour between these two cohorts. This is in stark contrast to Luddy VR, where experiment users needed 3624.82 s (SD = 717.5 s) or ∼60.41 min versus 2608.41 s (SD = 428.46 s) or ∼43.47 min for the control cohort (on average). This resulted in an average difference of just under 17 min, which is only ∼57% of the time difference between the cohorts in the RUI VR study. Also, subjects who went through the Reflective phase in the RUI VR study put on and then took off the HMD four different times, switching between HMD and the laptop with the instructions every time. In the future, the research design for similar interventions could be more streamlined.

Finally, while the telemetry data from the HMD and VR controllers allowed us to model a user’s behavior for our data analysis, it did not allow us to draw conclusions about what parts of the data visualization in the Reflective phase the user was actually focused on. More recent developments in eye-tracking inside the HMD and foveated rendering might lead to the availability of advanced telemetry data so that researchers can derive more detailed information about a user’s gaze than simplistic head orientation values.

Next Steps

In further studies, we aim to explore a variety of potential adjustments for the Reflective phase by testing more interaction types included in the Reflective phase. For example, rather than presenting users with premade visualizations with minimal possible adjustments, users could create their own visualizations based on available data records, add annotations, or compare their own data with someone else’s side by side via arranged and coordinated views. Also, the tasks for these studies are rather abstract and thus might resemble real-world VR training and coaching tasks only superficially. As a result, it could be interesting to design a real-world user study with professionals from an application domain (such as the medical or engineering fields).

Data Availability Statement

The VR telemetry and survey data generated for our paper is available via Zenodo (RUI VR control:; RUI VR experiment and Luddy VR: More information can be found in our GitHub repository for Supplementary Material at and in section 3 of the Supplementary Material (Data Availability).

Ethics Statement

The studies involving human participants were reviewed and approved by the Human Subjects Office (HSO) and Institutional Review Board (IRB), Indiana University, Bloomington, IN, United States. The IRB protocol numbers are 1910331127 (RUI VR) and 1911941428 (Luddy VR).

Author Contributions

AB served as lead author, developed the VR applications for both user studies, and performed the data analysis for the Luddy VR user study, for which he also constructed the research design. KB and AB compiled the study design for the RUI VR study. KB performed the data analysis for the RUI VR study. KBö and PS assisted in developing the research design for both studies. KBö provided substantial feedback on this manuscript throughout the process and oversaw AB’s work on this project as part of his dissertation.


This research was partially funded by the National Institutes of Health (NIH) under grant OT2OD026671, the National Institute of Diabetes and Digestive and Kidney Diseases (NIDDK) Kidney Precision Medicine Project grant U2CDK114886, and the Common Fund Data Ecosystem (CFDE) OT2 OD030545. This project has also been funded in part with Federal funds from the National Institute of Allergy and Infectious Diseases (NIAID), National Institutes of Health, Department of Health and Human Services under BCBB Support Services Contract HHSN316201300006W/HHSN27200002 to MSC, Inc. (for an acknowledged contributor who is not an author on this publication). The Stifterverband für die Deutsche Wissenschaft provided funding for Kilian Buehling’s research visit at Indiana University, Bloomington, via its INNcentive grant, which we gratefully acknowledge. The views and conclusions contained in this document are those of the authors and should not be interpreted as representing the official policies, either expressed or implied, of the NIH.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.


We would like to thank Philip Beesley from Philip Beesley Architect Inc. for allowing us to use his 3D model of Luddy Hall at Indiana University; JangDong “JD” Seo from the Indiana Statistical Consulting Center for his expert input on the power analysis to determine the number of subjects needed to achieve significant results in our studies; Robert L. Goldstone for providing input on the initial research design for the RUI VR study; and Leonard Cross for his expert input during the development of the three RUI setups. We further express our gratitude to Kristen Browne (Bioinformatics and Computational Biosciences Branch, Office of Cyber Infrastructure and Computational Biology, National Institute of Allergy and Infectious Diseases, National Institutes of Health) for creating the 3D model of the kidney used in this study; to Perla Brown for improving the figures; to Todd Theriault for proof-reading the manuscript; and to the eight CNS colleagues who served as pilot testers. These user studies were conducted under Indiana University IRB protocol numbers 1910331127 and 1911941428. A preprint of this paper can be found at A preprint of this paper can be found on arXiv (Bueckle et al., 2021b).

Supplementary Material

The Supplementary Material for this article can be found online at:


Amar, R., and Stasko, J. (2004). “BEST PAPER: A Knowledge Task-Based Framework for Design and Evaluation of Information Visualizations,” in IEEE Symposium on Information Visualization; 2004, Austin, TX (Washington, DC: IEEE), 143–149. doi:10.1109/INFVIS.2004.10

CrossRef Full Text | Google Scholar

Anderson, A., and Weng, Z. (1999). VRDD: Applying Virtual Reality Visualization to Protein Docking and Design. J. Mol. Graph Model. 17 (3-4), 180–217. doi:10.1016/S1093-3263(99)00029-7

CrossRef Full Text | Google Scholar

Ausburn, L. J., and Ausburn, F. B. (1978). Visual Literacy: Background, Theory and Practice. Programmed Learn. Educ. Tech. 15 (4), 291–297. doi:10.1080/0033039780150405

CrossRef Full Text | Google Scholar

Avgerinou, M. D. (2007). Towards a Visual Literacy index. J. Vis. Literacy 27 (1), 29–46. doi:10.1080/23796529.2007.11674644

CrossRef Full Text | Google Scholar

Bach, B., Dachselt, R., Carpendale, S., Dwyer, T., Collins, C., and Lee, B. (2016). “Immersive Analytics,” in ACM International Conference on Interactive Surfaces and Spaces, Niagara Falls, ON, Canada. New York City, NY: ACM, 529–533. doi:10.1145/2992154.2996365

CrossRef Full Text | Google Scholar

Batch, A., Cunningham, A., Cordeil, M., Elmqvist, N., Dwyer, T., Thomas, B. H., et al. (2020). There Is No Spoon: Evaluating Performance, Space Use, and Presence with Expert Domain Users in Immersive Analytics. IEEE Trans. Vis. Comput. Graphics 26 (1), 536–546. doi:10.1109/TVCG.2019.2934803

PubMed Abstract | CrossRef Full Text | Google Scholar

Börner, K. (2015). Atlas of Knowledge: Anyone Can Map. Cambridge, MA: MIT Press.

Google Scholar

Börner, K., Bueckle, A., and Ginda, M. (2019). Data Visualization Literacy: Definitions, Conceptual Frameworks, Exercises, and Assessments. Proc. Natl. Acad. Sci. USA 116 (6), 1857–1864. doi:10.1073/pnas.1807180116

CrossRef Full Text | Google Scholar

Börner, K., Maltese, A., Balliet, R. N., and Heimlich, J. (2016). Investigating Aspects of Data Visualization Literacy Using 20 Information Visualizations and 273 Science Museum Visitors. Inf. Visualization 15 (3), 198–213. doi:10.1177/1473871615594652

CrossRef Full Text | Google Scholar

Börner, K., and Polley, D. E. (2014). Visual Insights: A Practical Guide to Making Sense of Data. Cambridge, MA: MIT Press.

Google Scholar

Bowman, D. A., North, C., Chen, J., Polys, N. F., Pyla, P. S., and Yilmaz, U. (2003). “Information-rich Virtual Environments,” in Proceedings of the ACM Symposium on Virtual Reality Software and Technology, Osaka, Japan (New York City, NY: ACM), 81–90. doi:10.1145/1008653.1008669

CrossRef Full Text | Google Scholar

Boy, J., Rensink, R. A., Bertini, E., and Fekete, J.-D. (2014). A Principled Way of Assessing Visualization Literacy. IEEE Trans. Vis. Comput. Graphics 20 (12), 1963–1972. doi:10.1109/TVCG.2014.2346984

PubMed Abstract | CrossRef Full Text | Google Scholar

Brehmer, M., and Munzner, T. (2013). A Multi-Level Typology of Abstract Visualization Tasks. IEEE Trans. Vis. Comput. Graphics 19 (12), 2376–2385. doi:10.1109/TVCG.2013.124

CrossRef Full Text | Google Scholar

Bryson, S. (1996). Virtual Reality in Scientific Visualization. Commun. ACM 39 (5), 62–71. doi:10.1145/229459.229467

CrossRef Full Text | Google Scholar

Bueckle, A., Buehling, K., Shih, P. C., and Börner, K. (2021a). 3D Virtual Reality vs. 2D Desktop Registration User Interface Comparison. PLOS ONE 16 (10), e0258103. doi:10.1371/journal.pone.0258103

PubMed Abstract | CrossRef Full Text | Google Scholar

Bueckle, A., Buehling, K., Shih, P. C., and Börner, K. (2021b). Optimizing Performance and Satisfaction in Matching and Movement Tasks in Virtual Reality with Interventions Using the Data Visualization Literacy Framework. arXiv [Preprint]. Available at: (Accessed December 12, 2021).

Google Scholar

Chandler, T., Cordeil, M., Czauderna, T., Dwyer, T., Glowacki, J., Goncu, C., et al. (2015). “Immersive Analytics,” in Immersive analytics. 2015 Big Data Visual Analytics, Hobart (TAS, Australia: IEEE), 1–8. doi:10.1109/BDVA.2015.7314296

CrossRef Full Text | Google Scholar

Cleveland, W. S., and McGill, R. (1984). Graphical Perception: Theory, Experimentation, and Application to the Development of Graphical Methods. J. Am. Stat. Assoc. 79 (387), 531–554. doi:10.1080/01621459.1984.10478080

CrossRef Full Text | Google Scholar

Cordeil, M., Cunningham, A., Bach, B., Hurter, C., Thomas, B. H., Marriott, K., et al. (2019). “IATK: An Immersive Analytics Toolkit,” in IATK: An immersive analytics toolkit. 2019 IEEE Conference on Virtual Reality and 3D User Interfaces (VR), Osaka, Japan (Washington, DC: IEEE), 200–209. doi:10.1109/VR.2019.8797978

CrossRef Full Text | Google Scholar

Cordeil, M., Cunningham, A., Dwyer, T., Thomas, B. H., and Marriott, K. (2017a). “ImAxes,” in Proceedings of the 30th Annual ACM Symposium on User Interface Software and Technology (New York City, NY: ACM), 71–83. doi:10.1145/3126594.3126613

CrossRef Full Text | Google Scholar

Cordeil, M., Dwyer, T., Klein, K., Laha, B., Marriott, K., and Thomas, B. H. (2017b). Immersive Collaborative Analysis of Network Connectivity: CAVE-Style or Head-Mounted Display? IEEE Trans. Vis. Comput. Graphics 23 (1), 441–450. doi:10.1109/TVCG.2016.2599107

PubMed Abstract | CrossRef Full Text | Google Scholar

Cruz-Neira, C., Sandin, D. J., and DeFanti, T. A. (1993). “Surround-screen Projection-Based Virtual Reality: the Design and Implementation of the CAVE,” in Proceedings of the 20th Annual Conference on Computer Graphics and Interactive Techniques (New York, NY: USA), 135–142.

Google Scholar

Cyberinfrastructure for Network Science Center (2021). Exploration User Interface [Online]. Available: (Accessed December 15, 2021).

Google Scholar

DataCamp (2021a). Coeftest: Inference for Estimated Coefficients [Online]. Available: (Accessed December 15, 2021).

Google Scholar

DataCamp, (2021b). Lm: Fitting Linear Models [Online]. Available: (Accessed December 15, 2021).

Google Scholar

Djorgovski, S., Hut, P., Knop, R., Longo, G., McMillan, S., Vesperini, E., et al. (2013). The MICA experiment: Astrophysics in Virtual Worlds [Online]. Available: (Accessed December 15, 2021).

Google Scholar

Donalek, C., Djorgovski, S. G., Cioc, A., Wang, A., Zhang, J., Lawler, E., et al. (2014). “Immersive and Collaborative Data Visualization Using Virtual Reality Platforms,” in Immersive and collaborative data visualization using virtual reality platforms (Washington: IEEE International Conference on Big Data), DC609–614. doi:10.1109/BigData.2014.7004282

CrossRef Full Text | Google Scholar

Dwyer, T., Marriott, K., Isenberg, T., Klein, K., Riche, N., Schreiber, F., et al. (2018). “Immersive Analytics: An Introduction,” in Immersive Analytics. Editors K. Marriott, F. Schreiber, T. Dwyer, K. Klein, N. H. Riche, T. Itohet al. (Cham, Switzerland: Springer Nature), 1–23. doi:10.1007/978-3-030-01388-2_1

CrossRef Full Text | Google Scholar

Elmqvist, N., Moere, A. V., Jetter, H.-C., Cernea, D., Reiterer, H., and Jankun-Kelly, T. (2011). Fluid Interaction for Information Visualization. Inf. Visualization 10 (4), 327–340. doi:10.1177/1473871611413180

CrossRef Full Text | Google Scholar

Few, S. (2012). Show Me the Numbers: Designing Tables and Graphs to Enlighten. Oakland, CA: Analytics Press.

Google Scholar

Fransecky, R. B., and Debes, J. L. (1972). Visual Literacy: A Way to Learn-Aa Way to Teach. Washington DC: Association for Educational Communications and Technology.

Google Scholar

García-Hernández, R. J., Anthes, C., Wiedemann, M., and Kranzlmüller, D. (2016). in Perspectives for using virtual reality to extend visual data mining in information visualization IEEE Aerospace Conference, Big Sky (MT. Washington, DC: IEEE), 1–11. doi:10.1109/AERO.2016.7500608

CrossRef Full Text

Hattwig, D., Bussert, K., Medaille, A., and Burgess, J. (2013). Visual Literacy Standards in Higher Education: New Opportunities for Libraries and Student Learning. portal 13 (1), 61–89. doi:10.1353/pla.2013.0008

CrossRef Full Text | Google Scholar

Heer, J., and Bostock, M. (2010). “Crowdsourcing Graphical Perception,” in Proceedings of the SIGCHI Conference on Human Factors in Computing Systems, Atlanta, GA (New York City, NY: ACM), 203–212. doi:10.1145/1753326.1753357

CrossRef Full Text | Google Scholar

Heer, J., Bostock, M., and Ogievetsky, V. (2010). A Tour through the Visualization Zoo. Commun. ACM 53 (5), 59–67. doi:10.1145/1743546.1743567

CrossRef Full Text | Google Scholar

Hothorn, T., Zeileis, A., Farebrother, R. W., Cummins, C., Millo, G., and Mitchell, D. (2021). Lmtest: Testing Linear Regression Models [Online]. Available: (Accessed December 15, 2021).

Google Scholar

Huang, B., Jiang, B., and Li, H. (2001). An Integration of GIS, Virtual Reality and the Internet for Visualization, Analysis and Exploration of Spatial Data. Int. J. Geographical Inf. Sci. 15 (5), 439–456. doi:10.1080/13658810110046574

CrossRef Full Text | Google Scholar

Ibrahim, Z., and Money, A. G. (2019). Computer Mediated Reality Technologies: A Conceptual Framework and Survey of the State of the Art in Healthcare Intervention Systems. J. Biomed. Inform. 90, 103102. doi:10.1016/j.jbi.2019.103102

CrossRef Full Text | Google Scholar

Jacob, R. J. K., Girouard, A., Hirshfield, L. M., Horn, M. S., Shaer, O., Solovey, E. T., et al. (2008). “Reality-based Interaction,” in Proceedings of the SIGCHI Conference on Human Factors in Computing Systems, Florence, Italy (New York City, NY: ACM), 201–210. doi:10.1145/1357054.1357089

CrossRef Full Text | Google Scholar

Kaiser, P., Vasak, P., Suorineni, F., and Thibodeau, D. (2005). “New Dimensions in Seismic Data Interpretation with 3-D Virtual Reality Visualisation for Burst-Prone Mines,” in Proceedings of the Sixth International Symposium on Rockburst and Seismicity in Mines Proceedings, Perth, WA, Australia (Perth, WA, Australia: Australian Centre for Geomechanics), 33–45. doi:10.36487/ACG_repo/574_0.3

CrossRef Full Text | Google Scholar

Lee, S., Kim, S.-H., Hung, Y.-H., Lam, H., Kang, Y.-a., and Yi, J. S. (2016). How Do People Make Sense of Unfamiliar Visualizations? A Grounded Model of Novice's Information Visualization Sensemaking. IEEE Trans. Vis. Comput. Graphics 22 (1), 499–508. doi:10.1109/TVCG.2015.2467195

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, S., Kim, S.-H., and Kwon, B. C. (2017). VLAT: Development of a Visualization Literacy Assessment Test. IEEE Trans. Vis. Comput. Graphics 23 (1), 551–560. doi:10.1109/TVCG.2016.2598920

PubMed Abstract | CrossRef Full Text | Google Scholar

Mann, H. B., and Whitney, D. R. (1947). On a Test of whether One of Two Random Variables Is Stochastically Larger Than the Other. Ann. Math. Statist. 18 (1), 50–60. doi:10.1214/aoms/1177730491

CrossRef Full Text | Google Scholar

Marriott, K., Schreiber, F., Dwyer, T., Klein, K., Riche, N. H., Itoh, T., et al. (2018). Immersive Analytics. Cham, Switzerland: Springer Nature.

Google Scholar

McKight, P. E., and Najab, J. (2010). “Kruskal‐Wallis Test,” in The Corsini Encyclopedia of Psychology (Hoboken, NJ, USA: John Wiley & Sons).

Google Scholar

Mendes, D., Sousa, M., Lorena, R., Ferreira, A., and Jorge, J. (2017). “Using Custom Transformation Axes for Mid-air Manipulation of 3D Virtual Objects,” in Proceedings of the 23rd ACM Symposium on Virtual Reality Software and Technology, Gothenburg, Sweden (New York City, NY, USA: ACM), 1–8. doi:10.1145/3139131.3139157

CrossRef Full Text | Google Scholar

Milgram, P., and Kishino, F. (1994). A Taxonomy of Mixed Reality Visual Displays. IEICE Trans. Inf. Syst. 77 (12), 1321–1329.

Google Scholar

Millais, P., Jones, S. L., and Kelly, R. (2018). “Exploring Data in Virtual Reality,” in Extended Abstracts of the 2018 CHI Conference on Human Factors in Computing Systems; Montréal, Québec, Canada, New York City (NY: ACM)–006. doi:10.1145/3170427.3188537LBW007

CrossRef Full Text | Google Scholar

Munzner, T. (2014). Visualization Analysis and Design. Boca Raton, FL: CRC Press.

Google Scholar

OECD (2013a). PISA 2015 Draft Mathematics Framework. Paris, France: OECD Publishing.

Google Scholar

OECD (2013b). PISA 2015 Draft reading Literacy Framework. Paris, France: OECD Publishing.

Google Scholar

R Core Team (2021). R: A Language and Environment for Statistical Computing [Online]. Vienna, Austria: R Foundation for Statistical Computing. Available: (Accessed December 15, 2021).

Google Scholar

Raja, D., Bowman, D., Lucas, J., and North, C. (2004). “Exploring the Benefits of Immersion in Abstract Information Visualization,” in Proc. Immersive Projection Technology Workshop, 61–69.

Google Scholar

Reyna, V. F., Nelson, W. L., Han, P. K., and Dieckmann, N. F. (2009). How Numeracy Influences Risk Comprehension and Medical Decision Making. Psychol. Bull. 135 (6), 943–973. doi:10.1037/a0017327

PubMed Abstract | CrossRef Full Text | Google Scholar

Rosenbaum, R., Bottleson, J., Liu, Z., and Hamann, B. (2011). “Involve Me and I Will Understand!-Abstract Data Visualization in Immersive Environments,” in Advances in Visual Computing. ISVC 2011. Lecture Notes in Computer Science. Editor B. G. e. al. (Berlin, Heidelberg: Springer), 530–540. doi:10.1007/978-3-642-24028-7_49

CrossRef Full Text | Google Scholar

Roth, R. E. (2013). An Empirically-Derived Taxonomy of Interaction Primitives for Interactive Cartography and Geovisualization. IEEE Trans. Vis. Comput. Graphics 19 (12), 2356–2365. doi:10.1109/TVCG.2013.130

CrossRef Full Text | Google Scholar

Simpson, M., Wallgrün, J. O., Klippel, A., Yang, L., Garner, G., Keller, K., et al. (2016). “Immersive Analytics for Multi-Objective Dynamic Integrated Climate-Economy (DICE) Models,” in Proceedings of the 2016 ACM Companion on Interactive Surfaces and Spaces, Niagara Falls (ON, CanadaNew York City, NY: ACM), 99–105. doi:10.1145/3009939.3009955

CrossRef Full Text | Google Scholar

Skarbez, R., Smith, M., and Whitton, M. C. (2021). Revisiting Milgram and Kishino's Reality-Virtuality Continuum. Front. Virtual Real. 2 (27). doi:10.3389/frvir.2021.647997

CrossRef Full Text | Google Scholar

Slater, M., Steed, A., and Usoh, M. (1995a). “The Virtual Treadmill: A Naturalistic Metaphor for Navigation in Immersive Virtual Environments,” in Virtual Environments ’95. Eurographics. Editor M. Göbel (Vienna: Springer), 135–148.

CrossRef Full Text | Google Scholar

Slater, M., Usoh, M., and Steed, A. (1995b). Taking Steps. ACM Trans. Comput.-Hum. Interact. 2 (3), 201–219. doi:10.1145/210079.210084

CrossRef Full Text | Google Scholar

Smets, G., Overbeeke, C. J., and Stappers, P. J. (1993). “Designing in Virtual Reality,” in INTERACT'93 and CHI'93 Conference Companion on Human Factors in Computing Systems, Amsterdam, Netherlands (New York City, NY: ACM), 11–12. doi:10.1145/259964.259975

CrossRef Full Text | Google Scholar

Snyder, M. P., Lin, S., Posgai, A., Atkinson, M., Regev, A., Rood, J., et al. (2019). The Human Body at Cellular Resolution: the NIH Human Biomolecular Atlas Program. Nature 574 (7777), 187–192. doi:10.1038/s41586-019-1629-x

PubMed Abstract | CrossRef Full Text | Google Scholar

TechSmith (2020). Camtasia 2020 [Online]. Available: (Accessed December 15, 2021).

Google Scholar

Usoh, M., Arthur, K., Whitton, M. C., Bastos, R., Steed, A., Slater, M., et al. (1999). “Walking > Walking-In-Place > Flying, in Virtual Environments,” in Proceedings of the 26th Annual Conference on Computer Graphics and Interactive Techniques (New York City, NY: ACM), 359–364. doi:10.1145/311535.311589

CrossRef Full Text | Google Scholar

Valve Corporation (2021). SteamVR [Online]. Available: (Accessed December 15, 2021).

Google Scholar

Yi, J. S., Kang, Y. a., Stasko, J., and Jacko, J. A. (2007). Toward a Deeper Understanding of the Role of Interaction in Information Visualization. IEEE Trans. Vis. Comput. Graphics 13 (6), 1224–1231. doi:10.1109/TVCG.2007.70515

CrossRef Full Text | Google Scholar

Keywords: virtual reality, data visualization, user study, human-computer interaction, performance improvement, interaction technique, navigation, information visualization

Citation: Bueckle A, Buehling K, Shih PC and Börner K (2022) Optimizing Performance and Satisfaction in Matching and Movement Tasks in Virtual Reality with Interventions Using the Data Visualization Literacy Framework. Front. Virtual Real. 2:727344. doi: 10.3389/frvir.2021.727344

Received: 18 June 2021; Accepted: 07 December 2021;
Published: 21 January 2022.

Edited by:

Catherine Sotirakou, University of Vienna, Austria

Reviewed by:

Joseph Snider, University of California, San Diego, United States
Spyros Vosinakis, University of the Aegean, Greece

Copyright © 2022 Bueckle, Buehling, Shih and Börner. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Andreas Bueckle,

ORCIID: Andreas Bueckle,; Kilian Buehling,; Patrick C. Shih,; Katy Börner,
